Versa Pro
®
&
Hyper Heat
Heat Kit
Installation &
Owner’s Manual
MODELS:
Read this manual carefully before installation and keep it where
the operator can easily nd it for future reference.
Due to updates and constantly improving performance, the
information and instructions within this manual are subject to
change without notice.
Version Date: February 13, 2026
Please visit www.mrcool.com/documentation
to ensure you have the latest version of this manual.
MVPHK**
This product utilizes R-454B refrigerant
mrcool.com1
CONTENTS
SAFETY ..............................................................................................................................................1
INSTALLATION .................................................................................................................................2
ELECTRICAL SPECIFICATIONS .........................................................................................................4
1
2
3
Incorrect usage may cause serious damage or injury.
The symbols below are used throughout this manual to indicate instructions that should be followed closely
or actions that should be avoided to prevent death, injury, and/or property damage.
Safety Precautions
CAUTION
Indicates a medium level of risk which, if not avoided, may
result in death or serious injury.
Indicates a low degree of risk which, if not avoided, may
result in minor or moderate injury.
Indicates important information but not danger.
Read Before Using
WARNING
NOTICE
ELECTRICAL WARNINGS
1. The product must be properly grounded during installation or electrical shock could occur.
2. For all electrical work,follow all local and national wiring standards, regulations, and the installation
manual. Connect cables tightly and clamp them securely to prevent external forces from damaging the
terminal. Improper electrical connections could overheat, causing re and/or electrical shock.
3. All electrical connections must be made according to the Electrical Connection Diagram located on the
panels of the indoor and outdoor units.
4. If connecting power to xed wiring, an all-pole disconnection device must be incorporated in the xed
wiring in accordance with the wiring rules and must meet the following requirements: at least 3 mm of
clearances in all poles, a leakage current that may exceed 10 mA, and a residual current device (RCD)
having a rated residual operating current not exceeding 30 mA.
5. All wiring must be properly arranged to ensure that the control board cover can close properly. If the
control board cover is not properly closed, it can lead to corrosion and cause the connection points on the
terminal to heat up, catch re, or cause electrical shock.
WARNING
1. Turn o the device and disconnect the power before performing any installation, cleaning, or repairs.
Failure to do this could result in electrical shock.
2. This appliance is not intended for use by persons (including children) with reduced physical, sensory,
or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety. Children should be
supervised to ensure that they do not play with the appliance.
SAFETY
1
mrcool.com 2 2
INSTALLATION
2
WARNINGS FOR PRODUCT INSTALLATION
INSTALLATION MUST BE PERFORMED BY AN AUTHORIZED DEALER OR SPECIALIST. DEFECTIVE
INSTALLATION CAN CAUSE WATER LEAKAGE, ELECTRICAL SHOCK, OR FIRE.
****ELECTRICAL WORK MUST BE COMPLETED BY A QUALIFIED ELECTRICAL TECHNICIAN****
DO NOT install the unit in a location that may be exposed to combustible gas leaks. If
combustiblegasaccumulatesaroundtheunit,itcouldcausere.
DO NOT turn on the power until the installation and all work has been completed.
DO NOT install a unit equipped with an auxiliary electric heater within 3 ft (1 m) of any
combustible materials.
1. Installation must be performed according to the installation instructions. Improper installation could cause
water leakage, electrical shock, re, and could void the warranty. Contact an authorized service technician
for repair or maintenance of this unit. This appliance must be installed in accordance with national wiring
regulations.
2. Only use the included accessories, parts, and specied parts for installation. Using non-standard parts can
cause water leakage, electrical shock, re, and/or failure of the unit.
3. When moving or relocating the air conditioner, consult experienced service technicians for disconnection
and re-installation of the unit.
Model Size Selection
For installations requiring supplemental heating, the optional Electric Auxiliary Heat Module is available in sizes
from 5kW to 25kW to accommodate appropriate sizing given the specic heat load and electrical requirements
of each installation. Refer to the table below for selection of available sizes of each model, being sure to avoid
improper matching.
Accessories
Name Quantity
Manual 1
Foam Gasket 2
Screws 7
Silicone Breaker Cover 1
Electric Auxiliary Heating Wiring Diagram 1
Circuit Breaker Label 1
Only use compatible modules certied for use with the model. Refer to the Electric Auxiliary Heat Model specication for
additional details to ensure proper selection and installation.
Model (Btu/h) MVPHK05 MVPHK08 MVPHK10 MVPHK15 MVPHK20
DIY-24-HP-MUAH-230D00-O Y Y Y Y -
DIY-36-HP-MUAH-230D00-O Y Y Y Y Y
MVP-18-HP-MUAH-230-25 Y Y Y - -
MVP-24-HP-MUAH-230-25 Y Y Y Y -
MVP-30-HP-MUAH-230-25 Y Y Y Y -
MVP-36-HP-MUAH-230-00 Y Y Y Y Y
MVP-48-HP-MUAH-230-00 - Y Y Y Y
MVP-60-HP-MUAH-230-00 - - Y Y Y
CENTRAL-24-HP-MUAH230A00 Y Y Y Y -
CENTRAL-36-HP-MUAH230A00 Y Y Y Y Y
CENTRAL-48-HP-MUAH230A00 - Y Y Y Y
CENTRAL-60-HP-MUAH230A00 - - Y Y Y
mrcool.com3
Step 4:
Dismantle the electric axillary heater cover.
Step 3:
Remove the wiring terminal block and grounding
wires from the cover. Do not dismantle the
connection at the other end of these wires.
Step 5:
Install the electric auxiliary heater assembly in the
front and note that the support assembly must lock
into the support holes in the back of the cabinet.
INSTALLATION
2
Installation Preparation
Before installation, conrm the electric auxiliary heat
module and supplied accessories are present and
free of damage. Do not attempt to install if damage is
present.

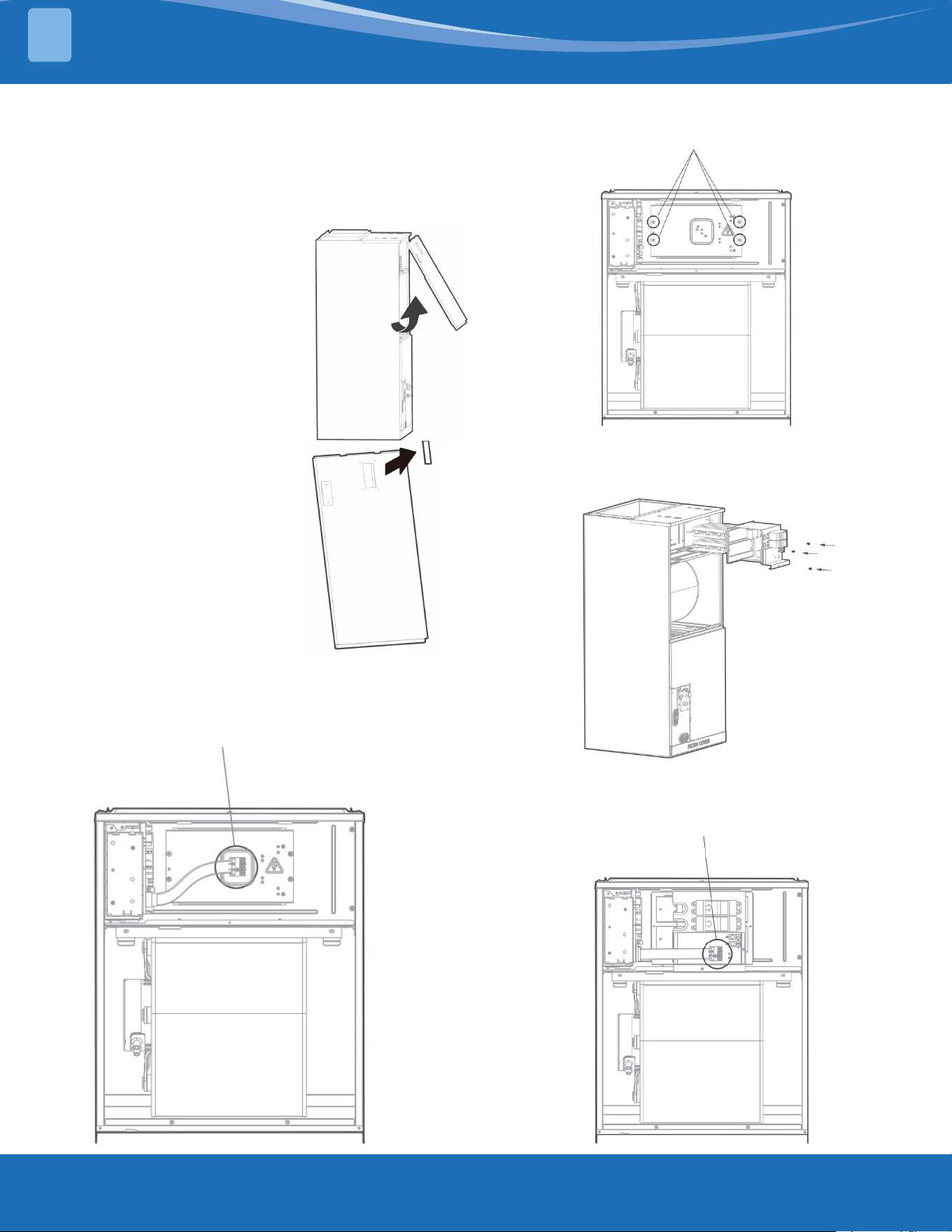

Electric Auxiliary Heat Module Installation and
Wiring Operation
Step 1:
Open the upper cover.
Step 2:
Use tools to remove the knock-
out holes of the upper cover.
Step 6:
Fix the wiring terminal block and grounding wires
that were taken o the terminal block to the
corresponding positions on the electric auxiliary
heater cover.
mrcool.com 4

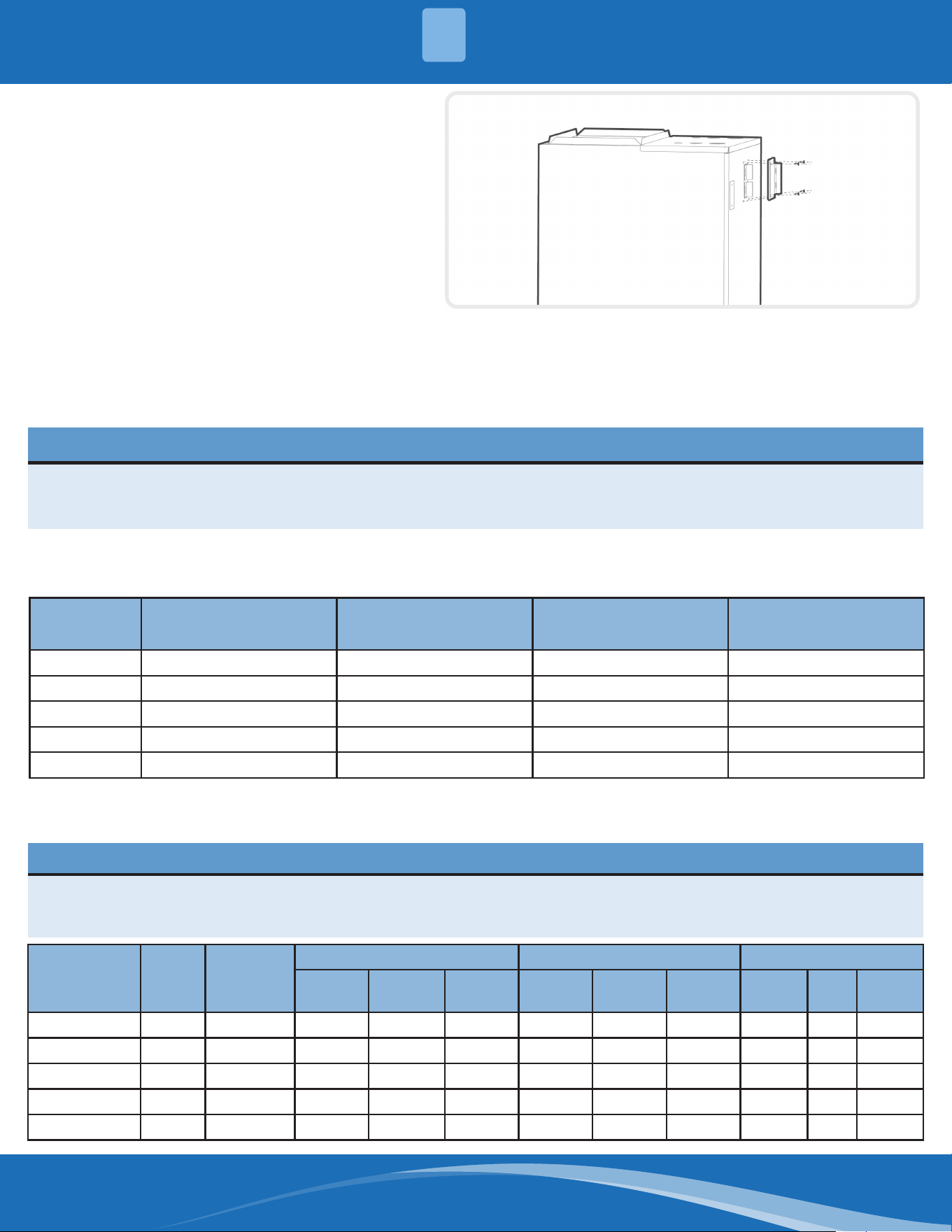

Step 7:
Wire according to the wiring nameplate. Apply
the wiring diagram to the inside cover for future
reference and maintenance.
Step 8:
Install the upper cover and the silicone breaker
cover.
Step 9:
After installing the electric auxiliary heat module,
apply the circuit breaker label near the silicone
breaker cover previously installed.
NOTICE
• The electric auxiliary heating wiring diagram is packed with the accessories.
• If the branch circuit wire length exceeds 100ft, consult NEC 210-19a to determine maximum wire length.
• Use 2% voltage drop.
Aftertheelectricheatingwiringisconnected,pleaseconrmthefollowingbeforepoweringon:
• Check and ensure a secure connection of all wiring.
• Ensure that wire size is properly selected per NEC or local codes.
Model
Number of Circuit
Breakers
Number of Relays
Number of Power Cord
Groups
Number of Power Cord
Grounding Screws
5kW 1 1 2 2
8kW 1 2 2 2
10kW 1 2 2 2
15kW 2 3 3 3
20kW 2 4 3 3
Use copper wire only to connect unit. If other than uncoated (non-plated) 75°C copper wire (solid wire
for 10 AWG and smaller, stranded wire for larger than 10 AWG) is used, consult applicable tables of the
National Electric Code (ANSI/NFPA 70).
NOTICE
The specication may be dierent between dierent models. Refer to the indoor unit’s nameplate. Choose the
cable type according to the local electrical codes and regulations. Choose the correct cable size according to
the Minimum Circuit Ampacity indicated on the nameplate of the unit.
Heater
Model
Heater
kW
Internal
Circuit
Protection
Circuit 1 208/230V Circuit 2 Circuit 2
Heater
Amps
MCA (1) MOP (2)
Heater
Amps
MCA (1) MOP (2)
Heater
Amps
MCA
(1)
MOP
(2)
MVPHK05 5 Ckt Bkr 18.0/20.0 23.0/27.0 25.0/30.0 / / / / / /
MVPHK08 8 Ckt Bkr 28.8/32.0 37.0/42.0 40.0/45.0 / / / / / /
MVPHK10 10 Ckt Bkr 36.0/40.0 46.0/53.0 50.0/60.0 / / / / /
MVPHK15 15 Ckt Bkr 18.0/20.0 23.0/27.0 25.0/30.0 36.0/40.0 46.0/53.0 50.0/60.0 / / /
MVPHK20 20 Ckt Bkr 36.0/40.0 46.0/53.0 50.0/60.0 36.0/40.0 46.0/53.0 50.0/60.0 / / /
ELECTRICAL SPECIFICATIONS
3
mrcool.com5

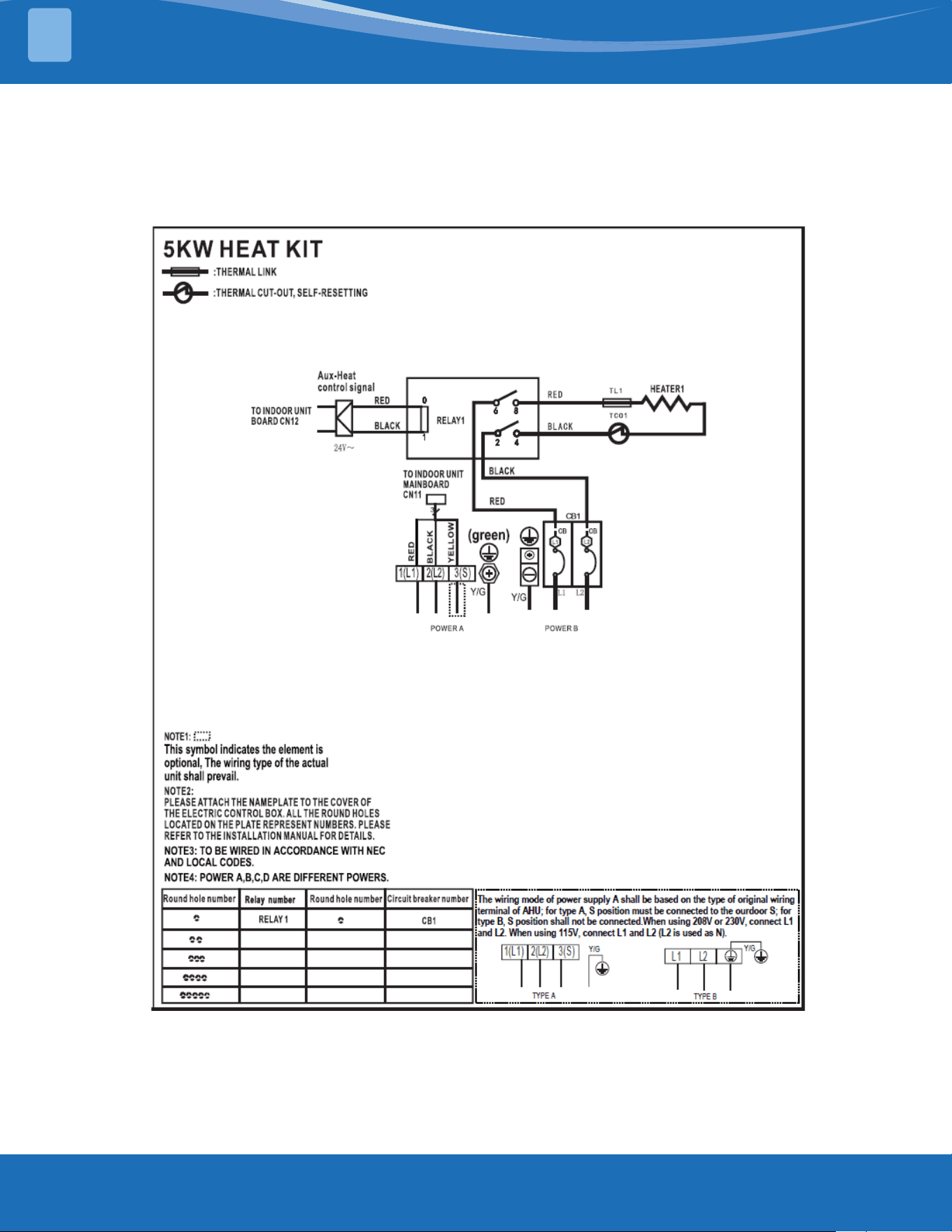

ELECTRICAL SPECIFICATIONS
3
mrcool.com 6

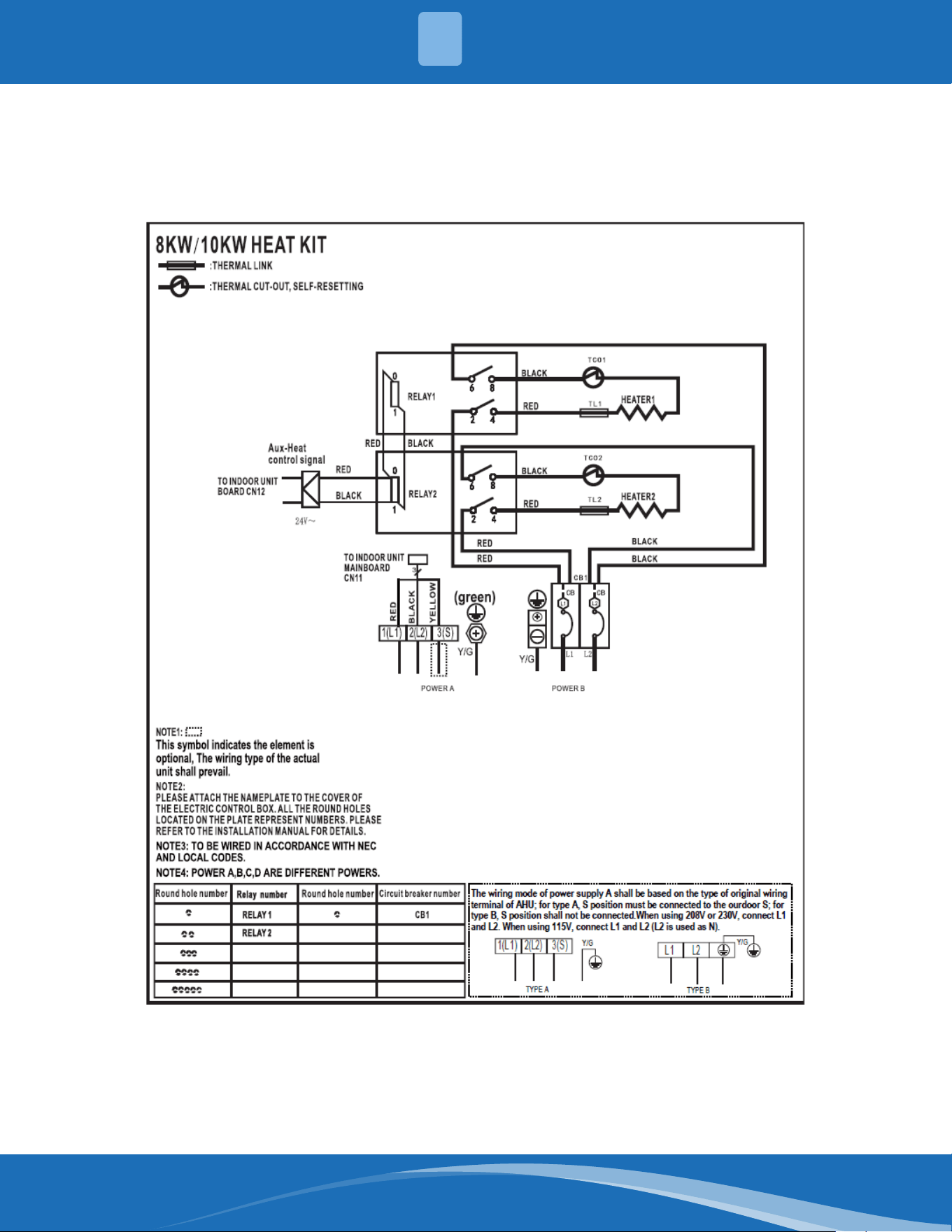

ELECTRICAL SPECIFICATIONS
3
mrcool.com7

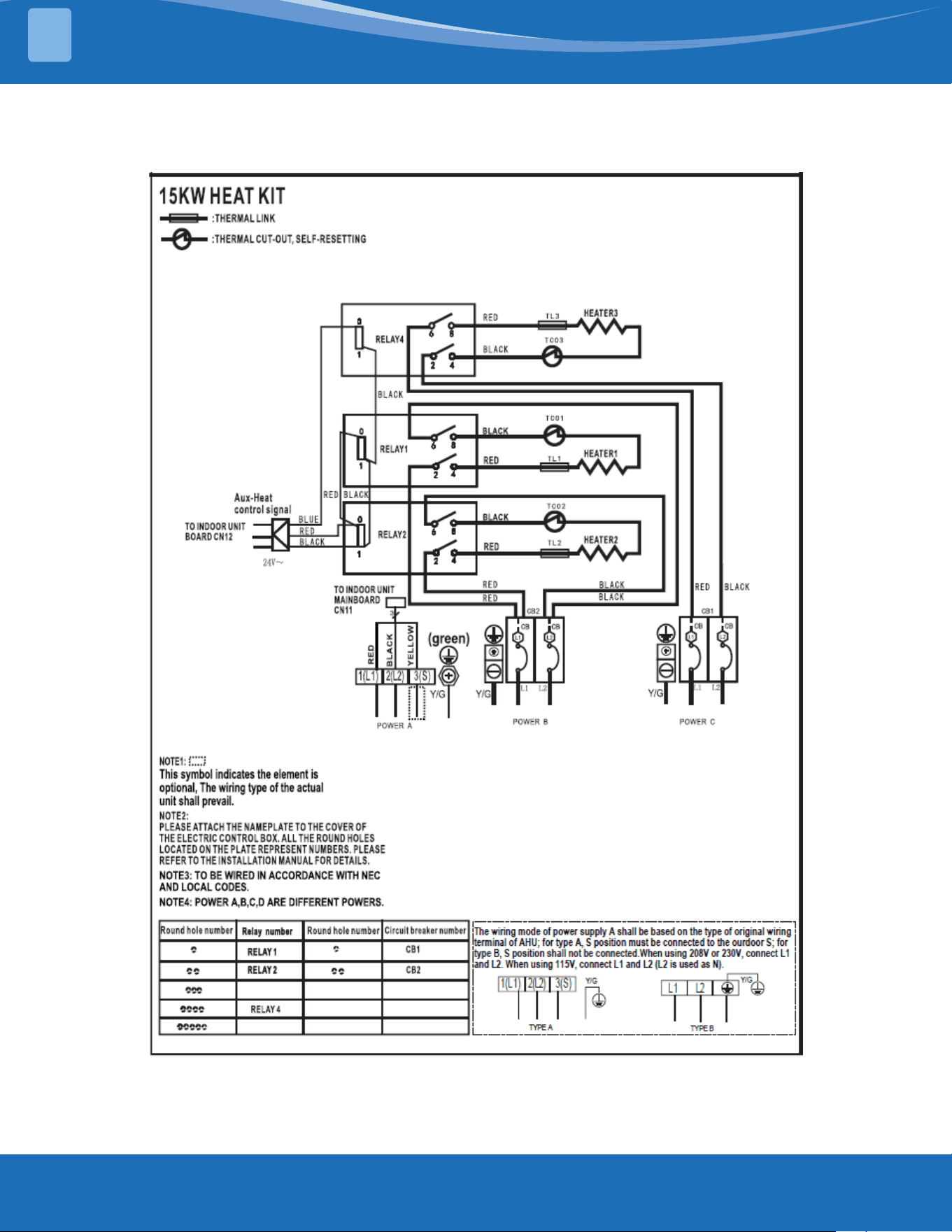

ELECTRICAL SPECIFICATIONS
3
mrcool.com 8

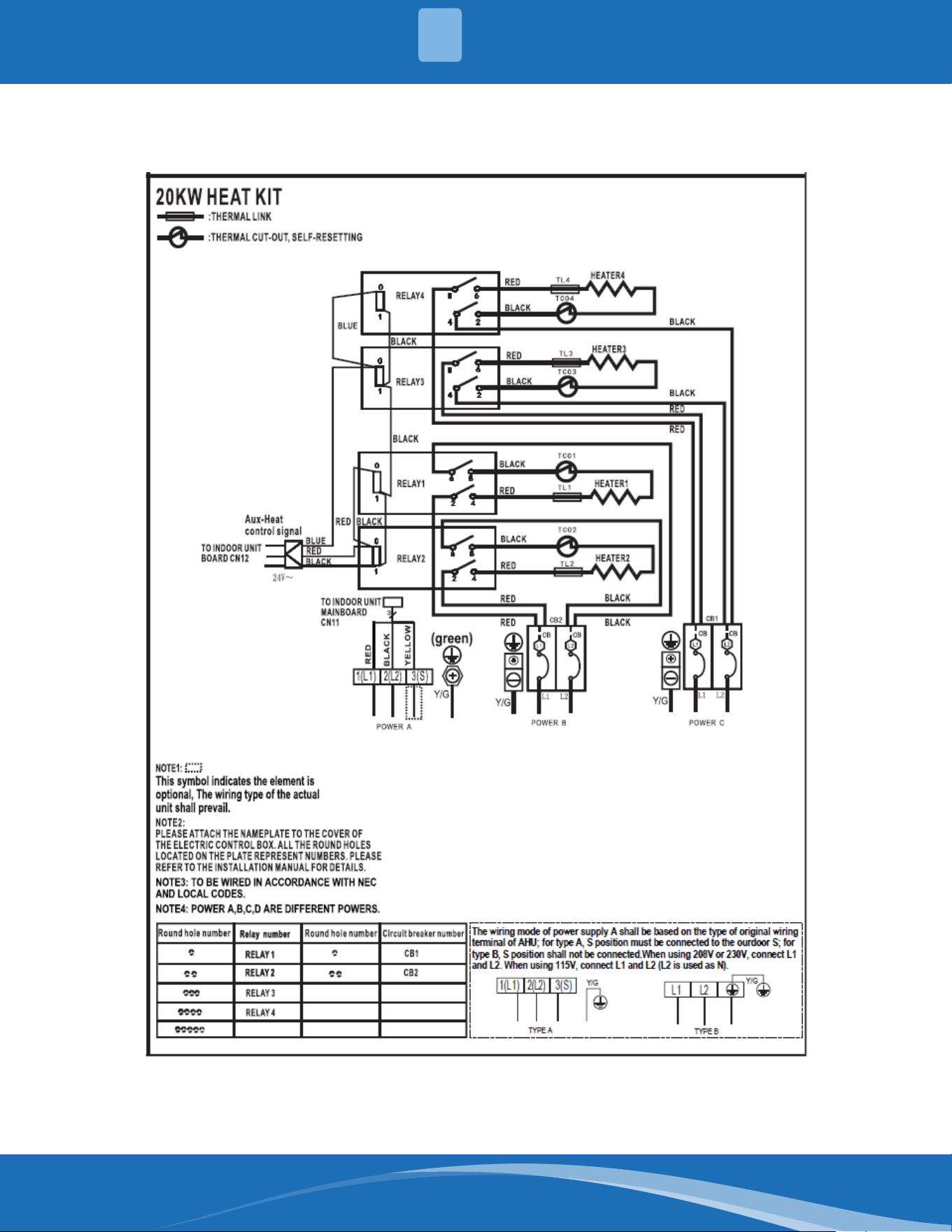

ELECTRICAL SPECIFICATIONS
3
Versa Pro
®
&
Hyper Heat
Heat Kit
The design and specications of this product and/or manual are subject to change without prior notice.
Consult with the sales agency or manufacturer for details.
