Adjustable Ground Stand
Instruction Manual

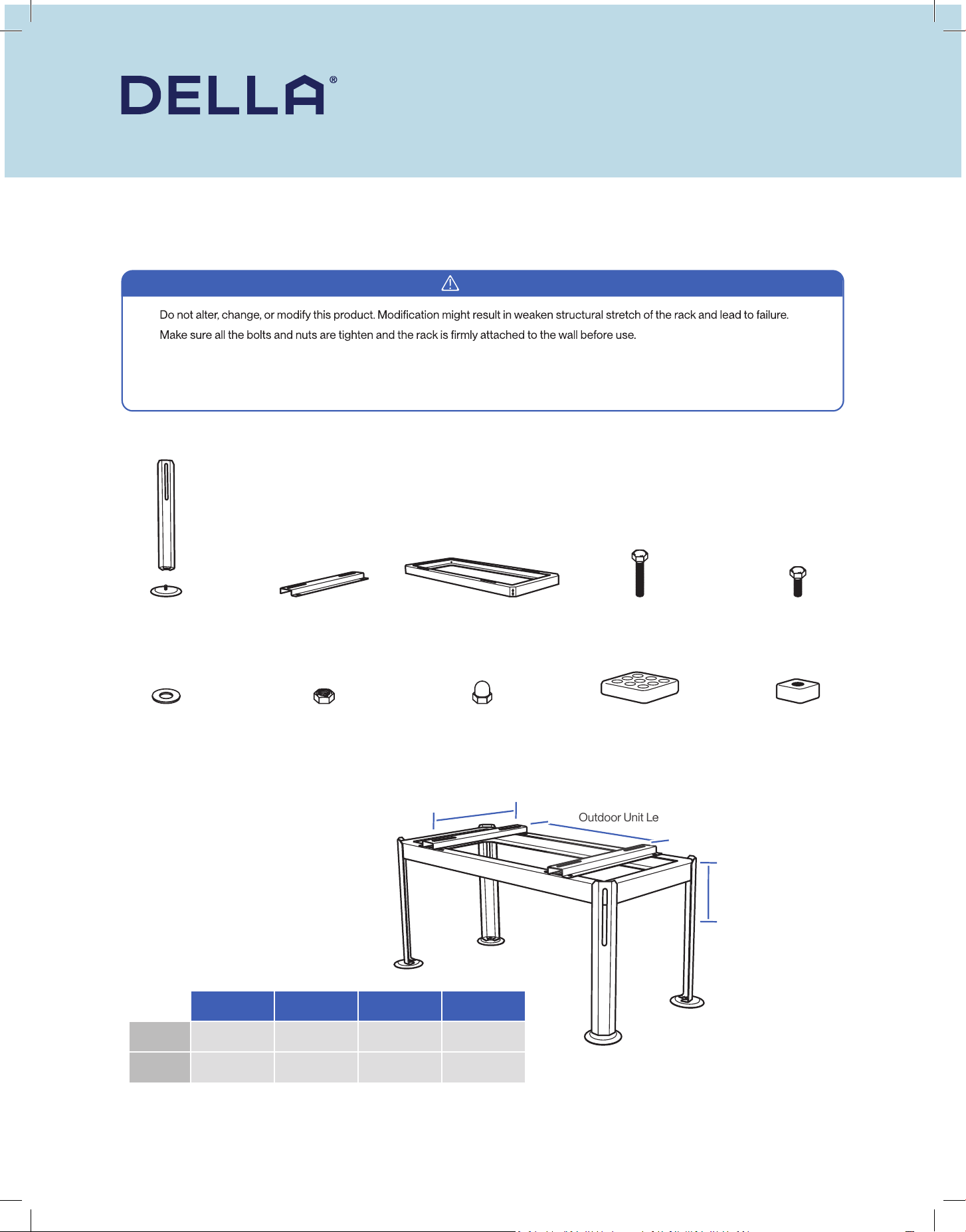

Warning
•
•
• Be caution of sharp edges of the rack.
• This rack is only designed to be used for mounting mini split AC outdoor unit. Do not use it for other purposes.
• Do not climb on the rack.
Warning and Safety
Installation Preview
Package Content
• Read this guide before installation. Failure to follow the safety instructions may result in property damage or serious injury.
• Please Keep this manual.
Outdoor Unit Leg Length (L)
Adjustable Height (H)
Outdoor Unit Leg Width (W)
v.20250312048-S-1 / 048-S-2
Leg
4x
Washer
20x
Horizontal Frame
2x
M8 Nut
8x
M8 Nut Cap Dampening Pad
8x 4x
M8 x 16 Bolt
Mounting Nut
4x
4x
Main Frame M8 x 30 Bolt
1x 4x
L W H Weight Capacity
048-S-1
8.66” - 29.13”
220mm - 740mm
7.08” - 13.77”
180mm - 350mm
8.4” - 16.4”
215mm - 415mm
396.8 lb / 180 kg
048-S-2
12.99” - 32.67”
330mm - 830mm
13.38” - 19.29”
340mm - 490mm
8.4” - 16.4”
215mm - 415mm
440.9 lb / 200kg
Tools Needed (Not included)
Measuring TapeHex Nut Driver / Wrench

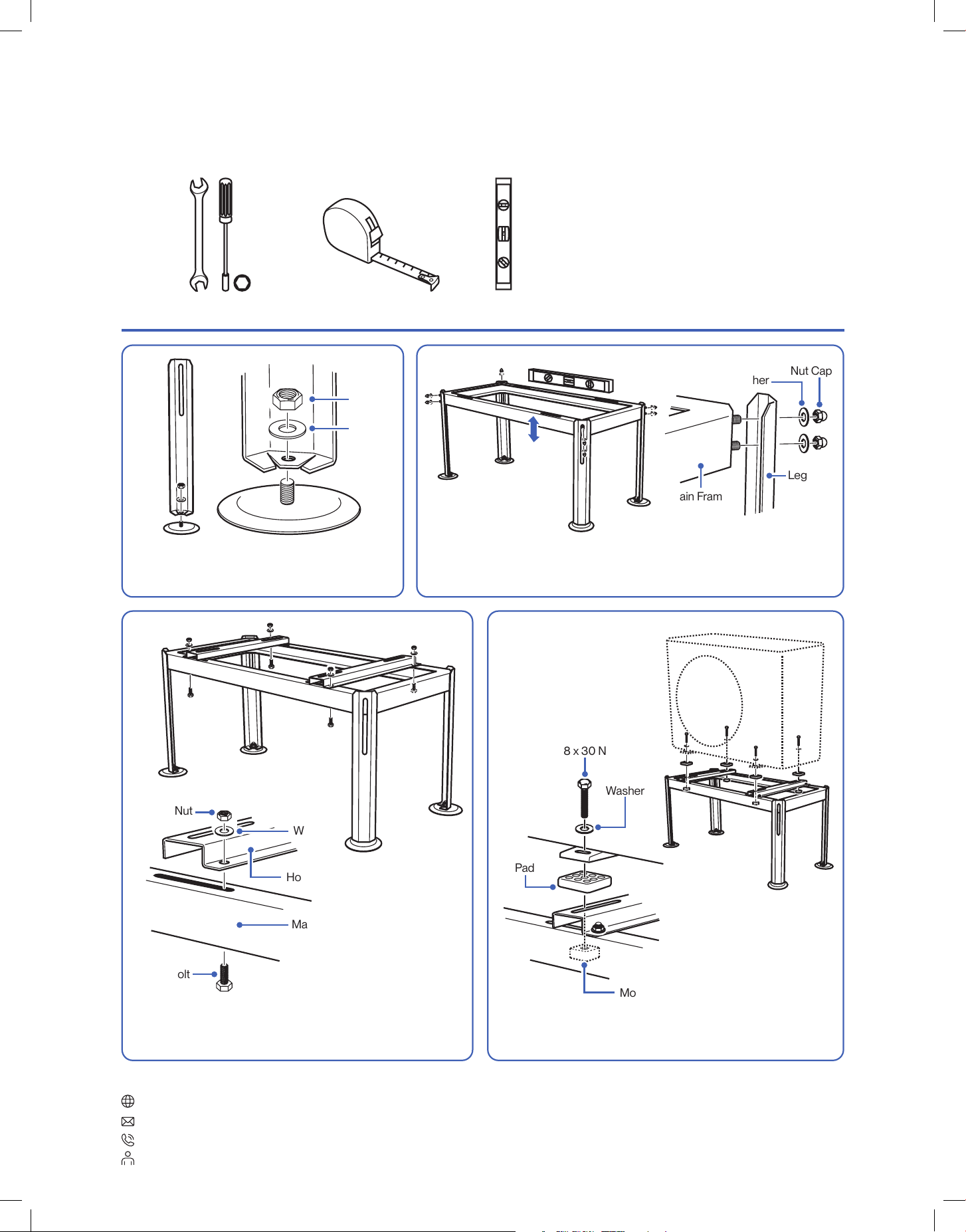

• Assemble the legs
• Assemble the legs to the main frame. Adjust the height of the stand to
your liking and make sure the stand is leveled.
• Attach the horizontal frames onto the main frame. • Mount the mini split outdoor unit on to the rack.
Installation Instruction
© Della All rights reserved.
The design and specications are subject to change without prior
notice for product improvement. Any updates to the manual will be
uploaded to the della website.
www.dellahome.com
support@dellahome.com
800–863–4143
6:00 a.m. – 4:00 p.m. PST Monday – Friday
