Upon registering your product
at morphyrichards.co.uk
3 Year
Guarantee
*
Please read and keep these instructions for future use
User Manual
11-IN-1
Ice Cream & Frozen
Dessert Maker
Model No.
431000
FP431000MUK Rev1.indd 1FP431000MUK Rev1.indd 1 04/02/2026 14:5104/02/2026 14:51
2
HEALTH AND SAFETY
The use of any electrical appliance requires
the following common sense safety rules.
Ple
ase read these instructions carefully
before using the product.
•
This appliance can be used by children
aged from 8 years and above and
persons with reduced physical, sensory or
mental capabilities, or lack of experience
and knowledge, if they have been given
supervision or instruction concerning the
use of the appliance in a safe way and
understand the hazards involved.
• Children shall not play with the appliance.
• Cleaning and user maintenance shall not
be made by children unless they are older
than 8 and supervised.
• Keep the appliance and its cord out of
reach of children less than 8 years.
• Avoid touching moving parts. Keep hands,
hair and clothing, and utensils away from
the blades during operation, to prevent
FP431000MUK Rev1.indd 2FP431000MUK Rev1.indd 2 04/02/2026 14:5104/02/2026 14:51
3
HEALTH AND SAFETY
personal injury and/or damage to the
appliance.
• If the supply cable is damaged, contact
Morphy Richards for advice.
• This appliance is intended for household
use only. It is not suitable for use in sta
kitchen areas, in shops, oces and other
commercial environments.
• The appliance is not intended to be
operated on an extension cable or by
means of an external timer or separate
remote control.
FP431000MUK Rev1.indd 3FP431000MUK Rev1.indd 3 04/02/2026 14:5104/02/2026 14:51
4
HEALTH AND SAFETY
LOCATION
• Do not use outdoors or near
water.
• Always locate your appliance
away from the edge of the
worktop or table.
• Ensure that the appliance is
used on a rm, flat, level surface.
MAINS CABLE
• The mains cable should
reach from the socket to the
appliance without straining the
connections.
• Do not let the mains cable hang
over the edge of the worktop or
open space where a child could
reach it.
• Do not let the cable run across a
cooker or hot area which might
damage the cable.
• Never leave the appliance
connected to the socket outlet
when not in use.
PERSONAL SAFETY
• To protect against the risk of
electrical shock do not put the
appliance in water or in any
other liquid.
• Do not use the appliance for
other than intended use.
OTHER SAFETY CONSIDERATIONS
• Do not switch on the appliance
when it is upside down or laid on
its side.
• Do not operate with a damaged
cable or after the appliance
malfunctions or has been
damaged in any manner.
Contact Morphy Richards for
advice.
• The use of attachments or tools
not recommended by Morphy
Richards may cause re, electric
shock or injury.
• Do not place on or near a hot
gas or electric burner.
• Do not attempt to disassemble,
repair, modify, or replace any
part of the product.
• Do not leave the appliance
unattended while in use.
FP431000MUK Rev1.indd 4FP431000MUK Rev1.indd 4 04/02/2026 14:5104/02/2026 14:51
5
ELECTRICAL DETAILS
Check that the voltage on the rating plate of your appliance
corresponds with your house electricity supply which must be A.C.
(Alternating Current). Should the fuse in the mains plug require
changing, replace it with a fuse of the same rating.
The power consumption in o mode is 0.28W
FP431000MUK Rev1.indd 5FP431000MUK Rev1.indd 5 04/02/2026 14:5104/02/2026 14:51
6
PRODUCT OVERVIEW
1
10
9
21
24
22
23
28
252627
15 1716 1918 20
2
3
4
6
7
5
8
12
13
14
11
FP431000MUK Rev1.indd 6FP431000MUK Rev1.indd 6 04/02/2026 14:5104/02/2026 14:51
7
Features
1. Main Unit
2. Control Panel
3. Shaft Connector Button
4. Lid Assembly
5. Blending Blade Assembly
6. Dessert Container
7. Silicone Lid
8. Base Button and Locking Components
9. Lid Lock
10. Rise/Lower Shaft
11. Ice Cream Scoop
Control Panel / Display
12. Lift/Storage Button
13. Italian Ice Cream Button
14. Gelato Button
15. Lite Ice Cream Button
16. Slushi Button
17. Ice Cream Button
18. Frappuccino Button
19. Sorbet Button
20. Frozen Drinks Button
21. Frozen Yoghurt Button
22. Milk Shake Button
23. Top of Container Churn Button
24. Progress Bar
25. Full Container Churn Button
26. Start/Stop Button
27. Power On/O Button
28. Re-Spin/ Mix-In Button
PRODUCT OVERVIEW
FP431000MUK Rev1.indd 7FP431000MUK Rev1.indd 7 04/02/2026 14:5104/02/2026 14:51
8
Note: When you receive your Ice Cream Maker, the Rise/Lower shaft is
in its lowest position for compact packaging and safe transport.
Note: The blending blade assembly has sharp edges, handle it with care
and store it out of reach of children.
1. Plug into the mains outlet and press the Lift/Storage button to raise
the Rise/Lower shaft to its highest position.
2. Remove the Dessert Container and Blending Blade Assembly stored
on the appliance and wash in warm soapy water. Dry thoroughly
before use.
3. Prepare the ingredients for your desired recipe and add them to the
Dessert Container. The Dessert Container should be stored in the
freezer for approximately 24 hours.
Note: If the lid lock is on the left side of the handle, the lid cannot be
locked (Figure 7). Position the lid lock on the right side of the handle.
(Figure 8).
Ensure that the appliance is used on a rm, flat, level surface.
The Ice Cream Maker should not be placed close to heat sources such
as ovens and heaters.
BEFORE FIRST USE
LOCATION
FP431000MUK Rev1.indd 8FP431000MUK Rev1.indd 8 04/02/2026 14:5104/02/2026 14:51
9
BLENDING SHAFT AND BLADE ASSEMBLY INSTALLATION
IMPORTANT: Always unplug from the mains outlet when installing or
removing the Blending Blade Assembly.

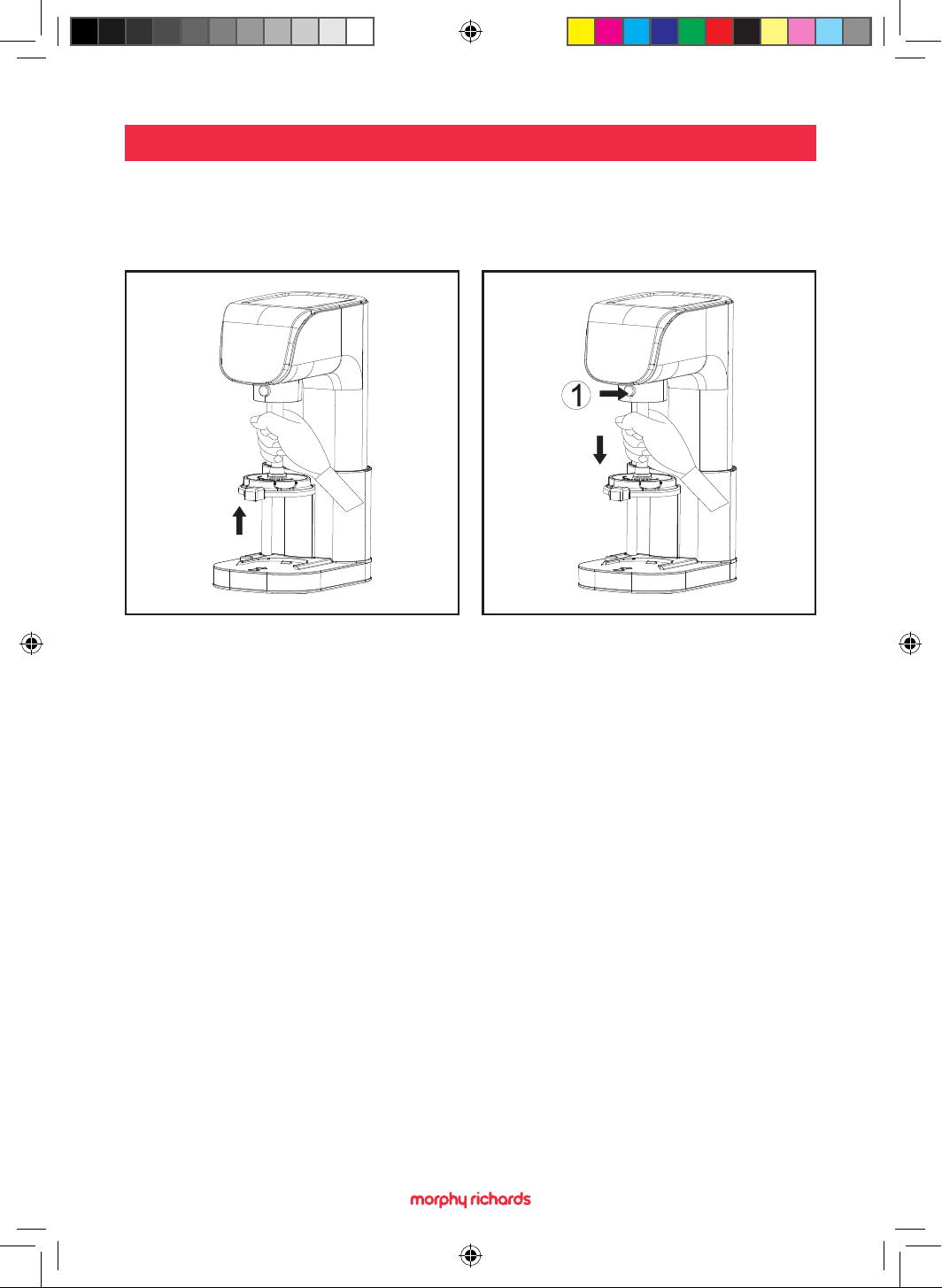

1. To install the Blending Blade Assembly, hold the blending blade
shaft and align it with the mounting hole on the main unit. Push
upward until you hear a ‘click’ (Figure 1).
2. To remove the Blending Blade Assembly, press and hold the unlock
button as shown by Arrow 1 (Figure 2) then pull down on the
Blending Blade Assembly to detach it.
Important: This product is NOT a blender.
Do NOT process a block of ice or ice cubes.
Do NOT make smoothies or process hard, loose ingredients such as
frozen fruit. Fruit must be pre-blended to release its juice or combined
with other ingredients and frozen before processing into a dessert.
Figure 1 Figure 2
FP431000MUK Rev1.indd 9FP431000MUK Rev1.indd 9 04/02/2026 14:5104/02/2026 14:51
10

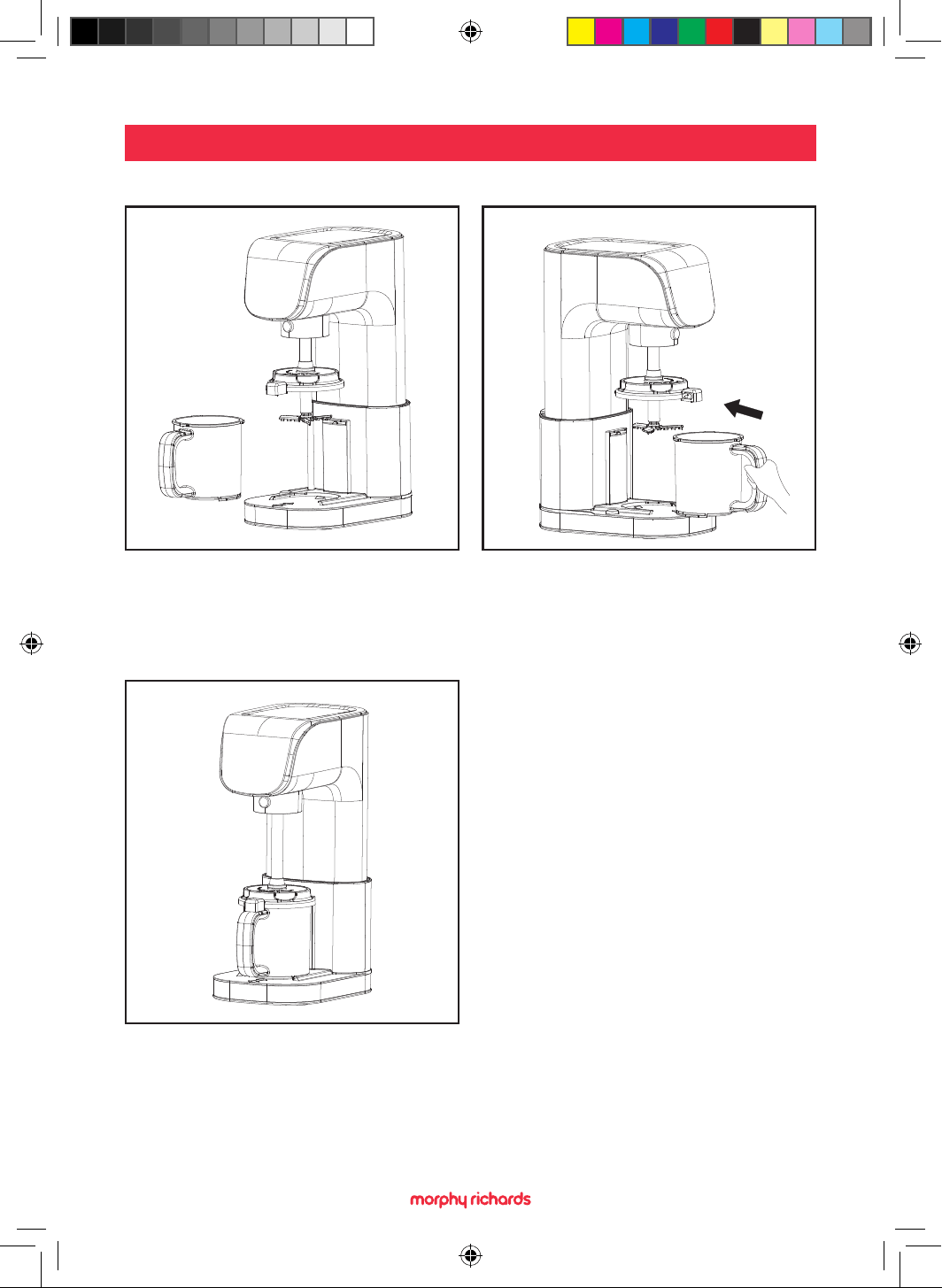

1. To install the Dessert Container and Lid, align the container with the
slots on the base and push it in until you hear a ‘click’ (Figure 3).
2. Next, press the lid down to cover the container ensuring it is located
correctly with the lid locking tab to the right (Figure 4).
3. Finally, rotate the lid to the left to secure the lid into the lid lock until
you hear a click (Figure 5).
4. To remove the lid, rst ensure the machine has stopped and is reset
to its highest position. Press and hold the button on the lid while
rotating it to the right and lifting it upwards.
Figure 3
Figure 5
Figure 4
CONTAINER AND LID ASSEMBLY INSTALLATION
FP431000MUK Rev1.indd 10FP431000MUK Rev1.indd 10 04/02/2026 14:5104/02/2026 14:51
11

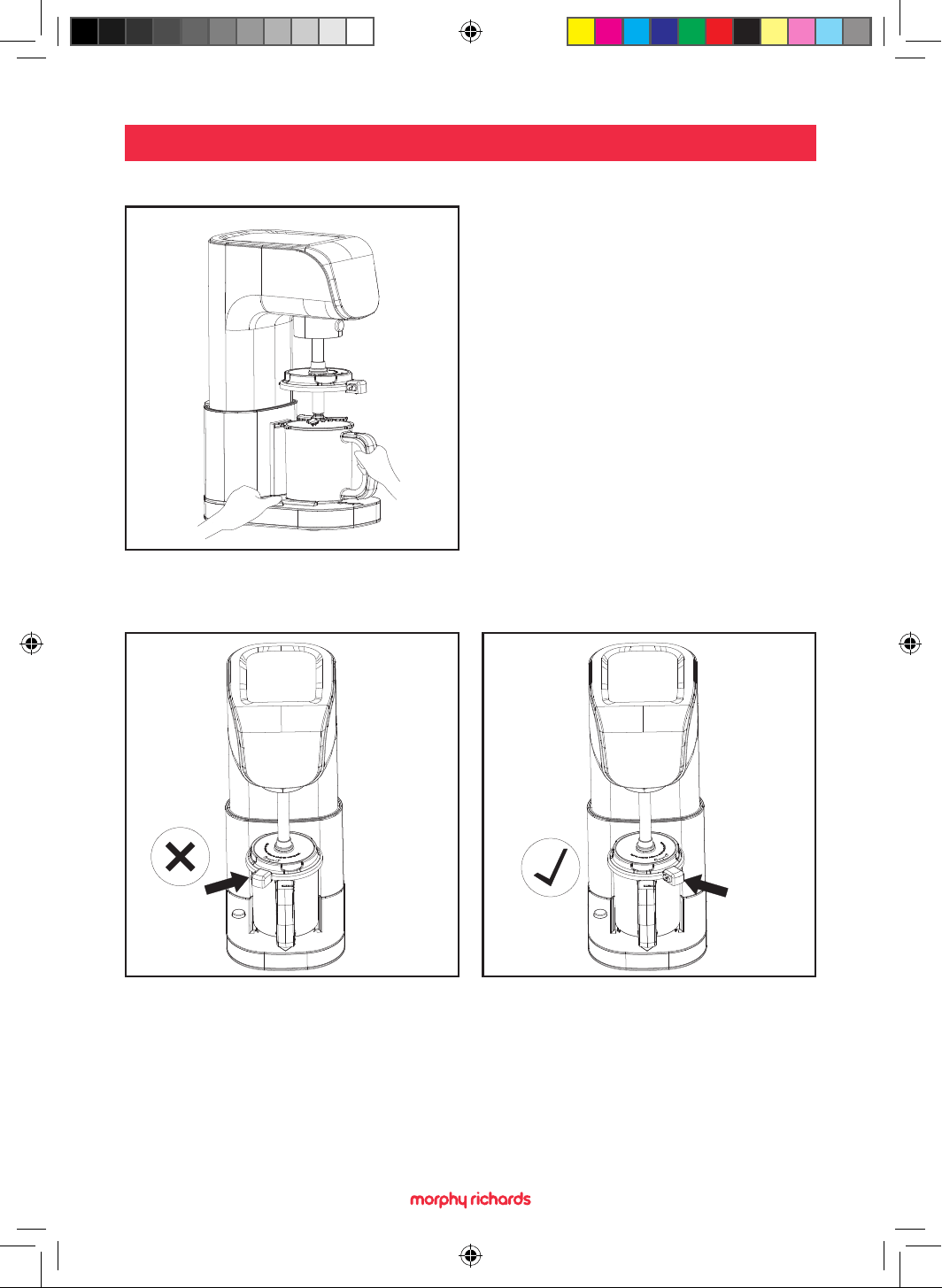

5. To remove the Dessert container, press the button on the left side
of the base, and pull the container handle outwards (Figure 6).
Note: If the lid lock is located to the left side of the handle, the lid
cannot be locked (Figure 7). See Figure 8 for the correct position.
Figure 7 Figure 8
Figure 6
CONTAINER AND LID ASSEMBLY INSTALLATION
FP431000MUK Rev1.indd 11FP431000MUK Rev1.indd 11 04/02/2026 14:5104/02/2026 14:51
12
USING YOUR ICE CREAM MAKER
Starting and Operating Instructions
1. Press the button of the ice cream or frozen treat you wish to
prepare.
2. Then choose either FULL (cup) or TOP (cup).
3. Finally, press the START/STOP button to start making your treat.
Note: After selecting a function, the default setting is FULL CUP, the
indicator will flash.
Important: Do not attempt to open the lid or remove the container from
the appliance until the blade has completely stopped rotating.
Important: This device is designed for processing small quantities.
Do not exceed the amounts specied in the recipes.
Important: This appliance is NOT suitable for crushing ice.
Re-Spin/Mix-In Function
1. To achieve a smoother texture or to mix in liquids, chocolate chips
or nuts etc, the Re-spin/Mix-In function can be used.
2. After adding your ingredients, ensure the lid is re-tted securely.
3. Press the Re-spin/Mix-In button, then press the Start/Stop button to
start the process.
Start/Stop
1. To pause the programme, press the Start/Stop button. The Lift/
Storage button will illuminate.
2. Press the Lift/Storage button to raise Rise/Lower shaft.
Storage
To lower the Rise/Lower shaft for storage. Press the Lift/Storage button
while the appliance is in standby.
FP431000MUK Rev1.indd 12FP431000MUK Rev1.indd 12 04/02/2026 14:5104/02/2026 14:51
13
USING YOUR ICE CREAM MAKER
CARE AND CLEANING
RECIPES
Over Heat Protection
• To avoid damaging the appliance, do not churn more than 6
containers of ice cream/dessert continuously.
• Churning more than 6 containers of ice cream/dessert continuously
may trigger the overheat protection device. The power On/O
button, Lift/Storage button and progress bar will all flash. If this
happens. Switch o the appliance, unplug from the mains outlet
and allow to cool for 10 minutes.
Note: Before cleaning the appliance always unplug from the mains
socket and wash immediately after use for easy cleaning.
1. Clean the main unit with a damp cloth only. Do not immerse in water
or other liquids, rinse, or put it in the dishwasher.
2. Wash the blending shaft with blade and lid. The Dessert Containers
and Silicone Lids in warm soapy water.
Note: Always dry thoroughly before next use or storing.
Note: The Dessert Containers are dishwasher safe.
Note: The blending shaft with blade and lid are not dishwasher safe.
To download the Frozo Ice Cream Maker Recipe Book
scan the QR code or visit the Morphy Richards website.
www.morphyrichards.co.uk
FP431000MUK Rev1.indd 13FP431000MUK Rev1.indd 13 04/02/2026 14:5104/02/2026 14:51
14
TROUBLESHOOTING
Problem Issue Solution
Rapid flashing
twice
System self-check Unplug the appliance, then
plug it back in and use as
normal.
Rapid flashing 3
times
Excess ingredients Add ingredients to the
container’s ll line only. or
wait for the device to reset
before trying again.
Allow a few minutes for the
appliance to re-set before
switching on again.
Rapid flashing 4
times
Abnormal power
consumption in
standby mode
Unplug the appliance, then
plug it back in and use as
normal.
Rapid flashing 5
times
Circuit
components may
need attention
Unplug the appliance, then
plug it back in and use as
normal.
Slow flashing
twice
Input voltage is
higher than the
normal range
Try a dierent appliance in
the socket as it may be the
socket that is at fault.
Slow flashing 3
times
Input voltage is
lower than the
normal range
Try a dierent appliance in
the socket as it may be the
socket that is at fault.
Slow flashing 4
times
Excess ingredients Add ingredients to the
container’s ll line only. or
wait for the device to reset
before trying again.
Allow a few minutes for the
appliance to re-set before
switching on again.
Slow flashing 5
times
The motor is
jammed
Unplug the appliance, then
plug it back in and use as
normal.
FP431000MUK Rev1.indd 14FP431000MUK Rev1.indd 14 04/02/2026 14:5104/02/2026 14:51
15
TROUBLESHOOTING
Problem Issue Solution
All buttons are
flashing
The lid lock
safety switch has
disconnected
Check that the dessert
container and lid lock are
tted correctly. Re-install
them if necessary.
The Lift/Storage
button is
illuminated
The motor is
overloaded due
to excessive
ingredients
Remove ingredients from
the Dessert Container and
ensure it is only lled to
the FILL line. Wait for the
appliance to reset before
trying again.
No power Check the fuse and try a
new fuse with the same
rating.
Try a dierent appliance in
the socket as it may be the
socket that is at fault.
Tripping electrics Try using a dierent socket.
Ensure there are no other
appliances being used on
the same set of sockets as
the Ice Cream Maker.
The Power On/O
button is flashing.
Unplug the appliance and
plug it back in again.
FP431000MUK Rev1.indd 15FP431000MUK Rev1.indd 15 04/02/2026 14:5104/02/2026 14:51
16
SPARE PARTS
Part Number Description
Qty per
Product
Key
Number
05627 Blending Blade Assembly 1 5
05628 Dessert tub
3 (sold
individually)
6
05629 Silicone lid
3 (sold
individually)
7
05630 Ice cream scoop 1 11
FP431000MUK Rev1.indd 16FP431000MUK Rev1.indd 16 04/02/2026 14:5104/02/2026 14:51
17
CONTACT US
If you are having a problem with your appliance, please contact our
Helpline, as we are more likely to be able to help than the store you
purchased the item from. Please have the product name, model number
and serial number to hand when you contact us to help us deal with
your enquiry quicker.
email: hello@morphyrichards.co.uk
www.morphyrichards.co.uk
For electrical products sold within the European
Community, at the end of the electrical products useful
life, it should not be disposed of with household waste.
Please recycle where facilities exist.
Check with your Local Authority or retailer for recycling
advice in your country.
PRODUCT RECYCLING
FP431000MUK Rev1.indd 17FP431000MUK Rev1.indd 17 04/02/2026 14:5104/02/2026 14:51
18
Your standard 2 year guarantee is extended for an additional 1 year
when you register the product within 28 days of purchase with Morphy
Richards. If you do not register the product with Morphy Richards within
28 days, your product is guaranteed for 2 years.
To validate your 3 year guarantee,
scan the QR code or register online
at www.morphyrichards.co.uk
N.B. Each qualifying product needs to be registered with Morphy
Richards individually. Please note that the 2 year guarantee is only
available in the UK. Please refer to the 2 year guarantee for more
information.
YOUR 2 YEAR GUARANTEE
It is important to retain the retailer’s receipt as proof of purchase.
Staple your receipt to the back cover for future reference.
Please quote the following information if the product develops a fault.
These numbers can be found on the base of the product.
Model no.
Serial no.
All Morphy Richards products are individually tested before leaving the
factory. In the unlikely event of any appliance proving to be faulty within
28 days of purchase, it should be returned to the place of purchase
for it to be replaced. If the fault develops after 28 days and within 24
months of original purchase, you should contact the Helpline quoting
Model number and Serial number on the product, or write to Morphy
Richards at the address shown. You may be asked to return a copy of
proof of purchase.
Subject to the exclusions set out on the next page (see Exclusions), the
faulty appliance will then be repaired or replaced as appropriate and
dispatched usually within 7 working days of receipt.
If, for any reason, this item is replaced or repaired during the 2 year
REGISTERING YOUR 3 YEAR GUARANTEE
FP431000MUK Rev1.indd 18FP431000MUK Rev1.indd 18 04/02/2026 14:5104/02/2026 14:51
19
guarantee period, the guarantee on the new item will be calculated
from the original purchase date. Therefore it is vital to retain your
original till receipt or invoice to indicate the date of initial purchase.
To qualify for the 2 year guarantee, the appliance must have been used
according to the instructions supplied.
The appliance is intended for domestic use only. Misuse or use for
commercial or any other purpose will render the guarantee invalid.
Exclusions
Morphy Richards shall not be liable to replace or repair the goods under
the terms of the guarantee where:
1. The fault has been caused or is attributable to accidental use,
misuse, negligent use or used contrary to the manufacturer’s
recommendations or where the fault has been caused by power
surges or damage caused in transit.
2. The appliance has been used on a voltage supply other than that
stamped on the products.
3. Repairs have been attempted by persons other than our service
sta (or authorised dealer).
4. The appliance has been used for hire purposes or non domestic use.
5. The appliance is second hand or refurbished.
6. Morphy Richards reserves the right not to carry out any type of
servicing under the guarantee at its discretion.
This guarantee does not confer any rights other than those expressly
set out above and does not cover any claims for consequential loss
or damage. This guarantee is oered as an additional benet and
does not aect your statutory rights as a consumer. Morphy Richards
products are intended for household use only. See usage limitations
within the location safety instructions.
Disclaimer
Morphy Richards has a policy of continuous improvement in product
quality and design. The company, therefore reserves the right to
change the specication of its models at any time.
REGISTERING YOUR 3 YEAR GUARANTEE
FP431000MUK Rev1.indd 19FP431000MUK Rev1.indd 19 04/02/2026 14:5104/02/2026 14:51
morphyrichards.co.uk
FP431000MUK Rev1
@morphyrichardsuk #loveyourmorphy
Morphy Richards
9 Cabot Lane, Poole, Dorset, BH17 7BY, UK
FP431000MUK Rev1.indd 20FP431000MUK Rev1.indd 20 04/02/2026 14:5104/02/2026 14:51
