PCCS12
User Manual
Safety Precautions :
Fiying and installation of this speaker cabinet must be carried out by qualified personnel
following the approved safety standards.
Do not attempt to clean the plastic enclosure with solvents or petrochemical based cleaners.
Do not place objects which are sources of heat on the speaker cabinet such as lighting
equipment
or smoke machines.
Do not expose the speaker cabinet to direct rain or stand in water. Liquid getting into the box
will risk a short circuit and will be hazardous.
Do not stack the speaker cabinet in a manner that could cause injury should a cabinet
become dislodge.
Additional precautions
for
Auto-amplified devices of the series.
Before installation, ensure that the voltage and frequency of power outlet match the
power requirements of the loudspeaker.
Disconnect from main power before to make connections in the loudspeaker.
Make sure that the power-cord is never crimped or damaged by sharp edges. Never let
the
power-cord come into contact with other cables. Only handle the power-cord by the
plug.
In case to replace the fuse, it must be changed by identical rate and dimensions.
Attention
Before connecting or operating your new
loudspeaker,
please study the accompanying
instruction manual paying special attention to the operating precautions and wiring
procedure.
This symbol on the product or
on
Its packaging indicates that this product shall
not
be
treated
as
household waste. Instead
it
shall
be handed over to the applicable collection point for the
recycling
of
electrical an electronic equipment By ensuring this product
is
disposed
of
correctly,
you
will
help prevent potential negative consequences for the environment and
human
health, which
could
otherwise be caused by inappropriate waste handling of this product The recycling of
materials
will
help to conserve natural resources. For more detailed information about
recycling of
this
product, please contact your local city office, your household waste disposal
service or the
shop
where you
purchased the
product.
Pag. 1
Panel posterior
Pag. 2

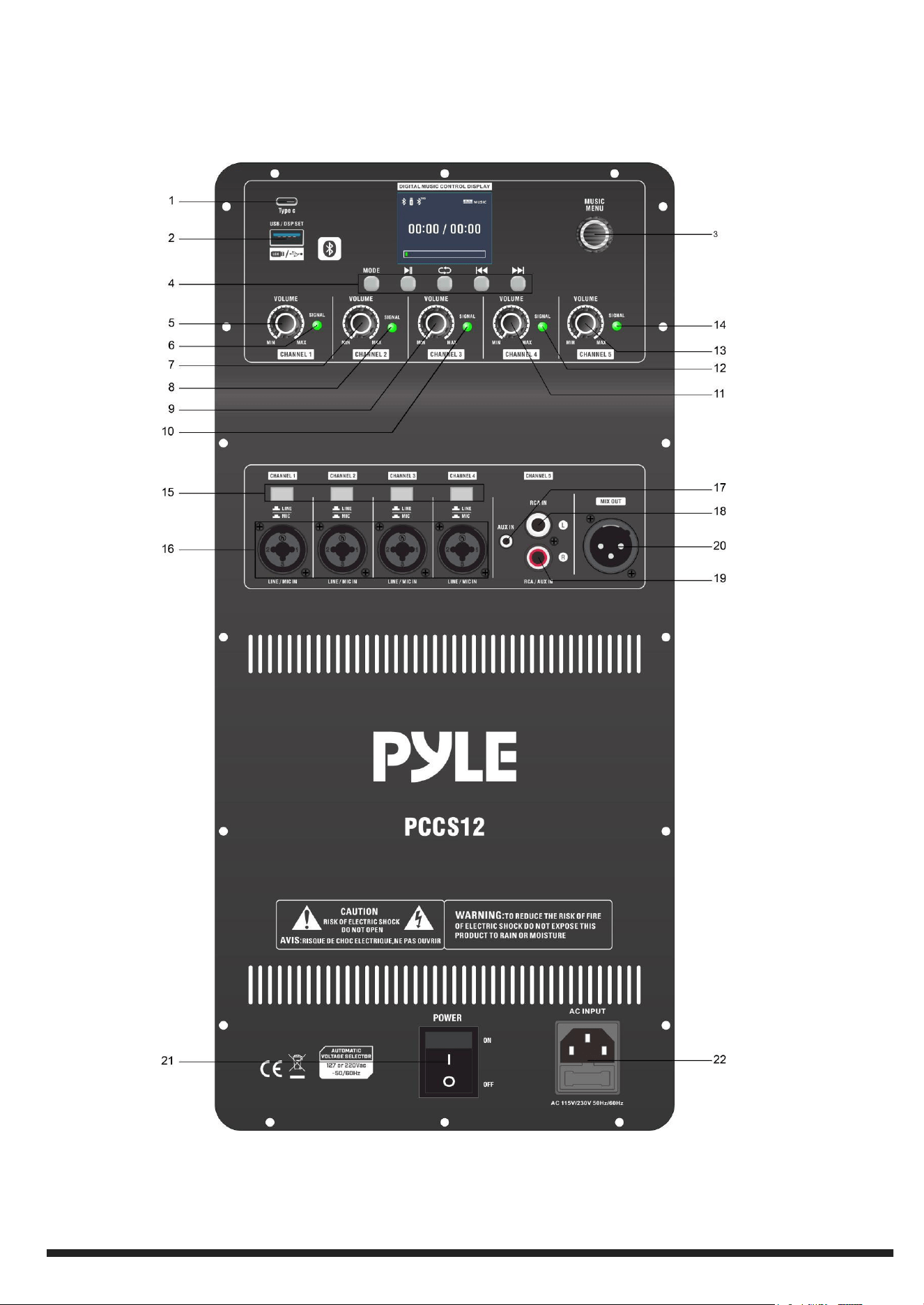

Functions
1. Type C Port
2. USB/DSP SET: For inserting the USB drive/DSP drive
3. MUSIC MENU:The loudspeaker integrates the following DSP-based EQ sound presets and
control the volume
4. Mode Selection and Playback Control: Use the “Mode” switch to toggle between USB/SD
and Bluetooth modes. Use the play/pause, stop, repeat, previous/rewind and next/forward knobs to take
full control of your music playback
5. Channel 1 volume controller
6. Signal LED indicates the presence of audio signals at any of the connected inputs
7. Channel 2 volume controller
8. Signal LED indicates the presence of audio signals at any of the connected inputs
9. Channel 3 volume controller
10. Signal LED indicates the presence of audio signals at any of the connected inputs
11. Channel 4 volume controller
12. Signal LED indicates the presence of audio signals at any of the connected inputs
13. Channel 5 volume controller
14. Signal LED indicates the presence of audio signals at any of the connected inputs
15. Mic / Line 1 Input Sensitivity Selector: Use this switch to change the input sensitivity between
mic and line. The mic mode is ideal to connect a dynamic microphone.
Note: Do not use a microphone in the line mode. Doing so may damage your equipment.
16. Mic / Line 1: This combo XLR-Jack input accepts both mic and line-level signals from various
sources.
17. AUX IN
18.19. This is a stereo RCA line input to connect devices such as CD/media players, iPods, MP3
players and DJ mixers etc.
20. This is a stereo RCA line input to connect devices such as CD/media players, iPods, MP3
players and DJ mixers etc.
21. Power Switch: Use this switch to power the speaker ON or OFF.
22. Power Cord Input: Use the supplied cord to power up the speaker. Kindly check and match the
Voltage requirement indicated on the rating plate of the unit. Connect the power cord only to a mains socket
outlet with a protective earthing connection.
l Pag. 3
