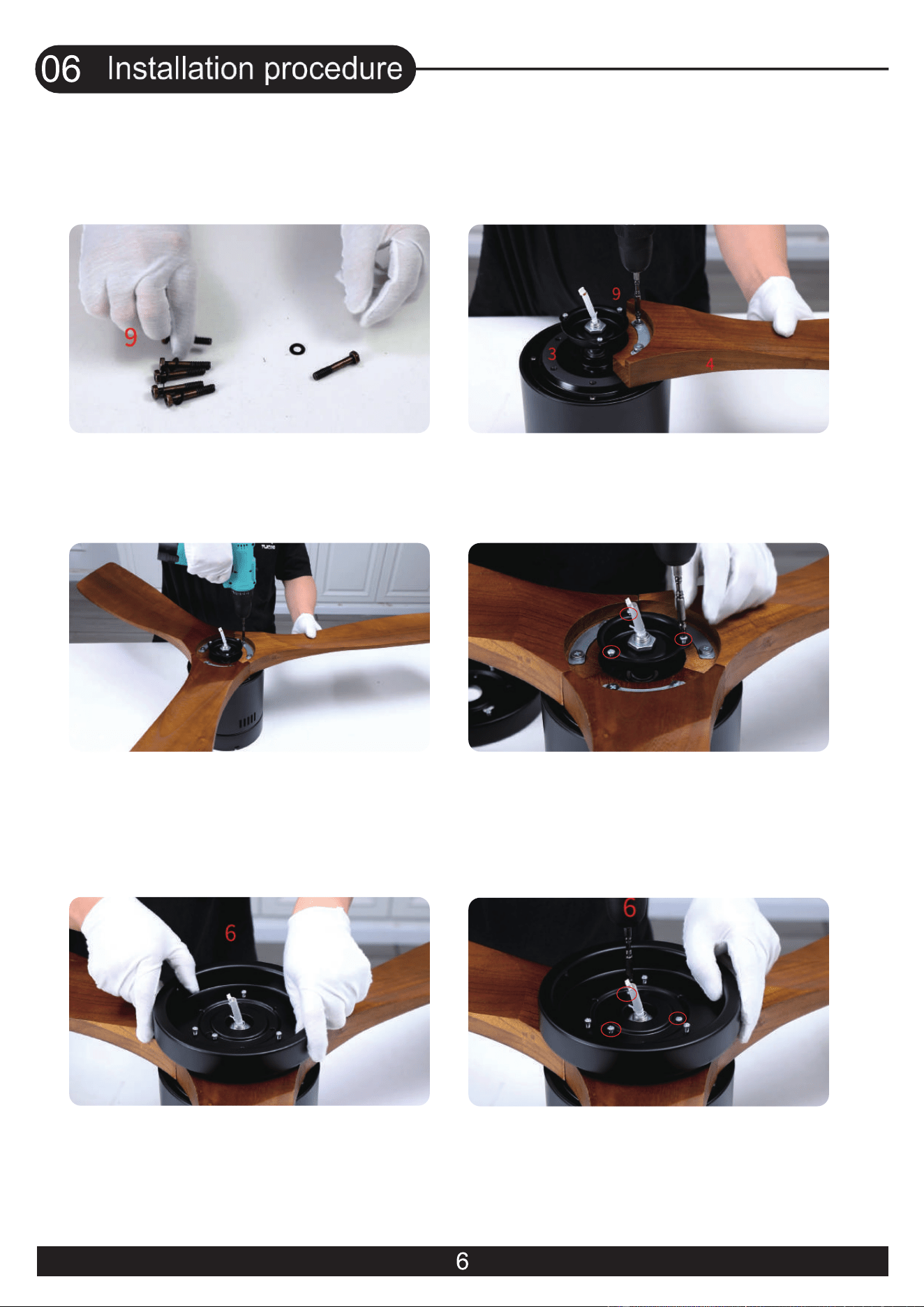

4. Loosen and remove the 3 silver screws
pre-locked on the motor
(They will be needed later)
6. Tighten the 3 silver lamp panel screws
5. Put on the lamp panel and feed the wire
plugs through the center hole

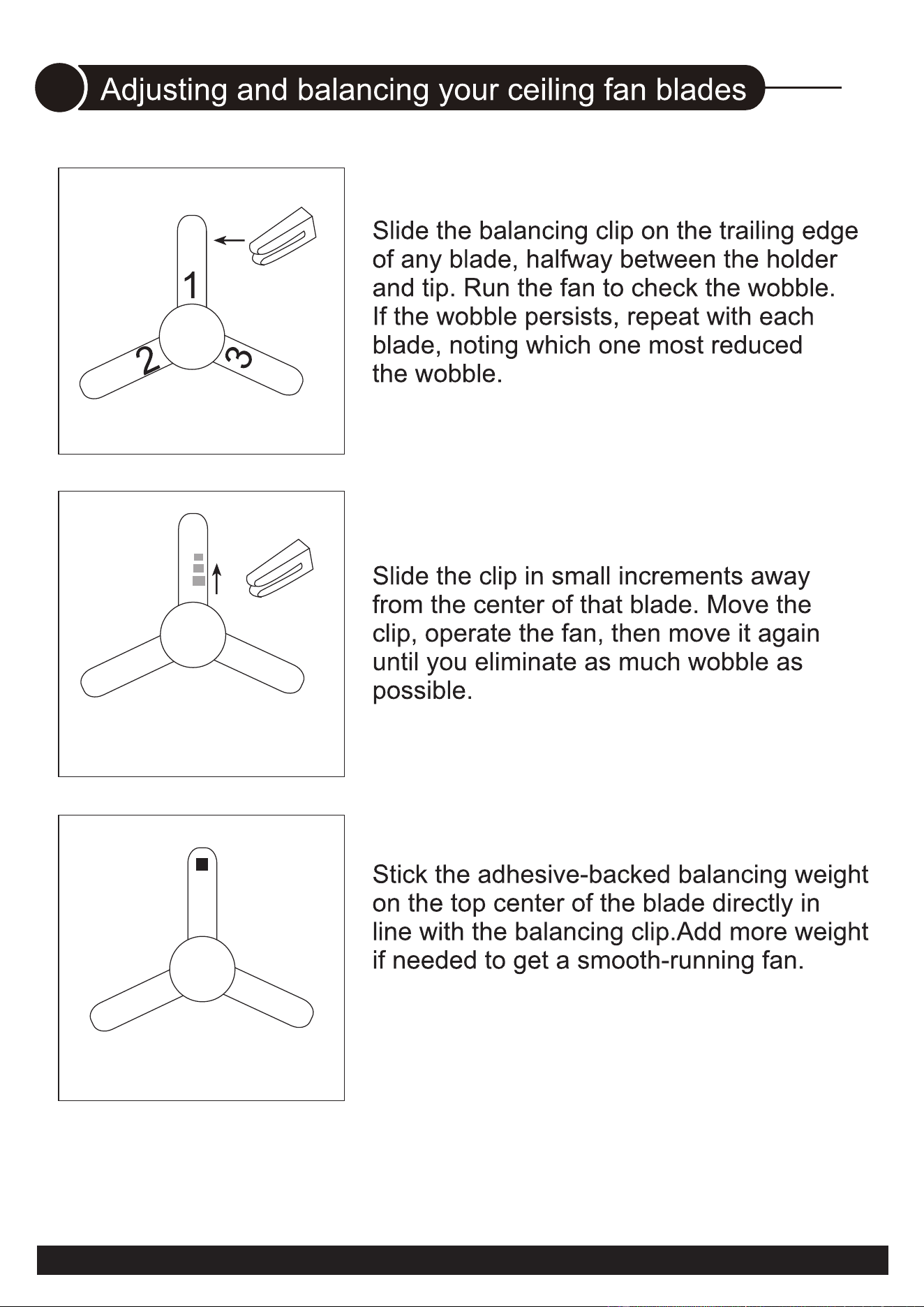

3. Repeat install the remaining blades,
and tighten all the blade screws
1. Fit the gasket over the screw
2. Place the blade gasket onto the blade,
align it with the screw hole, and tighten
the screw

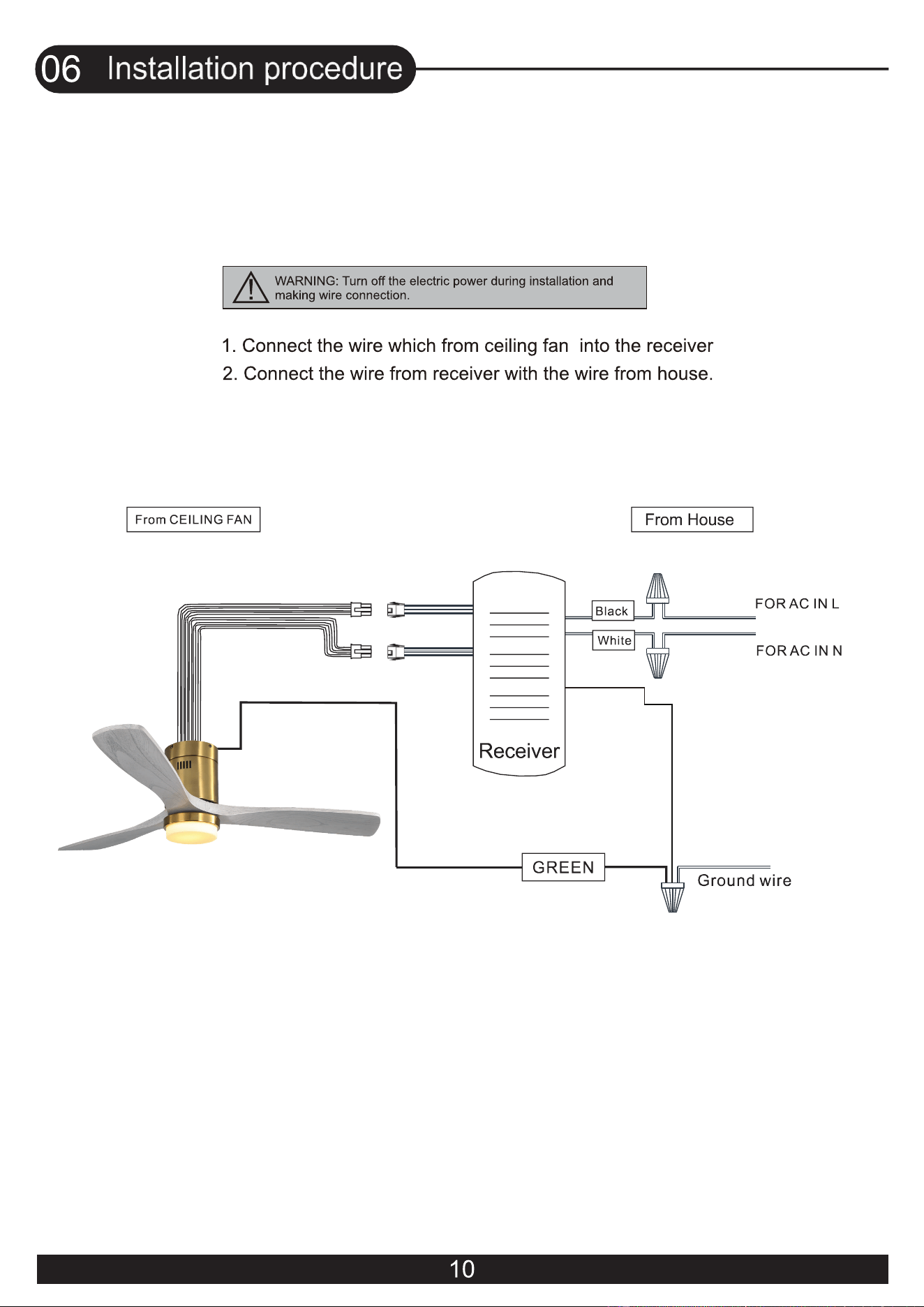

12. Connect the wire from the ceiling fan
to the receiver(Red,Yellow and White wires)

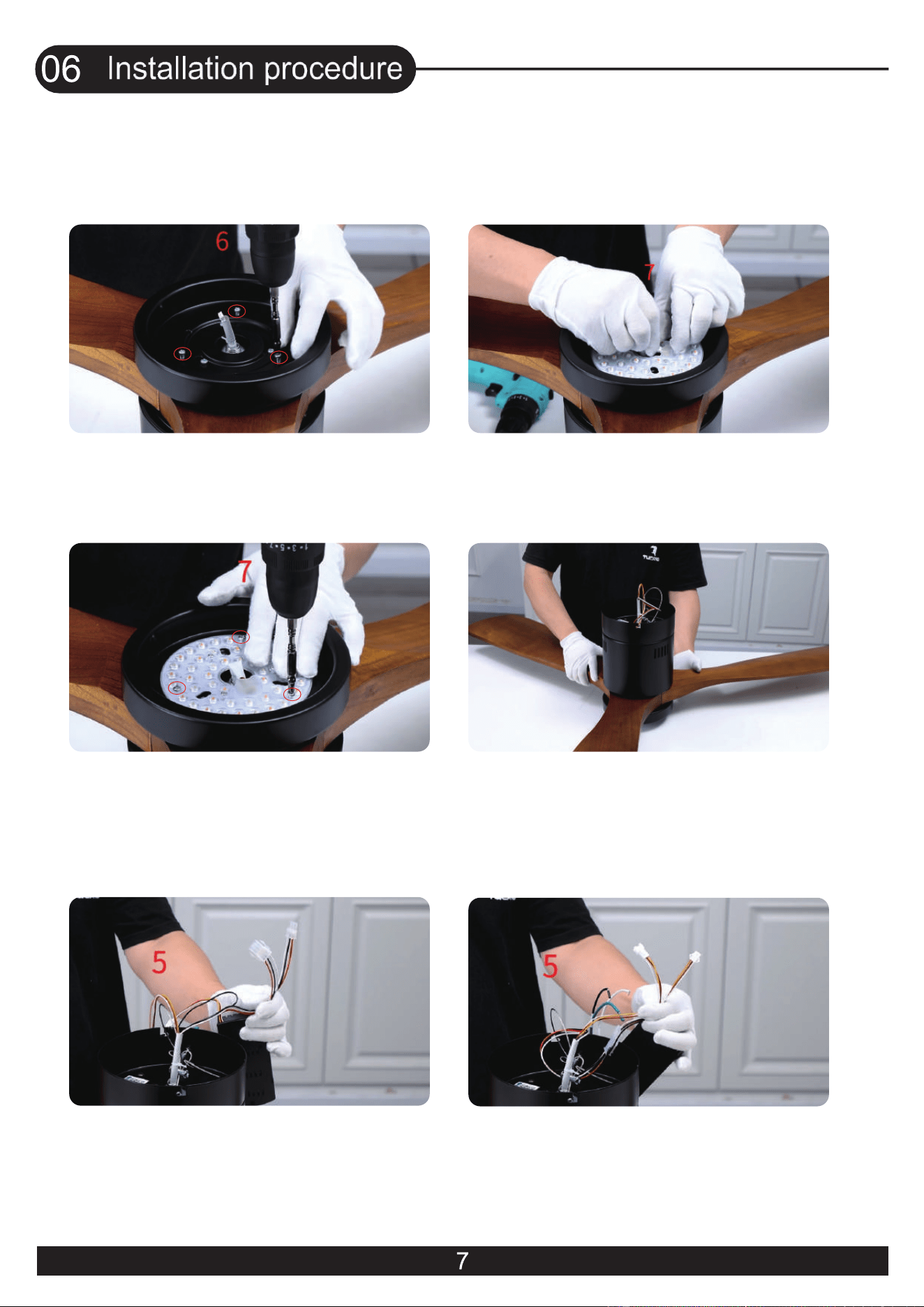

8. Connect the light source with the wires
from the motor
9. Align the screw holes and tighten the
3 brass light kit screws
7. Loosen and remove the 3 brass light kit
screws pre-locked on the lamp panel
(They will be needed later)
10. Turn the fan over
11. Connect the wire from the ceiling fan
to the receiver(Red,White and Black wires)

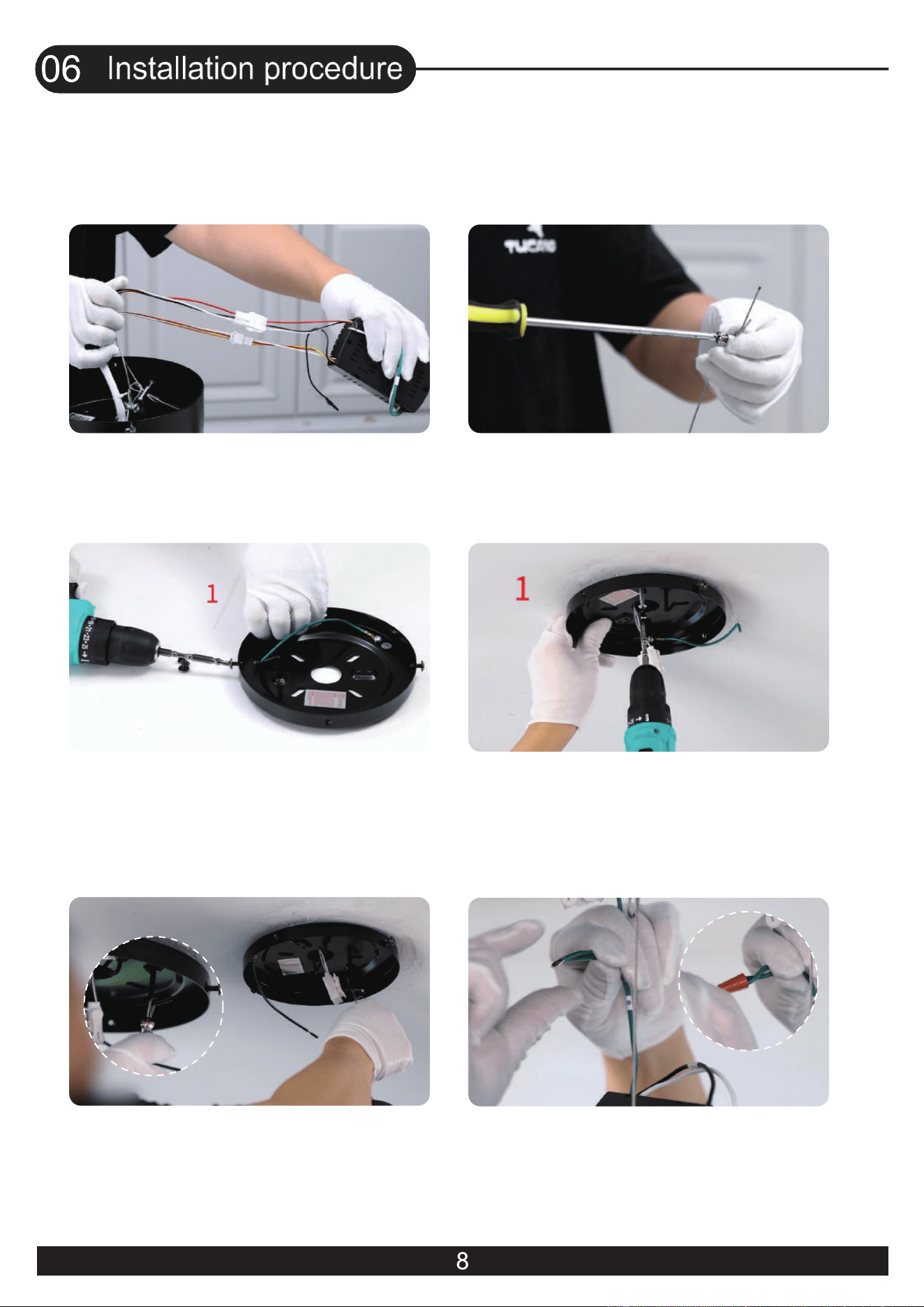

18. Use wire connecting nuts to connect
the ground wires(Green)
15. Loosen and remove the 4 screws on
the mounting bracket
(Do not remove them all)
13. All wires are connected.
16. Place the mounting br
17. Hook the wire rope into the hook
of the mounting bracket.
14.
Tighten the screw.

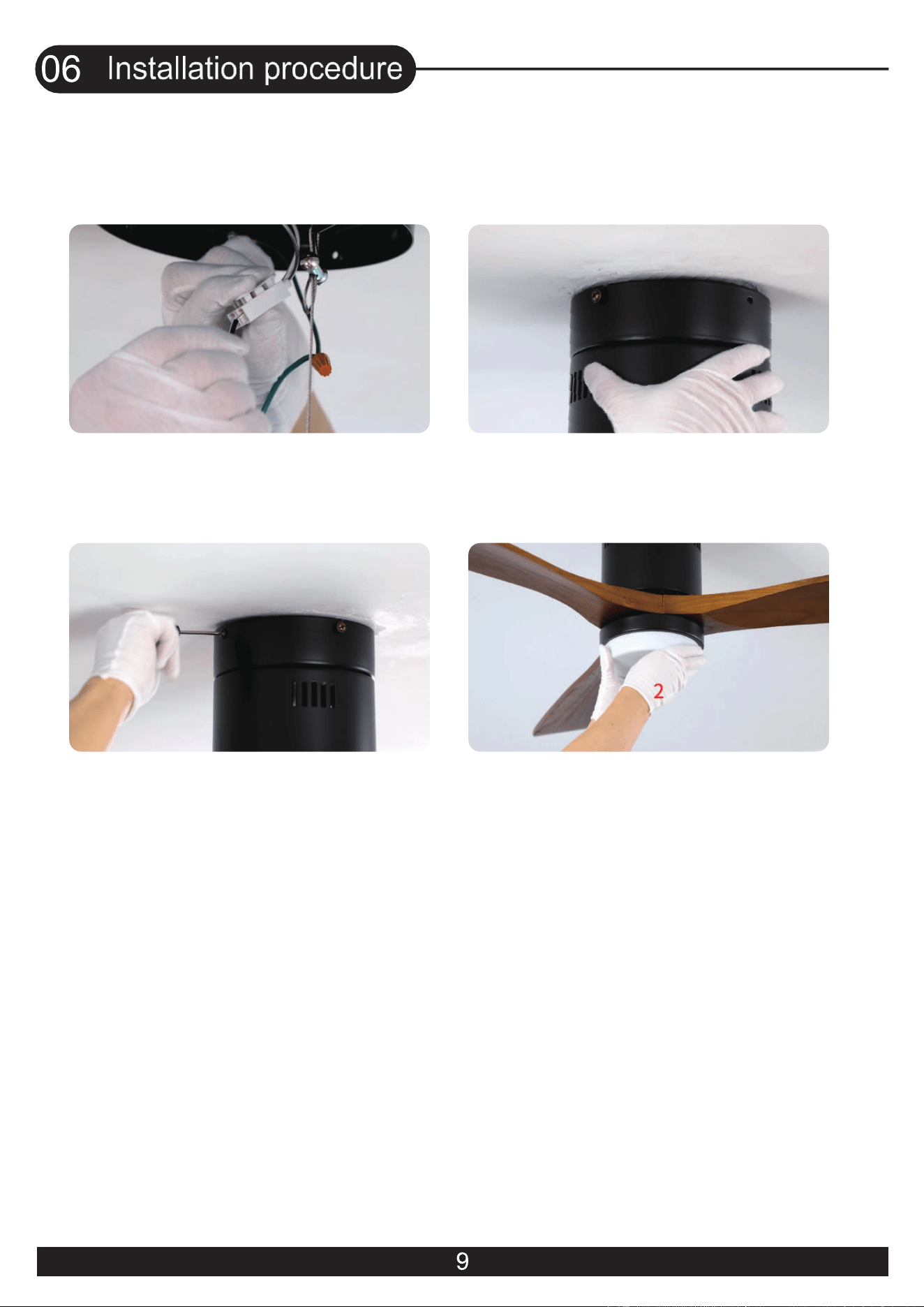

20. Attach housing onto mounting bracket,
aligning the keyhole slots on the housing
with the screws on mounting bracket and
twist clockwise till tight.
21. Tighten the screws
19. Connect the fan live wire (black) to
your house live wire; Connect the fan neutral
wire (white) to your house neutral wire
22. Install the lamp shade and rotate it to lock
When the reversible button is pressed, the fan slowly slows
down to a stop and then begins to reverse.

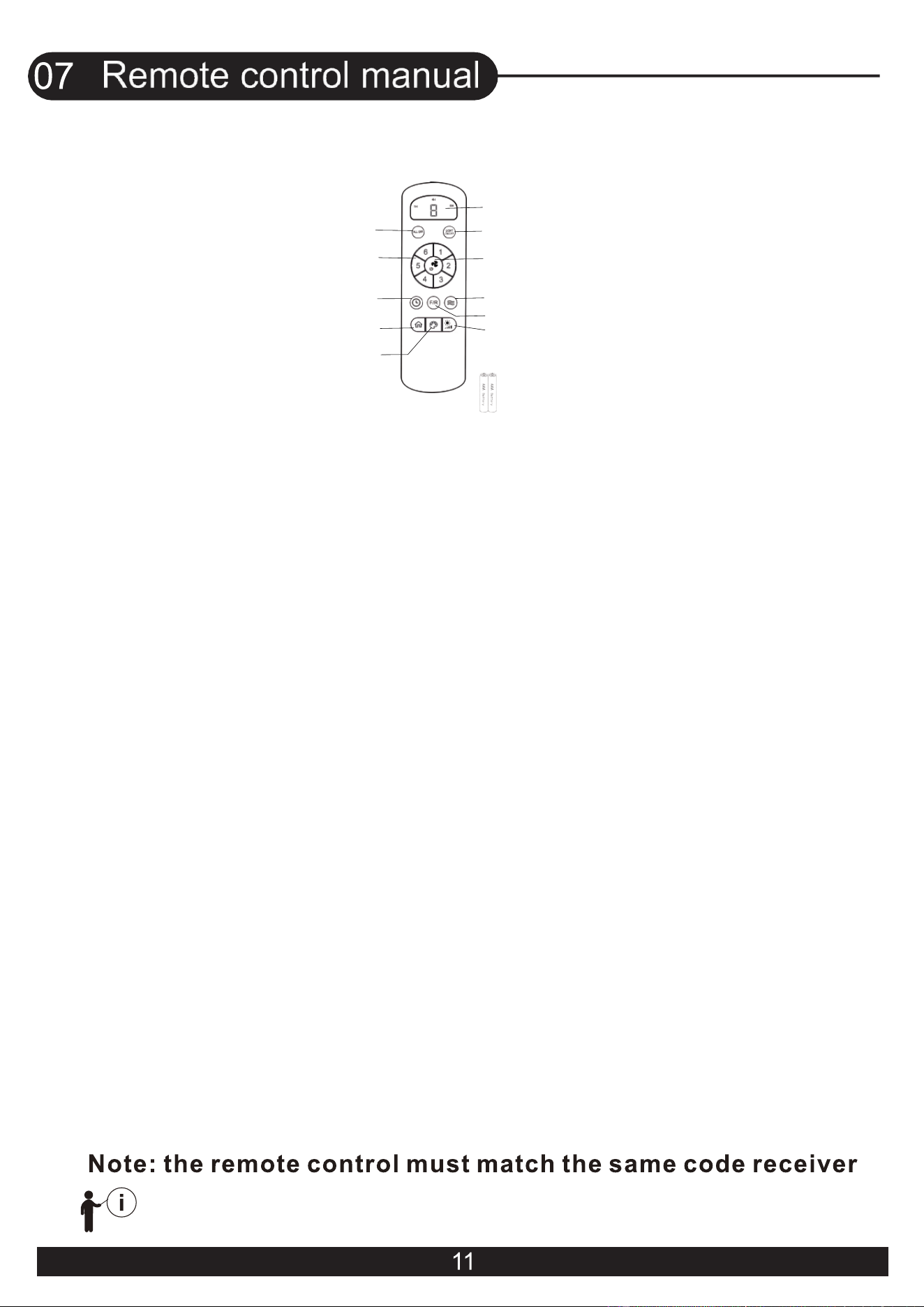

USER MANUAL FOR REMOTE CONTROL TRANSMITTER
!
(1) Turn OFF the Fan and Light
Trun OFF the Fan and Light together.
(2) Fan speed
Press the key 1-6 to start the fan.
(3) Timing control of the Fan and Light
- Press the key to set up the timer at 1hour ,4 hours or 8 hours to set up fan and
lamp timer. At the end of the timing, the fan and lamp will be automatically turned off.
- When the timing function is in effect, you can operate all the functions of the ceiling fan,
and then press any timing button to recalculate the timing time.
- Timer setting cancellation : When timing function is working, press key(1) to cancel the
timing function.
(4) Anti-theft mode
Press the key to turn on or turn off Anit-theft mode:
Every three hours, the light will automatically turn on and go out after 30 minutes. Press the
key again to cancel.
(5) Color temperature Switch of the light
Press the key to change LED light color : white-yellow-warm (circulate).
(6) Light dimming
When the light is on, press and hold the key, the light gradually brightened - gradually
dimmed(circulate).
(7) Direction of the fan
Press the key to change direction of the fan.
(8) Natural wind
Press the key, the fan speed automatic change between 1 to 6 speed.
(9) Fan OFF / Remote control pairing
- Turn OFF the fan.
- Remote control pairing : when AC power on, press and hold the key for 3-5 seconds,
then �inish the remote control pairing.
Notice：
The remote controller only needs to be paired once. After the paired product, the controller
will have memory. The products have been paired before leaving the factory. When the
remote control is damaged or lost, it is necessary to implement remote control pairing
before using a new remote control.
(10) Turn ON/OFF the Light
(11) Fan speed and Timing time indicator
The indicator light will light up when press any key of the remote control
(12) AAA battery * 2
- Please install 2 pieces of AAA batteries before use.
- Please remove the battery when it is not used for a long time.
(1) Turn OFF the Fan and Light
(2) Fan speed
(5) Color temperature switch of
(3) Timing control of the Fan & Light
(12) AAA battery *2
(4) Anti-theft mode
(11) Fan speed / Timing time indicator
(9) Fan OFF /
Remote control pairing
(8) Natural wind
(10) Turn ON/OFF the light
(7) Direction of the fan
(6) Light dimming
the light

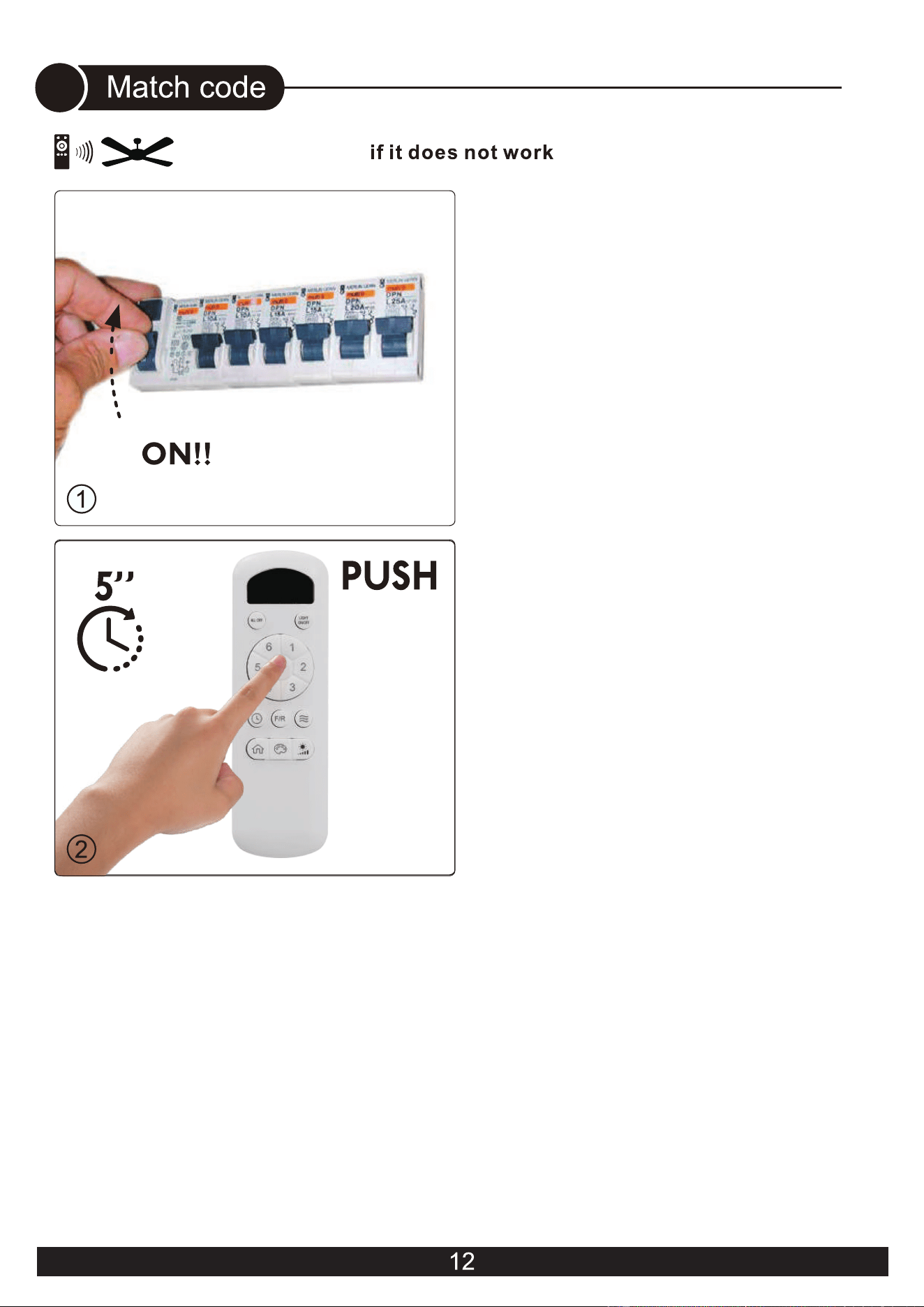

2.Pressing and holding this key
for 5 seconds.
1.Turn on the main switch.
