Table Mounted Sorting Shelves manufactured by ADVANCE TABCO
®
are designed and constructed store/
drain Dish Racks used in a Commercial Dishwasher. ADVANCE TABCO
®
does not recommend use for
activities employing harsh and active chemicals. Please consult factory regarding unusual applications.
Installation Instructions for
TABLE MOUNTED DISH RACK
SORTING SHELVES
Contents:
(2) End Panels
(5) Stainless Steel Cross Tubes
(2) Stainless Steel Cross Tubes
with Welded Tubular Uprights
Mounting Hardware:
(18 Flat Button Head Bolts)
Tools Required:
7/32” Allen Wrench
Step 2:
Align (2) Cross Tubes with welded Tubular Upright at the Second Hole in
on each End Panel. Secure with Button Head Bolts provided (Figure 1).
NOTE: Ensure Cross Tubes with Welded Uprights match at each end &
are perpendicular to bottom edge of side panel.

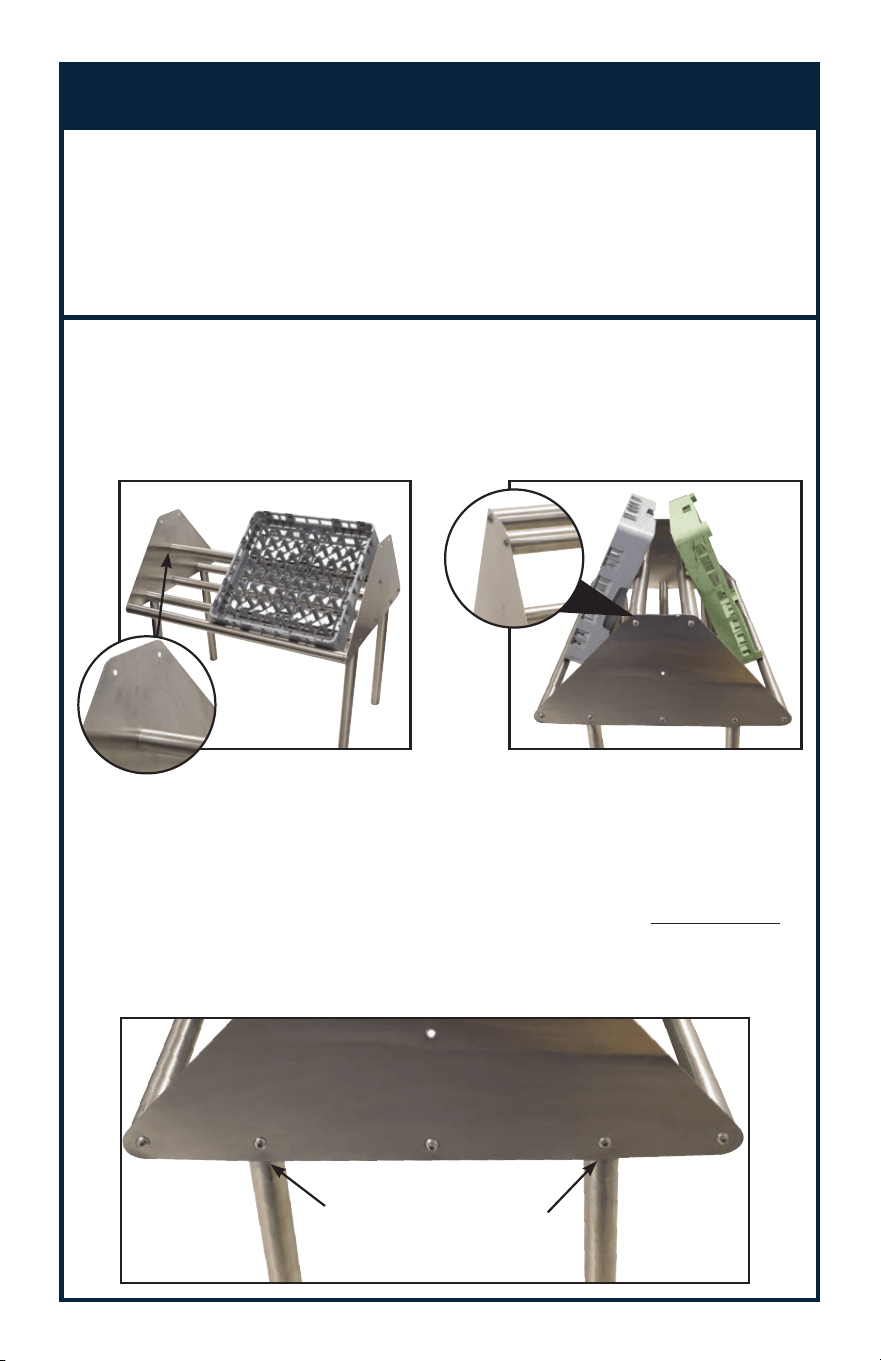

Step 1:
Determine type of shelf option that will be used for the DTA-79.
INSTALLATION INSTRUCTIONS
Bolt Cross Tubes with
Welded Uprights
at these Hole Locations
Figure 1
NOTE: DTA-79 May come Pre-Assembled From Factory
Where Special Applications Exist
OPTION 1
For Single Side Use
Only 1 Cross Tube will be used across
the top using the middle single hole.
OPTION 2
For Double Side Use
2 Cross Tubes will be installed at
the top using the two top holes.

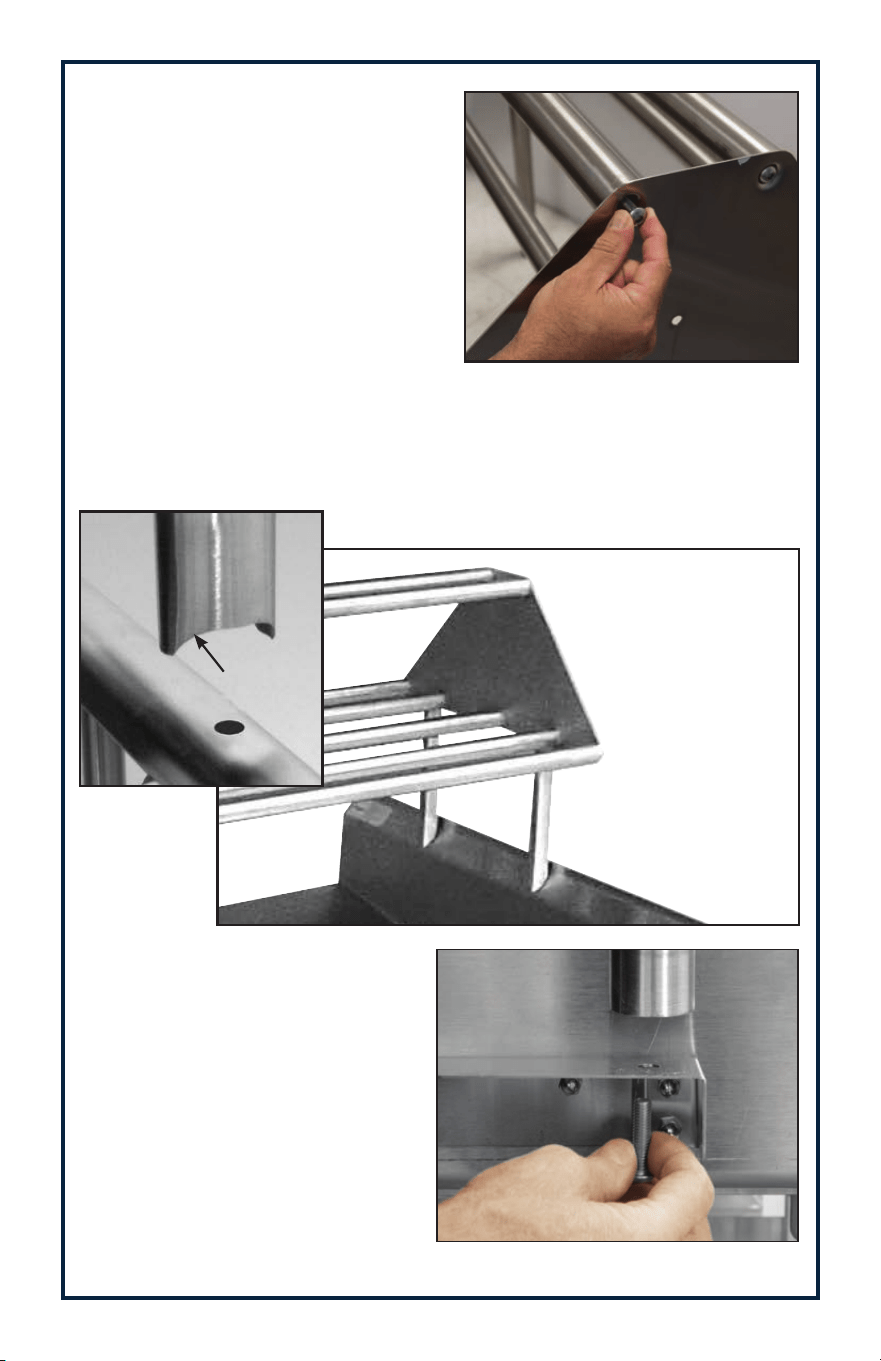

Step 4:
Mount DTA-79 to Dishtable - Align Notched posts with holes in roll rim
(Figure 3) and Flat Bottom Posts with Elliptical Holes in Backsplash
(Figure 4). Slide Uprights thru Elliptical Holes so Posts rests on Bracket
and Notched Uprights rest on Roll Rim.
Insert Button Head Bolts
(Provided) thru Brackets into
Tubes and tighten (Figure 5).
Step 3:
Align the remaining Cross Tubes
between End Panels & Secure with
Button Head Bolts (Figure 2) based
on option selected in STEP 1.
Figure 2
Figure 3
Figure 5
Notched
End
Edgewood, New York 11717-8380
SEPTEMBER 2016
... Continued

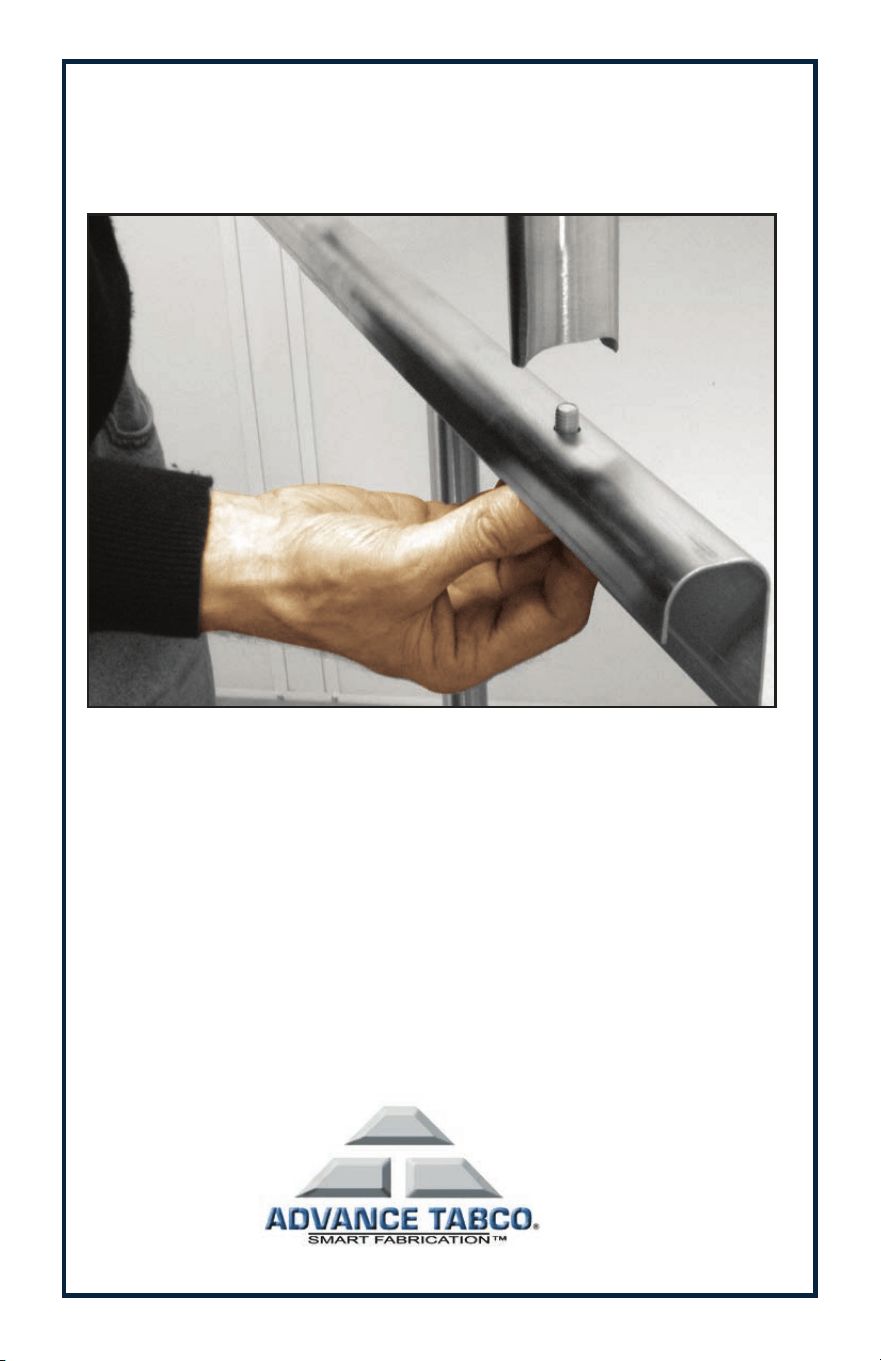

Insert Button Head Bolts (Provided) thru bottom of Roll Rim into Tube
and tighten. Figure 6.
Figure 6
Step 5:
Tighten all Bolts. Seal Joints with N.S.F. Approved Silicone Sealant
where Notched Uprights meet Roll Rim (Where uprights pass thru
elliptical holes in backsplash and Bolt Heads).
