PROFESSIONAL SERIES IN-CEILING
PS-C43RT, PS-C63RT, PS-C83RT, PS-C83RWT, PS-C43RTLP, PS-C63RTLP
MANUAL
2
IMPORTANT SAFETY INSTRUCTIONS
This product is intended to be installed by professional
AV integrators and installers only. This product manual
is intended to serve as a general guideline for most
applications. It is the installer’s responsibility to ensure
this product is installed in accordance with local
building codes and regulations. Consult a local authority
for specic requirements, regulations, and building
codes of the jurisdiction in which this product is to be
installed.
READ THIS DOCUMENT IN ITS
ENTIRETY BEFORE ATTEMPTING
USE.
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Clean only with a dry cloth.
6. Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
7. Do not install near a heat source such as radiators,
heat registers, stoves, replaces, or other apparatus
(including ampliers) that produce heat.
8. To be installed in indoor locations only.
9. Only use attachments/accessories specied by
Sonance.
10. Refer all servicing to qualied service personnel.
TABLE OF CONTENTS
2 Box and Contents
3 Product Features
4 Amplier Selection
4 Wire Selection
70V/100V System
8 ohm System
4 Speaker Placement
4 Grille Painting
5 Standard Installation

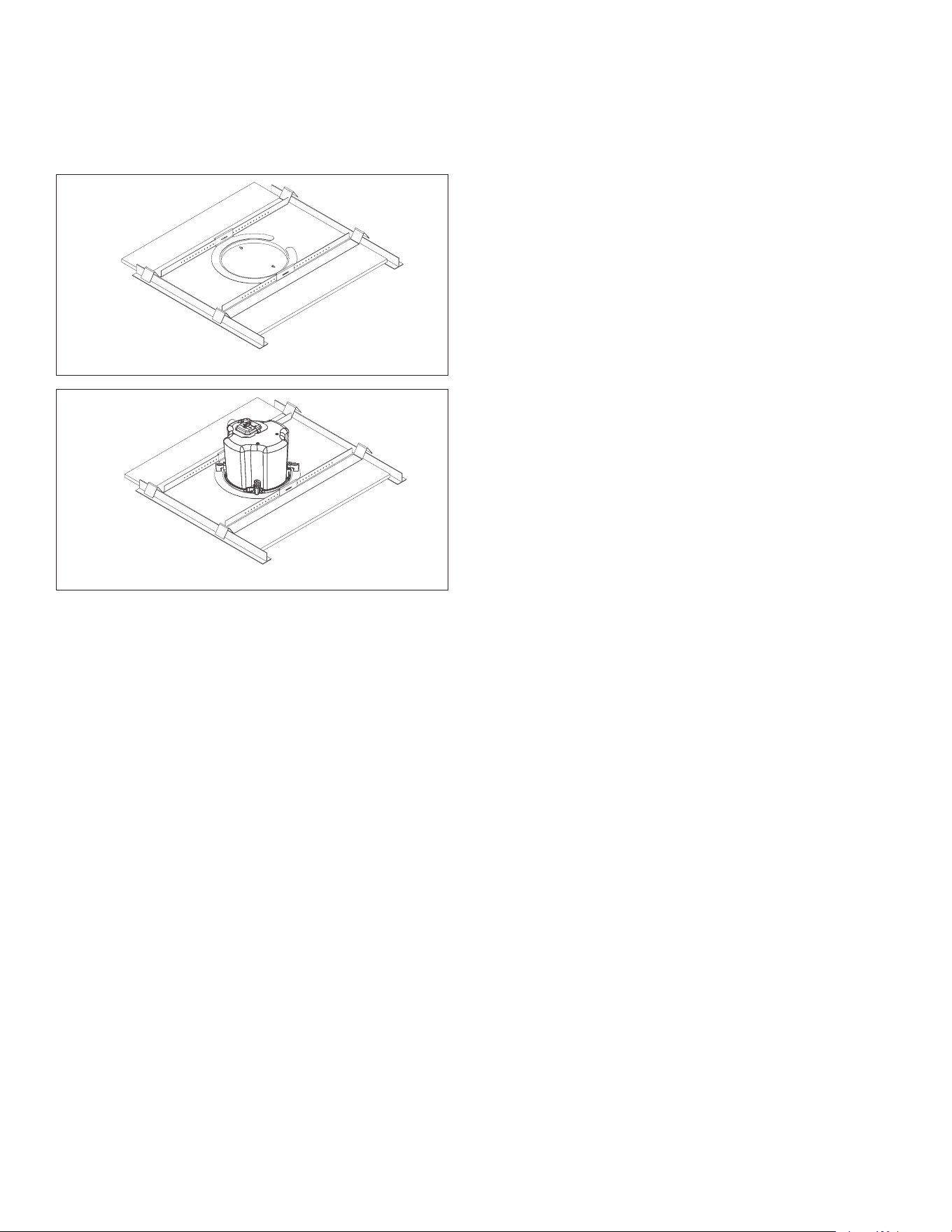

6 Drop Ceiling Installation
8 Technical Specications
14 Certications & Safety Agency
14 Technical Assistance & Service
15 Warranty
IN-CEILING SPEAKERS
PS-C43RT, PS-C63RT, PS-C83RT, PS-C83RWT,
PS-C43RTLP, PS-C63RTLP
BOX CONTENTS
IN-CEILING SPEAKER OR WOOFER
(1) PS-C43RT, PS-C63RT, PS-C83RT,
PS-C43RTLP, PS-C63RTLP, or PS-C83RWT
(1) Speaker Grille in White (Black Optional)
(2) Tile Support Rails
(1) C-Ring
(1) Cutout Template

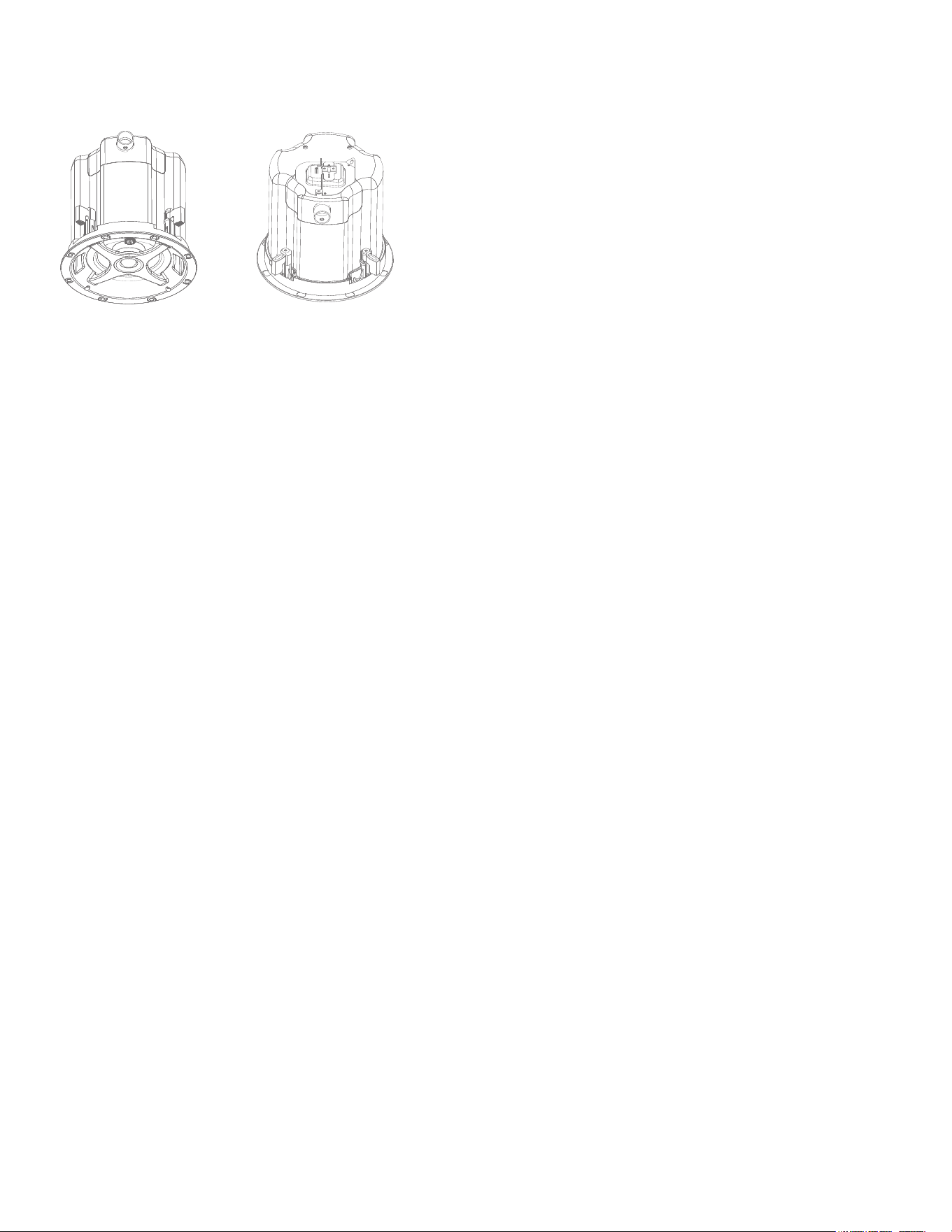

Front View Back View
PRODUCT FEATURES
3
PRODUCT DESCRIPTION
From Sonance, the company that created the
architectural audio category, comes a range of
professional loudspeakers that set a new benchmark
in sound quality and aesthetics for commercial
environments. Sonance Professional Series includes
a range of In-Ceiling, Pendant and Surface Mount
speakers that deliver true full range delity, extremely
low distortion, wide dispersion and a smooth power
response. The range also shares consistent voicing,
ensuring seamless sonic integration when used together
throughout a space.
The In-Ceiling speakers feature a one-piece bezel-less
grille that is magnetically secured and allows for a
one-step painting process to simplify installation and
minimize visual distraction. The optional Square Grille
Adapter allows the speakers to match the aesthetic
of square downlights and HVAC grilles. Sealed metal
enclosures, integrated cable and conduit clamping,
seismic attachment and connecter cover allow them to
be installed in commercial environments where UL 1480
and UL 2043 are required by code. Available in 4”, 6.5”
and 8” 2-Way and 8” Woofer - all shipped with white
grille. An optional black grille and square adapter are
also available.

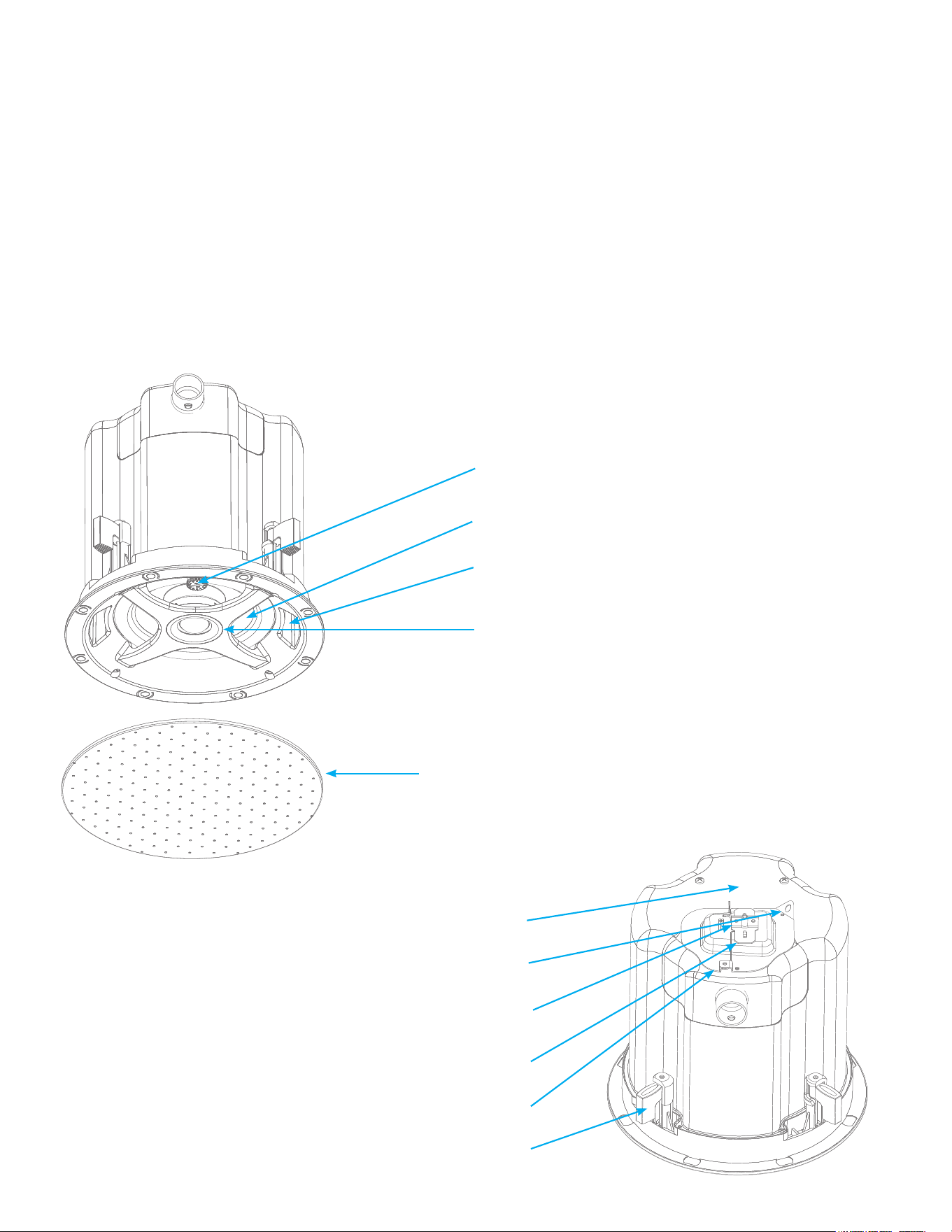

One Piece Paintable Grille with
Magnetic Retention
Reversible Roto-Lock™ Clamps
Cable and Conduit Clamp
Seismic Attachment
Connector Cover with Slotted Opening
Pivoting Chambered Tweeter
(excluding PS-C83RWT)
Transformer Tap and Bypass Selector
Integrated Back Can
Euroblock Connector with Loop Through
Tuning Port
High Excursion Woofer

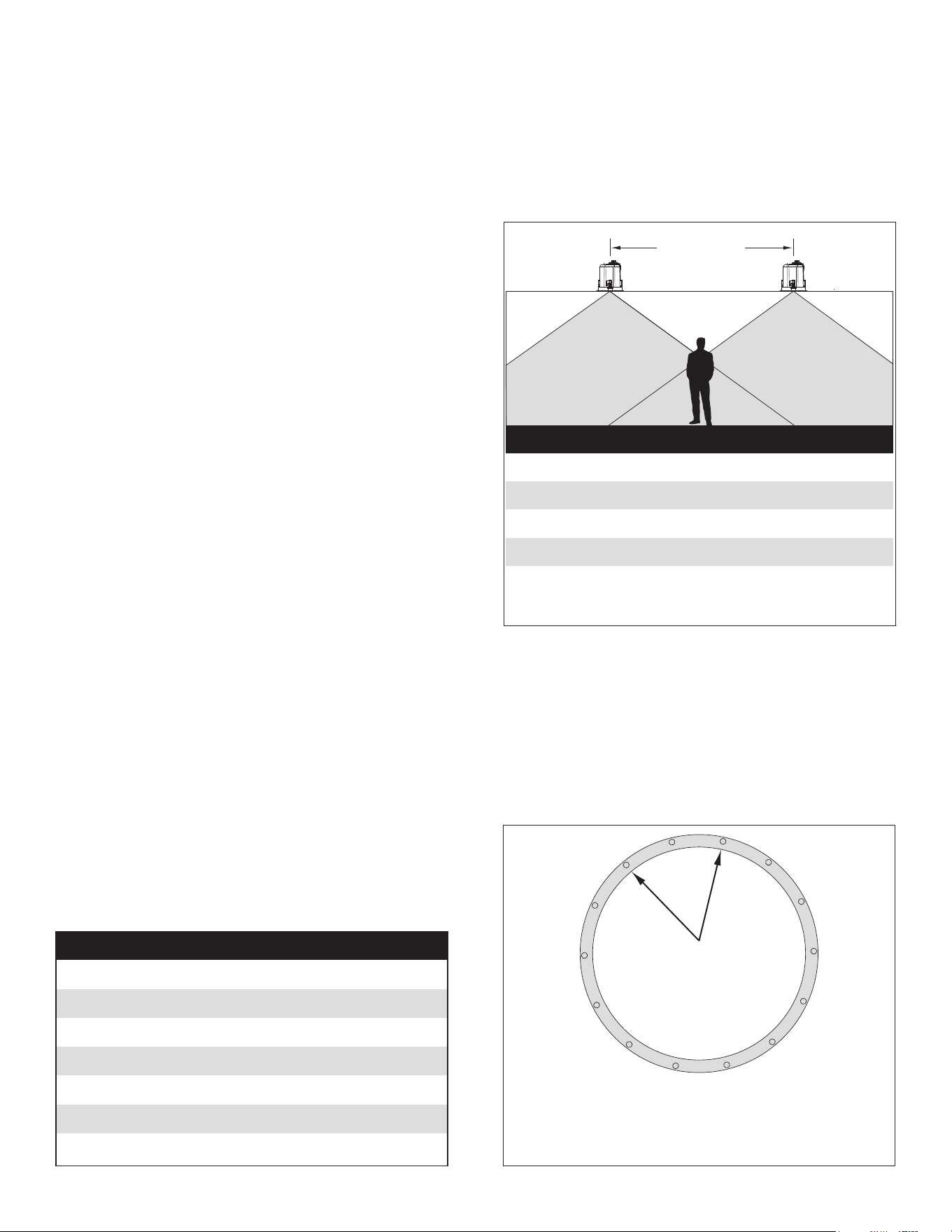

SPEAKER PLACEMENT
Sonance Professional Series speakers possess extremely
smooth and predictable off-axis frequency response.
The chart below (see gure 2) shows how far apart
the speakers can be placed in a distributed audio
system. The calculations are based on +/- 45 degrees of
coverage from the speaker, and listener ear heights of
62” for standing and 40” for seated.
WIRE SELECTION
WIRE GAUGE – 70V/100V SYSTEM
The most common wire used on commercial 70 volt
systems is 18 gauge, 2 conductor, stranded, and jacketed
without a shield. The wire starts at the amplier location
and is paralleled at each speaker location. Wire length
using 18 gauge is appropriate up to 700 feet with a
100 watt load. If you double the load (sum of your tap
settings), you will reduce the footage by half, to 350
feet. Conversely, if you halve the load, you may double
the acceptable wire length, i.e., a 50 watt load is safe
over 1400 feet of 18 gauge. Stepping up to 16 gauge
wire extends the allowable run length by approximately
35%. For example, a 100 watt load can go 700 feet on
18 gauge; the same load may be placed on 1100 feet of
16 gauge.
WIRE GAUGE – 8 OHM SYSTEM
When using Sonance Professional Series loudspeakers
in an 8 ohm system the total wire resistance should be
less than 10% of the speaker impedance. The speakers
are nominally 8 ohms impedance, so your total wire
resistance should be no more than 0.8 ohms. In simple
terms, the extra resistance from the wire will have a very
negative affect on the sound quality of the speaker.
The sound can be less dynamic, denition of bass
frequencies can be reduced, and in extreme cases, the
high frequencies can be attenuated. Amplier power is
also wasted in the wire, reducing the maximum output
level of the system. Please refer to the following chart
(see gure 1) when deciding on the appropriate wire
gauge for your installation.
AMPLIFIER SELECTION
When choosing an amplier the maximum number of
speakers and the output level of each speaker must be
known. The sum of the tap settings should never exceed
80% of the amplier’s rated output. For example, if there
are 5 speakers and the taps are set at 15 watts, the load
would be 75 watts (5 x 15 watts = 75 watts). To arrive at
the needed power for this number of speakers, simply
divide the total load by .8. In this case, 75 / .8 = 93.75
watts. Therefore, a standard 100 watt amp would safely
drive this load. To calculate the amount of usable power
an amp offers, simply multiply the rated output by .8, i.e.,
100 watts x .8= 80 watts.
Figure 1: Wire Resistance
Figure 2: Speaker Spacing
Wire Resistance in Ohms vs. Length of Cable Run
20 Gauge
50’ 100’ 150’ 200’ 250’ 300’
.86 1.73 2.59 3.45 4.32 5.18
.65 1.30 1.94 2.59 3.24 3.89
.43 .85 1.28 1.71 2.14 2.56
.27 .54 .81 1.08 1.35 1.62
.17 .34 .51 .68 .85 1.02
Distance in Feet
18 Gauge
16 Gauge
14 Gauge
12 Gauge
SPEAKER
SPACING
COVERAGE
AREA
COVERAGE
AREA
Speaker Spacing in Feet for a Distributed Audio System
8-Foot Ceiling
5.7’ (1.7m) Apart
9.7’ (3.0m) Apart
13.7’ (4.2m) Apart
17.7’ (5.4m) Apart
9.5’ (2.9m) Apart
13.5’ (4.1m) Apart
17.5’ (5.3m) Apart
21.5’ (6.6m) Apart
Standing Listener Seated Listener
10-Foot Ceiling
12-Foot Ceiling
14-Foot Ceiling
GRILLE PAINTING
BEFORE YOU BEGIN
Sonance Professional Series In-Ceiling speaker grilles
completely cover the exposed speaker frame, so
only the grilles (not the speakers themselves) require
painting.
IMPORTANT: Mask the front ange of the speaker
before painting the wall or ceiling (see Figure 3).
Figure 3
MASK ENTIRE
FLANGE
Mask the Flanges of
Installed Speakers Before
Painting the Ceiling
4
PAINTING THE GRILLES
1. Prime the grille with a metal primer/bonder in
a spray can. Carefully follow the manufacturer’s
directions on the can.
2. We recommend using water-based latex paint on
the grilles. Thin the paint with a proper thinning
agent to a ratio of 1:1 paint-to-thinner, and strain it
through a standard mesh strainer to remove any
lumps.
IMPORTANT: Due to its increased durability, oil-based
paint should be considered for Professional Series
Speakers that are installed outdoors.
3. Use a small touch-up gun or cap-spray gun with a
#3 tip for painting.
• Set the nozzle with a medium to wide fan.
• Set the pressure regulator to 60psi.
• Lightly spray the front of the grille in three quick
strokes from approximately 10” away.
• Let the paint set for a minute, then turn the grille
90º and lightly spray the grille again in three quick
strokes. Repeat this step until all four sides of the
grille have been evenly painted.
4. While the paint is still wet, inspect the grille and
make sure that excess paint has not collected
underneath the grille frame, and that none of the
grille perforations are lled with paint. If any are,
use compressed air to blow the paint out of the
perforations.
IMPORTANT: If you nd any grille perforations that
are plugged with paint after the paint has dried, use a
straight pin or sewing needle to carefully remove the
paint.
5. Once the paint has thoroughly dried, replace the
scrim cloth on the back of the grille and mount the
grille on the speaker.
5
PREPARING THE GRILLES FOR PAINTING
Carefully remove the scrim cloth from the underside of
the grille. The scrim cloth is held in place with a light
tacking glue. Use a heating agent such as a heat gun or
hair dryer to soften the glue and carefully remove the
cloth, since you will need to replace it when you’re done
painting the grille. Be careful not to deform the cloth’s
shape while removing it - this will make it very difcult
to properly replace the cloth on the grille. Remove any
adhesive residue from the back of the grille before
beginning painting.
STANDARD INSTALLATION
1. Cut a hole in the drywall using the supplied cutout
template.
NOTE: For drop-ceiling instructions refer to page 7.

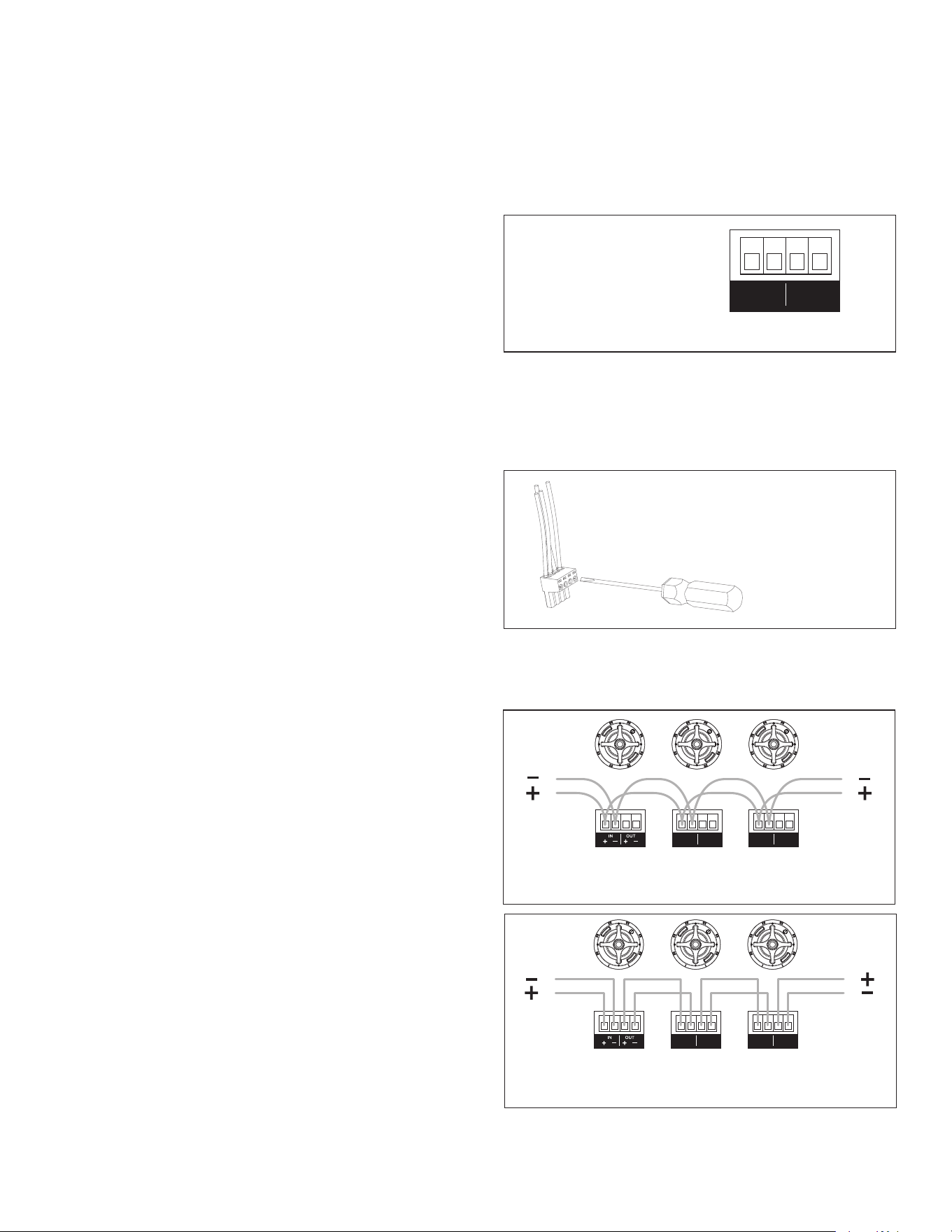

2. Connect the wires from your amplier to the
Euroblock connector (see Figure 4).
Pin 1 + Positive In
Pin 2 - Negative In
Pin 3 + Positive Out
Pin 4 - Negative Out
3. Strip approximately 0.1875” (5mm) of the insulation
off each wire. Insert the wire into the correct square
opening on the connector. Use a small at head
screwdriver to tighten the corresponding screw to
secure the wire (see Figure 5).
When using multiple speakers you can connect the
speakers either in parallel or in the loop through
method as shown (see Figure 6 and 7).
NOTE: If square grilles are being used the adapter
frame must be installed at this time.
+
_
IN OUT
+
_
+
_
IN OUT
+
_
+
_
IN OUT
+
_
+
_
IN OUT
+
_
Parallel Connection To Next SpeakerFrom Power Amplifier
Loop Thru Connection To Next SpeakerFrom Power Amplifier
From Power Amplier
To Next Speaker
+
_
IN OUT
+
_
+
_
IN OUT
+
_
+
_
IN OUT
+
_
+
_
IN OUT
+
_
Parallel Connection To Next SpeakerFrom Power Amplifier
Loop Thru Connection To Next SpeakerFrom Power Amplifier
From Power Amplier To Next Speaker
Figure 6: Parallel Connection
Figure 4: Euroblock Connector
Figure 5:
Secure the Wire
Figure 7: Loop Through Connection
+
_
IN OUT
+
_
6

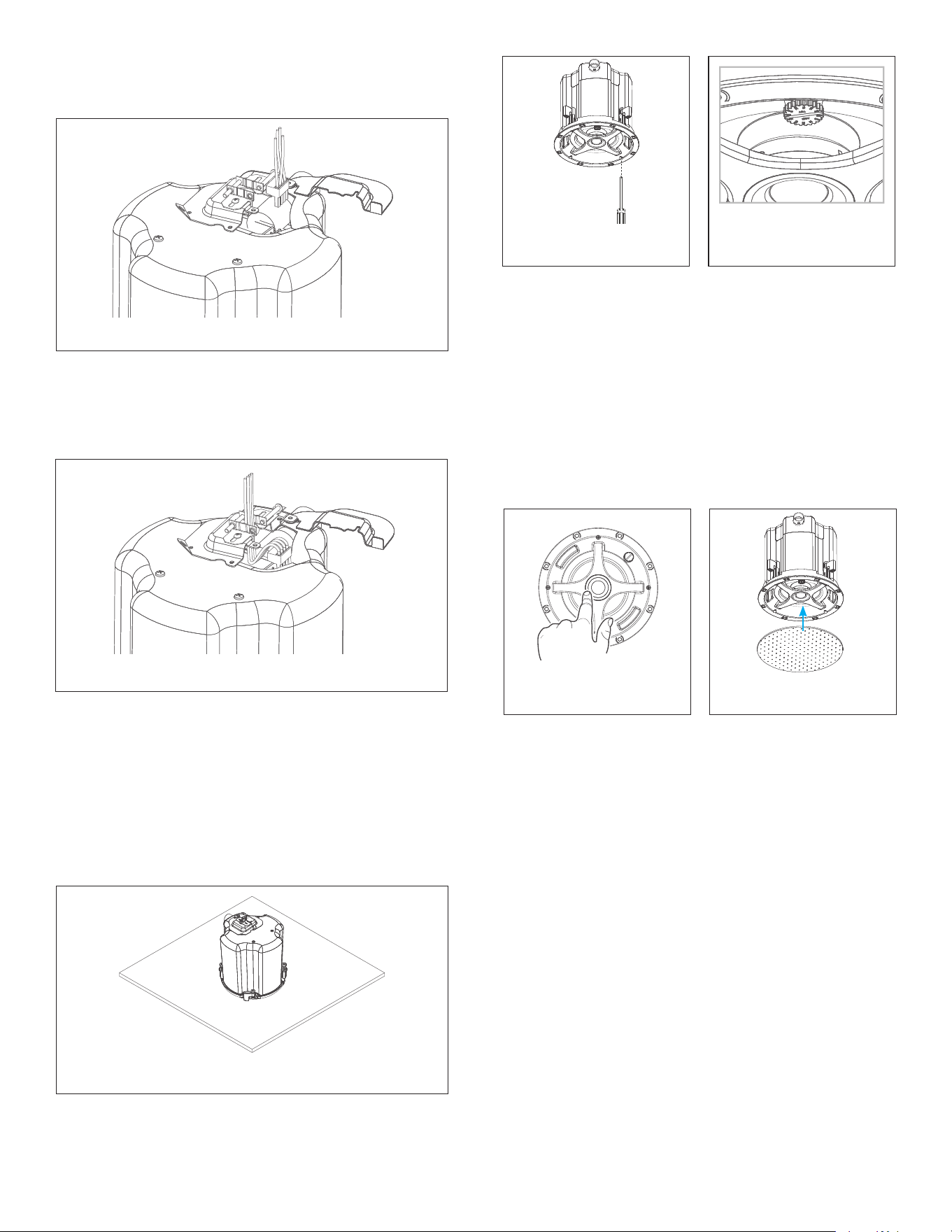

4. Once all the wires are terminated. Plug the green
Euroblock connector into the back of the speaker
(see Figure 8).
Route the wires through the Strain Relief Fitting on the
back of the speaker. Tighten the screws on the strain
relief to clamp the wires. Make sure not to over-tighten
the screws and damage the wire (see Figure 9).
Figure 8: Plug in Euroblock Connector
Figure 9: Route Wires and Tighten Screws
8. Sonance Professional Series loudspeakers have a
pivoting tweeter assembly, allowing the treble to be
directed to the most suitable location if the speaker
is installed of-axis. To pivot the drivers apply light
pressure to the ring around the outside edge of
the tweeter cone. Take care not to touch or apply
pressure to the cone itself (see Figure 13).
9. After the speaker is installed, and transformer tap
adjustments are made, the grille can be installed.
The grille is held in place by several small, powerful
magnets on the speaker frame. Place the grille
against the speaker and the magnets will hold it
rmly in place. When properly installed, the grille
should make contact with the wall all the way
around the speaker
6. Tighten the four screws on the front of the bafe.
The Roto-Lock Clamps will rotate into position
automatically and begin clamping. When you
notice resistance on the four screws, the speaker
has been clamped successfully (see Figure 11). The
ange is designed to ex and conform to any small
imperfections in the ceiling surface.
7. The transformer tap selector can be set. Depending
on your installation you may wait to set the volume
of each speaker until the system is completely
installed (see Figure 12).
DROP CEILING INSTALLATION
1. The included C-bracket and tile support rails should
be used in all suspended ceiling installations. The
C-bracket and tile support rails can also be used in
installations when the speakers are mounted into
material that will not support their weight. Insert the
two tile support rails and C-bracket through the hole
5. Make sure the Roto-Lock Clamps are in the full
clockwise position so that all the clamps are tucked
within the cutout border. Insert the speaker into the
hole in the ceiling (see Figure 10).
NOTE: The maximum clamp thickness 1.732” (44mm).
To achieve maximum thickness, unscrew and reverse
the foot of the Roto-Lock Clamps. For details on ex
bracket go to www.sonance.com
Figure 14:
Grille Installation
Figure 11:
Tighten Screws on Bae
Figure 12:
Transformer Tap Selection
Figure 13:
Pivot Drivers
Figure 10: Insert Speaker Into Hole
SAFETY PRECAUTION: Attaching the seismic tab to
a support line is highly recommended for additional
safety.
7
you have cut, placing them as shown. Using the two
screws that are supplied, screw the C-bracket to
the tile support rails as shown (see Figure 15). After
the C-bracket and tile support rails are installed
follow Steps 2 through 8 in the standard installation
instructions.
Figure 15: Screw C-bracket to tile support rails
Figure 16: Insert Speaker into Hole
SAFETY PRECAUTION: Attaching the seismic tab to
a support line is highly recommended for additional
safety.
8
PS-C43RT TECHNICAL SPECIFICATIONS
Frequency Range (-10dB)
Frequency Range (-3dB)
Power Capacity
Nominal Sensitivity
Nominal Coverage Angle
Directivity Factor (Q)
Directivity (DI)
Rated Maximum SPL
Rated Impedance
Transformer Taps
Crossover Point
Overall Dimension
Cut Out Dimension
Net Weight
Shipping Weight
Unit of Measure
Grille
Transducers
LF Driver
HF Driver
Enclosure
Input Connectors
Knockouts
Safety Agency
Ceiling Thickness Range
Suspension Points
57Hz – 25kHz
75Hz – 20kHz
60 Watts Continuous Program Power
30 Watts Continuous Pink Noise
87dB
120 degrees conical coverage
7.6
8.1dB
105dB @ 1 meter (3.3 feet) average, 110dB peak
8 ohms nominal, 6 ohms minimum
70V: 30W, 15W, 7.5W and 3.8W
100V: 30W, 15W and 7.5W
3000Hz
6.3” Diameter x 7.01” Depth (160mm x 178mm)
5.875” Diameter (149mm)
5.63 lbs (2.55kg) each
21.80 lbs (9.89kg) 2x each
Each
Supplied with bezel-less white grille, black grille optional
4” (100mm) Polypropylene Cone, Butyl Rubber Surround
1” (25mm) Cloth Dome, Pivoting, Ferrouid cooled
Four pin, Euroblock with loop output connections
One, side mounted 0.75”
UL 1480, UL 2043, NFPA 90A, NFPA 70
0.125” - 2” (3mm - 50mm)
One, on top surface
INCLUDED ACCESSORIES
(1) C-Ring
(2) Tile Support Rails
(1) Cutout Template
(1) Euroblock Connector
(1) White Grille
OPTIONAL ACCESSORIES
(1 Pair) Replacement Round Grille White | 40152
(1 Pair) Round Grille Black | 40155
(5 Pairs) Square Adaptor w/ Grille White | 40158
(1 Pair) Square Adaptor w/ Grille White | 45158
(5 Pairs) Square Adaptor w/ Grille Black | 40161
(1 Pair) Square Adaptor w/ Grille Black | 45161
(5 Pairs) Flex Bracket | 92471
(6 Pack) Metal Pre-construction Bracket | 40177
(1 Pair) Tile Support Rails w/ C-Ring | 40172
(Bag) Replacement RotoLock Feet | 40175
9
PS-C63RT TECHNICAL SPECIFICATIONS
Frequency Range (-10dB)
Frequency Range (-3dB)
Power Capacity
Nominal Sensitivity
Nominal Coverage Angle
Directivity Factor (Q)
Directivity (DI)
Rated Maximum SPL
Rated Impedance
Transformer Taps
Crossover Point
Overall Dimension
Cut Out Dimension
Net Weight
Shipping Weight
Unit of Measure
Grille
Transducers
LF Driver
HF Driver
Enclosure
Input Connectors
Knockouts
Safety Agency
Ceiling Thickness Range
Suspension Points
INCLUDED ACCESSORIES
(1) C-Ring
(2) Tile Support Rails
(1) Cutout Template
(1) Euroblock Connector
(1) White Grille
49Hz – 25kHz
65Hz – 20kHz
120 Watts Continuous Program Power
60 Watts Continuous Pink Noise
91dB
120 degrees conical coverage
6.5
7.9dB
108dB @ 1 meter (3.3 feet) average, 116dB peak
8 ohms nominal, 6 ohms minimum
70V: 60W, 30W, 15W and 7.5W
100V: 60W, 30W and 15W
2750Hz
9.13” Diameter x 8.86” Depth (232mm x 225mm)
8.25” Diameter (210mm)
9.38 lbs (4.25kg) each
32.36 lbs (14.68kg) 2x each
Each
Supplied with bezel-less white grille, black grille optional
6.5” (165mm) Polypropylene Cone, Butyl Rubber Surround
1” (25mm) Cloth Dome, Pivoting, Ferrouid cooled
Four pin, Euroblock with loop output connections
One, side mounted 0.75”
UL 1480, UL 2043, NFPA 90A, NFPA 70
0.125” - 2” (3mm - 50mm)
One, on top surface
OPTIONAL ACCESSORIES
(1 Pair) Replacement Round Grille White | 40153
(1 Pair) Round Grille Black | 40156
(5 Pairs) Square Adaptor w/ Grille White | 40159
(1 Pair) Square Adaptor w/ Grille White | 45159
(5 Pairs) Square Adaptor w/ Grille Black | 40162
(1 Pair) Square Adaptor w/ Grille Black | 45162
(5 Pairs) Flex Bracket | 92337
(6 Pack) Metal Pre-construction Bracket | 40126
(1 Pair) Tile Support Rails w/ C-Ring | 40173
(Bag) Replacement RotoLock Feet | 40175
PS-C83RT TECHNICAL SPECIFICATIONS
Frequency Range (-10dB)
Frequency Range (-3dB)
Power Capacity
Nominal Sensitivity
Nominal Coverage Angle
Directivity Factor (Q)
Directivity (DI)
Rated Maximum SPL
Rated Impedance
Transformer Taps
Crossover Point
Overall Dimension
Cut Out Dimension
Net Weight
Shipping Weight
Unit of Measure
Color
Grille
Transducers
LF Driver
HF Driver
Enclosure
Input Connectors
Knockouts
Safety Agency
Ceiling Thickness Range
Suspension Points
41Hz – 25kHz
55Hz – 20kHz
160 Watts Continuous Program Power
80 Watts Continuous Pink Noise
91dB
120 degrees conical coverage
7.6
8.1dB
110dB @ 1 meter (3.3 feet) average, 116dB peak
8 ohms nominal, 6 ohms minimum
70V: 60W, 30W, 15W and 7.5W
100V: 60W, 30W and 15W
2750Hz
11.06” Diameter x 9.84” Depth (281mm x 250mm)
10.125” Diameter (257mm)
13.41 lbs (6.08kg) each
43.08 lbs (19.54kg) 2x each
Each
Black or White
Supplied with bezel-less white grille, black grille optional
8” (203mm) Polypropylene Cone, Butyl Rubber Surround
1” (25mm) Cloth Dome, Pivoting, Ferrouid cooled
Four pin, Euroblock with loop output connections
One, side mounted 0.75”
UL 1480, UL 2043, NFPA 90A, NFPA 70
0.125” - 2” (3mm - 50mm)
One, on top surface
INCLUDED ACCESSORIES
(1) C-Ring
(2) Tile Support Rails
(1) Cutout Template
(1) Euroblock Connector
(1) White Grille
OPTIONAL ACCESSORIES
(1 Pair) Replacement Round Grille White | 40154
(1 Pair) Round Grille Black | 40157
(5 Pairs) Square Adaptor w/ Grille White | 40160
(1 Pair) Square Adaptor w/ Grille White | 45160
(5 Pairs) Square Adaptor w/ Grille Black | 40163
(1 Pair) Square Adaptor w/ Grille Black | 45163
(5 Pairs) Flex Bracket | 92247
(6 Pack) Metal Pre-construction Bracket | 40125
(1 Pair) Tile Support Rails w/ C-Ring | 40174
(Bag) Replacement RotoLock Feet | 40175
10
PS-C83RWT TECHNICAL SPECIFICATIONS
Frequency Range (-10dB)
Frequency Range (-3dB)
Power Capacity
Nominal Sensitivity
Nominal Coverage Angle
Directivity Factor (Q)
Directivity (DI)
Rated Maximum SPL
Rated Impedance
Transformer Taps
Crossover Point
Overall Dimension
Cut Out Dimension
Net Weight
Shipping Weight
Unit of Measure
Grille
Transducers
LF Driver
HF Driver
Enclosure
Input Connectors
Knockouts
Safety Agency
Ceiling Thickness Range
Suspension Points
32Hz – 300Hz
50Hz – 150Hz
200 Watts Continuous Program Power
125 Watts Continuous Pink Noise
89 dB
180 degrees conical coverage
N/A
N/A
110dB @ 1 meter (3.3 feet) average, 116dB peak
8 ohms nominal, 6 ohms minimum
70V: 120W, 60W, 30W and 15W
100V: 120W, 60W and 30W
150Hz
11.06” Diameter x 9.84” Depth (281mm x 250mm)
10.125” (257mm)
14.95 lbs (6.78kg) each
25.35 lbs (11.50kg) each
Each
Supplied with bezel-less white grille or black grille option
8” (203mm) Polypropylene Cone, Butyl Rubber Surround
N/A
Four pin, Euroblock with loop output connections
One, side mounted 0.75”
UL 1480, UL 2043, NFPA 90A, NFPA 70
0.125” - 2” (3mm - 50mm)
One, on top surface
INCLUDED ACCESSORIES
(1) C-Ring
(2) Tile Support Rails
(1) Cutout Template
(1) Euroblock Connector
(1) White Grille
OPTIONAL ACCESSORIES
(1 Pair) Replacement Round Grille White | 40154
(1 Pair) Round Grille Black | 40157
(5 Pairs) Square Adaptor w/ Grille White | 40160
(1 Pair) Square Adaptor w/ Grille White | 45160
(5 Pairs) Square Adaptor w/ Grille Black | 40163
(1 Pair) Square Adaptor w/ Grille Black | 45163
(5 Pairs) Flex Bracket | 92247
(6 Pack) Metal Pre-construction Bracket | 40125
(1 Pair) Tile Support Rails w/ C-Ring | 40174
(Bag) Replacement RotoLock Feet | 40175
11
PS-C43RTLP TECHNICAL SPECIFICATIONS
Frequency Range (-10dB)
Frequency Range (-3dB)
Power Capacity
Nominal Sensitivity
Nominal Coverage Angle
Directivity Factor (Q)
Directivity (DI)
Rated Maximum SPL
Rated Impedance
Transformer Taps
Crossover Point
Overall Dimension
Cut Out Dimension
Net Weight
Shipping Weight
Unit of Measure
Grille
Transducers
LF Driver
HF Driver
Enclosure
Input Connectors
Knockouts
Safety Agency
Ceiling Thickness Range
Suspension Points
57Hz – 25kHz
75Hz – 20kHz
60 Watts Continuous Program Power
30 Watts Continuous Pink Noise
87dB
120 degrees conical coverage
7.6
8.1dB
105dB @ 1 meter (3.3 feet) average, 110dB peak
8 ohms nominal, 6 ohms minimum
70V: 30W, 15W, 7.5W and 3.8W
100V: 30W, 15W and 7.5W
3000Hz
9.13” Diameter x 3.43” Depth (232mm x 87mm)
8.25” Diameter (210mm)
6 lbs (2.72kg) each
25.6 lbs (11.62kg) 2x each
Each
Supplied with bezel-less white grille, black grille optional
4” (100mm) Polypropylene Cone, Butyl Rubber Surround
1” (25mm) Cloth Dome, Pivoting, Ferrouid cooled
Four pin, Euroblock with loop output connections
One, side mounted 0.75”
UL 1480, UL 2043, NFPA 90A, NFPA 70
0.125” - 2” (3mm - 50mm)
One, on top surface
INCLUDED ACCESSORIES
(1) C-Ring
(2) Tile Support Rails
(1) Cutout Template
(1) Euroblock Connector
(1) White Grille
OPTIONAL ACCESSORIES
(1 Pair) Replacement Round Grille White | 40153
(1 Pair) Round Grille Black | 40156
(5 Pairs) Square Adaptor w/ Grille White | 40159
(1 Pair) Square Adaptor w/ Grille White | 45159
(5 Pairs) Square Adaptor w/ Grille Black | 40162
(1 Pair) Square Adaptor w/ Grille Black | 45162
(5 Pairs) Flex Bracket | 92337
(6 Pack) Metal Pre-construction Bracket | 40126
(1 Pair) Tile Support Rails w/ C-Ring | 40173
(Bag) Replacement RotoLock Feet | 40175
(5 Pairs) Retro Ring | 40180
12
PS-C63RTLP TECHNICAL SPECIFICATIONS
Frequency Range (-10dB)
Frequency Range (-3dB)
Power Capacity
Nominal Sensitivity
Nominal Coverage Angle
Directivity Factor (Q)
Directivity (DI)
Rated Maximum SPL
Rated Impedance
Transformer Taps
Crossover Point
Overall Dimension
Cut Out Dimension
Net Weight
Shipping Weight
Unit of Measure
Grille
Transducers
LF Driver
HF Driver
Enclosure
Input Connectors
Knockouts
Safety Agency
Ceiling Thickness Range
Suspension Points
49Hz – 25kHz
65Hz – 20kHz
120 Watts Continuous Program Power
60 Watts Continuous Pink Noise
91dB
120 degrees conical coverage
6.5
7.9dB
108dB @ 1 meter (3.3 feet) average, 116dB peak
8 ohms nominal, 6 ohms minimum
70V: 60W, 30W, 15W and 7.5W
100V: 60W, 30W and 15W
2750Hz
11.06” Diameter x 4.37” Depth (281mm x 111mm)
10.125” Diameter (257mm)
10 lbs (4.53kg) each
38 lbs (17.23kg) 2x each
Each
Supplied with bezel-less white grille, black grille optional
6.5” (165mm) Polypropylene Cone, Butyl Rubber Surround
1” (25mm) Cloth Dome, Pivoting, Ferrouid cooled
Four pin, Euroblock with loop output connections
One, side mounted 0.75”
UL 1480, UL 2043, NFPA 90A, NFPA 70
0.125” - 2” (3mm - 50mm)
One, on top surface
INCLUDED ACCESSORIES
(1) C-Ring
(2) Tile Support Rails
(1) Cutout Template
(1) Euroblock Connector
(1) White Grille
OPTIONAL ACCESSORIES
(1 Pair) Replacement Round Grille White | 40154
(1 Pair) Round Grille Black | 40157
(5 Pairs) Square Adaptor w/ Grille White | 40160
(1 Pair) Square Adaptor w/ Grille White | 45160
(5 Pairs) Square Adaptor w/ Grille Black | 40163
(1 Pair) Square Adaptor w/ Grille Black | 45163
(5 Pairs) Flex Bracket | 92247
(6 Pack) Metal Pre-construction Bracket | 40125
(1 Pair) Tile Support Rails w/ C-Ring | 40174
(Bag) Replacement RotoLock Feet | 40175
13
CERTIFICATIONS
SAFETY AGENCY COMPLIANCE
Sonance Professional Series loudspeakers models PS-
C43RT, PS-C63RT, PS-C83RT, PS-C83RWT, PS-C43RTLP,
& PS-C63RTLP, meet the following standards:
UL 1480: Listed Standard For Safety For Speakers
for Fire Alarm, Emergency, and Commercial and
Professional Use.
UL 2043: Suitable for use in air-handling spaces.
NFPA 70: 2002 National Electrical Code
NFPA 90A: Installation of Air Conditioning and
Ventilation Systems, Section 2-3. 10. (A)
TECHNICAL ASSISTANCE
AND SERVICE
The Technical Assistance Department at Sonance is
available at (949) 492-7777 to answer any questions
concerning the operation and installation of your
speakers between the hours of 7:00 AM and 5:00 PM
Pacic time, Monday through Friday, except holidays.
In the event your unit should need repair or service, you
may return the unit to your authorized dealer or use the
following guidelines:
PLEASE KEEP ORIGINAL PACKAGING WHEN POSSIBLE.
1. Be prepared to state the model number and / or
serial number, date of purchase, and dealer’s name
and address when calling.
2. Contact Sonance directly at (949) 492-7777
or at www.sonance.com. YOU MUST HAVE PRIOR
AUTHORIZATION TO RETURN YOUR UNIT.
3. If you are returning the product directly to Sonance,
call us to obtain a return authorization number
(RMA) before shipping.
4. Ship the product via United Parcel Service, Federal
Express, or other package delivery service. Please do
not use the U.S. Postal Service.
5. Include the return authorization number on the
shipping label. Please do not write the RMA number
directly on the carton.
6. Ship to:
Attn: Quality Assurance Department
RMA# (include RMA number here)
Sonance
11016 Mulberry Ave.
Suite B
Fontana, CA 92337
14
LIMITED FIVE (5) YEAR WARRANTY
Sonance warrants to the rst end-user purchaser that this Sonance-brand product (“Product”), when purchased from
an authorized Sonance Dealer/Distributor, will be free from defective workmanship and materials for the period stated
below. Sonance will at its option and expense during the warranty period, either repair the defect or replace the Product
with a new or remanufactured Product or a reasonable equivalent.
EXCLUSIONS
TO THE EXTENT PERMITTED BY LAW, THE WARRANTY SET FORTH ABOVE IS IN LIEU OF, AND EXCLUSIVE OF,
ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, AND IS THE SOLE AND EXCLUSIVE WARRANTY PROVIDED
BY SONANCE. ALL OTHER EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTIES OF
MERCHANTABILITY, IMPLIED WARRANTY OF FITNESS FOR USE, AND IMPLIED WARRANTY OF FITNESS FOR A
PARTICULAR PURPOSE ARE SPECIFICALLY EXCLUDED.
No one is authorized to make or modify any warranties on behalf of Sonance. The warranty stated above is the sole and
exclusive remedy and Sonance’s performance shall constitute full and nal satisfaction of all obligations, liabilities and
claims with respect to the Product.
IN ANY EVENT, SONANCE SHALL NOT BE LIABLE FOR CONSEQUENTIAL, INCIDENTAL, ECONOMIC, PROPERTY,
BODILY INJURY, OR PERSONAL INJURY DAMAGES ARISING FROM THE PRODUCT, ANY BREACH OF THIS WARRANTY
OR OTHERWISE.
This warranty statement gives you specic legal rights, and you may have other rights which vary from state to state.
Some states do not allow the exclusion of implied warranties or limitations of remedies, so the above exclusions and
limitations may not apply. If your state does not allow disclaimer of implied warranties, the duration of such implied
warranties is limited to period of Sonance’s express warranty. Your Product Model and Description: PS-C41RT / PS-C61RT.
Warranty Period for this Product: Five (5) years from the date on the original sales receipt or invoice or other satisfactory
proof of purchase. Additional Limitations and Exclusions from Warranty Coverage: The warranty described above is non-
transferable, applies only to the initial installation of the Product, does not include installation of any repaired or replaced
Product, does not include damage to allied or associated equipment which may result for any reason from use with
this Product, and does not include labor or parts caused by accident, disaster, negligence, improper installation, misuse
(e.g. overdriving the amplier or speaker, excessive heat, cold or humidity), or from service or repair which has not been
authorized by Sonance. Obtaining Authorized Service: To qualify for the warranty, you must contact your authorized
Sonance Dealer/Installer or call Sonance Customer Service at (949) 492-7777 within the warranty period, must obtain
a return merchandise number (RMA), and must deliver the Product to Sonance shipping prepaid during the warranty
period, together with the original sales receipt, or invoice or other satisfactory proof of purchase.
©2025 Sonance. All rights reserved. Sonance is a registered trademark of Dana Innovations. Due to continuous product improvement, all features and
specications are subject to change without notice. For the latest Sonance product specication information visit our website: www.sonance.com
991 Calle Amanecer • San Clemente, CA 92673 • USA PHONE: (949) 492-7777 • FAX: (949) 361-5151 • Technical Support: (949) 492-7777 02.12.2025
15
