User Manual
www.AvantcoRefrigeration.com
09/2024
#178SSUD1R
#178SSUD260R
#178SSUD2R
#178SSUD3R
#178SSWD1R
#178SSWD260R
#178SSWD2R
#178SSWD3R
Base Models:
Extra Deep Worktop &
Undercounter Refrigerators
( Variations listed on page 3 )
Read the manual thoroughly prior to equipment setup, operation, and maintenance.
Note:
178SSUD2R
2
User Manual
www.AvantcoRefrigeration.com
Undercounter & Worktop Refrigerators & Freezers
Table of Contents
Model Variations ................................................................................................................ 3
Warnings ..............................................................................................................................4
Installation ...........................................................................................................................5
Cabinet Location Guidelines ..........................................................................................5
Electrical ..............................................................................................................................6
Temperature Controls ......................................................................................................6
Functions .............................................................................................................................6
Safety / Warning ................................................................................................................8
Operation / Maintenance ................................................................................................8
Troubleshooting .................................................................................................................10
NEMA
5-15P
30290793029079
3
User Manual
www.AvantcoRefrigeration.com
Undercounter & Worktop Refrigerators & Freezers
Base Model Left Middle Right
Optional
Models
178SSUD1R
― ― DRAWER 178SSUD1R
178SSUD260R
SLIM DOOR ― DRAWER 178SSUD260RB
178SSUD260R
SLIM DRAWER ― DRAWER 178SSUD260RC
178SSUD260R
SLIM DRAWER ― DOOR 178SSUD260RD
178SSUD2R
DOOR ― DRAWER 178SSUD2RB
178SSUD2R
DRAWER ― DRAWER 178SSUD2RC
178SSUD2R
DRAWER ― DOOR 178SSUD2RD
178SSUD3R
DOOR DOOR DRAWER 178SSUD3RE
178SSUD3R
DOOR DRAWER DOOR 178SSUD3RF
178SSUD3R
DOOR DRAWER DRAWER 178SSUD3RG
178SSUD3R
DRAWER DRAWER DRAWER 178SSUD3RH
178SSUD3R
DRAWER DOOR DOOR 178SSUD3RI
178SSUD3R
DRAWER DOOR DRAWER 178SSUD3RJ
178SSUD3R
DRAWER DOOR DOOR 178SSUD3RK
178SSWD1R
― ― DRAWER 178SSWD1RA
178SSWD260R
SLIM DOOR ― DRAWER 178SSWD260RB
178SSWD260R
SLIM DRAWER ― DRAWER 178SSWD260RC
178SSWD260R
SLIM DRAWER ― DOOR 178SSWD260RD
178SSWD2R
DOOR ― DRAWER 178SSWD2RB
178SSWD2R
DRAWER ― DRAWER 178SSWD2RC
178SSWD2R
DRAWER ― DOOR 178SSWD2RD
178SSWD3R
DOOR DOOR DRAWER 178SSWD3RE
178SSWD3R
DOOR DRAWER DOOR 178SSWD3RF
178SSWD3R
DOOR DRAWER DRAWER 178SSWD3RG
178SSWD3R
DRAWER DRAWER DRAWER 178SSWD3RH
178SSWD3R
DRAWER DOOR DOOR 178SSWD3RI
178SSWD3R
DRAWER DOOR DRAWER 178SSWD3RJ
178SSWD3R
DRAWER DOOR DOOR 178SSWD3RK
Model Variations
4
User Manual
www.AvantcoRefrigeration.com
Undercounter & Worktop Refrigerators & Freezers
DANGER – RISK OF FIRE OR EXPLOSION. FLAMMABLE REFRIGERANT USED. TO BE REPAIRED ONLY BY
TRAINED SERVICE PERSONNEL. DO NOT PUNCTURE REFRIGERANT TUBING.
PELIGRO – RIESGO DE INCENDIO O EXPLOSION. REFRIGERANTE INFLAMABLE UTILIZADO. PARA
SER REPARADO SOLAMENTE POR PERSONAL DE SERVICIO CALIFICADO. NO PINCHAR LA TUBERÍA
REFRIGERANTE.
DANGER – RISQUE DE FEU OU D’EXPLOSION. LE FRIGORIGÈNE EST INFLAMMABLE. CONFIER LES
RÉPARATIONS À UN TECHNICIEN SPÉCIALISÉ. NE PAS PERFORER LA TUBULURE CONTENANT LE
FRIGORIGENE.
CAUTION – RISK OF FIRE OR EXPLOSION. FLAMMABLE REFRIGERANT USED. CONSULT REPAIR
MANUAL/OWNER’S GUIDE BEFORE ATTEMPTING TO SERVICE THIS PRODUCT. ALL SAFETY
PRECAUTIONS MUST BE FOLLOWED.
ATENCION – RIESGO DE INCENDIO O EXPLOSIÓN. REFRIGERANTE INFLAMABLE UTILIZADO. CONSULTE
EL MANUAL DE REPARACIÓN / GUÍA DEL PROPIETARIO ANTES DE INTENTAR DAR SERVICIO A ESTE
PRODUCTO. DEBEN CUMPLIR CON TODAS LAS PRECAUCIONES DE SEGURIDAD.
ATTENTION – RISQUE DE FEU OU D’EXPLOSION. LE FRIGORIGÈNE EST INFLAMMABLE. CONSULTER LE
MANUEL DU PROPRIÉTAIRE/GUIDE DE RÉPARATION AVANT DE TENTER UNE RÉPARATION. TOUTES LE
MESURES DE SÉCURITÉ DOIVENT ÊTRE RESPECTÉES.
CAUTION – RISK OF FIRE OR EXPLOSION DUE TO PUNCTURE OF REFRIGERANT TUBING; FOLLOW
HANDLING INSTRUCTIONS CAREFULLY. FLAMMABLE REFRIGERANT USED.
ATENCION – RIESGO DE INCENDIO O EXPLOSIÓN DEBIDO A LA PERFORACION DE LA TUBERÍA
REFRIGERANTE; SIGA LAS INSTRUCCIONES DE MANIPULACIÓN CON CUIDADO. REFRIGERANTE
INFLAMABLE UTILIZADO.
ATTENTION – RISQUE DE FEU OU D’EXPLOSION SI LA TUBULURE CONTENTANT LE FRIGORIGÈNE EST
PERFORÉE; SUIVRE LES INSTRUCTIONS DE MANUTENTION AVEC SOIN. LE FRIGORIGÈNE EST
INFLAMMABLE.
CAUTION – RISK OF FIRE OR EXPLOSION DUE TO FLAMMABLE REFRIGERANT USED. FOLLOW
HANDLING INSTRUCTIONS CAREFULLY IN COMPLIANCE WITH LOCAL GOVERNMENT REGULATIONS.
ATENCION – RIESGO DE INCENDIO O EXPLOSIÓN DEBIDO A REFRIGERANTE INFLAMABLE UTILIZADO.
SIGA LAS INSTRUCCIONES DE MANIPULACIÓN CON CUIDADO CONFORME A LAS REGLAS DE LA
MUNICIPALIDAD.
ATTENTION – RISQUE DE FEU OU D’EXPLOSION SI LE FRIGORIGÈNE EST INFLAMMABLE. SUIVRE
LES INSTRUCTIONS DE MANUTENTION AVEC SOIN CONFORMÉMENT AUX RÈGLEMENTATION
GOUVERNEMENTALE LOCAUX.
Warnings
5
User Manual
www.AvantcoRefrigeration.com
Undercounter & Worktop Refrigerators & Freezers
This unit is intended for use in a temperature-controlled environment less than 75°F and 60%
relative humidity.
IMPORTANT – Read Before Installation:
• If the shelf has a raised lip, the lip needs to be installed facing up towards the rear of the cabinet to
promote proper airflow. Failure to install the shelves properly is considered user error and is not
covered by warranty.
• If the unit has recently been transported on its side, let the unit stand upright for a minimum of
24 hours before plugging it in.
• Make sure that the unit has reached the desired temperature before loading the unit with products.
This unit is meant for keeping cold products cold, not chilling warm products.
• Make sure that there is proper ventilation around the unit in the area where it will operate.
• Make sure all accessories are installed (i.e., shelves, shelf clips, casters) before plugging the unit in.
• Do not attempt to remove or repair any component of the unit. Consult an authorized service
technician for servicing/repair.
• Do not sit inside the unit or hang on the doors.
• Read through the manual in its entirety.
• This unit should be located away from doors, air ducts, and fans that could disrupt airflow and negatively
impact performance.
Installation
• Install the unit on a strong and leveled surface.
- If the surface is uneven, the unit may be noisy.
- The unit may malfunction if the surface is uneven.
• Install the unit in an indoor, well-ventilated area.
- For best performance, maintain clearance of 3" on the back and sides of the unit.
- Brackets should be attached on the back of the unit.
- Do not use outdoors. For indoor use only.
- Avoid direct sunlight.
• Avoid installation in a high humidity and/or dusty area.
- Humidity above 60% can cause the unit to rust, collect condensation, and may decrease eciency.
- Dust collected on the condenser coil will cause the unit to malfunction.
• Select a location away from heat and moisture-generating equipment.
- Ambient temperatures above 75°F may cause the compressor to malfunction.
- For optimal performance, this unit should not be used in environments with ambient temperatures
exceeding 75°F.
- The unit should not be placed in areas with an ambient temperature over 90°F.
- Equipment malfunctions due to ambient temperatures above 90 degrees could void the warranty.
- Do not install this unit inside a closet or alcove.
Cabinet Location Guidelines
6
User Manual
www.AvantcoRefrigeration.com
Undercounter & Worktop Refrigerators & Freezers
• Ensure that the required voltage is being supplied at all times.
• The unit should be plugged into a grounded and properly-sized electrical outlet with appropriate
over-current projection. Refer to the electrical requirements on the unit’s nameplate.
• The unit should have its own dedicated circuit.
• Do not use extention cords.
• Ensure the unit is not resting on or against the electrical cord.
• If the unit is not in use for a long period of time, unplug the unit from the outlet.
• To avoid shock and fire hazards, do not plug in or unplug the unit with wet hands.
• After unplugging the unit, wait at least 10 minutes before plugging it back in. Failure to do so could
cause damage to the compressor.
Electrical
• Refrigerant LED - Compressor is on
• Fan LED - Fan is on
• Defrost LED - Defrost cycle is running
Adjusting the Temperature
Your new refrigerator or freezer is already factory set to run at optimum temperature for food
safety and should require no adjustments.
Refrigerators are set to cycle between a minimum temperature of 33°F and a maximum temperature of 40°F.
Freezers are set to cycle between a minimum temperature of -5°F and a maximum
temperature of 2°F.
Adjusting the temperature changes the minimum temperature your unit will run at. Your unit will not run con-
stantly at this setting. To change it, follow these instructions:
Digital Control Units
• Hold “SET” for 1 sec. The display will flash the current minimum temperature.
• Use the arrow buttons to adjust the minimum temperature.
• Press “SET” again to save your settings.
Always remember to calculate the dierential if you change the minimum temperature setting. The cabinet
temperature will fluctuate up to +7 degrees over your set minimum temperature as the compressor runs and
shuts o. Setting the temperature too high will result in unsafe maximum temperatures.
Temperature Controls
Functions
7
User Manual
www.AvantcoRefrigeration.com
Undercounter & Worktop Refrigerators & Freezers
Loading Product
Before loading shelves, be sure that all shelf clips are completely fastened in their correct locations. It is
important that all shelves rest completely level before stocking your cabinet with product. In order to main-
tain correct airflow inside the unit, be sure to leave 2"-4" inches of space between the back wall and stored
product. Blocking the evaporator fans will result in a warmer cabinet temperature, and ultimately, compres-
sor failure.
Defrost System
Refrigerator coils are kept below the freezing point (32°F). During compressor downtime, the evaporator fan
continues to circulate air through the evaporator coil. This air circulation raises the coil temperature above
the freezing point, melting any accumulated frost. Run-o water is drained into the evaporator pan and
evaporated. Freezer coils are defrosted electronically. Automatic defrost timers automatically initiate at pre-
set intervals and for a pre-determined duration.
Running a Manual Defrost Cycle
This unit is pre-programmed to run automatic defrost cycles at preset intervals. However, if you would like to
run a manual defrost cycle at any time, follow the steps below:
Controller #1: Press the defrost button (“def” and down arrow) for approximately 5 seconds. Repeat to stop
the defrost cycle.
Controller #2: Press the defrost button (snowflake symbol and down arrow) for approximately 3 seconds.
Repeat to stop the defrost cycle.

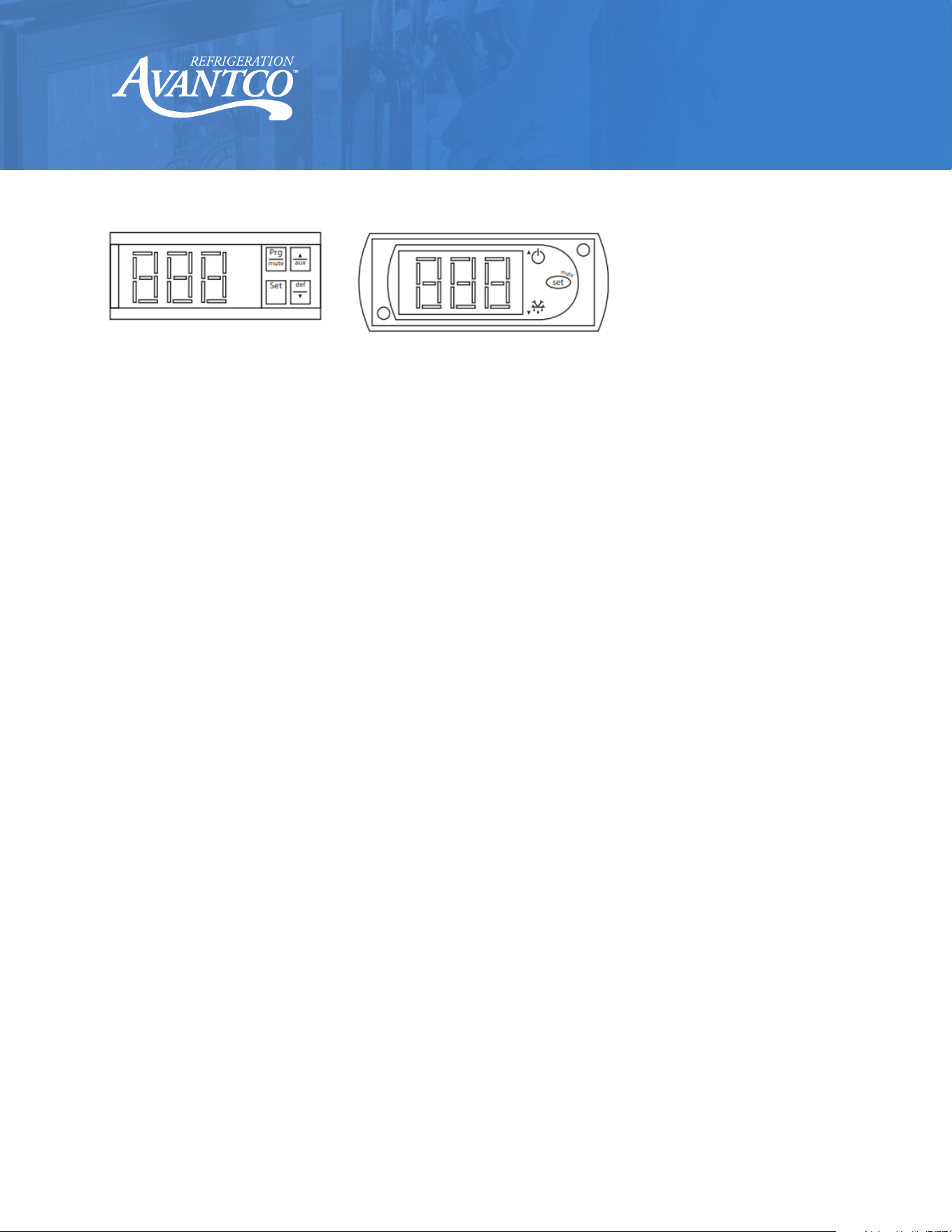

Controller #1 Controller #2
8
User Manual
www.AvantcoRefrigeration.com
Undercounter & Worktop Refrigerators & Freezers
Operation / Maintenance
Pay close attention to the safety notices in this section. Disregarding these notices may lead to
serious injury and/or damage to the unit.
ATTENTION
• To minimize shock and fire hazards, be sure not to overload outlet. Designate one outlet for
your unit.
• Do not use extension cords.
• Do not put your hands under the unit while it is being moved.
• When the unit is not in use for a long period of time, unplug the unit from the outlet.
• After unplugging the unit, wait at least 10 minutes before plugging it back in. Failure to do so could
cause damage to the compressor.
UNPLUG CORD
• To minimize shock and fire hazards, do not plug or unplug the cord with wet hands.
• During maintenance and cleaning, unplug the unit.
Safety / Warning
PROPER GROUNDING REQUIRED
• To minimize shock and fire hazards, make sure that the unit is properly grounded.
WARNING
• Do not attempt to remove or repair any component unless instructed by factory.
• Make sure that the unit is not resting on or against the electrical cord and plug.
• To minimize personal injury, do not hang on the doors.
• Do not store any flammable and explosive gas or liquids inside the unit.
• Do not attempt to alter or tamper with the electrical cord.
WARNING: DISCONNECT THE POWER CORD BEFORE CLEANING ANY PARTS OF THE UNIT.
NOTE: We strongly recommend that any servicing be performed by an authorized service technician.
Loading Product
• Ensure there is at least 4" of clearance from the evaporator.
• Ensure all shelves are sitting level and properly secured before loading products.
• Do not store flammable and explosive gas or liquids inside the unit.
9
User Manual
www.AvantcoRefrigeration.com
Undercounter & Worktop Refrigerators & Freezers
Cleaning the Fan Blades and Motor
• If necessary, clean the fan blades and motor with a soft cloth.
• If it is necessary to wash the fan blades, cover the fan motor to prevent moisture damage.
Cleaning the Interior of the Unit
• When cleaning the cabinet interior, use a solvent of warm water and mild soap.
• Do not use steel wool, caustic soap, abrasive cleaners, or bleach that may damage the interior finish.
• Wash door gasket(s) on a regular basis, preferably weekly. Simply remove the door gasket(s) from the
frame of the door(s), soak in warm water and soap for thirty (30) minutes, dry it with a soft cloth, and
replace it.
• Check door gasket(s) for proper seal after they are replaced.
• Periodically remove the shelves and pilasters from the unit and clean them with mild soap and warm
water. To remove the pilasters, first, remove the shelves and shelf brackets. Then, simply lift the
pilaster up and out.
Cleaning the Condenser Coil
• For ecient operation, keep the condenser surface free of dust, dirt, and lint.
• We recommend cleaning the condenser coil at least once per month.
A dusty condenser may lead to high energy consumption, less cooling eectiveness, and
compressor damage.
Condenser Coil Cleaning Instructions:
The condenser coil is located at the bottom behind the panel.
1. Disconnect the electrical power from the unit.
2. Remove the front cover and base cover with a screwdriver.
3. Using a soft brush and/or vacuum, remove the dirt, lint, etc. from the finned condenser coil in a vertical
direction.
4. Clean the condenser with a commercial condenser coil cleaner, available from any kitchen equipment
retailer. Ex. Nobel Chemical Tech Line.
5. After cleaning, straighten any bent condenser fins with a fin comb.
6. When finished, be sure to reinstall the front cover and base cover.
7. Reconnect the electrical power to the unit.
10
User Manual
www.AvantcoRefrigeration.com
Undercounter & Worktop Refrigerators & Freezers
Troubleshooting
Problem
Possible Cause
Possible Solution
Compressor
not running.
Fuse blown or circuit breaker tripped. Replace fuse or reset circuit breaker.
Power cord unplugged. Plug in power cord.
Thermostat set too high. Set thermostat to lower temperature.
Cabinet in defrost cycle. Wait for defrost cycle to finish.
Condensing units run for
long periods of time.
Excessive amount of water product in
cabinet.
Allow adequate time for product to cool down.
Prolonged door opening or door ajar.
Ensure doors are closed when not in use. Avoid
opening the doors for long periods of time.
Door gasket(s) not sealing properly.
Ensure gasket(s) are snapped in completely. Remove
gasket(s) and wash with soap and water. Check
condition of gasket(s) and replace if necessary.
Dirty condenser coil. Clean the condenser coil.
Evaporator coil iced over.
Unplug unit and allow coil to defrost. Make sure
thermostat is not set too cold. Ensure that door
gasket(s) are sealing properly.
Cabinet temperature is
too warm.
Thermostat set too warm. Set thermostat to lower temperature.
Airflow blocked.
Rearrange product to allow for proper airflow. Make
sure there is at least 4" of clearance from evaporator.
Excessive amount of warm product
placed in cabinet.
Allow adequate time for product to cool down.
Fuse blown or circuit breaker tripped. Replace fuse or reset circuit breaker.
Dirty condenser coil. Clean the condenser coil.
Evaporator coil iced over.
Ensure doors are closed when not in use. Avoid
opening doors for long periods of time.
Low refrigerant levels.
Contact a service technician to check refrigerant
levels.
Door is slightly ajar. Make sure door is completely closed.
Condensation is
collecting on the cabinet
and/or floor.
Gasket(s) is not sealing properly. Clean, repair, or replace the gasket(s) as necessary.
Relative humidity is above 60%.
Move unit to area below relative humidity or lower
humidity level.
