User Guide
Outdoor Pan/Tilt 4G LTE Camera
©2024 TP-Link 1910013816 REV1.0.0
Contents
About This Guide ···········································································1
Introduction ······················································································ 2
Appearance ······················································································3
Set Up Your Camera ·····································································5
Install a microSD Card ·································································7
Mount Your Camera······································································8
Install Waterproof Accessories···········································11
Authentication ··············································································13
1
About This Guide
This guide provides a brief introduction to the Outdoor Pan/Tilt 4G LTE Camera and the Tapo app, as well as regulatory information.
Please note that features available in Tapo may vary by model and software version. Tapo availability may also vary by region. All images, steps, and
descriptions in this guide are only examples and may not reect your actual Tapo Camera experience.
Conventions
In this guide, the following convention is used:
Convention Description
Blue
Key information appears in blue, including management page text such as menus, items, buttons and so on.
Underline
Hyperlinks are in blue and underlined. You can click to redirect to a website.
Note:
Ignoring this type of note might result in a malfunction or damage to the device.
More Info
• Specications can be found on the product page at https://www.tapo.com.
• Our Technical Support and troubleshooting information can be found at https://www.tapo.com/support/.
• The setup video can be found at https://www.tp-link.com/support/setup-video/#cloud-cameras.
2
Introduction
TC40GW is an outdoor pan/tilt 4G LTE camera that oers all-round protection without Wi-Fi. It can access the internet through 4G LTE networks or the
RJ45 Ethernet port, which is suitable for places like warehouses, farms, and vacation homes where constant Wi-Fi may be unavailable.
• Advanced AI Detection for All Scenarios – Smart AI identies people, pets, and vehicles and detects tampering and line crossing. It sends alerts
only when necessary, ensuring you receive precise notications about events as they occur.
• Starlight Color Night Vision – Reveals vivid colors in low light conditions with F1.6 aperture lens, starlight sensor, and built-in spotlights.
• Patrol Mode – Keep the camera cruise between two customized points for dynamic monitoring.
• Local* and Cloud** Storage – Save recorded videos to an installed microSD card (up to 512 GB)*, or use Tapo Care** cloud storage service.
*microSD card must be purchased separately.
**Subscribe for cloud storage at https://www.tapo.com/tapocare/
• DC/PoE Power Supply* – Power your camera with a DC adapter or Ethernet cable featuring PoE technology for safe power and stable internet.
*802.3 af/at PoE (Power over Ethernet)
The maximum length for the PoE connection is 100 meters (328 feet).
• Flexible Antenna Placement – Adjust the angle of the detachable antenna for a better internet connection.
• Smart Playback – Swiftly nd and download moments of interest by choosing the event type or sliding the timeline.
• Two-Way Audio – Communicate remotely with a delivery person in real time.
• Multiple Installation Options – Use the mounting screws, template and loops* to install on any wall, ceiling or pole for the perfect view.
*Mounting loops purchased separately.
3
Appearance
microSD
2
3
IR LEDs
Lens
1
Microphone
4
White Light LEDs
5
System LED
6
Reset
8
Speaker
9
Ethernet Port (PoE Connector)
7
microSD Card Slot
11
Nano SIM Card Slot
12
SMA Female Connector
10
DC Power Connector
8
7
6
2
3
1
4
5
9
10 11 12
Reset Button
Open the silicone cover. While the camera is powered on, use a pin to press and hold the RESET button for at least 5 seconds until the System LED
blinks red. The camera will reset and reboot.
microSD Card Slot
Open the silicone cover and insert a microSD card*. Initialize it on the Tapo app for local recording.
*microSD card not included.
Nano SIM Card Slot
Open the silicone cover and insert a Nano SIM card for a 4G network connection.
4
System LED Indication
Blinking red and green
Blinking red
Blinking amber
Blinking red quickly
Solid red
Solid amber
Solid green
Blinking green quickly
Starting up
Connected to the network
Connected to the cloud
Unstable 4G signal
Neither a SIM card nor an Ethernet cable inserted
Connecting to the network
(for 4G setup)
Camera resetting
Camera updating
5
Set Up Your Camera
Follow the steps below to get started with your new camera.

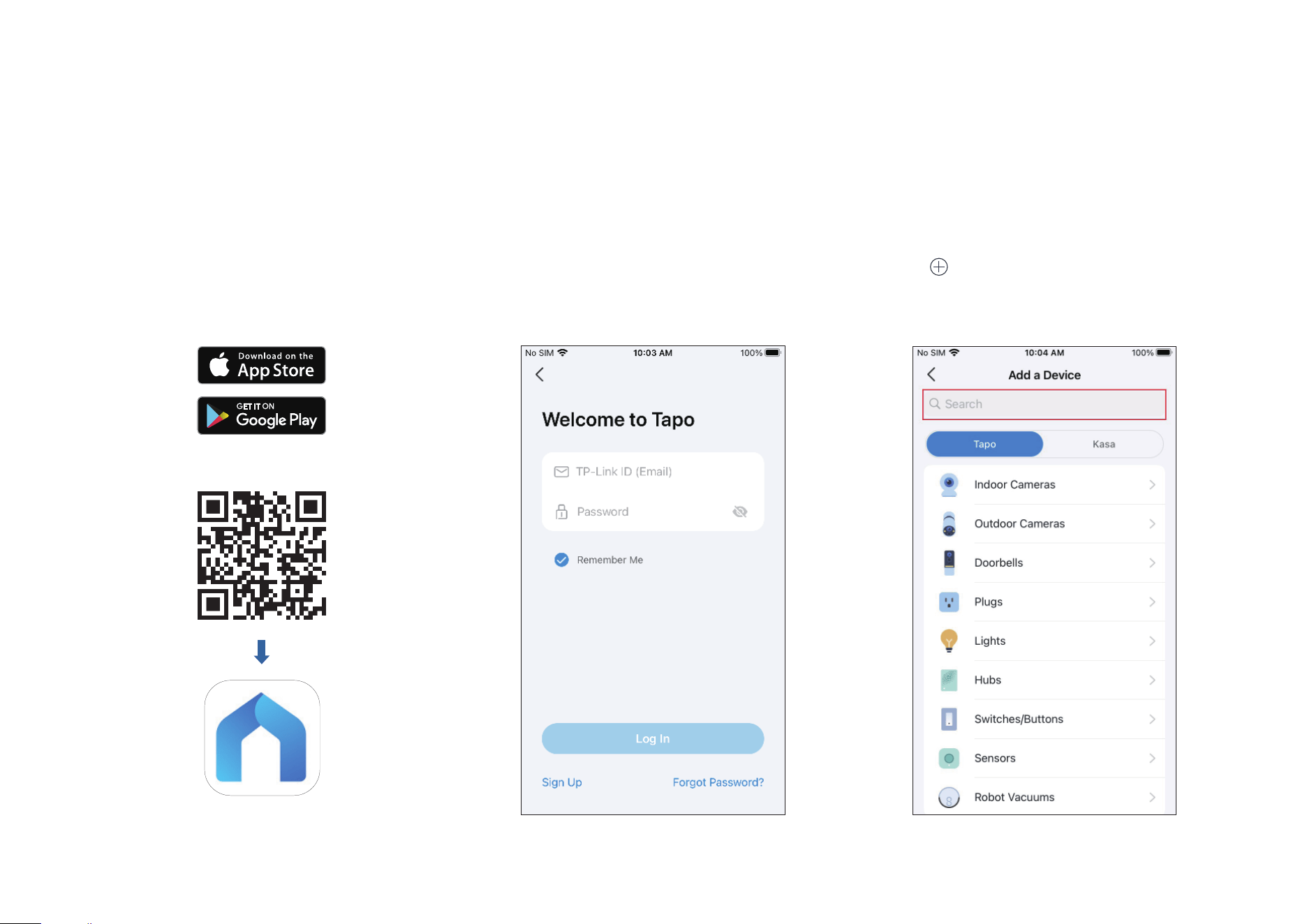

Step 1. Download Tapo App
Get the Tapo app from the App Store or
Google Play, or by scanning the QR code
below.
Step 2. Log In
Open the app, and log in with your TP-Link ID.
If you don't have an account, create one rst.
Step 3. Add Your Camera
Tap the button > Add Device in the app and
search for your model.
OR
6

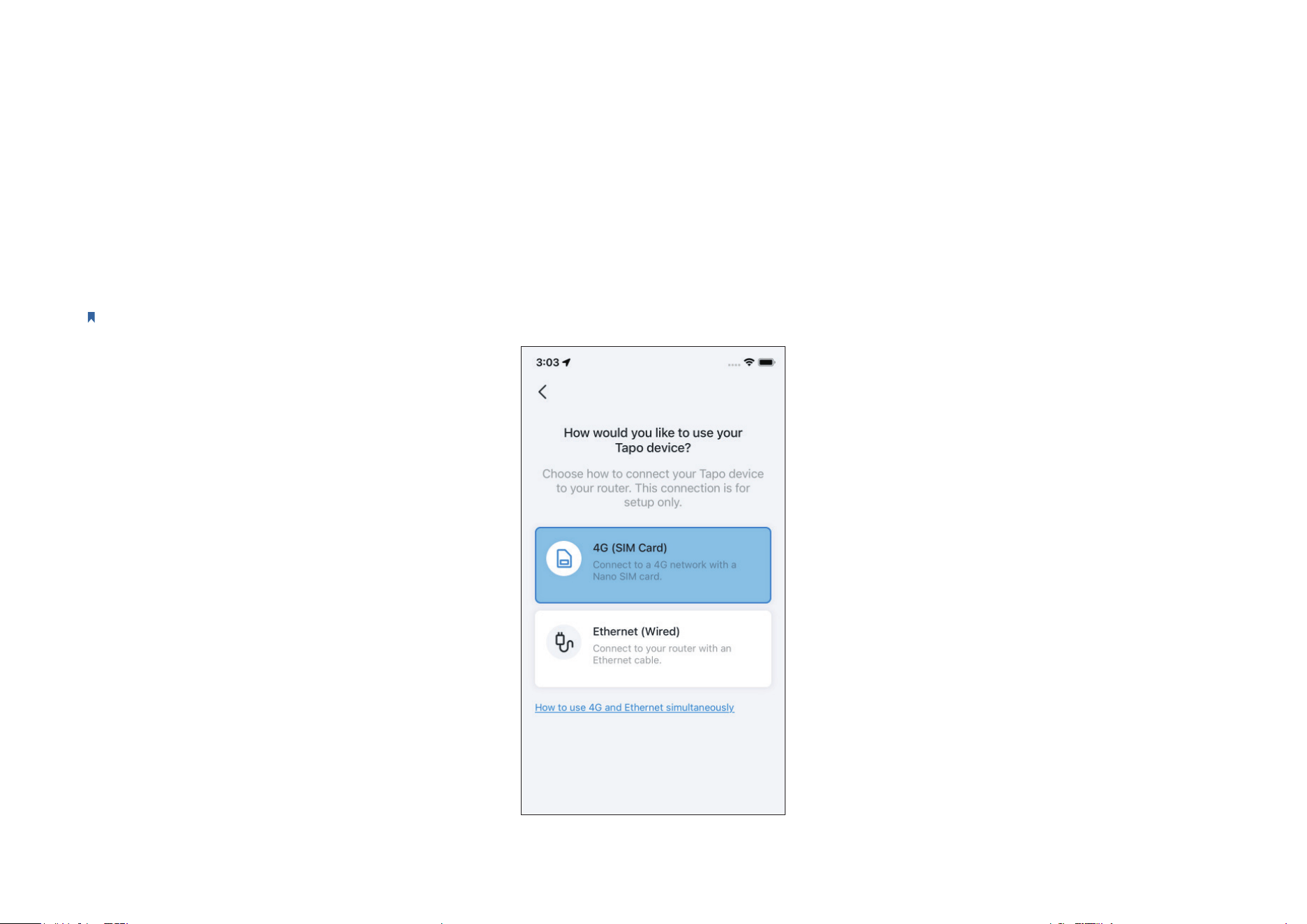

Step 4. Congure Camera
Follow app instructions to set up your camera via 4G or wired connection, and add it to your home network. After setup, you can use your camera via
wired or 4G connection.
Note: For 4G setup, if your camera is connected to your router via an Ethernet cable, please unplug the cable rst.
7

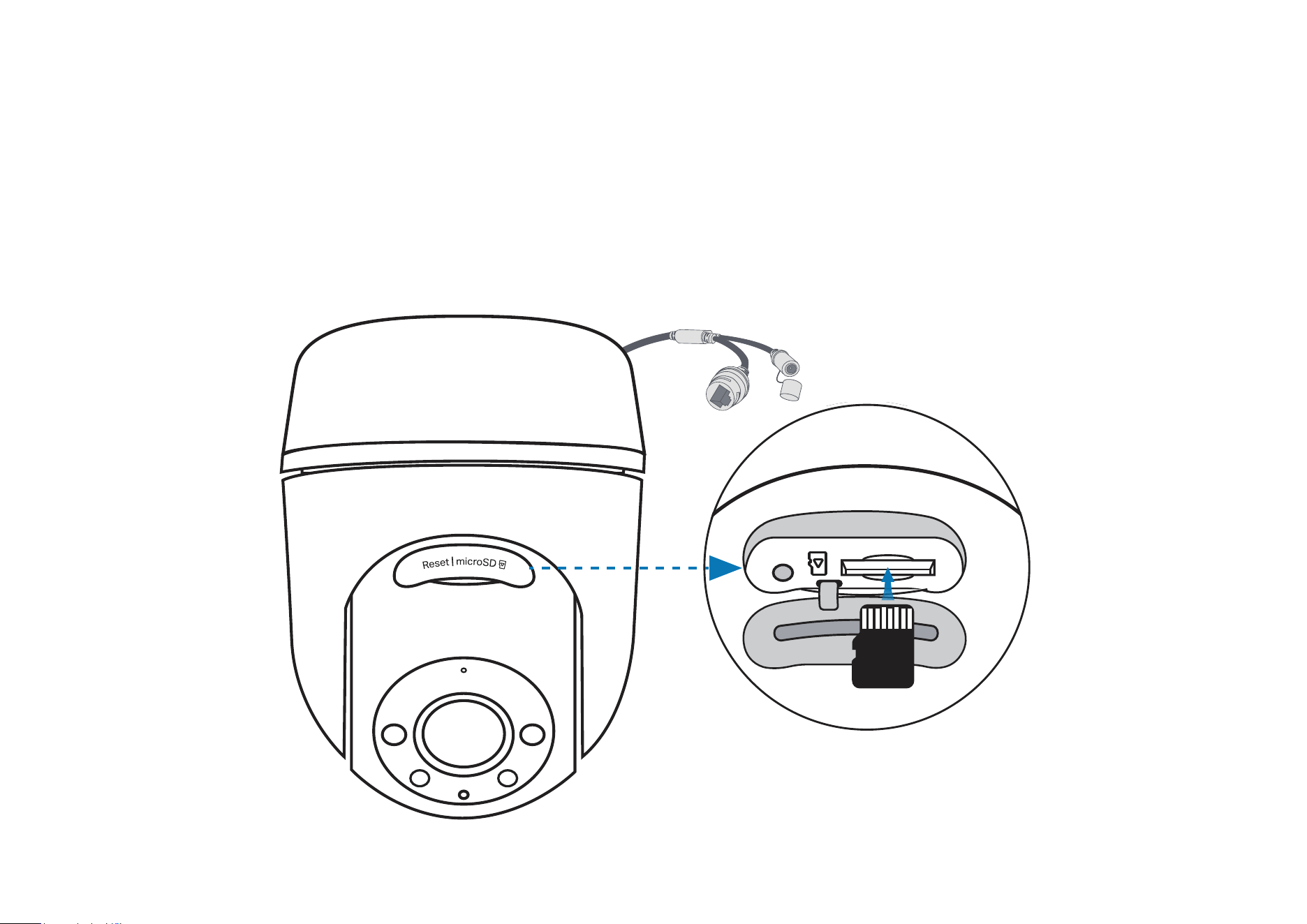

Install a microSD Card
Follow the steps below to install the microSD card for local recording.
You can go to Camera Settings > microSD Card in the Tapo app to check the card status or format your card.
1. Manually rotate the camera downwards. Open the silicone cover to
nd the microSD card slot.
2. Identify the direction of the microSD card and carefully insert the card
into the slot. Push in the card until you hear a clicking sound.
microSD
8
Mount Your Camera
When you nish adding your camera in the Tapo app, you can mount it on a wall or ceiling with the provided mounting template and screws. You can
also mount it on the pole with mounting loops. Follow the steps below to mount your new camera.
Note: The camera is not waterproof when set on a table or shelf. Mount the camera via Option 1-3 when installing outdoors.
Option 1: Wall Mount
Route the camera power cord and
Ethernet cable through the
opening of the bracket. Use two
bracket screws to ax the bracket
and camera.
1. Ax the Camera and Bracket
Insert four mounting anchors into
the holes, then use the mounting
screws to ax the camera and
bracket over the anchors.
3. Mount the Camera
4. Install the Antenna
Stick the mounting template to
the desired mounting place. Drill
four screw holes according to
the template.
2. Drill Holes
Φ=6 mm (15/64 in.)
1) Rotate the antenna clockwise to attach it.
2) Rotate the SMA connector clockwise to
tighten the antenna.
3) Adjust the antenna vertically for the best
4G signal.
4) Re-tighten the connector in case the
antenna is loose.
Note: For the cable connection, ensure the antenna is
properly installed for waterproof performance.
SMA Connector
1
2
9
Option 2: Overhang Mount
Route the camera power cord and
Ethernet cable through the
opening of the bracket. Use two
bracket screws to ax the bracket
and camera.
1. Ax the Camera and Bracket
Insert four mounting anchors into
the holes, then use the mounting
screws to ax the camera and
bracket over the anchors.
3. Mount the Camera
4. Install the Antenna
Stick the mounting template to
the desired mounting place. Drill
four screw holes according to
the template.
2. Drill Holes
Φ=6 mm (15/64 in.)
1) Rotate the antenna clockwise to attach it.
2) Rotate the SMA connector clockwise to
tighten the antenna.
3) Adjust the antenna to either an acute angle or
horizontal with the ceiling for the best 4G signal.
4) Re-tighten the connector in case the antenna
is loose.
Note: For the cable connection, ensure the antenna is
properly installed for waterproof performance.
1
2
SMA Connector
10

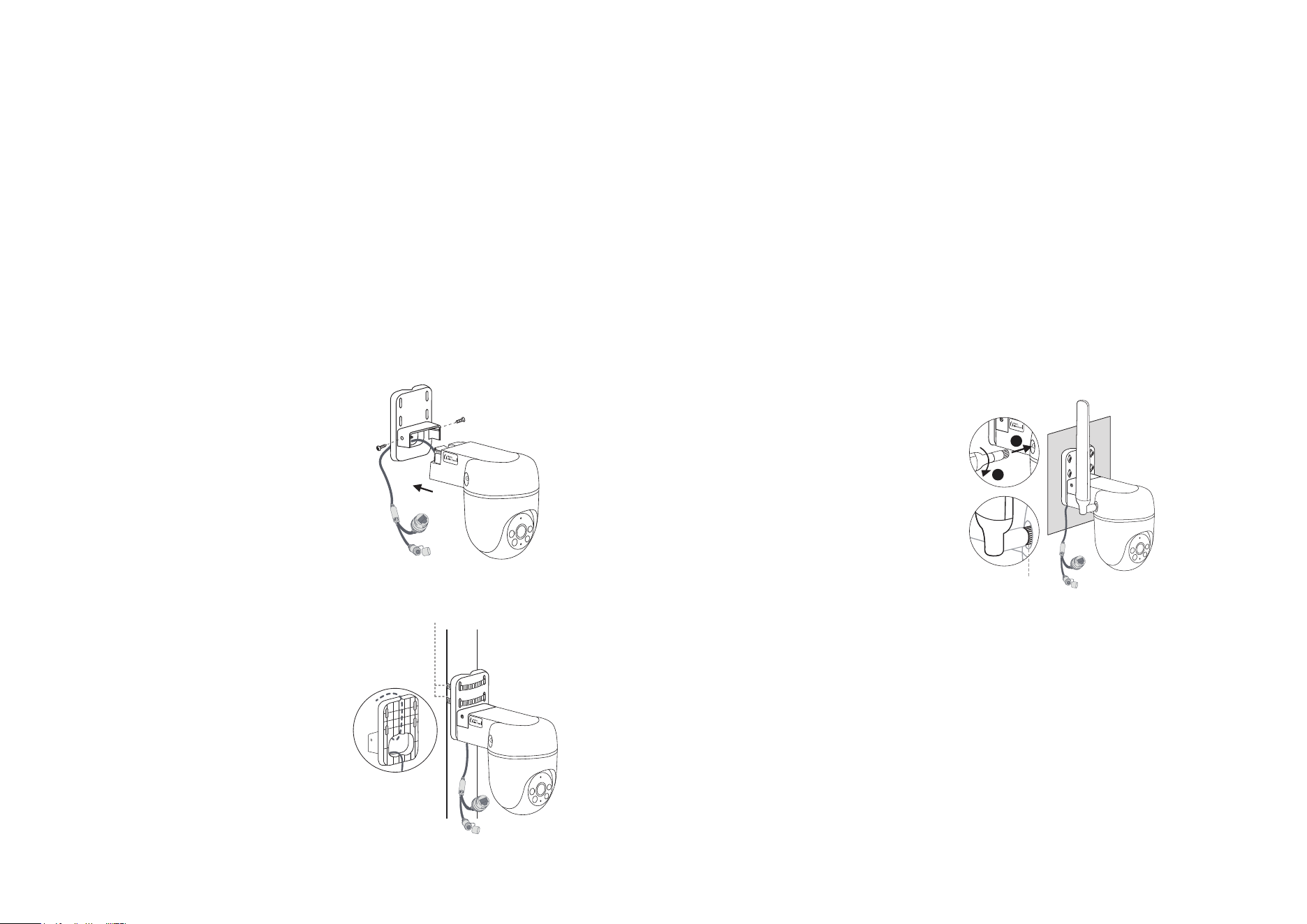

Option 3: Pole Mount
Mount the camera on the pole
using two pole-mounting loops*
(loop width ≤ 12mm).
2. Mount the Camera
*Pole-mounting loops are not included.
Route the camera power cord and
Ethernet cable through the
opening of the bracket. Use two
bracket screws to ax the bracket
and camera.
1. Ax the Camera and Bracket
Pole-mounting loops
3. Install the Antenna
1) Rotate the antenna clockwise to attach it.
2) Rotate the SMA connector clockwise to
tighten the antenna.
3) Adjust the antenna vertically for the best
4G signal.
4) Re-tighten the connector in case the
antenna is loose.
Note: For the cable connection, ensure the antenna is
properly installed for waterproof performance.
SMA Connector
1
2
11
Install Waterproof Accessories
When the camera is installed outdoors, please install waterproof accessories to waterproof your camera as follows.
1. Install the Waterproof Seal/Cap for Power Connectors
Connect the camera to a power outlet using the provided power adapter. Install the waterproof seal for the power connectors when the camera is
installed outdoors.
Install the waterproof seal for the power connectors.
When powered by the adapter
Male Power
Connector
Waterproof
Seal
Female Power
Connector
Use the waterproof cap to cover the power connector.
When powered by PoE
Waterproof
Cap
12
2. Install Waterproof Cable Attachments
Install the waterproof cable attachments for the network interface. Make sure each part is securely attached and the waterproof rings are ush to keep
out water.
When
the Ethernet port connects to a network device
1) Route the network cable through the following components in order: x nut, waterproof ring, and then the waterproof jacket.
2) Insert the waterproof ring into the waterproof jacket.
3) Fix the O-ring to the network interface of the camera and connect the network cables.
4) Attach the network interface with the waterproof jacket, then twist to lock. Rotate the x nut to secure it to the waterproof jacket.
Fix Nut
Waterproof
Ring
O-ring
Network
Interface
Waterproof
Jacket
When
the Ethernet port does not connect to a network device
Fix Nut
Waterproof
Ring + Plug
Network
Interface
Waterproof
Jacket
O-ring
1) Insert the waterproof plug into the waterproof ring, then insert them into the waterproof jacket.
2) Fix the O-ring to the network interface of the camera. Attach the network interface with the waterproof jacket, then twist to lock. Rotate the x nut to secure it
to the waterproof jacket.
13
Authentication
CE Mark Warning
This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take
adequate measures.
OPERATING FREQUENCY (the maximum transmitted power)
LTE-FDD B1/B3/B5/B7/B8/B20/B28 (23 dBm)
LTE-TDD B38/B40/B41 (23 dBm)
WCDMA B1/B5/B8 (24 dBm)
EU Declaration of Conformity
TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU,
2009/125/EC, 2011/65/EU and (EU)2015/863.
The original EU Declaration of Conformity may be found at https://www.tapo.com/en/support/ce/.
RF Exposure Information
This device meets the EU requirements (2014/53/EU Article 3.1a) on the limitation of exposure of the general public to electromagnetic fields by
way of health protection.
The device complies with RF specifications when the device used at 20 cm from your body.
14
UKCA Mark
UK Declaration of Conformity
TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of the Radio Equipment
Regulations 2017.
The original UK Declaration of Conformity may be found at https://www.tapo.com/support/ukca/.
À DÉPOSER
EN MAGASIN
À DÉPOSER
EN DÉCHÈTERIE
OU
FR
Cet appareil
et ses accessoires
se recyclent
Korea Warning Statements:
당해 무선설비는 운용중 전파혼신 가능성이 있음.
15
NCC Notice & BSMI Notice
注意！
取得審驗證明之低功率射頻器材，非經核准，公司、商號或使用者均不得擅自變更頻率、加大功率或變更原設計之特性及功能。
低功率射頻器材之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。
前述合法通信，指依電信管理法規定作業之無線電通信。
低功率射頻器材須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。
為避免本器材影像畫面遭偷窺或擷取，本器材使用者應先修改預設密碼，並定期更新密碼。
安全諮詢及注意事項
• 請使用原裝電源供應器或只能按照本產品注明的電源類型使用本產品。
• 清潔本產品之前請先拔掉電源線。請勿使用液體、噴霧清潔劑或濕布進行清潔。
• 注意防潮，請勿將水或其他液體潑灑到本產品上。
• 插槽與開口供通風使用，以確保本產品的操作可靠並防止過熱，請勿堵塞或覆蓋開口。
• 請勿將本產品置放於靠近熱源的地方。除非有正常的通風，否則不可放在密閉位置中。
• 不要私自拆開機殼或自行維修，如產品有故障請與原廠或代理商聯繫。
• 電源供應器应使用在环境温度低於或等於40℃的室內。
限用物質含有情況標示聲明書
設備名稱：Outdoor Pan/Tilt 4G LTE Camera 型號（型式）：TC40GW
Equipment name Type designation (Type)
單元
Unit
限用物質及其化學符號
Restricted substances and its chemical symbols
鉛
Lead
(Pb)
汞
Mercury
(Hg)
鎘
Cadmium
(Cd)
六價鉻
Hexavalent chromium
(Cr
+6
)
多溴聯苯
Polybrominated biphenyls
(PBB)
多溴二苯醚
Polybrominated diphenyl ethers
(PBDE)
PCB ○ ○ ○ ○ ○ ○
16
外殼 ○ ○ ○ ○ ○ ○
電源供應器 − ○ ○ ○ ○ ○
其他及其
配件
− ○ ○ ○ ○ ○
備考 1.〝超出 0.1 wt %〞及〝超出 0.01 wt %〞係指限用物質之百分比含量超出百分比含量基準值
Note 1：“Exceeding 0.1 wt %” and “exceeding 0.01 wt %” indicate that the percentage content of the restricted substance
exceeds the reference percentage value of presence condition.
備考 2.〝○〞係指該項限用物質之百分比含量未超出百分比含量基準值。
Note 2：“○” indicates that the percentage content of the restricted substance does not exceed the percentage of reference value
of presence.
備考 3.〝−〞係指該項限用物質為排除項目。
Note 3：The “−” indicates that the restricted substance corresponds to the exemption.
Продукт сертифіковано згідно с правилами системи УкрСЕПРО на відповідність вимогам нормативних документів та вимогам,
що передбачені чинними законодавчими актами України.
17
Safety Information
• Do not use damaged charger or USB cable to charge the device.
• Do not use any other chargers than those recommended.
• Do not use the device where wireless devices are not allowed.
• Adapter shall be easily accessible.
• Use only power supplies which are provided by manufacturer and in the original packing of this product. If you have any questions, please don’t
hesitate to contact us.
• Keep the device away from fire or hot environments. DO NOT immerse in water or any other liquid.
• Do not disassemble, repair or modify the product.
• Do not use the product if the casing has been broken. Danger of electric shock.
• Never touch the product with wet hands.
• Do not place near automatically controlled devices such as fire alarms. Radio waves emitted from this product may cause such devices to
malfunction resulting in an accident.
• Observe restrictions on using wireless products in fuel depots, chemical plants or when blasting operations are in progress.
• Do not use liquid to clean the product. Only use a dry cloth.
• Never put metal objects inside the product. If a metal object enters the product turn off the circuit breaker and contact an authorised electrician.
• This product is not intended to be used when providing medical care. Consult the manufacturer of any personal medical devices, such as
pacemakers or hearing aids to determine if they are adequality shielded from external RF (radio frequency) energy.
• Do not use this product in health care facilities. Hospitals or health care facilities may be using equipment that could be sensitive to external RF
energy.
• Do not place heavy objects on top of the product.
• When you leave the product unused for a long time unplug the product from the power outlet.
• This product may interfere with other electronic products such as TV, radios, personal computers, phones or other wireless devices.
• Adapter should be used indoors where the ambient temperature is lower than or equal to 40 ºC.
• Operating Temperature: -30 ºC ~ 60 ºC (-22 °F ~ 140 °F )
Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due
to improper use of the device. Please use this product with care and operate at your own risk.
18
Explanation of the symbols on the product label
Symbols may vary from products
Symbol Explanation
Class II equipment
Class II equipment with functional earthing
Alternating current
DC voltage
Polarity of output terminals
Indoor use only
Dangerous voltage
Caution, risk of electric shock
Energy efficiency Marking
Protective earth
Earth
Frame or chassis
19
Symbol Explanation
Functional earthing
Caution, hot surface
Caution
Operator’s manual
Stand-by
“ON”/”OFF” (push-push)
Fuse
Fuse is used in neutral N
RECYCLING
This product bears the selective sorting symbol for Waste electrical and electronic equipment (WEEE). This means
that this product must be handled pursuant to European directive 2012/19/EU in order to be recycled or dismantled to
minimize its impact on the environment.
User has the choice to give his product to a competent recycling organization or to the retailer when he buys a new
electrical or electronic equipment.
Caution, avoid listening at high volume levels for long periods
Disconnection, all power plugs
20
Symbol Explanation
m Switch of mini-gap construction
µ
Switch of micro-gap construction (for US version)
Switch of micro-gap / micro-disconnection construction (for other versions except US)
ε Switch without contact gap (Semiconductor switching device)
