User Guide
freezer
20220210
7088306 - 00
(S)GN(es)
Contents
1 Appliance at a glance............................................ 2
1.1 Overview of the appliance and its equipment........... 2
1.2 Appliance range of use............................................. 2
1.3 Conformity................................................................ 3
1.4 Installation dimensions............................................. 3
1.5 Saving energy.......................................................... 3
1.6 SmartGrid................................................................. 4
1.7 Smart device ........................................................... 4
2 General safety information................................... 4
3 Controls and displays........................................... 5
3.1 Home screen............................................................ 5
3.2 Operating structure................................................... 5
3.3 Navigation................................................................ 5
3.4 Display symbols....................................................... 6
3.5 Appliance options..................................................... 6
4 Putting into operation............................................ 6
4.1 Transporting the appliance....................................... 6
4.2 Installing the appliance............................................. 6
4.3 Reversing the door................................................... 7
4.4 Water connection..................................................... 13
4.5 Sliding into the row of units....................................... 14
4.6 Disposing of packaging............................................ 15
4.7 Connecting the appliance......................................... 15
4.8 Switching on the appliance....................................... 15
4.9 SmartDevice box...................................................... 16
4.10 Setting the clean ventilation grid timer...................... 16
5 Control.................................................................... 17
5.1 Changing the temperature unit................................. 17
5.2 Child proofing........................................................... 17
5.3 SabbathMode........................................................... 17
5.4 Freezing food........................................................... 17
5.5 Storage life............................................................... 17
5.6 Thawing food............................................................ 17
5.7 Setting the temperature............................................ 18
5.8 Status display........................................................... 18
5.9 SuperFrost................................................................ 18
5.10 Drawers.................................................................... 18
5.11 Shelves.................................................................... 19
5.12 VarioSpace............................................................... 19
5.13 Extractor rails*.......................................................... 19
5.14 Ice cube tray............................................................. 19
5.15 Freezer pack............................................................. 19
5.16 IceMaker.................................................................. 19
6 Maintenance........................................................... 21
6.1 Defrosting with NoFrost............................................ 21
6.2 Cleaning the ventilation grid..................................... 21
6.3 Cleaning the appliance............................................. 21
6.4 Cleaning the IceMaker.............................................. 21
6.5 Customer service..................................................... 22
7 Malfunctions........................................................... 22
8 Messages................................................................ 23
9 Decommissioning.................................................. 25
9.1 Switching the appliance off....................................... 25
9.2 Taking the appliance out of service........................... 25
10 Disposing of the appliance................................... 25
The manufacturer works constantly on the further development
of all the types and models. Therefore please understand that
we have to reserve the right to make design, equipment and
technical modifications.
To get to know all the benefits of your new appliance, please
read the information contained in these instructions carefully.
The instructions apply to several models. Differences may
occur. Text relating only to specific appliances is marked with
an asterisk (*).
Instructions are marked with a
, and results are marked
with a
.
1 Appliance at a glance
1.1 Overview of the appliance and its
equipment
Exemplary illustration of the appliance model

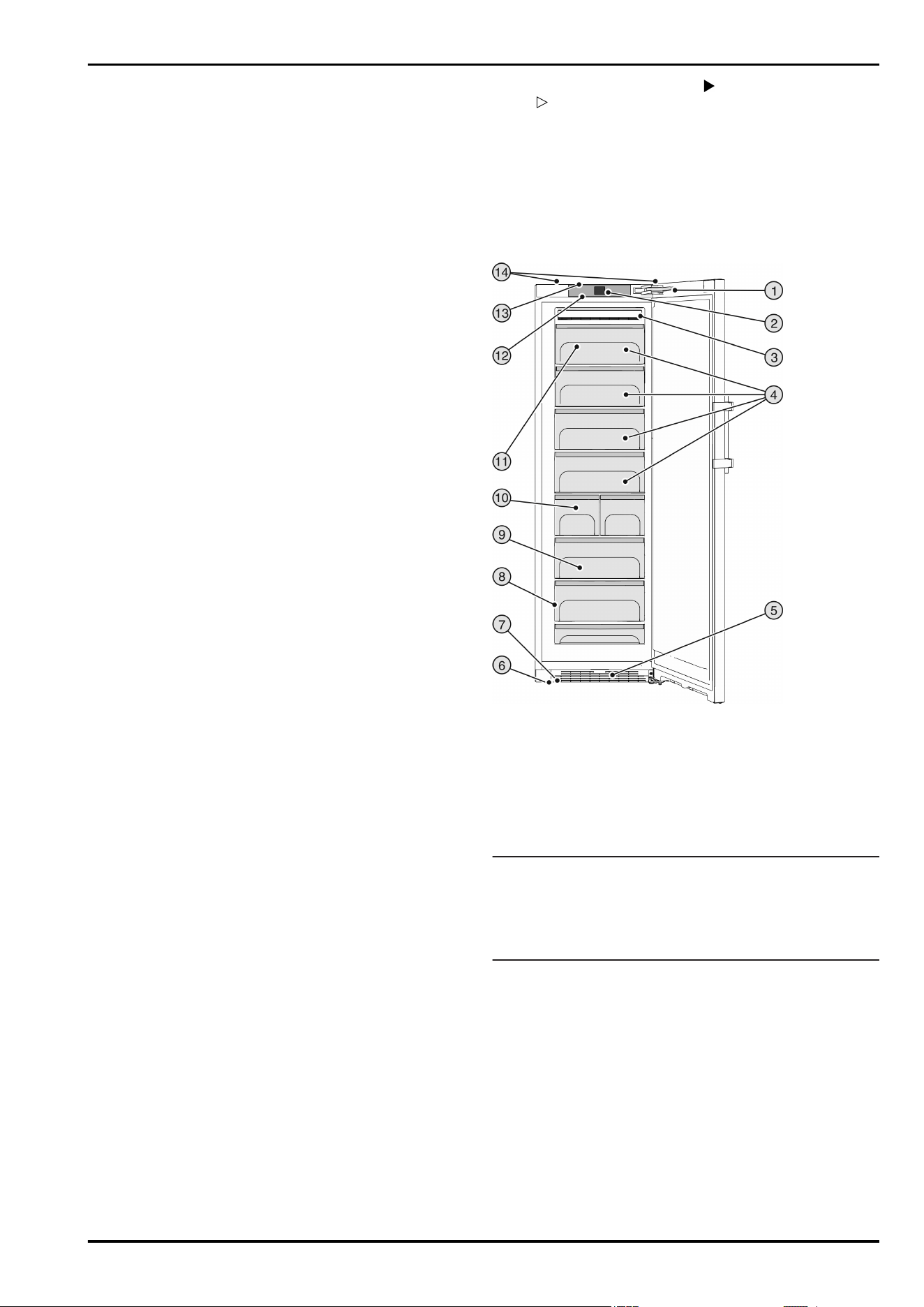

Fig. 1
(1) Soft closing fittings* (8) Rating plate
(2) Operating and control
elements
(9) VarioSpace
(3) No frost mechanism (10) IceMaker*
(4) Freezer compartment (11) Freezer pack
(5) Ventilation grid (12) LED interior lighting
(6) Adjusting feet (13) Status display*
(7) Front transport handles,
rear transport castors
(14) Rear transport handles
Note
u
Shelves, drawers and baskets are arranged for optimum
energy efficiency when the appliance is delivered. Changing
how the shelves, for example, are inserted in the fridge
compartment does not have any impact on energy
consumption.
1.2 Appliance range of use
Intended use
The appliance is only suitable for cooling food
products in a domestic or household-like envi-
ronment. This includes, for example, use:
-
in staff kitchens, bed and breakfast establish-
ments,
-
by guests in country houses, hotels, motels
and other accommodation,
-
for catering and similar services in the whole-
sale trade.
Appliance at a glance
2 * Depending on model and options
The appliance is not suitable as a built-in unit.
All other types of use are not permitted.
Foreseeable misuse
The following applications are expressly
forbidden:
-
Storing and refrigerating medicines, blood
plasma, laboratory preparations or similar
substances and products based on the
Medical Device Directive 2007/47/EC
-
Use in outdoor areas with very high humidity
-
Use in areas at risk of explosions
-
Use on moving substrates, such as ships, rail
travel or aeroplanes
-
Storing live animals
Misusing the appliance may lead to damage to
the goods stored or they may spoil.
Climate classifications
Depending on the climate classification the
appliance is designed to operate in restricted
ambient temperatures. The climate classifica-
tion applying to your appliance is printed on the
rating plate.
Note
u
Keep to the specified ambient temperatures
in order to guarantee that the appliance works
properly.
Climate classi-
fication
for ambient temperatures
SN, N to 32 °C
ST to 38 °C
T to 43 °C
The appliance will work properly down to a
lower ambient temperature of 5 °C.
1.3 Conformity
The refrigerant circuit has been tested for leaks. This
device complies with the applicable safety regulations and
with the directives 2014/35/EU, 2014/30/EU, 2009/125/EC,
2011/65/EU, 2010/30/EU and 2014/53/EU.
The full text of the EU Declaration of Conformity is available on
the following website: www.Liebherr.com
1.4 Installation dimensions

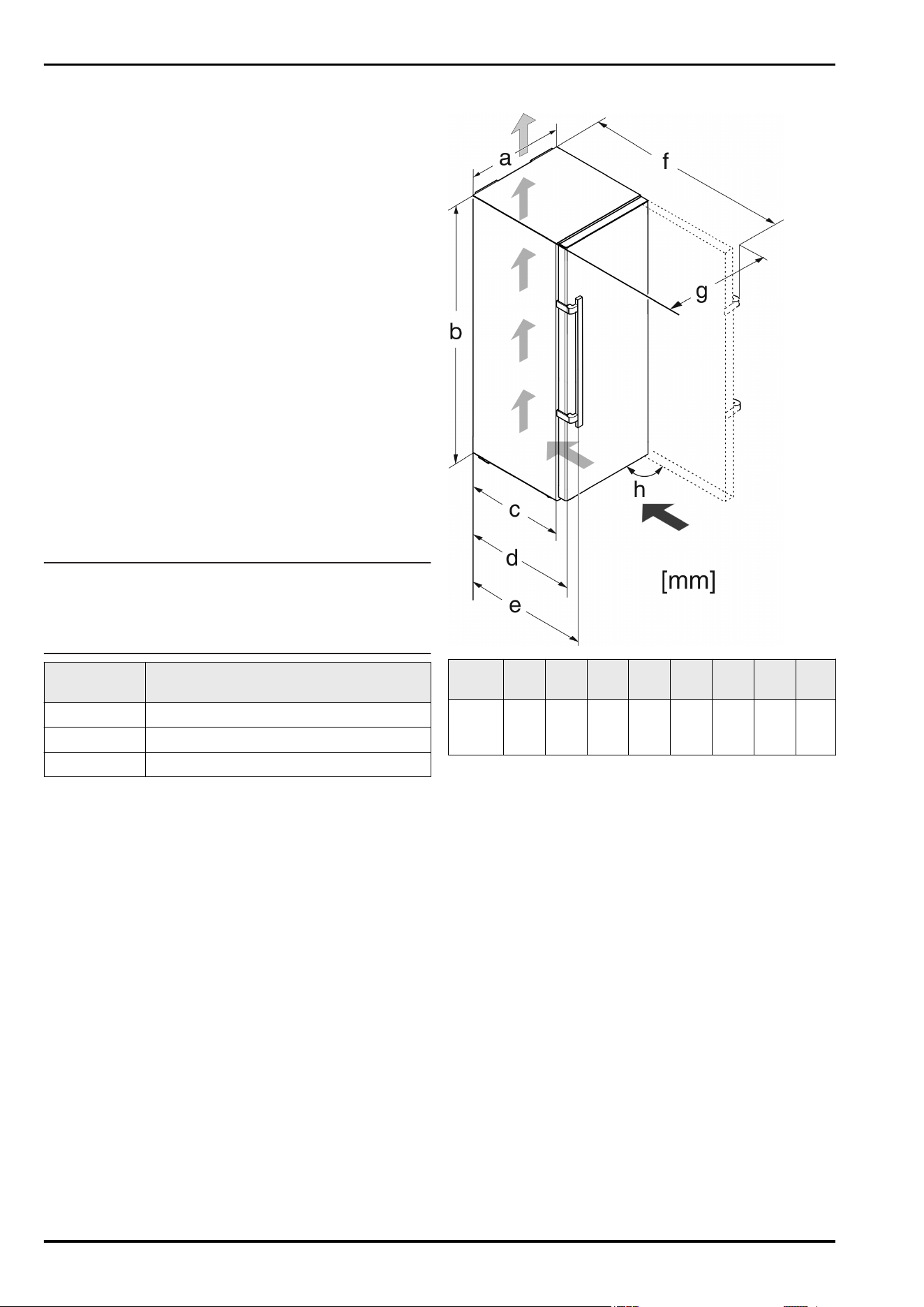

Fig. 2
Model a
[mm]
b
[mm]
c
[mm]
d
[mm]
e
[mm]
f
[mm]
g
[mm]
h [°]
(S)GN(
es)
43..
600 1850
600
x
665
x
709
x
1223
x
640 90
x
When using wall spacers, the dimensions increase by 15 mm
(see 4.2 Installing the appliance) .
1.5 Saving energy
-
Pay attention to good ventilation. Do not cover ventilation
holes or grids.
-
Always keep the fan air slits clear.
-
Do not install the appliance in direct sunlight, next to an
oven, radiator or similar.
-
Energy consumption depends on the installation conditions,
e.g. the ambient temperature (see 1.2 Appliance range of
use) . A warmer ambient temperature can increase the
energy consumption.
-
Open the appliance for as short a time as possible.
-
The lower the temperature is set the higher the energy
consumption.
-
Keep all food properly packed and covered. This prevents
frost from forming.
-
Inserting warm food: allow to cool down to room temperature
first.
Appliance at a glance
* Depending on model and options 3
1.6 SmartGrid
Depending on model and options, your
appliance is prepared for the advanced
"SmartGrid" technology.
SmartGrid is a future option for reducing household electricity
costs via an intelligent meter supplied by the energy provider.
In the event of surplus energy being generated, for instance,
by regenerative sources, households are supplied with low-cost
electricity. SmartGrid-ready upright freezers are prepared for
this future technology. With an appropriate additional module,
you will be in a position to optimise your electricity costs.
For more information about the benefits, requirements and
operating principle visit the homepage of your energy provider
and www.liebherr.com.
1.7 Smart device
The appliance is ready for integration into a smart
home and for extended services. With a SmartDe-
vice Box, you can activate this and other options.
This is activated via the MyLiebherr customer
portal.
Note
The SmartDevice Box is available for purchase from the
Liebherr Household Store (home.liebherr.com).
You will find more information about availability and prerequi-
sites and the individual options on the website, www.smartde-
vice.liebherr.com.
2 General safety information
Danger for the user:
-
This device can be used by children and
people with impaired physical, sensory or
mental abilities or with a lack of experi-
ence and knowledge provided that they are
supervised or have received instruction in
the safe use of this device, and about the
resulting hazards. Children must not play
with this appliance. Cleaning and user main-
tenance work must not be carried out by chil-
dren without adult supervision. Children aged
between 3 and 8 are allowed to load and
unload the appliance. Children below the age
of 3 must be kept away from the appliance
unless they are under continuous adult super-
vision.
-
When disconnecting the appliance from the
supply, always take hold of the plug. Do not
pull the cable.
-
In the event of a fault pull out the mains plug
or deactivate the fuse.
-
Do not damage the mains power cable. Do
not operate the appliance with a defective
mains power cable.
-
Only customer service or other specially
trained staff may repair or perform other oper-
ations on the appliance.
-
Only assemble, connect and dispose of the
appliance according to the instructions.
-
Please keep these instructions in a safe place
and pass them on to any subsequent owners.
-
The manufacturer is not liable for damage
caused by a faulty fixed water connection.
Fire hazard:
-
The coolant used (information on the model
plate) is eco-friendly but also flammable. Any
leaking coolant may ignite.
•
Do not damage the refrigerant circuit pipes.
•
Do not handle ignition sources inside the
appliance.
•
Do not use electrical appliances inside the
appliance (e.g. steam cleaners, heaters, ice
cream makers, etc.).
•
If the refrigerant leaks: remove any naked
flames or ignition sources from the vicinity
of the leakage point. Properly air the room.
Inform customer services.
-
Do not store explosives or sprays using
combustible propellants such as butane,
propane, pentane, etc. in the appliance. To
identify these spray cans, look for the list
of contents printed on the can, or a flame
symbol. Gases possibly escaping may ignite
due to electrical components.
-
Keep burning candles, lamps and other items
with naked flames away from the appliance so
that they do not set the appliance on fire.
-
Please be sure to store alcoholic drinks or
other packaging containing alcohol in tightly
closed containers. Any alcohol that leaks out
may be ignited by electrical components.
Danger of tipping and falling:
-
Do not misuse the plinth, drawers, doors etc.
as a step or for support. This applies particu-
larly to children.
-
Danger of tipping if the door is open if the
appliance has not yet been installed properly.
Danger of food poisoning:
-
Do not consume food which has been stored
too long.
Danger of frostbite, numbness and pain:
-
Avoid prolonged skin contact with cold
surfaces or refrigerated/frozen goods or take
protective measures, e.g wear use gloves.
Danger of injury and damage:
General safety information
4 * Depending on model and options
-
Hot steam can lead to injury. Do not use elec-
trical heating or steam cleaning equipment,
open flames or defrosting sprays to defrost.
-
Do not use sharp implements to remove the
ice.
Danger of crushing:
-
Do not hold the hinge when opening and
closing the door. Fingers may get caught.
Symbols on the appliance:
The symbol can be located on the
compressor. It refers to the oil in the
compressor and indicates the following
danger: Swallowing or inhaling can be fatal.
This is only relevant for recycling. There is no
danger in normal operation.
This symbol is found on the compressor and
indicates the danger of flammable materials.
Do not remove the sticker.
A sticker to this effect may be applied to
the rear of the appliance. It refers to the
foam-padded panels in the door and/or the
housing. This is only relevant for recycling. Do
not remove the sticker.
Please observe the specific information in
the other sections:
DANGER identifies a situation involving direct
danger which, if not obviated, may
result in death or severe bodily
injury.
WARNING identifies a dangerous situation
which, if not obviated, may result in
death or severe bodily injury.
CAUTION identifies a dangerous situation
which, if not obviated, may result in
minor or medium bodily injury.
NOTICE identifies a dangerous situation
which, if not obviated, may result in
damage to property.
Note It contains useful instructions and
tips.
3 Controls and displays
3.1 Home screen

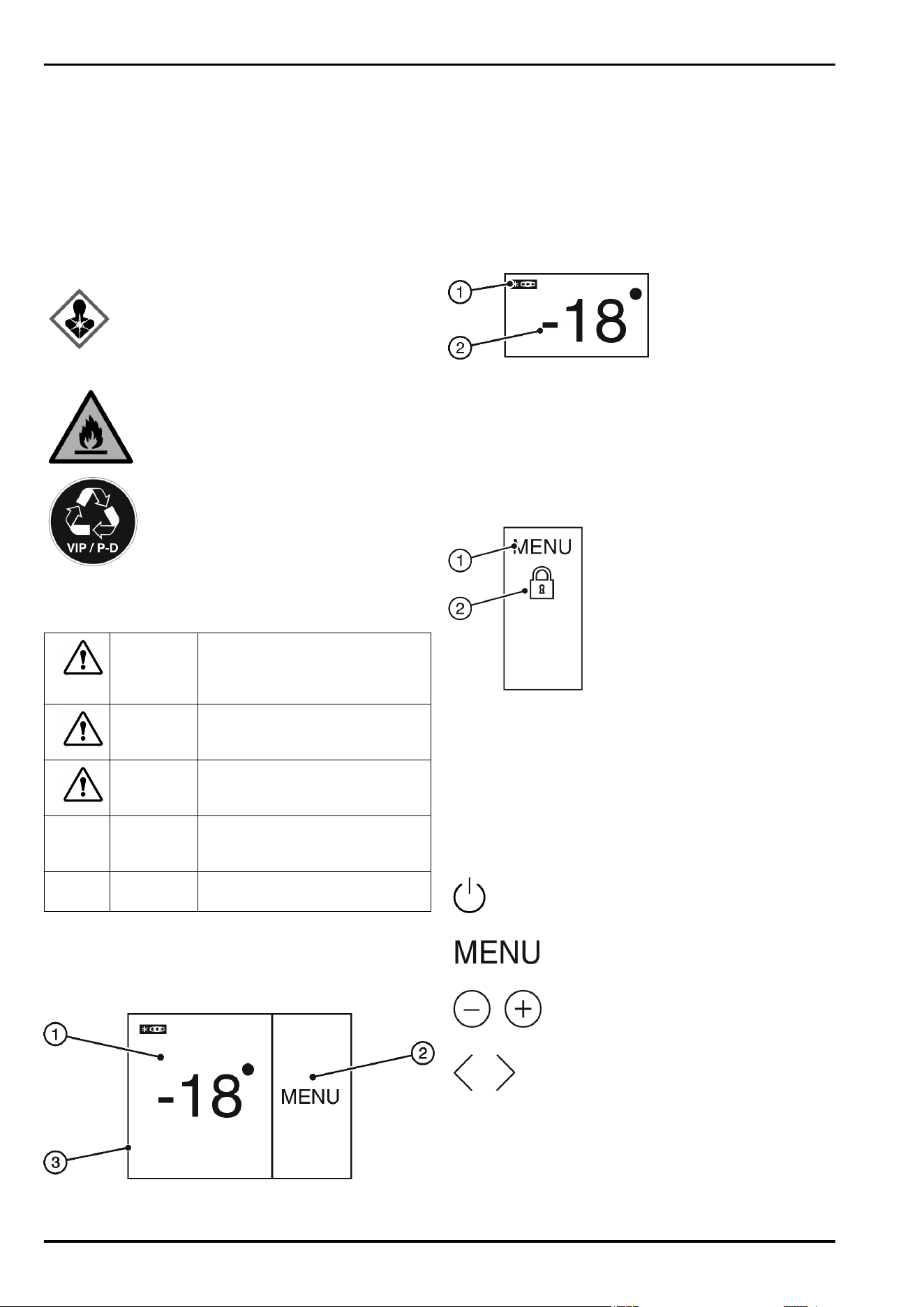

Fig. 3
(1) Freezer compartment
field
(3) Screen
(2) Menu field
The home screen is the first screen the user sees. All settings
can be made from there.
All functions can be called up by touching the screen and
values can be changed.
3.2 Operating structure
Freezer compartment field
Fig. 4
(1) Freezer compartment
symbol
(2) Freezer compartment
temperature display
The freezer compartment temperature is displayed in the
freezer compartment field.
The following settings can be entered:
-
Temperature settings
-
Switch off appliance. Screen remains functional.
Menu field
Fig. 5
(1) Main menu (2) Option selected
The menu field gives access to the appliance options and
settings. Selected options are also displayed.
3.3 Navigation
Touch the menu to access the individual options. An audible
signal sounds after confirming an option or a setting. The
display switches to the home screen.
The appliance is operated using the following symbols:
Standby:
Switches the appliance or tempera-
ture zone on.
Menu:
Calls up options.
Minus / Plus:
Changing settings (e.g. adjusting
temperatures).
Left/right navigation arrow:
Selects options and navigates
through the menu.
You can scroll through the individual
options using the navigation arrows.
The first option is displayed again
after the last one.
Controls and displays
* Depending on model and options 5
Back:
Cancels the selection.
The display switches to the next
higher level or to the home screen
OK:
Confirms the selection.
After confirmation the display
switches to the home screen.
ON / OFF, START / STOP
Starts/ stops options.
After selecting or cancelling an option
the display switches to the home
screen.
RESET:
Resets timer.
Access to customer service
Note
If no selection is made after 1 minute the display switches to
the home screen.
3.4 Display symbols
Display symbols provide information on the current appliance
status:
Up arrows:
The temperature increases.
Down arrows:
The temperature reduces.
Standby:
The appliance or temperature zone is
switched off.
Messages:
There are active error messages and
reminders.
3.5 Appliance options
You can select or set the following options; explanations and
setting options, (see 5 Control) :
Symbol Option
SuperFrost
x
SabbathMode
IceMaker
x
Child safety device
x
Temperature unit
Status display
x
Smart Grid
x
x
If the option is selected, the relevant symbol is displayed in
the menu field.
If more than 6 selected options are selected only 4 options are
displayed in the menu field. The other options are displayed by
pressing the bottom navigation arrow. Pressing the navigation
arrow repeatedly takes you back to the home screen.
The symbol disappears if the option ends or is disabled.
4 Putting into operation
4.1 Transporting the appliance
u
Transport the appliance only in suitable packaging.
u
Transport the appliance upright.
u
Do not transport the appliance on your own.
4.2 Installing the appliance
WARNING
Fire hazard due to dampness!
If live parts or the mains lead become damp this may cause
short circuits.
u
The appliance is designed for use in enclosed areas. Do
not operate the appliance outdoors or in areas where it is
exposed to splash water or damp conditions.
WARNING
Improper use!
Fire. If a mains cable/plug comes into contact with the back
of the appliance, the mains cable/plug can be damaged by
appliance vibrations and this may result in a short circuit.
u
Stand the appliance so that it is not touched by connectors
or main cables.
u
Do not connect any appliances to sockets in the area of the
back of the appliance.
u
Multi-sockets/power distributors and other electronic appli-
ances (such as halogen transformers) may not be placed
and operated at the back of appliances.
WARNING
Leaking coolant and oil!
Fire. The coolant contained in the appliance is eco-friendly,
but also flammable. The oil contained in the appliance is flam-
mable. Escaping coolant and oil can ignite if the concentration
is high enough and in contact with an external heat source.
u
Do not damage the pipelines of the coolant circuit and the
compressor.
WARNING
Fire hazard and danger of damage!
u
Do not place appliances emitting heat e.g. microwaves,
toasters etc. on the appliance!
Putting into operation
6 * Depending on model and options
NOTICE
Covered vents!
Damage. Appliance can overheat, which can reduce the
service life of various parts of the appliance and lead to opera-
tional impairments.
u
Always make sure there is good ventilation.
u
Always keep vents or ventilation grids in the appliance
housing and in the kitchen furniture (fully integrated appli-
ance) unobstructed.
u
Always keep the fan air vents unobstructed.
If your appliance is not a side-by-side (SBS) appliance:*
NOTICE
Risk of damage due to condensate!
u
Do not install the appliance directly alongside a further
refrigerator/freezer.
Note
If you have several appliances next to one another, leave a

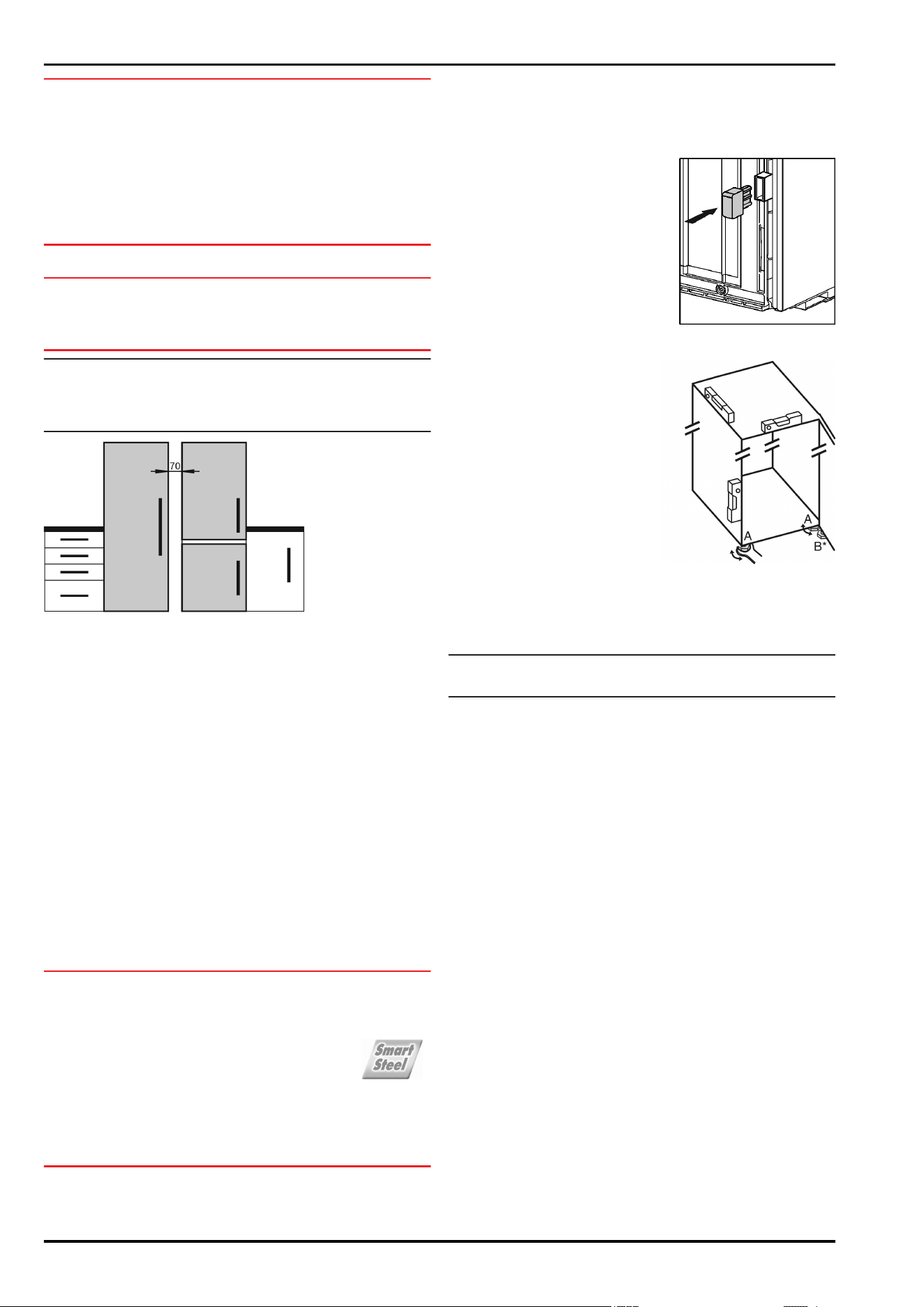

gap of 70mm between appliances. Otherwise condensation will
build up between the units.*
Fig. 6
*
q
Before you connect the appliance, report any damage imme-
diately to the delivery company.
q
The floor of the installation site must be horizontal and even.
q
Do not install the appliance in direct sunlight, next to an
oven, radiator or similar.
q
The best place for installation is a dry and well ventilated
room.
q
Install the appliance with the rear panel up against the wall
and always use the supplied wall spacers (see below).
q
Only ever move the appliance when it is empty.
q
The surface supporting the appliance must be at the same
level as the surrounding floor.
q
Do not install the appliance on your own.
q
The more coolant there is in the appliance, the larger the
room in which the appliance is installed must be. If the room
is too small, any leak may create a flammable mixture of gas
and air. For each 8 g of coolant the installation space must
be at least 1 m
3
. Information on the coolant is on the model
plate inside the appliance.
u
Remove the protective film from the outside of the appli-
ance.*
NOTICE
Risk of damage from stainless steel care products!
The stainless steel doors and stainless steel side panels
are treated with a premium surface finish.
Stainless steel care products attack these surfaces.
u
Only use a soft, clean cloth to wipe down finished door
and side panel surfaces and painted door and side
panel surfaces. To remove heavy dirt, use a little water
or neutral detergent. Alternatively, you can use a micro-fibre
cloth.
u
Remove the protective film from the decorative trims and
drawer fronts.
u
Remove all transit supports.
Spacers must be used to achieve the declared energy
consumption and to prevent condensation in the event of high
surrounding humidity. This increases the appliance depth by
about 15 mm. The appliance will work perfectly well without the
spacers but will have a slightly higher energy consumption.
u
If your appliance comes with wall
spacers, mount these on the
back of the appliance, bottom left
and right.
u
Dispose of packaging material (see 4.6 Disposing of pack-
aging) .
u
Align the appliance so that
it stands firmly and on a
level by applying the accom-
panying spanner to the adjust-
able-height feet (A) and using
a spirit level.
When a Side-by-Side appliance (S…) is fitted together with
a second appliance (as a SBS combination):*
u
Proceed according to the Side-by-Side combined fridge-
freezer installation instructions. (Accessories bag of the SBS
freezer/appliance with freezer compartment)*
Note
u
Clean the appliance (see 6.3 Cleaning the appliance) .
If the appliance is installed in a very damp environment,
condensate may form on the outside of the appliance.
u
Always see to good ventilation at the installation site.

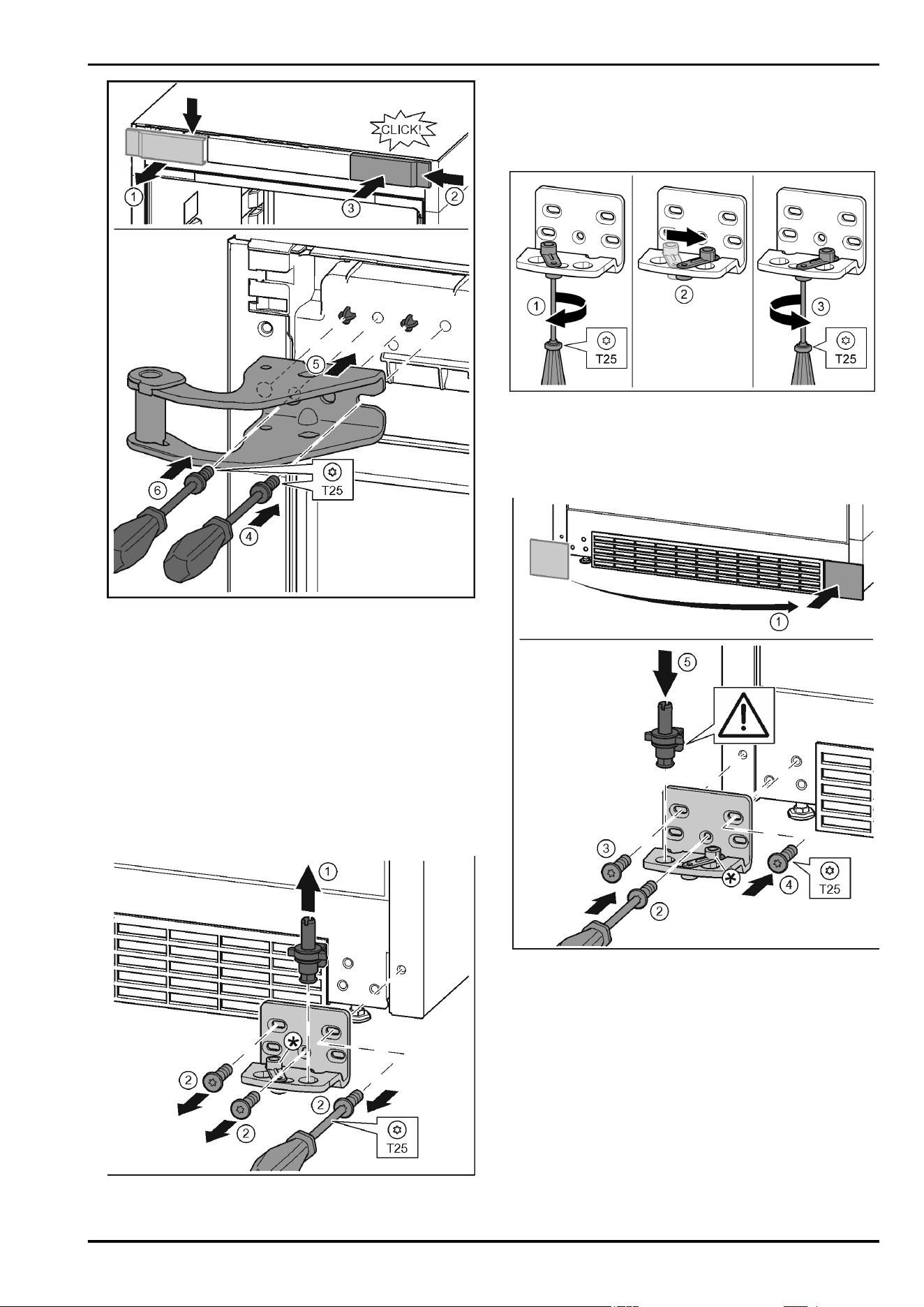

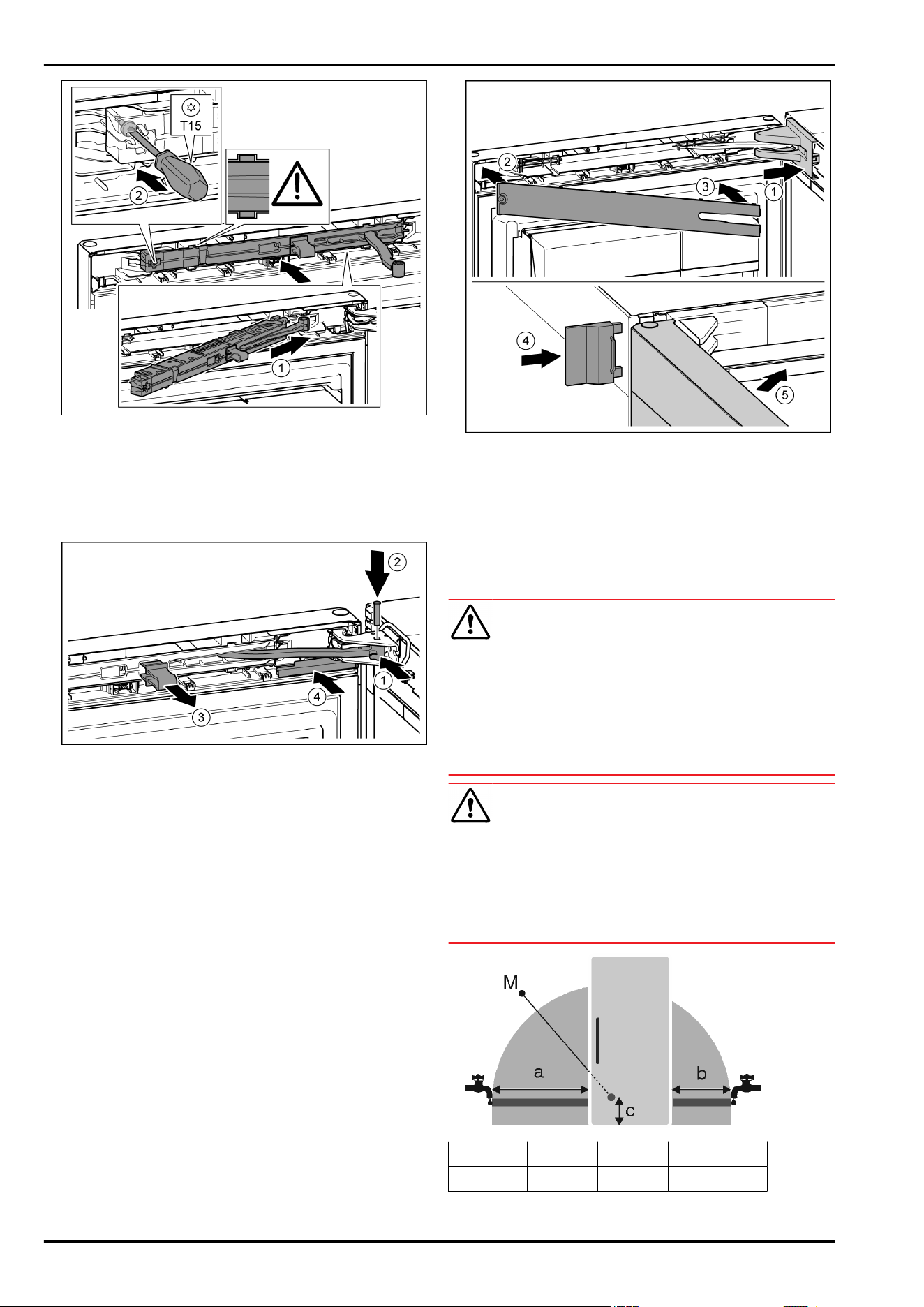

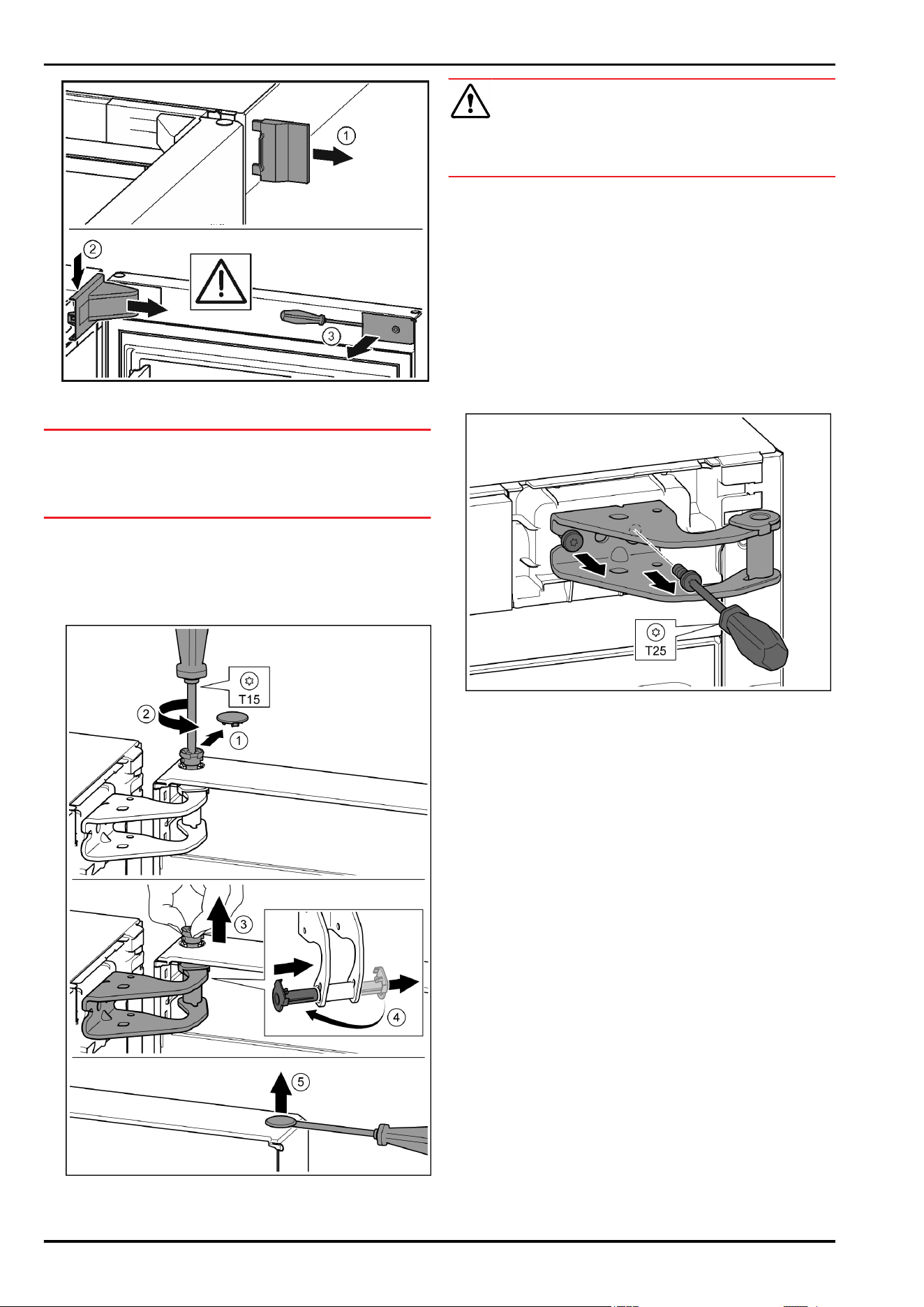

4.3 Reversing the door
If necessary, you can change the way the door opens:
Ensure that the following tools are available:
q
Torx® 25 (T25)
q
Torx® 15 (T15)
q
Slotted screwdriver
q
Open-ended wrench SW10
q
Spirit level
q
Open-ended wrench supplied with the T25 tool
q
If necessary, a cordless screwdriver
q
Get a stepladder if necessary
q
If necessary, a second person for assembly
For appliances with the soft stop mechanism these sections
apply:*
q
For appliances with the soft stop mechanism
q
For all appliances
For appliances without the soft stop mechanism these
sections apply:*
q
For appliances without the soft stop mechanism
q
For all appliances
Putting into operation
* Depending on model and options 7
NOTICE
Risk of condensation damage for Side-by-Side appliances!*
Certain appliances can be set up as Side-by-Side combina-
tions (two appliances next to each other).
If your appliance is a Side-by-Side (SBS) appliance:
u
Set up the SBS combination in accordance with the
enclosed document.
If the positioning of the devices is stipulated:
u
Do not change the door hinges over.
4.3.1 Remove the soft stop mechanism*
For appliances with the soft stop mechanism:*
Fig. 7
u
Open the door.
NOTICE
Risk of damage!
If the door seal is damaged, the door may fail to close properly
and the cooling will be inadequate.
u
Do not damage the door seal with the screwdriver!
u
Remove the outer cover.
Fig. 7 (1)
u
Disengage and release the bearing bracket cover. Remove
the bearing bracket cover.
Fig. 7 (2)
u
Unlatch the panel with a slotted screwdriver and swivel it to
one side.
Fig. 7 (3)
Fig. 8
CAUTION
Crushing hazard by joint folding up!
u
Engage safety device.
u
Engage the locking device in the opening.
Fig. 8 (1)
u
Unscrew the bolt with a screwdriver.
Fig. 8 (2)
u
Remove the bolt in an upward direction.
Fig. 8 (3)
u
Turn the hinge in the direction of the door.
Fig. 8 (4)
Fig. 9
u
Press the tab with the slotted screwdriver.
Fig. 9 (1)
u
Pull cover out of the catch mechanism.
Fig. 9 (2)
Fig. 10
u
Undo the soft stop mechanism screw with a T15 screwdriver
approx. 14 mm.
Fig. 10 (1)
u
Insert a screwdriver behind the soft stop mechanism on the
handle side and rotate forwards.
Fig. 10 (2)
u
Remove the soft stop mechanism.
Fig. 10 (3)
4.3.2 Remove the door
For appliances without a soft top mechanism:*
Putting into operation
8 * Depending on model and options
Fig. 11
*
u
Open the door.*
NOTICE
Risk of damage!*
If the door seal is damaged, the door may fail to close properly
and the cooling will be inadequate.
u
Do not damage the door seal with the screwdriver!
u
Remove the outer cover.*
Fig. 11 (1)
u
Disengage and release the bearing bracket cover. Remove
the bearing bracket cover.*
Fig. 11 (2)
u
Unlatch the panel with a slotted screwdriver and swivel it to
one side.*
Fig. 11 (3)
For all appliances:*
Fig. 12
CAUTION
Risk of injury if the door tips!
u
Take good hold of the door.
u
Set down the door carefully.
u
Carefully remove the protective cover.
Fig. 12 (1)
u
Undo the bolt a little with a T15 screwdriver.
Fig. 12 (2)
u
Hold the door and remove the bolts with your fingers.
Fig. 12 (3)
u
Pull the bearing bush out of the guide. Insert from the other
side and click into place.
Fig. 12 (4)
u
Lift the door and set it aside.
u
Carefully lift the plugs out of the door bearing bush with a
slotted screwdriver and remove.
Fig. 12 (5)
4.3.3 Moving the upper bearing parts to the
other side
For all appliances:*
Fig. 13
u
Remove both screws with the T25 screwdriver.
u
Lift and remove the bearing bracket.
Putting into operation
* Depending on model and options 9
Fig. 14
u
Release the cover and remove from the side.
Fig. 14 (1)
u
Rotate the cover 180° and clip onto the other side from the
right.
Fig. 14 (2)
u
Click the cover into place.
Fig. 14 (3)
u
Position the screw with a T25 screwdriver.
Fig. 14 (4)
u
Position the upper bearing bracket.
Fig. 14 (5)
w
Place the pins in the provided screw holes.
u
Tighten the screw.
Fig. 14 (4)
u
Insert the screw with a T25 screwdriver and tighten.
Fig. 14 (6)
4.3.4 Moving the lower bearing parts to the
other side
For all appliances:*
Fig. 15
u
Lift the bearing pin completely upward and remove.
Fig. 15 (1)
u
Undo the screws with a T25 screwdriver and remove the
bearing bracket
Fig. 15 (2)
For appliances without a soft top mechanism:*
Fig. 16
*
u
Loosen the screw using a T25 screwdriver.*
Fig. 16 (1)
u
Lift the door closure aid and turn it 90° to the right in the
hole.*
Fig. 16 (2)
u
Tighten the screw using a T25 screwdriver.*
Fig. 16 (3)
For all appliances:*
Fig. 17
u
Remove the cover and fix it on the other side.
Fig. 17 (1)
u
Place the bearing bracket on the other side and screw in
with the aid of a T25 screwdriver. Start with screw 2 at the
bottom in the middle.
Fig. 17 (2)
u
Screw in screws 3 and 4.
Fig. 17 (3, 4)
u
Insert the bearing pin completely. Make sure that the catch
mechanism is pointing to the rear.
Fig. 17 (5)
4.3.5 Moving the door bearing parts to the
other side
For appliances without a soft top mechanism:*
Putting into operation
10 * Depending on model and options

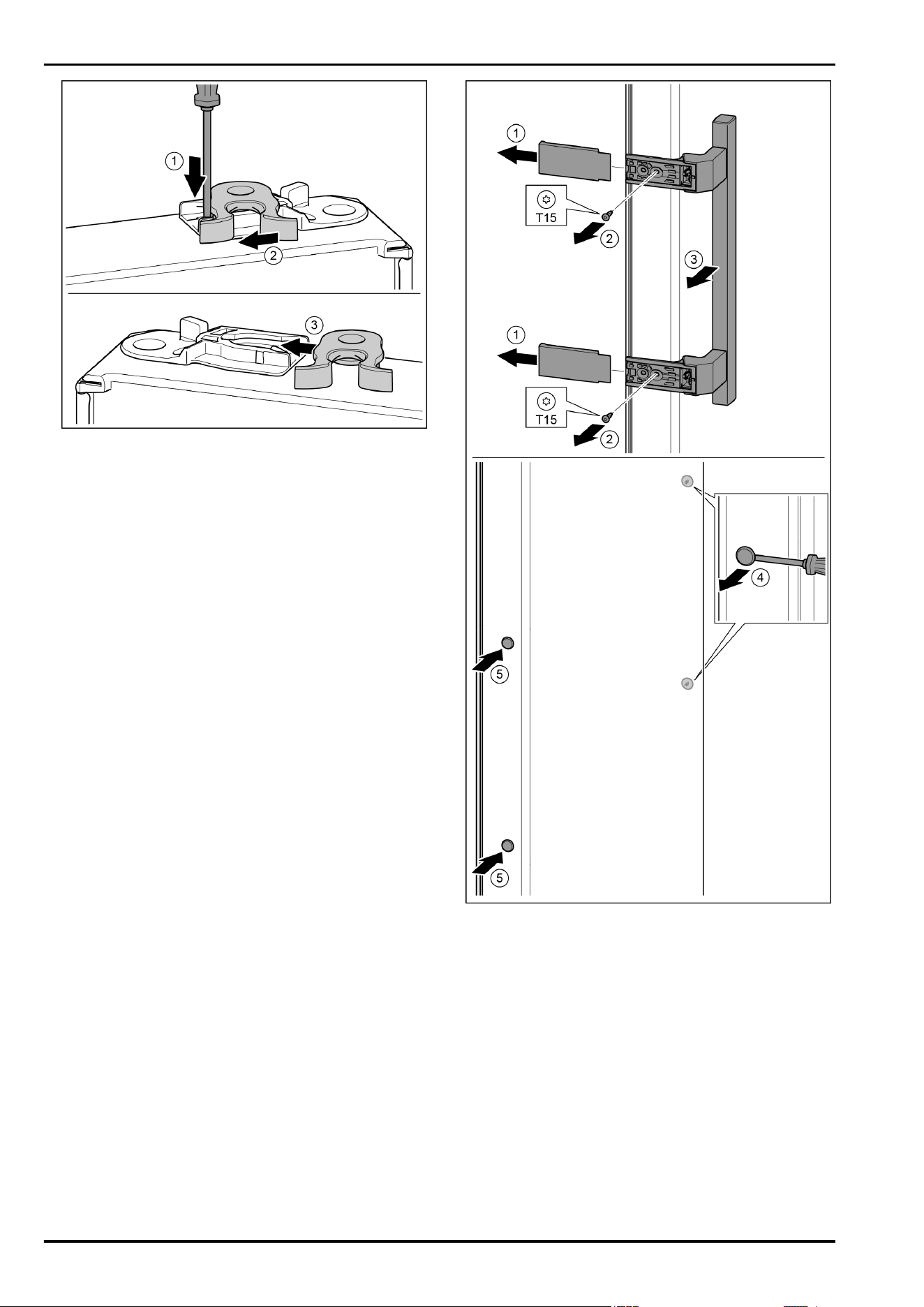

Fig. 18
*
u
Underside of door faces upwards: Turn the door.*
u
Push the tab downwards with a slotted screwdriver.*
Fig. 18 (1)
u
Pull the door latch out of the guide.*
Fig. 18 (2)
u
Push the door latch into the guide on the other side.*
Fig. 18 (3)
u
Upper side of door faces upwards: Turn the door.*
4.3.6 Moving the handles to the other side
For all appliances:*
Fig. 19
u
Pull off the cover.
Fig. 19 (1)
u
Remove the screws with the T15 screwdriver.
Fig. 19 (2)
u
Remove the handle.
Fig. 19 (3)
u
Carefully lift up the side plugs with a slotted screwdriver and
pull them out.
Fig. 19 (4)
u
Insert the plugs again on the other side.
Fig. 19 (5)
Putting into operation
* Depending on model and options 11
Fig. 20
u
Position the handle on the other side.
Fig. 20 (1)
w
The screw holes must be exactly above each other.
u
Tighten the screws with the T15 screwdriver.
Fig. 20 (2)
u
Position the covers on the side and push in.
Fig. 20 (3)
w
Ensure that it clicks into place.
4.3.7 Fitting the door
For all appliances:*
Fig. 21
u
Place the door on the lower bearing pins.
u
Align the top of the door with opening in the bearing bracket.
Fig. 21 (1)
u
Insert the bolt and tighten with a T15 screwdriver.
Fig. 21 (2)
u
Fit the protective cover to protect the door: Insert the protec-
tive cover and check that it is attached to the door. If not,
insert the bolt fully.
Fig. 21 (3)
u
Insert the plugs.
Fig. 21 (4)
4.3.8 Aligning the door
For all appliances:*
WARNING
Risk of injury due to the door dropping out!
If the bearing parts are not screwed into place firmly enough,
the door may drop out. This may lead to severe injuries. What is
more, the door may not close and therefore the appliance may
fail to cool properly.
u
Screw the turn hinges firmly into place with 4 Nm.
u
Check all of the screws and retighten if necessary.
u
Align the doors flush with the appliance housing using the
two oblong holes in the lower bearing bracket if needed. To
do this undo the middle screw in the bottom bearing bracket
with the T25 tool supplied. Undo the remaining screws a
little with the T25 tool or with a T25 screwdriver and align
using the slotted holes.
u
Support the door: Take off the adjustable foot on the bearing
bracket using the open-ended wrench SW10 until it comes
into contact with the floor, then turn an additional 90°.
4.3.9 Fit the covers*
For appliances without a soft top mechanism:*
Fig. 22
The door is open 90°.
u
Position the bearing bracket and engage. If necessary push
apart carefully.
Fig. 22 (1)
u
Position the panel on the side and click into place.
Fig. 22 (2)
Fig. 23
u
Slide on the external cover.
Fig. 23 (1)
u
Close the upper door.
Fig. 23 (2)
4.3.10 Fit the soft stop mechanism*
For appliances with the soft stop mechanism:*
Putting into operation
12 * Depending on model and options
Fig. 24
u
Slide the soft stop mechanism on the bearing bracket side at
an angle into the slot as far as the limit stop.
Fig. 24 (1)
u
Slide the unit in fully.
w
The unit is positioned correctly when the rib on the soft stop
mechanism is in the guide in the housing.
u
Tighten the screw with the T15 screwdriver.
Fig. 24 (2)
Fig. 25
The door is open 90°.
u
Turn the hinge in the bearing bracket.
Fig. 25 (1)
u
Insert the bolt in the bearing bracket and hinge. Make sure
that the catch mechanism is sitting correctly in the groove.
Fig. 25 (2)
u
Remove the locking device.
Fig. 25 (3)
u
Slide on the cover.
Fig. 25 (4)
Fig. 26
u
Position the bearing bracket and engage. If necessary push
apart carefully.
Fig. 26 (1)
u
Position the panel.
Fig. 26 (2)
u
Swing in the panel and click into place.
Fig. 26 (3)
u
Slide on the external cover.
Fig. 26 (4)
u
Close the upper door.
Fig. 26 (5)
4.4 Water connection
WARNING
Electricity in combination with water!
Electric shock.
u
Before connecting to the water pipe: Disconnect the appli-
ance from the mains.
u
Before connecting to water supply lines: Shut off the water
supply.
u
The connection to the drinking water mains may only be
carried out by a qualified gas and water engineer.
WARNING
Risk of poisoning!
u
The water quality has to comply with the drinking water ordi-
nance of the respective country (e.g. 98/8
u
Connect to the drinking water supply only.
u
The IceMaker serves exclusively for making ice cubes in
household quantities and has to be operated with water suit-
able for the purpose.
Fig. 27
a b c M
~ 1100 mm ~ 700 mm ~ 110 mm Solenoid valve
Putting into operation
* Depending on model and options 13
- The water pressure must be between 0.15 MPa and
0.6 MPa (1.5 bar - 6 bar).
- The water must be connected to the appliance via a cold
water pipe that can withstand the operating pressure and
complies with hygiene standards.
Use the stainless steel hose supplied (length 1.5 m). Do
not reuse old hoses. A 3 m hose is available as an optional
extra. This must be professionally installed.
A filter with a seal is located in the hose connector.
- A stopcock must be provided between the hose line and
the domestic water connection to cut off the water supply if
necessary.
- The stopcock must be located outside the back of the appli-
ance and be within easy reach so that the appliance can
be inserted as deeply as possible and the stopcock can be
turned off quickly. Stick to the clearances.
- All devices and equipment used to supply water must
comply with the regulations in force in the respective
country.
- Do not damage or kink the water supply line during installa-
tion.
Fig. 28
The solenoid valve is located at the bottom on the back of the
appliance. It has a R3/4 connecting thread.
For specialist staff:
Connecting the stainless steel hose: The back of the appliance
must be accessible.
WARNING
Broken auxiliary tool
Fig. 28 (5)
.
Cuts.
u
Only use an auxiliary tool
Fig. 28 (5)
at room temperature.
Connecting the hose to the appliance:
u
Remove the cover
Fig. 28 (2)
.
u
Easy to fit: Place the straight end of the hose
Fig. 28 (7)
to
the left on the floor.
u
Slide the nut
Fig. 28 (4)
over the angled end of the hose
Fig. 28 (3)
up to the end and secure.
Fig. 29
NOTICE
Damaged solenoid thread pitch.
The solenoid leaks: Water may leak out.
u
Position the nut
Fig. 29 (1)
carefully and screw it directly
onto the thread with two fingers until it is seated securely.
u
Tighten the nut
Fig. 29 (1)
clockwise with the auxiliary tool
Fig. 28 (5)
until maximum torque is reached and the auxiliary
tool
Fig. 28 (5)
overtightens.
Connecting the hose to the stopcock:
u
Screw the nut
Fig. 28 (7)
onto the stopcock
Fig. 28 (8)
.
u
Tighten the nut
Fig. 28 (7)
clockwise with the auxiliary tool
Fig. 28 (5)
until maximum torque is reached and the auxiliary
tool
Fig. 28 (5)
overtightens.
u
Turn the water supply stopcock
Fig. 28 (8)
on and check the
whole water system for leaks.
u
Flushing the IceMaker: Turning the IceMaker on chapter
(see 5.16.2 Switch the IceMaker on.) .
u
Hook the clip
Fig. 28 (6)
into the auxiliary tool
Fig. 28 (5)
and
fix it to the stainless steel pipe to store it.
4.5 Sliding into the row of units

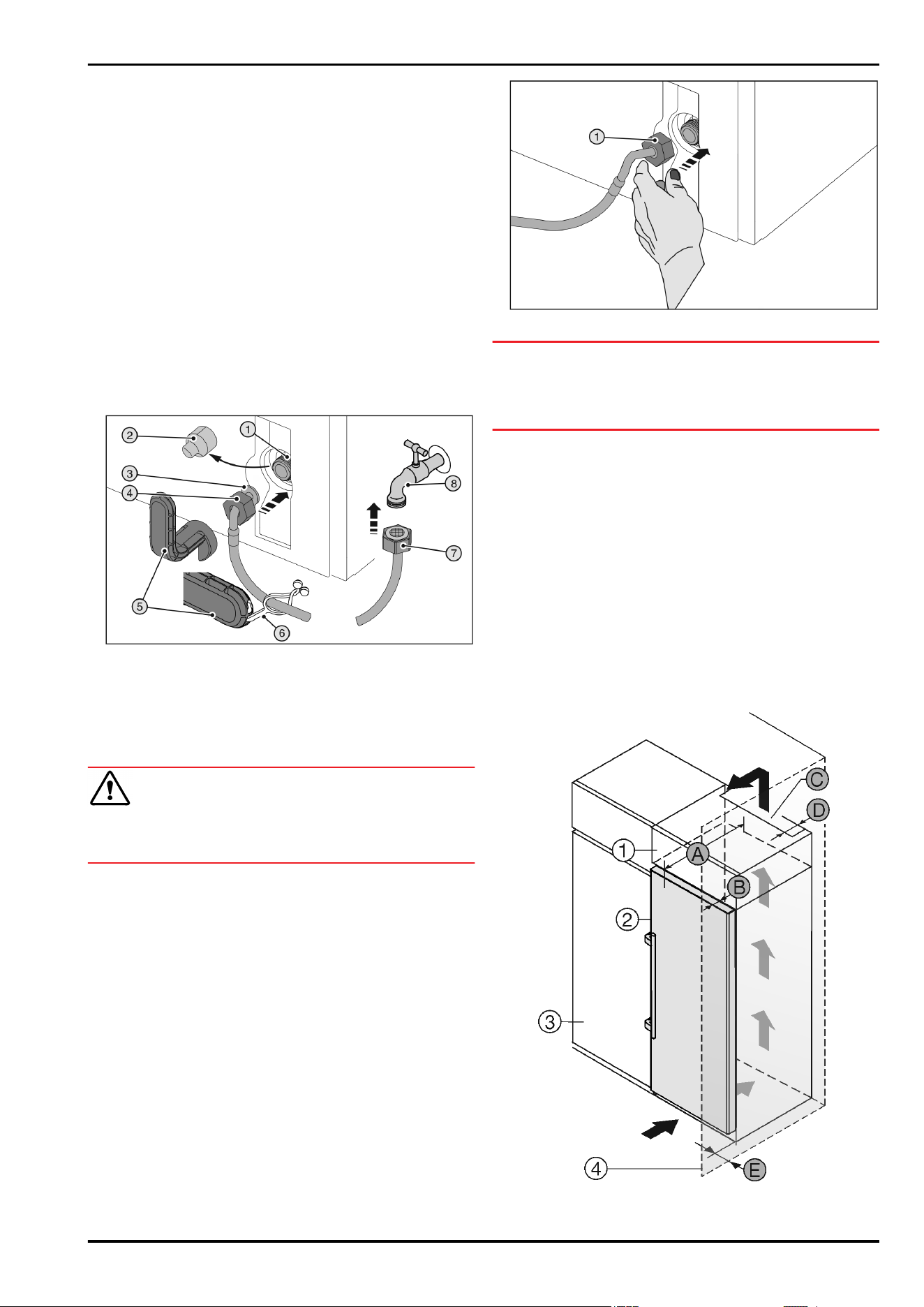

Fig. 30
Putting into operation
14 * Depending on model and options
A [mm] B [mm]
C [cm
2
]
D [mm] E [mm]
665
x
65 min. 300 min. 50 min. 46
x
If using wall spacers, add 15 mm (see 4.2 Installing the appli-
ance) .
These dimensions apply to an opening angle of 90 °. Clear-
ances vary depending on the opening angle.
Please contact Customer Services to purchase a kit to limit
the door opening angle to 90° for appliances with soft-closing
devices.*
The appliance can be built into kitchen units. A top cupboard
Fig. 30 (2)
can be added above the appliance in order to bring
the appliance
Fig. 30 (1)
up to the height of the fitted kitchen
units.
When inserting the appliance into the kitchen unit, there must
be a circumferential distance of at least 5cm.
If the appliance is positioned directly next to a kitchen cabinet
Fig. 30 (3)
, a distance of at least 5 cm from the appliance
is necessary. The appliance must protrude by the depth
Fig. 30 (B)
from the front of the cabinet so that the doors can be
opened fully. The appliance may protrude further depending on
the depth of the kitchen cabinets and whether wall spacers are
used.
NOTICE
Danger of overheating due to insufficient air ventilation!
The compressor may be damaged if there is insufficient air
ventilation.
u
Take care to ensure adequate air ventilation.
u
Observe the ventilation requirements.
Ventilation requirements:
-
There are spacer fins at the back of the appliance to provide
adequate ventilation. Make sure these do not end up in
recesses or openings.
-
At the back of the top cabinet, there must be an air outlet
shaft with depth
Fig. 30 (D)
, spanning the entire width.
-
The ventilation shaft
Fig. 30 (C)
must be observed under the
ceiling.
-
The wider the ventilation clearance, the more efficiently the
appliance will run.
If the appliance is installed with the hinges next to a wall
Fig. 30 (4)
, the distance
Fig. 30 (E)
between the appliance and
the wall must be observed. This is how far the handle protrudes
when the door is open.
4.6 Disposing of packaging
WARNING
Danger of suffocation due to packing material and plastic film!
u
Do not allow children to play with packing material.
The packaging is made of recyclable materials:
-
corrugated board/cardboard
-
expanded polystyrene parts
-
polythene bags and sheets
-
polypropylene straps
-
nailed wooden frame with polyethylene panel*
u
Take the packaging material to an official collecting point.
4.7 Connecting the appliance
WARNING
Failure to connect properly
Fire hazard.
u
Do not use an extension cable.
u
Do not use distributor blocks.
NOTICE
Failure to connect properly
Damage to the electronics.
u
Do not connect the appliance to a stand-alone inverter, e.g.
solar power systems and petrol generators.
u
Do not use an energy saving plug.
Note
Only use the power connection lead supplied.
u
A longer power connection lead can be ordered from
Customer Service.
Fig. 31
a b c d G
~ 1800 mm ~ 1400 mm ~ 2100 mm ~ 200 mm Appliance
plugs
Ensure that the following conditions are met:
- The type of current and voltage at the installation site corre-
spond to the information on the model plate (see 1 Appli-
ance at a glance) .
- The socket is earthed according to the regulations and
fused.
- The fuse tripping current is between 10 and 16 A.
- The socket is easily accessible.
- The socket is outside the back of the appliance area in the
specified area
Fig. 31 (a, b, c)
.
u
Check the electrical connection.
u
Insert the appliance plug
Fig. 31 (G)
into the back of the
appliance. Ensure that it clicks into place.
u
Connect the power plug to the power supply.
w
The Liebherr logo appears on the screen.
w
The display switches to the standby symbol.
4.8 Switching on the appliance
Note
If the appliance is in demo mode, DEMO appears on the home-
screen.
u
Disable demo mode (see 7 Malfunctions) .
Note
The manufacturer recommends:
u
Store frozen produce at -18 °C or colder.
Connect and switch on appliance approx. 8 hours before
loading it for the first time.
Putting into operation
* Depending on model and options 15
4.8.1 Switch on appliance
If the standby symbol is displayed over the whole screen:
u
Press the standby symbol.
w
The appliance is switched on. The display switches to the
home screen.
w
The appliance sets itself to the displayed temperature. This
is shown by down arrows.
If the standby symbol is displayed in the freezer compart-
ment field:
u
Press the standby symbol.
w
The appliance is switched on.
w
The appliance sets itself to the displayed temperature. This
is shown by down arrows.
If the screen is black:
u
Touch the screen.
w
The standby symbol appears on the whole screen.
u
Press the standby symbol.
w
The appliance is switched on. The display switches to the
home screen.
w
The appliance sets itself to the displayed temperature. This
is shown by down arrows.
4.9 SmartDevice box
SmartDevice box: Start-up instruc-
tionswww.smartdevice.liebherr.com/install
If the SmartDevice box (SDB) is inserted correctly the menu
below appears. The device is supplied with WLAN activated.
To use more WiFi options,
open the WIFI menu.

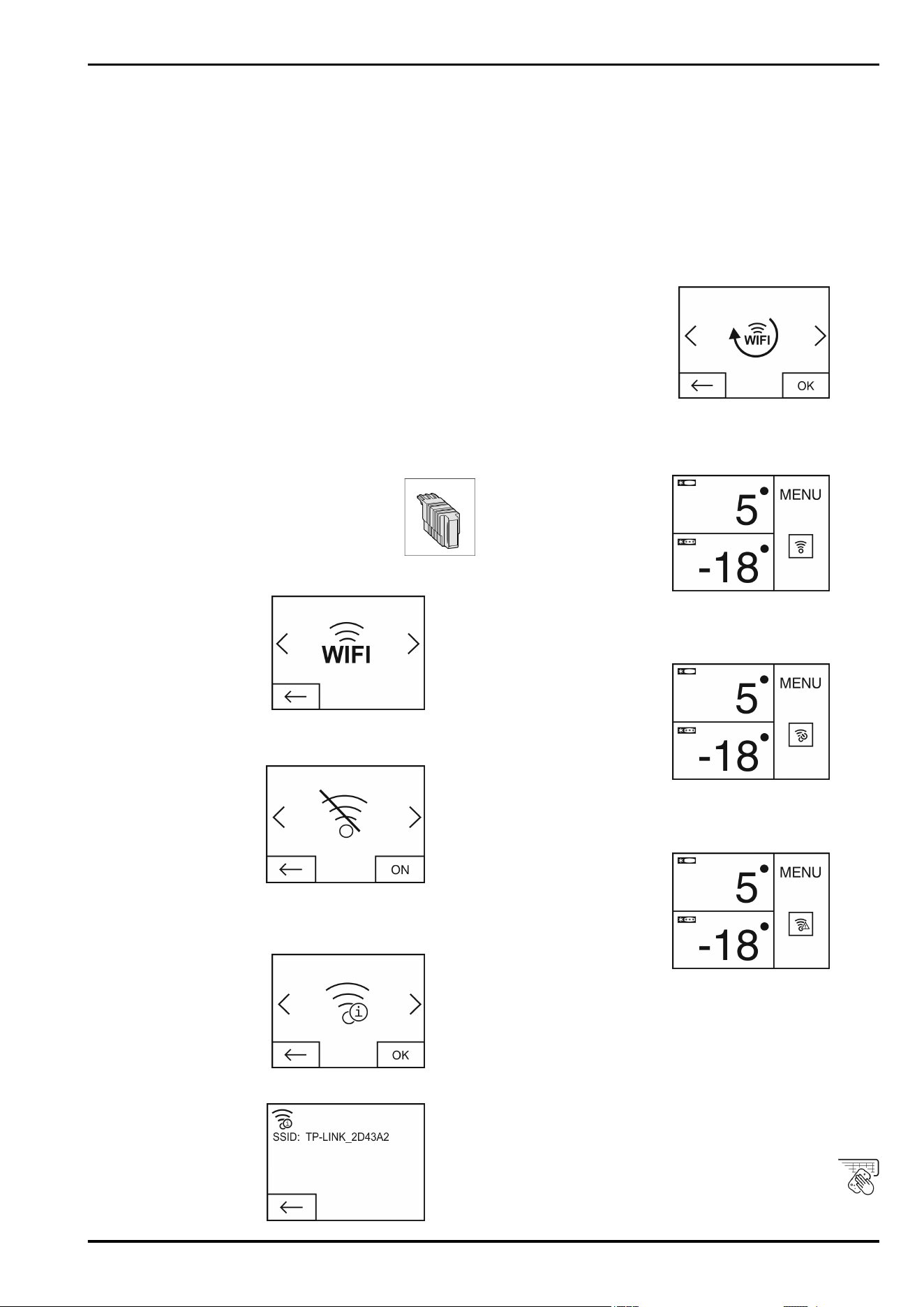

Fig. 32
u
Press WIFI.
w
The WIFI menu opens.
Turning on/off WiFi
Fig. 33
u
Use the slider at the bottom right to turn on/off WIFI
w
Slider to OFF = WIFIis disabled.
w
Slider to ON = WIFIis enabled.
WIFI INFO
Call up the status of the
SmartDevice box.
Fig. 34
u
Press the OK button.
w
The WIFI INFO screen opens.
w
The following statuses
can be displayed:
Fig. 35
w
SSID: ***WPS*** = The SmartDevice box is in WPS mode
for 3 minutes. An automatic connection to the SmartDevice
box can be established via the router.
w
SSID: LHSDB_xxxxxxxxx = the SmartDevice box is in
manual connection mode for 30 minutes. The SmartDe-
vice box transmits a private network to which you can
connect to send WLAN data.
w
SSID: empty = The SmartDevice box is in sleep mode.
Please reset the WIFI and connect your SmartDevice box
to the home network.
w
SSID: TP-LINK_2D43A2 or Fritz!Box7069 = The SmartDe-
vice box is connected to the home network.
WIFI RESET
Resetting the SmartDevice
box to the default settings.
Fig. 36
u
Confirm with OK.
w
The SmartDevice box is reset to the default settings.
Showing the WiFi status on the Home screen
Status: WiFi on & connected
Fig. 37
u
The WiFi indicator is white.
w
WiFi is on.
w
The home network and the Liebherr server are connected.
Status: WiFi on & connecting
u
The WiFi display shows
a clock.
Fig. 38
w
WiFi is on.
w
There is no connection to the home network and/or the
Liebherr server.
Status: WiFi on & disconnected
u
The WiFi display shows
a warning sign.
Fig. 39
w
WiFi is on.
w
The SmartDevice box is either not connected to a network
or the SmartDevice box is connected to a network but the
network cannot be found, e.g. switched off at night.
4.10 Setting the clean ventilation grid
timer
The ventilation grid must be cleaned at least once a year for
sufficient ventilation. The timer can be set as a reminder.
u
Press menu.
u
Press the navigation arrows until the ventilation grid
is displayed.
u
Press the ventilation grid symbol.
u
Press ON.
Putting into operation
16 * Depending on model and options
w
The timer is set. After the interval has expired a message
prompts you to clean the ventilation grid.
5 Control
5.1 Changing the temperature unit
The temperature display can be switched from °C to °F.
u
Press menu.
u
Press the navigation arrow until °C is displayed.
u
Press °F.
w
The temperature is displayed in °F.
Switch from °F to °C in the same way.
5.2 Child proofing
The child-proofing function enables you to make
sure that the appliance is not inadvertently
switched off by playing children.
5.2.1 Switching on the child safety device
u
Press menu.
u
Press the navigation arrows until the child safety
device is displayed.
u
Press ON.
w
The child safety device is switched on.
5.2.2 Switching the child safety device off
u
Press menu.
u
Press the navigation arrows until the child safety
device is displayed.
u
Press OFF.
w
The child safety device is switched off.
5.3 SabbathMode
This function meets the religious requirements on the Sabbath
or Jewish festivals. Turn on SabbathMode to switch off certain
controls. After setting up SabbathMode, you no longer need to
worry about indicator lights, figures, symbols, displays, alarms
or fans. The thawing cycle only works for the specified time
without taking account of fridge use. After a power cut the
appliance automatically returns to SabbathMode.
There is a list of Star-K certified appliances at www.star-k.org/
appliances.
WARNING
Danger of food poisoning.
If there is a power cut while the appliance is in SabbathMode,
this message is not saved. Once power is restored, the appli-
ance continues in SabbathMode. When this mode is over no
message about the power cut is displayed on the temperature
display.
If there was a power cut during SabbathMode:
u
Check the food for quality. Do not eat the food if it has
thawed.
-
All functions are locked until SabbathMode is switched off.
-
If functions such as SuperFrost, SuperCool, Ventilation, etc.
are activated when SabbathMode is on, they remain active.
-
The IceMaker does not work.
-
No audible signals are emitted and the temperature display
does not indicate any warnings or settings (such as a
temperature alarm or door alarm).
-
The internal light is off.*
5.3.1 Switching SabbathMode on.
u
Press menu.
u
Press the navigation arrow until SabbathMode is
displayed.
u
Press ON.
w
SabbathMode is switched on. Only the SabbathMode
symbol appears on the screen.
SabbathMode switches off automatically after 120 hours if
it has not already been switched off manually. The display
switches to the home screen.
5.3.2 Switch off the SabbathMode
u
Touch the screen.
u
Press OFF.
w
SabbathMode is switched off.
5.4 Freezing food
The rating plate indicates the maximum quantity of fresh food
you can freeze within 24 hours (see 1 Appliance at a glance)
under “Freezing capacity ... kg/24h”.
The top drawer can be loaded with a max. of 15 kg, the bottom
drawer with a max. of 10 kg and the other drawers each with a
max. of 25 kg.
The shelves can each be loaded with 35 kg of frozen food.
Closing the door creates a vacuum. After closing, wait for
around 1 minute, then the door will be easier to open.
CAUTION
Risk of injury due to broken glass!
Bottles and cans containing drinks may burst when being
frozen. This applies particularly to sparkling drinks.
u
Do not freeze bottles and cans containing drinks!
So that the food is rapidly frozen through to the core, do not
exceed the following quantities per pack
- Fruit, vegetables up to 1 kg
- Meat up to 2.5 kg
u
Pack the food in portions in freezer bags, reusable plastic,
metal or aluminium containers
5.5 Storage life
Standard values for the storage life of various types of food in
the freezer compartment:
Ice-cream 2 to 6 months
Sausage, ham 2 to 6 months
Bread, bakery products 2 to 6 months
Game, pork 6 to 10 months
Fatty fish 2 to 6 months
Lean fish 6 to 12 months
Cheese 2 to 6 months
Poultry, beef 6 to 12 months
Vegetables, fruit 6 to 12 months
The values indicated for storage life are standard ones.
5.6 Thawing food
- in the refrigerator compartment
- in a microwave oven
- in a conventional or fan oven
- at room temperature
Control
* Depending on model and options 17
u
Remove only as much food as is required. Use thawed food
as quickly as possible.
u
Food once thawed should be re-frozen only in exceptional
cases.

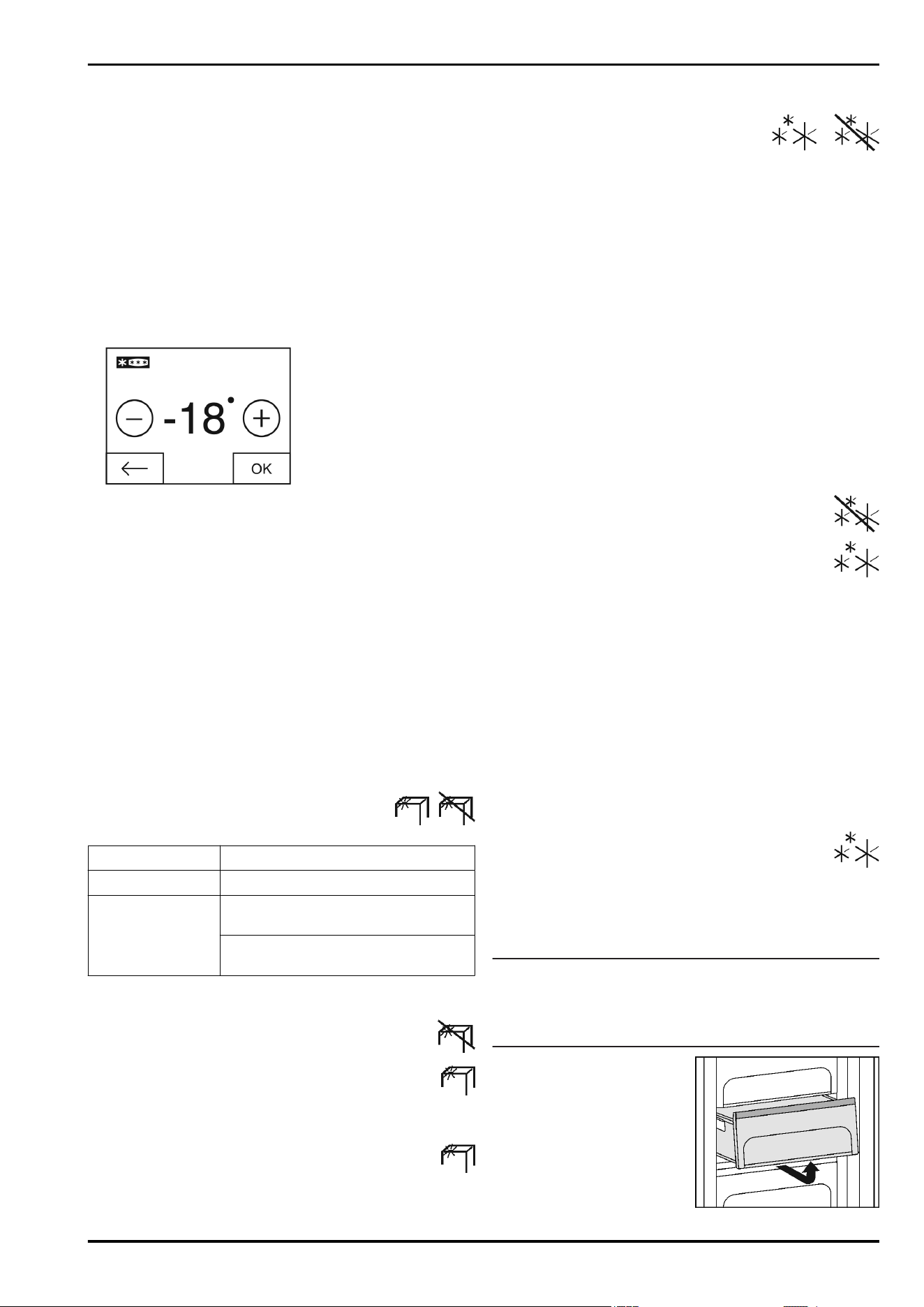

5.7 Setting the temperature
The temperature depends on the following factors:
-
the amount of times the door is opened
-
how long the door is open for
-
the room temperature of the installation site
-
the type, temperature and amount of food
Recommended temperature setting: -18 °C
u
Press the freezer compartment field.
w
The following screen is displayed:
Fig. 40
Setting a higher temperature:
u
Press plus.
Setting a lower temperature:
u
Press minus.
The minus symbol is greyed out when the coldest temperature
is selected.
The plus symbol is greyed out if it is pressed again after
selecting the hottest temperature. The standby symbol is
displayed on the screen.
u
Confirm the required temperature with OK.
w
The display switches to the home screen.
w
The selected temperature is displayed.
w
Up or down arrows indicate the change in temperature.
The arrows are greyed out when the target temperature is
reached.
5.8 Status display
The status display shows you the status of the
appliance when the door is closed. If the door is
open the status display is greyed out.
Status Description
Blue light The appliance is working perfectly.
Red pulsating light Temperature alarm (see 8.2 Tempera-
ture alarm)
Appliance faults (see 8.4 Appliance
faults)
5.8.1 Switching the status display on
u
Press menu.
u
Press the navigation arrows until the status display
appears.
u
Press ON.
w
The status display is switched on.
5.8.2 Switching the status display off
u
Press menu.
u
Press the navigation arrows until the status display
appears.
u
Press OFF.
w
The status display is switched off.
5.9 SuperFrost
With this function you can freeze fresh food
quickly through to the core. The appliance
operates with maximum refrigeration. The
noise of the refrigeration unit may be tempo-
rarily louder as a result.
You can freeze as many kilograms of fresh food within 24 hrs
as is indicated on the type plate under “Freezing capacity ...
kg/24hrs”. This maximum freezing quantity can vary depending
on model and climate class.
You have to activate SuperFrost in good time, depending on
how much fresh food is to be frozen: about 6 hours before
placing the food inside in case of small amounts and about 24
hours in advance in case of the maximum amount of food to be
frozen.
Wrap produce and spread it out as far as possible. Do not allow
produce to be frozen to touch produce that is already frozen to
prevent the latter thawing.
You do not have to activate SuperFrost in the following cases:
-
when placing frozen food in the freezer
-
when freezing up to approx. 1 kg fresh food daily
5.9.1 Switching SuperFrost on.
u
Press menu.
u
Press the navigation arrow until SuperFrost is
displayed.
u
Press ON.
w
SuperFrost is switched on.
w
The freezer temperature goes down and the appli-
ance works at maximum cooling capacity.
If there is a small amount of frozen food:
u
wait about 6 hours.
u
Place packaged food in the top drawers.
With the maximum amount of frozen food (see model plate):
u
wait about 24 hours.
u
Remove top drawers and place food directly on the upper
shelves.
w
SuperFrost switches itself off automatically after about 65
hours.
w
The SuperFrost symbol is greyed out.
u
Put the food in the drawers and close them again.
w
The appliance works in normal mode again.
5.9.2 Switching off SuperFrost
u
Press menu.
u
Press the navigation arrow until SuperFrost is
displayed.
u
Press OFF.
w
SuperFrost is switched off.
5.10 Drawers
Note
The energy consumption increases and the cooling perform-
ance reduces if the air ventilation is insufficient.
u
Ensure that the air slits of the fan on the rear wall are always
kept free!
u
To store frozen food directly
on the shelves pull the
drawer forward and lift it
out.*
Control
18 * Depending on model and options
u
To store frozen food directly on the shelves Lift the drawer at
the back, pull it forwards to remove.*

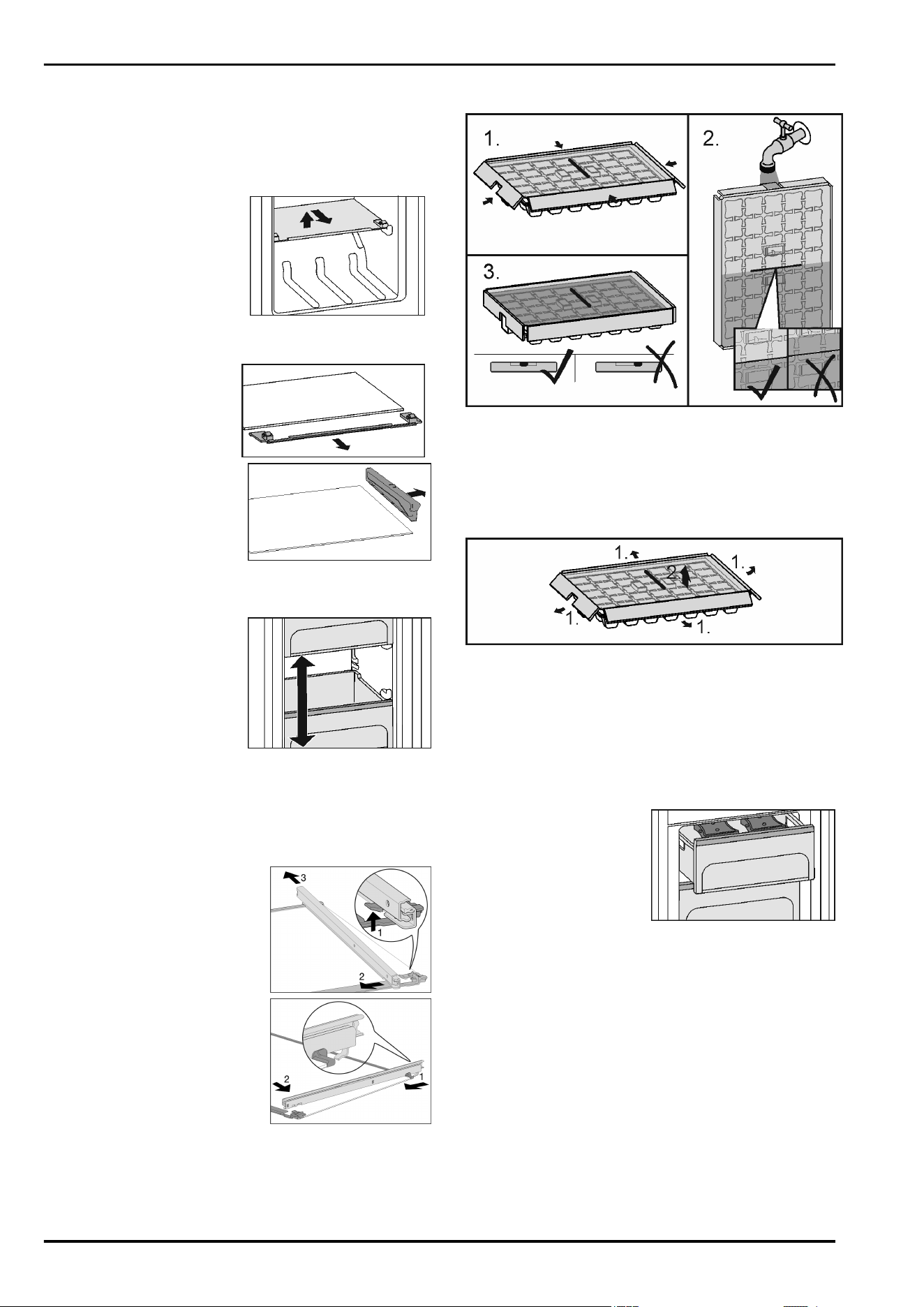

5.11 Shelves
5.11.1 Moving shelves
u
To remove the shelf: lift up at
the front and pull out.
u
To put the shelf back: simply
push in as far as it will go.
*
5.11.2 Removing shelves
*
u
The shelves may be
removed for cleaning.*
5.12 VarioSpace
You can remove the shelves
and drawers. This leaves more
room for larger food items such
as poultry, meat, large game
and tall baked goods, which
can be frozen whole before
further preparation.
u
The top drawer can be loaded with a max. of 15 kg, the
bottom drawer with a max. of 10 kg and the other drawers
each with a max. of 25 kg.
u
The shelves can each be loaded with 35 kg of frozen food.
5.13 Extractor rails*
u
To clean the glass racks, remove
the retractable rails: press front
support hooks upwards (1), slide
the retractable rail away to one
side (2) and backwards (3).
u
Replacing the retractable rail:
attach hook at back (1) and
engage at front (2).
5.14 Ice cube tray
Fig. 41
When the water is frozen:
u
Hold ice cube tray under hot water for a short time.
u
Remove the lid.
u
Gently turn the ends of the ice cube tray in opposite direc-
tions and release the cubes.
Dismantling the ice cube tray
Fig. 42
u
You can take the ice cube tray apart for cleaning.
5.15 Freezer pack
Freezer packs prevent the temperature rising too quickly should
there be a power cut.
5.15.1 Using freezer packs
u
Put the fully frozen freezer
packs on the frozen food in
the top front section of the
freezer compartment.
5.16 IceMaker
The IceMaker is in the fifth drawer from the top on the left.
Make certain that the following conditions are met:
-
The appliance is level.
-
The appliance is connected.
-
The IceMaker is connected to the water supply.
5.16.1 Producing ice cubes
The production capacity depends on the freezer tempera-
ture. The lower the temperature, the more ice cubes can be
produced in a specific period.
Control
* Depending on model and options 19
The ice cubes drop from the IceMaker into the drawer. When a
certain filling level has been reached, no further ice cubes are
produced. The IceMaker does not fill the drawer right up to the
brim.
Distribute the ice cubes evenly in the drawer to increase the
capacity.
If large quantities of ice cubes are needed, the complete
IceMaker drawer can be exchanged for the adjacent drawer.
When the drawer is closed, the IceMaker automatically re-
commences production.
Once the IceMaker has been switched on for the first time, it
may take up to 24 hours until the first ice cubes are produced.
Note
When the appliance is used for the first time and if it has been
out of use for a long time, particles may collect in the IceMaker
and/or water conduit.
u
Do not use or consume ice cubes that have been made 24
hours after the first ice cubes are made.
5.16.2 Switch the IceMaker on.
u
Press Menu.
u
Press the navigation arrows until the IceMaker is
displayed.
u
Press the IceMaker symbol.
u
Press ON.
w
The IceMaker is switched on.
Note
u
The IceMaker only makes ice cubes when the drawer is
completely closed.
Flushing
Flushing function to rinse out the water pipe when used for the
first time.
Note
The water pipe can only be rinsed out if the temperature is
above 0 °C.
u
Only use the Flushing option if the temperatures in the appli-
ance are above 0 °C.
NOTICE
Blocked IceMaker and water outlet.
Risk of damage to the IceMaker and the drawer outlet.
u
Put containers with a maximum height of 7 cm in the drawer
under the IceMaker.
Ensure that the IceMaker drawer is empty.
u
Do not place containers taller than 7 cm in the drawer under
the IceMaker.
u
Press Menu.
u
Press the navigation arrows until the IceMaker is
displayed.
u
Press the IceMaker symbol.
u
Press the navigation arrows until flushing is
displayed.
u
Press ON.
w
Water pipes are rinsed and at the same
time the ice cube tray is turned back to the
cleaning position.
u
Do not operate the screen during this procedure.
Flushing function terminated: The symbol appears.
u
Press OK.
u
Remove the drawer and the container.
u
Clean the drawer and, if necessary, remove excess water
from the drawer.
5.16.3 IceMaker holiday function
The IceMaker holiday function is suitable for short phases
when no ice cubes are to be made, for example, when you
are on holiday.
Switching the IceMaker holiday function on.
The IceMaker drawer must be emptied and pushed in.
u
Press menu.
u
Press the navigation arrows until the IceMaker is
displayed.
u
Press the IceMaker symbol.
u
Press the navigation arrows until the IceMaker
holiday function is displayed.
u
Press ON.
w
The ice cube tray moves to the cleaning position.
The IceMaker switches to holiday function.
w
The IceMaker holiday function symbol appears in
the menu area.
u
Remove the drawer.
u
Clean the ice cube tray and drawer with a soft cleaning cloth
and warm water. If necessary use a mild detergent. Then
rinse out.
u
Push the drawer in.
Switching the IceMaker holiday function off
NOTICE
Sickness caused by dirty ice compartment.
u
After the IceMaker has been switched off for a long time,
clean the ice cube tray.
NOTICE
Rinse agent residue in the ice compartment and drawer.
Nausea or irritation of the mucous membrane.
u
Remove rinse agent residue: Discard the first three batches
of ice cubes.
u
Remove the drawer.
u
Clean the ice cube tray and drawer with a soft cleaning cloth
and warm water. If necessary use a mild detergent. Then
rinse out.
u
Push the drawer in.
u
Press Menu.
u
Press the navigation arrows until the IceMaker is
displayed.
u
Press the IceMaker symbol.
u
Press OFF.
w
The ice cube tray moves to the operating position. The
IceMaker switches on.
w
The IceMaker symbol appears in the menu field instead of
the IceMaker holiday function symbol.
5.16.4 Switching off the IceMaker
If no ice cubes are required, the IceMaker can be switched off
independently of the freezer compartment.
When the IceMaker is switched off, the drawer of the IceMaker
can also be used for freezing and storing food.
u
Cleaning the IceMaker (see 6.4 Cleaning the IceMaker) .
u
Press Menu.
u
Press the navigation arrows until the IceMaker is
displayed.
u
Press the IceMaker symbol.
u
Press OFF.
w
The IceMaker is switched off.
u
If necessary, food can now be frozen in the drawer up to a
maximum height of 7 cm.
Control
20 * Depending on model and options
6 Maintenance
6.1 Defrosting with NoFrost
The NoFrost system automatically defrosts the appliance.
The moisture condenses on the evaporator, is periodically
defrosted and evaporates.
u
The appliance does not have to be manually defrosted.
6.2 Cleaning the ventilation grid
The ventilation grid ensures that the appliance works properly
due to optimum aeration and ventilation.
u
Clean the ventilation grid regularly with a vacuum cleaner.
u
Remove stubborn stains with a soft cloth.
When the timer is set a message on the display
prompts you to clean it. The clean ventilation grid
symbol appears on the screen.
u
Press the clean ventilation grid symbol.
w
The display switches to the home screen.
The message can be displayed again by pressing the menu
field until it has been cleaned and this has been confirmed.
(see 8 Messages) .
Confirming that the ventilation grid has been cleaned
u
Press menu.
u
Press the navigation arrows until the ventilation grid
is displayed.
u
Press the ventilation grid symbol.
u
Press the navigation arrows until clean ventilation
grid is displayed.
u
Press RESET.
w
The timer is reset. The cleaning interval starts all
over again.
Turning the timer off
If the reminder function is to be switched off the timer can be
turned off.
u
Press menu.
u
Press the navigation arrows until the ventilation grid
is displayed.
u
Press the ventilation grid symbol.
u
Press OFF.
w
The timer is turned off.
6.3 Cleaning the appliance
Clean the appliance regularly.
WARNING
Risk of injury and damage as a result of hot steam!
Hot steam can lead to burns and can damage the surfaces.
u
Do not use any steam cleaners!
NOTICE
Incorrect cleaning damages the appliance!
u
Do not use cleaning agents in concentrated form.
u
Do not use any scouring or abrasive sponges or steel wool.
u
Do not use any sharp or abrasive cleaning agents, nor any
that contain sand, chloride or acid.
u
Do not use chemical solvents.
u
Do not damage or remove the type plate on the inside of the
appliance. It is important for the customer service.
u
Do not pull off, bend or damage cables or other compo-
nents.
u
Do not allow any cleaning water to enter the drain channel,
ventilation grille or electrical parts.
u
Please use soft cleaning cloths and a universal pH-neutral
cleaning agent.
u
Please use cleaning and care products suitable for contact
with foodstuffs in the appliance interior.
u
Empty appliance.
u
Pull out the power plug.
u
Clean plastic outer and inner surfaces with lukewarm
water and a little washing-up liquid.
u
Only use a soft clean cloth to wipe side walls with a paint
finish. In the case of heavy soiling, use lukewarm water with
neutral cleaning agent.*
NOTICE
Risk of damage from stainless steel care products!
The stainless steel doors and stainless steel side panels
are treated with a premium surface finish.
Stainless steel care products attack these surfaces.
u
Only use a soft, clean cloth to wipe down finished door
and side panel surfaces and painted door and side
panel surfaces. To remove heavy dirt, use a little water
or neutral detergent. Alternatively, you can use a micro-fibre
cloth.
Do not treat the lettering on the painted door surfaces with
harsh, abrasive agents. Wipe off any dirt with a soft cloth and
some water or neutral cleaner.*
u
Most of the parts can be dismantled for cleaning: see the
relevant chapter.
u
Clean drawers by hand with lukewarm water and a little
washing up liquid.
u
All the other fittings can be put in the dishwasher.
u
Only use a damp cloth to clean the telescopic rails. The
grease in the runners is for lubrication purposes and must
not be removed.*
After cleaning:
u
Wipe dry the appliance and items of equipment.
u
Connect the appliance and switch it on again.
u
Switch on SuperFrost (see 5.9 SuperFrost) .
When the temperature is sufficiently cold:
u
Put the food back inside.
6.4 Cleaning the IceMaker
The IceMaker drawer must be emptied and pushed in. The
IceMaker must be switched on.
u
Press Menu.
u
Press the navigation arrows until the IceMaker is
displayed.
u
Press the IceMaker symbol.
u
Press the navigation arrow until the cleaning posi-
tion is displayed.
u
Press ON.
w
The ice cube tray moves to the cleaning position.
The screen cannot be used during this process.
Maintenance
* Depending on model and options 21
w
OFF appears: The rotary movement stops and the
IceMaker switches off for cleaning.
u
Remove the drawer.
u
Clean the ice cube tray and drawer with a soft cleaning cloth
and warm water. If necessary use a mild detergent. Then
rinse out.
u
Push the drawer in.
u
Press OFF.
w
The ice cube tray moves to the operating position.
NOTICE
Rinse agent residue in the ice compartment and drawer.
Nausea or irritation of the mucous membrane.
u
Remove rinse agent residue: Discard the first three batches
of ice cubes.
u
Leave the IceMaker switched on.
-or-
u
Switch the IceMaker off (see 5 Control)

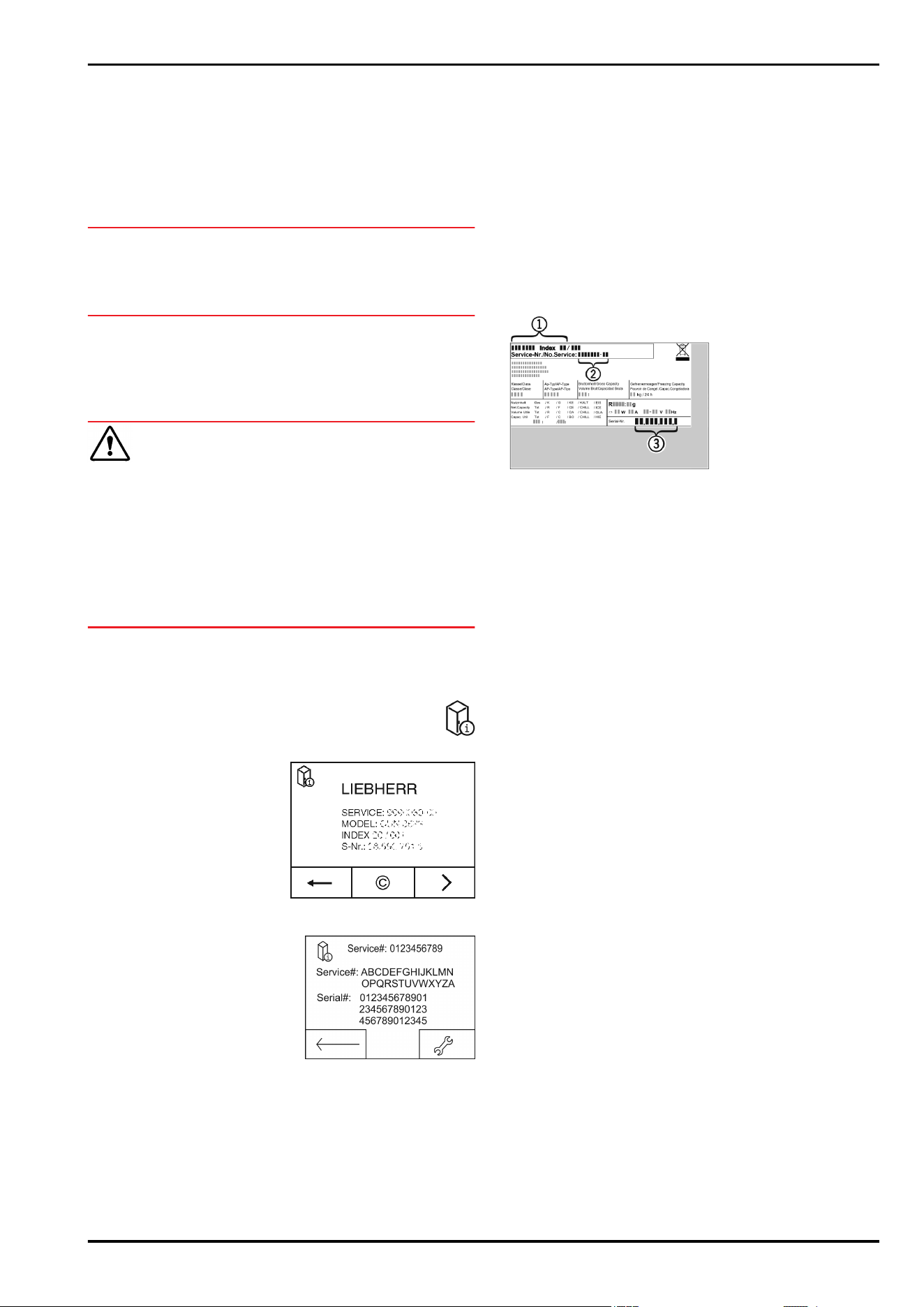

6.5 Customer service
WARNING
Unprofessional repair!
Injuries.
u
Have any repairs and action - not expressly specified -
on the appliance and mains cable carried out by service
personnel only. (see 6 Maintenance)
u
A damaged mains cable may only be replaced by the manu-
facturer, the manufacturer’s Customer Service or a similarly
qualified person.
u
In the case of appliances with an IEC connector, the change
may be made by the customer.
Call up the appliance designation (model and index),
service no. (service), serial no. (s-no.) as well as the
expanded functions on the screen:
u
Press menu.
u
Press the navigation arrows until the appliance infor-
mation symbol is displayed.
u
Press the appliance information symbol.
w
The appliance information is displayed.
u
Note down the appliance
information.
u
To return to the home screen
press the Back symbol.
u
To access the customer menu, press it until the key symbol
appears.
u
Enter the numerical code 151 to select the customer menu.
Customer menu
The following functions can be called up in the customer menu:
- Self diagnostics
The appliance carries out self diagnostics and checks all
electrical components.
- RESET
The appliance is reset to the factory settings.
- Manual defrosting
Manual defrosting starts.
- Water supply time
This function is active for appliances with an ice cube maker.
The size of the ice cubes is determined by the water supply
time.
u
Close the door.
u
Contact customer service and give them the required appli-
ance information.
w
This will help us to provide you with a faster, more accurate
service.
u
Follow any further instructions given by Customer Services.
Alternatively you can read off the appliance information
from the model plate:
The model plate is inside the appliance on the left-hand side.
Fig. 43
(1) Appliance description (3) Serial no.
(2) Service no.
Licence agreements:
Licences used can be viewed at ©.
u
Press ©.
7 Malfunctions
Your appliance is designed and manufactured for a long life
span and reliable operation. If a malfunction nonetheless
occurs during operation, check whether it is due to a handling
error. In this case you will have to be charged for the costs
incurred, even during the warranty period. You may be able to
rectify the following faults yourself:
Appliance does not work.
→
The appliance is not switched on.
u
Switching on the appliance.
→
The power plug is not properly inserted in the wall socket.
u
Check power plug.
→
The fuse of the wall socket is not in order.
u
Check fuse.
→
The appliance plug does not fit the appliance properly.
u
Check the appliance plug.
The compressor runs for a long time.
→
The compressor switches to a low speed when little cold is
needed. Although the running time is increased as a result,
energy is saved.
u
This is normal in energy-saving models.
→
SuperFrost is activated.
u
The compressor runs for longer in order to rapidly cool the
food. This is normal.
Excessive noise.
→
Due to the various speed steps, speed-regulated* compres-
sors can generate different running noises.
u
The sound is normal.
A bubbling and gurgling noise.
→
This noise comes from the refrigerant flowing in the refriger-
ation circuit.
u
The sound is normal.
A quiet clicking noise.
→
The noise is produced whenever the refrigeration unit
(motor) automatically switches on or off.
u
The sound is normal.
Malfunctions
22 * Depending on model and options
A hum. It is briefly a little louder when the refrigeration
unit (the motor) switches on.
→
The refrigeration increases automatically when the
SuperFrost, function is activated, fresh food has just been
placed in the appliance or the door has been left open for a
while.
u
The sound is normal.
→
The ambient temperature is too high.
u
Solution: (see 1.2 Appliance range of use)
A low hum.
→
The sound is produced by air flow noise of the fan.
u
The sound is normal.
Vibration noises
→
The appliance is not standing firmly on the floor. As a result
objects and adjacent units start to vibrate when the refriger-
ator is running.
u
Align the appliance using the adjustable feet.
Flow sound at the soft stop mechanism.*
→
The noise is produced when the door is opened and
closed.
u
The sound is normal.
The DEMO symbol appears on the screen. In addition
some time elapses.
→
DEMO mode is activated.
u
OFF Press .
DEMO is displayed in the top right corner of the screen.
→
DEMO mode is activated.
u
Unplug the appliance.
u
Plug the appliance in again.
w
The DEMO symbol appears on the screen. In addition some
time elapses.
u
OFF Press .
The outer surfaces of the appliance are warm*.
→
The heat of the refrigeration circuit is used to prevent
condensate from forming.
u
This is normal.
The IceMaker cannot be switched on.
→
The appliance and therefore the IceMaker are not
connected.
u
Connect the appliance to the mains (see 4 Putting into
operation) .
The IceMaker does not make any ice cubes.
→
The IceMaker is not switched on.
u
Switch on the IceMaker.
→
The drawer of the IceMaker is not properly closed.
u
Close the drawer properly.
→
The water connection is not open.
u
Open the water connection.
Functions in the IceMaker submenu do not start.
→
Ice cube tray rotates.
u
Try again after 1 minute.
The temperature is not cold enough.
→
The door of the appliance is not properly closed.
u
Close the door of the appliance.
→
Insufficient ventilation.
u
Keep ventilation grille clear, and clean it.
→
The ambient temperature is too high.
u
Solution: (see 1.2 Appliance range of use) .
→
The appliance was opened too frequently or for too long.
u
Wait to see whether the appliance reaches the required
temperature by itself. If not, please contact the after sales
service (see 6 Maintenance) .
→
Too much fresh food was placed inside without SuperFrost.
u
Solution: (see 5.9 SuperFrost)
→
The temperature is incorrectly set.
u
Set the temperature to a colder setting and check after 24
hours.
→
The appliance is too close to a source of heat (stove, heater
etc).
u
Change the position of the appliance or the source of heat.
The status display does not light up.
→
The status display is switched off.
u
Switch the status display on .
→
The door is open.
u
Close the door.
→
The appliance is switched off.
u
Switch the appliance on.
→
LED is faulty.
u
Contact Customer Services (see 6 Maintenance) .
The internal light does not come on.*
→
The appliance is not switched on.
u
Switch the appliance on.
→
The door was open for longer than 15 minutes.
u
The internal light switches itself off automatically after about
15 minutes if the door is open.
→
The LED illumination is faulty or the cover is damaged:
WARNING
Risk of injury due to electric shock!
There are live electrical parts under the cover.
u
Only ever have the inside LED light replaced or repaired by
customer service or trained personnel.
WARNING
Risk of injury from LED bulb!
The light intensity of the LED light corresponds to hazard group
RG 2.
If the cover is defective:
u
Do not look directly into the light from close range. It cause
injury to the eyes.
The door seal is defective or needs to be replaced for
another reason.
→
The door seal can be replaced. It can be replaced without
the need for special tools.
u
Contact Customer Service (see 6 Maintenance) :
The unit has iced up or condensation has formed.
→
The door seal may have also slipped out of its groove.
u
Check to ensure that the door seal is seated properly in the
groove.
8 Messages
Error messages and reminders are displayed by an
audible signal and a message on the screen. The
audible signal gets louder and louder when error
messages appear. It only stops when the message is
confirmed. Highest priority messages are displayed first
if several occur at the same time. Each message must
be cleared separately.
The message stays in the menu field as long as it is active or
the fault is not eliminated.
Messages
* Depending on model and options 23
Note
Details on the message can be displayed again via the menu
field.
u
Press menu.
u
Press the message symbol.
u
The display switches to the next message when you press
one. After the last active message the display switches to
the home screen.
Door alarm
An audible warning sounds if the door is open for
longer than 60 seconds. The door alarm symbol
appears on the display. The audible warning stops
automatically when the door is closed.
The audible warning can be switched off when the
door is open. The audible alarm is switched off while
the door is open.
u
Press the door alarm symbol.
w
The door alarm stops.
w
The display switches to the home screen.
u
Close the door.
Temperature alarm
An audible signal sounds if the temperature is not cold
enough. The temperature alarm symbol appears on
the display.
Appliances with a status display: When the status
display is active and the door is closed, a red light
appears at the same time.
The temperature had risen too high during the last few
hours or days. When the fault is eliminated the appli-
ance continues to work at the last temperature setting.
The reason for too high a temperature may be:
-
hot, fresh food was inserted
-
too much warm room air flowed in when rearranging and
removing food
-
the power was cut off for a while
-
the appliance is faulty
u
Open the door.
w
Appliances with a status display: When the status display is
activated, the pulsing red light goes out.
u
Press the temperature alarm symbol.
w
The audible signal stops. The warmest temperature reached
during the malfunction is displayed on the screen.
u
Press the screen or wait for 30 seconds.
w
The display switches to the home screen. Arrows and the
temperature alarm symbol appear in the relevant temper-
ature field . In addition the messages symbol is
displayed in the menu field .
u
Check the food for quality. Do not consume spoiled food. Do
not re-freeze defrosted food,
u
Close the door.
w
The symbols are greyed out when the target temperature is
reached.
w
Appliances with a status display: While the status display is
activated, this lights up blue.
If the alarm status persists or the temperature cannot be reset
independently:
(see 7 Malfunctions) .
Power cut
An audible warning sounds. The power cut symbol
appears on the display.
The temperature had risen too high over the last
few hours or days due to a power cut or power inter-
ruption. When the power is restored the appliance
continues to work at the last temperature setting. Acti-
vated reminders are retained.
u
Open the door.
u
Press the power cut symbol.
w
The audible signal stops. The warmest temperature reached
in the freezer compartment during the power cut is displayed
on the screen.
u
Press the screen or wait for 30 seconds.
w
The display switches to the home screen. Arrows and the
symbol temperature alarm appear in the relevant tempera-
ture field
. The messages symbol is also shown in the
menu field .
u
Check the food for quality. Do not consume spoiled food. Do
not re-freeze defrosted food,
u
Close the door.
w
The symbols are greyed out when the target temperature is
reached.
Appliance faults
An audible warning sounds. The appliance fault
symbol appears on the display with the relevant error
code.
Appliances with a status display: When the status
display is activated and the door is closed, a red light
pulses at the same time.
An appliance component indicates a fault.
u
Open the door.
u
Note down the fault code.
u
Press the appliance fault symbol.
w
The audible signal stops. The display switches to the home
screen.
u
Close the door.
w
Appliances with a status display: While the status display is
activated, this lights up blue.
u
Contact Customer Services (see 6 Maintenance) .
Water inlet fault
An audible warning sounds. The appliance fault
symbol appears on the display with the WATER error
code.
The water connection to the IceMaker is not open, the water
feed is interrupted or the filter in the water inlet hose connection
is blocked.
u
Open the door.
u
Press the appliance fault symbol.
w
The audible signal stops. The display switches to the home
screen. The IceMaker switches off.
u
Close the door.
u
Open the water connection.
-or-
u
Check the water connection and the hoses (see 4 Putting
into operation) .
-or-
u
Clean the filter.
u
Switch the IceMaker on (see 5.16.2 Switch the IceMaker
on.) .
u
Contact Customer Service if the message persists
(see 6 Maintenance) .
Other messages
Clean the ventilation grille (see 6 Mainte-
nance)
Open, close IceMaker drawer
Messages
24 * Depending on model and options
9 Decommissioning
9.1 Switching the appliance off
Note
If the appliance cannot be switched off, the child safety device
is enabled.
u
Switch the child safety device off (see 5.2.2 Switching the
child safety device off) .
9.1.1 Switch off the appliance from the menu
The whole appliance is switched off. The screen goes black.
u
Press menu.
u
Press the navigation arrows until the standby symbol
is displayed.
u
Press OK.
w
The standby symbol flashes on the whole screen. The whole
appliance is switched off.
w
After 10 minutes the standby symbol goes out.
9.1.2 Switching the appliance off via the
freezer compartment field.
The screen remains on.
u
Press the freezer compartment field.
u
Press plus.
w
The plus symbol is greyed out if it is pressed again after
selecting the hottest temperature. The standby symbol is
displayed on the screen.
u
Press OK.
w
The standby symbol appears in the freezer compartment
field.
w
The appliance is switched off and the screen remains
switched on
9.2 Taking the appliance out of service
u
Empty the appliance.
u
Put the IceMaker in the cleaning position (see 6 Mainte-
nance) .
u
Switch off the appliance (see 9 Decommissioning) .
u
Remove mains connector.
u
Remove appliance connector if required: Remove
and move from left to right at the same time.
u
Clean the appliance (see 6.3 Cleaning the appli-
ance) .
u
Leave the door open to prevent odour.
10 Disposing of the appliance
WARNING
Danger of entrapment for children!
Before you dispose of your old refrigerator or freezer:
u
Dismantle doors.
u
Leave storage shelves in the appliance so that children
cannot easily climb into the appliance.
The appliance contains some reusable materials
and should be disposed of properly - not simply
with unsorted household refuse. Appliances which
are no longer needed must be disposed of in a
professional and appropriate way, in accordance
with the current local regulations and laws.
WARNING
Leaking coolant and oil!
Fire. The coolant contained in the appliance is eco-friendly,
but also flammable. The oil contained in the appliance is flam-
mable. Escaping coolant and oil can ignite if the concentration
is high enough and in contact with an external heat source.
u
Do not damage the pipelines of the coolant circuit and the
compressor.
Do not damage the refrigeration circuit of the old appliance
during removal to prevent the refrigerant contained (information
on the type plate ) and the oil from escaping in an uncontrolled
manner.
Decommission the appliance:
u
Pull out the plug.
u
Remove the connection cable from the appliance.
Decommissioning
* Depending on model and options 25
Liebherr-Hausgeräte Ochsenhausen GmbH
Memminger Straße 77-79
88416 Ochsenhausen
Deutschland
home.liebherr.com
