SOFIA METAL COLLECTION PARTS
DECORATIVE BEZEL REPLACEMENT
REMOVE KNOBS AND REPLACE BEZELS ONE AT A TIME
TURN OFF THE GAS OR ELECTRICITY BEFORE STARTING
KEEP CHILDREN AWAY FROM SMALL COMPONENTS ( SCREWS )
KEEP CHILDREN AWAY DURING ASSEMBLY
SUGGEST REPLACING BEZELS FROM LEFT TO RIGHT
PHILLIPS SCREWDRIVER REQUIRED
ADVICE BEFORE REPLACING BEZEL
1

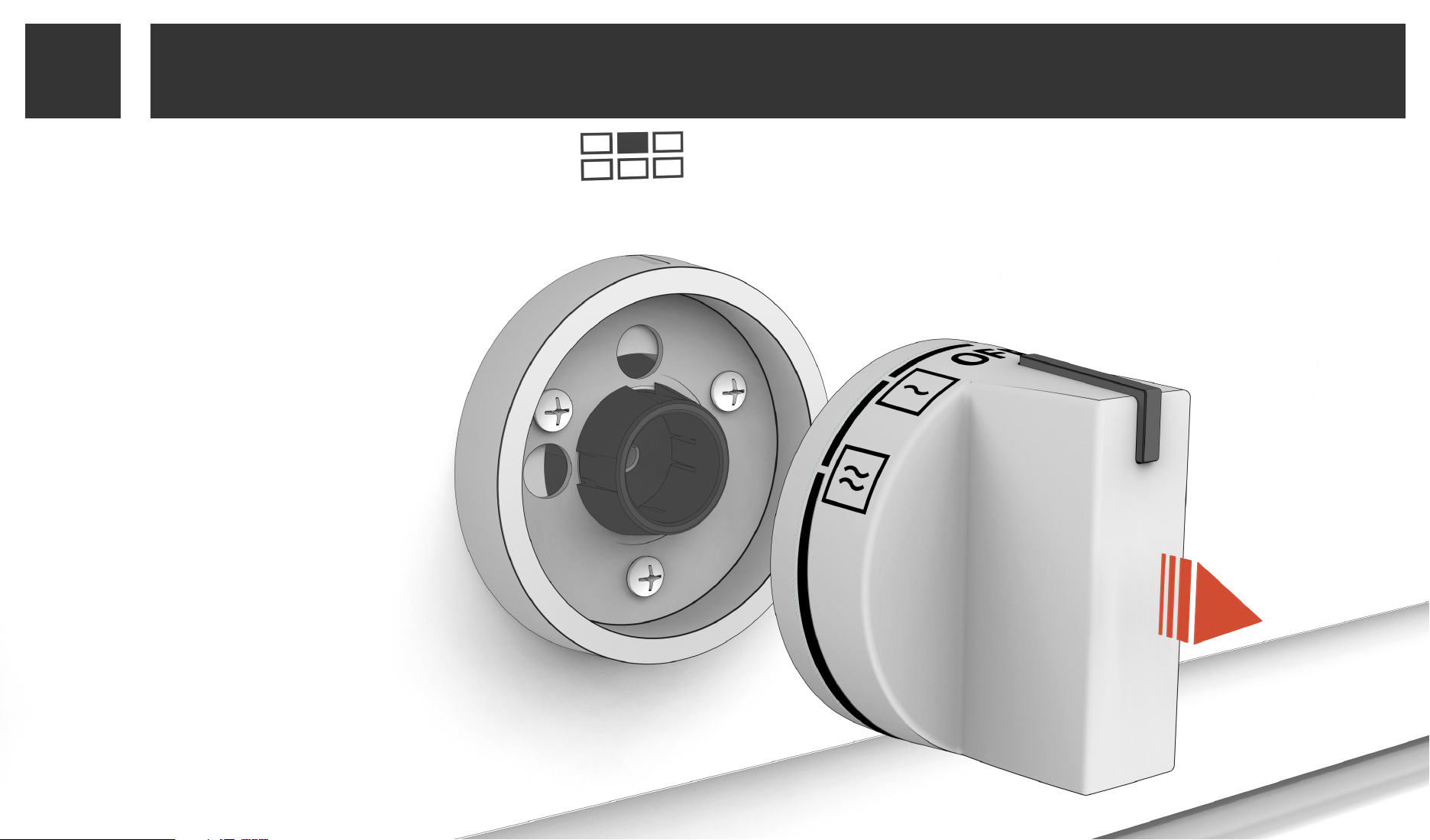

REMOVE KNOB BY PULLING STRAIGHT FORWARD
2

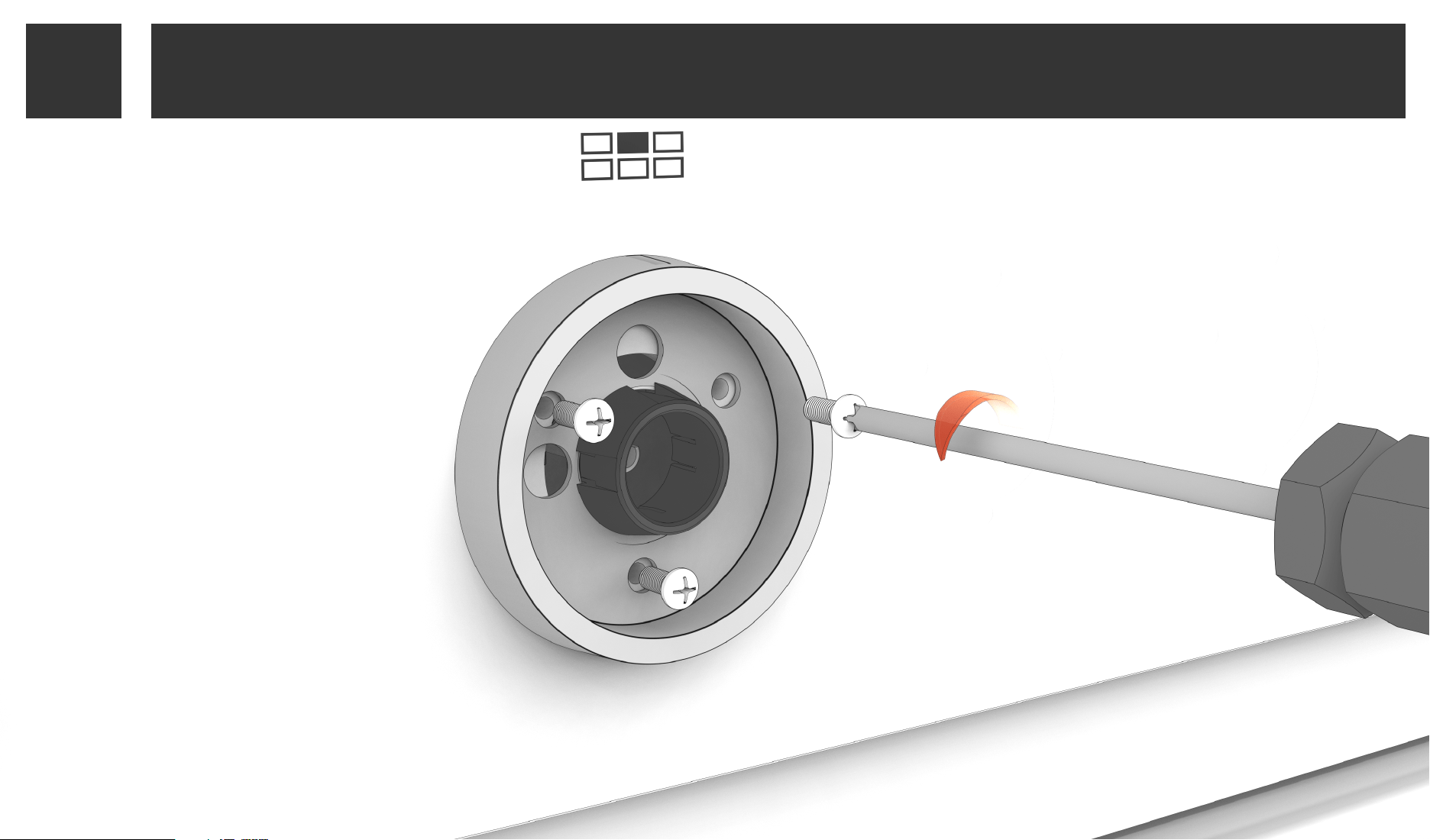

REMOVE THE THREE SCREWS
HOLD BEZEL WHEN REMOVING FINAL SCREW
3
4

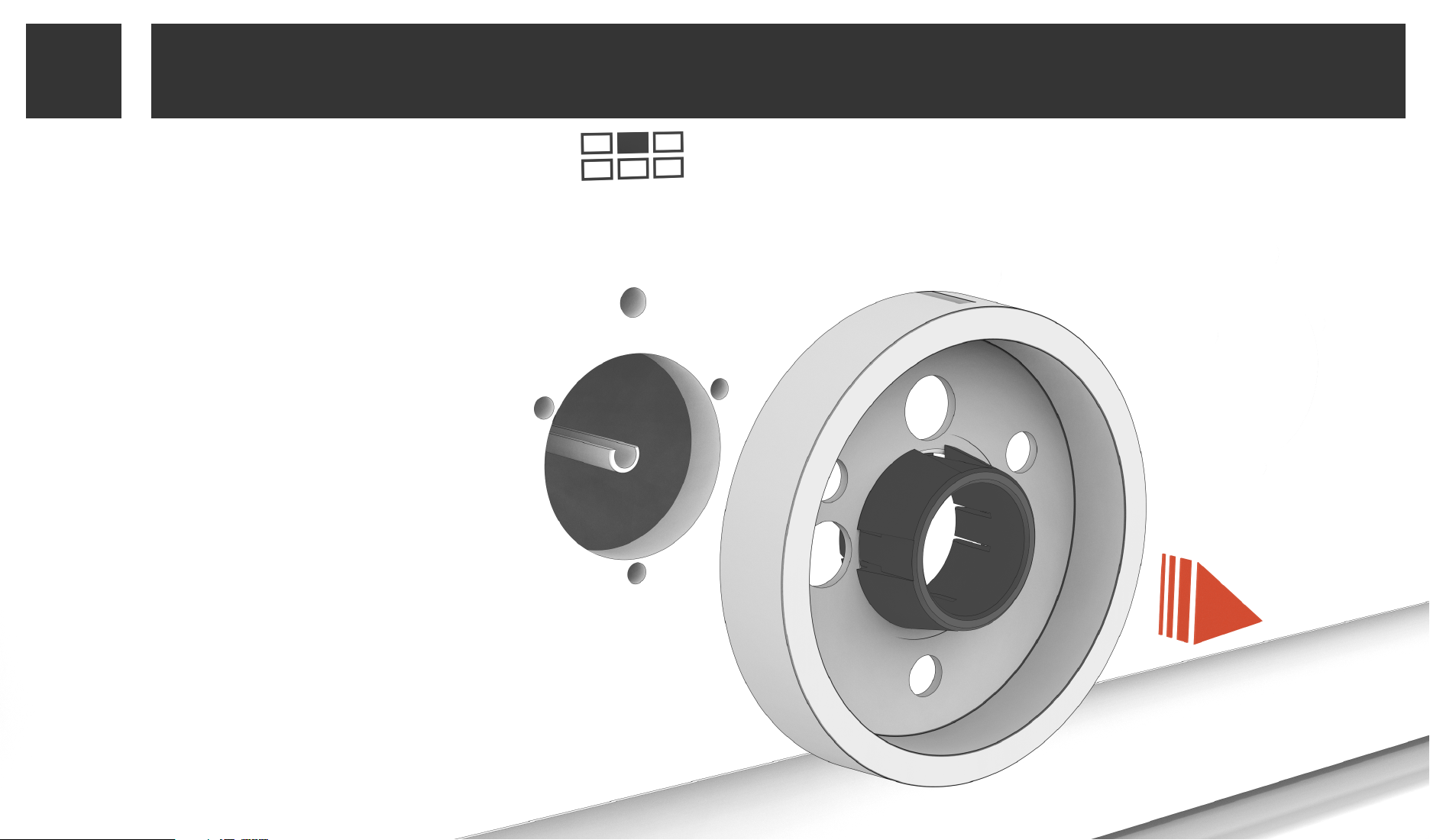

REMOVE EXISTING BEZEL
5

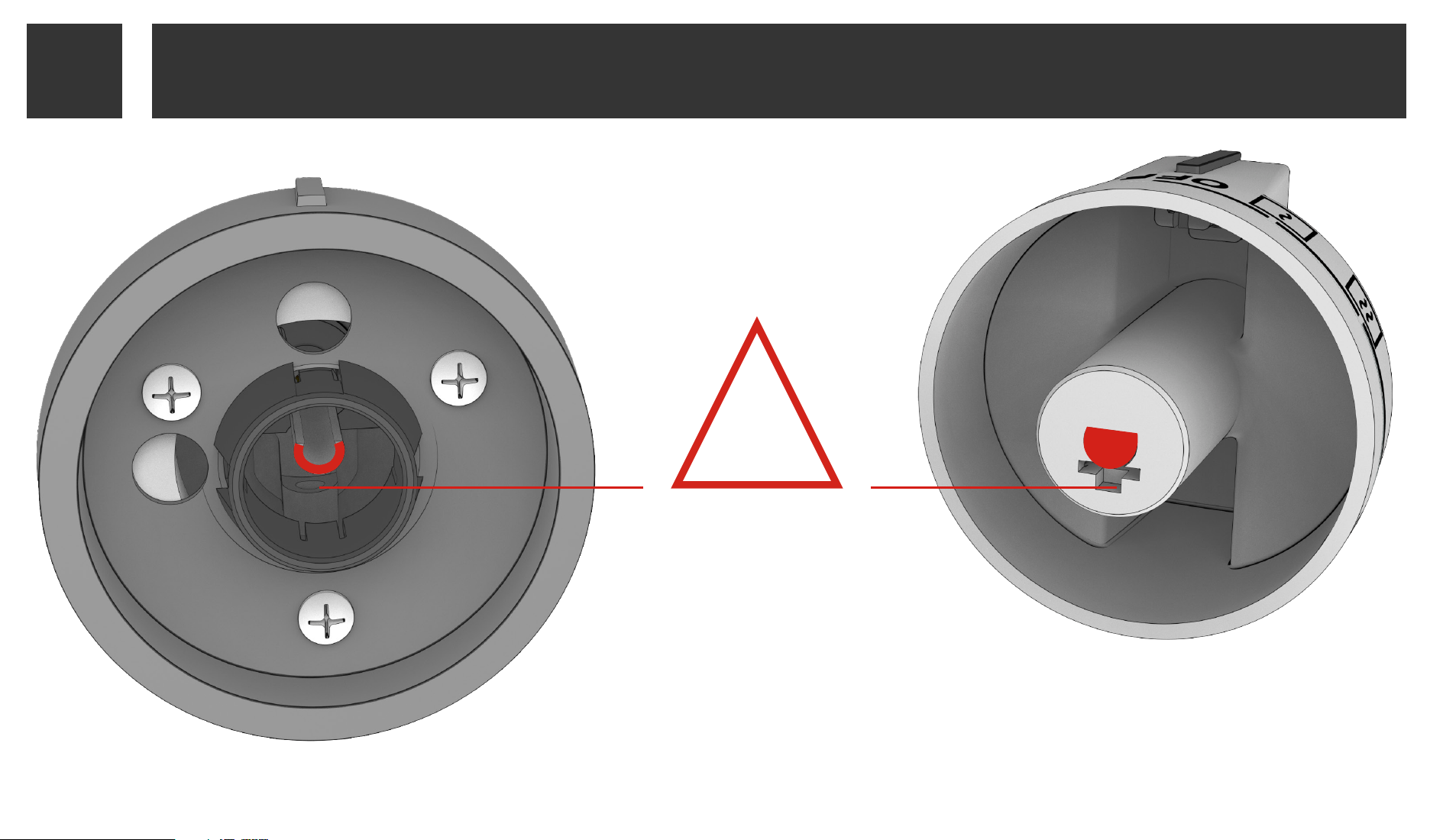

SPECIAL FLANGE CORRECT POSITION
IF THE FLANGE IS PRESENT, REPOSITION IT IN THE CORRECT POSITION
6

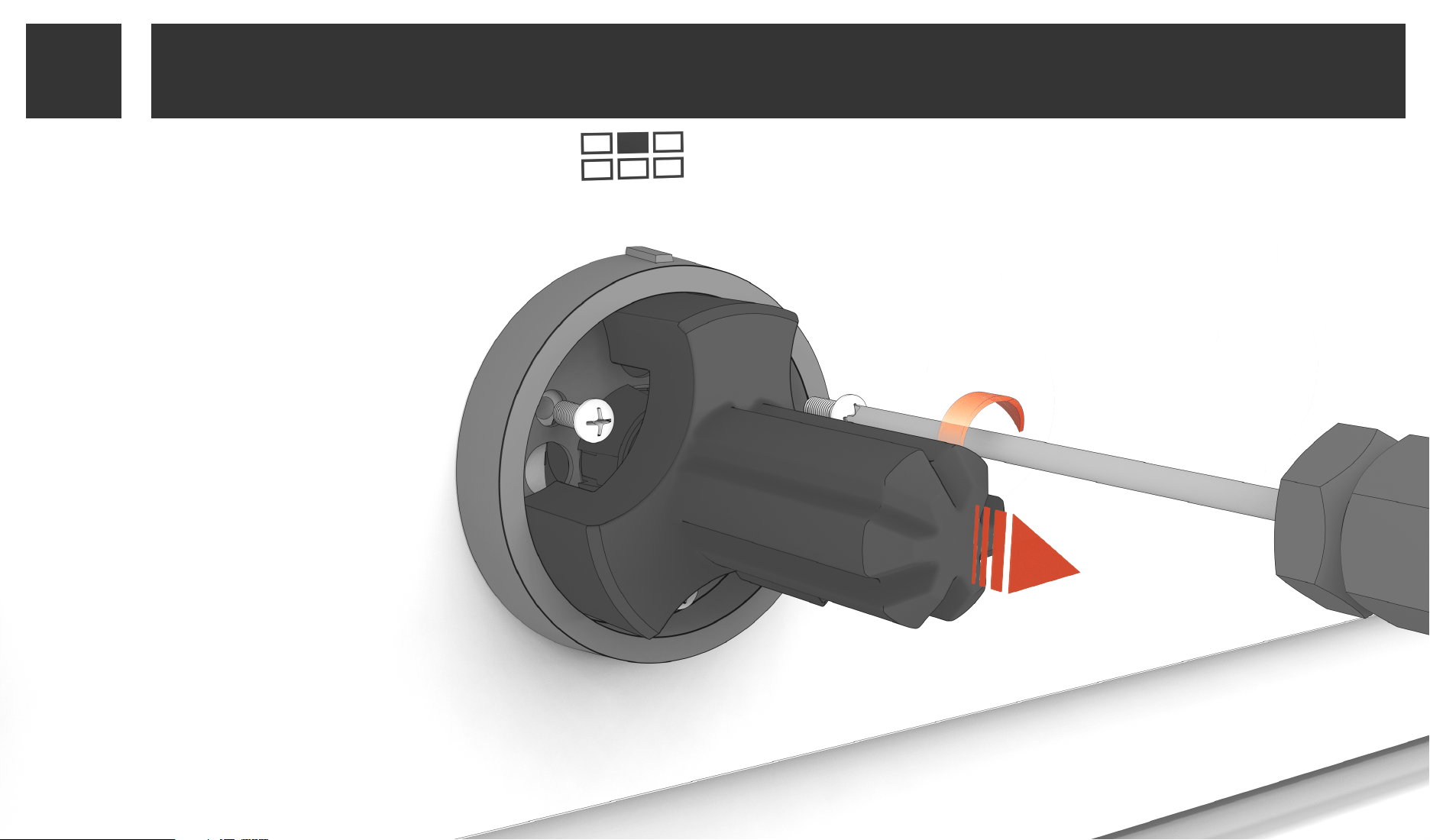

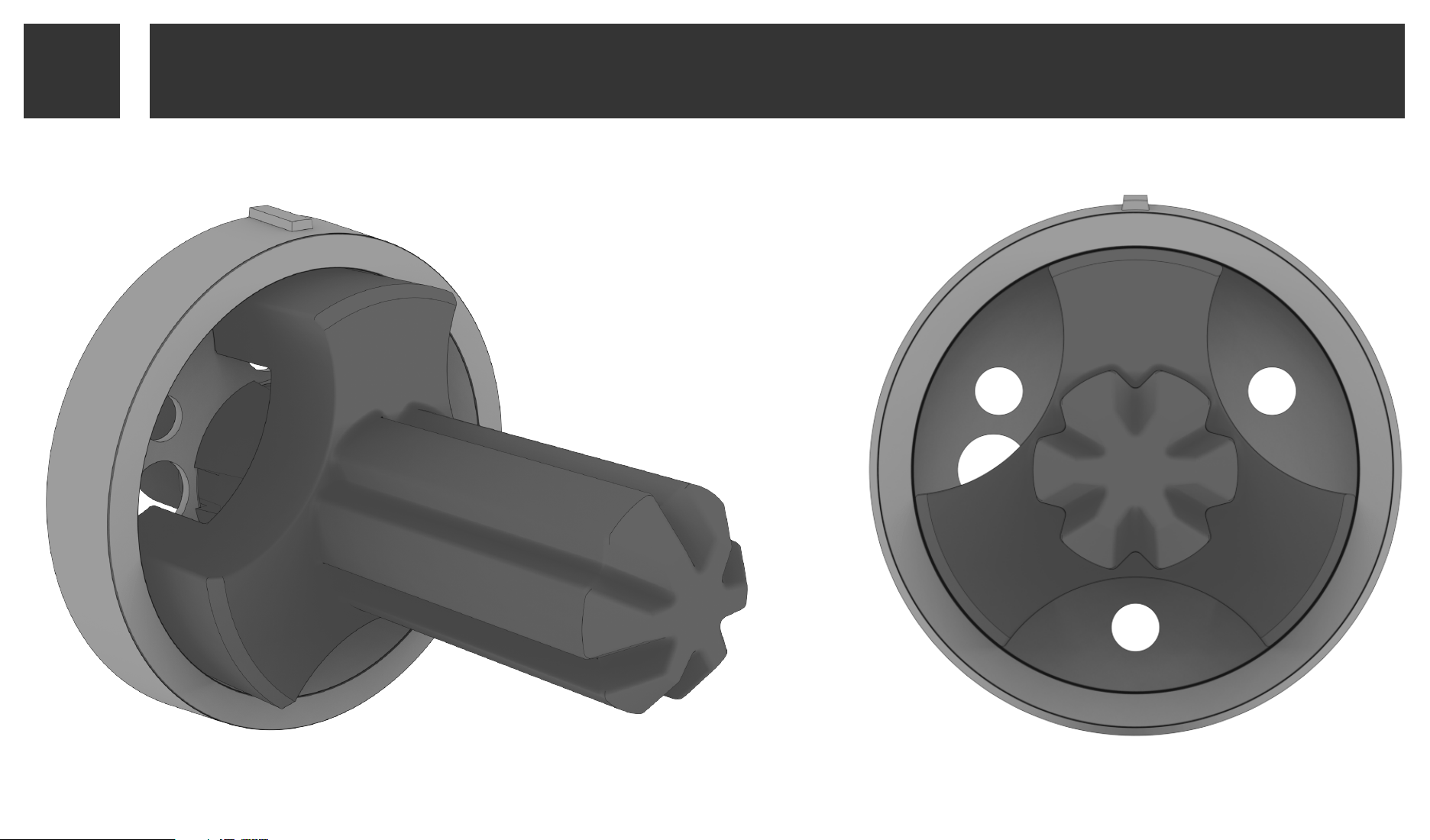

INSERT THE ALIGNMENT TOOL INTO NEW BEZEL
7

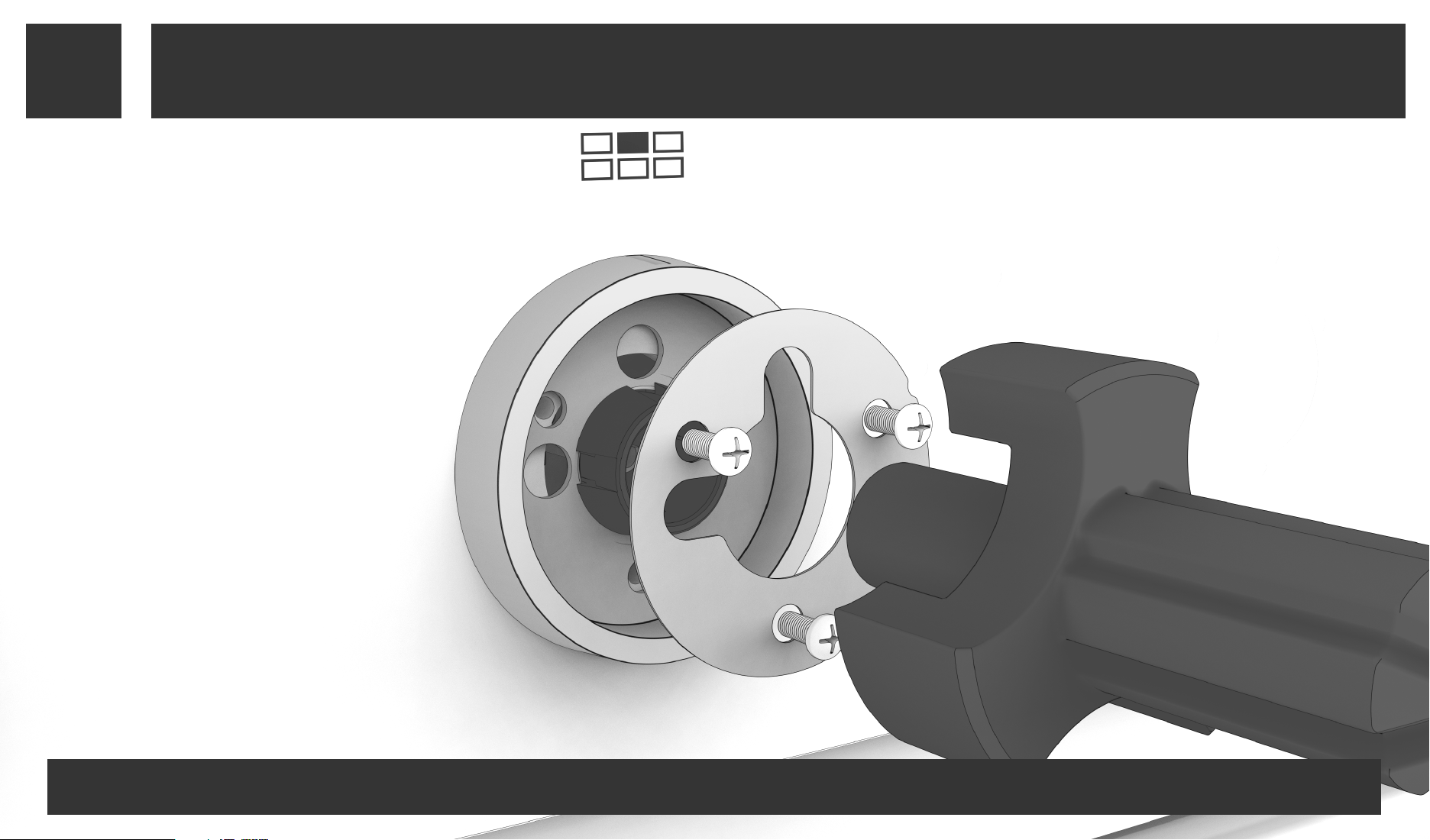

CENTER BEZEL IN CORRECT POSITION AND REINSTALL SCREWS
AFTER REMOVE ALIGNMENT TOOL
ENSURE MATCHING ORIENTATION
!
8

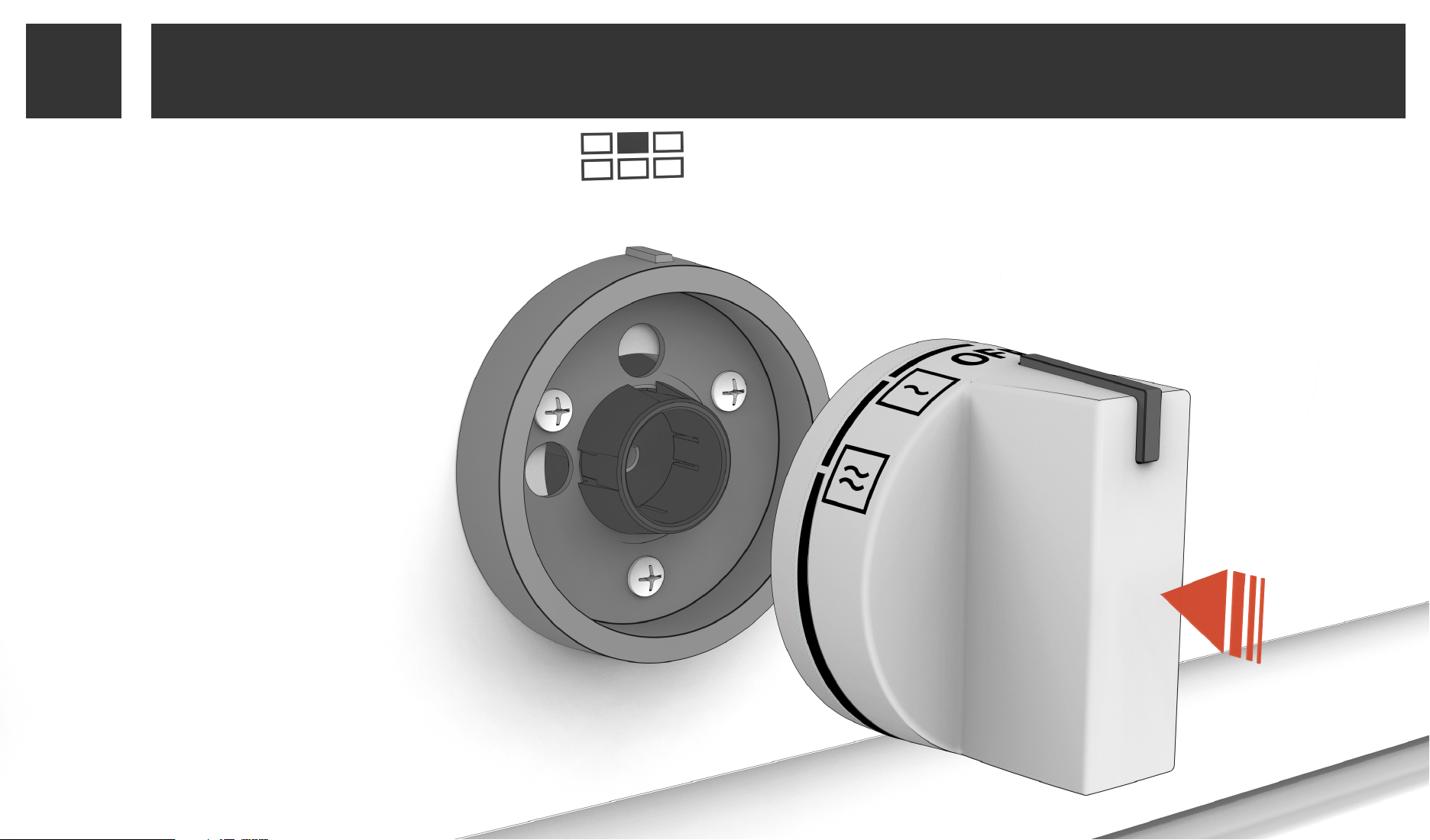

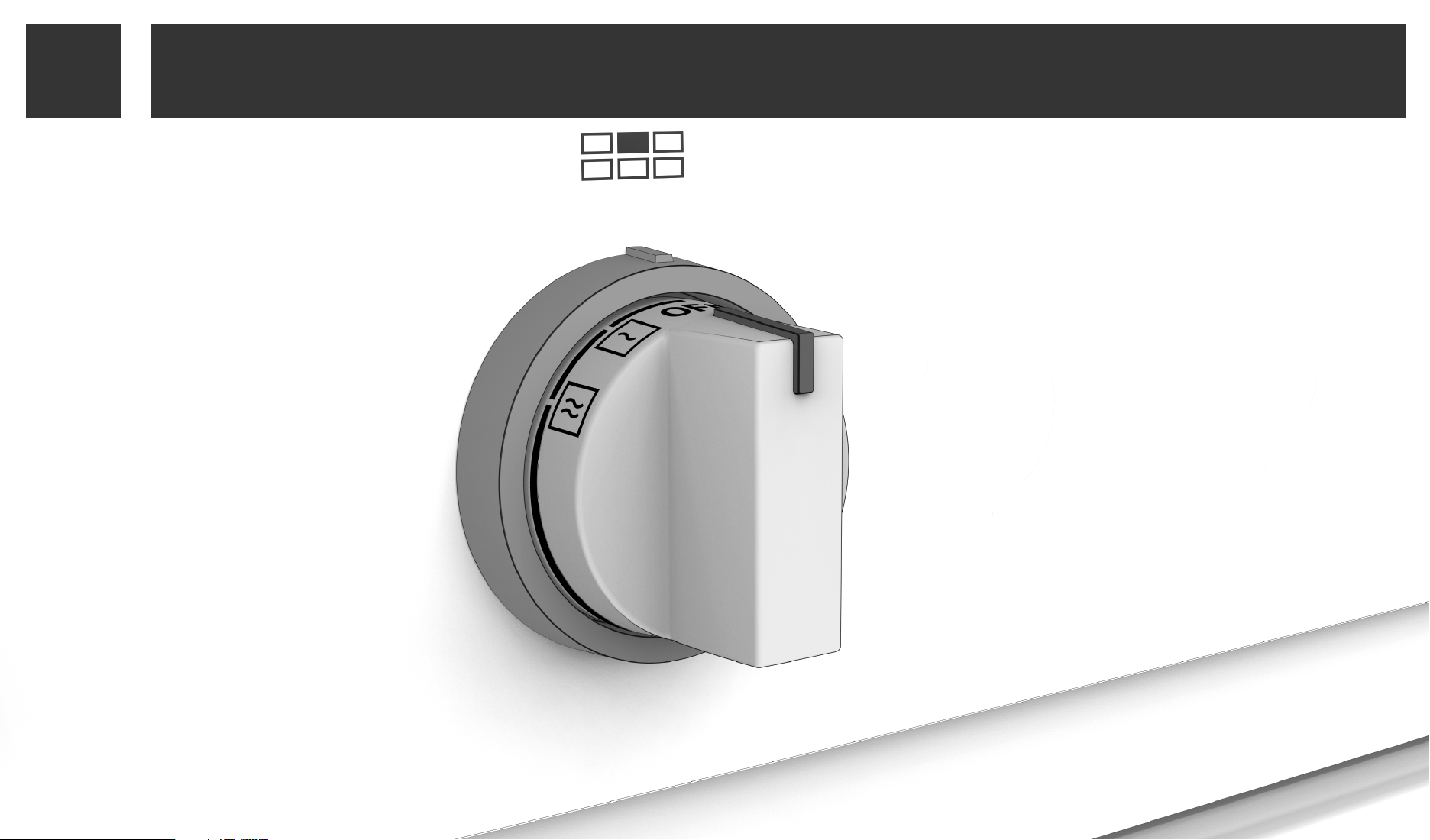

REINSTALL KNOB IN CORRECT POSITION
9
BEZEL REPLACEMENT COMPLETE
CHECK THAT THE ROTATION MOVEMENT, LEFT AND RIGHT, IS SMOOTH
10

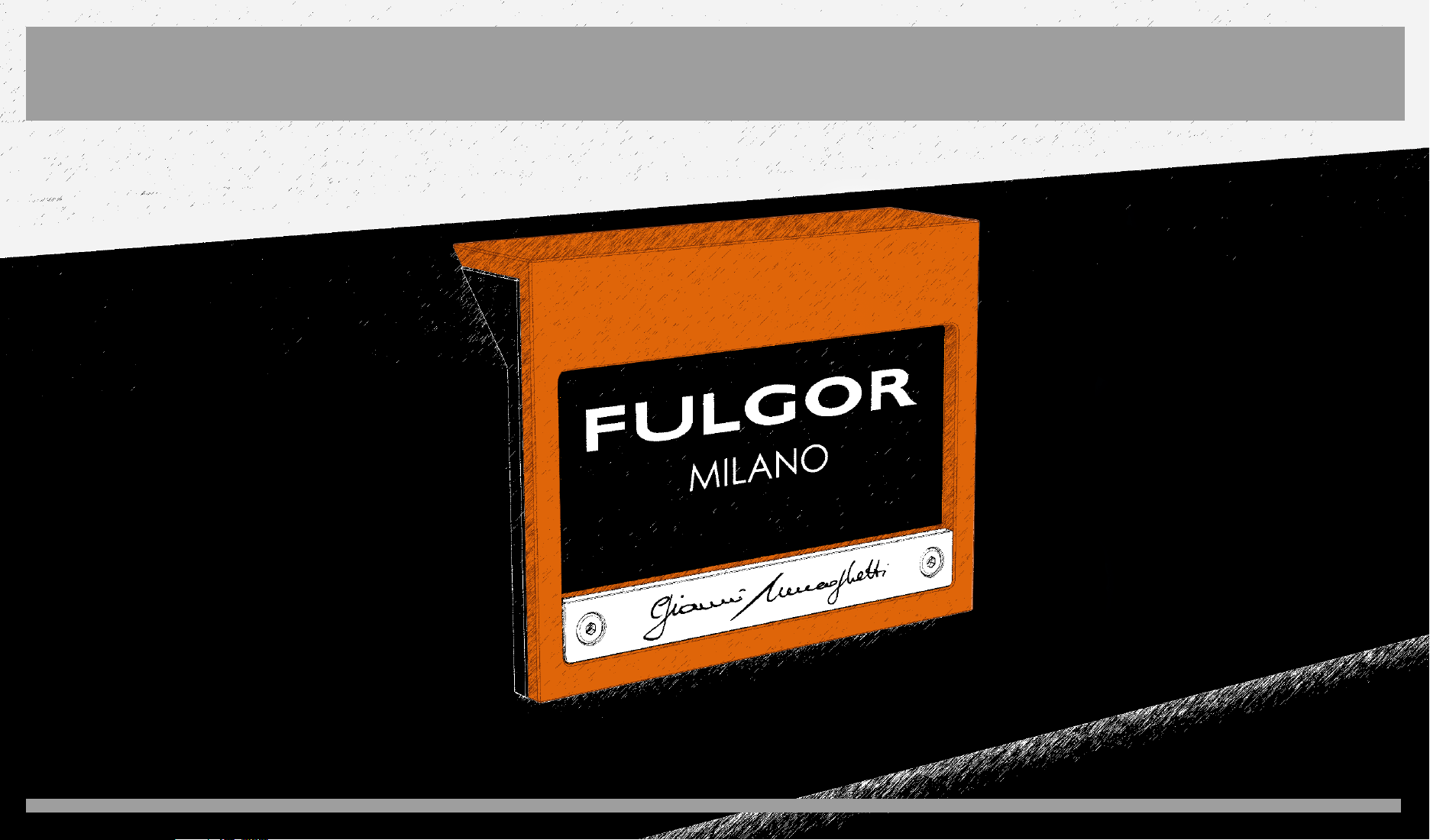

DECORATIVE BADGE COVER ACCESSORY
2

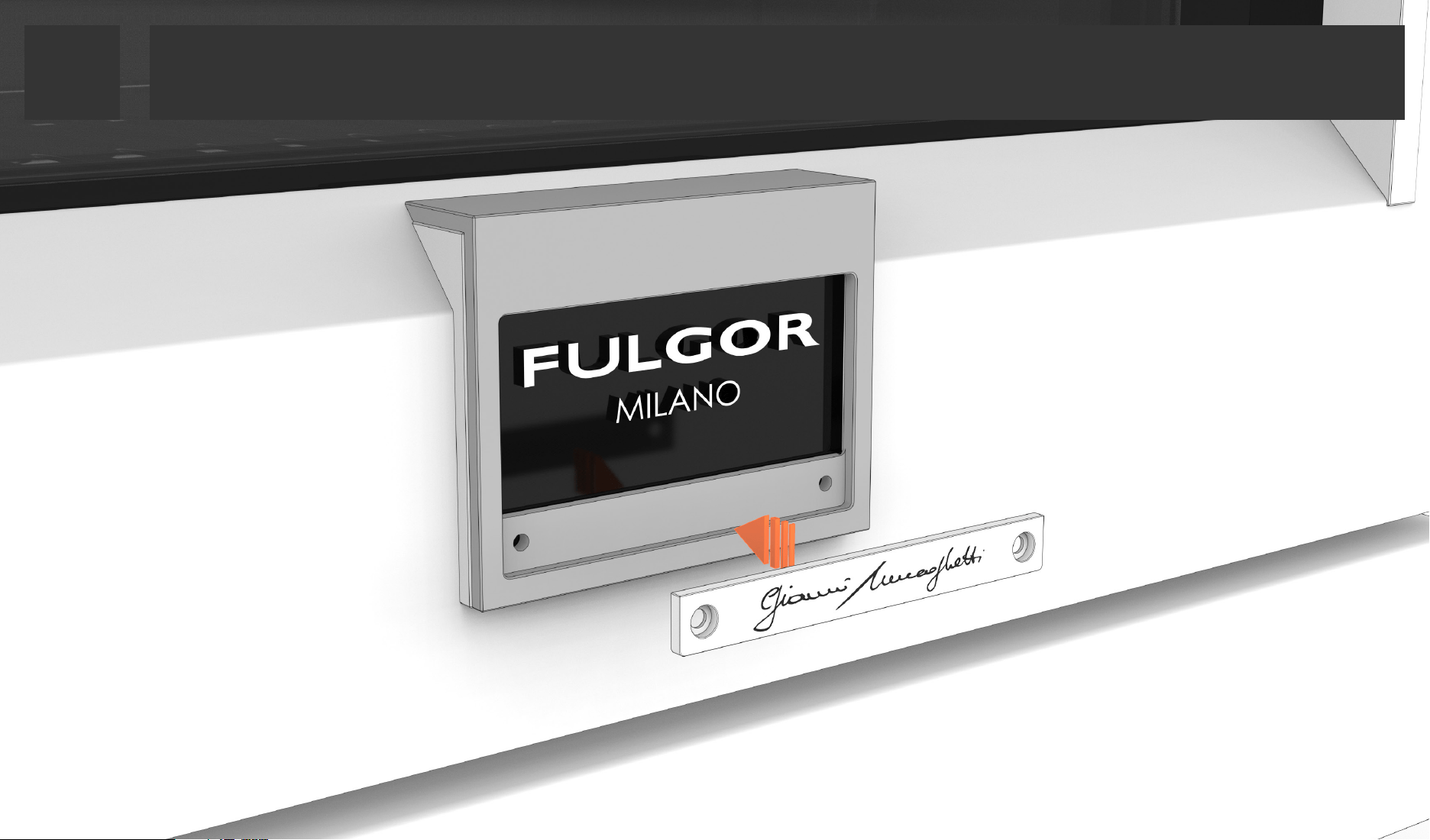

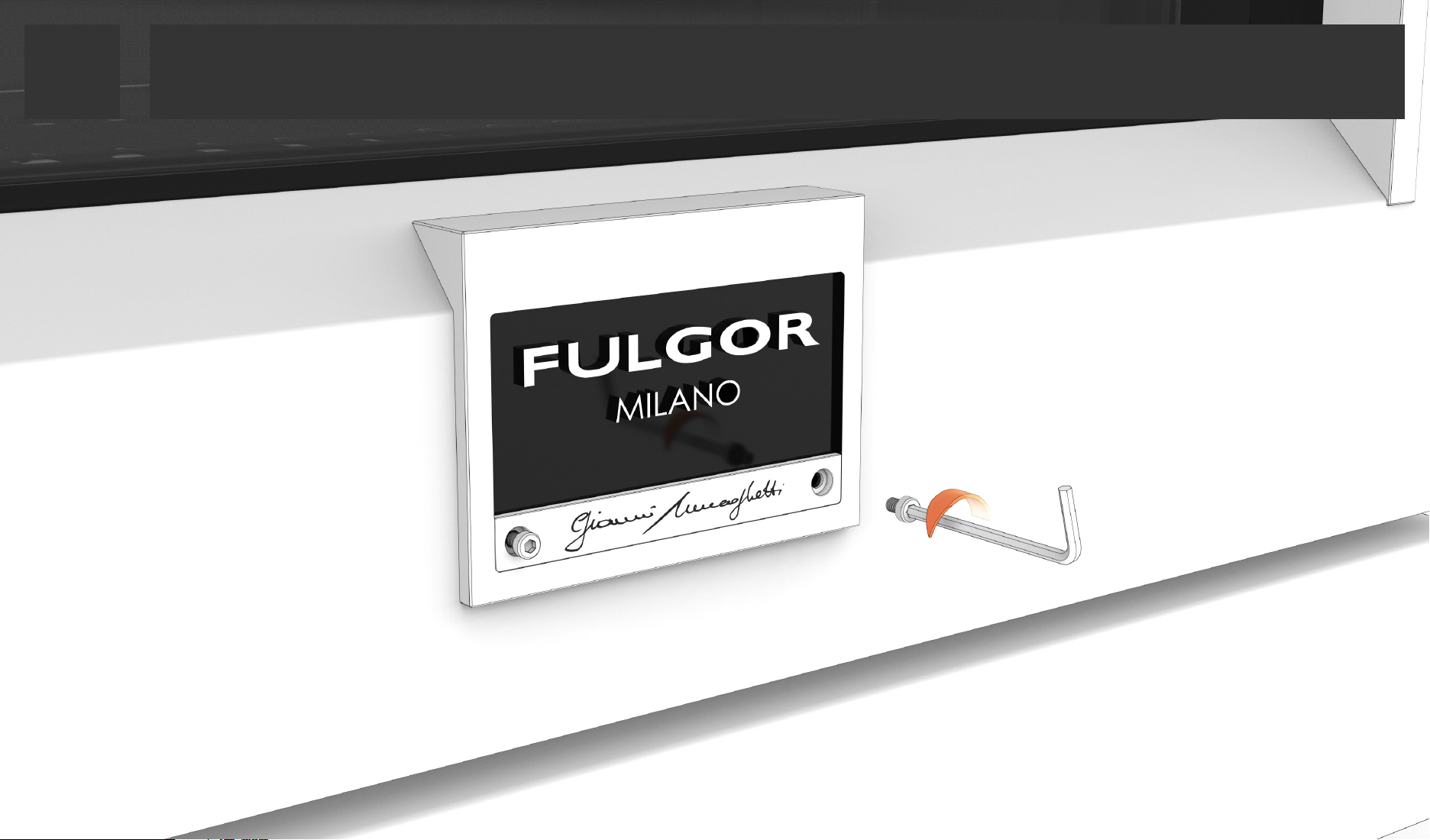

REMOVE BOLTS WITH ALLEN WRENCH
3
REMOVE THE NAMEPLATE
4

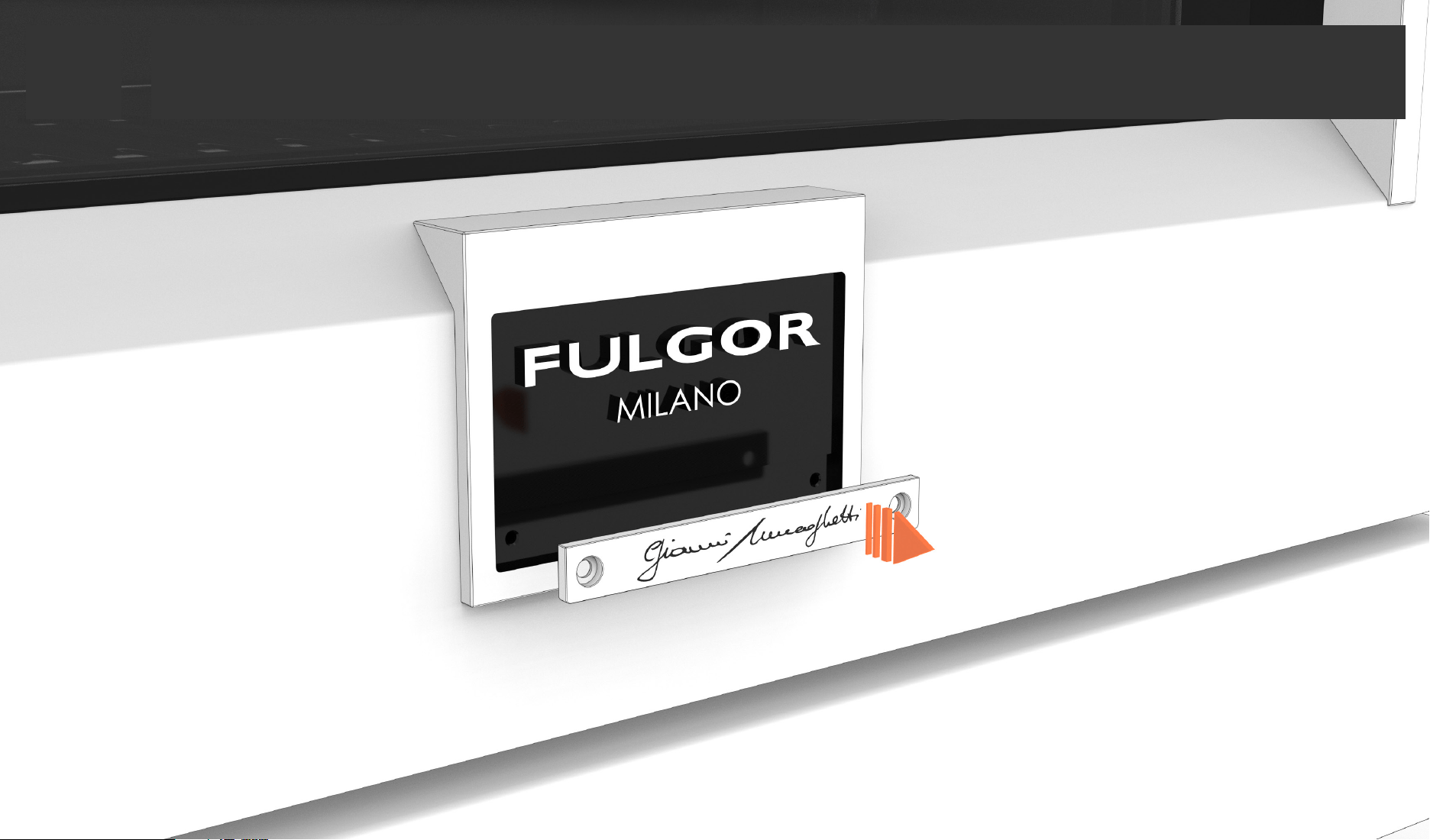

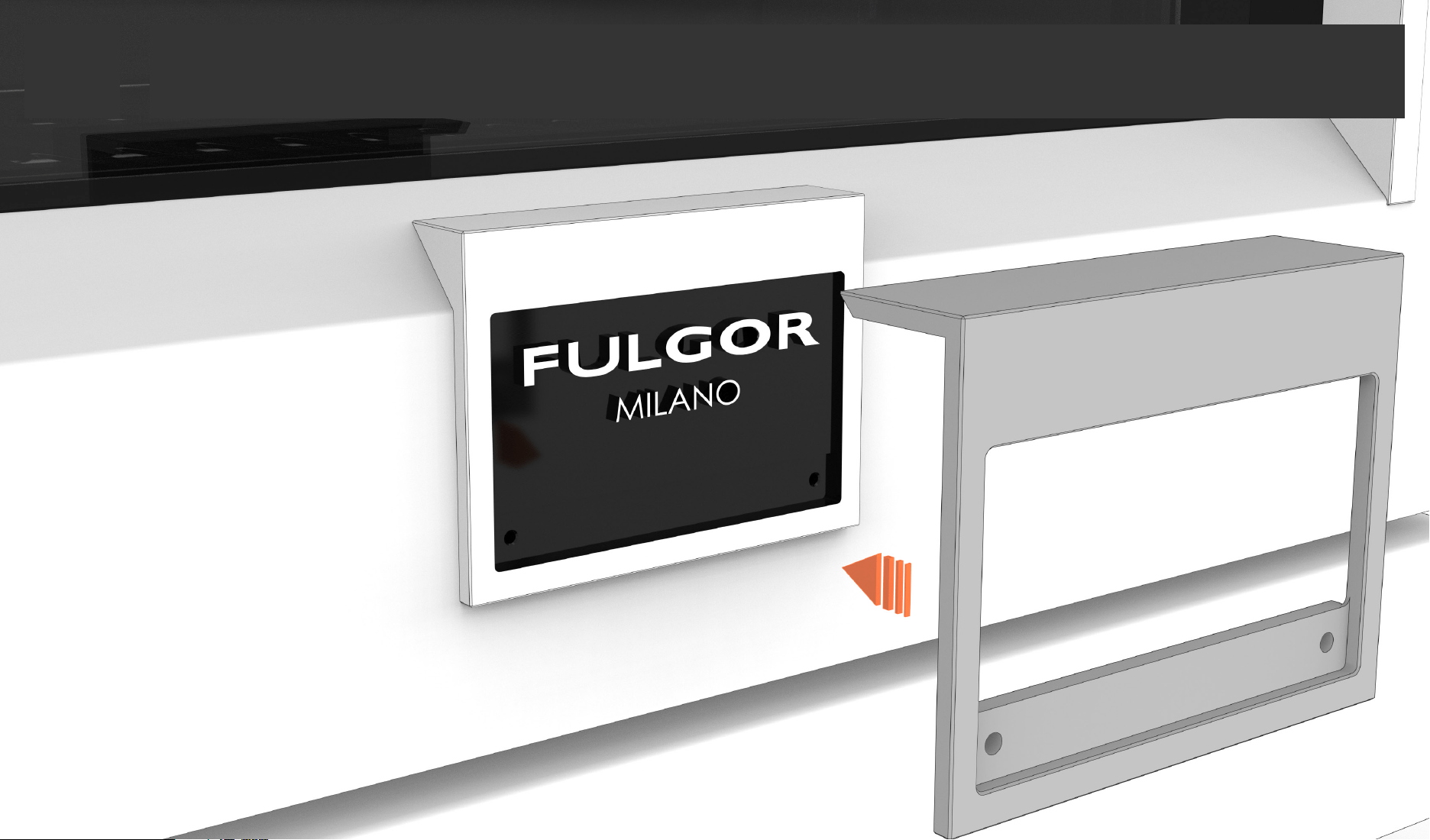

INSTALL DECORATIVE BADGE OVER THE EXISTING BADGE
5
REPOSITION THE NAMEPLATE
6

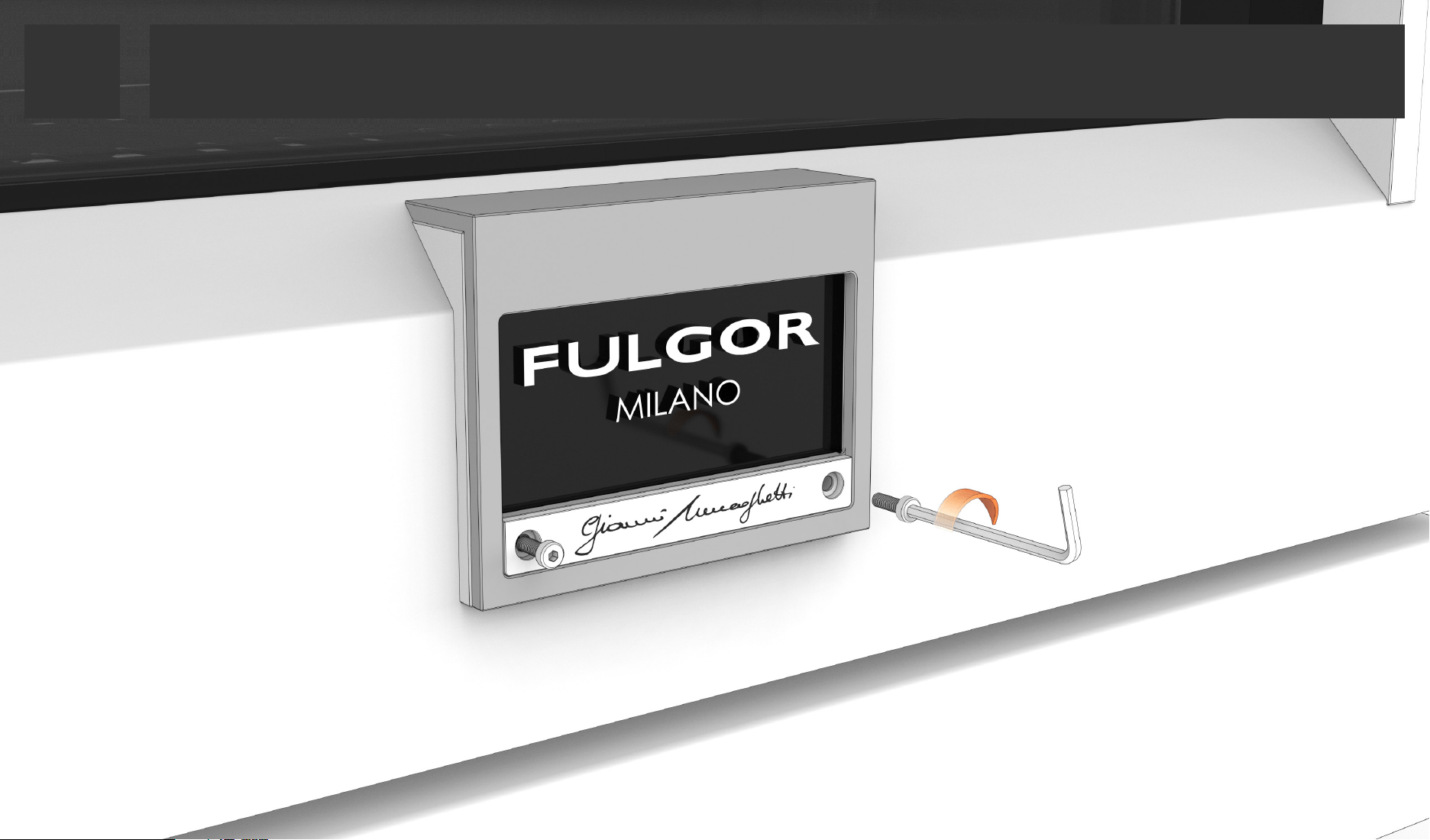

USE LONGER SCREWS PROVIDED TO SECURE THE NAMEPLATE
7

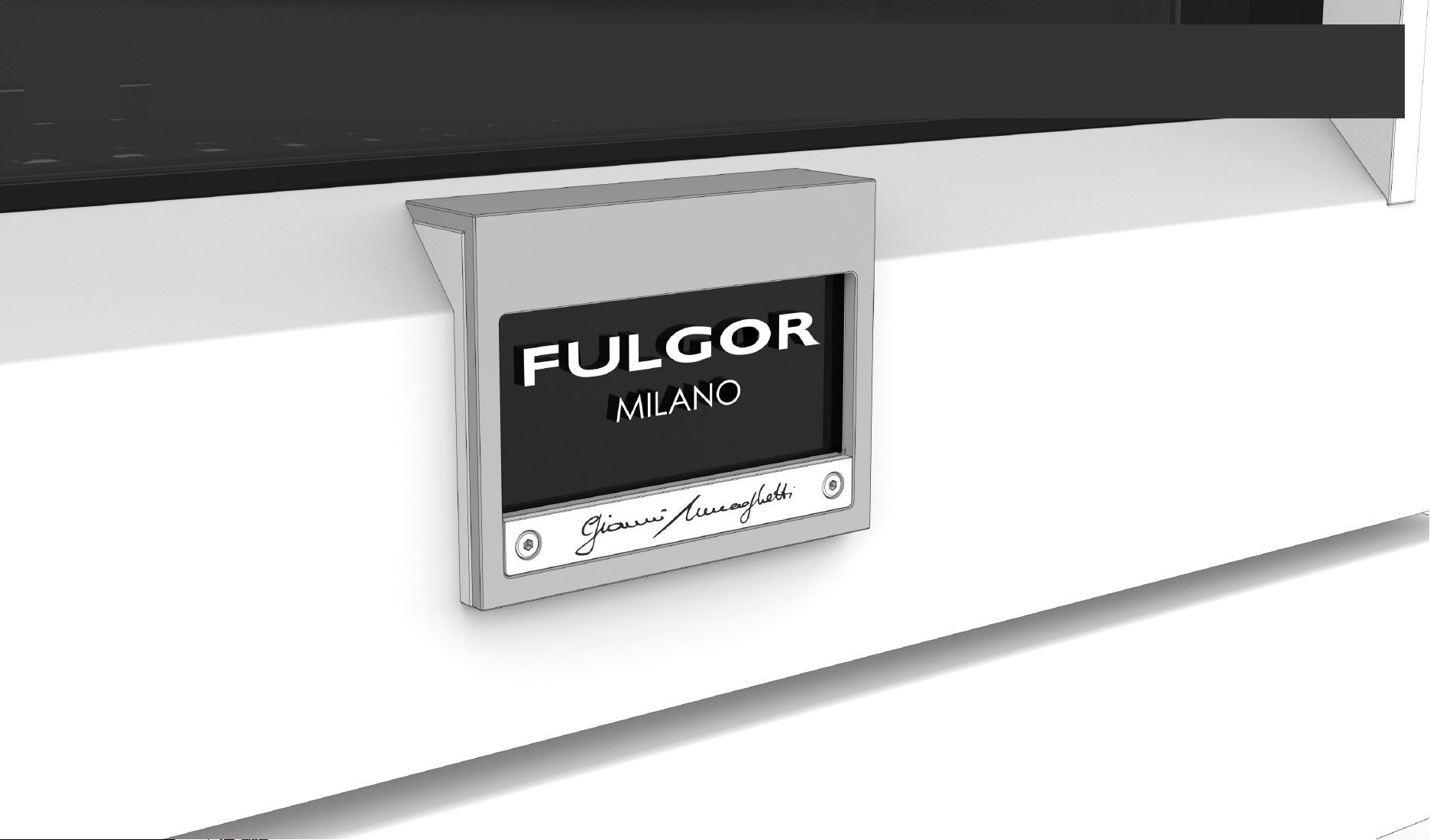

DECORATIVE BADGE COVER INSTALL COMPLETE
