User Manual
DUAL FUEL RANGES
SDR MODELS
www.zlinekitchen.com
ZLINE Kitchen and Bath provides Attainable Luxury, where the kitchen and bath of your dreams
is never out of reach. Through our unique designs and unparalleled quality, we’re dedicated to
providing you an elevated experience in the heart of your home. With an endless selection of
features and finishes, our inspiration is your reality.
ZLINE is fueled by a passion for innovation; A relentless pursuit of bringing the
highest end luxury designs and professional features into everyone’s homes.
Because we continually strive to improve our products, we may change
specifications and designs without prior notice.
Scan the QR code to view the most up-to-date version of the Installation
Manual and User Manual.
WARNING: This product can expose you to chemicals including nickel, which is known to the
State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
IMPORTANT SAFETY INFORMATION . . . . . . . . . . . . . . . . . . . 1
Gas Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Electric And Gas Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Cooktop Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Ventilation Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Surface Burner Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Cooking Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Surface Burner Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Oven Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
CARE AND MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Removing the Oven Door and Kick Plate . . . . . . . . . . . . . . . . . . . 30
Replacing The Oven Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Cleaning Your Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
TABLE OF CONTENTS
1
GAS SAFETY
WARNING
WARNING: If the information in these
instructions is not followed exactly, a fire
or explosion may result causing property
damage, personal injury or death.
• Do not store or use gasoline or other flammable vapors and liquids in the vicinity
of this or any other appliance.
• WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch.
• Do not use any phone in your building.
• Immediately call your gas supplier from a neighbor’s phone. Follow the gas
supplier’s instructions.
• If you cannot reach your gas supplier, call the fire department.
• Installation and service must be performed by a qualified installer, service agency
or the gas supplier.
IMPORTANT SAFETY INFORMATION
Gas Safety
2
Gas Safety
IMPORTANT SAFETY INFORMATION
AVERTISSEMENT
AVERTISSEMENT : Le non-respect à
la lettre de ces instructions peut causer
un incendie ou une explosion, qui
pourrait entraîner des dommages
matériels, desblessures ou la mort
• Ne pas entreposer ou utiliser d’essence ou tout autre liquide ou gaz
inflammable à proximité de cet appareil ou de tout autre appareil.
• EN PRÉSENCE D’UNE ODEUR DE GAZ :
• Ne tenter d’allumer aucun appareil ;
• Ne toucher à aucun commutateur électrique ;
• N’utiliser aucun téléphone dans l’immeuble ;
• Appeler immédiatement le fournisseur de gaz à partir d’un téléphone situé
à l’extérieur de l’immeuble ; Suivre les instructions du fournisseur de gaz ;
• S’il est impossible de joindre le fournisseur de gaz, appeler le service
des incendies.
• L’installation et la réparation doivent être effectuées par un installateur
ou une agence de réparation ayant les qualifications requises ou par le
fournisseur de gaz.
3
IMPORTANT SAFETY INFORMATION
WARNING
WARNING:
Never Operate the Top Surface Cooking Section of this Appliance Unattended.
• Failure to follow this warning statement could result in fire, explosion, or burn
hazard that could cause property damage, personal injury, or death.
• If a fire should occur, keep away from the appliance and immediately call
your fire department. DO NOT ATTEMPT TO EXTINGUISH AN OIL/GREASE
FIRE WITH WATER.
ATTENTION
ATTENTION :
Ne faites jamais fonctionner la surface de cuisson, sur le dessus de cet appareil, sans
surveillance.
• Le non-respect de cette mise en garde pourrait entraîner un incendie, une
explosion ou un risque de brûlure et ainsi causer des dommages matériels, des
blessures ou la mort.
• Si l’appareil prend feu, tenez-vous à l’écart et appelez immédiatement votre
service des incendies. NE TENTEZ JAMAIS D’ÉTEINDRE UN FEU DE GRAISSE
OU D’HUILE EN L’ASPERGEANT D’EAU.
Gas Safety
4
Gas Safety
WARNING
WARNING: Never use this appliance as a space heater to heat or
warm the room. Doing so may result in carbon monoxide poisoning
and overheating. Never use the top of the range or the interior of the
oven as a storage areas, as items could melt or ignite, increasing the
risk of fire, damage, and/or serious injury.
AVERTISSEMENT
AVERTISSEMENT: Ne JAMAIS utiliser cet appareil électroménager en
guise de chaufferette. Le fait de chauffer une pièce ainsi peut entraîner un
empoisonnement au monoxyde de carbone ou une surchauffe du four.
WARNING
WARNING: NEVER cover any slots, holes or passages in the oven
bottom or cover an entire rack with materials such as aluminum foil.
Doing so blocks airflow through the oven and may cause carbon
monoxide poisoning. Aluminum foil linings may also trap heat, causing
a fire hazard.
AVERTISSEMENT
AVERTISSEMENT:Ne JAMAIS recouvrir une fente, un trou ou une
conduite dans le fond du four ni recouvrir entièrement une grille d’un
matériau comme du papier d’aluminium. Un tel revêtement bloque la
circulation d’air dans le four, ce qui peut entraîner un empoisonnement
au monoxyde de carbone. De plus, le papier d’aluminium peut
emprisonner la chaleur, ce qui risque de provoquer un incendie.
IMPORTANT SAFETY INFORMATION
5
IMPORTANT SAFETY INFORMATION
• Before beginning installation, please read and follow these important instructions for the
safety of your home and the people living in it.
• The manufacturer will not be responsible for any damage to property or to persons
caused by incorrect installation, improper use of the appliance, or failure to heed the
warnings listed.
• The manufacturer reserves the right to make changes to its products when considered
necessary and useful, without affecting the essential safety and operating characteristics.
• This appliance has been designed for non-commercial, domestic use only.
• Please observe all local, state, and national codes and ordinances. Please ensure the
range is properly grounded. The plug should always be accessible.
• The installer should leave these instructions with the consumer who should retain for local
inspectors’ use and for future reference.
• This manual does not cover all possible conditions that may occur during installation
and/or operation. Always contact a qualified service technician or the manufacturer
about problems you may not understand.
WARNING
Installation and service on this product must only be conducted by a qualified
installer, service agency, or gas supplier.
• The installation of appliance designed for manufactured (mobile) home installation must
conform with the Manufactured Home Construction and Safety Standard, Title 24CFR,
Part 3280 [formerly the Federal Standard for Mobile Home Construction and Safety,
Title 24, HUD (Part280)] or with local codes where applicable.
• Installation of any gas-fired equipment should be made by a licensed plumber or gas
fitter. A manual gas shut-off valve must be installed in the gas supply line for safety and
ease of service.
• Please ensure that the altitude of your home is conducive for the use of gas cooking
products. If the product is installed at higher altitudes above sea level, you may experience
issues with gas pressure that will affect product performance. Please consult your local
gas company for recommendations before purchasing or installing.
Gas Safety
6
Electrical Safety
IMPORTANT SAFETY INFORMATION
IMPORTANT SAFETY ALERTS
DANGER
DANGER: When you see this symbol in the instructions, it indicates a hazardous
situation which, if not avoided, could result in death or serious injury.
WARNING
WARNING: When you see this symbol in the instructions, it indicates a hazardous
situation which, if not avoided, could result in minor or moderate injury.
DANGER
USE CARE WHEN UNPACKING THE PRODUCT
• Remove all tape and packaging before using the appliance, including plastic zip ties
securing the oven racks.
• Carefully dispose of the product’s shipping box, plastic bags, and all other packing
materials after the appliance is unpacked.
• Boxes covered with rugs, bedspreads, sheets, or other materials can become air-tight
chambers. Never allow children to play with packaging material.
• Remove all staples from the box. Staples can cause cuts and destroy finishes if they come
in contact with other appliances or furniture.
• Do not remove the model/serial plate attached to the appliance; doing so will not only
void the product warranty, it will limit the ability for future service to be conducted on the
range in an effective manner.
ELECTRIC AND GAS SAFETY
WARNING
• Be sure your appliance is properly installed and grounded by a qualified technician
in accordance with all local codes and ordinances and with the National Fuel Gas
Code ANSI Z223.1—latest edition and the National Electrical Code ANSI/NFPA No.
70—latest edition in United States, or CAN/CGA B149.1, B149.2, and the Canadian
Electrical Code, Part 1, in Canada.
• Gas leaks cannot always be detected by smell. As such, gas suppliers recommend that
you use a gas detector approved by UL or CSA. For more information, contact your
gas supplier.
• If a gas leak is detected, refer to the “WHAT TO DO IF YOU SMELL GAS”
alert on page 1.
7
IMPORTANT SAFETY INFORMATION
• Installation and service on this product must be performed by a qualified installer,
servicer, or gas supplier. Ask the manufacturer to recommend a qualified technician and
authorized repair service in your area.
• Know how to shut off gas supply at the meter and disconnect the electrical power to the
appliance at the circuit breaker or fuse box in case of an emergency. Installers should
also show appliance owners the location of the appliance gas shut-off valve and how
to shut it off if necessary.
• Do not repair or replace any part of the appliance unless specifically recommended in
this manual. All other servicing should be done only by a qualified technician. This may
reduce the risk of personal injury and damage to the appliance.
DANGER
Always disconnect gas and power when servicing this product, especially for
larger-scale repairs impacting important appliance functionality; failure to do
so increases the risk of fire, explosion, injury, or death.
INSTALLATION SAFETY
• Never modify or alter the construction of the appliance by removing panels, wire covers,
or any other part of the product.
• Injuries may result from the misuse of appliance doors such as stepping, leaning, or
sitting on the doors.
• If the appliance is located near a window, NEVER hang long curtains or paper blinds
on that window. They could blow over the surface burners and ignite, potentially causing
a fire hazard.
• Ensure the kitchen or room where the appliance is installed is well ventilated by
keeping the air intakes open and in good working order and/or by installing a range
hood above the unit. It’s recommended a hood is installed between 30" and 36"
(762 and 914 mm) above the cooktop to allow for optimal air flow.
WARNING
An air curtain or other overhead range/range top hood, which operates
by blowing downward airflow onto the range, shall not be used/installed
in conjunction with this range.
Installation Safety
8
Installation Safety
IMPORTANT SAFETY INFORMATION
• If the appliance is used intensively for a long time, the effectiveness of the ventilation will
have to be increased, for example by opening a window or increasing the power of the
range hood operating above.
• Flammable materials and liquids should not be stored on the appliance or near surface
units. This includes paper, plastic, and cloth items, as well as cookbooks, plastic ware,
and towels. Do not store explosives such as aerosol cans on or near the appliance.
Flammable materials may explode and result in fire or property damage.
• Keep the appliance area clear and free from combustible materials, gasoline, and other
flammable vapors and liquids.
• Flammable materials should not be stored in the oven or near surface units.
IN THE STATE OF MASSACHUSETTS, THE FOLLOWING INSTALLATION
INSTRUCTIONS APPLY
• Installations and repairs must be performed by a qualified or licensed contractor,
plumber, or gas fitter licensed by the State of Massachusetts.
• If using a ball valve, it must be a T-handle type.
• A flexible gas connector, when used, must not exceed 3' (914 mm).
WARNING
STATE OF CALIFORNIA PROPOSITION 65 WARNINGS
• The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of
California to publish a list of substances known to the state to cause birth defects or other
reproductive harm and requires businesses to warn customers of potential exposure to
such substances.
• Gas appliances can cause minor exposure to at least four main substances — benzene,
carbon monoxide, formaldehyde, and soot — caused primarily by the incomplete
combustion of natural gas or liquid propane fuels.
• Properly adjusted burners, indicated by a bluish rather than yellow flame, will minimize
incomplete combustion. Exposure to these substances can also be minimized by venting
with an open window or by using a ventilation fan or range hood.
9
IMPORTANT SAFETY INFORMATION
COOKTOP SAFETY
DANGER
• Do not store items of interest to children in the cabinets above the appliance or on the
back splash of appliance.
• Children should not be left alone or unattended in the area where the appliance is in use.
Do not allow children to climb, play, sit, or stand on or around any part of the appliance.
Children climbing on the appliance to reach items could be seriously burned or injured.
• DO NOT TOUCH THE COOKING SURFACE, BURNERS, GRATES, OR ANY AREAS
NEAR THEM. Surface burners or other parts of the range may be hot even though flames
are not visible.
• Areas near surface burners or throughout the appliance may become hot enough to
cause burns. During and after use, do not touch, or let clothing or other flammable
materials touch, these areas until they have had sufficient time to cool.
• Do not wear loose-fitting or hanging garments while using the appliance. Do not let
clothing or other flammable materials contact hot surfaces.
• Smother grease fires with a pan lid, or use baking soda, a dry chemical, or foam-type
extinguisher. Use an extinguisher ONLY if:
• You have a Class A, B, or C extinguisher and you know how to operate it.
• The fire is small and contained in the area where it is started.
• The fire department is being/has been called.
• You can fight the fire with your back to an exit.
• When heating fat or grease, watch it closely. Fat or grease may catch fire if allowed to
become too hot.
• Use only dry potholders and oven mitts. Moist or damp potholders on hot surfaces may
result in burns from steam. Do not let potholders touch hot heating elements, flames, or
burners. Do not use a towel or other bulky cloth instead of a potholder.
• Do not heat unopened food containers. Buildup of pressure may cause the container to
burst and result in injury.
• Stepping, leaning, or sitting on this appliance can result in serious injuries and also
damage the appliance.

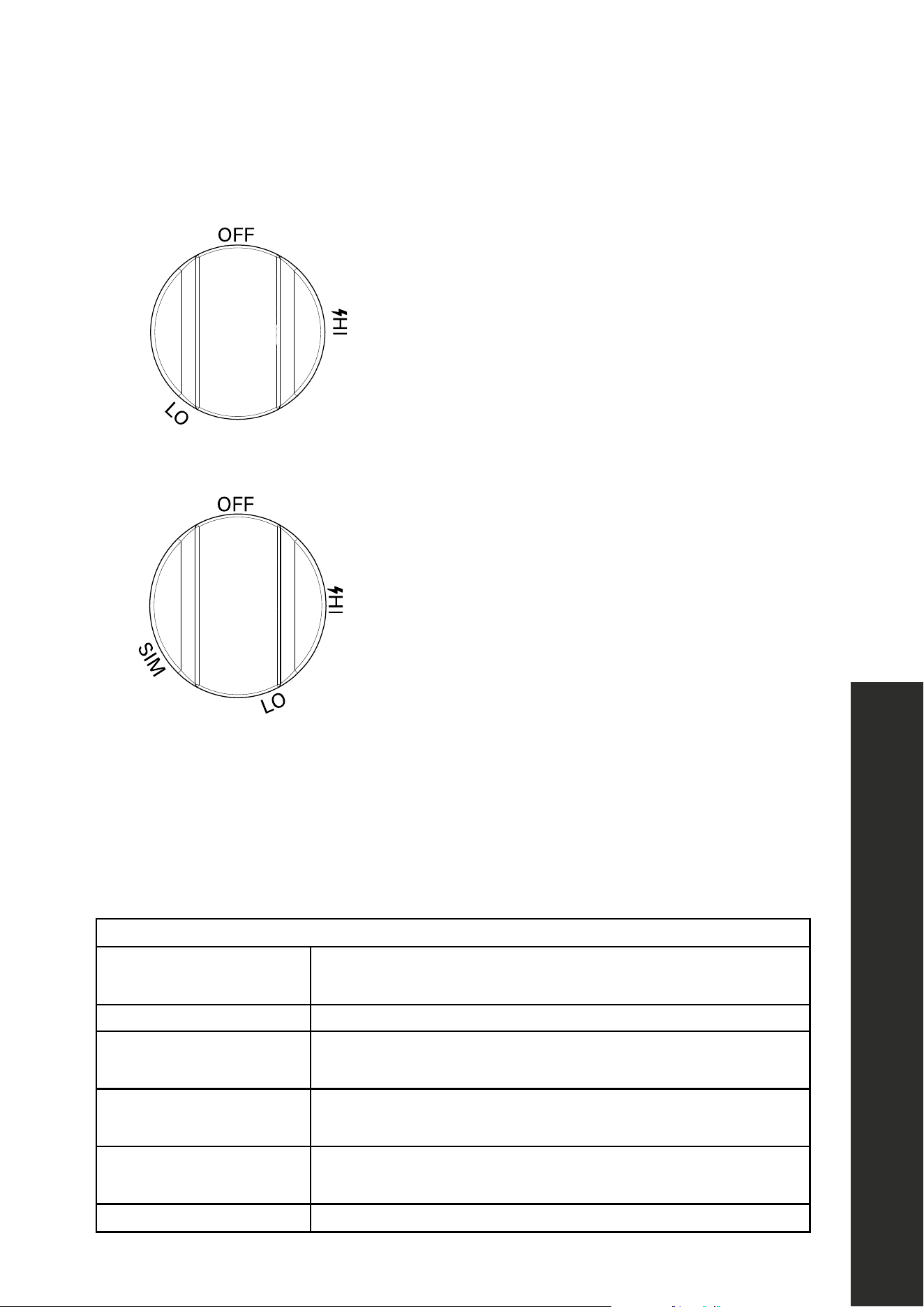

• Know which knob controls which surface burner. Visually check that the burner has lit.
Then adjust the flame so it does not extend beyond the edge of the pot/pan.
• Clean the appliance regularly to keep all parts free of grease that could catch fire.
Exhaust fan ventilation range hoods and grease filters should be kept clean. Do not allow
grease to accumulate on hoods or filters. Greasy deposits in the fan could catch fire.
• When cooking food, turn the hood fan on. Refer to hood manufacturer’s instructions for
cleaning and operation.
Cooktop Safety
10
Cooktop Safety
IMPORTANT SAFETY INFORMATION
• Pot/pan handles should be turned inward and not extend over surface burners. To
reduce the risk of burns, ignition of flammable materials, and spillage due to unintentional
contact with the pot/pan, the handle of the utensil should be positioned so that it is
turned inward, and does not extend over adjacent surface burners.
• Do not use aluminum foil to line any part of the appliance. Use aluminum foil only to cover
food during cooking. Improper use of these liners may result in risk of electric shock or
fire. Use of aluminum foil on any part of the range may void the manufacturer’s warranty.
• Only certain types of glass, glass/ceramic, ceramic, earthenware, or other glazed
cookware are suitable for use without breaking due to sudden changes in temperature.
Check the manufacturer’s recommendations for appliance use.
WARNING
Never leave surface burners unattended. Boilovers cause smoke and greasy
spillovers that may ignite, or a pan that has boiled dry may melt.
• Do not use decorative surface burner covers. If a burner is accidentally turned on, the
decorative cover will become hot and possibly melt. You will not be able to see that the
burner is on. Burns will occur if the hot covers are touched. Damage may also be done to
the appliance or burners because the covers may cause overheating. Air will be blocked
from the burner and cause combustion problems.

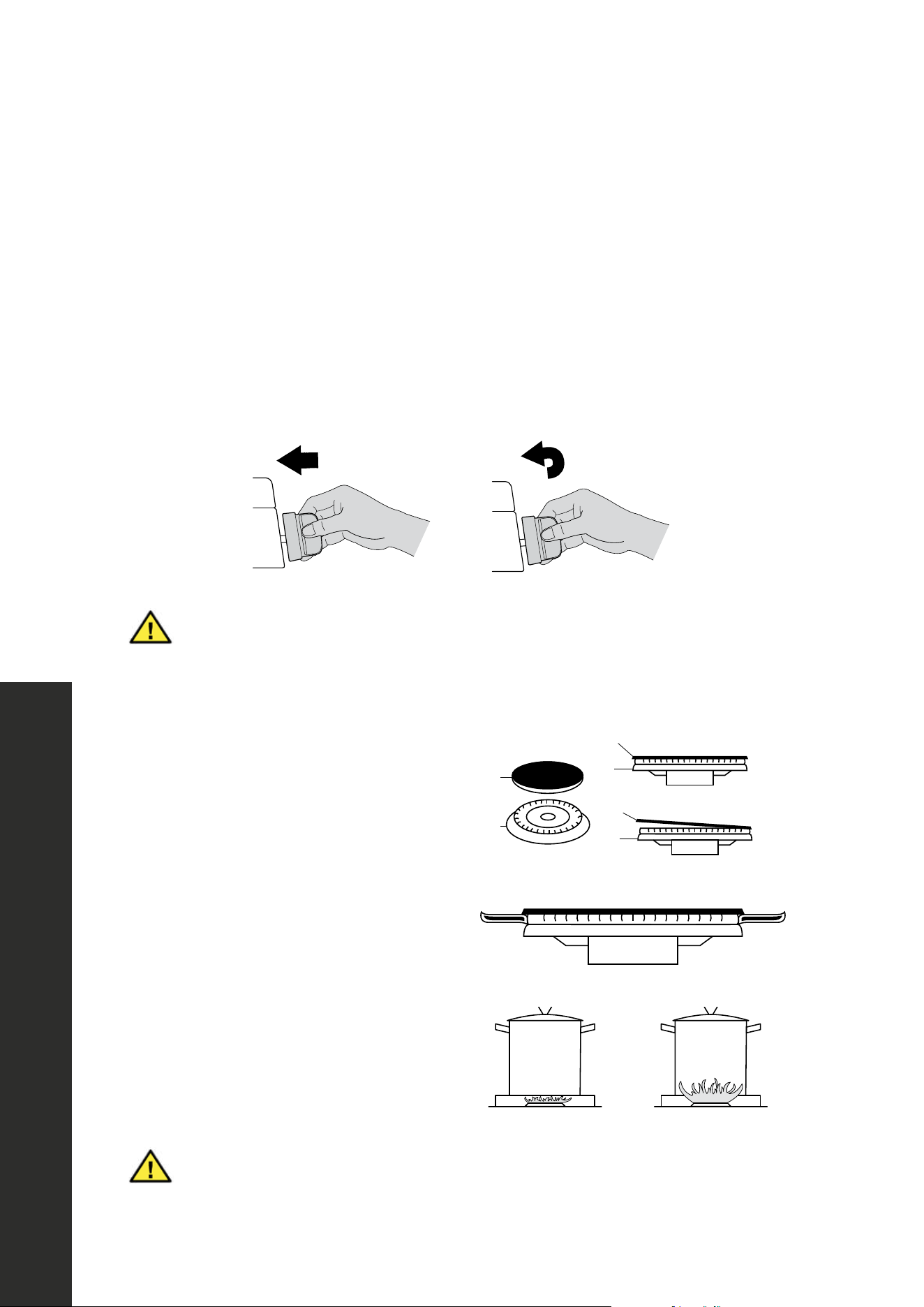

• Always use a proper flame size. Adjust the flame size so it does not extend beyond
the edge of the pot/pan. The use of undersized pots/pans will expose a portion of the
burner flame to direct contact and may result in ignition of clothing. Adjusting the flame
size to appropriate levels will also improve efficiency.

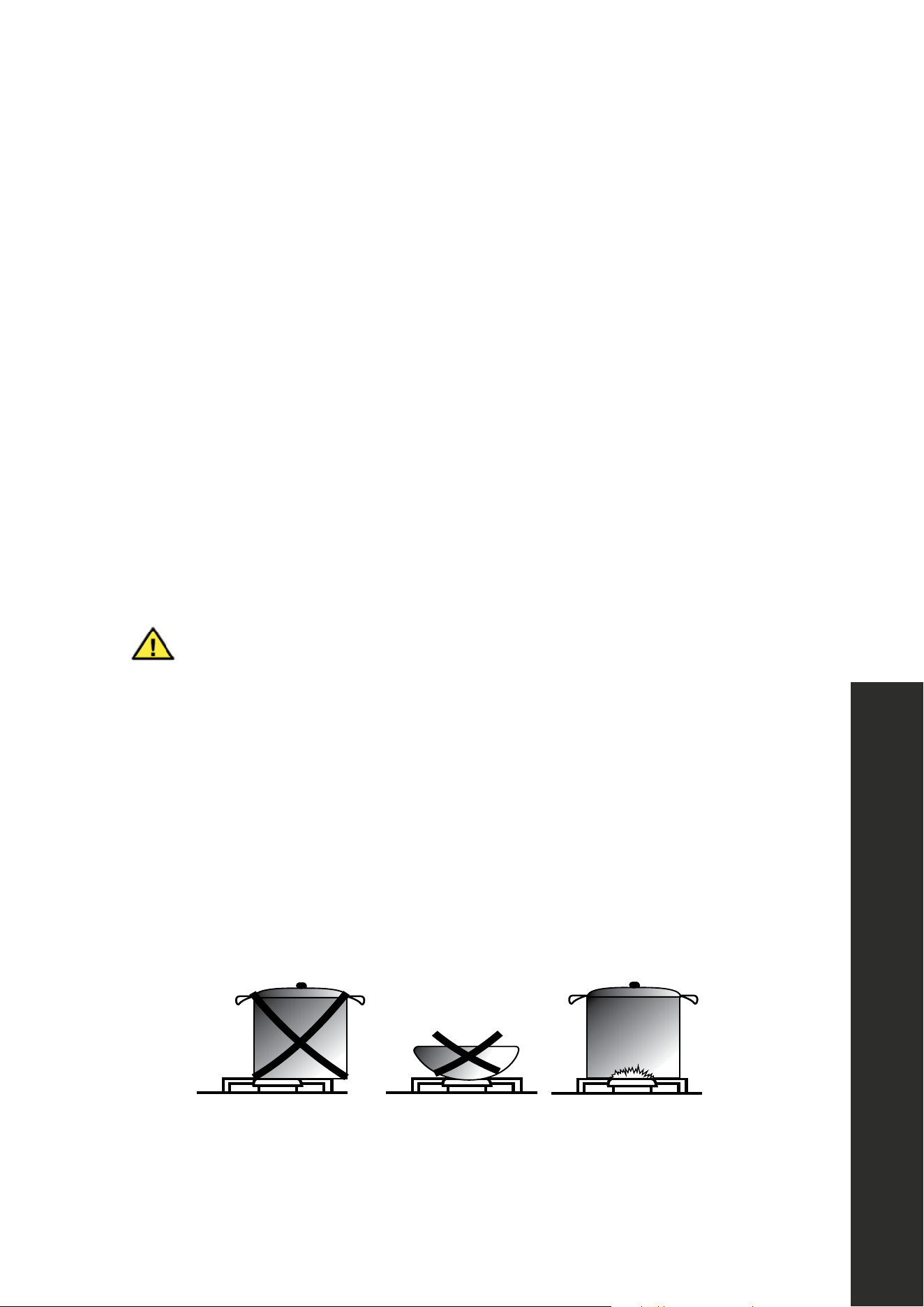

• Always use proper pot/pan and cookware sizes. This appliance is equipped with
surface units of different sizes. Select cookware with flat bottoms large enough to cover
the surface unit.
• SDR48 series ranges come with a reversible cast iron griddle that can be placed vertically
(front to back) atop any of the four grates on the range. Use care when placing and
flipping the griddle to not damage the griddle or cast iron grates below.
• Make sure the griddle is completely cool to the touch before placing on or removing
from the range to avoid risk of burns and injury.
• Do not use stove top grills on your gas appliance. If you use a stove top grill on a
sealed gas burner, it will cause incomplete combustion and can result in exposure to
carbon monoxide levels above allowable current standards. This can be hazardous to
your health.
11
Ventilation Safety
IMPORTANT SAFETY INFORMATION
VENTILATION SAFETY
WARNING
• The appliance should have proper ventilation in order to keep the unit operating
properly and maintain the temperature of immediate surroundings. Do not obstruct flow
of combustion and ventilation air.
• Observe all governing codes and ordinances, and check your local building codes as
they may vary from the general rules outlined in this manual.
• It is the installer’s responsibility to comply with installation clearances specified on the
model/serial rating plate, in addition to within this User Manual.
• For proper operation of a gas appliance, the air necessary for gas combustion must
be able to flow into the room naturally. The air must flow into the room directly through
openings in the outside walls.
• These openings must be constructed so that it will not be obstructed from inside or outside,
and not be constructed close to the floor. The opening is recommended to be on the side
opposite to that on which the flue gases are discharged.
• The appliance should be located for convenient use in the kitchen; recessed installations
must provide complete enclosure of the sides and rear of the range.
• To eliminate risk of burns or fire by reaching overheated surface units, cabinet storage
space located above the range should be avoided. This risk can be further reduced by
installing a range hood or microwave hood combination that projects horizontally a
minimum of 5" (127 mm) beyond the bottom of the cabinets.
• If a range hood is installed with appropriate ducting, maintain a 30" (762 mm) minimum
clearance between the cooking surface and bottom of the hood.
• Avoid placing cabinetry directly above the appliance when possible. If cabinetry is used
above the cooking surface, use cabinets no more than 13" (330 mm) deep.
• Contact a service technician and/or a qualified floor covering installer to check that
wall coverings, countertops, and cabinets located around the appliance can withstand
at least 200 °F (93 °C).
12
Storage Safety
IMPORTANT SAFETY INFORMATION
STORAGE AND FIRE SAFETY
• Items of interest to children should not be placed in cabinets above the appliance or on the
steel back splash vent at the back the range. Children climbing on the appliance to reach
items could be seriously injured.
• DO NOT leave children alone or unattended when the appliance is hot or in operation,
even if the burners and oven have been off for several minutes. The unit’s door, knobs, and
cooktop may still have residual heat, and children could be seriously burned.
• DO NOT let anyone climb, stand, or hang on the unit. They could damage the range or
cause it to tip over which could result in severe personal injury.
DANGER
Never use this appliance as a space heater to heat or warm the room. Doing so
may result in carbon monoxide poisoning and overheating.
• NEVER wear loose fitting or hanging garments while using the range. Be careful when
reaching for items placed in cabinets over the appliance. Flammable material could be
ignited if it contacts flames or hot oven surfaces and may cause severe burns.
• DO NOT place flammable materials in the oven or anywhere near the range.
• DO NOT place or use combustible materials such as gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
• DO NOT store cooking grease or other flammable materials in or near the appliance.
DANGER
Never leave burners unattended at high heat settings. Boilovers cause smoke and
greasy spillovers that may ignite, or a pan that has boiled dry may melt. DO NOT
ATTEMPT TO EXTINGUISH AN OIL/GREASE FIRE WITH WATER.
• If a grease fire occurs, never touch a flaming pan. Immediately turn the controls off. Smother
a flaming pan on a surface burner by covering the pan completely with a well-fitting lid,
cookie sheet or flat tray.
• A grease fire can also be put out by covering it with baking soda or, if available, by using
a multi-purpose dry chemical or foam-type fire extinguisher.
• Flames inside the oven can be smothered completely by closing the oven door and turning
controls to OFF, or by using a fire extinguisher.
• Allow the burner grates and other surfaces to completely cool before touching them.
13
IMPORTANT SAFETY INFORMATION
• NEVER block the vents (air holes) of the appliance. They provide the air inlet and outlet that
are necessary for the appliance to operate properly with correct combustion.
• Gas leak testing of the appliance must be conducted according to the manufacturer’s
instructions; always consult a qualified technician.
• Make sure your appliance is properly installed and grounded by a qualified installer,
according to instructions explained in the Installation Manual. Any adjustment and service
should be performed only by qualified gas range installers or service technicians.
• To prevent poor air circulation, place the appliance out of kitchen traffic path and out of
drafty locations.
DANGER
Stepping, leaning, or sitting on this range can result in injuries and damage to the
appliance. DO NOT allow children to climb or play around the range; doing so
may cause the appliance to tip, resulting in serious burns or other injury.
• DO NOT attempt to repair or replace any part of your appliance unless it is specifically
mentioned in this manual. All other service should be referred to a qualified technician.
• Make sure all packaging materials are removed — including the plastic zip ties securing
the oven racks during shipping — from the appliance before operating it to prevent fire or
smoke damage should the packaging material ignite.
• When cooking, adjust the burner controls so the flame heats only the bottom of the pot,
pan, or cookware and does not overlap at the sides.
• Cookware, pots, and pans that conduct heat slowly, i.e. glass pots, should be used in
conjunction with burner flames at a low or medium setting.
• Use the appliance only for cooking tasks as outlined in this manual. When using the
appliance, do not touch the grates, burner caps, burner bases, or any other parts in
proximity to the flame. These components may be hot enough to cause burns.
• During and after use, do not touch interior surfaces of the oven until cool.
• Do not use aluminum foil to line any part of the appliance. Use aluminum foil only to cover
food during cooking. Improper installation of these liners may result in risk of electric shock
or fire. Use of aluminum foil on any part of the range may void the manufacturer’s warranty.
Fire Safety
14
Surface Burner Operation
IMPORTANT SAFETY INFORMATION
SURFACE BURNER SAFETY
WARNING
• If a cooktop burner flame goes out, gas will continue to flow to the burner until the knob
is turned to the OFF position.
• NEVER leave the surface burners unattended, especially at high flame settings.
• DO NOT use pots/pans that are unstable or easily tipped. Select cookware with flat
bottoms that are large enough to cover burner grates. To avoid spillovers, make sure
cookware is large enough to contain the food properly. This will save cleaning time and
prevent hazardous accumulations of food that could ignite.
• Pot/pan handles should be turned inward and not extend over adjacent surface burners.
To reduce the risk of burns, ignition of flammable materials, and spillage, handles of pots
and pans should be positioned so that they are turned inward and do not extend over
adjacent surface burners.
• Always turn burner knobs to the HI position when igniting the top burners and make sure
the burners have ignited before adjusting flame sizes.
• Use only dry pot holders or oven mitts—moist or damp pot holders on hot surfaces may
result in burns from steam. DO NOT let pot holders come near open flames when lifting
cookware. DO NOT use a towel or other bulky cloth instead of a pot holder.
• Do not use decorative surface burner covers. If a burner is accidentally turned on, the
decorative cover will become hot and possibly melt. You will not be able to see that the
burner is on. Burns will occur if the hot covers are touched.
• Do not use stove top grills or griddles on your gas appliance. If you use a stove top grill
on a sealed gas burner, it will cause incomplete combustion and can result in exposure
to carbon monoxide levels above allowable current standards. This can be hazardous
to your health.
• Only certain types of glass, glass/ceramic, ceramic, earthenware, or other glazed
cookware are suitable for use without breaking due to sudden changes in temperature.
When using glass cookware, make sure it is designed for top-of-range cooking.
WARNING
NEVER place any items on the cooktop or the back splash of the range. Hot
air from the vent may ignite flammable items and will increase pressure in
closed containers, which may cause them to burst and increase risk of injury.
15
Cooking Safety
IMPORTANT SAFETY INFORMATION
COOKING SAFETY
WARNING
Before cooking in your new range, we recommend setting the oven to 400 °F (200 °C) for
1 hour, then setting the oven to broil for 1 hour. For SDR48 models, do the same for both the
large and small ovens. There may be a smell and/or smoke —this is normal when the range
is first heated as manufacturing oils burn off. Ensure the room where the range is installed is
well ventilated by keeping air intakes open and/or by operating a range hood above the
unit. After the oven cools, wipe it out with hot water and a kitchen-safe cleaner. We also
recommend cleaning the racks and shelves before use.
• Carefully watch foods being fried at a high flame setting, and always heat fat slowly.
• If frying combinations of oils and fats, stir together before heating, and use a deep fat
thermometer if possible to prevent overheating fat beyond the smoking point.
• Use the least possible amount of fat for effective shallow or deep-fat frying. Filling the
pan too full of fat can cause spillovers when food is added.
• NEVER cook foods directly on the flame without a pot or pan; use proper cookware.
• DO NOT use a wok on the surface burners if the wok has a round metal ring that is
placed over the burner grate to support the wok. This ring acts as a heat trap, which
may damage the burner grate and burner ring. It also may cause abnormal carbon
monoxide levels, potentially resulting in a health hazard.
• Foods for frying should be as dry as possible. Frost or moisture on foods can cause hot
fat to bubble up and spill over the sides of the pan.
• NEVER try to move a pan of hot fat, especially a deep fat fryer. Wait until fully cool.
• DO NOT place plastic items on the cooktop; they may melt if left too close to the vent.
• Keep all plastics away from the surface burners.
• To prevent burns, always be sure burner knobs are in the OFF position and all grates are
cool before attempting to remove them.
DANGER
If you smell gas, immediately turn off the gas to the appliance and call a qualified
service technician. Never use an open flame to locate a leak.
16
Tipping Safety
IMPORTANT SAFETY INFORMATION
DANGER
TIPPING SAFETY
• TIPPING RANGES CAN CAUSE SERIOUS PERSONAL INJURY OR DEATH.
• TO REDUCE THE RISK OF TIPPING OF THE RANGE, THE RANGE MUST BE SECURED
WITH A PROPERLY INSTALLED ANTITIP DEVICE.
• FAILURE TO PROPERLY INSTALL THE ANTITIP DEVICE INTO THE WALL COULD
RESULT IN THE DEATH OF A CHILD OR ADULT.
ENGLISH FRANÇAIS
Install the anti-tip device to the structure
and/or the range. Verify the anti-tip
device has been properly installed and
engaged by sliding the range back
toward the wall where both brackets
have been secured, as outlined in the
directions on “Installing The Anti-Tip
Device” on page 41 of the installation
instructions.
Installez le dispositif anti-basculement sur la
structure et/ou la cuisinière. Vérifiez que le
dispositif anti-basculement a été correctement
installé et engagé en faisant glisser la cuisinière
vers le mur où les deux supports ont été fixés,
comme indiqué dans les instructions de «
Installation du dispositif anti-basculement » à la
page 41 des instructions d’installation.
Engage the range to the anti-tip device
by safely tilting the front of the range
upward slightly and moving it back to
its final resting place, making sure the
mounting pins slide under both brackets.
Engagez la cuisinière dans le dispositif anti-
basculement en inclinant légèrement l’avant de
la cuisinière vers le haut et en la ramenant à son
emplacement de repos final, en vous assurant
que les broches de montage glissent sous les
deux supports.
Re-engage the anti-tip device if the
range is moved. Do not operate the
range without the anti-tip device in
place and engaged.
Engager de nouveau le dispositif
antibasculement si la cuisinière est déplacée.
Ne pas utiliser la cuisinière lorsque le dispositif
antibasculement n’est pas installé et engagé.
See installation instructions for details.
Voir les directives d’installation pour obtenir de
plus amples renseignements
Failure to do so can result in death or
serious burns to children or adults.
Toute omission de le faire expose les enfants
et les adultes à un risque de décès ou de
brûlures graves.
17
Tipping Safety
IMPORTANT SAFETY INFORMATION
• Ensure the anti-tip device is re-engaged when the range is moved by following the same
steps outlined above and on page 41 of the installation instructions.
• Carefully pull on the range from the rear. If the brackets are installed correctly, the range
will not tip more than 4" (102 mm) from the wall. If it tips forward more than
4" (102 mm), the anti-tip device has not been installed correctly.
DANGER
DO NOT TIP THE RANGE MORE THAN 4" (102 MM) FROM THE WALL AS IT
COULD TIP OVER AND CAUSE INJURY.
• Never completely remove the leveling legs or the range may not be secured to the anti-
tip device properly. NEVER step or sit on the door.
• The range will not tip during normal use. However, without a properly fastened anti-tip
bracket, the range can tip if too much force or weight is applied to the open door.
18
CookTop Safety
OPERATION
• Always turn burner knobs to the OFF position before removing cookware.
• DO NOT lift the cooktop. Lifting the cooktop can cause damage and improper operation
of the appliance.
• If the appliance is located near a window, DO NOT hang long curtains that could blow
over the surface burners and catch on fire.
• DO NOT operate burners for any period of time without cookware on the grate. The
finish on the grate may chip without cookware to absorb the heat.
GUIDELINES FOR USING SURFACE BURNERS
• SDR series ranges operate using electric ignition; all burners have a special auto re-
ignition feature. Burners will relight if the flame goes out suddenly due to a wind gust or
other reason. The auto re-ignition feature will automatically detect the loss of flame and
reignite the burner if gas is still flowing.
• When pushing in one burner knob, sparking will occur on all surface burners, but only the
burner activated will receive gas flow. This is a perfectly normal feature for gas cooktops
for all burners to spark at once when igniting a burner.
• Keep all burners clean. Especially after a spill or boil over, make sure you clean the
affected burners before using them again. Food residue may clog the igniter and notches
of the burner spread, stopping the burner from functioning correctly.
• Check that the burner flames are regular. They should be blue with little to no yellow
tipping, and burn without fluttering all around the burner cap.
Scan to follow along with a video.
19
Flame Adjustment
OPERATION
MANUAL FLAME ADJUSTMENT
• Each range includes a flame adjustment feature if burners
experience irregular flame sizes or are too yellow or
orange in color. Ranges are designed to ensure flames
are set at appropriate levels. Should an adjustment be
needed, follow these steps:

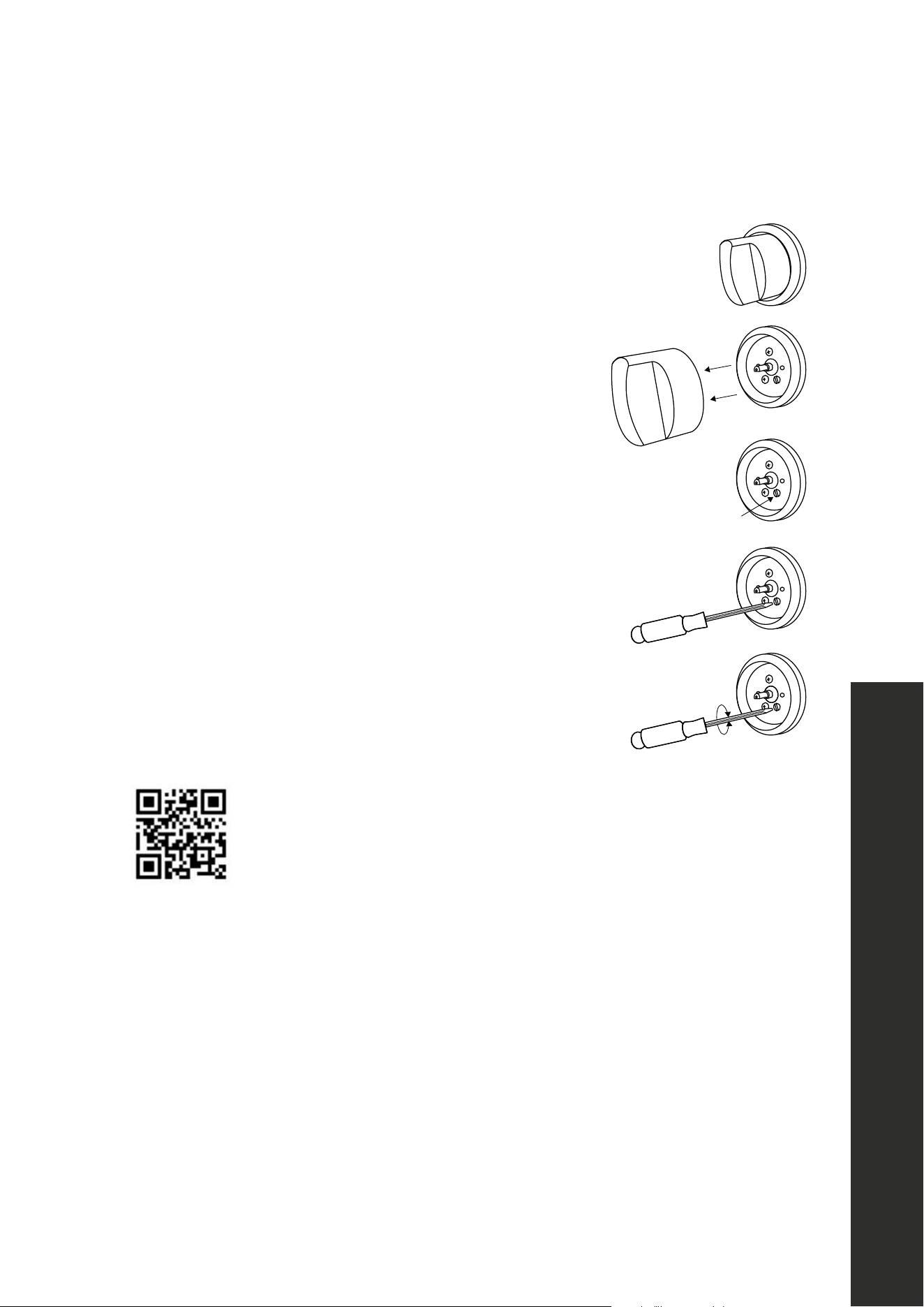

• Light one burner at a time and set it to the lowest position.
Next, remove the knob by firmly and carefully pulling it
straight out.
• Inside each burner is an adjustment valve. Using a 2 mm x
50 mm flathead screwdriver, locate the adjustment screw
(see diagram — the screw is on the right) and turn the
screwdriver to the right or left until the flame is adjusted to
the desired minimum. Use a flashlight if it’s difficult to see
the adjustment screw.
• Make sure the flame does not go out when switching
quickly from the HI to the LO position. NOTE: The high
flame setting cannot be adjusted to be lower.
• NOTE: For the dual burner knobs on all three models,
there are 2 screws to adjust if needed —1 for the inner
ring and 1 for the outer ring. These screws are located on
the left side of the adjustment valve.
2.0 x 50 mm
2.0 x 50 mm
Scan to follow along with a video.
20
SURFACE BURNER OPERATION
1. To activate electric ignition for surface burners, push in the knob for the burner you wish
to use release gas, as noted in the first image below.
2. Turn the control knob counter-clockwise to the “HI” position, as noted in the second
image below. The spark will be released at the metal electrode of the white ceramic
spark tip located on the side of the burner. Wait 0.5 to 2 seconds for ignition.
3. Once the burner lights, turn the control knob to adjust the desired heat. If the flame turns
off and does not auto re-ignite, turn the burner off and repeat the above procedure.
WARNING
Use care when utilizing the cooktop and oven knobs on your range. Turning
knobs too far beyond their highest setting — or turning too hard in the incorrect
clockwise motion — may permanently damage knobs.
USING THE BURNERS CORRECTLY
1. Always check that the burner caps are
properly installed before operation:
2. Verify that the flame of the range top burners
is completely blue and with a regular aspect
as shown at right:
3. Never let flames wrap around cookware;
this creates a safety hazard and can also
damage your cookware:
WARNING
DO NOT ignite burners if the black burner cap is not installed or not centered
on the burner spread; the flame will be irregular and may increase injury risk.
A
B
A
B
Correct
Incorrect
A
B
Correct Incorrect
Cooktop Operation
OPERATION
21
SURFACE BURNER KNOB FUNCTION
HI: Maximum Flame Height
LO: Minimum Flame Height
DUAL BURNER KNOB FUNCTION
HI: Maximum Flame Height
LO: Minimum Flame Height
SIM: Simmer Mode
• SDR series ranges feature special dual burners with a simmer setting (the SDR48 model
has two dual burners). Use the simmer setting for melting chocolate and butter, cooking
rice and delicate sauces, simmering soups and stews, and keeping cooked food hot.
• For other cooking options, simply adjust the flame on each knob between the maximum
and minimum options for other settings, as referenced below:
HEAT SETTINGS AND SIMPLE COOKING GUIDE
SIM
(Dual Burners Only)
Steaming rice, warming food, melting chocolate or butter.
LO Melting large quantities.
Low-medium
Low-temperature frying, simmering large quantities, heating milk,
cream sauces, gravies.
Medium
Sautéing and browning, braising, pan-frying, maintaining slow boil
on large quantities.
Medium-Hi
High-temperature frying, pan boiling, maintaining slow boil on
large quantities.
HI
Boiling liquid quickly, deep frying. This also ignites the burners.
Cooktop Operation
OPERATION
22
Surface Burners
OPERATION
SURFACE BURNER FLAME SIZE
• When adjusting burner knobs, do so slowly until reaching your preferred flame size.
• Cooktop flames should be steady and the color should always be blue, though flickers
of orange and yellow are acceptable.
• If flames appear orange/yellow and stay that way, check the surrounding area. Candles,
cleaning products, and other changes in atmosphere can affect flame color.
• If flame issues persist, and you had a professional technician conduct a liquid propane
gas conversion procedure, it may not have been performed properly. Check that all
orifices are correctly placed. If not, contact your installer. If using natural gas, contact
your local gas company to check for unforeseen issues.
WARNING
COMBUSTION SAFETY
• Gas appliances can cause minor exposure to several substances, namely benzene,
carbon monoxide, formaldehyde, and soot, caused primarily by the incomplete
combustion of natural gas fuel.
• Properly adjusted burners emitting clean blue flames will minimize incomplete combustion.
Exposure to those substances can be minimized by venting with an open window or use
of a ventilation fan or range hood above the unit.
WARNING
When using the cooktop for the first time, burners may not ignite right away.
Time is required for gas to fully fill the operating system. In this instance, do not
keep burner knobs pushed in for longer than a few seconds.
POWER FAILURE
• If gas does not ignite within four seconds, turn off the knob and allow at least five minutes
for any gas to dissipate. Repeat the lighting procedure outlined on page 20.
• If electricity or power fails in your home, surface burners can still be lighted manually if
necessary. Simply hold a lighted match near a burner and turn the knob counterclockwise
to the “HI” setting. After the burner lights, remove the lit match and turn the knob to the
preferred setting. The oven will not operate without electricity.
23
COOKTOP MAINTENANCE
• To prevent the appliance from discoloring or staining, clean cooktop after each use, and
wipe up acidic or sugary spills as soon as the appliance has cooled.
• The sealed burners of your appliance are not secured to the cooktop and are designed
to be removed. Boil overs or spills will not seep underneath the cooktop. The burners
should be cleaned after each use.
• Before maintenance and cleaning, disconnect the appliance and allow cooling down.
For reasons of hygiene and safety, this appliance must always be kept clean.
• Take care when using cleaning products in spray form: never direct the spray onto the
electrical wiring, thermostat, and bulb.
• Any food or liquid spills on the cooktop — or on the sides or bottom of the oven — must
be cleaned up before cooking in order to avoid unpleasant smoke and/or the possibility
of fire. See the “Care and Maintenance” section for more information.
WARNING
According to the U.S. Department of Agriculture: DO NOT hold foods at
temperatures between 40 °F to 140 °F (4 °C to 60 °C) more than 2 hours.
Cooking raw foods below 275 °F (135 °C) is not recommended.
BURNER GRATES
• The grates must be properly positioned before cooking. Improper installation of the
grates may result in scratching of the cooktop and poor combustion.
• Do not operate burners without appropriate pot/pans or cookware on the grates.
• Be sure to place cookware directly on the center of each grate in order to maximize
cooking efficiency; see below for more.
— 28 —
OPERATION
Cooktop Maintenance
24
GRIDDLE OPERATION (SDR48 SERIES)
• Before first use, clean the cast iron griddle thoroughly with warm, soapy water to remove
dust or any protective coating. Rinse with clean water and wipe off to dry with soft,
clean, lint-free cloth.
• Place the griddle vertically (front to back) on top of any of the four burner grates until
it slides into place; do not position the griddle horizontally (left to right) across multiple
burner grates.
• To ensure even heating of the griddle, turn on the rear and front burners.
WARNING
The surface of the griddle may be hot for several minutes after use. Please
allow sufficient time for the griddle to cool prior to moving and cleaning.
OVEN OPERATION

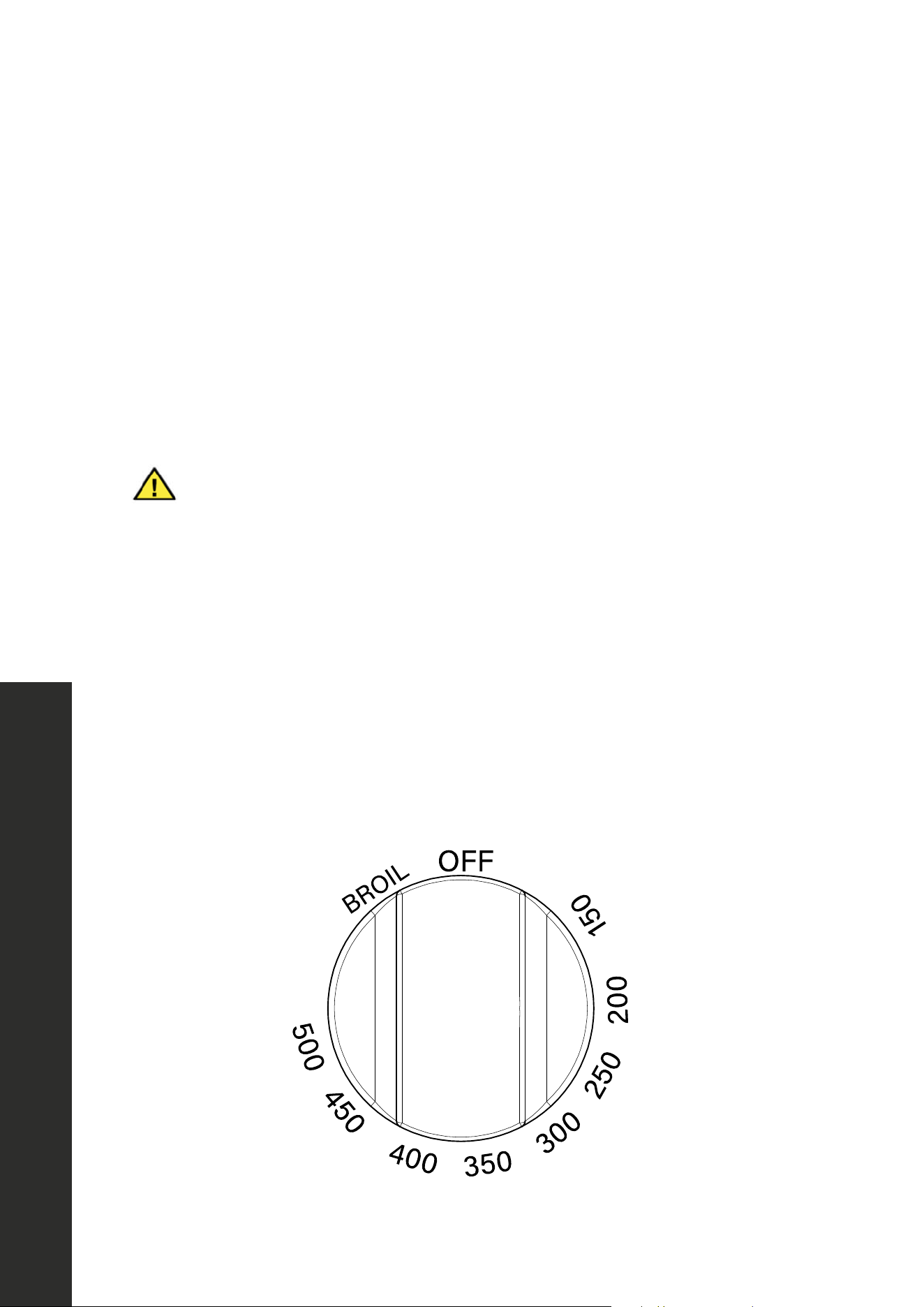

OVEN OPERATION (SDR30 AND SDR36 SERIES)
• To turn on the oven, push in the knob and turn counter-clockwise. Once the oven has
reached the desired temperature, the white indicator light next to the knob will turn off.
• To activate the Broil function, turn the knob clockwise to Broil. The white indicator light
will illuminate once activated.
• There is 1 knob for SDR30 and SDR36 series ranges, which features minimum and
maximum heat settings of 150°F to 500°F (65 °C to 260 °C), in addition to Broil.
Griddle Operation
OPERATION
25
OPERATION
OVEN OPERATION (SDR48 SERIES)
• There are 2 knobs for SDR48 series ranges, 1 each for the small and large ovens. The
maximum bake setting on the large oven is 500°F (65 °C), in addition to Broil. The
maximum bake setting on the small oven is 450 °F (230 °C), in addition to Broil.
• To turn on either oven, push in the knob and turn counter-clockwise. Once the oven has
reached the desired temperature, the white indicator light next to the knob will turn off.
• To activate the Broil function on either oven, turn the knob clockwise to Broil. The white
indicator light will illuminate once activated.

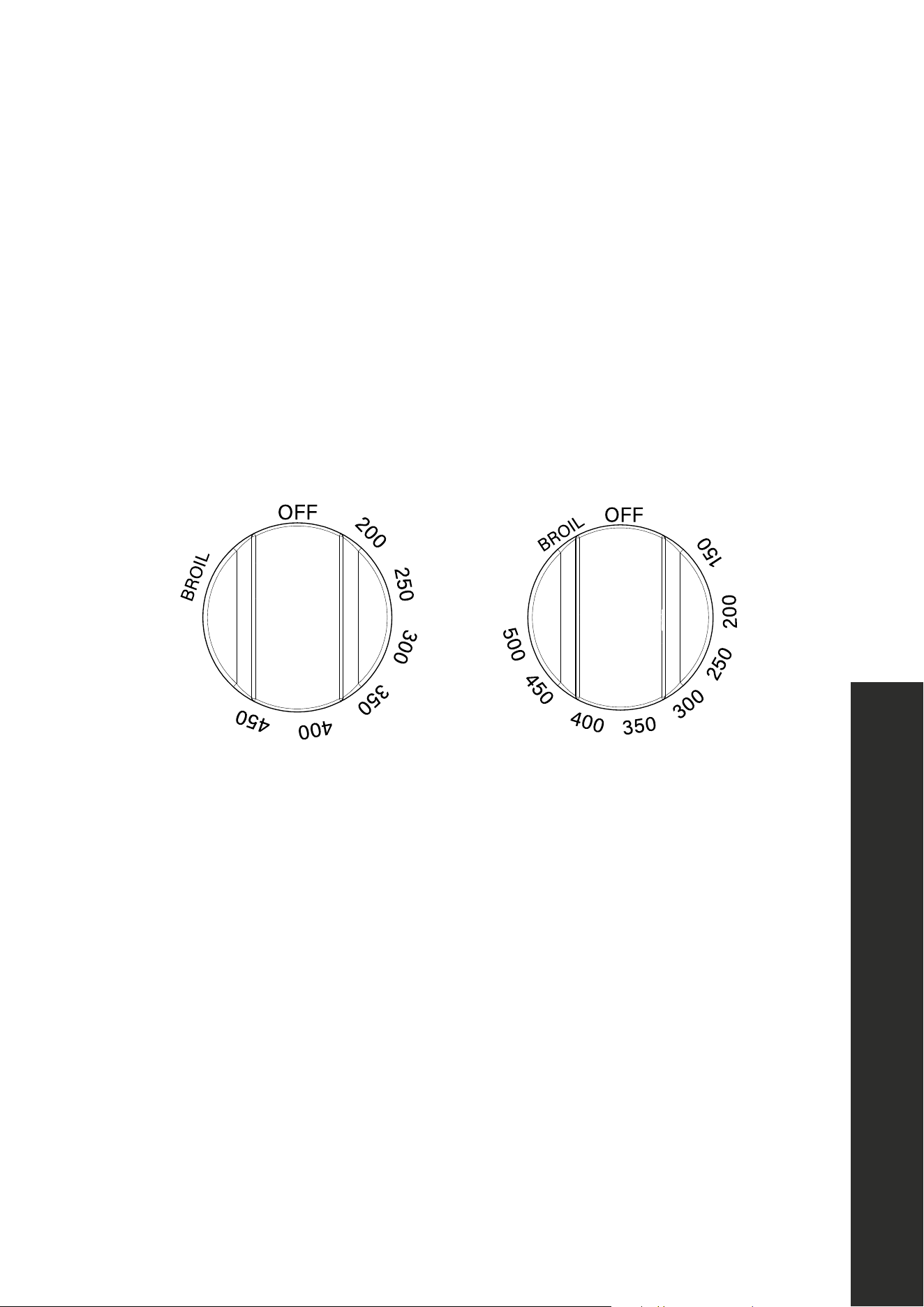

LARGE OVEN KNOBSMALL OVEN KNOB
OVEN VENTS
• The oven vent is located under the back splash on the back of the oven. Do not block the
ducts in the oven vent when cooking in the oven. It is important that the flow of hot air
from the oven and fresh air into the oven never be interrupted.
• Avoid touching the vent opening or nearby surfaces while the oven is on — they may
become hot, which increases the risk of injury.
• NOTE: It is normal for steam or moisture to dispel from the oven vent and collect on the
cooktop. This happens more often when baking foods that contain a lot of moisture.
Condensation is more common in colder months due to the cooktop being colder than
normal. Condensate water is a natural occurrence and is non-corrosive.
Oven Operation
26
Oven Features
OPERATION
WARNING
INTERIOR OVEN SAFETY
• Never cover any slots, holes, or passages in the oven bottom or cover entire oven racks
with materials such as aluminum foil. Doing so blocks air flow through the oven and may
increase emittance of carbon monoxide.
• Aluminum foil may also trap heat, causing a fire hazard. Do not use aluminum foil on any
porcelain surface within the oven wall. Doing so may irreparably damage the porcelain.
Use of aluminum foil on any part of the range may void the manufacturer’s warranty.
OVEN FUNCTIONS AND FEATURES
BAKE
• Natural airflow baking occurs when heat is transferred into the oven from the bake
elements located in the bottom of the oven cavity, below the drip pan. Heat is then
circulated by natural airflow. This is a traditional bake setting.
• To activate, turn the oven on and choose a temperature between 150 °F to 500 °F
(65 °C to 260 °C). For SDR48, the small oven max bake temp is 450 °F (230 °C).
• NOTE: It typically takes 12–25 minutes to preheat to the desired temperature.
• To achieve optimal baking results, ZLINE recommends waiting until the oven is fully
preheated before placing food inside.
CONVECTION BAKE
• Heat is transferred from the bake elements in the bottom of the oven. The convection fan
in the rear of the oven then circulates the hot air, allowing for more even heat distribution
over and around the food. Convection cooking is faster, can be accomplished at lower
temperatures, and provides more even temperatures than regular cooking.
• To activate, turn the oven on, choose a temperature, then press the Convection button on
the front of the oven.
• NOTE: The SDR48 small oven does not have a Convection fan.
• To achieve optimal convection baking results, ZLINE recommends waiting until the oven
is fully preheated before placing food inside.
27
Using the Broiler
OPERATION
BROIL
• When broiling, heat radiates downward from the top heating element for even coverage
and fast cooking. Use the broil function to cook tender cuts of meat or to quickly crisp
foods or brown the top of already-cooked dishes.
• NOTE: The oven door (both doors for SDR48) must be closed during broiling.
WARNING
Carefully monitor food being cooked under the broiler, as this function works
quickly and can burn food within only a few minutes.
TO ACTIVATE THE BROILER:
1. Place the food on an oven-safe baking sheet or broiler pan.
2. Arrange the top oven rack in the location you desired and place the pan on the rack. Be
sure to center the pan and position directly under the broil burner. If preheating the broil
burner first, place the pan after the broil burner is preheated.
3. Turn the knob clockwise to Broil; the white indicator light will illuminate.
PREHEATING AND OTHER BROILING TIPS
• Preheating is suggested when searing rare steaks and other meats. To preheat, turn the
oven knob to the “Broil” position. Wait for the burner to become hot, approximately 2
minutes. NOTE: Preheating is not necessary when broiling meat well-done.
• Remove oven pans or broiler pans from the oven before preheating the broiler, as foods
may stick on hot metal.
• The oven indicator light will remain on until the selector knob is turned to the OFF position
or the temperature control cycles off.
• Always pull the oven rack out to the “stop” position before turning or removing food.
• For optimal results, use a broiler pan (not provided) and insert together to allow dripping
grease to drain and be kept away from the high heat of the broiler.
• Broil temperature is 500 °F (65 °C).
WARNING
If you choose to use a broiler pan, DO NOT use one without the insert. DO NOT
cover the broil pan insert with foil. The exposed grease could catch fire.
28
Oven Operation
OPERATION
OVEN COOKING
1. Use care when opening the oven door(s). Let hot air or steam escape before removing
or placing food.
2. DO NOT heat unopened food containers. Pressure build-up may cause containers to
burst and result in injury.
3. Keep oven vent ducts unobstructed at all times.
OVEN RACK PLACEMENT
• Ranges are equipped with 2 commercial grade telescoping (sliding) racks. Racks are
mounted on the appropriate guides situated on the sides of the oven compartment. The
SDR48 small oven also comes with 2 telescoping racks.
• Insert the shelves between the top and bottom guide in any of the 5 positions available.
To do so, slide out the racks to their full extensions, and then lift them up and out of the
sliding mechanisms.
• Use care during this process, as the sliding mechanisms may have sharp edges.
• Always place racks in the desired location while the oven is cool.
• When touching and sliding out oven racks to check on hot food, DO NOT let potholders
or oven mitts make contact with heating elements inside the oven.
• SDR30, SDR36, and SDR48 large oven racks are designed to support a minimum of 25
lb (11 kg). SDR48 small oven racks can support at least 15 lb (7 kg).
WARNING
Users should use caution with heavier food loads than those outlined above to
limit risk of injury and/or damage to your range.
29
Oven Operation
OPERATION
WARNING
HEATING ELEMENT AND DOOR SAFETY
• DO NOT CLEAN DOOR GASKETS. The door gasket is essential for a good seal. Care
should be taken not to rub, damage, or move the gasket.
• DO NOT USE ABRASIVE OVEN CLEANERS. No commercial oven cleaner or liner
protective coating of any kind should be used in or around any part of the oven. Clean
only the parts listed in the manual; before cleaning the oven, remove oven racks and
clean separately.
• DO NOT TOUCH HEATING ELEMENTS OR INTERIOR SURFACE OF OVEN. Heating
elements may be hot even though they are dark in color. Interior surfaces of an oven
become hot enough to cause burns.
• In case of electric power failure, reset the oven knob controls to the OFF position and do
not attempt to use oven/ broiler until the power has been restored.
• During and after use, do not touch or let clothing or other flammable materials come
into contact with the heating elements or interior surfaces of the oven until they have had
sufficient time to cool.
• Other surfaces of the appliance may become hot enough to cause burns, such as oven
vent openings and surfaces near these openings, oven doors, and oven glass window.
• Take care to reset all cooktop/oven/broiler burner controls to the OFF position after use
of the appliance.
• It is normal for moisture to form between the oven door’s two glass panels, especially
when cooking or baking foods with a lot of moisture. The range is designed with vents
between the panes of glass; any moisture should dissipate within 12–24 hours.
• When using the range for the first time you may notice the following:
• There may be an odor. This is quite normal when the oven is first heated as residual
oil from production of parts will be burnt off quickly.
• There may be noises. This is also quite normal as new parts move and settle into
place during the initial heating process.
30
Changing the Oven Door
CARE AND MAINTENANCE

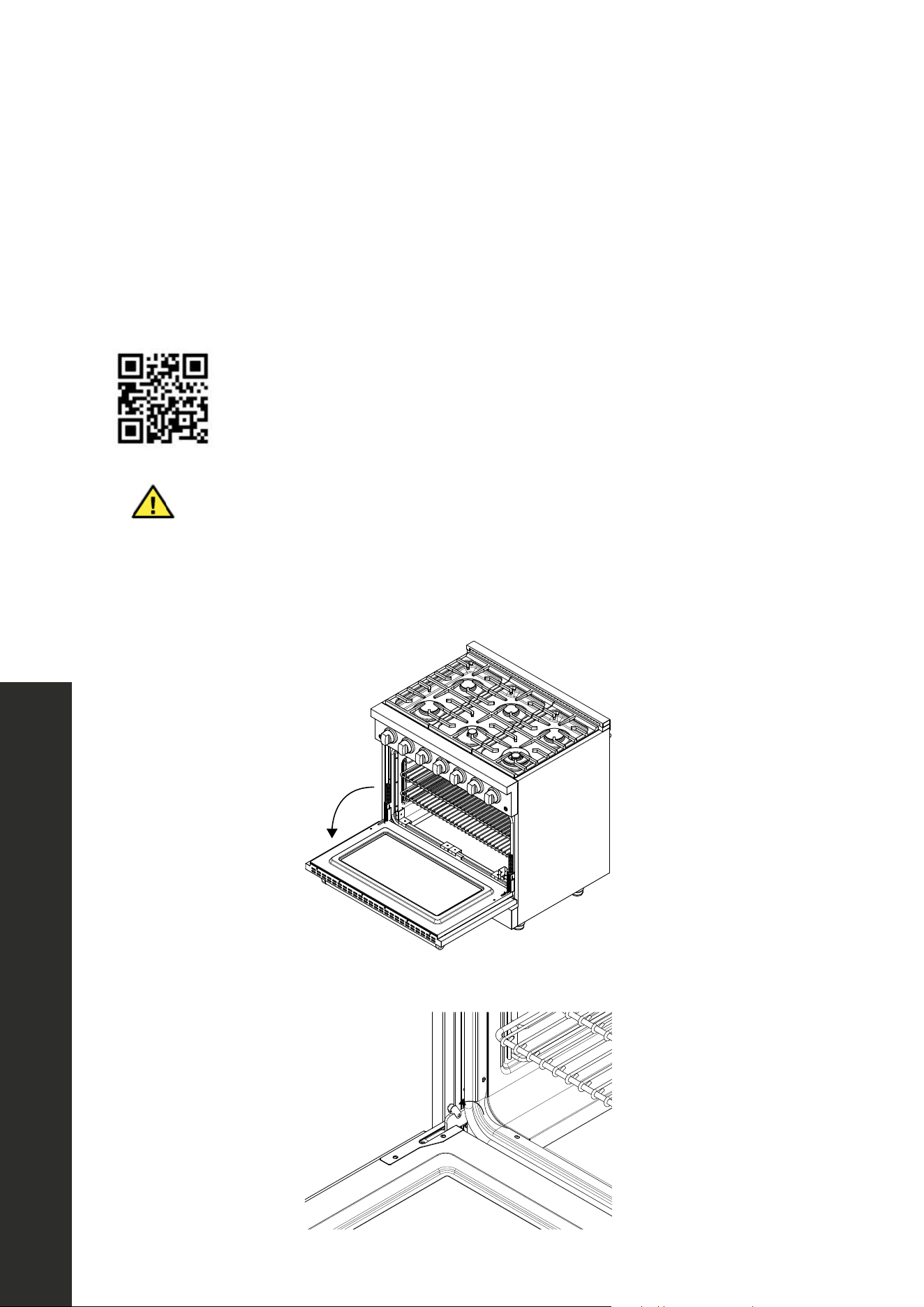

REMOVING THE OVEN DOOR AND KICK PLATE
You can change the color and look of your range by changing the oven door. For normal
range use, it is not recommended to remove the door. Make sure the oven is turned off
and cool when replacing the door. NOTE: The process below references an SDR36 series
range; the process is the same for SDR30 and SDR48 models
Scan to follow along with a video.
WARNING
Be careful when removing and lifting up the door, as it is quite heavy. Use a
helper if needed. DO NOT lift the door by the handle. Doing so may cause
damage to the range that is not covered under the manufacturer’s warranty.
1. Open the door completely.
2. Lift up and pull the small levers located on the two hinges all the way back to unlock.
31
Changing the Oven Door
CARE AND MAINTENANCE

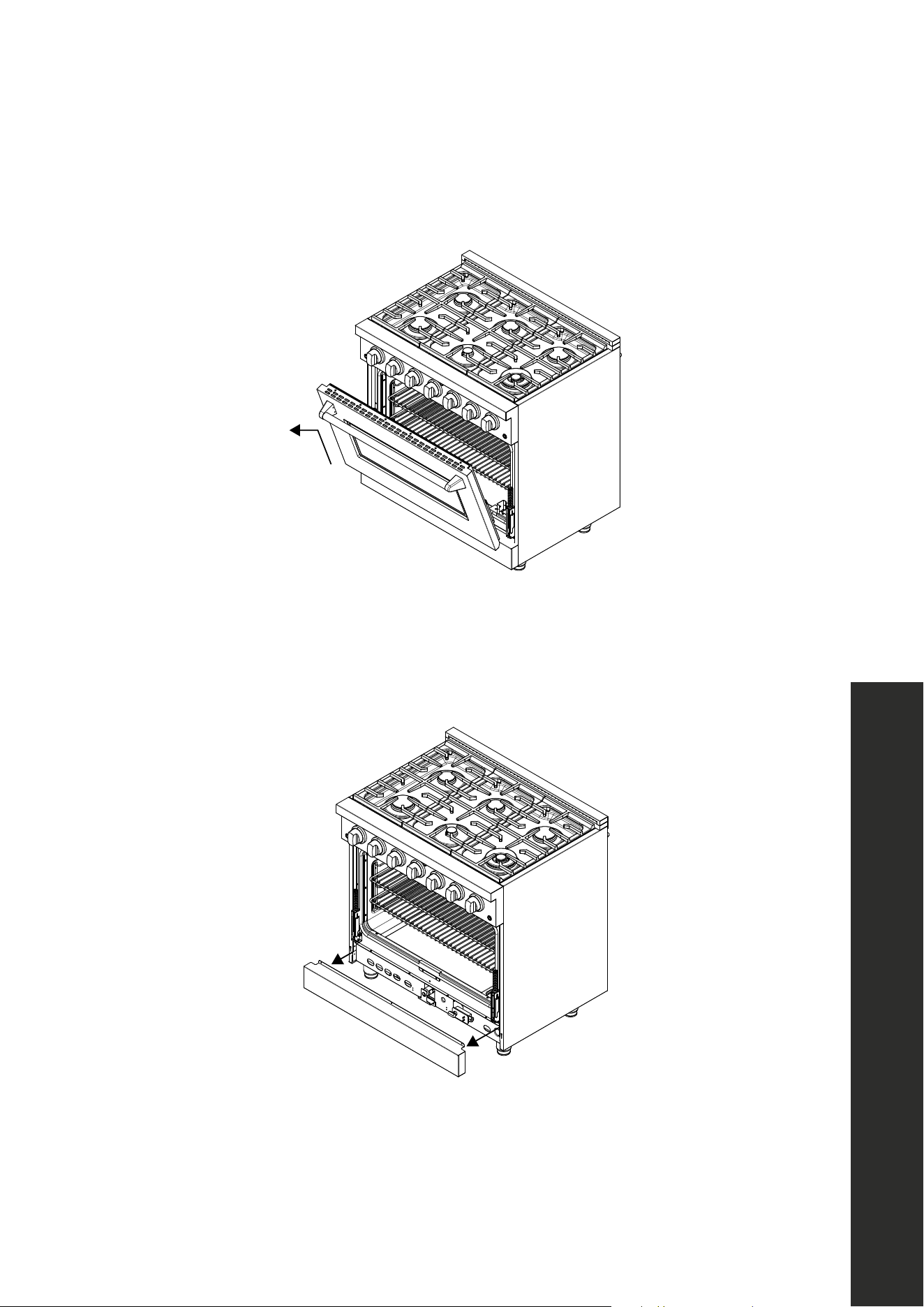

3. Swing the open oven door close until the unlocked levers make contact with the oven
frame. The door should be roughly 4" (102 mm) from being completely closed.
4. Lift the door up and pull it toward you, releasing it from the hinge receivers, as outlined in
the image above. The door will gently detach from the oven. If the door does not easily
detach from the oven, do not apply force. Make sure the levers are unlocked. To install
a new door, follow the reverse of steps 14.
5. Remove the kick plate by unscrewing 3 screws securing it to the oven — 2 on each side
of the top lip and 1 in the middle, as shown above. Then, lift up and pull out of the holes
on each side to remove the kick plate. To install a new kick plate, position the kick plate
into the holes on each side of the range and then replace the same 3 screws.
32
Replacing the Oven Lights
CARE AND MAINTENANCE
REPLACING THE OVEN LIGHTS
WARNING
To prevent electrical shock or injury, make sure the oven and light bulbs are cool
and power to the oven has been turned off before replacing light bulbs.

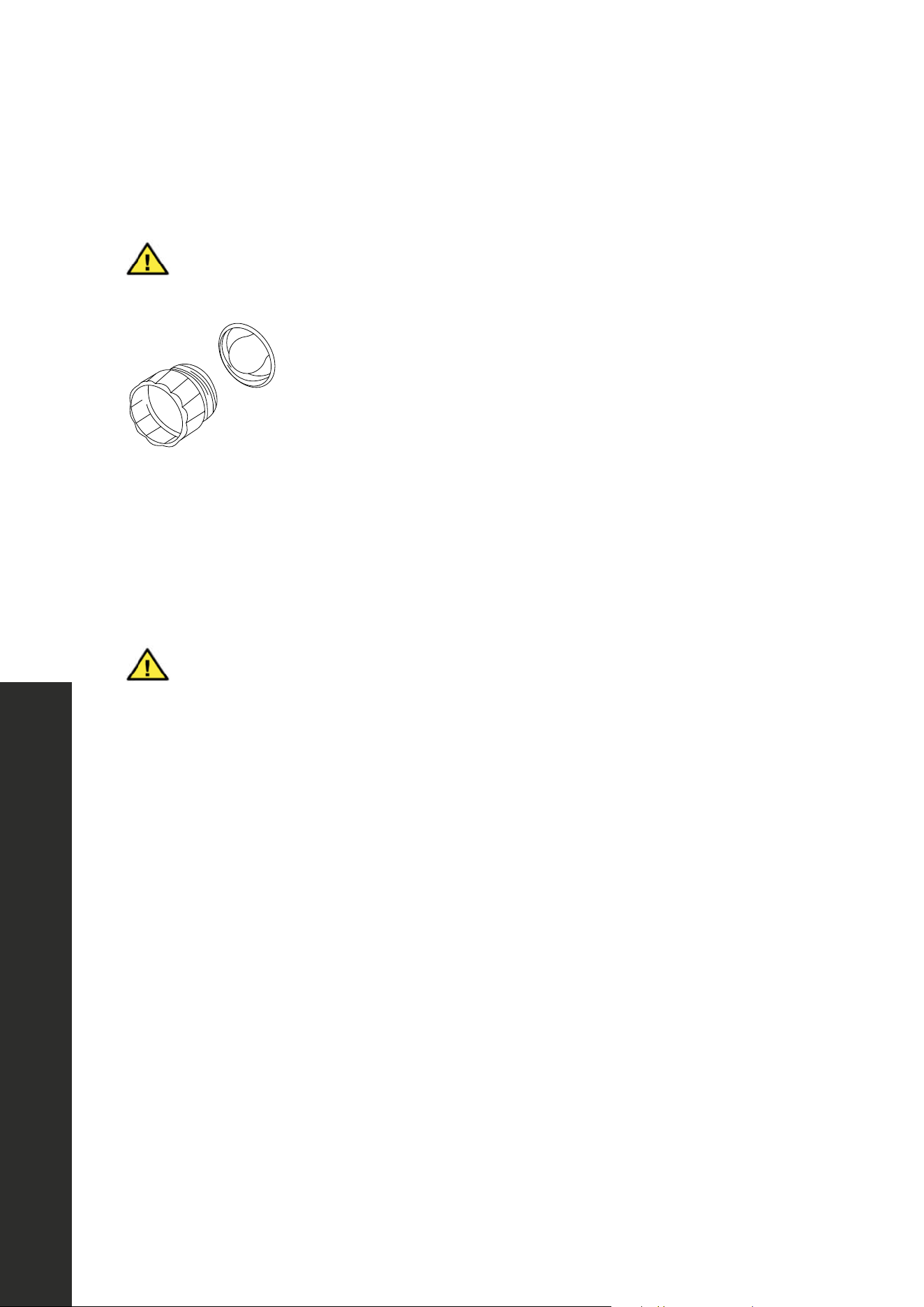

To replace the G9 halogen light bulbs (2) located at the upper left
and right corners of the SDR30, SDR36, and SDR48 large oven,
unscrew the protection cap that projects out inside the oven. The
SDR48 small oven has 1 bulb.
NOTE: Touching bulbs with your fingers may cause them to burn out. We recommend using
protective gloves or a clean cloth for this process.
CLEANING YOUR RANGE
WARNING
Do not attempt any of the following cleaning methods until all burners are off
and the oven is completely cool. We also recommend disconnecting power
before cleaning the unit to limit risk of electric shock.
IMPORTANT: During cleaning, never use abrasive cleaners. Scratches on the stainless steel
surfaces are permanent. DO NOT clean the range when hot. Do not use Clorox bleach or
alcohol wipes to clean stainless steel. Always follow label instructions on cleaning products.
CONTROL KNOBS
• Use a damp soapy cloth for everyday cleaning of the knobs. For heavier cleaning for
grease, etc., apply a nonabrasive liquid detergent to a damp cloth.
• Use care not to rotate the knobs when cleaning to avoid the release of gas.
• For hard-to-reach stains, you can remove knobs by gripping them and carefully pulling
them straight out. Clean and dry knobs completely before replacing, using care to put
knobs on the correct valves where they were removed.
• Make sure knobs are completely dry before using the range.
33
Cleaning Your Range
CARE AND MAINTENANCE
BURNER GRATES
• Cast iron grates should only be used in their proper positions. DO NOT operate a burner
for an extended period of time without cookware on the grate.
• Make sure grates are completely cool, then clean with hot water or white vinegar. DO
NOT place in a dishwasher.
• When replacing grates, be sure they are positioned securely over the burners.
• Note that grates have rubber pads on the feet that come into contact with the appliance
to avoid scratches. After cleaning, verify the rubber pads are still there. Should they
come off, they can be reapplied using a heat-resistant adhesive.
CAST IRON GRIDDLE (SDR48 MODEL ONLY)
• Regularly seasoning the griddle is recommended for optimal use.
• To clean, make sure the griddle is completely cool, then clean with hot water or white
vinegar. DO NOT place in a dishwasher. Re-season as necessary.
BURNER CAPS
• Lift off when fully cool. Wash burner caps in hot, soapy water and rinse with clean
water. To remove burned-on food particles, gently scrub with a plastic scouring pad.
Thoroughly dry before returning the caps to the appliance.
• Do not use cleaners for stainless steel surfaces as these caps are not stainless steel.
BURNER SPREADS
• Lift off when fully cool. Wash in hot, soapy water and rinse with clean water. Remove
food or debris between burner slots using a small non-abrasive brush like a toothbrush.
• We recommend cleaning the burner slots routinely with a small gauge wire or needle
and especially after bad spillovers that could clog these holes.
• Burner spreads and burner caps are NOT dishwasher safe.
STAINLESS STEEL
• To clean the stainless steel surface of the range, use warm sudsy water or a stainless steel
cleaner or polish. Always wipe the surface in the direction of the grain. Follow product
label instructions for cleaning stainless steel.
• DO NOT use a steel wool pad as it will scratch the surface. Do not use cleaners with
chlorides or chlorines. Do not use harsh scrubbing cleaners.
• Use a clean, hot, damp cloth to remove soap. Dry with a dry, clean cloth.
34
Cleaning
CARE AND MAINTENANCE
DOOR HANDLE
• Clean with a warm soap and water solution; dry with a soft, lint-free cloth.
• Do not use abrasive cleaners or scrubbers; they will permanently damage the finish.
OVEN GLASS
• Clean all glass surfaces with a warm soap and water solution. Use a mild glass cleaner
to remove fingerprint or smears. Dry with a soft, lint-free cloth.
PORCELAIN SURFACES
• Clean the cooktop, oven interior, the drip pan at the bottom of the oven, and inner door
liners with a warm soap and water solution. Rinse and dry with a soft cloth. Never use
abrasive powders or liquids. Do not leave acid or alkaline substances on the porcelain
parts (such as vinegar, lemon juice, salt, tomato sauce, etc). Use a rubber spatula to
remove food and fat residues.
OVEN RACKS
• Clean oven racks with a warm soap and water solution. To clean heavy soil, use a
scouring pad such as steel wool with plenty of water.
OVEN FRAME
• Clean with hot water, soap-filled steel-wool pads, or kitchen-safe cleaners. Rinse well
with clean water and dry. DO NOT clean the gasket. The fiberglass material of the oven
door gasket cannot withstand abrasion. It’s imperative the gasket remains intact.
OVEN DOOR
• Use soap and water to thoroughly clean the top, sides, and front of the door. Rinse
well. Use a glass cleaner to clean the glass on the outside of the door. Do not use oven
cleaners, cleansing powders, of harsh abrasives on the outside of the door.
• Do not allow excess water to run into any holes or slots in the door. Any soap left on the
liner causes additional stains when the oven is heated.
Acidic fluids such as tomato sauce or lemon juice should not be left on the
cooktop or oven interior for extended periods, as etching may occur. This type
of damage is not covered under the manufacturer’s warranty.
WARNING
35
TROUBLESHOOTING
SYMPTOM POSSIBLE CAUSE POSSIBLE SOLUTION
No ignition spark. Ignition module has failed.
If there is still no spark ignition,
the appliance burners can still be
used if needed. To light them:
1. Holding a lit match to the
flame spreader, push in on
the control knob and turn
counterclockwise to HI.
2. When the flame is burning all
the way round the burner, you
may adjust the heat.
Contact ZLINE customer service.
Igniters spark
continuously after
flame ignition.
Power supply polarity
is reversed.
Contact ZLINE customer service.
Igniters are wet or dirty. Dry or clean igniters.
Burners will not light.
Burner parts or igniters may
be wet, dirty, or misaligned.
Check that the burner
parts are clean, dry, and
correctly assembled.
Spark tip igniters may be
damaged or dirty.
Check that the igniters are clean
and not damaged.
• Please review this list for common troubleshooting tips before calling for service, as this
may save you time and money.
• This list contains frequently encountered problems that are not results of faulty workmanship
or material use.
• Your product may not have some of the features described here.
If a problem cannot be resolved after following the instructions in the
manuals, please contact ZLINE Customer Experience at 1-614-777-5004.
Never attempt to repair or disassemble gas lines, burner spreads, or the
internal electrical wiring of your range.
WARNING
Troubleshooting
36
TROUBLESHOOTING
SYMPTOM POSSIBLE CAUSE POSSIBLE SOLUTION
Igniters are sparking
but burners are
not igniting.
Gas shut-off valve is in the
“OFF” position.
Turn shut-off valve to the
“ON” position.
Cooktop burners
will not stay lit and
auto reignition is
not working.
Spark tip or igniter failure. Contact ZLINE customer service.
The flames have
suddenly gone out.
A draft or spill has
extinguished the flame.
Turn the burners off, cleaning the
burners and cooktop area. Once
clean, reignite top burners.
Burner flame goes out
at low setting
Low gas pressure. Contact gas company.
Air intake holes around
burners are obstructed.
Remove obstruction from air
intake holes.
Low flame adjustment may
be set too low.
Readjust.
Top burners do
not light or do not
burn evenly.
Plug on appliance is not
completely inserted in the
electrical outlet.
Make sure the unit is properly
connected to the power supply.
Burner holes on the side of
the burner may be clogged.
Remove the burner heads
and clean them. Check the
electrode area for burned-on
food or grease.
Troubleshooting
37
Troubleshooting
TROUBLESHOOTING
SYMPTOM POSSIBLE CAUSE POSSIBLE SOLUTION
Burner flames are very
large and yellow.
Burner spread ports
are clogged.
Clean burner spread ports
with straightened paperclip,
needle, or wire.
Burner spreads or caps are
not positioned properly.
Remove and carefully re-install
burner spreads and caps.
Appliance is being operated
with the wrong type of gas.
Ensure that the type of appliance
matches the gas supply.
Regulator is not installed, is
faulty, or is set for the wrong
type of gas.
Have a qualified technician
replace regulator or set regulator
for proper gas.
Brass burners change
color (if you purchased
brass burners for
your range top)
Brass burners naturally
oxidize over time and form
a patina that is a beautiful
deep brass hue. This process
ensures our brass burners
are corrosion resistant and is
not cause for a return.
This is a normal occurrence for
brass burners; no troubleshooting
is required.
“Cracking” or
“popping” sound
is heard coming
from appliance.
This is the sound of metal
heating and cooling.
This is normal for oven operation.
Steam/condensation
is coming from the
back splash oven vent.
Cooking foods high in
moisture or if the ambient
temperature is cold.
Condensate water is a natural
occurrence and is non-corrosive.
Nothing works.
Power supply is
not energized.
Have an electrician check
the power supply, including
the house circuit breaker,
wiring and fuses.
Oven will not heat.
Oven settings are
not corrected.
Adjust temperature, or
rack position.
Foods over-cooked or
under-cooked.
Incorrect cooking
temperature.
Dry or clean igniters. If
problem persists, contact ZLINE
customer service.
WARRANTY
COVERAGE
ZLINE Kitchen and Bath (“ZLINE”) dual fuel ranges have a one year parts and service
warranty and a limited lifetime warranty on burners, which includes parts and labor for
spark tips.
ZLINE warranty periods begin from the original date of product delivery and solely cover
the original purchaser of the product, delivered new and in its original carton. The limited
warranty covers all parts and labor for necessary repairs if any part of the product, or
the product itself, proves to be defective in materials or workmanship. The product must
be deemed serviceable via troubleshooting with the ZLINE Customer Experience team. All
service on ZLINE products under warranty must be performed by ZLINE-approved and
ZLINE-certified service providers unless otherwise specified by ZLINE. Service will be
provided during normal business hours. Products must be unobstructed and accessible to
the service provider at the time of service. ZLINE’s liability is limited to the original purchase
price of the product. Additional injuries, losses, damages, or other inconveniences caused by
product malfunction or defects in materials are not covered under the terms of this warranty.
TERMS
ZLINE warranties apply only to the original purchaser of a ZLINE product installed for normal
residential use. This is defined as a single-family, residential dwelling in a non-commercial
setting. Any warranty claim stemming from installation, operation, or any other use within a
commercial setting is not covered under this limited warranty. Commercial settings include,
but are not limited to: schools, churches, hotels, restaurants, vacation rentals such as Airbnb,
daycare centers, private clubs, fire stations, common areas in multi-family dwellings, nursing
homes, food service locations, and institutional food service locations such as hospitals or
correctional facilities.
WARRANTY
This warranty is non-transferable and will not under any circumstance be extended based
on the date of installation — the warranty period takes effect from the date of delivery and
only covers the original purchaser. The warranty applies only to products installed in the
contiguous United States and the District of Columbia. Failure to secure certified warranty
service per these terms will result in a forfeiture of the remaining warranty. Out-of-pocket
payments will not be reimbursed unless prior approval is received from ZLINE and/or ZLINE-
certified service contract partners. Unapproved out-of-pocket payments for service will not
be reimbursed. All warranty procedures must be followed to maintain warranty coverage.
If a product qualifies within the service window provided under these warranty terms, and
ZLINE is unable to repair the product or a defective part of the product after a reasonable
number of attempts, ZLINE reserves the right to offer to replace the defective part or the
product or provide the original purchaser a full refund of the purchase price of the product
(not including installation, removal, or other charges that were not included in the original
purchase price). The original purchaser of the product must provide the original proof of
purchase, including the purchase date, when filing a claim to obtain replacement parts,
service, or refunds. Additionally, the original purchaser of the product must provide the serial
number of the product when filing a claim to obtain replacement parts, service, or refunds.
This warranty shall not apply to any ZLINE product in which the original factory serial
number has been removed, altered, or cannot be readily determined for any reason. Further,
ZLINE is not responsible for damage resulting from, but not limited to: shipment, delivery, or
improper installation; negligence or improper maintenance, misuse, or abuse of the product;
unauthorized alteration, modification, or tampering with the product; accident, fire, floods,
pest infestations, pandemics, natural disasters, or any other unpreventable or unexplained
acts of nature, commonly referred to as “acts of God”; flare-up fires or damages caused
by improper electric supply, electrical line current, voltage, or power surges; and service
to correct installation not in accordance with the instructions contained in ZLINE’s product
manuals and/or with local government codes.
WARRANTY
This warranty does not apply to aesthetic damage, scratches, or natural wear caused by
normal use; second-hand, open box products, or products purchased from an unauthorized
retailer; improper liquid propane gas conversion or damage related to improper liquid
propane gas conversion; burner flame adjustments or related complaints; corrections
regarding normal adjustments or settings or local gas supply issues resulting in low pressure
or other issues; damages or issues stemming from alteration or tampering with the range,
including, but not limited to, painting any portion of the product’s interior or exterior and
cutting the supplied power cord to manually hardwire the product; and service for gas
pressure issues related to installation at high altitudes. A high-altitude pressure regulator
must be sourced by the customer.
In the event service is dispatched, and it is discovered that the reported issue is not covered
under warranty based on the disclaimers above, the customer will be responsible for all service
fees. Failure to pay these fees will result in the forfeiture of remaining warranty coverage.
Information contained within ZLINE’s installation and user manuals, in addition to product
information included on ZLINE’s website and all related digital listings, do not cover every
possible condition and situation that may occur during the installation or operation of
ZLINE products.
ZLINE reserves the right to make changes at any time to its products when considered safe,
necessary, and useful. Always check the ZLINE website for the most up-to-date version of its
product manuals: www.zlinekitchen.com/pages/manuals.
Do not install or operate any ZLINE product if it has missing or broken parts or if it arrives
damaged due to shipping. If ZLINE products arrive damaged, contact ZLINE Customer
Experience at 1-614-777-5004 for help. Failure to report a damaged appliance prior to
installation or operation may void the warranty.
ZLINE disclaims responsibility for damage or injury caused by improper installation or
use of any of its products. ZLINE is under no obligation, by law or otherwise, to provide
concessions, including repairs, prorates, rebates, discounts, or replacements, once the
warranty has expired.
WARRANTY

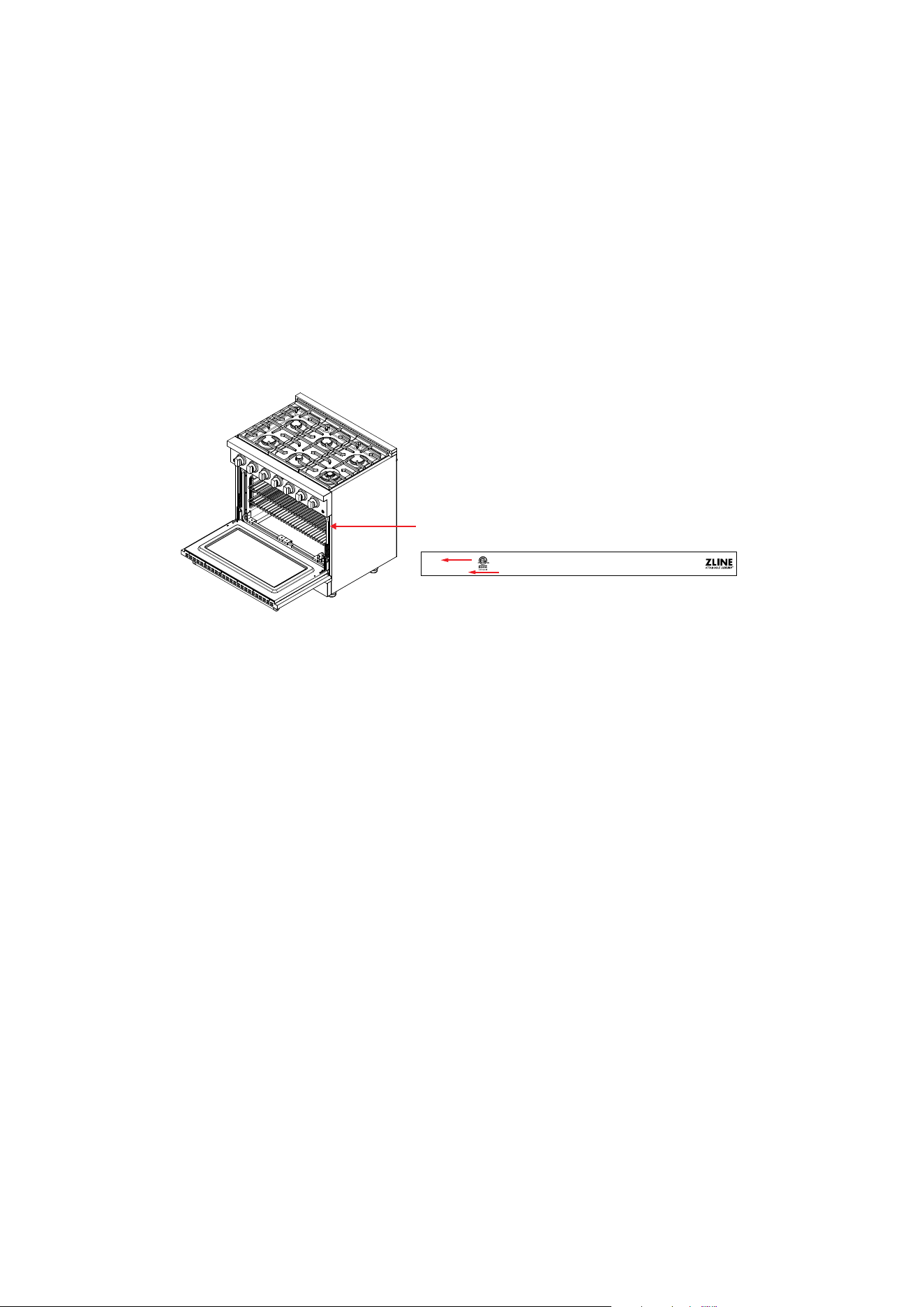

SERIAL NUMBER LOCATION
Please write down the model number (highlighted in the image below as the “SKU”) and
serial number of your appliance. Both numbers are located on the rating tag located on
the right front edge of your range. Do not remove permanently affixed labels, warnings, or
plates from the product. This will void the warranty. You may also consider attaching your
receipt or proof of purchase to this manual.
SKU: SDR30
Model No.: SDR30-A1
Date: May 2024
Serial No.: SDR30SE24050001-00
30" DUAL FUEL RANGE
This appliance can be used with Propane Gas and Natural Gas. It is
shipped from the factory adjusted for use with natural gas: Conversion
orifices are located in the conversion kit clam shell package. Follow the
propane conversion instructions located in the Installation Manual.
Conforms to:
Household Cooking Gas Appliances [CSA/ANSI Z21.1/CSA 1.1:2018 Ed.2+E2019]
Standard for Safety Household Electric Ranges [UL 858:2014 Ed. 16+R:02Aug2023]
Household Cooking Ranges (R2021) [CSA C22.2#61:2016 Ed.9+U1]
Appliance Tag
WARRANTY
SERVICE
For warranty service, please contact our Customer Service team at
1-614-777-5004 or visit www.zlinekitchen.com/contact to utilize our
online Customer Experience Portal.
Scan the QR code to view the most up-to-date version of our Installation
Manual and User Manual.
Need to purchase a part or accessory for your ZLINE product?
Visit www.zlineparts.com, ZLINE’s official parts distribution partner.
