www.gorenje.comwww.gorenje.com
EN
DETAILED
INSTRUCTIONS FOR USE
OF UPRIGHT
REFRIGERATOR AND
FREEZER
2
We thank you for the confidence you have shown by purchasing
our appliance which is designed to simplify your life. To make the use of the
product easier, we have supplied detailed instructions for use, and installation
instructions supplied on a separate sheet. The instructions should allow you to
learn about your new appliance as quickly as possible.
We wish you find a lot of pleasure in its use.
The appliance is intended solely for household use.
The refrigerator is intended for storing fresh food at temperatures above 0°C.
The freezer is intended for freezing fresh food and for long-term storage of
frozen food (up to one year, depending on the type of food).
Please visit our website where you can enter your appliance model number,
indicated on the rating plate or the warranty sheet, to find detailed description
of your appliance, tips on use, troubleshooting, service information, instructions
for use etc.
http://www.gorenje.com
Important safety warning
General information and tips
ii
Protecting the environment
!
Do not wash in the dishwasher
Link to the EU EPREL database
The QR code on the energy label supplied with the appliance provides a web
link to the registration of this appliance in the EU EPREL database. Keep
the energy label for reference together with the user manual and all other
documents provided with this appliance.
It is possible to find information related to the performance of the product
in the EU EPREL database using the link https://eprel.ec.europa.eu and the
model name and product number that you can find on the rating plate of the
appliance.
For more detailed information about the energy label, visit www.theenergylabel.eu.
3
CONTENTS
INTRODUCTION
APPLIANCE
DESCRIPTION
DEFROSTING
AND CLEANING
THE APPLIANCE
4 IMPORTANT NOTES AND PRECAUTIONS
4 BEFORE USING THE APPLIANCE FOR THE FIRST TIME
5 IMPORTANT SAFETY INSTRUCTIONS
8 IMPORTANT INFORMATION ON THE USE OF APPLIANCE
9 ENVIRONMENT PROTECTION
10 ADVICE FOR SAVING POWER WITH REFRIGERATION
APPLIANCES
11 INSTALLATION AND CONNECTION

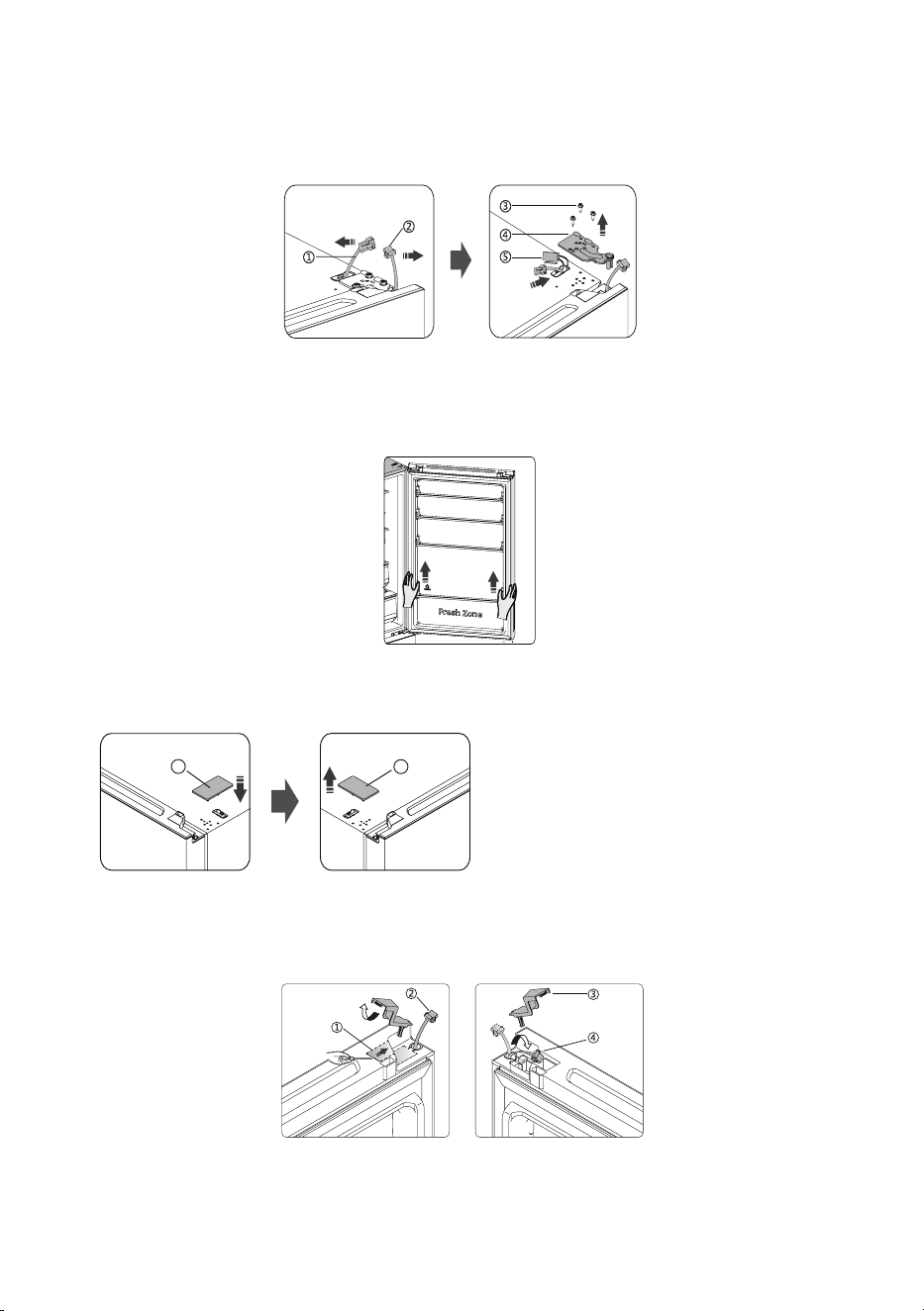

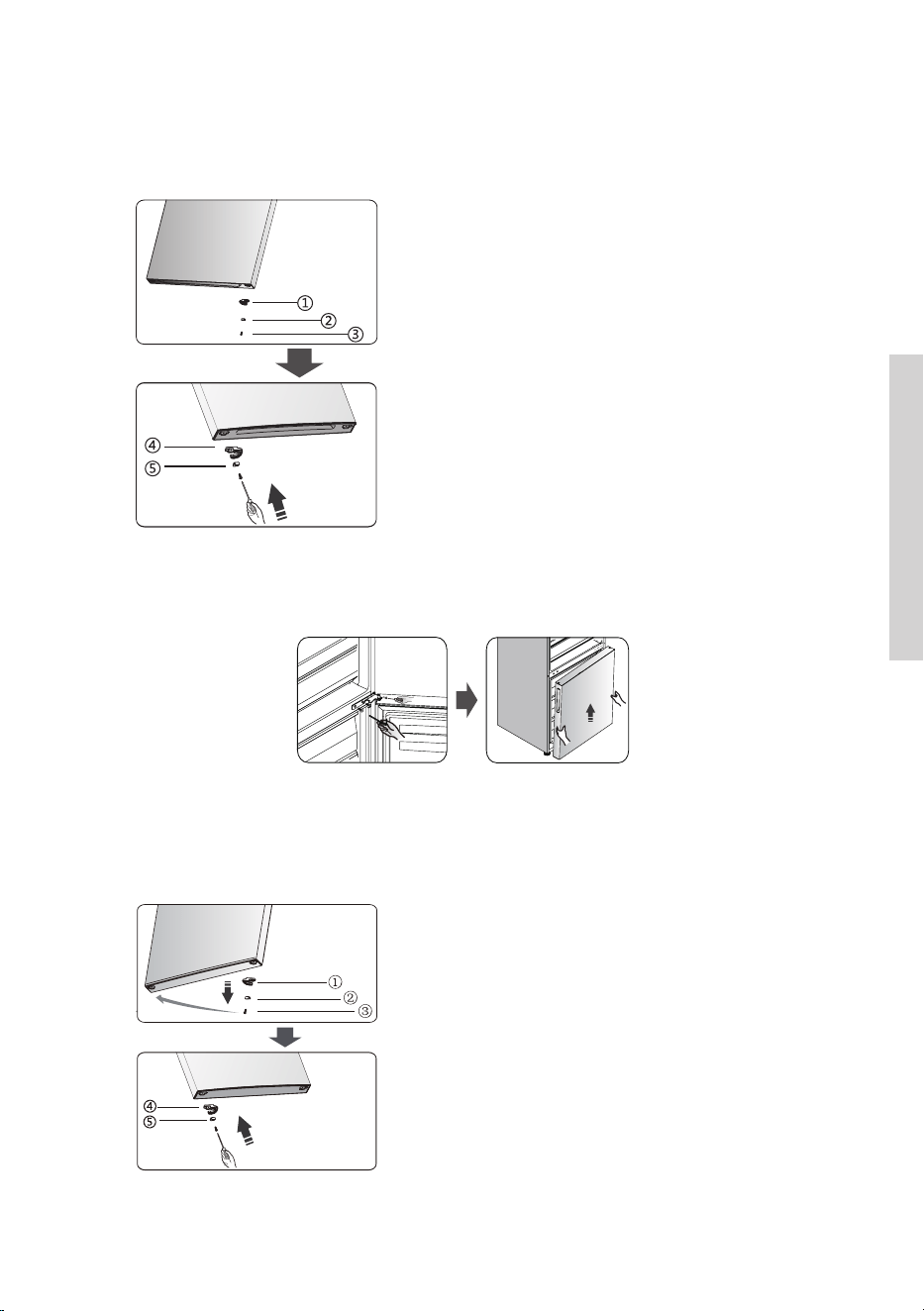

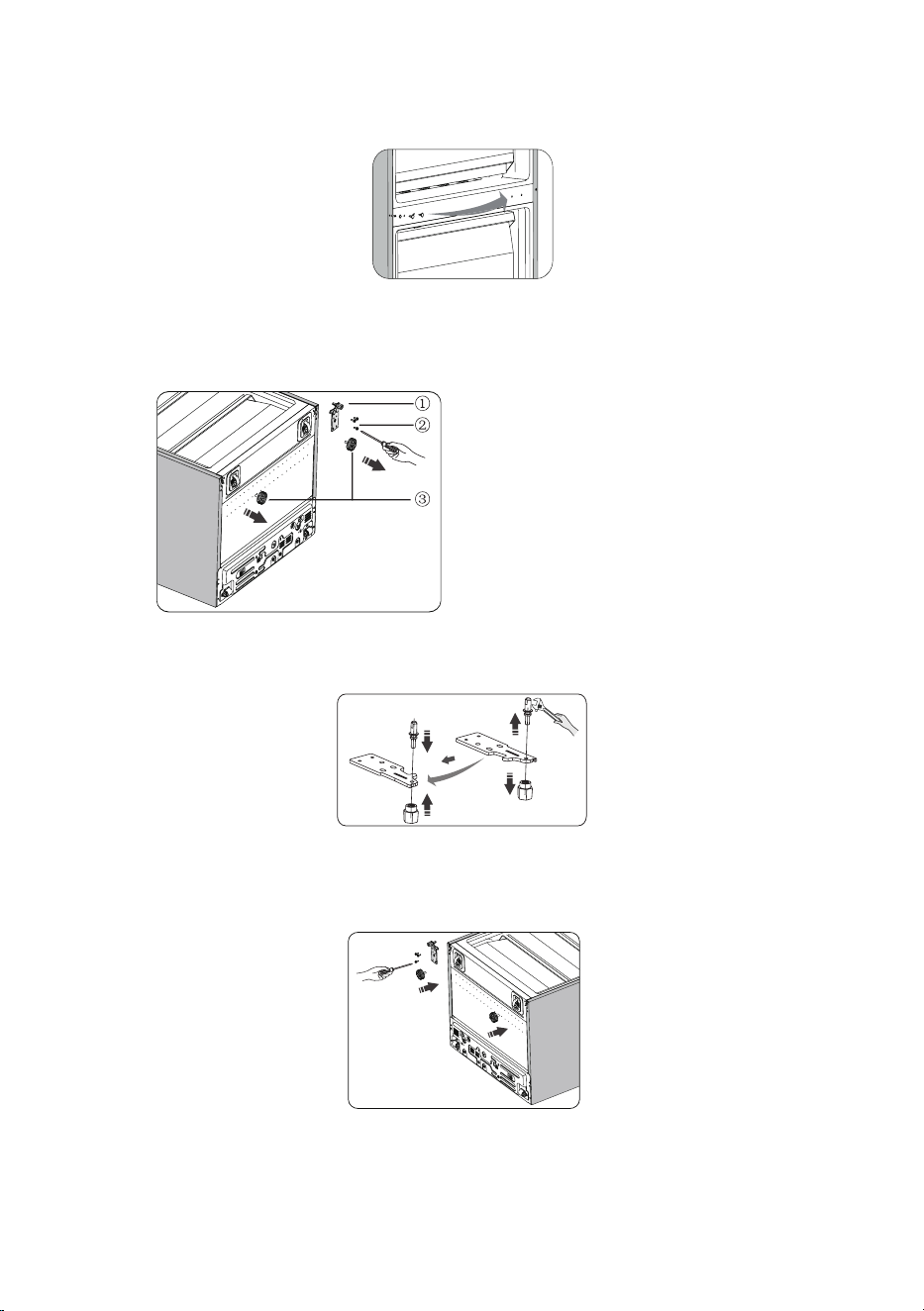

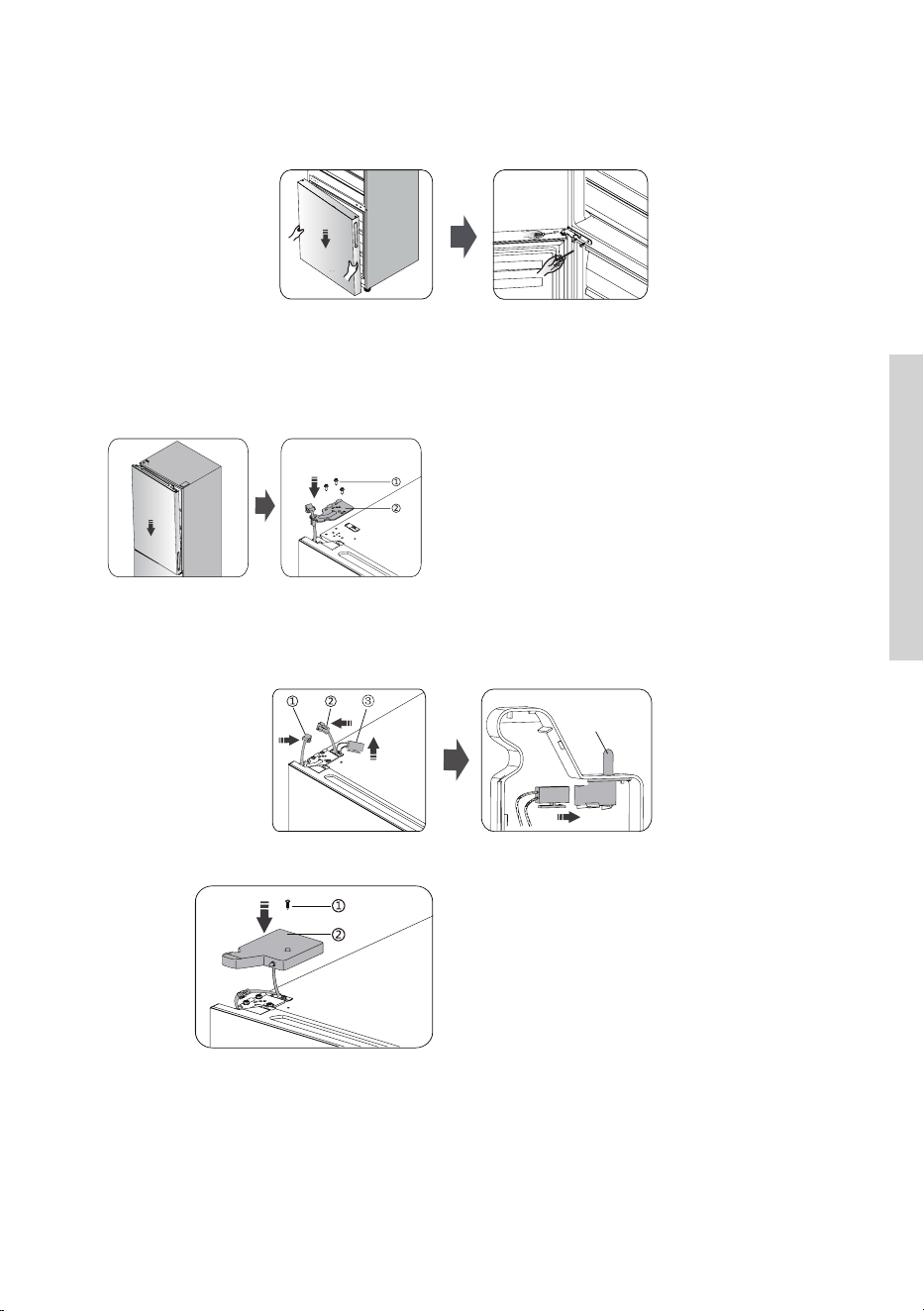

14 REVERSING THE DOOR OPENING DIRECTION
20 APPLIANCE DESCRIPTION
21 OPERATING THE APPLIANCE

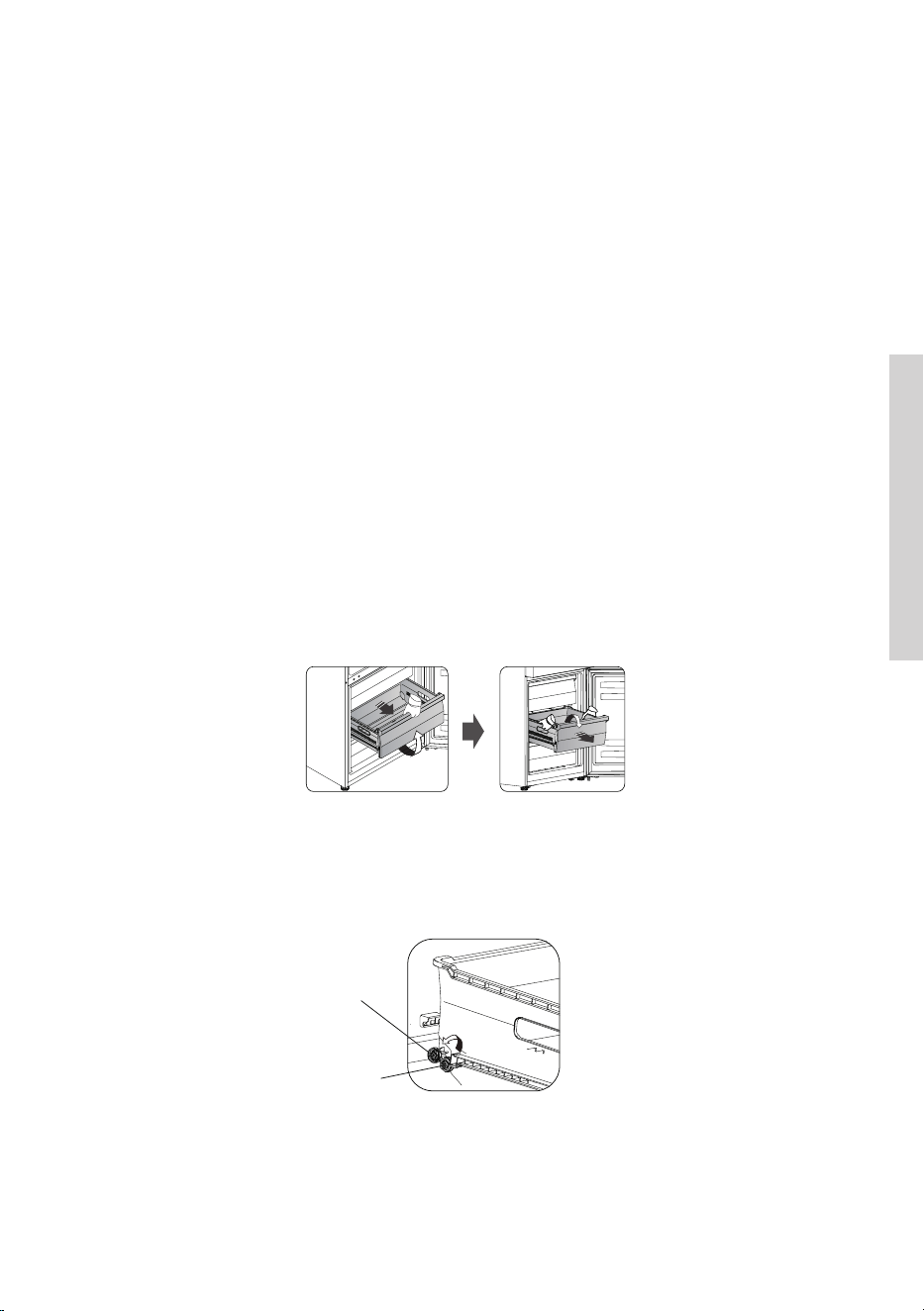

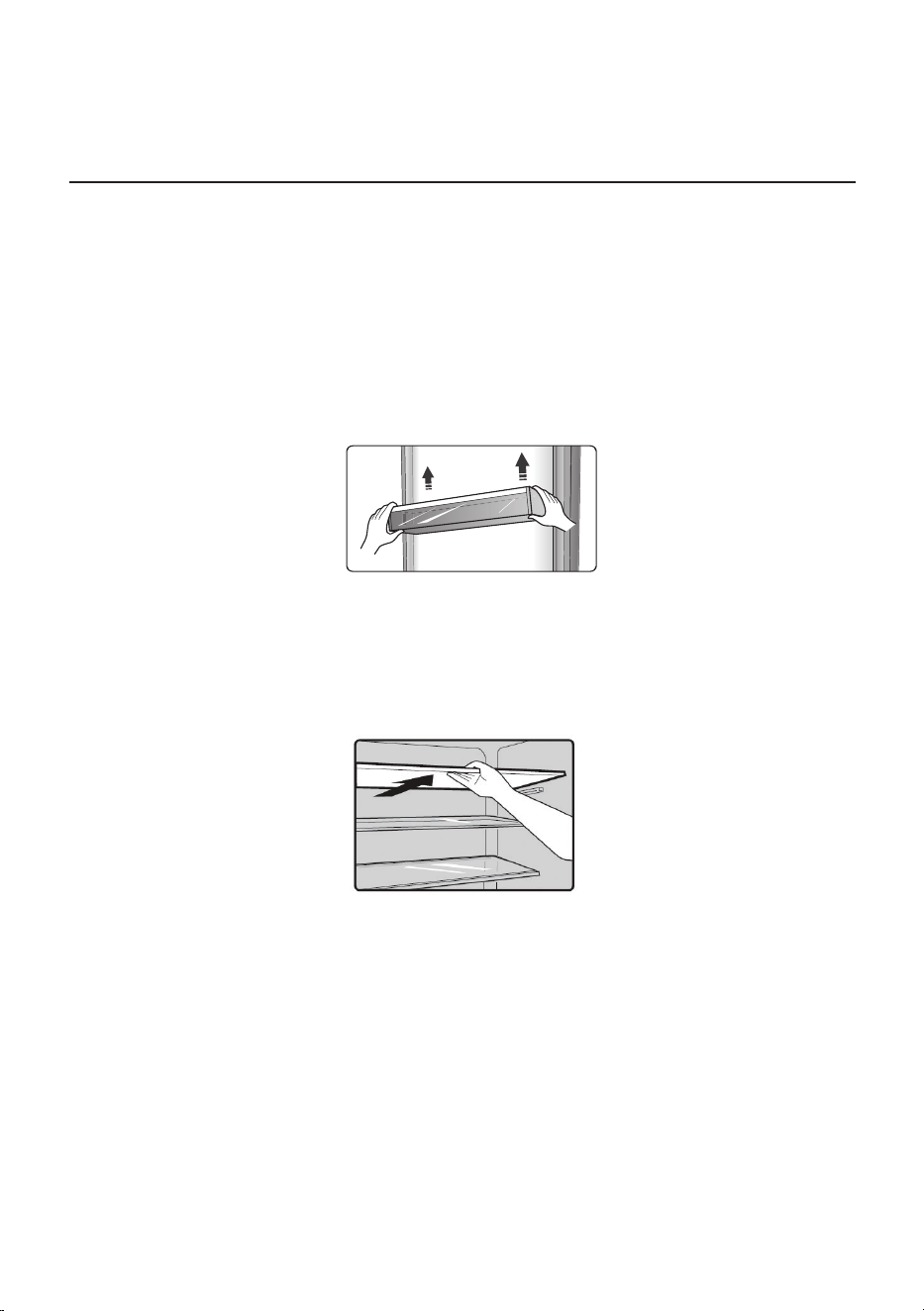

24 APPLIANCE INTERIOR EQUIPMENT
28 HELPFUL HINTS AND TIPS
30 CLEANING AND CARE
32 TROUBLESHOOTING
34 DISPOSAL OF THE APPLIANCE
MISCELLANEOUS
4
IMPORTANT NOTES AND
PRECAUTIONS
Before connecting the appliance to the power mains,
please read carefully the instructions for use which
describe the appliance and its correct and safe use.
The instructions apply to several appliance types/
models; thus, settings or equipment may be described
herein which is not available in your appliance. We
recommend saving this instruction manual for future
reference and attach it to the appliance if it is sold in
the future.
The instruction manual includes the NO FROST
version/model of the freezer which is fitted with a fan
and in which the defrosting process is automatic (only
with some models).
Check for any damage or irregularities on your
appliance. If you find your appliance is damaged,
notify the retailer from which you have purchased the
appliance.
Before connecting the appliance to the power mains,
let the appliance rest in a vertical position for a
minimum of 2 hours. This will reduce the possibility of
operation faults due to the effect of transport on the
cooling system.
BEFORE USING THE APPLIANCE FOR
THE FIRST TIME
ii
5
The appliance must be connected to the power
mains and grounded in compliance with the effective
standards and regulations.
WARNING! Do not locate multiple portable socket-
outlets or portable power supplies at the rear of the
appliance.
Before cleaning the appliance, unplug it from the
power mains (unplug the power cord from the wall
outlet).
WARNING! If the supply cord is damaged, it must be
replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
WARNING! When positioning the appliance, ensure the
supply cord is not trapped or damaged.
If LED lighting does not work, call a service technician.
Do not attempt a repair of the LED lighting yourself, as
there is danger of contact with high voltage!
IMPORTANT SAFETY INSTRUCTIONS
!
WARNING! Do not use electrical appliances inside
the food storage compartments of the appliance,
unless they are of the type recommended by the
manufacturer.
WARNING! Do not use mechanical devices or other
means to accelerate the defrosting process, other
than those recommended by the manufacturer.
WARNING! To avoid any hazard resulting from poor
stability of the appliance, make sure it is installed as
instructed.
!
!
!
WARNING! Risk of fire/flammable materials.
6
Danger of frostbite
Never put frozen food in your mouth and avoid
touching frozen food as this may cause frostnip or
frostbite.
Safety of children and vulnerable persons
The appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person
responsible for their safety.
Children should be supervised to ensure that they do
not play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.
Remove the packaging intended to protect the
appliance or particular parts during transport and keep
it outside the reach of children.
It presents danger of injury or suffocation.
When removing a used appliance, disconnect the
power cord, remove the door, and leave the shelves in
the appliance. This will prevent children from locking
themselves in the appliance.
For European markets only
This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
7
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.
Children aged from 3 to 8 years are allowed to load
and unload refrigerating appliances.
Warning regarding the refrigerant
The appliance contains a small amount of an
environmentally friendly yet flammable gas R600a.
Make sure that no parts of the cooling system
are damaged. A gas leak is not hazardous to the
environment, but it could cause eye injury or fire.
In case of a gas leak, ventilate the room thoroughly,
disconnect the appliance from the power mains, and
call a service technician.
8
The appliance may not be used outdoors and it may
not be exposed to rain.
Do not store explosive substances such as aerosol cans
with a flammable propellant in this appliance.
If the appliance will be out of use for an extended
period of time, switch it off using the relevant button,
and unplug it from the power mains. Empty the
appliance, defrost it, clean it, and leave the door ajar.
In case of an error or power supply failure, do not
open the freezer compartment unless the freezer has
not operated for over 16 hours. After this period, use
the frozen food or provide sufficient cooling (e.g. a
replacement appliance).
IMPORTANT INFORMATION ON THE USE
OF APPLIANCE
WARNING! Keep ventilation openings, in the
appliance enclosure or in the built-in structure, clear
of obstruction.
WARNING! This appliance is intended to be used in
household and similar applications such as:
– staff kitchen areas in shops, offices and other working
environments;
- farm houses and by clients in hotels, motels and other
residential type environments;
- bed and breakfast type environments;
- catering and similar non-retail applications.
ii
9
The symbol on the product or its packaging indicates that the product
should not be treated as normal household waste. The product should be
taken to an authorized collection centre for waste electric and electronic
equipment processing. Correct disposal of the product will help prevent
any negative effects on the environment and health of people which could
occur in case of incorrect product removal. For detailed information on
removal and processing of the product, please contact the relevant municipal
body in charge of waste management, your waste disposal service, or the
store where you bought the product.
Packaging is made of environmentally friendly materials
that can be recycled, disposed of, or destroyed without
any hazard to the environment.
!
Removing an obsolete appliance
To protect the environment, take the obsolete
appliance to an authorized home appliance collection
centre.
Before doing so, do the following:
• disconnect the appliance from the power mains;
• do not allow children to play with the appliance.
ENVIRONMENT PROTECTION
WARNING! Do not damage the refrigerant circuit.
This will also prevent pollution.
Technical information on the appliance
Rating plate can be found in the appliance interior. It
indicates data on voltage, gross and net volume, type
and amount of refrigerant, and information on the
climate classes.
If the language on the rating plate is not the language
of your choice or the language of your country, replace
it with the one supplied.
ii
10
ADVICE FOR SAVING POWER
WITH REFRIGERATION
APPLIANCES
• Install the appliance as specified in the instruction manual.
• Do not open the door more often than necessary.
• Occasionally make sure air circulation underneath the appliance is
unobstructed.
• If the gasket is damaged or does not provide a perfect seal for any reason,
have it replaced as soon as possible.
• Store the food in tightly sealed containers or appropriate packaging.
• Before placing the food in the refrigerator, allow it to cool down to room
temperature.
• Defrost frozen food in the refrigerator compartment.
• To make use of the entire freezer compartment interior volume, remove some
of the drawers as described in the instruction manual.
• Defrost your conventional freezer when an approximately 3–5 millimetre layer
of frost or ice has built up on the refrigerated surfaces.
• Make sure the layout of shelves in the compartment is uniform and that
the food is placed so that the air can freely circulate in the appliance
interior (observe the recommended placement of food as described in the
instructions).
• In appliances with a fan, do not block the fan slots or vents.
11

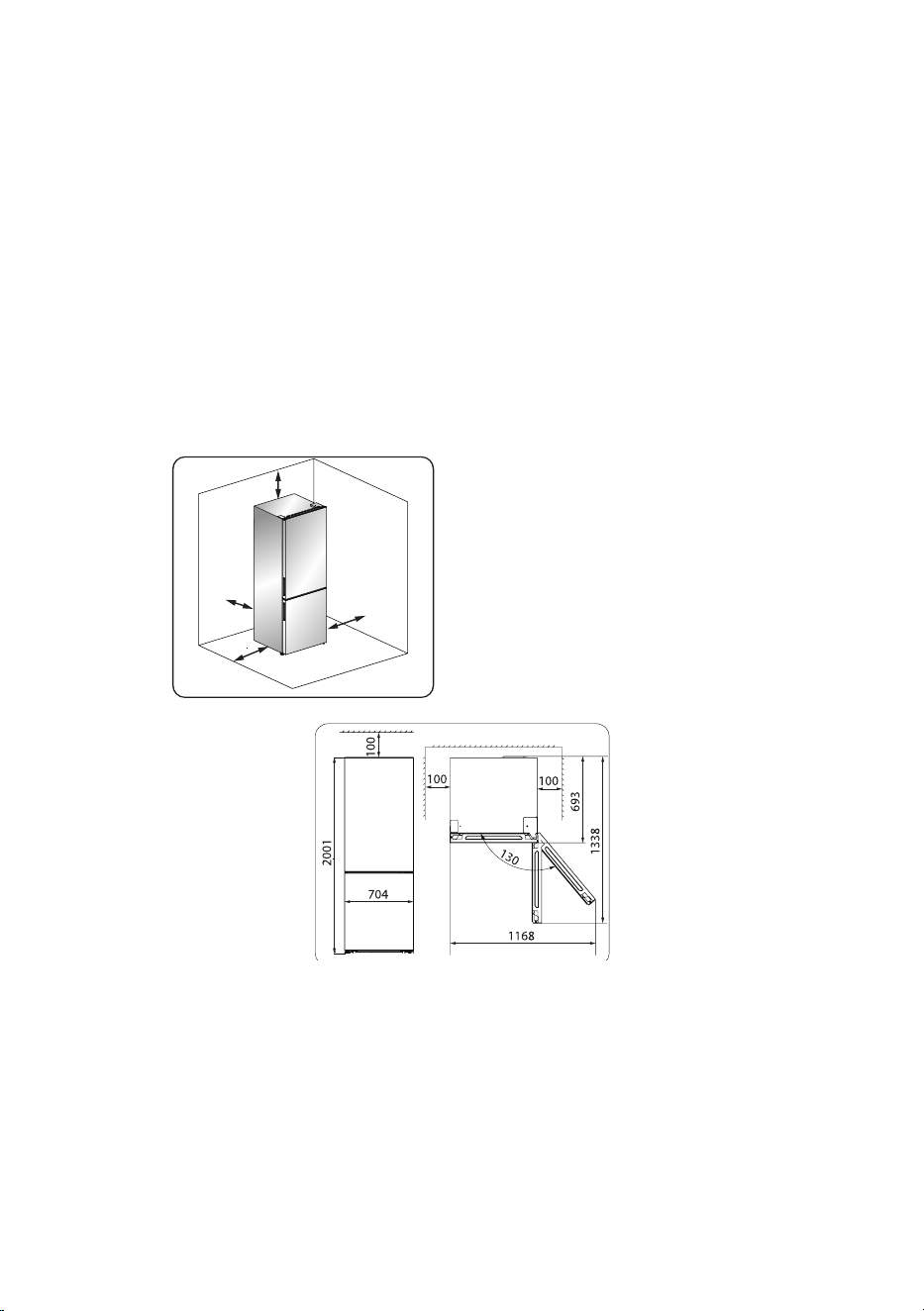

INSTALLATION AND CONNECTION
SELECTING THE ROOM
• Install the appliance in a dry and well ventilated room. The appliance will operate
correctly if the environment temperature is in the interval specified in the table. The
appliance class is indicated on the rating plate / label with the basic information on
the appliance.
Description Class Ambient temperature
range °C
Relative humidity
Extended temperate SN +10 to +32
≤ 75%
Temperate N +16 to +32
Subtropical ST +16 to +38
Tropical T +16 to +43
• Do not place an appliance in a room where temperature can drop to
below 5 °C as this may cause abnormal appliance operation or failure!
ii
• After the installation, the appliance mains plug should be accessible!
• This appliance is not intended to be used as a build-in appliance.
• Do not place the appliance near appliances or devices radiating heat, such as
a cooker, a stove, a radiator, water heater etc., and do not expose it to direct
sunlight. The appliance should stand at least 3 cm away from an electric or gas
cooker or at least 30 cm away from an oil or solid fuel stove. If the distance
between such source of heat and the appliance is smaller, use an insulating
panel.
Note: Place the appliance in a suciently large room. There should be at least
1 m
3
of space per 8 grams of refrigerant. Amount of refrigerant is indicated on
the rating plate in the appliance interior.
12
APPLIANCE PLACEMENT
• Before using the appliance for the first time, you should review the following tips.
Ventilation of appliance
In order to improve eciency of the cooling system and save energy, it is
necessary to maintain good ventilation around the appliance for the dissipation
of heat. For this reason, sucient clear space should be available around the
refrigerator.
Suggest: It is advisable for there to be 50-70 mm of space form the back to the
wall, at least 100 mm from its top, at least 100 mm from its side to the
wall and a clear space upfront to allow the doors to open 130°.
Please see the following diagrams.
A 100mm above
B 50- 70mm behind
C 100mm each side
A
B
C
C
13
LEVELING OF APPLIANCE
• For sucient leveling and air circulating in the lower rear section of the
appliance, the bottom feet may need to be adjusted, You can adjust them by
your fingers or a suitable spanner.
• To allow the doors to self-close, tilt back the top backwards for abaut 10-15
mm.
A Adjustable bottom feet
B Front roller
C Rear roller
A
B
C
Adjustable bottom feet
Note:
If required you may lay the refrigerator on its back in order to gain access to
the base, you should rest it on soft foam packaging or similar material to avoid
damaging the backboard of the refrigerator.
14
REVERSING THE DOOR
OPENING DIRECTION
The side at which the door opens can be changed, from the right side (as
supplied) to the left side, if the installation site requires.
Warning! When reversing the door, the appliance must not be connected to the
mains. Ensure that the plug is removed from the mains socket
Tools you will need.
8mm socket wrench Thin-blade
screwdriver
Putty knife
Cross-shaped
screwdriver
Monkey wrench
8mm wrench
Additional parts (in the plastic bag)
upper hinge-left hinge cover-left
screw hole
cover-right
middle hinge-left
stop block-left*2 Door stopper-left*2
Allen Wrench(4mm)
Not provided
Note: If required, you may lay the refrigerator on its back in order to gain access
to the base, you should rest it on soft foam packaging or similar material to
avoid damaging the backboard of the refrigerator. To reverse the door, the
following steps generally recommended.
15
1. Stand the refrigerator upright. Open the door to take out all door racks (to
avoid damage) and then close the door..
Caution!
Please slightly squeeze the door rack from one side toward center, and then
move it upward when taking out the door racks.
2. Remove screw 1, then take down cover 2 from the top right side. Be careful of
the electrical connector 3 below, because it’s still connected. Then unconnect
it and remove cover 2.
1 Self-tapping screw
2 Upper hinge cover
3 Eletrical connector
4 Door switch
3. Press the door switch 4 ,then remove it upward. Install switch 4 into cover 5
(provided in the plastic bag). Put the other cover 2 into the plastic bag.
5
5 Upper hinge cover-left
16
4. Disconnect the connetor 1 and 2, then unscrew screws 3 by a 8mm socket
driver or a spanner, and remove hinge 4. Then put the conector 1 and 5 into
the hole. Please hold the door by hand when installing.
5. Remove the upper door from the middle hinge by carefully lifting the door
straight up. Then Place the upper door on a smooth surface with its upper
cover upwards.
6.Install cover 1 (provide in the plastic bag) on the top right side.Then remove
cover 2 from top left side of the appliance, and put it into the plastic bag.
1
2
1 Screw hole cover-right
2 Screw hole cover-left
7. Remove cover 1 from the top left side of upper door and take out connector
2. Remove cover 3 from the right side and put connector 4 inside, reinstall the
cover 1 and 3.
17
8. Loose screw 3 and take down part 2 and part 1, Install replacement door
stopper-left 4 and stop block-left 5 (provided in the plastic bag) to the
left side with screw 3. Keep part 1 and part 2 with the appliance for future
reference.
1 Door stopper
2 Stop block
3 Self-tapping screw
4 Door stopper-left
5 stop block-left
9. Use the Allen wrench (provided in the plastic bag) and cross-shaped
screwdriver to loosen the screws and remove the middle hinge-right. Then
remove the lower door.
10.Place the lower door on a smooth surface with its panel upwards. Loose
screw 3 and take down part 2 and part 1, then Install door stopper-left 4 and
stop block-left 5 (provided in the plastic bag) to the left side, and tighten them
with screw 3 securely.
1 Door stopper
2 Stop block
3 Self-tapping screw
4 Door stopper-left
5 stop block-left
18
11. Change screw hole covers and screw on middle cover plate from left to right
(as shown in figure below).
12.Lay the refrigerator on soft foam packaging or similar material. Remove
both adjustable bottom feet parts 3, then remove the lower hinge part 1 by
unscrewing screws 2.
1 Lower hinge part
2 Special flange screw
3 Adjustable bottom feet part
13.Loose out the lower hinge pin,change it to the reverse hole site, then tighten it
into position folllow the picture below.
14.Replace the lower hinge part to the left side and fixing it with the special
flange screws. Replace the adjustablebottom feet parts to another side and
fixing it.
19
15.Stand the refrigerator upright and carefully slot the lower door onto the lower
hinge pin and hold in position. Install middle hinge-left (in the plastic bag)
ensuring the lower door in secured in place.
16.Transfer the upper door to the appropriate position. Secure the door level,
make the middle hinge axis into the lower hole of the upper door.Install the
hinge 2 (provided in the plastic bag)by screws 1. Please hold the upper door
by hand when installing.
1 Special flange screw
2 Upper hinge-left
17.Take out the connector 2 and 3 from the top left side.Connect 1 with 2 ,then
connect 3 with the door switch on the upper hinge cover-left.
Door switch
18.Install the upper hinge cover 2 on the left corner by screw 1.
1 Self-tapping screw
2 Upper hinge cover-left
19.Open the upper door and install the door racks and then close it.
20
APPLIANCE DESCRIPTION
A Refrigerator
1 Control unit
2 LED lighting
3 MultiFlow column
4 Glass shelves
5 FreshZone drawer
6 CrispZone fruit and
vegetables drawer
7 Bottom door shelves
8 Bottle shelf
B Freezer
9 Top freezing and storage
drawer
10 Deep SpaceBox drawer
for freezing and storage
11 Bottom storage drawer
2
4
5
6
9
10
11
1
7
8
A
B
3
Appliance interior equipment may change according to the appliance model.
This product contains a light source of energy efficiency class (G).
21
OPERATING THE APPLIANCE
Controlling the temperature
We recommend that when you start your
refrigerator for the first time, the temperature for the
refrigerator is set to 4°C. If you want to change the
temperature, follow the instructions below.
Caution!
When you set a temperature, you set an average
temperature for the whole refrigerator cabinet.
Temperatures inside each compartment may vary
from the temperature values displayed on the panel,
depending on how much food you store and where
you place them. Ambient temperature may also
affect the actual temperature inside the appliance.
22
Fridge
Press , when the light will turn on. Then press , you can
set fridge temperature between 2°C and 8°C as needed, and display panel will
display corresponding values according to the following sequence.
8
Caution!
When you set a temperature, you set an average temperature for the whole
refrigerator cabinet. Temperatures inside each compartment may vary from
the temperature values displayed on the panel, depending on how much food
you store and where you place them. Ambient temperature may also affect the
actual temperature inside the appliance.
Freezer
Press , when the light will turn on. Then press , you can
set freezer temperature between -14°C and -24°C as needed, and the display
panel will display corresponding value according to the following sequence.
-18°C-19°C
-20°C
-21°C
-22°C-23°C
-17°C -16°C -15°C -14°C -24°C
Super Freeze
Super Freeze will quickly lower the temperature within the freezer so food will
freeze faster. This can lock in the vitamins and nutrients of fresh food and keep
food fresh longer.
• You can press to get into super freezer mode.
• When super freeze mode is selected, the light will be illuminated, and the
freezer temperature will be set at -24°C.
• In case of the maximum amount of food to be frozen, please wait about 24 h.
• Super freeze automatically switches o after 52 hours and then the freezer
temperature setting will revert back to the previous setting.
23
Eco energy
This function makes the freezer work in a power saving mode which is useful for
reducing energy consumption when you are away.
• You can press to get into economic energy mode.
• When economic energy Mode is activated, the light will be illuminated. The
freezer temperature will be set at -17°C and the fridge temperature will be set
at 6°C.
Switch
You can switch on or switch off your appliance by press this button.
• Press for 3 seconds, after a buzzer sound, meanwhile the digital light will
show “OF”, the appliance will be turned o.
• Press for 3 seconds, after a buzzer sound, the appliance will be turned on.
Alarm
• When the door of fridge or freezer has been opened for over 2 minutes, the
door alarm will sound. In case of door alarm, buzzer will sound 3 times every 1
minute and will stop alarming automatically after 8 minutes.
• To save energy, please avoid keeping the door open for a long time when
using the appliance. The door alarm can also be cleared by closing the door.
24
APPLIANCE INTERIOR
EQUIPMENT
Your appliance is supplied with a number of accessories and this section
describes how best to use them.
Door rack
• It is suitable for the storage of eggs, canned liquid, bottled drinks and packed
food, etc. Do not place too many heavy things in the racks.
• The door racks can be placed at dierent heights according to your
requirements. Please take food out of the shelf before lifting vertically to
reposition.
• All the door racks are completely removable for cleaning.
Shelf in Refrigerator chamber
There are three shelves in refrigerator chamber, and they can be taken out to be
cleaned.
25
Freshzone drawer
In the FreshZone compartment, food stays fresh longer than in a conventional
refrigerator, retaining more flavour and nutrients.
Decay and loss of mass are slowed down; therefore, fruit and vegetables remain
fresh and natural longer. For optimum performance, the drawer should be fully
closed.
• When buying food, make sure it is fresh as this will determine the quality of
the food, as well as how long it will keep in the fridge.
• Store the food in closed containers or appropriate packaging to prevent it
from emitting or receiving odours.
• Take the food from the drawer 30 to 60 minutes before use to allow the aroma
and flavour develop at room temperature.
• Food sensitive to low temperature and not appropriate for storage in the
FreshZone drawer includes the following: pineapples, avocado, bananas,
olives, potatoes, eggplant, cucumbers, beans, peppers (capsicum), melons,
watermelons, pumpkins, squash, zucchini etc.
Fruit and vegetable bin (CrispZone)
• The bin at the bottom of the refrigerator is intended for storing fruit and
vegetables. It provides humidity and prevents the food from drying out.
Freezer drawer
• It is used to store food which need to be frozen, including meat, fish and ice
cream, etc.
• To remove the freezer drawer, tilt up the front of the drawer and pull forward,
then tilt the drawer downwards, and remove it forward with both hands.
• To re-install the freezer drawer, tilt the drawer downwards, put the roles of
the drawer behide the roles of the rail, then tilt up the front of the drawer and
push it in.
roles of the
drawer
roles of the rail
26
Order Compartments
TYPE
Target storage
temp.[°C]
Appropriate food
1 Fridge +2 ≤ +8 Eggs, cooked food, packaged
food, fruits and vegetables, dairy
products, cakes, Drinks and other
foods which are not suitable for
freezing.
2 (***)* –
Freezer
≤ –18 Seafood (fish, shrimp, shellfish),
freshwater aquatic products and
meat products (recommended
time is 3 months – nutrition values
and taste decrease with time),
suitable for frozen fresh food.
3 *** –
Freezer
≤ –18 Seafood (fish, shrimp, shellfish),
freshwater aquatic products and
meat products (recommended
time is 3 months – nutrition values
and taste decrease with time). Not
suitable for freeing fresh food.
4 ** –
Freezer
≤ –12 Seafood (fish, shrimp, shellfish),
freshwater aquatic products and
meat products (recommended
time is 2 months – nutrition values
and taste decrease with time). Not
suitable for freeing fresh food.
To avoid contamination of food, please respect the following instructions
• Opening the door for long periods can cause a significant increase of the
temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with food and accessible
drainage systems.
• Store raw meat and fish in suitable containers in the refrigerator, so that it is
not in contact with or drip onto other food.
• Two-star frozen-food compartments are suitable for storing pre-frozen food,
storing or making ice cream and making ice cubes.
• One-, two- and three-star compartments are not suitable for the freezing of
fresh food.
27
5 * –
Freezer
≤ –6 Seafood (fish, shrimp, shellfish),
freshwater aquatic products and
meat products (recommended
time is 1 month – nutrition values
and taste decrease with time). Not
suitable for freeing fresh food.
6 0 star –6 ≤ 0 Fresh pork, beef, fish, chicken,
some packaged processed foods,
etc. (Recommended to eat within
the same day, preferably not later
than 3 days) .
Partially packed/wrapped up
encapsulated processed foods
(non-freezable foods)
7 Chill –2 ≤ +3 Fresh/frozen pork, beef, chicken,
freshwater aquatic products, etc.
(7 days below 0 °C and above 0 °C
is recommended for consumption
within that day, preferably no more
than 2 days). Seafood (less than 0
for 15 days, it is not recommended
to store above 0 °C)
8 Fresh Food 0 ≤ +4 Fresh pork, beef, fish, chicken,
cooked food, etc. (Recommended
to eat within the same day,
preferably no more than 3 days)
9 Wine +5 ≤ +20 Red wine,white wine,sparkling
wine etc.
Note: please store different foods according to the compartments or target
storage temperature of your purchased products.
• If the refrigerating appliance is left empty for long periods, switch o, defrost,
clean, dry, and leave the door open to prevent mould developing within the
appliance.
28
HELPFUL HINTS AND TIPS
Energy saving tips
We recommend that you follow the tips below to save energy.
• Try to avoid keeping the door open for long periods.
• Ensure the appliance is away from any sources of heat (Direct sunlight, electric
oven or cooker etc.)
• Don`t set the temperature colder than necessary.
• Don`t store warm food or evaporating liguid in the appliance.
• Place the appliance in a well ventilated, humidity free room. Please refer to
Instaling your new appliance chapter
• If the diagram shows the correct combination for the drawers, crisper and
shelves, do not adjust the combination as this designed to be the most energy
ecient configuration.
Hints for refrigeration
• Do not place hot food directly into the refrigerator or freezer, the internal
temperature will increase resulting in the compressor having to work harder
and will consume more energy.
• Do cover or wrap the food, particularly if it has a strong flavor.
• Place food properly so that air can circulate freely around it.
• Meat (All Types) Wrap in polythene food: wrap and place on the glass shelf
above the vegetable drawer. Always follow food storage times and use by
dates suggested by manufacturers.
• Cooked food, cold dishes, etc.: They should be covered and may be placed on
any shelf.
• Fruit and vegetables: They should be stored in the special drawer provided.
• Butter and cheese: Should be wrapped in airtight foil or plastic film wrap.
• Milk bottles: Should have a lid and be stored in the door racks.
29
Hints for freezing
• When first staring-up or after a period out of use. Before putting the food in
the compartment, let the appliance run at least 2 hours on the higher settings.
• Prepare food in small portions to enable it to rapidly and completely frozen
and to make it possible to subsequently thaw only the quantity required.
• ‘Wrap up the food in aluminum foil or polyethylene (plastic) and make sure
that the packages are airtight.
• Do not allow fresh, unfrozen food to touch food that is already frozen, thus
avoiding a rise in the temperature of latter.
• Iced products, if consumed immediately after removal from the freezer
compartment can possibly cause skin to become freezer burnt.
• It is recommended to label and date each frozen package in order to keep
track of the storage time.
Hints for the storage of frozen food
• Make sure that commercially frozen food was stored by the retailer.
• Once defrosted, foods deteriorate rapidly and can not be re-frozen.
• Do not exceed the storage period indicated by the food manufacturer.
Note: If the appliance contains related accessories and functions.
30
CLEANING AND CARE
For hygienic reasons the appliance (including exterior and interior accessories)
should be cleaned regularly (at least every two months).
Warning!
The appliance must not be connected to the mains during cleaning. Danger of
electrical shock! Before cleaning switch the appliance o and remove the plug
from the mains socket.
Exterior cleaning
To maintain good appearance of your appliance, you should clean it regularly.
• Wipe the digital panel and display panel with a clean, soft cloth.
• Spray water onto the cleaning cloth instead of spraying directly on the surface
of the appliance. This helps ensure an even distribution of moisture to the
surface.
• Clean the doors, handles and cabinet surfaces with a mild detergent and then
wiped dry with a soft cloth.
Warning!
• Do not use sharp objects as they are likely to scratch the surface.
• Do not use Thinner, Car detergent, Clorox, ethereal oil, abrasive cleansers or
organic solvent such as Benzene for cleaning. They may damage the surface
of the appliance and may cause fire.
Interior cleaning
You should clean the appliance interior regularly. It will be easier to clean
when food stocks are low. You can remove the drawers and shelves for a
more thorough clean. Wipe the inside of the freezer with a weak solution
of bicarbonate of soda, and then rinse with warm water using a wrung-out
31
sponge or cloth. Wipe completely dry before replacing the shelves and baskets.
Thoroughly dry all surfaces and removable parts before putting them back into
place.
• Although this appliance automatically defrosts, a layer of frost may occur
on the freezer compartment’s interior walls if the freezer door is opened
frequently or kept open too long.If the frost is too thick, choose a time when
the freezer is nearly empty and proceed as follow:
1. Remove existing food and accessories baskets,unplug the appliance from
the mains power and leave the doors open. Ventilate the room thoroughly to
accelerate the process.
2. When defrosting is completed, clean your freezer as described above.
Caution!
• Don’t use sharp objects to remove frost from the freezer compartment. Only
after the interior is completely dry should the appliance be switched back on
and plugged back into the mains socket.
Door seals cleaning
Take care to keep door seals clean. Sticky food and drinks can cause seals to
stick to the cabinet and tear when you open the door. Wash the seals with a mild
detergent and warm water. Rinse and dry them thoroughly after cleaning.
Warning! Only after the door seals are completely dry should the appliance be
powered on.
Replacing the LED light
The LED light should be replaced by a competent person. If the LED light is
damaged, contact the customer helpline for assistance. To replace the LED light,
the below steps can be followed:
1. Unplug your appliance.
2. Remove light cover by pushing up and out.
3. Hold the LED cover with one hand and pull it with the other hand while
pressing the connector latch.
4. Replace LED light and snap it correctly in place.
32
TROUBLESHOOTING
Problem: Possible cause & Solution
Appliance is not
working correctly
• Check whether the power cord is plugged into the
power outlet properly.
• Check the fuse or circuit of your power supply,
replace if necessary.
• The ambient temperature is too low. Try setting
the chamber temperature to a colder level to solve
this problem.
• It is normal that the freezer is not operating during
the automatic defrost cycle, or for a short time
after the appliance is switched on to protect the
compressor.
Odours from the
compartments
• The interior may need to be cleaned.
• Some food, containers or wrapping cause odours.
Noise from the
appliance
The sounds below are quite normal:
• Compressor running noises.
• Air movement noise from the small fan motor in
the freezer compartment or other compartments.
• Gurgling sound similar to water boiling.
• Popping noise during automatic defrosting.
• Clicking noise before the compressor starts.
Other unusual noises are due to the reasons below
and may need you to check and take action:
• The cabinet is not level.
• The back of appliance touches the wall.
• Bottles or containers knocking against each other.
If you experience a problem with your appliance or are concerned that the
appliance is not functioning correctly, you can carry out some easy checks
before calling for service, please see below. You can carry out some easy
checks according to this section before calling for service.
Warning! Don't try to repair the appliance yourself. If the problem persists after
you have made the checks mentioned below, contact a qualified electrician,
authorized service engineer or the shop where you purchased the product.
33
Problem: Possible cause & Solution
The motor runs
continuously
It is normal to frequently hear the sound of the
motor, it will need to run more during following
circumstances:
• Temperature setting is set colder than necessary.
• Large quantity of warm food has recently been
stored within the appliance.
• The temperature outside the appliance is too high.
• Doors are kept open too long or too often.
• After your installing the appliance or it has been
switched off for a long time.
A layer of frost
occurs in the
compartment
• Check that the air outlets are not blocked by food
and ensure food is placed within the appliance to
allow sufficient ventilation. Ensure the door can be
fully closed. To remove the frost, please refer to
the cleaning and care chapter..
Temperature
inside is too warm
• You may have left the doors open too long or
too frequently; or the doors are kept open by
some obstacle; or the appliance is located with
insufficient clearance at the sides, back and top.
Temperature
inside is too cold
• Increase the temperature by following the”Display
controls” chapter.
Doors can’t be
closed easily
• Check whether the top of the refrigerator is tilted
back by 10-15mm to allow the doors to self close,
or if something inside is preventing the doors from
closing.
Water drips on
the floor
The water pan (located at the rear bottom of
the cabinet) may not be properly leveled, or
the draining spout underneath the top of the
compressor depot may not be properly positioned
to direct water into this pan, or the water spout is
blocked, or the water is not fully inserted into the
connector. You may need to pull the refrigerator
away from the wall to check the pan and spout and
connector.
• Check if the refrigerator is power-off for a long
time,this may cause the ice in the bucket to melt
into water,and flow to the floor
The light is not
working
• The LED light may be damaged. Refer to replace
LED lights in cleaning and care chapter.
• The control system has disabled the lights due
to the door being kept open too long, close and
reopen the door to reactivate the lights.
34
DISPOSAL OF THE APPLIANCE
It is prohibited to dispose of this appliance as household waste.
Packaging materials
Packaging materials with the recycle symbol are recyclable. Dispose of the
packaging into a suitable waste collection container to recycle it.
Before disposal of the appliance
1. Pull out the mains plug from the mains socket.
2. Cut off the power cord and discard with the mains plug
Warning! Refrigerators contain refrigerant and gases in the insulation.
Refrigerant and gases must be disposed of professionally as they may cause
eye injuries or ignition. Ensure that tubing of the refrigerant circuit is not
damage prior to proper disposal.
CORRECT DISPOSAL OF THIS PRODUCT
The symbol on the product or its packaging indicates that the
product should not be treated as normal household waste. The
product should be taken to an authorized collection centre for
waste electric and electronic equipment processing. Correct
disposal of the product will help prevent any negative effects
on the environment and health of people which could occur
in case of incorrect product removal. For detailed information
on removal and processing of the product, please contact the
relevant municipal body in charge of waste management, your
waste disposal service, or the store where you bought the
product.
Gorenje, d.o.o.
Partizanska 12
SI - 3320 Velenje, Slovenija
info@gorenje.com
www.gorenje.com
