Partsmanual

This is the main product document for model 60SS-10BP.

The file format is pdf, 58 pages, you can download this manual here .

background
For additional information on Vulcan-Hart Company or to locate an authorized
parts and service provider in your area, visit our website at www.vulcanequipment.com
F-43239 Rev. D (October 2017)
VULCAN-HART
DIVISION OF ITW FOOD EQUIPMENT GROUP, LLC
www.vulcanequipment.com
3600 NORTH POINT BLVD.
BALTIMORE, MD 21222
MODELS
12
24S
36S
36C
48S
48SS
48C
60SS
60SC
60CS
72SS
72SC
72CC
72CS
CATALOG OF
REPLACEMENT PARTS
ENDURANCE/CHALLENGER MODULAR
SERIES GAS RANGES
(Aug 2011)
background
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES (After Aug 2011) REPLACEMENT PARTS
F-43239 Rev. D (October 2017) - 2 - © VULCAN-HART COMPANY 2017
background
Table of Contents
5 ORIFICE CHART
7 OPEN TOP BURNER ASSEMBLY
9 OPEN TOP BURNER MODULE (12 INCH)
11 OPEN TOP BURNER MODULE (24 INCH)
13 OPEN TOP BURNER MODULE (36 INCH)
15 GRIDDLE TOP MODULE (12 INCH)
17 GRIDDLE TOP MODULE (24 INCH)
19 GRIDDLE TOP MODULE (36 INCH)
21 GRIDDLE MANIFOLD AND VALVES (24 INCH)
23 GRIDDLE MANIFOLD AND VALVES (36 INCH)
25 THERMOSTAT GRIDDLE CONTROL ASSEMBLY (24 INCH)
27 THERMOSTAT GRIDDLE CONTROL ASSEMBLY (36 INCH)
29 GRIDDLE/BROILER BURNER AND MANIFOLD
31 GRIDDLE/BROILER PANELS
33 STANDARD OVEN CONTROL (24 INCH)
35 STANDARD OVEN CONTROL (30 INCH)
37 CONVECTION OVEN CONTROL (30 INCH)
39 DOOR SWITCH ASSEMBLY
41 OVEN BURNER ASSEMBLY
43 RANGE BODY (12 INCH)
45 STANDARD OVEN CAVITY (24 INCH)
47 STANDARD OVEN CAVITY (36 INCH)
49 CONVECTION OVEN CAVITY (36 INCH)
51 CONVECTION MOTOR ASSEMBLY (30 INCH UNIT ONLY)
53 DOOR ASSEMBLY
55 BACKSPLASH, SHELF, AND BULL NOSE (ALL SIZES)
57 BACKSPLASH AND PANELS (GRIDDLE/BROILERS)
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES (After Aug 2011) REPLACEMENT PARTS
- 3 - F-43239 Rev. D (October 2017)
background

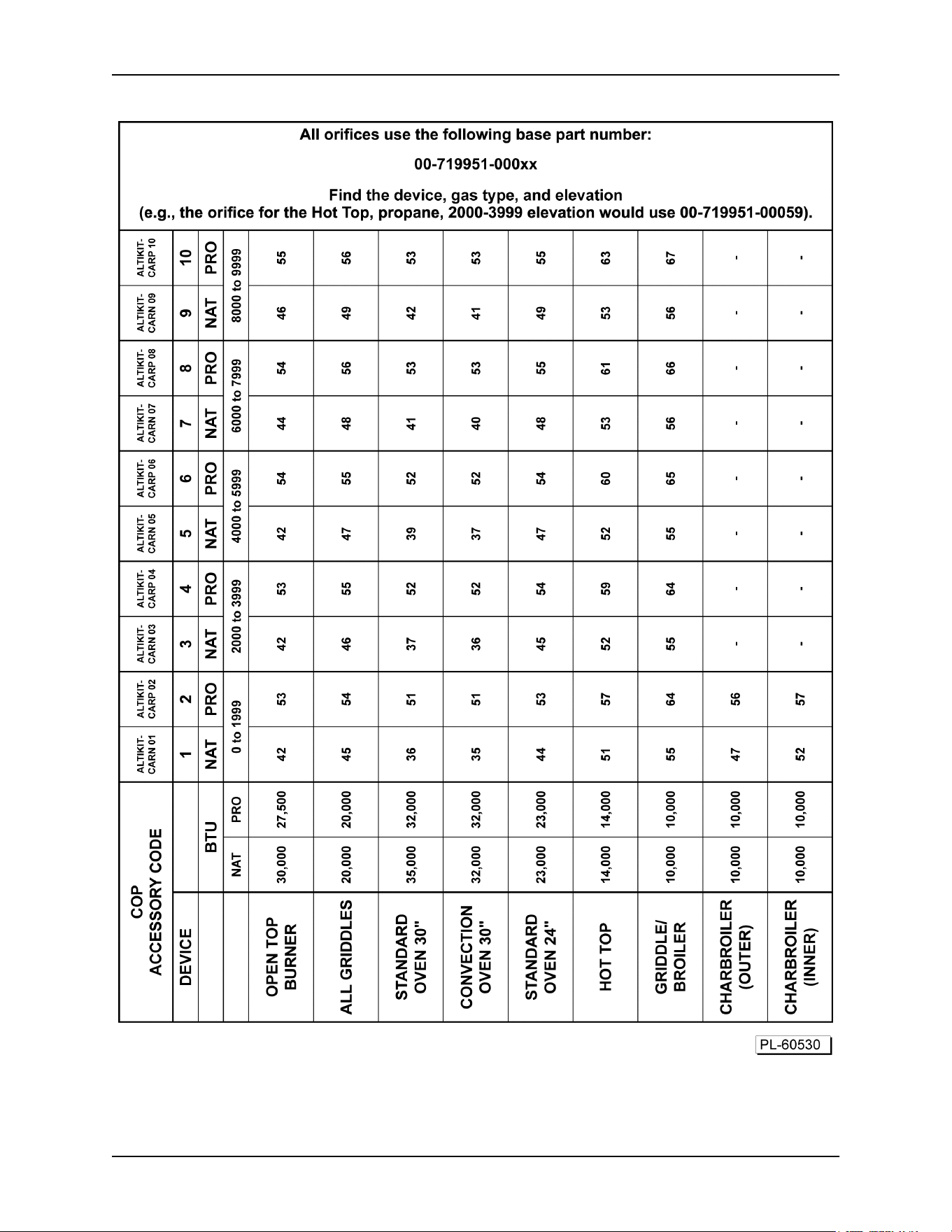

ORIFICE CHART
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES (After Aug 2011) REPLACEMENT PARTS
F-43239 Rev. D (October 2017) - 4 -
background
ORIFICE CHART
ILLUS.
PL-60530
PART NO. NAME OF PART AMT.
35 00-719951-00035 Hood - Orifice (Drill 35)............................................................................................................AR
36 00-719951-00036 Hood - Orifice (Drill 36)............................................................................................................AR
37 00-719951-00037 Hood - Orifice (Drill 37)............................................................................................................AR
39 00-719951-00039 Hood - Orifice (Drill 39)............................................................................................................AR
40 00-719951-00040 Hood - Orifice (Drill 40)............................................................................................................AR
41 00-719951-00041 Hood - Orifice (Drill 41)............................................................................................................AR
42 00-719951-00042 Hood - Orifice (Drill 42)............................................................................................................AR
43 00-719951-00043 Hood - Orifice (Drill 43)............................................................................................................AR
44 00-719951-00044 Hood - Orifice (Drill 44)............................................................................................................AR
45 00-719951-00045 Hood - Orifice (Drill 45)............................................................................................................AR
46 00-719951-00046 Hood - Orifice (Drill 46)............................................................................................................AR
47 00-719951-00047 Hood - Orifice (Drill 47)............................................................................................................AR
48 00-719951-00048 Hood - Orifice (Drill 48)............................................................................................................AR
49 00-719951-00049 Hood - Orifice (Drill 49)............................................................................................................AR
51 00-719951-00051 Hood - Orifice (Drill 51)............................................................................................................AR
52 00-719951-00052 Hood - Orifice (Drill 52)............................................................................................................AR
53 00-719951-00053 Hood - Orifice (Drill 53)............................................................................................................AR
54 00-719951-00054 Hood - Orifice (Drill 54)............................................................................................................AR
55 00-719951-00055 Hood - Orifice (Drill 55)............................................................................................................AR
56 00-719951-00056 Hood - Orifice (Drill 56)............................................................................................................AR
57 00-719951-00057 Hood - Orifice (Drill 57)............................................................................................................AR
59 00-719951-00059 Hood - Orifice (Drill 59)............................................................................................................AR
60 00-719951-00060 Hood - Orifice (Drill 60)............................................................................................................AR
61 00-719951-00061 Hood - Orifice (Drill 61)............................................................................................................AR
63 00-719951-00063 Hood - Orifice (Drill 63)............................................................................................................AR
64 00-719951-00064 Hood - Orifice (Drill 64)............................................................................................................AR
65 00-719951-00065 Hood - Orifice (Drill 65)............................................................................................................AR
66 00-719951-00066 Hood - Orifice (Drill 66)............................................................................................................AR
67 00-719951-00067 Hood - Orifice (Drill 67)............................................................................................................AR
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES (After Aug 2011) REPLACEMENT PARTS
- 5 - F-43239 Rev. D (October 2017)
background
OPEN TOP BURNER ASSEMBLY
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES (After Aug 2011) REPLACEMENT PARTS
F-43239 Rev. D (October 2017) - 6 -
background

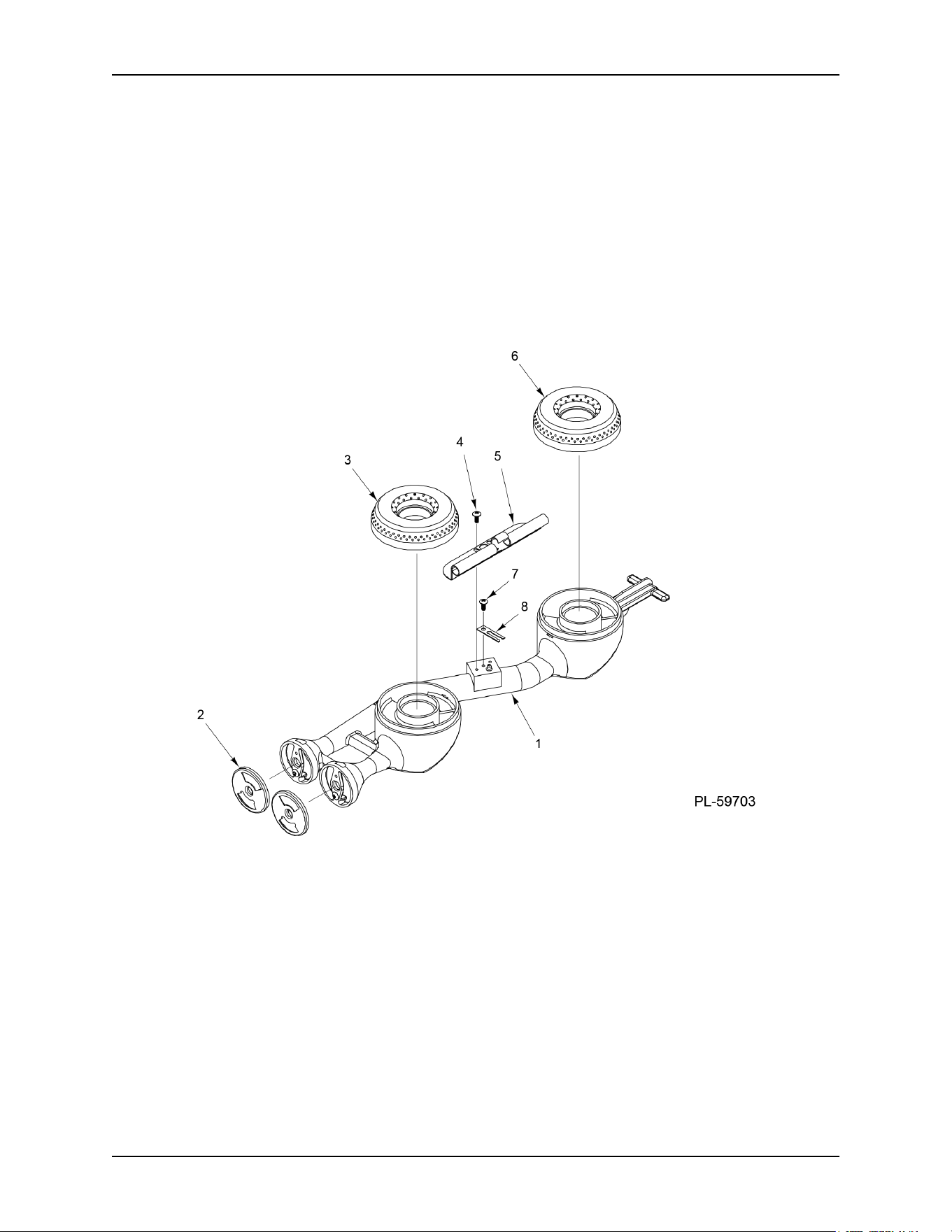

OPEN TOP BURNER ASSEMBLY
ILLUS.
PL-59703
PART NO. NAME OF PART AMT.
1 00-763209-000A1 Open Top Burner (Venturi) (Includes items 2, 3, 4, 5, 6, 7, and 8)............................................1
2 00-719329 Air Mixer Assy............................................................................................................................2
3 00-417608-00001 Burner Head...............................................................................................................................1
4 00-730228 Self-Tapping Screw 10-24 x 1/2 Phil. Truss Hd.........................................................................2
5 00-787275-00001 Flash Tube.................................................................................................................................1
6 00-417608-00001 Burner Head...............................................................................................................................1
7 00-730228 Self-Tapping Screw 10-24 x 1/2 Phil. Truss Hd.........................................................................1
8 00-413302-00001 Clip - Pilot Mounting...................................................................................................................1
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES (After Aug 2011) REPLACEMENT PARTS
- 7 - F-43239 Rev. D (October 2017)
background
OPEN TOP BURNER MODULE
(12 INCH)
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES (After Aug 2011) REPLACEMENT PARTS
F-43239 Rev. D (October 2017) - 8 -
background
OPEN TOP BURNER MODULE
(12 INCH)
ILLUS.

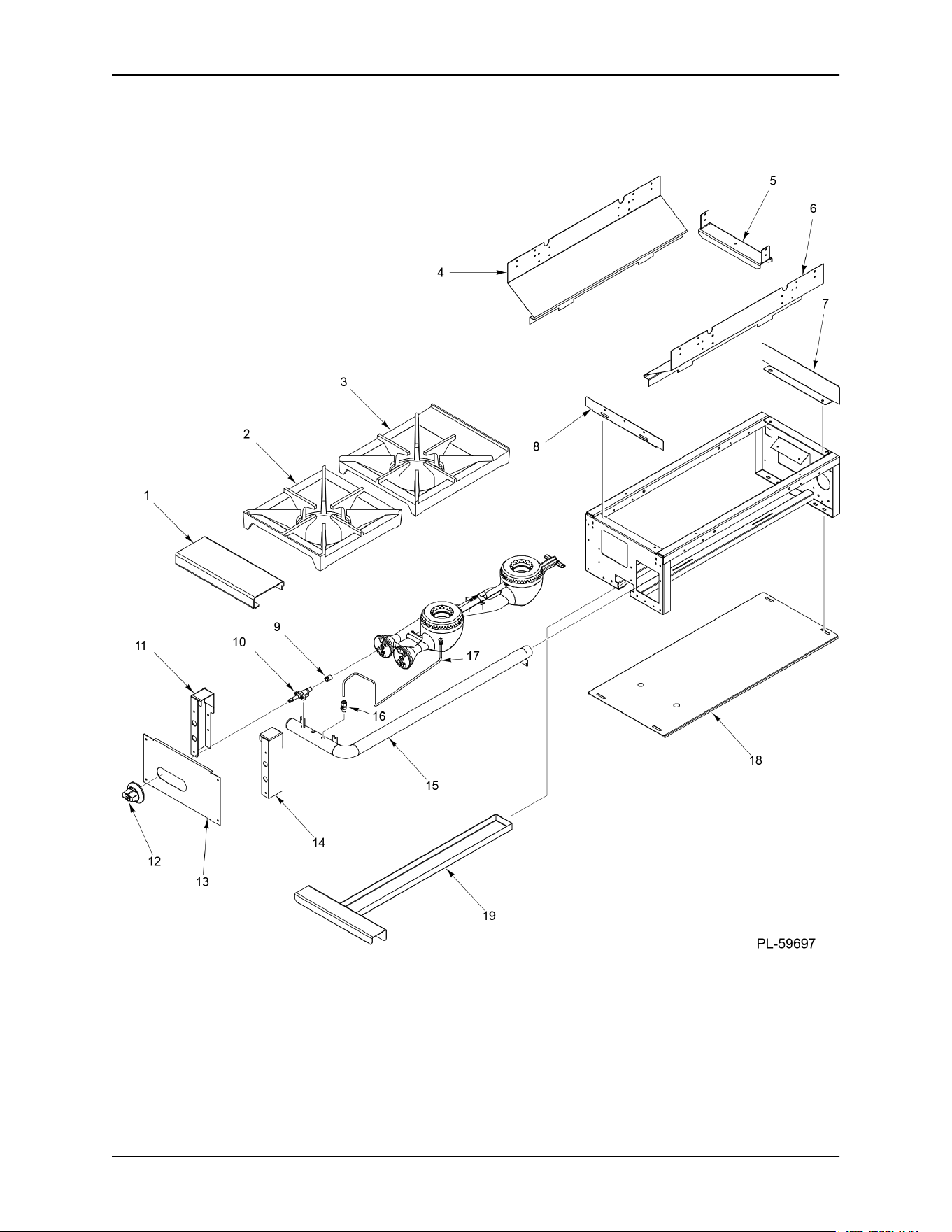

PL-59697
PART NO. NAME OF PART AMT.
1 00-921884-00012 Bull Nose (12 In.)........................................................................................................................1
2 00-925000 Grate - Front............................................................................................................................AR
3 00-925001 Grate - Rear............................................................................................................................AR
4 00-925015 Drip Pan Guide...........................................................................................................................1
5 00-924006 Burner Support...........................................................................................................................1
6 00-925015 Drip Pan Guide...........................................................................................................................1
7 00-921782 Shield - Rear..............................................................................................................................1
8 00-921886-00012 Shield - Front..............................................................................................................................1
*9 Cap.............................................................................................................................................1
10 00-719221 Valve - Manual...........................................................................................................................1
11 00-921883 Bracket - Manifold Cover (LH)....................................................................................................1
12 00-428300 Knob...........................................................................................................................................1
13 00-921885-00012 Cover - Gas Manifold.................................................................................................................1
14 00-921882 Bracket - Manifold Cover (RH)...................................................................................................1
15 00-922146-0000A Manifold......................................................................................................................................1
16 00-719189 Valve - Manual Griddle...............................................................................................................1
17 00-921107-0000A Pilot Tube/Tip Assy....................................................................................................................1
18 00-923011 Support - Insulation....................................................................................................................1
19 00-924009-0000A Tray - Crumb..............................................................................................................................1
* (See Orifice Chart)
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES (After Aug 2011) REPLACEMENT PARTS
- 9 - F-43239 Rev. D (October 2017)
background
OPEN TOP BURNER MODULE
(24 INCH)
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES (After Aug 2011) REPLACEMENT PARTS
F-43239 Rev. D (October 2017) - 10 -
background
OPEN TOP BURNER MODULE
(24 INCH)
ILLUS.

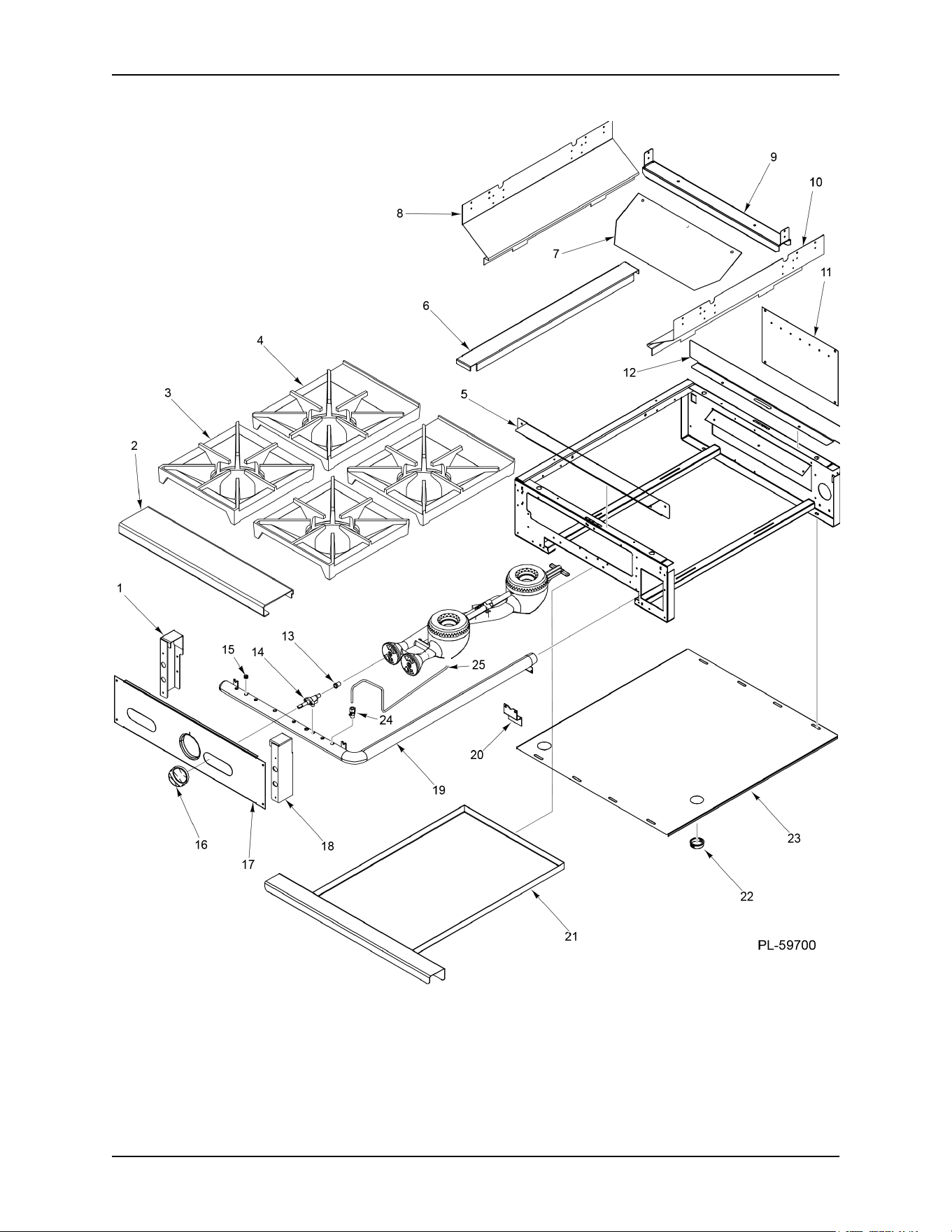

PL-59700
PART NO. NAME OF PART AMT.
1 00-921883 Bracket - Manifold Cover (LH)....................................................................................................1
2 00-921884-00024 Bull Nose (24 In.)........................................................................................................................1
3 00-925000 Grate - Front...............................................................................................................................2
4 00-925001 Grate - Rear...............................................................................................................................2
5 00-921886-00024 Bracket - Front Top....................................................................................................................1
6 00-921794 Support - Grate...........................................................................................................................1
7 00-924515 Deflector - Rear..........................................................................................................................1
8 00-925015 Drip Pan Guide...........................................................................................................................1
9 00-924516 Support - Burner.........................................................................................................................1
10 00-925015 Drip Pan Guide...........................................................................................................................1
11 00-921410 Cover - Flue................................................................................................................................1
12 00-924518 Heat Shield Rear........................................................................................................................1
*13 Cap.............................................................................................................................................1
14 00-719221 Valve - Manual...........................................................................................................................1
15 00-719370 Plug............................................................................................................................................1
16 00-428300 Knob........................................................................................................................................AR
17 00-921885-00024 Cover - Gas Manifold.................................................................................................................1
18 00-921882 Bracket - Manifold Cover (RH)...................................................................................................1
19 00-922145-0000A Manifold......................................................................................................................................1
20 00-922125 Bracket.......................................................................................................................................1
21 00-924510-0000A Weldment - Crumb Tray.............................................................................................................1
22 2240-2241 Grommet - Heyco.......................................................................................................................1
23 00-923518 Support - Insulation....................................................................................................................1
24 00-719189 Valve - Single Pilot.....................................................................................................................1
25 00-921107-0000A Pilot Tube/Tip Assy....................................................................................................................1
* (See Orifice Chart)
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES (After Aug 2011) REPLACEMENT PARTS
- 11 - F-43239 Rev. D (October 2017)
background
OPEN TOP BURNER MODULE
(36 INCH)
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES (After Aug 2011) REPLACEMENT PARTS
F-43239 Rev. D (October 2017) - 12 -
background
OPEN TOP BURNER MODULE
(36 INCH)
ILLUS.

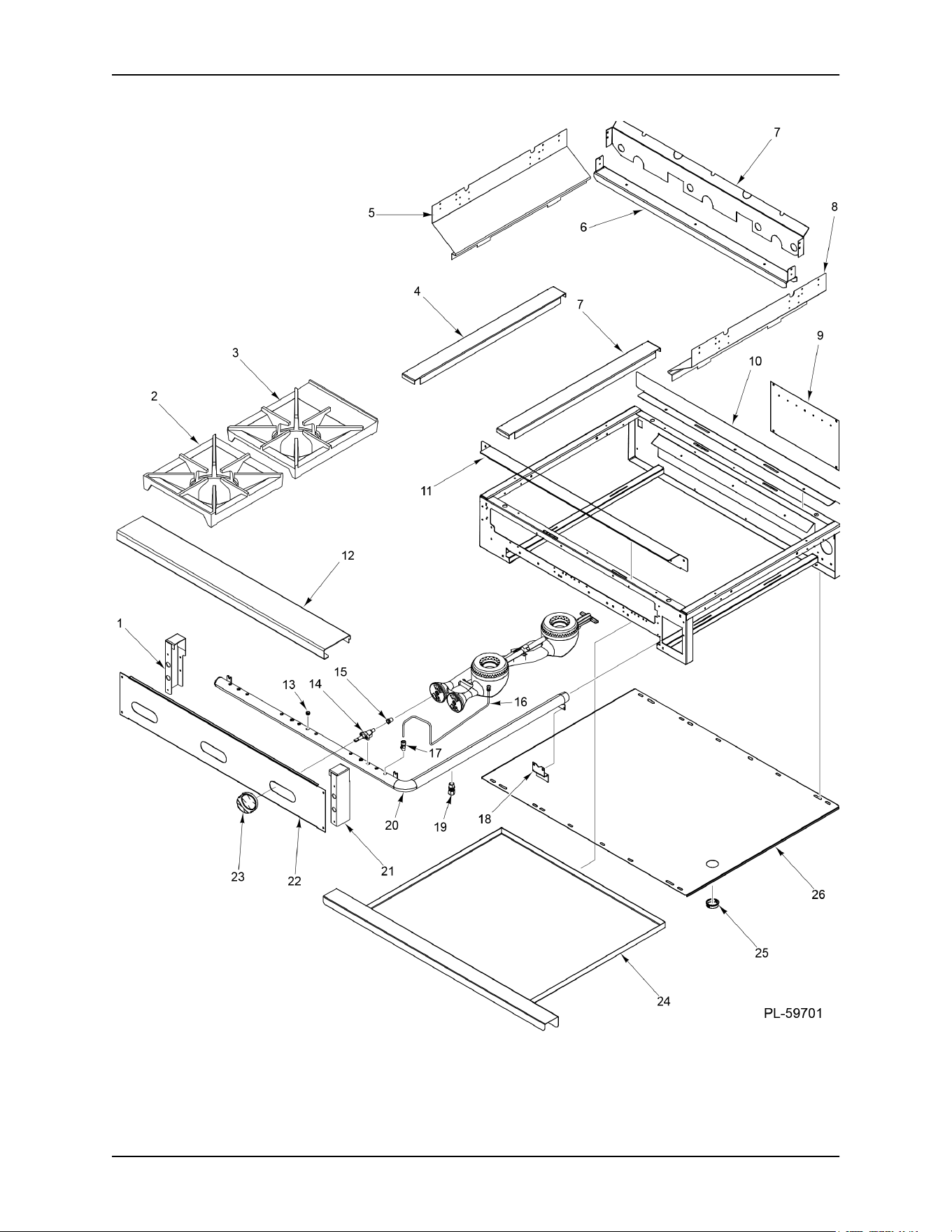

PL-59701
PART NO. NAME OF PART AMT.
1 00-921883 Bracket - Manifold Cover (LH)....................................................................................................1
2 00-925000 Grate - Front...............................................................................................................................2
3 00-925001 Grate - Rear...............................................................................................................................2
4 00-921794 Support - Grate...........................................................................................................................1
5 00-925015 Drip Pan Guide...........................................................................................................................1
6 00-925035 Deflector - Rear..........................................................................................................................1
7 00-921794 Support - Grate...........................................................................................................................1
8 00-925015 Drip Pan Guide...........................................................................................................................1
9 00-921410 Cover - Flue................................................................................................................................1
10 00-921148 Heat Shield Rear........................................................................................................................1
11 00-921886 Bracket - Front Top....................................................................................................................1
12 00-921884-00036 Bull Nose (36 In.)........................................................................................................................1
13 00-719370 Plug.........................................................................................................................................AR
14 00-719221 Valve - Manual...........................................................................................................................1
*15 Cap.............................................................................................................................................1
16 00-921107-0000A Pilot Tube/Tip Assy....................................................................................................................1
17 00-719189 Valve - Single Pilot.....................................................................................................................1
18 00-922125 Bracket.......................................................................................................................................1
19 FP-085-42 Fitting - Tube (7/16 TBG X 3/8 MPT).........................................................................................1
20 00-922144-0000A Manifold......................................................................................................................................1
21 00-921882 Bracket - Manifold Cover (RH)...................................................................................................1
22 00-921885-00036 Cover - Gas Manifold.................................................................................................................1
23 00-428300 Knob........................................................................................................................................AR
24 00-921044-0000A Weldment - Crumb Tray.............................................................................................................1
25 2240-2241 Grommet - Heyco.......................................................................................................................1
26 00-922006 Support - Insulation.................................................................................................................AR
* (See Orifice Chart)
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES (After Aug 2011) REPLACEMENT PARTS
- 13 - F-43239 Rev. D (October 2017)
background
GRIDDLE TOP MODULE
(12 INCH)
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES (After Aug 2011) REPLACEMENT PARTS
F-43239 Rev. D (October 2017) - 14 -
background
GRIDDLE TOP MODULE
(12 INCH)
ILLUS.

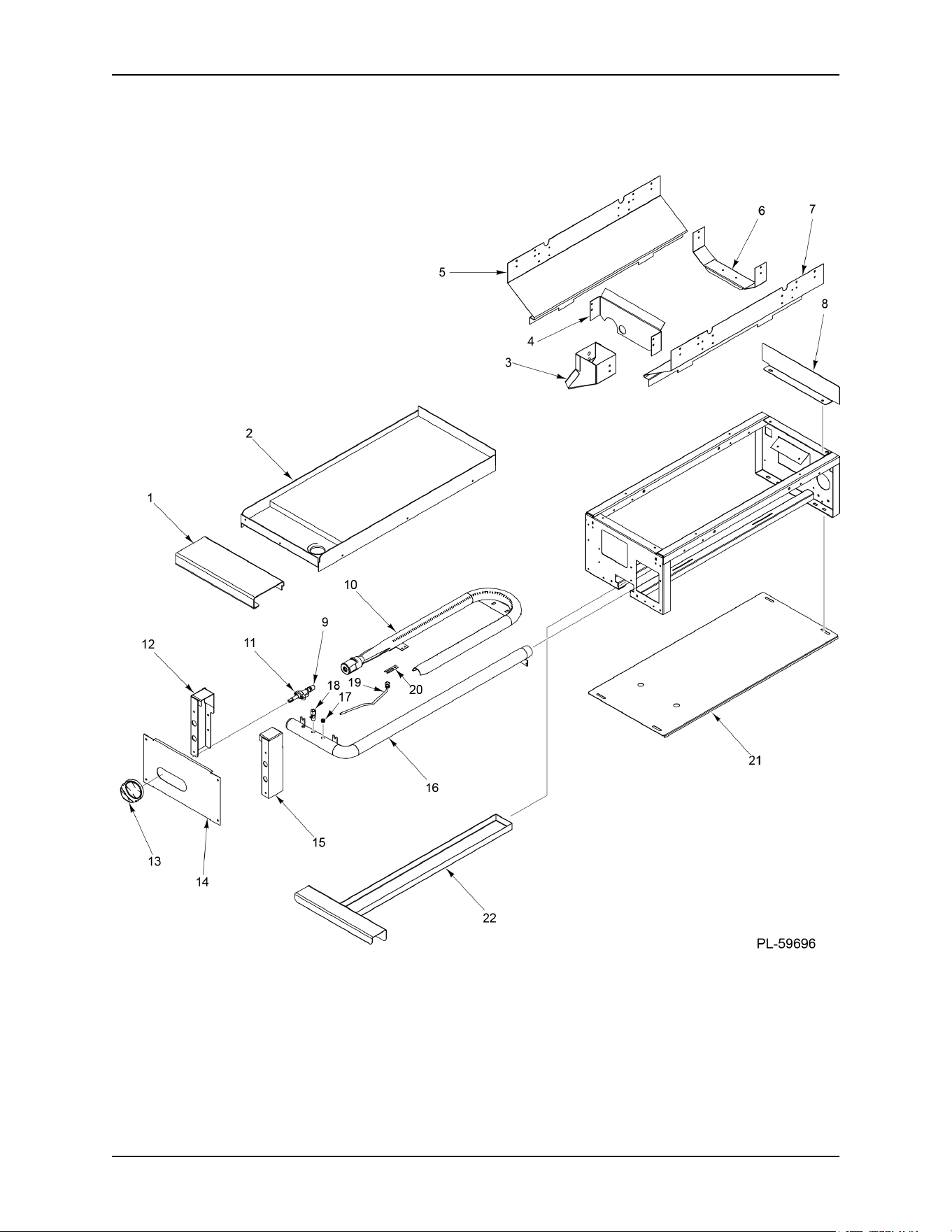

PL-59696
PART NO. NAME OF PART AMT.
1 00-921884-00012 Bull Nose (12 In.)........................................................................................................................1
2 00-924012-0000A Griddle Assy...............................................................................................................................1
3 00-924016-0000A Grease Chute Assy....................................................................................................................1
4 00-924028 Heat Shield (12 In.) (Griddle).....................................................................................................1
5 00-925015 Drip Pan Guide...........................................................................................................................1
6 00-924019 Support - Burner.........................................................................................................................1
7 00-925015 Drip Pan Guide...........................................................................................................................1
8 00-921782 Shield - Rear..............................................................................................................................1
*9 Cap.............................................................................................................................................1
10 00-924020-0000A Burner - Griddle XL....................................................................................................................1
11 00-497240 Valve - Manual Griddle...............................................................................................................1
12 00-921883 Bracket - Manifold Cover (LH)....................................................................................................1
13 00-428300 Knob...........................................................................................................................................1
14 00-921885-00012 Cover - Gas Manifold.................................................................................................................1
15 00-921882 Bracket - Manifold Cover (RH)...................................................................................................1
16 00-922146-0000A Manifold......................................................................................................................................1
17 00-719370 Plug............................................................................................................................................1
18 00-719189 Valve - Single Pilot.....................................................................................................................1
19 00-428915-00001 Griddle Pilot Tube/Tip Assy........................................................................................................1
20 00-413302-00001 Clip - Pilot Mounting...................................................................................................................1
21 00-923011 Support - Insulation....................................................................................................................1
22 00-924009-0000A Tray - Crumb..............................................................................................................................1
* (See Orifice Chart)
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES (After Aug 2011) REPLACEMENT PARTS
- 15 - F-43239 Rev. D (October 2017)
background
GRIDDLE TOP MODULE
(24 INCH)
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES (After Aug 2011) REPLACEMENT PARTS
F-43239 Rev. D (October 2017) - 16 -
background
GRIDDLE TOP MODULE
(24 INCH)
ILLUS.

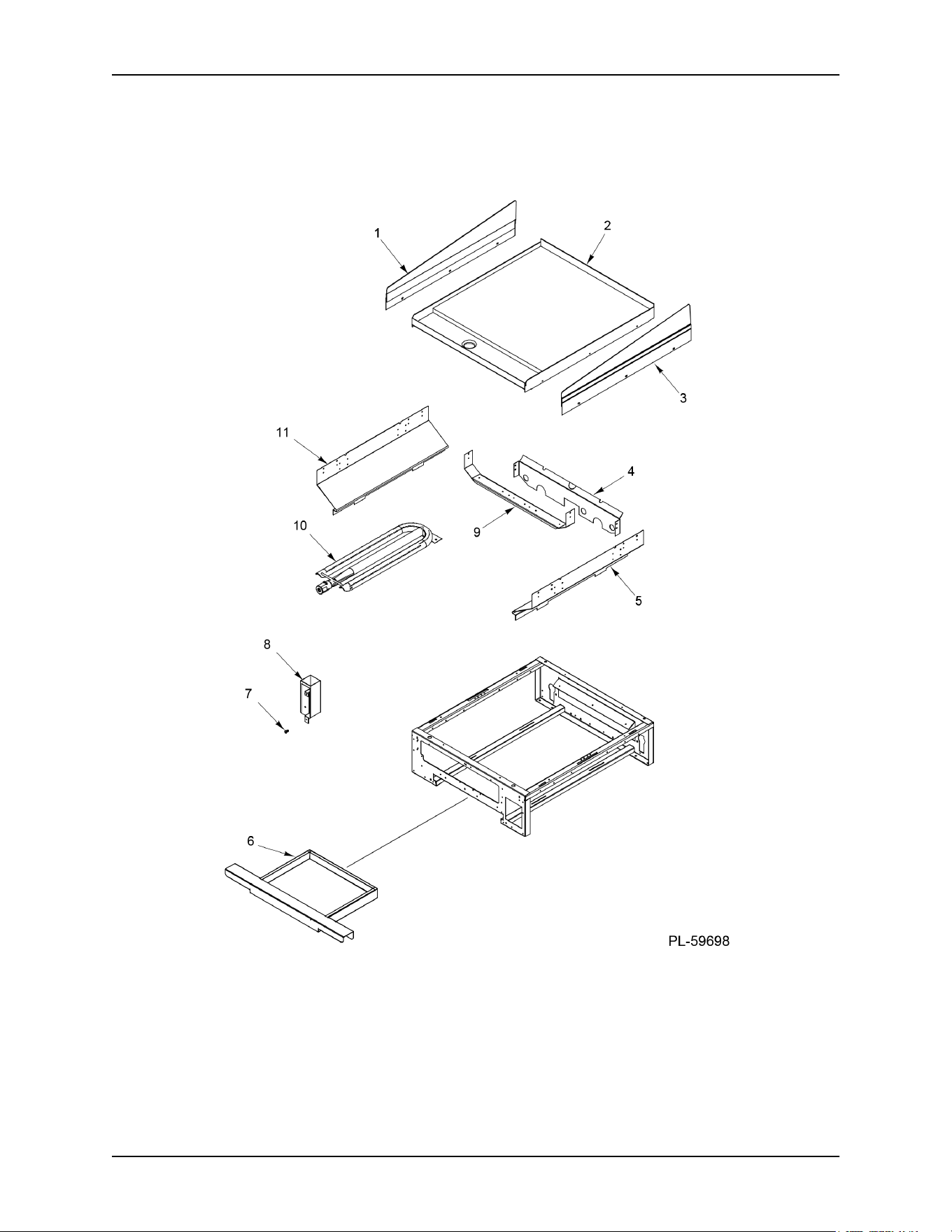

PL-59698
PART NO. NAME OF PART AMT.
1 00-926527-0000A Splash Assy. - Outer (LH)..........................................................................................................1
2 00-924511-0000A Griddle Plate Assy. (24 In.)........................................................................................................1
3 00-926513-0000A Splash Assy. - Outer (RH)..........................................................................................................1
4 00-921783 Heat Shield (T-Stat Griddle).......................................................................................................1
5 00-925015 Drip Pan Guide...........................................................................................................................1
6 00-921473-0000A Tray - Crumb..............................................................................................................................1
7 00-730228 Self-Tapping Screw 10-24 x 1/2 Phil. Truss Hd......................................................................AR
8 00-926519-0000A Grease Chute Assy....................................................................................................................1
9 00-924503 Burner Support...........................................................................................................................2
10 00-926509-0000A Burner - Griddle XL....................................................................................................................2
11 00-925015 Drip Pan Guide...........................................................................................................................1
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES (After Aug 2011) REPLACEMENT PARTS
- 17 - F-43239 Rev. D (October 2017)
background
GRIDDLE TOP MODULE
(36 INCH)
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES (After Aug 2011) REPLACEMENT PARTS
F-43239 Rev. D (October 2017) - 18 -
background
GRIDDLE TOP MODULE
(36 INCH)

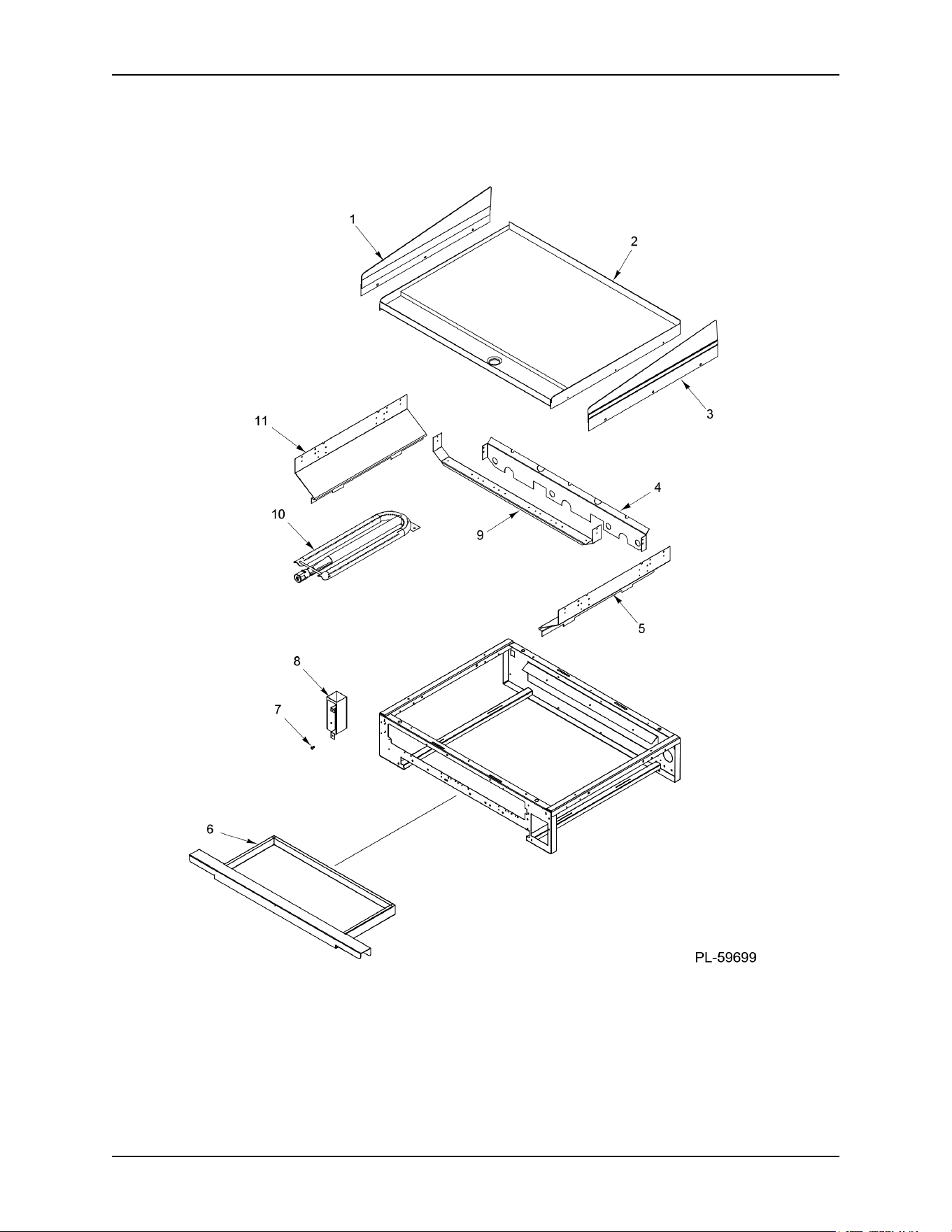

ILLUS.
PL-59699
PART NO. NAME OF PART AMT.
1 00-926527-0000A Splash Assy. - Outer (LH)..........................................................................................................1
2 00-926500-0000A Griddle Plate Assy. (36 In.)........................................................................................................1
3 00-926513-0000A Splash Assy. - Outer (RH)..........................................................................................................1
4 00-926504 Heat Shield (T-Stat Griddle).......................................................................................................1
5 00-925015 Drip Pan Guide...........................................................................................................................1
6 00-921471-0000A Tray - Crumb..............................................................................................................................1
7 00-730228 Self-Tapping Screw 10-24 x 1/2 Phil. Truss Hd......................................................................AR
8 00-926519-0000A Grease Chute Assy....................................................................................................................1
9 00-925013 Burner Support...........................................................................................................................2
10 00-926509-0000A Burner - Griddle XL....................................................................................................................3
11 00-925015 Drip Pan Guide...........................................................................................................................1
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES (After Aug 2011) REPLACEMENT PARTS
- 19 - F-43239 Rev. D (October 2017)
background
GRIDDLE MANIFOLD AND VALVES
(24 INCH)
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES (After Aug 2011) REPLACEMENT PARTS
F-43239 Rev. D (October 2017) - 20 -
background
GRIDDLE MANIFOLD AND VALVES
(24 INCH)
ILLUS.

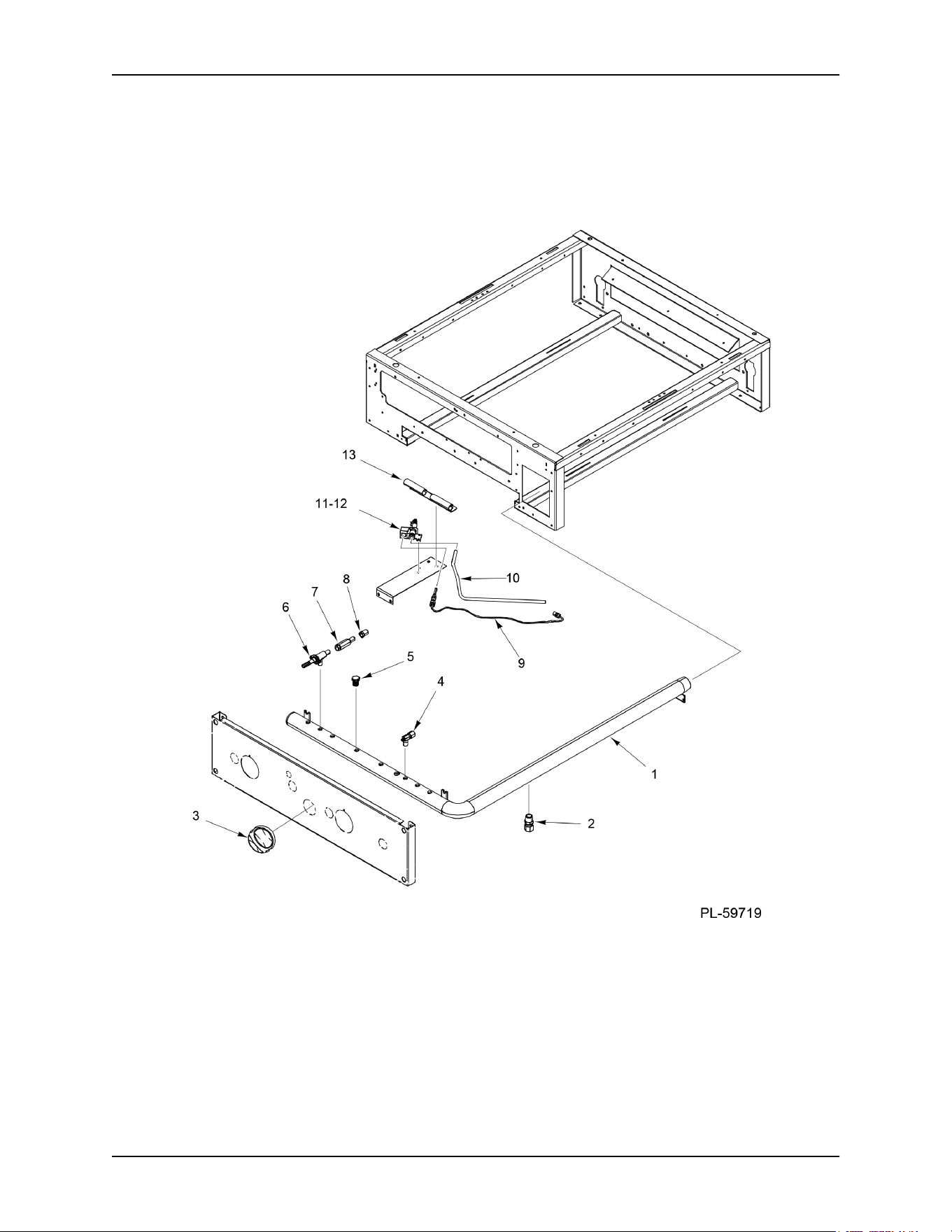

PL-59719
PART NO. NAME OF PART AMT.
1 00-922145-0000A Manifold......................................................................................................................................1
2 FP-085-42 Fitting - Tube (7/16 TBG X 3/8 MPT).........................................................................................1
3 00-428300 Knob...........................................................................................................................................3
4 00-404193-00001 Valve - Pilot................................................................................................................................1
5 00-719371 Plug.........................................................................................................................................AR
6 00-497240-00001 Valve - Manifold (Griddle)...........................................................................................................3
7 00-926523 Valve - Extension.......................................................................................................................3
*8 Hood - Valve...............................................................................................................................3
9 00-714268 Thermocouple............................................................................................................................1
10 00-426505-00012 Tubing - Pilot Flex 1/4 O.D. x 12 In............................................................................................1
11 00-426262-00001 Pilot Assy. (NAT)........................................................................................................................1
12 00-426262-00002 Pilot Assy. (LP)...........................................................................................................................1
13 00-921074 Flash Tube - Griddle...................................................................................................................1
* (See Orifice Chart)
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES (After Aug 2011) REPLACEMENT PARTS
- 21 - F-43239 Rev. D (October 2017)
background
GRIDDLE MANIFOLD AND VALVES
(36 INCH)
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES (After Aug 2011) REPLACEMENT PARTS
F-43239 Rev. D (October 2017) - 22 -
background
GRIDDLE MANIFOLD AND VALVES
(36 INCH)

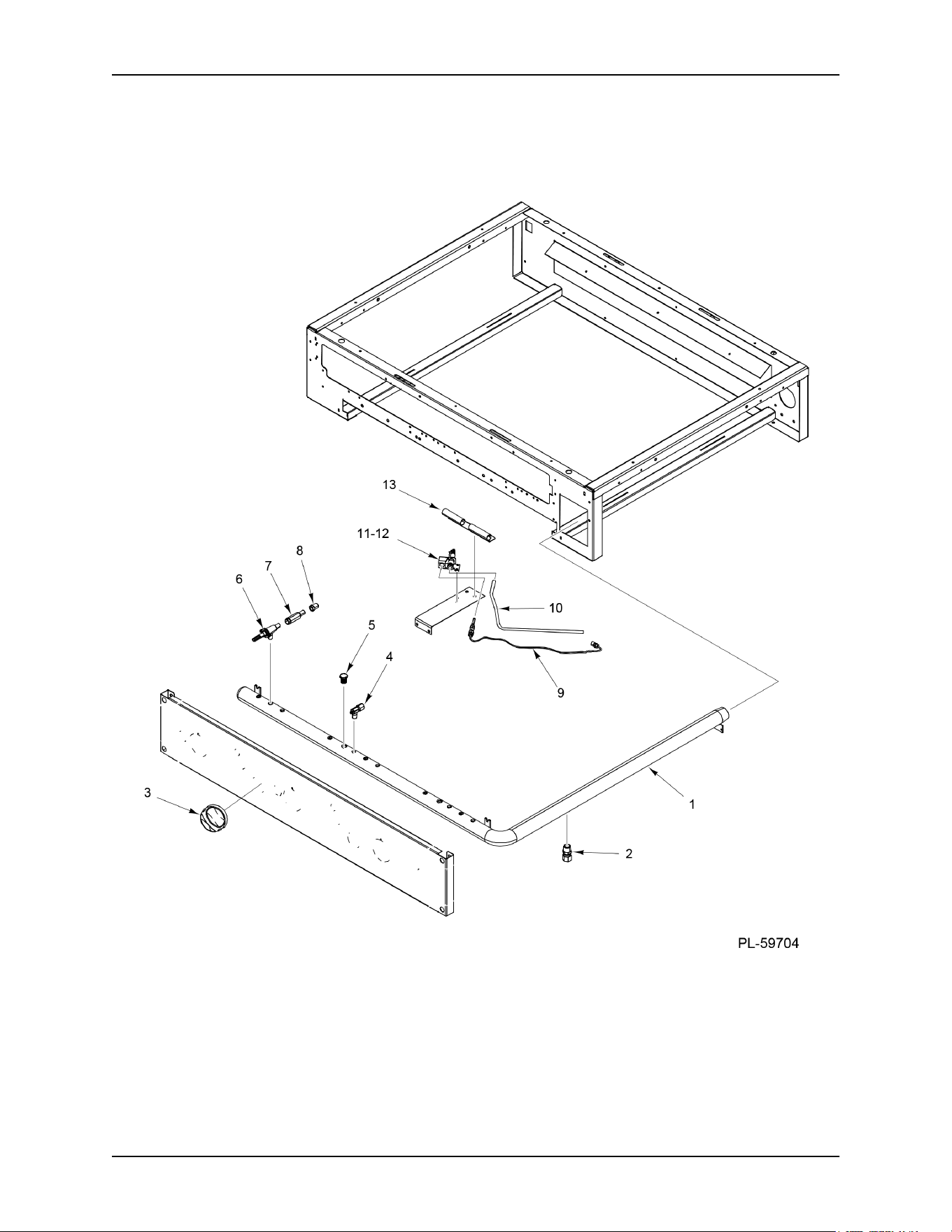

ILLUS.
PL-59704
PART NO. NAME OF PART AMT.
1 00-922144-0000A Manifold......................................................................................................................................1
2 FP-085-42 Fitting - Tube (7/16 TBG X 3/8 MPT).........................................................................................1
3 00-428300 Knob...........................................................................................................................................3
4 00-404193-00001 Valve - Pilot................................................................................................................................2
5 00-719371 Plug.........................................................................................................................................AR
6 00-497240-00001 Valve - Manifold..........................................................................................................................3
7 00-926523 Valve - Extension.......................................................................................................................3
*8 Hood - Valve...............................................................................................................................3
9 00-714268 Thermocouple............................................................................................................................2
10 00-426505-00012 Tubing - Pilot Flex 1/4 O.D. x 12 In............................................................................................2
11 00-426262-00001 Pilot Assy. (NAT)........................................................................................................................2
12 00-426262-00002 Pilot Assy. (LP)...........................................................................................................................2
13 00-921074 Flash Tube - Griddle...................................................................................................................2
* (See Orifice Chart)
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES (After Aug 2011) REPLACEMENT PARTS
- 23 - F-43239 Rev. D (October 2017)
background
THERMOSTAT GRIDDLE CONTROL ASSEMBLY
(24 INCH)
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES (After Aug 2011) REPLACEMENT PARTS
F-43239 Rev. D (October 2017) - 24 -
background
THERMOSTAT GRIDDLE CONTROL ASSEMBLY
(24 INCH)

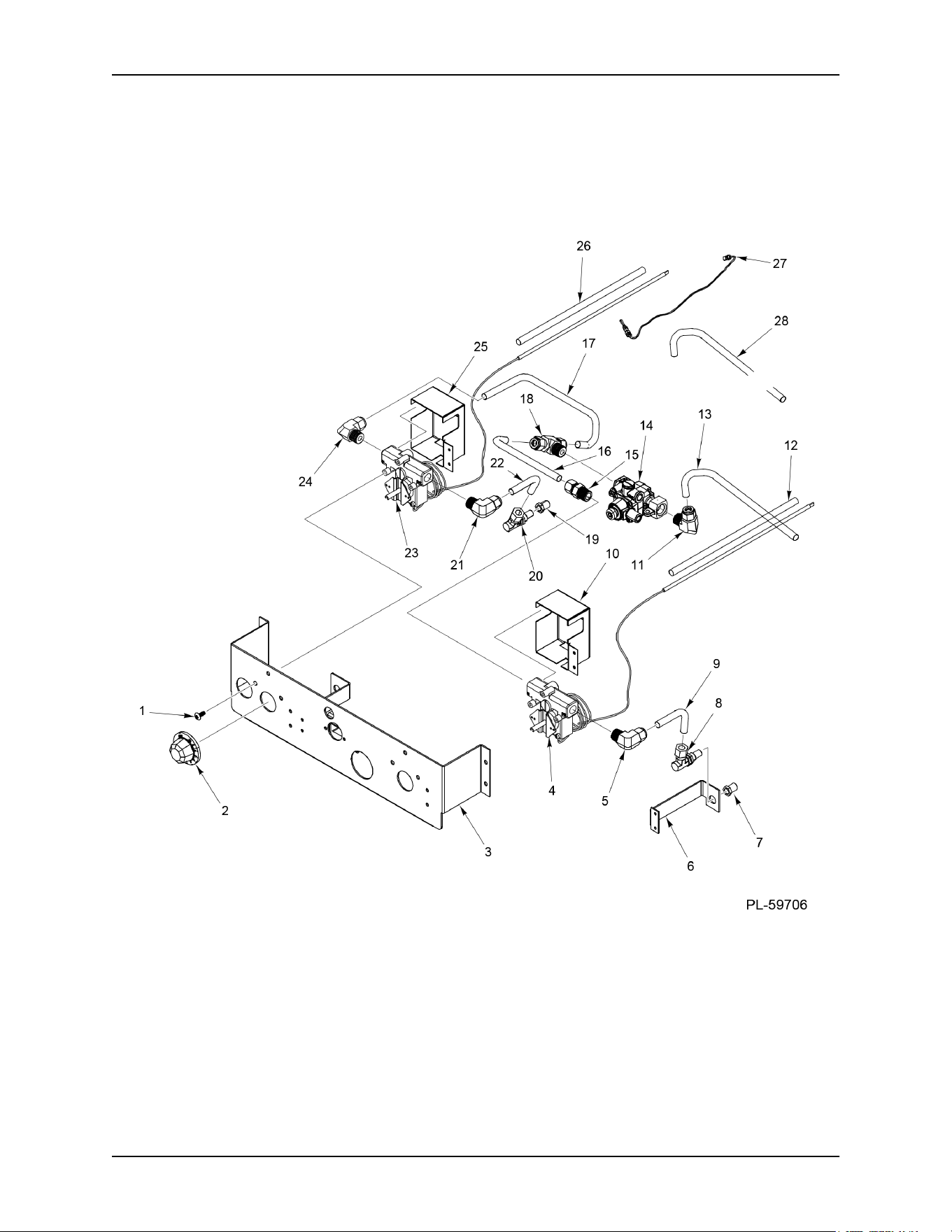

ILLUS.
PL-59706
PART NO. NAME OF PART AMT.
1 00-730228 Self-Tapping Screw 10-24 x 1/2 Phil. Truss Hd.........................................................................6
2 00-498086-00007 Knob - Griddle............................................................................................................................2
3 00-922191-0000A Weldment - Control Panel..........................................................................................................1
4 00-498096-00550 Valve (550F) T-Stat Combo.......................................................................................................1
5 00-719376 Elbow 3/8 x 3/8...........................................................................................................................1
6 00-921071 Bracket - Right Orifice................................................................................................................1
*7 Orifice.........................................................................................................................................1
8 00-719383 Elbow 3/8 Orifice........................................................................................................................1
9 00-928037 Flex Tubing (3/8 x 5 In. GS-Nozzle)...........................................................................................1
10 00-921167 GS Cover....................................................................................................................................1
11 00-719376 Elbow 3/8 x 3/8...........................................................................................................................1
12 00-719566 Sleeving - Silicon........................................................................................................................1
13 00-722221 Flex Tubing (3/8 x 12 In.)...........................................................................................................1
14 00-922203 Valve - Safety (WP22K-2511-2-1)..............................................................................................1
15 00-719377 Connector - Straight 3/8 x 3/8 (Brass)........................................................................................1
16 00-722425 Tube - Flex (3/8 x 8 In.)..............................................................................................................1
17 00-722221 Flex Tubing (3/8 x 12 In.)...........................................................................................................1
18 00-498028 Tee 3/8 Male Compression........................................................................................................1
*19 Orifice.........................................................................................................................................1
20 00-719383 Elbow 3/8 Orifice........................................................................................................................1
21 00-719376 Elbow 3/8 x 3/8...........................................................................................................................1
22 00-928037 Flex Tubing (3/8 x 5 In. GS-Nozzle)...........................................................................................1
23 00-498096-00550 Valve (550F) T-Stat Combo.......................................................................................................1
24 00-719376 Elbow 3/8 x 3/8...........................................................................................................................1
25 00-921167 GS Cover....................................................................................................................................1
26 00-719566 Sleeving - Silicon........................................................................................................................1
27 00-714268 Thermocouple............................................................................................................................1
28 00-426505-00012 Tubing - Pilot Flex 1/4 O.D. x 12 In............................................................................................1
* (See Orifice Chart)
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES (After Aug 2011) REPLACEMENT PARTS
- 25 - F-43239 Rev. D (October 2017)
background
THERMOSTAT GRIDDLE CONTROL ASSEMBLY
(36 INCH)
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES (After Aug 2011) REPLACEMENT PARTS
F-43239 Rev. D (October 2017) - 26 -
background
THERMOSTAT GRIDDLE CONTROL ASSEMBLY
(36 INCH)*
ILLUS.

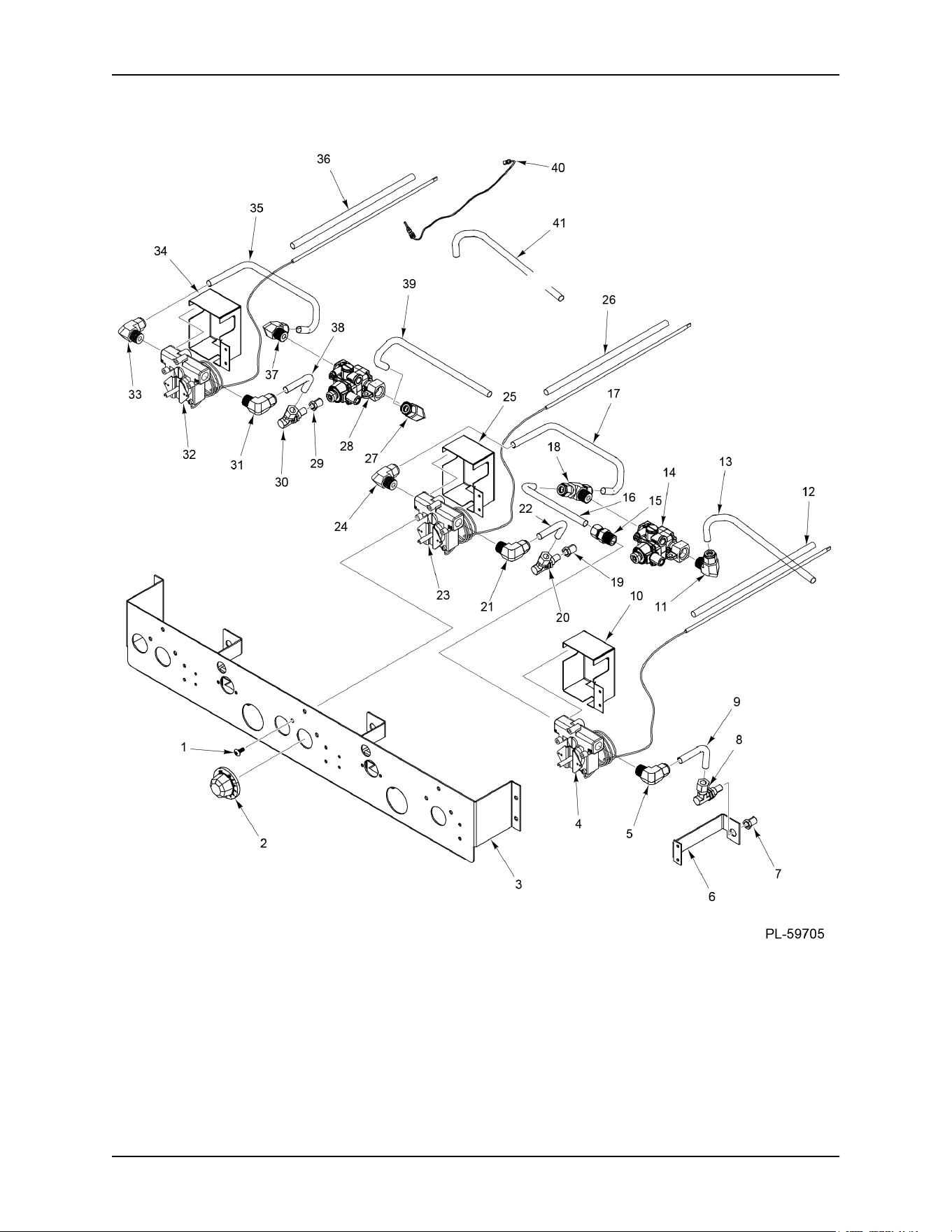

PL-59705
PART NO. NAME OF PART AMT.
1 00-730228 Self-Tapping Screw 10-24 x 1/2 Phil. Truss Hd.........................................................................9
2 00-498086-00007 Knob - Griddle............................................................................................................................3
3 00-922186-0000A Weldment - Control Panel..........................................................................................................1
4 00-498096-00550 Valve (550F) T-Stat Combo.......................................................................................................1
5 00-719376 Elbow 3/8 x 3/8...........................................................................................................................1
6 00-921071 Bracket - Right Orifice................................................................................................................1
*7 Orifice.........................................................................................................................................1
8 00-719383 Elbow 3/8 Orifice........................................................................................................................1
9 00-928037 Flex Tubing (3/8 x 5 In. GS-Nozzle)...........................................................................................1
10 00-921167 GS Cover....................................................................................................................................1
11 00-719376 Elbow 3/8 x 3/8...........................................................................................................................1
12 00-719566 Sleeving - Silicon........................................................................................................................1
13 00-722221 Flex Tubing (3/8 x 12 In.)...........................................................................................................1
14 00-922203 Valve - Safety (WP22K-2511-2-1)..............................................................................................1
15 00-719377 Connector - Straight 3/8 x 3/8 (Brass)........................................................................................1
16 00-722425 Tube - Flex (3/8 x 8 In.)..............................................................................................................1
17 00-722221 Flex Tubing (3/8 x 12 In.)...........................................................................................................1
18 00-498028 Tee 3/8 Male Compression........................................................................................................1
*19 Orifice.........................................................................................................................................1
20 00-719383 Elbow 3/8 Orifice........................................................................................................................1
21 00-719376 Elbow 3/8 x 3/8...........................................................................................................................1
22 00-928037 Flex Tubing (3/8 x 5 In. GS-Nozzle)...........................................................................................1
23 00-498096-00550 Valve (550F) T-Stat Combo.......................................................................................................1
24 00-719376 Elbow 3/8 x 3/8...........................................................................................................................1
25 00-921167 GS Cover....................................................................................................................................1
26 00-719566 Sleeving - Silicon........................................................................................................................1
27 00-719376 Elbow 3/8 x 3/8...........................................................................................................................1
28 00-922203 Valve - Safety (WP22K-2511-2-1)..............................................................................................1
*29 Orifice.........................................................................................................................................1
30 00-719383 Elbow 3/8 Orifice........................................................................................................................1
31 00-719376 Elbow 3/8 x 3/8...........................................................................................................................1
32 00-498096-00550 Valve (550F) T-Stat Combo.......................................................................................................1
33 00-719376 Elbow 3/8 x 3/8...........................................................................................................................1
34 00-921167 GS Cover....................................................................................................................................1
35 00-722221 Flex Tubing (3/8 x 12 In.)...........................................................................................................1
36 00-719566 Sleeving - Silicon........................................................................................................................1
37 00-719376 Elbow 3/8 x 3/8...........................................................................................................................1
38 00-928037 Flex Tubing (3/8 x 5 In. GS-Nozzle)...........................................................................................1
39 00-722425 Tube - Flex (3/8 x 8 In.)..............................................................................................................1
40 00-714268 Thermocouple............................................................................................................................2
41 00-426505-00012 Tubing - Pilot Flex 1/4 O.D. x 12 In............................................................................................2
* 11/16/15
* (See Orifice Chart)
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES (After Aug 2011) REPLACEMENT PARTS
- 27 - F-43239 Rev. D (October 2017)
background
GRIDDLE/BROILER BURNER AND MANIFOLD
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES (After Aug 2011) REPLACEMENT PARTS
F-43239 Rev. D (October 2017) - 28 -
background
GRIDDLE/BROILER BURNER AND MANIFOLD

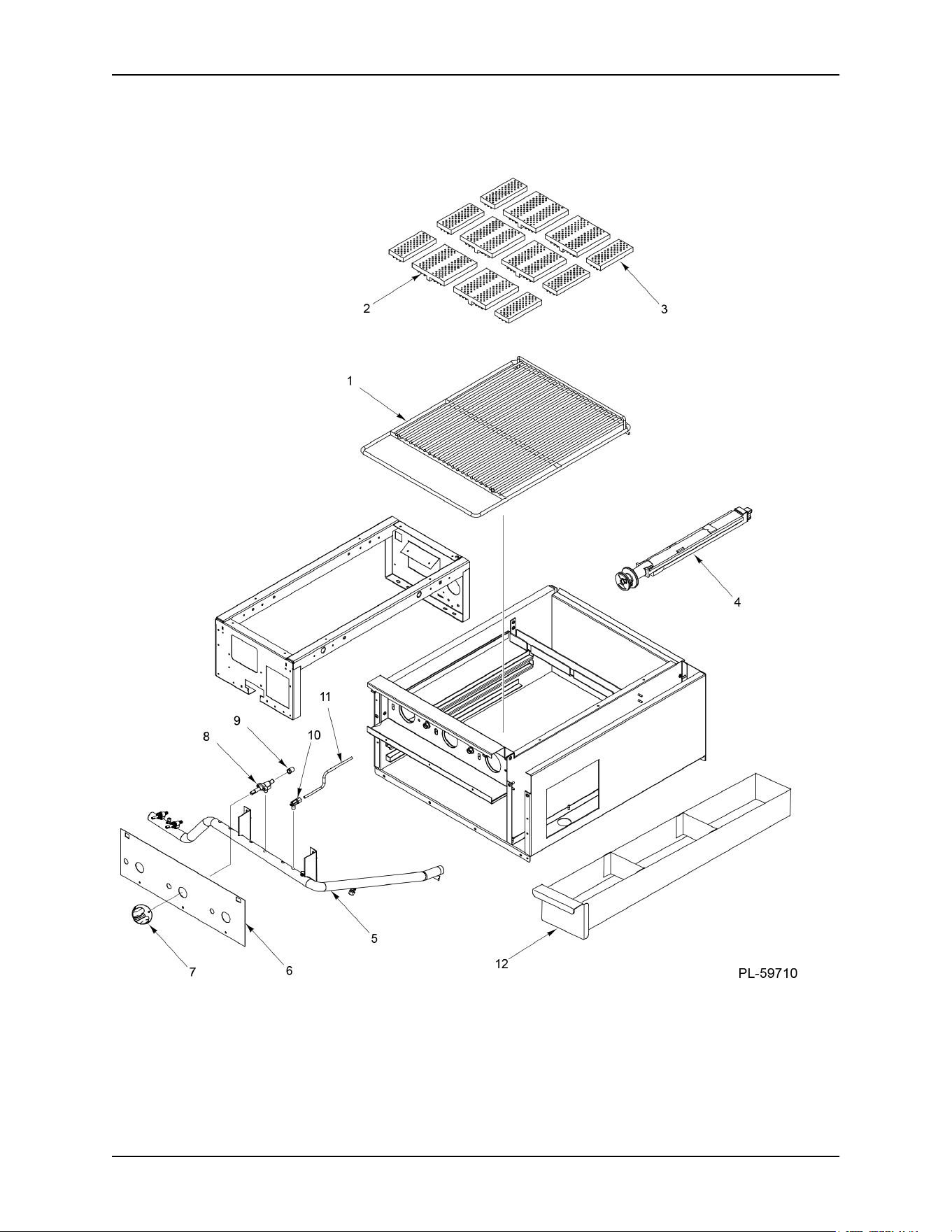

ILLUS.
PL-59710
PART NO. NAME OF PART AMT.
1 00-417632-00001 Rack - Broiler Griddle.................................................................................................................1
2 00-404145-00001 Broiler Brick - Center..................................................................................................................6
3 00-417698-00001 Broiler Brick - Side......................................................................................................................6
4 00-411684-000G1 Burner (Griddle/Broiler)..............................................................................................................3
5 00-922210-0000A Manifold Weldment.....................................................................................................................1
6 00-927679 Panel..........................................................................................................................................1
7 00-497246-00001 Knob - Griddle/Broiler.................................................................................................................3
8 00-497240-00001 Valve - Manifold..........................................................................................................................3
*9 Valve Hood.................................................................................................................................3
10 00-404193-00001 Valve - Pilot................................................................................................................................3
11 00-497062-000G1 Tube Assy. - Pilot (Broiler (260).................................................................................................3
12 00-927680-0000A Can Assy. - Grease....................................................................................................................1
* (See Orifice Chart)
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES (After Aug 2011) REPLACEMENT PARTS
- 29 - F-43239 Rev. D (October 2017)
background
GRIDDLE/BROILER PANELS
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES (After Aug 2011) REPLACEMENT PARTS
F-43239 Rev. D (October 2017) - 30 -
background
GRIDDLE/BROILER PANELS

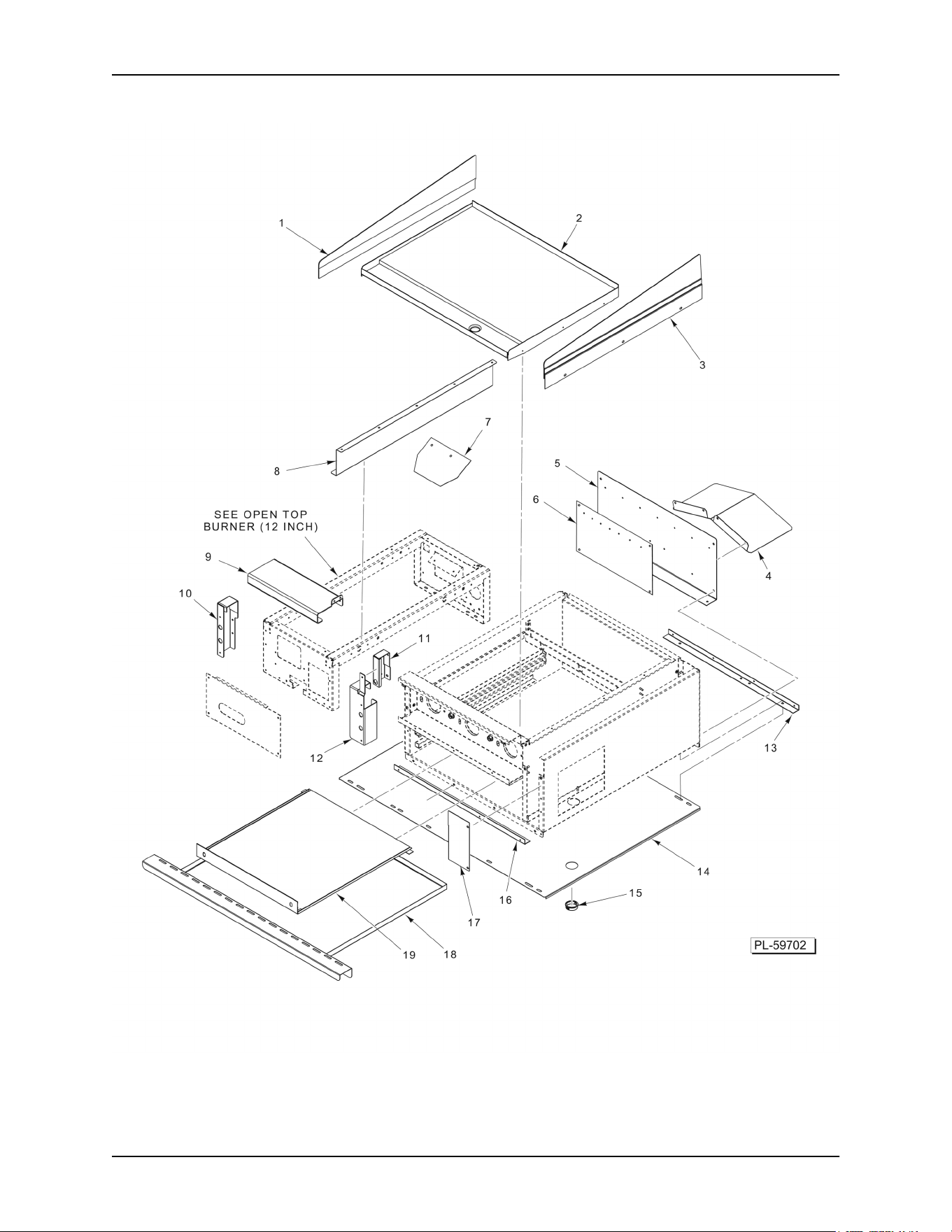

ILLUS.
PL-59702
PART NO. NAME OF PART AMT.
1 00-926527-0000A Splash Assy. - Outer (LH)..........................................................................................................1
2 00-927673-0000A Griddle Plate Assy......................................................................................................................1
3 00-926513-0000A Splash Assy. - Outer (RH)..........................................................................................................1
4 00-921093 Guard - Motor.............................................................................................................................1
5 00-921529 Bracket - Convection Oven........................................................................................................1
6 00-921410 Cover - Flue................................................................................................................................1
7 00-924022 Deflector - OTB Module (12 In.).................................................................................................1
8 00-927672 Panel - Griddle/Broiler................................................................................................................1
9 00-921884-012GB Bull Nose Griddle Broiler (12 In.)................................................................................................1
10 00-921882 Bracket - Manifold Cover (RH)...................................................................................................1
11 00-927676 Support - Bracket.......................................................................................................................1
12 00-921889 Support - Bracket.......................................................................................................................1
13 00-927686 Bracket.......................................................................................................................................1
14 00-922006 Support - Insulation....................................................................................................................1
15 2240-2241 Grommet - Heyco.......................................................................................................................1
16 00-927686 Bracket.......................................................................................................................................1
17 00-927678 Panel..........................................................................................................................................1
18 00-921247-0000A Crumb Tray Assy........................................................................................................................1
19 00-417669-000G1 Tray Weldment - Drip (Broiler)...................................................................................................1
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES (After Aug 2011) REPLACEMENT PARTS
- 31 - F-43239 Rev. D (October 2017)
background
STANDARD OVEN CONTROL
(24 INCH)
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES (After Aug 2011) REPLACEMENT PARTS
F-43239 Rev. D (October 2017) - 32 -
background
STANDARD OVEN CONTROL
(24 INCH)

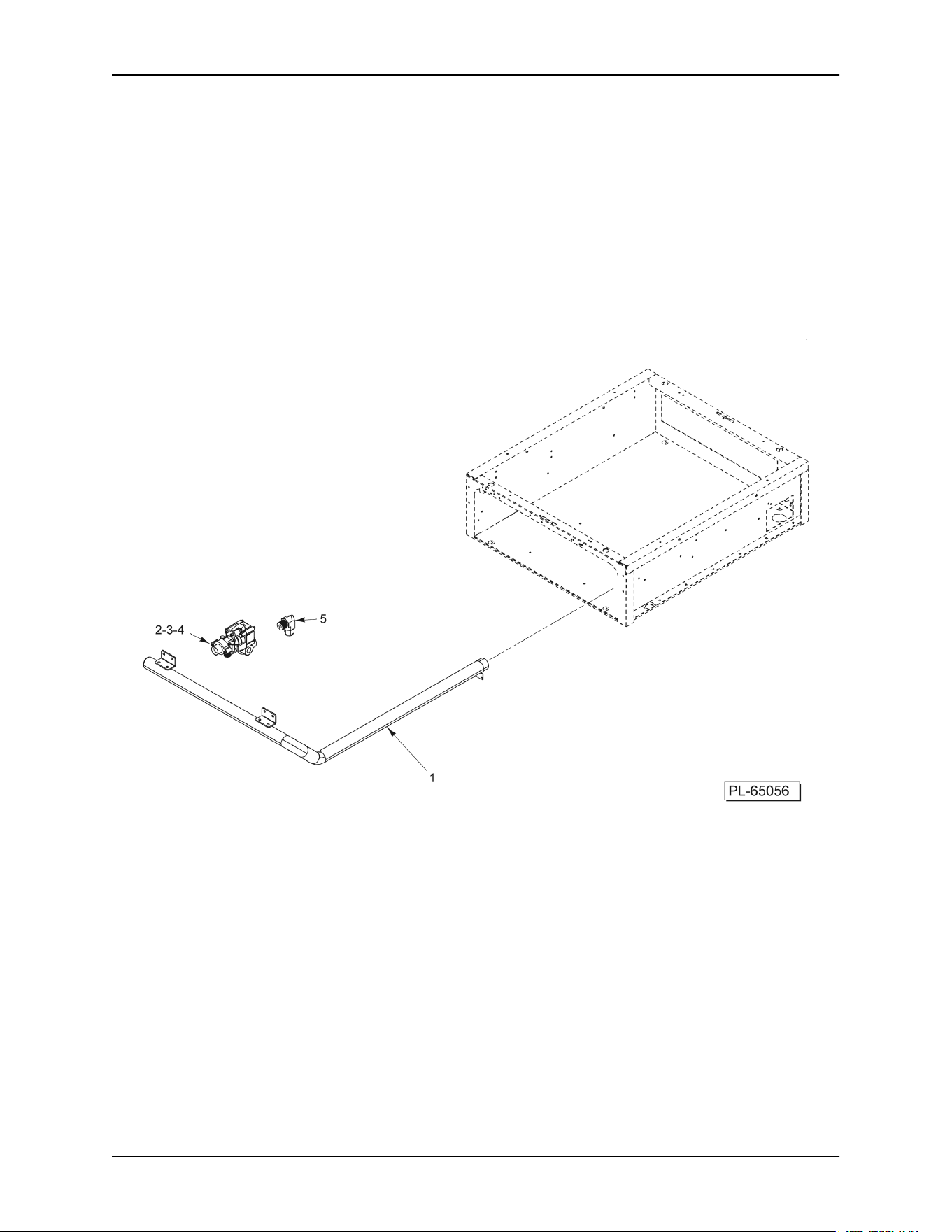

ILLUS.
PL-65056
PART NO. NAME OF PART AMT.
1 00-921356-0000A Manifold......................................................................................................................................1
2 00-922021 Thermostat.................................................................................................................................1
3 00-498356 Pipe - Flanged Thermostat Mount..............................................................................................1
4 00-922046-00024 Knob - Adjustable (BJ Valve).....................................................................................................1
5 00-922015 Elbow..........................................................................................................................................1
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES (After Aug 2011) REPLACEMENT PARTS
- 33 - F-43239 Rev. D (October 2017)
background
STANDARD OVEN CONTROL
(30 INCH)
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES (After Aug 2011) REPLACEMENT PARTS
F-43239 Rev. D (October 2017) - 34 -
background
STANDARD OVEN CONTROL
(30 INCH)

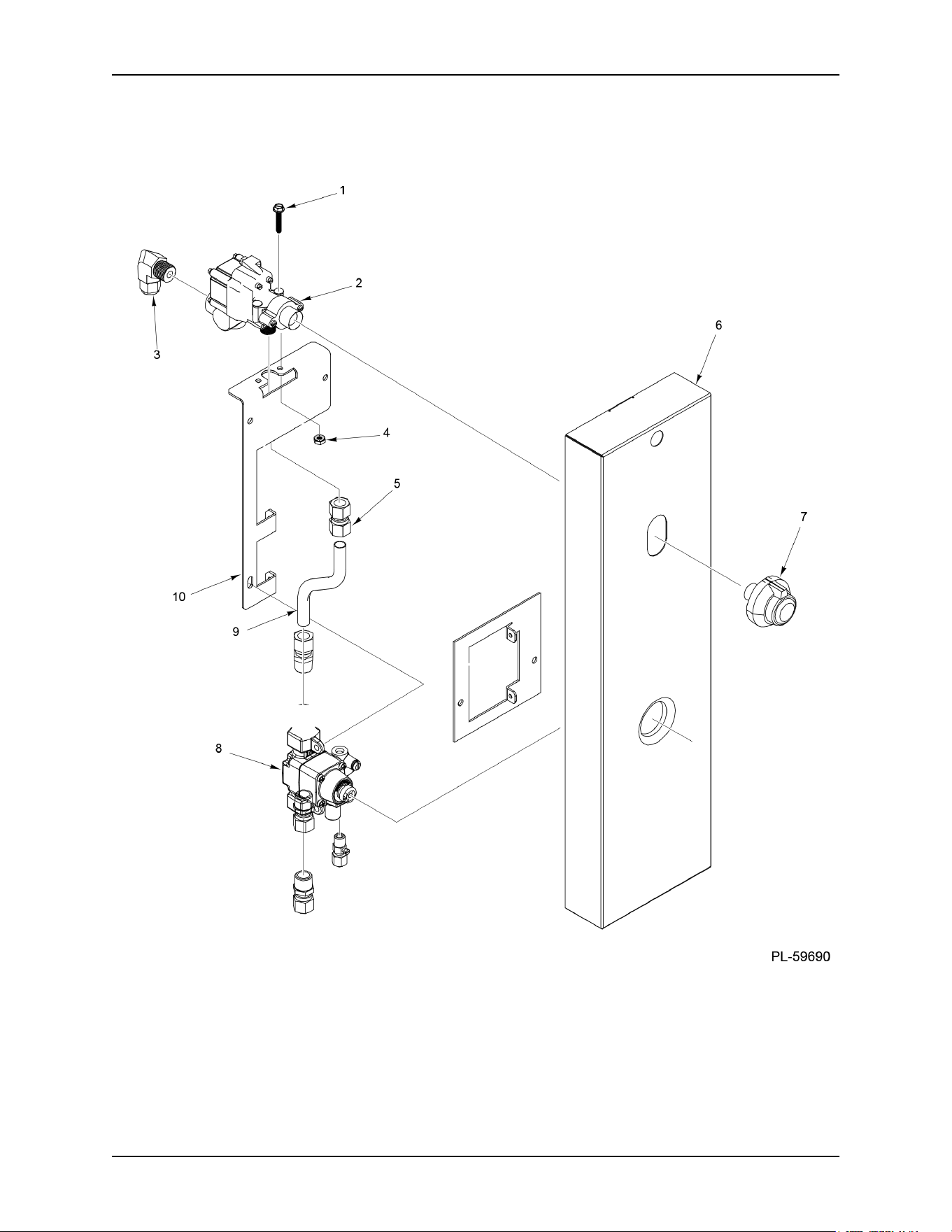

ILLUS.
PL-59690
PART NO. NAME OF PART AMT.
1 00-922019 Screw 10-24 x 1.........................................................................................................................2
2 00-922020 BJ Thermostat............................................................................................................................1
3 00-922015 Elbow..........................................................................................................................................1
4 00-730534 Nut 10-24 Hex KEPS..................................................................................................................2
5 00-922017 Fitting 1/8 x 7/16.........................................................................................................................1
6 00-922179 Panel - Control (Standard).........................................................................................................1
7 00-922046 Knob - Adjustable BJ Thermostat...............................................................................................1
8 00-922160-0000A Valve Assy. - Safety...................................................................................................................1
00-412788-00004 Thermocouple - 48" Lg...............................................................................................................1
9 00-426508-00008 Flex Tubing (8 In.)......................................................................................................................1
10 00-922178 Bracket - Controller....................................................................................................................1
11 00-498356 Pipe - Flanged Thermostat Mount..............................................................................................1
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES (After Aug 2011) REPLACEMENT PARTS
- 35 - F-43239 Rev. D (October 2017)
background
CONVECTION OVEN CONTROL
(30 INCH)
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES (After Aug 2011) REPLACEMENT PARTS
F-43239 Rev. D (October 2017) - 36 -
background
CONVECTION OVEN CONTROL
(30 INCH)

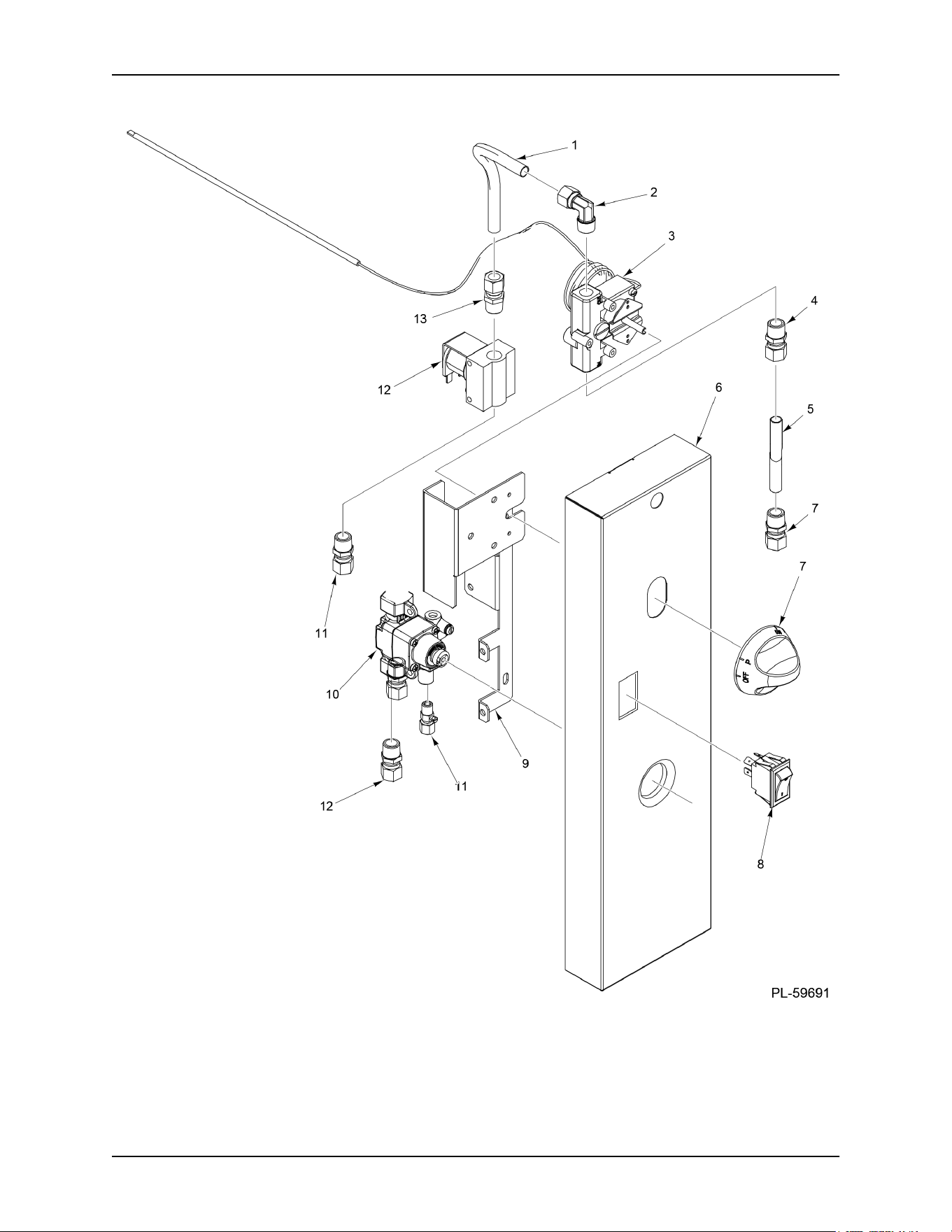

ILLUS.
PL-59691
PART NO. NAME OF PART AMT.
1 00-426508-00008 Flex Tubing (8 In.)......................................................................................................................1
2 FP-085-68 Fitting- Elbow (7/16 TBG X 3/8 MPT).........................................................................................1
3 00-498096-00550 Valve (550F) T-Stat Combo.......................................................................................................1
4 FP-085-42 Fitting - Tube (7/16 TBG X 3/8 MPT).........................................................................................1
5 00-426508-00008 Flex Tubing (8 In.)......................................................................................................................1
6 00-921369 Panel - Control (Convection)......................................................................................................1
7 00-921686 Knob - Gas Valve.......................................................................................................................1
8 00-921528 Switch - Rocker..........................................................................................................................1
9 00-922180 Bracket - Mounting.....................................................................................................................1
10 00-922160-0000A Valve Assy. - Safety...................................................................................................................1
00-412788-00004 Thermocouple - 48" Lg...............................................................................................................1
11 FP-085-42 Fitting - Tube (7/16 TBG X 3/8 MPT).........................................................................................1
12 00-770085-00002 Solenoid.....................................................................................................................................1
13 FP-085-42 Fitting - Tube (7/16 TBG X 3/8 MPT).........................................................................................1
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES (After Aug 2011) REPLACEMENT PARTS
- 37 - F-43239 Rev. D (October 2017)
background
DOOR SWITCH ASSEMBLY
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES (After Aug 2011) REPLACEMENT PARTS
F-43239 Rev. D (October 2017) - 38 -
background
DOOR SWITCH ASSEMBLY

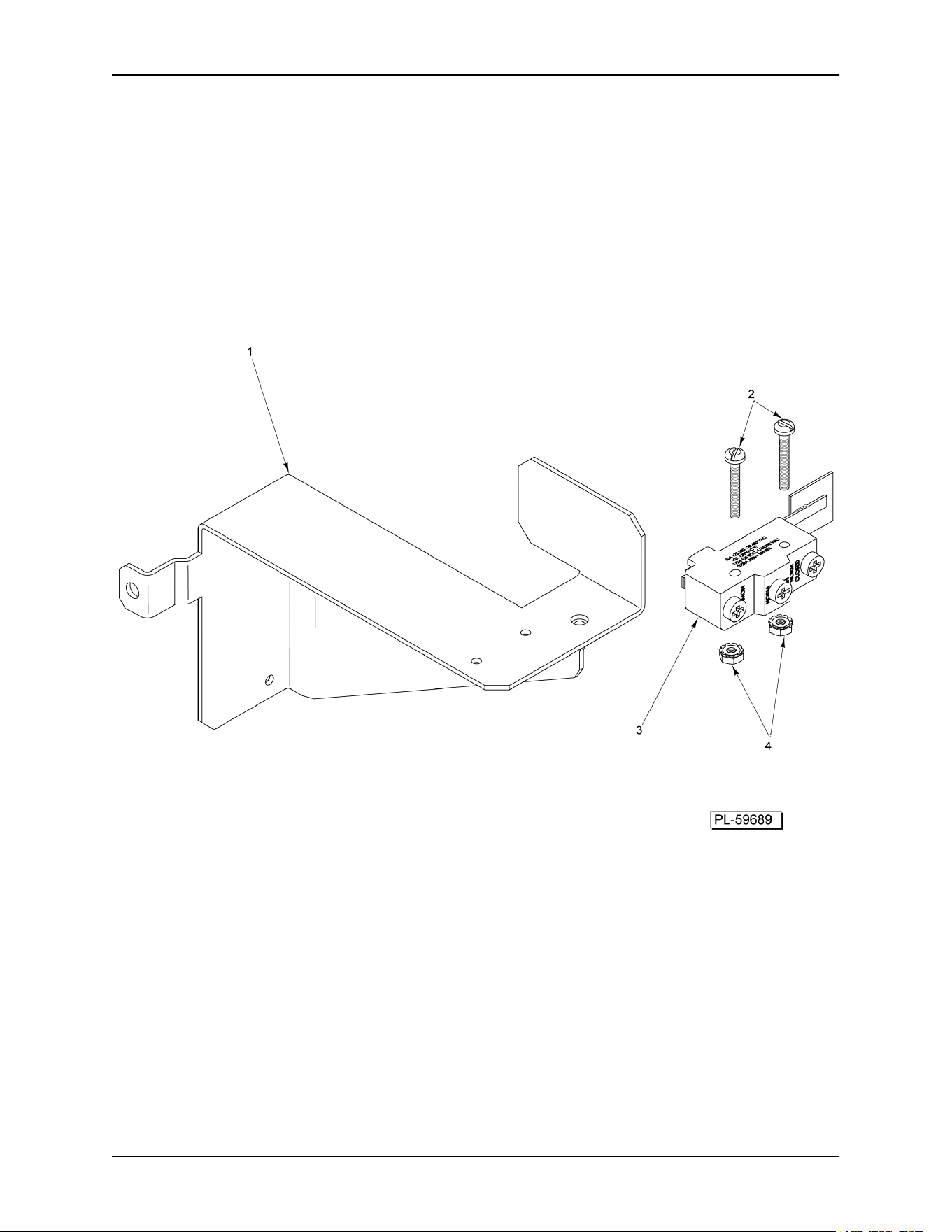

ILLUS.
PL-59689
PART NO. NAME OF PART AMT.
1 00-922181 Bracket - Door Switch.................................................................................................................1
2 00-730058 Mach. Screw 6-32 x 1 Phil. Pan Hd............................................................................................2
3 00-922878-0000A Switch Assy................................................................................................................................1
4 00-730535 Nut 6-32 Hex KEPS....................................................................................................................2
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES (After Aug 2011) REPLACEMENT PARTS
- 39 - F-43239 Rev. D (October 2017)
background
OVEN BURNER ASSEMBLY
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES (After Aug 2011) REPLACEMENT PARTS
F-43239 Rev. D (October 2017) - 40 -
background
OVEN BURNER ASSEMBLY

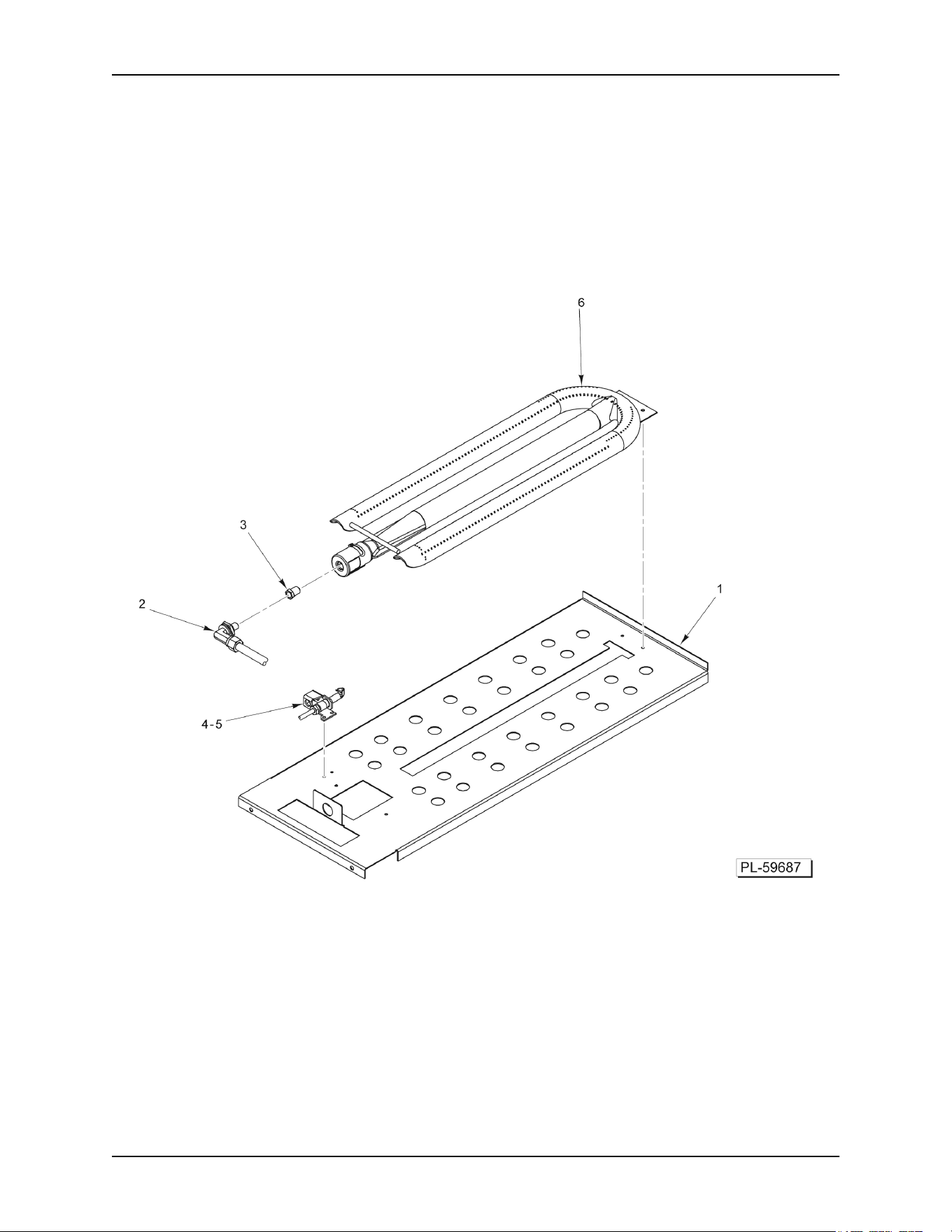

ILLUS.
PL-59687
PART NO. NAME OF PART AMT.
1 00-921023 Carrier - Burner..........................................................................................................................1
2 00-404079-0000F Elbow 7/16 Orifice......................................................................................................................1
*3 Valve Hood.................................................................................................................................1
4 00-426262-00001 Pilot Assy. (NAT)........................................................................................................................1
5 00-426262-00002 Pilot Assy. (LP)...........................................................................................................................1
6 00-921091-0000A Burner - Oven Module................................................................................................................1
* (See Orifice Chart)
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES (After Aug 2011) REPLACEMENT PARTS
- 41 - F-43239 Rev. D (October 2017)
background
RANGE BODY
(12 INCH)
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES (After Aug 2011) REPLACEMENT PARTS
F-43239 Rev. D (October 2017) - 42 -
background
RANGE BODY
(12 INCH)

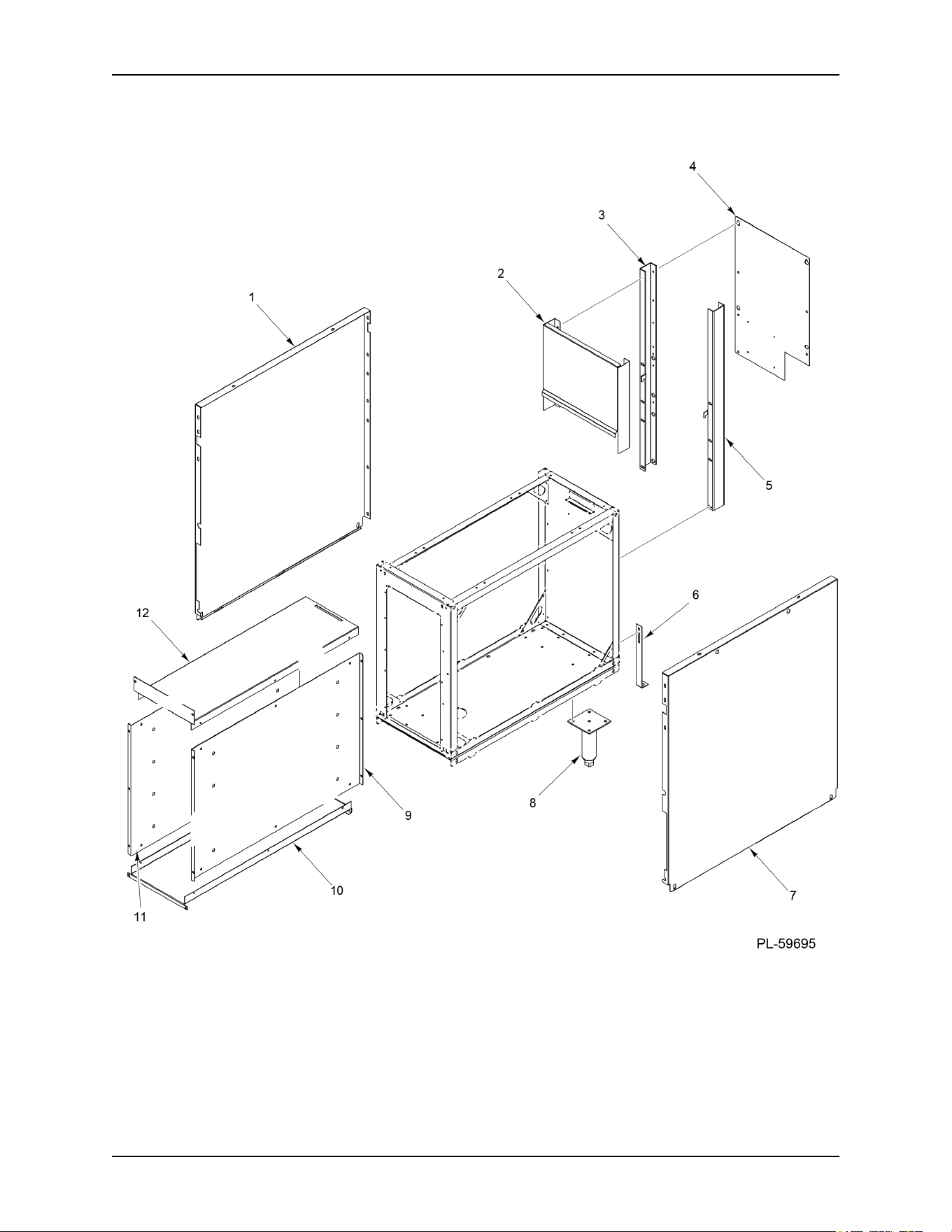

ILLUS.
PL-59695
PART NO. NAME OF PART AMT.
1 00-921807 Panel - Side................................................................................................................................1
2 00-921317 Backsplash (12 In.).....................................................................................................................1
3 00-922140 Channel (LH)..............................................................................................................................1
4 00-921713 Panel - Back (12 In.)...................................................................................................................1
5 00-922141 Channel (RH).............................................................................................................................1
6 00-927459 Bracket - Anchor.........................................................................................................................2
7 00-921807 Panel - Side................................................................................................................................1
8 00-413112-00012 Leg (6 In.)...................................................................................................................................4
9 00-921850 Panel - Side................................................................................................................................1
10 00-921851 Panel - Bottom............................................................................................................................1
11 00-921850 Panel - Side................................................................................................................................1
12 00-921849 Panel - Top.................................................................................................................................1
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES (After Aug 2011) REPLACEMENT PARTS
- 43 - F-43239 Rev. D (October 2017)
background
STANDARD OVEN CAVITY
(24 INCH)
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES (After Aug 2011) REPLACEMENT PARTS
F-43239 Rev. D (October 2017) - 44 -
background
STANDARD OVEN CAVITY
(24 INCH)

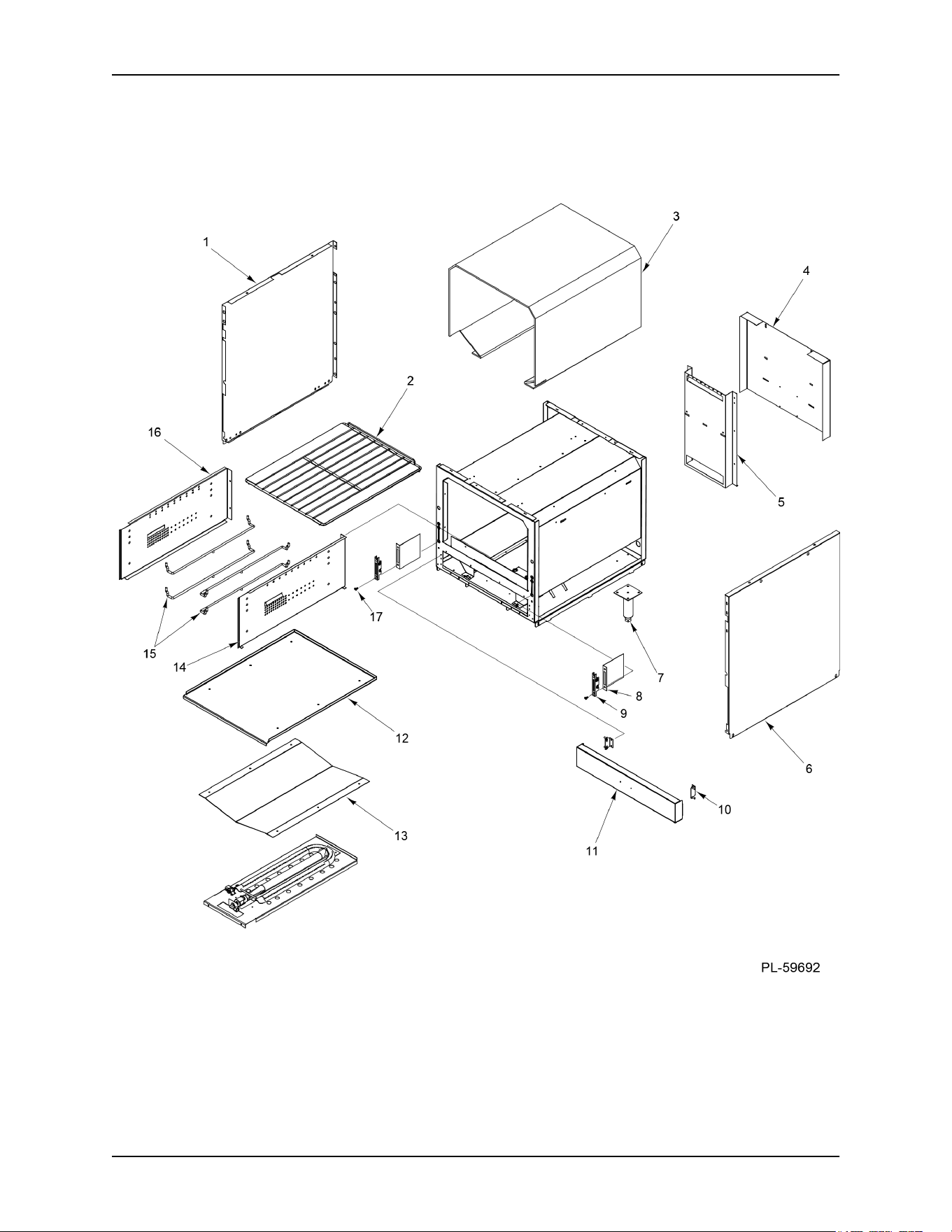

ILLUS.
PL-59692
PART NO. NAME OF PART AMT.
1 00-921807 Panel - Side................................................................................................................................1
2 00-923508-0000A Oven Rack (24 In.).....................................................................................................................2
3 00-921527 Insulation Blanket.......................................................................................................................1
4 00-921786 Flue - Rear.................................................................................................................................1
5 00-921799 Channel - Back Flue...................................................................................................................1
6 00-921807 Panel - Side................................................................................................................................1
7 00-413112-00012 Leg (6 In.)...................................................................................................................................4
8 00-921095 Insulation - Door Hinge...............................................................................................................2
9 00-497029-00001 Door Hinge Stop.........................................................................................................................2
10 00-428179-000G1 Bracket - Kick Panel Mounting...................................................................................................2
11 00-921785 Kick Panel Assy..........................................................................................................................1
12 00-923515 Cavity Bottom (24 In. Oven).......................................................................................................1
13 00-923516 Flame Deflector..........................................................................................................................1
14 00-921078 Side Panel - Right......................................................................................................................1
15 00-921064 Guide - Rack..............................................................................................................................4
16 00-921073 Side Panel - Left.........................................................................................................................1
17 00-723369 Mach. Screw 1/4-20 x 1/2 Phil. Truss Hd...................................................................................4
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES (After Aug 2011) REPLACEMENT PARTS
- 45 - F-43239 Rev. D (October 2017)
background

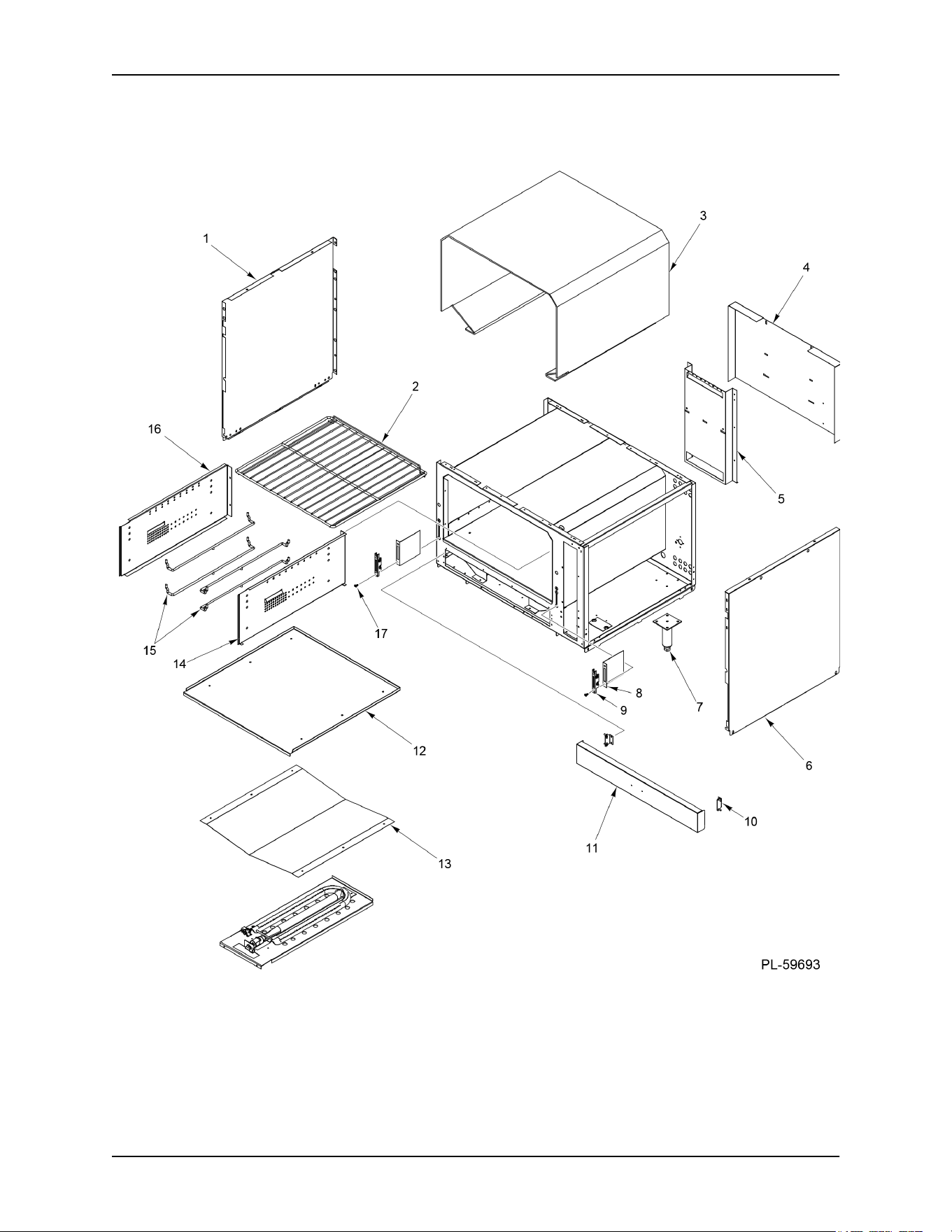

STANDARD OVEN CAVITY
(36 INCH)
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES (After Aug 2011) REPLACEMENT PARTS
F-43239 Rev. D (October 2017) - 46 -
background
STANDARD OVEN CAVITY
(36 INCH)
ILLUS.
PL-59693
PART NO. NAME OF PART AMT.
1 00-921807 Panel - Side................................................................................................................................1
2 00-921010-0000A Oven Rack (30 In.).....................................................................................................................2
3 00-921035 Insulation Blanket.......................................................................................................................1
4 00-921723 Flue - Rear.................................................................................................................................1
5 00-921799 Channel - Back Flue...................................................................................................................1
6 00-921807 Panel - Side................................................................................................................................1
7 00-413112-00012 Leg (6 In.)...................................................................................................................................4
8 00-921095 Insulation - Door Hinge...............................................................................................................2
9 00-497029-00001 Door Hinge Stop.........................................................................................................................2
10 00-428179-000G1 Bracket - Kick Panel Mounting...................................................................................................2
11 00-921721 Kick Panel Assy..........................................................................................................................1
12 00-921015 Cavity Bottom (30 In.).................................................................................................................1
13 00-921080 Flame Deflector..........................................................................................................................1
14 00-921078 Side Panel - Right......................................................................................................................1
15 00-921064 Guide - Rack..............................................................................................................................4
16 00-921073 Side Panel - Left.........................................................................................................................1
17 00-723369 Mach. Screw 1/4-20 x 1/2 Phil. Truss Hd...................................................................................4
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES (After Aug 2011) REPLACEMENT PARTS
- 47 - F-43239 Rev. D (October 2017)
background

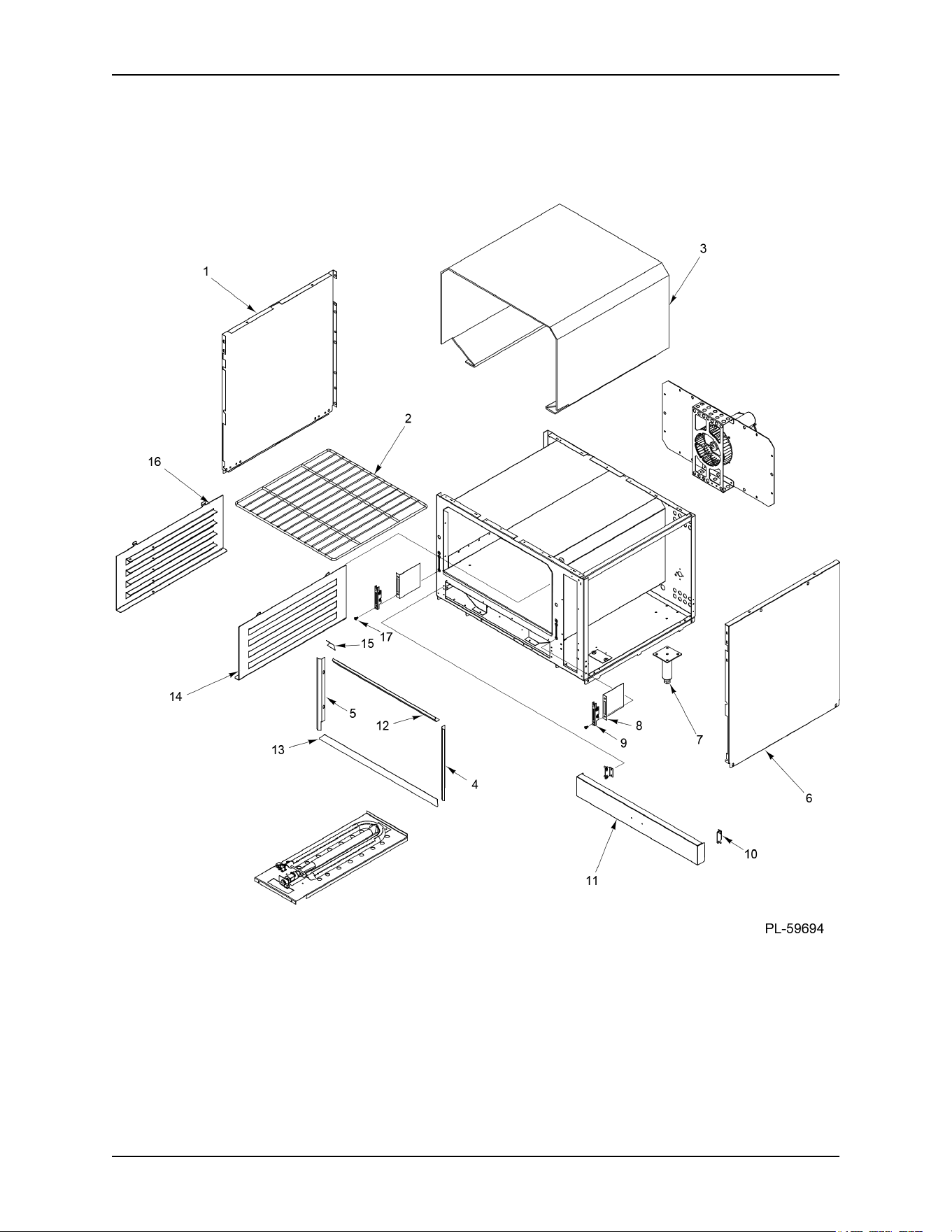

CONVECTION OVEN CAVITY
(36 INCH)
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES (After Aug 2011) REPLACEMENT PARTS
F-43239 Rev. D (October 2017) - 48 -
background
CONVECTION OVEN CAVITY
(36 INCH)
ILLUS.
PL-59694
PART NO. NAME OF PART AMT.
1 00-921807 Panel - Side................................................................................................................................1
2 00-921548-0000A Oven Rack (30 In.) (Convection)................................................................................................2
3 00-921035 Insulation Blanket.......................................................................................................................1
4 00-921536 Side Seal - Right........................................................................................................................1
5 00-921513 Side Seal - Left...........................................................................................................................1
6 00-921807 Panel - Side................................................................................................................................1
7 00-413112-00012 Leg (6 In.)...................................................................................................................................4
8 00-921095 Insulation - Door Hinge...............................................................................................................2
9 00-497029-00001 Door Hinge Stop.........................................................................................................................2
10 00-428179-000G1 Bracket - Kick Panel Mounting...................................................................................................2
11 00-921721 Kick Panel Assy..........................................................................................................................1
12 00-921512 Seal - Top...................................................................................................................................1
13 00-921537 Seal - Bottom..............................................................................................................................1
14 00-921546-0000A Rack Guide Assy. (Right)...........................................................................................................1
15 00-921514 Seal - Corner..............................................................................................................................2
16 00-921547-0000A Rack Guide Assy. (Left).............................................................................................................1
17 00-723369 Mach. Screw 1/4-20 x 1/2 Phil. Truss Hd...................................................................................4
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES (After Aug 2011) REPLACEMENT PARTS
- 49 - F-43239 Rev. D (October 2017)
background

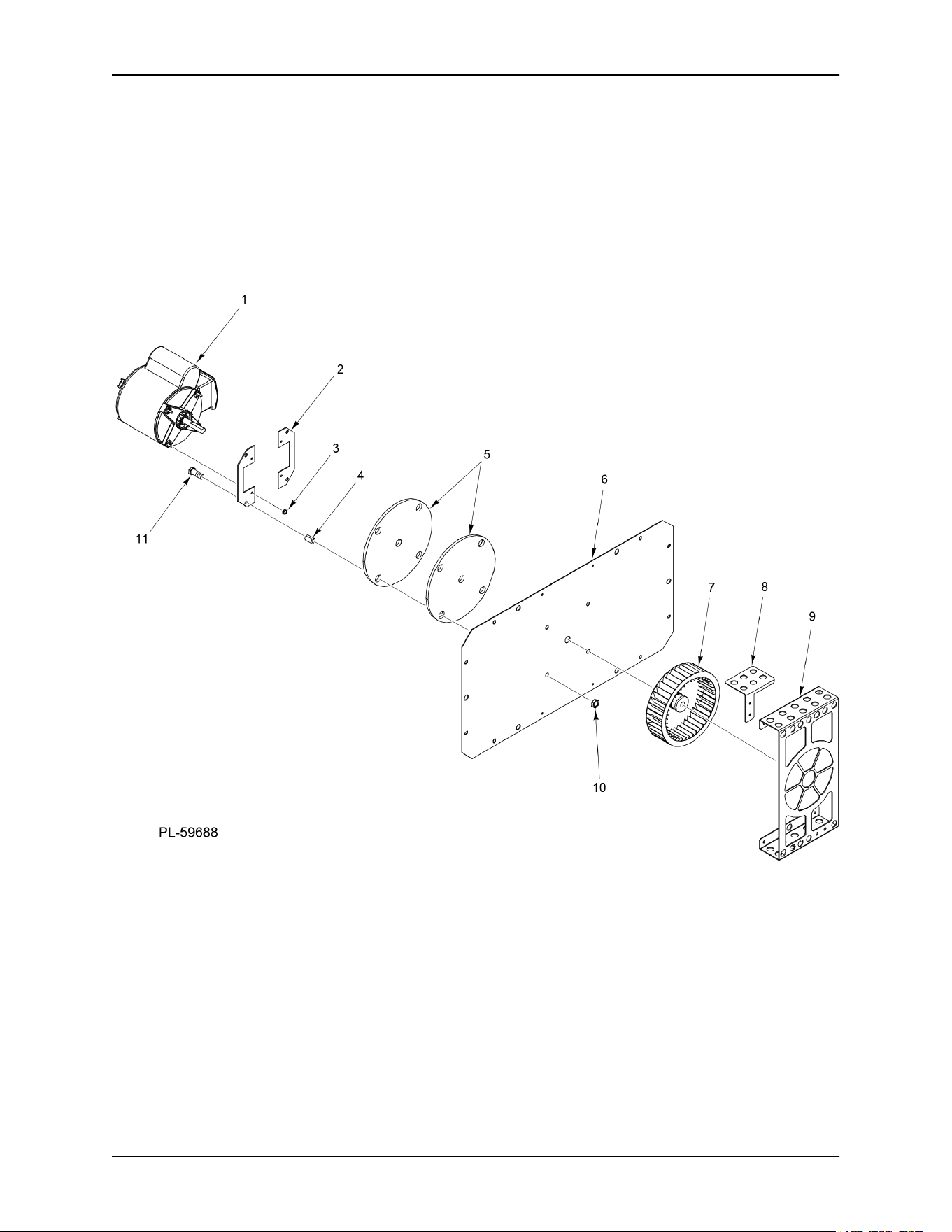

CONVECTION MOTOR ASSEMBLY
(30 INCH UNIT ONLY)
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES (After Aug 2011) REPLACEMENT PARTS
F-43239 Rev. D (October 2017) - 50 -
background
CONVECTION MOTOR ASSEMBLY
(30 INCH UNIT ONLY)
ILLUS.
PL-59688
PART NO. NAME OF PART AMT.
1 00-419730-00001 Motor (1/6 Hp., 115/208-230 V., 50/60 Hz., 1 Ph.).....................................................................1
2 00-419719-00002 Bracket - Motor Mount................................................................................................................2
3 NS-044-07 Nut Assy. 8-32 Hex Keps...........................................................................................................4
4 00-712380 Spacer........................................................................................................................................4
5 00-428898-00008 Motor Insulation..........................................................................................................................2
6 00-921640 Motor Mount HB.........................................................................................................................1
7 00-415780-00008 Wheel - Blower (Incls. Set Screws)............................................................................................1
8 00-921631 Deflector - Air Flow.....................................................................................................................1
9 00-921658 Blower Cover HB........................................................................................................................1
10 NS-047-72 Lock Nut 1/4-20..........................................................................................................................4
11 SC-121-01 Mach. Screw 1/4-20 x 1-1/4 Flat Hd...........................................................................................4
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES (After Aug 2011) REPLACEMENT PARTS
- 51 - F-43239 Rev. D (October 2017)
background

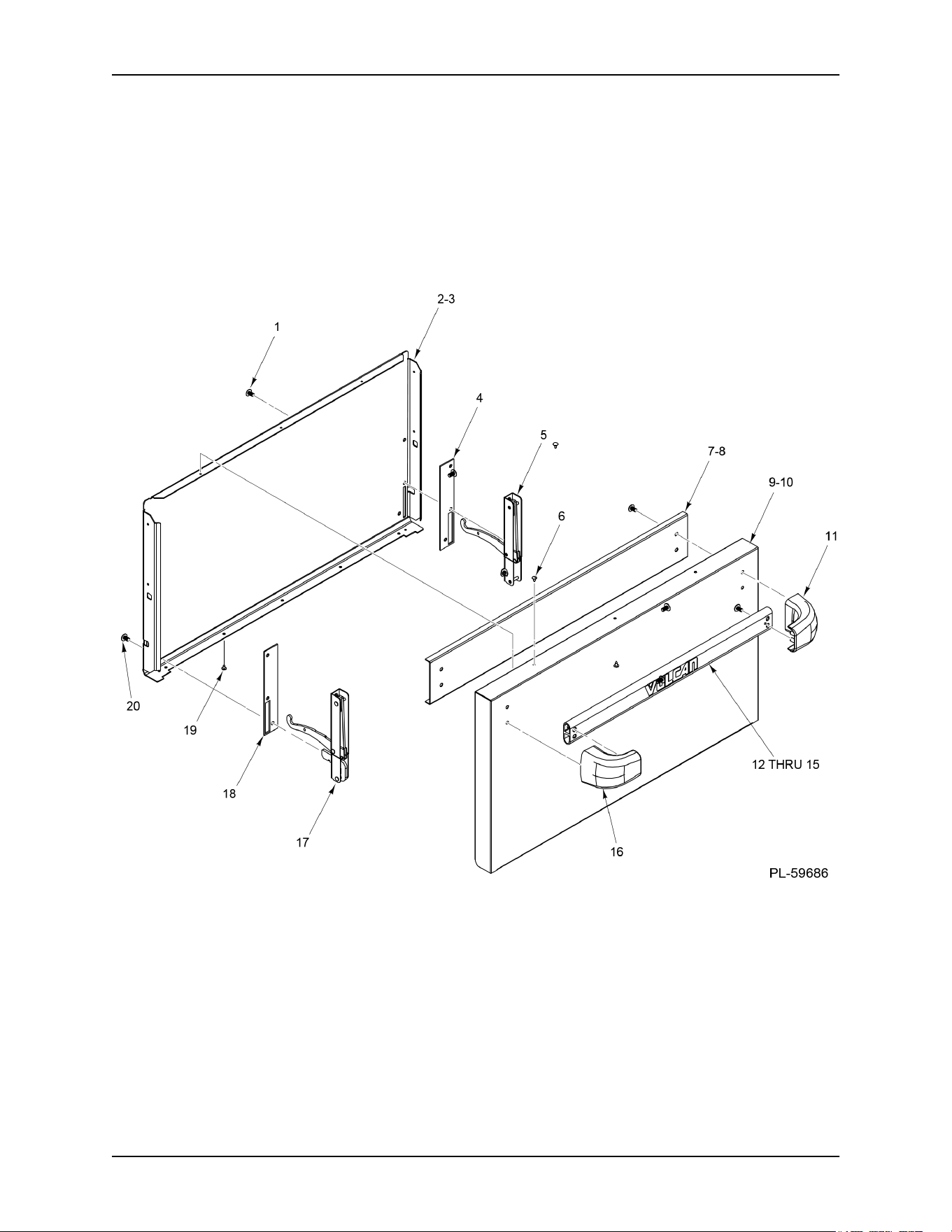

DOOR ASSEMBLY
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES (After Aug 2011) REPLACEMENT PARTS
F-43239 Rev. D (October 2017) - 52 -
background
DOOR ASSEMBLY
ILLUS.
PL-59686
PART NO. NAME OF PART AMT.
1 00-723369 Mach. Screw 1/4-20 x 1/2 Phil. Truss Hd...................................................................................3
2 00-922030 Liner - Door (24 In.)....................................................................................................................1
3 00-921022 Liner - Door (30 In.)....................................................................................................................1
4 00-921033 Insulator - Door Hinge................................................................................................................1
5 00-497027-00001 Hinge - Door Spring (RH)...........................................................................................................1
6 00-730240 Mach. Screw #8 x 1/2.................................................................................................................3
7 00-922134 Reinforcement - Door (24 In.).....................................................................................................1
8 00-922133 Reinforcement - Door (30 In.).....................................................................................................1
9 00-921781 Panel - Door (24 In.)...................................................................................................................1
10 00-921749 Panel - Door (30 In.)...................................................................................................................1
11 00-922118 Bracket - Handle.........................................................................................................................1
12 00-913159-00002 Kit - Door Handle (24 In.) (Vulcan).............................................................................................1
13 00-913159-00001 Kit - Door Handle (24 In.) (Wolf).................................................................................................1
14 00-913159-00004 Kit - Door Handle (30 In.) (Vulcan).............................................................................................1
15 00-913159-00003 Kit - Door Handle (30 In.) (Wolf).................................................................................................1
16 00-922118 Bracket - Handle.........................................................................................................................1
17 00-497027-00002 Hinge - Door Spring (LH)............................................................................................................1
18 00-921033 Insulator - Door Hinge................................................................................................................1
19 00-730240 Mach. Screw #8 x 1/2.................................................................................................................3
20 00-723369 Mach. Screw 1/4-20 x 1/2 Phil. Truss Hd...................................................................................3
00-922131-0000A Door Assy. (24 In.).....................................................................................................................1
00-922132-0000A Door Assy. (30 In.).....................................................................................................................1
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES (After Aug 2011) REPLACEMENT PARTS
- 53 - F-43239 Rev. D (October 2017)
background

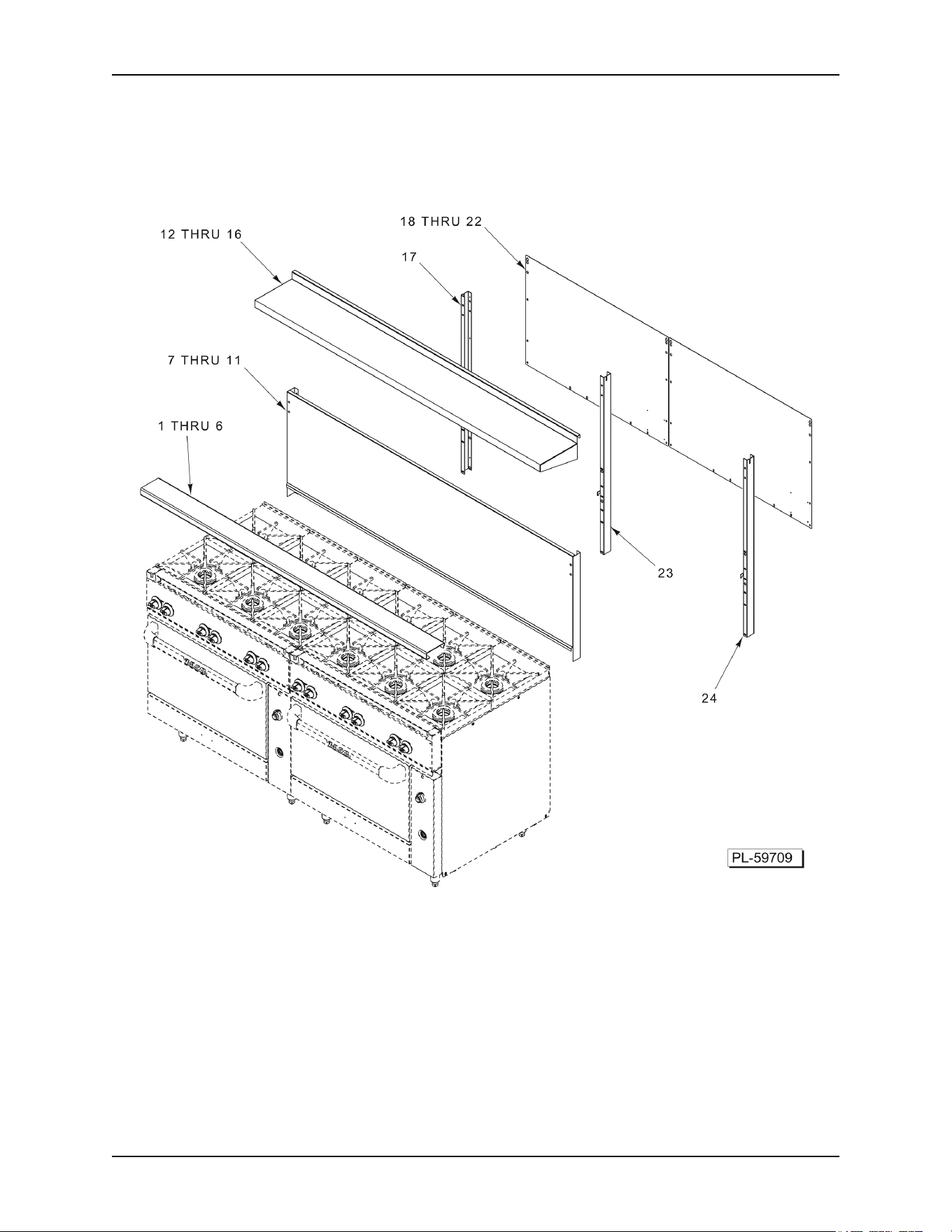

BACKSPLASH, SHELF, AND BULL NOSE
(ALL SIZES)
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES (After Aug 2011) REPLACEMENT PARTS
F-43239 Rev. D (October 2017) - 54 -
background
BACKSPLASH, SHELF, AND BULL NOSE
(ALL SIZES)
ILLUS.
PL-59709
PART NO. NAME OF PART AMT.
1 00-921884-00012 Bull Nose (12 In.)........................................................................................................................1
2 00-921884-00024 Bull Nose (24 In.)........................................................................................................................1
3 00-921884-00036 Bull Nose (36 In.)........................................................................................................................1
4 00-921884-00048 Bull Nose (48 In.)........................................................................................................................1
5 00-921884-00060 Bull Nose (60 In.)........................................................................................................................1
6 00-921884-00072 Bull Nose (72 In.)........................................................................................................................1
7 00-921053-00024 Backsplash (24 In.).....................................................................................................................1
8 00-921053-00036 Backsplash (36 In.).....................................................................................................................1
9 00-921053-00048 Backsplash (48 In.).....................................................................................................................1
10 00-921053-00060 Backsplash (60 In.).....................................................................................................................1
11 00-921053-00072 Backsplash (72 In.).....................................................................................................................1
12 00-921730-00024 Shelf (24 In.)...............................................................................................................................1
13 00-921730-00036 Shelf (36 In.)...............................................................................................................................1
14 00-921730-00048 Shelf (48 In.)...............................................................................................................................1
15 00-921730-00060 Shelf (60 In.)...............................................................................................................................1
16 00-921730-00072 Shelf (72 In.)...............................................................................................................................1
17 00-921728 Support - Backsplash (LH).........................................................................................................1
18 00-921713 Panel - Back (12 In.)...................................................................................................................1
19 00-923525 Panel - Back (24 In.)...................................................................................................................1
20 00-921054 Panel - Back (36 In.) (Use two for 72 In. Units)..........................................................................1
21 00-923009 Panel - Back (48 In.)...................................................................................................................1
22 00-929007 Panel - Back (60 In.)...................................................................................................................1
23 00-921729 Support - Backsplash (RH) (Used on 60 & 72 In. Units)............................................................1
24 00-921729 Support - Backsplash (RH).........................................................................................................1
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES (After Aug 2011) REPLACEMENT PARTS
- 55 - F-43239 Rev. D (October 2017)
background

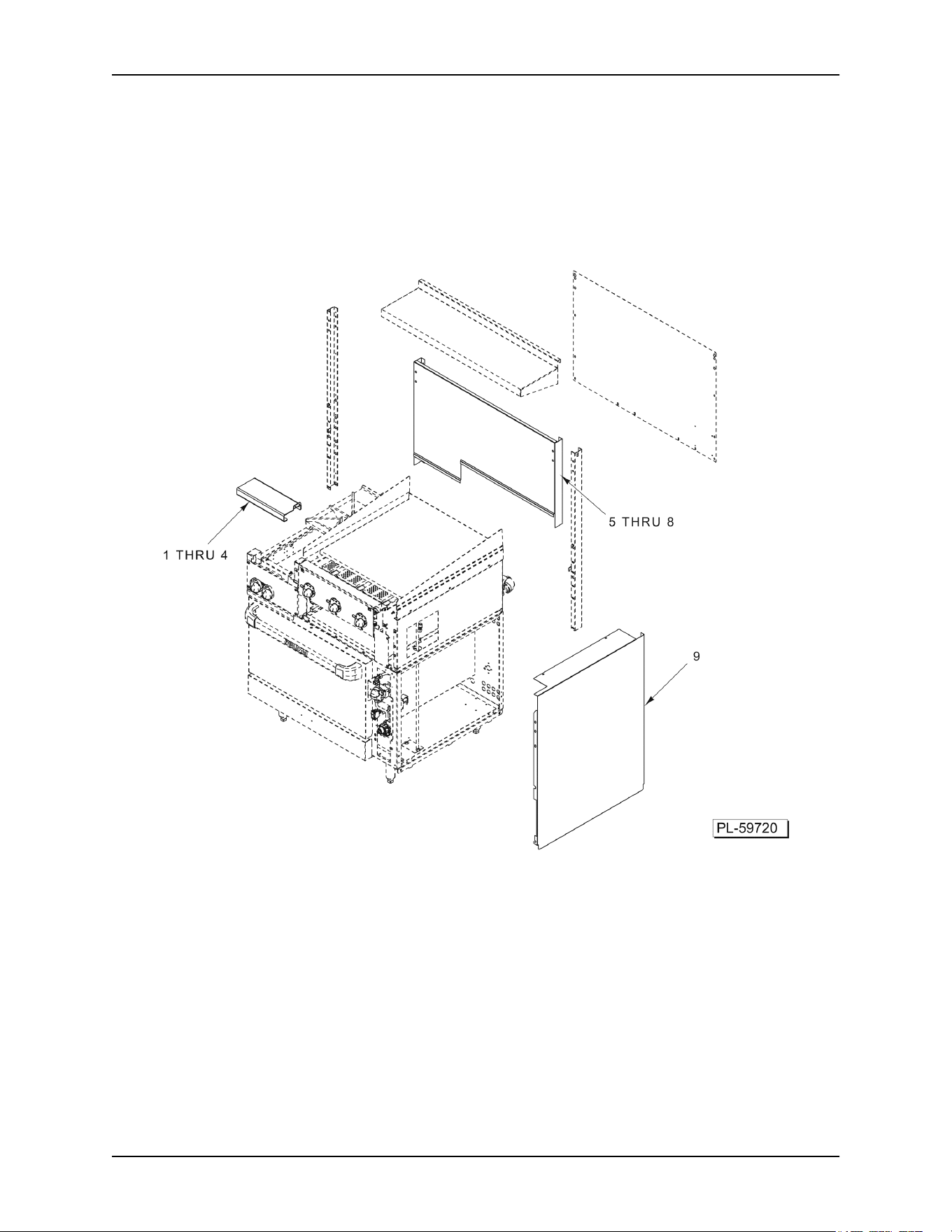

BACKSPLASH AND PANELS (GRIDDLE/BROILERS)
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES (After Aug 2011) REPLACEMENT PARTS
F-43239 Rev. D (October 2017) - 56 -
background
BACKSPLASH AND PANELS (GRIDDLE/BROILERS)
ILLUS.
PL-59720
PART NO. NAME OF PART AMT.
1 00-921884-012GB Bull Nose Griddle Broiler (12 In.)................................................................................................1
2 00-921884-024GB Bull Nose Griddle Broiler (24 In.)................................................................................................1
3 00-921884-036GB Bull Nose Griddle Broiler (36 In.)................................................................................................1
4 00-921884-048GB Bull Nose Griddle Broiler (48 In.)................................................................................................1
5 00-921258-00036 Backsplash (36 In.).....................................................................................................................1
6 00-921258-00048 Backsplash (48 In.).....................................................................................................................1
7 00-921258-00060 Backsplash (60 In.).....................................................................................................................1
8 00-921258-00072 Backsplash (72 In.).....................................................................................................................1
9 00-921764 Panel - Side (Griddle/Broilers)....................................................................................................1
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES (After Aug 2011) REPLACEMENT PARTS
- 57 - F-43239 Rev. D (October 2017)
background
ENDURANCE/CHALLENGER MODULAR SERIES GAS RANGES (After Aug 2011) REPLACEMENT PARTS
FORM 43239 Rev. D OCTOBER 2017 PRINTED IN U.S.A.

Specifications

Indexed Terms: Gas Range, 10 Burners

Vulcan 60SS-10BP Questions and Answers

Find answers or ask new question.
Questions and Answers

Related Products

No image
Vulcan 60SC-10B Restaurant Gas Range, 60" W with 10 Burners and 1 Convection Oven & 1 Standard Oven - 358,000 BTU
2026-07-18 4 docs
No image
Vulcan 60SC-4B36G Restaurant Gas Range, 60" W with 4 Burners 1 36" Griddle and 1 Standard Oven & 1 Convection Oven - 238,000 BTU
2026-07-22 4 docs
No image
Vulcan 60SS-6B24GP Restaurant Gas Range, 60" W with 6 Burners 1 24" Griddle and 2 Standard Ovens - 278,000 BTU
2026-07-22 3 docs
No image
Vulcan 48C-8B Restaurant Gas Range, 48" W with 8 Convection oven and Thermostatic Controls, - 275,000 BTU
2026-07-19 3 docs
No image
Vulcan 60SC-10B Restaurant Gas Range, 60" W with 10 Burners and 1 Convection Oven & 1 Standard Oven - 358,000 BTU
2026-07-18 4 docs
No image
Vulcan 36C-6BP Restaurant Gas Range, with 6 Burners and Convection oven - 215,000 BTU
2026-07-17 5 docs
