OPERATING MANUAL AND INSTRUCTIONS
RedHots
®
Display Light Units
EG10074 revised 07/22
INSTRUCTION SHEET
#361835
CAUTION
INSPECT CONTENTS IMMEDIATELY AND FILE CLAIM WITH DELIVERING
CARRIER FOR ANY DAMAGE. SAVE YOUR BOX AND ALL PACKING MATERIALS.
YOU ARE RESPONSIBLE FOR DAMAGE TO YOUR UNIT IF RETURNED IMPROPERLY PACKED.
Retain this manual for future reference.
IMPORTANT!
This manual provides installation and operation instructions for Eagle’s RedHots
®
Display
Light Units. Please read this manual before installing and operating this unit. Personal injury or
damage to the unit can occur if installed or operated incorrectly.
CAUTION!
1. This equipment is designed and sold for commercial use only by personnel trained and experienced in its operation and is not sold
for consumer use in and around the home, nor for use directly by the general public in foodservice locations.
2. Do not immerse unit in water.
3. All repairs should be done by an authorized service center.
4. Units should be turned off when not in use. It is recommended that unit be disconnected from power supply by removing plug
receptacle, or by shutting off power supply to the unit.
OPERATING MANUAL AND INSTRUCTIONS
RedHots
®
Display Light Units
GENERAL NOTES:
Eagle’s RedHots
®
Display Light Units are an ideal way to light up your food preparation, holding, and display areas. Its durable and
attractive construction makes it perfect for all your display lighting needs.
Eagle’s RedHots
®
Display Lights are made of an extruded aluminum housing with a mirror finish reflector for maximum brightness, and
come complete with shatter-resistant light bulbs.
All display light units are shipped completely assembled with field wiring connections and are ready to be mounted. Please see the
“Mounting Location” section of this manual for mounting clarification. Eagle Group provides a 7/8˝ and 1 1/8˝ knockout on the switch side
of the unit for non-cord & plug units along with a lit rocker switch for operator control.
Safety precautions in this manual are preceded by the words WARNING and CAUTION, printed in boldface type, and should be read
with care. WARNING indicates there is a possibility of personal injury. CAUTION indicates that damage to the unit can occur.
END MODEL SPECIFICATIONS:
All Display Light Units are offered in 120-volt with 60-watt light bulbs. Please refer to the catalog for all model numbers. See the
legend below for details on the model numbers.
Legend:
-I = incandescent light bulbs
-R = remote switch box
-CP = cord & plug
Model number description:
prefix
length lights remote connection

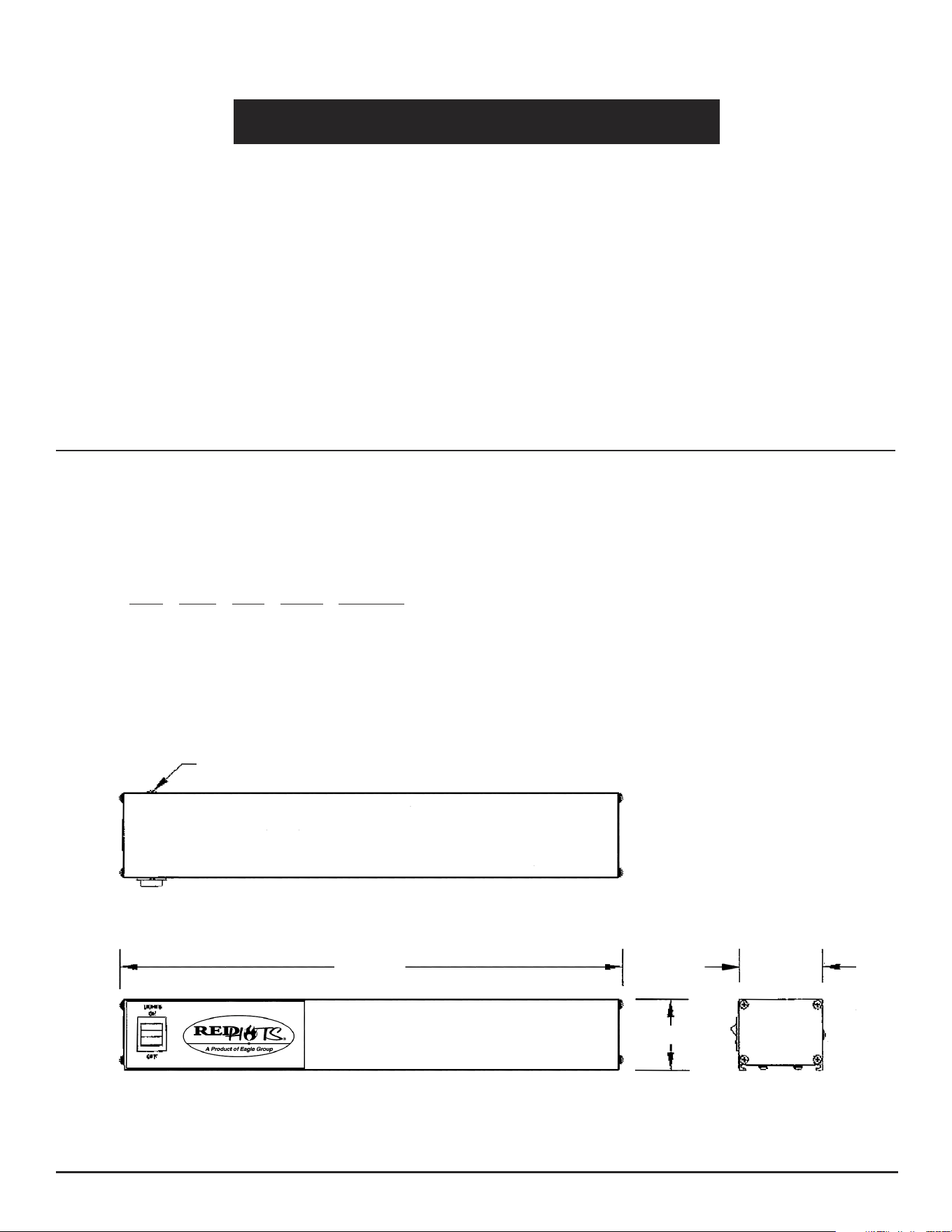

RHDL - 18 - I - R - CP
GROUND SCREW
LENGTH
(top view)
(front view) (end view)
3˝
2
OPERATING MANUAL AND INSTRUCTIONS
WARNING
RedHots
®
Display Light Units
ELECTRICAL REQUIREMENTS
FOR UNITS WITHOUT CORD & PLUG:
Following UL, NEC and local codes, install a copper supply wire temperature rated no lower than 90C to the Display Light Unit.
Eagle Group supplies a 7/8˝ and 1-1/8˝ knockout on the left side of the aluminum housing and 6˝ long, 12-gauge pigtails with a
separate ground screw. Conduit not supplied by Eagle Group.
FOR UNITS WITH CORD & PLUG:
Plug the unit into an appropriate 120V outlet.
OPTIONAL CONTROL SWITCH BOX CONNECTION
(When ordering a display light unit with a remote, the main unit does NOT contain any switches.)
Following UL, NEC and local codes, install a copper supply wire temperature rated no lower than 90C to the control box. Eagle
Group supplies a 7/8˝ and 1 1/8˝ knockout on the sides of the aluminum housing and 6˝ long, 12-gauge pigtails with a separate ground
screw. The control box is made of 6063 aluminum and is 2-1/2˝ high x 3˝ deep. Conduit not supplied by Eagle Group.
Note: Do not connect a circuit operating at more than 150 volts to ground.
Note: The control switch box should be located and/or labeled so that it is clear to the operator which control switch box operates its
corresponding Display Light Unit.
MOUNTING LOCATIONS
To conform to national and local electrical codes, please consult a licensed electrical contractor for proper installation. Failure to
do so may result in personal injury, fire, damage to the unit, or code violations.
WARNING - FIRE HAZARD
To avoid personal injury or damage to the unit, do not use the top surface of the display light unit as a storage surface,
as it is not a load-bearing component.
CAUTION:
If a display light unit is to be installed above a steam table,
install so that there is a minimum of 8˝ clearance between the bottom of unit and top of steam table.
Do not install display light unit any closer than 1˝ from any adjacent non-heat producing surface.
Use only the mounting brackets supplied by Eagle Group to maintain the proper clearances from the mounting surface.
3
OPERATING MANUAL AND INSTRUCTIONS
RedHots
®
Display Light Units
4
MOUNTING LOCATIONS (continued)
CHAIN-MOUNTED UNITS (available only with cord & plug connection)
Chain supplied by Eagle Group is constructed of sufficient strength to securely hold the weight of the RedHots
®
Display Light Unit
when properly mounted (ordered separately by the foot under Eagle Group part #358372.)
Securely fasten the chain to surface above the area that the display light unit will be located over. Please be sure that the chain is
located so that the unit will be suspended at a safe and proper distance from any walls and working surface. (Distances provided in
“Mounting Location” section of this manual—page 3.)
Remove the top two screws on the ends of the display light unit. Locate the chain mounting tab and fasten the two screws back into the
unit. Repeat this process for both ends.
Attach the overhead chain to the tabs and hang as required. Maintain safe mounting heights to prevent discoloration or damage to a
combustible surface and the unit itself.
WARNING
Chain must be #8 trade size and securely fastened,
or unit could come loose and possibly cause personal injury or damage to the unit.
Chain should be attached to structure capable of holding minimum 50 pounds.
(end view)

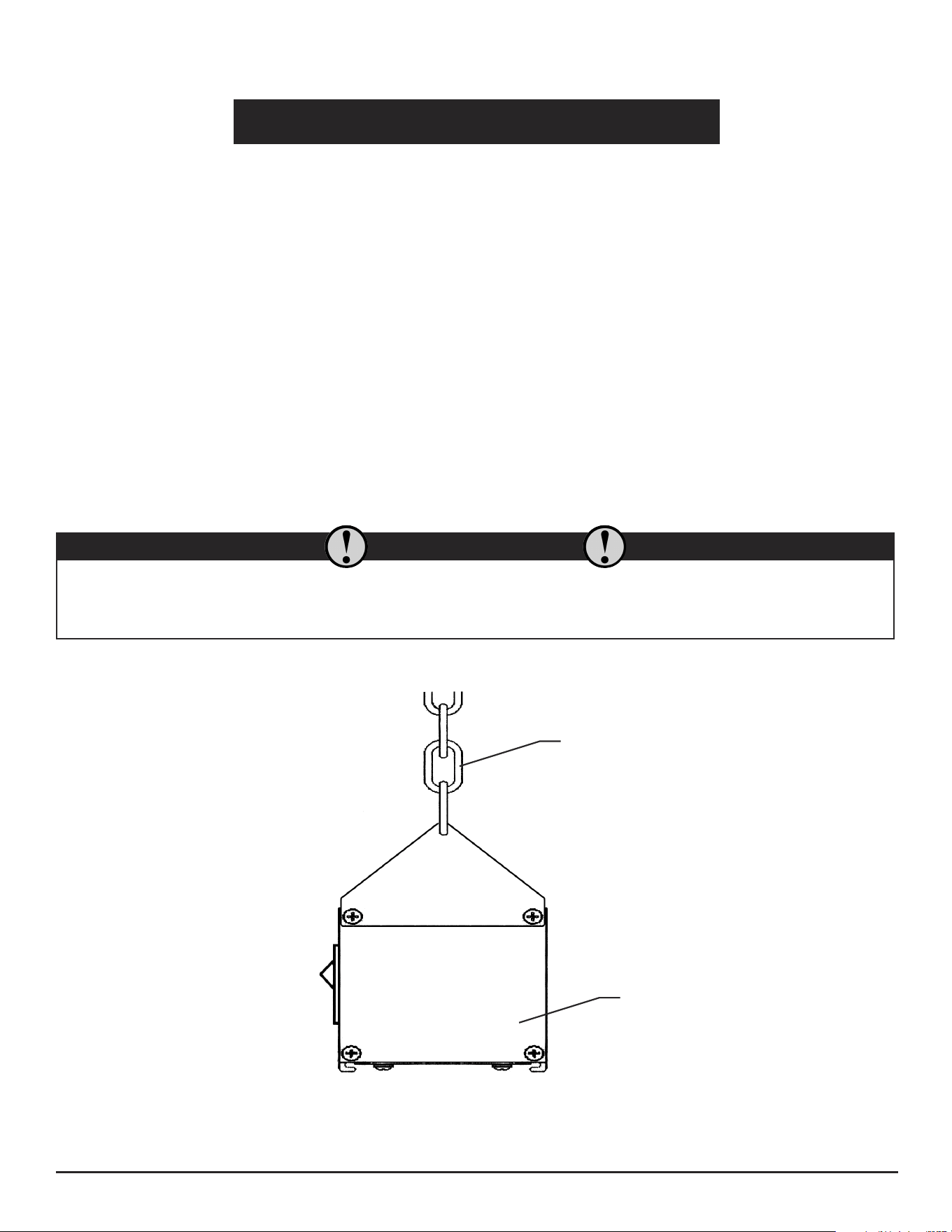

chain (#8 trade size)
chain-mounted
display light unit
OPERATING MANUAL AND INSTRUCTIONS
RedHots
®
Display Light Units
5
MOUNTING LOCATIONS (continued)
UNDER SHELF OR CABINET MOUNT
When mounting the display light unit under a shelf or inside a cabinet, be sure to use the mounting brackets provided by Eagle
Group to maintain the offset from the shelf or the wall. The bracket is adjustable up to three positions is case of a front roll, or you
require the switch lowered.
Remove the top two #8-32 screws on the display light unit on both sides. Align the holes in the bracket to the holes in the display
light unit as shown below and securely mount the screws.
Secure the display light bracket using #1/4-20 screws (not provided by Eagle Group) to ensure a secure installation.

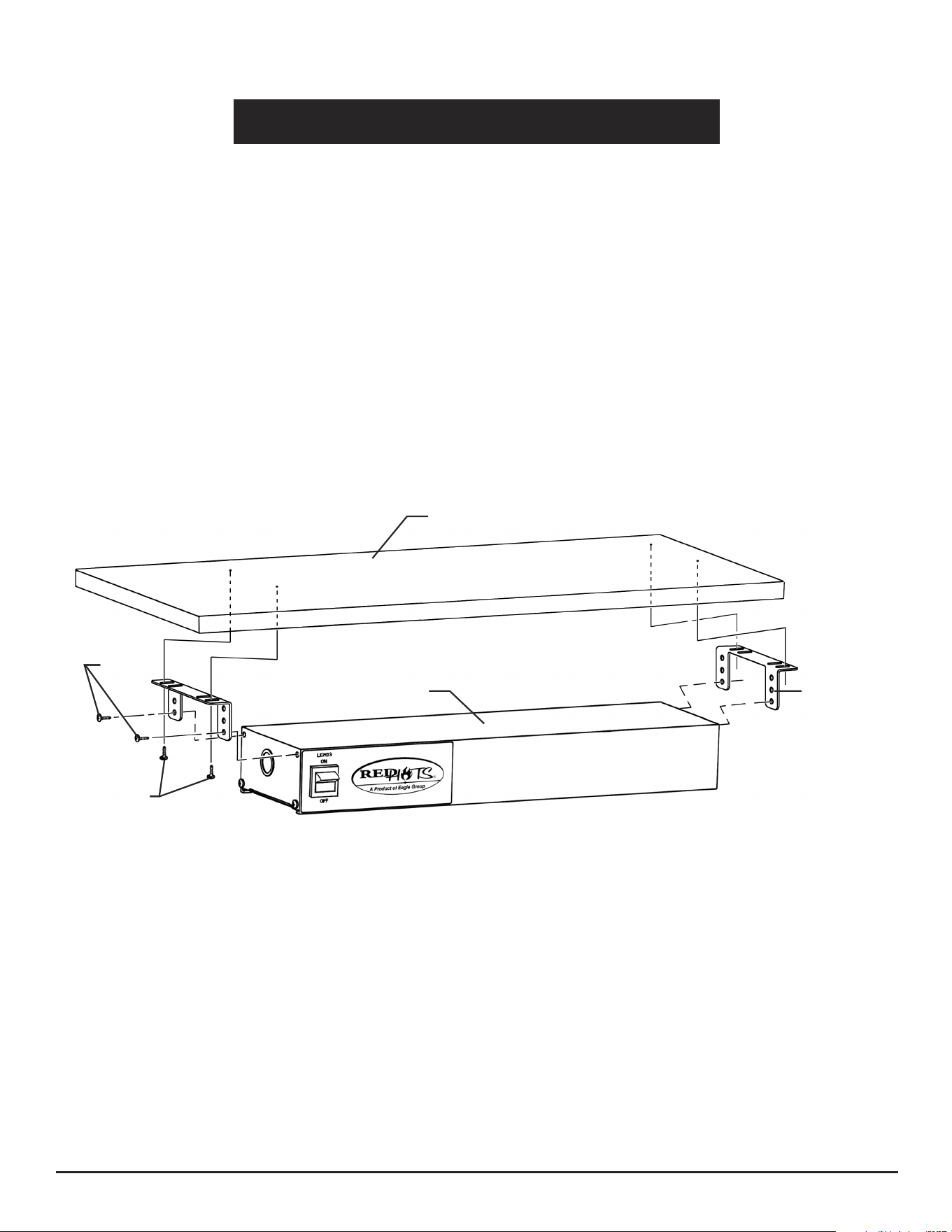

shelf
#8-32
screws
display light unit
#1/4-20 screws
(not included)
bracket
(part #361833)
WIRING DIAGRAMS
RedHots
®
Display Light Units
6
CLEANING
To preserve the finish and life of your RedHots
®
Display Light Unit, Eagle recommends cleaning the exterior surfaces by wiping
them down with a damp cloth, making sure that the unit has been turned off and has cooled down. Harder-to-remove stains may be
removed by using an non-abrasive aluminum cleaner. Abrasive cleaners can scratch and ruin the finish, making it possible for dirt
buildup to occur.
SAFETY PRECAUTIONS
Only use mounting methods and materials described and suggested by Eagle Group to prevent personal injury or damage to the unit and
its components.
Be sure that all specified clearances have been maintained for safe operation and to prevent combustion of work surfaces.
For all other replacement parts, please contact our Parts & Service Center.
CAUTION:
Be sure the unit is off and to wait until the lights have cooled down enough to handle before cleaning.
Incandescent Light Bulbs - Part #354547
Switch -
Part #354552
Under Shelf Mounting Bracket - Part #361833
Chain Mounting Bracket -
Part #361832
REPLACEMENT PARTS
WARNING
To replace a light bulb, simply unscrew the bad bulb and replace with a new one. Use only bulbs provided by Eagle Group.
These bulbs are specially coated with Teflon to comply with NSF standards and to prevent breakage or possible food contamination.

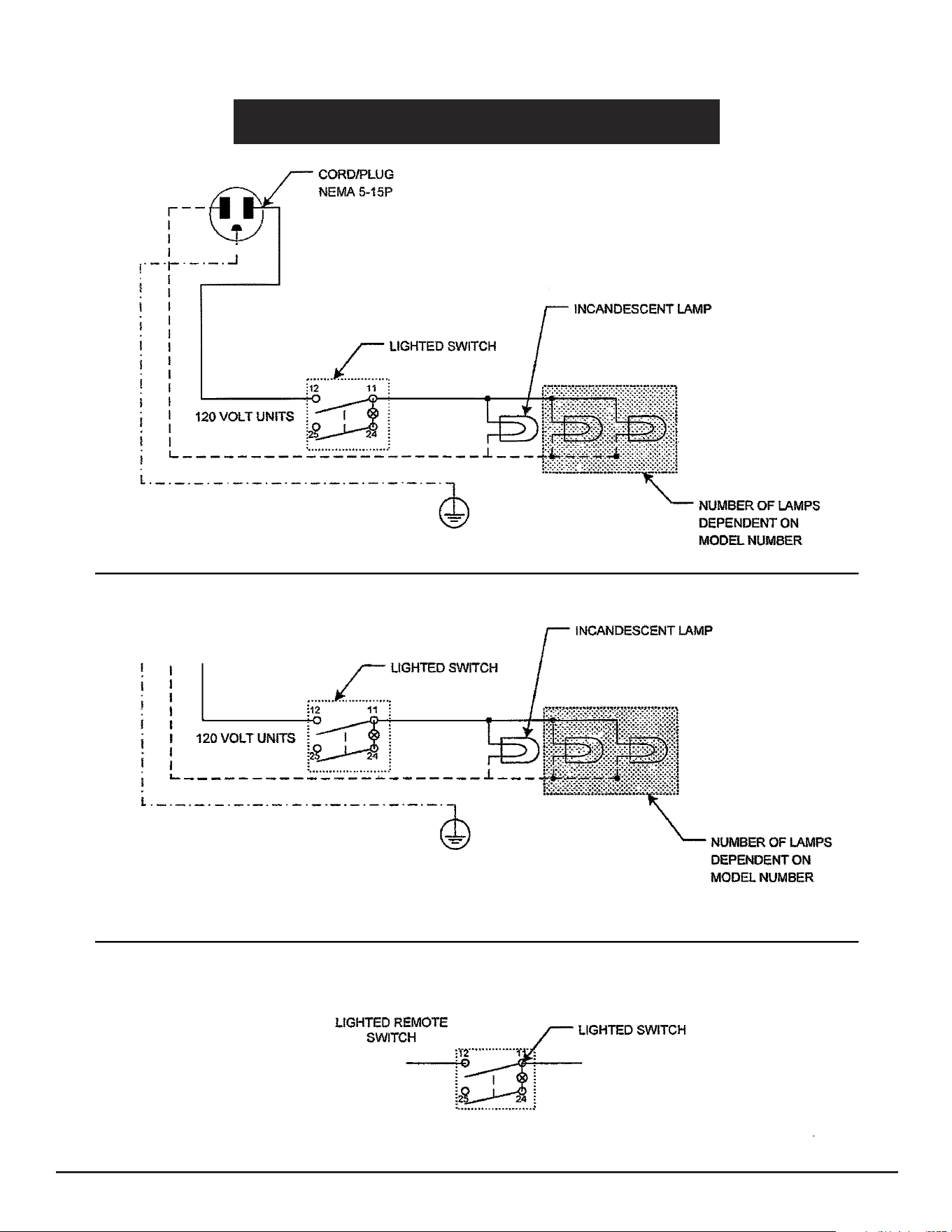

WIRING DIAGRAMS
RedHots
®
Display Light Units
7
