USA-CAN - 2
Thank you for choosing this product.
This user manual contains important information on safety and instructions intended to
assist you in the operation and maintenance of your appliance.
Please take the time to read this user manual before using your appliance and keep this
book for future reference.
Icon Type Meaning
WARNING Serious injury or death risk
RISK OF ELECTRIC SHOCK Dangerous voltage risk
FIRE Warning; Risk of re / ammable materials
CAUTION Injury or property damage risk
IMPORTANT / NOTE Operating the system correctly
INTRODUCTION
Please read this user manual and particularly the
safety instructions completely and carefully. They will
save you time and eort and help to ensure optimum
dishwasher performance.
Be sure to observe all listed warnings and cautions.
Look particularly for the icons with exclamation marks
inside. The information icon will also provide important
references.
WARNING: Indicates a potentially hazardous
situation which, if not avoided, could result in death or
serious injury.
CAUTION: Indicates a potentially hazardous
situation which, if not avoided, may result in injury. It
may also be used to alert against unsafe practices.
NOTICE: Indicates a potentially hazardous
situation which, if not avoided, may result in damage
to the dishwasher, the tableware, the equipment or the
environment.
USA-CAN - 3
1 IMPORTANT SAFETY INSTRUCTIONS
WARNING: When using the dishwasher, follow basic
precations.Read all instructions before using the
dishwasher! Save these operating instructions and
pass them on to any future user.
• Use the dishwasher only for its intended purpose
as described in this user manual. This appliance
is intended for normal household use only. Do not
change the specication of the appliance. The
manufacturer disclaims responsibility for damage
or injury caused by improper use of this appliance.
• The information in this user manual must be followed
to minimize the risk of re or explosion and to prevent
property damage, personal injury or loss of life
• Use only detergents or wetting agents recommended
for use in a dishwasher and keep them out of the
reach of children.
• When loading items to be washed.
1) Locate sharp items so that they are not likely to
damage the door seal, and.
2) Load sharp knives with the handles up to reduce
the risk of type injuries.
• Do not wash plastic items unless they are marked
“dishwasher safe”or the equivalent. For plastic
items not so marked,check the manufacturer’s
recommendations.
• Do not touch the HEATING ELEMENT during or
immediately after use.
USA-CAN - 4
• Do not operate your dishwasher unless all
ENCLOSURE panels are properly in place.
• Do not tamper with controls.
• Do not abuse, sit on, or stand on the door or dish
rack of the dishwasher.
• The cup racks are designed to support cups, glasses
and kitchen utensils. When the cup racks are in the
dishwasher do not lean on or use the cup racks to
support your body weight.
• This appliance must be grounded. In the event of
a malfunction or breakdown, grounding will reduce
the risk of electric shock by providing a path of least
resistance for electric current.
WARNING:
Improper connection of the equipmentgrounding
conductor can result in a risk of electric shock. Check
with a qualied electrician or service representative
if you are in doubt whether the appliance is properly
grounded.
• Some dishwasher detergents are strongly alkaline.
They can be extremely dangerous if swallowed. Avoid
contact with the skin and eyes and keep children and
inrm persons away from the dishwasher when the
door is open.
Consult a doctor immediately if detergent has been
swallowed or inhaled.
USA-CAN - 5
• Do not remove the dishes from the appliance until
the program is complete. Some detergent may remain
on the dishes.
• Check that the detergent dispenser is empty after the
completion of each wash program.
• Do not drink and play with the water in the appliance.
harmful residues could be present.
• To reduce the risk of injury, do not allow children to
play in or on a dishwasher.
• When children become old enough to operate the
appliance, it is the responsibility of the parents/legal
guardians to ensure the children are instructed in safe
practices by qualied persons.
• Do not leave the appliance with the open door
unattended to avoid stepping accidentally onto it.
WARNING: Before any maintenance operation,
deactivate the appliance and disconnect the mains
plug from the socket.
• Do not use high pressure water sprays and/or steam
to clean the appliance.
• Ensure that there are no visible water leaks during
and after the rst use of the appliance.
• To avoid oor damage and possible mold growth,
do not allow wet areas to remain around or under the
dishwasher.
• To avoid dishwasher damage, do not allow water to
remain in your dishwasher systems through extended
periods of freezing.
USA-CAN - 6
RISK OF INJURY: To avoid risk of injury, always use
caution when opening the door during or following a
wash cycle as hot water or steam may escape.
• Do not store or use ammable liquids or vapors in
the area of the dishwasher, near or on the appliance.
• Under certain conditions, hydrogen gas may be
produced in a hotwater system that has not been
used for two weeks or more. HYDROGEN GAS IS
EXPLOSIVE. If the hot-water system has not been
used for such a period, before using the dishwasher
turn on all hot-water faucets and let the water ow
from each for several minutes. This will release any
accumulated hydrogen gas. As the gas is ammable,
do not smoke or use an open ame during this time.
• Please check the water supply line periodically. It is
susceptible to breakage. It becomes less exible as
time goes by. Replace it immediately when it is torn,
cut, swollen or there is water leakage.
USA-CAN - 7
RECYCLING
Remove the door to the washing compartment when
removing an old dishwasher from service or discarding
it. Ensure that the appliance presents no danger
to children while being stored for disposal. Before
disposing the dishwasher:
• Disconnect the appliance from the mains supply.
• Remove the door catch to prevent children and pets
to get closed in the appliance
Old appliances may contain materials that can be
recycled. Please contact your local recycling authority
about the possibility of recycling these materials.
Please check the water supply line periodically. It is
susceptible to breakage. It becomes less exible as
time goes by. Replace it immediately when it is torn,
cut, swollen or there is water leakage.
Please keep the dishwasher package out of the reach
of children after unpacking it.
WARNING!:
Risk of injury or suocation! Ensure that any plastic
wrappings, bags, small pieces etc. are disposed of
safely and kept out of the reach of children.
SAVE THESE INSTRUCTIONS
USA-CAN - 8
2 INSTALLATION
WARNING: When installing the dishwasher, follow
basic precau-tions, including the following: Please
check the standards and local codes for placement of
machine.
• Installation, maintenance and repair should be
performed by a qualied installer. Work by unqualied
persons could be dangerous and may void the
warranty.
• Do not operate the appliance if damaged,
malfunctioning, partially disassembled or if it has
missing or broken parts.
• Before installation or service, disconnect the power
supply to the work area by unplugging the unit,
“tripping” the circuit breaker or removing the fuse.
• Only connect the dishwasher to the power supply
when all installation and plumbing work is complete.
• Never connect the ground wire to gas lines, or hot
water pipes, plumbing lines.
• Do not install or store the dishwasher where it can be
exposed to below freezing temperatures or exposed to
weather.
• Dishwasher must be secured to adjacent cabinetry
using the brackets provided. Failure to do this may
cause damage to property or bodily injury.
• Connect to a properly rated, protected and sized
power supply circuit to avoid electrical overload.
The dishwasher is designed for an electrical supply
USA-CAN - 9
of 120 V (volts), 60 Hz (hertz), AC, connected to a
dishwasher-dedicated, properly grounded electrical
circuit with a fuse or breakers rated for 15 amperes.
Electrical supply conductors shall be a minimum of #
16 AWG copper wire rated at 75 °C (167 °F) or higher.
These requirements must be met to prevent injury and
machine damage. Consult a qualied electrician if in
doubt.
• Do not use any extension cord or portable outlet
device to connect the dishwasher to a power supply.
WARNING: Danger of suocation! Ensure that
any plastic wrap-pings, bags, small pieces etc.
are disposed of safely and kept out of the reach of
children.
USA-CAN - 10
3 TECHNICAL SPECIFICATIONS
11

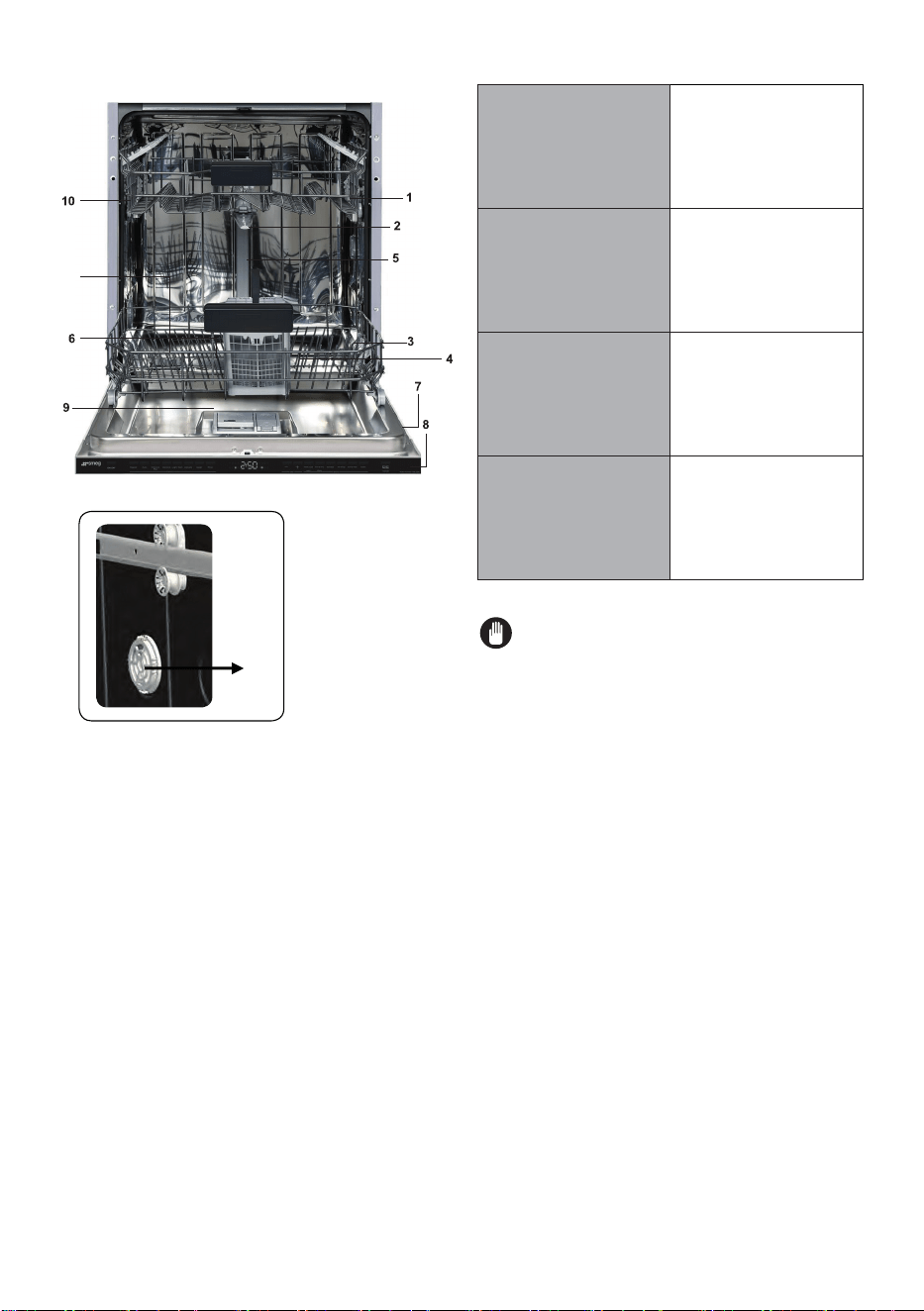

General Appearance
1. Upper basket with racks
2. Upper spray arm
3. Lower basket
4. Lower spray arm
5. Top nozzle
6. Filters
7. Rating plate
8. Control panel
9. Detergent and rinse-aid dispenser
10. Upper basket track latch
11. Drying Unit: This system provides better
drying performance for your dishes.
Technical Specications
Permissible
water pressure
4.35 - 145 psi
(0.3 - 10 bars)
Electrical
connection
120 V (volts),
12 A (amps),
60Hz (hertz)
Total power 1400 (W)
Heater power 1100 (W)
NOTICE: Because we continually
strive to improve our products, we
may change our specications and
design without prior notice. This device
corresponds to the following directives: UL
749 Household Dishwasher directive.
USA-CAN - 11
4 BEFORE USING THE
APPLIANCE
Preparing your dishwasher for first use
• Make sure the electricity and supply
water specications match the values
indicated in the installation instructions
for the machine.
• Remove all packaging material inside
the machine.
• Fill the rinse aid compartment.
Detergent usage
Only use detergents specifically designed
for domestic dishwashers. Keep your
detergents in cool, dry places out of reach
of children.
Add the proper detergent for the selected
program to ensure the best performance.
The amount of detergent needed depends
on the cycle, load size, and soil level of
dishes.
Do not fill detergent into the detergent
compartment more than required; otherwise
you can see whitish streaks or bluish layers
on glass and dishes and may cause glass
corrosion. Continued use of too much
detergent may cause machine damage.
Using little detergent can result in poor
cleaning and you can see whitish streaksin
hard water.
See the detergent manufacturer’s
instructions for a further information.
Filling the detergent
Push the latch to open the dispenser and
pour in the detergent.
Close the lid and press it until it locks in
place. The dispenser should be refilled just
before the start of each programme. If the
dishes are heavily soiled, place additional
detergent in the pre-wash detergent
chamber.
DETERGENT
Using combined detergents
These products should be used according
to the manufacturer’s instructions.
Never put combined detergents into the
interior section or the cutlery basket.
Combined detergents contain not only the
detergent but also rinse-aid, replacement
substances and additional components
depending on the combination.
We recommend you do not use combined
detergents in short programmes.
Please use powder detergents in such
programmes.
If you encounter problems when using
combined detergents, please contact the
detergent manufacturer.
When you stop using combined detergents,
make sure that water hardness and rinse
aid settings are set to the correct level.
Rinse-aid usage
The rinse aid helps to dry the dishes
without streaks and stains. Rinse-aid is
required for stain-free utensils and clear
glasses. The rinse aid is automatically
released during the hot rinse phase. If
rinse aid dosage setting set too low, whitish
stains remains on dishes and dishes do not
dry and washed clean. If rinse aid dosage
setting set too height, you can see bluish
layers on glass and dishes.
USA-CAN - 12
Filling the rinse-aid and setting
To fill the rinse aid compartment, open
the rinse-aid compartment cap. Fill the
compartment with rinse aid to the MAX
level and then close the cap. Be careful not
to overfill the rinse aid compartment and
wipe up any spills.
In order to change the rinse aid level,
follow the below steps
• Turn on the machine and press Menu
button for 3 seconds. Water hardness
level is seen rst. (“SL1” is the factory
setting)
• Press Delay(+) button to pass Rinse
aid setting. (“r:4” is the factory setting)
• Rinse aid follows water hardness
setting.
• Then, press Select button and the level
of Rinse aid (e.g. “r:4”) blinks.
• Change the level by pressing the Delay
buttons.
• Press Select button to save desired
level and the new level of Rinse aid will
illuminate constantly.
• Turn o the machine to exit from the
setting.
The factory setting is “4”.
If the dishes are not drying properly or are
spotted, increase the level. If blue stains
form on your dishes, decrease the level.
Level Brightener Dose Indicator
1 Rinse-aid not
dispensed
r:1 is shown on the
display.
2 1 dose is
dispensed
r:2 is shown on the
display.
3 2 doses are
dispensed
r:3 is shown on the
display.
4 3 doses are
dispensed
r:4 is shown on the
display.
5 4 doses are
dispensed
r:5 is shown on the
display.
USA-CAN - 13
5 LOADING YOUR DISHWASHER
If you properly place your dishes into the
machine, you will be using it in the best way
in terms of energy consumption, washing
and drying performance.
You can load into the lower basket such
round and deep items as pots with long
handles, pot lids, plates, salad plates,
cutlery sets. The upper basket has been
designed for dessert plates, salad bowls,
cups and glasses. When placing long stem
glasses and goblets, lean them against the
basket edge, rack or glass supporter wire
and not against other items. Do not lean
long glasses against one another or they
cannot remain steady and may receive
damage. It is more appropriate to locate the
thin narrow parts into the middle sections of
baskets. You can place spoons among the
other cutlery sets in order to prevent them
from sticking to one another.
You are recommended to use the cutlery
grid in order to obtain the best result. To
avoid any possible injuries, always place
such long-handle and sharp-pointed dishes
as serving fork, bread knife etc. with their
sharp points facing down or horizontally on
the baskets.
WARNING: Place your dishes into
your machine in a way that they will not
prevent the upper and lower spray arms
from spinning.
NOTE: Place all large and very dirty
items in the lower rack.
WARNING: Do not put in the
appliance items that can absorb water
(sponges,household cloths).
NOTE: Place all containers such as
cups, glasses and pots into the dishwasher
with the opening facing downwards (so that
no water can collect).
NOTE: Dishes and cutlery should not
be placed above each other.
NOTE: Do not overload your
dishwasher and pay attention to
manufacturer instructions regarding
dishes which are appropriate for use in
a dishwasher. Only with suitable dishes
(mentioned in section 5) will you obtain
optimal washing results with a sensible use
of energy.
High temperature water and dishwasher
detergent may form a chemical synthesis
that can damage certain items.
WARNING: Be careful when loading
and unloading sharp items. Load sharp
knives with the handles up to reduce the
risk of personal injury.
Follow the below steps before loading
dishwasher.
1. Open the door.
2. Remove coarse food leftovers from
tableware.
3. Load the dishwasher.
NOTE: While the appliance is running
if you open the door all functions are
automatically interrupted. Once the door is
closed functions will continue to work.
USA-CAN - 14
Upper Rack
Load the upper rack with dessert plates,
cups, glasses etc.
Additional loading pattern 14 place settings
Lower Rack
You can load into the lower basket such
round and deep items as pots with long
handles, pot lids, plates, salad plates,
cutlery sets. The lower rack should not be
used for small items such as cups, wine
glasses.
Bottom rack load patterns for 14 place
settings.
NOTE: Place all large and very dirty
items in the lower rack.
WARNING: Large knives and other
utensils with sharp tips and edges must be
placed horizontally into the upper rack due
to risk of injury. Other smaller knives and
sharp utensils should be placed with sharp
side down in the cutlery basket.
NOTE: Make sure that large items do
not interfere with the rotation of the spray
arms, and do not prevent the detergent
dispenser from opening.
Loading cutlery basket
6 4 4 4 4 4 4
2 3
1 2
3
3
1 1
3 3
1 1
4 4
3 3
1 2 3 4 5 6
3 3
3
3
2
2
3
2
2
5 4 4 4 4 4 4 5
1
1
1
1
2
2
2
2
2
2
2
2
3
3
1: Salad Fork
2: Teaspoon
3: Dinner fork
4: Knife-solid handle
5: Serving spoon
6: Serving fork
Cutlery Basket load
pattern 14 place settings.
WARNING: Sharp cutlery may have
shifted position during the wash operation
and can be also wet and slippery. Carefully
remove them to prevent injury.
NOTE: Small items should therefore
be placed in the cutlery tray or cutlery
basket (model depending). Because small
items can fall through the holders from the
baskets.
USA-CAN - 15
Incorrect Loads
Incorrect loading can cause poor washing
and drying performance. Please follow the
manufacturer’s recommendations for a
good performans result.
Silverware Basket
Silverware basket is designed to wash your
dishes such as knife, fork, spoon, etc. in a
cleaner manner.
Since the cutlery basket can be moved ,
you can create a wider space while placing
your dishes to the lower basket and free up
space for your dishes in different sizes.
USA-CAN - 16
Top Basket
Rack with height adjustment
These racks are designed to increase the
capacity of top basket. You can place your
cups and glasses on these racks. Thanks
to adjustable feature of the racks, you can
place glasses of dierent sizes under the
racks.
Height adjustment plastics mounted on
the basket allow racks to be in 2 dierent
positions.
You can also place long knives, forks and
spoons on these racks horizontally for them
not to block the movement of spray arms.
Top basket horizontal wire located on top
basket allows you to place your plates and
bowls where required. Also you can wash
kitchenware such as pan or pot by closing
the horizontal wire.
NOTICE: Bringing the wires
to the horizontal position
by holding them from the
tips may cause them to
bend. Therefore, it will be
appropriate to bring the wires
in the middle to horizontal or
vertical posi-tion by holding
them from their stems and
pushing.
The basket height adjustment mechanism
on the top basket of your machine is
designed to let you adjust the height of your
top basket upwards or downwards, without
removing it from your machine when it is
full, and create large spaces at the top or
bottom area of your machine as needed.
Basket of your machine is set to upper
position in factory settings. In order to raise
your basket, hold it from both sides and pull
it upwards. In order to lower it, hold it from
both sides again, and leave it. In loaded
basket adjustment mechanism, make sure
that both sides are in the same position.
(up or down)
NOTICE: Make sure that
both levers catch in the same
height position.
USA-CAN - 17
Height setting - when basket is lled
(model depending)
The upper basket includes a mechanism
which enables the height of the basket
to be adjusted up (1) or down (2) without
having to remove the basket. Hold the
basket on both sides and pull it up or push
it down, ensuring both sides of the upper
basket are in the same position.
Lower Basket Folding Racks
Folding racks consisting of four parts that
are located on the lower basket of your
machine are designed in order to let you
place big items easier such as pots, pans,
etc. If requested, each part can be folded
separately, or all of them can be folded and
larger spaces can be obtained. You can
use folding racks by raising them upwards,
or by folding.
USA-CAN - 18
6 PROGRAMS AND OPTIONS TABLE
Programs
Duration
(min)
Descriptions
Regular
Dirty 145
Standard program for daily, regular or typical use to
completely wash a load of normally soiled dishes.
Clean 122
Auto
Dirty 155
This program automatically adjusts the temperature and
the quantity of water, the energy consumption and the
program duration.
Clean 110
Intensive Plus
165 Suitable for heavily soiled dishes that are kept waiting.
Intensive 130 Suitable for heavily soiled dishes.
Lightwash
117 Suitable for normally soiled daily dishes.
Delicate 90 Suitable for lightly soiled delicate dishes.
Super 50
Suitable for normally soiled daily dishes with faster
program.
Rinse 15 Suitable to rinse dishes that you plan to wash later.
Compatibility of
Programs and Options
Options
Half
Load
Sanitize
Extra
Fast
Extra
Dry
Hi - Temp Slient
Regular √ √ √ √ √ √
Auto √ √ √ √ √ √
Intensive Plus
√ √ √ √ √ √
Intensive √ √ √ √ √ √
Lightwash
√ √ √ √ √ √
Delicate √ X √ √ X √
Super √ √ X √ √ X
Rinse √ X X X X X
Programs
NOTE: The program duration may change according to the amount of dishes, the
water temperature, the ambient temperature and selected additional functions.
NOTE: The energy-usage label is based on the “Regular” program. This program
is the most ecient in terms of its combined energy and water consumption at cleaning
normally soiled dishes.
• Only use powder detergent for short programmes.
• Short programmes do not include drying.
• To assist drying, we recommend slightly opening the door after a cycle is complete.
USA-CAN - 19
7 THE CONTROL PANEL
Intensive Plus Lightwash
1. On/Off Button
2. Program Buttons
3. Display
4. Delay Buttons
5. Half Load Button
6. Extra Dry Button
7. Sanitize Button
8. Hi-Temp Button
9. Extra Fast Button
10. Silent Button
11. Start/Pause Button
12 15 16
13 1718
14
12. Rinse Aid Indicator
13. End Step Indicator
14. Sanitized Indicator
15. Delay Indicator
16. Upper Half Load Indicator
17. Lower Half Load Indicator
18. Program Time Indicator
1. On/Off Button
Turn the machine on by pressing the On/
Off button.
2. Program Selection Buttons
Select a suitable program for your dishes
by pressing Program buttons. For the
details of the programs refer to section
Program Table.
3. Display
The display shows the total time of the
selected program and the remaining time
during operation.
4. Delay Buttons
Press the Delay Buttons to delay the start
time of a programme for 1 hour up to 24
hours. Pressing once to + button will delay
the start time for 1 hour. Once you press
it, display will show “1h” and display will
show program duration and delay time
alternately for 2 seconds. Continuing to
press the button will increase the delay
duration. Press the - button to decrease
the delay duration. In order to start the
selected program with delay, Start/Pause
button(8) should be pressed and the door
of the dishwasher must be closed within 4
seconds. If you turn off the machine after
activating the delay time, the delayed time
is cancelled
.
5. Half Load Button
Thanks to the half load function in your
machine, you can shorten the durations
of the programmes that you have
selected and reduce the energy and
water consumption by using half load
electricity and water. There is half load
option with 3 modes. When you press
the half load button in user interface the
indicator/indicators on the screen will be
on according to your mode choice. If you
press the button once the upper half load
basket indicator will be visual, if you press
the button twice the lower half load basket
indicator will visual, and if you press the
button 3 times, the upper half load basket
indicator and lower half load basket
indicator will be visual on the screen. After
4th press the button the indicators will
be disappear. Also, if any of the half load
option modes are selected, the half load
button led will be on.
6. Extra Dry Button
Press the Extra Dry button to add extra
drying steps to a program in order to obtain
drier dishes. This option increases water
temperature of the final rinse step and
duration of the drying step. Extra Dry led
will be on.
USA-CAN - 20
7. Sanitize Button
Sanitize function raises the water
temperature in the final rinse. Sanitize led
will be on.
8. Hi-Temp Button
When this option is selected, both the water
temperature and the washing time are
increased. Hi-Temp led will be on.
9. Extra Fast Button
Select the Extra Fast function to decrease
the duration of a program, providing more
economical water usage. Extra Fast led will
be on.
10. Silent Button
Select the Silent function for a more
sensitive and silent washing operation. This
option reduces the sound pressure level of
the washing. Silent led will be on.
11. Start/Pause Button
Open the door of your machine. Select the
program and options. Press Start/Pause
button. Close the door within 4 seconds,
the program will start. If 4 seconds is
exceeded and the door is closed, program
will not start. The total time can change
while the program is running depending
on the ambient temperature where your
machine is installed, temperature of the
supply water and amount of the dishes.
If the door is opened while the machine
is running, the machine will switch to the
standby mode. Press Start/Pause button
and close the machine door within 4
seconds, then the program will resume.
12. Rinse Aid Indicator
When the rinse aid level is low, the rinse
aid indicator turns on and you should fill the
rinse aid chamber.
13. End Step Indicator
When the program is completed, end step
indicator will be on and the buzzer will be
activated. Buzzer sounds 5 times each at
5 minutes intervals (in 0, 5, 10 and 15th
minutes) in total 4 different times at the end
of the program.
14. Sanitized Indicator
If the program selected with the Sanitize
option is successfully sanitized, Sanitized
Indicator lights up at the end of the
program. If the washing cycle is interrupted
or adequate water heating cannot be
achieved, the Sanitized Indicator may not
light.
15. Delay Indicator
When program is started with delay, the
Delay Indicator will be on.
16. Upper Half Load Indicator
If you have dishes only in the upper basket,
select the half load upper basket option. If it
is selected, half load upper basket indicator
will illuminate.
17. Lower Half Load Indicator
If you have dishes only in the lower basket,
select the half load lower basket option. If it
is selected, half load lower basket indicator
will illuminate.
Note: If you have dishes both of in the
upper and lower basket, select the half load
upper basket and half load lower basket
option together. If it is selected, upper half
load basket indicator and lower half load
basket indicator together will illuminate.
18. Programme Time Indicator
Program duration can be monitored via
Program Time Indicator.
1. Changing a Programme
Follow the steps below to change a
program while in operation.
Open the door and press the Start/Pause
Button (11). Choose a new program
by pressing Program buttons (2). After
program selection, press the Start/
Pause button (11). After closing the door
within 4 seconds, the newly selected
program will resume the course of the
old program. If 4 seconds is exceeded
and the door is closed, program will not
resume.
NOTE: Open the door slightly at first to
stop a wash program before it is complete
in order to avoid water spillage.
Cancelling a Programme
Follow the steps below if you would like to
cancel a program while in operation.
USA-CAN - 21
Open the door of your machine. The
selected program will appear on the
display. Press and hold the Start/Pause
button (11) for 3 seconds. “0:01” will be
shown on the display. Press Start/Pause
button (11) and after closing the door of
the machine within 4 seconds, the water
discharge process will start and continue
for 30 seconds. When the program is
cancelled, buzzer will sound 5 times.
Switching the Machine Off
“0” will be shown on the display when the
selected program is complete. Buzzer will
also sound 5 times. You can then switch
your machine off using the Power On/Off
button. Disconnect the plug and turn off the
water tap.
NOTE: Do not open the door before the
program is complete.
NOTE: If the door of the machine is opened
or the power is cut off while a program is in
operation, the program will continue when
the door is closed or the power returns.
NOTE: If the power is cut off during the
drying process, the program will terminate.
Your machine will be ready for a new
program selection.
Menu Settings
Press Extra Dry button (6) for 3 seconds to
enter menu. Water hardness setting (e.g.
SL1) is seen first. Press Delay buttons (4)
to surf through menu. Then, press Half
Load button (5) to enter to the levels of the
setting you want to change in the menu. At
this time display (3) blinks and that means
this setting can be changed by pressing
Delay buttons (4). Set the new level with
Delay buttons (4) and press Half Load
button (5) to save new level. After that
display (3) will light up constantly and that
means this setting level is saved. You can
change another setting with these steps
or exit from menu by pressing Extra Dry
button (6) for 3 seconds or turning off/on.
No Setting Options Description
1
Water Hard-
ness
SL1*
Set the water
hardness.
SL2
SL3
SL4
SL5
SL6
2 Rinse Aid
r:1
Set the amount
of rinse aid.
r:2
r:3
r:4*
r:5
3
Buzzer
Sound
Control
b:0
Set the buzzer
sound level.
b:1
b:2
b:3*
4
Start Prog-
ramme
LP0*
Set a default
programme for
when the app-
liance switched
on.
LP1
5
Save Power
Mode
SP0
Set the Save
Power Mode.
SP1*
SP2
6
Factory
Setting
FS0* Restore changed
settings to the
factory settings.
FS1
*Default setting
1. Water Hardness
To change the water hardness setting,
follow the “4.7 Water Hardness Setting”.
2. Rinse Aid
To change the rinse aid setting, follow the
“4.12 Rinse Aid Setting”.
3. Buzzer Sound Control
To change the buzzer sound control, follow
the “Menu Settings”. “b:3” level is the
highest sound level. ’’b:0’’ level means all
voices are off.
USA-CAN - 22
4. Start Programme
To change the start programme selection,
follow the “Menu Settings”. In “LP0” level,
machine turns on with Eco program. In
“LP1” level, machine turns on with last
selected program and option.
5. Save Power Mode
To change the save power mode setting,
follow the “Menu Settings”. In “SP0” level,
interior lights(if available) will always be off,
the screen will turn off after 4 minutes and
the machine will turn off after 15 minutes
of no activity in order to save energy. In
“SP1” level, interior lights will turn off after
4 minutes when the door is opened, the
screen will turn off after 4 minutes and
the machine will turn off after 15 minutes
of no activity in order to save energy.
In “SP2” level, when the machine is off
position, interior lights will turn off after 4
minutes when the door is opened. When
the machine is on position, interior lights
is on as long as the door stays open and
machine will not turn off except by pressing
On/off button.
6. Factory Setting
To change the factory setting, follow the
“Menu Settings”. If you change the level as
“FS1” in factory setting, all settings return to
default setting.
Infoled 2.1 (Model Dependent)
Infoled that is positioned on the bottom
side of the dishwasher shines a light on to
floor to indicate the current status of the
dishwasher during washing.
LED Indicator State of the Machine
Red, continuous
The machine is running a
program.
Red, ashing A program is cancelled.
Red, ashing
rapidly
The machine has a fault. Refer
to section "Automatic fault
warnings and what to do".
Green, continuous A program is nished.
USA-CAN - 23
8 MAINTENANCE AND
CLEANING
WARNING : Before cleaning or
carrying out maintenance, switch o the
appliance, disconnect the mains plug and
turn o the water tap.
Your dishwasher can only be repaired
by an authorized service agent. Do not
try to repair your machine unless any
recommendation by this manual
WARNING : All surfaces are
susceptible to scratching. Contact with
unsuitable cleaning agents can alter or
discolor all surfaces.
WARNING : Keep the oor around
your dishwasher clean and dry to prevent
any possible injury. We recommend to keep
your dish washer clean,empty and door
cracked open to allow air to circulate in
case of any extended unused time.
Dishwasher door can be damaged by
abrasive cleaners, scouring pads, abrasive
cloths. Cleaning the machine in regular
intervals prolongs the machine’s service
life.
Oil and lime may accumulate in the
machine’s washing section. In case of
such accumulation; -Fill the detergent
compartment without loading any dishes
into the machine, select a program that
runs at high temperature, and start the
machine.
In case of insuciency, use special
cleansing mate-rial available in the market.
(Cleansing material produced special
to machines by detergent produc-ers.)
Cleaning the seals in the machine door,
- To clean any accumulated residues in
the door seals, wipe the seals regularly by
using a dampened cloth.
Cleaning the machine, Clean the lters and
spray arms at least once a month.
Unplug your machine and turn o its tap
before starting the cleaning.
Do not use hard materials when cleaning
your machine. Wipe with a ne cleaning
material and a dampened cloth.
Filters Check if any food wastes have
remained on the coarse and ne lters. If
any food wastes are left, remove the lters
and clean them thoroughly under the water
tap.
Filter
a. Micro Filter
b. Coarse Filter
c. Metal/Plastic
3 4
1 2
a
c
b
Spray Arms
Check whether or not the holes for the
upper and lower spray arms are clogged.
If there is any clogging, remove the spray
arms and clean them under water.
You can remove the lower spray arm by
pulling it upwards, while the upper spray
arm nut can be removed by turning the nut
to the left.
Be sure that the nut is perfectly tightened
when retting the upper spray arm.
USA-CAN - 24
Cleaning The Impellers
Clean the impellers at least once a week in
order for the machine operates eciently.
Lower Impeller
Check if the holes on the lower impeller (1
are clogged. If they are clogged, remove
and clean the impeller. Pull the lower
impeller up to remove it (A, B.)
USA-CAN - 25
Upper Impeller
Check if the holes on the upper impeller 1
are clogged. If they are clogged, remove
and clean the impeller. Turn its nut to left
to re-move the upper impeller (A, B) Make
sure that the nut is tightened well when
installing the upper impeller.
USA-CAN - 26
9 TROUBLESHOOTING
FAULT POSSIBLE CAUSE TROUBLESHOOTING
The programme does
not start.
Your Dishwasher is not plugged in. Plug your Dishwasher in.
Your Dishwasher is not switched on.
Switch your Dishwasher on by pressing the
On/O button.
Fuse blown. Check your indoor fuses.
Water inlet tap is closed. Turn on the water inlet tap.
Your Dishwasher door is open. Close the Dishwasher door.
Water inlet hose and machine lters
are clogged.
Check the water inlet hose and machine
lters and make sure they are not clogged.
Water remains inside
the machine.
Water drain hose is clogged or
twisted.
Check the drain hose, then either clean or
untwist it.
The lters are clogged. Clean the lters.
The programme is not nished yet. Wait until the programme is nished.
Machine stops during
washing.
Power failure. Check mains power.
Water inlet failure. Check water tap.
Shaking and hitting
noises are heard during
a wash operation.
The spray arm is hitting the dishes in
the lower basket.
Move or remove items blocking the spray
arm.
Partial food wastes
remain on the dishes.
Dishes placed incorrectly, sprayed
water not reaching aected dishes.
Do not overload baskets.
Dishes leaning each another.
Place dishes as instructed in the section on
loading your dishwasher.
Not enough detergent used.
Use the correct amount of detergent, as
instructed in the programme table.
Wrong wash programme selected.
Use the information in the programme table
to select the most appropriate programme.
Spray arms clogged with food waste.
Clean the holes in the spray arms with thin
objects.
Filters or water drain pump clogged
or lter misplaced.
Check the drain hose and lters are
correctly tted.
USA-CAN - 27
FAULT POSSIBLE CAUSE TROUBLESHOOTING
Whitish stains remains
on dishes.
Not enough detergent used.
Use the correct amount of detergent, as
instructed in the programme table.
Dishes do not dry.
Drying option is not selected. Select a programme with a drying option.
Rinse aid dosage set too low. Increase rinse aid dosage setting.
Rust stains form on the
dishes.
Stainless-steel quality of the dishes
is insucient.
Use only dishwasher-proof sets.
A poor mains grounding. Consult a qualied electrician immediately.
Detergent remains in the
detergent compartment.
Detergent was added when the
detergent compartment was wet.
Make sure detergent compartment is dry
before use.
USA-CAN - 28
AUTOMATIC FAULT WARNINGS AND WHAT TO DO
TROUBLE
CODE
POSSIBLE FAULT WHAT TO DO
FF
Water inlet system failure
Make sure the water inlet tap is open and water is owing.
Separate the inlet hose from the tap and clean the lter of
the hose.
Contact for service if the error continues.
F5
Pressure system failure
Contact for service.
F3
Continuous water input
Close the tap and contact for service.
F2
Inability to discharge water
Water discharge hose and lters may be clogged.
Cancel the program.
If the error continues, contact for service.
F8
Heater error
Contact for service.
F1 Overow
Unplug the machine and close the tap.
Contact for service.
F7 Overheating Contact for service.
F9 Divisor position error Contact for service.
F6 Faulty heater sensor Contact for service.
HI High voltage failure Contact for service.
LO Low voltage failure Contact for service.
USA-CAN - 29
Résidents du Québec
Vous trouverez des renseignements sur la disponibilité
des pièces de rechange, des services de réparation
et des renseignements nécessaires à l’entretien
ou à la réparation de l’appareil à l’adresse suivante:
https://www.smeg.com/ca-en/services/customer-service/
informations-pour-residents-du-quebec
913531669
