LASK Installation Instructions
Lynx Accessory Switch Kit
Introduction:
These instructions detail the electrical connections for Lynx Accessories to an independent power source for the following
products:
LSB1 Single Side Burner
LSB2 Double Side Burner
LSB2PC Double Side Burner
with Prep Center
LPB Power Burner
LSBGE Grill Extender
LSA30 Classic 30” Cabinet
LSA36 Classic 36” Cabinet
LSA42 Classic 42” Cabinet
LPA36 Classic 36” Pantry
LTA30 Classic 30” Trash
Drawer Combo Unit
LTA30-4 Ventana 30” Trash
Drawer Combo Unit
LSA30-4 Ventana 30” Cabinet
LSA36-4 Ventana 36” Cabinet
LSA42-4 Ventana 42” Cabinet
LPA36-4 Ventana 36” Pantry
Lynx Accessory Switch Kit: Model LASK
The Lynx Accessory Switch Kit is designed to power a Lynx accessory
burner or storage accessory directly without a connection to a grill.
The kit contains a power supply as well as a switch assembly with a
mounting plate.
Installation Instructions
1. Mount switch assembly in desired location using
included #6-32 x 1” screws.
2. Connect 4 pin receptacle on switch assembly to the 4
pin plug on the accessory.
3. Attach power supply to mounting bracket using
included #6-32 x ½” screws and #6-32 locknuts.
4. Connect 4 pin plug on power supply to 4 pin receptacle
on the accessory.
5. After assuring that mounting location is close enough
to the accessory for the two to connect, mount power
supply bracket to the inside of the counter. Screws
used for mounting will depend on counter material.
6. Plug power supply into wall socket.

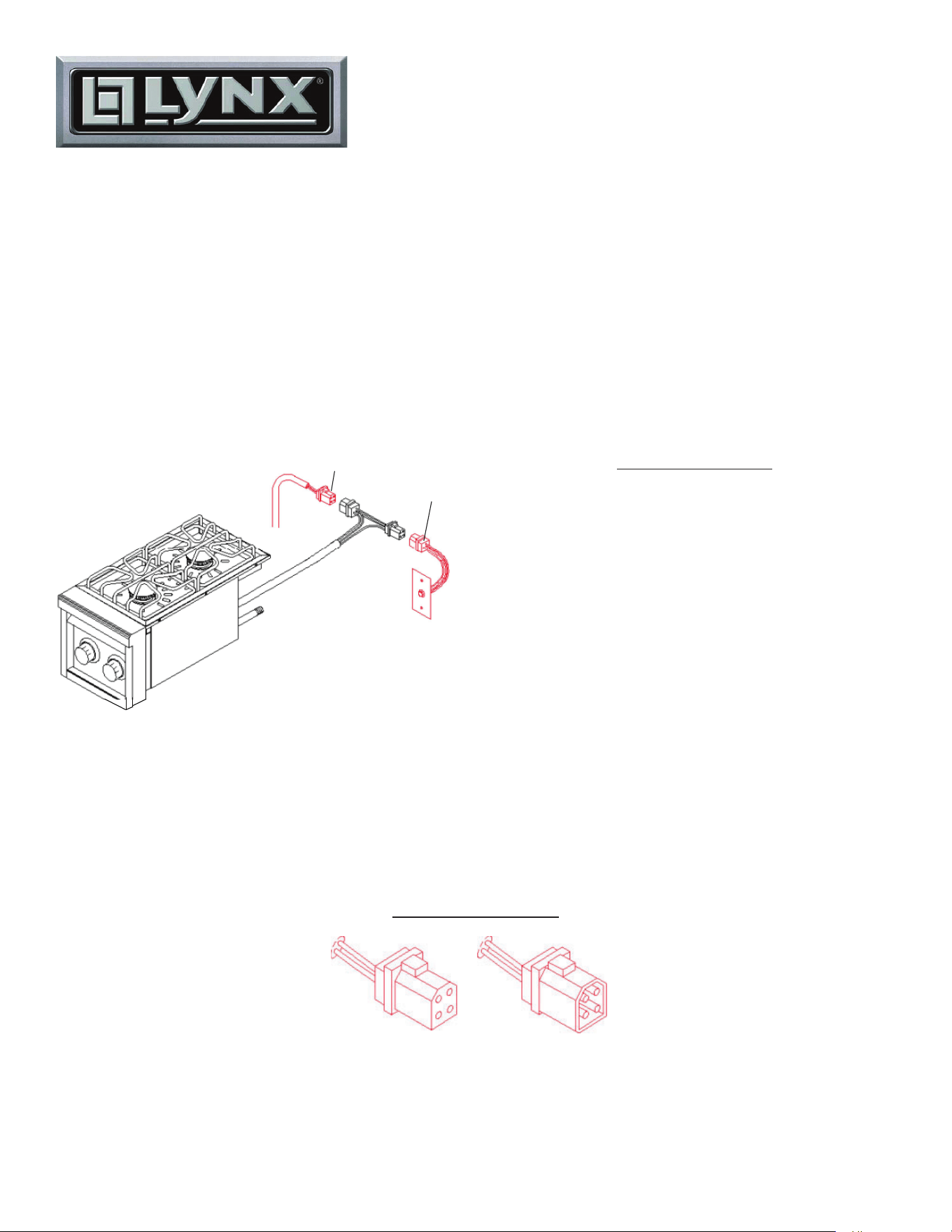

To the power
supply
4 pin plug
4 pin
receptacle
2010
Lynx Double Side Burner
Precautions while working on electrical connections:
Read and understand the instruction manuals provided with both the grill and accessory being installed.
Review these instructions in their entirety before beginning.
TURN OFF ALL GAS AT IT’S SOURCE to the appliances BEFORE beginning any electrical work. When working on an
island installation, open any doors or drawers and allow the space to ventilate before beginning any work. Unplug the
transformer / power supply from it’s receptacle under the island.
Connector Identifi cation
4 pin PLUG
4 pin RECEPTACLE
