ELD V2.0 User manual

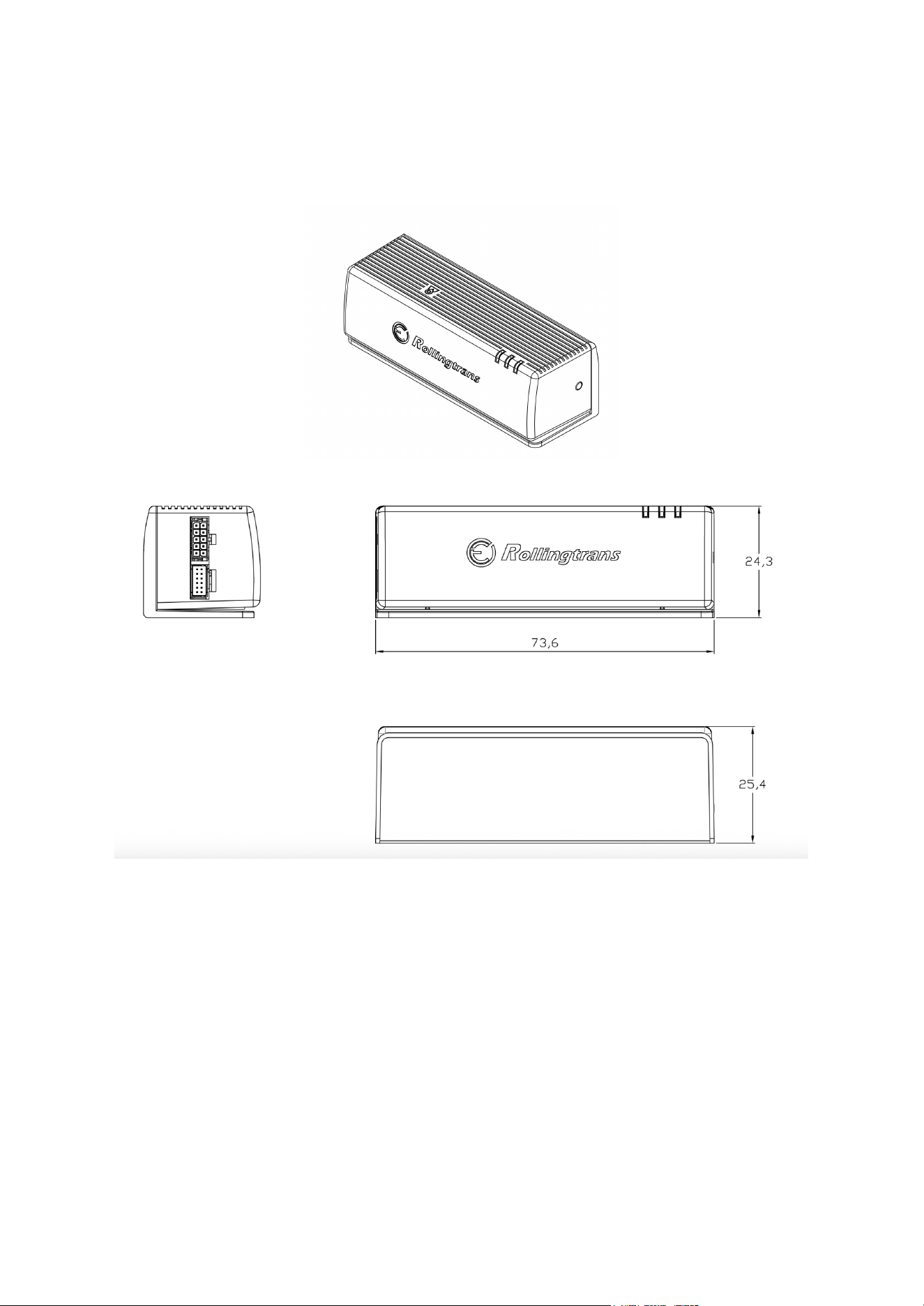

3D Size:
Technical Specification：
Item
Description
Main Processor
ARM Cortex A7 with 1.3GHz clock with
256KB L2 Cache
Storage
256 MB
Power Input
DC10V – 36V
Vehicle Comm.
CAN Bus, J1708, J1939
Wireless
Bluetooth 5.0 & 4G
GPS
GNSS support: GPS/GLONASS/QZSS
LEDs
Green, Yellow, Tricolor light
Button
Reset Button
Operation Temp.
-40℃ ~ +85 ℃
Storage Temp.
-40℃ ~ +85 ℃
Humidity
< 90%
Dimension
73.6 mm (W)x 24.3 mm (D)x 25.4 mm (H)
Certificated
FCC
Interface:

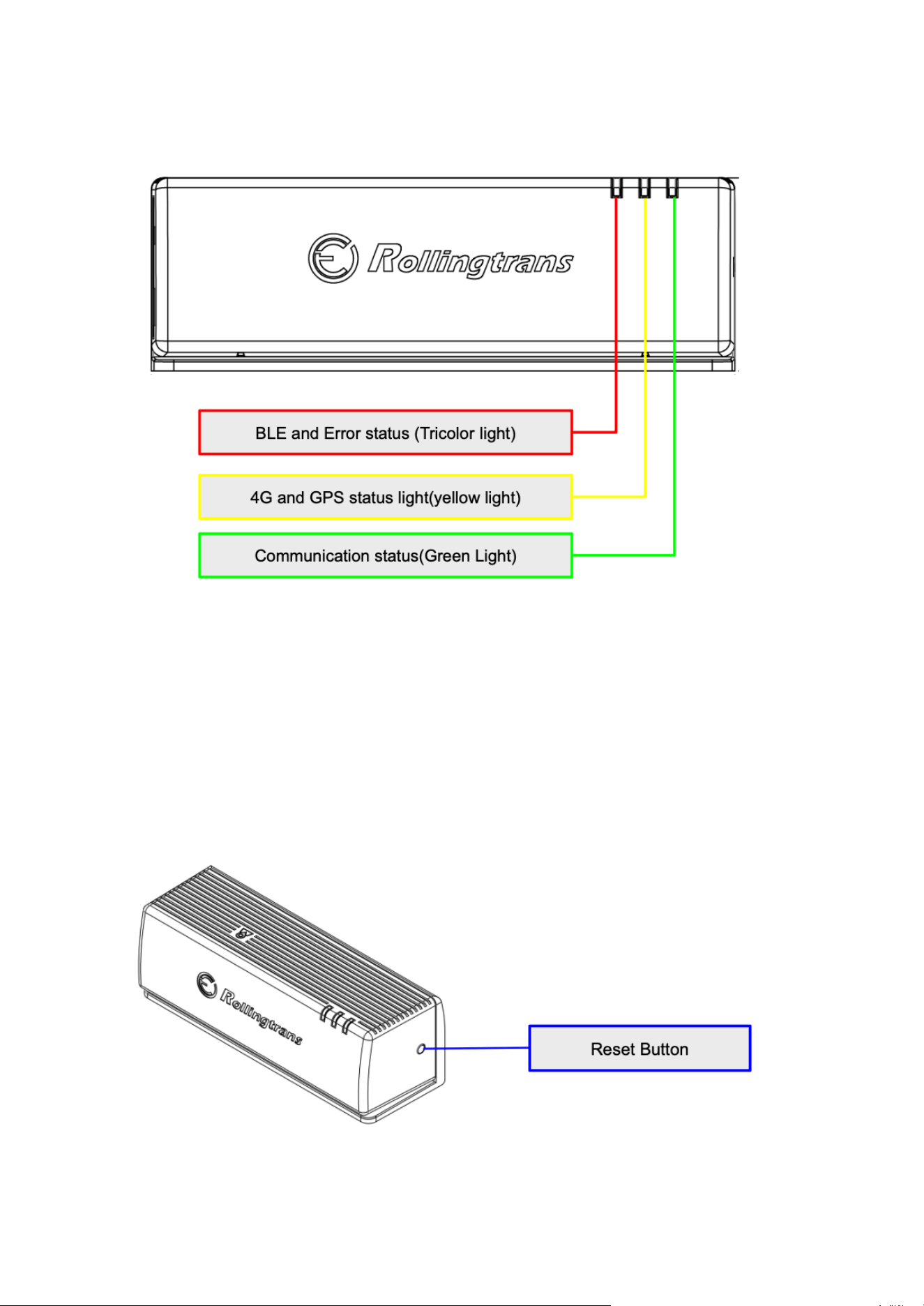

The Tricolor lights are for BLE and Error: They will flash after a successful
connection to the phone, or display a red light if there is an error.
The yellow light is for GPS: It stays on when GPS and 4G are not yet in use, and
flashes after successful positioning.
The green light is for OBD: It flashes when communicating with OBD.

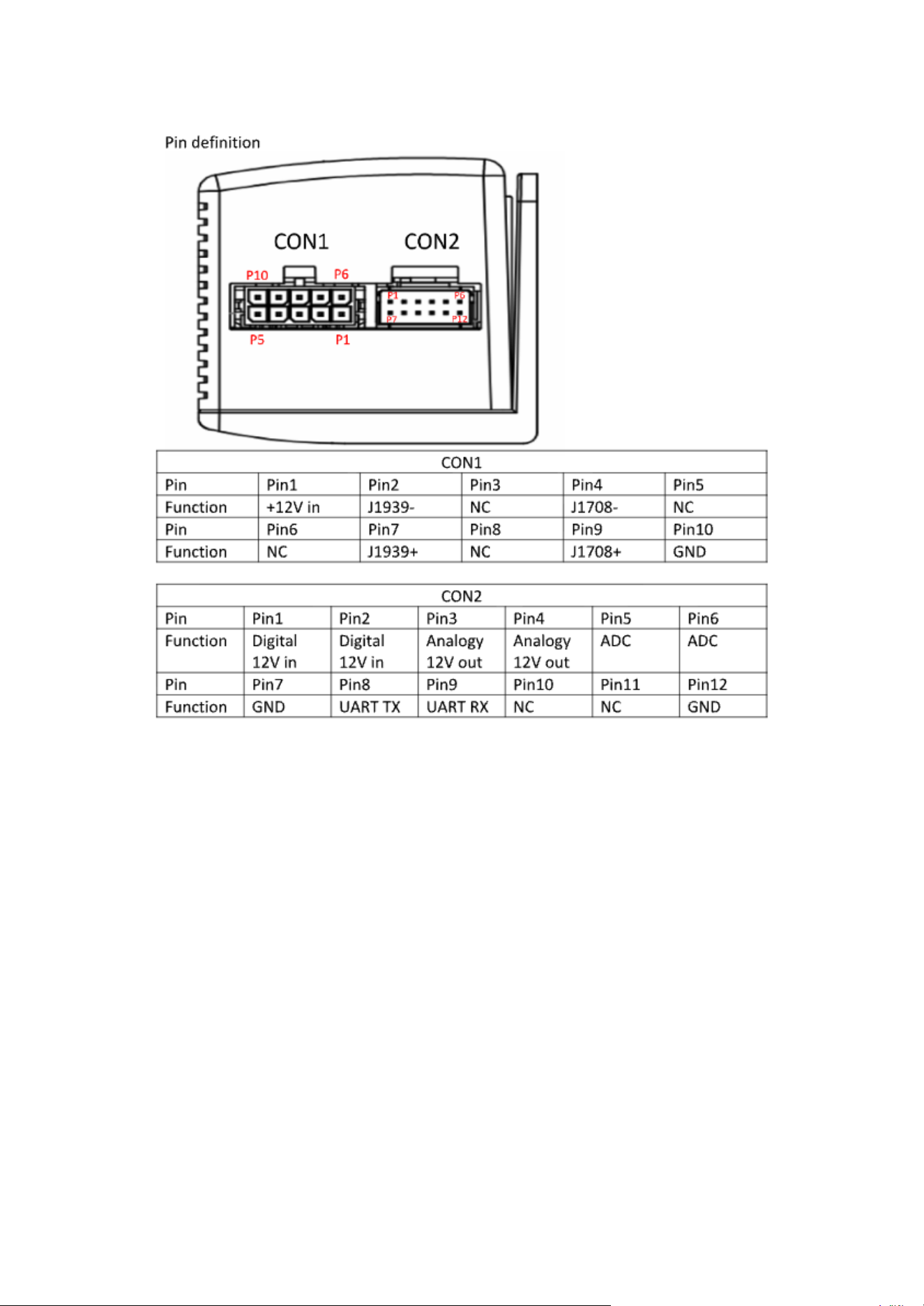

Pin definition
AGENCY APPROVAL
FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/ TV technician for help.
CAUTION:
Any changes or modifications not expressly approved by the grantee of this device could void the
user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
RF Exposure Information (SAR)
This equipment must be installed and operated in accordance with provided instructions and the
antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20
cm from all persons and must not be co-located or operating in conjunction with any other antenna
or transmitter. End-users and installers must be provide with antenna installation instructions and
transmitter operating conditions for satisfying RF exposure compliance.
