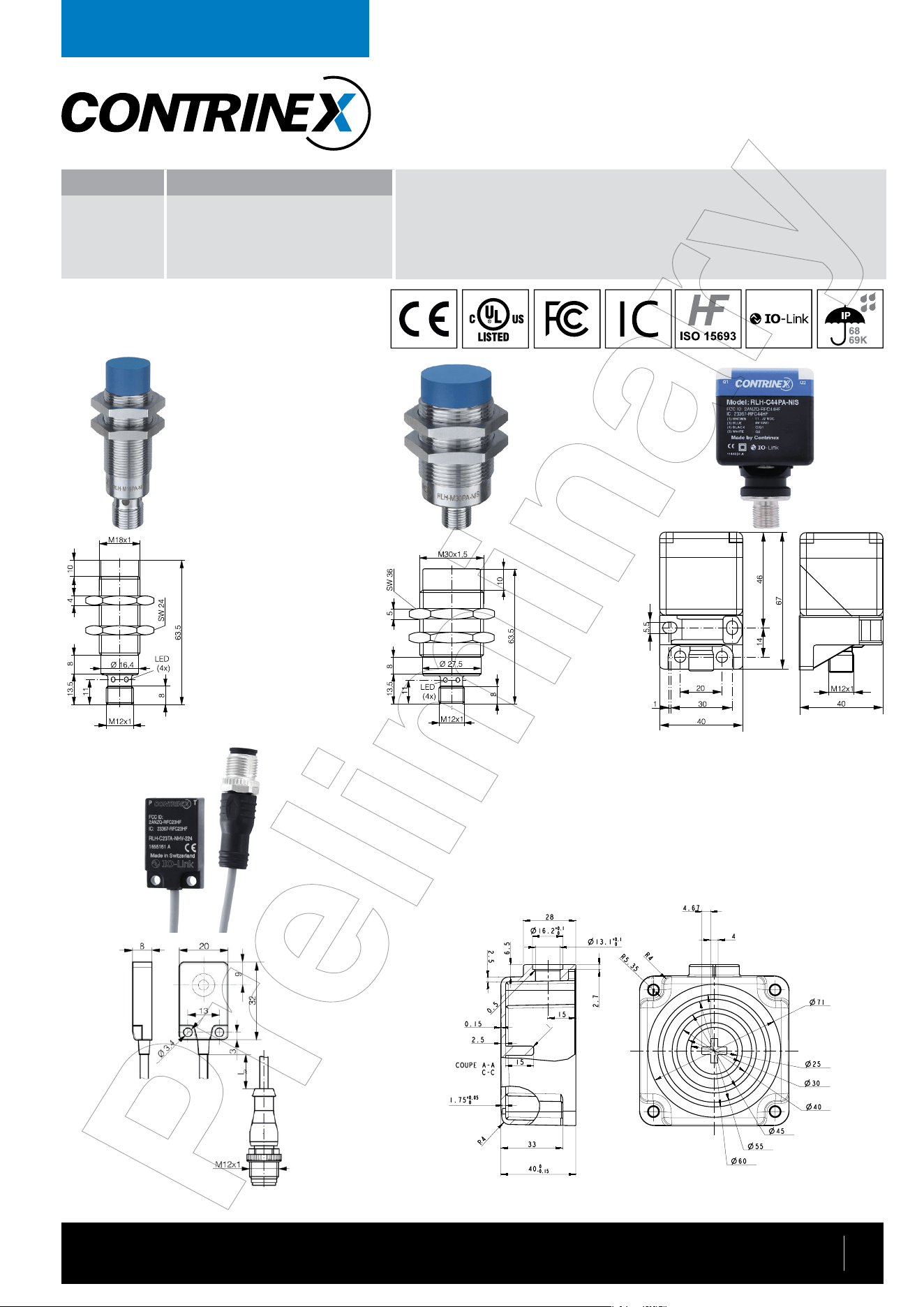

HF RFID SYSTEM
READ/WRITE MODULES (RWM)
CONTRINEX AG Industrial Electronics
Route du Pâqui 3 – P.O. Box – CH 1720 Corminboeuf – Switzerland – Tel: +41 26 460 46 46
Fax: +41 26 460 46 40 – Internet: www.contrinex.com – E-mail: [email protected]
1
HOUSING READ/WRITE DISTANCE
9 20x32 mm plastic housing (C23)
9 Metal threaded housing (M18, M30)
9 Sensing face of PBTP
9 Insensitive to dirt
9 IO-Link V1.1.3
9 2× PNP output in SIO mode
congurable
9 IP 68/69K (C44, C23, C88)
M18
M30
C44
C23
C88
34 mm
50 mm
78 mm
36 mm
120mm
RLH-xxxxA-NHx
PICTURES T.B.D.
RLH-C23TA-NHV-224
RLH-C88TA-NHS
RLH-M18PA-NHS
RLH-M30PA-NHS
RLH-C44PA-NHS
CONTRINEX AG Industrial Electronics
Route du Pâqui 3 – P.O. Box – CH 1720 Corminboeuf – Switzerland – Tel: +41 26 460 46 46
Fax: +41 26 460 46 40 – Internet: www.contrinex.com – E-mail: [email protected]
2
GENERAL DATA INTERFACE
Carrier frequency 13.56 MHz Data transfer rate 230,400 baud
Compatible standard ISO 15693
1
LEDs See “LED status” on p. 3
Maximum transmission speed 26.5 kbit/s IO-Link
9
Maximum eld strength (at 3 m/30 m)
RLH-M18PA-NHS: 45.4 / 4.6 dBμV/m
RLH-M30PA-NHS: 55.1 / 14.9 dBμV/m
RLH-C44PA-NHS: 66.7 / 26.4 dBμV/m
RLH-C23TA-NHV-224: TBD / TBD dbµV/m
RLH-C88TA-NHS: TBD / TBD dbµV/m
MTTF (@ 40°C) TBD
Read-write distance max. (RSSI ≥ 0)
with ∅∅ 50 mm transponder
RLH-M18PA-NHS: 34 mm
RLH-M30PA-NHS: 50 mm
RLH-C44PA-NHS: 78 mm
RLH-C23TA-NHV-224: 36 mm
LH-C88TA-NHS: 120 mm
1
Protocol anti-collision excluded. A maximum of one transponder can be
detected at a time by the RWM, otherwise “TAGCommError” is reported
ELECTRICAL DATA MECHANICAL DATA
Supply voltage range (Ub)
11 … 32 VDC
Sensing face material PBTP
Max. current consumption (no load) ≤ 50 mA Ambient temperature range TA
2
−25 … +80°C
Max. output current
≤ 200 mA
(RLH-C23TA-NHV-244: ≤ 100 mA)
Storage temperature range TS
3
−25 … +80°C
Short-circuit protection
9
Housing material See table “Available types” (p. 2)
Voltage reversal protection
9
Enclosure rating See table “Available types” (p. 2)
Cable length max. ≤ 20 m
Max. tightening torque
RLH-M18PA-NHS: 25 Nm
RLH-M30PA-NHS: 70 Nm
RLH-C44PA-NHS: 0.6 Nm
4
RLH-C23TA-NHV-224: 0.25 Nm
5
RLH-C88TA-NHS: 2 Nm
Weight (incl. nuts)
See table “Available types” (p. 2)
2
Read/write operations possible
3
Data retention and mechanical stability limit
4
(on M12 connector)
5
(on M3 screw)
CONTRINEX AG Industrial Electronics
Route du Pâqui 3 – P.O. Box – CH 1720 Corminboeuf – Switzerland – Tel: +41 26 460 46 46
Fax: +41 26 460 46 40 – Internet: www.contrinex.com – E-mail: [email protected]
3

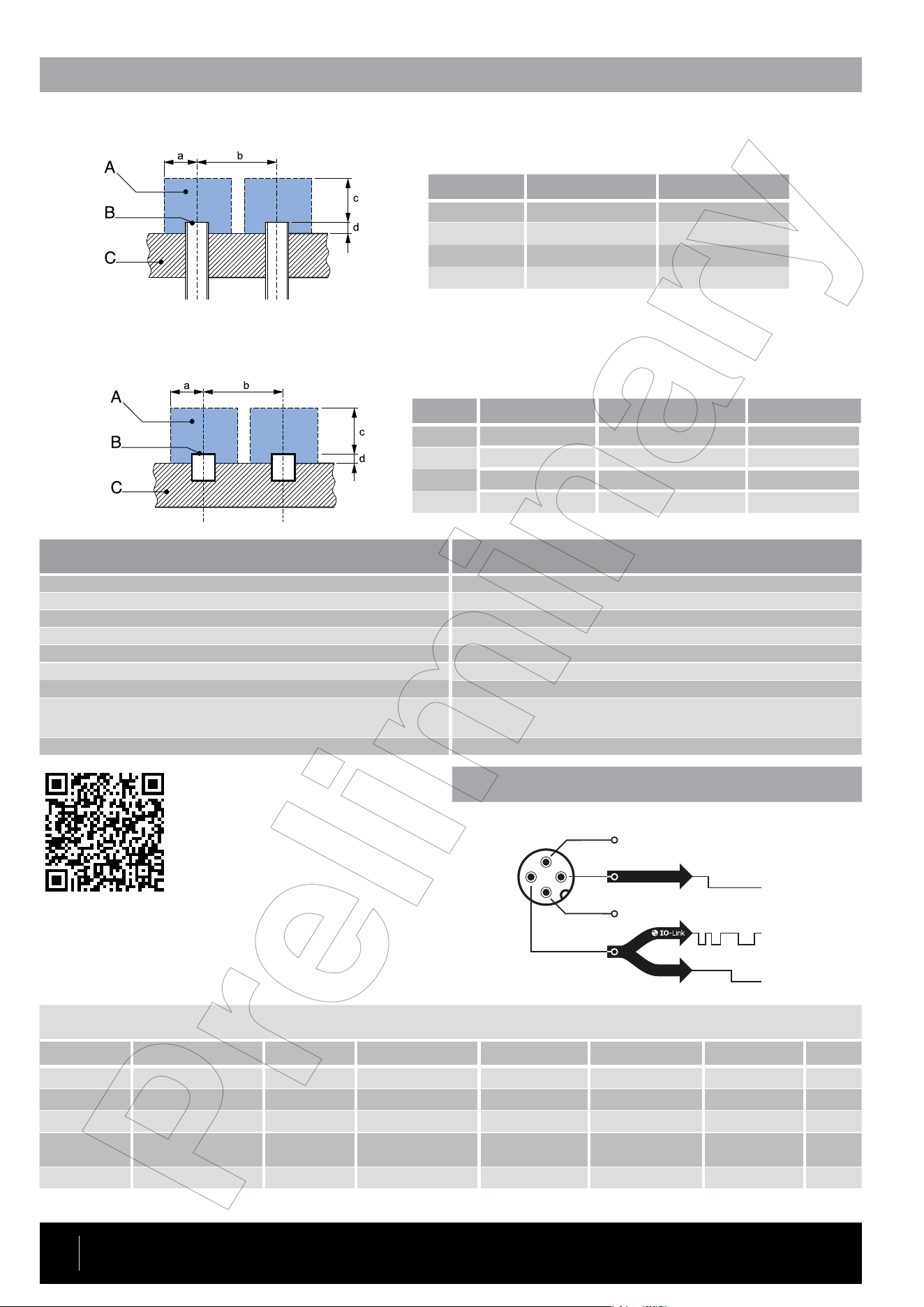

MOUNTING RECOMMENDATIONS
CLEARANCE
Read/write modules must not mutually inuence each other. For this reason, a minimum distance of b between the devices must be observed.
PIN ASSIGNMENT
3
1
4
2
SIO
L+
L-
0V
24V
C/Q1
Q2
SIO
A : unique transponder zone
B : sensing face
C : support
[mm] RLH-C44PA-NHS RLH-C23TA-NHV-224
RLH-C88TA-NHS
a
60 45 180
b
120 90 360
c 120 90 360
d
10 8 45
IO-LINK CHARACTERISTICS VALUE
Vendor ID 0x0156
Device ID 0xAB0600
IO-Link Protocol 1.1.3
SIO-Mode Supported
Process data 32 bytes input / 32 bytes output
Baudrate
COM3 (230.4 kBaud)
Minimum cycle time
10 ms
Supported Access Locks
Parameter: no, Data Storage: yes, Local Parameterization: no,
Local User Interface: no
Sub Index Access No sub index addressing possible except otherwise specied
IODD les may be downloaded from
https://www.contrinex.com/collections/rd
Select the product name to display the product page with
corresponding downloads.
Alternatively, just click/scan the QR code on the left.
[mm] RLH-M18PA-NHS RLH-M30PA-NHS
a 30 45
b 54 90
c 60 90
d 10 10
AVAILABLE TYPES
Part number Part reference Sensing face Housing material Mounting
Enclosure rating
Connection Weight
720-100-224 RLH-M18PA-NHS
∅ 18
Chrome-plated brass
Non-embeddable IP67 M12 4-pin 37 g
720-100-225 RLH-M30PA-NHS
∅ 30
Chrome-plated brass
Non-embeddable IP67 M12 4-pin 87 g
720-100-226 RLH-C44PA-NHS 40×40 mm PBTP Non-embeddable IP68 & IP69K M12 4-pin 105 g
720-100-229 RLH-C23TA-NHV-224 32 x 20 mm PBTP Non-embeddable IP67
PUR 0,3m+M12
4-pin
19 g
720-100-228 RLH-C88TA-NHS 80 x 80 mm PBTP Non-embeddable IP67 M12 4-pin 256 g
CONTRINEX AG Industrial Electronics
Route du Pâqui 3 – P.O. Box – CH 1720 Corminboeuf – Switzerland – Tel: +41 26 460 46 46
Fax: +41 26 460 46 40 – Internet: www.contrinex.com – E-mail: [email protected]
4

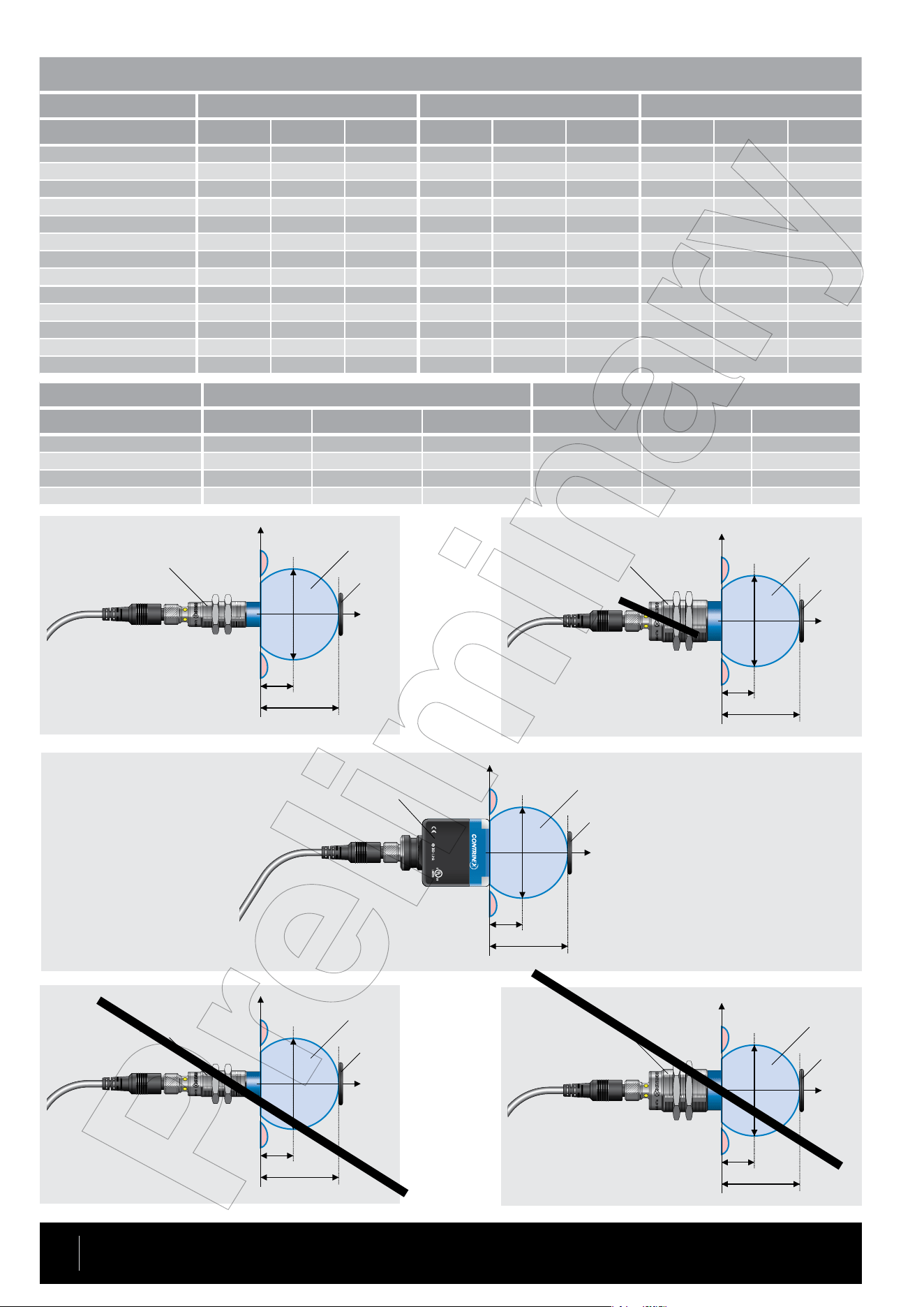

POSSIBLE COMBINATION AND TYPICAL DISTANCE (RSSI ≥ 1)
RLH-M18PA-NHS RLH-M30PA-NHS RLH-C44PA-NHS
Transponder type S
max
[mm] S
0
[mm] D
0
[mm] S
max
[mm] S
0
[mm] D
0
[mm] S
max
[mm] S
0
[mm] D
0
[mm]
∅∅ 9 RTP-0090-020 11 3.5 15 17 5.5 24 24 9 32
∅∅ 9 RTH-D09RA-NF0 11 3.5 15 17 5.5 24 24 9 32
∅∅ 16 RTP-0160-020 19 8.5 22 28 13 31 40 20 44
∅∅ 16 RTH-D16RA-NF0 19 8.5 22 28 13 31 40 20 44
∅∅ 20 RTH-D20QA-ND0 17 6 21 26 11.5 31 38 17 42
∅∅ 20 RTH-D20QA-NF0 18 8 21 26 12 30 40 18 44
∅∅ 26 RTP-0263-020 15 4 21 33 15 36 38 17 44
∅∅ 30 RTH-D30QA-ND0 19 5 28 34 15 38 46 23 52
∅∅ 30 RTH-D30QA-NF0 22 9 28 30 13 38 44 21 48
∅∅ 50 RTH-D50QA-ND0 20 0 44 44 18 54 58 26 66
∅∅ 50 RTH-D50QA-NF0 24 6 42 46 19 54 64 32 68
∅∅ 50 RTP-0502-022 34 10 42 50 23 54 78 41 80
∅∅ 50 RTP-0502-062 20 4 39 46 20 52 46 20 52
RLH-C88TA-NHS RLH-C23TA-NHV-224
Transponder type S
max
[mm] S
0
[mm] D
0
[mm] S
max
[mm] S
0
[mm] D
0
[mm]
∅∅ 30 RTH-D30QA-NDO 80 40 90 27 30 14
∅∅ 30 RTP-0301-020 90 45 100 tbd tbd tbd
∅∅ 30 RTH-D30QA-NCO 60 30 75 27 30 14
∅∅ 50 RTP-0502-022 120 60 120 36 40 20
D
0
S
0
x
y
S
max
Read/Write Module
Working area
when RSSI ≥ 1
Transponder
RLH-M30PA-NHS
D
0
S
0
x
y
S
max
Read/Write Module
Working area
when RSSI ≥ 1
Transponder
RLH-M18PA-NHS
OUTPUT
POWER
D
0
S
0
x
S
max
Model: RLS-C44PA-NxS
Made by Contrinex
y
Read/Write Module
Working area
when RSSI ≥ 1
Transponder
RLH-C44PA-NHS
D
0
S
0
x
y
S
max
Read/Write Module
Working area
when RSSI ≥ 1
Transponder
RLH-C88TA-NHS
D
0
S
0
x
y
S
max
Read/Write Module
Working area
when RSSI ≥ 1
Transponder
RLH-C23TA-NHV-224
CONTRINEX AG Industrial Electronics
Route du Pâqui 3 – P.O. Box – CH 1720 Corminboeuf – Switzerland – Tel: +41 26 460 46 46
Fax: +41 26 460 46 40 – Internet: www.contrinex.com – E-mail: [email protected]
5

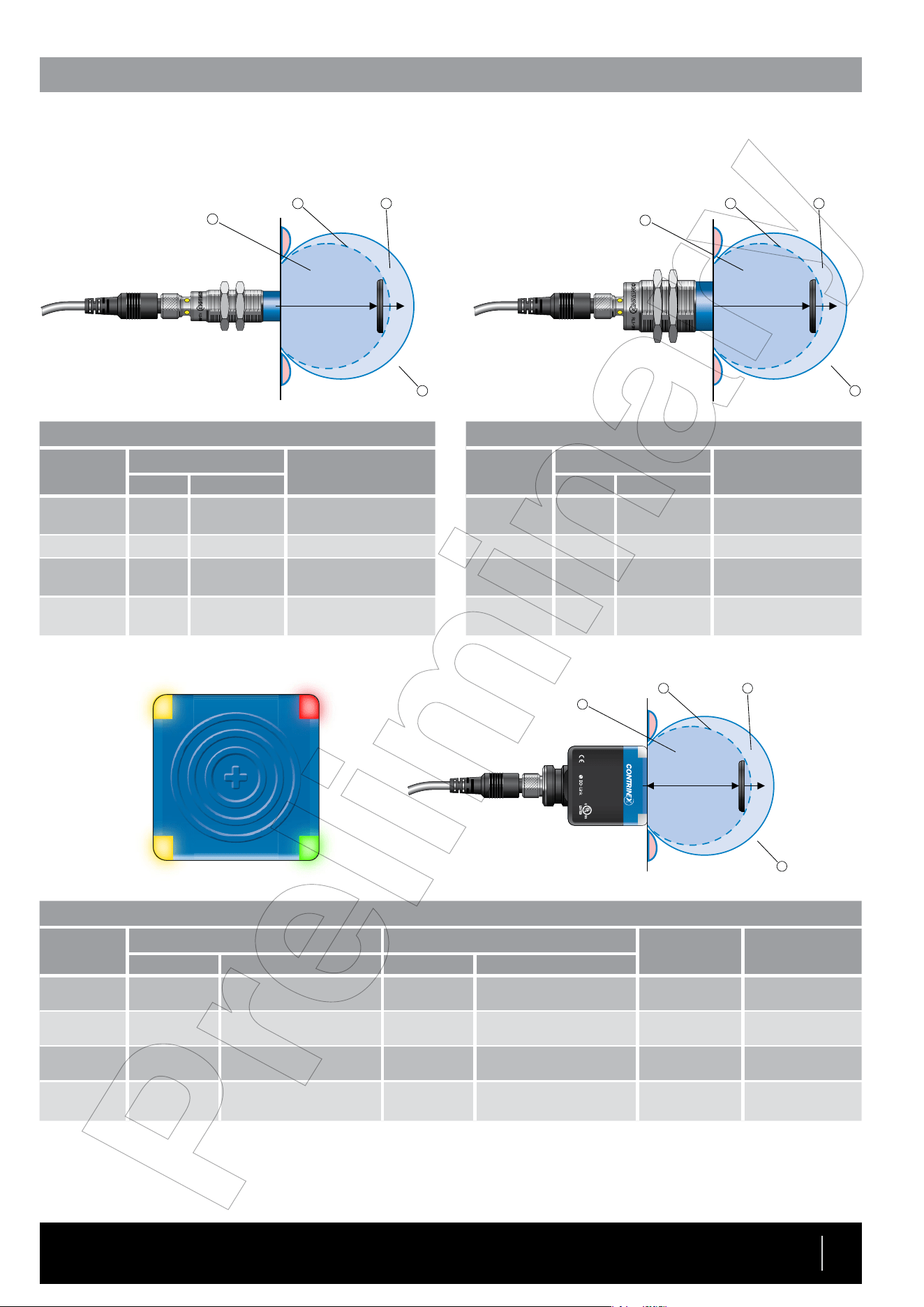

LED STATUS
S
TAG
1
2 3
4
This LED is yellow OR green
Yellow condition dominates green
1: Tag RSSI level ≥ RSSI threshold – Transponder is located in RWM recommended working area
2: RWM RSSI threshold limit set by the end user in the RWM conguration parameter menu (idx: 42
h
, sub_idx: 03
h
)
3: Tag RSSI level < RSSI threshold – Transponder is located in RWM maximal sensing range
4: Tag is out of RWM sensing range
S
TAG
1
2 3
4
This LED is yellow OR green
Yellow condition dominates green
RLH-M18PA-NHS
Yellow
Green
IO-Link SIO
ON Area 1 Q1 is ON
RWM is ON and SIO
Mode used
OFF Area 4 Q1 is OFF RWM is OFF
Blinking 1 Hz – –
RWM is ON and IO-Link
Mode used
Blinking 5 Hz Area 3
Q1 is Compare
data & Area 3
Q1 is TAG presence &
Area 3
RLH-M30PA-NHS
Yellow
Green
IO-Link SIO
ON Area 2 Q1 is ON
RWM is ON and SIO
Mode used
OFF Area 4 Q1 is OFF RWM is OFF
Blinking 1 Hz N/A –
RWM is ON and IO-Link
Mode used
Blinking 5 Hz Area 3
Q1 is Compare
data & Area 3
Q1 is TAG presence &
Area 3
RLH-C44PA-NHS
Q1 / TAG Q2 / BUSY
ERROR POWER
IO-Link SIO IO-Link SIO
ON Area 1 Q1 is ON – Q1 is ON Error occured
RWM is ON and
SIO Mode used
OFF Area 4 Q1 is OFF
No pending
CMD
Q2 is OFF No error RWM is OFF
Blinking 1 Hz – – RWM is Busy – –
RWM is ON and
IO-Link Mode used
Blinking 5 Hz Area 3
Q1 is TAG presence or
data compare & Area 3
–
Q2 is TAG presence or
data compare & Area 3-
– –
OUTPUT
POWER
Model: RLH-C44PA
Made by Contrinex
S
TAG
1
2 3
4
ERROR
POWERQ2 / BUSY
Q1 / TAG
CONTRINEX AG Industrial Electronics
Route du Pâqui 3 – P.O. Box – CH 1720 Corminboeuf – Switzerland – Tel: +41 26 460 46 46
Fax: +41 26 460 46 40 – Internet: www.contrinex.com – E-mail: [email protected]
6

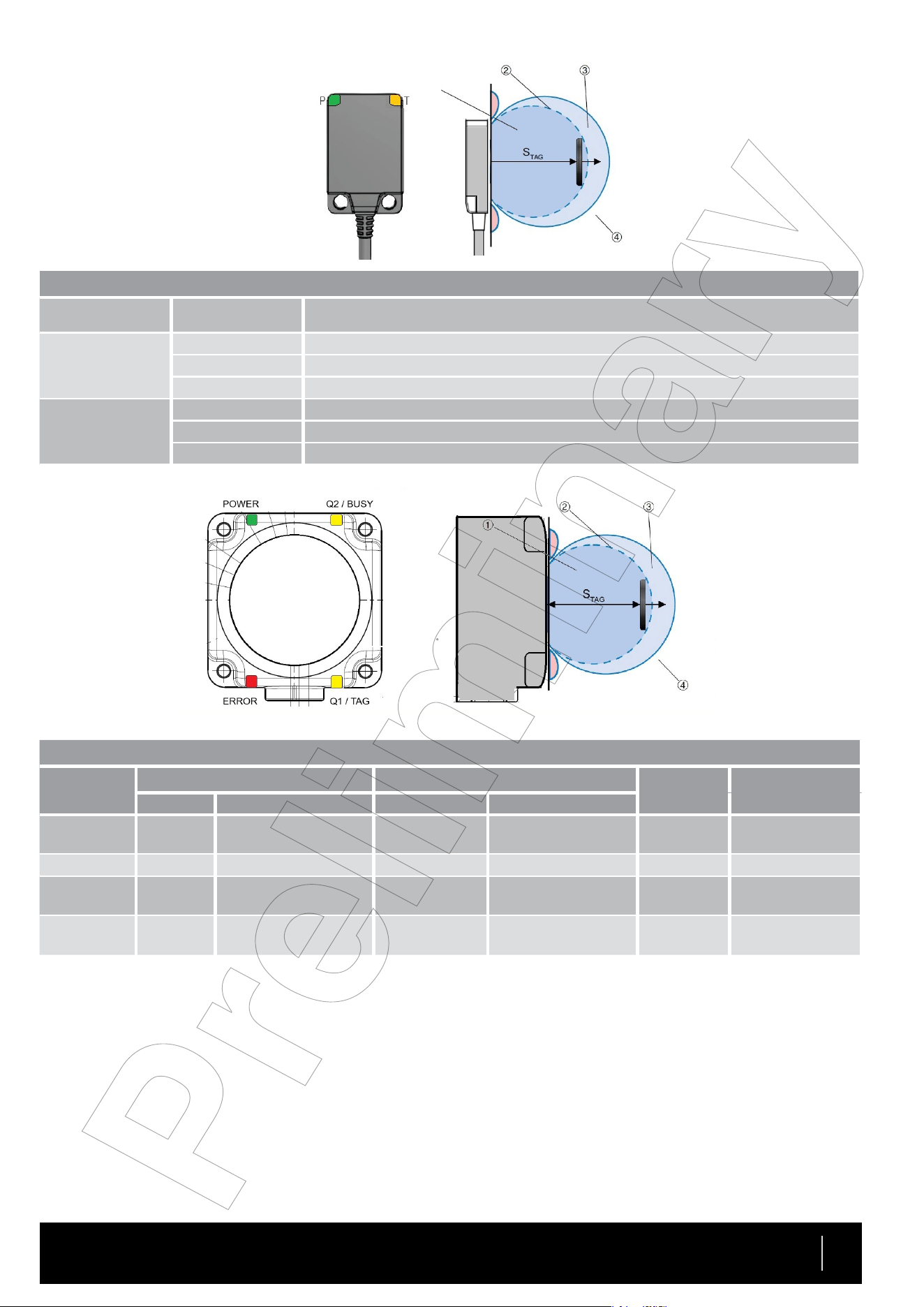

RLH-C88TA-NHS
Q1/TAG Q2/BUSY
ERROR POWER
IO-Link SIO IO-Link SIO
ON Area 1 Q1 is ON – Q1 is ON Error occured
RWM is ON and SIO
Mode used
OFF Area 4 Q1 is OFF No pending CMD Q1 is OFF No error RWM is OFF
Blinking 1 Hz – – RWM is Busy – –
RWM is ON and
IO-Link Mode used
Blinking 5 Hz Area 3
Q1 is TAG presence or
data compare & Area 3
–
Q2 is TAG presence or
data compare & Area 3-
– –
RLH-C44PA-NHS
Display LED status Status
P LED (Green)
Static SIO mode: the device is ready for use, no transponder detection
Flashing (5 Hz) SIO Or IO-Link Mode + Transponder SIO RSSI < RSSI threshold
Flashing (1 Hz) IO-Link mode no transponder detection
T LED (Yellow)
Static SIO mode + Transponder detection RSSI ≥ RSSI threshold
Flashing (5 Hz) SIO Or IO-Link Mode + Transponder SIO RSSI < RSSI threshold
Flashing (1 Hz) IO-LINK mode +transponder detection and RSSI ≥ RSSI threshold
CONTRINEX AG Industrial Electronics
Route du Pâqui 3 – P.O. Box – CH 1720 Corminboeuf – Switzerland – Tel: +41 26 460 46 46
Fax: +41 26 460 46 40 – Internet: www.contrinex.com – E-mail: [email protected]
7
CONFIGURATION PARAMETER (IO-LINK / SIO MODE)
Index Sub Hex Name Access Data Type Value Default
SYSTEM
02
h
– Standard Command W uint8
5 = ParamDownloadStore, 128 = Device Reset, 130
= Restore Factory Settings, 160 = Locate device
(force all LEDs to blink during 30 seconds)
N/A
0C
h
– Device Access Lock R/W uint16
Parameter Access, Data Storage, Local Parametriza-
tion and Local User Interface Locks
0000
h
0D
h
– Prole Characteristic R uint16 No prole for identication devices - 0000
h
–
0E
h
– PD Input Descriptor R array
Scan UID Mode {{1, 3, 4}, {1, 2, 8}, {2, 6, 10},
{2, 8, 16}, {2, 64, 24}, {2, 64, 88}, {2, 64, 152}}
Scan R/W Mode {{2, 3, 0}, {1, 4, 4}, {1, 2, 8},
{2, 5, 10}, {2, 8, 16}, {0, 224, 24}}
–
0F
h
– PD Output Descriptor R array
Scan UID Mode {{1, 1, 4}}
Scan R/W Mode {{2, 4, 0}, {1, 1, 4}, {1, 1, 7},
{2, 3, 8}, {2, 8, 16}, {0, 224, 24}}
–
IDENTIFICATION
10
h
– Vendor Name R char [16] “Contrinex” –
11
h
– Vendor Text R char [24] “www.contrinex.com” –
12
h
– Product Name R char [16]
RLH-M18PA-NHS: “RLH-M18PA-NHS”
RLH-M30PA-NHS: “RLH-M30PA-NHS”
RLH-C44PA-NHS: “RLH-C44PA-NHS”
RLH-C88PA-NHS: “RLH-C88PA-NHS”
RLH-C23TA-NHV-224: “RLH-C23TA-NHV-224”
–
13
h
– Product ID R char [16] “00000000” –
14
h
– Product Text R char [64] “IO-Link RFID reader” –
15
h
– Serial Number R char [16] “00000000” –
17
h
– Firmware Revision R char [64] “2.2.7” –
18
h
– Application Specic Tag R/W char [32] <user string, 32 byte (variable length)>
<vendor
specic>
READER PARAMETER SIO
41
h
01
h
C/Q1 PIN SIO Operating
Mode
R/W uint8
00
h
: Transponder Presence
01
h
: Compare Data
02
h
: Alarm 1
03
h
: Alarm 2
04
h
: No SIO
00
h
02
h
SIO Start Address C/Q1 R/W uint8
Transponder memory block address where to make
the “Compare Data” operation
00
h
03
h
C/Q1 SIO Data to compare R/W uint32
Reference data value stored in RWM memory to be
compared to transponder data
00
h
, 00
h
,
00
h
, 00
h
04
h
C/Q1 PIN SIO Polarity R/W uint8
00
h
: Output “close” if condition = true
01
h
: Output “open” if condition = true
00
h
05
h
Data Hold Time Output
(C/Q1 & Q2)
R/W uint8
00
h
: No Hold Time
01
h
: Hold Time 100 ms
02
h
: Hold Time 200 ms
03
h
: Hold Time 500 ms
04
h
: Hold Time 1000 ms
05
h
: Hold Time 2000 ms
00
h
06
h
Q2 PIN SIO Operating Mode R/W uint8
00
h
: Transponder Presence
01
h
: Compare Data
02
h
: Alarm 1
03
h
: Alarm 2
04
h
: No SIO
00
h
07
h
SIO Start Address Q2 R/W uint8
Transponder memory block address where to make
the “Compare Data” operation
00
h
08
h
Q2 SIO Data to compare R/W uint32
Reference data value stored in RWM memory to be
compared to transponder data
00
h
, 00
h
,
00
h
, 00
h
CONTRINEX AG Industrial Electronics
Route du Pâqui 3 – P.O. Box – CH 1720 Corminboeuf – Switzerland – Tel: +41 26 460 46 46
Fax: +41 26 460 46 40 – Internet: www.contrinex.com – E-mail: [email protected]
8
CONFIGURATION PARAMETER (IO-LINK / SIO MODE)
Index Sub Hex Name Access Data Type Value Default
09
h
Q2 PIN SIO Polarity R/W uint8
00
h
: Output “close” if condition = true
01
h
: Output “open” if condition = true
00
h
RF CONFIGURATION
42
h
03h
RSSI
Threshold
R/W uint8
0 = 0
1 = 1
2 = 2
3 = 3
4 = 4
5 = 5
6 = 6
7 = 7
01
h
TAG INFO
43
h
01
h
UID R uint64
Data available only if transponder is in the RWM
detection range when TAG INFO elds are read
–
02
h
Transponder DSFID R uint8
Data available only if transponder is in the RWM
detection range when TAG INFO elds are read
–
03
h
Transponder AFI R uint8
Data available only if transponder is in the RWM
detection range when TAG INFO elds are read
–
04
h
Number of Memory Blocks R uint8
Data available only if transponder is in the RWM
detection range when TAG INFO elds are read
–
05
h
Memory Block Size R uint8
Data available only if transponder is in the RWM
detection range when TAG INFO elds are read
–
06
h
RSSI R uint8
Data available only if transponder is in the RWM
detection range when TAG INFO elds are read
–
07
h
IC Manufacturer Code R uint8
Data available only if transponder is in the RWM
detection range when TAG INFO elds are read
–
08
h
IC Reference R uint8
Data available only if transponder is in the RWM
detection range when TAG INFO elds are read
–
UID LIST
44
h
01
h
Tag history 1 R uint64 Last transponder UID seen by RWM –
02
h
Time stamp Tag history 1 R uint64
System time record when tag 1 entered in the RWM
range
–
03
h
Tag history 2 R uint64 – –
04
h
Time stamp Tag history 2 R uint64
System time record when tag 2 entered in the RWM
range
–
05
h
Tag history 3 R uint64 – –
06
h
Time stamp Tag history 3 R uint64
System time record when tag 3 entered in the RWM
range
–
07
h
Tag history 4 R uint64 – –
08
h
Time stamp Tag history 4 R uint64
System time record when tag 4 entered in the RWM
range
–
09
h
Tag history 5 R uint64
First transponder UID seen by RWM (on a shift reg-
ister of 5 UIDs)
–
0A
h
Time stamp Tag history 5 R uint64
System time record when tag 5 enters in the RWM
range
–
ALARM
47
h
01
h
Measurement Alarm 1
Conguration
R/W uint8
0 = Always OFF
1 = Active
02
h
Measurement Alarm 1
Threshold
R/W uint32
ALR1 goes TRUE if :
RSSI ≤ Alarm 1 Threshold
Tag IN RANGE Time ≤ Alarm 1 Threshold
SIO CNT Q1/Q2 ≥ Alarm 1 Threshold
03
h
Measurement Alarm 1
Source
R/W uint8
0 = RSSI
1 = Tag IN RANGE Time [ms]
2 = SIO CNT Q1
3 = SIO CNT Q2
04
h
Measurement Alarm 2
Conguration
R/W uint8
0 = Always OFF
1 = Active
00
h
CONTRINEX AG Industrial Electronics
Route du Pâqui 3 – P.O. Box – CH 1720 Corminboeuf – Switzerland – Tel: +41 26 460 46 46
Fax: +41 26 460 46 40 – Internet: www.contrinex.com – E-mail: [email protected]
9
CONFIGURATION PARAMETER (IO-LINK / SIO MODE)
Index Sub Hex Name Access Data Type Value Default
05
h
Measurement Alarm 2
Threshold
R/W uint32
ALR2 goes TRUE if :
RSSI ≤ Alarm 2 Threshold
Tag IN RANGE Time ≤ Alarm 2 Threshold
SIO CNT Q1/Q2 ≥ Alarm 2 Threshold
00
h
, 00
h
,
00
h
, 00
h
06
h
Measurement Alarm 2
Source
R/W
uint8
0 = RSSI
1 = Tag IN RANGE Time [ms]
2 = SIO CNT Q1
3 = SIO CNT Q2
00
h
DEVICE DESCRIPTION
48
h
01
h
Function Tag R/W char [32] <user string, 32 byte (variable length)>
<vendor
specic>
02
h
Location Tag R/W char [32] <user string, 32 byte (variable length)>
<vendor
specic>
DEVICE CHARACTERISTIC
49
h
01
h
RFID Compatibility R char [32] “13.56 MHz, ISO 15693” –
02
h
Read-write distance max R char [32]
RLH-M18PA-NHS: “20 mm with diam 30 mm SLIX tag”
RLH-M30PA-NHS: “40 mm with diam 30 mm SLIX tag”
RLH-C44PA-NHS: “60 mm with diam 50 mm SLIX tag”
RLH-C88PA-NHS: “120 mm with diam 50 mm SLIX tag”
RLH-C23TA-NHV-224: “30 mm with diam 50 mm SLIX tag”
–
03
h
Supply voltage range (Ub) R char [16] “11 … 32 VDC” –
04
h
Max. output current R char [16] “≤ 200 mA” –
05
h
Ambient temperature
range TA
R char [16] “−25 … +80°C” –
06
h
Storage temperature
range TS
R char [16] “−25 … +80°C” –
07
h
Enclosure rating R char [16] “IP67“ –
TRANSPONDER TIME MONITORING
4A
h
01
h
System Time – Transponder
IN
R uint64
Record system time when transponder enters the
RWM detection range [ms]
–
02
h
System Time – Transponder
OUT
R uint64
Record system time when transponder leaves the
RWM detection range [ms]
–
03
h
Transponder IN RANGE Time R uint64 IN RANGE = Transponder OUT – Transponder IN –
SECURITY
58
h
01
h
Security Mode R/W unit8
0 = Security mode inactive
1 = SLI-S or SLIX-2 Security mode active (perform a
login with the specied password before each read
or write operation)
12 = EM4233SLIC Security mode active (perform a
login with the specied password before each read
or write operation)
00
h
02
h
Password W uint32
Password is never readable to avoid end-user appli-
cation counterfeiting
8 × 00
h
DIAGNOSTIC
59
h
01
h
System Time R uint64
The system time is reset at each RWM power down
or in case the standard command 128 = Device
Reset is sent to the RWM.
System Time is given in [ms]
–
02
h
Successful Login counter R uint32
Counter which counts the number of successful
transponder Login since last RWM startup/reset
–
03
h
Error Login counter R uint32
SIO CNT which counts the number of unsuccessful
transponder Login since last RWM startup/reset
–
04
h
Error counter R uint32
Counter which counts the number of RMW error
since last RWM startup/reset
–
05
h
Power-on cycles R uint32
Counter which counts the number of RMW Power
on. This counter cannot be reset. Device must be
powered > 550 ms to see the power on cycle
counter incremented
–
CONTRINEX AG Industrial Electronics
Route du Pâqui 3 – P.O. Box – CH 1720 Corminboeuf – Switzerland – Tel: +41 26 460 46 46
Fax: +41 26 460 46 40 – Internet: www.contrinex.com – E-mail: [email protected]
10
Byte 7 6 5 4 3 2 1 0
0 RDY ERR TAG ANT RFU CMDCOPY
1 ERROR CODE ALR2 ALR1
2 RSSI
3 ADDRESS
4-31 DATA 0 … 27 / UID7 … 0, STTI7 … 0, TIRT7 … 0
Name Value Description
START
0 →→ 1
1 →→ 0
Start the selected RFID operation
when bit toggles. If Auto-Read, Auto-
Write or UID command is selected, the
bit is not used. The RFID command
are sent automatically as long as a
transponder is inside the RWM range
0
1
IDLE
N_ANT
0 Switch ON RF Field
1 Switch OFF RF Field
CMD
0 No command
1 Auto-Read
2 Auto-Write
1
3 Read
4 Write
5 UID and tag timings
NB BLOCK
Number of transponder memory block to R/W
ADDRESS
First transponder memory block address
where the R/W command will be executed
Data 0 Data to be written LSB
Data 27 Data to be written MSB
Name Value Description
RDY
0 →→ 1
1 →→ 0
Command executed and new data
available. If Auto-Read, Auto-Write or
UID command is selected, bit tog-
gling runs automically as long as a
transponder is inside the RWM range
0
1
No new data available yet
ERR
0 Command executed and no error
1 Command executed but error
TAG
0 No tag present in front of the RWM
1 Tag present in front of the RWM
ANT
0 RF eld OFF
1 RF eld ON
RSSI RSSI signal level coming from the transponder
ERROR CODE
See ERROR CODE list on the left
ALR2
0 Alarm 2 OFF
1 Alarm 2 ON
ALR1
0 Alarm 1 OFF
1 Alarm 1 ON
ADDRESS
First transponder memory block address
where the R/W command was executed
DATA 0 … 27 Read data LSB
UID7 … 0 Transponder unique ID number
STTI7 … 0
System time transponder IN. Data record
when a transponder enters in the RWM range
TIRT7 … 0 Transponder IN RANGE time
ERROR
CODE
Error Name Description
1 CommandNotSupported
Error code values replied by the
transponder to the RWM inter-
rogation. Depend of ISO 15693
command set supported by the
different transponder IC of the
market. These are error code
values dened by the ISO 15693
standard
2 FormatError
3 OptionNotSupported
5 CommandProblem
6 CommTagError
15 TagError
16 NoMemoryBlock
18 BlockProtected
27 AppLOGError
RWM password (index 0x58) is not
matching transponder password
30 TAGCommError
Indicates a transponder communi-
cation error (e.g. more than 1 tran-
sponder detected or transponder
reply not understood)
255 AppGeneralError General Error
PROCESS DATA REPRESENTATION
PROCESS DATA INPUT
PROCESS DATA STRUCTURE
Bitoffset
PROCESS DATA OUTPUT
Bitoffset
Byte 7 6 5 4 3 2 1 0
0 START RFU
N_ANT
RFU CMD
1 RFU NB BLOCK
2 RFU
3 ADDRESS
4-31 DATA 0 – DATA 27
1
Note for EEPROM tags: Auto-write mode will constantly write to the detected
tag and is intended for applications where the transponder is moving fast in the
front of the RWM.
CONTRINEX AG Industrial Electronics
Route du Pâqui 3 – P.O. Box – CH 1720 Corminboeuf – Switzerland – Tel: +41 26 460 46 46
Fax: +41 26 460 46 40 – Internet: www.contrinex.com – E-mail: [email protected]
11
RLH-xxxxA-NHx_Rev 0_16.07.2026_NM-VF
FCC information
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Caution: Any changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to operate
the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may
cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which
case the user will be required to correct the interference at his own expense.
ISED information
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s
licence-exempt RSS(s). Operation is subject to the following two conditions:
1. This device may not cause interference
2. This device must accept any interference, including interference that may cause undesired operation of the device.
L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique
Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes:
1. L’appareil ne doit pas produire de brouillage ;
2. L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.
Contrinex information
Operators of the products we supply are responsible for compliance with measures for the protection of persons. The use of our equipment in appli-
cations where the safety of persons might be at risk is only authorized if the operator observes and implements separate, appropriate and necessary
measures for the protection of persons and machines. Terms of delivery and rights to change design reserved.
DISCLAIMERS
