OPTION - To mount housing anywhere between ceiling framing:
Use optional Hanger Bar Kit (sold separately from local distributors or
website). Follow mounting instructions included with kit.
ROOF CAP* (with built-in damper)
WALL CAP*
(with built-in
damper)
4-IN. ROUND
ELBOWS*
FAN
HOUSING
Seal gaps
around
housing.
Seal duct joints
with tape.
INSULATION
(Place around and
over fan housing.)
POWER
CABLE *
* Purchase separately.
OR
Keep duct
runs short.
4-IN. ROUND
DUCT*

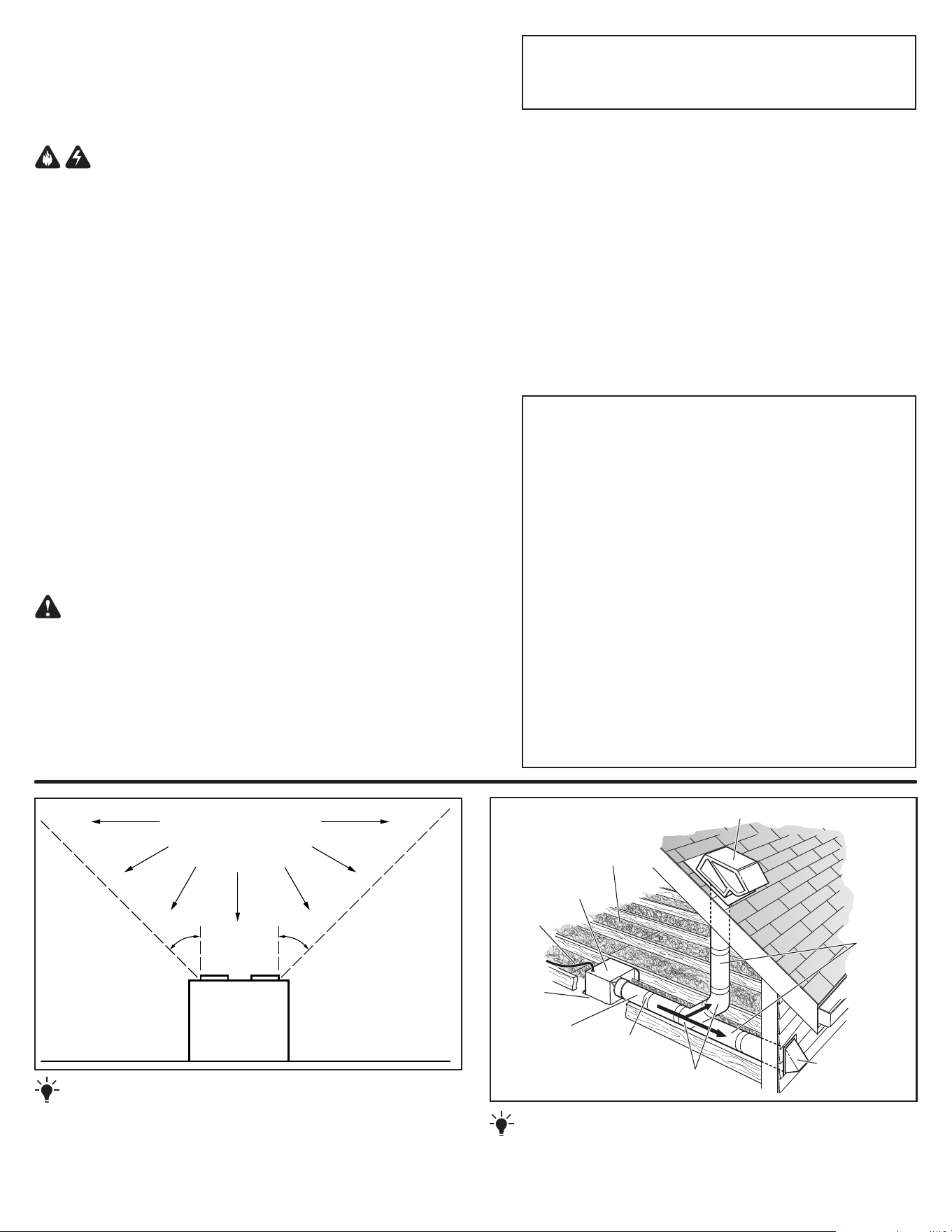

IMPORTANT -
The ducting from this fan to the outside of the building
has a strong effect on the air flow, noise and energy use of the fan. Use the
shortest, straightest duct routing possible for best performance, and avoid
installing the fan with smaller ducts than recommended. Insulation around
the ducts can reduce energy loss and inhibit mold growth. Fans installed
with existing ducts may not achieve their rated airflow.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS,
OBSERVE THE FOLLOWING:
1. Use this unit only in the manner intended by the manufacturer. If you have questions,
contact the manufacturer at the address or telephone number listed in the warranty.
2. Before servicing or cleaning unit, switch power off at service panel and lock the
service disconnecting means to prevent power from being switched on accidentally.
When the service disconnecting means cannot be locked, securely fasten a
prominent warning device, such as a tag, to the service panel.
3. For installation in flat ceilings only.
4. Installation work and electrical wiring must be done by a qualified person(s) in
accordance with all applicable codes and standards, including fire-rated construction
codes and standards.
5. Sufficient air is needed for proper combustion and exhausting of gases through
the flue (chimney) of fuel burning equipment to prevent backdrafting. Follow the
heating equipment manufacturer’s guideline and safety standards such as those
published by the National Fire Protection Association (NFPA), and the American
Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and
the local code authorities.
6. When cutting or drilling into wall or ceiling, do not damage electrical wiring and
other hidden utilities.
7. Ducted fans must always be vented to the outdoors.
8. Acceptable for use over a tub or shower when connected to a GFCI (Ground Fault
Circuit Interrupter) - protected branch circuit (ceiling installation only).
9. This unit must be grounded.
CAUTION
1. For general ventilating use only. Do not use to exhaust hazardous or explosive
materials and vapors.
2. This product can be installed in a wall if mounted 8-ft. or more above the floor.
3. To avoid motor bearing damage and noisy and/or unbalanced impellers, keep
drywall spray, construction dust, etc. off power unit.
4. Please read specification label on product for further information and requirements.
READ AND SAVE THESE INSTRUCTIONS
Cooking
Equipment
Floor
COOKING AREA
Do not install above or
inside this area.
45
o
45
o
NOT FOR USE IN
A COOKING AREA.
CLEANING & MAINTENANCE
For quiet and efficient operation, long life, and attractive appearance -
lower or remove grille and vacuum interior of unit with the dusting brush
attachment.
The motor is permanently lubricated and never needs oiling. If the motor
bearings are making excessive or unusual noises, replace the blower
assembly (includes motor and impeller).
OPERATION
The ChromaComfort & Sensonic Fan/Light/Speaker must be operated
using only the wall control included and the optional ChromaComfort
app. See separate operating instructions. DO NOT operate the
ChromaComfort & Sensonic Fan/Light/Speaker with any other switches
or controls.
For Warranty Statement, Service Parts, Technical Support, or to
Register your product, please visit our website:
In the United States - Broan-NuTone.com
ChromaComfort
TM
& Sensonic
TM
Fan/Light/Speaker Installation Instructions
The Bluetooth
®
word mark and logos are registered trademarks owned by Bluetooth
®
SIG, Inc.
and any use of such marks by Broan-NuTone LLC is under license. Other trademark and trade
names are those of their respective owners.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more
of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules and RSS-210 of Canada. Operation is subject
to the following two conditions:
(1) This device may not cause interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation. FCC IDs: 2ADLL-1103233
& 2ADLL-RGB002 IC : 2143B-1103233 & 2143B-RGB002
This Bluetooth
®
wireless technology enabled luminaire complies with FCC radiation exposure
limits set forth for an uncontrolled environment. End users must follow the specific operating
instructions for satisfying exposure compliance. This luminaire must not be co-located or
operate in conjunction with any other antenna or transmitter.
Changes or modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
2
1
1

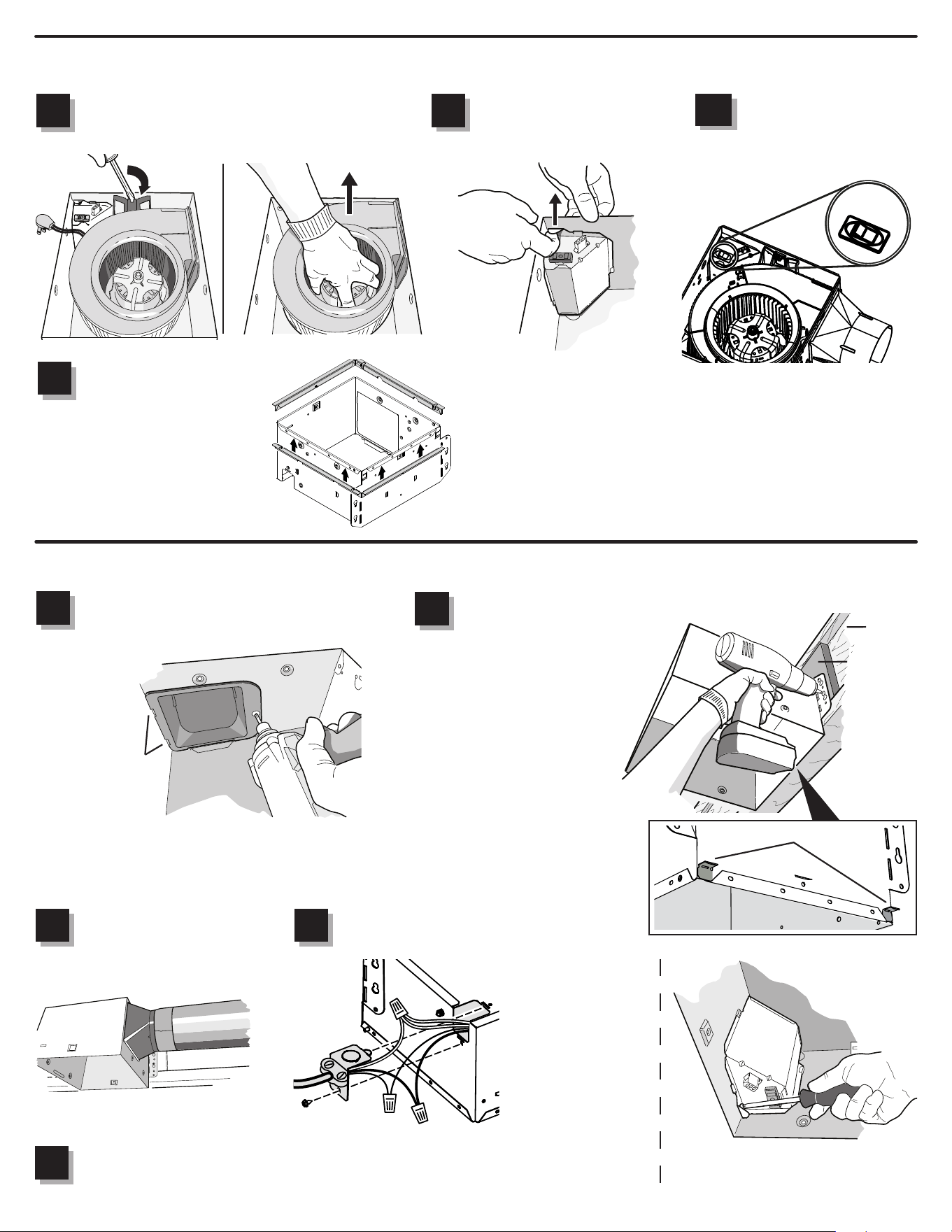

ALL INSTALLATIONS
Unplug and unscrew the blower and
remove it from the fan housing.
Remove wiring panel
from fan housing (if
already installed).
1
2
For Retrot Installation - Skip to Page 3.
1
5
Attach damper/duct connector to
fan housing.
Mount housing to ceiling structure.
TABS
Push connector through opening from inside of
housing.
Engage tabs and secure with screw from parts bag.
Make sure bottom of housing will
be flush with finished ceiling.
For proper location using ½”
ceiling material: Bend out housing
tabs (on outside of housing) to fit
against bottom of joist.
Secure housing through mounting
ears with appropriate fasteners. If
mounting housing to I-joist, use
wood blocking as shown.

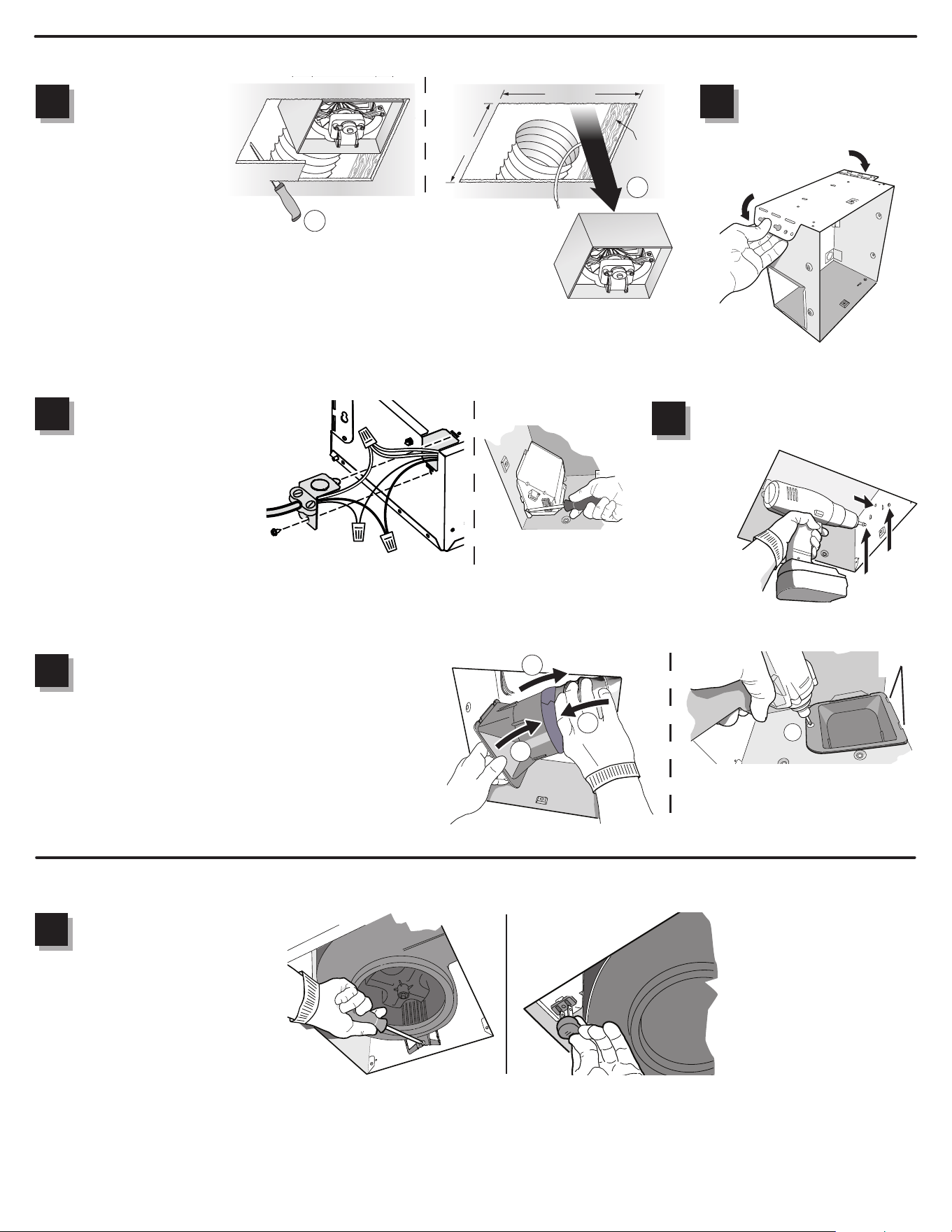

NEW INSTALLATION
1
6
HOUSING TABS
I-JOIST
WOOD
BLOCKING
1
4
A pair of anges
may be attached to
housing if desired or
required.
Snap both flange pieces under
rolled-over edge of housing (all four
sides).
11
7 8
Connect 4-in. round
duct using foil tape
(not included).
Connect wiring.
Finish ceiling.
Then continue with Step 10.
Connect power cable
to wiring plate (from
parts bag) using UL
approved connector
(not included). Connect
house wiring to fan
wiring. Use screw
(from parts bag) to
secure wiring plate to
fan housing. Re-install
wiring panel and secure
with screw from parts
bag.
1
9
1
3
Select CFM based on
your room size and desired
air ow. 80 or 110 CFM
80
11
0
3
Mount fan to
ceiling structure.
Mount
housing
to ceiling
structure with
appropriate
fasteners
in locations
shown.
1
8
RETROFIT INSTALLATION
Remove old fan
by disconnecting
wiring and
prepare ceiling
for the new unit.
2
10½-in.
9¾-in.
JOIST
1
On new unit, fold
mounting ears at
against housing.
1
5
1
6
Existing fan housings are typically attached to the structure:
•
with screws, nails, or staples, which must be removed.
•
with hangers or rails which are fastened to joists and must be removed along with housing.
A pry bar may be needed to remove the old housing.
Leave ductwork and wiring in place.
1
7
Connect wiring.
Enlarge ceiling opening (if necessary) to 9¾” (parallel
to joist) by 10½” (perpendicular to joist). (Some
models have a cut-out template on side of carton.)
Connect 4-in. round duct.
Pull existing ducting through housing discharge
opening and
tape ducting to duct connector.
Push connector/ducting back through opening.
Engage tabs and secure with screw from parts bag.
1
9
Continue with Step 10.
1
2
3
4
TABS
Connect power cable that will supply
constant 120 VAC to unit. Attach
wiring to wiring plate (from parts
bag) using UL approved connector
(not included). Connect house wiring
to fan wiring - black to black, white
to white, and green to green or bare
wire. Use screw (from parts bag) to
secure wiring plate to fan housing.
Re-install wiring panel and secure
with screw from parts bag.
Install blower.
Re-install blower removed in
Step1. Secure blower with 2
screws from parts bag. Plug
blower into black receptacle.
1
10
ALL INSTALLATIONS
*
*
Center hole is optional.
4
1
11

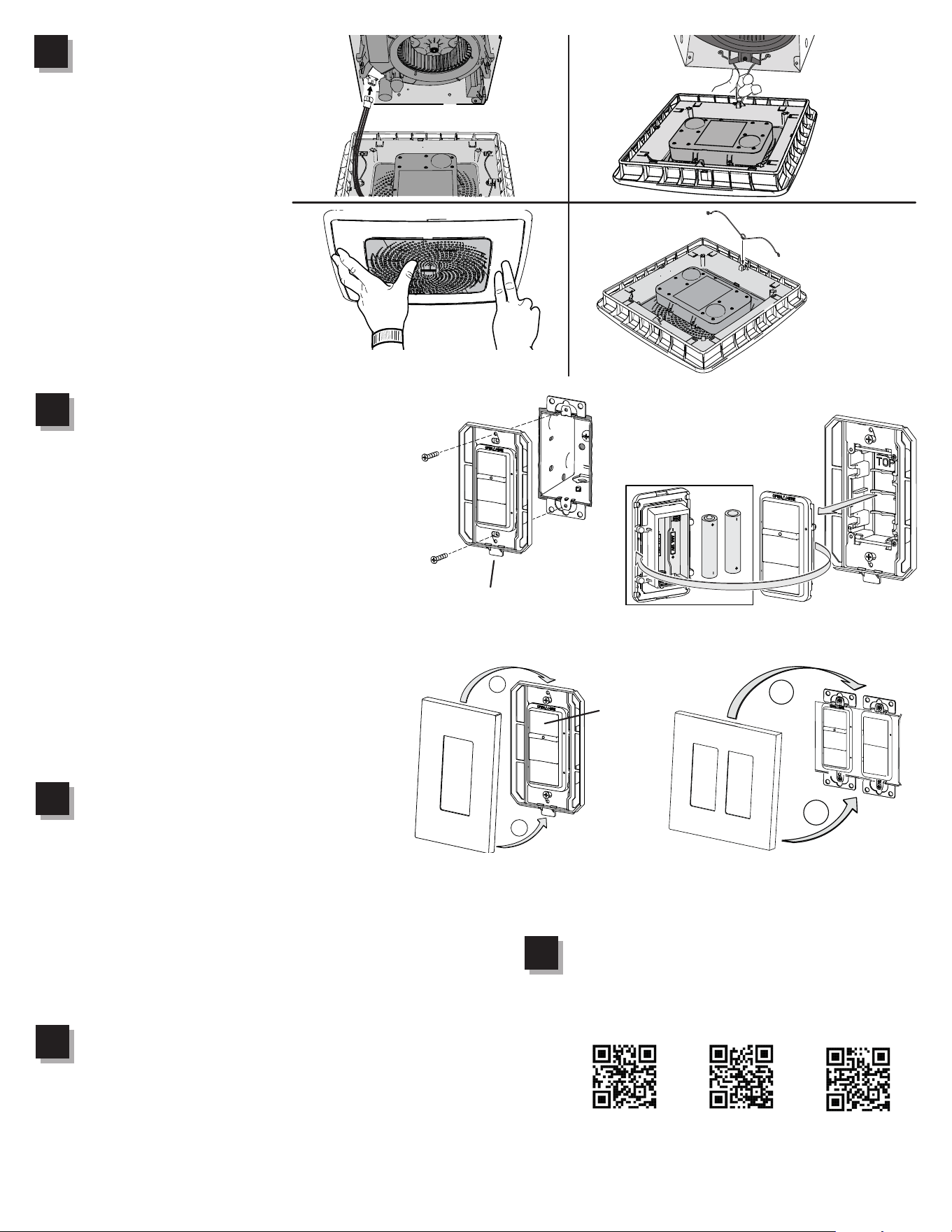

Install grille.
Connect plug from grille to
wire panel.
Squeeze grille
springs and insert into slots
in blower.
Push grille up
against ceiling.
If grille spring
becomes dislodged
from grille - snap it
back into place as
shown.
1119835A
1
12
Install wall control.
1
2
Note: Location of wall control must be within
20-feet (not obstructed) of grille.
Use one of two methods to attach control:
(1) Mount control to new single-gang
electrical box. (Recommended method)
(2) Mount control to wall with clearance hole
in wall.
Note: When replacing an existing switch with the
new wireless wall control, care must be taken
to properly terminate the existing wiring in a
method approved by local building codes. If
you are unsure, contact a qualified person.
Remove control module, install 2-AAA batteries
(not included) and replace module.
Snap control cover in place. Note: Metallic cover
plates are not recommended.
1
1
14
15
Establish Bluetooth
®
connection
with your device.
For more functions and custom
options.
Connect to “ChromaComfort-Sensonic Speaker”
in your phone’s Bluetooth
®
settings to stream
music from your favorite app. When prompted,
use PIN 1234 to connect.
Download the ChromaComfort
TM
app from the
Apple App Store or on Google Play.
Enjoy your ChromaComfort
TM
experience!
Note orientation of tab
and buttons.
WHITE
LIGHT
BUTTON
Apple, and the Apple logo are trademarks of Apple Inc., registered in the U.S. andother countries and regions.
App Store is a service mark of Apple Inc.
Google Play and the Google Play logo are trademarks of Google LLC.
1
13
Pair wall control.
Do not connect power to the unit until the batteries
are installed. To pair the wall control, turn power
on to the unit at the breaker or power source and
(WITHIN 3 MINUTES) press and hold the white light
button icon on wall control for at least 5 seconds.
The light on the fan will flash when paired.
• If installing more than 1 Sensonic fan in your house,
only the fan that you are attempting to pair with a wall
control should be powered. All other Sensonic fans
in your house should not be powered to prevent the
wall control from pairing to multiple fans.
Scan to install
ChromaComfort™
app.
Scan to access quick
start guide
Scan to see how to use
ChromaComfort™
app.
B
C
D
1
2
