1. USB Male (to get the power from your motorcycle)
2. USB Female (to charge your phone)
3. Status Indicator Light
BYPASS
MOTORCYCLE 2- IN- 1
Bluetooth Headset adapter
User Guide
Parameter Table
Item Name Bluetooth Headset adapter
Bluetooth Version BT6.0
Power Supply USB
Effective Range Up to 20m (open Area)
Output Power Max 45W via USB female
Dimension 29.5*14*6.8mm
Unit Weight 5g
How to use <Steps will vary based on Motorcycle>Activate the CarPlay systm on
motorcycle
Pair the BYPASS as a headset with the motorcycle before attempting to start CarPlay.
1. Plug the BYPASS into the USB port of your motorcycle.
2. On the bike, press the menu button go up to settings device.
Settings >Device Manager >Add New Device>Searching "Zoachii BT700">Verify and make
sure pick rider role, pair the iPhone to the motorcycle and allow for CarPlay
3. On your iPhone>Settings>Bluetooth > add the bike to allow for any prompts.
Charging your phone via BYPASS
The passthrough USB female will work for charging or wired CarPlay

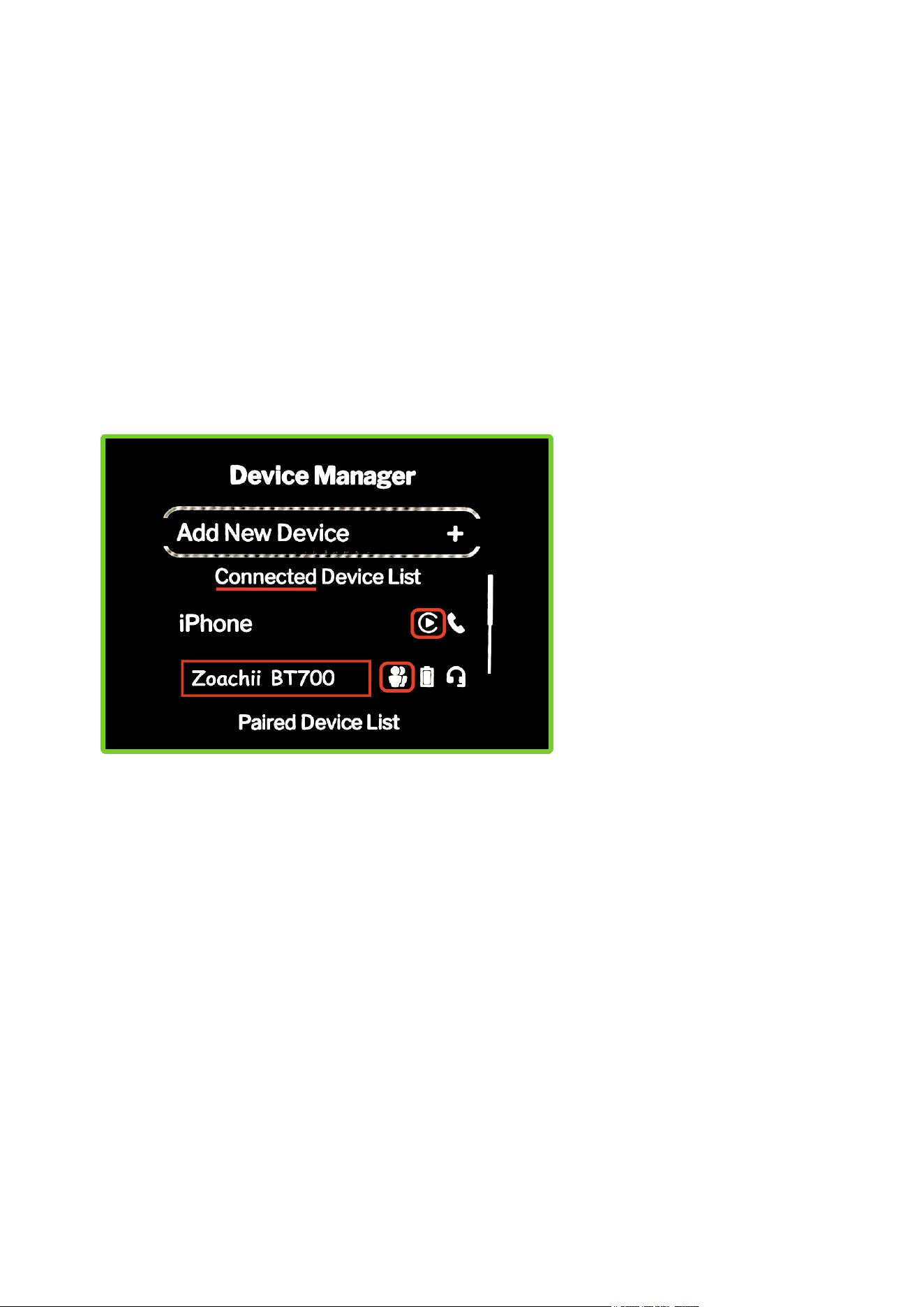

Harley Davidson SkyLine OS - Device Manager shown
Tips:
1. It won't work if it's set as passenger role.
2. Motorcycle must supports wired /wireless CarPlay and a wireless headset.
Additional Information:
The ByPass meets the headset requirement to activate CarPlay on many motorcycle
infotainment systems.
It does not convert wired CarPlay to wireless.
The infotainment system must support a Bluetooth headset connection.
Note that older systems such as the BOOM system do not support this without a headset
module upgrade.
The ByPass does not provide a microphone and will not support some phone and
messaging features within CarPlay such as Siri.
FCC Compliance Statement
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1)This device may not cause harmful interference.
(2)This device must accept any interference received, including interference that may
cause undesired operation.
Warning: Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Warranty
Please rest assured that BYPASS is guaranteed for 12 months.
Please contact us with any questions, we will do our best to help with the ByPass
installation.
Provide the year make and model of your motorcycle when contacting us.
Your 100% satisfaction is our eternal pursult.

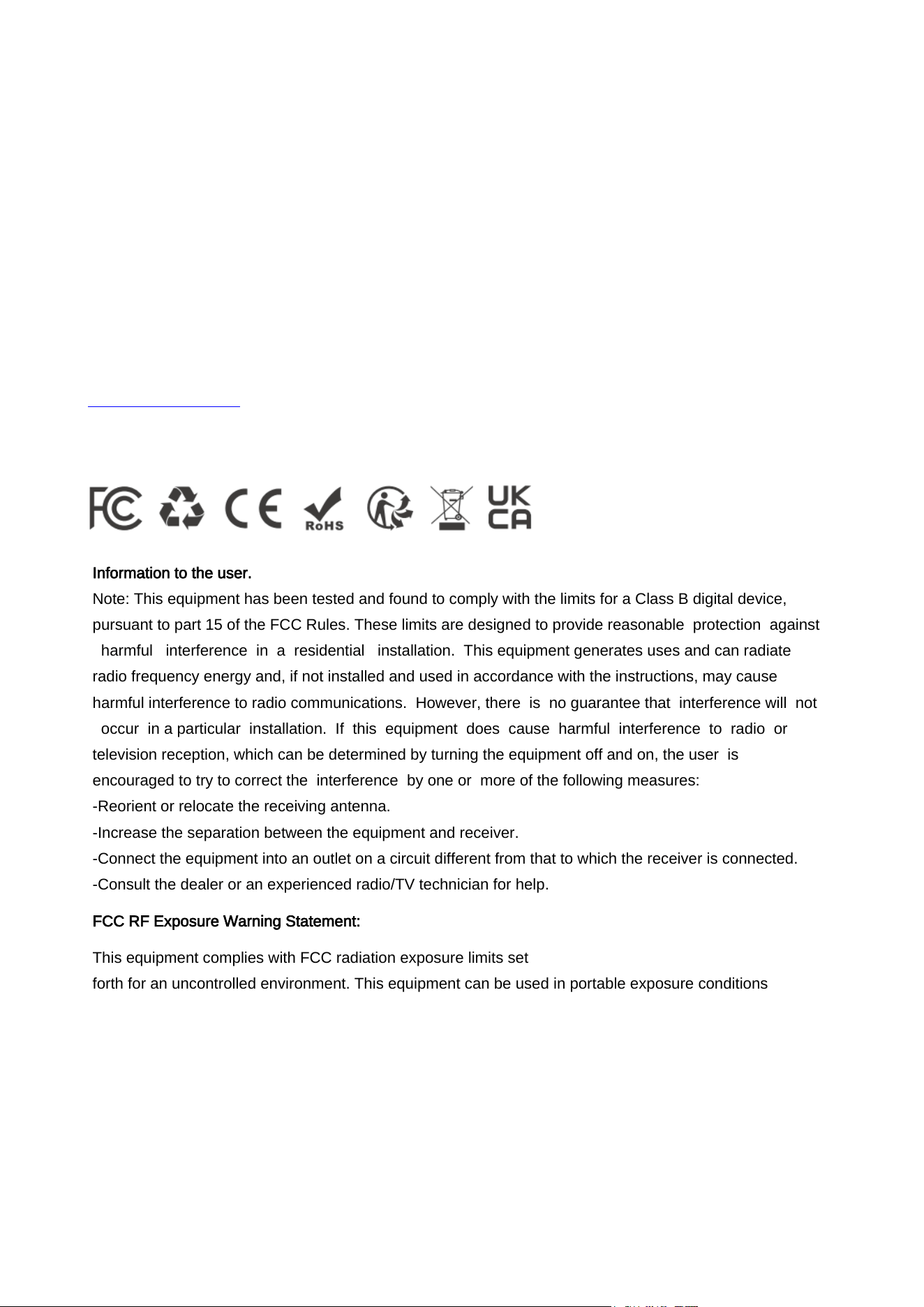

Information to the user.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
FCC RF Exposure Warning Statement:
This equipment complies with FCC radiation exposure limits set
forth for an uncontrolled environment. This equipment can be used in portable exposure conditions
