Log Placement Instructions
Models: MOUNTAIN OAK-24/30
WARNING!
The positioning of the logs is critical to the safe, clean operation of this gas log set. Sooting and other problems may
result if the logs are not properly positioned per these instructions. Failure to position in accordance with the diagrams
below, or failure to use only parts specically approved for this log set may result in property damage or personal injury.
2 Hearth & Home Technologies • Mountain Oak 24/30 Installation Instructions • 4625-906 Rev. A • 02/23
Hearth & Home Technologies
7571 215th Street West, Lakeville, MN 50044
www.hearthnhome.com
PLACE MOUNTAIN OAK-24/30 LOG SETS

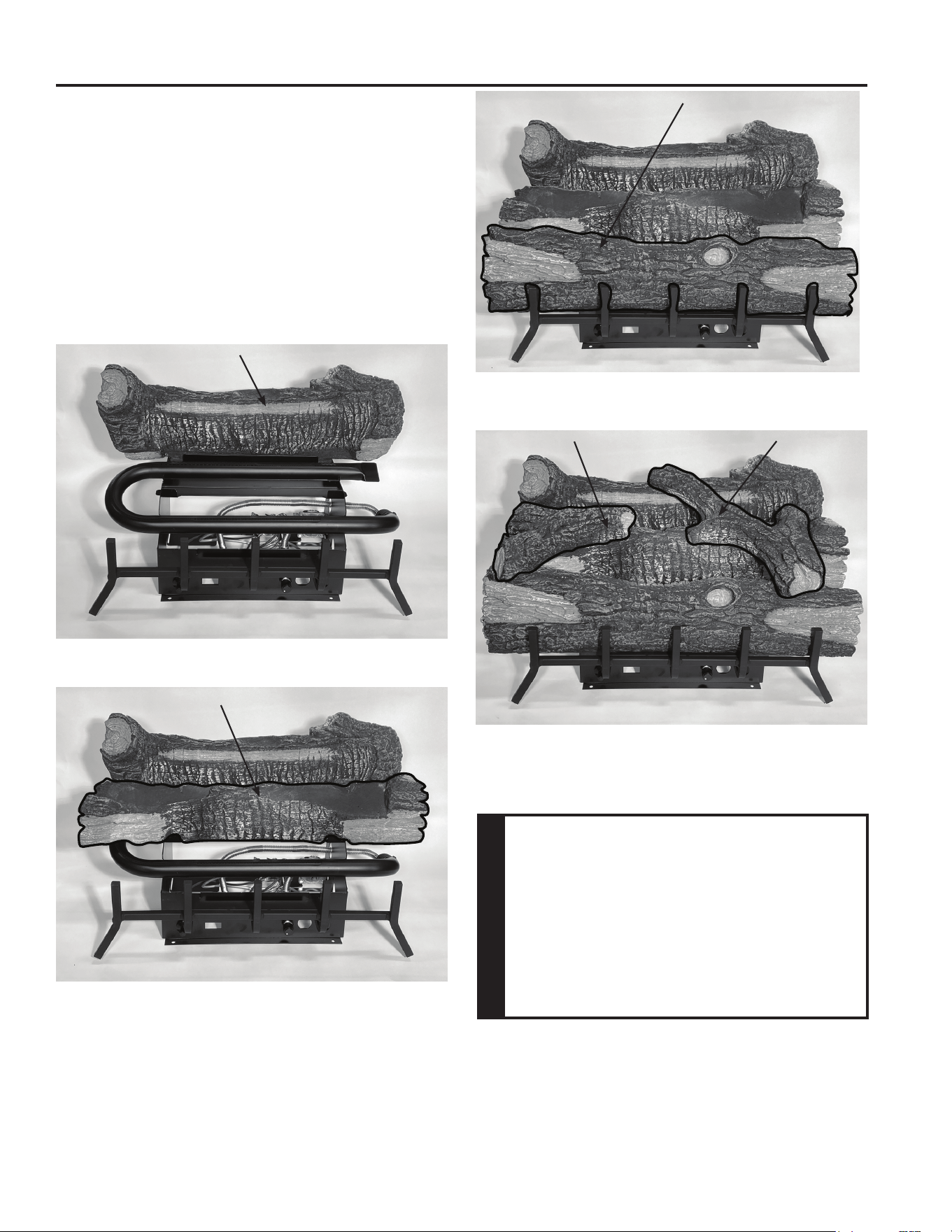

1. Place Rear Log (#1) on rear support. Figure 1
2. Place Middle Log (#2) on middle support. Figure 2
3. Place Front Log (#3) in between burner and grate.
Figure 3
4. Place Top Right Log (#4) in bottom log cutouts. Figure 4
5. Rest Top Left Log (#5) in front and middle log cutouts.
Figure 4
NOTE: Logs #1, #2 and #3 have ridges on the bottom which
secure the logs to burner frame. After installing each log,
check to be sure it is stable.
Figure 1 -
Place Rear Log
Figure 2 -
Place Middle Log
Figure 3 -
Place Front Log
Figure 4 -
Place Top Right and Left Logs
PLACE THE DECORATIVE ROCK
WARNING
DO NOT sprinkle volcanic rock on the logs
or around the pilot or the main burner. This
may cause sooting. Only place volcanic rock
on the oor of the replace.
During initial operation of the new heater,
burning logs will give o a paper burning
smell and orange ames will be present.
Simply open the windows for a few hours
to vent the odor.
Rear Log #1
MIddle Log #2
Front Log #3
Top Left Log #5
Top Right Log
#4
