Document Number: GAR_P_0002_BROILER_GFIR-M Updated: 12/15
GF Sentry Series Infra-Red
Salamander Broilers
Parts List
Models
GFIR36CM
GFIR36M
GFIR48M
GFIR60M
Page 2

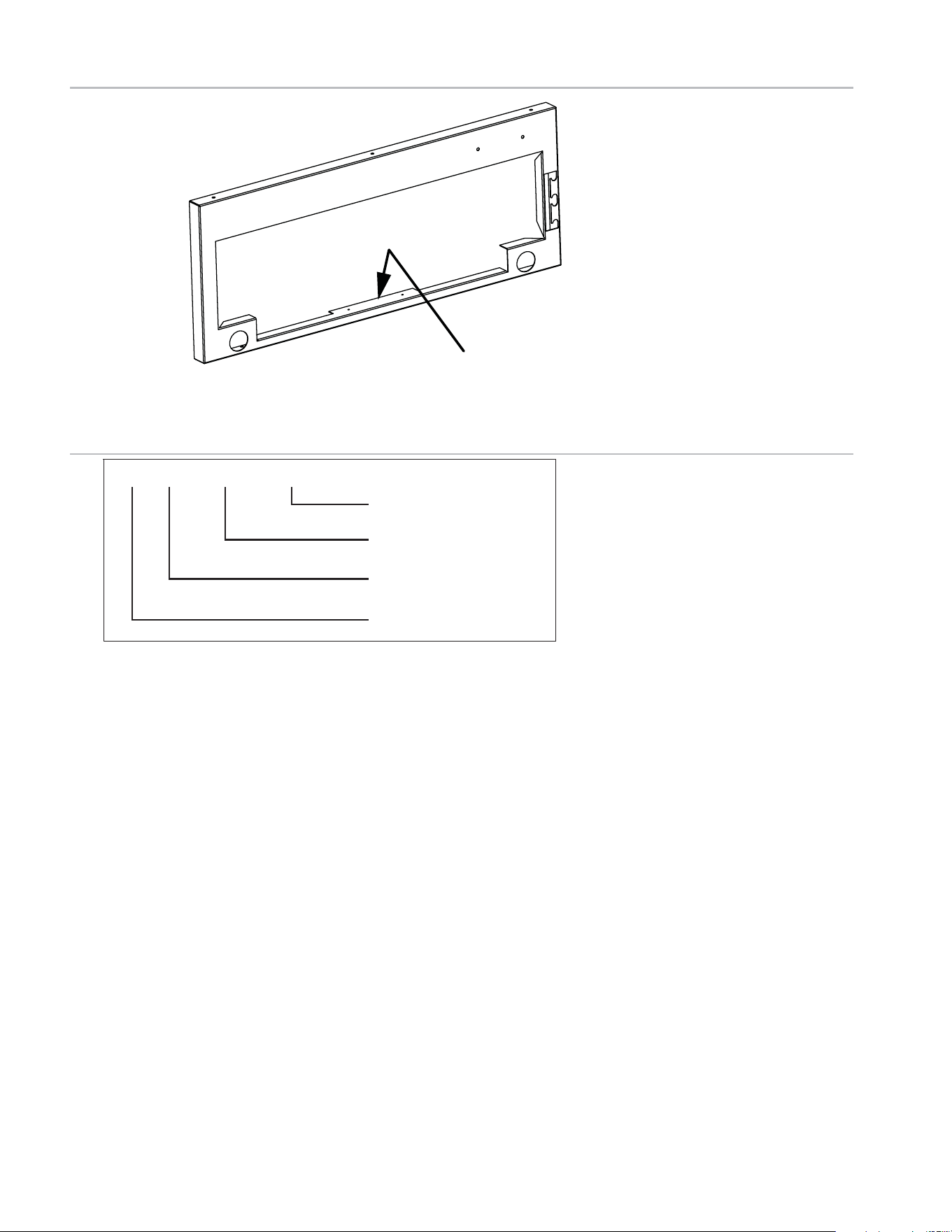

Remove the drip tray to
view the rating plate.
Serial Number Explained (13-Digits, Year/Month Information)
Rating Plate Location
10 05 1001 00668
Sequential Number
Factory Code
Month
Year
GAR_P_0002_BROILER_GFIR-M Updated:12/15
Page 3
Contents:
GF Sentry Series Infra-Red
Salamander Broiler
Rating Plate Location / Serial Number Explained (Year/Month Information). . . . . . . . . 2
Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Rear Panel for 36in Model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Rear Panel for 48in Model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Rear Panel for 60in Model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Optional Inter-Connect Gas Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Revision History. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
GAR_P_0002_BROILER_GFIR-M Updated:12/15
Page 4
GF Series
1
2
3
4
5
6
7
11
12
13
21
26
27
28
14
17
18
19
16
22
8
9
10
15
20
25
29
30
32
33
34
35
36
36A
37
38
39
40
41
42
43
44
47
23
24
48
49
57
56
51
52
53
31
54
55
57
58
15
30A
45

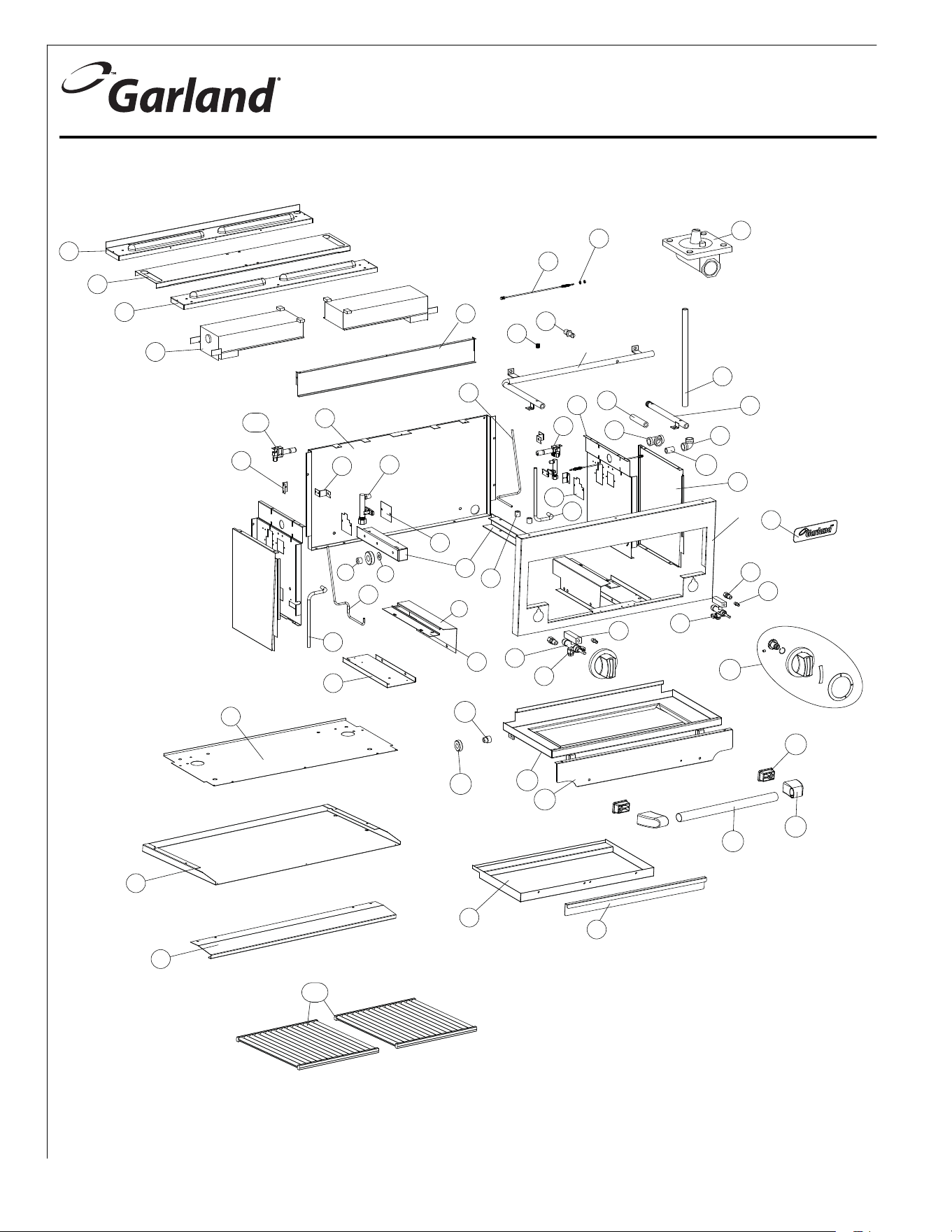

GF Sentry Series Infra-Red Salamander Broiler
COMPONENTS
GAR_P_0002_BROILER_GFIR-M Updated:12/15
Page 5
GARLAND PARTS IDENTIFICATION
GF Sentry Series Infra-Red Salamander Broiler
Item Part# Description
GFIR36M
GFIR36CM
GFIR48M
GFIR60M
Critical
1 G01377-1-9 Main Top Back 1 1 1 1
2 G01376-1-9 Main Top Centre 1 1 1 1
3 G01375-1-9 Main Top Front 1 1 1 1
4 CK117 SRC Burner Assembly Kit (includes burner G01408-01) 1111
5 2564200 Flue Back 1 1 1 1
6 G01372-1-6 Ori ce Fitting Cover 1 1 1 1
7 G01247-2 Front Bearing 2 2 2 2
8 F112 Washer Bearing 2 2 2 2
9
2592798 Valve Housing Assy LH 1 1 1 1
2592799 Valve Housing Assy RH 1 1 1 1
10 2576200 Valve Housing Retainer 1 1 1 1
11
2541998 Manifold Housing Bottom LH 1 1 1 1
2541999 Manifold Housing Bottom RH 1 1 1 1
12 2540800 Bottom Cover (GFIR36C Models ONLY) 1
13 2580200 Front Brace 1 1 1 1
14 2203400 Cnt. Sunk 1/8” NPT Hex Plug 4 4 4 4
15 G02251-1 Pressure Test Spigot 3 3 3 3
16 2541799 Manifold Assembly 1 1 1 1
17 G01477-9 Nipple 1/2” NPT x 18” Long 1 1 1 1
18 2567999 Sub-Manifold Assembly 1 1 1 1
19 G01474-2 Elbow - 1/2 NPT 1 1 1 1
20 G01477-10 Nipple 1/2” NPT x 1-1/2” Long 1 1 1 1
21 2593100 Front Frame 1 1 1 1
22 CK4527470 GFIR Series Salamander Knob Assembly 2222C
23 4526039 GFIR Salamander Handle 1 1 1 1
24 4522404 Door Handle End (Universal Left/Right Hand) 2 2 2 2
25 4522407 Door Handle End Insulator (Universal Left/Right Hand) 2 2 2 2
26 2592600 Rack Veneer 1 1 1 1
27 2601300 Grease Tray 1 1 1 1
28 2540700 Grease Tray Front 1 1 1 1
29 G01244-1 Large Roller Bearing 4444
30 2593099 Rack Frame & Grease Chute Assembly 1 1 1 1
30A* 4520649 Rack (Double Sided - Half Round/Diamond) 2 2 2 2
31 G01247-3 Rear Bushing 2222
32
G02469-01-81 Roller Guide Assembly R/H 1 1 1 1
G02469-01-82 Roller Guide Assembly L/H 1 1 1 1
33 G01477-2 Nipple 1/2” NPT x 4-1/8” Long 2 2 2 2
34 4532794 Cover Plate 2 2 2 2
35 4529724 Nameplate Large- GARLAND 1 1 1 1
36 G01267-5 Pilot Burner 2222C
36A
G01267-2 Pilot Ori ce Fitting - Natural Gas 2222C
G01267-6 Pilot Ori ce Fitting - Propane Gas, #14Z 2222C
37 4532795 Pilot Bracket 2 2 2 2
38
G01411-XX Ori ce Fitting Less Hood 2222C
M7-1.44MM
Small Ori ce PROPANE, Salamander, 1.4mm (from sea level,
0-2000 feet)
2222C
M7-43
SRC Ori ce NATURAL GAS, 43 Size (from sea level, 0-2000
feet)
2222C
* NOT ILLUSTRATED
RECOMMENDED STOCK PARTS
GAR_P_0002_BROILER_GFIR-M Updated:12/15
Page 6
GARLAND PARTS IDENTIFICATION
GF Sentry Series Infra-Red Salamander Broiler
Item Part# Description
GFIR36M
GFIR36CM
GFIR48M
GFIR60M
Critical
39
4526785 Side Liner - Right Hand 1 1 1 1
4526786 Side Liner - Left Hand 1 1 1 1
40
2567302 Main Side R/H (S/S) 1 1 1 1
2567303 Main Side L/H (S/S) 1 1 1 1
41 G01476-1 Tee 1/2” NPT 1 1 1 1
42 G01989-1-8 Post Bearing 1/2” Dia x 1/2” Long 4 4 4 4
43
2127500
Regulator 3/4" PROPANE Gas 10IN W/C
NOTE: Always check rating plate for correct gas pressure.
1111C
2127502
Regulator 3/4" NATURAL Gas 4.0IN W/C
NOTE: Always check rating plate for correct gas pressure.
1111C
44 2612000 Heat Shield Front S/S 1 1 1 1
45 2612100 Heat Shield Bottom S/S 1 1 1 1
47 4527406 7/16 Dia Tubing Valve - Ori ce Left 1 1 1 1
48 2200199 Flame Failure Valve 2 2 2 2 C
49 2198102 Valve Connector Fitting 10mm 2 2 2 2 C
51 2542000 Valve Extension Block 2 2 2 2
52 G03674-3 Valve-Pilot 1/4” 90º 2 2 2 2
53 G01243-1 Fitting 7-16” CC x 1/4” NPT 2 2 2 2 C
54 4527406 7/16” x 16” Dia Tubing Valve - Ori ce Right 1 1 1 1
55 4527418 1/4” Dia Tubing Pilot - Flame Failure Right 1 1 1 1
56 2321902 Thermocouple 23 1/2” 2 2 2 2 C
57 2155202 M8 X 1 Brass Nut - Thermocouple 4 4 4 4 C
57 4532796 Thermocouple Support Bracket - Left / Right 1 1 1 1
58 4527418 1/4” x 18” Dia Tubing Pilot - Flame Failure Left 1 1 1 1
* NOT ILLUSTRATED
RECOMMENDED STOCK PARTS
GAR_P_0002_BROILER_GFIR-M Updated:12/15
Page 7
GARLAND PARTS IDENTIFICATION
GF Sentry Series Infra-Red Salamander Broiler

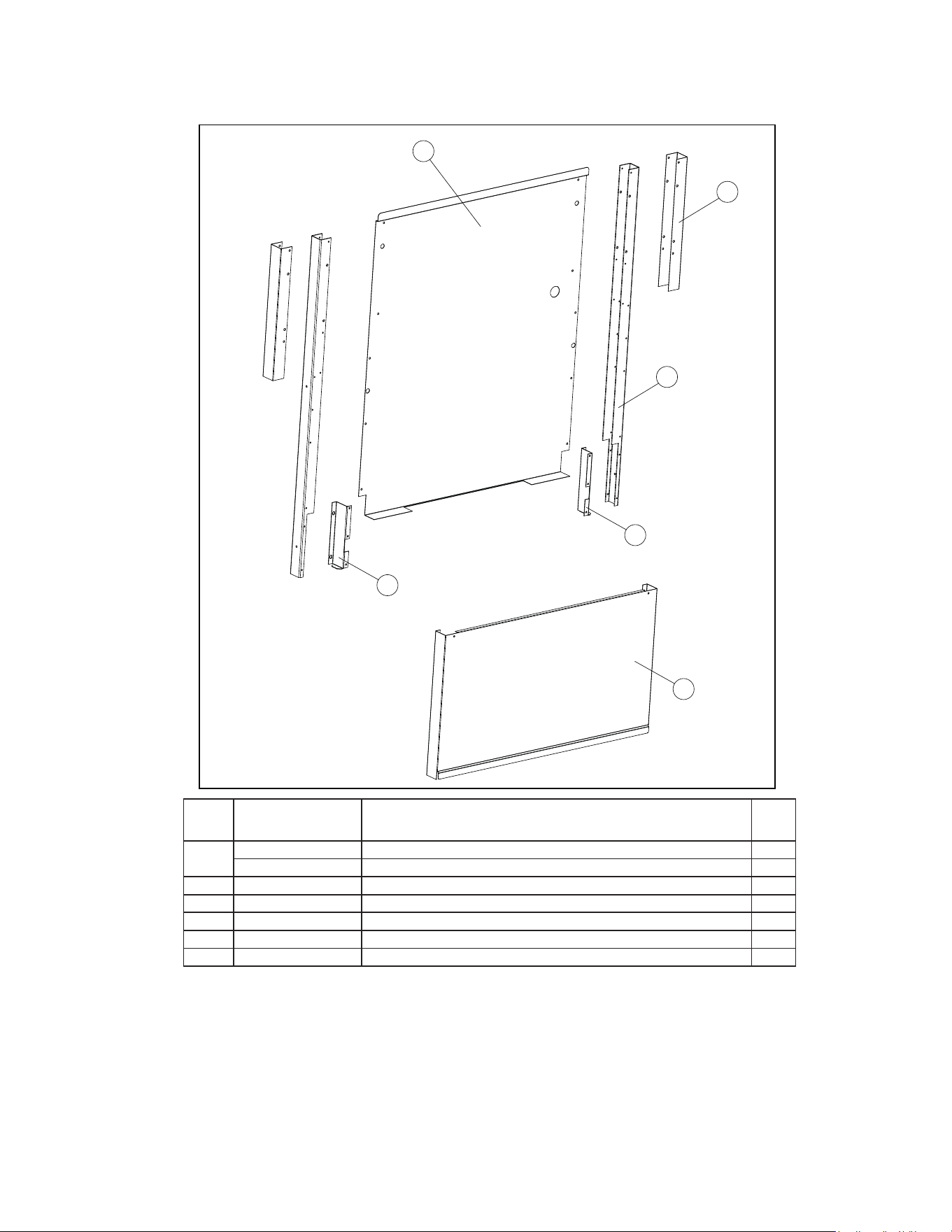

Range Mount Components to Install Salamander 36” Model
1
2
3
4
5
6
36 Rear Panel
ITEM PART# DESCRIPTION QTY
1
4525983 GFIR 36" Standard Back 1
4525976 GFIR 36" Standard Back - S/S 1
2 4525957 Upright Veneer Salamander - S/S 2
3 4525932 Upright GF Series Salamander - GALVANIZED 2
4 4523226 Salamander Support Left Hand - GALVANIZED 1
5 4523227 Salamander Support Right Hand - GALVANIZED 1
6 Not available for this series.
* NOT ILLUSTRATED
RECOMMENDED STOCK PARTS
GAR_P_0002_BROILER_GFIR-M Updated:12/15
Page 8
GARLAND PARTS IDENTIFICATION
GF Sentry Series Infra-Red Salamander Broiler

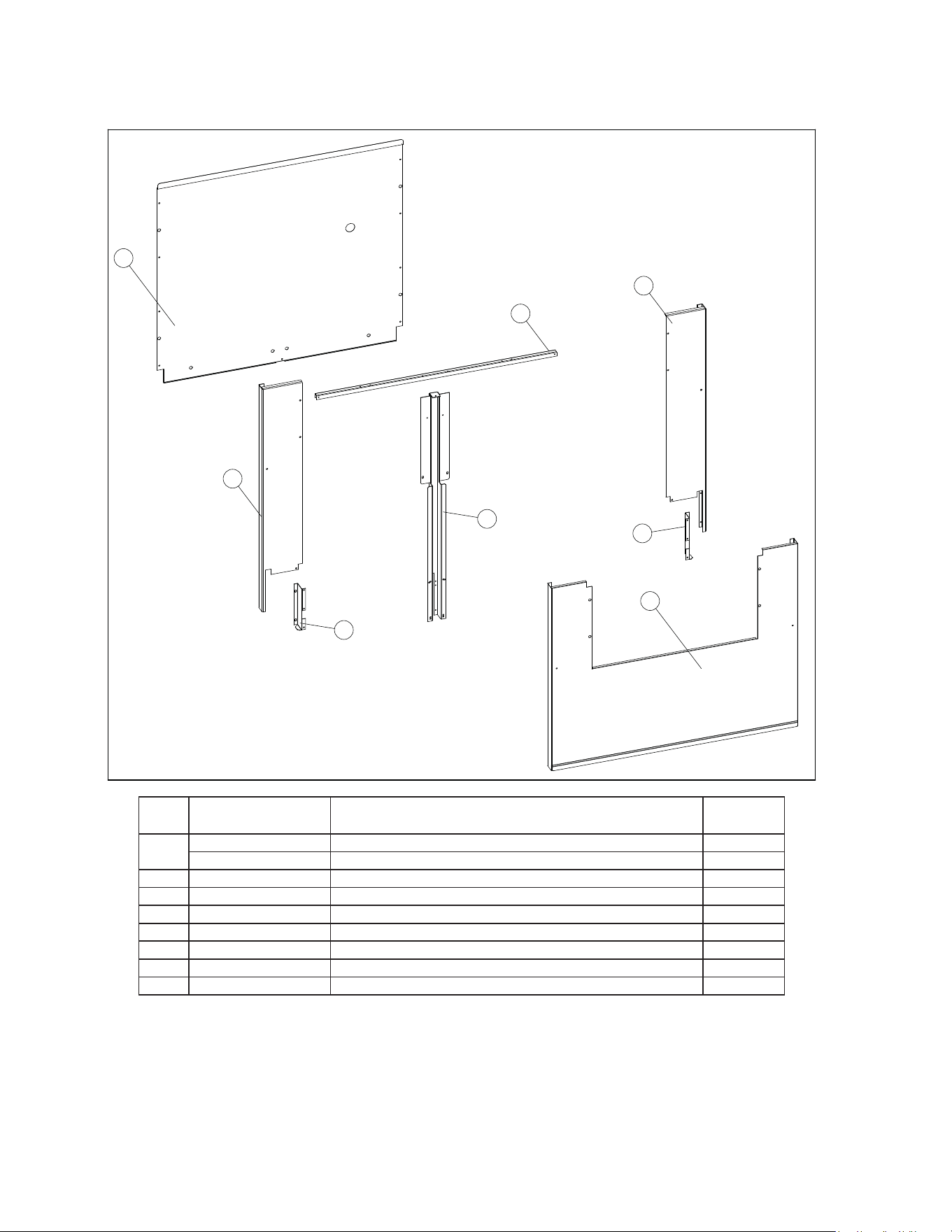

Range Mount Components to Install Salamander 48” Model
10
11
12
13
14
15
16
17
48 Rear Panel
ITEM PART# DESCRIPTION QTY
10
4525966 Rear Panel GFIR48 - GALVANIZED 1
4525996 GFIR 36" S/S Back 1
11 4524055 48" Salamander Anti-Sway Bracket 1
12 4525962 Upright Right Hand GFIR48 - GALVANIZED 1
13 4525963 Upright Left Hand GFIR48 - GALVANIZED 1
14 4525965 Centre Support GFIR48 - GALVANIZED 1
15 4523226 Salamander Support Left Hand - GALVANIZED 1
16 4523227 Salamander Support Right Hand - GALVANIZED 1
17 4525964 Front Panel GFIR48 - S/S 1
* NOT ILLUSTRATED
RECOMMENDED STOCK PARTS
GAR_P_0002_BROILER_GFIR-M Updated:12/15
Page 9
GARLAND PARTS IDENTIFICATION
GF Sentry Series Infra-Red Salamander Broiler

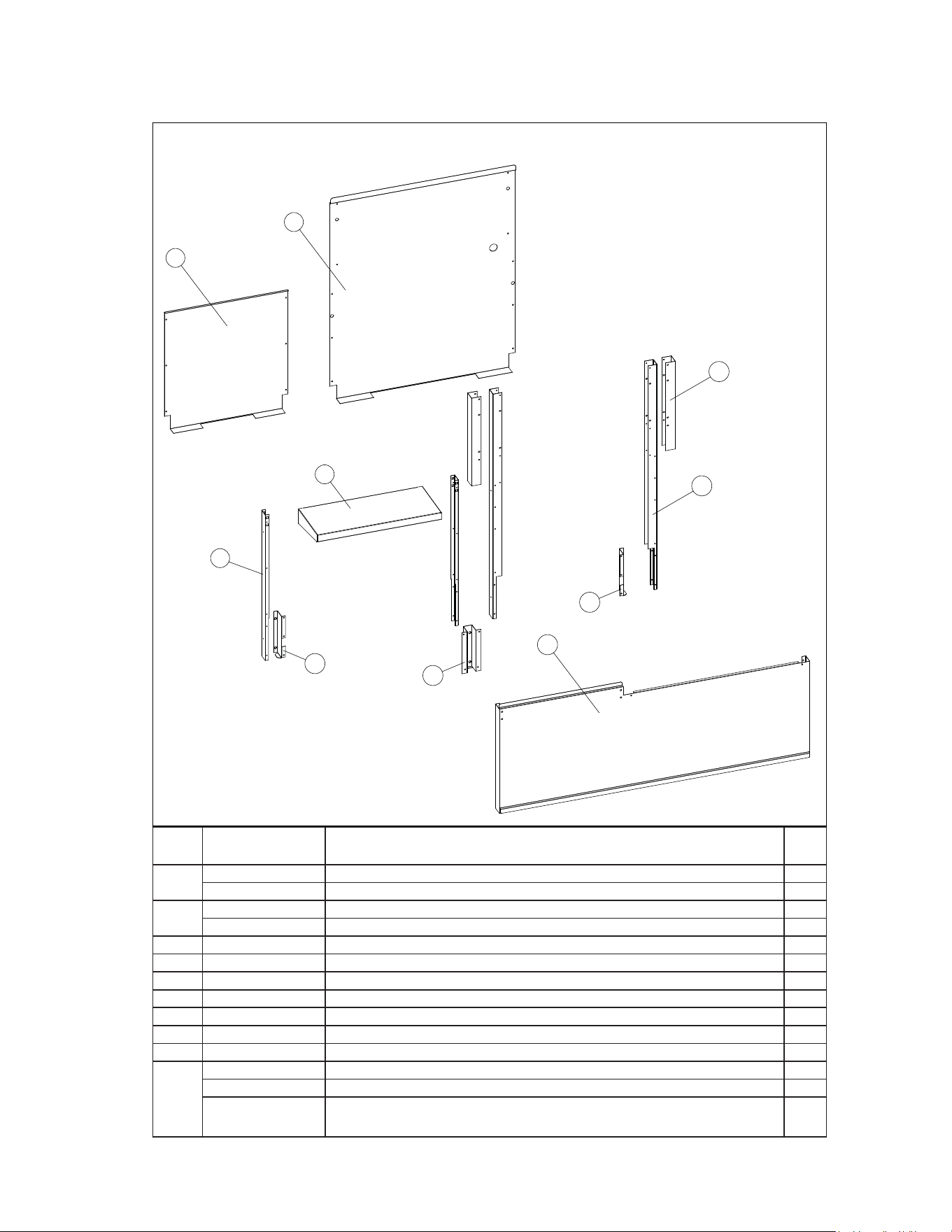

Range Mount Components to Install Salamander 60” Model
20
21
22
23
24
25
26
27
28
29
60 Rear Panel
ITEM PART# DESCRIPTION
20
4523914 24IN High Shelf Salamander Back Standard - GALVANIZED
4523915 24IN High Shelf Salamander Back - S/S
21
4525983 GFIR 36" Series Back - GALVANIZED
4525976 GFIR 36" Series Back S/S
22 4523112 Upright High Shelf - GALVANIZED
23 4523293 24" SHELF S/S
24 4523226 Salamander Support Left Hand - GALVANIZED
25 4523227 Salamander Support Right Hand - GALVANIZED
26 4523282 Salamander/High Shelf Support Bracket - Salamander Left Hand
27 4525957 Upright Veneer Salamander - S/S
28 4525932 Upright GF Series Salamander - GALVANIZED
29
4523265 60" HIGH SHELF FRONT PANEL SALAMANDER LEFT HAND - S/S
4523900 60" HIGH SHELF FRONT PANEL SALAMANDER RIGHT HAND - S/S
4523901
60" BROILER/GRIDDLE FRONT PANEL SALAMANDER LEFT HAND -
S/S
* NOT ILLUSTRATED
RECOMMENDED STOCK PARTS
GAR_P_0002_BROILER_GFIR-M Updated:12/15
Page 10
GARLAND PARTS IDENTIFICATION
GF Sentry Series Infra-Red Salamander Broiler
The gas supply of the range mounted salamanders may be inter-connected with the supply of the range, so both units are
supplied from a single gas connection. The supply gas piping should be a minimum of 1” (25mm) diameter to ensure enough
gas capacity is available at the speci ed pressure to supply the total combined input rating of both appliances. The components
comprising the optional inter-connect kit are shown below.

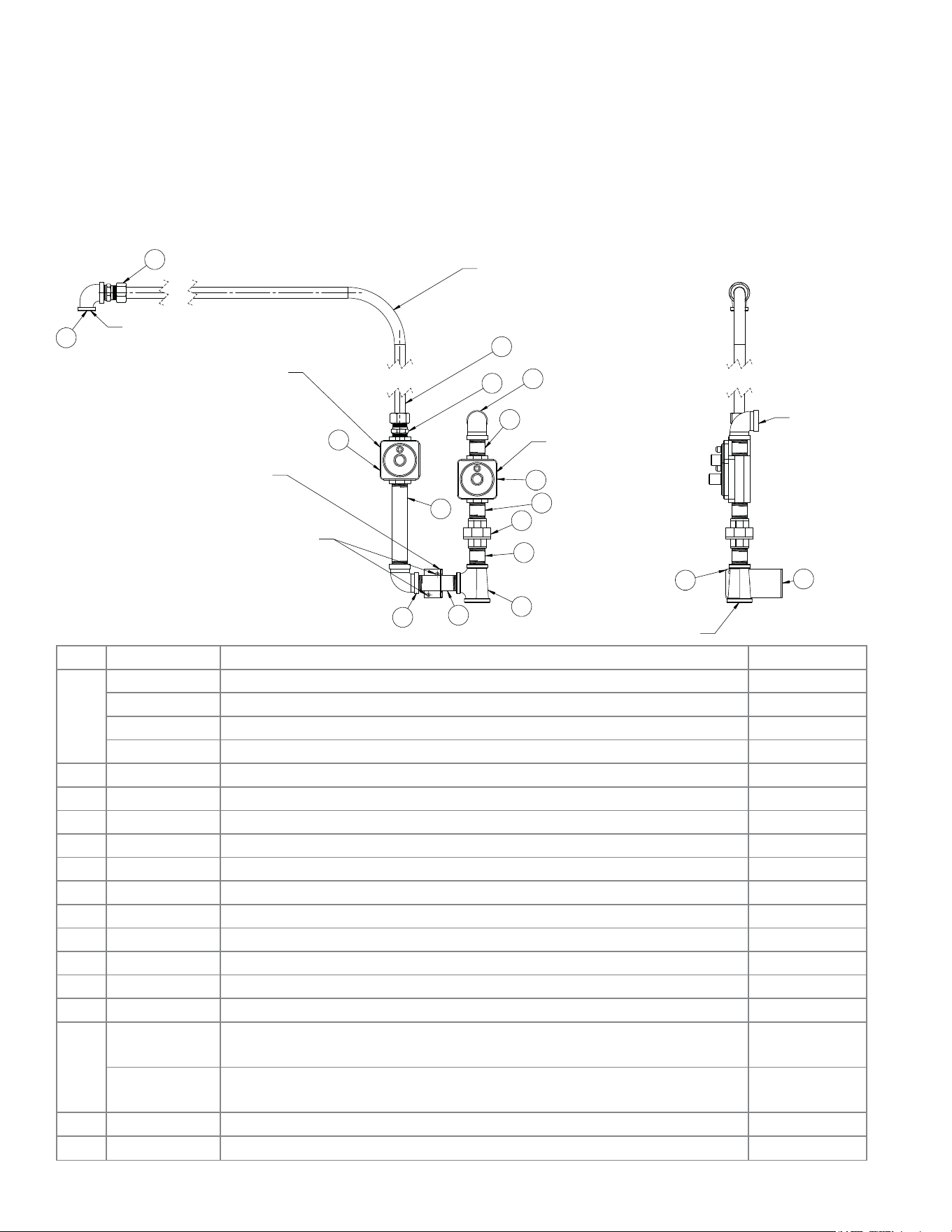

Optional Interconnect Gas Kit #4531606 - Version 1, Connecting to a 36in Range
MARK HOLE LOCATIONS AND MOUNT
SUPPORT BRACKET (ITEM 6 - 2640700) TO RANGE
BACK WITH (2)#10-16 TEKS SELF-DRILL/TAP
SCREWS (ITEM 11 - F67 - NOT SHOWN) PROVIDED.
ATTACH SUPPORT CLAMP (ITEM 7 - 2640800)
TO SUPPORT BRACKET ( ITEM 6 - 2640700)
WITH (2)#10-24 SELF-TAPPING SCREWS (ITEM 12
F32 - NOT SHOWN) PROVIDED.
15
5
2
9
1
4
10
14
3
8
13
REGULATOR - 4.5" w.c. NATURAL GAS
OR 10.0" w.c. PROPANE GAS
(SUPPLIED WITH RANGE)
REGULATOR - 6.0"w.c. NATURAL GAS
OR 10.0"w.c. PROPANE GAS
(SUPPLIED WITH SALAMANDER/
CHEESEMELTER)
TO INLET OF SALAMANDER/
CHEESEMELTER MANIFOLD
2
2
3
SUPPLIED WITH RANGE
SUPPLIED WITH RANGE
5
CUT TUBING (ITEM 15 - 4531608) TO SIZE AS REQUIRED
TO SUIT SALAMANDER/CHEESEMELTER TOP OR REAR
MANIFOLD INLET CONNECTION
6
7
TO INLET OF RANGE
MANIFOLD
1" NPT GAS SUPPLY
CONNECTION
ITEM PART# DESCRIPTION QUANTITY 36”
1
2127502 4.5” W.C 3/4”NPT, REGULATOR NATURAL GAS, SUPPLIED WITH RANGE 1
4525047 3/4” ISO 7-1, REGULATOR NATURAL GAS, SUPPLIED WITH RANGE 1
2127500 10” W.C 3/4”NPT, REGULATOR PROPANE GAS, SUPPLIED WITH RANGE 1
4525048 3/4” ISO 7-1, REGULATOR PROPANE GAS, SUPPLIED WITH RANGE 1
2 G01738-14 NIPPLE, 3/4” NPT X 1/2” (ONE SUPPLIED WITH RANGE) 3
3 G01474-5 ELBOW, 90DEG, 3/4” NPT (ONE SUPPLIED WITH RANGE) 2
4 G01963-1 UNION, 3/4” NPT 2
5 301300 3/4”CC X 3/4” NPT STRAIGHT FITTING 2
6 2640700 BRACKET, PIPE SUPPORT 1
7 2640800 CLAMP, PIPE SUPPORT BRACKET 1
8 G01474-9 REDUCING ELBOW, 90DEG, 3/4” NPT X 1/2” NPT 1
9 G01738-5 NIPPLE, 3/4” NPT X 6.5” 1
10 G03716-1 REDUCING TEE, 3/4” NPT X 3/4” NPT X 1” 1
11 F67 SCREW, #10-16 X 1/2” HEX, WASHER HEAD, TEKS SELF-DRILL/TAP (NOT SHOWN) 2
12 F32 SCREW, #10-24 X 1/2” PAN HEAD, SELF-TAP, TYPE F (NOT SHOWN) 2
13
2127503
6” W.C 3/4” NPT, REGULATOR NATURAL GAS, SUPPLIED WITH SALAMANDER/
CHEESEMELTER
1
2127500
10” W.C 3/4” NPT, REGULATOR PROPANE GAS, SUPPLIED WITH SALAMANDER/
CHEESEMELTER
1
14 G1738-11 NIPPLE, 3/4” NPT X 3.5” 1
15 4531608 TUBING 3/4” 1
OPTIONAL INTER-CONNECT GAS KIT FOR 36” RANGE
GAR_P_0002_BROILER_GFIR-M Updated:12/15
Page 11
GARLAND PARTS IDENTIFICATION
GF Sentry Series Infra-Red Salamander Broiler

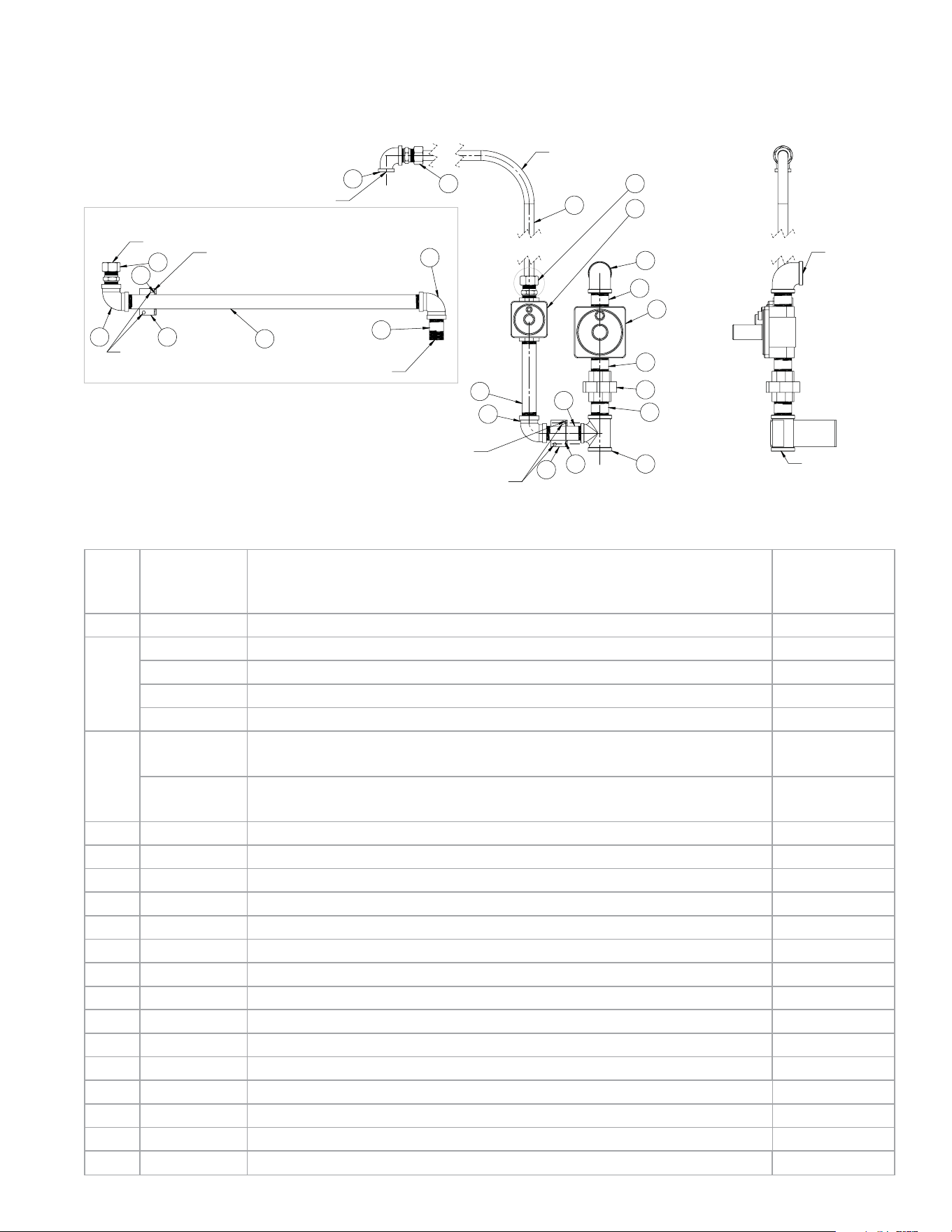

Optional Interconnect Gas Kit #4531606 - Version 2, Connecting to a 48in or 60in Range
18
17
7
3
2
4
8
11
15
6
5
16
17
4
9
10
TO INLET OF SALAMANDER/
CHEESEMELTER MANIFOLD
NOTE: CUT TUBING (ITEM 18 - 4531608) TO SIZE AS REQUIRED
TO SUIT SALAMANDER/CHEESEMELTER TOP OR REAR
MANIFOLD INLET CONNECTION
SUPPLIED WITH
RANGE
REGULATOR - 4.5"w.c.
NATURAL GAS OR 10.0"w.c.
PROPANE GAS (SUPPLIED
WITH RANGE)
REGULATOR - 6.0"w.c.
NATURAL GAS OR 10.0"w.c.
PROPANE GAS (SUPPLIED
WITH SALAMANDER/CHEESEMELTER)
MARK HOLE LOCATIONS AND MOUNT
SUPPORT BRACKET (ITEM 9 - 4531602) TO
BACK WITH (2) #10-16 TEKS SELF-DRILL/TAP
SCREWS (ITEM 14 - F67 - NOT SHOWN) PROVIDED.
ATTACH SUPPORT CLAMP (ITEM 10 - 2640800)
TO SUPPORT BRACKET (ITEM 9 - 4531602)
WITH (2) #10-24 SELF-TAPPING SCREWS (ITEM 1
F32 - NOT SHOWN) PROVIDED
SUPPLIED WITH
RANGE
4
TO INLET OF RANGE
MANIFOLD
1" NPT GAS SUPPLY
CONNECTION
12
6
13
6
17
9
10
FOR LEFT-MOUNTED SALAMANDER/CHEESEMELTER
SUBSTITUTE COMPONENTS SHOWN FOR ITEM 17 CIRCLED IN ADJACENT VIEW
TO INTER-CONNECT TUBING ( ITEM 18 - 4531608)
TO OUTLET OF SALAMANDER/
CHEESEMELTER REGULATOR
ATTACH SUPPORT CLAMP (ITEM 10 - 2640800)
TO SUPPORT BRACKET (ITEM 9 - 4531602)
WITH (2) #10-24 SELF-TAPPING SCREWS (ITEM 1
F32 - NOT SHOWN) PROVIDED
MARK HOLE LOCATIONS AND MOUNT
SUPPORT BRACKET (ITEM 9 - 4531602 ) TO RANGE
BACK WITH (2) #10-16 TEKS SELF-DRILL/TAP
SCREWS (ITEM 14 - F67 - NOT SHOWN) PROVIDED.
ITEM PART# DESCRIPTION
QUANTITY
48” / 60”
1 F32 SCREW, #10-24 X 1/2” PAN HEAD, SELF-TAP, TYPE F (NOT SHOWN) 4
2
4522421 4.5” W.C 1”NPT, REGULATOR NATURAL GAS, SUPPLIED WITH RANGE 1
4525049 1” ISO 7-1, REGULATOR NATURAL GAS, SUPPLIED WITH RANGE 1
4522422 10” W.C 1”NPT, REGULATOR PROPANE GAS, SUPPLIED WITH RANGE 1
4525050 1” ISO 7-1, REGULATOR PROPANE GAS, SUPPLIED WITH RANGE 1
3
2127503
6” W.C 3/4” NPT, REGULATOR NATURAL GAS, SUPPLIED WITH SALAMANDER/
CHEESEMELTER
1
2127500
10” W.C 3/4” NPT, REGULATOR PROPANE GAS, SUPPLIED WITH SALAMANDER/
CHEESEMELTER
1
4 076029-204 NIPPLE, 1” NPT X 2” (ONE SUPPLIED WITH RANGE) 3
5 G1738-5 NIPPLE, 3/4” NPT X 6.5” 1
6 G01474-5 ELBOW, 90DEG, 3/4” NPT 3
7 076029-171 ELBOW, 90DEG, 1” NPT (SUPPLIED WITH RANGE) 1
8 4530189 UNION, 1” NPT 1
9 4531602 BRACKET, PIPE SUPPORT 48/60 2
10 2640800 CLAMP, PIPE SUPPORT BRACKET 2
11 3012800 REDUCING TEE, 1” NPT X 1” NPT X 3/4” 1
12 G01738-16 NIPPLE, 3/4” NPT X 22.75” 1
13 G01738-14 NIPPLE, 3/4” NPT X 2” 1
14 F67 SCREW, #10-16 X 1/2” HEX, WASHER HEAD, TEKS SELF-DRILL/TAP (NOT SHOWN) 4
15 G01738-11 NIPPLE, 3/4” NPT X 3.5” 1
16 G01474-9 REDUCING ELBOW, 90DEG, 3/4” NPT X 1/2” NPT 1
17 3013000 3/4”CC X 3/4” NPT STRAIGHT FITTING 2
18 4531608 TUBING 3/4” 1
OPTIONAL INTER-CONNECT GAS KIT FOR 48”/60” RANGE
GAR_P_0002_BROILER_GFIR-M Updated:12/15
Page 12
GARLAND PARTS IDENTIFICATION
GF Sentry Series Infra-Red Salamander Broiler
REVISION HISTORY (GFIR__M)
REV BY PAGE/ITEM NOTES DATE
0 HH NEW BOOK. MODIFIED G_GMD_PL_IRBROILER_GFIR. DEC 23/15
GAR_P_0002_BROILER_GFIR-M Updated:12/15
1-844-724-CARE • www.mtwkitchencare.com
KitchenCare
®
