HP DesignJet T870 Printer Series
User Guide
SUMMARY
Instructions on installing, using, and troubleshooting printer hardware and software.
About this edition
© Copyright 2025 HP Development
Company, L.P.
Edition 1, June 2025
Legal notices
The information contained herein is subject
to change without notice.
The only warranties for HP products and
services are set forth in the express
warranty statement accompanying such
products and services. Nothing herein
should be construed as constituting an
additional warranty. HP shall not be liable
for technical or editorial errors or omissions
contained herein.
Wi-Fi certified
Trademarks
Adobe®, Acrobat®, and Adobe Photoshop®
are trademarks of Adobe Systems
Incorporated.
ENERGY STAR and the ENERGY STAR mark
are registered U.S. trademarks.
Microsoft® and Windows® are U.S. registered
trademarks of Microsoft Corporation.
Apple and AirPrint are trademarks of
Apple Inc., registered in the U.S. and other
countries.
Table of contents
1 Introduction............................................................................................................................................................................................................................................... 1
Safety precautions....................................................................................................................................................................................................................... 1
Using this guide.............................................................................................................................................................................................................................. 3
Printer models................................................................................................................................................................................................................................. 5
Main features...................................................................................................................................................................................................................................5
Main components......................................................................................................................................................................................................................... 5
Installing the printer.....................................................................................................................................................................................................................7
Turn the printer on and off.......................................................................................................................................................................................................7
Control panel.....................................................................................................................................................................................................................................7
Printer solutions.............................................................................................................................................................................................................................8
Mobile printing ................................................................................................................................................................................................................................ 9
Reports...............................................................................................................................................................................................................................................10
2 Connecting the printer................................................................................................................................................................................................................... 11
Choose which connection method to use................................................................................................................................................................. 11
Connect the printer to your network ............................................................................................................................................................................14
Set up your device ..................................................................................................................................................................................................................... 14
3 Setting up the printer.....................................................................................................................................................................................................................15
Introduction.....................................................................................................................................................................................................................................15
Accessibility....................................................................................................................................................................................................................................15
Change the language of the control-panel display............................................................................................................................................ 15
Access the Embedded Web Server.............................................................................................................................................................................. 15
Change the language of the Embedded Web Server ......................................................................................................................................16
Automatic firmware update................................................................................................................................................................................................ 16
Set Windows driver preferences.....................................................................................................................................................................................16

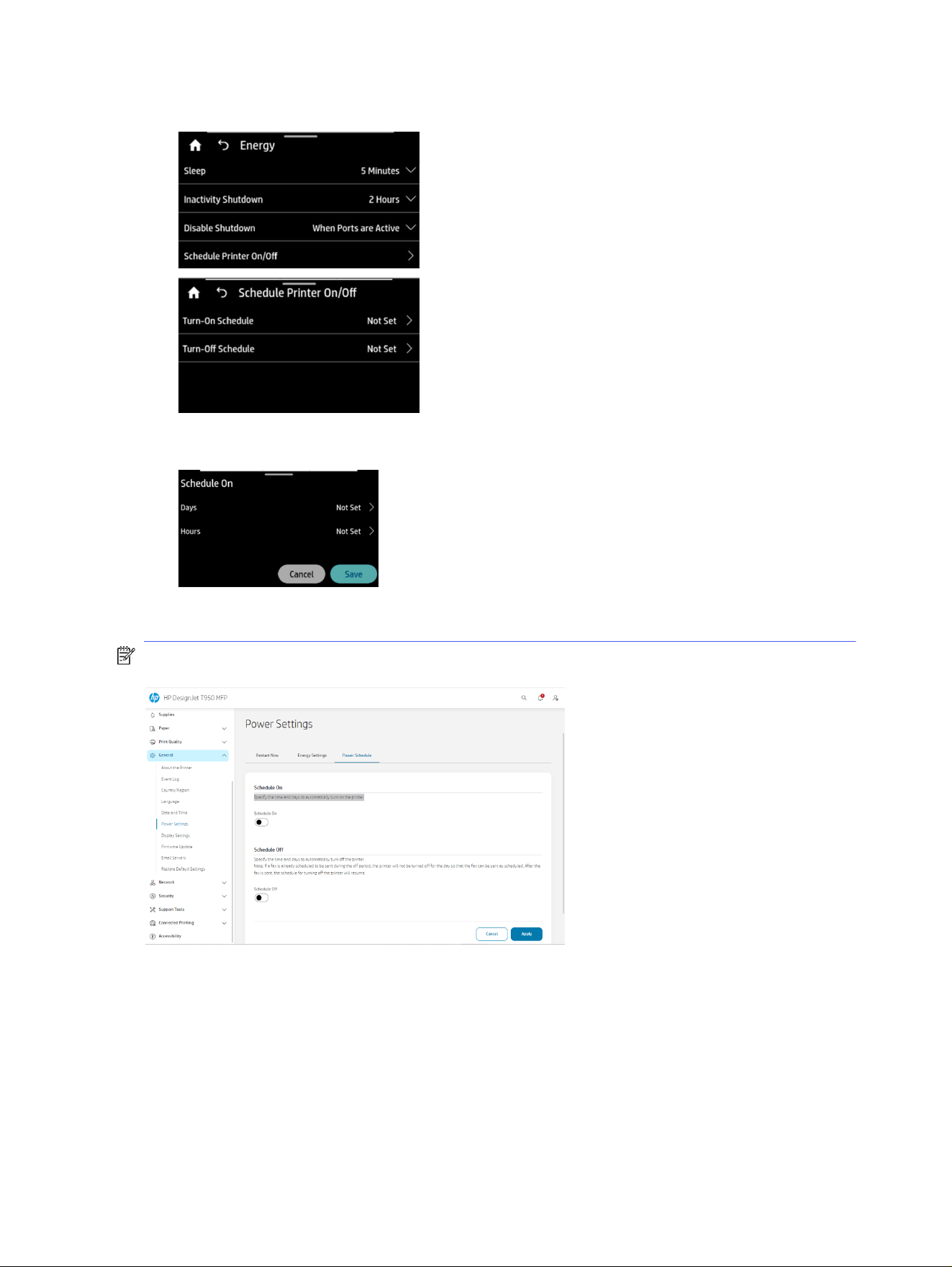

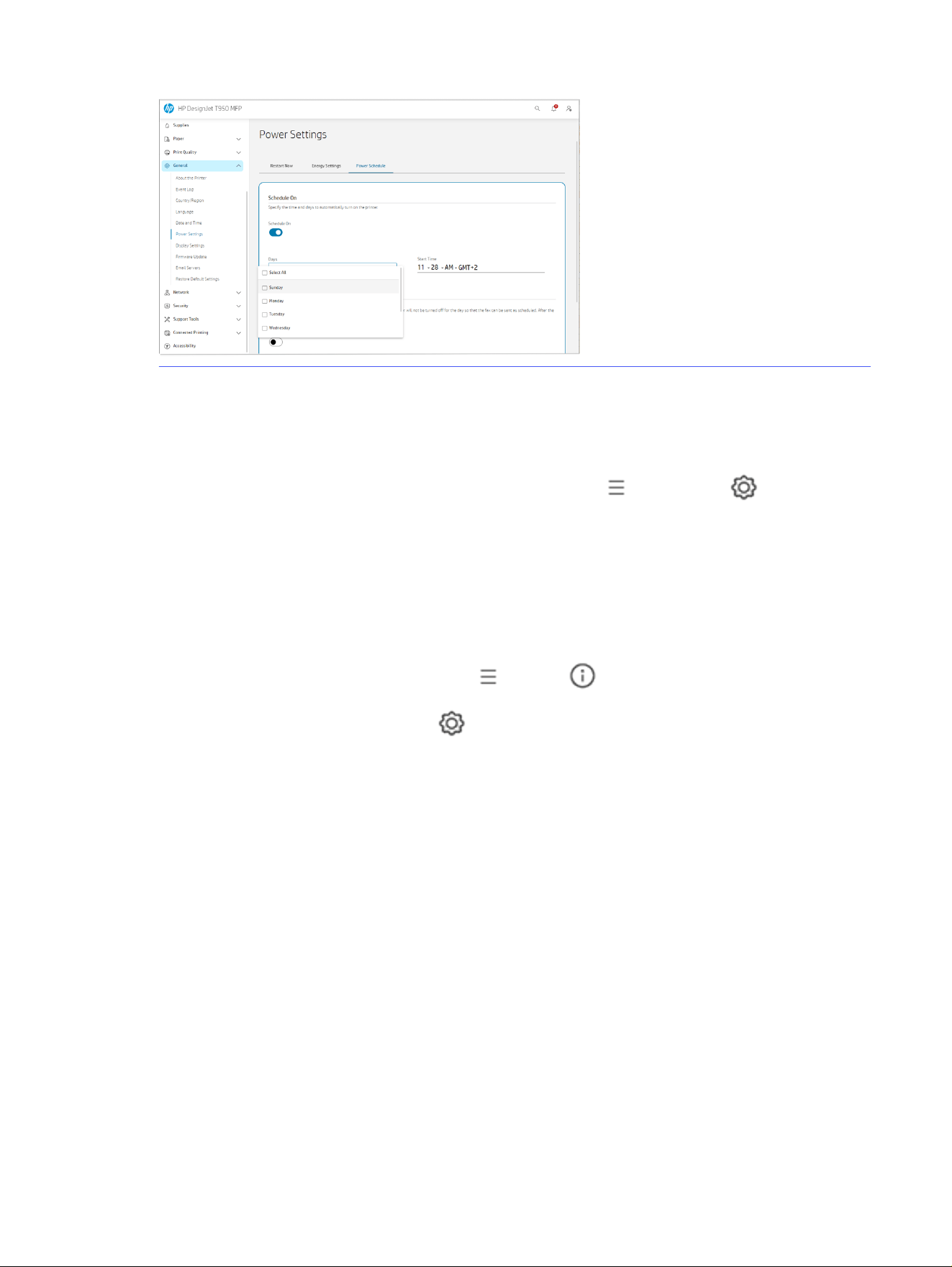

Energy-conservation settings...........................................................................................................................................................................................16
Change the control-panel display brightness.......................................................................................................................................................19
Configure network settings ................................................................................................................................................................................................19
Configure firewall settings..................................................................................................................................................................................................20
4 Paper handling................................................................................................................................................................................................................................... 23
General paper-loading advice.......................................................................................................................................................................................... 23

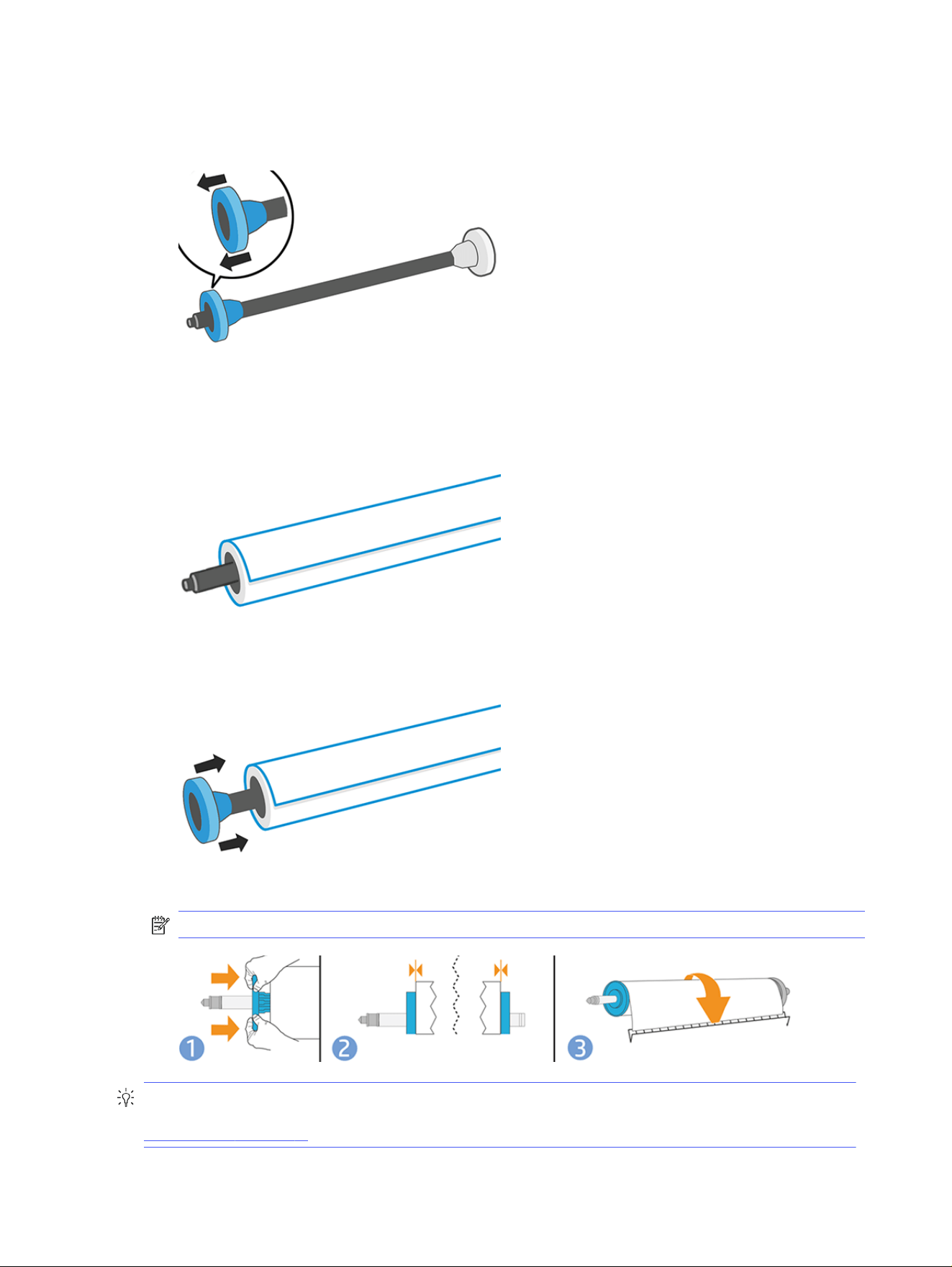

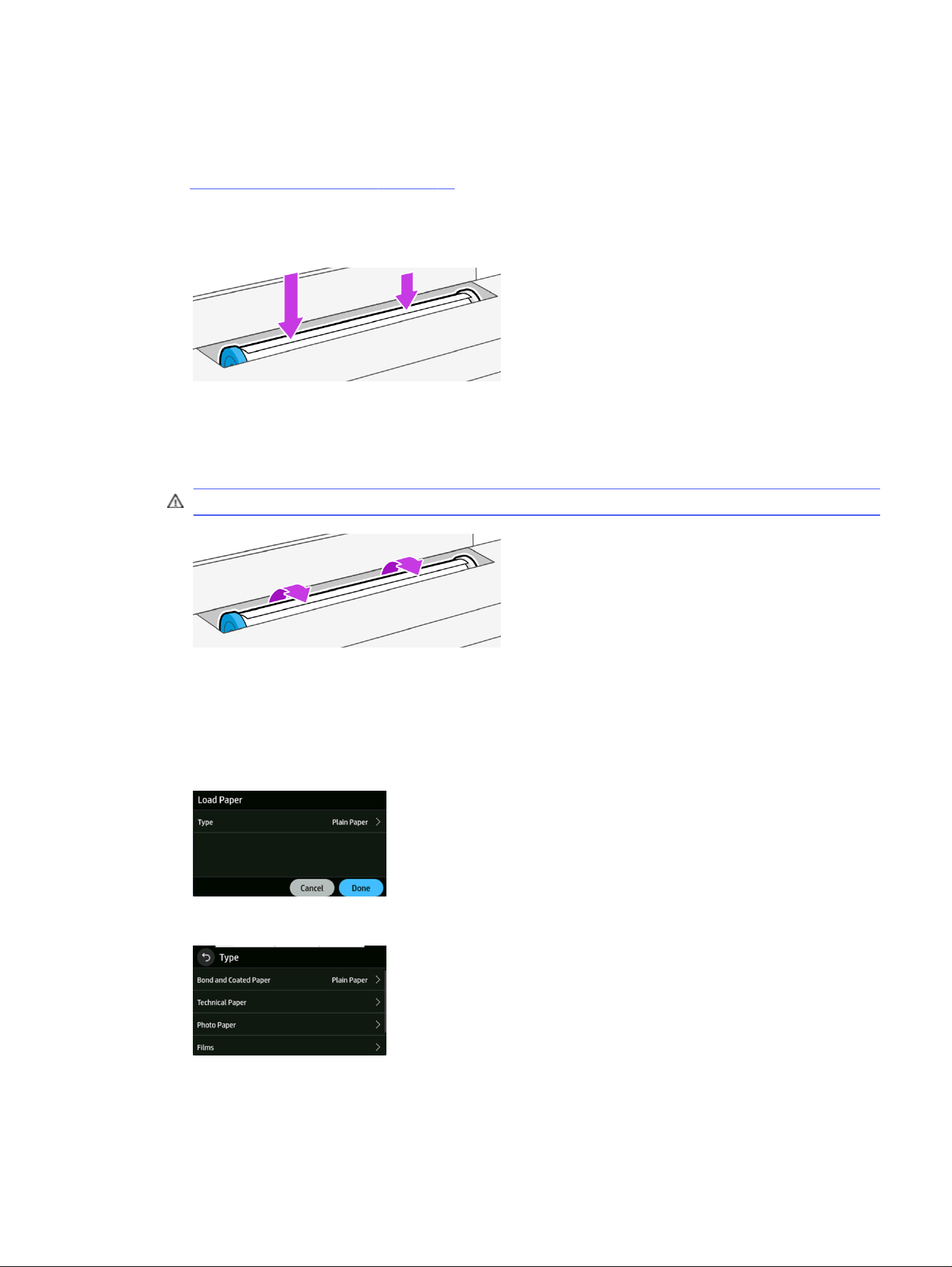

Load a roll onto the spindle................................................................................................................................................................................................. 23
Load a roll into the printer .................................................................................................................................................................................................... 25
Unload a roll.................................................................................................................................................................................................................................... 26
iii
Use the tray .................................................................................................................................................................................................................................... 26
Load a single sheet....................................................................................................................................................................................................................27
Unload a single sheet..............................................................................................................................................................................................................28
Use the sheet organizer accessory............................................................................................................................................................................. 28
View information about the paper.................................................................................................................................................................................29
Maintain paper.............................................................................................................................................................................................................................30
Change the drying time.........................................................................................................................................................................................................30
Turn the automatic cutter on and off...........................................................................................................................................................................30

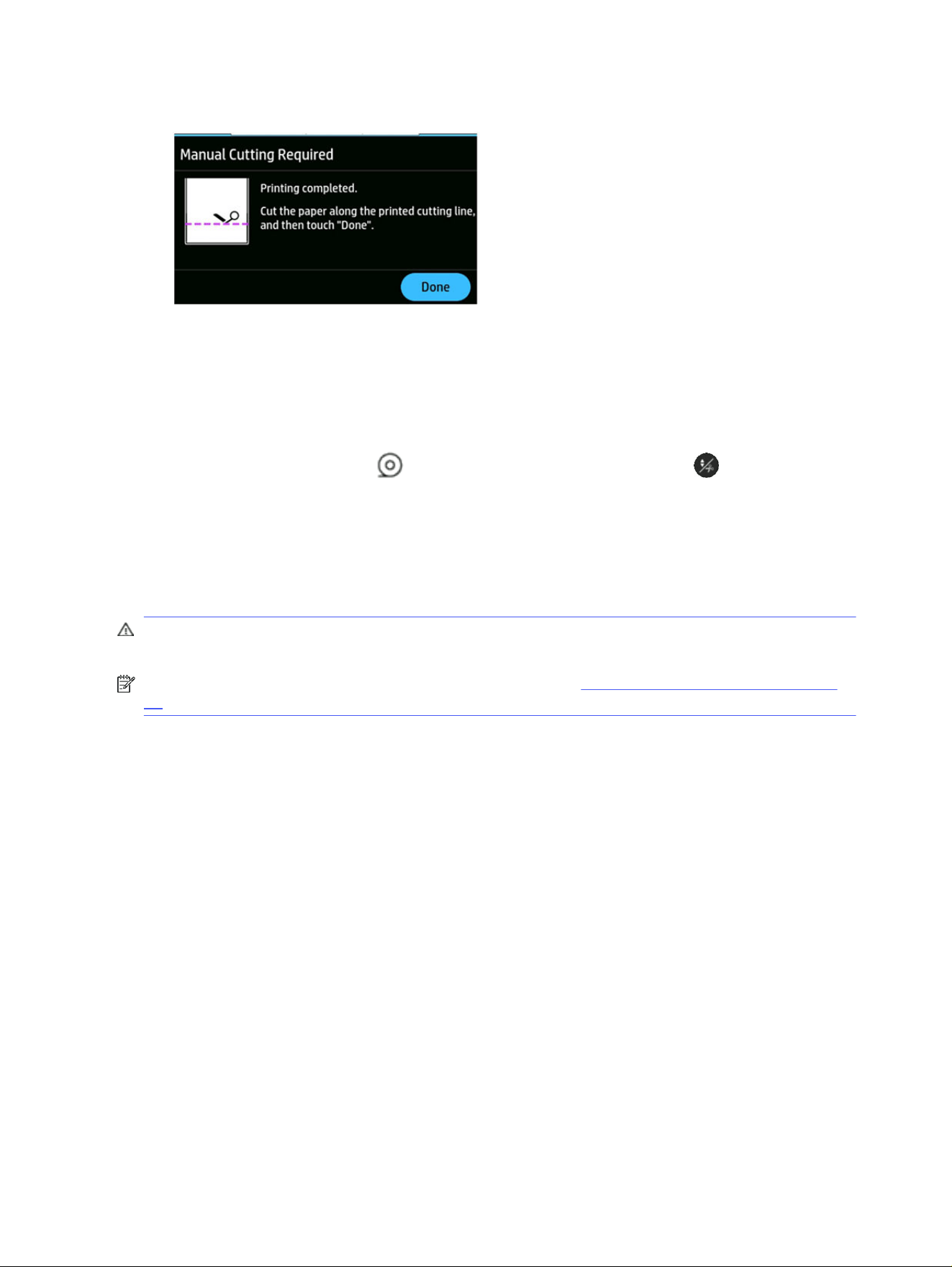

Draw the cutting line when automatic cutter is disabled.............................................................................................................................. 31
Advance button and cut button....................................................................................................................................................................................... 32
5 Printing.....................................................................................................................................................................................................................................................33
Easy printing with HP Click..................................................................................................................................................................................................33
Printing from an application using a printer driver............................................................................................................................................33
Print from USB flash drive...................................................................................................................................................................................................38
Print using Wi-Fi Direct...........................................................................................................................................................................................................38
Mobile printing .............................................................................................................................................................................................................................40
6 Quick Sets.............................................................................................................................................................................................................................................44
Factory Quick Sets...................................................................................................................................................................................................................44
Managing Quick Sets..............................................................................................................................................................................................................44
Creating a new Quick Set ....................................................................................................................................................................................................44
Editing a Quick Set....................................................................................................................................................................................................................46
Deleting a Quick Set................................................................................................................................................................................................................46
Copying a Quick Set.................................................................................................................................................................................................................46
Viewing a Quick Set...................................................................................................................................................................................................................47
Launching Quick Sets..............................................................................................................................................................................................................47
7 Practical printing examples ......................................................................................................................................................................................................49
Print a draft for revision with the correct scale................................................................................................................................................... 49
Print a PDF multipage job from Adobe Acrobat Reader or Adobe Acrobat Pro ..........................................................................50
Print a document with the correct colors ................................................................................................................................................................50

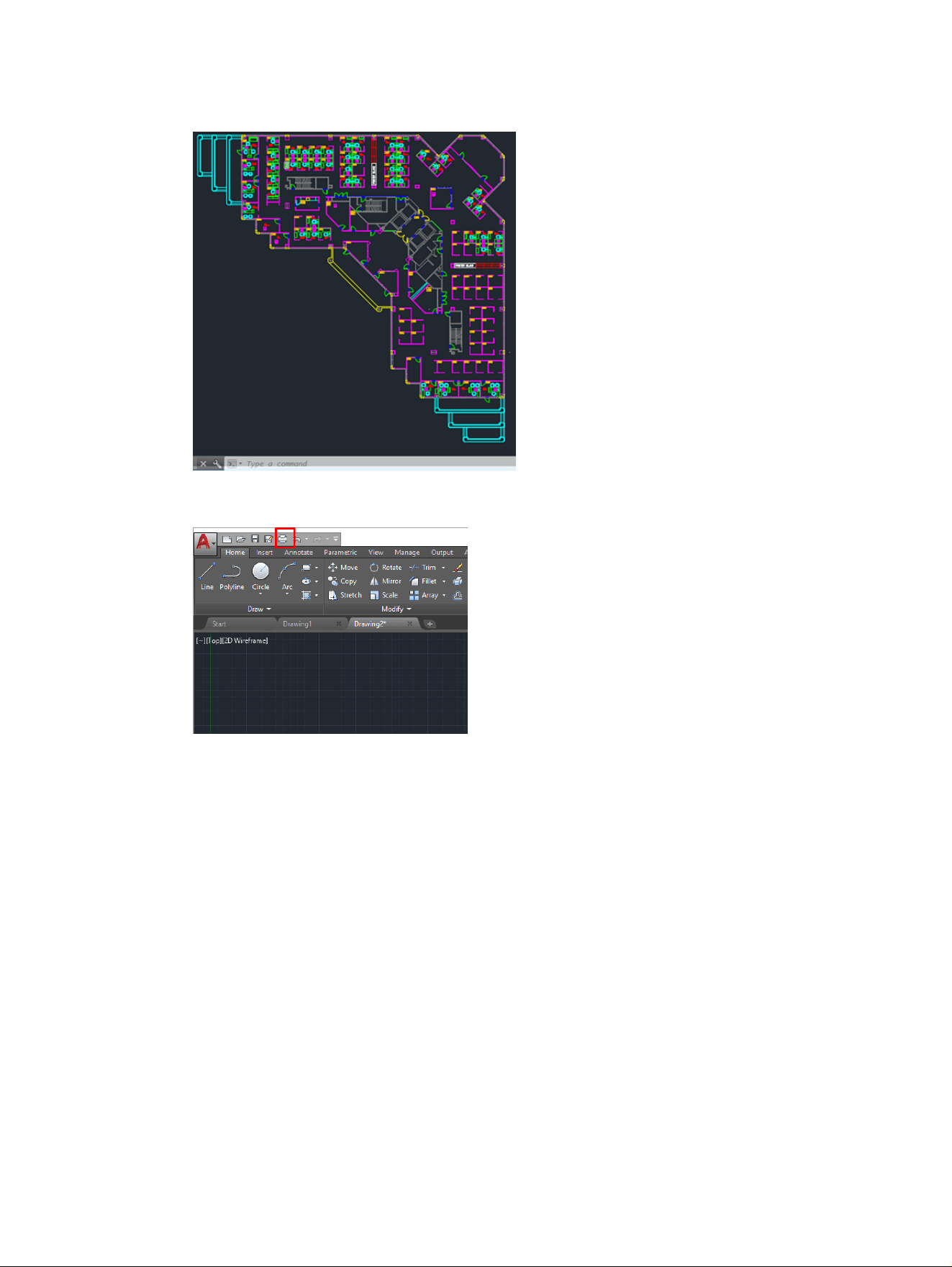

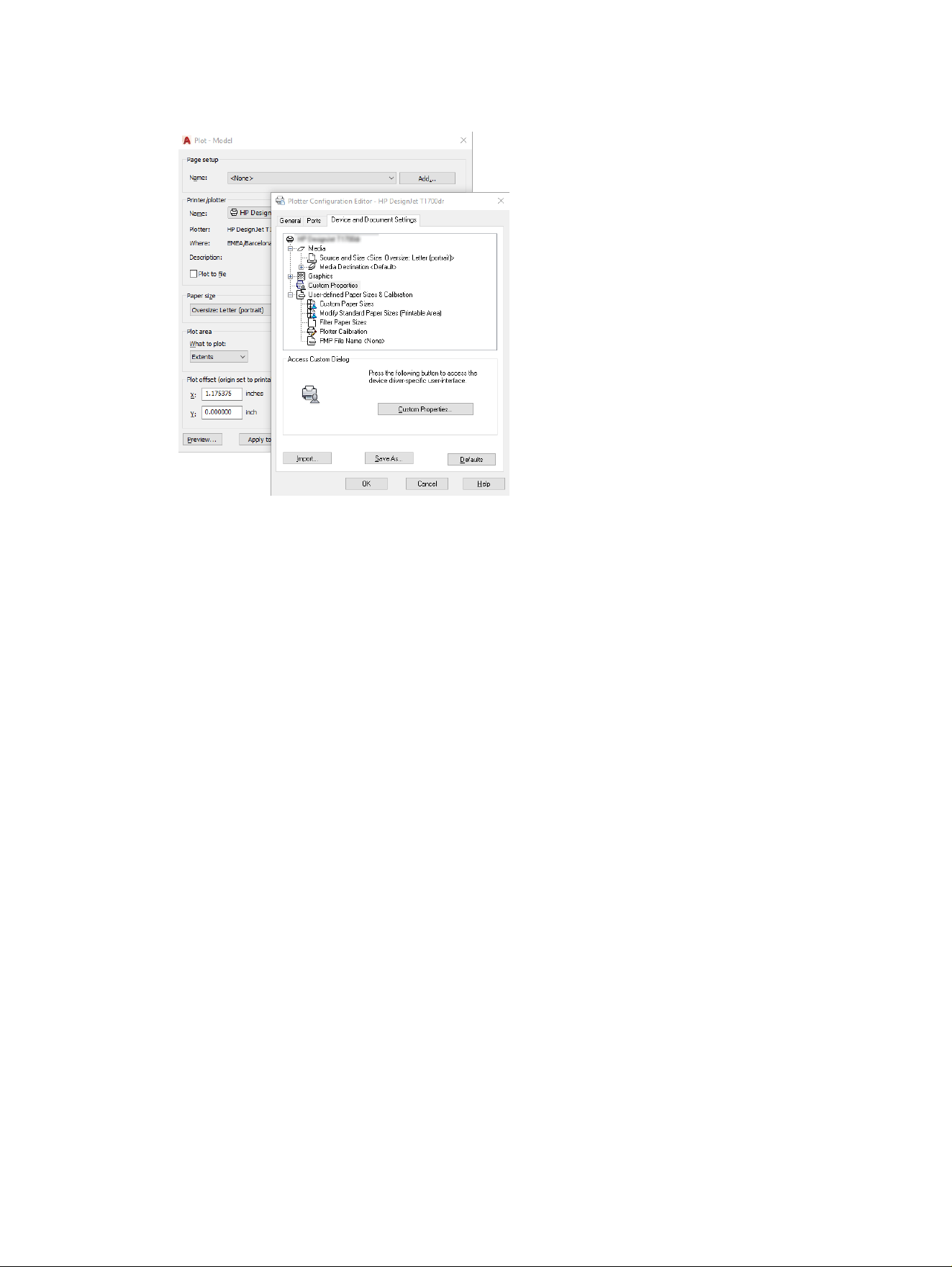

Print a project using Autodesk AutoCAD ................................................................................................................................................................. 54
Print a presentation..................................................................................................................................................................................................................56
8 Handling ink cartridges and printhead............................................................................................................................................................................ 59
About the ink cartridges....................................................................................................................................................................................................... 59
Store supply usage data ......................................................................................................................................................................................................59
Check ink cartridge status..................................................................................................................................................................................................60
Replace an ink cartridge.......................................................................................................................................................................................................60
About the printhead.................................................................................................................................................................................................................. 61
iv
Safe mode........................................................................................................................................................................................................................................ 61
9 Maintaining the printer ................................................................................................................................................................................................................ 62
Check printer status................................................................................................................................................................................................................ 62
Take care of the printer.......................................................................................................................................................................................................... 62
Clean the exterior of the printer...................................................................................................................................................................................... 62

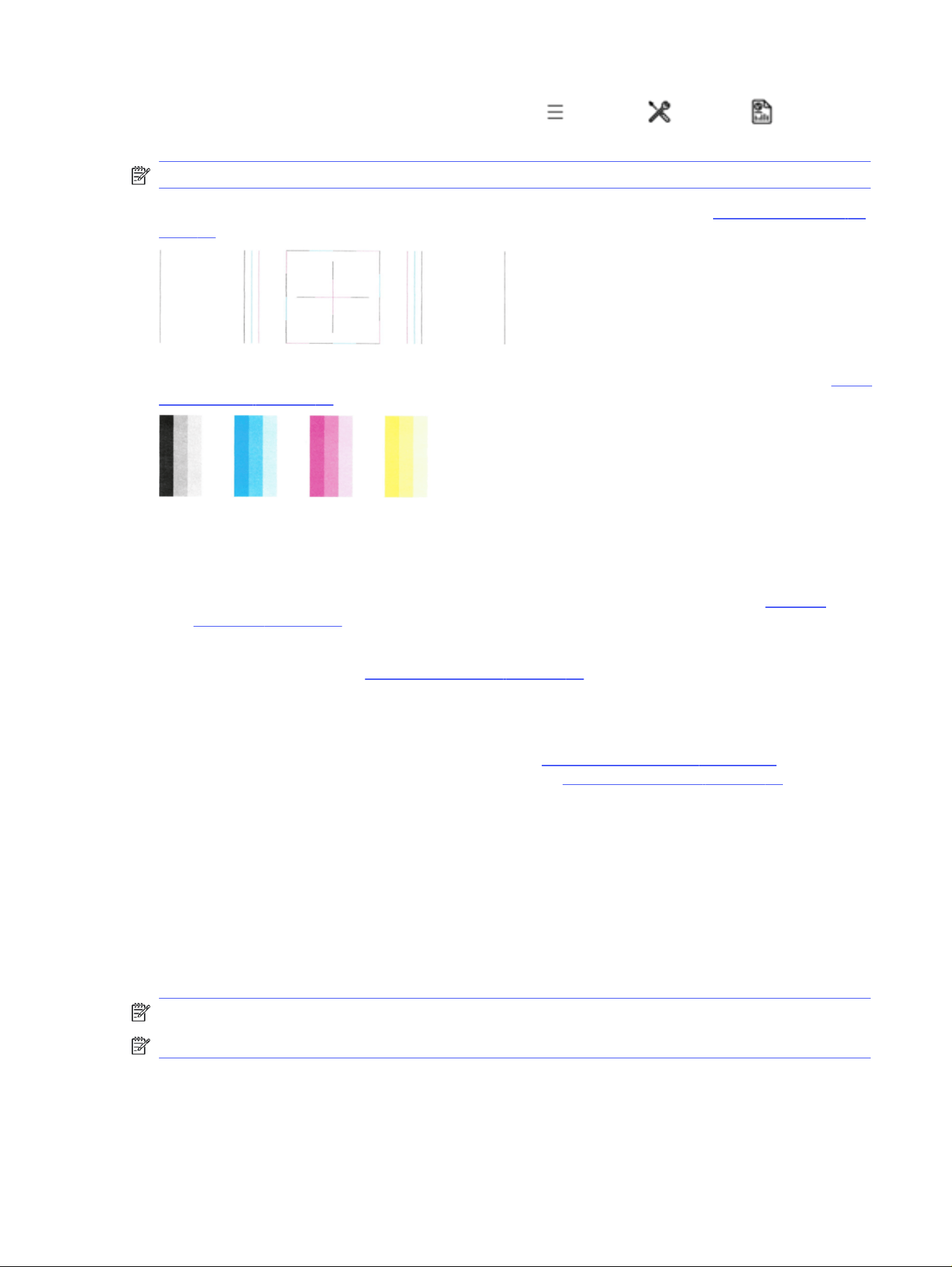

Print Quality Diagnostic Report.......................................................................................................................................................................................62
Clean the printhead .................................................................................................................................................................................................................63
Align the printhead....................................................................................................................................................................................................................64
Replace the printhead............................................................................................................................................................................................................64

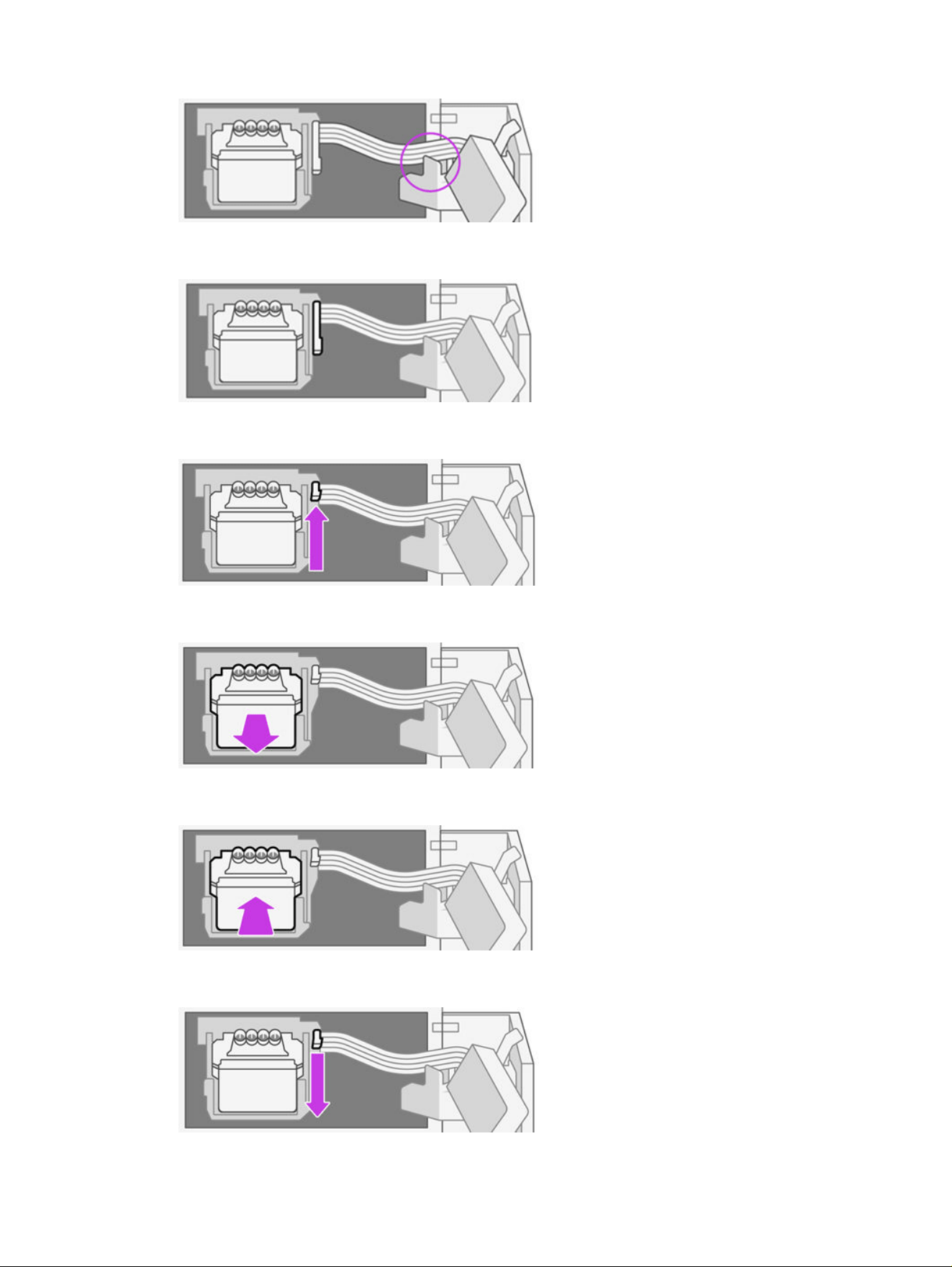

Cannot connect the tubes to the printhead............................................................................................................................................................67
Clean the encoder strip ........................................................................................................................................................................................................68
Recalibrate the paper advance.......................................................................................................................................................................................68
Move or store the printer......................................................................................................................................................................................................69
Firmware update ........................................................................................................................................................................................................................69
Automatic firmware updates.............................................................................................................................................................................................70
Manual firmware updates (USB method)..................................................................................................................................................................70
Software update..........................................................................................................................................................................................................................70
Printer maintenance kits .......................................................................................................................................................................................................70
10 Accessories ........................................................................................................................................................................................................................................71
How to order supplies and accessories.....................................................................................................................................................................71
Introduction to the accessories.......................................................................................................................................................................................72
11 Troubleshooting paper issues................................................................................................................................................................................................74
Paper cannot be loaded successfully.........................................................................................................................................................................74
Paper type is not in the driver or control panel.....................................................................................................................................................76
Printer printed on the wrong paper type....................................................................................................................................................................77
Paper mismatch...........................................................................................................................................................................................................................78
Cut-sheet doesn't enter or drops out of the sheet organizer.....................................................................................................................78
Roll has jammed...........................................................................................................................................................................................................................78
Tray has jammed ........................................................................................................................................................................................................................ 79
A single sheet has jammed .................................................................................................................................................................................................81
Cut strip stuck in output area, creating a jam....................................................................................................................................................... 82
How to remove jams ................................................................................................................................................................................................................ 82
Printer displays out of paper when paper is available ...................................................................................................................................83
Prints do not fall neatly into the bin...............................................................................................................................................................................83
Sheet stays in the printer when the print has been completed...............................................................................................................83
Paper is cut when the print has been completed...............................................................................................................................................83
Cutter does not cut well........................................................................................................................................................................................................83
v
Cannot connect the tubes to the printhead...........................................................................................................................................................84
12 Troubleshooting print-quality issues................................................................................................................................................................................85
General printing advice.........................................................................................................................................................................................................85
Horizontal lines across the image (banding) .........................................................................................................................................................85
Lines are too thick, too thin, or missing......................................................................................................................................................................86
Lines appear stepped or jagged.....................................................................................................................................................................................86
Lines print double or in the wrong colors..................................................................................................................................................................87
Lines are discontinuous.........................................................................................................................................................................................................87
Lines are blurred.........................................................................................................................................................................................................................88
Line lengths are inaccurate................................................................................................................................................................................................88
Whole image is blurry or grainy.......................................................................................................................................................................................89
Paper is not flat ...........................................................................................................................................................................................................................89
Print is scuffed or scratched.............................................................................................................................................................................................90
Ink marks on the paper..........................................................................................................................................................................................................90
Black ink comes off when you touch the print....................................................................................................................................................... 91
Edges of objects are stepped or not sharp ............................................................................................................................................................. 91
Edges of objects are darker than expected........................................................................................................................................................... 92
Vertical lines of different colors...................................................................................................................................................................................... 92
White spots on the print........................................................................................................................................................................................................ 92
Colors are inaccurate............................................................................................................................................................................................................. 92
Colors are fading........................................................................................................................................................................................................................93
Image is incomplete (clipped at the bottom) .........................................................................................................................................................93
Image is clipped..........................................................................................................................................................................................................................93
Some objects are missing from the printed image ..........................................................................................................................................94
How to avoid further issues...............................................................................................................................................................................................94
13 Troubleshooting ink cartridge and printhead issues...........................................................................................................................................95
Cannot insert an ink cartridge......................................................................................................................................................................................... 95
Ink cartridge status messages........................................................................................................................................................................................95
Cannot insert the printhead ..............................................................................................................................................................................................95
14 Troubleshooting data communication issues..........................................................................................................................................................96
Communication failures between computer and printer.............................................................................................................................96
Wired network issues ..............................................................................................................................................................................................................97
Wireless network issues.......................................................................................................................................................................................................98
Mobile Printing issues ...........................................................................................................................................................................................................101

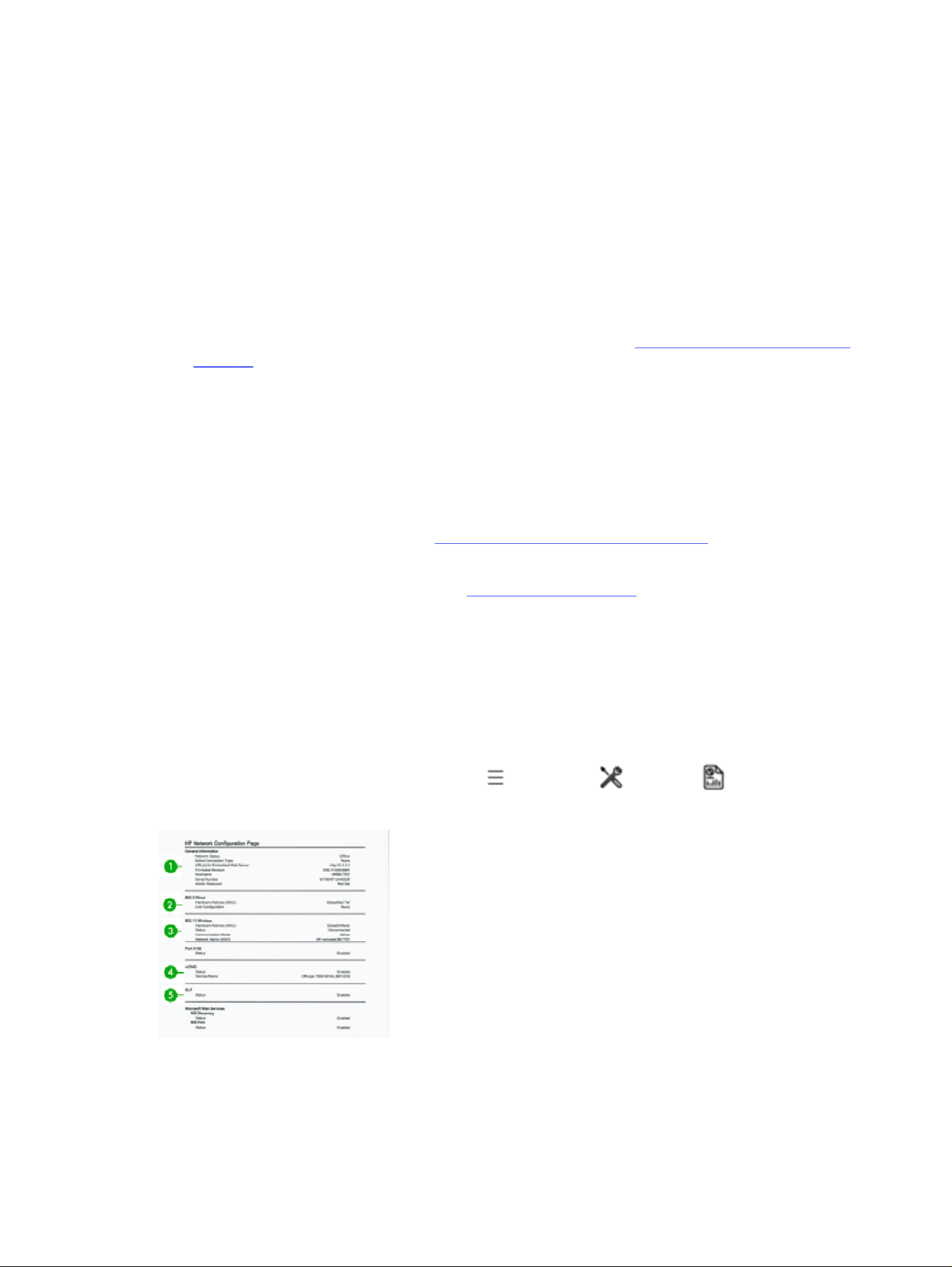

Network configuration page.............................................................................................................................................................................................101
15 Troubleshooting general printer issues ......................................................................................................................................................................103
Printer does not start............................................................................................................................................................................................................103
vi
Printer does not print ............................................................................................................................................................................................................103
Printer seems slow .................................................................................................................................................................................................................103
Control panel is frozen.........................................................................................................................................................................................................104
Cannot access the Embedded Web Server ........................................................................................................................................................104
Restore factory defaults and settings......................................................................................................................................................................104
Alerts.................................................................................................................................................................................................................................................105
16 Control-panel error messages..........................................................................................................................................................................................106
Text messages and numerical error codes..........................................................................................................................................................106
17 HP Customer Care .......................................................................................................................................................................................................................110
Introduction...................................................................................................................................................................................................................................110
HP Professional Services ...................................................................................................................................................................................................110
Customer Self Repair ............................................................................................................................................................................................................. 111
Contact HP Support.................................................................................................................................................................................................................111
18 Printer specifications ................................................................................................................................................................................................................113
Functional specifications ...................................................................................................................................................................................................113
Physical specifications......................................................................................................................................................................................................... 114
Memory specifications ........................................................................................................................................................................................................114
Power specifications..............................................................................................................................................................................................................115
Ecological specifications.................................................................................................................................................................................................... 115
Environmental specifications.......................................................................................................................................................................................... 115
Acoustic specifications.......................................................................................................................................................................................................116
Glossary.......................................................................................................................................................................................................................................................117
Index..............................................................................................................................................................................................................................................................120
vii
Introduction1
Essential safety precautions and an overview of the printer's main features, components, software
options and printing possibilities.
Safety precautions
Ensure proper use of the printer to prevent it from being damaged.
Read these safety precautions before using your printer. Addtionally, read your local Environmental,
Health, and Safety regulations.
This equipment is not suitable for use in locations where children are likely to be present.
For any maintenance or part replacement, follow the instructions provided in HP documentation to
minimize safety risks and to avoid damaging the printer.
Follow these general safety precautions at all times:
● Use the power supply voltage specified on the label. Avoid overloading the printer's electrical outlet
with multiple devices.
● Do not disassemble or repair the printer yourself. Contact your service representative, see
HP Support Center on page 110.
● Use only the electrical cord supplied by HP with the printer. Do not damage, cut, or repair the power
cord. A damaged power cord can cause fire or electric shock. Replace a damaged power cord with
an HP-approved power cord.
● Do not operate the printer with covers bypassed.
● Beware that a paper roll does not drop onto your feet or trap your hand and fingers during the paper
roll load/unload process.
● Do not allow metal or liquids (except those used in HP Cleaning Kits) to touch the internal parts of
the printer. Doing so may cause fire, electric shock, or other serious hazards.
● Do not climb or sit on the printer as it may tip over or lose stability.
● Power off the printer and unplug the power cord from the power outlet then call your service
representative in any of the following cases:
● When placing your hands inside the printer.
● If there is smoke or an unusual smell coming from the printer.
● If the printer is making an unusual noise not heard during normal operation.
● A piece of metal or a liquid (not part of cleaning and maintenance routines) touches internal
parts of the printer.
● The printer has been dropped.
● During an electrical storm (thunder and lightning).
Introduction
1
● During a power failure.
● To avoid being pinched, keep your fingers away from the gap between the bottom of the printer
and the stand while you're moving the printer with stand.
● Before servicing the printer.
Electrical shock hazard
This topic explains the concepts involved in this subject.
WARNING! The internal circuits of the built-in power supplies and power inlet operate at hazardous
voltages capable of causing death or serious personal injury.
Unplug the printer's power cord before servicing the printer.
The printer requires a building installation circuit breaker, which must meet the requirements of the
printer and should be in accordance with the Electrical Code requirements of the local jurisdiction of the
country in which the equipment is installed.
To avoid the risk of electric shock:
● Avoid overloading the printer's electrical outlet with multiple devices.
● Do not remove or open any closed system covers or plugs.
● Do not insert objects through slots in the printer.
● Take care not to trip over the cables when walking behind the printer.
● Insert the power cord securely and completely into the wall socket and printer inlet.
● Never handle the power cord with wet hands.
Fire hazard
This topic explains the concepts involved in this subject.
To avoid the risk of fire, take the following precautions:
● The customer is responsible for meeting the printer's requirements and the Electrical Code
requirements according to the local jurisdiction of the country where the printer is installed. Use
the power supply voltage specified on the nameplate.
● Use only the power cord supplied by HP with the printer. Do not use a damaged power cord. Do not
use the power cord with other products.
● Do not insert objects through slots in the printer.
● Take care not to spill liquid on the printer. After cleaning, make sure all components are dry before
using the printer again.
● Do not use aerosol products that contain flammable gases inside or around the printer. Do not
operate the printer in an explosive atmosphere.
● Do not block or cover the openings of the printer.
2
Chapter 1 Introduction
Mechanical hazard
The printer has moving parts that could cause injury.
To avoid personal injury, take the following precautions when working close to the printer:
● Keep your clothing and all parts of your body away from moving parts.
● Avoid wearing necklaces, bracelets, and other hanging objects.
● If your hair is long, try to secure it so that it will not fall into the printer.
● Take care that sleeves or gloves do not get caught in moving parts.
● Do not operate the printer with covers bypassed.
● If you need to replace the cutter assembly, take care not to cut yourself on the sharp cutting edge.
● Internal fan blades are hazardous moving parts. Disconnect the printer before servicing.
● Never insert your hands into the printer while it is printing, due to the moving parts inside.
● Do not climb onto or sit on the printer. It may lose stability and tip over.
When installing desktop printer models:
● Ensure that the surface of the support table is always bigger than the printer
● Ensure the entire printer is located inside the support table
● The support selected table must be able to bear at least 2 times the weight of the printer plus the
roll paper, sheet papers on the tray and ink supplies.
● Do not use the support table to store other equipment or printer consumables.
● Do not stand on the support table.
Ink handling
HP recommends that you wear gloves when handling ink supplies.
Using this guide

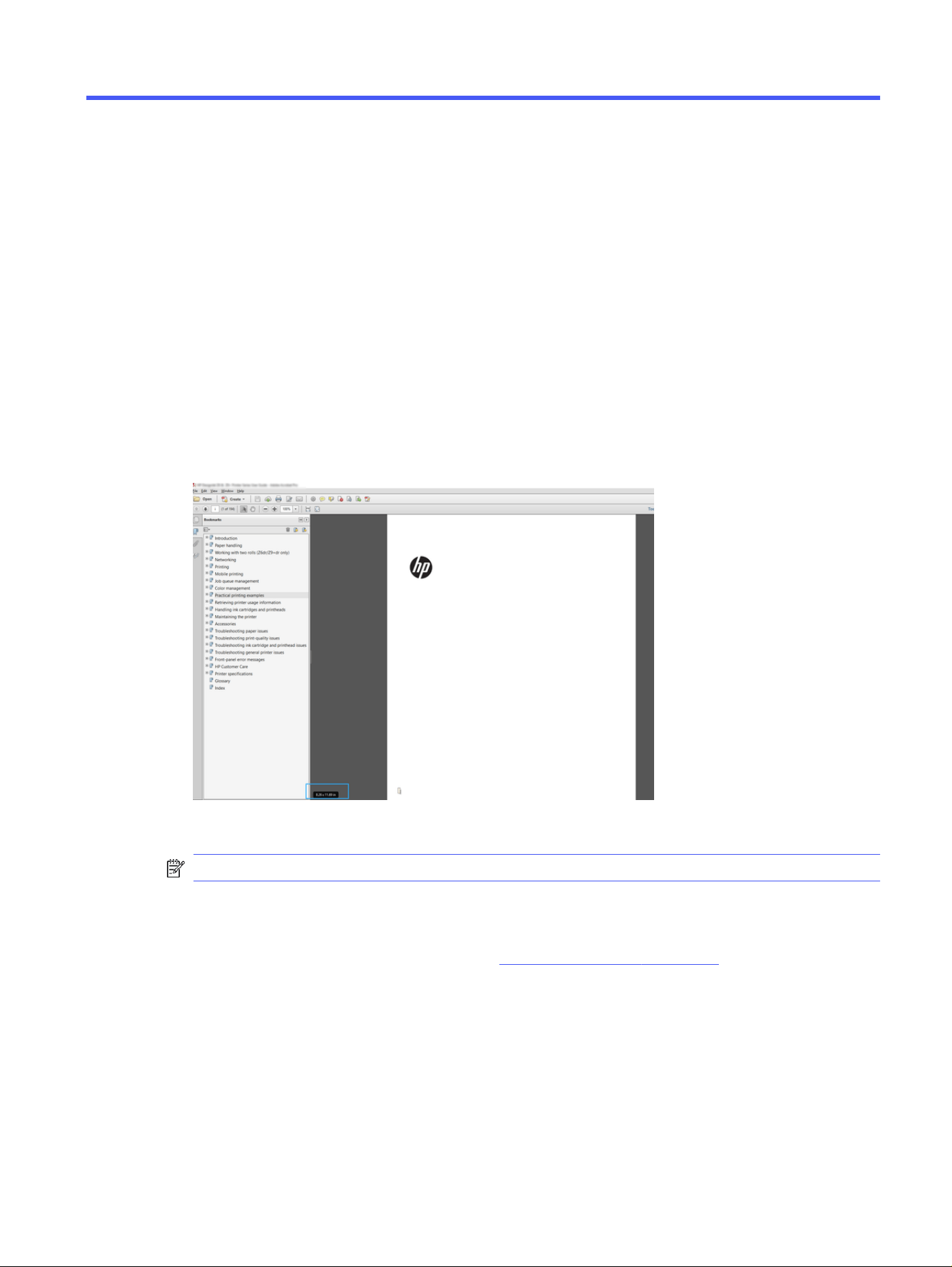

This guide can be downloaded from the HP Support Center.
Introduction
This is a brief introduction to the printer and its documentation for new users.
Use and maintenance
To help you carry out normal printer procedures.
Topics include the following:
● Connecting the printer on page 11
● Setting up the printer on page 15
Mechanical hazard
3
● Paper handling on page 23
● Printing on page 33
● Mobile printing on page 40
● Practical printing examples on page 49
● Handling ink cartridges and printhead on page 59
● Maintaining the printer on page 62
Troubleshooting
To help you solve problems that may occur while printing.
Included are the following topics:
● Troubleshooting paper issues on page 74
● Troubleshooting print-quality issues on page 85
● Troubleshooting ink cartridge and printhead issues on page 95
● Troubleshooting data communication issues on page 96
● Troubleshooting general printer issues on page 103
● Text messages and numerical error codes on page 106
Accessories, support, and specifications
Reference information, including customer care, the printer specifications, and part numbers for paper
types, ink supplies, and accessories.
Accessories on page 71, HP Customer Care on page 110, and Printer specifications on page 113.
Glossary
The glossary contains definitions of printing and HP terms used in this documentation.
Glossary on page 117.
Index
In addition to the table of contents, there is an alphabetical index to help you to find topics quickly.
Warnings and cautions
Symbols are used in this manual to ensure the proper use of the printer and to prevent the printer from
being damaged.
Follow the instructions marked with these symbols:
WARNING! Failure to follow the guidelines marked with this symbol could result in serious personal
injury or death.
CAUTION: Failure to follow the guidelines marked with this symbol could result in minor personal
injury or damage to the printer.
4
Chapter 1 Introduction
Printer models
This user guide covers the following printer model: HP DesignJet T870 24 in Printer.
NOTE: The images appearing in this guide may not look exactly the same as the printer you have. In
some regions, exact naming may vary.
Main features
The HP DesignJet T870 is a four-color inkjet printer, designed to deliver CAD and construction drawings
as well as high-quality graphics.
Paper up to 609 mm (24 in) wide can be used to print on. Some major features of the printer are shown
below:
● Print resolution of up to 2400 × 1200 dpi using the Best print-quality option, the Maximum Detail
option and photo paper
● The printer can be controlled from its control panel, and from a remote computer using the
Embedded Web Server
● Handles roll and cut-sheet paper, with a tray which automatically switches between both
● Touch-sensitive control panel in color, with an intuitive graphical user interface
● Includes Web-connected features such as automatic firmware upgrades
● Supports remote printing from mobile devices with HP App, see the following links:
– You can obtain the latest iOS version from the Apple iTunes website at
https://itunes.apple.com/app/id469284907
– You can obtain the latest Android version from the Google Store website at
https://play.google.com/store/apps/details?id=com.hp.printercontrol
● Economode for printing economically
● Enables easy printing from desktop with HP Click, see the HP website
https://www.hp.com/go/clickDesignJet

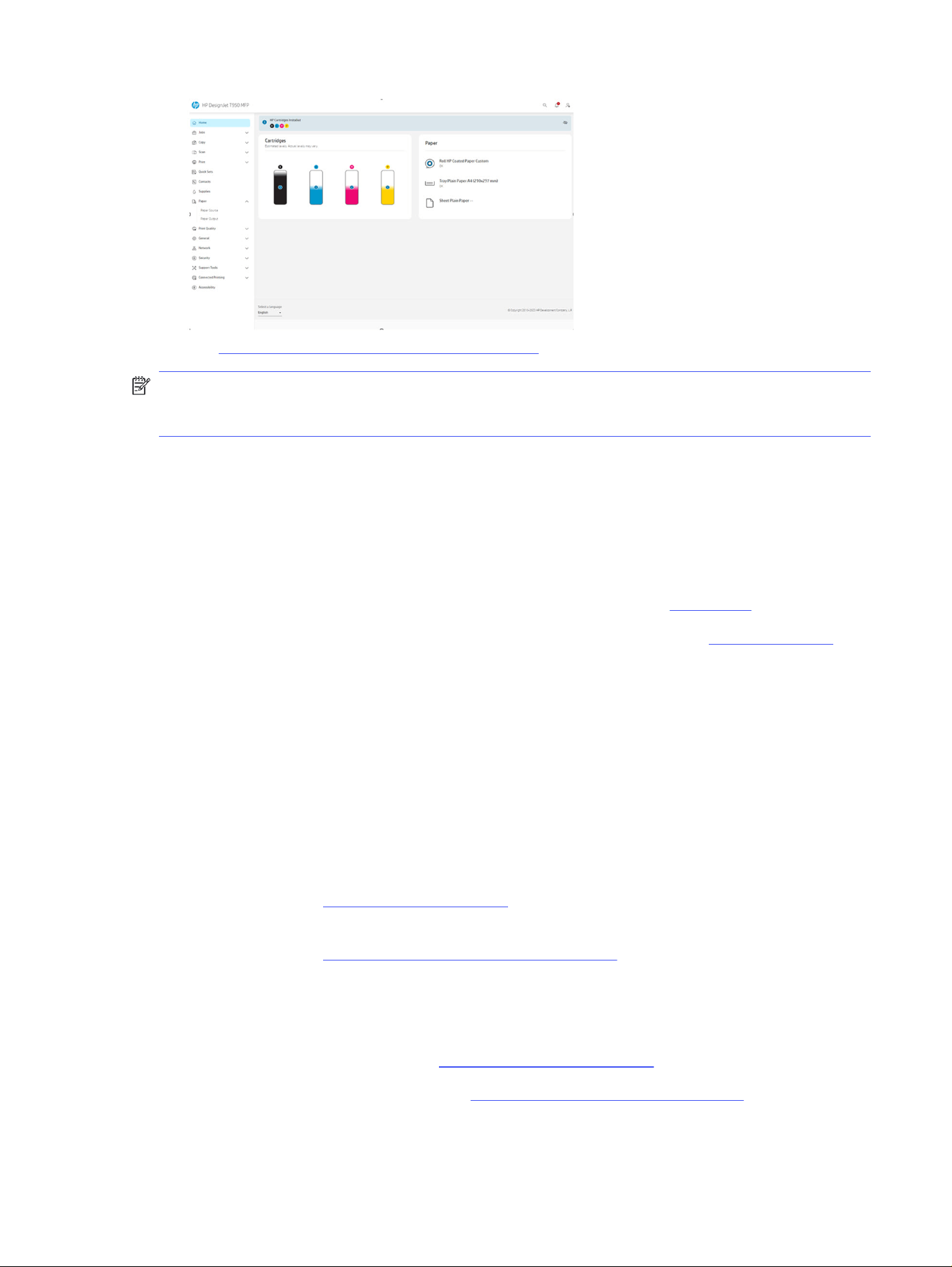

● Ink and paper usage information available from the Embedded Web Server, see Access the
Embedded Web Server on page 15
● Access to the online HP Support Center, see HP Support Center on page 110
Main components
Hardware features of your printer.

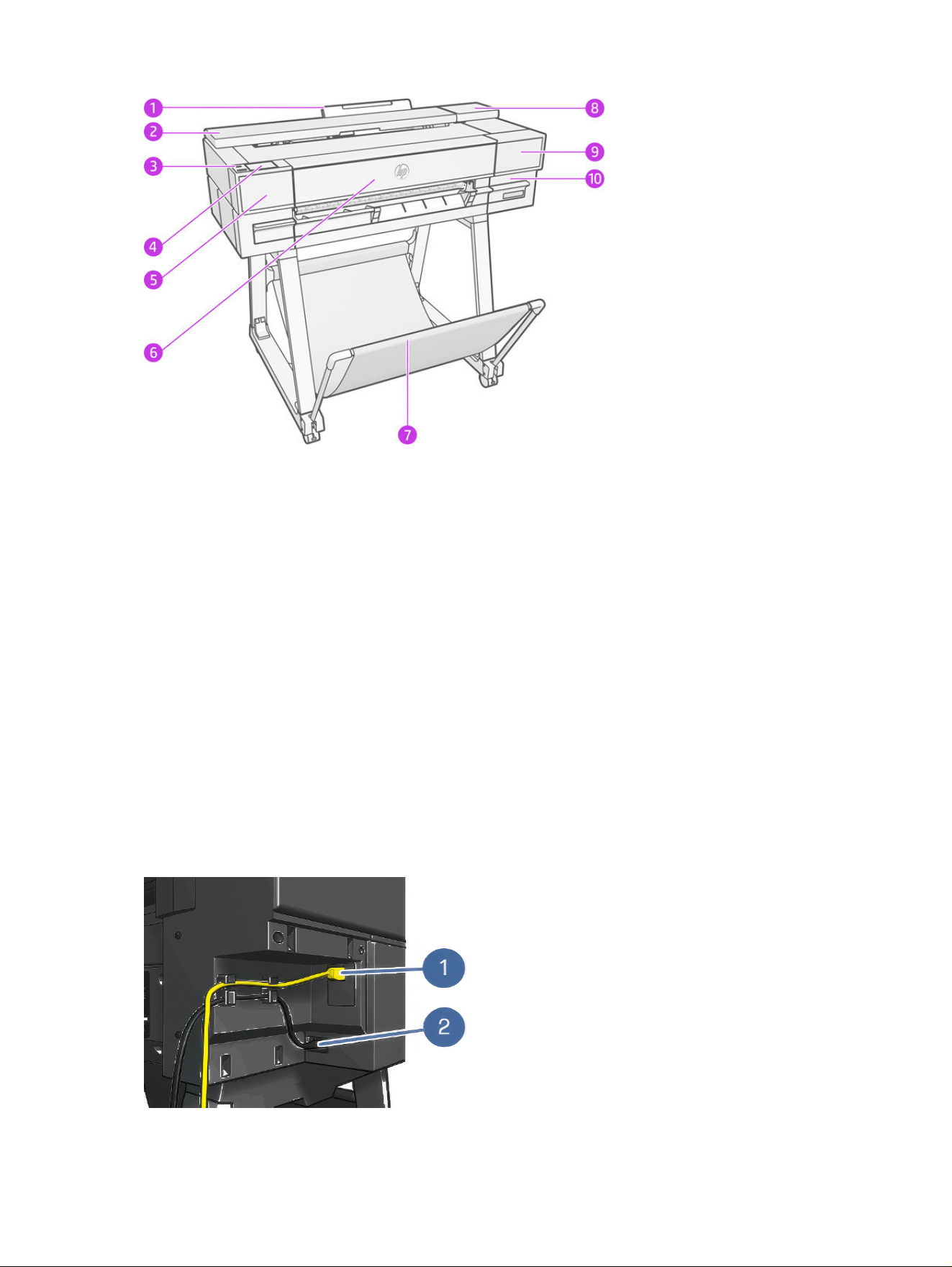

Front view
Overview of the main hardware components at the front of the printer.
Printer models
5
1. Tray
2. Roll
3. USB port
4. Control panel
5. Cutter
6. Main door
7. Stand and basket
8. Ink cartridges access door
9. Printhead access door
10. Printhead carriage
Rear view
Overview of the main hardware components at the rear of the printer.
1. Gigabit Ethernet port, to connect to a network
6
Chapter 1 Introduction
2. Power cable
Installing the printer
This section explains how to install the printer.
Please watch this how-to video on installing the printer:
http://www.hp.com/go/DesignJetT870/installationvideo.
Turn the printer on and off
The power key is located next to the control panel.
The power key is illuminated when the printer is on, or in sleep mode.
However, if you plan to store the printer for a long period or the power key does not seem to work, you are
recommended to unplug the power cord.
To turn it back on, plug in the power cord.
When the printer is powered back on, it takes about three minutes to initialize and check and prepare the
printhead.
NOTE: When the printer has not been used for a certain period of time (the default time is determined
by Energy Star), it saves power by going into sleep mode. However, any interaction with the printer's
control-panel display, or sending a new job to print, returns it to active mode, and it can resume printing
immediately. To change the sleep mode time, see Set the Sleep Mode setting on page 17.

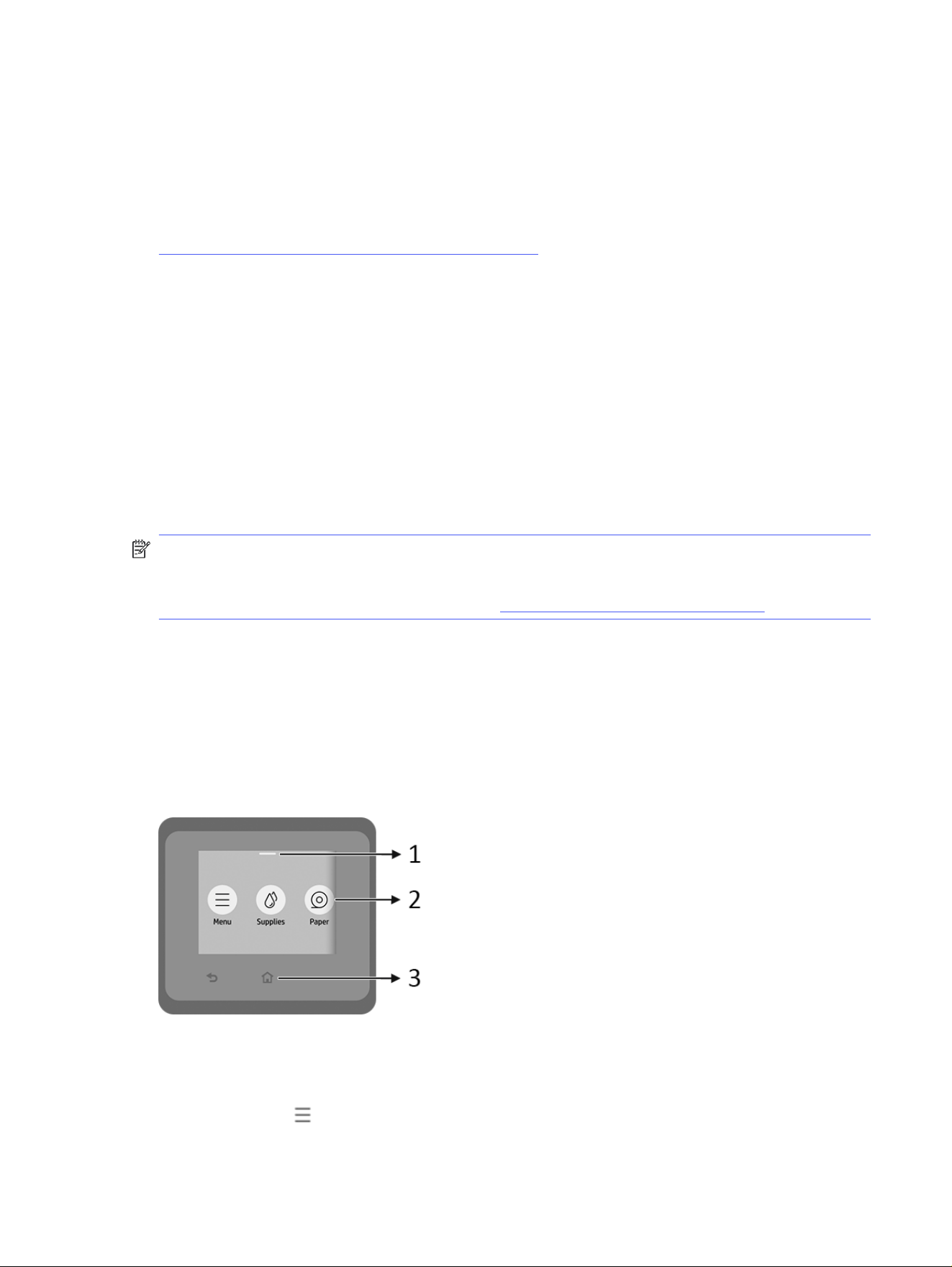

Control panel
The control panel is a touch-sensitive screen with a graphical user interface located on the front left of
the printer.
It gives you complete control of your printer. From it you can print, view information about the printer,
change printer settings, perform calibrations and tests, and so on. It also displays alerts (warning and
error messages) when necessary.
1. Status center: Swipe down at the top of the screen to open.
2. Home screen icons:
● Menu icon
Installing the printer
7

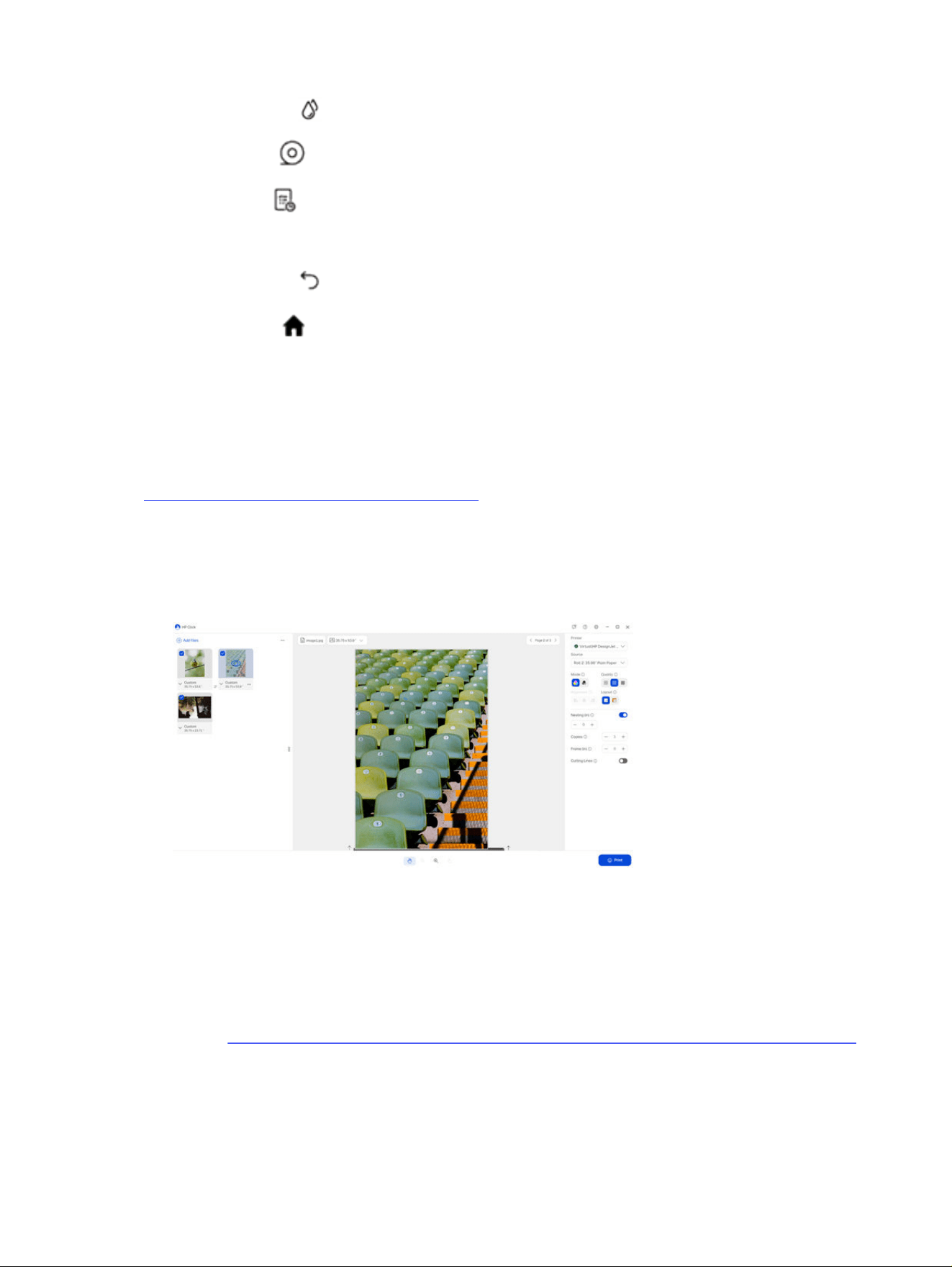

● Supplies icon
● Paper icon
● Jobs icon
3. Others:
● Go back icon
● Home icon
Printer solutions
Drivers and other tools are provided with your printer to raster, review, print locally or remotely, and
access support if required.
The following software is available for your printer at the HP website
https://www.hp.com/go/DesignJetT870/software.
Software available
● HP Click application for Windows 10 (or newer) and macOS, which provides easy printing with a real
preview.
Drivers:
1. HP Click Driver ( Recommended for Windows 11 or later)
2. Windows V4 PCL3 driver
3. macOS print driver
For more information about software solutions, visit the following
link:https://myknowledge.hpcloud.hp.com/documents/0806cb1d-ee86-4c01-b6ea-0f71586af7bf
● HP app for Windows, Android, macOS, and iOS, which offers mobile printing and monitoring features.
● The Embedded Web Server, which allows you to manage the printer from a remote computer, update
the printer’s firmware and change various printer settings, and so on.
8
Chapter 1 Introduction
See Access the Embedded Web Server on page 15.
NOTE: New versions of all printer software can be expected to appear from time to time. In some
cases, when you receive your printer there may already be later versions available at the HP website of
some of the software provided with it.
Mobile printing
You can print straight from your smartphone or tablet.
● The recommended solution is the HP app, which enhances your printing capabilities and enables
scanning and sharing from your phone or tablet:
You can obtain the latest iOS version from the Apple Store website at: Apple Store
You can obtain the latest Android version from the Google Store website at: Google Play Store.
● Alternatively, you can use other options:
– For Apple iOS printing
○ For Apple devices: you can print directly via AirPrint, which comes pre-installed in iOS
devices.
– For Android printing:
○ You can print directly through the native print option that comes preinstalled in Android
devices and is available in some apps (Android Default Print Service).
○ You can install Mopria Print Service Plugin. Obtain the latest version from the Google Play
website at: Google Play Store - Mopria.
○ You can install the HP Print Service Plugin. Obtain the latest version from the Google Play
website at: Google Play Store - HP Print Service Plugin.
– For ChromeOS printing:
○ You can use the Chrome Native Print system, which comes pre-installed in ChromeOS
devices. For more information about how to print with ChromeOs check: HP printer setup
(Chromebook) | HP® SupportHP printer setup (Chromebook)
For more information, visit the HP website at: http://www.hp.com/go/designjetmobility.
Mobile printing
9
Reports
The internal prints give various kinds of information about your printer. They can be requested from the
control panel.
Before requesting any internal print, check that the printer and the paper are ready for printing. The
loaded paper should be at least A4 portrait—210 mm (8.27 in) wide—otherwise the print may be clipped.
NOTE: For U.S. and other countries that don't use ISO sizes; Letter is the required paper size for
reports. Reports are generated in A4 or letter depending on the selected country.

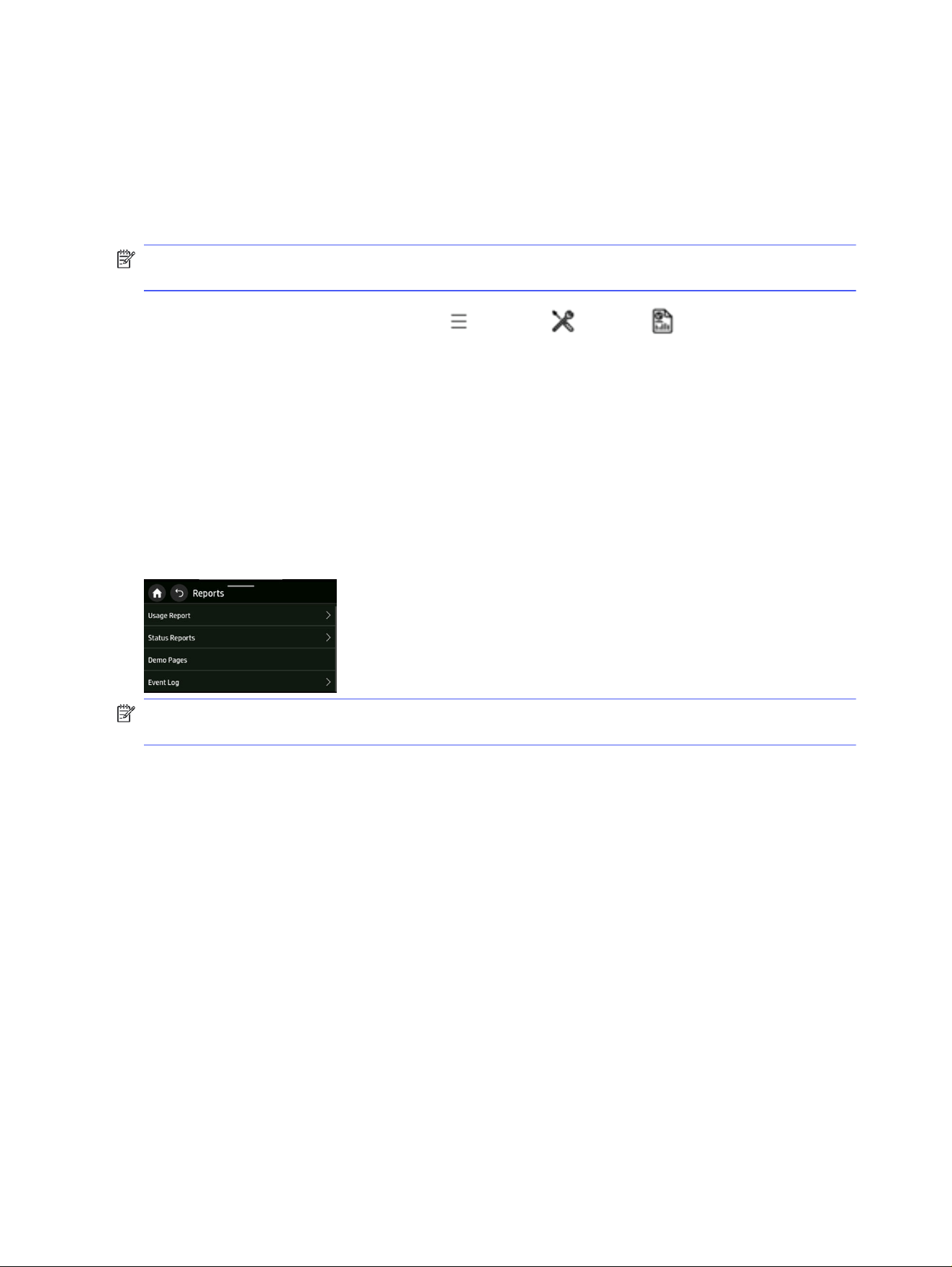

To print any internal print, tap the Menu icon , then Tools > Reports , then select the internal
print you want. These are some of the prints available:
● Usage Report
– This report is not printable and can only be viewed on the control panel
● Status Reports
● Connectivity, Printer Status Report, etc.
● Demo Pages
● Event Log
NOTE: Reports can also be printed from the Embedded Web Server or downloaded as a PDF; go to
Support Tools > Reports and Pages.
10
Chapter 1 Introduction
Connecting the printer2
Printing has never been easier, and your printer comes with various options for connecting to help you
do so.
With HP Smart Admin (see the HP website at the following link: https://admin.hpsmart.com/) or HP
Command Center (see the HP website at the following link: https://hp-commandcenter.com/), you have
a remote view to manage printers, users, and solutions, which allows you to stay on top of your team to
keep your company up and running smoothly.
Choose which connection method to use
Your printer can be connected via Wireless or Gigabit Ethernet.
Connectivity methods
Step 1: Connect the printer to your network
Use the control panel to choose one of these options:
● Connect to Ethernet:
– If the printer is new, connect the Ethernet cable before turning it on.
● Connect to Wi-Fi:
– If the printer is new, just follow the steps in the control panel.
– Printer and device (desktop PC, laptop, mobile) must be connected to the same Wi-Fi.
Step 2: Set up your device
a) Connect the printer to the HP ecosystem
During the printer setup, after performing the network configuration and accepting that printer will
connect to the Internet, the printer retrieves the pin pairing code and displays it along with the portal
URL. Follow the instructions on the control panel.
If the printer onboarding is skipped, you can pair your printer manually; access the Embedded Web
Server (EWS), then go to Connected Printing > Printer Pairing.
NOTE: You may be asked to type the administration password.

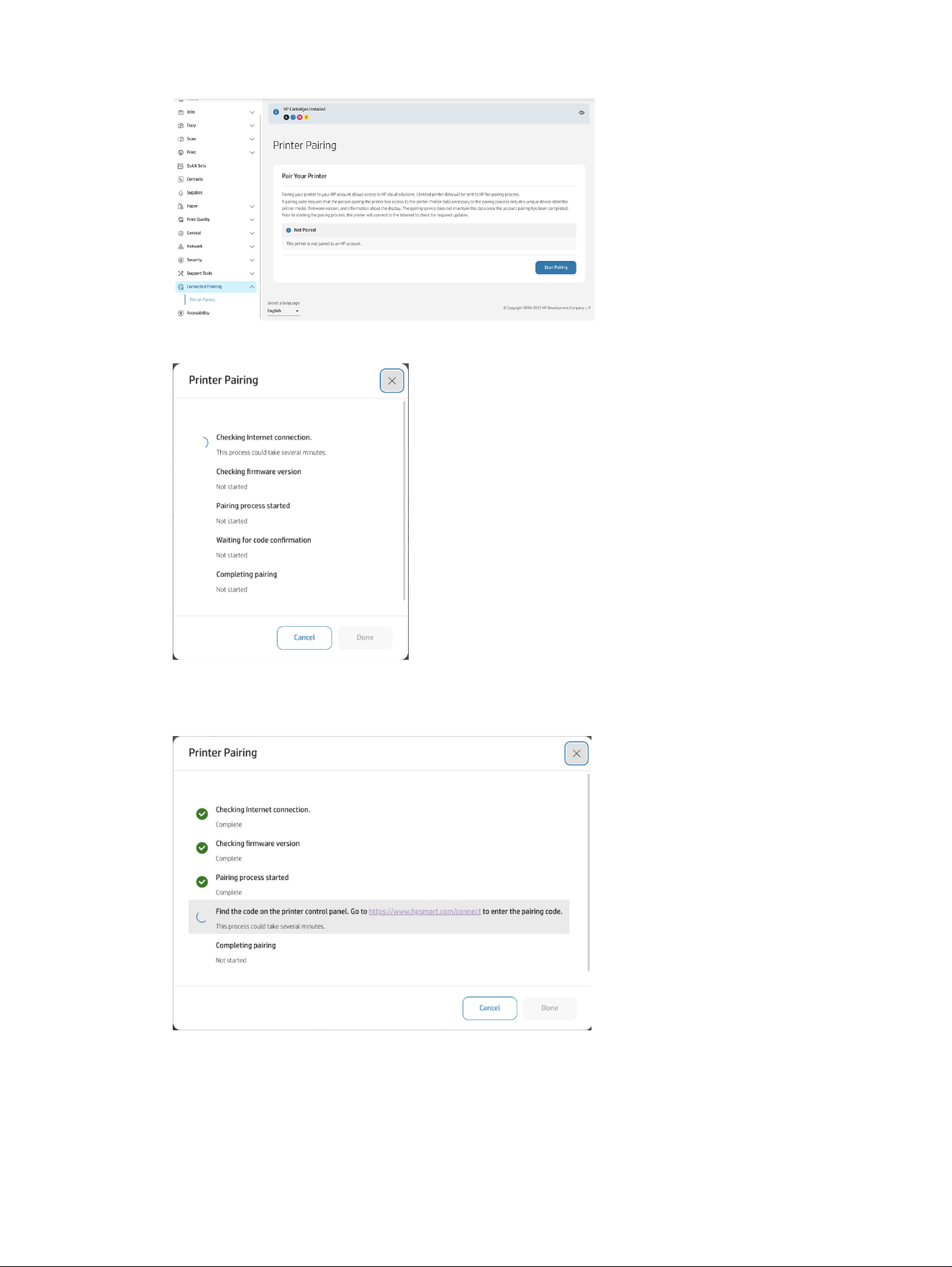

1. Tap Start Pairing to begin pin pairing.
Connecting the printer
11
You can see the progress in the window that appears:

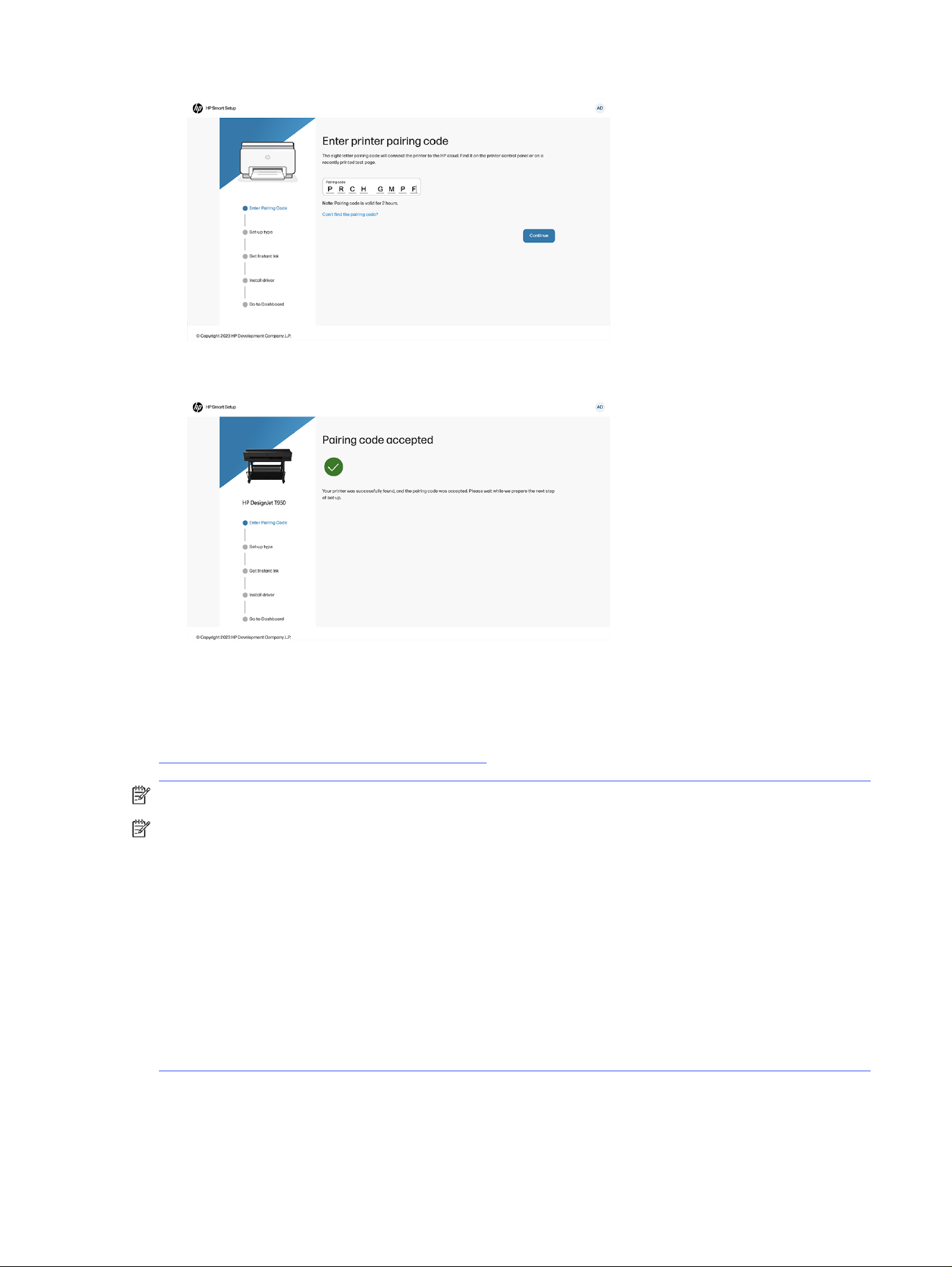

2. The process asks you to check the control panel to retrieve and enter the pairing code. It also
indicates which URL you should type in the browser to continue the onboarding process.
12
Chapter 2 Connecting the printer
3. Once the process has completed and the printer is paired, the following message is displayed:
Printer and devices must be connected to the same network.
If required, you can find your printer’s IP by scrolling down from the top of the screen.
Go to the support page for your printer at the HP website
https://www.hp.com/go/DesignJetT870/support.
NOTE: If you connect an Ethernet cable, it turns off the wireless capability of the printer.
NOTE: Wireless connections can be affected by the location of the network router and the device. In
order to improve a wireless connection:
1. Position the wireless access point in a more central position within the workplace.
2. Place the wireless access point away from dense materials. Metal, concrete, double-thick walls are
the hardest to penetrate, wood and plasterboard are easier. Consider this when you position the
printer.
3. Change the wireless channel to one that is not being used. Preferably 1, 6, or 11, as these are
non-overlapping channels.
4. Extend the range of the wireless network with the use of a simple wireless extender or add more
wireless access points.
Choose which connection method to use
13
Connect the printer to your network
On the control panel, use the Wireless Setup Wizard or Wi-Fi Protected Setup to set up wireless
communication.
1. Tap the Menu icon , then Settings > Network > Wi-Fi.
2. Tap Wireless Setup Wizard or Wi-Fi Protected Setup.
3. Follow the control panel instructions to complete the setup.
If you are already using the printer with a different type of connection, to change it, see Mobile printing
on page 40.
Set up your device
Prepare your printer with the correct software for your device.
Install the software (Windows)
Make sure to connect the printer and computer or mobile device to the same network.
To download the software, see Printer solutions on page 8.
Install the software (macOS)
Make sure to connect the printer and computer or mobile device to the same network.
To download the software, see Printer solutions on page 8.
Add your printer
Add a printer to a network under macOS.
■
Go to System Preferences > Printers and Scanners, and then tap + to add a new printer.
● If you installed the driver: Select the IP tab, enter your IP address, and select the protocol HP
Jetdirect-Socket. Tap Continue.
● If you want to use AirPrint: Choose your printer from the list of displayed network printers, and
tap Add. Then, in the Use menu, select Secure AirPrint or AirPrint, and then tap Add.
TIP: To see the Bonjour name on the control panel, open the printer’s dashboard and tap the Menu
icon , then Settings > Network > Ethernet > Ethernet Details, or Settings > Network > WiFi >
Wi-Fi Details.
14
Chapter 2 Connecting the printer
Setting up the printer3
This section gives further information on how to set up the printer.
Introduction
There are various printer settings that the printer administrator may wish to control as soon as a new
printer is assembled and ready for use.
Accessibility

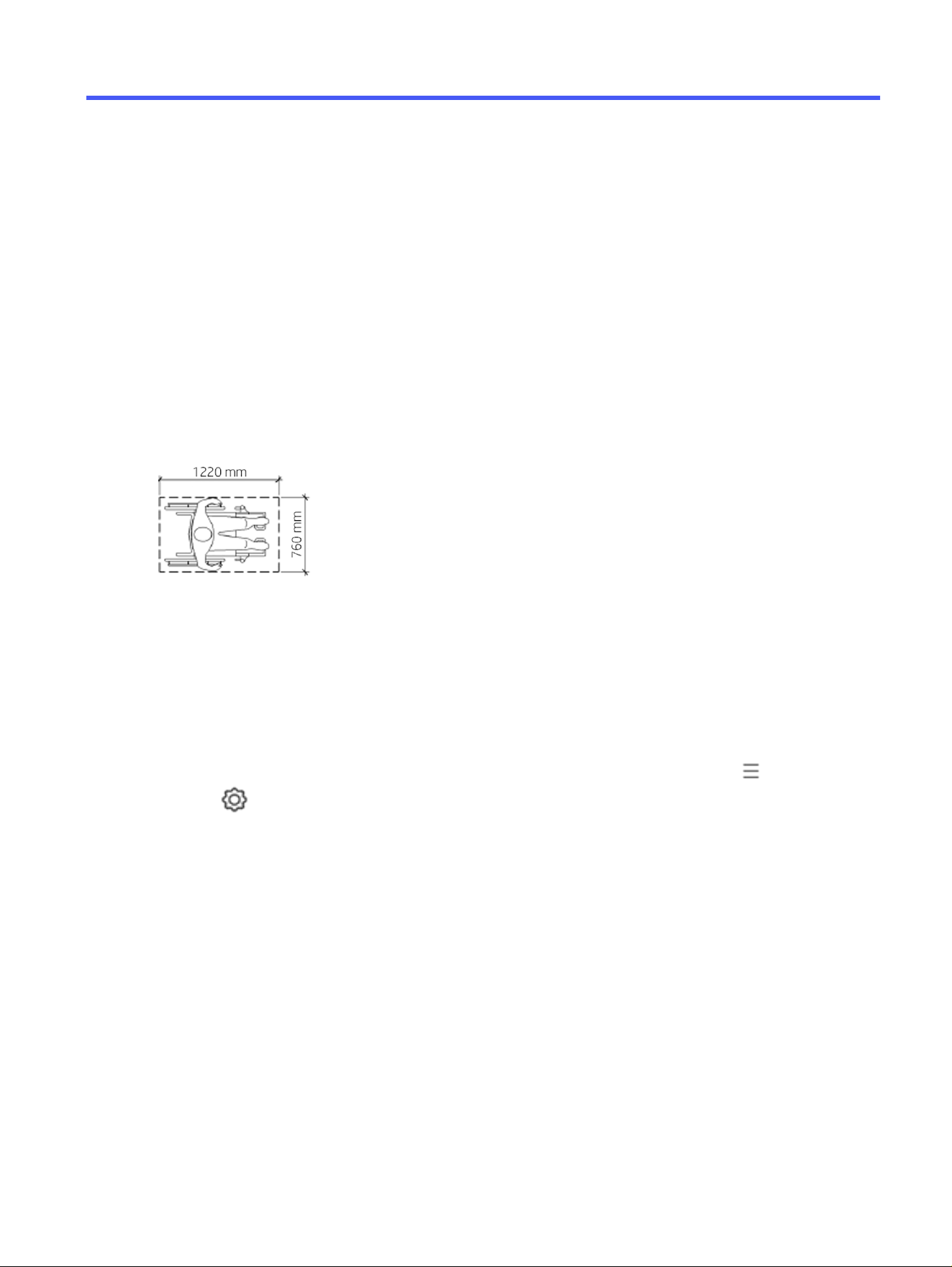

To ensure accessibility to the operating area, it is recommended to have an even-leveled clear space of
minimum 760 mm (30 inches) by 1220 mm (48 inches).
Light reflection (glare) can affect the readability of the control panel. To improve visibility, from the
control panel, select the most suitable theme.
Change the language of the control-panel display
Your printer includes many language options to choose from.
To change the language of the control-panel menus and messages:
If you can understand the current control-panel display language, tap the Menu icon , then
Settings , then General > Display > Language. Select your preferred language.
Access the Embedded Web Server
Manage your printer remotely using an ordinary web browser running on any computer.
To access the Embedded Web Server on any computer, open your Web browser and type the IP address
of your printer.
You can see your printer’s IP address on the control panel when you open the Status Center.
To access the Embedded Web Server, the printer requests your Admin PIN to prevent unauthorized
users from remotely configuring the printer, or viewing printer settings. The PIN is required to change or
view printer settings. By default the user is admin. The PIN is found behind the printer.
Setting up the printer
15
You can print the printer status report, go to Menu > Tools > Reports > Status Reports, then
tap
Print.
NOTE: The status report has the PIN. If your changed the initial PIN by default and forgot it, go to
Troubleshooting general printer issues on page 103.
The following browsers are known to be compatible with the Embedded Web Server:
● Microsoft Edge (latest version)
● Apple Safari 15 or later for macOS 10.15 and later
● Mozilla Firefox (latest version)
● Google Chrome (latest version)
If you have followed these instructions but failed to get through to the Embedded Web Server, see
Cannot access the Embedded Web Server on page 104.
Change the language of the Embedded Web Server
The default language is the same as your browser but if it is not supported, it will appear in English. You
can change it to any supported one.
Embedded Web Server supported languages are English, Portuguese, Catalan, Spanish, French, Italian,
German, Polish, Russian, Simplified Chinese, Traditional Chinese, Korean, and Japanese. There is a tab at
the bottom left of the window to select them from.
Automatic firmware update
The printer can automatically check for a firmware update periodically.
Set Windows driver preferences
You can change some default settings in your printer driver according to your own preferences, for
instance to set color or paper-saving options.
To change default settings, click the Start or Search button on your computer’s screen (depending on
your version of Windows), then click Devices and Settings, Devices and printers or Print Management.
Then right-click your printer's icon and click Printing preferences or Set Printing Defaults. Any settings
you change in the Printing Preferences window will be saved as default values for the current user.
To set the default values for all the users of your system, right-click the printer’s icon again, click Printer
Properties, go to the Advanced tab, and click Printing Defaults. Any settings you change in the Printing
Defaults window will be saved for all users.
Energy-conservation settings
Learn about the energy-conservation settings that are available on your printer.
16
Chapter 3 Setting up the printer
Set the Sleep Mode setting
Use the control panel menus to specify the amount of time the printer must be inactive before it goes
into sleep mode.
1. From the home screen on the printer control panel, tap the Menu icon , then Settings .
2. Scroll to and open the following menus: General > Energy > Sleep.
3. Tap an option to specify the amount of time the printer must be inactive before it goes into sleep
mode.
4. When you are finished, tap the Back arrow button to return to the General menu, or tap the
Home button to return to the home screen.
NOTE: You can perform the same operation from the Embedded Web Server by going to General >
Power settings > Energy settings.
WARNING! Changing this setting beyond 20 minutes will increase energy consumption.
Set the Shutdown Mode setting
Use the control panel menus to specify the amount of time the printer must be inactive before it shuts
down.
1. From the home screen on the printer control panel, tap the Menu icon , then the Settings
icon .
2. Scroll to and open the following menus: General > Energy > Inactivity Shutdown.
3. Tap an option to specify the amount of time the printer must be inactive before it shuts down.
4. When you are finished, tap the Back arrow button to return to the General menu, or tap the
Home button to return to the home screen.
NOTE: You can perform the same operation from the Embedded Web Server by going to General >
Power settings > Energy settings.
WARNING! Changing this setting beyond 20 minutes will increase energy consumption.
Set scheduled on/off time
Use the control panel menus to specify when to automatically turn the printer on and off.
1. From the home screen on the printer control panel, tap the Menu icon , then Settings .
Set the Sleep Mode setting
17
2. Scroll to and open the following menus: General > Energy > Scheduled Printer On/Off.
3. Tap an option to specify set the scheduled on or off time (on shown).
4. Set the day(s) and time.
NOTE: You can perform the same operation from the Embedded Web Server by going to General >
Power settings > Power schedule.
18
Chapter 3 Setting up the printer
Change the control-panel display brightness
The level of brightness displayed can be adjusted.
To change the brightness of the control panel, tap the Menu icon , then Settings , then General >
Display > Display Brightness and slide to your desired level.
Configure network settings
You can view and configure the network settings from the Embedded Web Server or the control panel.
● From the Embedded Web Server: Select the Network tab.
● From the control panel, tap the Menu icon , then Info , then Connectivity.
● From the control panel, tap Settings , then Network.
The following options are available:
● Enable/Disable wireless turns the wireless connection on or off.
● Wireless setup wizard provides an easy way to connect to a wireless network.
● Wi-Fi protected setup allows you to set up a connection with a wireless network using WPS
(pushbutton or pin) encryption.
● View wireless details displays information about the wireless network.
● IP settings allows you to select the IP address -automatic or manual (Static).
● Print wireless test report print information about the wireless network.
● Print wireless network test runs diagnostic tests of wireless connectivity.
● Ethernet settings allows you to view and print Ethernet details:
– Link speed sets the speed at which data are transmitted over the network. The default is
Automatic.
Change the control-panel display brightness
19
– IP settings allows you to view or change the IP address, subnet mask, default gateway, and DNS
address.
– Network settings.
○ Hostname allows you to change the hostname.
○ Proxy settings allows you to change the proxy settings.
○ Bonjour name allows you to change the Bonjour name.
● Restore Network Settings.
Configure firewall settings
Firewall features provide network-layer security on both IPv4 and IPv6 networks. The firewall provides
simple control of IP addresses that are allowed access.
NOTE: In addition to firewall protection at the network layer, the printer also supports open secure
sockets layer (SSL) standards at the transport layer for secure client-server applications, such as
client-server authentication or HTTPS Web browsing.
For firewall operation on the printer, go to Menu > Settings > Network > Security > Disable
Firewall: You must configure a firewall policy to apply to specified IP traffic. Firewall policy pages are
accessed through the Embedded Web Server and displayed by your Web browser. After a policy is
configured, it is not activated until you click Apply in the Embedded Web Server.

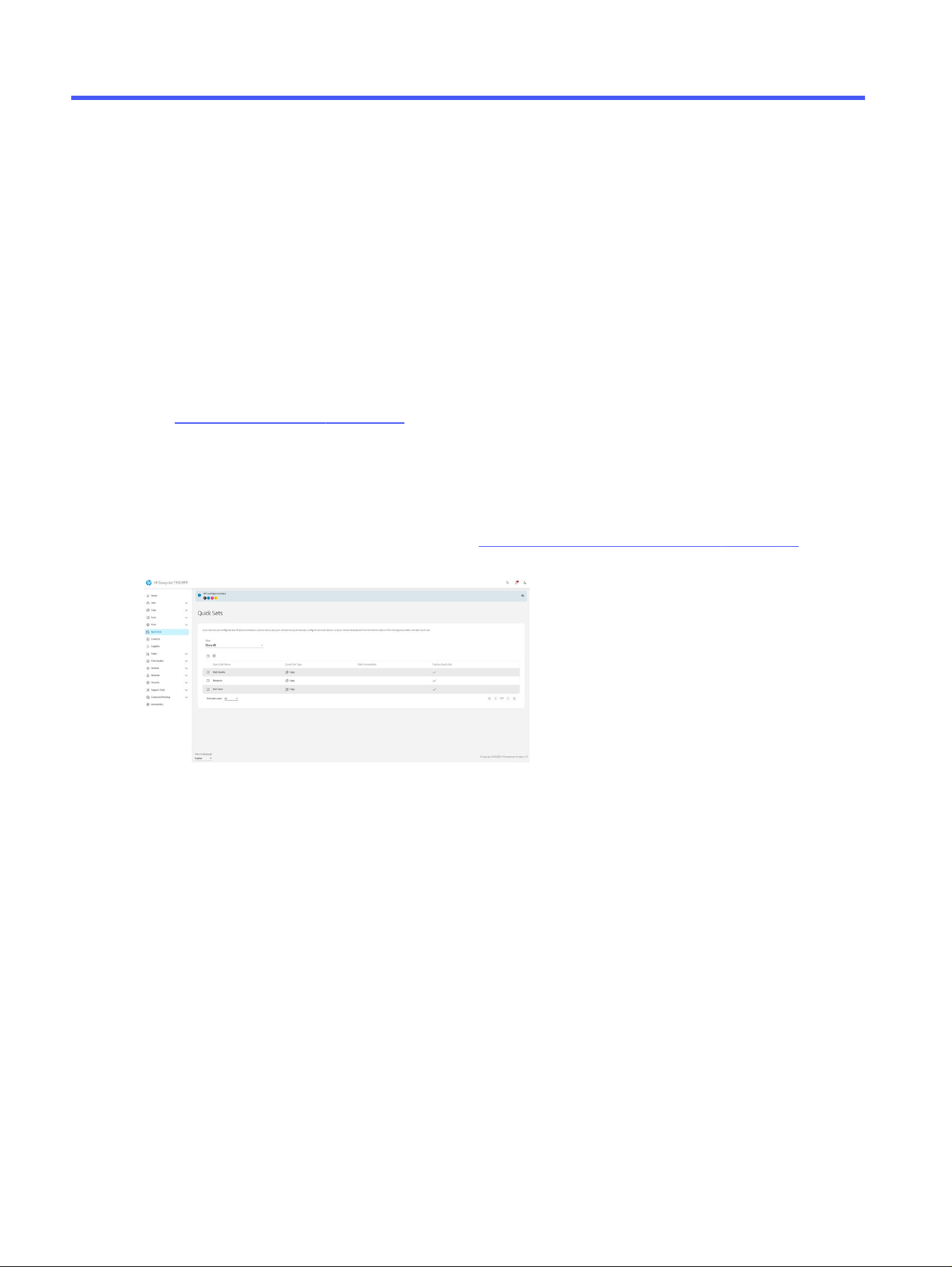

Creating and using firewall rules
Control IP traffic and allow or drop IP traffic based on IP addresses and services.
Enter up to ten rules, each rule specifying the host addresses, services, and the action to take for those
addresses and services.
Create a firewall rule
Set up a new rule from the Embedded Web Server.
1. Open the Embedded Web Server.
2. Tap the Network tab, then Network Security > Firewall.
3. Select Enable Firewall.
4. Tap the Add icon , and then follow the onscreen instructions.
NOTE: After you tap Apply, the connection to the Embedded Web Server might be temporarily
disrupted for a short period of time. If the IP address was unchanged, the Embedded Web Server
connection will be enabled again. However, if the IP address was changed, use the new IP address to
open the Embedded Web Server.
Change the priority of firewall rules
You can move a rule up or down to select the priority from the Rule Precedence list.
1. Open the Embedded Web Server.
20
Chapter 3 Setting up the printer
2. Tap the Network tab, then Network Security > Firewall.
3. Select the priority by selecting a rule and moving up and down using the arrows.
4. Tap Apply.
Change firewall options
Options can always be edited at a later date.
1. Open the Embedded Web Server.
2. Tap the Network tab, then Network Security > Firewall.
3. Change whatever options you wish, then tap Apply.
NOTE: After you tap Apply, the connection to the Embedded Web Server might be temporarily
disrupted for a short period of time. If the IP address was unchanged, the Embedded Web Server
connection will be enabled again. However, if the IP address was changed, use the new IP address to
open the Embedded Web Server.
Reset firewall settings
Restore the printer’s network settings to reset to factory defaults.
Limitations to rules, templates, and services
There is a limit per item that can be created and stored at any one time.
Table 3-1
Limitations per item
Item Limit
Maximum number of rules 10 (one default rule)
Maximum number of address templates 12
Maximum number of user-defined address templates 5
Maximum number of services you can add to a user-defined service template
NOTE: The predefined All Services template is not subject to this limitation and includes all
services supported by the print server.
40
Maximum number of services you can add to the policy
NOTE: For a given rule, only one address template and one service template can be added.
40
Maximum number of service templates in the policy 10
Maximum number of user-defined custom service templates 5
Reset network settings
The network settings can be reset or restored to default.
Go to the control panel and tap the Menu icon , then Settings , then Network, then Restore
network settings.
Change firewall options
21
Alternatively, tap the Menu icon , then Tools > Maintenance > Restore settings > Restore
network settings.
NOTE: Print the network configuration page and check that the network settings have been reset.
NOTE: Resetting the printer’s network settings also resets the printer’s firewall settings.
22 Chapter 3 Setting up the printer

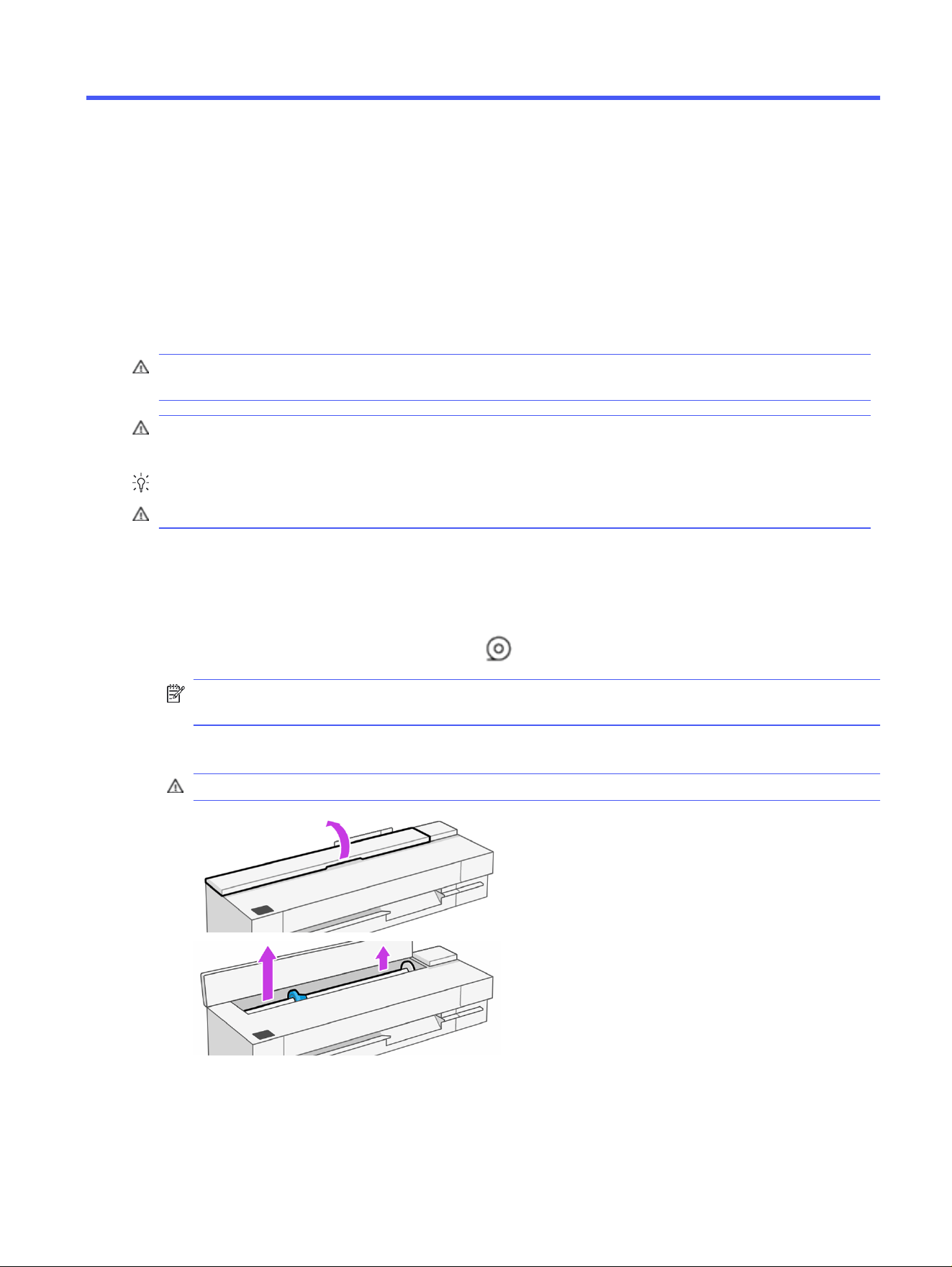

Paper handling4
To print you can load rolls, single sheets, or use the tray.
General paper-loading advice
You can load paper into the printer in three different ways: from a roll, as a single sheet, or as a stack of
single sheets from the tray. Switching from one to another is automatic.

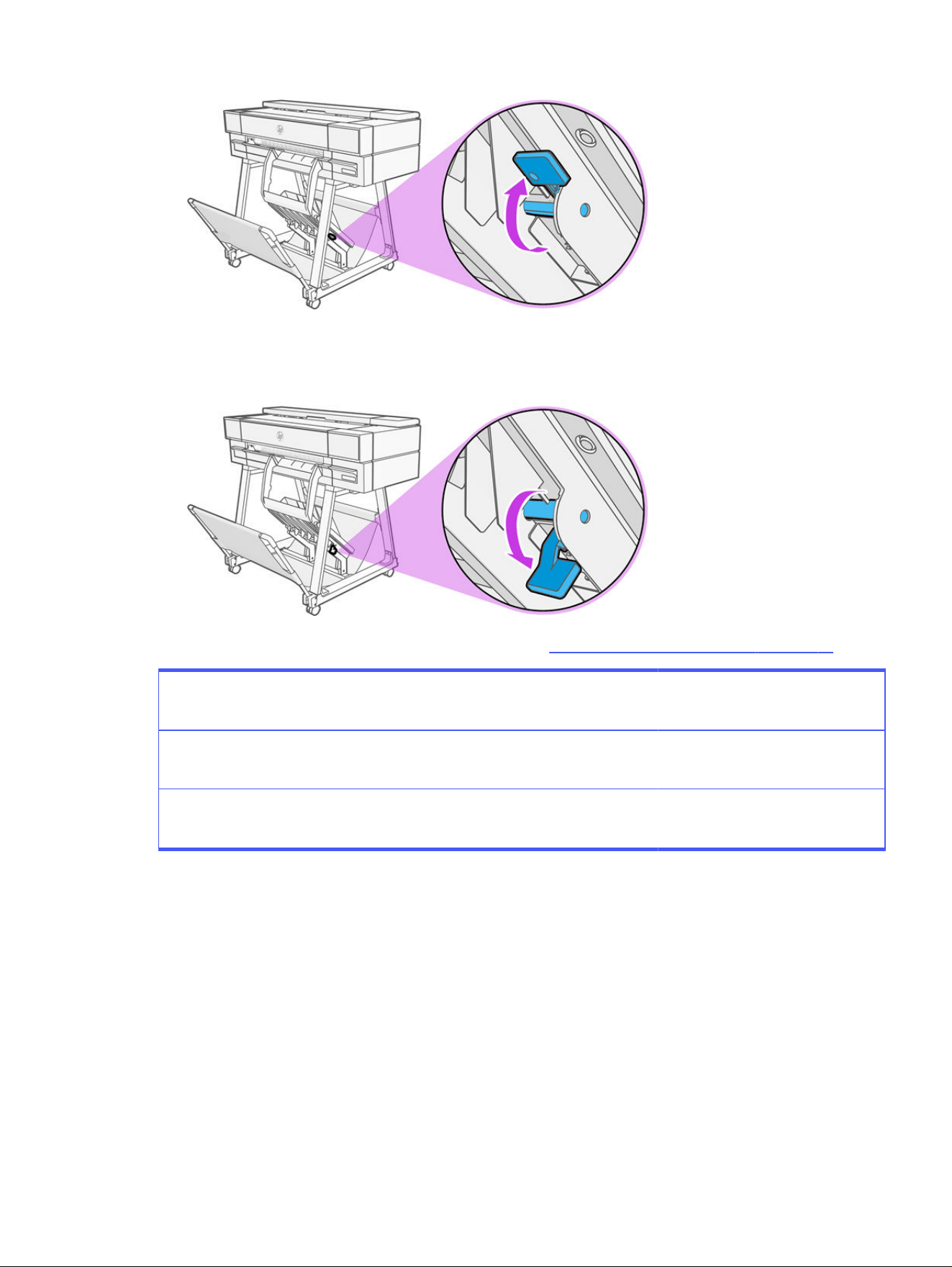

CAUTION: If your model has a stand, make sure the printer wheels are locked (the brake lever is
pressed down) to prevent the printer from moving the automatic switch between the roll and tray.
CAUTION: All roll paper must be 368.3 mm (14.5 in) or wider. A4 and letter paper should not be loaded
in landscape orientation in the tray.
TIP: For photo paper wear cotton gloves to avoid transferring oils onto the paper.
CAUTION: Keep the bin closed throughout the loading process.
Load a roll onto the spindle
Rolls of different widths can be loaded onto the printer.
1. From the control panel, tap the Paper icon , then select the roll, then tap the Load button.
NOTE: This step is optional: when you start to feed roll paper into the printer, it automatically
recognizes if you are loading a roll or a single sheet.
2. Remove the spindle from the printer.
WARNING! Do not insert your fingers into the spindle supports during the removal process.
Paper handling
23
3. The spindle has a stop at each end to keep the roll in position. The blue stop can be removed to
mount a new roll; it slides along the spindle to hold rolls of different widths. Remove the blue paper
stop from the end of the spindle.
4. If the roll is long, rest the spindle horizontally on a table and load the roll on the table.
5. Slide the new roll onto the spindle. Make sure the paper type is oriented as shown. If it is not,
remove the roll, turn it 180 degrees and slide it back on to the spindle. There are labels on the
spindle showing the correct orientation.
6. Looking from the front of the printer, put the blue paper stop on to the open end (left side) of the
spindle, and push into the end of the roll.
7. Ensure the blue paper stop is pushed in as far as it goes.
NOTE: Check that there is no space between the roll and the stops at both ends.
TIP: If you are a regular user of different paper types, you can change rolls more quickly if you preload
rolls of different paper types on different spindles. Extra spindles are available for purchase, see
Accessories on page 71.
24
Chapter 4 Paper handling
Load a roll into the printer
Before you start this procedure, you must have a roll loaded on the spindle.
See Load a roll onto the spindle on page 23.
1. Insert the spindle into the printer, holding it by both ends. The blue hub should be on the left, as
viewed from the control of the printer.
2. If the edge of the roll is not straight or torn (sometimes due to tape used to hold end of the roll), pull
the paper slightly and cut a straight edge.
3. Insert the edge of the paper into the printer.
WARNING! Do not push your fingers inside the printer's paper path.
4. Roll the paper into the printer until you feel resistance and the paper flexes slightly. When the
printer detects the paper, it beeps, and feeds in the paper automatically.

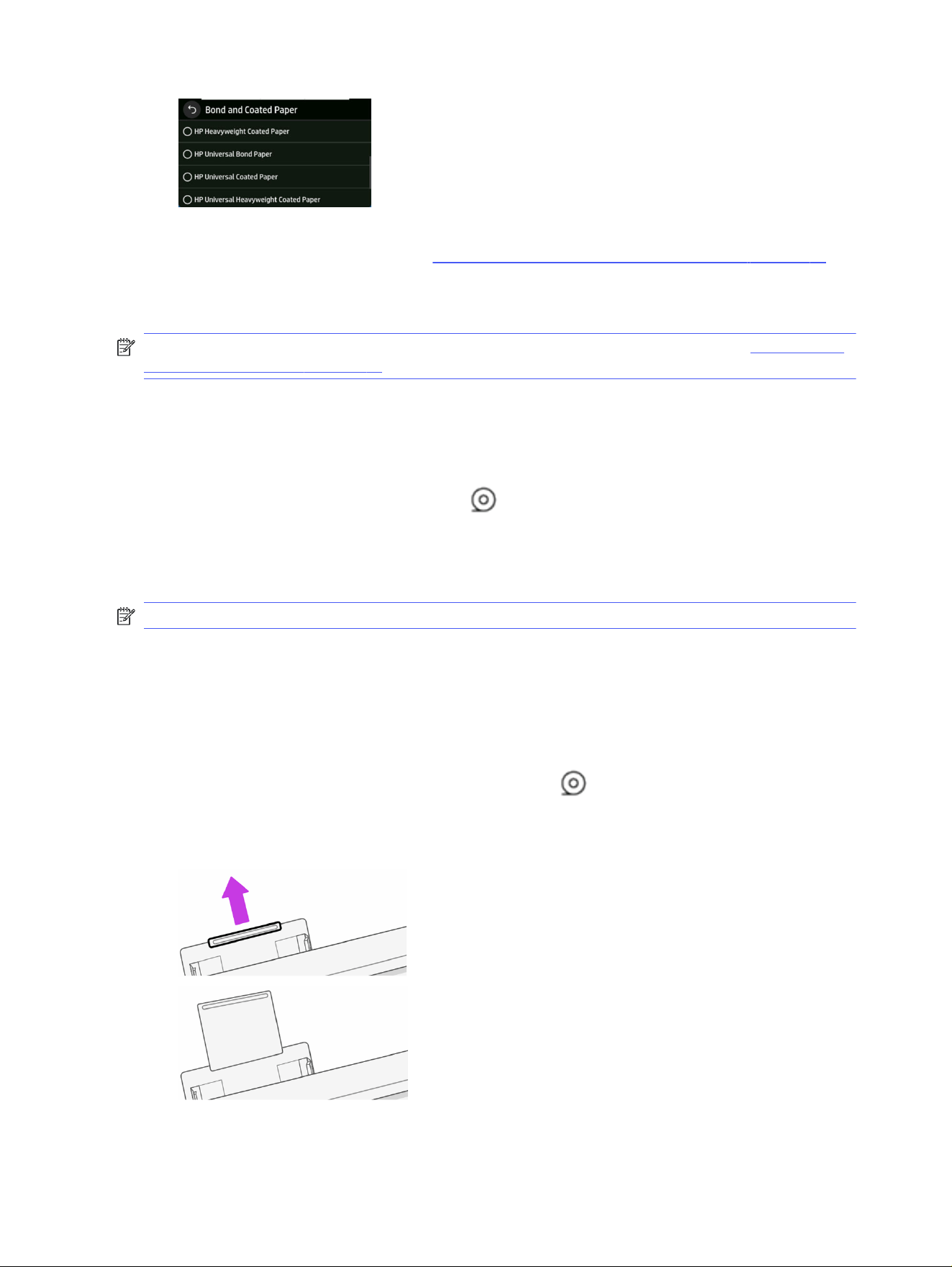

5. The control panel prompts you to select the paper category and type. To select the paper type, click
on the type and the different paper categories are shown
Plain paper was the last to be loaded.
Load a roll into the printer
25
If you do not see your paper type in the control panel, tap More paper types. If you still cannot find
your paper type in the whole list, see Paper type is not in the driver or control panel on page 76.
6. The printer checks the alignment and measures the width. If the roll is not correctly aligned, follow
the instructions on the control-panel display.
NOTE: If you have an unexpected issue at any stage of the paper loading process, see Paper cannot
be loaded successfully on page 74.
Unload a roll
If there is paper on the roll, you can unload it from the control panel.
1. From the control panel, tap the Paper icon , then select the roll, then tap the Unload button, then
Unload roll. Afterwards, the tray will become the default active paper source.
2. If the end of the paper is no longer attached to the core, the control panel asks you to unload the roll
manually.
NOTE: If you don't load a new roll, or if a roll is unloaded; the tray is the default active paper source.
Use the tray
Load multiple sheets and ease single sheet printing.
1. If no roll is loaded or the roll has run out of paper, the tray is active by default.
Alternatively, from the control panel, tap the Paper icon , then select Tray.
2. Adjust the input tray extensions depending on the length of the paper: the first extension for A4 and
the second extension for A3 paper.
26
Chapter 4 Paper handling

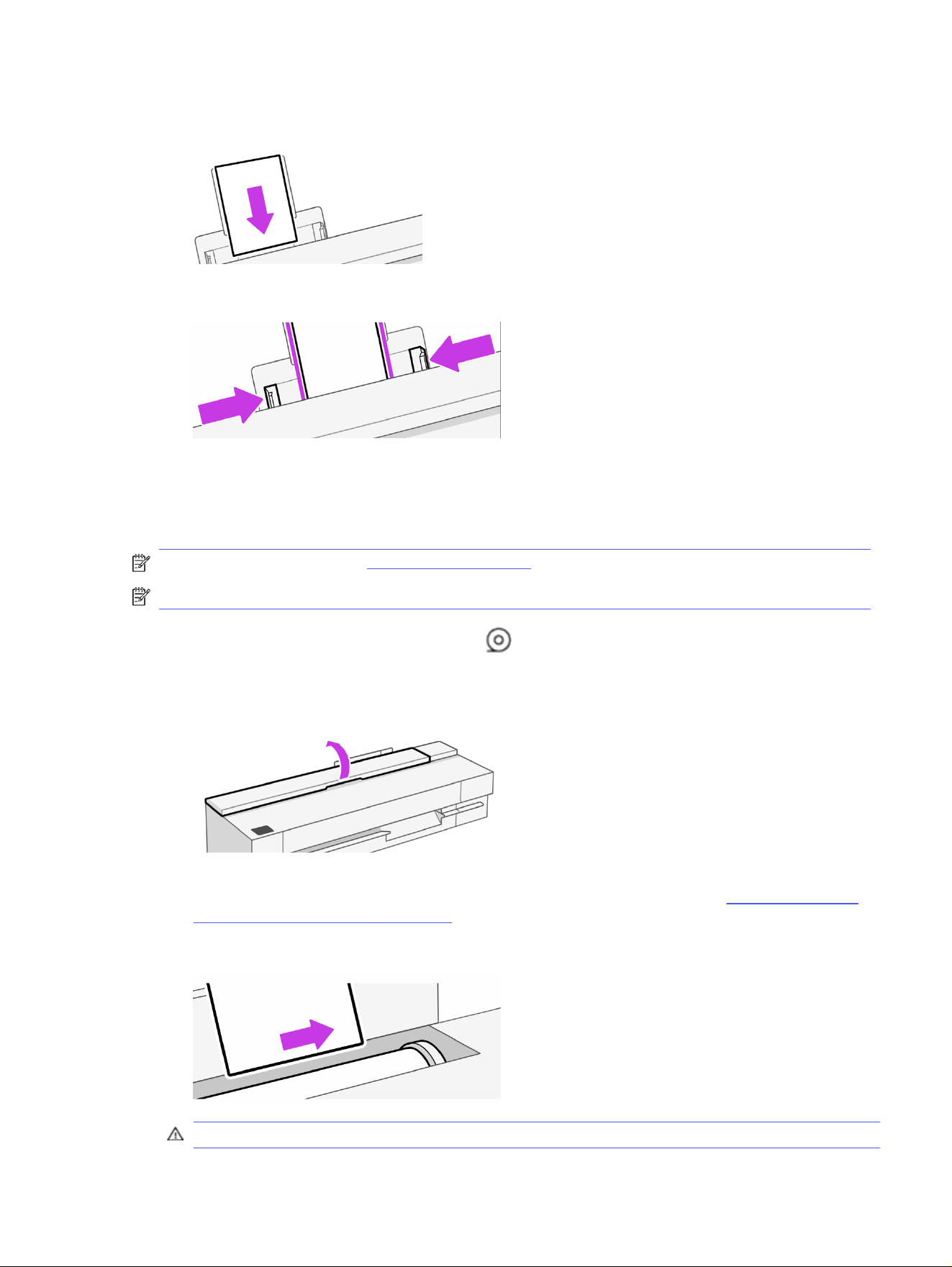

3. Load sheets of paper into the tray with the printed side facing outwards. Ensure that the sheets are
all of the same size.
4. Adjust the tray to fit the width of the paper.
Load a single sheet
Roll paper and single sheets use the same input slot in the printer.
NOTE: If you have a tray see Use the tray on page 26.
NOTE: Sheets of width 329 mm (12.95 in) or less should be loaded from the tray.
1. From the control panel, tap the Paper icon , then select Sheet, then tap the Load button.
2. If a roll is already loaded, you have to wait while it is automatically unloaded.
3. Open the roll cover.
4. Select your paper category and type. If you do not see your paper type in the control panel, tap
More paper types. If you still cannot find your paper type in the whole list, see Paper type is not in
the driver or control panel on page 76.
5. When prompted by the control panel, insert the sheet into the right-hand side of the input slot.
WARNING! Do not push your fingers inside the printer's paper path.
Load a single sheet
27

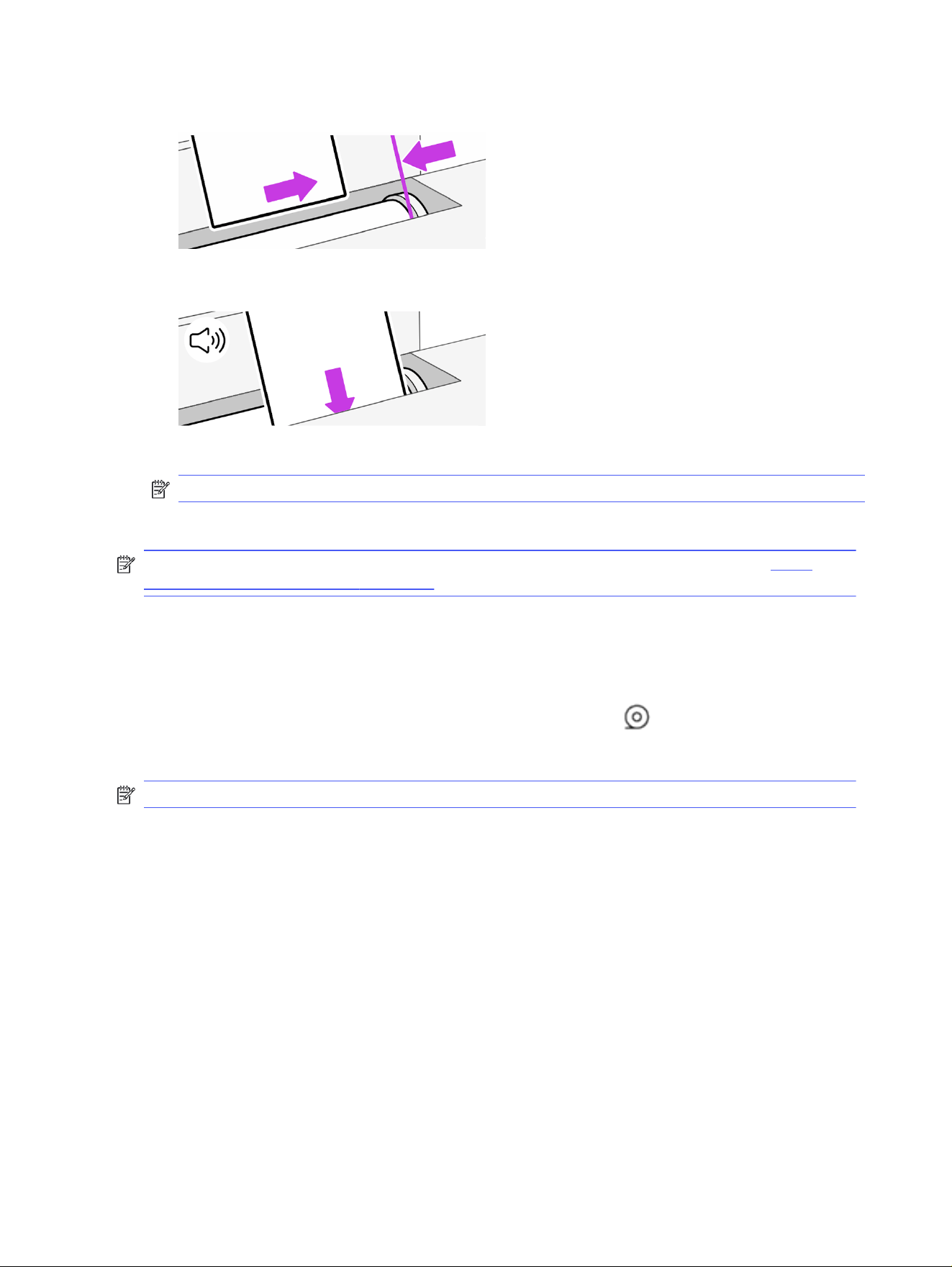

6. Align the sheet with the line.
7. Guide the sheet into the printer; this is especially important with thicker papers.
8. The printer checks the alignment and measures the sheet.
NOTE: Depending on the width of the sheet, it feeds out the front of the printer.
9. If the sheet is not correctly aligned, you may be asked to reload it.
NOTE: If you have an unexpected problem at any stage of the paper loading process, see Paper
cannot be loaded successfully on page 74.
Unload a single sheet
Sheets are unloaded from the front of the printer.
1. To unload a sheet, go to the control panel and tap the Paper icon , then Sheet loaded > Unload.
2. Either catch the sheet manually or allow it to fall into the bin.
NOTE: If you don't load a new sheet, the tray is the default active paper source.
Use the sheet organizer accessory
The sheet organizer has two configurations for collecting printed cut-sheets: A4 or A3 (ANSI A or ANSI
B) (default). You can use either configuration, but must ensure it matches the substrate size to prevent
collection issues.
The sheet organizer can collect up to 50 sheets of plain documents or up to 10 sheets of non-plain
documents. In A3 (ANSI B) configuration, the sheet organizer can hold printed documents up to a length
of 432 mm (17 in).
● For A3 and ANSI B size cut-sheet collection: The length adjuster needs to be in the up position which
is parallel to the tray. The length-adjuster lever is found on the right side of the tray.
28
Chapter 4 Paper handling
● For A4 and ANSI A size cut-sheet collection: The length adjuster needs to be in the down position
which is perpendicular to the tray. Rotate the lever counter clockwise until it snaps into the down
position.
For any issues, refer to the troubleshooting chapter. See Troubleshooting paper issues on page 74.
Sheet organizer configuration
297 mm (11.7 in) ≤ Plot length ≤ 420 mm (16.5 in)
A3/ANSI B size or longer
Plot length ≤ 297 mm (11.7 in)
A4/ANSI A size or smaller
A3/ANSI B 50 (plain paper)
10 (other paper)
A4/ANSI A 50 (plain paper)
10 (other paper)
View information about the paper
Tap the icon of the active paper source.
The following information is displayed on the control panel:
● Paper type you have selected
● Roll or sheet status
● Width of the paper
If no tray, roll, or single-sheet paper is loaded, the message Out of paper is displayed.
View information about the paper
29
Maintain paper
Always protect your paper and sheets to print at the highest quality.
● Store rolls covered by another piece of paper or cloth
● Store cut sheets covered and clean or brush them before loading them in the printer
● Clean input and output platens
● Always keep the top cover of your printer closed
NOTE: Photo and coated paper requires careful handling, see Print is scuffed or scratched on page
90.
Change the drying time
You may wish to change the drying time setting to suit special printing conditions such as multiple prints
where time is of higher importance or when you need to be sure ink is dry before handling.
Tap the Menu icon , then Settings , then General > Extra Dry Time. You can select:
● Extended, to set a longer than recommended time to ensure ink is completely dry
● Optimal, to set the default and recommended time for your selected paper (this is the default
setting)
● Off, to disable the drying time and remove your print as soon as it finishes printing
CAUTION: If the ink is not dry when the print is removed it could leave ink in the output tray and marks
on the print.
NOTE: If you cancel the drying time during a print, the printer may not feed and cut the paper right
away due to the printhead maintenance, which runs in parallel. If the dry time is zero, the printer cuts
the paper and then performs the printhead maintenance. However, if the dry time is greater than zero,
the printer does not cut the paper until after the printhead maintenance has completed.
Turn the automatic cutter on and off
You can change the cutter option to suit your requirements for each print job.
To turn the printer's paper cutter on or off, go to the control panel and tap the Menu icon , then
Settings , then Output destination > Horizontal cutter.
30
Chapter 4 Paper handling
The default setting is On.
NOTE: If the cutter is turned off, it will not cut the paper between jobs, but it will continue to cut the
paper on loading and unloading rolls.
TIP: To cut roll paper while the automatic cutter is disabled, see Advance button and cut button on
page 32.

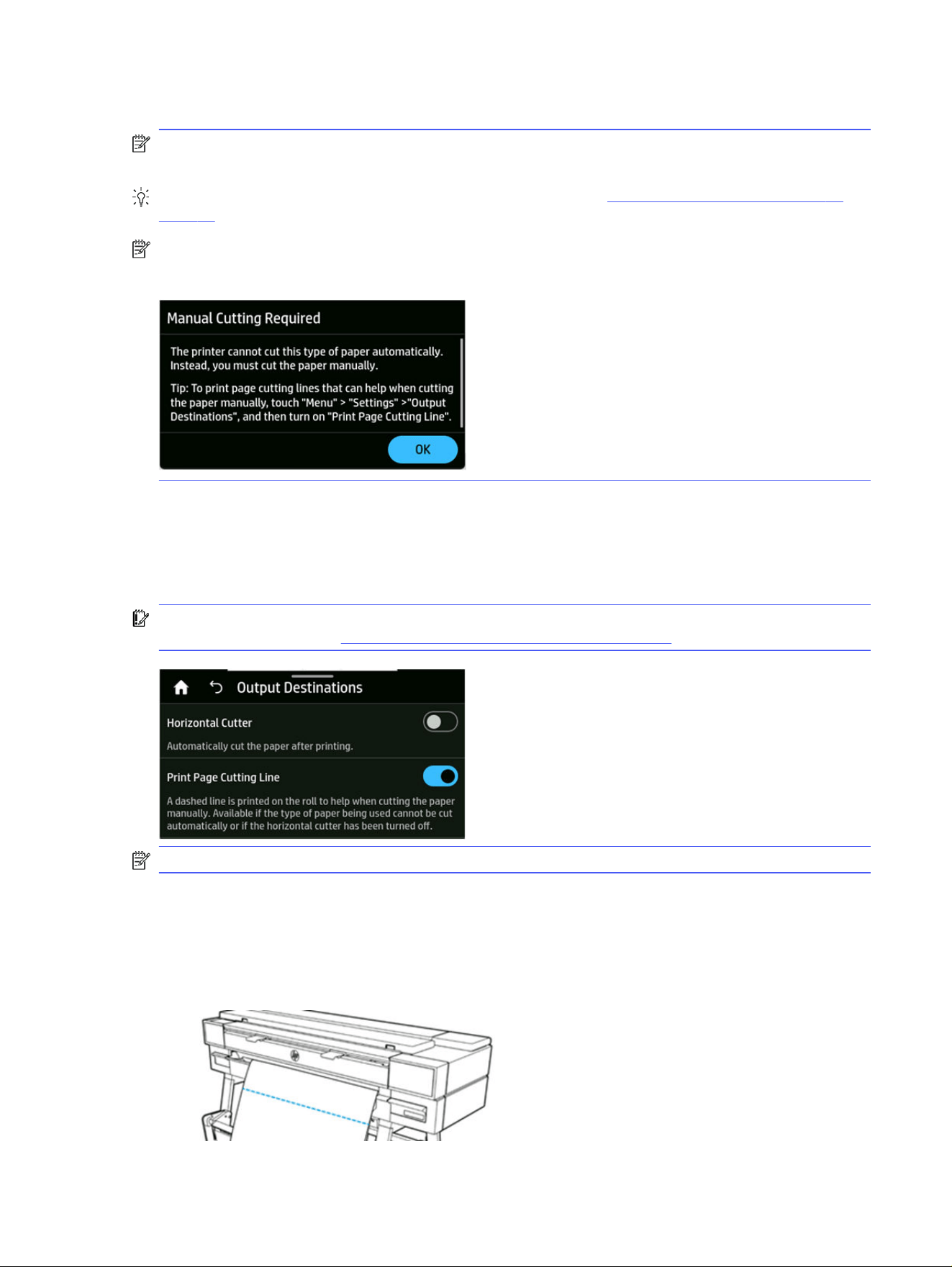

NOTE: If you load the non-cuttable paper type, printer shows this screen while the paper loading
process and disables the automatic cutter. Users cannot use the automatic cutter with these paper
types.

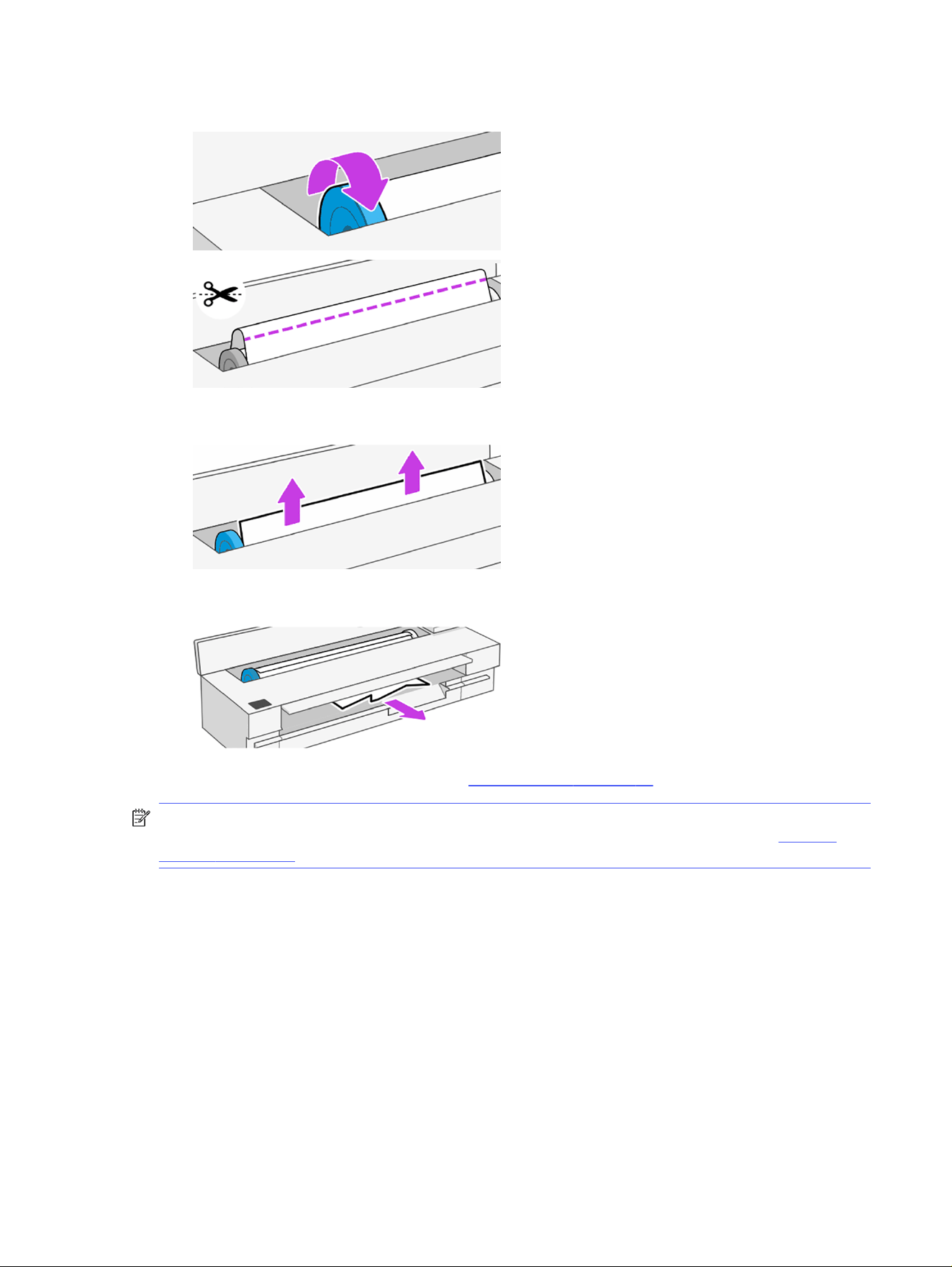

Draw the cutting line when automatic cutter is disabled
Printer can automatically draw a horizontal dashed line right after the end of the job. After printing, you
can cut the roll along this cut line with scissors.
IMPORTANT: To enable this feature, ensure you turned off “Horizontal Cutter” or selected the non-
cuttable paper types. See Turn the automatic cutter on and off on page 30 for more information.
NOTE: This feature is only supported for roll paper. It does nott apply to internal prints or reports.
1. To turn the feature on, go to the control panel, tap the Menu icon, then Settings, then Output
Destination > Print Page Cutting Line.
2. Print a job.
3. Once it finishes printing a job, it prints a cut line right after the end of the job.
Draw the cutting line when automatic cutter is disabled
31
4. It shows this screen. Cut the roll with scissors and tap the Done button.
5. It rewinds the excess roll back to the home position and gets ready for the next job.
Advance button and cut button
You can advance the paper with, or without cutting it.
From the control panel, tap Paper > Roll, then tap the Advance and Cut icon
The Advance option advances the paper without cutting it. Cut advances the paper and makes a
straight cut across the front edge. There are at least two possible reasons why you might want to do this:
● To trim the leading edge of the paper if it is damaged or not straight.
● To advance and cut the paper when the automatic cutter has been disabled.
CAUTION: Remove the cut piece from the output platen. If strips or short prints are left on the output
platen, the printer could jam. Check also that there are no pieces of paper in the cutter guide.
NOTE: Photo and coated paper requires careful handling, see Print is scuffed or scratched on page
90.
32
Chapter 4 Paper handling
Printing5
Printing has never been easier or more flexible. Print from computers and mobile devices with the use of
a variety software, customizable options and advanced settings.
Easy printing with HP Click
HP Click is an easy-to-use software tool designed for people who want a simple way of printing on large
format printers.
It provides several benefits to simplify the print experience, such as nesting, batch printing and real print
preview. In combination with the cut sheet tray, you can send to print multi-sized documents all at once.
Ideal for a broad range of graphics and technical applications, including posters, roll-up banners,
info-graphic presentations, maps, and CAD documents. See the HP website at the following link:
http://www.hp.com/go/clickDesignJet.
Printing from an application using a printer driver
This is the traditional way of printing from an application.
The correct printer driver must be installed on the computer, and the computer must be connected to
the printer by network.
When the printer driver has been installed and the computer is connected to the printer, you can print
from a software application by using the application's own Print command and selecting the correct
printer.
Advanced print settings
Advanced print settings can be used when the defaults do not meet your requirements.
The rest of this chapter explains the various print settings that you can use. These methods offer a
relatively large number of settings in order to satisfy all requirements.
TIP: In general you are recommended to use the default settings unless you know that they do not
meet your requirements.
TIP: If you intend to reuse a particular group of settings repeatedly, you can save those settings under
a name of your own choice and recall them later. A saved group of settings is known as a 'quick set' in
the Windows printer driver.
Select print quality
The printer has various print-quality options because best-quality printing requires some loss of speed,
while fast printing implies some reduction in print quality.
You can select the options: Best, Normal and Fast. If you select Fast, you can also select Economode,
which consumes less ink, increases printing speed even further, but reduces print quality. Economode
can only be selected from the advanced options.
Printing
33
There are supplementary custom options that may have an effect on print quality: Maximum detail. See
High-quality printing on page 37.
You can select print-quality options in the following ways:
● In the Windows drivers dialog: Go to Basic>Print quality.
● In the macOS Print dialog: go to the Paper/Quality panel and look at the Quality Options section. If
you select Standard quality options, you will see a simple slider with which you can select speed or
quality. If you select Custom quality options, you will see the more specific options described above.
NOTE: If the print quality is set from your computer, it overrides the print-quality setting in the control
panel.
NOTE: You cannot change the print quality of pages that the printer is already receiving or has
already received (even if they have not started to print yet).
Select paper size
The paper size can be specified and the document can be rescaled if necessary.
NOTE: The paper size specified should be the paper size the document was created at. It is possible
to rescale the document to a different size for printing. See Rescale a print on page 36.
● In the Windows driver dialog: Go to Basic > Document size and select the paper size from the list.
● In the macOS Print dialog: Select your printer from the Printer list, then select your paper size from
the Paper Size list.
NOTE: If your application offers no Page Setup dialog, use the Print dialog.
NOTE: If the paper size is set from your computer, it overrides the paper size setting in the control
panel.
Custom paper sizes
If you want to choose a paper size that is not included in the list of standard paper sizes, there are
various different ways to specify it.
Use the Windows printer driver
You can create and save custom paper sizes to suit your requirements.
1. Go to Basic> Document size.
2. Open the drop-down list and scroll down to the (+)Create section.
3. Enter the name, units, and size of the new paper custom size.
4. Tap the Ok button.
Custom paper sizes created with the printer driver have the following characteristics:
● The paper size is permanent and does not disappear if the driver is closed or the computer is
turned off.
● The paper size is local to the printer queue and not seen from other printer queues in the same
computer.
34
Chapter 5 Printing
● In Domain server networks, the paper size is local to the computer and not seen from other
computers sharing the printer queue.
● In Workgroup networks, the paper size is shared among all the computers that share the printer
queue.
● If the printer queue is deleted, the paper size is deleted with it.
Use Windows forms
Unrestricted users can create a new Windows form.
1. From the Start menu or the control panel, tap Printers > File, and select Server Properties.
2. In the Forms tab, check the Create a new form box.
3. Enter the name and dimensions of the new paper size. Leave the margins as 0.00.
4. Tap the Save form button.
5. Go to the printer driver and select the document size.
6. Select your new paper size from the group of Custom sizes.
Paper sizes created with Windows forms have the following characteristics:
● The paper size is permanent and does not disappear if the driver is closed or the computer is
turned off.
● Restricted users cannot create paper forms. The manage documents role in the Windows Active
Directory is the minimum required.
● The paper size is local to the computer and is seen in all the printer queues created on the computer
that support paper that size.
● If a printer queue is shared, this paper size appears in all the client's computers.
● If a printer queue is shared from another computer, this paper size doesn't appear on the driver´s
document size list. A Windows form in a shared queue must be created in the server.
● If the printer queue is deleted, the paper size does not disappear.
Use macOS printer driver
You can manage paper customs sizes from the driver.
1. Go to the Print dialog.
2. Select Paper Size>Manage Custom Sizes.
Select margins options
By default, the printer leaves a 5 mm (0.2 in) margin between the edges of your image and the edges of
the paper. However, you can change this behavior in the following way:
● In the Windows driver dialog: Go to Basic > Margin Layout.
● In the macOS Print dialog: Select the Margins/Layout panel.
Use Windows forms
35
At least some of the following options appear:
● Standard or Use application settings. Your image will be printed on a page of the size you have
selected, with the default margin between the edges of the image and the edges of the paper. The
image should be small enough to fit between the margins.
● Oversize. You should load paper that is larger than the size you selected in the application or driver.
If you cut off the margins after printing, you will be left with a page of the size you selected, with no
margins remaining between your image and the edges of the paper. This is useful when you want
your image to cover the whole area of the paper.
● Clip Contents By Margins. Your image will be printed on a page of the size you have selected, with
the default margin between the edges of the image and the edges of the paper. In this case, if the
image is the same size as the page, the printer assumes that the extreme edges of the image are
either white or unimportant, and do not need to be printed. This may be useful when your image
already contains a border.
Print on loaded paper
You can print a job on whichever substrate is loaded in the printer.
● In the Windows driver dialog: Select Use printer settings in the Paper Type option of your printer
driver.
● In the macOS Print dialog: Select the Paper/Quality panel, then in the Paper Type drop-down list,
select Any.
NOTE: Use printer settings is the default Paper Type selection.
Rescale a print
You can send an image to the printer at a certain size but tell the printer to rescale it to a different size
(normally larger).
This may be useful:
● If your software does not support large formats
● If your file is too large for the printer’s memory; in which case you can reduce the paper size in your
software and then scale it up again using the control-panel option
You can rescale an image in the following ways:
● You can rescale an image from the Windows driver dialog: Go to the Advanced > Scale.
● By selecting a paper size, the image size is adjusted to the paper size you have selected. For
example, if you have selected ISO A2 and you print an A3-sized image, it is enlarged to fit the A2
paper. If the ISO A4 size is selected, the printer reduces a larger image to fit the A4 size.
● The percentage of actual size option enlarges the printable area of the original paper size by the
percentage indicated, and then adds the margins to create the output paper size.
● In the macOS Print dialog: Select the Paper Handling panel, then Scale to fit paper size, and select
the paper size to which you want to scale the image. If you want to increase the size of the image,
make sure that the Scale down only box is unchecked.
If you are printing to a single sheet, you must ensure that the image fits onto the sheet, if not the image
will be clipped.
36
Chapter 5 Printing
Print a draft
You can specify this to save time and cost.
● In the Windows driver dialog: Go to Print quality and select Fast.
You can specify even faster draft-quality printing by using Economode, as follows. This is intended mainly
for documents containing only text and line drawings:
● In the Windows driver dialog: Go to Advanced > Color and quality and check Economode.
● In the macOS Print dialog: Go to the Paper/Quality panel and move the print-quality slider to the
extreme left (Speed).
High-quality printing
For unrivaled print quality.
● In the Windows driver dialog: Go to Print quality and select Best.
● In the macOS Print dialog: Go to the Paper/Quality panel and move the print-quality slider to the
extreme right (Quality).
If you have a high-resolution image
You can improve print sharpness when using glossy paper.
If your image has a resolution greater than the rendering resolution (which you can see in the Custom
Print Quality Options), print sharpness may be improved by selecting the Maximum Detail option.
This option is available only if you are printing on photo paper.
NOTE: The Maximum Detail option results in slower printing with photo papers, but it does not
increase the amount of ink used.
Use paper economically
You may be able to save some of your roll paper by removing blank areas and/or by image rotation.
● In the Windows driver dialog: Go to Advanced > Output>Remove blank areas and enable the setting.
You can also select one of the Rotation options.
● In the macOS Print dialog: Go to Finishing panel > Remove Blank Areas.
Use ink economically
There are some recommendations you can follow to save ink.
● For draft prints use plain paper, set Print quality to Economode.
● Clean the printhead only when needed. Cleaning the printhead can be useful, but it uses a small
amount of ink.
● Wide prints make more efficient use of ink than narrow prints, because printhead maintenance uses
some ink, and its frequency is related to the number of passes made by the printhead.
Printing in grayscale or black-and-white
There are a number of ways to convert all the colors in your image to shades of gray.
Print a draft
37
● In your application program: Many applications provide this option.
● In the Windows driver dialog: Go to Basic > Color mode and tap Grayscale. Only black ink is used
to print, except if the paper loaded is glossy, in which case colored inks are used to compose the
gray shades. You can also select Pure black and white for black and white output only, with no gray
shades. In this case only black ink is used to print. The Pure black and white option is not supported
when you print on glossy paper.
● In the macOS Print dialog: Go to the Color Options panel and from the Mode drop-down list, select
Grayscale. Only black ink is used for printing, unless the paper loaded is glossy, in which case the
other inks are used to compose gray shades. You can also select Pure black and white for black and
white output only, with no gray shades. In this case, only black ink is used for printing. The Print in
pure black and white option is not supported when printing on glossy paper.
Print from USB flash drive
Print an image on a USB flash drive directly to the printer using the control panel.
1. Insert the USB flash drive containing the image or images that you want to print into the printer's
USB port.
2. From the control-panel home screen, tap the Print icon .
3. Tap Print from USB.
4. Select the file to print.
5. Tap USB settings at the bottom right to select the print settings for the job. The printing parameters
for the task include the number of copies, color options, print quality, output size, paper source, and
print margins.
6. Tap Print to print the job.
Print using Wi-Fi Direct
With Wi-Fi Direct, you can print wirelessly from a computer, smart phone, tablet, or other wireless-
capable device—without connecting to an existing wireless network.
Guidelines for using Wi-Fi Direct
There are essential prerequisites to using Wi-Fi Direct.
● Make sure your computer or mobile device has the necessary software.
● If you are using a computer, make sure you have installed the HP printer software.
● If you have not installed the HP printer software on the computer, connect to Wi-Fi Direct first
and then install the printer software. Select Wireless when prompted by the printer software for
a connection type.
● If you are using a mobile device, make sure you have installed a compatible printing app. For more
information, visit the HP Mobile Printing website at http://www.hp.com/go/mobileprinting. If a local
version of this website is not available in your country/region or language, you might be directed to
the HP Mobile Printing website in another country/region or language.
● Make sure Wi-Fi Direct for your printer is turned on.
38
Chapter 5 Printing
● Up to five computers and mobile devices can use the same Wi-Fi Direct connection.
● Wi-Fi Direct can be used while the printer is also connected to a network using a wireless
connection.
● Wi-Fi Direct cannot be used to connect a computer, mobile device, or printer to the Internet.
Turn on Wi-Fi Direct
You can turn on Wi-Fi Direct directly from the control panel, or alternatively from the EWS.
1. From the printer control panel, tap Menu > Settings > Network > Wi-Fi Direct.
2. If the display shows that Wi-Fi Direct is Off, tap Wi-Fi Direct and then switch it on.
3. You can also turn on Wi-Fi Direct from the Embedded Web Server. For more information about using
the Embedded Web Server, see Access the Embedded Web Server on page 15.
Change connection method
You can change the Wi-Fi Direct connection method, and choose between automatic and manual.
1. From the printer control panel, tap Menu > Settings > Network > Wi-Fi Direct.
2. Tap Connection Method and then select Automatic or Manual:
a. If Automatic was selected during Wi-Fi Direct setup on the printer, the mobile device
automatically connects to the printer.
b. If Manual was selected during the Wi-Fi Direct setup on the printer, acknowledge the
connection on the printer display or enter the printer PIN on your mobile device. The PIN
is provided by the printer when a connection attempt is made.
Print from a wireless-capable mobile device that supports Wi-Fi Direct
Make sure you have installed the latest version of HP Print Service Plugin on your mobile device.
NOTE: If your mobile device does not support Wi-Fi, you cannot use Wi-Fi Direct.
1. Make sure you have turned on Wi-Fi Direct on the printer.
2. Turn on Wi-Fi Direct on your mobile device. For more information, see the documentation provided
with the mobile device.
3. From your mobile device, select a document from a print enabled application, and then select the
option to print the document.
The list of available printers appears.
4. From the list of available printers, choose the Wi-Fi Direct name shown such as DIRECT-**-HP
DesignJet T870 Printer series (where ** are the unique characters to identify your printer), and then
follow the onscreen instructions on the printer and your mobile device.
5. Print your document.
Turn on Wi-Fi Direct
39
Print from a wireless-capable mobile device that does not support Wi-Fi Direct
Make sure you have installed a compatible printing app on your mobile device.
1. Make sure you have turned on Wi-Fi Direct on the printer.
2. Turn on the Wi-Fi connection on your mobile device. For more information, see the documentation
provided with the mobile device.
NOTE: If your mobile device does not support Wi-Fi, you cannot use Wi-Fi Direct.
3. From the mobile device, connect to a new network. Use the process you normally use to connect to
a new wireless network or hotspot. Choose the Wi-Fi Direct name from the list of wireless networks
shown such as DIRECT-**-HP DesignJet T870 Printer series (where ** are the unique characters to
identify your printer).
4. Enter the Wi-Fi Direct password when prompted.
5. Print your document.
Mobile printing
This sections gives more information on printing from a mobile.
Introduction
The main method of Mobile Printing is: Direct printing by connection to the same network.
You printer can be connected to the HP Cloud, providing various benefits, like Print Anywhere or Private
Pickup. See Choose which connection method to use on page 11 for more information.
See the HP website at the following link: http://www.hp.com/go/designjetmobility for more detailed
information.
IMPORTANT: The printer must be connected to a network with Internet access: connect an Ethernet
cable.
IMPORTANT: In order to print/scan from mobile devices, Bonjour, IPP/IPPS must be enabled in the
Embedded Web Server (Network > Advanced Settings).
Print from Android
You can add and manage your device´s print services from your Android Settings: Settings >
Connected Devices > Connection Preferences > Printing (exact location may vary depending on Android
OS version).
NOTE: Printing is only available from applications that offer printing or sharing.
Print using the HP app
Stay productive and organized with the HP app. Print documents and photos, via email or messaging
apps, and check the status and ink levels of your printer.
You must have Android 10.0 or later.
40
Chapter 5 Printing
To have access to all the HP app's features, connect your printer to HP Cloud and log in using your HP
Credentials.
Make sure your device and printer are operating on the same network and follow the steps below:
To print using the HP app:
1. Open the HP app and select your printer.
2. Select whether you want to print documents or photos from your local device, or link your Google
Drive, Dropbox, or other accounts to access your content.
3. Use the edit options to adjust quality, color, and other settings if you wish to make such adjustments.
4. Tap Print and collect your printed documents.
Print using the Android default print service
You must have Android 12.0 or later.
The Android default print service comes pre-installed on Android devices, but is enabled only if no other
compatible print service is installed, such as the HP Print Service plugin or the Mopria Print Service.
To use the default service, follow the steps below:
1. Open the document or photo you want to print, tap the Menu icon, then tap Print.
2. Choose your printer from the list. Printers discovered by the default print service will appear with a
generic printer logo.
3. Check the print settings, then tap Print.
Print using the Mopria Print Service
You must have Android 5.0 or later.
If it is not already installed on your device, download, install, and enable the Mopria Print Service from
the Google Play store at https://play.google.com/store/apps/details?id=org.mopria.printplugin.
To use Mopria, follow the steps below:
1. Open the document or photo you want to print, tap the Menu icon, then tap Print.
2. Choose your printer from the list. Printers discovered by the Mopria Print Service will appear with
the Mopria Alliance logo.
3. Check the print settings, then tap Print.
Alternatively, for document types PDF, JPEG, and PNG, you can use the Android Share button and select
Mopria from the list of options.
For more information, visit the Mopria website at https://mopria.org/.
Print using the HP Print Service plugin
You must have Android 6.0 or later.
If it is not already installed on your device, download, install, and enable the HP Print Service plugin from
the Google Play store at https://play.google.com/store/apps/details?id=com.hp.android.printservice.
Print using the Android default print service
41
To use the plugin, follow the steps below:
1. Open the document or photo you want to print, tap the Menu icon, then tap Print.
2. Choose your printer from the list. Printers discovered by the HP Print Service plugin will appear with
the HP logo.
3. Check the print settings, then tap Print.
Alternatively, for document types PDF, JPEG, and PNG, you can use the Android Share button and select
the HP Print Service plugin from the list of options.
Print from Apple iOS
NOTE:
Printing is only available from applications that offer printing or sharing.
Print using the HP app
Stay productive and organized with the HP app. Print documents and photos, share scans to
repositories, via email or messaging apps, and check the status and ink levels of your printer.
You must have iOS/iPadOS 15.0 or later.
You can download the HP app from the iTunes website at following link: https://itunes.apple.com/app/
id469284907
To have access to all the HP app's features, connect your printer to HP Cloud and log in using your HP
credentials.
Make sure your device and printer are operating on the same network and follow the steps below:
To print using the HP app:
1. Open the HP app and select your printer.
2. Select whether you want to print documents or photos from your local device, or link your Google
Drive, Dropbox, or other accounts to access your content.
3. Use the edit options to adjust quality, color, and other settings if you wish to make such adjustments.
4. Tap Print and collect your printed documents.
Print using AirPrint
iOS printing is enabled through AirPrint. You must have iOS 7.0 or later.
1. Open the document or photo you want to print and press the Share button.
2. Swipe the screen to reveal the Print button and press it.
3. Check the print settings, then press Print.
Print from Chrome OS
Printing is only available from applications that offer printing or sharing.
42
Chapter 5 Printing
Print using Chrome OS Native Print
With the latest ChromeOS versions, you can use native printing capabilities for basic printing without
having to install additional software.
1. Choose your content. Open the document or photo you want to print, tap the menu icon and select
Print.
2. Choose your printer. Select from the list of printers that appears. Printers discovered by ChromeOS
Native Print will appear with a generic printer logo.
3. Confirm that the correct printer and print settings are selected. Tap Print and collect your printed
documents.
For more information, visit the Google website at the following link:
https://support.google.com/chrome/a/topic/9045842.
Mobile specifications
The HP app requires you to have an Internet connection.
Print functionalities require that the mobile device and printer be on the same network.
NOTE: OS versions supported may vary in the future.
Mobile specifications
43
Quick Sets6
A Quick Set is a named group of settings with defined default values.
Quick Sets help you be more efficient and are convenient for less experienced users. They offer a 'one
click' action to print jobs.
Factory Quick Sets
The printer comes with some pre-defined factory Quick Sets, designed to support typical user
requirements.
See Launching Quick Sets on page 47 for more information.
Managing Quick Sets
Quick Sets can be managed from the Embedded Web Server.
Look for the Quick Sets option on the menu. See Access the Embedded Web Server on page 15 for more
information.
Depending on the permissions your printer has set, you can create, delete, edit, or view a Quick Set.
Creating a new Quick Set
Quick Sets can be created from the Embedded Web Server.

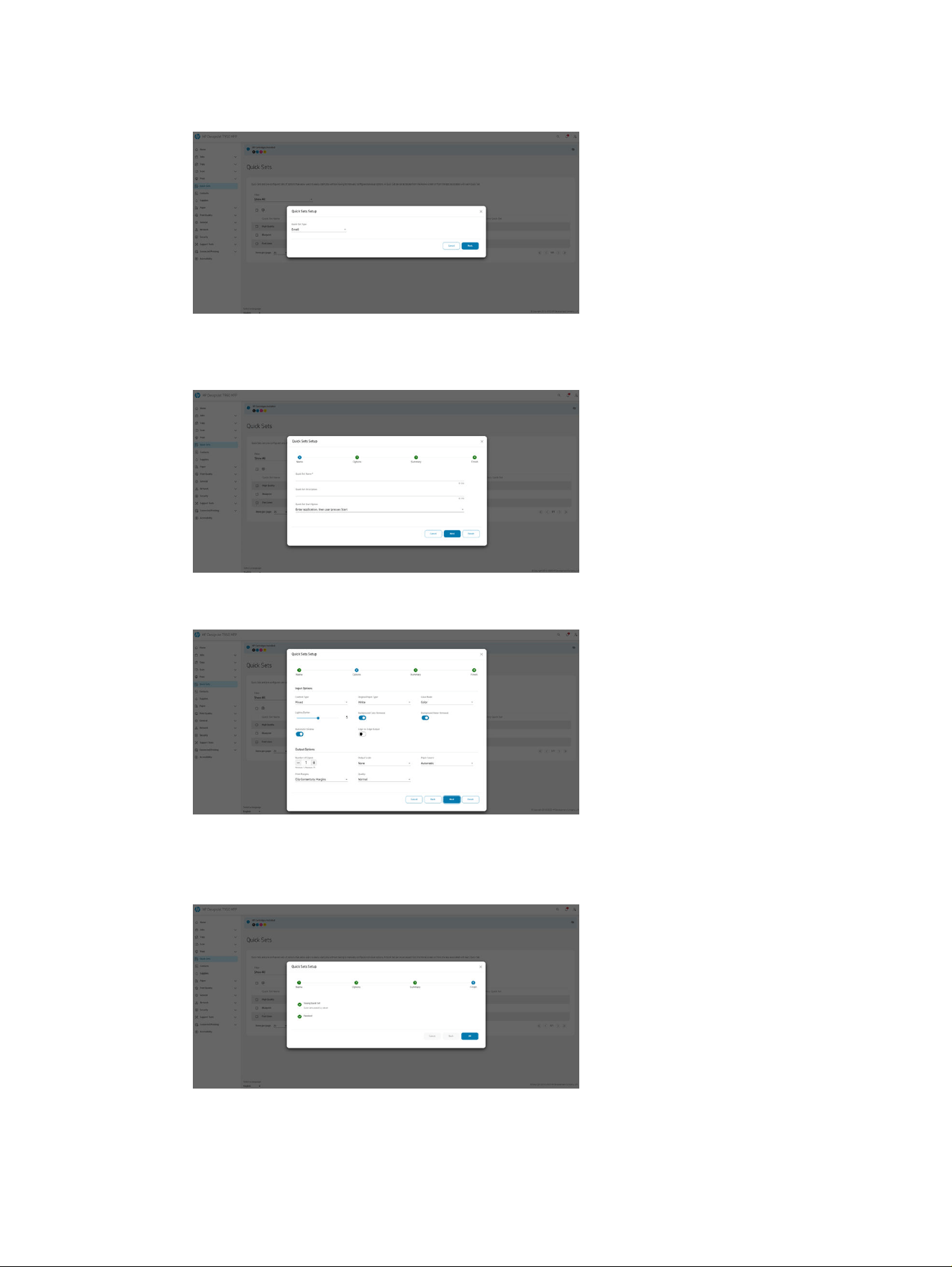

1. Tap the Add icon (+). A window opens to create a new Quick Set to print jobs.
44
Chapter 6 Quick Sets
2. Select the new type of Quick Set from the drop-down list. Choose Print from USB, then tap Next.
3. Give the new Quick Set a name, description, and choose the start option from the drop-down list,
then tap Next.
4. Select the input options you require, then tap Next.
5. A summary of the Quick Set appears. Tap Next to save the Quick Set and continue.
6. The Quick Set is added and now available to use. Tap OK to finish.
7. The new Quick Set will now appear in the list.
Creating a new Quick Set
45
Editing a Quick Set
Quick Sets can be edited from the Embedded Web Server.
NOTE: Factory Quick Sets cannot be edited.
1. Select the Quick Set to edit by clicking on the checkbox near the Quick Set name.
2. Tap the Edit icon. A window will open with information on the Quick Set.
3. Edit the information and follow the steps. Tap OK to finish.

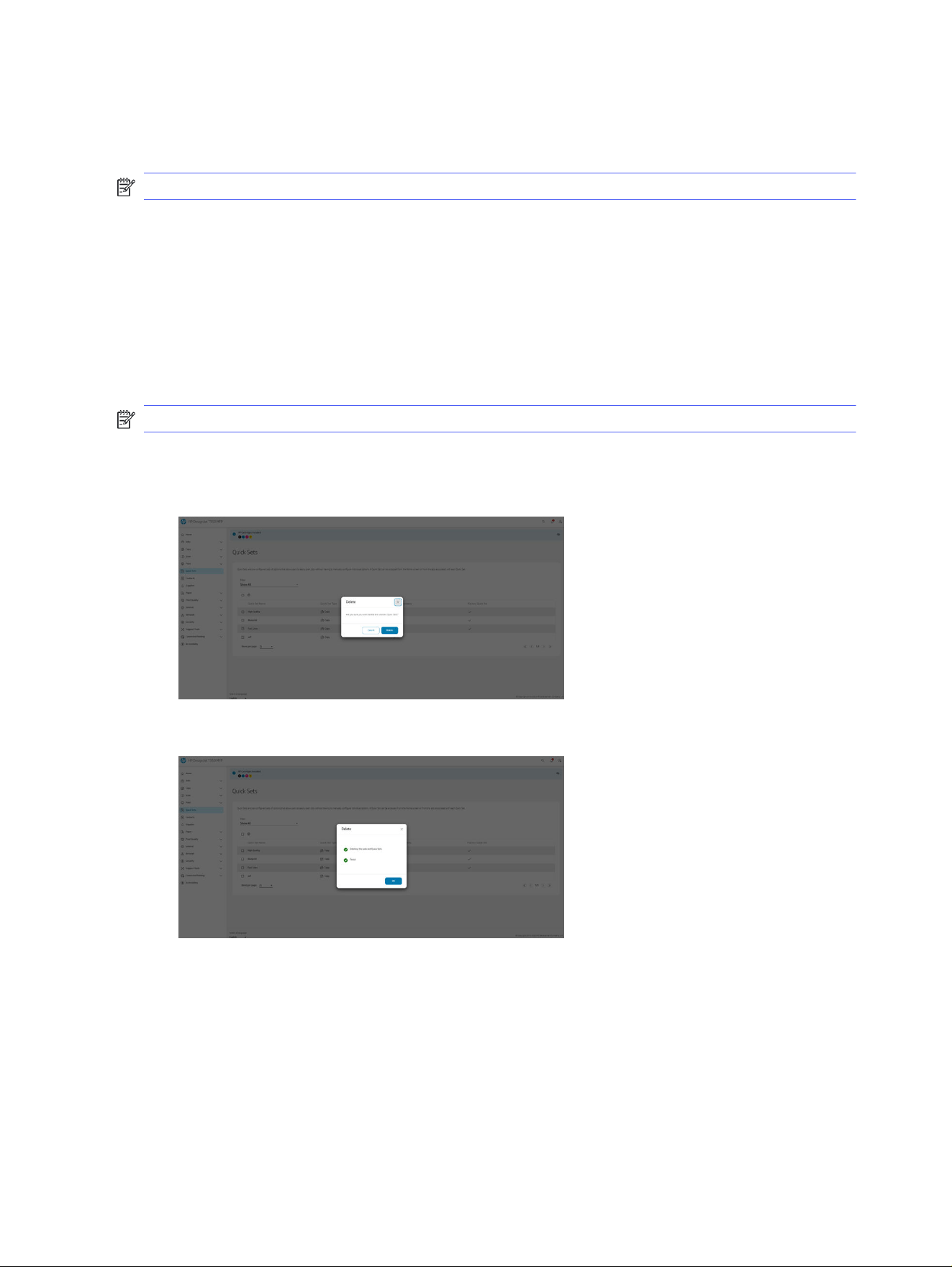

Deleting a Quick Set
Quick Sets can be deleted from the Embedded Web Server.
NOTE: Factory Quick Sets cannot be deleted.
1. Select the Quick Set you want to delete by clicking on the checkbox by the Quick Set's name.
2. Tap the Delete icon. A confirmation window will open.
3. The Quick Set will be deleted. Tap OK to finish.
Copying a Quick Set
Quick Sets can be copied from the Embedded Web Server.
1. Select the Quick Set you want to copy by clicking on the checkbox by the Quick Set's name.
46
Chapter 6 Quick Sets

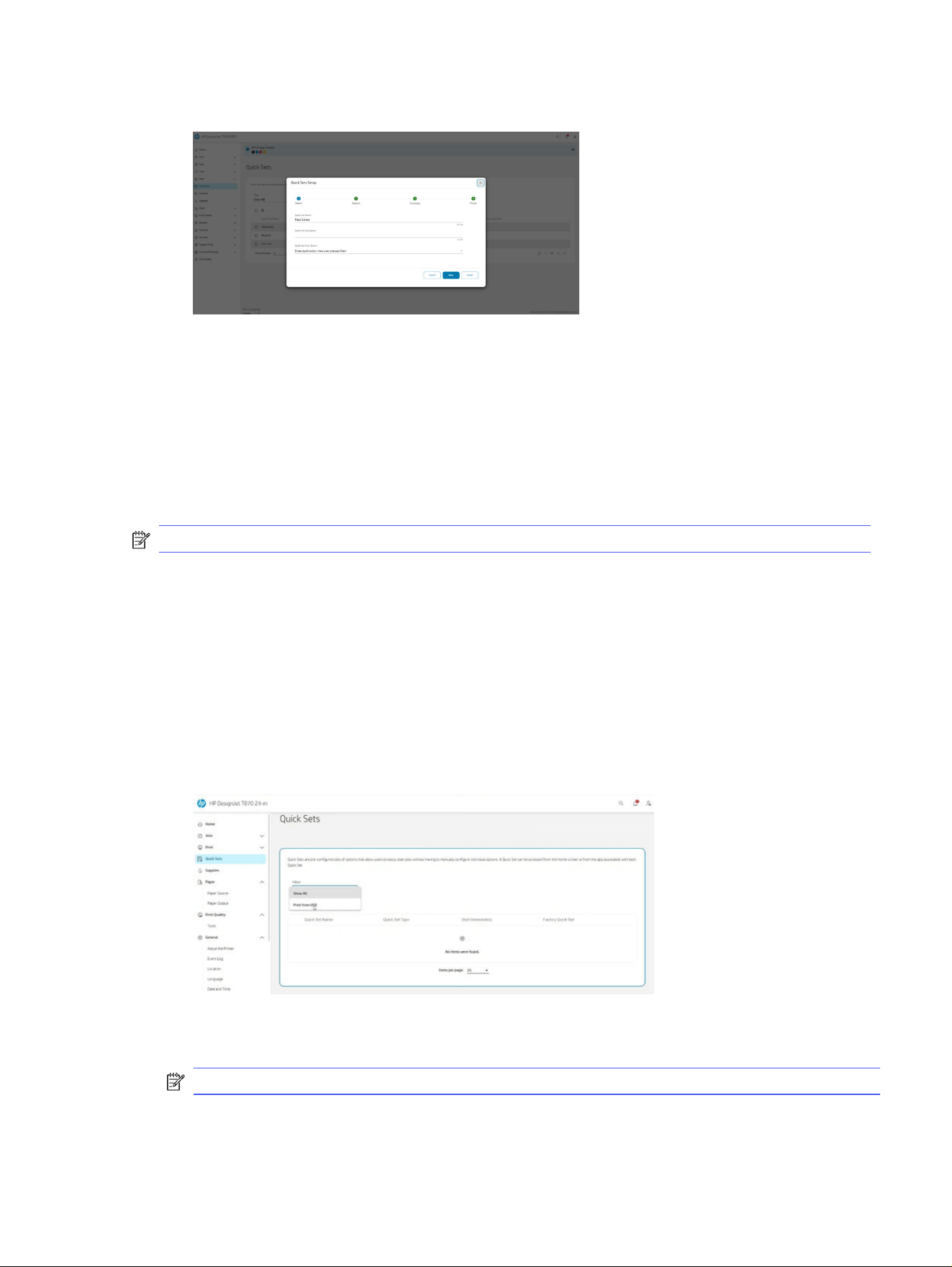

2. Tap the Copy icon. A window will open with information on the Quick Set.
3. Give the Quick Set a new name, add a description, and make any other changes to settings.
4. Follow the steps until you have saved the Quick Set. Tap OK to finish.
5. The duplicated Quick Set will now appear in the list.
Viewing a Quick Set
Quick Sets can be viewed from the Embedded Web Server.
NOTE: Only factory Quick Sets can be viewed.
1. Select the Quick Set you want to view by clicking on the checkbox by the Quick Set's name.
2. Tap the View icon. A window will open with information on the Quick Set.
3. Check any information you want to check and follow the steps. Tap OK to finish.
Launching Quick Sets
Quick Sets can be launched from the Embedded Web Server.
1. From the control panel, tap Print from USB.
2. Select an appropriate Quick Set to start your job. Quick Sets can be temporally modified by
changing a setting.
NOTE: Created Quick Sets will appear here along with factory Quick Sets.
3. Click Send to start the process.
Viewing a Quick Set
47
4. Follow the instructions on the control panel to finish.
48 Chapter 6 Quick Sets
Practical printing examples7
Step by step examples to print drafts, projects, presentations etc. to help you follow correct procedure
with your jobs.
Print a draft for revision with the correct scale
Page size and orientation may not always be set as you require. This can be altered.
Using Adobe Acrobat
Print a revision draft with the correct scale.
1. In the Acrobat window, bring the mouse cursor to the bottom left corner of the document pane to
check the page size.
2. Select File > Print and ensure that Page Sizing & Handling is set to Actual size.
NOTE: The page size will not be automatically selected according to the drawing size.
3. Click the Properties button.
4. Choose whatever Document Size and Print Quality you want to use. If you want to define a new
custom paper size, follow the instructions in Custom paper sizes on page 34.
5. Select Rotation, then Autorotate.
6. Click OK, and check that the print preview in the Print dialog box seems correct.
Practical printing examples
49
Print a PDF multipage job from Adobe Acrobat Reader or Adobe
Acrobat Pro
Set up for a multipage job is a quick and simple process.
You can print a multipage job from Adobe Acrobat.
1. Open a multipage job in Adobe Acrobat Reader or Adobe Acrobat Pro (HP recommends always
using the latest version).
2. Click File > Print.
3. Select the printer and driver.

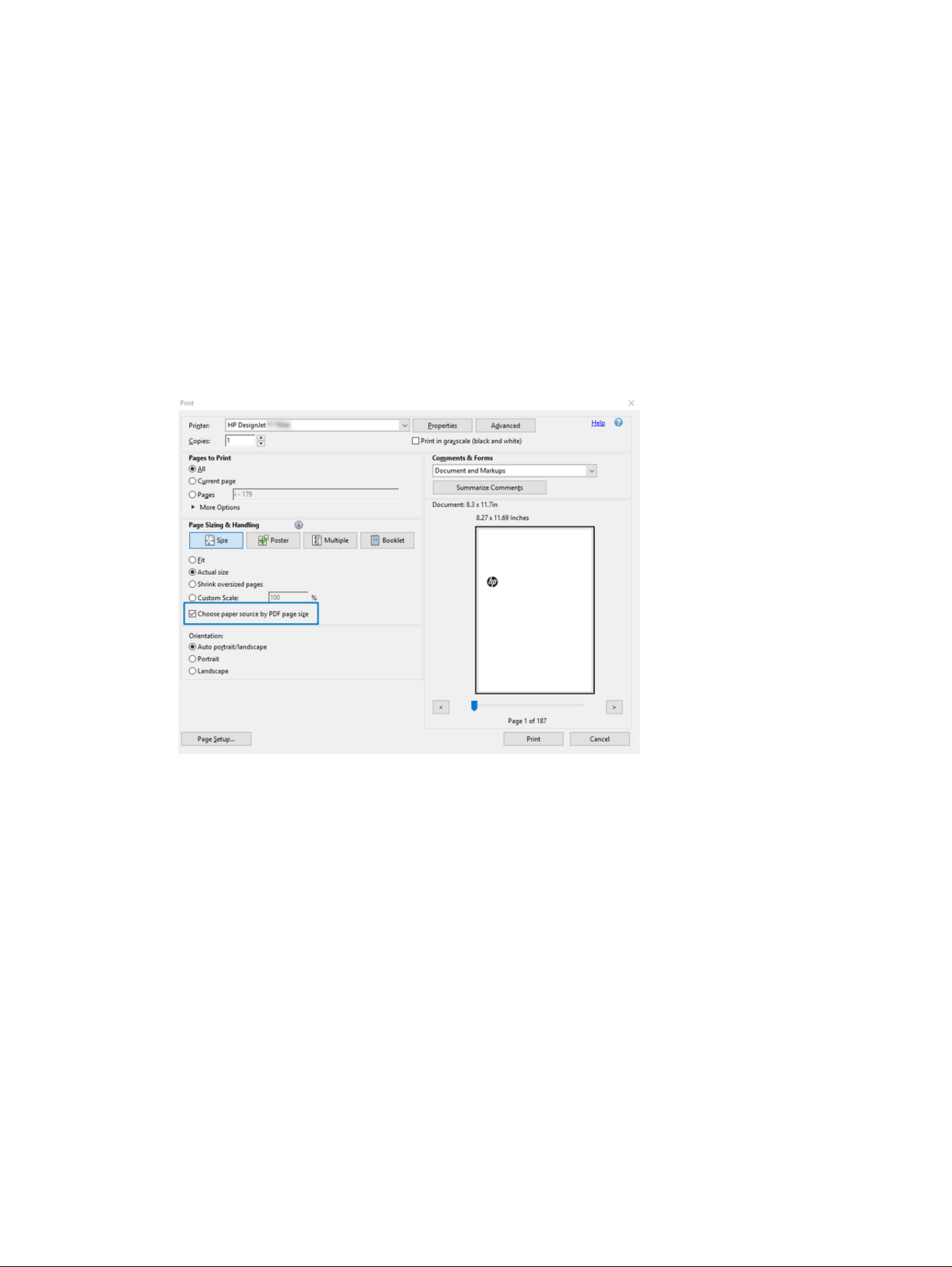

4. Check the Choose paper source by PDF page size box.
5. Adjust other properties in the driver properties window, as required.
6. Click the Print button.
Print a document with the correct colors
Print a document from Adobe Acrobat and Adobe Photoshop, with the emphasis on color management.
Using Adobe Acrobat Reader
The print process is very simple. Acrobat Reader is the most basic application for PDF files; several color
management tools common in more sophisticated applications are not explicitly present, and work by
default with presets that cannot be changed.
For example, there is no way to select a working color space; a default color space, most likely sRGB,
is applied. This color space is used for screen display, for example. Also, as an alternative color profile
when no other is specified by a file, as will be explained later.
1. Click File > Print.
50
Chapter 7 Practical printing examples

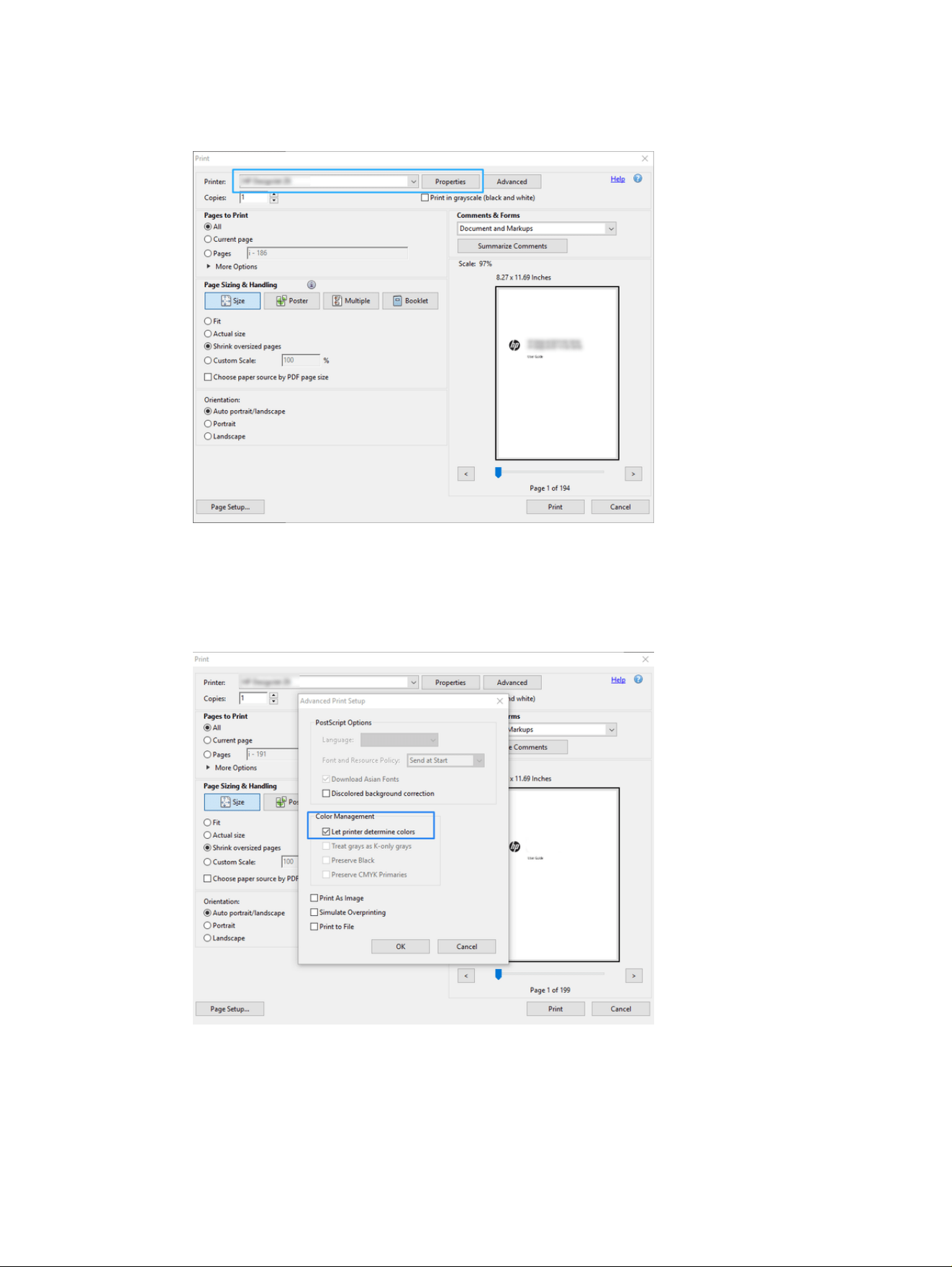

2. Select the printer and driver from the Printer drop-down menu in the Print dialog box. Driver
settings can be adjusted by clicking the Properties button.
3. Adjust the color settings in the driver properties window. Click the Properties button in the Print
dialog and set the Color option in the Color mode section. Click OK.
4. Click the Advanced button in the Print dialog box to set color management options. Check the box
Let printer determine colors.
5. If the document contains several color profiles and you are not sure what the result will be, you
can flatten the document first and print it as seen on the screen. To do this, check the box Print
As Image in the Advanced Print Setup dialog box. In this case, the rasterization is performed by
Acrobat Reader before calling the driver; whereas, if you do not check this box, the rasterization is
Using Adobe Acrobat Reader
51
performed by the driver. So checking the box may have a visible effect on the look of the printed
document.
Using Adobe Acrobat Pro
This is a professional application that allows full color management. See briefly described, the options
to select a working color space, convert images to a desired color space, and print.
1. PDF files may not contain a color profile. In the absence of a color profile, Acrobat uses a working

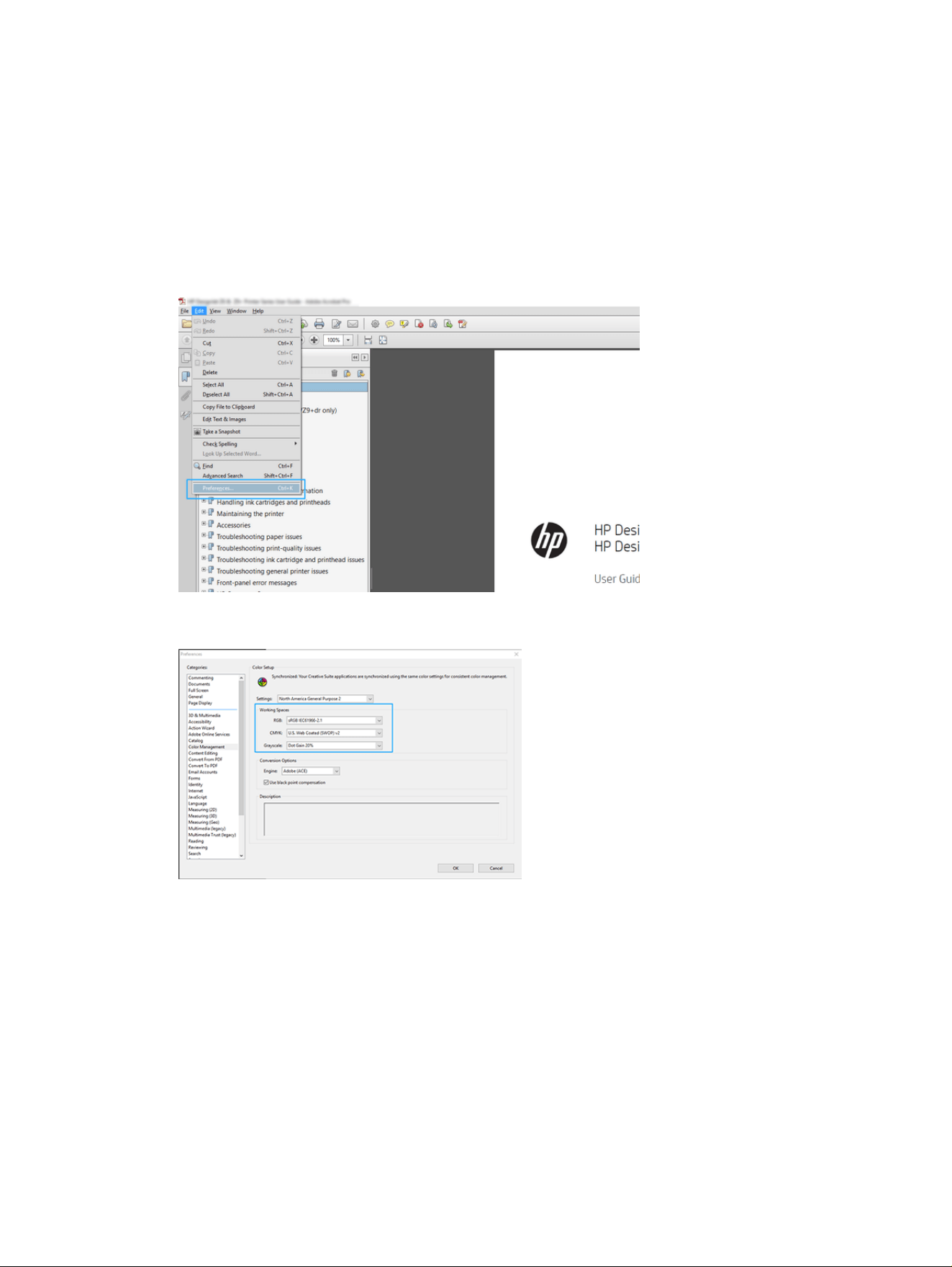

color space by default. To choose a working color space, first click Edit > Preferences.
2. In the Preferences dialog box, you can choose RGB, CMYK, and grayscale working color spaces.
3. PDF files can contain elements with different color profiles. Some may have color profiles, some
may not. The working color space will affect only those without a color profile. If you want to attach
a specific color profile to the document, you must convert the contents of the document as follows.
52
Chapter 7 Practical printing examples

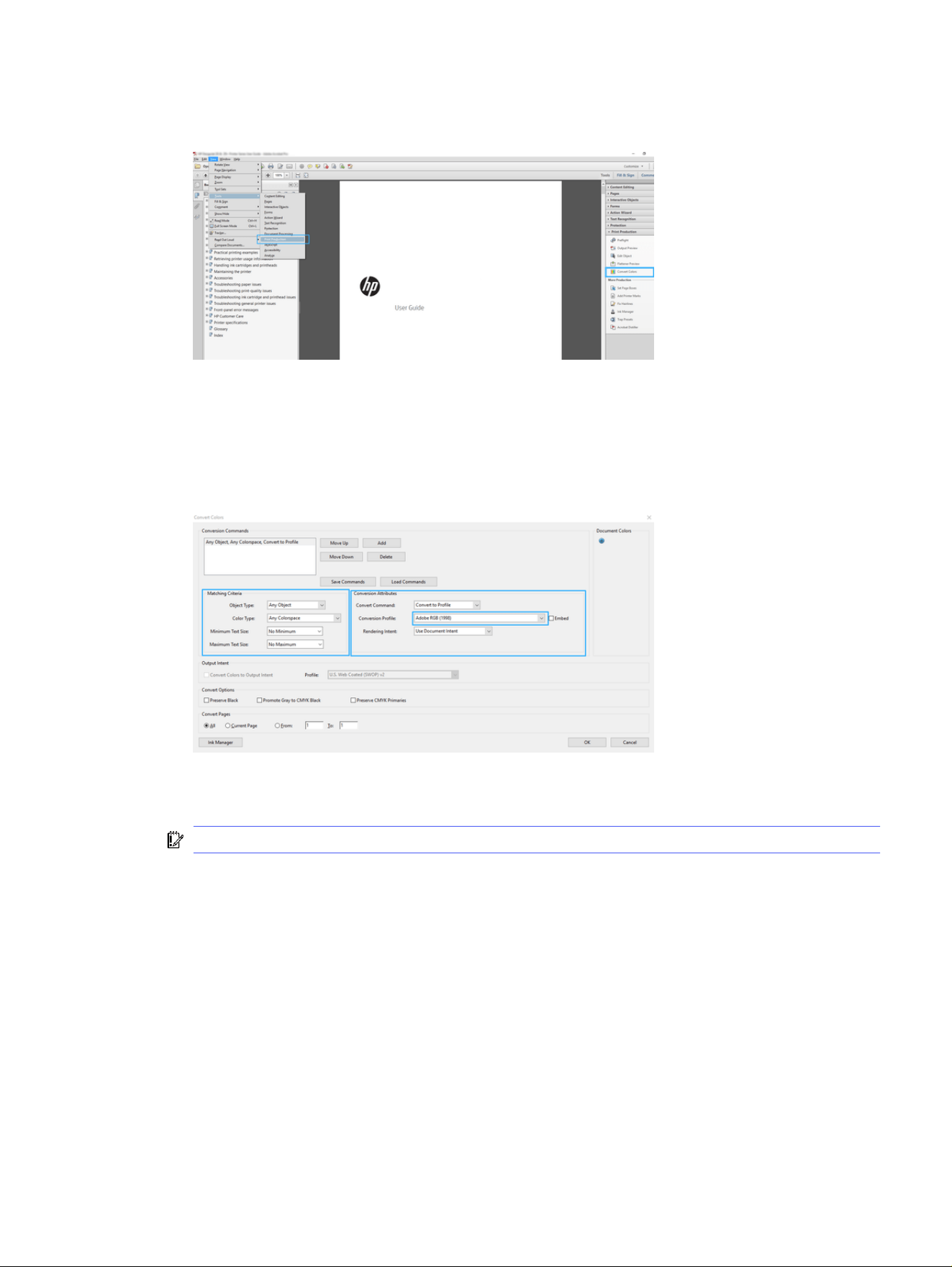

First, select Convert Colors from View > Tools > Print Production or by clicking the icon in the status
bar.
4. Select the elements you want to convert by specifying matching criteria (object type and/or color
type) and then the conversion attributes. If you want to change the embedded color profile, you
can select Any Object and Any Colorspace in the Matching Criteria section. In the Conversion
Attributes section you can choose, for example, to embed an Adobe RGB (1998) profile by selecting
it as the Conversion Profile, checking the Embed box, clicking the OK button, and saving the file to
keep the changes. The saved file will have an embedded Adobe RGB color profile.
5. To print the document, choose a printer from the Print dialog box, click the Properties button, and in
the Color mode section, set the color options.
IMPORTANT: Select Print in color and Printer managed colors.
6. In the Print dialog box, click the Print button to print the document.
Using Adobe Photoshop
The printer can manage colors directly.
1. In Photoshop, click File > Print, then select your printer.
Using Adobe Photoshop
53

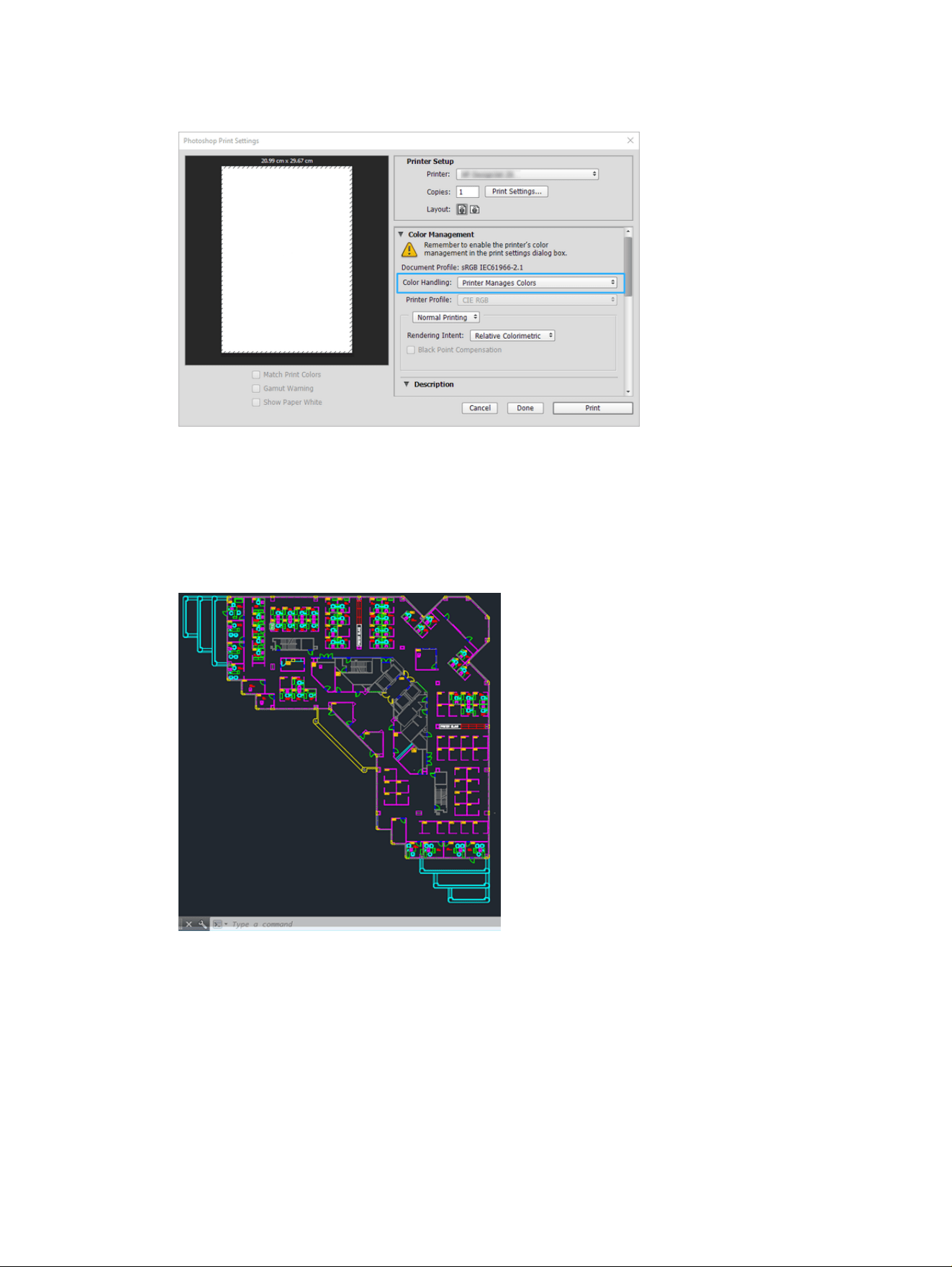

2. In the Color Management section, set the Color Handling option to Printer Manages Colors.
Print a project using Autodesk AutoCAD
Set up a plot to print from a model or a layout.
1. The AutoCAD window can show a model or layout. Normally a layout is printed rather than the
model.
54
Chapter 7 Practical printing examples

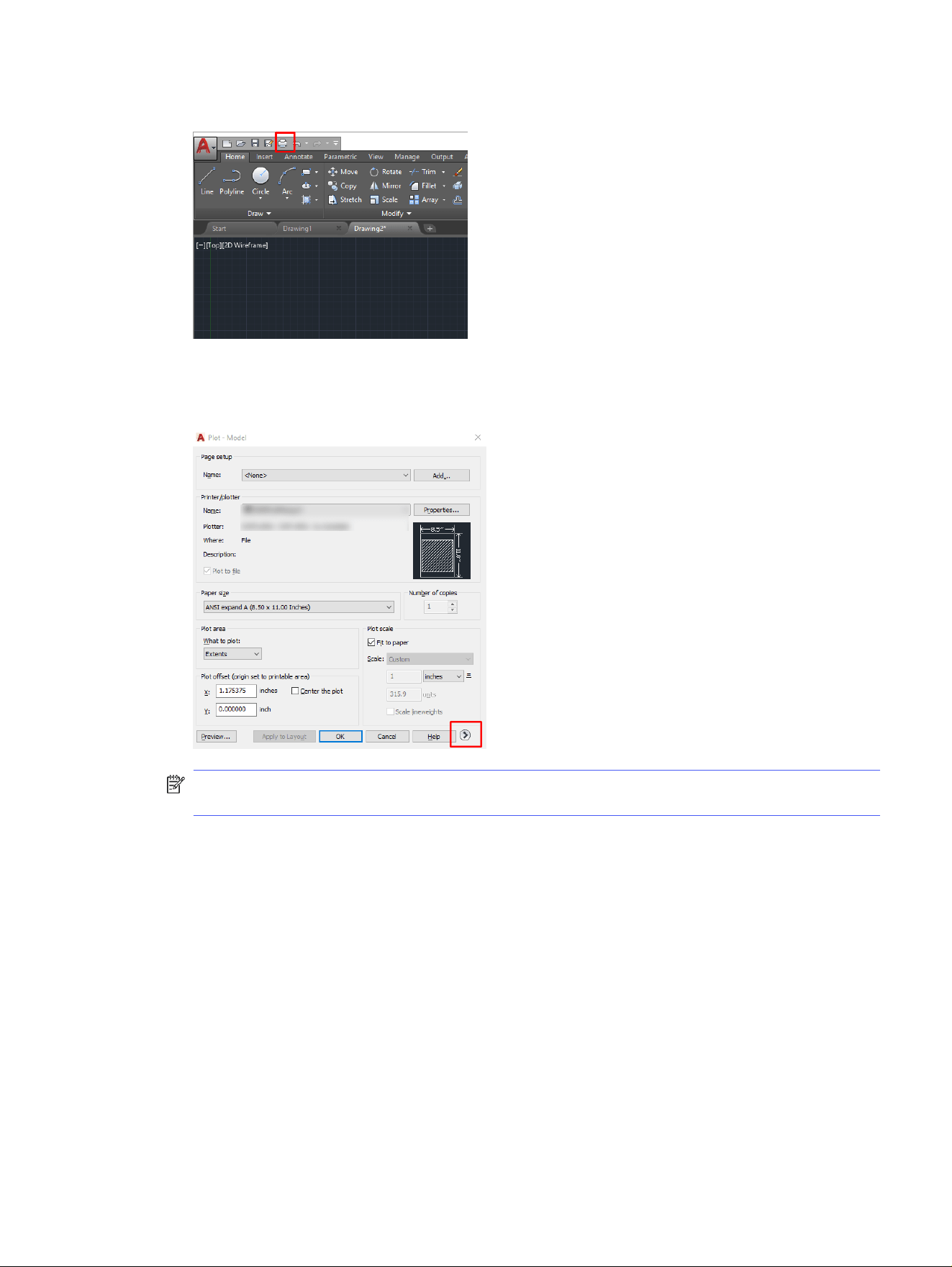

2. Click the Plot icon at the top of the window.
3. The Plot window opens.
4. You can see further options by clicking the circular button in the lower right corner of the window.
NOTE: The Quality option here does not refer to the final print quality but to the quality of
AutoCAD viewport objects that are sent for printing.
5. Select your printer and click the Properties button.
Print a project using Autodesk AutoCAD
55

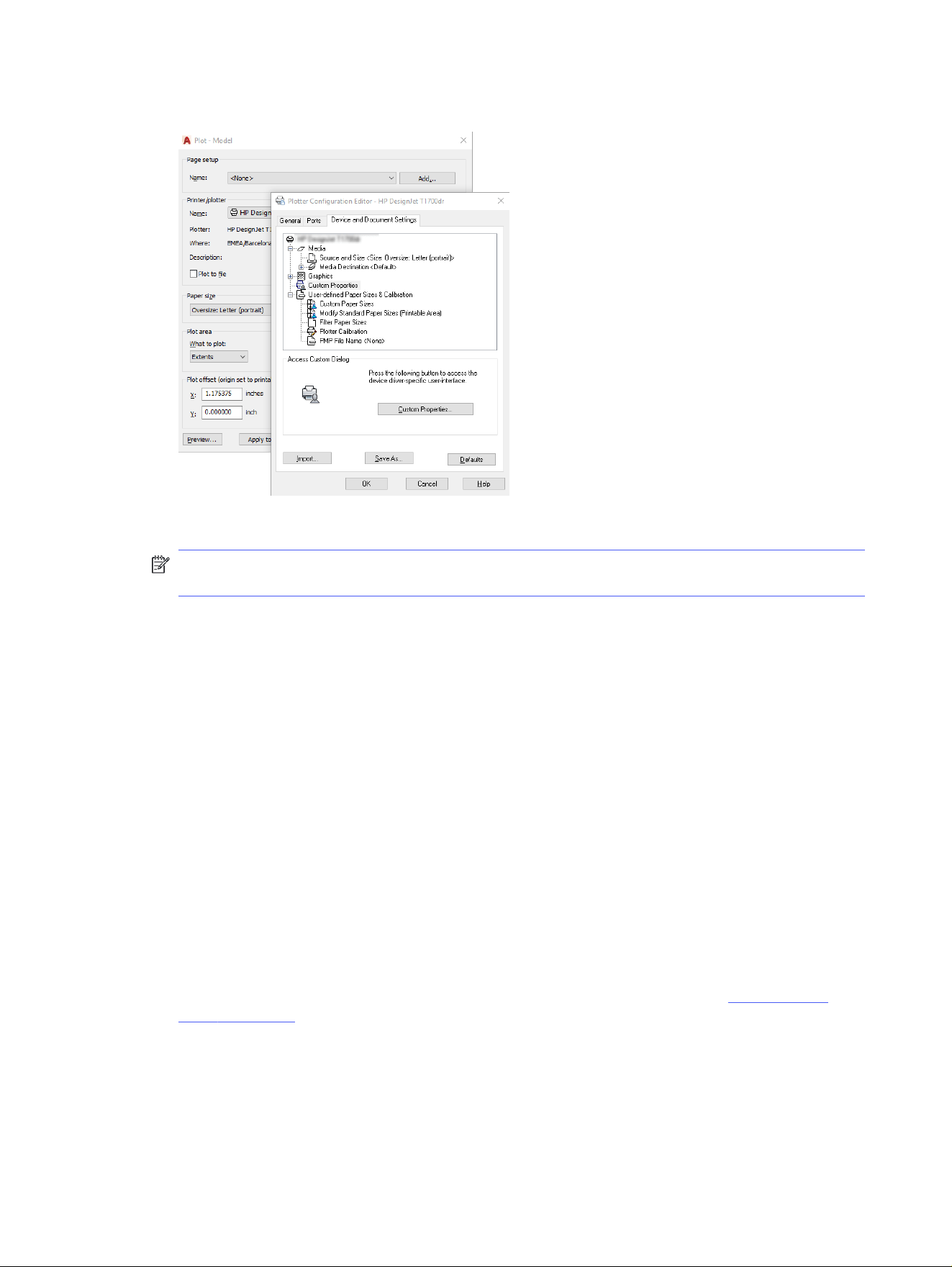

6. Select the Device and Document Settings tab, and click the Custom Properties button.
7. In the Driver, select the paper type that you intend to use.
8. Select the print quality.
9. If you intend to print on roll paper, you must decide where the printer should cut the paper.
● With the Windows driver: Select Document > Margin layout > Clip content by margins.
10. Select the Rotation option Autorotate. Autorotation can help to avoid wasting paper.
11. Click the OK button and save your configuration changes to a PC3 file.
12. When you have clicked the OK button in the Plot window, the printer will construct a print preview.
Print a presentation
Setup AutoCAD or Photoshop presentations.
Using Autodesk AutoCAD
Print a presentation with Autodesk AutoCAD.
56
Chapter 7 Practical printing examples
1. Open the AutoCAD file and select a layout.
2. Click the Plot icon at the top of the window.
3. Ensure that the correct printer is selected, then click the Properties button.
Using Autodesk AutoCAD
57
4. Select the Device and Document Settings tab, and click the Custom Properties button.
5. In the Driver, select the paper type that you intend to use.
NOTE: If you select neither the paper source nor the paper type, the printer will not print on any
protected roll.
6. Select the print quality.
7. If you intend to print on roll paper, you must decide where the printer should cut the paper.
● With the Windows driver: Select Document > Margin layout > Clip content by margins.
8. Select the Rotation option Autorotate. Autorotation can help to avoid wasting paper.
9. Click the OK button and save your configuration changes to a PC3 file.
10. When you have clicked the OK button in the Plot window, the printer will construct a print preview.
Using Adobe Photoshop
Print a presentation with Adobe Photoshop.
1. In Photoshop, click File > Print and then select your printer.
2. Click Print settings, then select the Document size option.
3. Choose from the available paper sizes.
If you don't find your desired paper size, create it by following the instructions in Custom paper
sizes on page 34.
4. Select Show preview before printing. You may also wish to change the default paper source, paper
type and print quality.
5. In the Color section, the default color management option is Printer managed colors, which is the
correct option as you have already selected Printer Manages Colors in Photoshop.
58
Chapter 7 Practical printing examples
Handling ink cartridges and printhead8
There are four replaceable ink cartridges that supply the printhead. You can check status information,
and easily change an ink cartridge when required.
About the ink cartridges
Ink cartridges store the ink and are connected to the printhead, which distributes the ink on the paper.
To purchase additional cartridges, see Accessories on page 71.
CAUTION: Observe precautions when handling ink cartridges because they are ESD-sensitive
devices. Avoid touching pins, leads and circuitry.
NOTE: This printer is intended to work only with cartridges that have a new or reused HP chip, and it
uses dynamic security measures to block cartridges using a non-HP chip. Periodic firmware updates
will maintain the effectiveness of these measures and block cartridges that previously worked. A
reused HP chip enables the use of reused, remanufactured, and refilled cartridges. More on the HP
website at the following link: http://www.hp.com/learn/ds.
Store supply usage data
The HP cartridge used with this printer contains a memory chip that assists in the operation of the
printer.
The HP cartridge used with this printer contains a memory chip that assists in the operation of the
printer.
The memory chip stores a limited set of anonymous information about the usage of the printer, which
can include the following: the date when the cartridge was first installed, the date when the cartridge
was last used, the number of pages printed using the cartridge, the page coverage, the printing modes
used, any printing errors that may have occurred, and the printer model. This information helps HP to
design future products to meet our customers' printing needs.
The information collected by the memory chip does not include information that could be used to
identify a customer or user of the cartridge or printer.
HP collects a sample of the memory chips from ink cartridges returned to HP's free return and recycling
program (HP Planet Partners, see the HP website at the following link: http://www.hp.com/recycle). The
sampled memory chips are read and studied in order to improve future HP products.
Any third party possessing the printer cartridge might have access to the information on the memory
chip. If you prefer if you prefer to not allow access to this information, you can render the chip inoperable.
However, after you render the memory chip inoperable, the memory chip cannot be used in an HP
printer.
If you are concerned about providing this anonymous information, you can turn off the memory chip's
ability to collect printer usage information. To do so, access the EWS and tap Security > Security
Settings, then in the Printer Settings section, toggle to Anonymous usage information. This does not
prevent the cartridge from working normally in other respects. However, if you change your mind later,
you can restore the factory defaults to resume collecting printer usage information.
Handling ink cartridges and printhead
59
Check ink cartridge status
Information about the evolution of the ink cartridges.
To view the ink levels of your ink cartridges, tap the Supplies icon , then Ink Cartridges on the control
panel. For more information, tap the specific cartridge.
In the Embedded Web Server go to Home > Estimated Cartridges Levels or Supplies > Cartridges.
For an explanation of the ink cartridge status messages, see Ink cartridge status messages on page
95.
Replace an ink cartridge
There are two occasions when you need to replace an ink cartridge.
● The ink cartridge is very low and you want to replace it with a full cartridge for unattended printing
(you can use up the remaining ink in the first cartridge at a more convenient time).
● The ink cartridge is empty or faulty, and you must replace it to continue printing.
CAUTION: Do not try to remove an ink cartridge while printing.
CAUTION: Remove an ink cartridge only if you are ready to insert another one.
1. Make sure the printer is turned on.

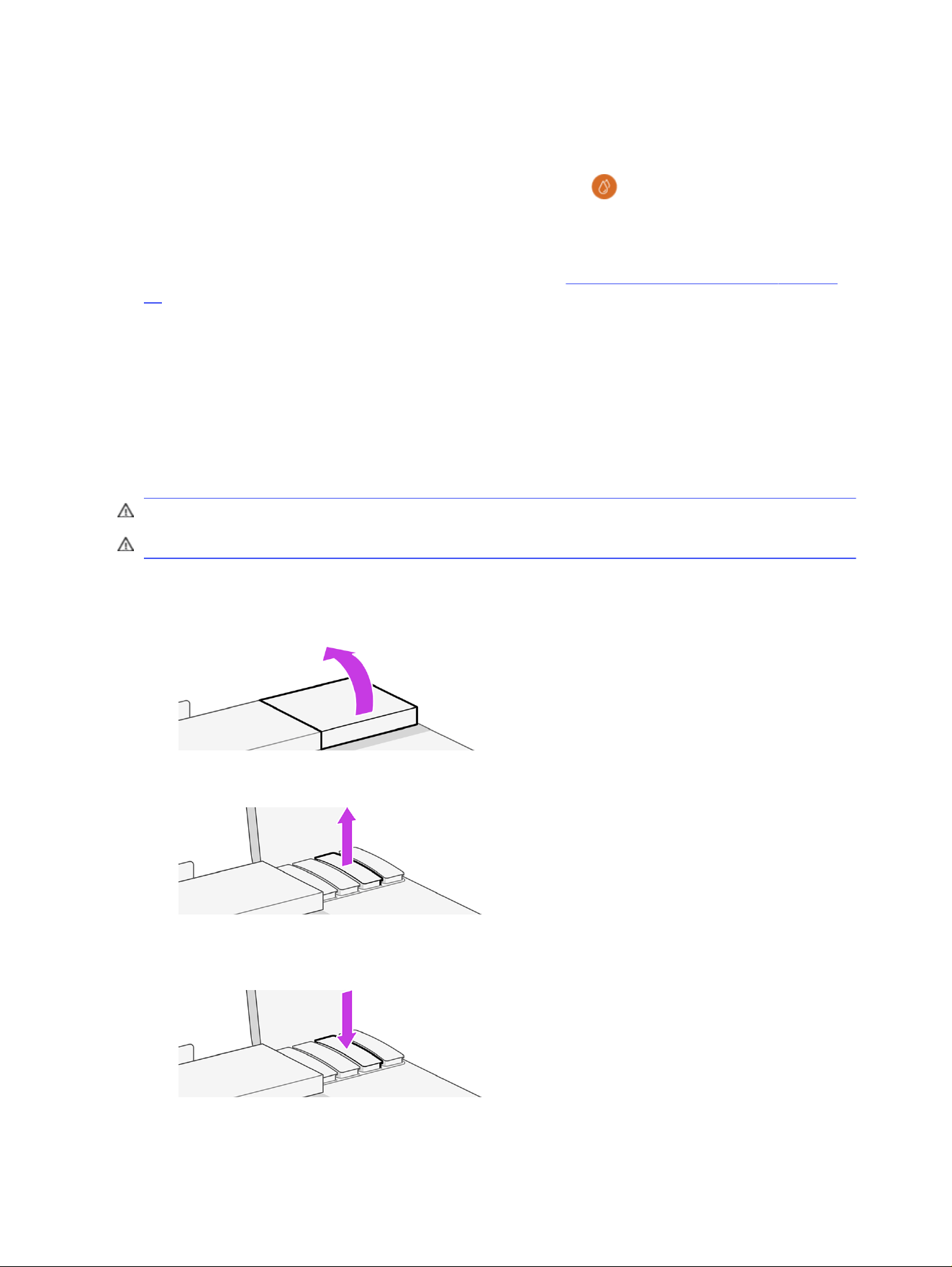

2. Open the ink cartridge cover on the rear right-hand side of the printer.
3. Remove the ink cartridge.
4. Insert the new ink cartridge. Make sure that you insert the ink cartridge into the slot that has the
same colored letter as the cartridge you are installing.
60
Chapter 8 Handling ink cartridges and printhead
5. Close the ink cartridge cover.
About the printhead
The printhead, which is supplied installed in the printer, is connected to the ink cartridges and jets ink
onto the paper.
CAUTION: Observe precautions when handling the printhead, because it is an ESD-sensitive device.
Avoid touching pins, leads, and circuitry.
For information on replacing printheads, see Replace the printhead on page 64.
Safe mode
Under certain conditions, including printer operation outside of environmental specifications, and when
a used, refilled, or counterfeit ink cartridge has been detected, the printer will operate in safe mode.
HP is unable to warrant the performance of the printing system when operated outside of environmental
specifications or when a used, refilled, or counterfeit ink cartridge is installed. Safe mode is designed to
protect the printer and the printheads from damage due to unexpected conditions, and is in operation
when the icon is displayed on the printer’s control panel and by the Embedded Web.
For optimal performance, use original HP ink cartridges. HP DesignJet printing systems, including
original HP inks and printheads, are designed and engineered together to provide uncompromising print
quality, consistency, performance, durability, and value—with every print.
NOTE: This printer is not designed to use continuous ink systems. To resume printing, remove the
continuous ink system and install genuine HP (or compatible) cartridges.
NOTE: This printer is designed for ink cartridges to be used until they are empty. Refilling cartridges
prior to depletion might cause your printer to fail. If this happens, insert a new cartridge (either genuine
HP or compatible) to continue printing.
NOTE: This printer is intended to work only with cartridges that have a new or reused HP chip, and it
uses dynamic security measures to block cartridges using a non-HP chip. Periodic firmware updates
will maintain the effectiveness of these measures. More on the HP website at the following link:
http://www.hp.com/learn/ds.
About the printhead
61
Maintaining the printer9
Checking printer status and maintenance are essential to keep your equipment in prime condition.
Keep your printer clean, diagnose issues, calibrate, replace the printhead when required, and keep your
software up to date.
Check printer status
There are various ways you can check the current printer status.
1. From the control panel, you can get information about the loaded paper and the ink levels.
2. If you access the Embedded Web Server, you see information about the general status of the
printer.
Take care of the printer
The printer is not designed for any purpose other than printing.
It is not recommended to use the printer as a table, for two reasons:
● The surface can easily be damaged.
● Anything that falls into the printer can cause more serious damage.
Clean the exterior of the printer
Clean the outside of the printer and all other parts of the printer that you regularly touch as part of
normal operation with a soft cloth and a mild household cleaner such as non-abrasive liquid soap.
WARNING! To avoid an electric shock, make sure that the printer is turned off and unplugged before
you clean it. Do not let water get inside the printer.
CAUTION: Do not use abrasive cleaners on the printer.
Print Quality Diagnostic Report
There are two test patterns designed to highlight printhead reliability problems.
To print the Print Quality Diagnostic Report
Check the performance of the printhead that is currently installed in your printer, and whether it suffers
from clogging or alignment problems.
1. Use the same paper type that you were using when you detected a problem. The test patterns are
easiest to evaluate on plain white paper.
2. Check that the selected paper type is the same as the paper type loaded into the printer. See View
information about the paper on page 29.
62
Chapter 9 Maintaining the printer
3. From the printer's control panel, tap the Menu icon , then Tools > Reports > Status
Reports > Print Quality Diagnostic Report.
NOTE: The report can also be requested from the Embedded Web Server.
Test patten 1: If the lines are not straight and connected, align the printhead. See Align the printhead on
page 64.
Test patten 1: If you see thin white lines across and of the colored blocks, clean the printhead. See Clean
the printhead on page 63.
Corrective actions
If you have an issue with the diagnostic page, there are steps you can take, depending on the problem.
1. If the lines in Test Pattern 1 are not straight and connected, align the printhead (see Align the
printhead on page 64).
2. If any of the colored blocks in Test Pattern 2 show white lines, are faded or completely missing,
clean the printhead (see Clean the printhead on page 63). Follow the control-panel prompts and
perform all three levels of cleaning if necessary.
3. If the problem remains, clean the printhead again.
4. If the problem remains, replace the printhead (see Replace the printhead on page 64). If the
printhead is still in warranty, contact HP Support (see Contact HP Support on page 111).
Clean the printhead
If your print is streaked or has incorrect or missing colors, the printhead may need to be cleaned.
There are three stages of cleaning (Express, Basic and Advance). Each stage lasts about two minutes,
uses one sheet of paper, and uses an increasing amount of ink. After each stage, review the quality of
the printed page. You should initiate the next phase of cleaning only if the print quality is poor.
If print quality still seems poor after you complete all stages of cleaning, try aligning the printhead.
NOTE: Cleaning uses ink, so clean the printhead only when necessary.
NOTE: Failing to turn off the printer correctly can cause print-quality problems.
Clean the printhead from the control panel
When your print quality seems poor, and you are next to the printer, this is a simple method to address
the issue.
Corrective actions
63
1. Make sure there is paper in the input tray or a roll loaded.
2. Go to the control panel and tap the Menu icon , then Tools > Troubleshooting > Print Quality >
Printhead Cleaning.
Align the printhead
Precise printhead alignment is essential for good area fill, line quality, and sharp edges in graphical
elements.
Your printer has an automatic printhead alignment process which runs whenever a printhead has been
accessed or replaced. You may need to align the printhead after a paper jam or if you are experiencing
print-quality problems.

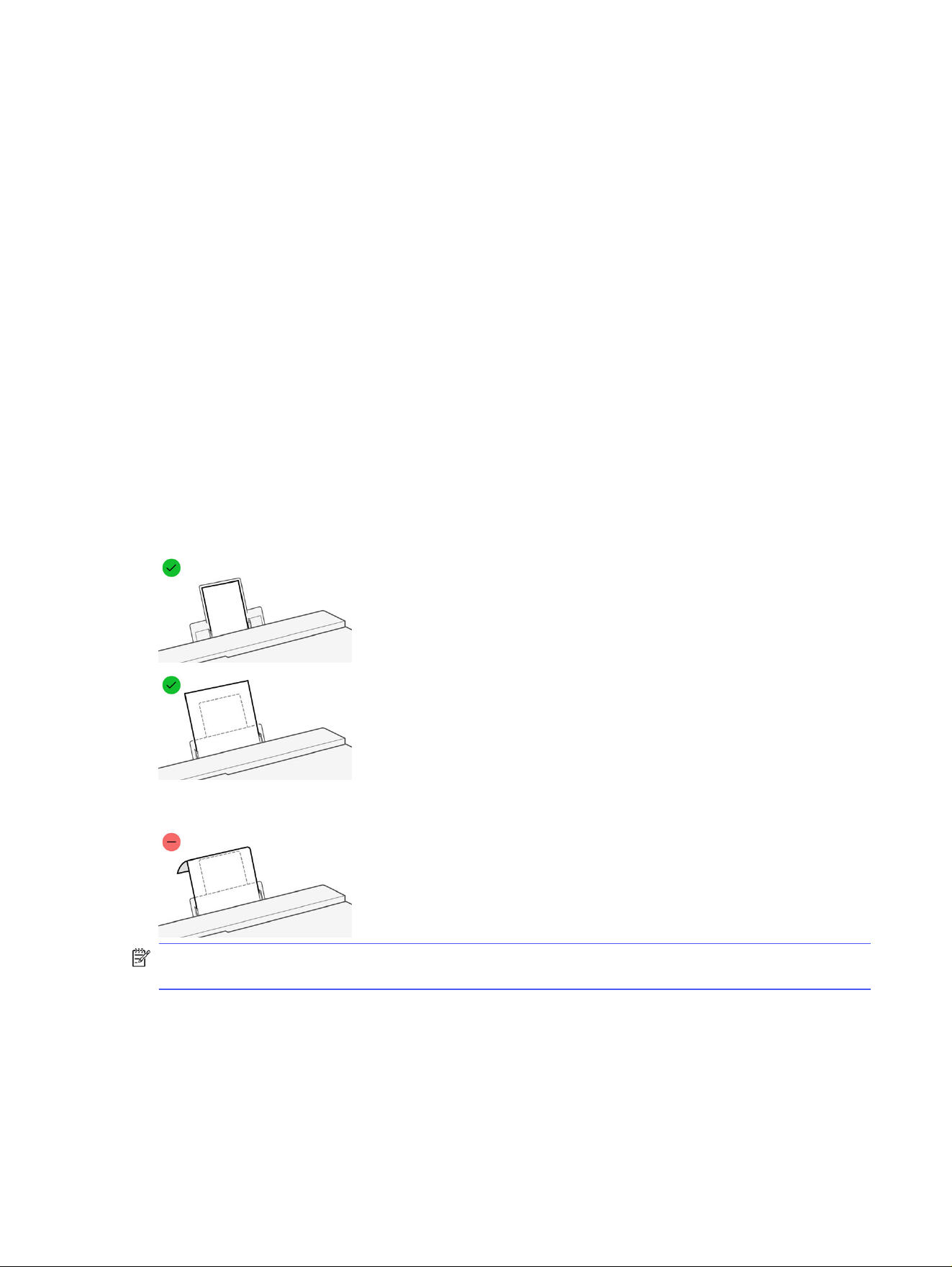

IMPORTANT: Load minimum A4 and letter size paper. Do not load them in landscape.
1. Load the paper you wish to use, see Paper handling on page 23. You can use a roll or a cut sheet;
plain white paper is recommended.
CAUTION: Do not use transparent or semi-transparent paper to align the printhead.
2. Ensure that the window is closed, as a strong light source near the printer during printhead
realignment can affect alignment.
3. From the control panel, tap the Menu icon , then Tools > Troubleshooting > Print Quality
> Printhead Alignment.
NOTE: Printhead alignment can also be started from the Embedded Web Server (Print Quality >
Tools > Printhead Alignment).
4. If the loaded paper is satisfactory, the printer runs the realignment and prints a realignment
pattern.
5. The process takes about five minutes. Wait until the control-panel display shows the process
complete before using the printer.
If the printer cannot complete the printhead alignment successfully, you may be asked to clean the
printhead and try again.

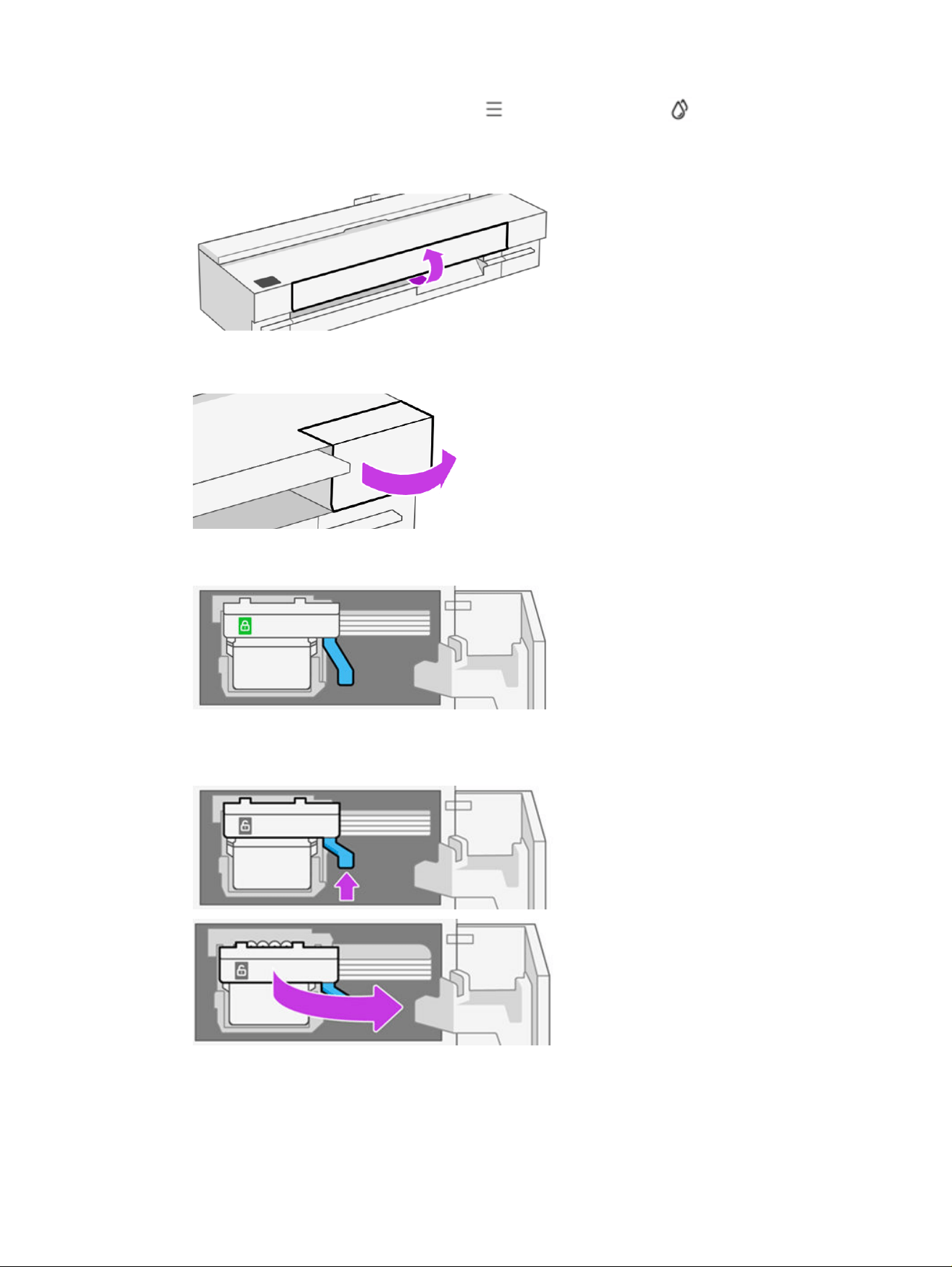

Replace the printhead
When the printhead has an issue that cannot be fixed, you must replace it. After replacement, the printer
will automatically perform a printhead alignment on the loaded paper.
TIP: If you would like to perform the printhead alignment on a different paper (perhaps from the tray),
you could change the paper before starting this procedure. Plain white paper is recommended. A4 and
letter paper should not be loaded in landscape orientation.
1. Make sure the printer is turned on.
2. Make sure the printer wheels are locked (the brake lever is pressed down) to prevent the printer
from moving.
64
Chapter 9 Maintaining the printer
3. From the control panel, tap the Menu icon , then the Supplies icon , then Printheads >
Replace Printhead. Follow the instructions on the control panel.
4. Open the main door.
5. Open the printhead door on the right-hand side of the printer.
6. Locate the tubes connector-lever to release the ink tubes.

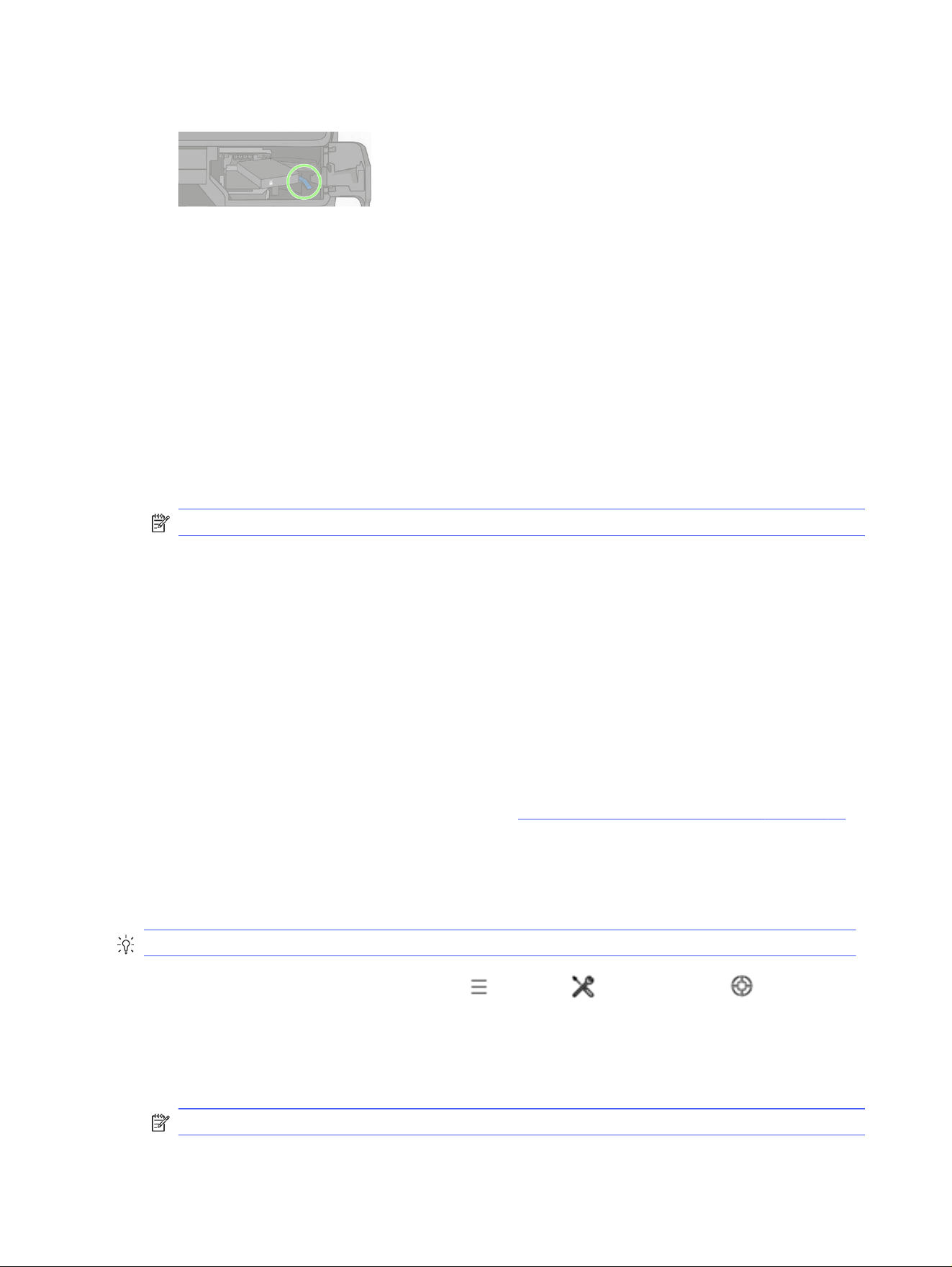

7. Raise the lever to release the tube connector and store the tubes connector on the tubes
connector-holder in the printer door.
Replace the printhead
65

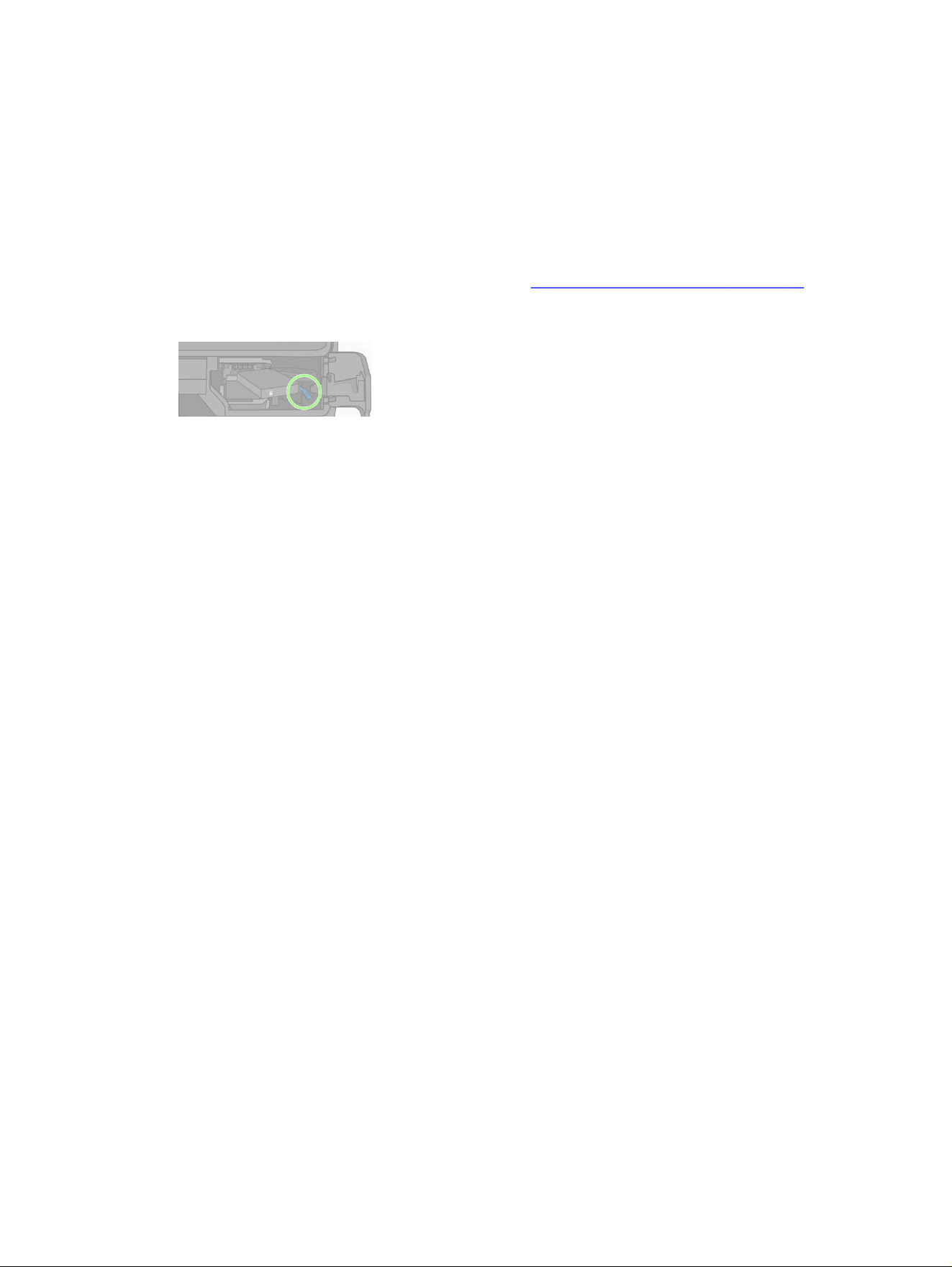

8. Locate the printhead lever.
9. Raise the lever to release the printhead.
10. Remove the printhead, handling it with care to avoid getting ink on the connections.
11. Insert the new printhead.
12. Lower the printhead lever (white).
66
Chapter 9 Maintaining the printer

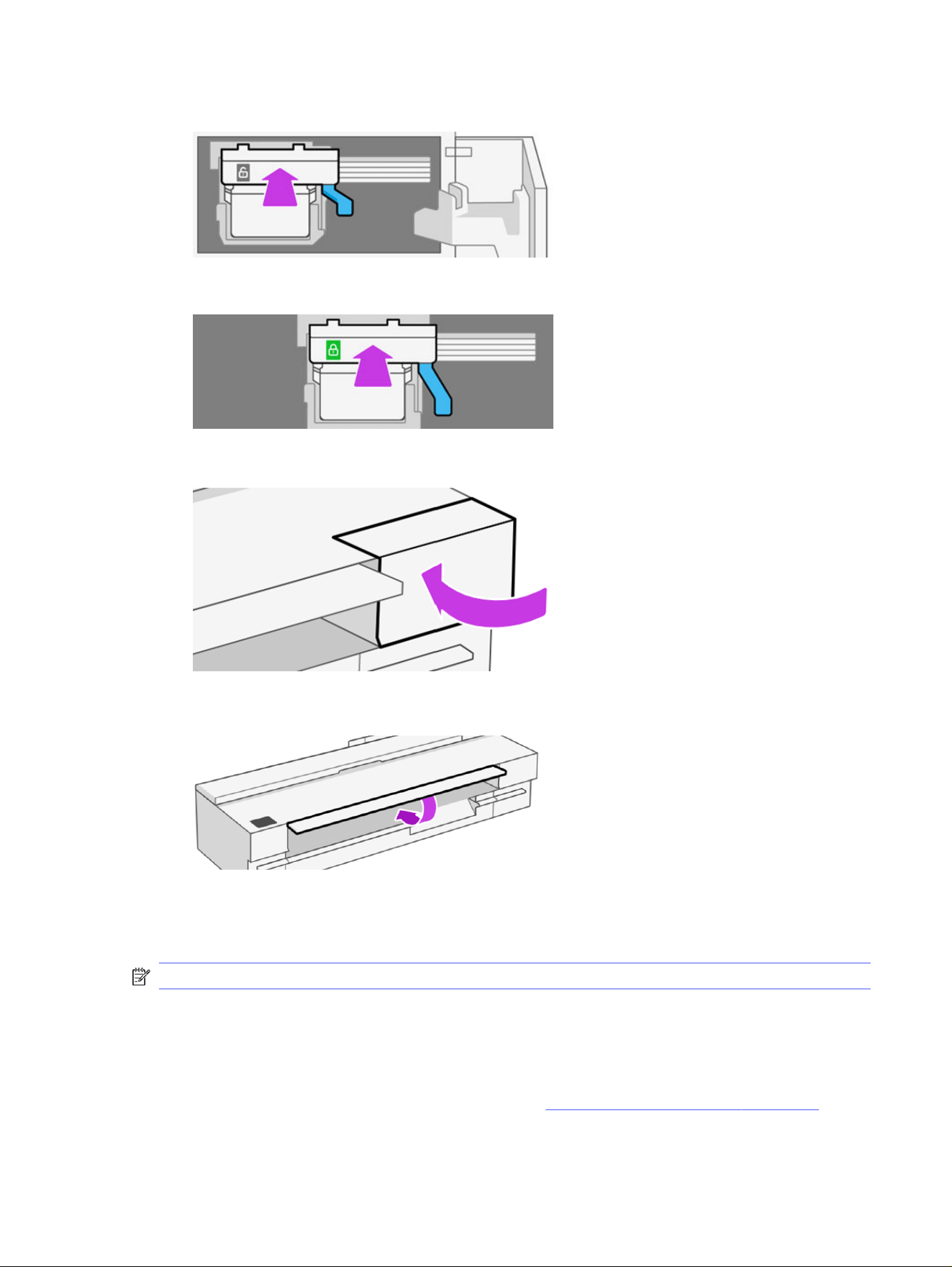

13. Insert the tubes connector into the printhead.
14. Make sure that the tubes connector locks shut.
15. Close the printhead door.
16. Close the main door and follow the instructions on the control panel.
The control panel now recommends a printhead alignment.
The printer prepares the printhead for use.
NOTE: Do not open any covers during this process.
Cannot connect the tubes to the printhead
It is important that you are using the correct type of printhead, and that it is well placed in its slot.
1. Check that the printhead is correctly inserted. See Cannot insert the printhead on page 95 .
Cannot connect the tubes to the printhead
67
2. Check that the tubes connector lever (blue) is up before connecting the tubes connector.
Clean the encoder strip
You can use a small damp cloth to remove unwanted residue.
1. Turn off the printer: Press the power key and unplug the power cable.
2. Using tap water and a small cloth that will not leave fibers in the printer, dampen the cloth and
remove any excess water, so that the cloth is damp but not wet.
3. Open the main door.
4. Hold the cloth in an inverted U shape around the encoder strip and carefully wipe until no further ink
residue appears on the cloth. Be very careful not to scratch the encoder strip with your fingernails
or any other object. Make sure that you are holding the cloth correctly.
NOTE: Do not move the carriage away from the service station.
5. Close the main door.
6. Turn the printer on.
Recalibrate the paper advance

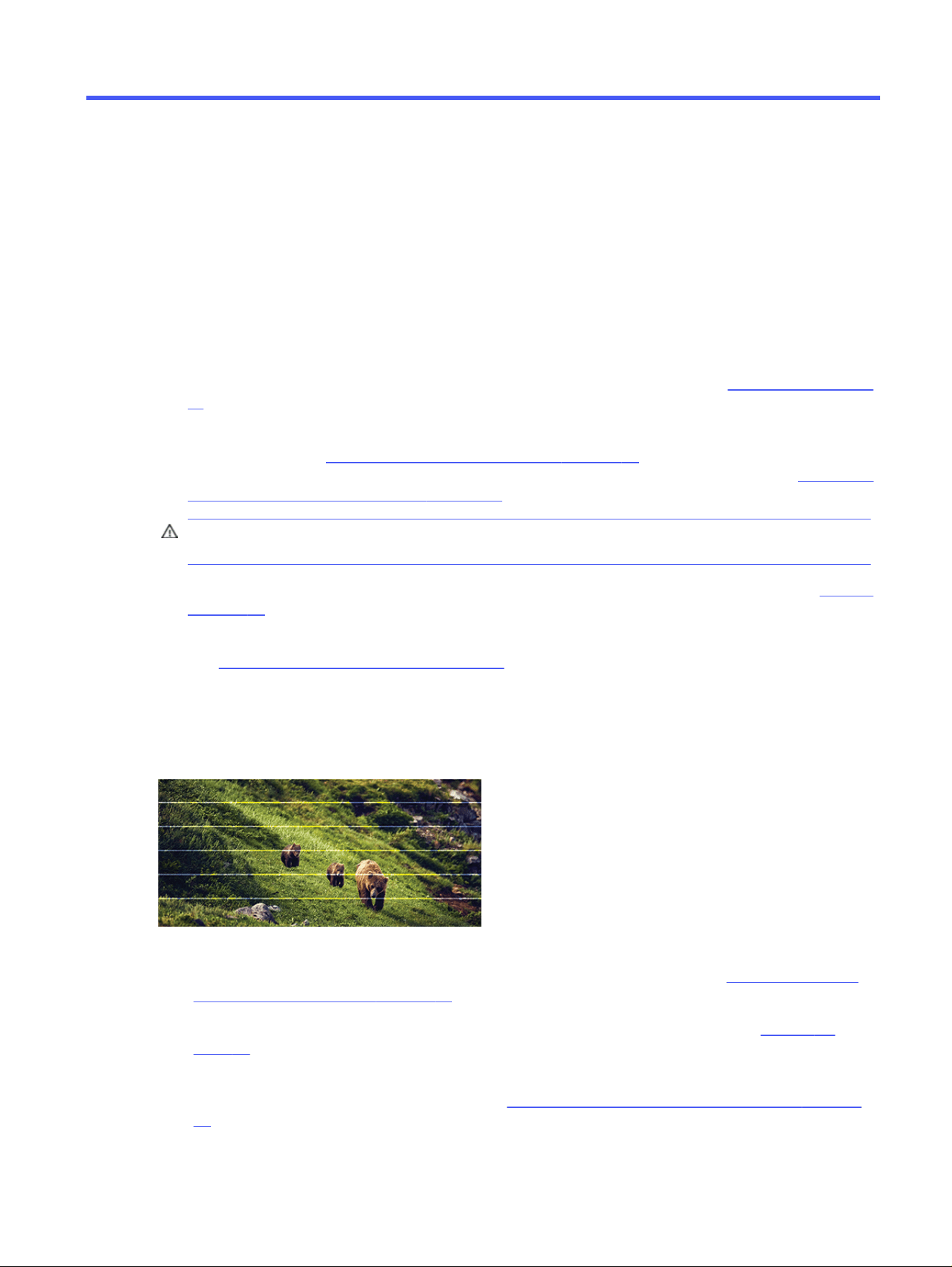

Accurate paper advance is important to image quality because it is part of controlling the proper
placement of dots on the paper. If the paper is not advanced the proper distance between printhead
passes, light or dark bands appear in the print and image grain may increase.
The printer is calibrated to advance correctly with all the papers appearing in the control panel. When
you select the type of loaded paper, the printer adjusts the rate at which to advance the paper while
printing. However, if you are not satisfied with the default calibration of your paper, you may need to
recalibrate the rate at which the paper advances. See Troubleshooting print-quality issues on page 85
to determine whether paper advance calibration will solve your issue.
Recalibrating the paper advance procedure
The recalibration procedure takes approximately three minutes.
TIP: It is recommended to only have the paper loaded that you want to calibrate.
1. From the control panel, tap the Menu icon , then Tools > Troubleshooting > Print
Quality > Paper-Advance Calibration > Automatic Paper-Advance Calibration. When prompted by
the control panel, confirm the paper source and type. The printer automatically recalibrates the
paper advance and prints a paper advance calibration image.
2. Wait until the control panel displays the status screen and re-print your print.
NOTE: Do not worry about the paper advance calibration image.
68
Chapter 9 Maintaining the printer
If you are satisfied with your print, continue using this calibration for your paper type. If you see
improvement in your print, continue with the next step. If you are dissatisfied with the recalibration,
return to the default calibration, see Return to default calibration on page 69.
3. If you would like to fine tune the calibration, or are using a transparent paper, tap the Menu icon
from the control panel, then tap Tools > Troubleshooting > Print Quality > Paper-Advance
Calibration > Manual Paper-Advance Calibration.
4. Select the percentage of change from –99% to +99%. To correct light banding decrease the
percentage. To correct dark banding increase the percentage.
5. To save the value, tap OK on the control panel.
6. Wait until the control panel displays the status screen and reprint your print.
Return to default calibration
This sets all the corrections made by the paper advance calibration to zero. To return to the default
paper advance calibration value, you must reset the calibration.
1. From the control panel, tap the Menu icon , then Tools > Troubleshooting > Print Quality
> (...) > Reset Calibrations.
2. Wait until the control panel displays the operation has completed successfully.
Move or store the printer
If you need to move the printer, take care to prepare it correctly to avoid possible damage.
To prepare the printer:
1. Do not remove the ink cartridges or printhead.
2. Make sure that no paper is loaded.
3. Turn off the printer using the Power key at the back.
4. Unplug the printer's power cord.
5. Disconnect any cables connecting the printer to a network or a computer.
CAUTION: If you turn the printer upside down, ink could escape into the printer and cause serious
damage.
When the printer is turned back on, it takes about three minutes to initialize itself and to check and
prepare the printhead. Preparing the printhead normally takes just over a minute. However, if the printer
has been off for a eight weeks or more, preparing the printhead could take up to a few minutes.
CAUTION: If the printer remains off for a long period of time, the printhead may become unusable. In
this case, you need to replace the printhead with a new one.
Firmware update
The printer's various functions are controlled by firmware that resides in the printer.
Return to default calibration
69
From time to time firmware updates will be available from HP. These updates improve the printer's
functionality, enhance its features, and may correct minor problems.
IMPORTANT: You are strongly recommended to update the firmware periodically in order to take
advantage of the latest developments.
There are various ways of downloading and installing firmware updates; you can choose whichever you
find most convenient. They can be divided into two categories: automatic and manual updates.
Automatic firmware updates
Automatic firmware updates are available for printers connected to the Internet.
Your printer can automatically download the latest firmware release and install it for you.
IMPORTANT: Your printer must be connected to the Internet and the firmware update setting must be
set to “Install updates automatically”.
To configure automatic firmware updates:
● From the control panel: Menu > Settings > Firmware Update.
● From the EWS: General > Firmware Update > Firmware update.
Once the printer detects that there is a new firmware available, follow the instructions on the control
panel.
Manual firmware updates (USB method)
Manual firmware updates can be carried out using a USB flash drive.
1. Download the firmware file from the HP website. See Software update on page 70.
2. Copy the file into the USB flash drive and insert it into the Hi-Speed USB host port in the control
panel.
3. Go to the control panel: Menu > Tools > Maintenance > Firmware and select Update from USB.
4. Select the downloaded firmware file and follow the instructions on the control panel.
Software update
Manual updates of printer drivers and other software and firmware are available for your printer.
Go to the HP website https://www.hp.com/go/DesignJetT870/software.
Printer maintenance kits
Two maintenance kits are available for your printer, containing components that may need to be
replaced after long use.
When one of them is needed, a message is displayed on the control panel and you should contact
HP Support (see Contact HP Support on page 111) and request the maintenance kit. The kits are
installed by service engineers only.
70
Chapter 9 Maintaining the printer
Accessories10
Supplies and accessories can be ordered for your printer.
How to order supplies and accessories
There are two ways to order supplies or accessories for your printer.
● Visit the HP website at the following links: https://hp.globalbmg.com/ and https://www.hp.com/ on the
Web.
● Contact HP Support (see HP Support Center on page 110).
The rest of this chapter lists the available supplies and accessories, and their part numbers.
Order ink supplies
Ink cartridges can be ordered singularly. There is also a printhead replacement kit you can order for your
printer.
Table 10-1
Ink cartridges
Cartridge Part number
HP 738 130ml Cyan DesignJet Ink Cartridge 498N5A
HP 738 130ml Magenta DesignJet Ink Cartridge 498N6A
HP 738 130ml Yellow DesignJet Ink Cartridge 498N7A
HP 738 130ml Black DesignJet Ink Cartridge 498N4A
HP 738B 130ml Black DesignJet Ink Cartridge 498P2A
HP 738 300ml Cyan DesignJet Ink Cartridge 676M6A
HP 738 300ml Magenta DesignJet Ink Cartridge 676M7A
HP 738 300ml Yellow DesignJet Ink Cartridge 676M8A
HP 738 300ml Black DesignJet Ink Cartridge 498N8A
HP 738B 300ml Black DesignJet Ink Cartridge 498P6A
Table 10-2 Printhead
Printhead Part number
HP 739 DesignJet Printhead Replacement Kit 498N0A
The availability of supplies varies by region. Check your local HP website for the availability of supplies in
your region.
If you are using an XT printer version, or a printer bought in the Asia-Pacific region, please check the
compatibility of supplies with a trusted reseller.
Accessories
71
Order paper
HP printers can use a wide range of paper types.
To check the saltest information related to papers supported by your printer, go to the HP website at the
following link: http://www.hplfmedia.com.
Order accessories
The sheet organizer is available as an accessory for your printer.
Table 10-3 Accessories
Name Description Product
number
Strategic Compatibility
HP DesignJet Sheet Organizer Output pocket for tray sheets
to be separated from LF pages
698G7A Yes HP DesignJet T850
HP DesignJet T850 MFP
BT6F2A Yes HP DesignJet T870
Introduction to the accessories
You can increase your printer's possibilities with accessories.

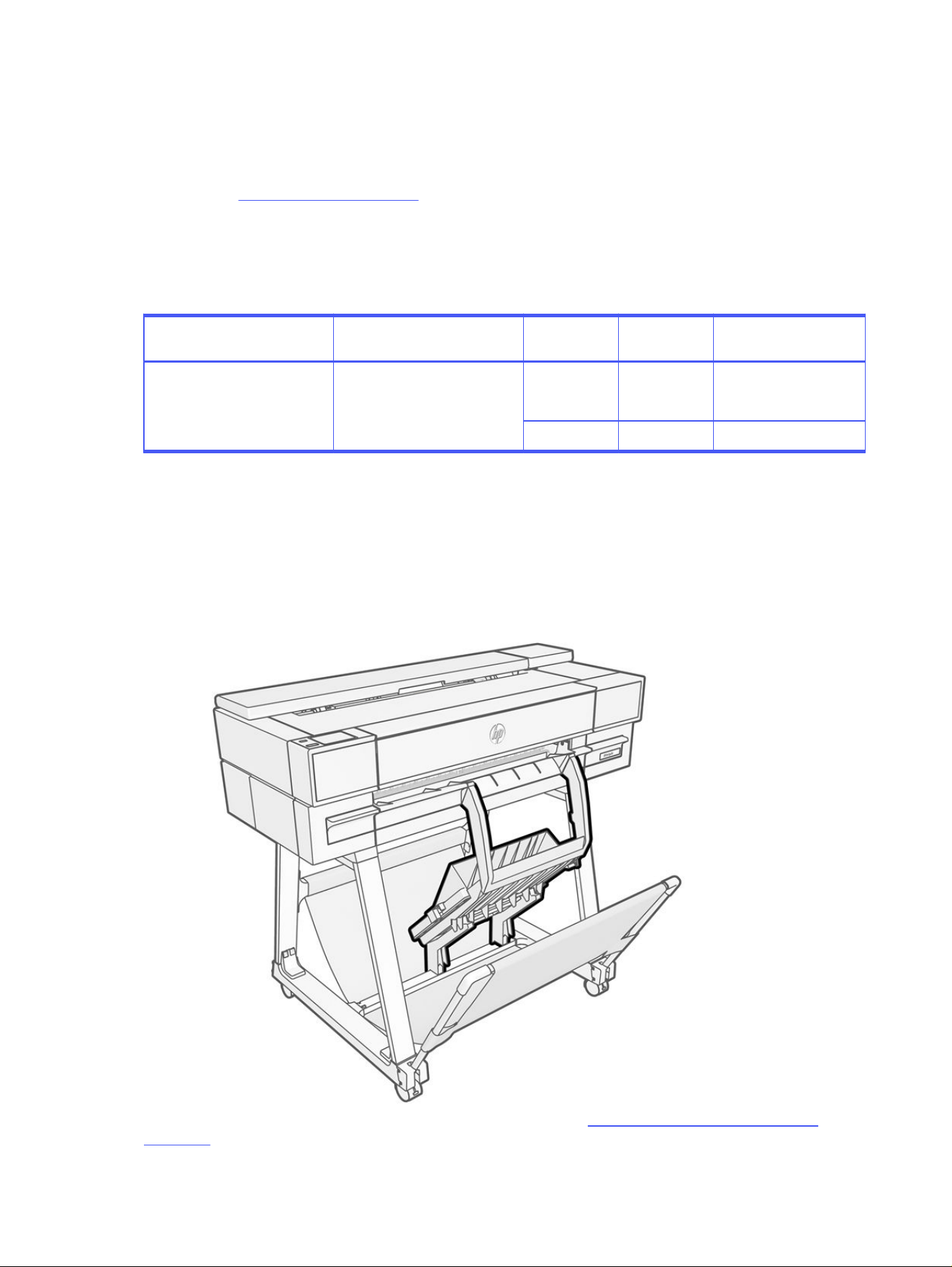

HP DesignJet Sheet Organizer
You can collect A3 and smaller pages separately from large-format pages.
Please watch this how-to video on installing the sheet organizer: www.hp.com/how-to-video-sheet-
organizer.
72
Chapter 10 Accessories

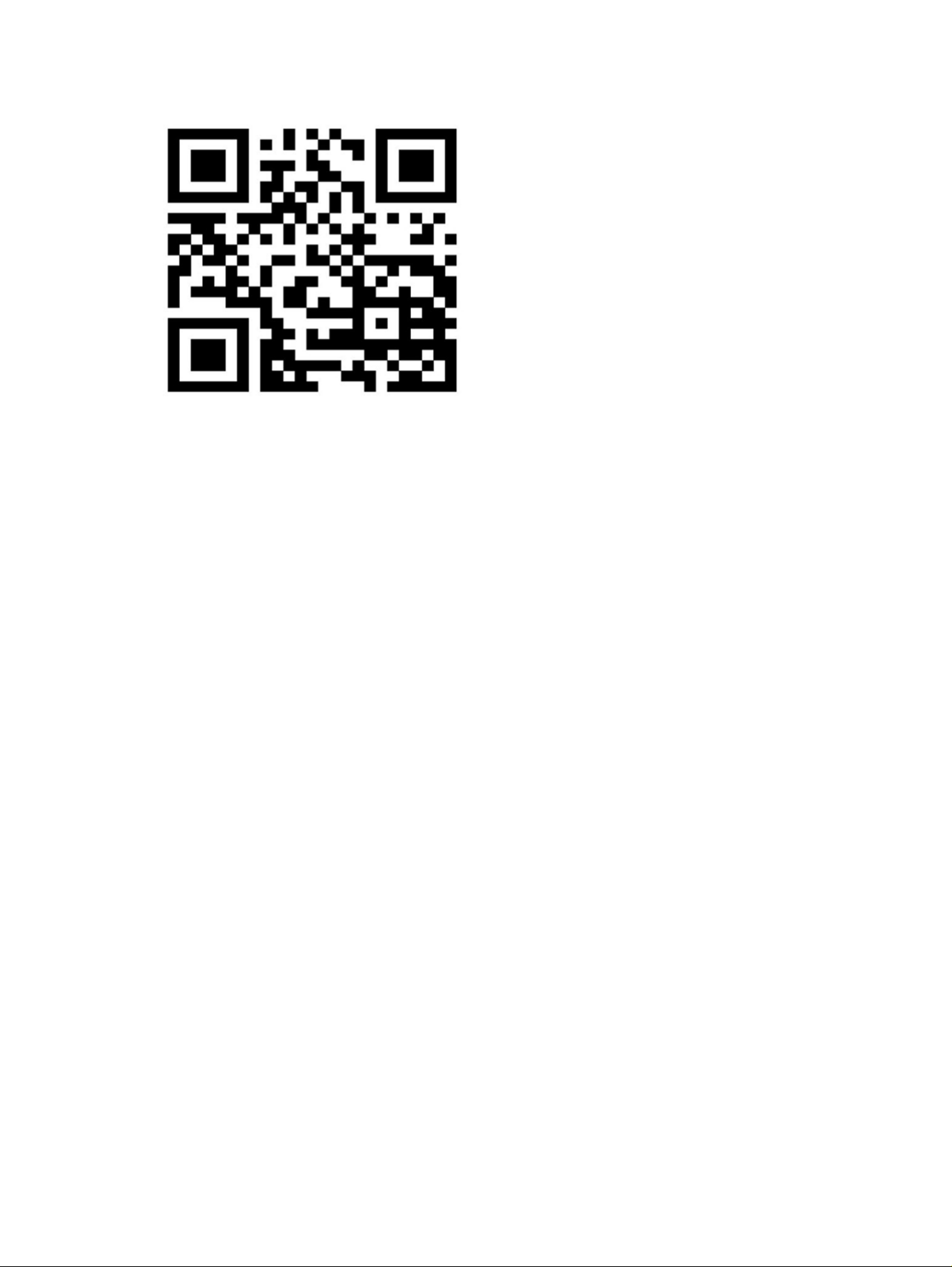

Alternatively, you can scan the QR code to watch the video.
HP DesignJet Sheet Organizer 73
Troubleshooting paper issues11
When the printer detects a jam, it tries to resolve the issue automatically. If it cannot, it stops, and you
must fix the problem manually.
Paper cannot be loaded successfully
There are various reasons why you may have issues loading the paper.
● Ensure that no paper is already loaded.
● Ensure that the paper is far enough inside the printer, you should feel the printer grab the paper.
● Do not attempt to straighten the paper during the aligning process, unless instructed to do so by the
control-panel display. The printer automatically attempts to straighten the paper.
● The paper may be crumpled, or warped, or may have irregular edges.
Unsuccessful roll load
There are checks to make and steps to correct any problems.
● Check that the roll is at least 370 mm (14.5 in) wide: narrower rolls are not supported.
● Check the leading edge of the paper: if it is not straight or clean, it should be trimmed. Remove the
initial 20 mm (1 in) from the roll and try again. This may be necessary even with a new roll of paper.
● Check that the roll ends are tight against the spindle ends.
● Check that the spindle is correctly inserted.
● Check that the paper is correctly loaded on the spindle, and that it loads over the roll towards you.
● Check that all roll tapes have been removed.
● Check that the paper is wound tightly on the roll.
● Do not touch the roll or paper at during the final steps of the loading process.
If the paper has not been inserted straight, follow the instructions on the control panel.
If you would like to start the load process again, cancel the process on the control panel and rewind the
roll from the end of the spindle until the edge is removed from the printer.
NOTE: If the roll has become loose around the core, the printer cannot load the paper.
Unsuccessful sheet load
There are checks to make and steps to correct any problems.
● Check that the sheet is more than 210 mm (8.3 in) wide (A4/ANSI A).
● Guide the sheet, especially thick papers, when the printer initially feeds the sheet.
74
Chapter 11 Troubleshooting paper issues
● Ensure that the sheet is aligned with the reference line on the roll cover.
● Do not attempt to straighten the sheet during the loading process, unless instructed to by the
control-panel display.
● Do not use hand-cut sheets, which may be of irregular shapes. Use only purchased sheets.
In case of any problem, follow the instructions given on the control-panel display.
If you would like to start the load process again, cancel the process on the control panel; the printer
ejects the sheet from the front of the printer.
Unsuccessful load from the tray
There are checks to make and steps to correct any problems.
● Check that you have not loaded too many sheets into the tray. The maximum number of sheets
depends on the paper thickness: around 50 sheets of plain, standard paper.
● Check that the sheets are correctly loaded into the tray.
● Check that the sheets are correctly adjusted and centered in the tray.
● Check that you have extended the input tray correctly: the first extension for A4, the second for A3
paper.
If the paper is hanging over the back of the input tray as shown, it may fail to load.
NOTE: Try to avoid leaving sheets of paper loaded in the printer for a significant length of time,
because they will deform.
Paper loading error messages
There is a list of control-panel messages related to paper loading, with the suggested corrective action.
Unsuccessful load from the tray
75
Table 11-1 Error Messages
Control-panel message Suggested action
Paper loaded with too much skew During the paper load process the printer detected that the paper had too much
skew. Tap OK to unload the roll automatically, then restart the process.
Paper not detected During the paper load process the printer did not detect any paper. Ensure the
paper is inserted fully and is not transparent.
Paper too far from lateral edge Reload the cut sheet, aligning the right edge against the black stop on the spindle.
Paper load failed. Paper width is smaller
than the minimum size supported by the
selected paper source.
Cut sheets smaller than ISO A4 must be loaded using the tray.
Sheet too big During the load process the printer has detected that the sheet of paper is either
too wide or too long to be loaded correctly. Tap the cancel icon to stop the load
process. See Functional specifications on page 113.
Sheet too small During the load process the printer detected that the sheet of paper is too narrow
or too short to be loaded in the printer. Tap the cancel icon to stop the load
process. See Functional specifications on page 113 .
Paper type is not in the driver or control panel
To work with a paper type not present in the driver menu, you can identify the paper type as one of the
presets already available in the driver, however, you must identify whether your paper is transparent or
translucent, photo or bond, coated or technical.
NOTE: For glossy paper, it is important to select a glossy paper type, as the printer adjusts its use of
ink for glossy paper.
Transparent or translucent film
You may use clear or matte film.
If your paper is a transparent film (for example, a transparency), select paper type Film > Transparent/
Clear film.
If your paper is a translucent paper or film (for example, technical paper), select paper type Film > Matte
film.
Photo paper
If your paper is a photo paper, use the Photo Paper category. For glossy or high-gloss paper select
paper type Photo Gloss Paper. For Semi-gloss, Satin, Pearl, or Luster finishes, select paper type Photo
Semi-gloss/Satin Paper.
Bond and coated or technical paper
Your paper type selection for generic paper depends on the paper’s ink absorption capacity.
● For natural tracing papers, select paper type Natural Tracing Paper < 65 g/m2 or Natural Tracing
Paper > 65 g/m2, depending on the weight of the paper.
● For thin papers (< 90 g/m
2
) or uncoated papers (for example plain paper or bright white paper),
select paper type Bond and Coated Paper > Plain Paper.
76
Chapter 11 Troubleshooting paper issues
● For light coated papers (< 110 g/m
2
), select paper type Bond and Coated Paper > Coated Paper.
● For heavyweight coated papers (< 200 g/m
2
), select paper type Bond and Coated Paper >
Heavyweight Coated Paper.
● For matte paper, select paper type Polypropylene Matte or Adhesive Paper. For a gloss or satin
paper, select paper type Adhesive Polypropylene Gloss.
Black ink is easily removed when touched
This happens when your paper is incompatible with matte black ink.
To use an optimized ink combination, select paper type Photo Paper > Photo Gloss Paper.
After printing, the paper has wrinkles or there is too much ink
This happens when too much ink is used.
To use less ink, select a thinner category. Matte paper categories from thinnest to thickest are:
● Plain Paper
● Coated Paper
● Heavyweight Coated Paper
For other print-quality problems, see Troubleshooting print-quality issues on page 85.
Paper size is not in the driver or control panel
Please note that some paper sizes may be identified by their standard ISO, ANSI, ARCH names rather
than their actual dimensions.
For example, to support 12-in x 18-in media, please choose ArchB in the driver or control panel.
Printer printed on the wrong paper type
This happens when the printer prints your job before you were able to load your desired paper.
You may have Use printer settings selected for the Paper Type in the printer driver.
When Use printer settings is selected the printer will print immediately on whichever paper is loaded.
Load your desired paper, see Paper handling on page 23, and select your paper type specifically in the
driver.
● In the Windows driver dialog: Select your paper type from the Paper Type list.
● In the macOS Print dialog: Select the Paper/Quality panel, then from the Paper Type list, select your
paper type.
NOTE: Use printer settings is the driver default.
Black ink is easily removed when touched
77
Paper mismatch
If the paper currently loaded in the printer is not suitable for a particular job, the printer stops and waits
for you to decide what to do. There are several ways in which the loaded paper may be considered
unsuitable.
● The paper type is not as specified for the job.
● The paper source (roll, tray, or manual feed) is not as specified for the job.
● The paper size is smaller than specified for the job.
If you do not specify these things for a particular job, the printer will print on whatever paper is loaded.
If the printer stops for a paper mismatch, you can decide among the following alternatives:
● Load the correct paper and resume printing.
● Print the job on the already-loaded paper. The print may be clipped if the paper is not large enough.
● Cancel the job.
Cut-sheet doesn't enter or drops out of the sheet organizer
Ensure the correct paper-type settings are selected in the control panel in the tray tab. Ensure the paper
guides in the tray are in the position that matches the paper size.
It is recommended to use long-grain orientation paper on a high ink volume document, as short-grain
orientation paper has a tendency to curl and block the pocket's entrance, which causes documents to
fall to the floor.
It is not recommended to use non-plain stiff paper as it can stop the paper from entering the sheet
organizer, causing it to drop to the floor.

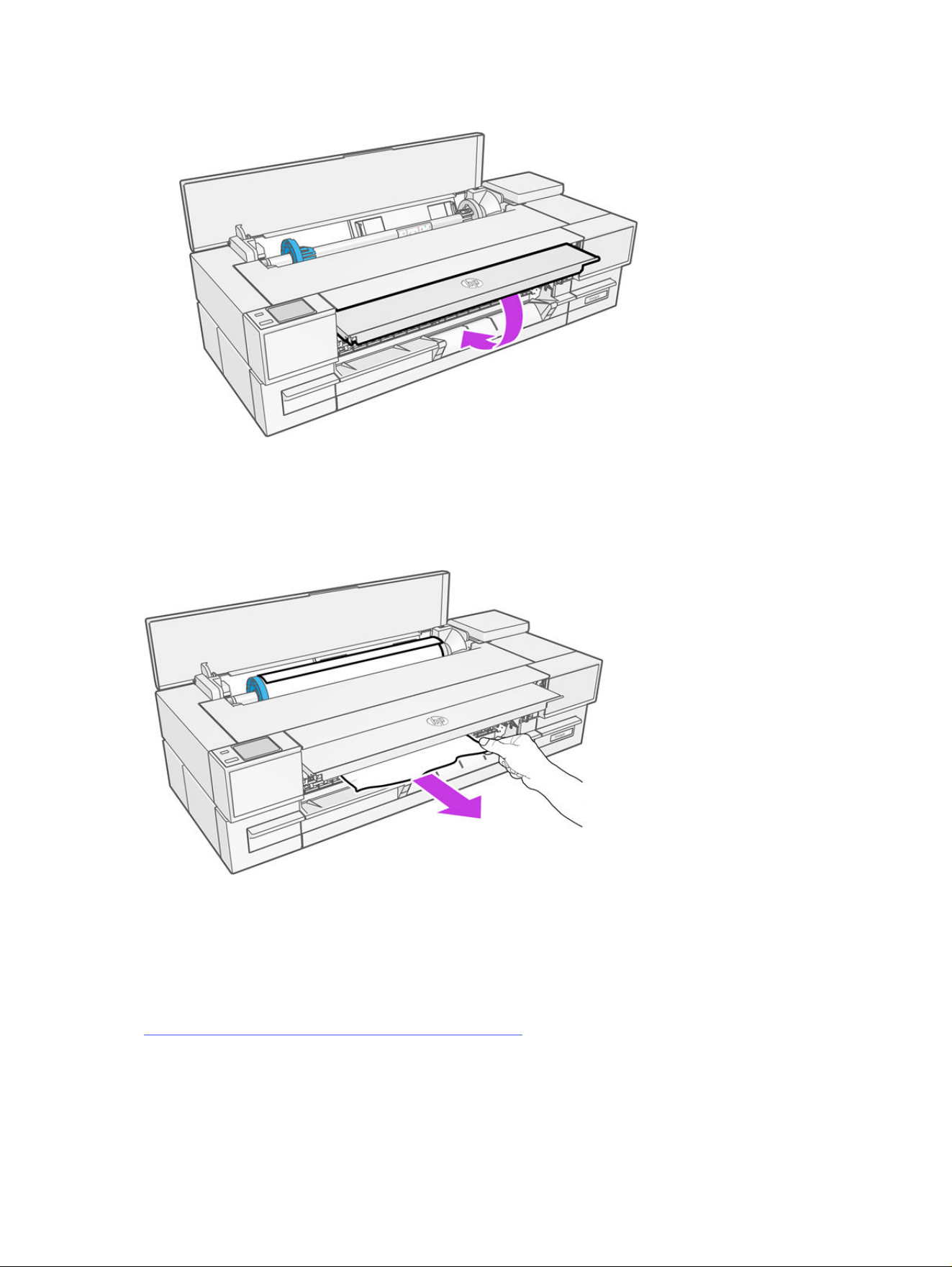

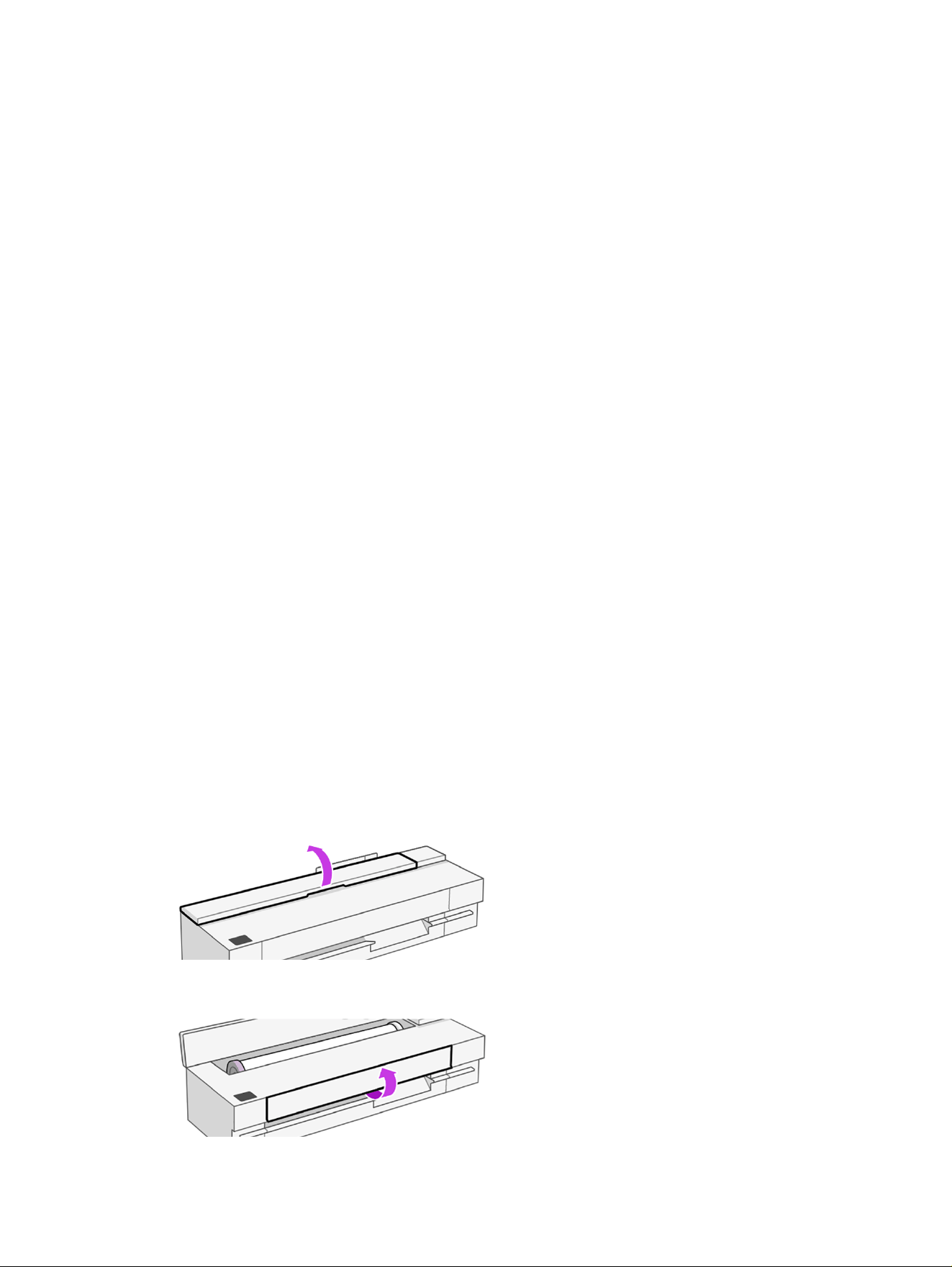

Roll has jammed
When a paper jam occurs, you normally see a message about it in the control-panel display.
1. Open the roll cover.
2. Open the main door.
78
Chapter 11 Troubleshooting paper issues
3. Rewind the roll to create a loop. Cut the paper, if needed.
4. Carefully remove any of the jammed paper that you can from the top of the printer.
5. Carefully remove any of the jammed paper from the front window.
6. Reload the roll, or load a new sheet; see Paper handling on page 23.
NOTE: If you find that there is still some paper causing an obstruction within the printer, restart the
procedure and carefully remove all pieces of paper. You may need to remove the tray (see Tray has
jammed on page 79.
Tray has jammed
Paper can jam in the tray for a variety of reasons.
Proceed as follows:
1. Remove as much paper as you can from the tray.
2. Push down the tray extensions, which will make the tray easier to handle.
Tray has jammed
79

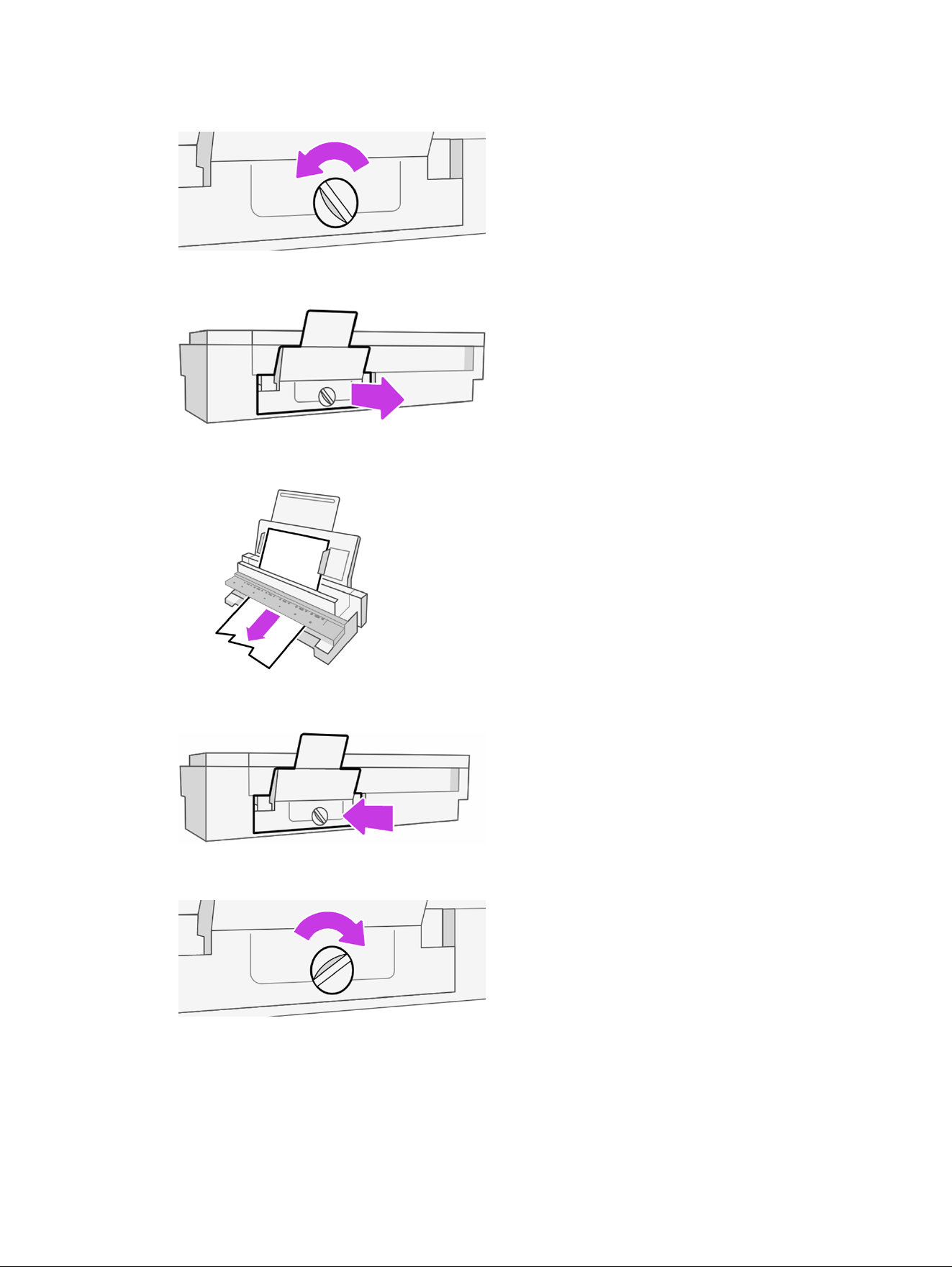

3. Unlock the tray, using the rotary switch behind it.
4. Pull out the tray.
5. Remove all paper from the tray.
6. Put the tray in again.
7. Lock the tray.
80
Chapter 11 Troubleshooting paper issues

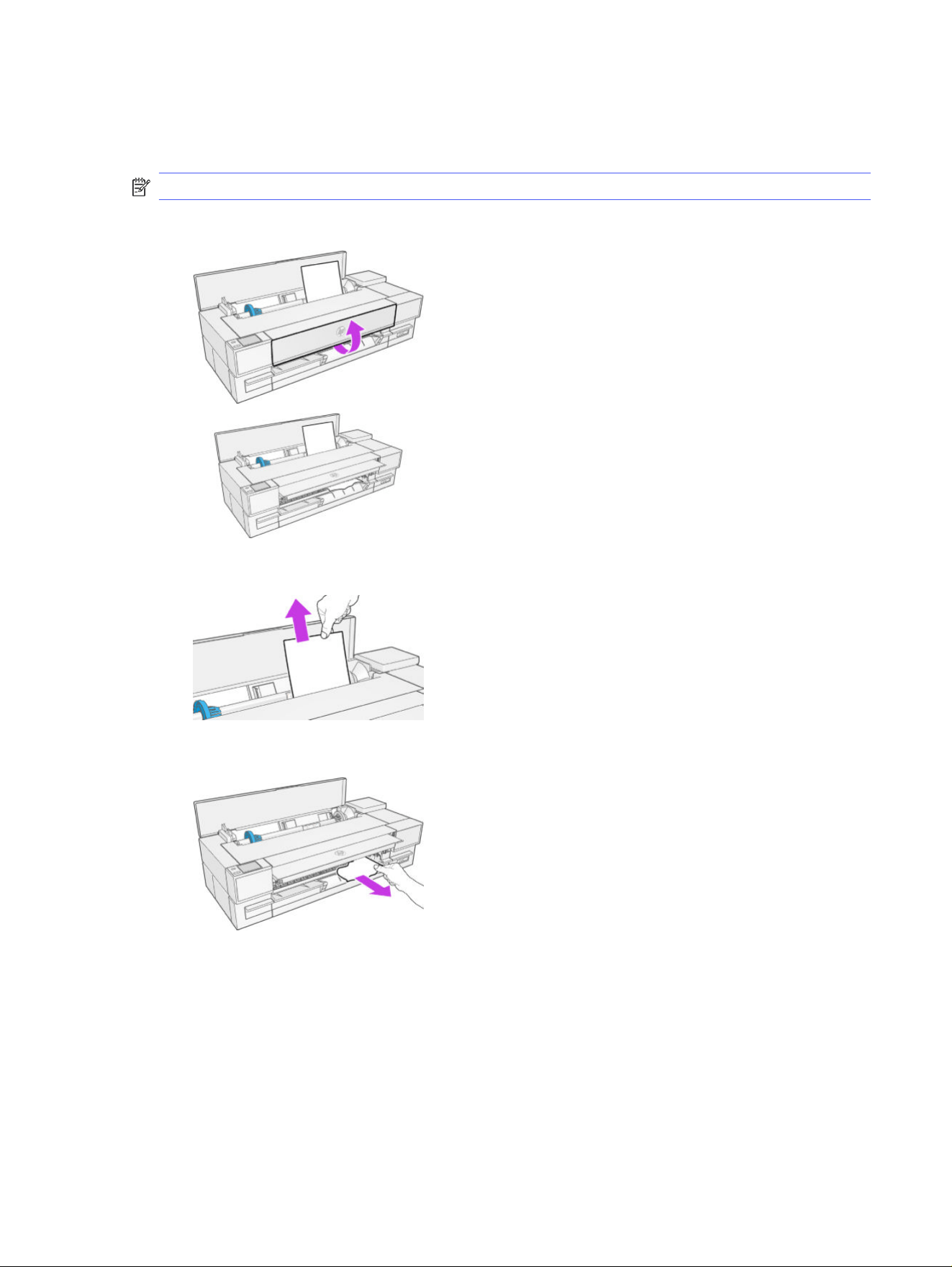

A single sheet has jammed
When a single sheet jam occurs, you normally see a message about it in the front-panel display.
NOTE: Be sure to remove all paper pieces and fragments from the printer.
1. Open the top window.
2. Remove the sheet from the printer.
3. Remove any of the jammed paper.
A single sheet has jammed
81
4. Close the top window when finished.
Cut strip stuck in output area, creating a jam
If a piece of paper has been cut, i.e. printing a new roll, the cut strip may remain in the output area. Make
sure that the printer is not printing, then reach into the area and remove the strip.
How to remove jams
This section explains how to remove jams from your printer.
Watch this how-to video on removing jams:
Watch this how-to video on removing jams with this link.
Alternatively, you can scan the QR code to watch the video.
82
Chapter 11 Troubleshooting paper issues
Printer displays out of paper when paper is available
If the roll has become loose from its core, it will not feed correctly and the printer will not load the paper.
If possible, tighten the paper to its core or load a new roll.
Prints do not fall neatly into the bin
There are steps you can follow if there is an issue with the bin.
● Ensure the bin is correctly installed.
● Ensure the bin is open.
● Ensure the bin is not full.
● Paper often tends to curl near the end of a roll, which can cause output problems. Load a new roll, or
remove prints manually as they are completed.
Sheet stays in the printer when the print has been completed
The printer holds the paper to allow the print to dry after printing.
See Change the drying time on page 30. If the paper is only partially ejected after the drying time, gently
pull the sheet out of the printer. If the automatic cutter is disabled, use the Form feed and cut option in
the control panel, see Advance button and cut button on page 32.
Paper is cut when the print has been completed
By default the printer cuts the paper after the drying time has been completed. You can disable the
cutter.
See Change the drying time on page 30. You can disable the cutter, see Turn the automatic cutter on
and off on page 30.
Cutter does not cut well
By default, the printer is set to cut the paper automatically after the drying time has been completed.
Printer displays out of paper when paper is available
83
If the cutter is turned on but not cutting correctly, check that the cutter rail is clean and clear of any
obstacles, and check that there are no pieces of paper in the cutter groove.
If using the driver, make sure that the cutter is not disabled in the print options.
Cannot connect the tubes to the printhead
It is important that you are using the correct type of printhead, and that it is well placed in its slot.
1. Check that the printhead is correctly inserted. See Cannot insert the printhead on page 95 .
2. Check that the tubes connector lever (blue) is up before connecting the tubes connector.
84 Chapter 11 Troubleshooting paper issues
Troubleshooting print-quality issues12
Step by step instructions are provided for you to identify and resolve your issue.
General printing advice
To achieve the best performance from your printer, use only genuine manufacturer's supplies and
accessories.
● Genuine manufacturer's supplies and accessories have been thoroughly tested to give trouble-free
performance and best-quality prints. For details of recommended papers, see Order paper on page
72.
● Make sure that the paper type selected in the control panel is the same as the paper type loaded
into the printer (see View information about the paper on page 29). Also make sure that the paper
type selected in your software is the same as the paper type loaded into the printer. See Paper type
is not in the driver or control panel on page 76 if you have doubts about the paper selection.
CAUTION: If you have the wrong paper type selected, you could experience poor print quality and
incorrect colors, and perhaps even damage to the printhead.
● Check that you are using the most appropriate print-quality settings for your purposes (see Printing
on page 33). You are likely to see lower print quality if you have set the quality level to Fast.
● Check that your environmental conditions (temperature, humidity) are in the recommended range.
See Environmental specifications on page 115.

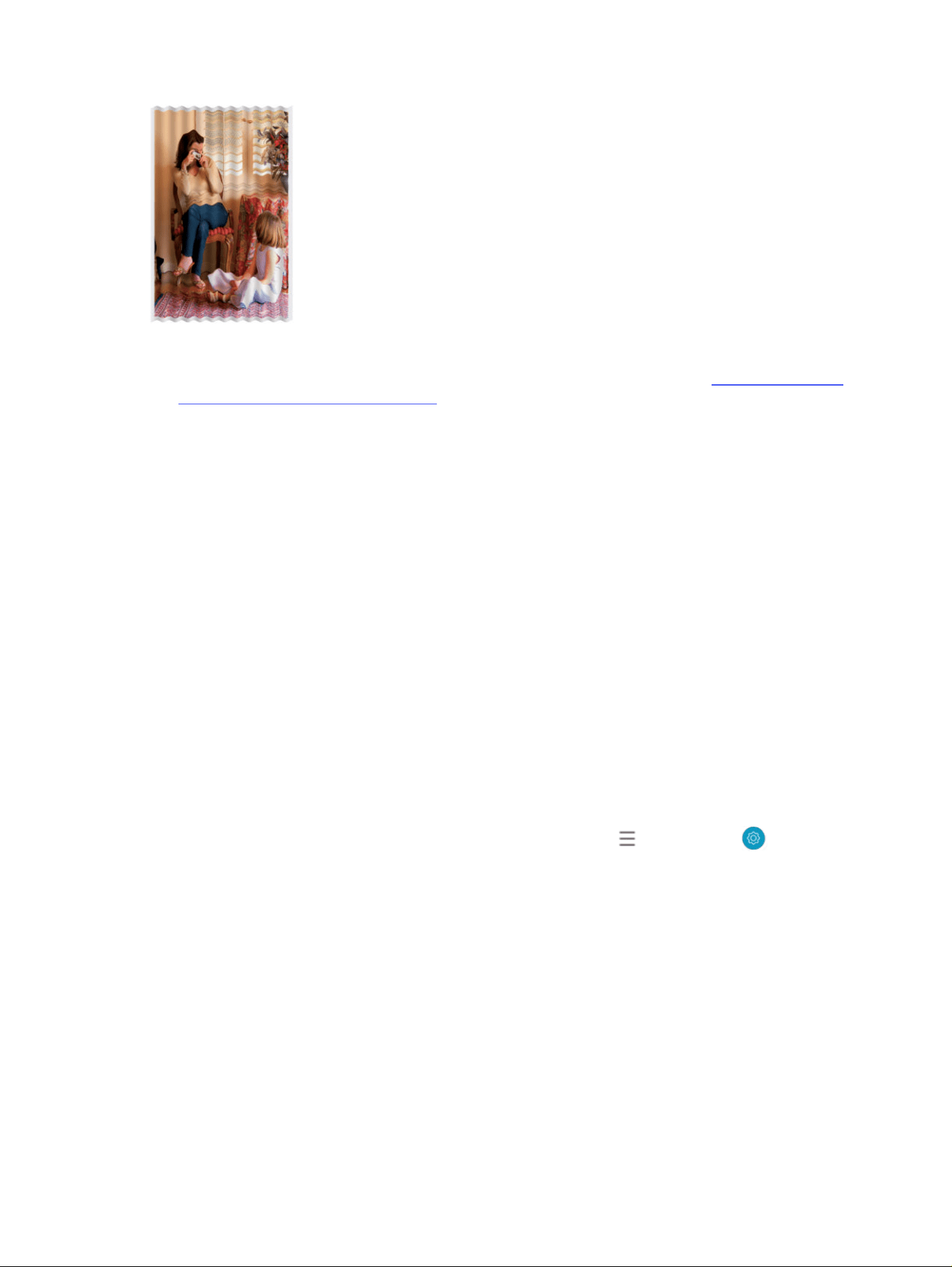

Horizontal lines across the image (banding)
If your printed image suffers from added horizontal lines as shown (the color may vary).
1. Check that the paper type you have loaded corresponds to the paper type selected in the control
panel and in your software. If you have doubts about the paper selection, see Paper type is not in
the driver or control panel on page 76.
2. Check that you are using appropriate print-quality settings for your purposes (see Printing on
page 33). In some cases, you can overcome a print-quality problem merely by selecting a higher
print-quality level. For instance, if you have set the Print Quality level to Fast, try setting it to Best.
3. Print the Print Quality Diagnostic Report. See To print the Print Quality Diagnostic Report on page
62.
Troubleshooting print-quality issues
85
4. If no issues were found in the Print Quality Diagnostic Report, but you still see white horizontal lines
or white streaks in your image, clean the printhead, making sure you complete all phases of the
cleaning process right until the end (see Clean the printhead on page 63).
5. If the printhead is working correctly, perform paper advance calibration: see Recalibrate the paper
advance on page 68.
If the problem persists despite all the above actions, contact your customer service representative for
further support.

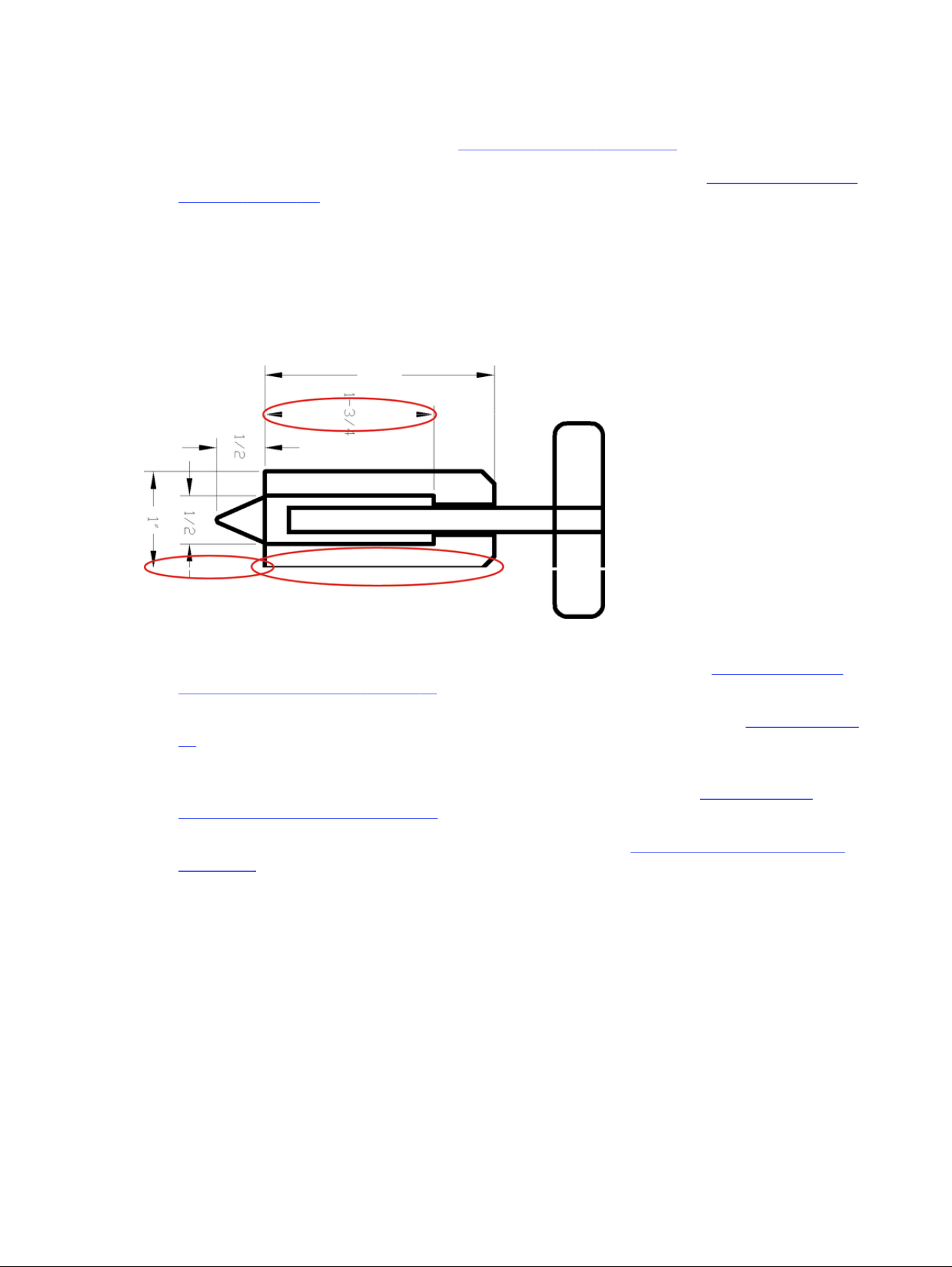

Lines are too thick, too thin, or missing
Check the paper type and settings, and run a report.
1. Check that the paper type you have loaded corresponds to the paper type selected in the control
panel and in your software. If you have doubts about the paper selection, see Paper type is not in
the driver or control panel on page 76.
2. Check that you are using appropriate print-quality settings for your purposes (see Printing on page
33). If available for your paper, try turning on the Maximum detail option (under the Print quality
setting).
3. If lines are too thin or missing, print the Print Quality Diagnostic Report. See To print the Print
Quality Diagnostic Report on page 62 .
4. If the problem remains, perform a paper advance calibration: see Recalibrate the paper advance
on page 68.
If the problem persists despite all the above actions, contact your customer service representative for
further support.

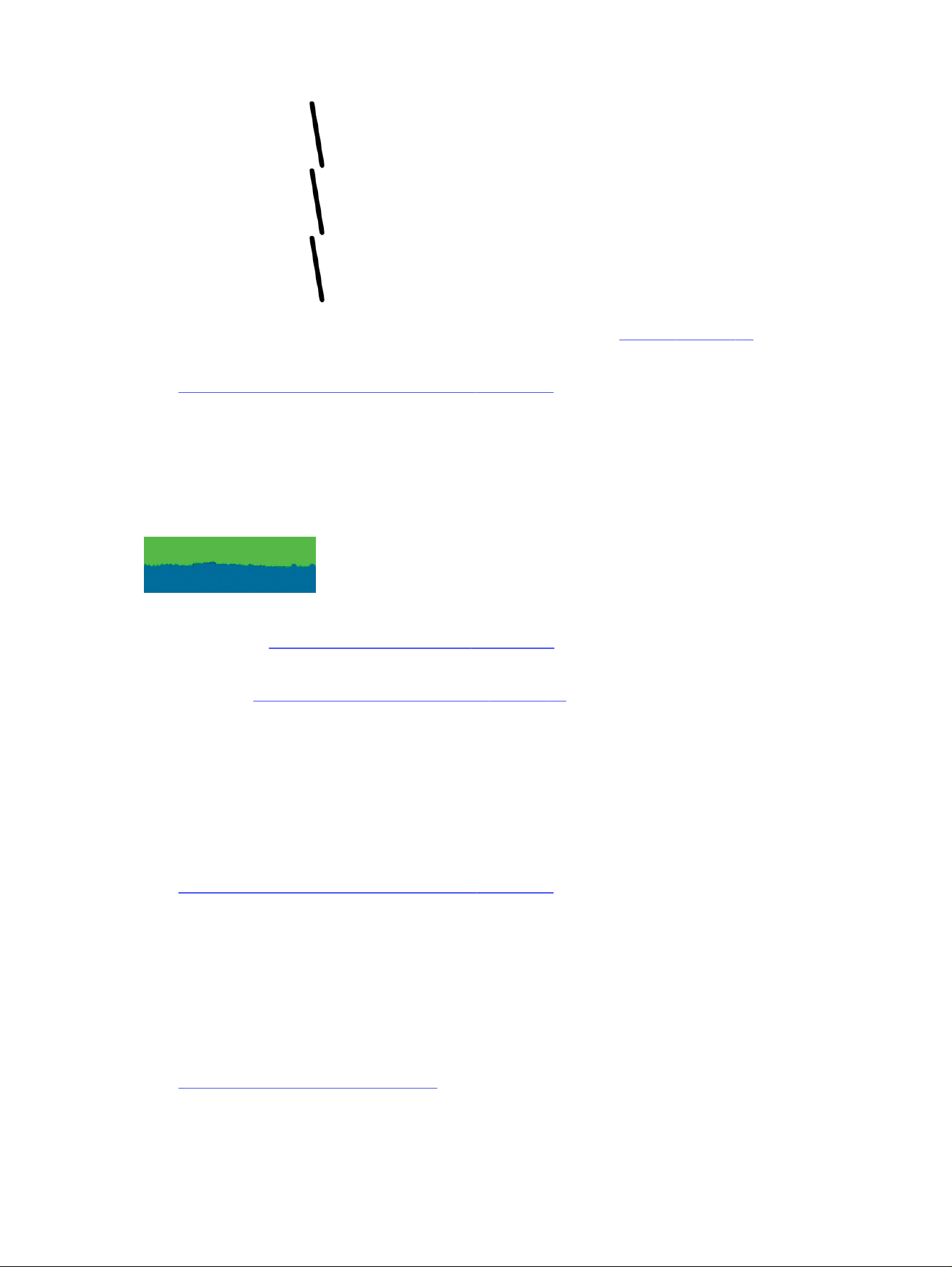

Lines appear stepped or jagged
Check your original image, and print-quality settings.
86
Chapter 12 Troubleshooting print-quality issues
1. The problem may be inherent in the image. Try to improve the image with the application you are
using to edit it.
2. Check that you are using appropriate print-quality settings. See Printing on page 33.
3. Turn on the Maximum detail option (under the Print quality setting) only available for Photo paper.

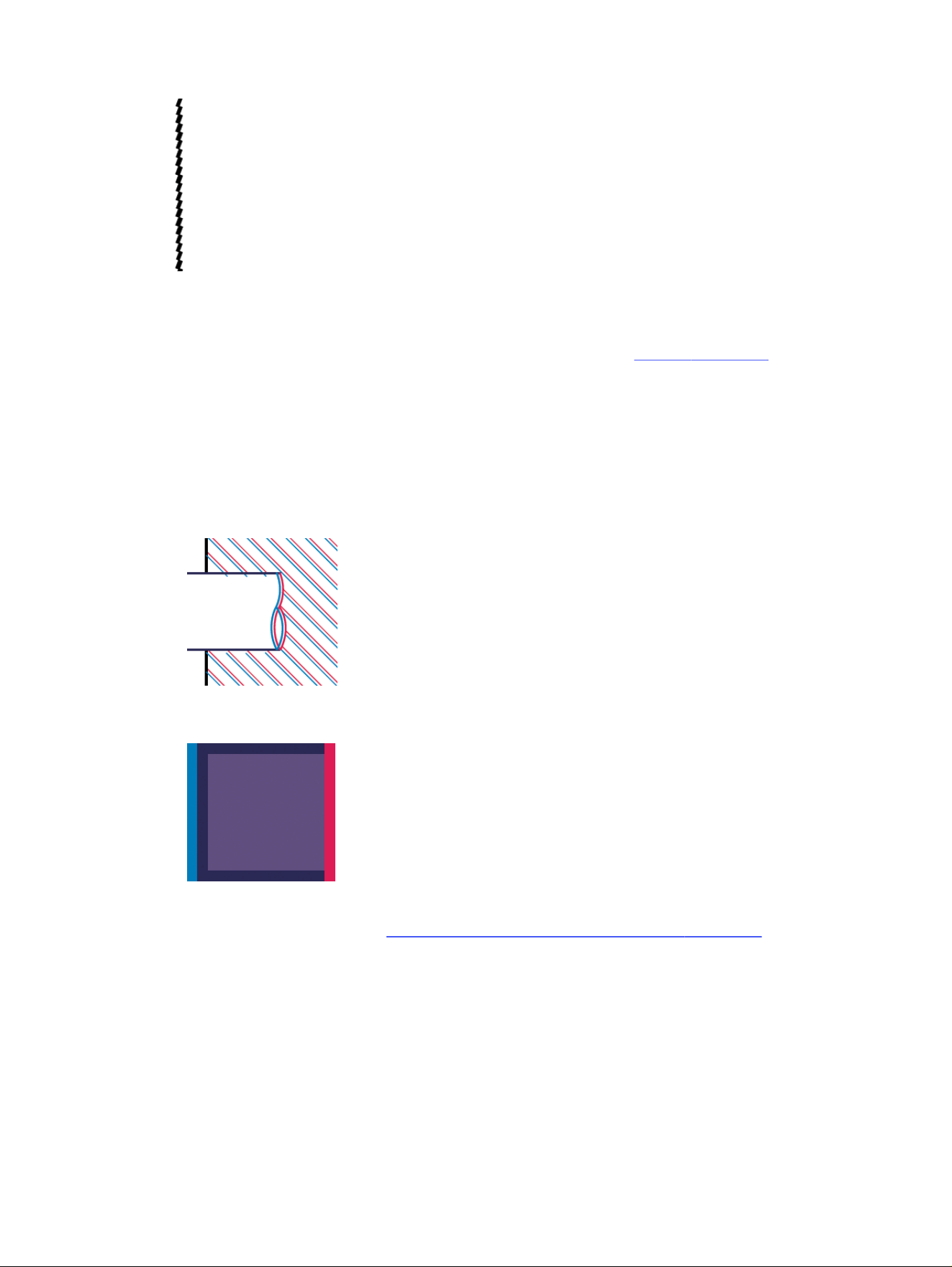

Lines print double or in the wrong colors
This problem can have various visible symptoms.
● Colored lines are printed double, in different colors.
● The borders of colored blocks are wrongly colored.
To correct this kind of problem, print the Print Quality Diagnostic Report, and align the printhead if
recommended in the report. See To print the Print Quality Diagnostic Report on page 62.

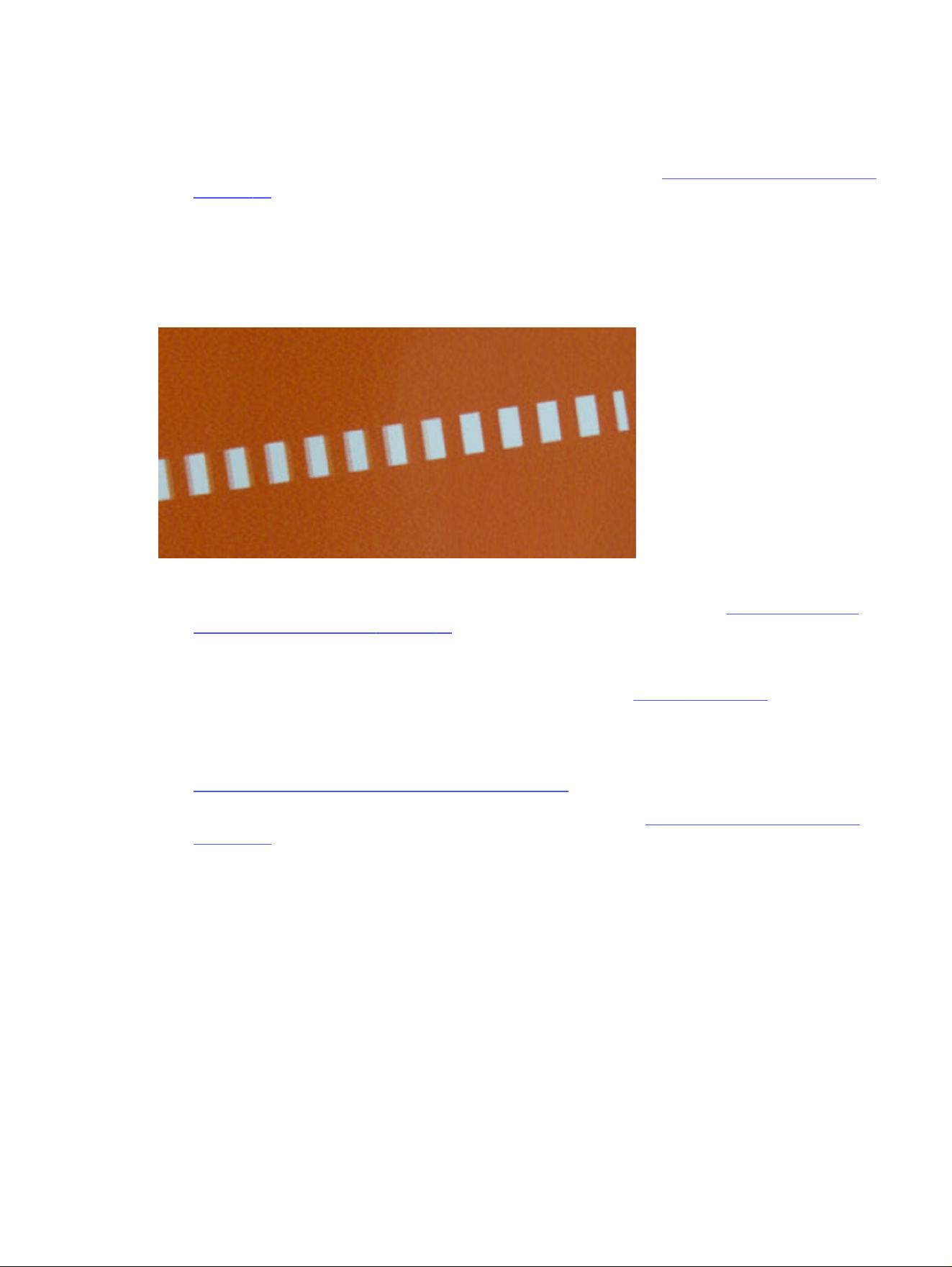

Lines are discontinuous
Check your print-quality settings and print a Print Quality Diagnostic Report.
Lines print double or in the wrong colors
87
1. Check that you are using appropriate print-quality settings. See Printing on page 33.
2. Print the Print Quality Diagnostic Report, and align the printhead if recommended in the report. See
To print the Print Quality Diagnostic Report on page 62.
Lines are blurred
Humidity can cause ink to soak into the paper, making the lines blurred and fuzzy.
Try the following:
1. Check that your environmental conditions (temperature, humidity) are suitable for high-quality
printing. See Environmental specifications on page 115.
2. Check that the paper type selected in the control panel is the same as the paper type you are
using. See View information about the paper on page 29.
3. Try changing to a heavier paper type, such as HP Heavyweight Coated Paper.
4. Select a higher print quality (such as Normal or Best), the printer will then use more time to dry ink.
5. Select a paper type that is slightly thinner than the paper you have loaded; this will persuade the
printer to use less ink. Here are some example paper types in ascending order of thickness: Plain
Paper, Coated Paper, Heavyweight Coated Paper.
6. Print the Print Quality Diagnostic Report, and align the printhead if recommended in the report. See
To print the Print Quality Diagnostic Report on page 62.
Line lengths are inaccurate
If you have measured your printed lines and find that the lengths are not sufficiently accurate for your
purposes, you can try to improve line length accuracy.
Try the following:
1. Print on HP Heavy Weigth Coated, for which your printer's line length accuracy is specified. See
Functional specifications on page 113.
2. Set Print Quality to Best.
88
Chapter 12 Troubleshooting print-quality issues
3. Maintain the room at a steady temperature between 10 and 30°C (50 and 86°F).
4. Load the roll of film and let it rest for five minutes before printing.
5. If you are still not satisfied, try recalibrating the paper advance. See Recalibrate the paper advance
on page 68.
Whole image is blurry or grainy
There are a series of steps and checks you can make to deal with this issue. Check the paper, settings,
run reports to find the issue etc.
1. Check that the paper type you have loaded corresponds to the paper type selected in the control
panel and in your software. If you have doubts about the paper selection, see Paper type is not in
the driver or control panel on page 76.
2. Check that you are printing on the correct side of the paper.
3. Check that you are using appropriate print-quality settings (see Printing on page 33). In some
cases, you can overcome a print-quality problem merely by selecting a higher print-quality level. For
instance, if you have set the Print Quality to Fast, try using Best.
4. Print the Print Quality Diagnostic Report, and align the printhead if recommended in the report. See
To print the Print Quality Diagnostic Report on page 62.
5. If the problem remains, perform a paper advance calibration: see Recalibrate the paper advance
on page 68.
If the problem persists despite all the above actions, contact your customer service representative for
further support.
Paper is not flat
If the paper does not lie flat when it comes out of the printer, but has shallow waves in it, you are likely to
see defects in the printed image, such as vertical stripes. This can happen when you use thin paper that
becomes saturated with ink.
Whole image is blurry or grainy
89
1. Check that the paper type you have loaded corresponds to the paper type selected in the control
panel and in your software. If you have doubts about the paper selection, see Paper type is not in
the driver or control panel on page 76.
2. Try changing to a thicker paper type, such as HP Heavyweight Coated Paper.
3. Select a lower print quality (such as Fast); the printer will then use less ink.
4. Select a paper type that is slightly thinner than the paper you have loaded; this will persuade the
printer to use less ink. Here are some example paper types in ascending order of thickness: Plain
Paper, Coated Paper, Heavyweight Coated Paper.
Print is scuffed or scratched
Pigmented ink can be scuffed or scratched when touched by a finger, a pen or some other object. This is
particularly noticeable on coated paper.
Glossy paper may be extremely sensitive to the bin or to anything else that it contacts soon after
printing, depending on the amount of ink used and the environmental conditions at the time of printing.
To reduce the risk of scuffs and scratches:
● Handle prints carefully.
● Avoid stacking prints on top of each other.
● Increase the drying time. At the control panel, tap the Menu icon , then Settings > General >
Extra Dry Time.
Ink marks on the paper
This problem can occur for several different reasons.

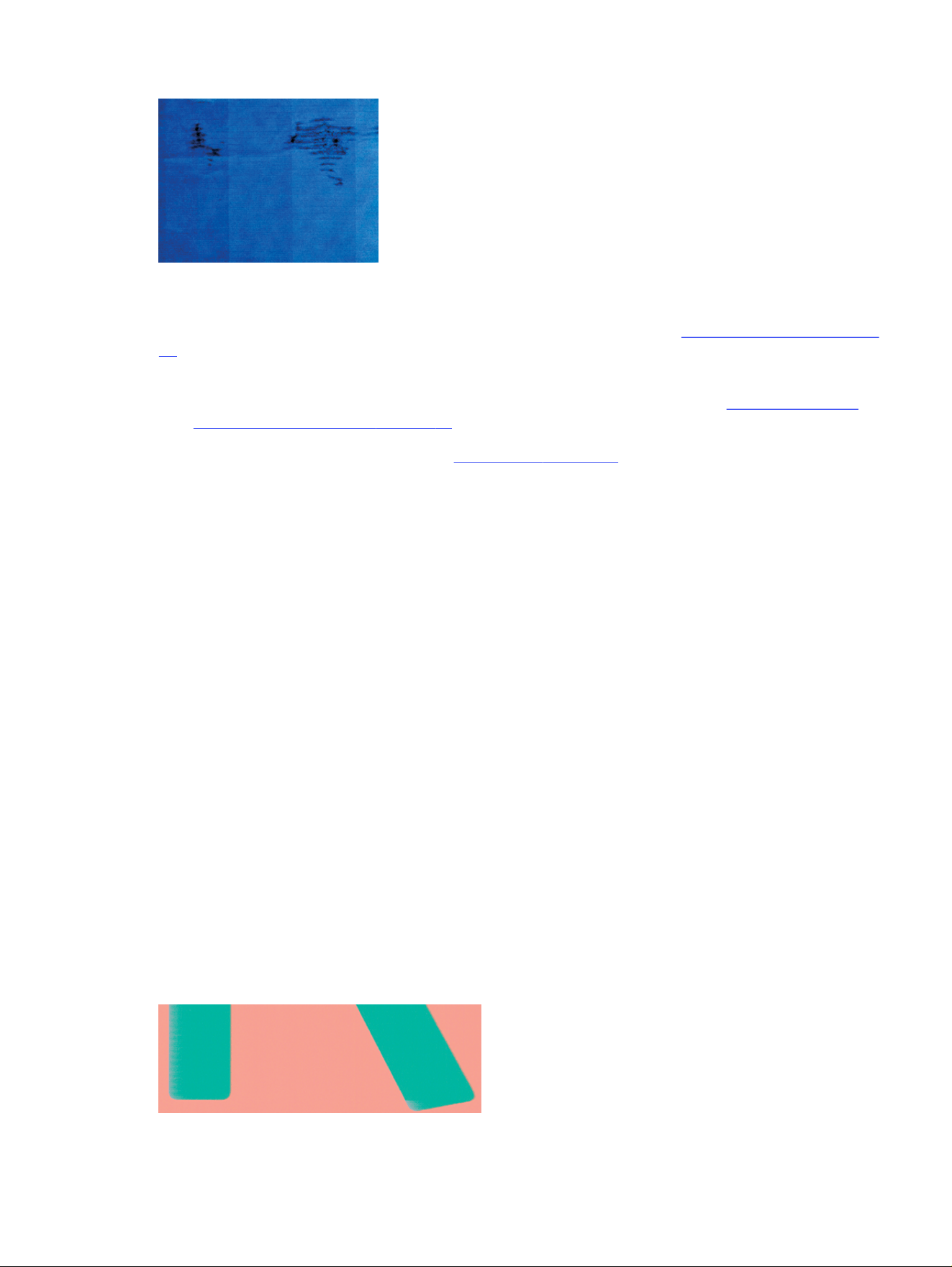

Horizontal smears on the front of coated paper
If a lot of ink is used on plain or coated paper, the paper absorbs the ink quickly and expands. As the
printhead moves over the paper, the printhead may come into contact with the paper and smear the
printed image.
90
Chapter 12 Troubleshooting print-quality issues
Whenever you notice this problem, cancel the printing job immediately. Soaked paper can damage the
printhead.
If you notice poor print quality after this has happened, clean the printhead. Clean the printhead on page
63.
1. Check that the paper type you have loaded corresponds to the paper type selected in the control
panel and in your software. If you have doubts about the paper selection, see Paper type is not in
the driver or control panel on page 76-.
2. Use a recommended paper type (see Order paper on page 72) and the correct print settings.
3. If you see that the paper wrinkles, it is most likely because the paper is too thin. Try changing to a
thicker paper type such as HP Heavyweight Coated Paper.
4. Select a paper type that is slightly thinner than the paper you have loaded; this will cause the
printer to use less ink. Here are some example paper types in ascending order of thickness: Plain
Paper, Coated Paper, Heavyweight Coated Paper.
5. Try to increase the margins by relocating the image to the center of the page using your software
application.
Ink marks on the back of the paper
Clean the platen with a soft cloth. Clean each rib separately.
Black ink comes off when you touch the print
This problem may be caused by printing with matte black ink on glossy paper. The printer will not use
matte black ink if it knows that the paper will not retain it.
To be sure of avoiding matte black ink, you can select Photo Glossy Paper as the paper type (in the Photo
Paper category).
Edges of objects are stepped or not sharp
If edges of objects or lines appear to be poorly defined or lighter in density, and you have already set the
print-quality slider to Best, try setting print quality to Normal.
If the problem still persists, try rotating the image.
Ink marks on the back of the paper
91
Edges of objects are darker than expected
You might see darker edges in some areas of the plot that cause local color variations. Try setting print
quality to Best.
See Printing on page 33 for more information.
If the problem still persists, try rotating the image.
Vertical lines of different colors

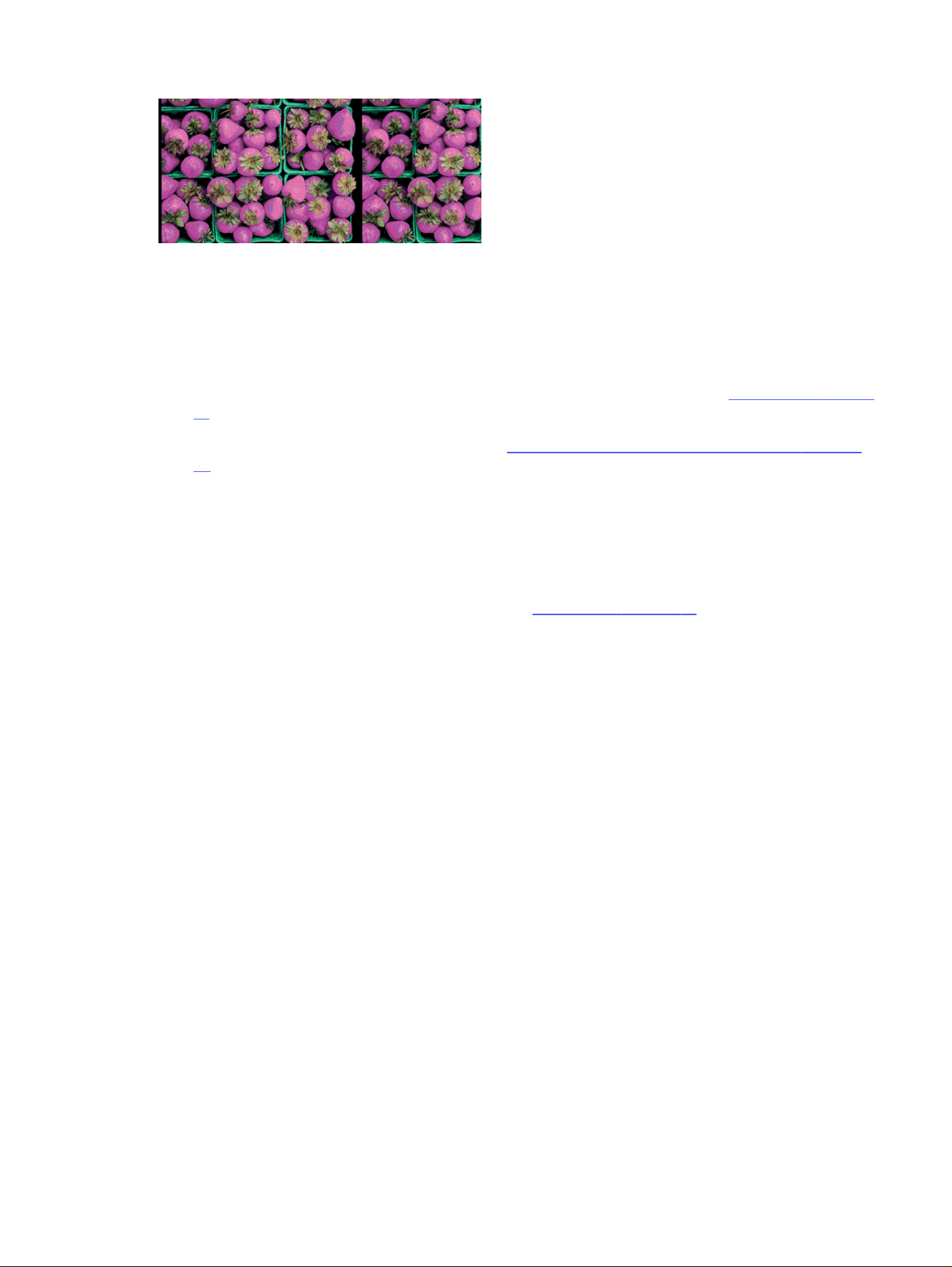

If your print has vertical bands of different colors along it try changing the paper and/or adjusting the
print-quality settings.
1. Try using thicker paper, choosing from the recommended paper types such as HP Heavyweight
Coated Paper. See Order paper on page 72.
2. Try using higher print-quality settings (see Printing on page 33). For instance, if you have set the
Print Quality to Fast, try setting it to Best.
White spots on the print
