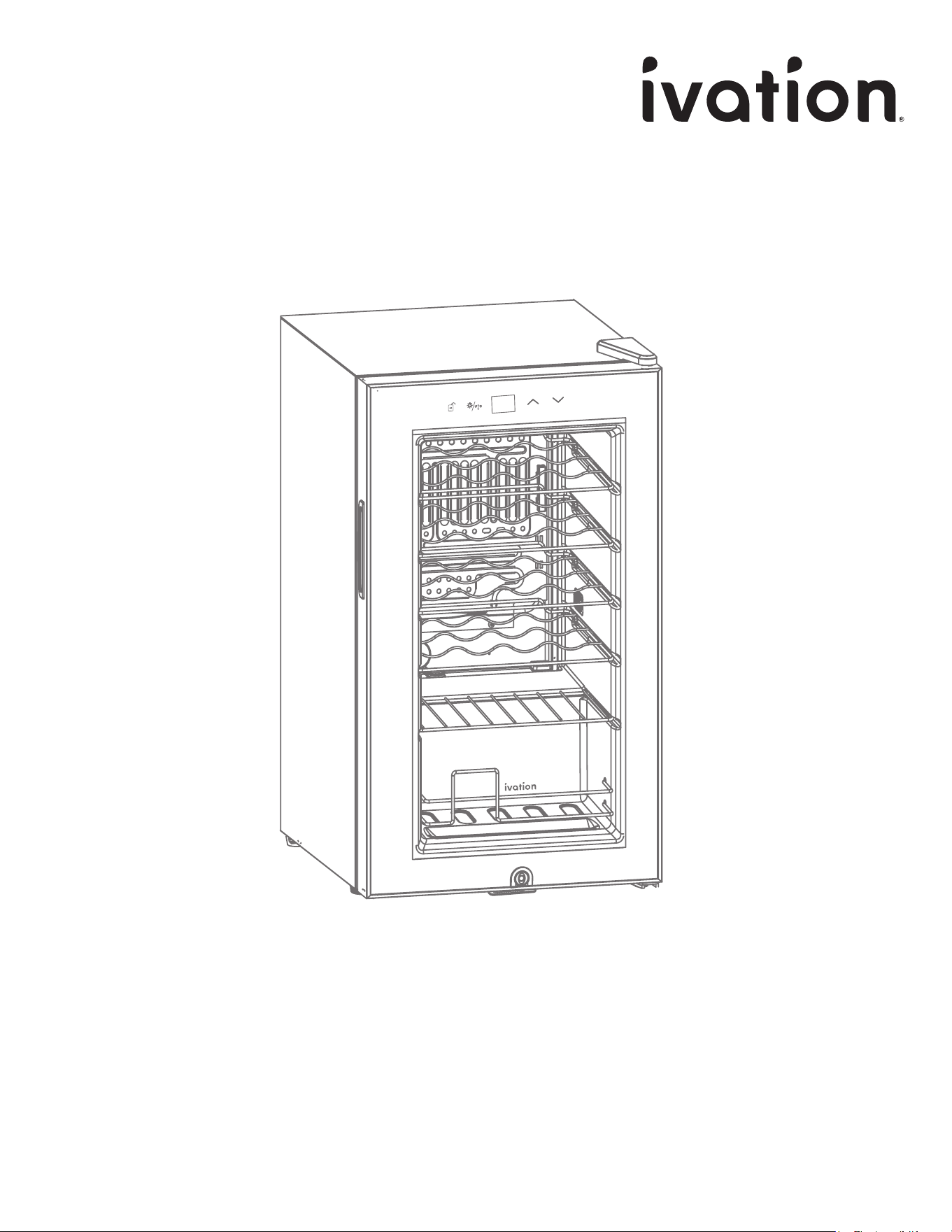

FREESTANDING
COMPRESSOR
WINE COOLERS
User Guide
IVFWCC121LB
Holds 12 bottles
IVFWCC241LB
Holds 24 bottles
IVFWCC341LB
Holds 34 bottles
IVFWCC181LB
Holds 18 bottles
IVFWCC281DLB
Holds 28 bottles
IVFWCC511LB
Holds 51 bottles
IVFWCC142LB
Holds 14 bottles
IVFWCC182LB
Holds 18 bottles
IVFWCC162LB
Holds 16 bottles
IVFWCC431DLB
Holds 43 bottles
IVFWCC125LB
Holds 12 bottles
IVFWCC281LB
Holds 28 bottles
IVFWCC331DLB
Holds 33 bottles
2
INTRODUCTION
INTRODUCTION
Thank you for purchasing the Ivation Freestanding
Compressor Wine Cooler. This User Guide is intended to
provide you with guidelines to ensure that operation of this
products safe and does not pose risk to the user. Any use
that does not conform to the guidelines described in this
User Guide may void the limited warranty.
Please read all directions before using the product and
retain this guide for reference. This product is intended for
household use only. It is not intended for commercial use.
This product is covered by a limited one-year warranty.
Coverage is subject to limits and exclusions. See warranty
for details.
This product is the next best thing to having a real wine
cooler in yo
ur home. It protects your favorite bottles and
stores them at the precise recommended temperatures for
red and/or white wines. The advanced compressor cooling
system delivers the optimal environment for those special
vintages, preserving their unique flavor and delicacy.
FEATURES
SAFETY PRECAUTIONS
PRODUCT OVERVIEW
USAGE / CARE
CARE / SPECS
SPECS
3
4
5
11
12
13
14
15
TABLE OF CONTENTS
GET IN TOUCH!
3
FEATURES
FEATURES
YOUR WINE COOLER FEATURES:
• Keeps red and/or white wines at their proper temperature
• One-touch controls and LCD display
• Interior lighting with independent on/o control
• Celsius or Fahrenheit, adjustable by one-degree
increments
• Chrome shelves are easy to pull out
• Automatic panel lock
• Tempered smoked glass door protects wines from UV rays
• Black metal exterior
• CFC-free solid polyurethane foam insulation
• Lockable door for added security and peace of mind
4
SAFETY PRECAUTIONS
SAFETY PRECAUTIONS
1. WARNING: CHOKING HAZARD – Small parts. This
product contains small parts and is not suitable for children
under 3 years old.
2. Remove all packaging before using this device. Please keep
all packaging materials out of reach of children and pets.
3. Properly dispose of all packing materials immediately after
unpacking product, as the bags used for packaging could
present a suocation or choking hazard.
4. Read all instructions carefully before attempting to operate
this device. Improper usage could result in injury or a
reduction in ecacy.
5. Never allow children to operate, play with, or crawl inside
the appliance.
6. Keep all flammable liquids or materials away from this unit.
Failure to do so may result in a fire or explosion.
7. Keep out of direct sunlight and away from heat sources.
8. Do not attempt to repair or replace any parts or service this
unit unless specifically recommended in this User Guide.
9. Use only with a properly grounded, standard 115V 60Hz
electrical outlet to avoid the risk of electrical shock.
10. Do not use with an extension cord.
IMPORTANT SETUP NOTES
• Before plugging in your Wine Cooler, allow to stand upright
for 3 hours.
• Place only on a level surface that will support the full weight
once Wine Cooler has been fully loaded. You can ensure the
unit is level by placing a small ball on top and checking to
make sure it does not roll in any direction.
• Position in a dry, well-ventilated space with temperatures
between 41°F – 90°F (5°C – 32°C).
• Leave a space of at least 6" in the back of the unit and 10"
on both sides. Do not place any objects on top of the unit.
• Do not use without feet: the unit requires 2" of ground
clearance.
• If you are discarding an old unit, remove its door and leave
shelves in place to avoid an entrapment hazard.
Please note: It is normal for your Wine Cooler to make a whirring
sound that will cycle up when the compressor is working harder to
chill your wine, and cycle down as the temperature levels o.
5
IVFWCC121LB
IVFWCC125LB
PRODUCT OVERVIEW
PRODUCT OVERVIEW
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
1
Exterior
2
Shelves
3
Retainer bar
4
Feet
5
Upper door hinge with cover
6
Control panel
7
Glass door
8
Door gasket
9
Security lock
10
Bottom hinge
GET TO KNOW YOUR WINE COOLER
6
IVFWCC241LB
IVFWCC181LB
IVFWCC281LB
PRODUCT OVERVIEW
PRODUCT OVERVIEW
1
1
1
2
2
2
3
3
3
4
4
4
5
5
5
6
6
6
7
7
7
8
8
8
9
9
9
10
10
10
7
PRODUCT OVERVIEW
PRODUCT OVERVIEW
IVFWCC331DLB
IVFWCC281DLB
IVFWCC341LB
1
1
1
2
2
2
3
3
3
4
4
4
5
5
5
6
6
6
7
7
7
8
8
8
9
9
9
10
10
10
8
IVFWCC431DLB
PRODUCT OVERVIEW
1
2
4
5
6
7
8
9
10
IVFWCC511LB
1
2
4
5
6
7
8
9
10
IVFWCC142LB
1
2
3
4
5
6
7
8
9
10
PRODUCT OVERVIEW
10
IVFWCC162LB
1
2
3
4
5
6
7
8
9
10
IVFWCC182LB
1
2
3
4
5
6
7
8
9
9
PRODUCT OVERVIEW
PRODUCT OVERVIEW
10
PRODUCT OVERVIEW
Model Storage Capacity Temperature Range
IVFWCC121LB 12 Standard Bottles 41-64°F (5-18°C)
IVFWCC125LB 12 Standard Bottles 41-64°F (5-18°C)
IVFWCC142LB 14 Standard Bottles 41-64°F (5-18°C)
IVFWCC162LB 16 Standard Bottles 41-64°F (5-18°C)
IVFWCC182LB 18 Standard Bottles 41-64°F (5-18°C)
IVFWCC281DLB 28 Standard Bottles
Dual Zone
Upper Zone:
41-64°F (5-18°C)
Lower Zone:
41-64°F (5-18°C)
IVFWCC341LB 34 Standard Bottles 41-64°F (5-18°C)
IVFWCC331DLB 33 Standard Bottles
Dual Zone
Upper Zone:
41-64°F (5-18°C)
Lower Zone:
41-64°F (5-18°C)
IVFWCC511LB 51 Standard Bottles 41-64°F (5-18°C)
IVFWCC431DLB 43 Standard Bottles
Dual Zone
Upper Zone:
55-64°F (13-18°C)
Lower Zone:
41-54°F (5-12°C)
RECOMMENDED TEMPERATURE
Fahrenheit Celsius
Red Wines 57° - 65° 14° - 18°
White Wines,
Champagnes and
Sparkling Wines,
and Dry Varietals
49° - 58° 9° - 14°
Rosé Wines 51° - 53° 10° - 11°
IVFWCC181LB 18 Standard Bottles 41-64°F (5-18°C)
IVFWCC241LB 24 Standard Bottles 41-64°F (5-18°C)
IVFWCC281LB 28 Standard Bottles 41-64°F (5-18°C)
PRODUCT OVERVIEW
11
USAGE / CARE
USING YOUR CONTROL PANEL
Single zone models:
IVFWCC121LB/ IVFWC
C125LB/ IVFWCC181LB/
IVFWCC241LB/ IVFWCC281LB/ IVFWCC341LB/
IVFWCC511LB/IVFWCC142LB/IVFWCC162LB/
IVFWCC182LB
Dual zone models:
IVFWCC281DLB/ IVFWCC331DLB/ IVFWCC431DLB
1. Unlock the control panel by pressing the
button
for 2 seconds. A beep will alert you that the panel has
been unlocked. (For Dual Zone model, press once more
to select either the upper or lower zone.)
2. Adjust the temperature in 1 degree increments
by pressing the (
and ) buttons until desired
temperature is reached.
3. To switch between Fahrenheit and Celsius, press the
for two (2) seconds.
4. You can also turn the interior light on or o by pressing
the
button. The interior light will stay on until you
turn it o. Press the button again to turn it back on.
DE-ICING YOUR WINE COOLER
• The unit’s Auto Defrost feature should prevent ice
accumulation from occurring.
• However, should ice accumulation occur, you can do the
following:
- Unplug the Wine Cooler.
- Wait for all ice to melt.
- Once melting is complete, remove water from the unit.
- Plug in and restart the unit.
USAGE / CARE
12
CARE / SPECS
CARE / SPECS
HOW TO CLEAN YOUR WINE COOLER
TO CLEAN THE EXTERIOR:
• Unplug before cleaning.
• Do not use abrasive cleaning products.
• Wash the cabinet exterior only with mild soap and water and
rinse thoroughly.
• Clean the glass door with glass cleaner or mild soap and
water and a soft cloth.
• Wipe the control panel with a damp cloth and dry thoroughly.
To avoid damaging the panel, do not use cleaning sprays or
over-saturated.
TO CLEAN THE INTERIOR:
• Unplug before cleaning.
• Do not use abrasive cleaning products.
• Cleaning the door gasket:
- Use mild soap or baking soda solution.
- Rinse well.
- Apply a thin layer of petroleum jelly to the gasket at the hinge
side to prevent sticking.
• Use a warm water and baking soda solution inside the unit (about
one tablespoon of baking soda to one quart of water) to clean
and neutralize odors.
IVFWCC121LB:
Power Supply: 115 V/60 Hz
Rated Power: 95 W
Unit Dimensions (W x D x H):
9.9 x 17.7 x 31.2 in.
(252 x 450 x 792 mm)
Net Weight: 37.5 lbs. (17 kg)
IVFWCC181LB:
Power Supply: 115 V/60 Hz
Rated Power: 95 W
Unit Dimensions (W x D x H):
13.6 x 17.7 x 30.3 in.
(345 x 450 x 770 mm)
Net Weight: 46.65 lbs. (20.71 kg)
TECHNICAL SPECIFICATIONS
IVFWCC125LB:
Power Supply: 115 V/60 Hz
Rated Power: 95 W
Unit Dimensions (W x D x H):
17.3 x 18.5 x 20.9 in.
(440 x 470 x 530 mm)
Net Weight: 39.7 lbs. (18 kg)
IVFWCC241LB:
Power Supply: 115 V/60 Hz
Rated Power: 95 W
Unit Dimensions (W x D x H):
16.9 x 17.7 x 29.1 in.
(430 x 450 x 740 mm)
Net Weight: 47 lbs. (21.3 kg)
13
IVFWCC281LB:
Power Supply: 115 V/60 Hz
Rated Power: 95 W
Unit Dimensions (W x D x H):
16.9 x 17.7 x 33.1 in.
(430 x 450 x 840 mm)
Net Weight: 49.6 lbs. (22.5 kg)
IVFWCC281DLB:
Power Supply: 115 V/60 Hz
Rated Power: 95 W
Unit Dimensions (W x D x H):
16.9 X 17.7 X 33.1 in.
(430 x 450 x 840 mm)
Net Weight: 55.1 lbs. (25 kg)
IVFWCC331DLB:
Power Supply: 115 V/60 Hz
Rated Power: 65 W
Unit Dimensions (W x D x H):
19.5 x 16.9 x 33.4 in.
(495 x 430 x 848 mm)
Net Weight: 59.5 lbs. (27 kg)
IVFWCC431DLB:
Power Supply: 115 V/60 Hz
Rated Power: 90 W
Unit Dimensions (W x D x H):
19.5 x 22.3 x 33.4 in.
(495 x 565 x 848 mm)
Net Weight: 75 lbs. (34 kg)
IVFWCC341LB:
Power Supply: 115 V/60 Hz
Rated Power: 90 W
Unit Dimensions (W x D x H):
18.7 x 17.3 x 33.1 in.
(474 x 440 x 840 mm)
Net Weight: 55.57 lbs. (25.21 kg)
IVFWCC511LB:
Power Supply: 115 V/60 Hz
Rated Power: 90 W
Unit Dimensions (W x D x H):
19.5 x 22.3 x 33.4 in.
(495 x 565 x 848 mm)
Net Weight: 75 lbs. (34 kg)
SPECS / TROUBLESHOOTING
SPECS
IVFWCC142LB
Power Supply: 115 V/60 Hz
Rated Power: 65 W
Unit Dimensions (W x D x H):
9.9 x 17.7 x 34.8 in.
(252 x 450 x 885 mm)
Net Weight: 41.9 lbs. (19 kg)
IVFWCC162LB
Power Supply: 115 V/60 Hz
Rated Power: 95 W
Unit Dimensions (W x D x H):
9.9 x 17.7 x 38.2 in.
(252 x 450 x 970 mm)
Net Weight: 46.3 lbs. (21 kg)
IVFWCC182LB
Power Supply: 115 V/60 Hz
Rated Power: 95 W
Unit Dimensions (W x D x H):
9.9 x 17.7 x 41.7 in.
(252 x 450 x 1060 mm)
Net Weight: 48.5 lbs. (22 kg)
14
SPECS / TROUBLESHOOTING
TROUBLESHOOTING
TROUBLESHOOTING
If the unit doesn’t work:
Check to make sure the power supply has the correct voltage. Also
check to make sure there isn't a circuit breaker that has been tripped or a
blown fuse.
If the unit isn’t getting cold enough:
Make sure the temperature settings are adjusted correctly. If so, the room
in which the unit is operating might be too hot. Also check whether the
door has been opened too frequently or has not been completely closed.
Check the deal on the door to make sure it is intact. Make sure the unit
has sufficient clearance on all sides.
If the unit vibrates or makes excessive noise:
Make sure the unit has been placed on a level, stable surface. Also check
to make sure the fan is working properly.
If the LED display is not working or shows an error message:
Check to see if the unit is plugged in properly. If so, there may be a
problem with the main circuit board that requires professional servicing.
If the buttons don’t work:
The control panel may be damaged.
15
WARRANTY
WARRANTY
LIMITED WARRANTY TO ORIGINAL CONSUMER
This Ivation Freestanding Compressor Wine Cooler (“Product”), including any accessories
included in the original packaging, as supplied and distributed new by an authorized retailer
is warranted by C&A Marketing, Inc. (the “Company”) to the original consumer purchaser only,
against certain defects in material and workmanship (“Warranty”) as follows:
To receive Warranty service, the original consumer purchaser must contact the Company or
its authorized service provider for problem determination and service procedures. Proof of
purchase in the form of a bill of sale or receipted invoice, evidencing that the Product is within
the applicable Warranty period(s), MUST be presented to the Company or its authorized service
provider in order to obtain the requested service.
Service options, parts availability, and response times may vary and may change at any time.
In accordance with applicable law, the Company may require that you furnish additional
documents and/or comply with registration requirements before receiving warranty service.
Please contact our customer service for details on obtaining warranty service:
Email: info@myivation.com
Phone: 1-866-849-3049
Shipping expenses to the Company’s Return Facility are not covered by this warranty, and must
be paid by the consumer. The consumer likewise bears all risk of loss or further damage to the
Product until delivery to said facility.
EXCLUSIONS AND LIMITATIONS The Company warrants the Product against defects in
materials and workmanship under normal use for a period of ONE (1) YEAR from the date of
retail purchase by the original end-user purchaser (“Warranty Period”). If a hardware defect
arises and a valid claim is received within the Warranty Period, the Company, at its sole option
and to the extent permitted by law, will either (1) repair the Product defect at no charge, using
new or refurbished replacement parts, (2) exchange the Product with a Product that is new or
which has been manufactured from new or serviceable used parts and is at least functionally
equivalent to the original device, or (3) refund the purchase price of the Product.
A replacement Product or part thereof shall enjoy the warranty of the original Product for
the remainder of the Warranty Period, or ninety (90) days from the date of replacement or
repair, whichever provides you longer protection. When a Product or part is exchanged, any
replacement item becomes your property, while the replaced item becomes the Company’s
property. Refunds can only be given if the original Product is returned.
This Warranty does not apply to:
(a) Any non-Ivation Freestanding Compressor Wine Cooler product, hardware or software,
even if packaged or sold with the Product;
(b) Damage caused by use with non-Ivation Freestanding Compressor Wine Cooler products;
(c) Damage caused by accident, abuse, misuse, flood, fire, earthquake, or other external causes;
(d) Damage caused by operating the Product outside the permitted or intended uses described
by the Company;
(e) Damage caused by third party services;
(f) A Product or part that has been modified to alter functionality or capability without the
written permission of the Company;
(g) Consumable parts, such as batteries, fuses, and bulbs;
(h) Cosmetic damage; or
(i) If any Ivation Freestanding Compressor Wine Cooler serial number has been removed or
defaced.
This Warranty is valid only in the country where the consumer purchased the Product, and only
applies to Products purchased and serviced in that country.
The Company does not warrant that the operation of the Product will be uninterrupted or error-
free. The Company is not responsible for damage arising from your failure to follow instructions
relating to its use.
16
GET IN TOUCH!
GET IN TOUCH!
GET IN TOUCH!
info@myivation.com
1-866-849-3049
IVATION is a trademark of C&A IP Holdings LLC, in the U.S, Canada, and the E.U.
All other products, brand names, company names, and logos are trademarks of their respec-
tive owners, used merely to identify their respective products, and are not meant to connote
any sponsorship, endorsement, or approval.
Distributed by C&A Marketing, Inc., 114 Tived Lane East, Edison, NJ 08837.
MADE IN CHINA
© 2022. C&A IP Holdings LLC. All Rights Reserved.
