EG10038 Revised 09/23
CAUTION
INSPECT CONTENTS IMMEDIATELY AND FILE CLAIM WITH DELIVERING
CARRIER FOR ANY DAMAGE. SAVE YOUR BOX AND ALL PACKING MATERIALS.
YOU ARE RESPONSIBLE FOR DAMAGE TO YOUR UNIT IF RETURNED IMPROPERLY PACKED.
ASSEMBLY INSTRUCTIONS
Sandwich Prep Station
Slide collar of frame
support over post
and down onto
split sleeves.
Repeat with
remaining 18˝ post.
IMPORTANT: Do NOT
assemble top frame
supports to posts yet.
split
sleeve
collar
3-sided
channel
frame
frame support/
post assembly
frame
support/
post
assembly
split
sleeve
18˝ post
74˝ post
(rear)
74˝ post
(front)
split
sleeve
74˝ post
74˝ posts
3-sided
channel
frame
18˝ post
bottom frame
support
split sleeve
split
sleeve
split
sleeve
split
sleeve
74˝
post
Step 3 - Attach 3-sided channel frame to 74˝ posts.
(continued on page 2)
Eagle Foodservice Equipment, Eagle MHC, and SpecFAB
®
are divisions of Eagle Group. ©2023 by the Eagle Group
• 100 Industrial Boulevard, Clayton, Delaware 19938-8903 U.S.A.
• Phone: 302/653-3000 • 800/441-8440 • Fax: 302/653-2065
• www.eaglegrp.com • www.eaglegrpnews.com • www.eaglemhc.com
INSTRUCTION SHEET
#A223915

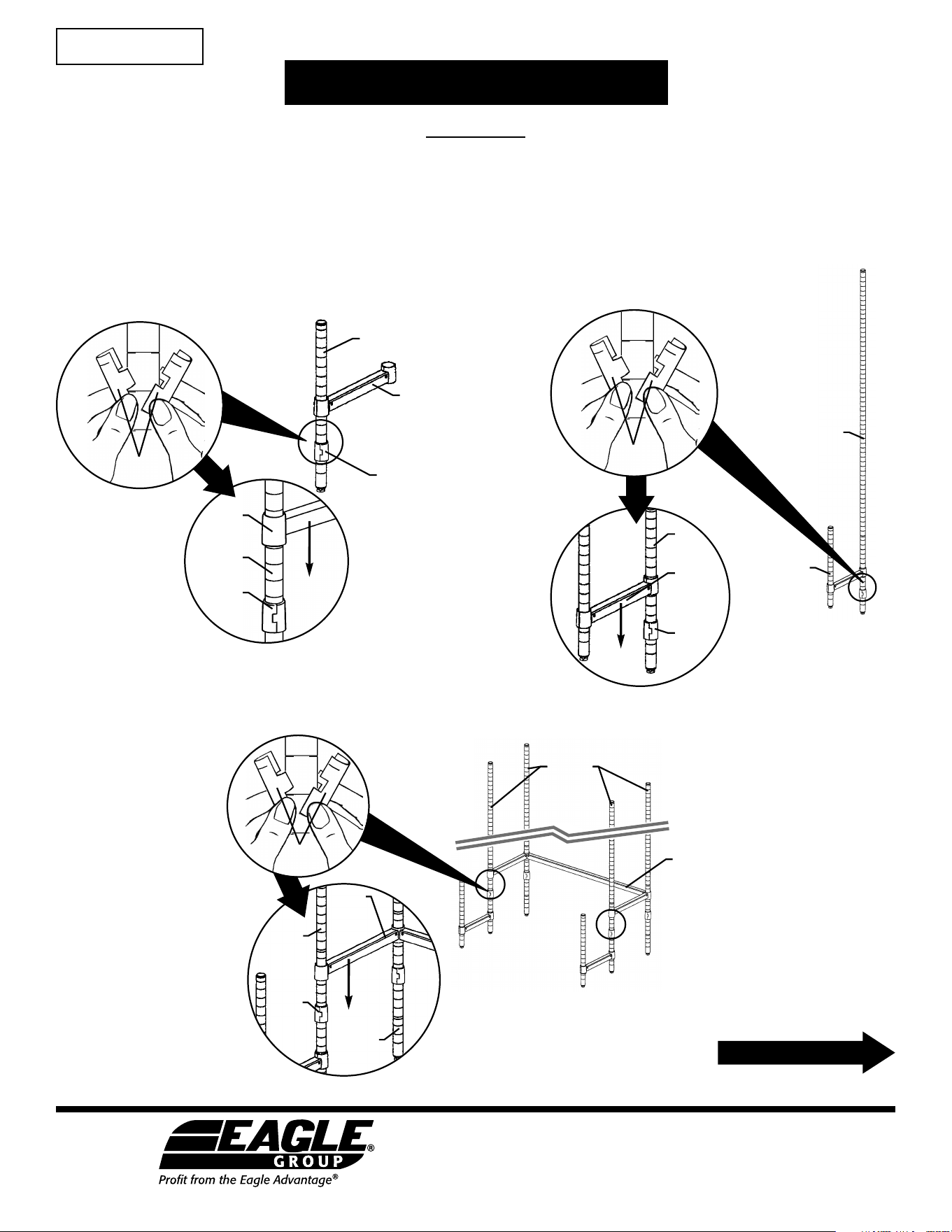

Step 1 - Assemble bottom frame supports to 18˝ posts.
Snap split sleeves onto posts at desired height.
• The wider part of the taper goes toward the bottom.
• Make sure rib on split sleeve is seated into a groove on the post.
Step 2 - Attach assemblies to two of
the four 74˝ posts.
ASSEMBLY INSTRUCTIONS
Sandwich Prep Station
2

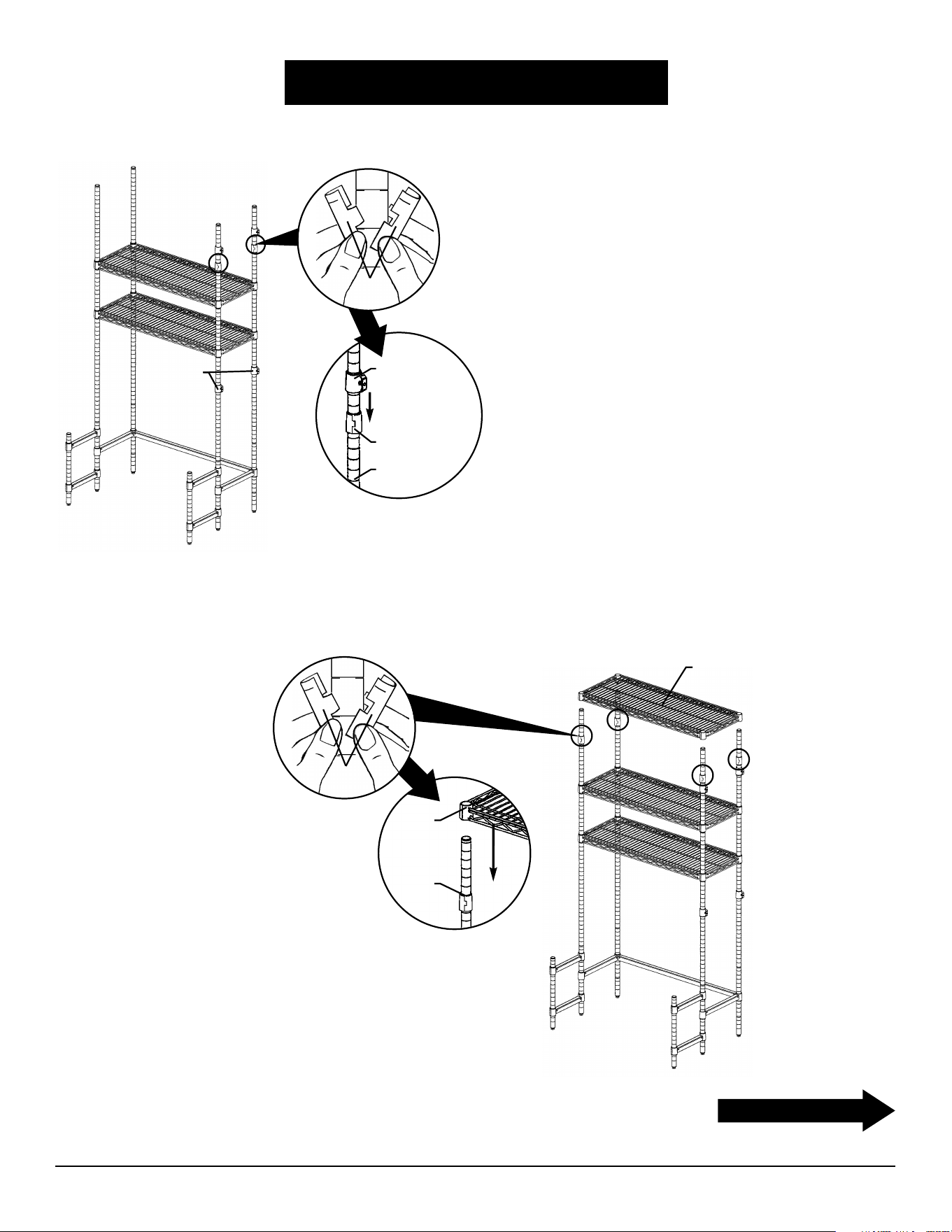

Step 7 - Repeat Step 6 to install next shelf
onto post groove #54.
3-sided
channel
frame
split
sleeve
wire
shelf
18˝
post
74˝ post
(front)
74˝ post
split sleeve
grid panel clamp
top frame
support
split
sleeves
74˝ posts
top frame
supports
bottom
wire
shelf
split
sleeve

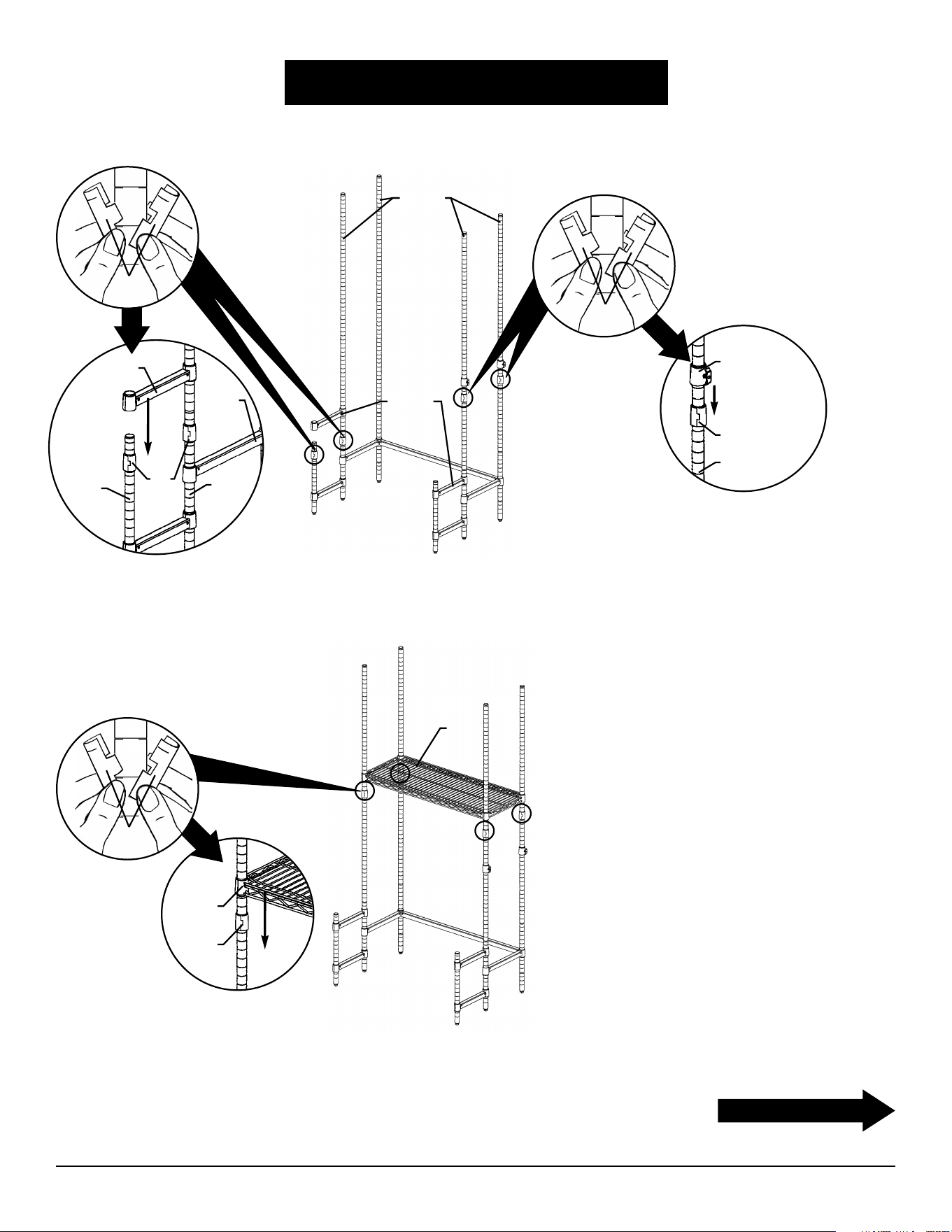

Step 4 - Attach top frame supports.
split
sleeve
split
sleeve
Step 6 - Attach bottommost shelf
onto post groove #42.
(continued on page 3)
Step 5 - Attach bottom grid panel clamps
onto post groove #34.
ASSEMBLY INSTRUCTIONS
Sandwich Prep Station
3

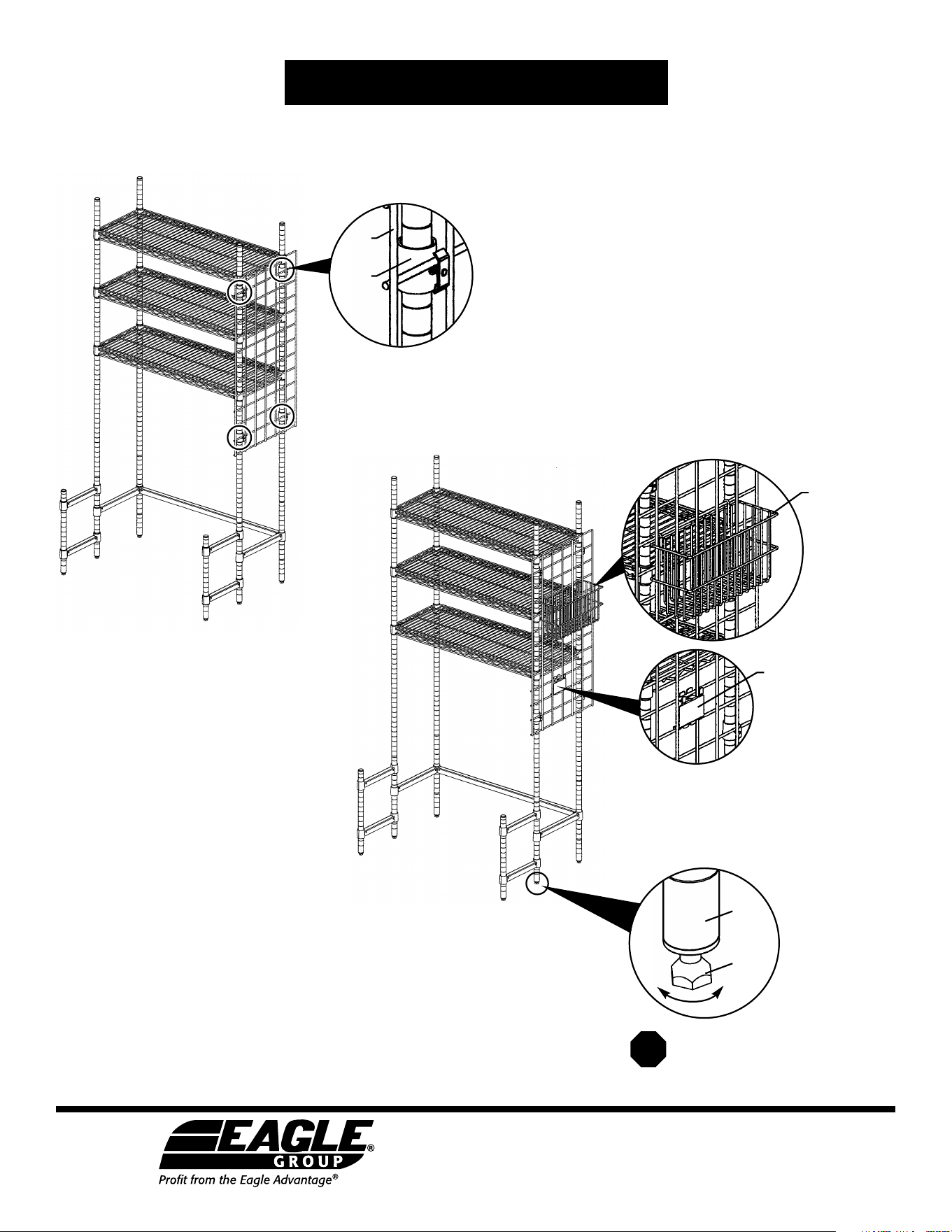

Step 8 - Repeat Step 5 to attach top grid panel clamps onto post groove #64.
grid panel
clamps
(bottom)
74˝ post
split sleeve
grid panel clamp
split
sleeve
split
sleeve
top wire
shelf
top wire shelf
split
sleeve
Step 9 - Repeat Step 6 to install remaining wire shelf onto post groove #66.
(continued on back page)
ASSEMBLY INSTRUCTIONS
Sandwich Prep Station
Assembly is complete.
Step 10 - Attach wall mat to grid panel clamps.
Step 11 - Hang wire basket and snap plastic bin holder onto wall mat.
wall
mat
grid
panel
clamp
plastic
bin
holder
wire
basket
Step 12: Level unit as necessary.
The leveling bolts allow approximately
1/2˝ adjustment.
leveling
foot
post
Eagle Foodservice Equipment, Eagle MHC, and SpecFAB
®
are divisions of Eagle Group. ©2023 by the Eagle Group
• 100 Industrial Boulevard, Clayton, Delaware 19938-8903 U.S.A.
• Phone: 302/653-3000 • 800/441-8440 • Fax: 302/653-2065
• www.eaglegrp.com • www.eaglegrpnews.com • www.eaglemhc.com
(
End
)
