Upon registering your product
at morphyrichards.co.uk
3 Year
Guarantee
*
Please read and keep these instructions for future use

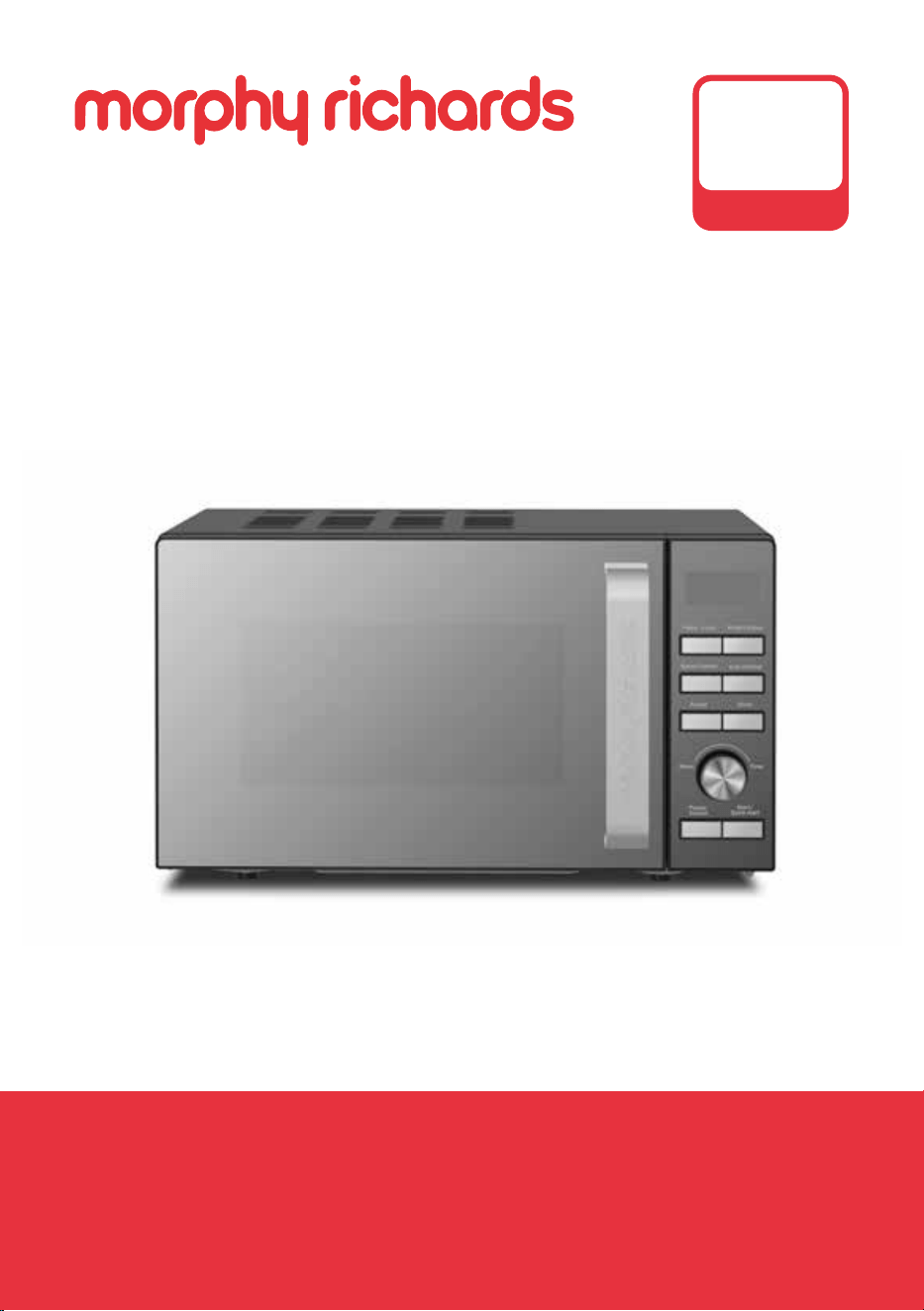

User Manual
Model No.
511443
511444
800W
20L Digital
Microwave
2
HEALTH AND SAFETY
The use of any electrical appliance requires
the following common sense safety rules.
Read these instructions carefully and retain
for future reference.
• This appliance can be used by children
aged from 8 years and above with reduced
physical, sensory or mental capabilities or
lack of experience and knowledge if they
have been given supervision or instruction
concerning use of the appliance in a safe
way and understand the hazards involved.
• Children shall not play with the appliance.
Cleaning and user maintenance shall not be
made by children without supervision.
• Keep appliance and cord out of the reach
of children less than 8 years of age.
• WARNING: If the door or door seals are
damaged, the oven must not be operated
until it has been repaired by a competent
person.
• WARNING: It is hazardous for anyone other
than a competent person to carry out any
service or repair operation that involves the
3
HEALTH AND SAFETY
removal of a cover which gives protection
against exposure to microwave energy.
• WARNING: Liquids and other foods must
not be heated in sealed containers since
they are liable to explode.
• This appliance is intended for household use
only. It is not suitable for use in sta kitchen
areas in shops, oces and other commercial
environments.
• If the supply cable is damaged, it must be
replaced by the manufacturer, its service
agent or similarly qualied persons in order
to avoid a hazard.
• This appliance is not intended to be to
be operated on an extension cable or by
means of an external timer or separate
remote control system.
• This product belongs to Group 2 Class
B appliances and is suitable for use
in domestic establishments and in
establishments directly connected to a
low voltage power supply network which
supplies buildings used for domestic
purposes.
4
HEALTH AND SAFETY
LOCATION
• Always locate your appliance away
from the edge of the worktop.
• Ensure that the appliance is used
on a rm, flat, heat resistant
surface.
• Do not use the appliance
outdoors or near water.
• See microwave oven installation
for more details.
MAINS CABLE
• The mains cable should reach
from the socket to the appliance
without straining the connections.
• Do not let the mains cable hang
over the edge of the worktop or
open space where a child could
reach it.
• Do not let the cable run across a
cooker or hot area which might
damage the cable.
OTHER SAFETY CONSIDERATIONS
• The microwave oven is intended
for heating food and beverages.
Drying of food or clothing and
heating of warming pads, slippers,
sponges, damp cloth and similar
may lead to risk of injury and
ignition of re.
• When heating food in plastic or
paper containers, keep an eye
on the oven due to possibility
of ignition.
• If smoke is emitted, switch o or
unplug the appliance and keep
the door closed in order to stifle
any flames.
• Microwave heating of beverages
can result in delayed eruptive
boiling, therefore care must
be taken when handling the
container.
• The contents of feeding bottles
and baby food jars MUST
be stirred or shaken and the
temperature checked before
consumption, in order to avoid
burns.
• Eggs in their shell and whole
hard-boiled eggs should not be
heated in microwave ovens since
they may explode, even after
microwave heating has ended.
• Details for cleaning can be found
in the Care and Cleaning section
of the manual.
• The oven should be cleaned
regularly and any food deposits
removed.
• Failure to maintain the oven in
a clean condition could lead to
deterioration of the surface that
could adversely aect the life of
the appliance and possibly result
in a hazardous situation.
• The use of attachments or tools
not recommended by Morphy
Richards may cause re, electric
shock or injury.
• Only use utensils that are suitable
for use in microwave ovens.
5
HEALTH AND SAFETY
ELECTRICAL DETAILS
MICROWAVE OVEN INSTALLATION
• Check that the voltage on the rating plate of your appliance
corresponds with your house electricity supply which must be A.C.
(Alternating Current).
• Should the fuse in the mains plug require changing, replace it with a
fuse of the same rating as originally tted.
• The power consumption in standby mode is 0.72W.
• The period after which the equipment reaches low power mode is
20 minutes.
• WARNING: This appliance must be earthed.
• IMPORTANT: Select a level surface that provides enough space for
the outlet vents.
• A minimum clearance of 5cm is required between the oven and side
walls, at least 10cm at the back and at least 30cm above.
• Place the microwave oven as far away from radios and TV’s as
possible. Using the oven may cause interference with the reception.
• Plug the oven into a suitable 13amp mains socket, make sure the
voltage is the same as on the rating label (do not use extension cables
or mains socket adaptors).
• WARNING: Do not install the microwave oven over a cooker or other
heat producing appliance. This will damage the appliance.
• Do not cover any of the ventilation on the microwave oven, the outer
casing can get hot.
PERSONAL SAFETY
• WARNING: Misuse of appliance could cause potential injury.
• WARNING: Take extra care when removing cookware from
the microwave as the cookware may be very hot.
6
64 5
32
7
1
15
16
17
18
9
10
11
12
14
13
8
PRODUCT REVIEW
7
PRODUCT REVIEW
BEFORE FIRST USE
Before plugging in, make sure your electricity supply is the same as the
one shown on the underside of the appliance.
Notes:
• Remove all stickers and labels from the appliance (excluding the
rating label).
• Wash the Turntable Ring Assembly (5) and the Glass Turntable (6)
with warm soapy water and dry thoroughly before use.
• Wipe the inside of the microwave cavity with a damp cloth and dry
thoroughly.
• Place the Turntable Ring Assembly in the centre of the oven to
support the Glass Turntable.
• Place the Glass Turntable on the Turntable Ring.
• IMPORTANT: Never place the Glass Turntable upside down. Both the
Glass Turntable and the Turntable Ring Assembly MUST always be
used during cooking.
• Note: The Glass Turntable rotates clockwise or anti-clockwise
randomly, this is normal.
1. Door Safety Lock System
2. Handle
3. Viewing Window
4. Turntable Shaft
5. Turntable Ring Assembly
6. Glass Turntable
7. Waveguide Cover
8. Control Panel
9. Display
10. Power Level Button
11. Speed Defrost Button
12. Preset Button
13. Menu/Time Dial
14. Pause/Cancel Button
15. Start/Quick Start Button
16. Clock Button
17. Auto Defrost Button
18. Weight Adjustment Button
8
UTENSILS GUIDE
• The ideal cooking utensil used for microwave cooking is transparent
as it allows energy to pass through the container and heat the food.
• Microwaves cannot penetrate metal, so metal utensils or dishes with
metallic trim should not be used.
• Do not use recycled paper products when microwave cooking, as
they may contain small metal fragments which may cause sparks
and/or res.
• Round/oval dishes are recommended rather than square/oblong
ones as food in the corners tends to overcook.
• Note: The list below is a general guide to help you select the correct
utensils.
Cookware Microwave Safe
Heat–Resistant Glass Yes
Non Heat–Resistant Glass No
Heat–Resistant Ceramics Yes
Microwave–Safe Plastic Dish Yes
Kitchen Paper Yes
Metal Tray No
Metal Rack No
Aluminium Foil & Aluminium Tray No
9
SETTING THE CLOCK (12H OR 24H DISPLAY)
USING YOUR MICROWAVE
• Press the Clock button once to select 12 hour display or press twice
to select 24 hour display, the LED display will begin to flash.
• Set the hour time by turning the Menu/Time dial, then press the
Clock or Start/Quick Start button to conrm the hour and switch to
setting the minutes mode.
• Select the minutes time by turning the Menu/Time dial.
• Press the Clock or Start/Quick Start button to conrm and exit the
clock setting mode.
MICROWAVE COOKING
Remember that cooking instructions are intended only as a guide. If
you have followed the instructions and the food is still not piping hot
throughout, simply return it to the microwave.
• Check that the microwave is set to the correct time.
• Put the food in a microwavable container, place onto the Glass
Turntable (6) and close the door.
• Press the Power Level button (10) repeatedly to select the desired
microwave power. (See the Microwave Power Chart on page 10).
• Turn the Menu/Time dial (13) until the desired cooking time has been
reached.
• After selecting the time, press the Start/Quick Start button (14) to
begin cooking.
• If the door is opened to turn the food during operation, close the
door and press the Start/Quick Start button once to re-start the
cooking procedure.
• When the cooking time has nished the microwave will beep.
• Note: You can pause the cooking by pressing the Pause/Cancel
button (14) once, or cancel by pressing the Pause/Cancel button (14)
twice.
10
USING YOUR MICROWAVE
No. of times to press Power Level Button Microwave Power Level
1 100%
2 80%
3 60%
4 40%
5 20%
6 0%
• Note: The maximum time that can be set is 95 minutes.
• IMPORTANT: Never operate the microwave when it is empty.
CANCEL
• To cancel or stop any programme during operation press the Pause/
Cancel button (14) twice.
PRESET
This function allows a delayed start to cooking. It cannot be set on the
Express Cooking and Defrost programmes.
• Ensure the correct time is set on the display.
• Place food into the microwave.
• Set your required cooking programme, then press the Preset button.
• Turn the Menu/Time dial to set the hour digits.
• Press the Preset or Start/Quick Start button, then rotate the Menu/
Time dial again to set the minute digits.
• Press Preset or Start/Quick Start button.
11
USING YOUR MICROWAVE
• Note: You can check the programmed time by pressing the Preset
button or cancel the preset by pressing the Pause/Cancel button.
QUICK COOKING
• The microwave oven will operate at HIGH power (100%) and cannot
be changed. The longest cooking time for this function is 10 minutes.
• Just press the Start/Quick Start button (15) once to start cooking
with 100% power level for 30 seconds.
• Each press on the same button will increase cooking time by 30
seconds.
• Note: You can pause or cancel cooking by pressing the Pause/
Cancel button (14).
MULTI-STAGE COOKING
• Your oven can be programmed for up to 2 automatic cooking
sequences.
• For example, if you want to set the following cooking programmes.
1. Microwave Cooking.
2. Microwave Cooking (with lower power level).
• To enter your rst microwave cooking program, press the Power
Level button (10) until the required power level is reached and then
turn the Menu/Time dial (13) set your desired cooking time.
• To enter the second microwave cooking program, press the Power
Level button again until you reach the required cooking power level,
then turn the Menu/Time dial to set a desired cooking time.
• Press the Start/Quick Start button (15) to start cooking.
• Note: Quick Cooking, Defrost and the Auto menu cannot be set in
multi-stage cooking.
• Note: You can pause the cooking by pressing the Pause/Cancel
button (14) once, or cancel by pressing the Pause/Cancel button (14)
twice.
12
USING YOUR MICROWAVE
SPEED DEFROST
• The longest defrost time for this setting is 95 minutes.
• For example, if you want to set Speed Defrost for 3 minutes:
• Press the Speed Defrost button (11).
• Turn the Menu/Time dial to 3:00 (13).
• Press the Start/Quick Start button (15) to start defrosting.
• Note: During the defrosting programme, it is necessary to turn the
food over to obtain a uniform defrosting eect. Beeps will be heard
to remind the user to turn food over. To resume defrosting when the
food has been turned, press the Start/Quick Start button to resume
defrosting.
• Note: You can pause the cooking by pressing the Pause/Cancel
button (14) once, or cancel by pressing the Pause/Cancel button (14)
twice.
AUTO COOKING
• There are six Auto Menu settings (see the chart below). For these
foods/auto menus, you do not need to input a cooking power or
time. It is sucient to indicate the type of food that you want to
cook as well as the weight of the food.
• Turn the Menu/Time dial to select a food/Auto Menu, then
press the Weight Adjust button to indicate the number of
servings or approximate weight of the food you are about
to cook.
• Press the Start/Quick Start button to start cooking.
13
USING YOUR MICROWAVE
• Note: The result of auto cooking depends on factors such as
the shape and size of food, your personal preference as to how
well done certain foods are and even how you place food in the
microwave oven.
• Note: You can pause the cooking by pressing the Pause/Cancel
button (14) once, or cancel by pressing the Pause/Cancel button (14)
twice.
Menu Code Auto Menu
A-01 Milk/Coee (200ml/cup, 1-3 cups)
A-02 Potatoes (230g/serving, 1–2 servings)
A-03 Auto Reheat (200-800g)
A-04 Fish (200-600g)
A-05 Popcorn (100g)
A-06 Pizza (150g, 300g, 450g)
14
USING YOUR MICROWAVE
SETTING AUTO DEFROST
• The defrosting time and power level are automatically set once the
food weight is programmed.
• For example, if you want to defrost 600g of meat:
• Press the Auto Defrost button (17) once, then press the Weight
Adjust button (18) to select the weight of food.
• Press the Start/Quick Start button (14) to start defrosting.
• Note: The weight range of food for Auto Defrost is 100g to
1800g. For food outside of these weights, use the Speed Defrost
programme.
• Note: During the defrost programme, it will pause, and beeps will
sound to remind the user to turn the food over, press the Start/
Quick Start button to resume defrosting.
• Note: You can pause or cancel cooking by pressing the Pause/
Cancel button (14).
CHILD LOCK FUNCTION
• Use this feature to lock the control panel so that children cannot
use the oven unsupervised or when you are cleaning the control
panel. All the buttons are rendered inoperable in this mode. The
Child Lock indicator will show on the display while it is set.
• To set the lock, press and hold the Pause/Cancel button (14) for
about 3 seconds. A beep will be heard and the lock indicator
illuminates.
• To cancel the lock, press and hold the Pause/Cancel button for
about 3 seconds until the lock indicator on the display goes out.
15
HINTS AND TIPS
FOOD ARRANGEMENT
• Place thicker food towards outside of dish and spread it evenly. Do
not overlap if possible.
COOKING TIME LENGTH
• Start cooking with a shorter time setting and extend it accordingly.
Over cooking may result in smoking and burnt food.
COOKING FOOD EVENLY
• Food such as chicken, burgers or steak should be turned once
during cooking.
• Depending on the type of food, stir it from outside to centre of dish
once or twice during cooking.
ALLOW STANDING TIME
• After cooking is complete, leave the food in the microwave for a
short period, this allows it to complete its cooking cycle and when
opening the door allow any steam to escape before removing the
food.
CHECKING IF THE FOOD IS COOKED
• Colour and rmness of food help to determine if it is done, these
include:
• Steam coming out from all parts of food, not just the edges.
• The joints of poultry can be moved easily and shows no signs
of blood.
• Pork or poultry shows no signs of blood.
• Fish is opaque and can be sliced easily with a fork.
16
HINTS AND TIPS
CARE AND CLEANING
BROWNING DISH
• When using a browning dish or self-heating container, always
place a heat-resistant insulator such as a porcelain plate under it
to prevent damage to the Glass Turntable (6) and Turntable Ring
Assembly (5).
MICROWAVE SAFE PLASTIC WRAP
• When cooking food with high fat content, do not allow the plastic
wrap to come into contact with food as it may melt.
MICROWAVE SAFE PLASTIC COOKWARE
• Some microwave safe plastic cookware may not be suitable for
cooking foods with high fat and sugar content, check the cookware
manufacturer’s instructions. Also, the heating time specied by the
cookware manufacturer must not be exceeded.
• IMPORTANT: ALWAYS switch o your microwave oven and unplug
from power supply before cleaning.
• Your microwave oven should be cleaned regularly to prevent grease
and food particles from building up on the inside surface. The
accumulated grease/food particles may cause a re hazard.
It is important to clean the interior, use a mild detergent solution, such
as washing-up liquid with warm water on a soft cloth. It is suggested to
place half a lemon in a bowl and add 300ml water inside the oven. Then
heat it on 100% power setting for 10 minutes. Wipe the oven clean with
a soft, dry cloth.
17
CARE AND CLEANING
REMOVABLE PARTS
1. The Glass Turntable (6) may be cleaned in the sink. Be careful not to
chip or scratch the edges as this may cause the Glass Turntable to
break during use.
2. The Turntable Ring Assembly (5) should be cleaned regularly.
3. Do not immerse the Glass Turntable in cold water.
For best performance and safety, the inner door panel and the oven
front frame should be free of food residue.
To prevent damage to the operating parts inside the oven, water should
not be allowed to seep into the ventilation openings.
18
TROUBLESHOOTING
Problem Solution
Microwave will not
start.
Plug not secure in power socket, or not switched
on.
Door is open.
Wrong operation is set.
Plug fuse has blown.
Arcing or sparking.
Materials which should be avoided in a microwave
oven are used, such as metal.
Check the oven isn’t empty.
Check there is no spilled food in the oven.
Unevenly cooked
food.
Materials which should be avoided in a microwave
oven are used.
Check the food has been defrosted completely.
Selected power setting for the cooking time is
incorrect.
Food has not been turned or stirred.
Overcooked food.
Check the correct power setting for the cooking
time is being used.
Undercooked food.
Materials to be avoided in microwave oven are used.
Check the food has been defrosted completely.
Check oven ventilation has not been restricted.
Power setting for the cooking time is incorrect
19
TROUBLESHOOTING
Incomplete
defrosting.
Materials to be avoided in a microwave oven are
used.
Power settings for cooking time is incorrect.
Food has not been turned or stirred.
Noise comes from
the turntable.
Check there is no food residue exists between the
turntable ring assembly and the cavity bottom when
the oven is turned on.
Check the Glass Turntable and/or Ring Assembly are
tted correctly.
Oven light does
not illuminate.
The light bulb has burned out. A new bulb must be
tted by a qualied service engineer.
Start/Quick Start button has not been pressed.
SPARES
30092 1 5Glass Turntable
30093 1 4Turntable Ring
Assembly
Part Number Description Qty Per Product
Features Key
Number
20
CONTACT US
If you are having a problem with your appliance, please contact our
Helpline, as we are more likely to be able to help than the store you
purchased the item from. Please have the product name, model number
and serial number to hand when you contact us to help us deal with
your enquiry quicker.
email: hello@morphyrichards.co.uk
www.morphyrichards.co.uk
For electrical products sold within the European
Community, at the end of the electrical products useful
life, it should not be disposed of with household waste.
Please recycle where facilities exist.
Check with your Local Authority or retailer for recycling
advice in your country.
PRODUCT RECYCLING
21
NOTES
22
Your standard 2 year guarantee is extended for an additional 1 year
when you register the product within 28 days of purchase with Morphy
Richards. If you do not register the product with Morphy Richards within
28 days, your product is guaranteed for 2 years.
To validate your 3 year guarantee,
scan the QR code or register online
at www.morphyrichards.co.uk
N.B. Each qualifying product needs to be registered with Morphy
Richards individually. Please note that the 2 year guarantee is only
available in the UK. Please refer to the 2 year guarantee for more
information.
YOUR 2 YEAR GUARANTEE
It is important to retain the retailer’s receipt as proof of purchase.
Staple your receipt to the back cover for future reference.
Please quote the following information if the product develops a fault.
These numbers can be found on the base of the product.
Model no.
Serial no.
All Morphy Richards products are individually tested before leaving the
factory. In the unlikely event of any appliance proving to be faulty within
28 days of purchase, it should be returned to the place of purchase
for it to be replaced. If the fault develops after 28 days and within 24
months of original purchase, you should contact the Helpline quoting
Model number and Serial number on the product, or write to Morphy
Richards at the address shown. You may be asked to return a copy of
proof of purchase.
Subject to the exclusions set out on the next page (see Exclusions), the
faulty appliance will then be repaired or replaced as appropriate and
dispatched usually within 7 working days of receipt.
If, for any reason, this item is replaced or repaired during the 2 year
REGISTERING YOUR 3 YEAR GUARANTEE
23
guarantee period, the guarantee on the new item will be calculated
from the original purchase date. Therefore it is vital to retain your
original till receipt or invoice to indicate the date of initial purchase.
To qualify for the 2 year guarantee, the appliance must have been used
according to the instructions supplied.
The appliance is intended for domestic use only. Misuse or use for
commercial or any other purpose will render the guarantee invalid.
Exclusions
Morphy Richards shall not be liable to replace or repair the goods under
the terms of the guarantee where:
1. The fault has been caused or is attributable to accidental use,
misuse, negligent use or used contrary to the manufacturer’s
recommendations or where the fault has been caused by power
surges or damage caused in transit.
2. The appliance has been used on a voltage supply other than that
stamped on the products.
3. Repairs have been attempted by persons other than our service
sta (or authorised dealer).
4. The appliance has been used for hire purposes or non domestic use.
5. The appliance is second hand or refurbished.
6. Morphy Richards reserves the right not to carry out any type of
servicing under the guarantee at its discretion.
This guarantee does not confer any rights other than those expressly
set out above and does not cover any claims for consequential loss
or damage. This guarantee is oered as an additional benet and
does not aect your statutory rights as a consumer. Morphy Richards
products are intended for household use only. See usage limitations
within the location safety instructions.
Disclaimer
Morphy Richards has a policy of continuous improvement in product
quality and design. The company, therefore reserves the right to
change the specication of its models at any time.
REGISTERING YOUR 3 YEAR GUARANTEE
morphyrichards.co.uk
MW511443MUK Rev1
@morphyrichardsuk #loveyourmorphy
Morphy Richards
9 Cabot Lane, Poole, Dorset, BH17 7BY, UK
