ULTRACOMBI
Tri-mode oven
hot air - steam - microwave
cod. EI33960050000AUS
7/2022
INSTALLATION,
USER AND MAINTENANCE INSTRUCTIONS
EN
3
INDEX
IMPORTANT SAFETY WARNINGS

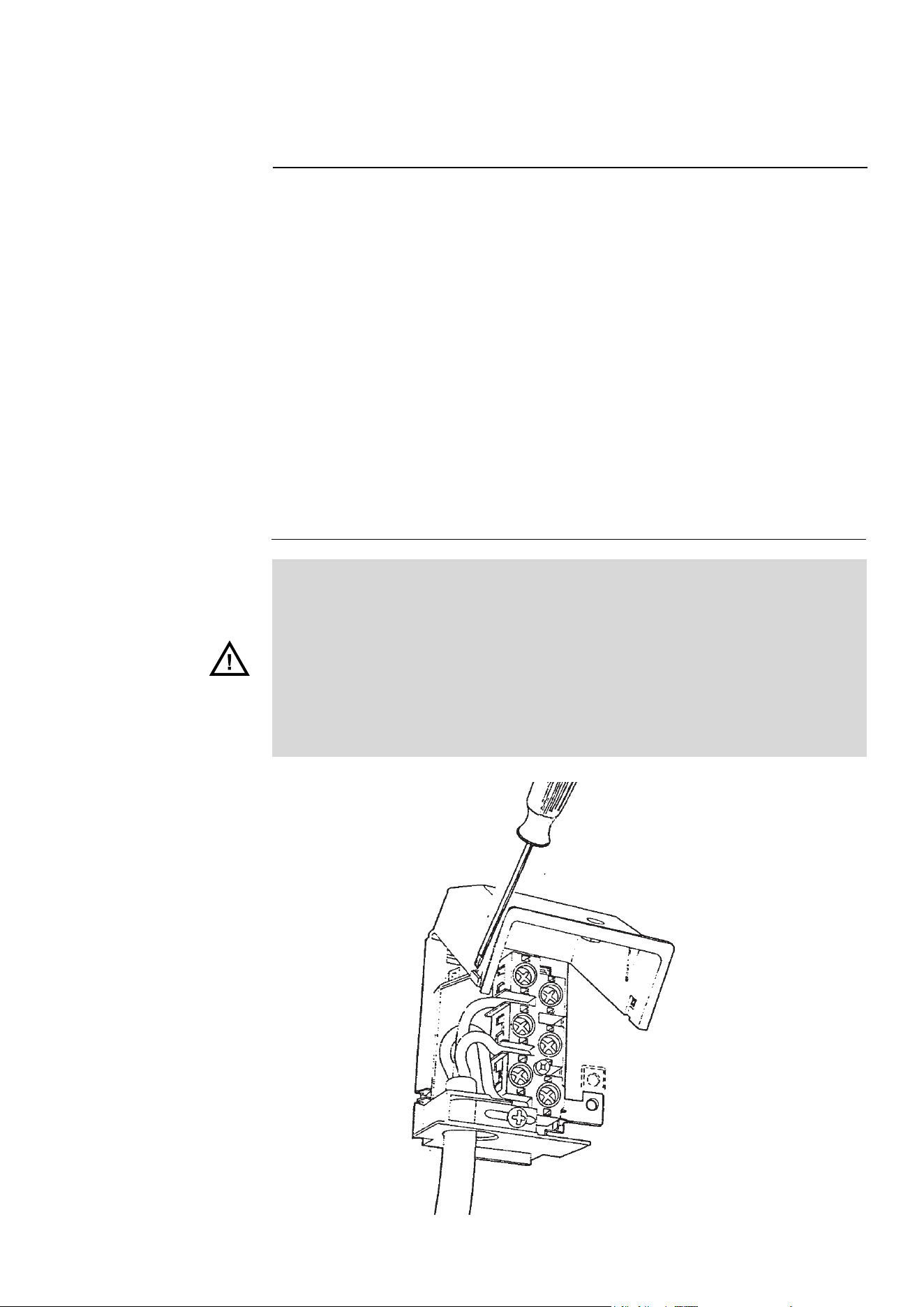

ELECTRICAL CONNECTIONS

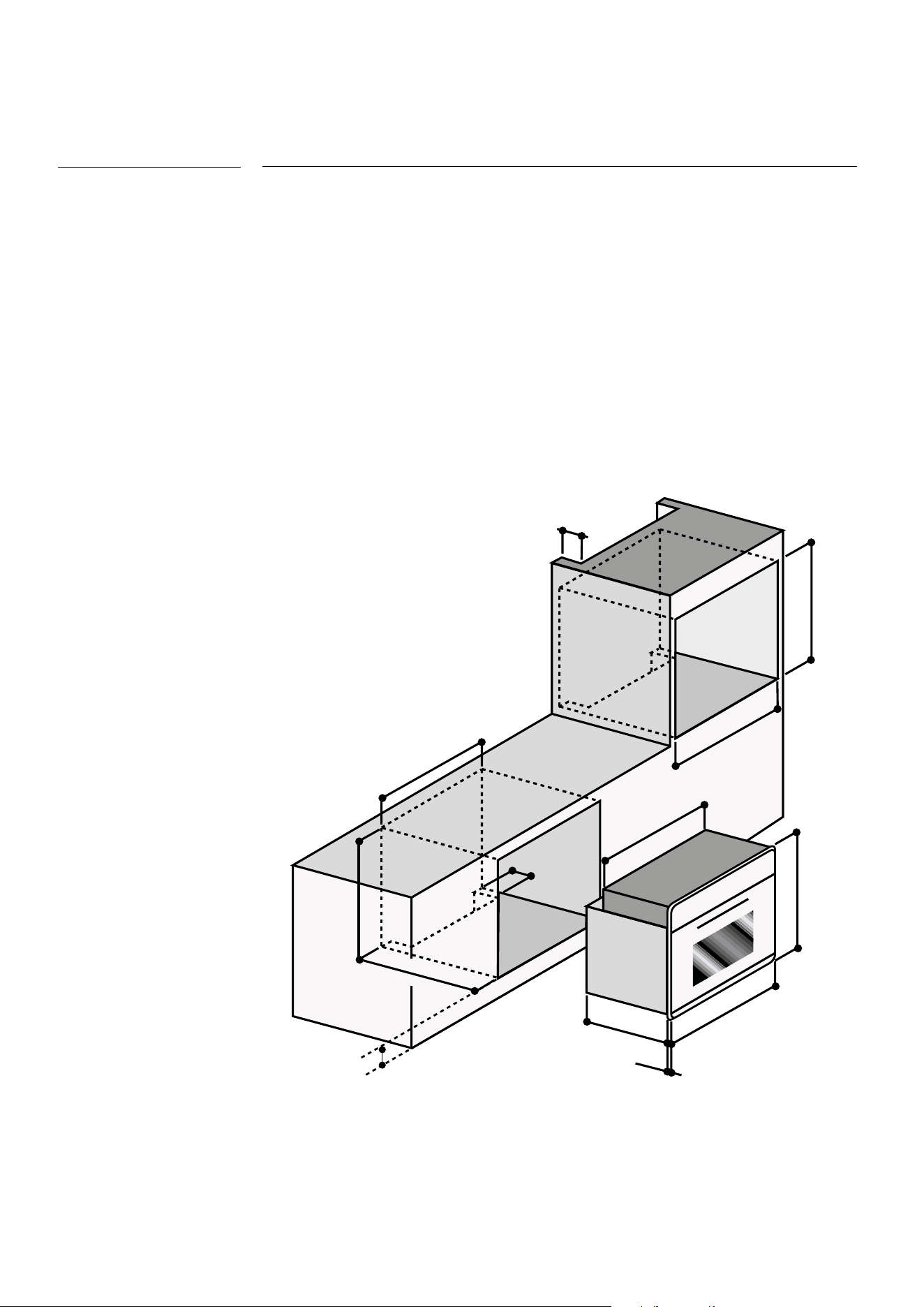

INSTALLATION INSTRUCTIONS

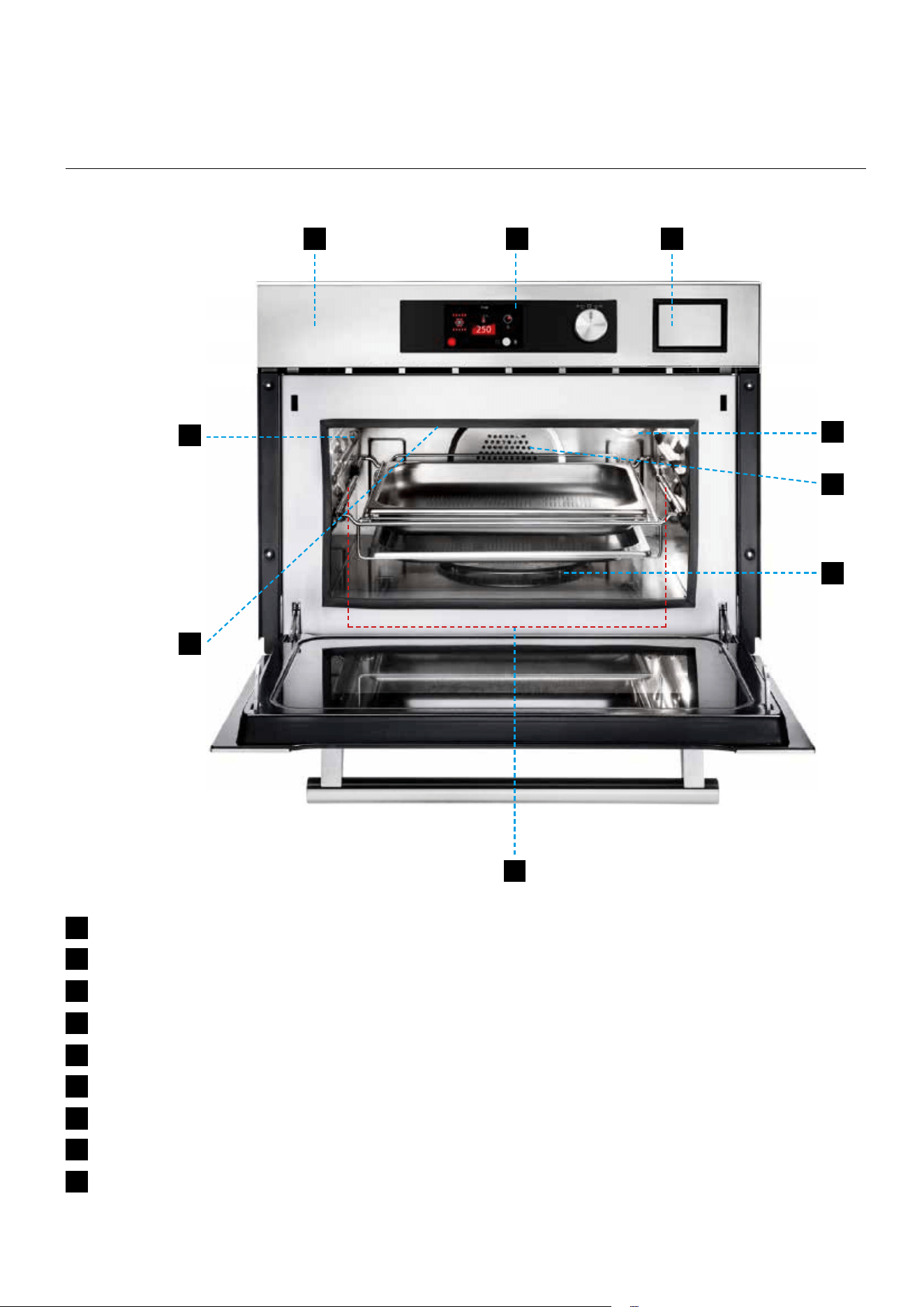

PRODUCT DESCRIPTION

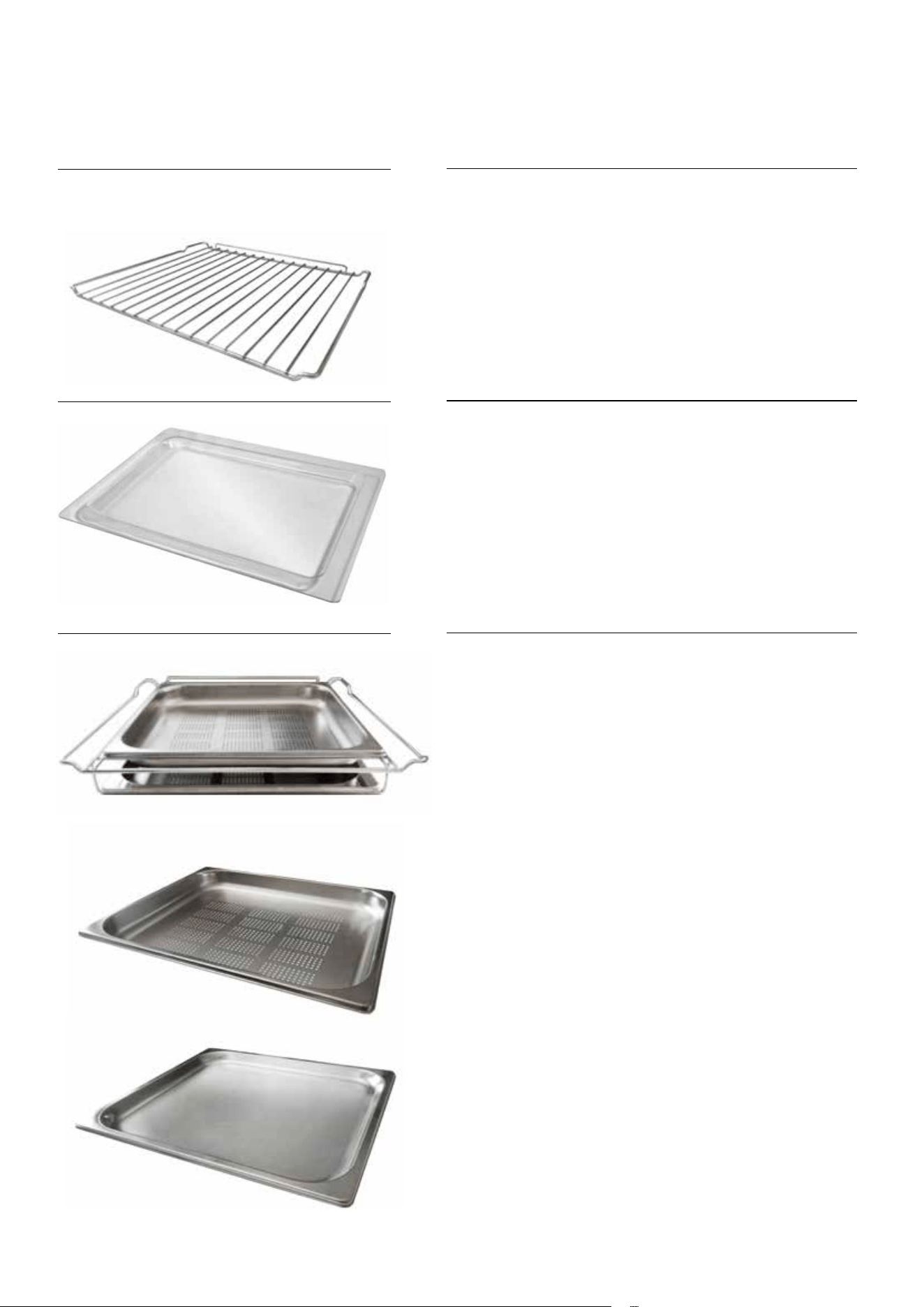

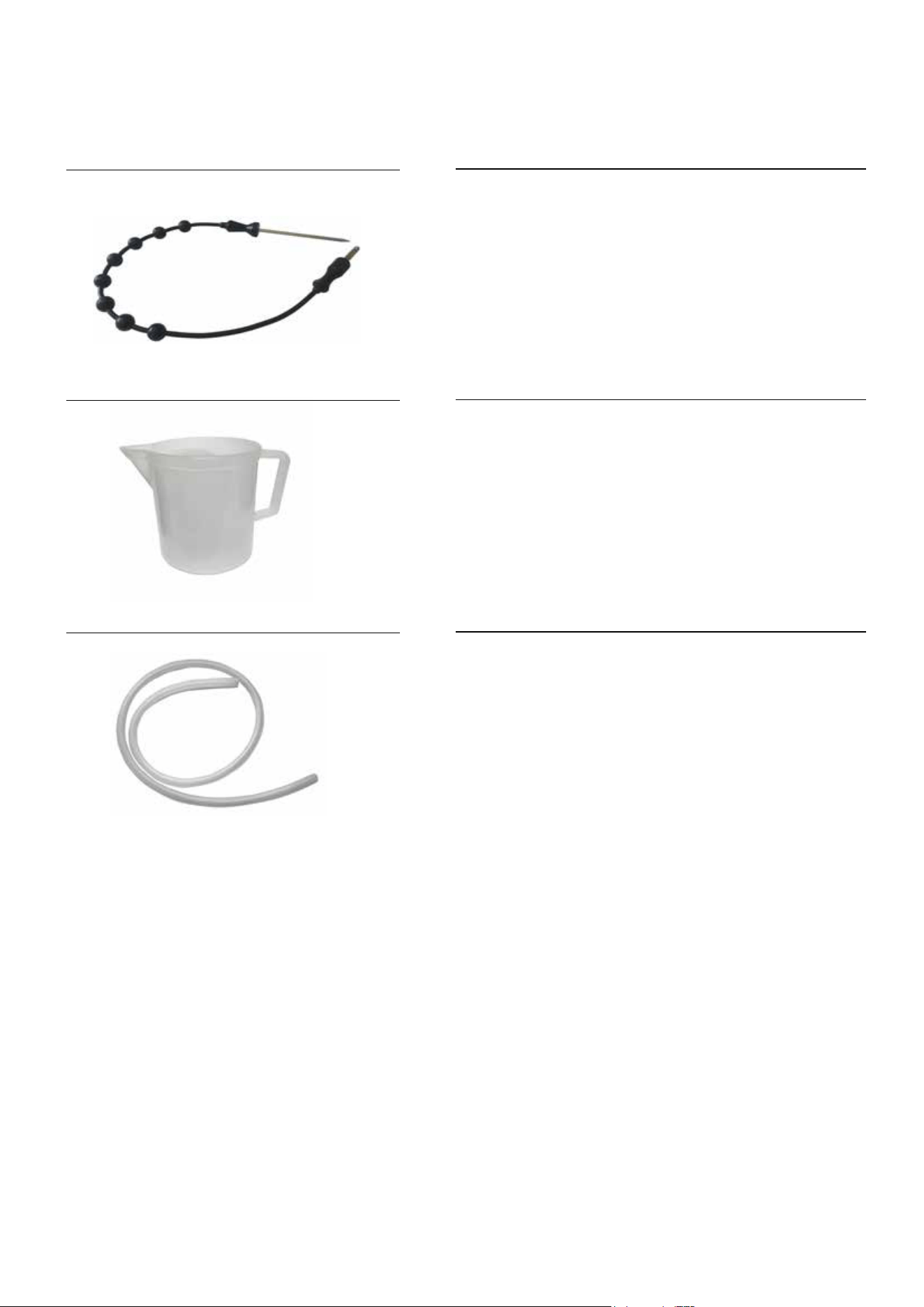

Supplied Accessories

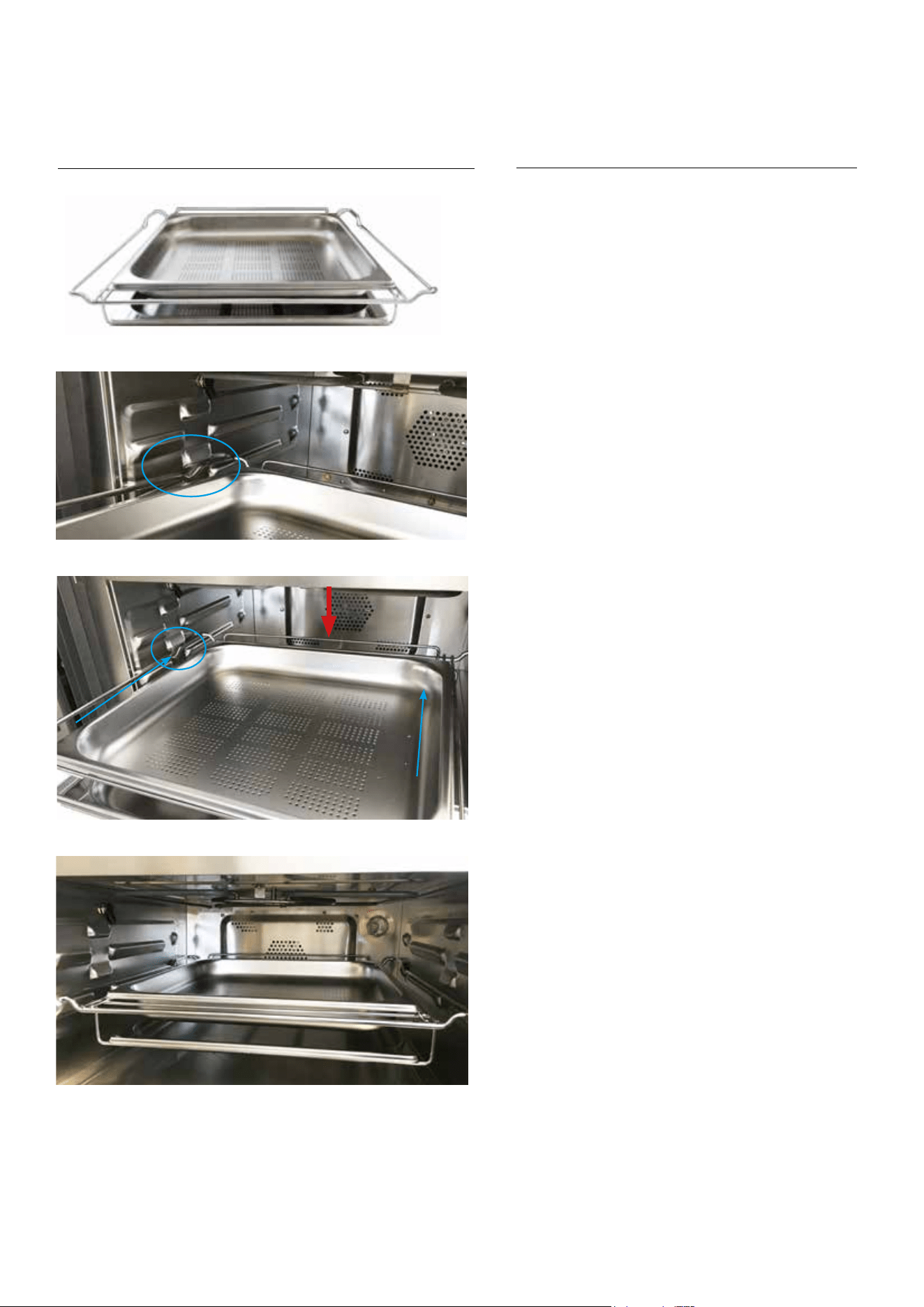

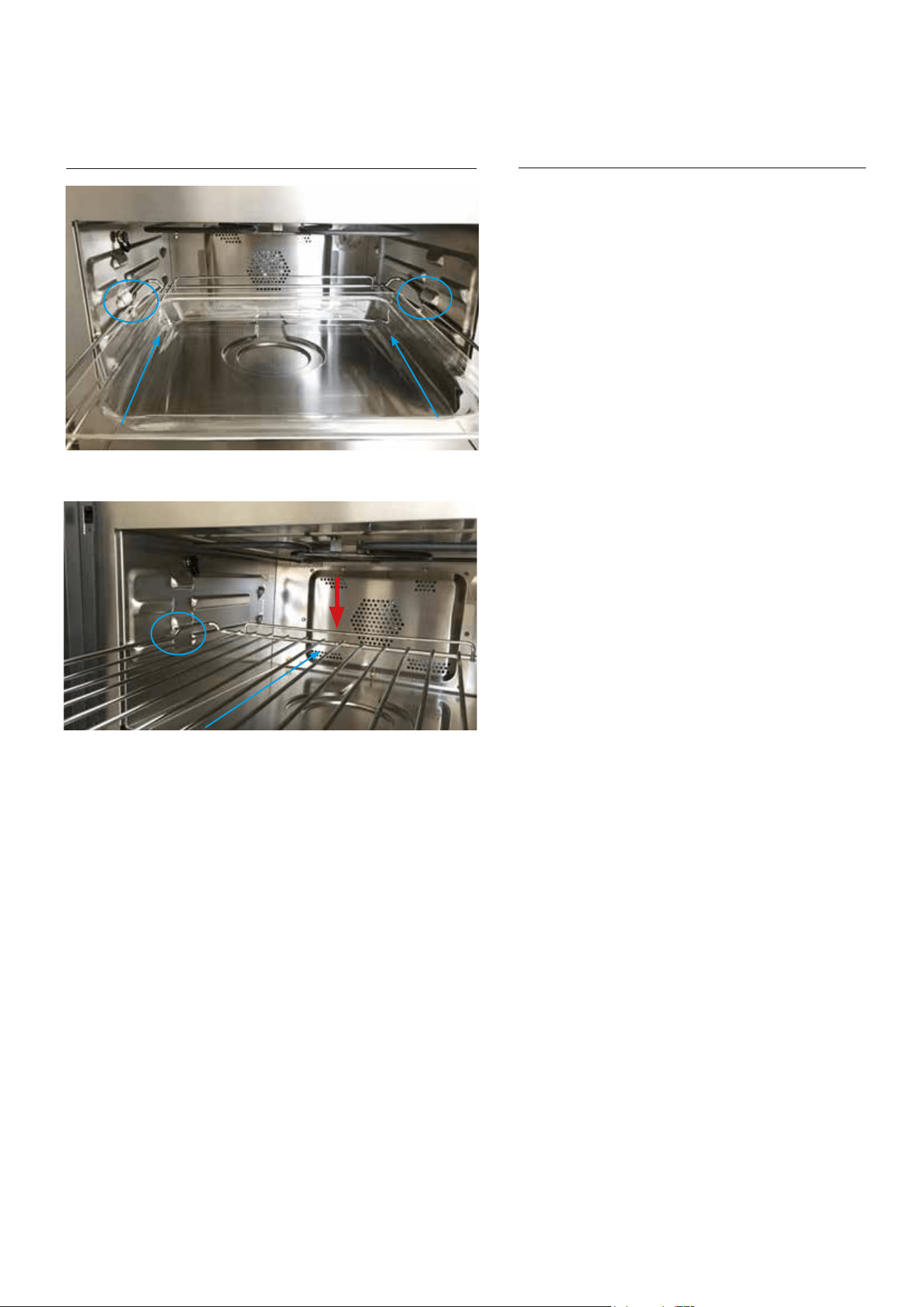

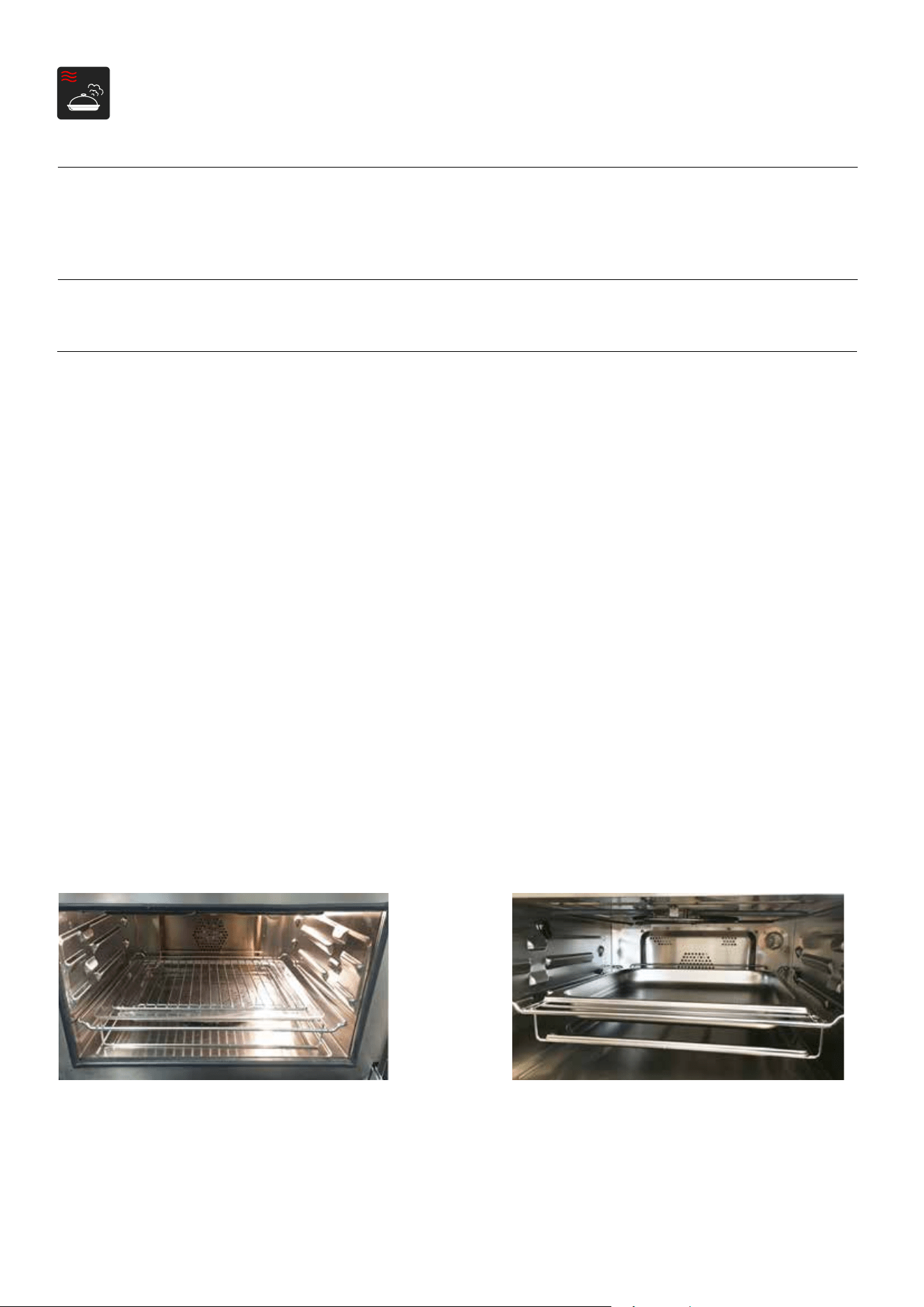

Cooking Accessories
INSTRUCTIONS FOR USE
Display TFT:

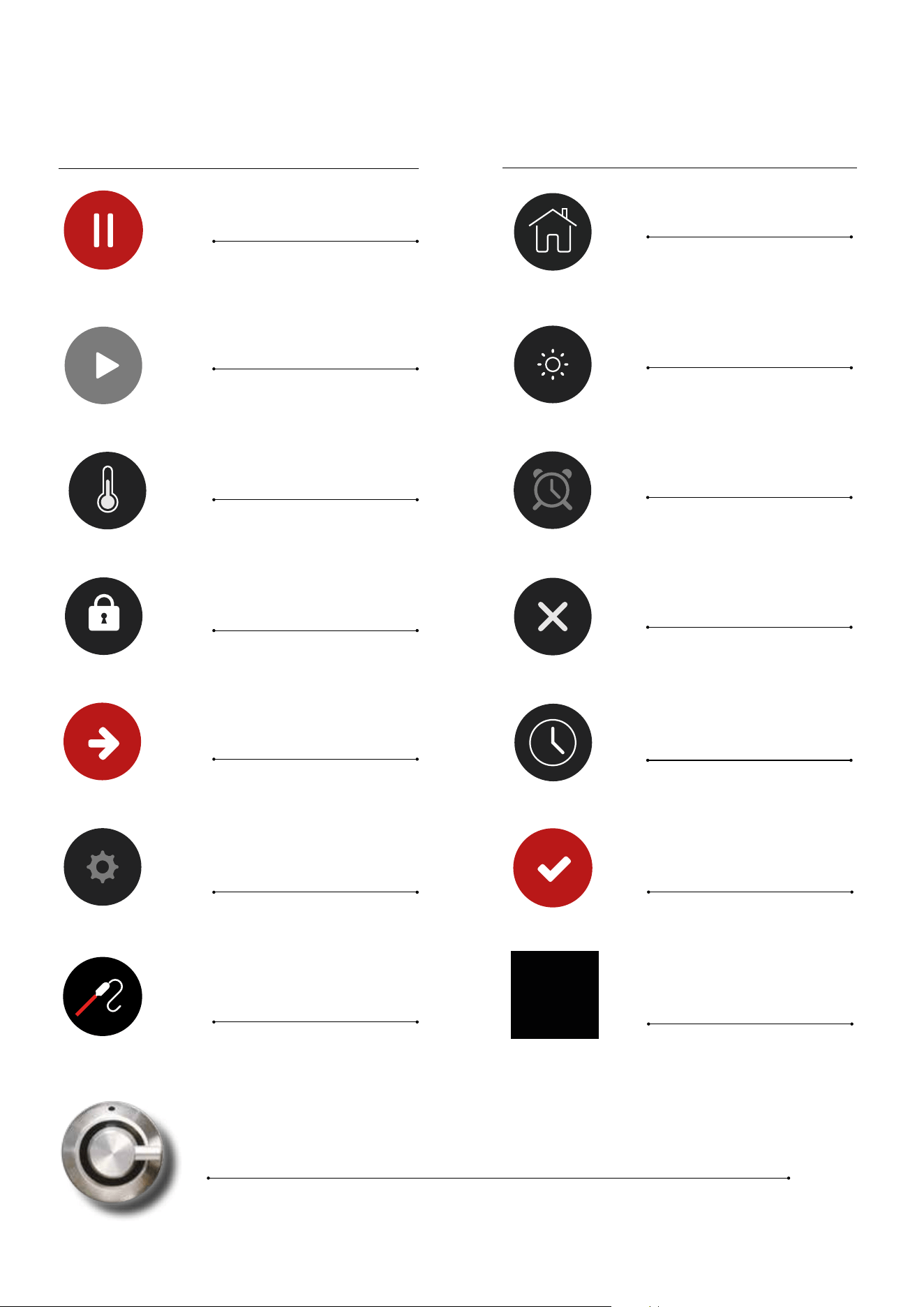

Icon legend
First start of the oven
Settings
Screen lock

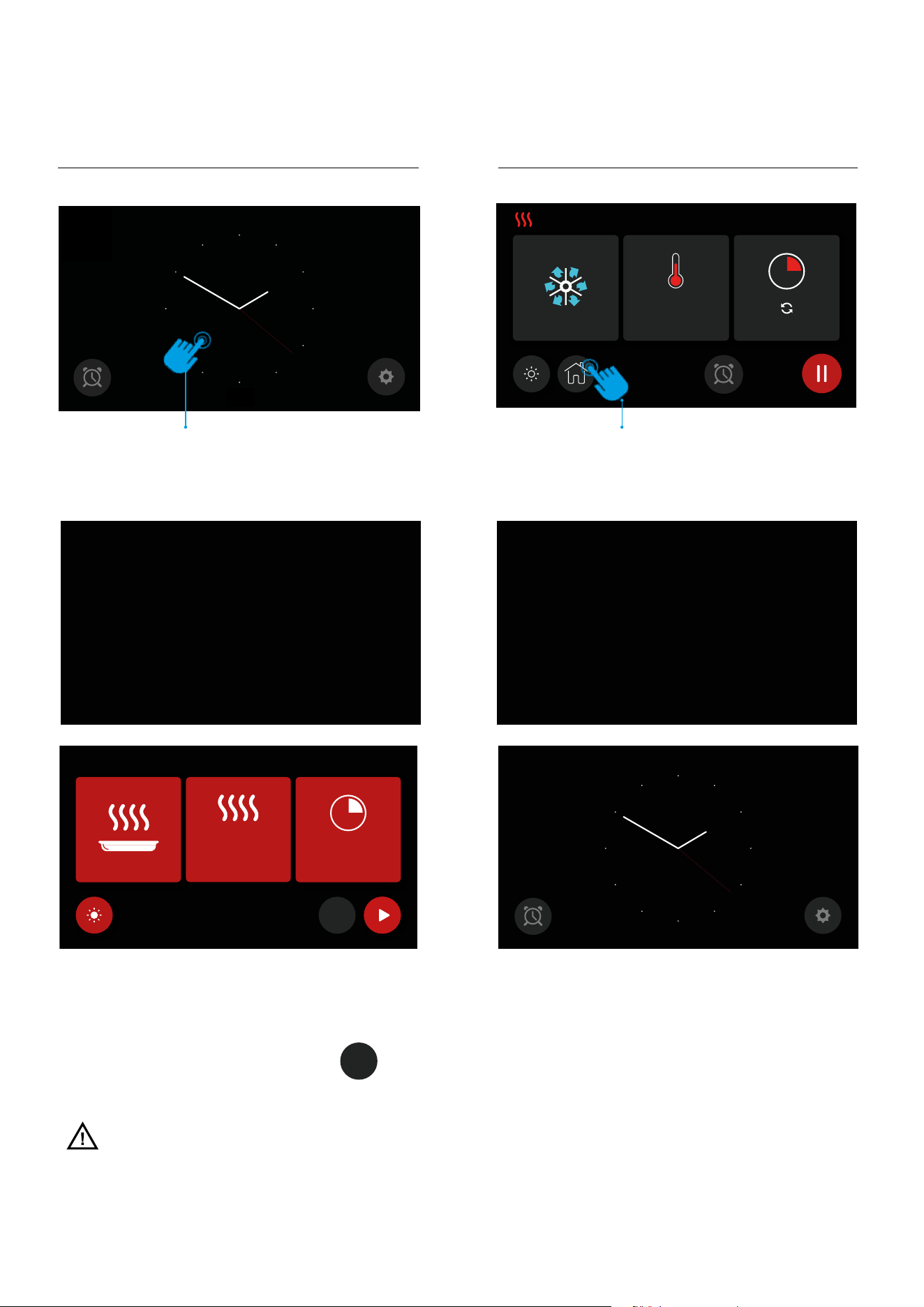

Turning the oven on and off

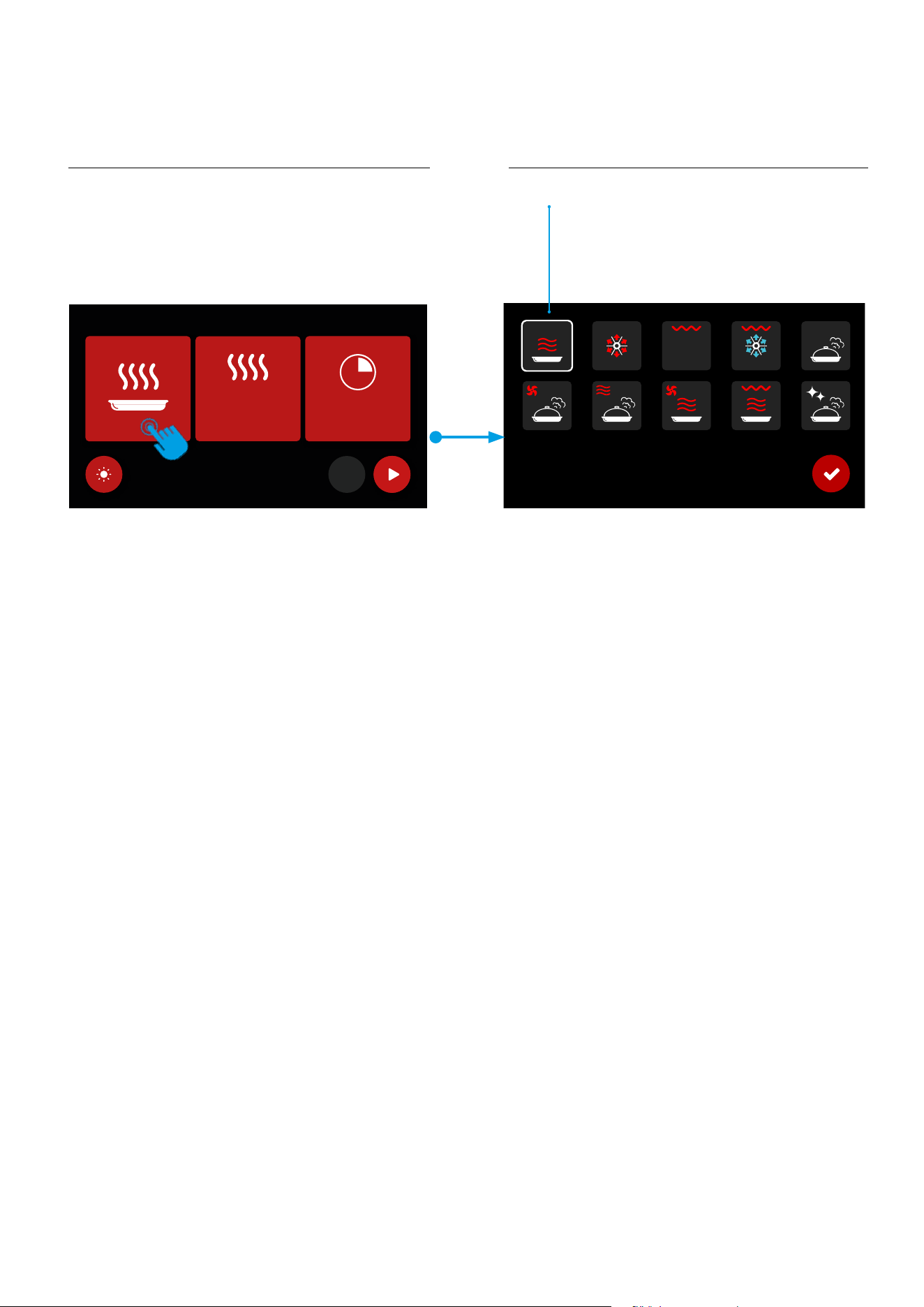

Setting the cooking function
Functions list
Setting the cooking function
Cooking process
Cooking function setting

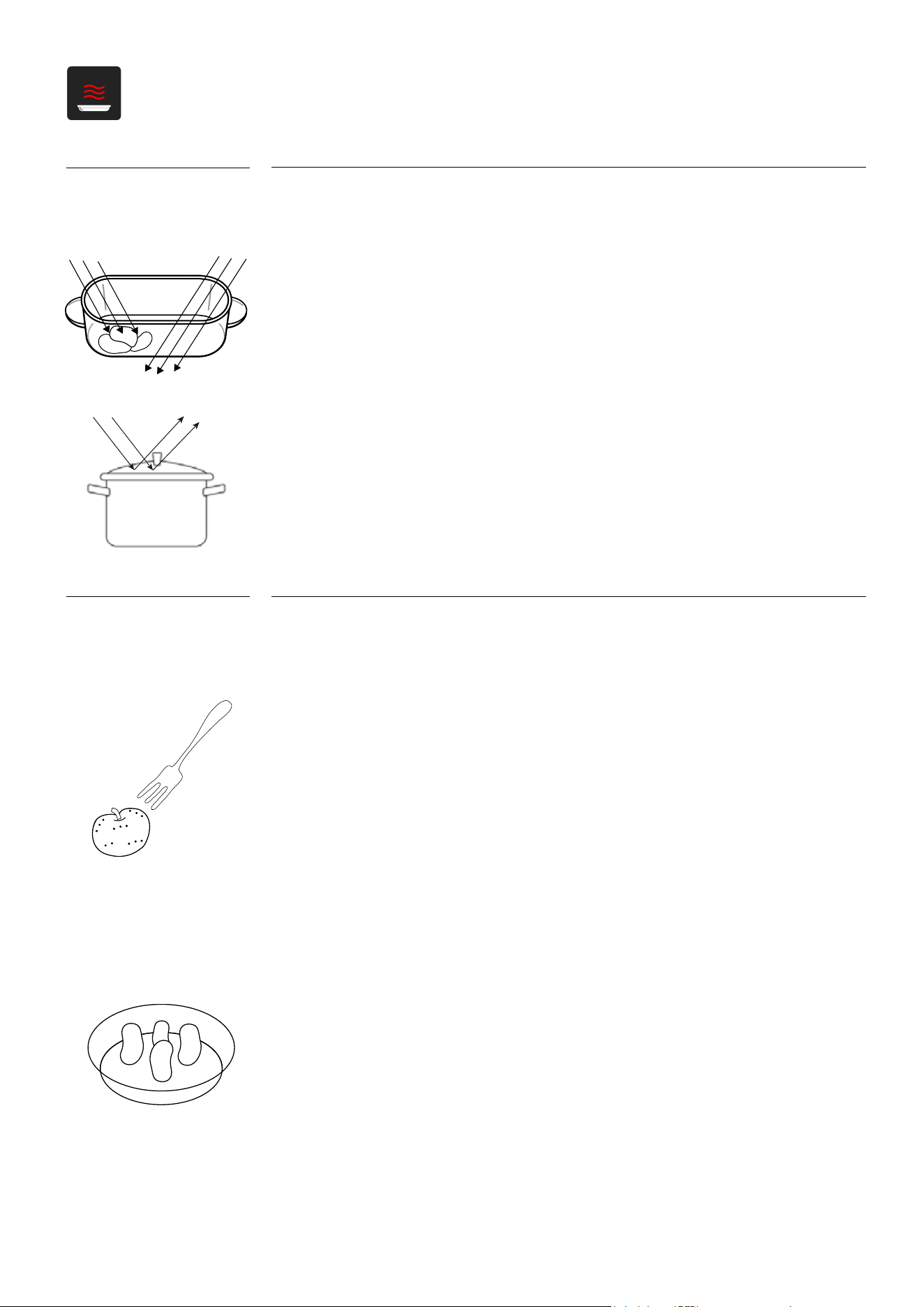

Cookware / Material

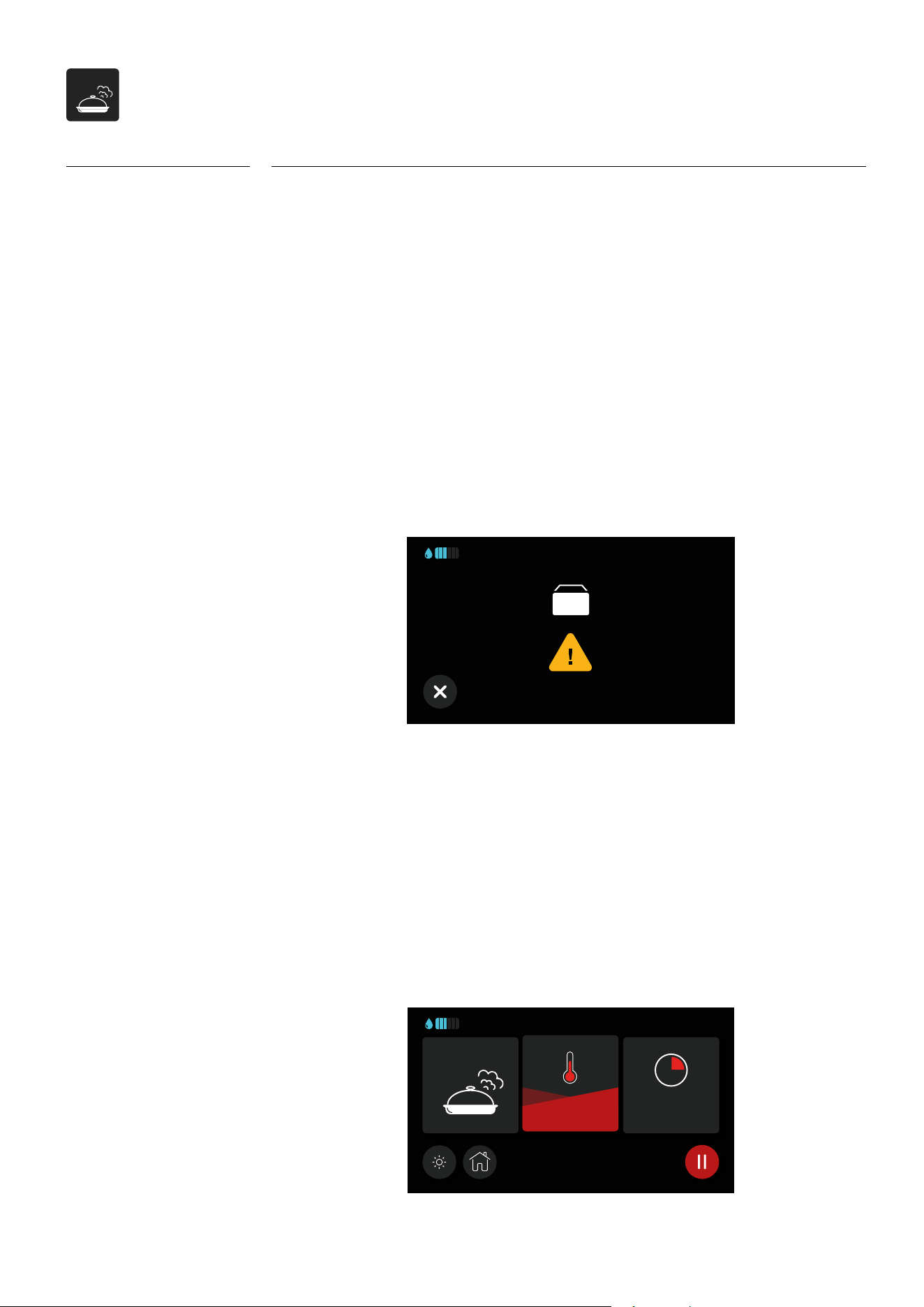

Steam cooking
Combination grill + microwave
Combination convection + microwave
Combination steam + convection
Combination steam + microwave
CLEANING - CARE - MAINTENANCE
Cleaning
Indications for lubrication of spring-operated
spheres on door

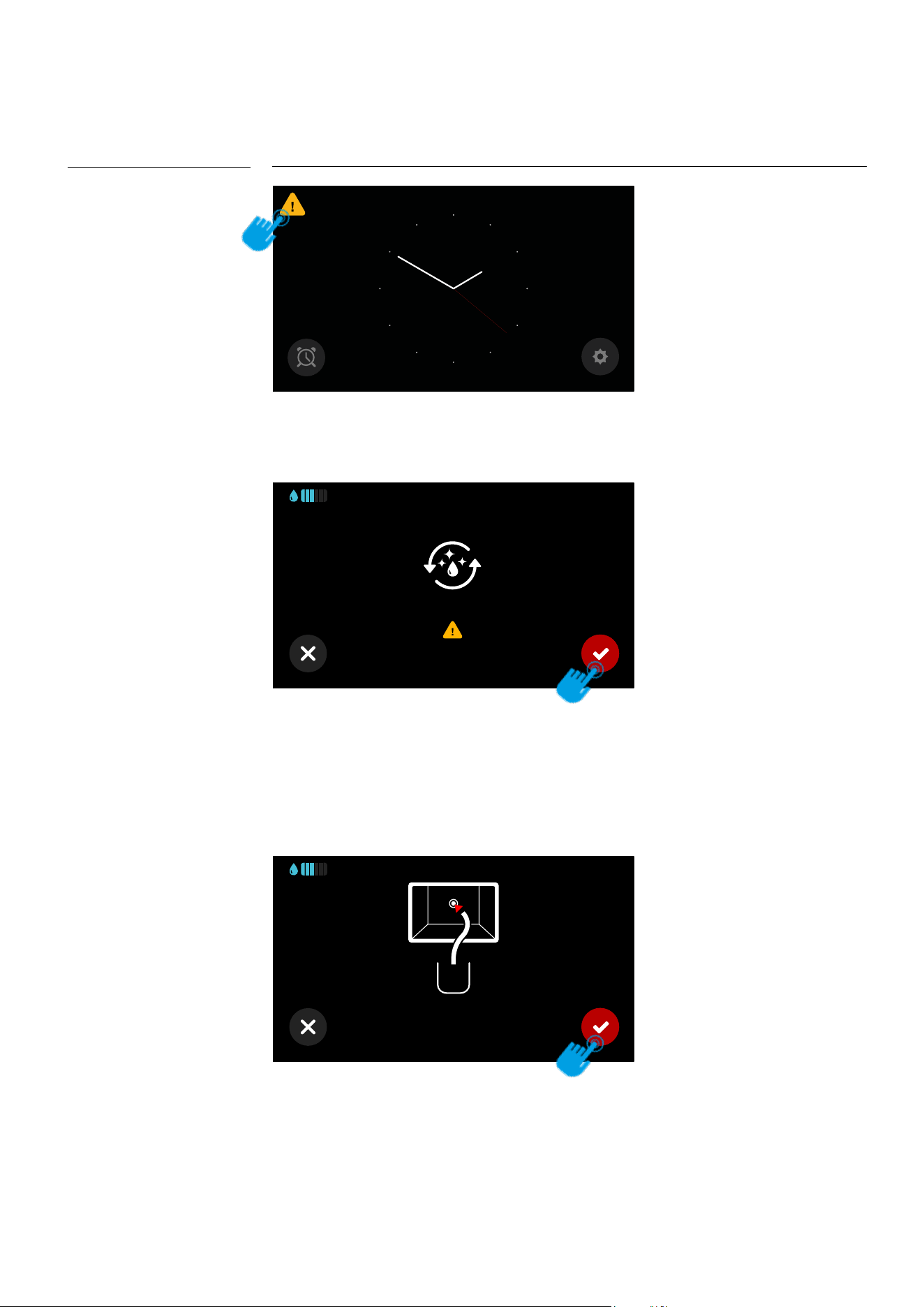

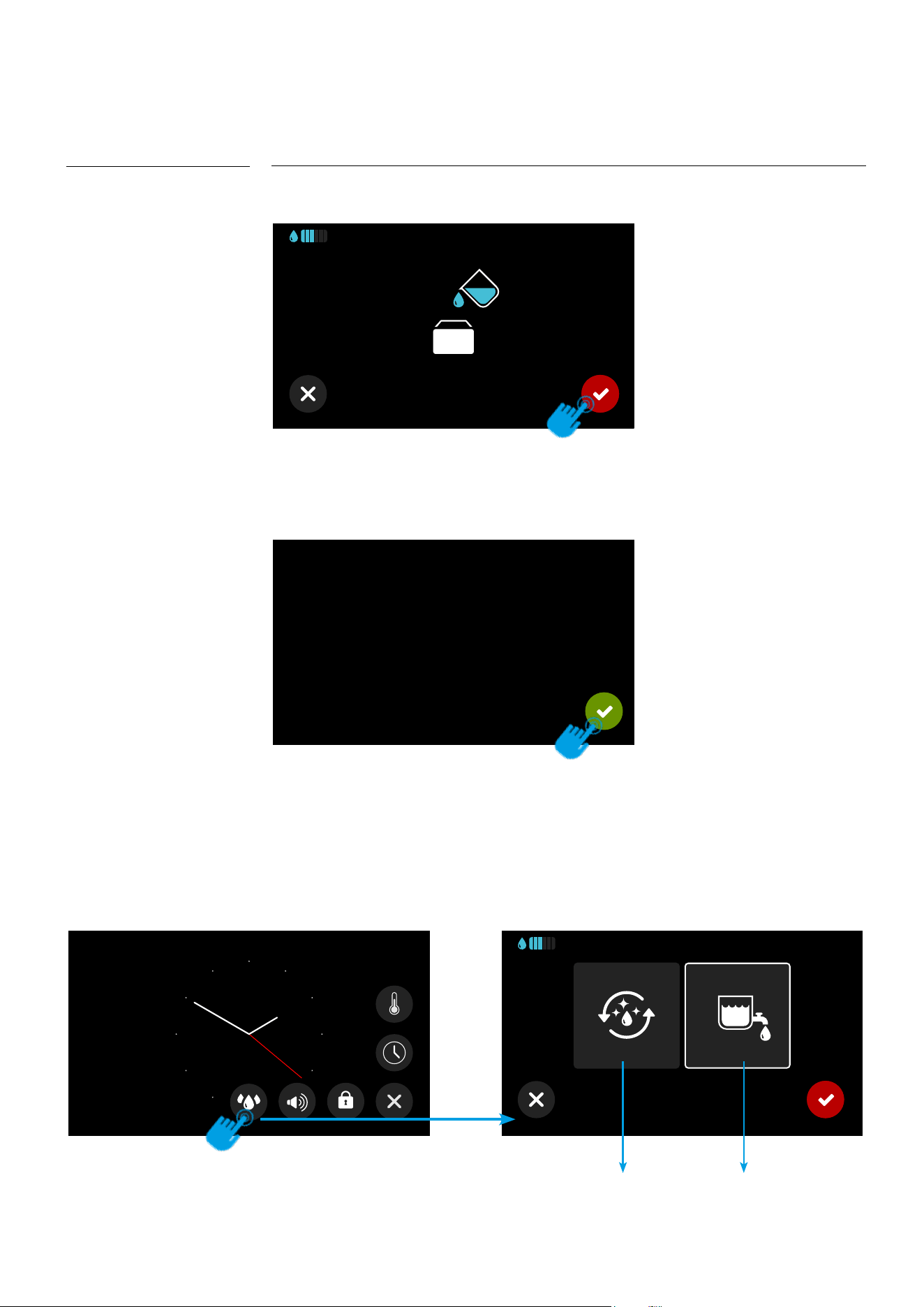

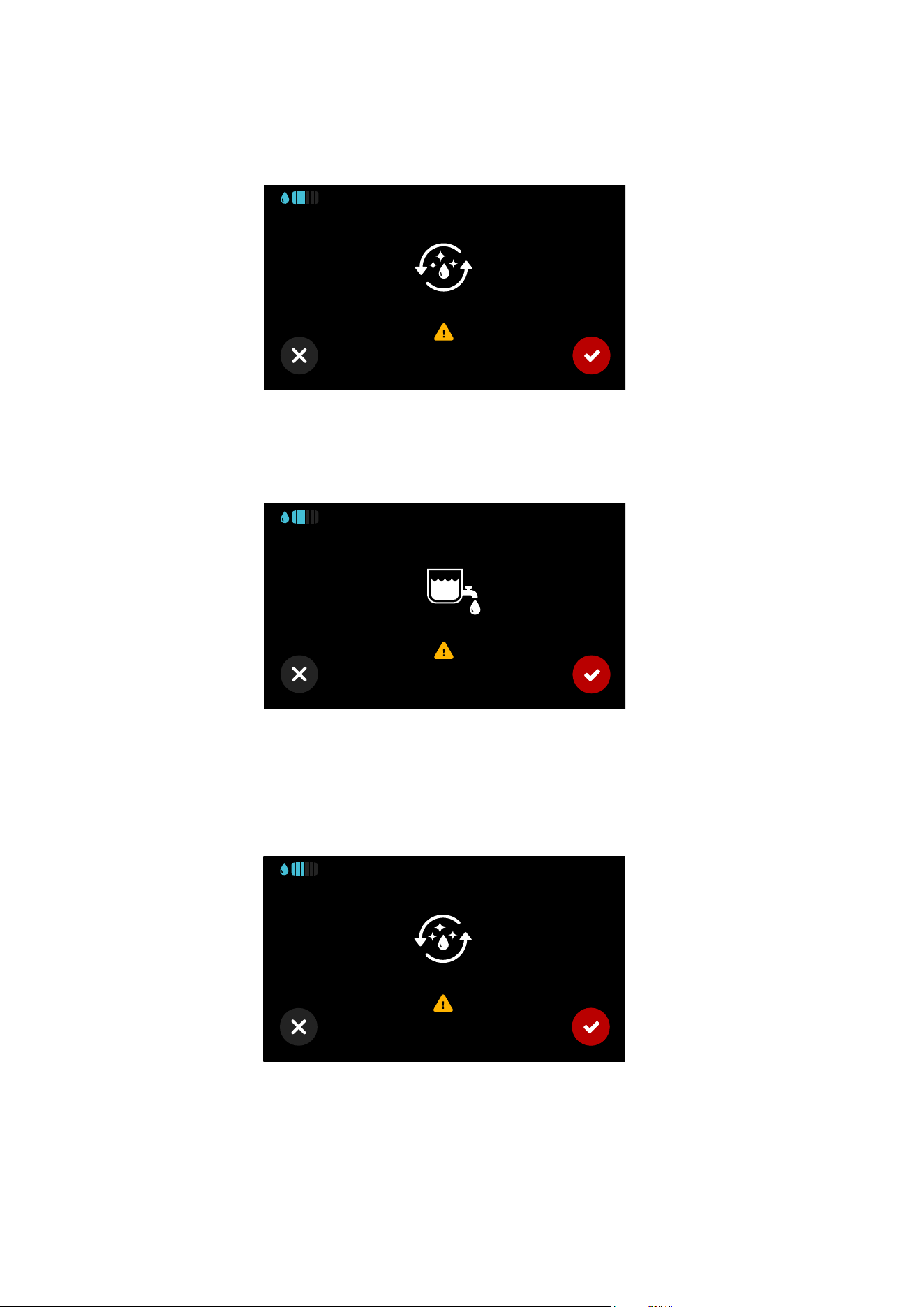

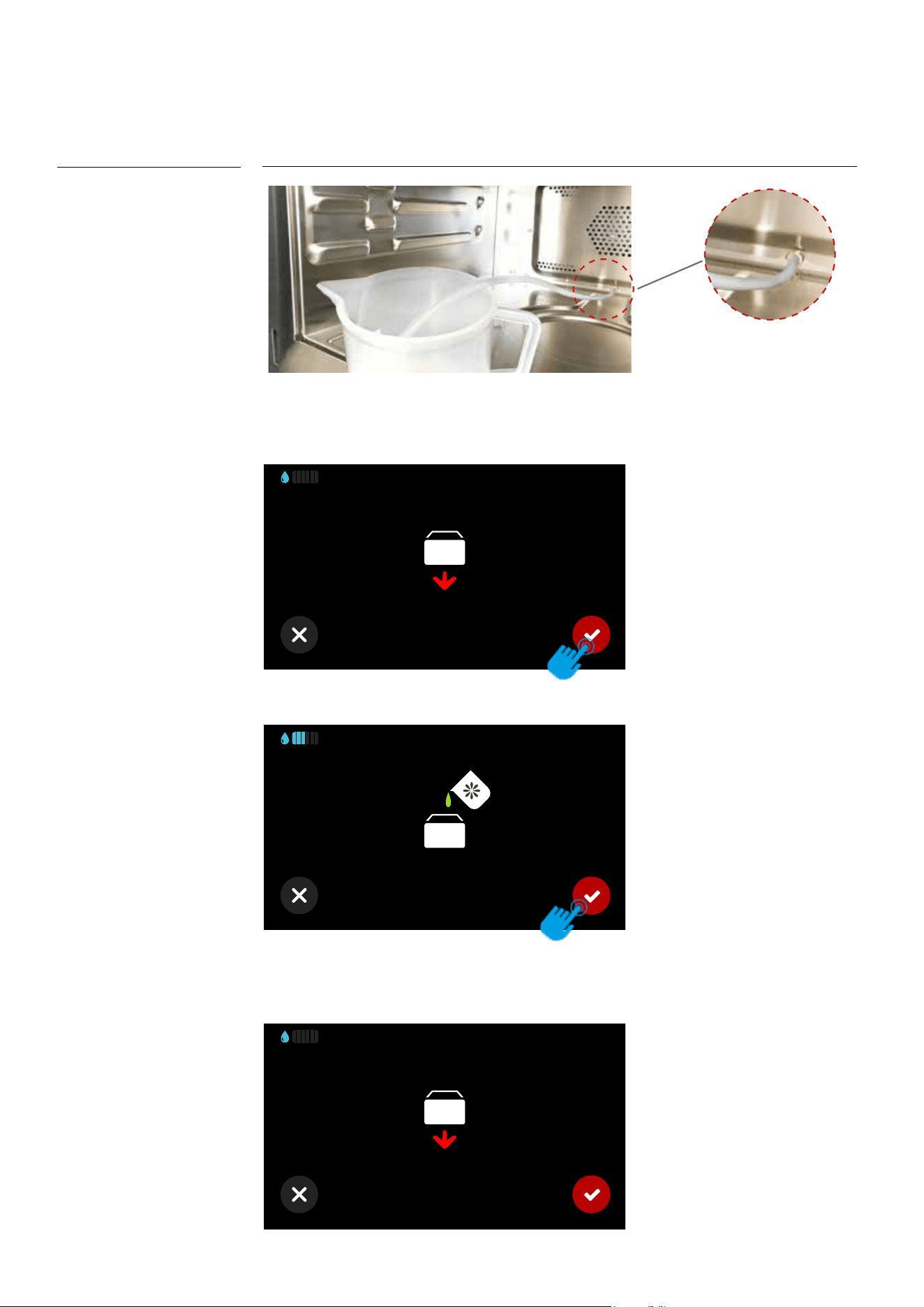

Emptying and Washing the tank
PROBLEM SOLVING
Error messages
ELECTRICAL SKETCHES
Keys
39
39
40
41
45
45
46
47
4
14
16
17
18
20
22
22
22
23
24
25
26
27
28
29
30
31
32
33
35
36
37
38
4
IMPORTANT SAFETY WARNINGS
As well as being shown on the cover, the data plate is ap-
plied to the oven door frame and is visible with the door
open.
These warnings refer to different types of appliances. Pay
attention in properly identifying the type you own (see the
data plate).
These warnings are valid for the countries mentioned in
the plate.
Before using the cooker, read carefully the following in-
structions and keep in a safe place for future reference.
This multifunction oven complies with current statutory sa-
fety standards. Inappropriate use can, however, lead to
personal injury and material damage.
I.L.V.E. SpA cannot be held liable for any damages cau-
sed by failure to observe these instructions for safety and
warnings.
NOTE: This oven has been designed to defrost, reheat and
cook foodstuff in domestic households and residential en-
vironments. The multifunction oven is intended exclusively
for residential use and must always be operated for its
intended purpose: it must not be modied or tampered
with in any way.
Any other usage is not allowed and could be dangerous.
It is not intended for use outdoors.
Persons who lack physical, sensory or mental abilities or
experience with the multifunction appliance , so that they
cannot safely operate it, should not use it without supervi-
sion or instruction by a responsible person.
It is important that they recognise and understand the
dangerous consequences of incorrect operation of the
appliance.
Appliances’ data
CAUTION
INTENDED USE
1
2
5
IMPORTANT SAFETY WARNINGS
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSI-
VE MICROWAVE ENERGY
Do not attempt to operate this oven with the door open
since open-door operation can result in harmful exposure
to microwave energy. It is important not to damage or
tamper with the safety interlocks
Do not place any object between the oven front and the
door or allow soil or cleaner residue to accumulate on the
sealing surfaces.
WARNING: Do not operate the oven if it is damaged. It is
particularly important that the oven door closes properly
and that there is no damage to the (1) door (bent), (2)
hinges and latches (broken or loosened), (3) door seals
and sealing surfaces. If the door and the sealing gaskets
are damaged, the oven shall not be used until repaired
by a properly qualied service technician ( trained by the
manufacturer or by the Customer Service ).
WARNING: It is dangerous for anyone without suitable trai-
ning to perform maintenance and repair operations re-
quiring removal of any casing or barrier against exposure
to microwaves. During installation, maintenance and re-
pair work, the appliance must be disconnected from the
mains electricity supply. Never open the casing of the ap-
pliance. Tampering with electrical connections or com-
ponents and mechanical parts is highly dangerous to the
user and can cause operational faults.
ATTENTION: Do not heat liquids or other foods in sealed
containers, jars or bottles because they could explode.
This appliance must be used only in a domestic hou-
sehold. The mains supply must be tted with all devices
required
3
4
5
6
7
6
IMPORTANT SAFETY WARNINGS
by the statutory rules of installation.
When the oven is operated in microwave mode it is inten-
ded to heat food and drinks. Do not use the microwa-
ve mode for drying owers, herbs, bread, rolls or other
ammable materials like sponges, slippers, cushions or
pads lled with cherry kernels, wheat grain, lavender or
gel, such as those used in aromatherapy. When heated,
these pads could catch re and cause injury by burning
even after they have been removed from the oven.
If smoke is observed do not open the oven door: swi-
tch the appliance off and disconnect it from the mains
electricity supply. Do not open the door until the smoke
has dispersed to stie any ames.
- Activate the system lock to ensure that children cannot
switch on the multifunction oven inadvertently
- Supervise the children if they are in close vicinity to the
multifunction oven. Do not allow them to play with the
appliance.
-Danger of suffocation.
Packaging, e.g. plastic wrappings, must be kept out of
the reach of babies and children. Whilst playing, children
could become entangled in packaging or pull it over their
head and suffocate. Keep children away from this kind of
materials.
-Danger of burning.
Children’s skin is far more sensitive to high temperatures
than that of adults. The door surface, the control panel
and the ventilation openings get hot. Make sure that chil-
dren do not attempt to open the door when the applian-
ce is in operation. Keep children well away from the ap-
pliance until it has cooled down and there is no danger
of burning.
CHILDREN
8
10
9
7
Danger of injury.
The door can support a maximum weight of 8 kg. Do not
let children sit on the door, lean against it or swing on it.
They could injure themselves
ATTENTION. Accessible parts may get very hot during ope-
ration.
Children under 8 years of age must be kept away from
the appliance unless they are constantly supervised.
The appliance may be used by children 8 years and older
and by persons who lack physical, sensory or mental abi-
lities or experience with the multifunction appliance, with
supervision or instruction by a responsible person. It is im-
portant that they recognise and understand the dange-
rous consequences of incorrect operation of the applian-
ce. Children must not play with the appliance. Children
must not be allowed to clean the oven unsupervised
ATTENTION: when the appliance is operated in combina-
tion mode children should use it under adult supervision,
because of the high temperatures that will develop.
Do not attempt to operate the oven with the door open,
tampering with the safety interlock switches. Do not ope-
rate the oven if any kind of objects get trapped between
the door and the oven front plate. Always keep the inner
side of the door clean using a damp cloth and non abra-
sive cleaners. Don’t let food residues accumulate betwe-
en the mating surfaces of the door and the oven front
plate.
Do not operate the oven if the mains supply cable or the
plug are damaged, because this could cause an electric
shock. If the mains supply cable is damaged, it must be
replaced by the manufacturer’s customer service or by a
qualied person, in order to avoid any risk.
IMPORTANT SAFETY WARNINGS
11
12
13
8
To avoid overheating and the following risk of a re, it is
recommended to attend the oven when cooking food-
stuff in disposable containers made of plastic, cardboard
or other ammable material, or when small quantities of
food are reheated
Do not put very cold dishes or food directly onto the inner
door glass when it is hot: the thermal shock could make it
crack.
When the oven is operated in “Microwave only” mode,
it must not be preheated without a food load inside the
cavity, nor shall it be turned on empty, because arcing
could be generated.
Before starting the oven, make sure that the utensils and
containers are suited for microwave operation ( see the
relevant page: “Containers for different cooking modes”).
The appliance gets hot during use. Do not touch the hea-
ting elements inside the oven cavity.
When reheating liquids ( water, coffee, milk , etc.) it is pos-
sible that, due to “delayed boiling”, the liquid reaches a
temperature higher than the boiling point, so that – when
removing the container- it can form eruptive bubbles and
cause injuries to the user. To avoid this, always place a
glass or plastic utensil ( e.g. a spoon) into the cup or con-
tainer. Care should be taken when handling the contai-
ner.
Do not reheat liquors or spirits, nor big quantities of oil, be-
cause they could catch re.
After reheating baby milk or food ( in bottles or jars) sha-
ke or stir thoroughly and check the temperature to avoid
scalding. The temperature of the container is not an in-
IMPORTANT SAFETY WARNINGS
14
15
16
17
18
19
20
21
9
dication of the temperature of the food or liquid in it. It is
recommended to stir and shake the food also in order
to ensure a uniform temperature. When using commer-
cially available baby bottle sterilisers, always check that
the containers are lled with the correct quantity of water
indicated by the manufacturer.
Do not use steam cleaners to clean the inside of the ap-
pliance.
Do not use abrasive cleaners or sharp metal tools to cle-
an the door glass. They could scratch the glass surface
and result in cracking it.
All microwave ovens are tested and certied in complian-
ce with the latest safety and electromagnetic compatibi-
lity standards . However, as a precaution, manufacturers
of pace-maker devices recommend to keep a minimum
distance of 20 - 30 cm between an operating microwa-
ve oven and the pace-maker, in order to avoid any in-
terference to the pace-maker device. If for any reason
there should be a suspect of interference, immediately
switch the microwave operation off and contact the ma-
nufacturer of the pace-maker.
In case of overheating of the appliance ( prolonged use,
use without load, etc.) the oven could be switched off by
a safety thermostat. After cooling down the oven will resu-
me its regular operation.
When the appliance is operating, the door and the ac-
cessible surfaces may become hot.
IMPORTANT SAFETY WARNINGS
22
23
24
25
26
10
Do not cook or reheat eggs in their shells using microwave
power, because they could explode even after the co-
oking has ended.
For safety reasons, this multifunction oven may only be
used when it has been built in. This is necessary to ensure
that all electrical components are shielded.
This multifunction oven must not be used in a non-statio-
nary location (e.g. on a ship).
Oils and grease could easily catch re if overheated.
Always supervise the appliance when using oils and gre-
ase. Never attempt to extinguish with water burning oils
and grease. Switch off the appliance and stie the a-
mes carefully using a lid or with a special re-safe blan-
ket. Flammable objects situated in the vicinity of the oven
may start burning if exposed to high temperatures. Do not
use the appliance to heat the ambient.
Plastic cutlery or dishes not suited for microwave energy
could melt due to the high temperatures reached, and
may burn and damage the oven. Only use dishes suited
for use with microwave power. Follow the directions provi-
ded by the manufacturer: when using plastic dishes inside
the oven, plase make sure that they resist to heat and
steam. If they are not, they could melt or be damaged.
Be aware that cooking, reheating and defrosting times
when using microwave power are often considerably
shorter than when using conventional functions. Too long
heating times lead to food desiccation and a possible
combustion.
IMPORTANT SAFETY WARNINGS
28
29
30
31
27
11
Cleaning
Lamp
33
32
• The appliance must be cleaned regularly and any
food residues must be removed. Failing to clean the
oven may cause deterioration of the surfaces. This can
have a negative effect on the durability of the applian-
ce and cause possible risk situations. Clean the oven
interior, inside of the door and door seal as soon as the
oven has cooled down.
• Clean the front of the appliance and the door sealing
surfaces with a soft cloth with warm water and a clea-
ning agent.
• To clean metal surfaces, use a usual cleaning agent.
• Clean stubborn dirt with a special oven cleaner.
• Clean all accessories after each use and let them dry.
Use a soft cloth with warm water and a cleaning agent.
WARNING!
Before you change the lamp:
Ensure the appliance is switched off before replacing the
lamp to avoid the possibility of electric shock.
CAUTION: The lamp and the lamp glass cover can be hot.
Put a soft cloth on the bottom of the interior of the ap-
pliance. It prevents damage to the lamp glass cover and
the cavity. Always use the same lamp type.
Replacing the lamp
Turn the lamp glass cover counterclockwise to remove it.
- Clean the glass cover.
- Replace the lamp with a suitable 25W Halogen lamp.
- Re-install the glass cover.
During installation, maintenance and repair work, the ap-
pliance must be disconnected from the mains electricity
supply
IMPORTANT SAFETY WARNINGS
12
Steam cooking
Do not operate the oven if the glass lamp cover has been
removed. Steam could reach electrically live parts and
cause a short-circuit; also electrical components could
get damaged.
If the multifunction oven is installed behind a furniture pa-
nel (e.g. a door), ensure that the door is never closed whilst
the appliance is in use. Heat and moisture can build up
behind a closed furniture panel and cause subsequent
damage to the multifunction oven, the housing unit and
the oor. Do not close the door until the appliance has
cooled down completely.
WARNING! Danger of burning.
-The multifunction oven becomes hot when in use. You
could burn yourself on the heating elements, oven inte-
rior, cooked food, oven accessories or hot steam. Wear
oven gloves when placing food in the oven or removing it
and when adjusting oven shelves etc. in a hot oven. Take
care when putting cooking containers into the oven or
removing them not to spill the contents.
-Do not open the oven door during steam cooking. Hot
steam may come out, there is a risk of getting burnt or to
damage the appliance.
- Never line the interior of the oven cavity with e.g. foil or
lm. Do not put containers, pans and pots directly on the
bottom of the cavity.
IMPORTANT SAFETY WARNINGS
34
35
13
The packaging is intended to protect the appliance from
damage during transportation.
The packaging materials are easily recyclable becau-
se they have been selected according to environmental
friendly criteria.
Recycling them reduces the need for raw materials and
reduces the volume of waste.
Electrical and electronic appliances often contain va-
luable materials. They also contain materials which, if
handled or disposed of incorrectly, could be potentially
hazardous to human health and to the environment. They
are, however, essential for the correct functioning of your
appliance. Please do not therefore dispose of it with your
household waste.
Please dispose of it at your local
community waste collection /
recycling centre or contact your
Dealer for advice.
Ensure that it presents no danger to
children while being stored for di-
sposal.
DISPOSAL OF THE PACKAGING MATERIAL
14
ATTENTION
Rules for installa-
tion
ATTENTION
The instructions below are intended for the skilled techni-
cian who will install the appliance, regulate it and perform
technical maintenance and who will ensure that these
operations are carried out in the most correct way possi-
ble, in compliance with the regulations in force.
Important: the appliance must be disconnected from
the electric socket before performing all regulating or
maintenance operations.
This appliance complies with the following directive/regu-
lation:
DIRECTIVE 2002/96/CE
LOW TENSION DIRECTIVE 2014/35/EU
ELECTROMAGNETIC COMPATIBILITY DIRECTIVE 2014/30/EU
REGULATION No. 1935/2004 (contact with foods)
• Installation must be carried out in a workmanlike man-
ner, fully complying with the legislation in force regar-
ding electrical installations. Otherwise, the manufactu-
rer disclaims any responsibility.
• The appliances are prepared for connection to the vol-
tage shown on the data plate.
• Before connecting the appliance to the mains check
that:
- the electromagnetic switch or the socket are able to
support the appliance’s load (see dataplate);
- the power supply system must have an efcient groun-
ding system.
The appliance is supplied with a cable but without a plug:
the connection must be made taking into account that
the green-yellow cable is the ground conductor and
it must never be interrupted. The socket must be visible
and easily reachable so that the appliance can easily
be disconnected. For direct connection to the mains, it is
necessary that:
-the relief valve and domestic system can support the
ELECTRICAL CONNECTIONS
15
equipment’s load (see data plate)
-the socket or omnipolar switch, with a minimum 3 mm
contact opening, must be easily reachable once the ap-
pliance has been installed.
- means for disconnection must be incorporated in the
xed wiring in accordance with the wiring rules.
For stationary appliances permanently connected to the
xed wiring, compliance with this requirement is conside-
red to be met if the instruction concerning disconnection
incorporated in the xed wiring is in accordance with AS/
NZS 3000.
ELECTRICAL CONNECTIONS
The yellow-green ground wire must never be interrupted
even by the switch. The power cable should be positio-
ned so that it does not come into contact with surfaces
that have a temperature of 50 °C higher than the environ-
ment. In case replacement of the power cable is neces-
sary, contact the customer service.
16
INSTALLATION INSTRUCTIONS
Oven data
Important points
The serial plate is positioned on one side of the front plate of the oven, and is visible
opening the door; it shows all data necessary for the installation, e.g. model number
nominal voltage and power input.
First check the dimensions of the furniture opening: they must be exactly equal to those
shown in the picture. Make sure that the laminated surfaces or veneered panels be
manufactured using heat-resistant glue. If they are not, they could get warped or de
tach especially in the narrowest parts of the furniture.
Also check that the oor of the built-in niche must be solid and able to carry the weight
of the appliance.
All screws and bits needed to fasten the oven in the furniture are supplied with the
product.
All dimensions are indicated in mm.
80
450
560
5
60
450
560
22
5
9
9
455
570
80
5
55
min. 100
17
1 2
4
3
6
5
9
8
7
Control panel
TFT touch Display
Drawer for water load
Food probe socket
Grill heater
Oven lamp
Convection heater and fan
Boiler with lid
Rack supports
1
2
4
3
6
5
9
8
7
PRODUCT DESCRIPTION
18
PRODUCT DESCRIPTION
- Supplied accessories
Wire rack
For cookware, trays and roasting
Pyrex glass tray
For microwave cooking and drip pan use
Steam cooking set
Wire frame supporting 2 dedicated trays:
- perforated tray, allows steam to reach the food comple-
tely
- shallow tray, to collect condensation water dripping down
19
Food probe
To reheat and cook food selecting core temperature
PRODUCT DESCRIPTION
- Supplied accessories
Jug
To ll the water tank for steam cooking and to collect the
water when emptying the tank
Silicon pipe
To be used with the jug when emptying the tank
20
PRODUCT DESCRIPTION
- Cooking Accessories
Baking tray (if applicable):
Insert the baking tray in the wire frame as
shown.
Lift the outer part of the frame and push it into
the cavity to slide beyond the corner.
NOTE: the barrier indicated by the red arrow-
must be oriented upwards and shows the back
side of the frame.
Frame with baking trays fully inserted
21
PRODUCT DESCRIPTION
- Cooking Accessories
Pyrex glass tray
When using the glass tray put it on the upper
part of the frame (the lower tray is not neces-
sary). Insert the frame as seen before
Wire rack
Lift the outer part of the rack and push it into
the cavity to slide beyond the corner.
Select the desired level suitable for the cooking
function
NOTE: the barrier indicated by the red arrow-
must be oriented upwards and shows the back
side of the rack.
22
INSTRUCTIONS FOR USE
- Display TFT touch
-
Icon legend
Home
Light
Timer
Exit - Terminate
Clock
Setting conrmation
Turn off
Pause
Start
°C - °F
Screen lock
Conrm and go to next step
Settings
Meat probe
Knob present in some models.
(It allows to set and conrm the functions of the TFT in addition to the Touch display)
OFF
23
INSTRUCTIONS FOR USE
– First start of the oven

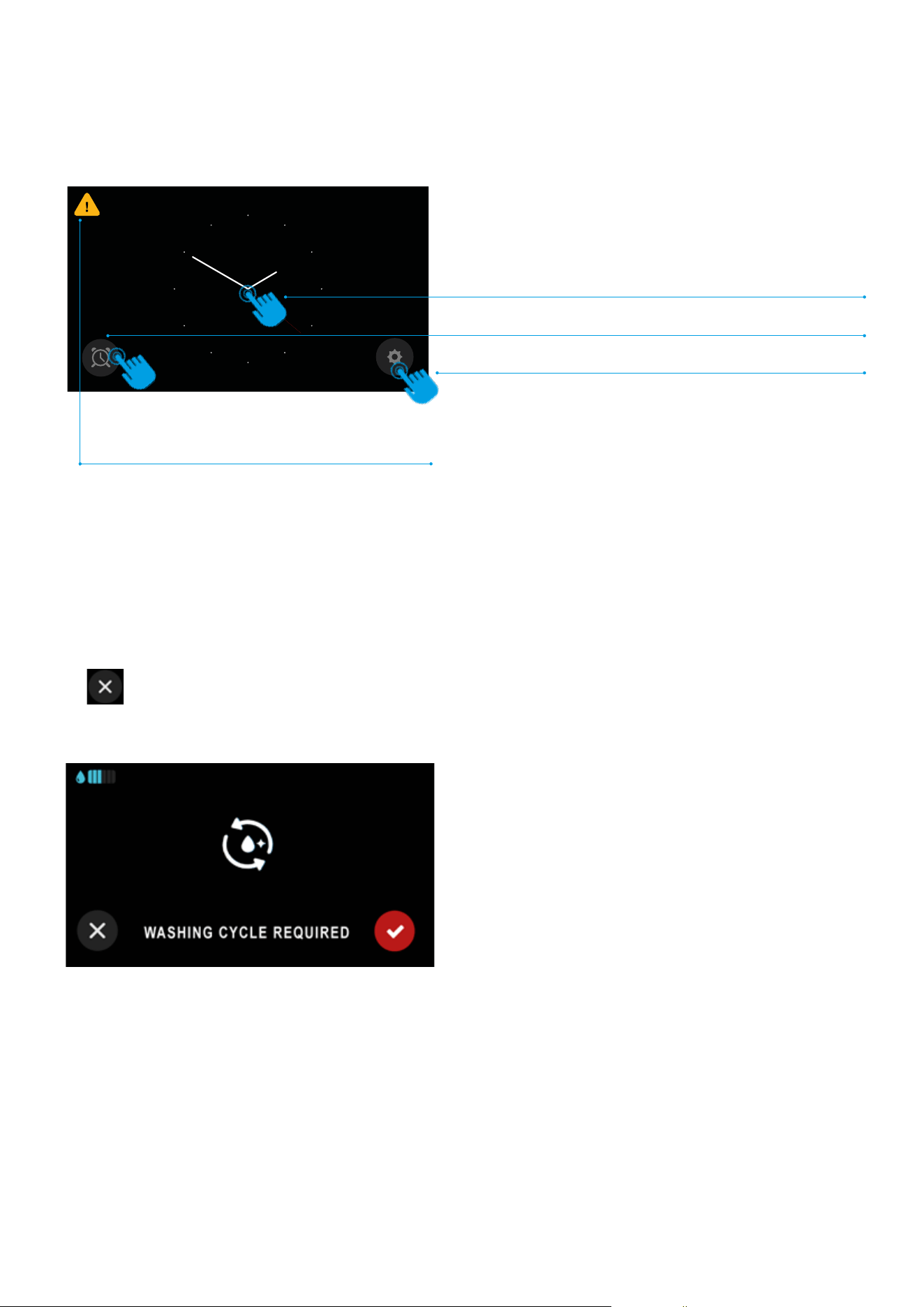

Home: display homepage.
3 options
Allows you to proceed to the screen setting of the cavity
Allows you to set the timer
Gives you direct access to the settings
PM
Warning at rst power - on: washing cycle required
(does not prevent operation if not performed)*
NOTE:
The yellow triangle will disappear:
A - if the tank is lled with some water and completely emptied. Open the door and touch the triangle to start
* (If the washing / emptying operation is not performed, the oven will operate regularly but when switched off the
yellow triangle will remain visible).
B - With reference to the picture below, that appears touching the yellow triangle opening the door, by pushing the
in the left corner.
(the triangle will reappear after the power has been shut off)
* In order to empty the water tank or to perform the cleaning procedure, please refer to the chapter
“CLEANING - CARE - MAINTENANCE” at page 39 of this manual.
24
INSTRUCTIONS FOR USE
– Settings

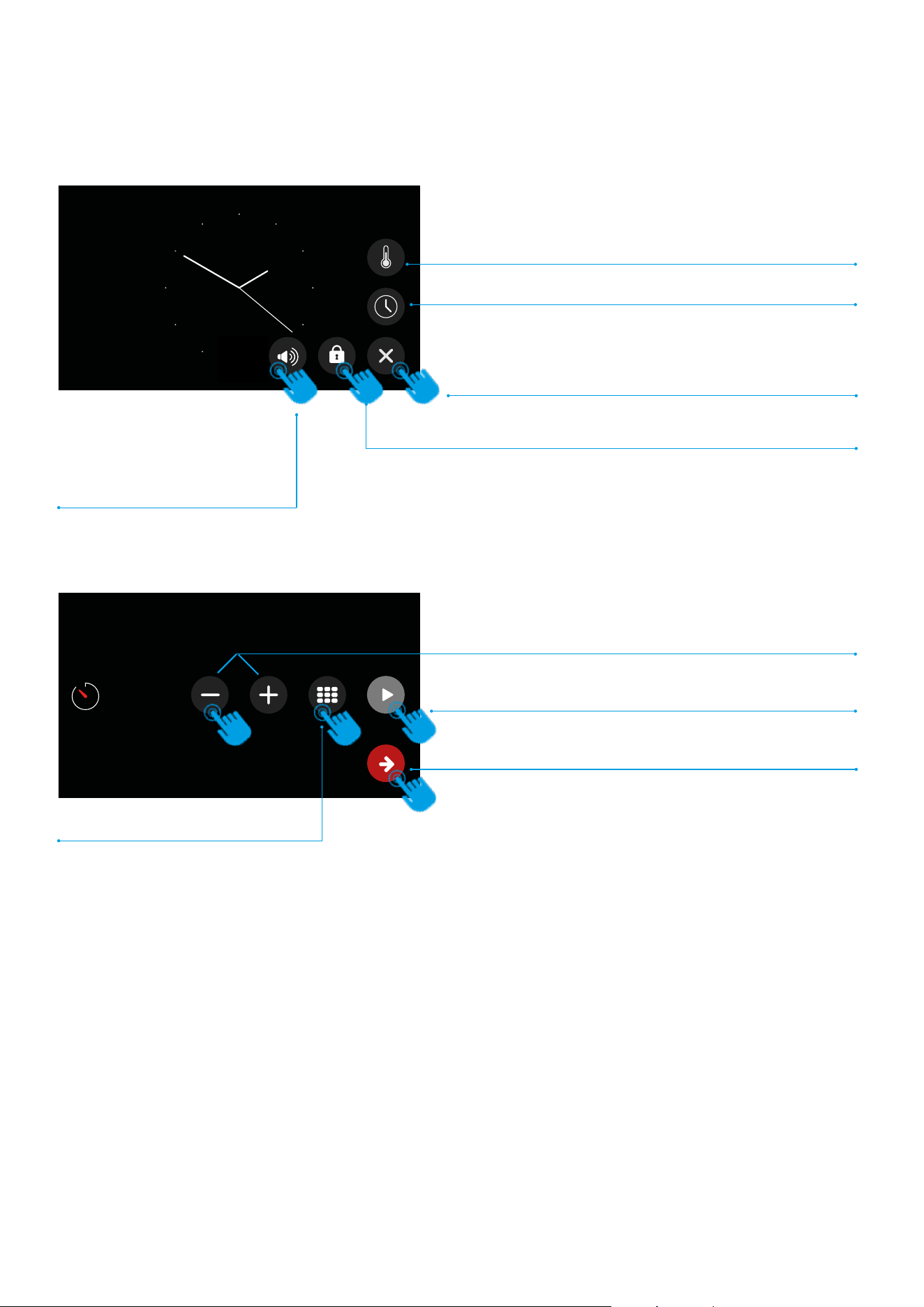

Settings
Choice of degree scale (°C or °F).
Time settings.
Exit the settings page.

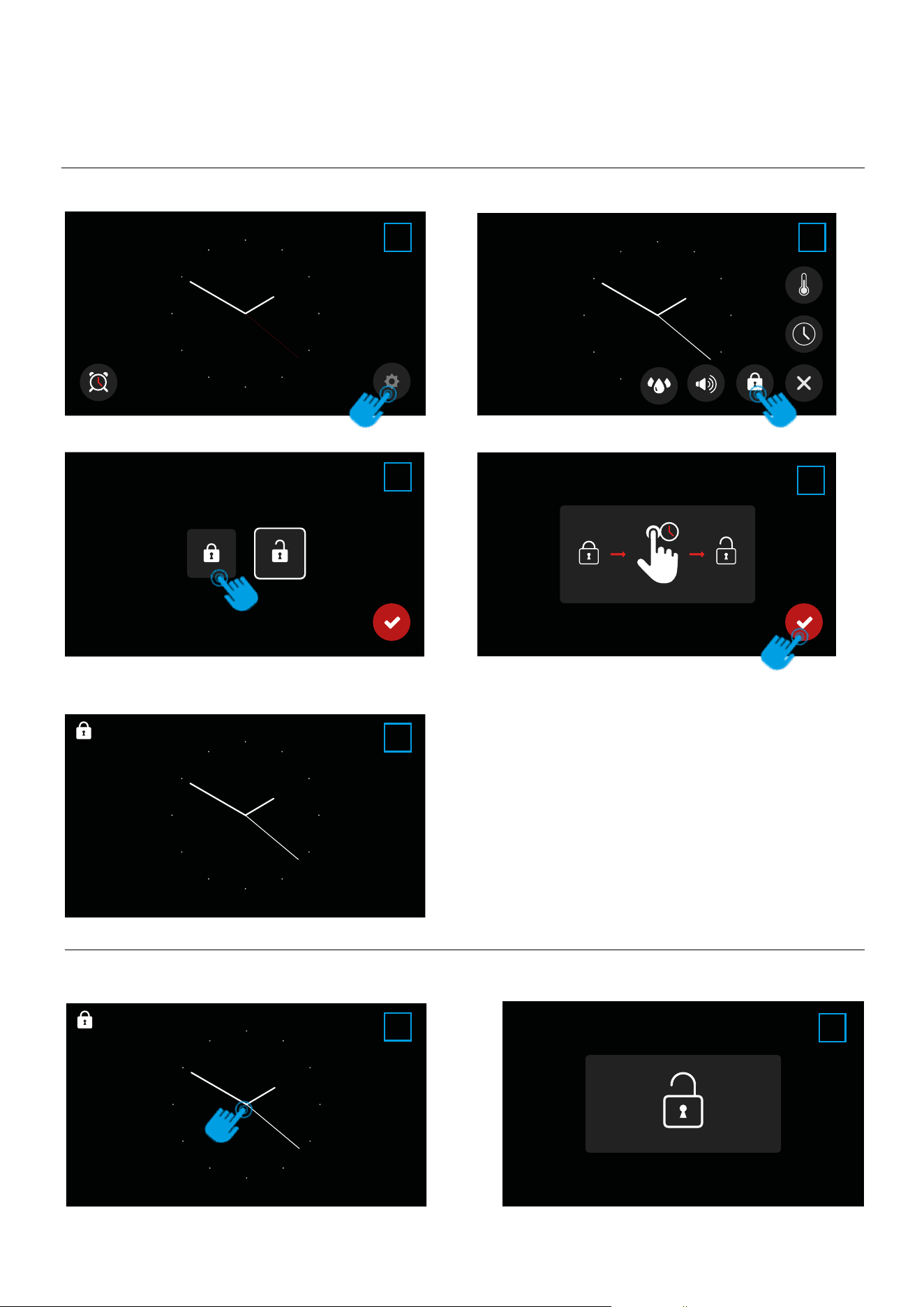

Screen lock
Setting a timer
Increase or decrease the time.
Conrm once you have set the desired time. An audible
signal will indicate the end.
Conrm and return to the home page.
11 :48 AM
10m
Allows you to set the volume of
the beep and choose a sound
when touching the display
Numeric keyboard
25
INSTRUCTIONS FOR USE
– Display TFT touch: Screen lock
Locked screen
Turn off Screen lock
Turn on screen lock
Turn off Screen lock
Choose Lock Screen
- Choose closed Lock
- Conrm
Give conrmation
PM
Enter the settings
1
1
3
5
2
2
4
26
INSTRUCTIONS FOR USE
– Turning the oven on and off
By touching any point of the TFT display the oven is
turned on (ON state) showing this display and emit-
ting 3 acoustic signals. Immediately the microwave
function is activated.
At the end of any cooking process it is possible to
go back to the initial home page pushing the HOME
button. A long signal is emitted the display shows the
OFF state.
The microwave function is activated with a default
setting of 30s at full power (1000W). This is useful, for
example, to reheat a cup of coffee. By pushing the
start button the oven will start. It is possible to increa-
se the heating time in 30” steps pushing
Immediately after the display will show again the time
of day clock. It is possible to turn the oven on again
following the previous procedure (QUICK START/ON)
QUICK START ON/FUNCTION COOKING END/OFF
PM
11:4 8 AM
30s
1000w
+30"
PM
Be sure to put some food or liquid into the
oven cavity before starting the microwave:
The oven can suffer damage when using microwave
energy if it is empty or incorrectly loaded. For this rea-
son please do not use the microwave function when
the oven is empty.
+30"
ON OFF
11:4 8 AM
220
°C
OFF
27
INSTRUCTIONS FOR USE
– Cooking functions
11:4 8 AM
30s
1000w
+30"
After turning the oven on, if another function is desi-
red, touching the microwave icon the full selection
of the available cooking modes will appear. Choose
the function touching the relevant icon.
The white frame shows the last operating mode
28
INSTRUCTIONS FOR USE
– Functions list
Microwave
This function is especially suited for quickly reheating and defrosting food and ready meals. It is also
possible to cook vegetables, sh, some cakes; moreover it is useful for softening butter, melting cho-
colate and defrosting delicate cakes.
Hot air (forced convection)
This function allows to cook at the same time on different levels various dishes without mixing the
relevant smells; useful for lasagna, pizza, croissants, brioches, cakes, pies, etc.
Grill ( with door closed)
This function is indicated for quick and deep grilling, ideal to broil and cook meat in general, llets,
T-bone steaks, sh and also vegetables. Thin foods and bread for toast shall be positioned on the
central area of the grill rack, and in general the thermostat shall be set at 180°C.
Vented Grill
Particularly quick and deep cooking with signicant energy savings, this function is indicated for pork
chops, sausages, pork or mixed skewers, game, gnocchi gratin, etc. Also in this case the thermostat
should be set at 180°C.
Steam
This function allows to recondition sous-vide dishes at low temperature, keeping the original colours
and the uniform smooth texture. Best for cooking vegetables, sh and delicate food items.
Combination steam + convection
Good for cooking in the oven with the advantages of steam. This function allows to reduce the
cooking time while maintaining the vitamins and nutritional properties of food. Best results setting the
oven temperature between 130° and 230°C.
Combination steam + microwave
This function allows to combine the advantages of steam cooking with the speed of microwaves; it
is particularly suited for rice, vegetables, ans, minced meat, mashed potatoes.
Combination convection + microwave
This function is most indicated for cooking roast pork and chicken quickly but without drying out the
food in the end. Time saving can reach 40-50%.
Combination grill + microwave
This function is most indicated for cooking in a short time “family meal” quantities of gratin dishes
(e.g. potatoes and cheese), baked pasta, vegetables with tough texture.Also in this case the ther-
mostat should be set at 180°C.

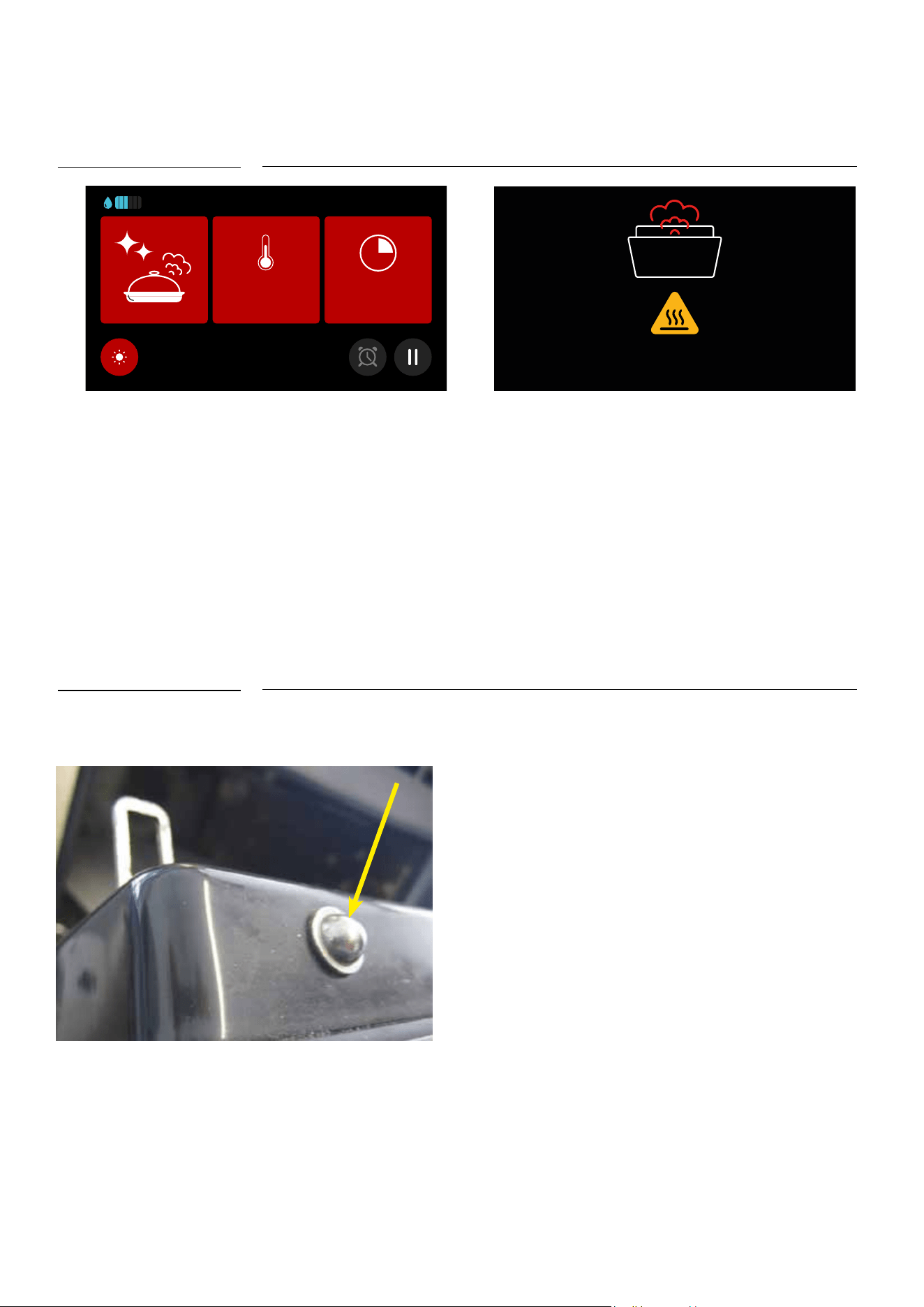

Steam cleaning
This program is specically intended to be used for softening soil that is deposited on the cavity wal-
ls, so that cleaning gets simpler without need to use chemicals and abrasive means.
Set a duration of 15 minutes.
29
INSTRUCTIONS FOR USE

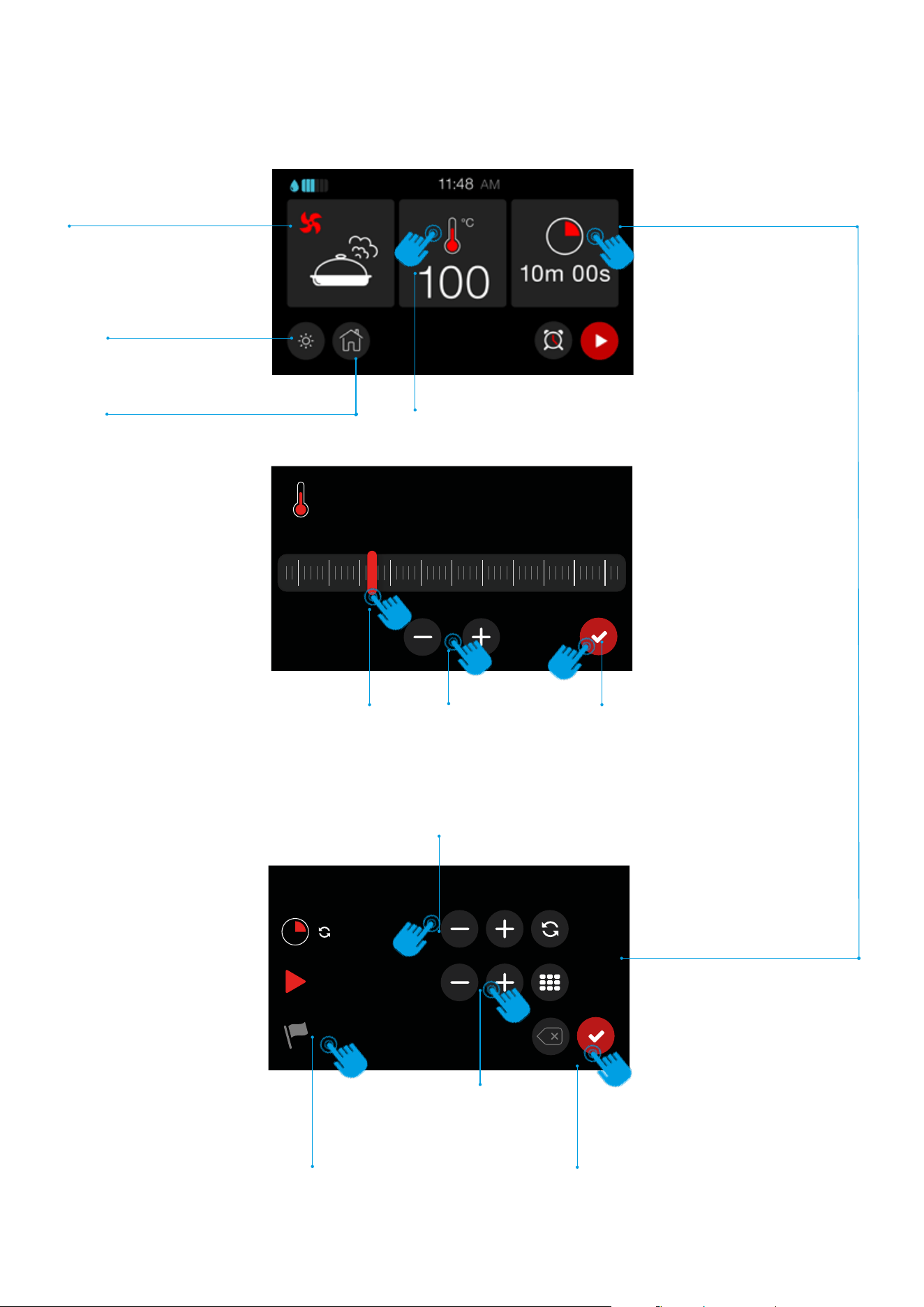

– Setting the cooking function
11 :48 AM
__:__
__:__
120
°c
50 100150 200250 300
0
1- Choose the cooking
function
Light (on or off)
Home (Return to home page)
2- Set the cooking temperature
3- Set the cooking time and
the programmed start
3d - Conrm the setting
3a - Set the cooking time
3c - Set the start time
3b -Shows the end
of the cooking time
2a - There are three options for
setting the temperature:
- Scrolling the bar
- With
+ or
-
- With the knob (if present)
2b - Conrm the selection
(option: conrm by pushing the knob)
30
INSTRUCTIONS FOR USE

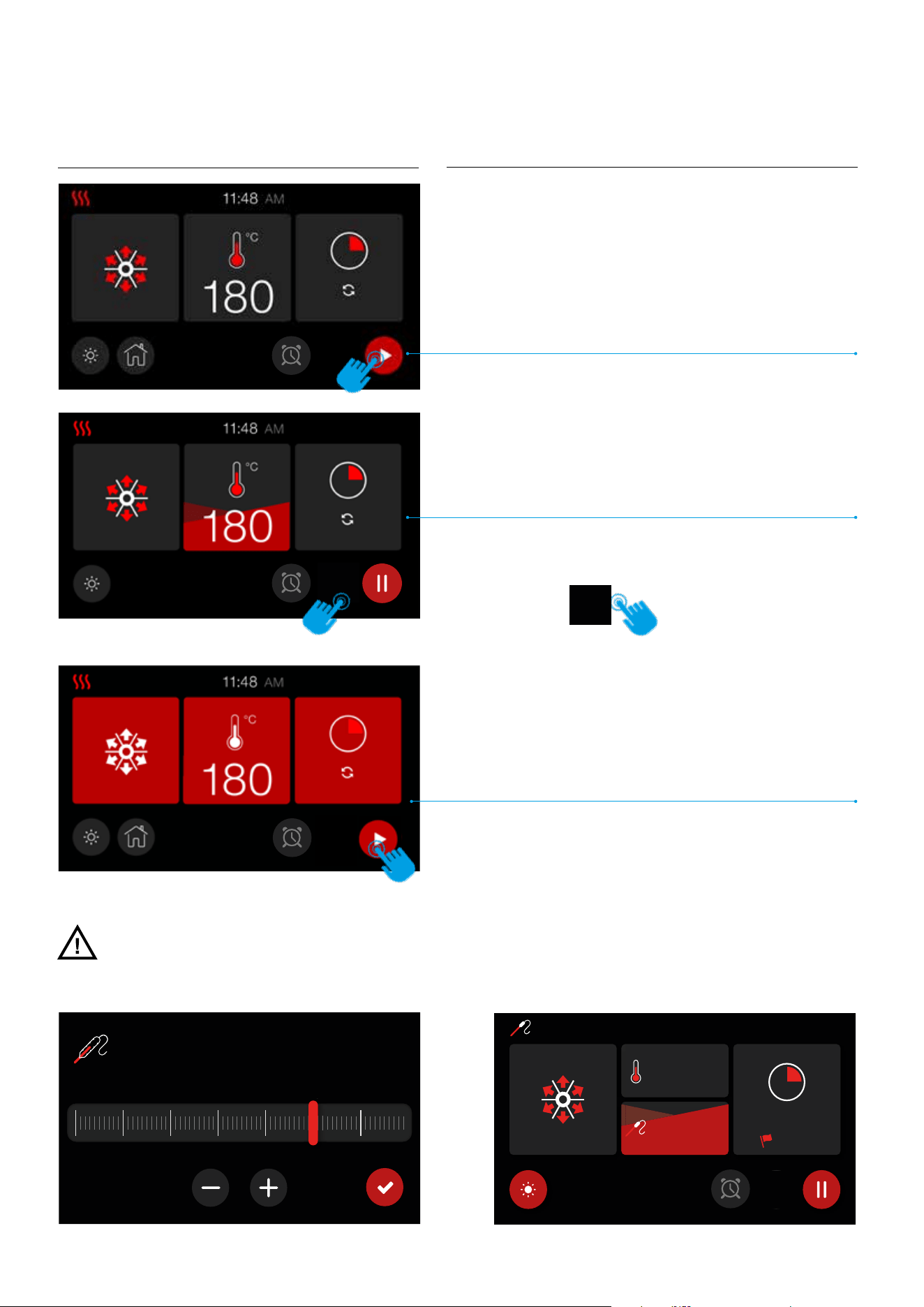

– Cooking process
80
°c
30 40 50 60 70 80 90
8
8
0
0
0
SELETTORE TEMPERATURA SONDA
11:48 AM
180
80
°C
°C
61°
9m 15s
12:58
MODALIT
À
RISCALDAMENTO CON SONDA
CAVITY SET
Once the cavity has been set (cooking function, tem-
perature and timer), conrm to start the preheating. At
this point the display will switch to the preheating mode
PREHEATING PHASE
There are four levels that allow you to monitor the
preheating process. The red part will gradually increase
to ll the display.
In case of no set cooking time it is possible to suspend
the cooking touching the pause button and then nish
it using the stop button (the display will turn grey as at
the beginning)
PROBE TEMPERATURE SELECTOR
PREHEATING MODE WITH MEAT PROBE
When using the temperature probe the setting range is shown below, and the heating ends when the tem-
perature value set for the probe is reached.
ATTENTION: use only the temperature probe recommended for this oven
INSTRUCTIONS FOR USE
– Cooking process
END OF PREHEATING
When the set temperature is reached, the display will turn
red to indicate the end of the preheating phase, and the
start of the cooking phase.
If a cooking time has been set, the oven will start the
count-down and automatically switch off at the end.
OFF
OFF
OFF
31
INSTRUCTIONS FOR USE
– Microwave
- 4 power levels available: 270, 500, 800, 1000 Watts
Microwave operation
Useful hints
How it works
In the oven there is a high-frequency tube (magnetron) that converts electrical energy
into microwaves. These are distributed evenly throughout the oven interior, and are
reected by the metal sides of the oven interior. In order for microwaves to reach
the food, they must be able to pass through the cooking utensil being used. All food
contains moisture molecules which, when subjected to microwave energy, start to
oscillate at high frequency. The friction caused by this vibration creates heat, which rst
starts developing around the outside of the food and then slowly penetrates towards
the centre. The heat is generated in the food itself.
Microwaves can penetrate porcelain, glass, cardboard and plastics, but not metal.
Do not, therefore, use utensils made of metal, or which contain metal, for example in
the form of gold or silver trim. The metal reects the microwaves and this could cause
sparking. The microwaves cannot be absorbed. However, the accessories and racks
supplied with the oven can be used in all operating modes, including microwaves: it
is important not to put metal containers in contact with these accessories.
Advantages
Food can generally be cooked without adding much liquid or oil and grease.
Microwaves stop being produced as soon as the cooking process is interrupted or the
appliance door is opened. When the appliance is in operation, the closed door pre-
vents microwaves escaping from the appliance.
General:
After you switch off the appliance, let the food stand for some minutes (refer to “Mi-
crowave Tables: standing time”).
Remove the aluminium foil packaging, metal containers, etc. before you prepare
the food.
Cooking:
If possible, cook food covered with material suitable for use in the microwave. Only
cook food without a cover if you want to keep a crust.
Do not overcook the dishes by setting the power and time too high. The food can dry
out, burn or catch re in some places.
Do not use the appliance to cook eggs in their shells and snails, because they can
burst. With fried eggs, pierce the yolks rst.
Prick food with “skin” or “peel”, such as potatoes, tomatoes, sausages, with a fork seve-
ral times before cooking so that the food does not burst.
For chilled or frozen food, set a longer cooking time.
Dishes which contain sauce must be stirred from time to time.
Vegetables that have a rm structure, such as carrots, peas or cauliower, must be
cooked in water.
Turn larger pieces after half the cooking time.
If possible, cut vegetables into similar sized pieces If you are cooking a number of
portions of the same type of food (eg. boiled potatoes), arrange the portions in a ring
around the outside of an ovenproof dish to ensure they cook evenly.
Use at, wide dishes.
Do not use cookware made of porcelain, ceramic or earthenware with small holes,
e. g. on handles or unglazed bottoms. Moisture going into the holes can cause the
cookware to crack when it is heated.
Defrosting meat, poultry, sh:
Put the frozen, unwrapped food on a small upturned plate with a container below it, or
on a defrosting rack or plastic sieve so that the defrosting liquid can run off.
Turn the food after half the defrosting time. If possible, divide and then remove the
pieces that have started to defrost.
32
INSTRUCTIONS FOR USE
– Cookware / Material
Ready meals:
Ready meals in metal packaging or plastic trays with metal covers can only be defro-
sted or heated in the microwave if they are expressively designated as suitable for use
in the microwave.
You must follow the manufacturer’s instructions printed on the packaging (e. g. remove
the metal cover and pierce the plastic lm).
• Ovenproof glass and porcelain (with
no metal components, e. g. Pyrex,
heat-proof glass)
• Non-ovenproof glass and porcelain
1)
• Glass and glass ceramic made of
ovenproof/frost-proof material (e. g.
Arcoam), grill shelf
• Ceramic 2), earthenware 2)
• Heat-resistant plastic up to 200 °C 3)
• Cardboard, paper
• Clinglm
• Roasting lm with microwave safe-
closure 3)
• Roasting dishes made of metal, e.
g. enamel, cast iron
• Baking tins, black lacquer or silicon-
coated 3)
• Baking tray
• Ready meals in packaging 3)
Microwave
Defrosting Heating Cooking
Oven/Grill
●
●
●
●
●
●
●
●
--
--
●
●
●
--
●
●
●
--
--
●
--
--
●
●
●
--
●
●
●
--
--
●
--
--
●
●
●
--
●
--
--
--
--
--
●
●
●
●
1. With no silver, gold, platinum or metal plating/decorations
2. Without quartz or metal components, or glazes which contain metals
3. You must follow the manufacturer’s instructions
33
INSTRUCTIONS FOR USE
– Steam cooking
Advantages
Operation
NOTE
The steam oven has many advantages, it allows to cook in a healthy and savoury way.
Food is cooked by the moist heat generated by the hot water. This means that the
cooking proces happens at not very high temperatures, so that minerals and vitamins
inside the food are not altered. With this process the taste and avour of every food are
perfectly maintained. One important feature is that it is possible to avoid using oils ore
grease for cooking: for this reason steam is the best method to prepare vegetables
and sh, because all nutritional characteristics are preserved. On the other hand, ste-
am is less suited for cooking meat. To be well done meat needs higher temperatures
in order to avoid dispersing the internal juices.

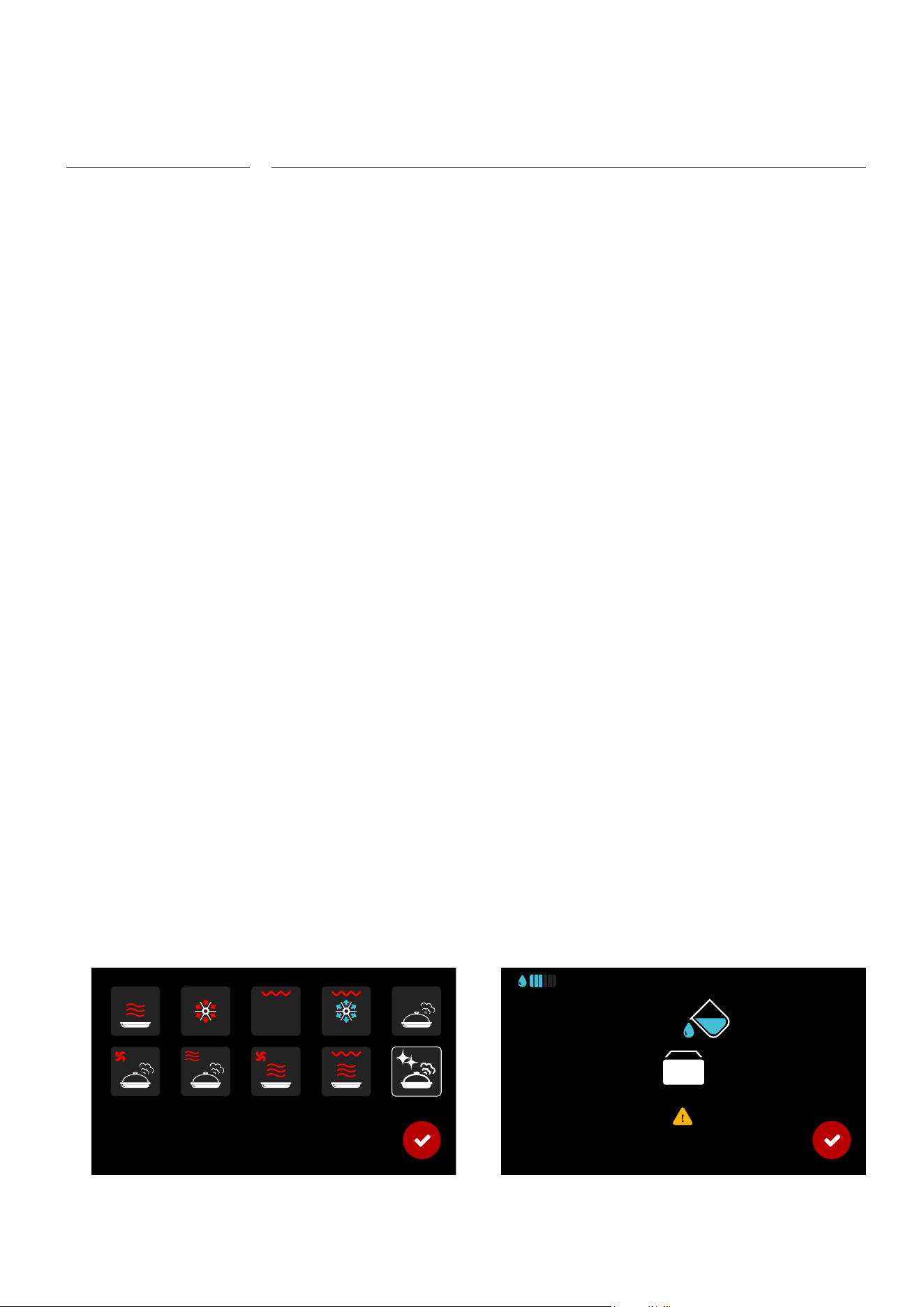

To cook with steam it is necessary to ll the tank at least to the rst segments indicating
the minimum water quantity. Push on the drawer on the right side of the control panel,
so that it is ejected slightly; then pull it out until the stop.Pour in the water using the jug
supplied and look at the icon on the display. When opening the drawer the display
shows:
At the same time also the segments relevant to the water level will light up. Only use
cold tap water; never use ltered (demineralised ) or distilled water, mineral water or
other liquids.
When setting a steam cooking and the oven is at a temperature higher than the se-
lected value, it will be necessary to wait the cooling of the cavity (indicated by the
descending movement of the temperature stripes in the central area of the display).
It is possible to set the duration of the cooking but the time countdown will start only
after the oven has cooled down. To start the cooking immediately it is necessary to
set a temperature value higher than the cavity temperature. (NOTE: steam cooking
can be done at max 100°C)
TANK OPEN
11:4 8 AM
10m
80
°C
34
INSTRUCTIONS FOR USE
– Steam cooking
WARNING!
• Do not pour water directly inside the boiler in the bottom side of the oven cavity.
• Do not pour ammable or alcoholic liquids into the water tank.
• During tank lling, with the water level increasing, the level indicating segments
light up sequentially; minimum, medium and nally maximum. When the maxi-
mum is reached, an acoustic signal is emitted.
• DO NOT POUR ADDITIONAL WATER AFTER THE OVEN HAS SIGNALLED THAT THE TANK
IS FULL.
• WATER IN EXCESS IS DIRECTLY DUCTED INTO THE OVEN CAVITY AND, FROM THERE,
OUTSIDE THE APPLIANCE.
• Remove water from the cavity using a sponge or a cloth.
• After lling the tank push in the drawer until the latch that holds it closed operates:
check that the wording on the display has disappeared.
35
INSTRUCTIONS FOR USE
– Combination grill + microwave
General recommendations: the thermostat should be set at 180°C.
Put tall containers in a low position, use the higher levels for low containers (see 2 suggestions in the pictures below).
If the food is placed directly on the wire rack, put the pyrex dish underneath to catch any food spillage or juices to
minimise cleaning. Control the cooking process: turn the food or change the settings as appropriate.

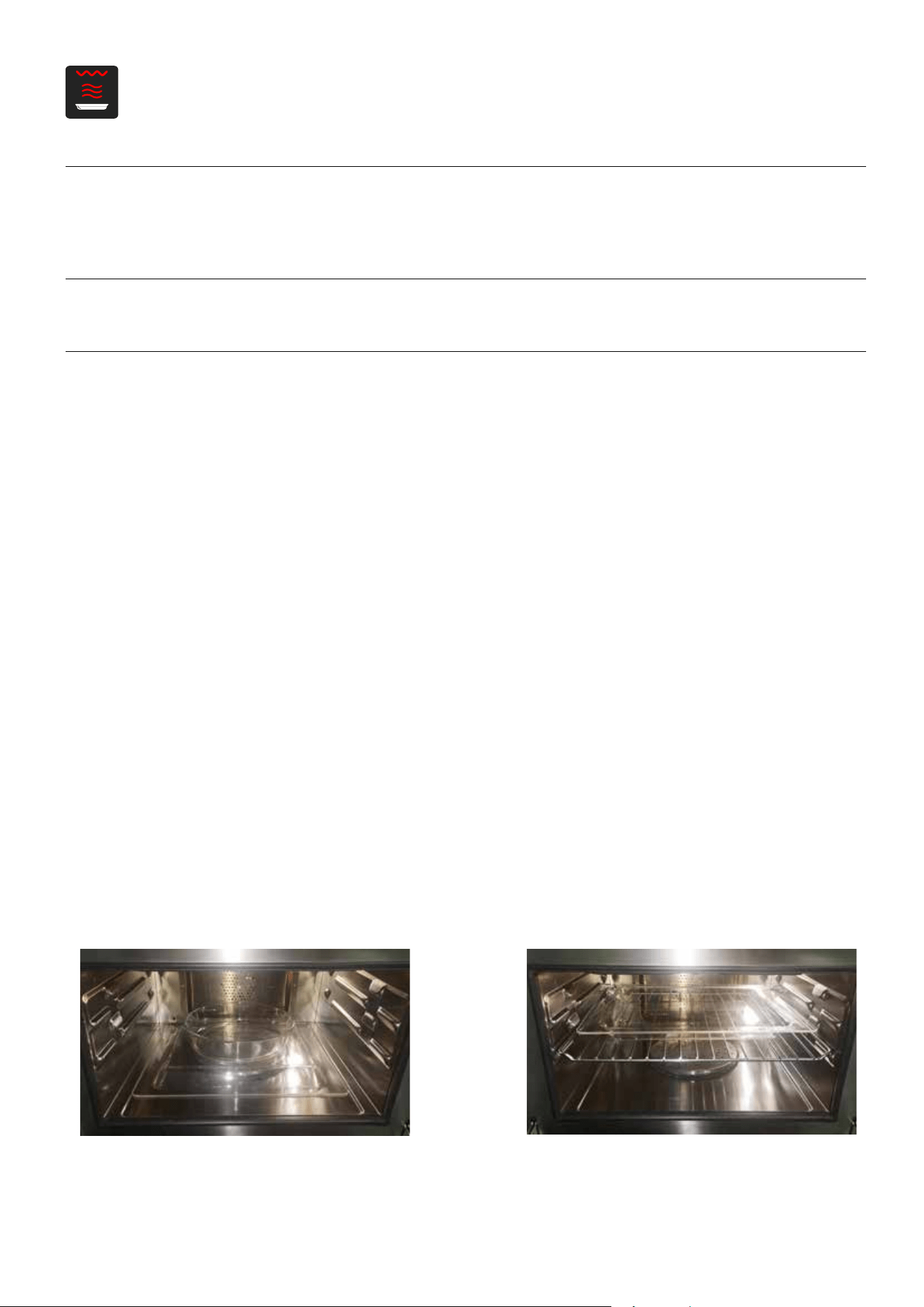

Setting for tall foods
NOTE: the round dish is not included among the
accessories supplied
Setting for at foods
Type of dish
Lasagna
Semolina dumplings
Maccheroni gratin
Cauliower bechamel
Tomatoes gratin
Stuffed peppers
Eggplant parmesan
Potato gratin
Chicken in pieces
Skewers
Quantity
1100 g
600 g
1200 g
1000 g
800 g
1400 g
1300 g
1100 g
1200 g
600 g
Microwave
Power
500 W
500 W
500 W
800 W
500 W
800 W
500 W
800 W
500 W
500 W
Temp. (°C)
180
180
180
180
180
180
180
180
180
180
Notes
pyrex dish
times for raw pasta
pyrex dish
pasta must be boiled in
advance
times with raw vegetable
preferably of similar
dimension
preferably of similar
dimension
eggplant cooked in
advance
pyrex dish
turn halfway during
cooking
turn halfway during
cooking
Time
(min)
25 - 35
15 - 18
10 - 12
13 - 18
15 -20
20 - 25
18 - 23
18 -23
30 - 35
18 - 23
36
INSTRUCTIONS FOR USE
– Combination convection + microwave
General recommendations
Put tall containers in a low position, use the higher levels for low containers.
If the food is placed directly on the wire rack, put the pyrex dish underneath to catch any food spillage or juices to
minimise cleaning. Control the cooking process: turn the food or change the settings as appropriate.
Type of dish
Chicken (whole)
Roast Beef (boned)
Pork knuckle
Meat loaf
Whole sh
Frozen Hamburger
Pizza frozen
Ø 28 cm
Pizza America frozen
Quantity
1200 g
900 g
1000 g
900 g
1200 g
4 x 100 g
350 g
450
Microwave
Power
500 W
270 W
270 W
500 W
270 W
270 W
270 W
270 W
Temp. (°C)
200
200
180
180
210
220
230
230
Notes
brush with oil.
turn halfway during cooking
rare
well done
brush with oil.
turn halfway during cooking
turn halfway during
cooking
preferably use oven paper
bag
rare
well done
turn halfway during cooking
Time
(min)
35 -40
25 - 30
35 - 40
30 - 35
20 - 25
30 - 35
20 - 25
30 - 35
18 - 23
23 - 27
37
INSTRUCTIONS FOR USE
– Combination steam + convection

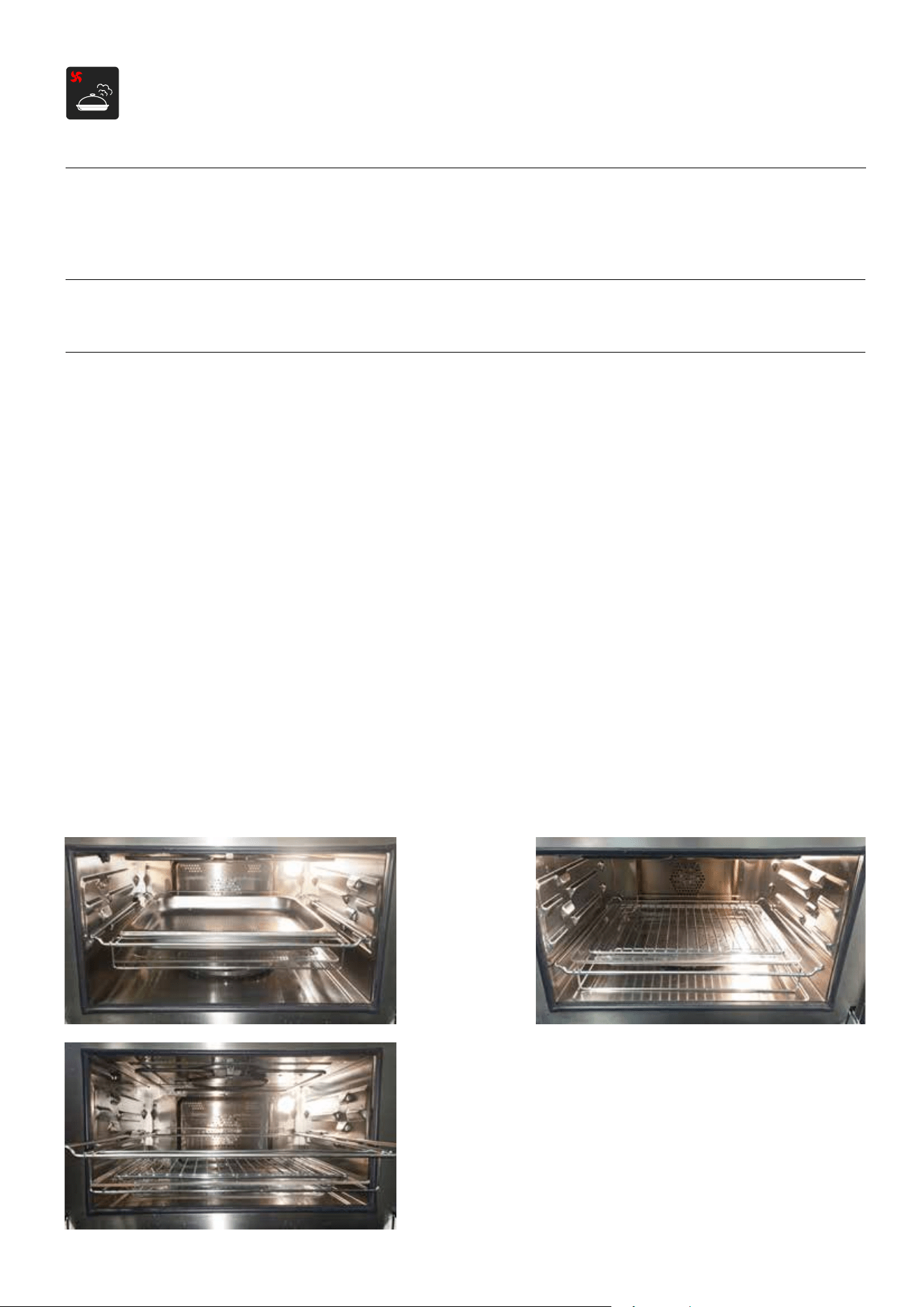

General recommendations
When cooking with steam, keep the food raised from the bottom of the container in order to avoid soaking it in water.
Use one of the examples shown below to choose the most appropriate set of accessories depending on quantity
and size of the food.
Type of dish
Chicken (whole)
Chicken breasts
Duck (whole)
Roast Beef
Roast Pork
Fish (e.g. trout)
Tuna steaks
Asparagus (green)
Carrots
Bread (white)
Quantity
1200 g
350 g
2000 g
1000 g
1000 g
1500 g
1200 g
400 g
300 g
1000 g
Temp. (°C)
200
130
180
210
180
180
180
130
130
180
Notes
brush with oil.
rare
well done
brush with oil.
3 -4 Fishes
4 - 6 steaks
white asparagus cook in less
time (20 - 30 min)
2 pieces, 500 g each
Time
(min)
65 -70
25 - 30
130 - 150
45 - 50
65 - 70
80 - 100
30 - 35
40 - 45
30 - 40
30 - 40
45 - 60
NOTE: the special wire rack for the pyrex dish is not
included among the accessories supplied but it
can be purchased separately
38
INSTRUCTIONS FOR USE
– Combination steam + microwave
General recommendations
Put tall containers in a low position, use the higher levels for low containers.
If the food is placed directly on the wire rack, put the pyrex dish underneath to catch any food spillage or juices to
minimise cleaning. Control the cooking process: turn the food or change the settings as appropriate.
Setting for tall foods
NOTE: the round dish is not included among the
accessories supplied
Setting for at foods
Type of dish
Risotto
Fish (bream, bass)
Shrimp / scampi
Potatoes -carrots -
zucchini
Cauliower / broccoli
Meat loaf
Quantity
500 g
800 g
500 g
600 g
500 g
900 g
Microwave
Power
500 W
270 W
270 W
500 W
500 W
500 W
Temp. (°C)
98
85
85
90
95
90
Notes
use a pyrex dish
add broth immediately
(same weight as rice)
oil the perforated tray before
putting the sh inside
pierce the skin in several
positions
peel the potatoes and cut
the vegetables in regular
pieces
cut in regular pieces
Time
(min)
11 -14
5 - 6
2 - 3
5 - 6
6 - 8
10 - 12
39
CLEANING - CARE - MAINTENANCE
– Cleaning
WARNING!
Stainless steel parts
Cleaning the door gasket
Steam cleaning cycle
Please refer to the paragraphs about safety.
• Clean the front side of the appliance using a soft cloth soaked in soapy warm
water.
• To clean metallic surfaces use a normal detergent.
• Clean the inside of the oven after every usage. In this way it is possible to remove
dirt and stains more easily.
• Remove stubborn dirt using special oven cleaners.
• After every usage clean the oven accessories and let them dry accurately. Use a
soft cloth soaked in soapy warm water.
• Clean the oven door only with a wet sponge.
• Dry it using a soft cloth.
• Avoid the used of steel wool, acids or abrasive products that could damage the
oven surface.
• clean the control panel using the same precautions.
• Regularly check the door gasket. It is located around the opening of the oven
cavity.
- Do not operate the appliance if the door gasket is damaged.
- Contact an authorised service centre.
• To clean the door gasket please refer to the general instructions about cleaning.
• This procedure used steam to make the removal of food and grease residues from
the oven easier.
1. Select the function - Steam Cleaning.
2. Fill the tank with the jug supplied.
3. The preset cycle temperature will be 90°C and the recomended duration is 15 minutes.
4. At the end of the cleaning cycle let the appliance cool down.
5. Once cooled, clean the internal surfaces with a cloth.
1
WATER REQUIRED
2
40
CLEANING - CARE - MAINTENANCE
– Cleaning
BE CAREFUL
11:4 8 AM
9m 30s
°C
90
4 5
– Maintenance
INDICATIONS FOR LUBRICATION OF SPRING-OPERATED SPHERES ON DOOR
It is recommended to lubricate with machine oil or a silicon based spray the two spring operated spheres on the
upper side of the oven door (see pictures) once in a month, in order to avoid jamming and allow an effortless ope-
ning.
41
CLEANING - CARE - MAINTENANCE
– Emptying and Washing the tank
At rst power on, a yellow warning triangle appears on the display.
Opening the door and touching it, the display shows the message:
If you do not want to perform the washing cycle, touching the X button makes the trian-
gle disappear; it will be possible to perform the washing selecting the relevant button
after opening the settings menu.
If you want to proceed with the washing push the conrmation button and the display
will show:
Next insert the silicon tube (included with the accessories) onto the metal nozzle protru-
ding from the back wall of the cooking cavity under the perforated area.
Insert the other end of the tube into a container having at least 1L capacity (e.g. the
jug supplied in the oven). Then push the conrmation button (the pump begins to ope-
rate and starts the emptying).
PM
WASHING CYCLE REQUIRED
CONNECT PIPE
42
CLEANING - CARE - MAINTENANCE
– Emptying and Washing the tank
When the tank is empty the display prompts to load the descaling solution (5% citric
acid, or a package of a descaling product for coffee machine or steam iron) for a
complete cleaning use 1L of solution.
Opening the drawer and conrming the picture becomes:
Pushing the conrmation the pump is restarted and the washing of tank and water cir-
cuit is performed. When the tank is empty it is necessary to rinse with water (1L again).
The display shows:
LOAD WATER
LOAD CLEANER
LOAD CLEANER
43
LOAD WATER
CLEANING END
CLEANING - CARE - MAINTENANCE
– Emptying and Washing the tank
Opening again the drawer and conrming, the display shows:
Completely ll the tank and conrm to start the pump and begin the nal emptying
operation. At the end (the process will take about 10 minutes) the display shows:
When the washing has ended, pushing the conrmation button, it will be possible to
start using the appliance normally.
The washing and emptying cycles can be performed at any moment by entering the
relevant menu pushing the settings button (see pag. 23)
WASHING
EMPTYING
44
This warning appears every time the oven is connected to the mains supply.
It is only informative and allows to normally operate the appliance even if the washing
is not performed.
This warning appears 7 days after the last lling of the tank and invites to empty it to
avoid deterioration of the water quality. It is only informative and allows to normally
operate the appliance even if the emptying is not performed. However it is recom-
mended to empty the tank after every cooking cycle in order to begin the next cooking
with a fresh water load
This warning appears after the boiler has worked for 80 hours (steam and modes com-
bined with steam). From this moment it will be possible to perform only 10 more co-
oking cycles with steam: then, if the washing is not performed, the operation modes
with steam can be selected but, when trying to start them, an error message will be
displayed and the cooking will not begin.
CLEANING - CARE - MAINTENANCE
– Emptying and Washing the tank
EMPTYING CYCLE REQUIRED
WASHING CYCLE NEEDED
WASHING CYCLE REQUIRED
Meaning of warnings re-
levant to the water circuit
45
The following errors will be displayed in case of an anomalySystem errors
error
123456
AVVISO PROBLEMA
DOOR OPEN
AVVISO PORTA APERTA (CON COTTURA IN CORSO)
In case of error disconnect and reconnect the
appliance.
If the error is present again you will need the inter-
vention of an authorized technician
Close the oven door.
ERROR MESSAGE
DOOR OPEN MESSAGE
(DURING OPERATION)
PROBLEM SOLVING
– Error messages
Description Error code
Cavity probe in open circuit 00
Cavity probe in short circuit 01
Boiler probe in open circuit
02
Boiler probe in short circuit
03
Meat probe in open circuit
04
Meat probe in short circuit
05
Overheating
08
Boiler not heating
09
Pump not operating
10
Emptying error
14
Washing needed
15
Tangential fan not working
16
Communication error
20
46
SCHEMA ELETTRICO
47
ELECTRICAL SKETCHES
– KEYS
F
N
M
FUSE
FLC
L1
SA
SD
SP
EN
CP
SL
DM
DV
PD
VR
VT
RC
R3
R4
PT1000
NTC
MGT
TR
HVD
CA
MA
Phase
Neutral
Terminal board
Fuse 10A
LC Filter
Oven lamp
Power supply board
Display board
Ignition electrode
Encoder
Meat probe connector
Water leve detector
Microwave dumper
Steam dumper
Pump
Oven fan
Cooling fan
Boiler heating element
Grill heating element
Circular heating element
Temperature probe
NTC Prode
Magnetron
High voltage transformer
High voltage diode
Capacotor 1,05 uF
Electrical ignition microswitch
TS
TS1
TS2
TCO
TCO1
TSPO
MSEC
MMO
MPR
MP
MTK
MVT
00
11
22
33
44
45
55
66
K1
K3
K4
K6
K13
K15
K17
Safety thermostat 135 °C
Safety thermostat 135 °C
Safety thermostat 120 °C
Safety thermostat 318 °C (TCO)
Safety thermostat 318 °C (TCO)
Safety thermostat 90 °C
Secondary microswitch for microwave
Monitor microswitch for microwave
Primary microswitch for microwave
Door microswitch
Water loading tank Microswitch
Cooling fan microswitth
Black
Brown
Red
White
Yellow
Yellow - green
Grey
Blue
Earth wire for terminal board
Earth wire for oven fan
Earth wire circular resistance
Earth wire oven lamp 1
Earth wire for grill
Earth wire appliance chassis
Earth wire for power supply
