Technical Support and E-Warranty Certificate www.vevor.com/support

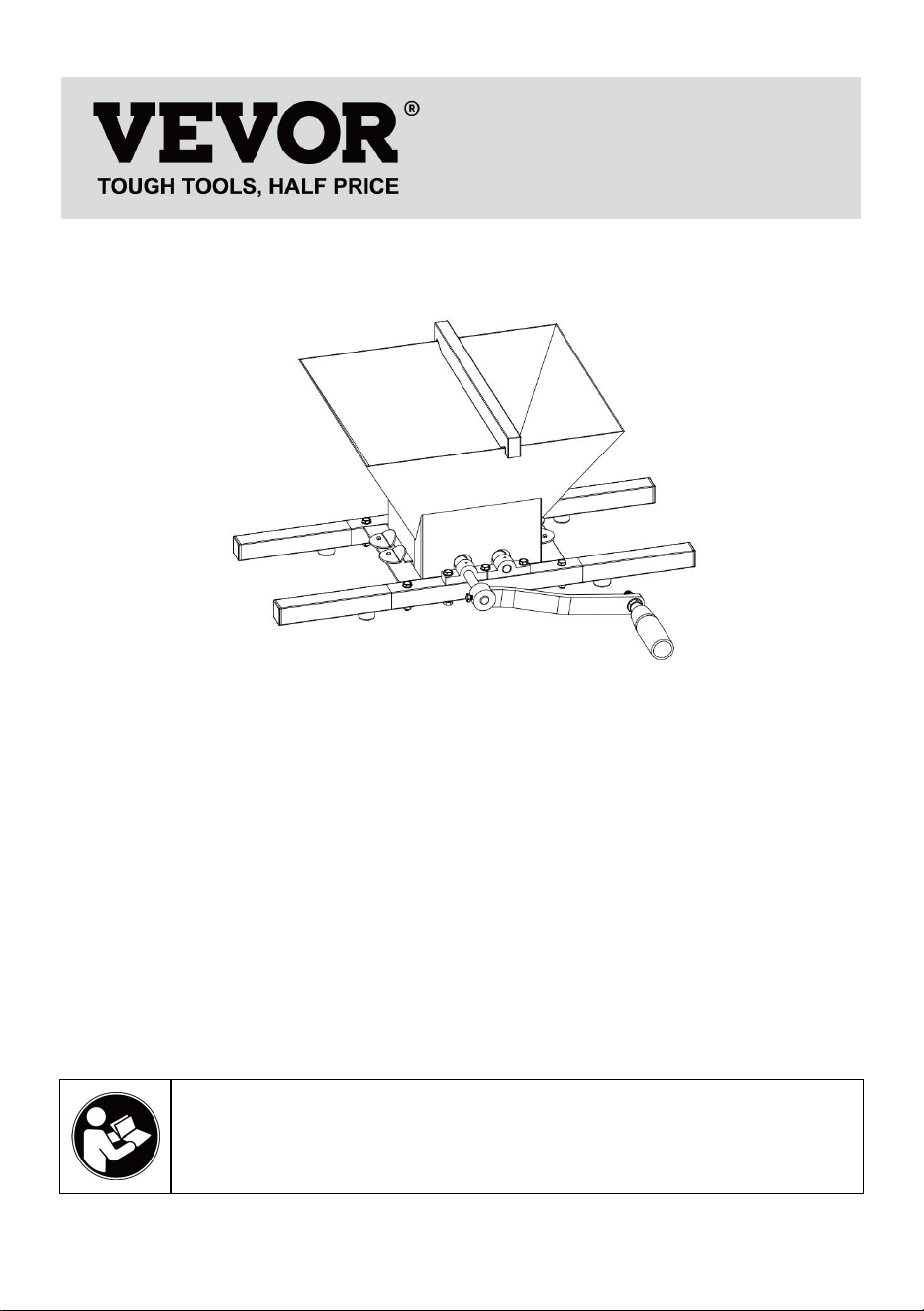

Fruit Crusher
MODEL:LD-0M7
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only
represents an estimate of savings you might benefit from buying certain tools
with us compared to the major top brands and does not necessarily mean to cover
all categories of tools offered by us. You are kindly reminded to verify carefully
when you are placing an order with us if you are actually Saving
Half in comparison with the top major brands.
- 1 -
MODEL:LD-0M7
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel free to
contact us:
Technical Support and E-Warranty Certificate
www.vevor.com/support
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
Warning-To reduce the risk of injury, user must read
instructions manual carefully.
Fruit Crusher
- 2 -
Read and follow the operating instructions and safety information
before using for the first time.
Technical changes reserved!
Due to further developments, illustrations, functioning steps and technical
data can differ insignificantly.
Updating the documentation
If you have suggestions for improvement or have found any irregularities
please contact us.
Introduction
Thank you for purchasing this quality product. To minimize the risk of injury,
we ask that our clients take some basic safety precautions when using this
unit. Please read these instructions carefully and make sure that you have
understood them.
All persons operating or servicing this equipment must be familiar with the
operating instructions and be aware of potential dangers. Children may not
use the fruit mill. Note. The general accident prevention regulations and all
regulations for Occupational Safety and Health
The inside of this device does not contain any by user-serviceable parts.
Leave the maintenance, calibration and repair qualified personnel. In case
of foreign intervention, the 2-year warranty period expires! Keep this
manual for future reference.
A good fruit mash is a prerequisite for the production of juice, wort or must.
The mill can be used for grinding berries, grapes, apples, pears and
potatoes or similar soft fruits / vegetables. Hard fruits and vegetables, such
as sugar beet, carrots or immature or core tier fruit are not suitable for
processing with this mill.
Especially good for further processing are, apples, pears, quince and
related fruits. The relatively solid pulp is crushed by the mill, the resulting
mash increases the juice yield and enables a pressing of the fruit.
Grapes, raspberries, currants and other similar fruits, should - be not
- 3 -
ground - just like stone fruit. This is usually not necessary because the
flesh is very soft and only surrounded by a skin. The seeds contained in the
fruit set free during milling bitter substances that would stain the juice dark
brown.
A good juice quality you get when only healthy and ripe fruit is processed.
Immature, overripe, rotten and torn fruit should be discarded. Fruits that
have rotten spots or involve molds may not be processed. Fresh bruises
from windfalls are not meant as long as no decay has occurred. Clean the
fruit before processing thoroughly so that no dirt enters with drinking water
in the mash.
Safety instructions
• The fruit mill cannot be operated by children. Make sure that nobody
during operation no children in the danger zone.
• Make sure never to come out with hands or loose clothing in the area of
rotating parts. Risk of injury!
• The fruit crusher must be firmly fixed, so that they cannot slip or tilt during
operation.
• The hopper must be absolutely fixed.
• The cramming, loosening and stripping of the ground material may only
be by means of a suitable plunger.
• Use appropriate protective blanket.
• Never touch during the grinding process under the protective blanket.
Commissioning
• Mount the drive wheel of fruit crusher.
• Set the grinder to an appropriate container and check for a firm grip.
• Check the direction of rotation of the drive wheel before adding fruit.
• Fill out the fruit into the hopper.
Cleaning and care
Clean the grinder after completing your work or if a longer break is planned
thoroughly with running water and a suitable brush. Effective is the
- 4 -
cleaning with water pressure, for example, with a hose. Clean the gaps of
the grinding rollers thoroughly.
Bearings and surfaces should be lubricated regularly and especially after
prolonged exposure to a food oil.
Use
Good fruit mash or pulp is essential for making juices, ciders or wort.Our
fruit crusher enable you to get good mash of apples and pears.
Technical Data
Item name: 7 Fruit crusher
Material: Stainless steel hopper,Aluminium crushing ratchet,Oak
wood,Steel tube
Dimensions(crank excluded): 57/36/26 cm
Control: Manual
Safety
It is forbidden to reach in the feeding hopper or underneath the protection
cover with your hand or to crush without the protection cover.
It is essential to have the fruit grinder firmly fixed to the floor.
The fruit crusher should not slip or tilt over.
Never grind without the hopper being fitted.
Operation of the crusher
Fit the driving wheel on the fruit crusher.
Put a suitable container on the grinder firmly.
Check the driving wheel rotation direction.
Fill the hopper with the fruits and start crushing using the hopper.
Maintenance
Having finished the job, wash the fruit crusher with hot water and let dry.
After a period of standstill grease the bearings and the metal surface with
edible oil.
- 5 -

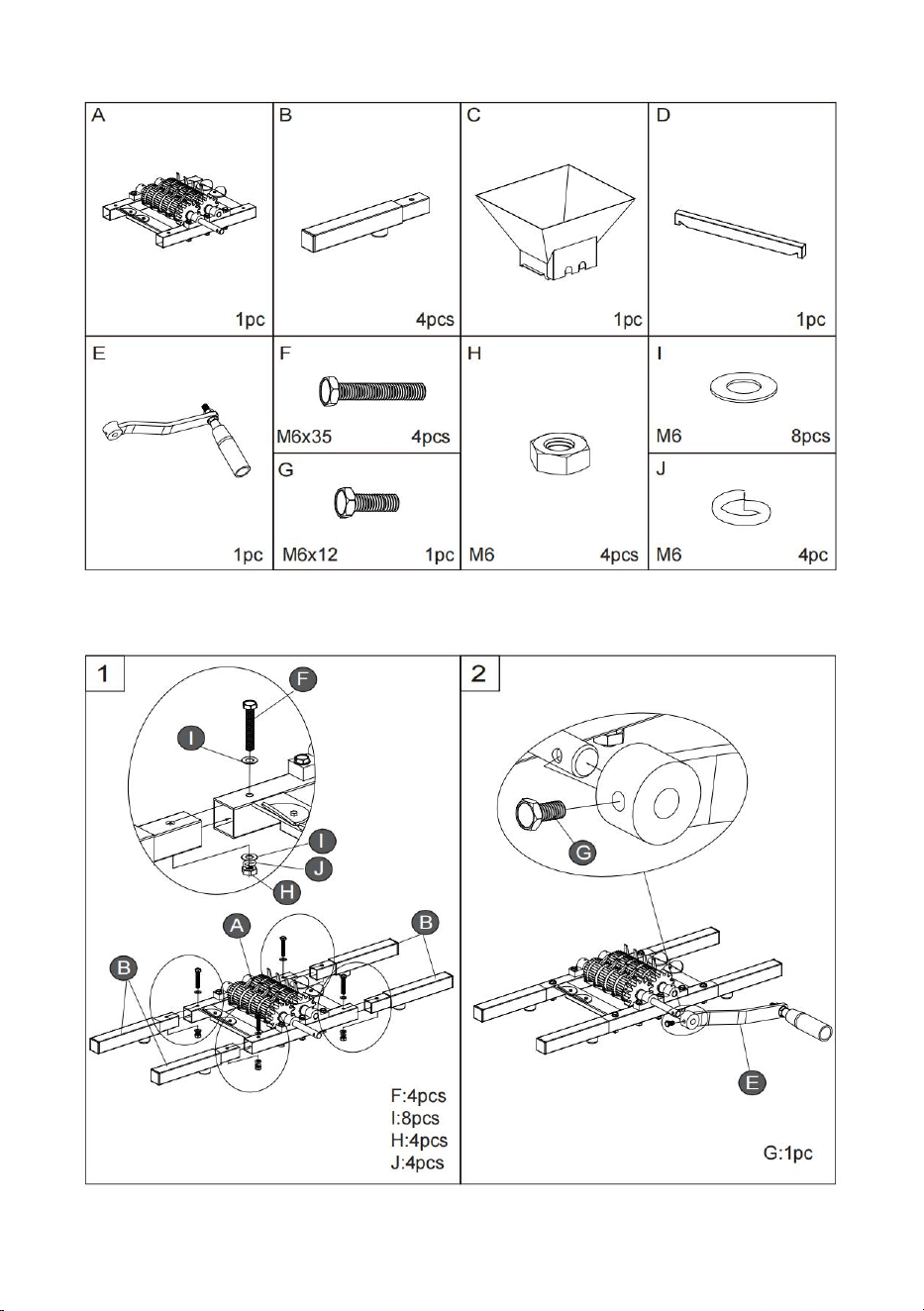

PARTS LIST

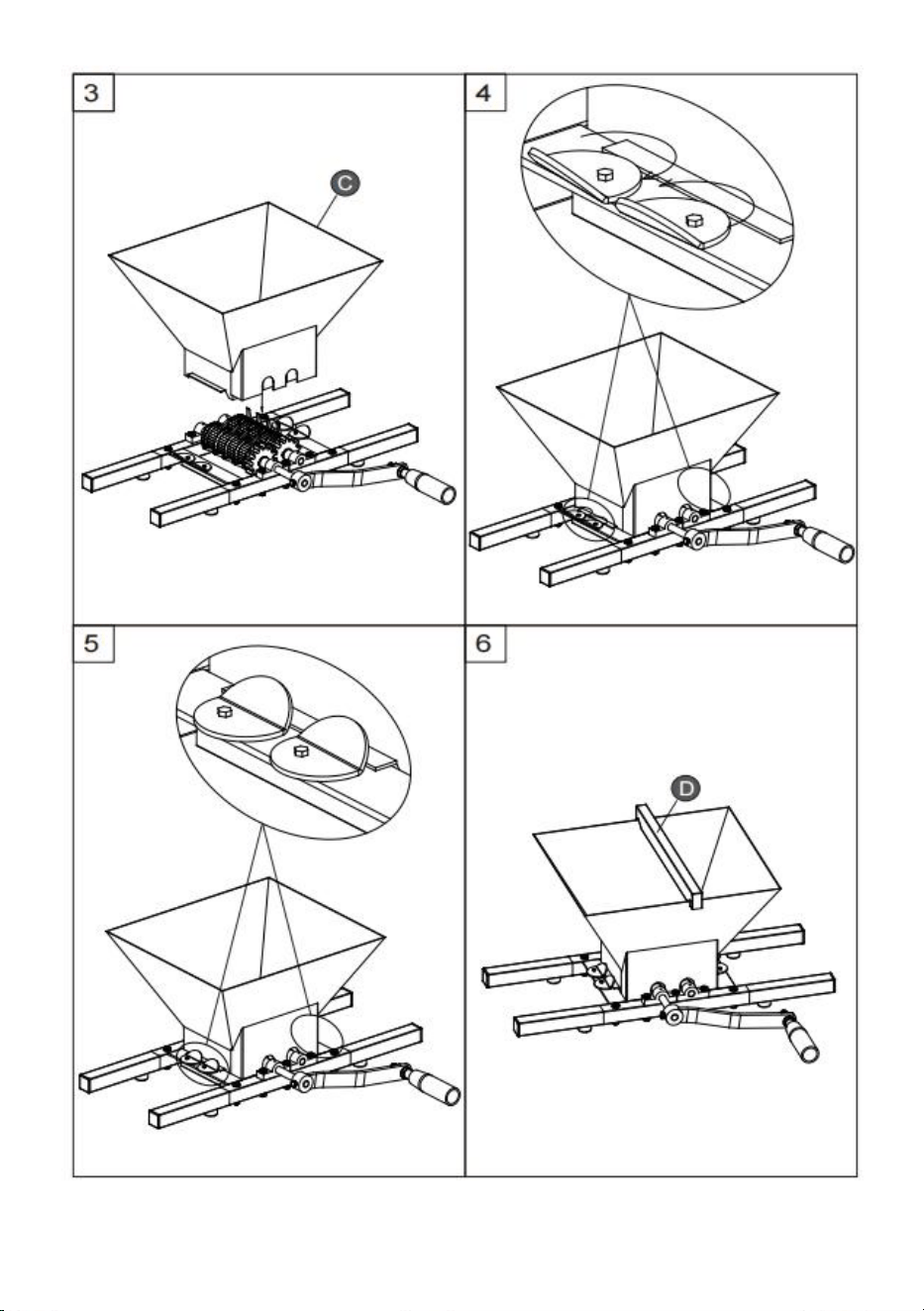

ASSEMBLY
- 6 -
