INTRODUCTION R4G-LITE+
BLACKGATEHUNTING.COM
8
6
5
1
1
9
9
3
2
10
11
12
13
14
15
7
17
16

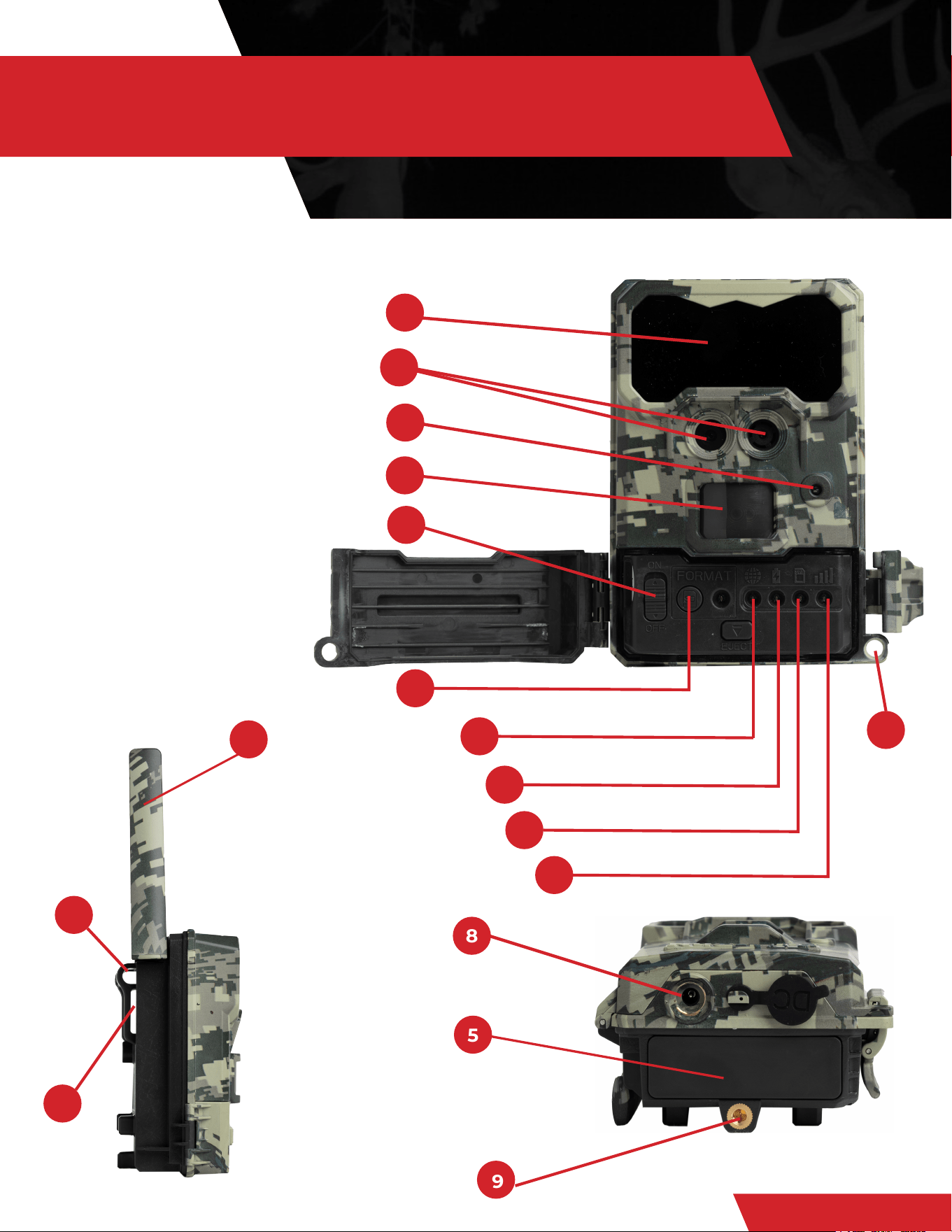

1 Lens/Sensors
2 Antenna
3 IR LEDs (940NM)
4 LED Indicator Light
5 Battery Tray
6 PIR Motion Sensor
7
8 DC Power Port (12V)
(Plug Size 5.5 x 2.1mm)
9 Tripod/Mount Attachment
1/4” x 20
10 Power Switch
11 Format SD Card Button
12 Account Indicator
13 Battery Indicator
14 SIM Card Indicator
15 Signal Indicator
16
Padlock Hole
Strap Brackets
17 Pipe-Through
Bracket for
Python Cable
QUICK START GUIDE

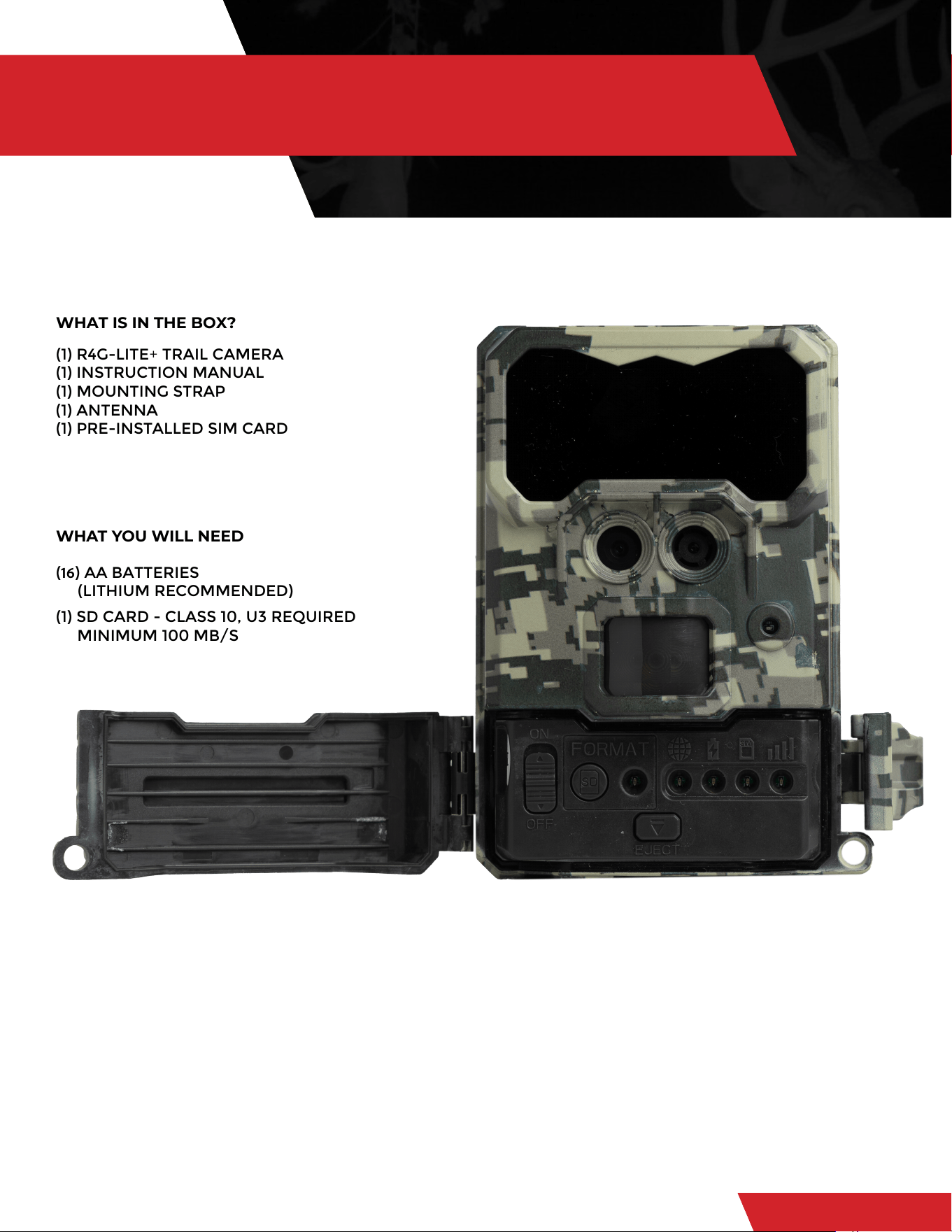

WHAT IS IN THE BOX?
(1)
R4G-LITE+ TRAIL CAMERA
(1) INSTRUCTION MANUAL
(1) MOUNTING STRAP
(1) ANTENNA
(1) PRE-INSTALLED SIM CARD
WHAT YOU WILL NEED
(16
) AA BATTERIES
(LITHIUM RECOMMENDED)
(1) SD CARD - CLASS 10, U3 REQUIRED
MINIMUM 100 MB/S
BLACKGATEHUNTING.COM
BLACK GATE MOBILE APP DOWNLOAD
BLACKGATEHUNTING.COM
BLACK GATE
MOBILE
QUICK SET UP
BLACKGATEHUNTING.COM
SETTING UP THE CAMERA
In your Apple or Google Play Store, download the Black Gate
Mobile App and sign in using an email and password you
created.
If you already have a Black Gate account with ACTIVE
cameras, you can simply login to your app and add your
camera following the instructions below.
Once you have created your account, and set up your data
plan, it is time to activate your camera in the app:

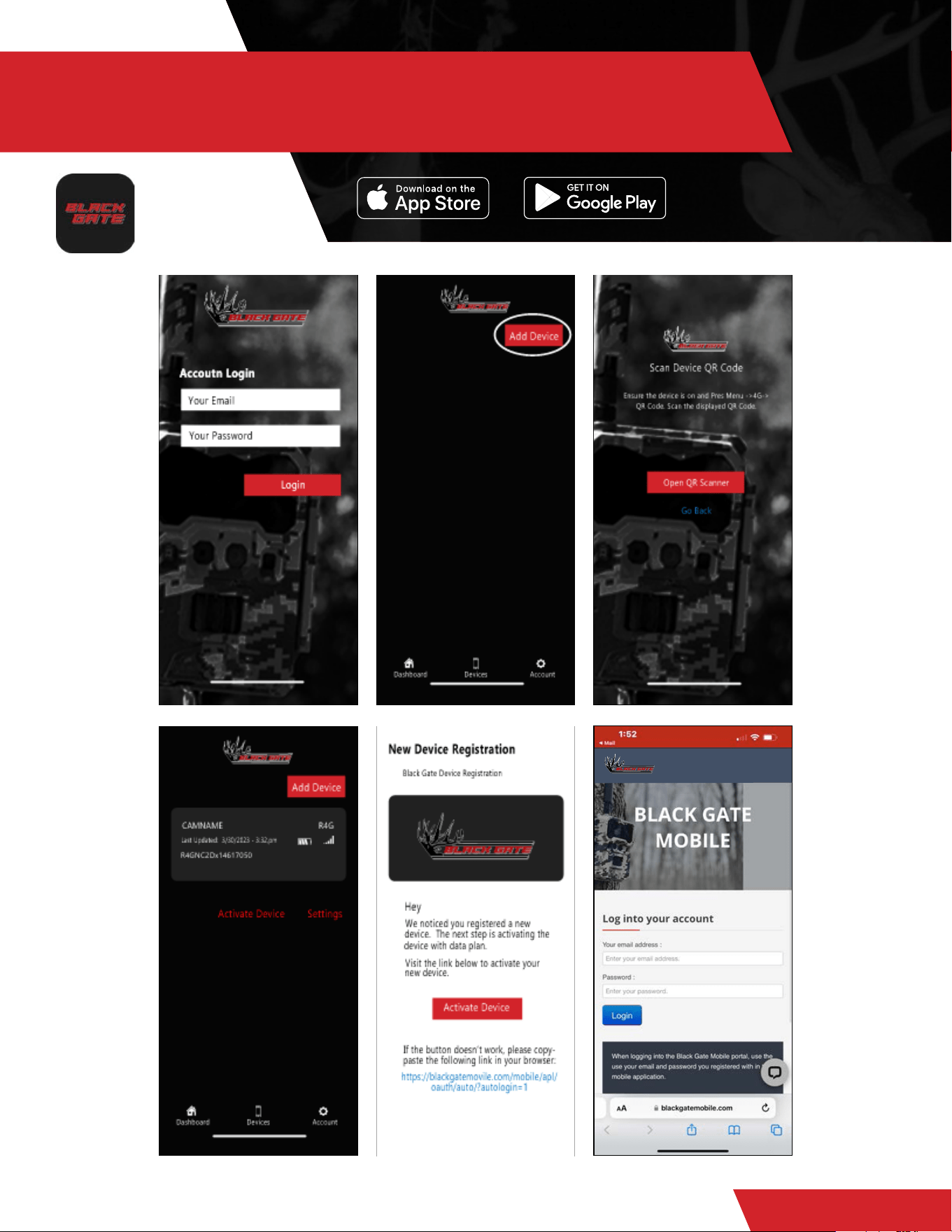

1. Click “Add Device”
2
. Locate the QR code on the R4G-Lite either inside the
door or on the back of the device.
3. Using your phone, Scan the QR Code “If scanned
correctly, it will state that the camera has been added
successfully”
4
. Check your email for an activation link to purchase data
on the Black Gate Mobile Portal

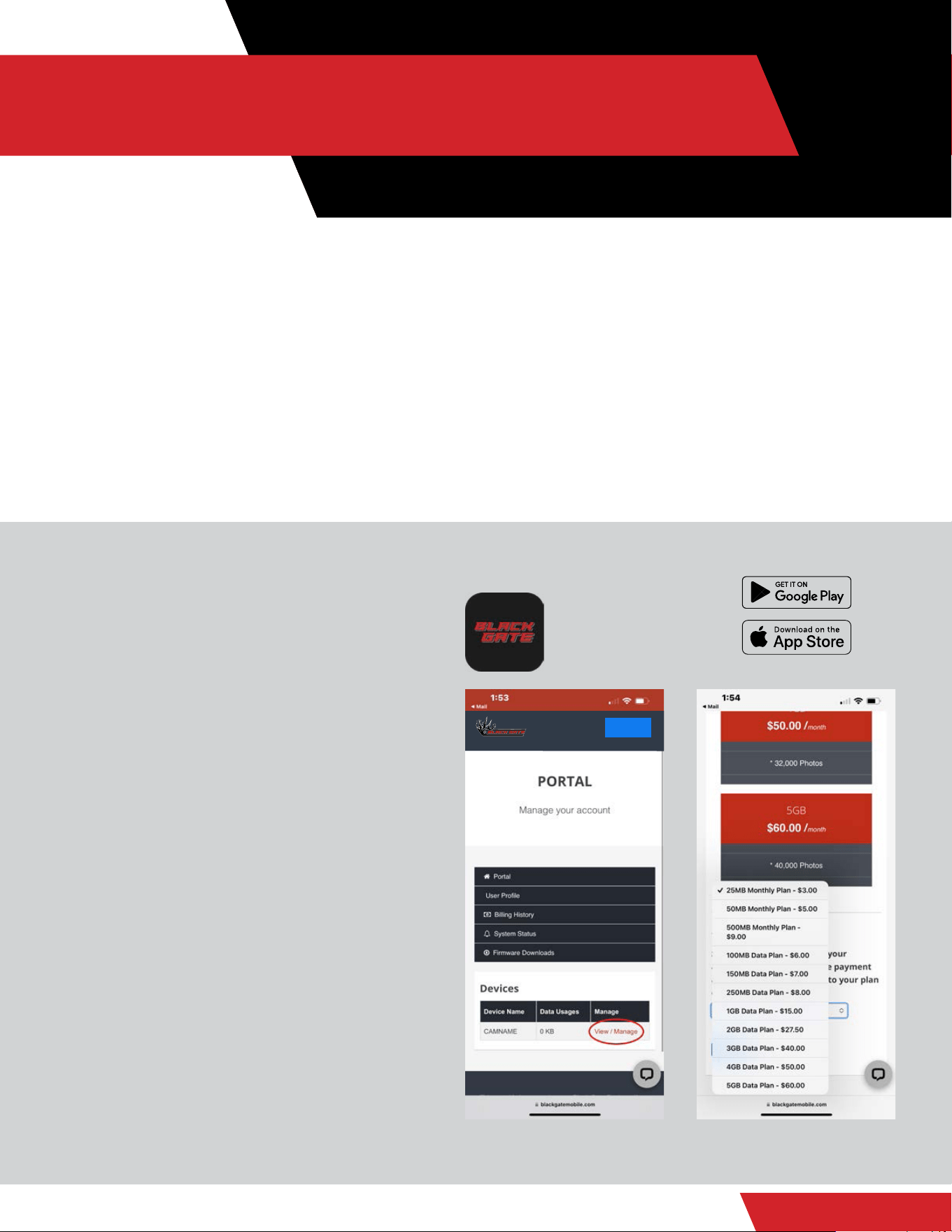

5. Once logged into www.blackgatemobile.com portal,
look under your devices and click on “View/Manage”
6
. Select the data plan of your choice and continue
through the checkout process. (This will be a recurring
plan monthly unless device is deactivated in the portal)
7
. Go back to the Black Gate Mobile App on your
phone, and your camera will now be activated and
ready for use.
8
. Your new photos will come in under your device name
in the Dashboard tab.
9
. Settings can be changed under the device tab
10. To add an additional camera, follow and repeat steps 1-9.
DOWNLOADING THE BLACK
GATE MOBILE APP
BLACK GATE
MOBILE
1. Make sure the antenna is properly installed and seated down tightly.
2. Install (16) AA batteries and a class 10, U3 SD card into the camera. Use only 16GB-64GB SD card.
Recommended to use Black Gate or SanDisk only
3. Do NOT remove the SIM card pre-installed into the camera.
4. Scan the QR code sticker using the Black Gate Mobile App. Proceed to activate your camera and choose a data plan.
5. Turn on the device and make sure the power light indicator beside the Format SD button is solid Green, also the battery
indicator light blinks green. The camera will register and all 4 LED indicators will show green before going into live mode.
• If the battery light indicator shows red, please replace batteries with NEW AA batteries.
• If the "Globe" account indicator shows red please check your account on www.blackgatemobile.com and make
sure the camera is activated and has a data plan.
• If the SIM card indicator shows red, please remove and re-insert the SIM card and also make sure you have a active
data plan for this camera you are registering.
• If the Signal bars indicator shows red, this means you have no signal. Please move to a different area to capture better
reception.
Logout
SETTINGS / SPECIFICATIONS
BLACKGATEHUNTING.COM
Camera Mode Camera Mode Only (No Video)
Day/Night Mode Daytime: Color, Nighttime: B+W
IR Range 70+ Feet
PIR Angle 52 degrees, 4:3 Format
Flash 940 NM No-Glow
SD Card Class 10, U3, 16GB - 64GB, Minimum 100 MB/Sec
Picture Format JPEG
Multishot Optional 1-9 Photoburst
Trigger Speed <.3 seconds
SD Card Recycle Yes, Default
Battery
16
AA Lithium Ultimate Optional external power source
(12V external battery pack or solar panel)
Recommended 3000mAh
DC barrel size 5.5 x 2.1mm
External DC 12V
Transfer Picture via 4G High, detailed thumbnail images sent to Black Gate App
(additional data charges may apply)
Request HD Photo via
4G
Available to be requested from Black Gate Mobile App
Upload Frequency/
Send Type
Immediate/Hourly/Daily
4G Communication LTE wireless
4G Antenna 1 Antenna Module
Device Serial No. Yes
Interface LTE and SD Card
Mounting Strap; Tripod (1/4” x 20 threaded insert) - two locations
Operating
Temperature
-5F to 125F
Operation Humidity 5% - 95%
Waterproof rating IP66
Dimensions 5.5” x 3.5” x 2.5”
Weight
Certification
1 lb (without batteries)
FCC RoHs
PRODUCT CARE
BLACKGATEHUNTING.COM
INTERNAL CONDENSATION ON LENS
The R4G-Lite+
is IP66 rated waterproof. The camera housing is water resistant and resistant to harsh
outdoor elements. The only way condensation can get behind the lens is if the antenna is not screwed
down tightly or if the DC plug on the bottom of the camera is not in place, if you are not using
external power. If there is dirt or debris on the door seal, this can also effect the waterproof seal and
allow water in the device. Follow instructions to alleviate this issue if need be:
• Pull the SD card out and let the camera sit for 3-4 days open, in an area where there is
circulating air (fan or vent).
• Or place in a sealed container with rice for 24 hours to draw out the moisture.
• Clean the seal well with soap and water and tighten your antenna.
Place back out in the field.•
IF THE CAMERA HAS ACCIDENTALLY BEEN SUBMERGED IN WATER
1. Open camera and immediately remove batteries and SD card.
2. Leave the camera open to dry out for 3-4 days. If you try to power on while the camera is
still wet, it could destroy the module and computer board and ruin the camera. This will
void the warranty.
LIMITED WARRANTY
BLACKGATEHUNTING.COM
CHECK OUT WARRANTY
INFORMATION ON OUR WEBSITE
WWW.BLACKGATEHUNTING.COM
FCC REGULATIONS
BLACKGATEHUNTING.COM
FEDERAL COMMUNICATIONS COMMISSION - PART 15
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the Federal Communications Commission rules. These limits
are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Changes or modications to this equipment not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment. This device complies
with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device
may note cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
