Operating and installation
instructions
Fridge-freezer
It is essential to read the operating and installation instructions be-
fore setup, installation, and commissioning. This prevents both per-
sonal injury and damage to the appliance.
en-GB M.-Nr. 12 918 490
Contents
Warnings and safety notes ......................................................................................... 5
Sustainability and environmental protection.......................................................... 14
How to save energy.......................................................................................................
15
Installation...................................................................................................................... 16
Fastening the refrigeration appliance in the building-in niche.................................
16
Installation site ...............................................................................................................
17
Climate range ............................................................................................................ 18
Side-by-side combinations...........................................................................................
18
Ventilation........................................................................................................................
19
Changing the door hinging ............................................................................................
19
Furniture door (valid for KFN7934D) ........................................................................
19
Horizontal and vertical gaps.................................................................................... 19
Weight of the furniture door.................................................................................... 20
Building-in dimensions .................................................................................................
21
Installation in a tall unit/side view.......................................................................... 21
Connections and ventilation ................................................................................... 23
Electrical connection .....................................................................................................
25
Familiarisation................................................................................................................ 26

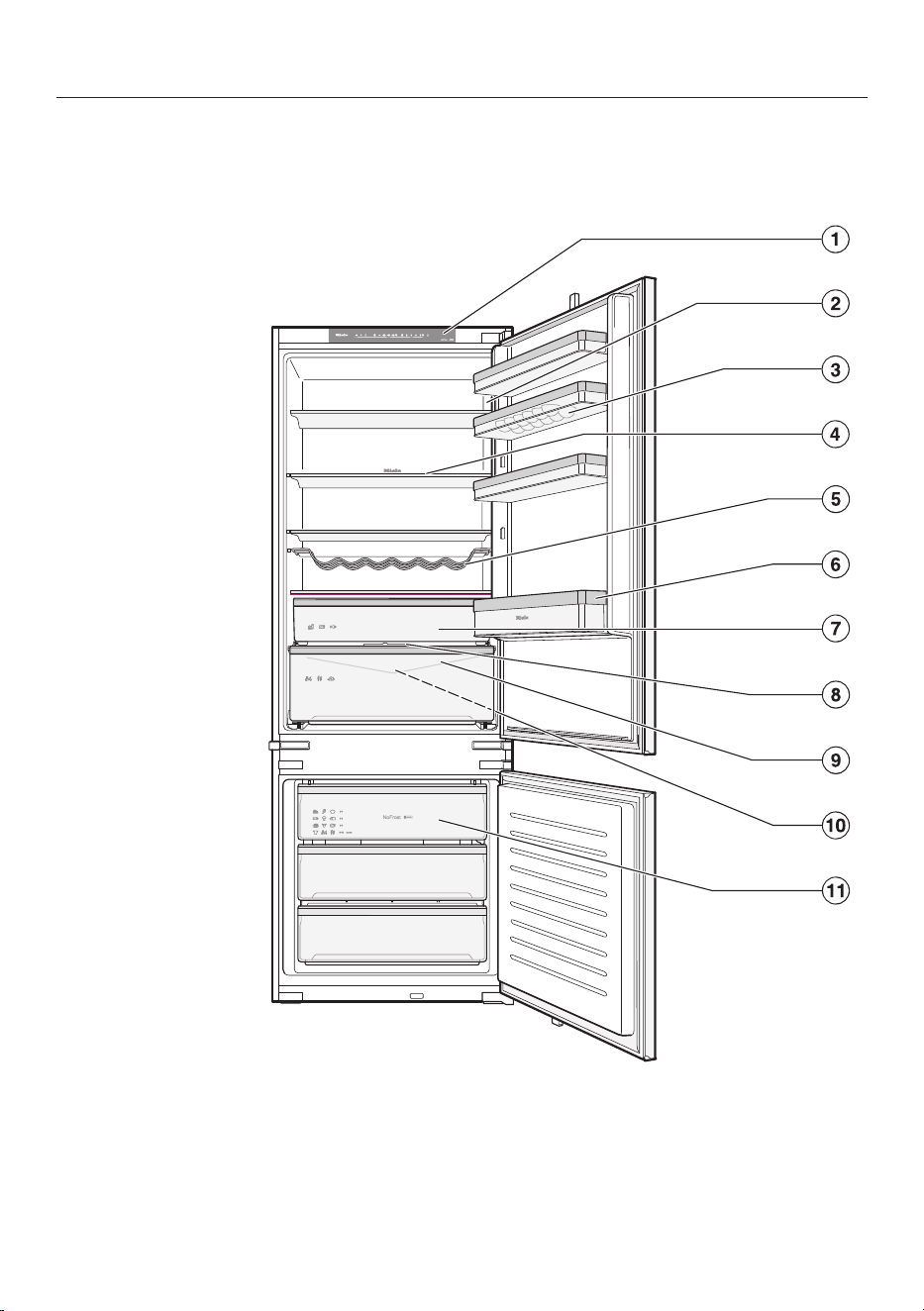

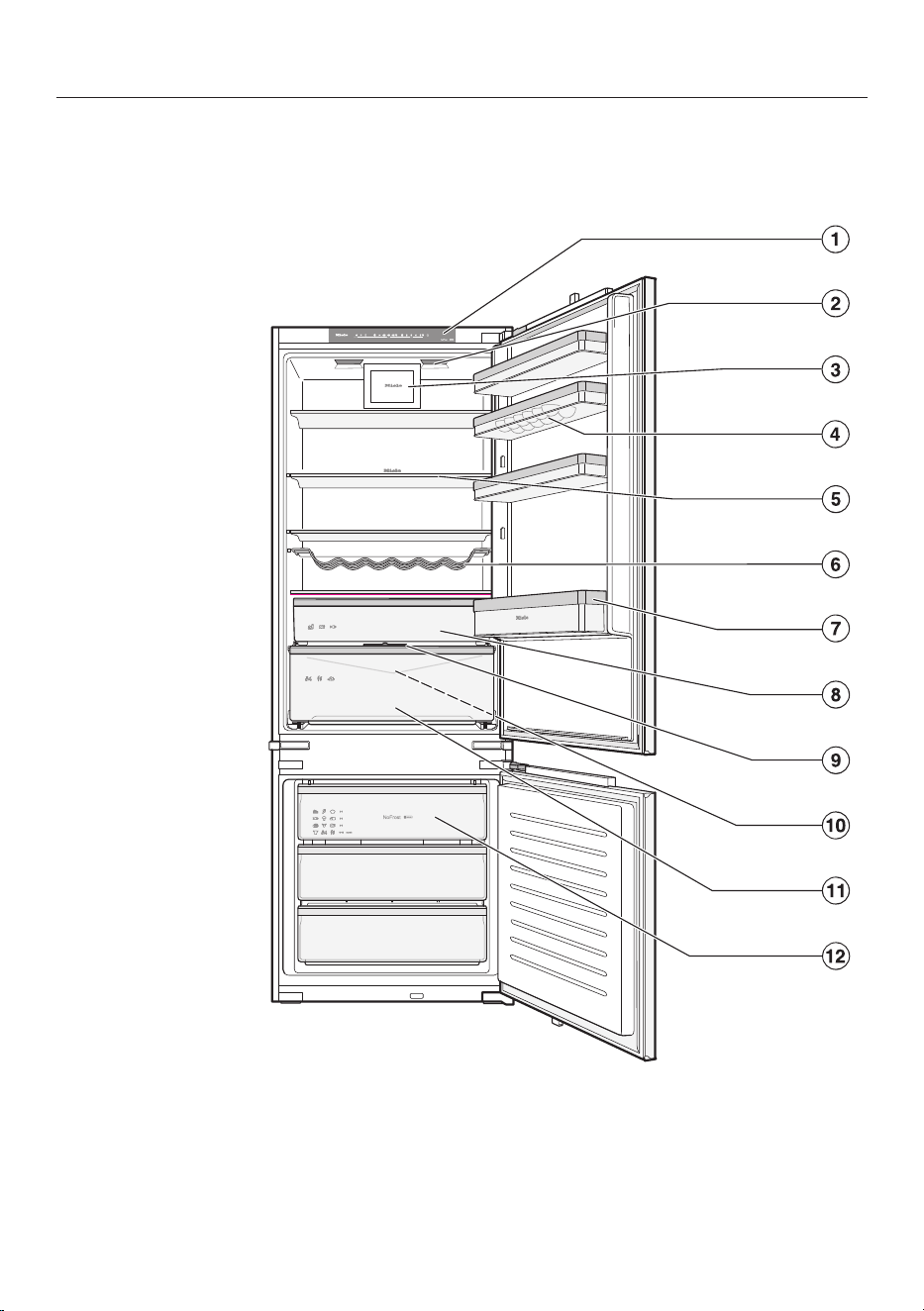

Your refrigeration appliance: KFN7913E ...................................................................
26
Your refrigeration appliance: KFN7934D..................................................................
28
Safety ...............................................................................................................................
31
Temperature alarm in the freezer zone .................................................................. 31
Door alarm ................................................................................................................. 31
Appliance functions .......................................................................................................
32
SuperCool ............................................................................................................. 32
SuperFreeze.......................................................................................................... 32
Automatic SuperFreeze ...................................................................................... 32
Sabbath mode........................................................................................................... 33
Adjusting the interior fittings ........................................................................................
33
Removing or moving the door shelves/bottle shelf............................................. 33
Removing or moving the shelves............................................................................ 33
Removing the DailyFresh ExtraCool drawer ......................................................... 33
Removing the DailyFresh drawer ........................................................................... 33
Removing the freezer drawer.................................................................................. 33
Moving the variable bottle rack .............................................................................. 34
Accessories supplied.....................................................................................................
34
Optional accessories .....................................................................................................
34
Commissioning.............................................................................................................. 35
Before using for the first time.......................................................................................
35
Connecting the refrigeration appliance ................................................................. 35
Switching the refrigeration appliance on ....................................................................
35
2
Contents
Switching the refrigeration appliance off ....................................................................
35
Switching off for longer periods of time ................................................................ 36
Operation........................................................................................................................ 37
Setting the temperature in the fridge zone.................................................................
37
Temperature range in the fridge zone .................................................................... 37
Temperature display................................................................................................. 37
Setting the temperature in the freezer zone...............................................................
38
Temperature range in the freezer zone .................................................................. 38
Temperature display................................................................................................. 38
Storing food in the fridge zone .....................................................................................
39
Different storage zones............................................................................................ 40
Should food be stored loose or in packaging? ..................................................... 41
DailyFresh ExtraCool drawer................................................................................... 42
Freezing and storing fresh food ....................................................................................
43
Maximum freezing capacity .................................................................................... 43
Making ice cubes...................................................................................................... 44
Cooling drinks quickly .............................................................................................. 44
Adjusting settings ......................................................................................................... 45
Switching Sabbath mode on.........................................................................................
45
Switching Sabbath mode off ........................................................................................
45
Miele@home .................................................................................................................
46
Performing Scan & Connect................................................................................... 47
Setting up the WiFi connection for the first time ................................................ 47
Activating the WiFi connection............................................................................... 47
Deactivating the WiFi connection.......................................................................... 47
Cleaning and care ......................................................................................................... 48
Cleaning agents ..............................................................................................................
48
Preparing the refrigeration appliance for cleaning.....................................................
48
Cleaning the interior of the appliance .........................................................................
49
Cleaning the condensate channel and condensate drain hole................................
49
Removing the compartment lid on the DailyFresh drawer ......................................
50

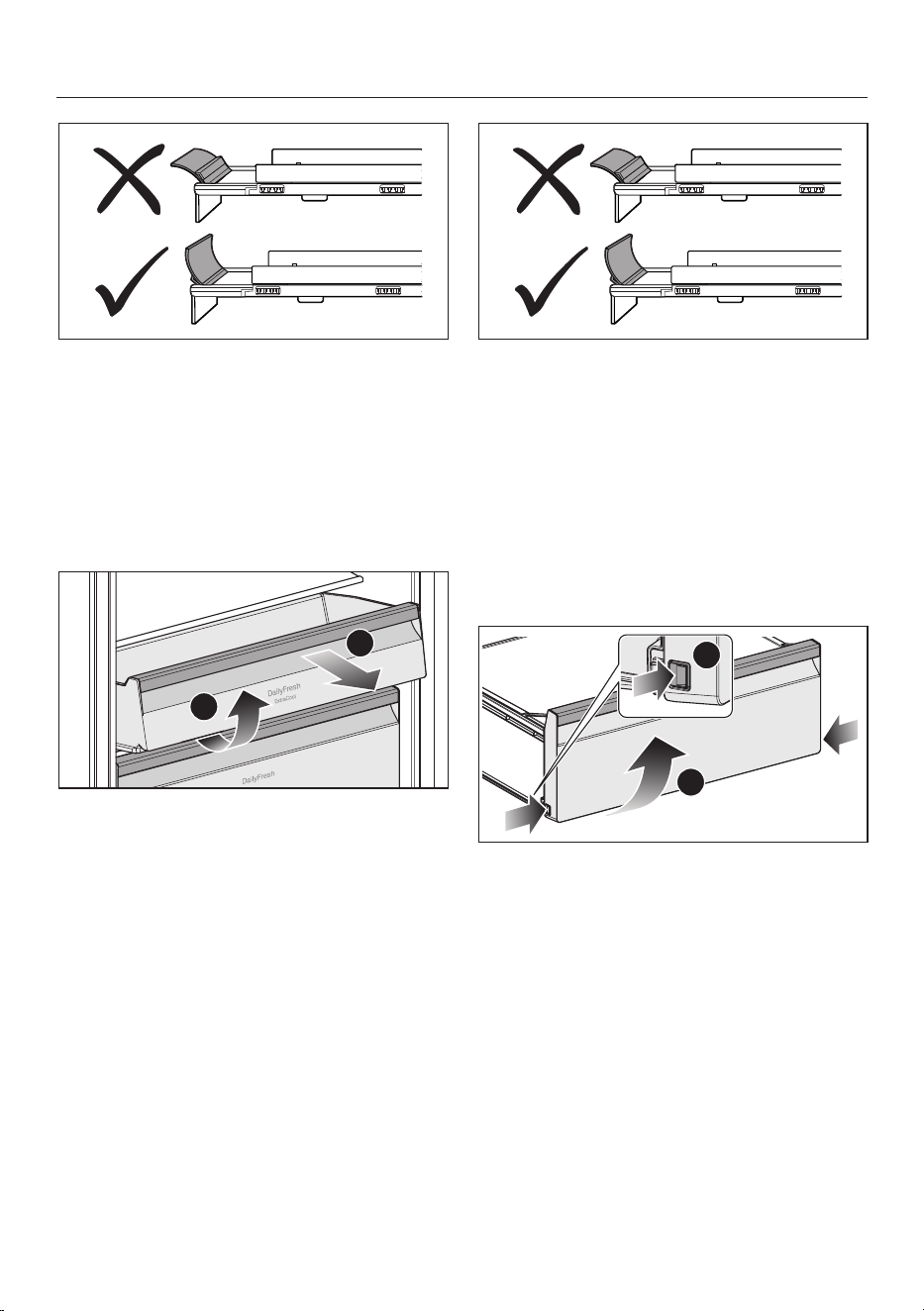

Dismantling drawer fronts.............................................................................................
50
Cleaning the door seal...................................................................................................
51
Cleaning the ventilation openings................................................................................
51
After cleaning ..................................................................................................................
51
Defrosting........................................................................................................................
51
Troubleshooting............................................................................................................. 52
Customer Service Department.................................................................................. 55
Contact in the event of a fault......................................................................................
55
EPREL database .............................................................................................................
55
Warranty ..........................................................................................................................
55
3
Contents
Information..................................................................................................................... 56
EU Conformity declaration............................................................................................
56
UK Conformity declaration ...........................................................................................
56
Copyrights and licences ................................................................................................
56
4
Warnings and safety notes
This refrigeration appliance complies with current safety require-
ments. Inappropriate use can, however, lead to personal injury and
material damage.
Please read the operating and installation instructions carefully be-
fore using the refrigeration appliance for the first time. They contain
important information on installation, safety, use and maintenance.
This is to protect yourself from injury, and from damaging your refri-
geration appliance.
In accordance with standard IEC60335-1, Miele expressly and
strongly advises that you read and follow all information provided
on installing the refrigeration appliance, as well as the warning and
safety notes.
Miele cannot be held liable for injury or damage caused by non-
compliance with these instructions.
Keep these operating and installation instructions in a safe place
and pass them on to any future owner.
Correct application
This refrigeration appliance is intended for use in the home and in
similar environments, for example
– in shops, offices and similar work settings
– by the guests in hotels, motels, bed & breakfasts and other typical
home settings.
This refrigeration appliance is not intended for outdoor use.
This appliance is intended for domestic use only for cooling and
storing food and drink as well as for storing deep frozen food, freezing
fresh food and for making ice.
Any other usage is not supported by the manufacturer and could be
dangerous.
This refrigeration appliance is not suitable for storing and keeping
cool medicines, blood plasma, laboratory preparations or similar sub-
stances or products that are subject to the Medical Device Directive.
Incorrect use of the refrigeration appliance for such purposes may
cause deterioration of the items stored. The refrigeration appliance is
also not suitable for use in areas where there is a risk of explosion.
Miele cannot be held liable for damage caused by improper or incor-
rect use or operation of the appliance.
5
Warnings and safety notes
The appliance can only be used by people with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge,
if they are supervised whilst using it, or have been shown how to use
it in a safe way and recognise and understand the consequences of
incorrect operation.
Safety with children
Children under 8 years of age must be kept away from the refriger-
ation appliance unless they are constantly supervised.
Children 8 years and older may only use the appliance unsuper-
vised if they have been shown how to use it in a safe way and recog-
nise and understand the consequences of incorrect operation.
Children must not be allowed to clean or maintain the appliance
unsupervised.
Please supervise children in the vicinity of the appliance and do
not let them play with it.
Danger of suffocation! Whilst playing, children could become en-
tangled in packaging (such as plastic wrapping) or pull it over their
head and suffocate. Keep packaging material away from children.
Technical safety
The coolant circuit has been checked for leaks. The refrigeration
appliance complies with statutory safety requirements and the ap-
propriate EU directives.
If the cooling circuit is damaged, refrigerant and oil can escape and ignite.
Warning: fire hazard/flammable materials. This symbol is on the
compressor and indicates flammable materials. Do not remove this
sticker.
6
Warnings and safety notes
The refrigerant inside the appliance (details on the data plate) is en-
vironmentally friendly but flammable.
The use of this refrigerant does, however, sometimes lead to a slight
increase in the noise level of the appliance. In addition to the noise of
the compressor, you might be able to hear the refrigerant flowing
around the cooling circuit. Unfortunately, this cannot be avoided, but
it does not affect the performance of the refrigeration appliance.
When transporting and installing the refrigeration appliance, ensure
that no parts of the cooling circuit are damaged. Splashes of refriger-
ant can damage the eyes and leaking refrigerant can ignite.
In the event of damage:
- Avoid naked flames or anything which creates a spark.
- Disconnect the refrigeration appliance from the mains electricity
supply.
- Ventilate the room where the refrigeration appliance is located for
several minutes.
- Contact the Miele Customer Service Department.
The more refrigerant there is in a refrigeration appliance, the larger
the room it should be installed in. In the event of a leakage, if the ap-
pliance is in a small room, there is the danger of a combustible gas/
air mixture building up. For every 8g of refrigerant at least 1m
3
of
room space is required. The amount of refrigerant in the refrigeration
appliance is stated on the data plate inside the appliance.
If the ventilation cross-sections are covered or blocked, a com-
bustible gas/air mixture can form if the cooling circuit is damaged. It
is essential to observe the required ventilation cross-sections. The
ventilation cross-sections must not be covered or blocked in any way.
To avoid the risk of damage to the appliance, make sure that the
connection data (fuse rating, frequency and voltage) on the data plate
corresponds to the household supply.
Check that this is the case before connecting the appliance. Consult
a qualified electrician if in any doubt.
The electrical safety of this appliance can only be guaranteed when
correctly earthed. It is essential that this standard safety requirement
is met. If in any doubt please have the electrical installation tested by
a qualified electrician.
7
Warnings and safety notes
Temporary or permanent operation on an autonomous power sup-
ply system or a power supply system that is not synchronised with
the mains power supply (e.g. island networks, back-up systems) is
possible. A prerequisite for operation is that the power supply system
complies with the specifications of EN50160 or an equivalent stand-
ard.
The function and operation of the protective measures provided in
the domestic electrical installation and in this Miele product must
also be maintained in isolated operation or in operation that is not
synchronised with the mains power supply, or these measures must
be replaced by equivalent measures in the installation. As described,
for example, in the current version of BS OHSAS 18001–2 ISO
45001.
The socket must not be concealed behind the refrigeration appli-
ance and must be easily accessible so that the appliance can be
quickly disconnected from the electrical supply in case of an emer-
gency.
If the mains connection cable is damaged, disconnect the refriger-
ation appliance from the power supply immediately. Contact the
Miele Customer Service Department.
If the electrical connection cable supplied is damaged, it must only
be replaced by an original spare part to prevent a hazard for the user.
Miele can only guarantee the safety of the appliance when original
Miele spare parts are used. For safety reasons, such replacement
may only be carried out by a qualified specialist or the Miele Cus-
tomer Service Department.
Do not connect the appliance to the mains electrical supply by a
multi-socket adapter or extension lead. These are a fire hazard and do
not guarantee the required safety of the appliance.
If moisture gets into electrical components or into the mains con-
nection cable, it could cause a short circuit. Therefore, do not operate
this refrigeration appliance in areas which are exposed to moisture
(e.g in a garage or utility room).
This appliance must not be used in a non-stationary location (e.g.
on a ship).
Do not use a damaged appliance. It could be dangerous. Check the
appliance for visible signs of damage.
For safety reasons, this appliance may only be used after it has
been built in.
8
Warnings and safety notes
The appliance must be isolated from the electricity supply during
installation, maintenance and repair work.
Unauthorised installation, maintenance and repairs can cause con-
siderable danger for the user.
Installation, maintenance and repairs must only be carried out by a
Miele authorised technician.
While the appliance is under warranty, repairs should only be un-
dertaken by a Miele authorised service technician. Otherwise the
warranty is invalidated.
Faulty components must only be replaced with genuine Miele ori-
ginal spare parts. Miele can only guarantee the safety standards of
the appliance when Miele replacement parts are used.
This refrigeration appliance is supplied with a special lamp to cope
with particular conditions (e.g. temperature, moisture, chemical res-
istance, abrasion resistance and vibration). This lamp must only be
used for the purpose for which it is intended. The lamp is not suitable
for room lighting. Replacement lamps may only be fitted by a Miele
authorised technician or by the Miele Customer Service Department.
This refrigeration appliance contains several light sources with at
least energy efficiency classE.
Proper installation
Install the refrigeration appliance in accordance with the installa-
tion instructions.
Always wear protective gloves when transporting and installing the
refrigeration appliance and when changing the door hinging.
Only install the refrigeration appliance in a solid, rectangular and
level housing unit, positioned on an even and level floor.
The refrigeration appliance is heavy and can tip forwards when the
appliance door(s) is/are open:
- At least 2people are required to transport or move the refrigera-
tion appliance.
- At least 2people are required to change the door hinging of the re-
frigeration appliance.
- At least 2people are required to install the refrigeration appliance.
9
Warnings and safety notes
- Never leave the refrigeration appliance unattended while it is being
installed.
- It is essential that you secure the refrigeration appliance in the
niche using the enclosed retaining and fastening parts (installation
instructions).
Correct use
This refrigeration appliance is designed for use within specific am-
bient temperatures (climate range). Do not use in ambient temperat-
ures for which it is not designed. The climate range is stated on the
data plate in the interior cabinet of the refrigeration appliance. A
lower ambient temperature will cause the compressor to switch off
for longer periods, meaning that the refrigeration appliance is unable
to maintain the required temperature.
Do not cover or block the air vents as this could impair the effi-
ciency of the appliance, increase the electricity consumption and
could cause damage to the components.
If storing food which contains a lot of fat or oil in the appliance or
the door, make sure that it does not come into contact with plastic
components as this could cause stress cracks or break the plastic.
Refrigeration appliance components which are made of metal or
look like metal can contain aluminium. If acidic food comes into con-
tact with aluminium, aluminium ions can be released into the food.
Do not store food loose in the refrigeration appliance.
Risk of fire and explosion. Do not store explosive materials in the
refrigeration appliance or any products containing propellants (e.g.
spray cans). Electrical components can cause flammable mixes of
gases to ignite.
Danger of explosion. Do not operate any electrical equipment (e.g.
an electric ice-cream maker) inside the refrigeration appliance.
Danger of sparking and explosion.
Danger of injury and damage to the appliance. Do not store cans or
bottles containing carbonated drinks or liquids which could freeze in
the freezer zone. Otherwise they could burst.
Danger of injury and damage to the appliance. When cooling drinks
quickly in the freezer zone, make sure bottles are not left in for more
than one hour. Otherwise they could burst.
10
Warnings and safety notes
Danger of injury. Never handle frozen food or the metal parts of the
appliance with wet hands. Your hands may freeze to the frozen food
or to the metal.
Danger of injury. Do not take ice cubes out with your bare hands
and never place ice cubes or ice lollies in your mouth straight from
the freezer zone. The very low temperature of the frozen food can
cause frost burn to the lips and tongue.
Do not refreeze partially or fully defrosted food. Consume defros-
ted food as soon as possible, as it will lose its nutritional value and
spoil if left for too long. Defrosted food may only be re-frozen after it
has been cooked.
Observe the manufacturer's “use-by” dates and storage instruc-
tions given on food to avoid the risk of food poisoning. Storage times
will depend on several factors, including the freshness and quality of
the food, as well as the temperature at which it is stored.
Do not sit, stand or lean on the shelves or drawers when they are
pulled out. This could damage the refrigeration appliance.
Accessories and spare parts
Only use original Miele accessories. If other parts are used, war-
ranty, performance and product liability claims will be invalidated.
Miele will guarantee to supply functional spare parts for a min-
imum of 10years and up to 15years following the discontinuation of
your refrigeration appliance.
Cleaning and care
Do not use any oils or grease on the door seals, as these will cause
the seals to deteriorate and become porous with time.
Do not use a steam cleaning appliance to clean or defrost this ap-
pliance.
Steam could reach electrical components and cause a short circuit.
WARNING! DANGER of injury and damage! Do not use any
mechanical or other types of aids which are not recommended by the
manufacturer to accelerate the defrosting process.
Sharp edged or pointed objects will damage the evaporator, caus-
ing irreversible damage to the appliance. Do not use sharp edged or
pointed objects to
11
Warnings and safety notes
- remove frost and ice,
- separate frozen food or remove ice trays.
Do not place electric heaters or candles in the appliance to defrost
it. These can damage the plastic parts.
Do not use defrosting sprays or de-icers, as they could contain
substances which could damage the plastic parts or which might
cause the build-up of gases and pose a danger to health.
Transport
To avoid damage to the refrigeration appliance, always transport it
upright and in its packaging.
Danger of injury and damage to the appliance. The refrigeration ap-
pliance is very heavy and must be transported by two people.
Disposal of your old appliance
Children playing could become trapped in the appliance and could
suffocate.
- Remove the appliance doors.
- Remove the drawers.
- Leave the adjustable shelves in the refrigeration appliance so chil-
dren cannot climb inside.
- If your old refrigeration appliance has a door lock, destroy it. This
will prevent the risk of children playing accidentally locking them-
selves in and endangering their lives.
Risk of electric shock!
- Cut the plug off the mains connection cable.
- Cut the mains connection cable off the old appliance.
Dispose of the plug and mains connection cable separately from the
old appliance.
During and after disposal, make sure that the refrigeration appli-
ance is not placed near petrol or other flammable gases and liquids.
12
Warnings and safety notes
Risk of fire due to escaping oil or refrigerant!
The refrigerant and oil inside the appliance are flammable. In high
enough concentrations, escaping refrigerant or oil may ignite if they
come into contact with an external heat source.
During disposal, make sure that the cooling circuit is not damaged in
order to prevent refrigerant and oil escaping in an uncontrolled man-
ner (see the data plate for details of the refrigerant).
Splashes of coolant can damage the eyes. Be careful not to dam-
age any part of the pipework whilst awaiting disposal, e.g. by
- puncturing the coolant channels in the condenser,
- bending any pipework, or
- scratching the surface coating.
Symbol on the compressor (depending on model)
This information is only relevant for recycling. There is no risk during normal opera-
tion.
The oil in the compressor can be fatal if swallowed or if it penet-
rates the airways.
13
Sustainability and environmental protection
Disposing of the packaging ma-
terial
The packaging material is used for hand-
ling and protects the appliance from
transport damage. The packaging ma-
terial used is selected from materials
which are environmentally friendly for
disposal and can generally be recycled.
Recycling the packaging material re-
duces the use of raw materials. Use ma-
terial-specific collection points for valu-
able materials and take advantage of re-
turn options. Your Miele dealer will take
the packaging material away.
Disposing of your old appliance
Electrical and electronic appliances con-
tain many valuable materials. They also
contain certain materials, compounds
and components which were essential
for their correct functioning and safety.
These could be hazardous to human
health and to the environment if dis-
posed of with household waste or if
handled incorrectly. Please do not,
therefore, dispose of your old appliance
with household waste.
Take care not to damage your refrigera-
tion appliance before or during disposal
in an authorised, environmentally
friendly manner.
This is to ensure that refrigerant in the
cooling circuit and oil in the compressor
is contained, and will not leak into the
environment.
Instead, please make use of officially
designated collection and disposal
points to dispose of and recycle elec-
trical and electronic appliances in your
local community, with your dealer or
with Miele, free of charge. By law, you
are solely responsible for deleting any
personal data from the old appliance
prior to disposal. You are legally obliged
to remove any old batteries which are
not securely enclosed by the appliance
and to remove any lamps without des-
troying them, where this is possible.
These must be taken to a suitable col-
lection point where they can be handed
in free of charge. Please ensure that
your old appliance poses no risk to chil-
dren while being stored for disposal.
14
Sustainability and environmental protection
How to save energy...
Installation site The refrigeration appliance has to cool more often at higher ambi-
ent temperatures and consumes more energy in the process.
Therefore:
- Install the refrigeration appliance in a well-ventilated room.
- Do not install the refrigeration appliance near to a heat source
(heater element, cooker).
- Protect the refrigeration appliance from direct sunlight.
- Ensure an ideal ambient temperature of 20°C.
- Clean the ventilation openings on a regular basis to remove any
dust.
Temperature
setting
The colder the temperature, the higher the energy consumption.
The following settings are recommended:
- 4 to 5°C in the refrigerator section.
- -18°C in the freezer section.
- To save energy, switch off the SuperFreeze function yourself
as soon as the food is sufficiently chilled.
Use Energy consumption is increased by heat input and impeded air
circulation. Therefore, you should:
- Only open the appliance door(s) when necessary and for as
short a time as possible. Arrange the food in such a way that
makes it easy to find in the appliance.
- Always close the appliance door(s) properly after opening
them.
- Allow hot food and drinks to cool down before placing them in
the refrigeration appliance.
- Store food well packaged or covered.
- Do not overfill the compartments to allow air to circulate.
- Place frozen food in the fridge zone to defrost.
15
Installation
Carry out the installation in ac-
cordance with the installation instruc-
tions (see QR code).
Material number 12 837 110 – KFN7934D
(fixed door)
Material number 12 837 080 – KFN7913E
(sliding door)
Fastening the refrigeration ap-
pliance in the building-in niche
Risk of damage and danger of in-
jury due to the refrigeration appliance
tipping over.
This refrigeration appliance is very
heavy and can tip forwards when the
appliance door is open.
Keep the appliance door(s) closed
until the refrigeration appliance has
been built in.
It is essential that you secure the re-
frigeration appliance in the niche us-
ing the enclosed retaining and fasten-
ing parts in accordance with the in-
stallation instructions.
KFN7934D (fixed door)
KFN7913E (sliding door)
16
Installation
Installation site
Fire risk and risk of damage from
appliances which give off heat.
Appliances which give off heat can
catch fire and set fire to the refrigera-
tion appliance.
The mains connection cable must not
come into contact with heat sources.
This refrigeration appliance must not
be installed underneath a hob.
Fire risk and danger of damage
from open flames.
Open flames can set fire to the refri-
geration appliance.
Keep open flames (e.g. a candle)
away from the refrigeration appli-
ance.
Risk of fire and damage due to
improper installation.
If mains plugs and mains connection
cables touch the back of the refriger-
ation appliance, they may be dam-
aged by vibrations and cause a short
circuit.
Mains plugs or mains connection
cables must not touch the refrigera-
tion appliance.
Mains connection cables must not
be trapped or damaged.
Do not connect any other appliances
to sockets located directly behind
this refrigeration appliance.
Do not place or operate multi-socket
adapters, distributor strips or other
electronic devices (such as halogen
transformers) behind the appliance.
This appliance should be installed in a
dry, well-ventilated room.
Only install the refrigeration appliance in
a solid, rectangular and level housing
unit, positioned on an even and level
floor.
Risk of damage due to high hu-
midity.
In environments with high humidity,
condensation can build up on ex-
ternal refrigeration appliance panels.
This condensation can cause corro-
sion on external appliance panels.
Install the refrigeration appliance in a
dry and/or air-conditioned room with
sufficient ventilation.
After installation please make sure
that the appliance door(s) closes
(close) properly and the refrigeration
appliance is installed in accordance
with these installation instructions. It
is essential to comply with the spe-
cified ventilation cross-sections.
When deciding on the installation site,
please bear in mind that your refrigera-
tion appliance will consume more en-
ergy if installed near to a heater, a
cooker or another appliance that gives
off heat. Avoid direct sunlight. Higher
ambient temperatures increase energy
consumption as the compressor runs
for longer.
17
Installation
If installation near a heat source is un-
avoidable, observe the following min-
imum safety distances between the ap-
pliance and the heat source:
- At least 3cm
to electric or gas stoves
- At least 30cm
to oil or coal-based stoves
If it is not possible to observe these
minimum safety distances, an isolation
plate must be installed between the re-
frigeration appliance and the heat
source.
Climate range
This refrigeration appliance is designed
for use within specific ambient temper-
atures (climate range). Do not use in
ambient temperatures for which it is not
designed.
A lower ambient temperature leads to
the compressor switching off for longer
periods. This can cause the internal
temperature in the refrigeration appli-
ance to rise with the risk of food deteri-
orating and going off.
The climate range is stated on the data
plate in the interior cabinet of the refri-
geration appliance.
Climate range Ambient temper-
ature
SN 10to32°C
N 16to32°C
ST 16to38°C
T 16to43°C
SN-ST 10to38°C
SN-T 10to43°C
A refrigeration appliance from the SN
climate range can operate without any
difficulties in rooms with a cooler am-
bient temperature (down to +5°C).
Side-by-side combinations
Risk of damage due to condensa-
tion on external appliance panels.
In environments with high humidity
and a lack of ventilation, condensa-
tion can build up on external appli-
ance panels, which can cause corro-
sion.
Do not place refrigeration appliances
directly next to or on top of one an-
other if the refrigeration appliance is
not approved for this.
If you want to place refrigeration ap-
pliances without integrated heating
units next to each other, a distance of
at least 150mm must be maintained
between them.
18
Installation
Ventilation
Fire risk and risk of damage due
to inadequate ventilation.
If the refrigeration appliance is not
ventilated sufficiently, the com-
pressor will run more frequently and
for longer periods. This causes in-
creased energy consumption and an
increased compressor operating tem-
perature, which can result in damage
to the refrigeration appliance.
Please ensure that there is adequate
ventilation around the refrigeration
appliance:
It is essential to observe the required
ventilation cross-sections.
The ventilation cross-sections must
not be covered or blocked in any way.
Clean the ventilation areas regularly
to remove dust and dirt.
Air at the back of the refrigeration appli-
ance gets warm. The appliance housing
unit must therefore be constructed to
allow sufficient space for ventilation
(see “Installation dimensions” and the
installation instructions).
Changing the door hinging
Danger of injury and damage to
the appliance due to heavy door.
There is an increased risk of injury
and damage if the door hinging is in-
stalled by a single person.
Always change the door hinging with
the help of a second person.
Risk of crushing on the door
hinge.
Fingers can get trapped in or around
the hinge.
Leave the door hinge open and do
not close it.
Do not reach into the door hinge dur-
ing conversion.
Change the door hinge in accordance
with the installation instructions.
Furniture door (valid for
KFN7934D)
Horizontal and vertical gaps
Depending on the style of kitchen fur-
niture, the thickness and edge radius of
the furniture door and the gap that runs
around the door, vertically and horizont-
ally, are specified.
It is essential to pay attention to the
following:
- Horizontal gap
The gap between the furniture door and
the housing unit door above or below it
must be at least 3mm.
- Vertical gap
If the gap between the refrigeration
appliance furniture door and the ad-
joining kitchen furniture front or wall
on the hinged side is too small, the
appliance door could collide with the
adjoining kitchen furniture front or
wall when opened.
It may be necessary to adjust the size
of this gap to suit the thickness and
edge radius of the furniture door.
19
Installation
This must be taken into consideration
when planning your kitchen and when
replacing an old refrigeration appliance
with a new one to ensure the installa-
tion conditions required are met.
Furniture
door
thickness
A [mm]
Gap X [mm]
for different
edge radii B
R0 R1 R2 R3
≥16–19 2.5
20 3 3 2.5 2.5
21 3 3 2.5 2.5
22 4 3.5 3 3
Adjoining kitchen furniture front
A=Furniture front thickness
B=Edge radius
X=Gap
Adjoining side wall
A=Furniture front thickness
B=Edge radius
X=Gap
Tip: Fit a spacer between the housing
unit carcase and the side wall. This way
you will get a sufficiently wide gap.
Weight of the furniture door
If the furniture door panel is too
heavy, this can cause damage.
Fitting a furniture door panel which is
heavier than the maximum permitted
weight could damage the hinges. This
can cause subsequent functional
problems.
The maximum permissible weights of
the furniture doors in kg are:
Refrigeration
appliance
Upper
furniture
door
Lower
furniture
door
KFN7934D 20 19
20
Installation
*INSTALLATION*
Building-in dimensions
Installation in a tall unit/side view
KFN7934D
All dimensions are given in mm.
≥
560*
≤
19
1935
+8
≥
710
≤
19
≥40
≥
696**
1935
+8
28
+8
* The declared energy consumption was calculated in a 560mm deep niche. The
refrigeration appliance is fully functional in a 550mm niche but the energy con-
sumption will be slightly higher.
** Miele has different refrigeration appliances with different gap positions in its
range. To increase flexibility when replacing the appliance at a later date, we recom-
mend that the height of the lower furniture front should be between 696 and
706mm. The position of the door gap may shift when the appliance is replaced.
Before installation, ensure the housing unit dimensions are the correct size. The
specified ventilation cross-sections must be adhered to in order to ensure the cor-
rect functioning of the refrigeration appliance.
21
Installation
*INSTALLATION*
KFN7913E
All dimensions are given in mm.
≥
560*
1935
+8
≥
710
1935
+8
≥40
≥
670**
83
+8
* The declared energy consumption was calculated in a 560mm deep niche. The
refrigeration appliance is fully functional in a 550mm niche but the energy con-
sumption will be slightly higher.
** Miele has different refrigeration appliances with different gap positions in its
range. To increase flexibility when replacing the appliance at a later date, we recom-
mend that the height of the lower furniture front should be between 696 and
706mm. The position of the door gap may shift when the appliance is replaced.
Before installation, ensure the housing unit dimensions are the correct size. The
specified ventilation cross-sections must be adhered to in order to ensure the cor-
rect functioning of the refrigeration appliance.
22
Installation
*INSTALLATION*
Connections and ventilation
KFN7913E
All dimensions are given in mm.
The specified ventilation cross-sections must be adhered to in order to ensure the
correct functioning of the refrigeration appliance.
≥
40
≥
40
54
84
691
a
View from the front
b
Mains connection cable, length = 2300mm
A longer mains connection cable is available to order from the Miele Customer
Service Department.
c
Ventilation cross-section min. 200 cm
2
d
Ventilation
e
No connection sockets in this area
23
Installation
*INSTALLATION*
KFN7934D
All dimensions are given in mm.
The specified ventilation cross-sections must be adhered to in order to ensure the
correct functioning of the refrigeration appliance.
54
84
708
≥
40
≥
40
a
View from the front
b
Mains connection cable, length = 2300mm
A longer mains connection cable is available to order from the Miele Customer
Service Department.
c
Ventilation cross-section min. 200 cm
2
d
Ventilation
e
No connection sockets in this area
24
Installation
*INSTALLATION*
Electrical connection
The refrigeration appliance must only be
connected to an earthed socket using
the mains connection cable supplied.
The socket must be easily accessible
after the refrigeration appliance has
been installed. If the socket is not easily
accessible, ensure that a suitable
means of disconnection is provided on
the installation side for each pole.
Risk of fire from overheating.
Connecting the refrigeration appli-
ance to a multi-socket plug adapter
or to an extension lead can overload
the cable.
For safety reasons, do not use an ex-
tension lead or multi-socket adapter.
The electrical installation must comply
with VDE0100 requirements.
For safety reasons, we recommend us-
ing a type residual current device
(RCD) in the assigned electrical installa-
tion for connecting the refrigeration ap-
pliance.
If the mains connection cable is dam-
aged, it must only be replaced with a
specific mains connection cable of the
same type (available from the Miele
Customer Service Department). For
safety reasons, such replacement may
only be carried out by a qualified spe-
cialist or the Miele Customer Service
Department.
These operating instructions and the
data plate indicate the nominal power
consumption and the appropriate fuse
rating. Compare this information with
the data of the on-site electrical con-
nection. If in any doubt, consult a quali-
fied electrician.
Temporary or permanent operation on
an autonomous power supply system or
a power supply system that is not syn-
chronised with the mains power supply
(e.g. island networks, back-up systems)
is possible. A prerequisite for operation
is that the power supply system com-
plies with the specifications of
EN50160 or an equivalent standard.
The function and operation of the pro-
tective measures provided in the do-
mestic electrical installation and in this
Miele product must also be maintained
in isolated operation or in operation that
is not synchronised with the mains
power supply, or these measures must
be replaced by equivalent measures in
the installation. As described, for ex-
ample, in the current version of VDE-
AR-E2510-2.
Connecting the refrigeration appliance
Insert the plug connector into the
socket at the back of the refrigeration
appliance.
Make sure that the plug connector has
clicked into position correctly.
Insert the plug of the refrigeration ap-
pliance into the socket.
The refrigeration appliance is now con-
nected to the electricity supply.
25
Familiarisation
Your refrigeration appliance: KFN7913E
DailyFresh
DailyFresh
ExtraCool
DailyFresh
DailyFresh
ExtraCool
26
Familiarisation
a
Control panel
b
Door shelf with egg tray
c
Interior lighting
d
Flexible bottle rack
e
Adjustable shelf
f
Bottle shelf
g
DailyFresh ExtraCool drawer with low temperature for food which goes off
quickly
h
Compartment lid for setting the humidity level in the DailyFresh drawer
i
Condensate channel and condensate drain hole:
Precipitated condensate runs off and evaporates automatically.
j
DailyFresh drawer for fruit and vegetables (humidity-controlled)
k
Freezer drawers
27
Familiarisation
Your refrigeration appliance: KFN7934D
DailyFresh
DailyFresh
ExtraCool
DailyFresh
DailyFresh
ExtraCool
DynaCool
28
Familiarisation
a
Control panel
b
Door shelf with egg tray
c
Fan (DynaCool)
d
Flexible bottle rack
e
Interior lighting
f
Adjustable shelf
g
Bottle shelf
h
DailyFresh ExtraCool drawer with low temperature for food which goes off
quickly
i
Compartment lid for setting the humidity level in the DailyFresh drawer
j
Condensate channel and condensate drain hole:
Precipitated condensate runs off and evaporates automatically.
k
DailyFresh drawer for fruit and vegetables (humidity-controlled)
l
Freezer drawers
29
Familiarisation
a
For switching the temperature and door alarm off
b
For switching the network connection to your home network (WiFi) on and off
c
Lights up if you have made settings via the Miele app
(Further information on possible settings can be found in the Miele app.)
d
Switching the SuperFreezefunction on and off
e
For setting the temperature in the freezer zone
f
Switching the SuperCoolfunction on and off
g
For setting the temperature in the fridge zone
h
For switching the refrigeration appliance on and off
(press and hold the button for 3seconds)
30
Familiarisation
Safety
Temperature alarm in the freezer zone
The refrigeration appliance has been
fitted with a temperature alarm so that
the temperature in the freezer zone
cannot rise unnoticed.
If the temperature becomes too warm,
the temperature display for the freezer
zone flashes and the LED below the
button lights up.
An alarm will also sound until the cause
of the alarm is rectified or the alarm is
switched off.
The temperature the refrigeration appli-
ance is set at determines the temperat-
ure the appliance recognises as being
too warm.
The temperature alarm may be
triggered in the following situations:
- You switch on the refrigeration ap-
pliance and the temperature differs
greatly from the set temperature.
- Too much warm ambient air enters
the freezer when you are rearran-
ging or taking out frozen food.
- You are freezing large amounts of
food at once.
- You are freezing warm food.
Switching the temperature alarm off
early
Before you switch the temperature
alarm off, you must determine the
cause and rectify it.
If you are bothered by the sound of the
alarm, you can switch the alarm off
early.
Press the button.
Check whether the food in the freezer
has started to thaw or has defrosted.
If it has, it should be used as soon as
possible. Defrosted food may only be
re-frozen after it has been cooked.
Door alarm
The refrigeration appliance is fitted
with a door alarm to avoid increased
energy consumption and food becom-
ing warm if the door is left open.
Depending on which of the two appli-
ance doors is open for longer than
2minutes, the temperature display for
the freezer zone or the fridge zone
flashes. The LED below the button
flashes.
An alarm also sounds.
You can change the time before the
door alarm is triggered via the Miele
app.
As soon as the appliance door is closed,
the alarm will stop and the LED below
the button will go out.
Switching the door alarm off early
If you are bothered by the sound of the
alarm, you can switch the alarm off
early.
Press the button.
The alarm will stop. The LED below the
button goes out as soon as the appli-
ance door is closed.
If the appliance door is not closed, the
alarm will sound again after 2minutes.
31
Familiarisation
Appliance functions
SuperCool
When switched on, the SuperCool
function can be used to rapidly reduce
the temperature in the fridge zone to its
lowest setting (depending on the ambi-
ent temperature). The refrigeration ap-
pliance will work at full power and lower
the temperature.
Select the SuperCool function for the
rapid chilling of large amounts of fresh
food or drink.
The SuperCool function should be
switched on immediately before pla-
cing food or drinks in the fridge zone.
The SuperCool function will switch
itself off automatically after approx.
6hours. The refrigeration appliance
will then run at normal power again.
SuperFreeze
When switched on, the SuperFreeze
function can be used to rapidly re-
duce the temperature in the freezer
zone to its lowest setting (depending on
the ambient temperature). The refrigera-
tion appliance will work at full power
and lower the temperature.
Select the SuperFreeze function be-
fore freezing fresh food. This helps food
to freeze quickly and retain its nutrients,
vitamins, flavours and appearance.
The SuperFreeze function should be
switched on 4–6 hours before placing
food in the freezer. If you are freezing
the maximum amount of food, the
SuperFreeze function should be
switched on 24hours beforehand.
The SuperFreeze function will
switch itself off automatically after a
maximum of 50hours. The quantity of
fresh food placed in the freezer will de-
termine the duration before the Super-
Freeze function switches off.
Automatic SuperFreeze
The automatic SuperFreeze function
is activated by default and can be de-
activated at any time.
If you place a large amount of (warm)
food in the freezer zone and the temper-
ature in the freezer zone rises, the Su-
perFreeze function switches on auto-
matically for a while.
The LED below the SuperFreeze but-
ton lights up.
Ideally, place the food in the right-hand
section of the freezer drawers.
32
Familiarisation
Sabbath mode
The refrigeration appliance offers a Sab-
bath mode for the purposes of religious
observance.
When Sabbath mode is switched on,
the following are deactivated temporar-
ily:
- Interior lighting when the appliance
door is opened
- All visual and audible signals
- All messages in the control panel
(Exception: the LED below the Super-
Freeze button lights up with re-
duced brightness.)
- An active WiFi connection
- The SuperCool, SuperFreeze and
Automatic SuperFreeze functions
All other functions switched on previ-
ously remain activated.
When Sabbath mode is switched on,
you cannot make any settings on your
refrigeration appliance.
Adjusting the interior fittings
Removing or moving the door shelves/
bottle shelf
Only move the door shelves/bottle
shelves in the appliance door when
they are empty.
Push the door shelves/bottle shelves
upwards, then remove them by pulling
them forwards.
Replace the door shelves/bottle
shelves at the required height.
Removing or moving the shelves
The shelves can be adjusted according
to the height of the food.
Lift the front of the shelf and pull it
out.
Fit the shelf in its new position with
the rear edge facing upwards. The
raised edge at the back must face up-
wards to prevent food from touching
the rear panel of the appliance and
freezing to it.
Removing the DailyFresh ExtraCool
drawer
1
2
Pull the DailyFresh ExtraCool drawer
out as far as it will go and then lift
it up and out .
Removing the DailyFresh drawer
1
2
Remove the bottle shelf from the ap-
pliance door.
Pull the DailyFresh drawer out as far
as it will go and then lift it up and
out .
Removing the freezer drawer
Pull the freezer drawer out as far as it
will go and then lift it up and out.
33
Familiarisation
Moving the variable bottle rack
Lift the bottle rack up slightly at the
back and pull it out towards you.
Reinsert the bottle rack in the desired
position.
The rear rail must face upwards to pre-
vent bottles from touching the rear
panel of the appliance.
Accessories supplied
Appliance plug
Egg tray
Flexible bottle rack
Ice cube tray
Optional accessories
Products specially tailored to your refri-
geration appliance – such as appliance
care products and accessories – are
available from the Miele online shop,
from Miele Customer Service or from
your Miele specialist dealer.
You can access the Miele online shop
via the following QR code:
34
Commissioning
Before using for the first time
Remove all packaging material and
protective foil.
Remove all advertising materials and
labels from the inside of the refrigera-
tion appliance.
Clean the inside of the appliance and
the accessories.
Connecting the refrigeration appliance
Connect the refrigeration appliance to
the mains power supply as described
in “Installation – Electrical connec-
tion”.
The refrigeration appliance will power
up slowly.
The preset temperatures will then ap-
pear in the temperature displays for the
fridge zone and freezer zone.
The refrigeration appliance is now ready
for operation.
The refrigeration appliance will start to
cool and the interior lighting will come
on when the appliance door is opened.
To enable the temperature to get suf-
ficiently cold inside the refrigeration
appliance, allow the appliance to run
for a few hours before placing food in
it.
Switching the refrigeration ap-
pliance on
If the refrigeration appliance was pre-
viously switched off using the but-
ton, press the button for 3seconds
so that all LEDs on the control panel
light up once.
A buzzer sounds and the preset temper-
atures light up in the temperature dis-
play.
The refrigeration appliance will start to
cool and the interior lighting will come
on when the appliance door is opened.
As soon as the set temperature in the
freezer zone is reached, the LED below
the button goes out. The temperat-
ure display of the freezer zone lights up
constantly and the alarm stops.
If you want to switch off the alarm
early, press the button.
To enable the temperature to get suf-
ficiently cold inside the refrigeration
appliance, allow the appliance to run
for a few hours before placing food in
it. Do not place food in the refrigera-
tion appliance until it has reached the
preset temperature.
Do not place food in the freezer zone
until it has reached the preset tem-
perature (min. -18°C).
After switching on the refrigeration ap-
pliance, wait approx. 3minutes before
networking the appliance. Only then is
the initialisation of the refrigeration ap-
pliance complete.
Switching the refrigeration ap-
pliance off
Press the button for 3seconds so
that all LEDs in the control panel go
out.
A buzzer sounds.
The cooling system and the interior
lighting are switched off.
Please note: The refrigeration appli-
ance is not disconnected from the
power supply when it is switched off.
35
Commissioning
Switching off for longer periods of
time
If, during a long absence, the refriger-
ation appliance is switched off but
not cleaned and the door is left shut,
there is a danger of mould building up
inside the appliance.
It is essential to clean the refrigera-
tion appliance before a long period of
absence.
If the refrigeration appliance is not going
to be used for a longer period of time,
observe the following:
Switch the refrigeration appliance off.
Switch off at the wall and disconnect
the plug from the socket, or discon-
nect the fuse.
Clean the refrigeration appliance and
leave the door ajar to air the appliance
and avoid odours building up inside.
36
Operation
Setting the temperature in the
fridge zone
Tip: We recommend a temperature of
4°C in the fridge zone.
A temperature setting of 4°C com-
bined with appropriate hygiene
measures delays the propagation of
bacteria, e.g. salmonella and listeria,
which can lead to serious food pois-
oning.
As a general rule, the colder the set
temperature, the longer the food you
store in the fridge zone will keep.
Touch the desired temperature for the
fridge zone.
Temperature range in the fridge zone
The temperature in the fridge zone can
be adjusted from 2 to 6°C.
You can use the Miele app to make
further settings for the temperature in
the fridge zone.
Temperature display
The temperature display on the control
panel always shows the desired tem-
perature.
Depending on the ambient temperature
and the temperature setting, it can take
the appliance a few hours to reach the
desired temperature.
The temperature in the fridge zone in-
creases:
- The more often the appliance door is
opened and the longer it is kept open
- The more food is stored in it
- The warmer the food is which is being
put into it
- The higher the ambient temperature
surrounding the refrigeration appli-
ance This refrigeration appliance is de-
signed for use within specific ambient
temperatures (climate range). Do not
use in ambient temperatures for
which it is not designed.
Switching SuperCool on
The SuperCool function should be
switched on immediately before pla-
cing food or drinks in the fridge zone.
Press the SuperCool button.
The LED below the SuperCool button
lights up.
Switching SuperCool off
The SuperCool function will switch
itself off automatically after max.
6hours.
To save energy, you can switch off the
SuperCool function early yourself
once food and drinks are sufficiently
chilled.
Press the SuperCool button.
The LED below the SuperCool button
goes out.
37
Operation
Setting the temperature in the
freezer zone
Health risk caused by decompos-
ing food.
To freeze fresh food, a temperature of
-18°C is required. Please note that, if
the temperature is any warmer, the
food will have a shorter shelf life.
When freezing food and storing it
over the long term, set a minimum
temperature of 0°F (-18°C).
Tip: By keeping the freezer zone at a
constant temperature of -18°C and tak-
ing appropriate hygiene measures you
can maximise the storage life of your
food and avoid food waste.
Touch the desired temperature for the
freezer zone
Temperature range in the freezer zone
The temperature in the freezer zone can
be adjusted from -16°Cto -24°C.
Temperature display
The temperature display on the control
panel always shows the desired tem-
perature.
Depending on the ambient temperature
and the temperature setting, it can take
the appliance a few hours to reach the
desired temperature.
The temperature in the freezer zone in-
creases:
- The more often the appliance door is
opened and the longer it is kept open
- The more food is stored in it
- The warmer the food is which is being
put into it
- The higher the ambient temperature
surrounding the refrigeration appli-
ance This refrigeration appliance is de-
signed for use within specific ambient
temperatures (climate range). Do not
use in ambient temperatures for
which it is not designed.
Switching SuperFreeze on
The SuperFreeze function should be
switched on around4–6hours before
placing food in the freezer. If you are
freezing the maximum amount of food,
the SuperFreeze function should be
switched on 24hours beforehand.
You do not need to switch on the Su-
perFreeze function:
- If you are placing food that is
already frozen in the freezer.
- If you only freeze up to 2kg of fresh
food daily.
Press the SuperFreeze button.
The LED below the SuperFreeze but-
ton lights up.
Switching SuperFreeze off
The SuperFreeze function will
switch itself off automatically after
max. 50hours.
To save energy, you can switch off the
SuperFreeze function early yourself
once food and drinks are sufficiently
chilled.
Press the SuperFreeze button.
The LED below the SuperFreeze but-
ton goes out.
38
Operation
Cancelling automatic SuperFreeze
Press the SuperFreeze button.
The LED below the SuperFreeze but-
ton goes out.
Switching on automatic Super-
Freeze
Press the SuperFreeze button for
5seconds until a buzzer sounds.
Release the SuperFreeze button.
2 buzzers sound one after the other. The
automatic SuperFreeze function is
switched on.
Switching off automatic Super-
Freeze completely
Press the SuperFreeze button for
5seconds until a buzzer sounds.
Release the SuperFreeze button.
3 buzzers sound one after the other. The
automatic SuperFreeze function is
switched off.
Storing food in the fridge zone
Risk of explosion due to flam-
mable mixes of gases.
Electrical components can cause
flammable mixes of gases to ignite.
Do not store explosive materials in
the refrigeration appliance or any
products containing propellants (e.g.
spray cans). The spray cans in ques-
tion can be identified by the contents
printed on the can or by a flame sym-
bol. Electrical components can cause
escaping gases to ignite.
Risk of damage due to greasy or
oily foods.
If storing food which contains a lot of
fat or oil in the refrigeration appliance
or the appliance door, make sure that
it does not come into contact with
plastic components as this could
cause stress cracks or break the
plastic.
Make sure that no fat or oil leaks onto
the plastic parts of the refrigeration
appliance.
If there is insufficient air circulation,
the cooling performance will de-
crease and energy consumption will
increase.
To allow air to circulate efficiently, do
not store the food too close together
or in direct contact with the rear
panel.
39
Operation
Different storage zones
Due to natural air circulation, there are
different temperature regions in the re-
frigerator section.
Cold, heavy air sinks to the lowest sec-
tion of the refrigeration section. Make
use of the different zones when placing
food in the appliance.
Warmest area
The warmest area in the refrigerator
section is at the top in the front area
and in the door. Use this for storing but-
ter and cheese.
Coldest area
The coldest area in the fridge zone is in
the DailyFreshExtraCool drawer and at
the back of the appliance.
A temperature setting of 4°C com-
bined with appropriate hygiene
measures delays the propagation of
bacteria, e.g. salmonella and listeria,
which can lead to serious food pois-
oning.
Therefore, you should use these areas to
store all delicate and highly perishable
food, including:
- Fish, meat, poultry
- Cold cuts, ready meals
- Dishes or baked goods containing
eggs or cream
- Fresh dough, cake mixtures, pizza or
quiche dough
- Raw milk cheese and other raw milk
products
- Hummus, vegetable spreads, plant-
based cream cheese substitutes
- Pre-packed vegetables
- Other fresh food (with a label stating it
should be kept at a temperature of ap-
prox. 4°C)
Tip: Store food in such a way that it
does not touch the rear panel of the
fridge zone. Otherwise it could freeze to
the rear panel.
Temperature indicator for the coldest
area
The temperature indicator for the cold-
est area is located on the left-hand or
right-hand inside wall in the coldest area
of the fridge zone. You can use the tem-
perature indicator to check the temper-
ature in this area for your delicate and
highly perishable food. If the temperat-
ure settings are correct, the lowest aver-
age temperature will be in the coldest
area (between the temperature indicator
and the shelf below). This low temperat-
ure, combined with appropriate hygiene
measures, delays the propagation of
bacteria, e.g. salmonella and listeria,
which can lead to serious food poison-
ing.
After initial commissioning of the refri-
geration appliance, it may take up to
12hours before the desired temperat-
ure is reached.
The temperature indicator will not
display an accurate reading if the ap-
pliance door is opened frequently or
for long periods. Do not keep the ap-
pliance door open for long periods.
Check the temperature indicator
again after a few hours.
40
Operation
Temperature indicator display
If the temperature indicator displays
“OK”, the temperature is set correctly.
Your delicate and highly perishable food
will be refrigerated properly in this area.
If the temperature indicator does not
display “OK”, the temperature is too
high. Lower the temperature.
If the ambient temperature fluctuates
significantly, check the temperature
indicator more frequently. If neces-
sary, adjust the temperature again.
Tip: If the temperature indicator does
not display “OK” even when the tem-
perature is set as low as possible and
this has been repeatedly checked, con-
tact the Customer Service Department.
The temperature indicator is damaged
and correct storage of your delicate and
highly perishable food cannot be en-
sured.
Should food be stored loose or in
packaging?
Ensure that food stored in the fridge
zone is in packaging or covered properly
(some exceptions apply in the
DailyFresh drawer).
This will prevent food odours from af-
fecting other food, stop food from drying
out and also prevent any cross-contam-
ination of germs. This is particularly im-
portant when storing meat products.
Make sure that food such as raw meat
and fish in particular does not come into
contact with other food.
By ensuring that the temperature
settings are correct and by taking ap-
propriate hygiene measures, you can
prolong the storage life of your food
considerably. This prevents food
waste.
Protein-rich food
Please note that food rich in protein de-
teriorates faster than other types of
food. Shellfish, for example, deteriorates
faster than fish, and fish deteriorates
faster than meat.
41
Operation
DailyFresh ExtraCool drawer
The DailyFresh ExtraCool drawer is ideal
for storing food which goes off quickly,
such as:
- Fresh fish and shellfish
- Meat, poultry and sausage
- Deli salads
- Dairy products, such as yogurt,
cheese, cream, etc.
- You can also store any other type of
food in the DailyFresh ExtraCool
drawer, as long as it is packaged.
The DailyFresh ExtraCool drawer has a
temperature of approx.0°C when a
temperature of 2°C has been set in
the fridge zone.
The humidity in the DailyFresh Ex-
traCool drawer is not increased and
cannot be regulated.
The temperature in the DailyFresh
ExtraCool drawer is approx. 0°C (de-
pending on the temperature set in
the fridge zone).
This means that sub-zero temperat-
ures can be reached under certain
circumstances. This can cause food
to freeze.
Adjust the temperature setting if ne-
cessary.
Please note that food rich in protein
deteriorates faster than other types
of food.
Shellfish, for example, deteriorates
faster than fish, and fish deteriorates
faster than meat.
For hygiene reasons, always keep
these foods covered or wrapped.
The DailyFresh drawer provides good
storage conditions for fruit and veget-
ables.
The humidity level in the DailyFresh
drawer can also be regulated to suit the
food being stored. Food retains its own
moisture if stored at a higher humidity
and so does not dry out as quickly. The
temperature is approximately equivalent
to the temperature in the fridge zone.
Remember that the fresher the food
when placed in the appliance, the
longer it will stay fresh.
Changing the humidity level in the
DailyFresh drawer
The humidity level in the DailyFresh
drawer largely depends on the type
and quantity of food being stored, if
stored unwrapped.
Tip: If the quantity of food being stored
in this compartment is small, the hu-
midity level may be too low. If you are
only storing a small amount of food,
wrap it in airtight packaging.
Tip: Store cut fruit or vegetables
covered or wrapped so they do not dry
out.
42
Operation
Selecting low humidity
Slide the controller to the right.
The compartment lid is open and the
humidity drops .
Always select this setting if:
- A large amount of food is being stored
in the drawer
- Different types of food are being
stored in the drawer
- Most of the food being stored in the
drawer is fruit
- The humidity level in the DailyFresh
drawer is too high.
Selecting increased humidity
Slide the controller to the left.
The compartment lid is closed and the
humidity remains in the compart-
ment.
Select this setting if:
- A small amount of food is being stored
in the drawer
- Most of the food being stored in the
drawer is vegetables
- The humidity level in the DailyFresh
drawer is too low.
Increased moisture in the DailyFresh
drawer can, in some circumstances,
cause a build-up of condensate.
If you find that too much condensate
has formed and this is affecting the
food, proceed as follows:
Wipe off any condensate with a
cleaning cloth.
Open the compartment lid by moving
it to the low humidity position.
Freezing and storing fresh food
Maximum freezing capacity
To ensure that fresh food placed in the
freezer freezes through to the core as
quickly as possible, the maximum freez-
ing capacity must not be exceeded. The
maximum freezing capacity for freezing
within a 24-hour period is given on the
data plate: “Freezing capacity...kg/
24hrs”.
Before placing food in the freezer
Only freeze fresh food which is in good
condition.
When freezing more than 2kg of fresh
food, switch on the SuperFreeze func-
tion for 6hours before placing the
food in the freezer.
When freezing even larger amounts of
food, switch on the SuperFreeze func-
tion for 24hours before placing the
food in the freezer.
This helps the frozen food which is
already stored in the freezer to stay
frozen.
43
Operation
Placing food in the freezer
Unfrozen food should not touch
frozen food as this will cause the
frozen food to begin to thaw.
Always place the food in the bottom
freezer drawer first.
To prevent food sticking together
when frozen, make sure that the pack-
aging and containers are dry.
Always push in the freezer drawer as
far as it will go to allow the air to cir-
culate freely in the refrigeration appli-
ance.
To ensure that food freezes through to
the core quickly, do not exceed the fol-
lowing packaging and container sizes:
- Fruit and vegetables: max. 1kg
- Meat: max. 2.5kg
–Freezing large items of food
Tip: You can expand the space available
in the freezer zone, e.g. to freeze large
items such as a turkey or large piece of
game.
Remove the freezer drawers from the
freezer zone.
Place the food directly on the bottom
of the freezer zone.
After freezing fresh food
Switch the SuperFreeze function
off.
Making ice cubes
Fill the ice cube tray 3/4 full with wa-
ter and place it on the bottom of one
of the freezer drawers.
Once frozen, use a blunt instrument,
for example a spoon handle, to re-
move the ice tray from the freezer if it
is stuck.
Tip: Ice cubes can be removed easily
from the tray by twisting the tray gently
or by holding it under cold running water
for a short time.
Cooling drinks quickly
When cooling drinks quickly in the
freezer zone, make sure bottles are
not left in for more than 1hour. Oth-
erwise they could burst.
44
Adjusting settings
Tip: You can use the Miele app to
make additional settings on your refri-
geration appliance. You can find more
information on this in the Miele app.
To do this, your refrigeration appliance
must be networked and registered in
the Miele app.
Observe the “Warning and safety
notes” in these operating and install-
ation instructions and ensure that the
safety notes are also observed when
operating the refrigeration appliance
with the Miele app.
Switching Sabbath mode on
When Sabbath mode is switched on,
you cannot make any settings on your
refrigeration appliance.
Press the SuperFreeze button for
15seconds until a second buzzer
sounds (the first buzzer sounds after
5seconds).
The LED below the SuperFreeze but-
ton lights up with reduced brightness.
All other LEDs in the control panel go
out. Sabbath mode is switched on.
Ensure that the appliance doors are
properly closed, as visual and audible
alarms are switched off.
Health risk caused by decompos-
ing food.
As power cuts are not indicated while
Sabbath mode is active, food may be
exposed to increased temperatures
for a certain period of time. This will
reduce the storage life of the food.
If there is a power cut during Sabbath
mode, check the quality of the food.
Switching Sabbath mode off
The Sabbath mode function will switch
off automatically after approx.
80hours.
However, you can switch the Sabbath
mode function off early.
Press the SuperFreeze button for
15seconds until a buzzer sounds.
The LEDs for the preset temperatures
light up.
Sabbath mode is switched off.
The appliance connects to the WiFi if it
was previously connected to the WiFi.
45
Adjusting settings
Miele@home
Your refrigeration appliance is
equipped with an integrated WiFi
module.
Networking is deactivated at the fact-
ory.
To use this feature, you will need:
- A WiFi network
- The Mieleapp
- A Miele user account. You can cre-
ate a user account via the
Mieleapp.
The Mieleapp will guide you as you
connect your refrigeration appliance to
your home WiFi network.
Once the refrigeration appliance is con-
nected to your WiFi network, you can
use the Miele app to carry out the fol-
lowing activities, for example:
- Call up information on the operating
status of your refrigeration appliance
- Change the settings on your refrigera-
tion appliance
- Make additional settings on your refri-
geration appliance
Connecting your refrigeration appliance
to your WiFi network will increase en-
ergy consumption, even when the appli-
ance is switched off.
Make sure that the signal of your
WiFi network is sufficiently strong in
the place where you want to set up
your refrigeration appliance.
Availability of the WiFi connection
The WiFi connection shares a frequency
range with other appliances (including
microwave ovens and remote control
toys). This can give rise to sporadic or
even complete connection failures.
Therefore, the availability of featured
functions cannot be guaranteed.
Miele@home availability
The ability to use the Miele app de-
pends on the availability of the
Miele@home service in your country.
The Miele@home service is not avail-
able in every country.
For information about availability, please
visit www.miele.com.
Miele App
The Miele App is available to download
free of charge from the Apple App
Store
®
or from the Google Play Store™.
46
Adjusting settings
Performing Scan & Connect
Scan the QR code.
If you have installed the Miele app and
have a user account, you will be taken
directly to the networking steps.
If you have not yet installed the Miele
app, you will be taken to the Apple App
Store
®
or the Google Play Store™.
Install the Miele app and set up a user
account.
Scan the QR code again.
The Miele app will guide you through
the setup process.
Setting up the WiFi connection for the
first time
Press the button for 2seconds un-
til a buzzer sounds.
The symbol will flash while the con-
nection is being established. The sym-
bol will light up once the connection has
been established.
Activating the WiFi connection
Press the button.
The LED below the button lights up.
Deactivating the WiFi connection
Press the button.
The LED below the button goes out.
Resetting the network configuration
If there are connection problems
between your refrigeration appliance
and your WiFi network, you can reset
the network configuration.
Press and hold the button for
6seconds until you hear 2 buzzers.
The LED below the button goes out.
All entered settings and values for
Miele@home are reset to the default
settings.
The WiFi connection has been deactiv-
ated.
47
Cleaning and care
The data plate located inside the in-
terior cabinet of the refrigeration appli-
ance must not be removed. It contains
information which is required in the
event of a fault.
Do not let water get into the elec-
tronic unit or the lighting.
Risk of damage due to moisture
ingress.
The steam from a steam cleaner can
damage plastic and electrical com-
ponents.
Do not use a steam cleaner to clean
the refrigeration appliance.
Cleaning water must not get into the
drain hole.
Cleaning agents
Cleaning and conditioning agents
used in the interior cabinet of the re-
frigeration appliance must be food
safe.
To avoid damaging the surfaces of the
appliance, do not use the following:
- Cleaning agents containing soda, am-
monia, acids or chlorides
- Cleaning agents containing descaling
agents
- Abrasive cleaning agents (e.g. scour-
ing powder, scouring liquid or pumice
stones)
- Cleaning agents containing solvents
- Stainless steel cleaners
- Dishwasher cleaner
- Oven sprays
- Glass cleaning agents
- Hard, abrasive sponges and brushes
(e.g. pot scourers)
- Eraser stain remover blocks
- Sharp metal scrapers
We recommend using a clean sponge
and lukewarm water with a little wash-
ing-up liquid to clean the surfaces of the
appliance.
Preparing the refrigeration ap-
pliance for cleaning
Switch the refrigeration appliance off.
Take any food out of the refrigeration
appliance and store it in a cool place.
Take out any removable parts for
cleaning.
48
Cleaning and care
Cleaning the interior of the ap-
pliance
The refrigeration appliance should be
cleaned regularly (at least once a
month).
If soiling is left on for any length of
time, it may become impossible to
remove under certain circumstances.
Surfaces may suffer discolouration or
damage.
It is therefore best to remove any
soiling immediately.
Clean the interior with a clean sponge
cloth, lukewarm water and a little
washing-up liquid.
Wash all parts by hand. Do not wash
in a dishwasher.
After cleaning, wipe with clean water
and dry with a cloth.
Clean the condensate channel and
drain hole frequently using a cotton
swab or similar item to ensure that
condensate can drain away freely.
To be able to clean the condensate
channel and the condensate drain
hole, the DailyFresh ExtraCool drawer
and the compartment lid underneath
must first be removed.
Leave the door open to air the refri-
geration appliance sufficiently for a
short while and to prevent odour
build-up.
Cleaning the condensate chan-
nel and condensate drain hole
1
2
Pull the DailyFresh ExtraCool drawer
out as far as it will go and then lift
it up and out .
Remove the bottle shelf from the ap-
pliance door.
Pull the DailyFresh drawer underneath
out a little.
Lift the compartment lid above the
DailyFresh drawer at the front and pull
the compartment lid all the way out to
the front.
Clean the condensate channel and
drain hole using a cotton swab or sim-
ilar item.
Push the compartment lid back in
above the DailyFresh drawer.
49
Cleaning and care
Make sure that the spoiler on the
compartment lid is positioned cor-
rectly.
Slide the DailyFresh drawer and the
DailyFresh ExtraCool drawer back in.
Removing the compartment lid
on the DailyFresh drawer
1
2
Pull the DailyFresh ExtraCool drawer
out as far as it will go and then lift
it up and out .
Remove the bottle shelf from the ap-
pliance door.
Pull the DailyFresh drawer underneath
out a little.
Lift the compartment lid above the
DailyFresh drawer at the front and pull
the compartment lid all the way out to
the front.
After cleaning: push the compartment
lid back in above the DailyFresh
drawer.
Make sure that the spoiler on the
compartment lid is positioned cor-
rectly.
Slide the DailyFresh drawer and the
DailyFresh ExtraCool drawer back in.
Dismantling drawer fronts
The drawer fronts of the DailyFresh
drawer and the freezer drawers can be
removed for cleaning purposes.
2
1
Press in the unlocking mechanism at
the bottom on both sides of the
drawer front.
Remove the drawer front by turning it
forwards.
50
Cleaning and care
Dismantling an adjustable shelf
Place the shelf on a worktop covered
with a soft material (e.g. a tea towel).
Before cleaning the shelf, remove the
trim and protective strip at the back
of the shelf as follows:
1. Pull the trim off the shelf, beginning
at one side.
2. Pull off the rear protective strip.
After cleaning the shelf, reattach the
trim and the protective strip at the
back of the shelf.
Cleaning the door seal
Risk of damage as a result of in-
correct cleaning.
If you treat the door seal with oils or
grease, it can become porous.
Do not use any oils or grease on the
door seal.
The door seal should be cleaned regu-
larly with clean water, and then wiped
dry with a soft cloth.
Cleaning the ventilation open-
ings
The ventilation openings should be
cleaned on a regular basis with a
feather duster or vacuum cleaner (you
could use a Miele vacuum cleaner
dusting brush, for example).
After cleaning
Replace all shelves and accessories in
the refrigeration appliance.
Switch the refrigeration appliance on.
Switch the SuperFreeze function
on for a while so that the freezer zone
can cool down quickly.
Switch the SuperCool function on
for a while so that the fridge zone can
cool down quickly.
Place food in the fridge zone and
close the appliance door.
Once the temperature in the freezer
zone is cold enough, you can place
the food in the freezer zone and return
the drawers to the freezer.
Switch the SuperFreeze function
off as soon as the temperature in the
freezer zone is a constant -18°C or
colder.
Defrosting
Defrosting the fridge zone
The fridge zone defrosts automatically.
Keep the condensate channel and
the condensate drain hole clean.
Condensate must be able to drain
away unhindered at all times.
Before cleaning the condensate chan-
nel, the DailyFresh drawer and the
compartment lid above it must be re-
moved.
Defrosting the freezer zone
The refrigeration appliance is equipped
with a NoFrost system that defrosts the
freezer zone automatically.
51
Troubleshooting
Many malfunctions and faults can be easily remedied. You can save time and
money in many cases, as you do not need to contact Customer Service.
More information to help you remedy faults yourself can be found at
www.miele.co.uk/support/customer-assistance.
To prevent unnecessary loss of temperature it is advisable not to open the door
while waiting for the appliance to be serviced.
Problem Cause and remedy
The LEDs in the control
panel light up but the re-
frigeration appliance is
not cooling.
Demo mode has been switched on. This allows the re-
frigeration appliance to be presented in the dealer
showroom without the cooling system being switched
on. This setting is not needed for domestic use.
Disconnect the refrigeration appliance from the
mains power supply.
Wait 2minutes.
Reconnect the refrigeration appliance.
Press and hold the SuperCool button until you
hear 4 buzzers.
After a short time, check whether your refrigeration
appliance is cooling.
The temperature in the
refrigeration appliance is
too low.
The temperature setting in the refrigeration appliance
is too low.
Correct the temperature setting.
The SuperCoolfunction is still switched on.
Switch off the SuperCoolfunction earlier to save en-
ergy.
The SuperFreezefunction is still switched on.
Switch off the SuperFreezefunction earlier to save
energy.
The temperature in the
refrigeration appliance
differs greatly from the
set temperature.
This can be caused by many factors.
Switch the refrigeration appliance off.
Switch the refrigeration appliance back on after ap-
prox. 5minutes.
If the temperature is too high, check it again after a
few hours.
If the temperature is too low, check it again the next
day.
52
Troubleshooting
Other problems
Problem Cause and remedy
The temperature display
is flashing. The LED be-
low the button lights
up in the control panel.
An alarm also sounds.
An appliance door has been open for longer than ap-
prox.2minutes.
Close the appliance door.
The LEDs in the control
panel do not light up.
This can be caused by many factors.
Contact the Miele Customer Service Department.
There was a power cut. The temperature in the refrigeration appliance rises
during a power cut. The storage time is reduced and
the quality of your food is impaired.
Keep the refrigeration appliance closed during a
power cut if possible and do not store any more
food inside it.
Check the quality of the food after the power cut.
Depending on the temperature displayed, you
should check whether food in the freezer has started
to thaw or has defrosted. If it has, it should be used
as soon as possible. Defrosted food may only be re-
frozen after it has been cooked.
If in doubt, dispose of food that has defrosted.
53
Troubleshooting
Interior lighting
Problem Cause and remedy
The interior lighting is
not working or is too
dark.
The refrigeration appliance has not been switched on.
Switch the refrigeration appliance on.
The Sabbath mode function is switched on.
Press the SuperFreeze button for 15seconds until
a buzzer sounds.
The Sabbath mode function is switched off and the
LEDs for the preset temperatures light up.
The interior lighting has been dimmed via the Miele
app.
Set the interior lighting back to maximum bright-
ness via the Miele app.
Alternatively, call the Customer Service Department.
Risk of electric shock due to exposed, live electrical components.
When removing the lighting cover, there is a risk of coming into contact with
live electrical components.
Do not remove the lighting cover. The LED lighting may only be repaired or re-
placed by the Miele Customer Service Department.
Risk of injury from LED lighting.
This lighting corresponds to risk group RG2. If the cover is defective, there is a
risk of eye injury.
If the lighting cover is defective, do not look from a close range directly into the
lighting with optical instruments (e.g. magnifying glass or similar).
54
Customer Service Department
Information to help you rectify faults
yourself and about Miele spare parts
can be found at www.miele.com/ser-
vice.
Contact in the event of a fault
In the event of a fault which you cannot
remedy yourself, please contact your
Miele dealer or Miele Customer Service.
You can book a Miele Customer Ser-
vice call-out online at www.miele.com/
service.
Contact information for Miele Cus-
tomer Service can be found at the end
of this document.
Please quote the model identifier and
serial number of your appliance (SN)
when contacting Miele Customer Ser-
vice. Both numbers can be found on the
data plate inside the refrigeration appli-
ance or, depending on the model, in
Settings mode under Information.
The data plate can be found in the in-
terior cabinet of the refrigeration appli-
ance.
EPREL database
Since 1 March 2021, information on en-
ergy labelling and ecodesign require-
ments has been available in the
European Product Database (EPREL).
You can find the product database at
the following link https://
eprel.ec.europa.eu/. You will be asked to
enter the model identifier.
The model identifier can be found on the
data plate inside the refrigeration appli-
ance or, depending on the model, in
Settings mode under Information.
Warranty
For information on the appliance war-
ranty specific to your country please
contact Miele. See back cover for ad-
dress.
In the UK, your appliance warranty is
valid for 2 years from the date of pur-
chase. However, you must activate your
cover by calling 0330 160 6640 or re-
gistering online at www.miele.co.uk.
55
Information
EU Conformity declaration
Miele hereby declares that this fridge-freezer complies with Directive 2014/53/EU.
The complete text of the EU declaration of conformity is available from one of the
following internet addresses:
- Products, Download from www.miele.ie
- For service, information, operating instructions etc: go to
https://miele.co.uk/manuals and enter the name of the product or the serial num-
ber
Frequency range of the WiFi module 2.4000–2.4835GHz
Maximum transmission power of the
WiFi module
<100mW
UK Conformity declaration
Copyrights and licences
For the purpose of operating and controlling the communication module, Miele
uses proprietary or third-party software that is not covered by open source licens-
ing terms. This software/these software components are protected by copyright.
The copyrights held by Miele and third parties must be respected.
Furthermore, the communication module integrated in the appliance contains soft-
ware components which are distributed under open source licence conditions. The
open source components contained in the appliance along with the corresponding
copyright notices, copies of the licensing terms valid at the time and any further in-
formation can be accessed locally by IP via a web browser (http[s]://<IP address>/
Licenses). The liability and warranty arrangements for the open source licences dis-
played in this location only apply in relation to the respective rights holders.
56
United Kingdom
Miele Co. Ltd., Fairacres, Marcham Road, Abingdon, Oxon, OX14 1TW
Tel: 0330 160 6600, Internet: www.miele.co.uk, E-mail: [email protected]
Australia
Miele Australia Pty. Ltd.
ACN 005 635 398
ABN 96 005 635 398
Level 4, 141 Camberwell Road
Hawthorn East, VIC 3123
Tel: 1300 464 353
E-mail: [email protected]
Internet: www.miele.com.au
Miele Electrical Appliances Co. Ltd.
No. 82, Shimenyi Road, JingAn District
Shanghai, China, P.R.C
Post Code: 200040
Phone: +86 21 6157 3500
Fax: +86 21 6157 3511
E-mail: info@miele.cn
Internet: www.miele.cn
China Mainland
Miele (Hong Kong) Ltd.
41/F - 4101, Manhattan Place
23 Wang Tai Road
Kowloon Bay, Hong Kong
Tel: (852) 2610 1025
Fax: (852) 3579 1404
E-mail:
Website: www.miele.hk
Hong Kong, China
Miele India Pvt. Ltd.
1st Floor, Copia Corporate Suites,
Commercial Plot 9, Mathura Road,
Jasola, New Delhi - 110025
E-mail: customercare@miele.in
Website: www.miele.in
India
Miele Ireland Ltd.
2024 Bianconi Avenue
Citywest Business Campus
Dublin 24
Tel: (01) 461 07 10
Fax: (01) 461 07 97
E-mail: [email protected]
Internet: www.miele.ie
Ireland
Malaysia
Miele Sdn Bhd
Suite 12-2, Level 12
Menara Sapura Kencana
Petroleum
Solaris Dutamas No. 1
Jalan Dutamas 1
50480 Kuala Lumpur, Malaysia
Phone: +603-6209-0288
Fax: +603-6205-3768
Miele New Zealand Limited
IRD 98 463 631
8 College Hill
Freemans Bay, Auckland 1011
Tel: 0800 464 353
Internet: www.miele.co.nz
New Zealand
Miele Pte. Ltd.
29 Media Circle
#11-04 ALICE@Mediapolis
Singapore 138565
Tel: +65 6735 1191
Fax: +65 6735 1161
E-mail: [email protected]
Internet: www.miele.sg
Singapore
Miele (Pty) Ltd.
63 Peter Place, Bryanston 2194
Tel: (011) 875 9000
Fax: (011) 875 9035
E-mail: [email protected]
Internet: www.miele.co.za
South Africa
Miele Appliances Ltd.
Showroom 1, Eiffel 1 Building
P.O. Box 114782 - Dubai
Tel. +971 4 3044 999
Fax. +971 4 3418 852
800-MIELE (64353)
E-mail: [email protected]
Website: www.miele.ae
United Arab Emirates
Manufacturer: Miele & Cie. KG, Carl-Miele-Straße 29, 33332 Gütersloh, Germany
Thailand
Miele Appliances Ltd.
BHIRAJ TOWER at EmQuartier
43rd Floor Unit 4301-4303
689 Sukhumvit Road
North Klongton Sub-District
Vadhana District
Bangkok 10110, Thailand
Sheikh Zayed Road, Umm Al Sheif
E-mail: customercare@miele.co.nz
P.O. Box 69434, Bryanston 2021
M.-Nr. 12 918 490 / 00 / 002en-GB
KFN 7913 ..., KFN 7934 ...
