Table of contentsTable of contents
INFORMATION FOR USE
1 Safety ........................................................................ 2
2 Avoiding material damage ..................................... 4
3 Environmental protection and saving energy ...... 4
4 Operating modes ..................................................... 5
5 Familiarising yourself with your appliance .......... 5
6 Before using for the first time ................................ 6
7 Basic operation ....................................................... 6
8 Cleaning and servicing .......................................... 8
9 Troubleshooting ................................................... 10
10 Disposal ............................................................... 11
11 Customer Service ............................................... 11
12 Accessories ......................................................... 11
13 INSTALLATION INSTRUCTIONS ....................... 12
13.4 Secure installation ........................................... 12
Safety 1 Safety
Observe the following safety instructions.
1.1 General information
¡ Read this instruction manual carefully.
¡ Keep the instruction manual and the product
information safe for future reference or for
the next owner.
¡ Do not connect the appliance if it has been
damaged in transit.
1.2 Intended use
This appliance is designed only to be built into
kitchen units. Read the special installation in-
structions.
The appliance can only be used safely if it is
correctly installed according to the safety in-
structions. The installer is responsible for en-
suring that the appliance works perfectly at its
installation location.
Only use this appliance:
¡ For extracting cooking vapour.
¡ in private households and in enclosed
spaces in a domestic environment.
¡ Up to an altitude of 2000m above sea level.
1.3 Restriction on user group
This appliance may be used by children aged
8 or over and by people who have reduced
physical, sensory or mental abilities or inad-
equate experience and/or knowledge,
provided that they are supervised or have
been instructed on how to use the appliance
safely and have understood the resulting
dangers.
Do not let children play with the appliance.
Children must not perform cleaning or user
maintenance unless they are at least 15 years
old and are being supervised.
Keep children under the age of 8 years away
from the appliance and power cable.
1.4 Safe use
WARNING‒Risk of fire!
Fatty deposits in the grease filters may catch
fire.
Never operate the appliance without a
grease filter.
Clean the grease filters regularly.
Never work with naked flames close to the
appliance (e.g. flambéing).
Do not install the appliance near a solid fuel
heating appliance (e.g. wood- or coal-burn-
ing) unless the heating appliance has a
sealed, non-removable cover. There must be
no flying sparks.
Hot oil and fat ignites very quickly.
Always supervise hot oil and fat.
Never extinguish burning oil or fat with water.
Switch off the hotplate. Extinguish flames
carefully using a lid, fire blanket or some-
thing similar and leave to cool down.
When gas burners are in operation without any
cookware placed on them, they can build up a
lot of heat. A ventilation appliance installed
2
Safety en
above the cooker may become damaged or
catch fire.
Only operate the gas burners with cookware
on them.
Operating multiple gas hobs at the same time
generates a great deal of heat. A ventilation
appliance installed above the cooker may be-
come damaged or catch fire.
Only operate the gas hobs with cookware on
them.
Select the highest fan setting.
Never operate two gas hobs simultaneously
on the highest flame for longer than 15
minutes. Two gas hobs correspond to one
large burner.
Never operate large burners of more than
5kW with the highest flame for longer than
15minutes, e.g. a wok.
Fatty deposits in the grease filters may catch
fire.
Clean the grease filters regularly.
WARNING‒Risk of suffocation!
Children may put packaging material over their
heads or wrap themselves up in it and suffoc-
ate.
Keep packaging material away from chil-
dren.
Do not let children play with packaging ma-
terial.
Children may breathe in or swallow small
parts, causing them to suffocate.
Keep small parts away from children.
Do not let children play with small parts.
WARNING‒Risk of poisoning!
Risk of poisoning from flue gases being drawn
back in. Room-air-dependent heat-producing
appliances (e.g. gas, oil, wood or coal-oper-
ated heaters, continuous flow heaters or water
heaters) obtain combustion air from the room
in which they are installed and discharge the
exhaust gases into the open through an ex-
haust gas system (e.g. a chimney). With the
extractor hood switched on, air is extracted
from the kitchen and the adjacent rooms.
Without an adequate supply of air, the air pres-
sure falls below atmospheric pressure. Toxic
gases from the chimney or the extraction shaft
are sucked back into the living space.
Always ensure adequate fresh air in the
room if the appliance is being operated in
exhaust air mode at the same time as a
room-air-dependent heat-producing appli-
ance is being operated.
It is only possible to safely operate the appli-
ance if the pressure in the room in which the
heating appliance is installed does not fall
below 4Pa(0.04mbar). This can be
achieved whenever the air needed for com-
bustion is able to enter through openings
that cannot be sealed, for example in doors,
windows, incoming/exhaust air wall boxes or
by other technical means. An incoming/ex-
haust air wall box alone is not sufficient to
ensure compliance with the limit.
In any case, consult your responsible chim-
ney sweep. They are able to assess the
house's entire ventilation setup and will sug-
gest the suitable ventilation measures to
you.
Unrestricted operation is possible if the ap-
pliance is operated exclusively in circulating-
air mode.
Using a gas cooking appliance leads to a
build-up of heat, moisture and combustion
products in the room where the appliance is
installed.
Switch on the extractor hood when using a
gas cooking appliance.
WARNING‒Risk of burns!
The accessible parts of the appliance become
hot during operation.
Never touch these hot parts.
Keep children at a safe distance.
The appliance becomes hot during operation.
Allow the appliance to cool down before
cleaning.
WARNING‒Risk of injury!
Components inside the appliance may have
sharp edges.
Carefully clean the appliance interior.
Items placed on the appliance may fall off.
Do not place any objects on the appliance.
3
en Avoiding material damage
Changes to the electrical or mechanical as-
sembly are dangerous and may lead to mal-
functions.
Do not make any changes to the electrical
or mechanical assembly.
Risk of injury when opening and closing the
hinges.
Keep your hands away from the hinges.
The light emitted by LED lights is very dazzling,
and can damage the eyes (risk group 1).
Do not look directly into the switched-on LED
lights for longer than 100seconds.
Improper repairs are dangerous.
Repairs to the appliance should only be car-
ried out by trained specialist staff.
If the appliance is defective, call Customer
Service.
"Customer Service", Page11
WARNING‒Risk of electric shock!
If the appliance or the power cord is damaged,
this is dangerous.
Never operate a damaged appliance.
Never pull on the power cord to unplug the
appliance. Always unplug the appliance at
the mains.
If the appliance or the power cord is dam-
aged, immediately unplug the power cord or
switch off the fuse in the fuse box.
Call customer service.
Page11
Improper repairs are dangerous.
Repairs to the appliance should only be car-
ried out by trained specialist staff.
Only use genuine spare parts when repairing
the appliance.
If the power cord of this appliance is dam-
aged, it must be replaced by trained special-
ist staff.
An ingress of moisture can cause an electric
shock.
Before cleaning, pull out the mains plug or
switch off the fuse in the fuse box.
Do not use steam- or high-pressure cleaners
to clean the appliance.
Penetrating moisture may cause an electric
shock.
Do not use wet sponge cloths.
WARNING‒Risk of explosion!
Highly caustic alkaline or highly acidic clean-
ing agents in conjunction with aluminium parts
in the interior of the appliance may cause ex-
plosions.
Never use highly caustic alkaline or highly
acidic cleaning agents. In particular, do not
use commercial or industrial cleaning agents
in conjunction with aluminium parts, e.g.
grease filter on extractor hoods.
Avoiding material damage2 Avoiding material damage
ATTENTION
Condensate may cause corrosion damage.
To prevent condensation from building up, switch on
the appliance during cooking.
If moisture gets into the controls, this may result in dam-
age.
Never clean controls with a wet cloth.
Incorrect cleaning damages the surfaces.
Follow the cleaning instructions.
Do not use harsh or abrasive detergents.
Clean stainless steel surfaces in the direction of the
finish only.
Never clean controls with stainless steel cleaners.
Condensation that flows back in may damage the appli-
ance.
To prevent condensate from returning, fit the exhaust
air pipe with a 1° gradient from the appliance.
If you put incorrect stress on the design elements, they
may break off.
Do not pull design elements.
Do not place objects on the design elements or hang
objects from them.
There is a risk of surface damage if you do not peel off
the protective film.
Remove the protective film from all parts of the appli-
ance before using for the first time.
If one lamp is defective, this may overload the remaining
lamps.
Replace any defective lamps.
Painted surfaces are easily damaged.
Follow the cleaning instructions.
"Cleaning the appliance", Page8
Ensure that the painted surfaces are not scratched.
Environmental protection and saving energy3 Environmental protection and saving energy
3.1 Disposing of packaging
The packaging materials are environmentally compatible
and can be recycled.
Sort the individual components by type and dispose
of them separately.
4
Operating modes en
3.2 Saving energy
If you follow these instructions, your appliance will use
less power.
Adjust the fan speed to the amount of steam produced
during cooking.
The lower the fan speed, the less energy is con-
sumed.
Only use the intensive mode as required.
If cooking produces large amounts of steam, select a
higher fan speed in good time.
The odours are distributed around the room less.
Switch off the lighting if it is no longer required.
When the lighting is switched off, it does not con-
sume any energy.
Clean or replace the filters at regular intervals.
The effectiveness of the filter is retained.
Put the cooking lid on.
The cooking vapours and condensation are reduced.
Only use the additional functions if required.
Switching off additional functions reduces power con-
sumption.
Operating modes4 Operating modes
You can use your appliance in air extraction mode or
circulating-air mode.
The saturation indicator must be adjusted to the selec-
ted operating mode and the filters used.
4.1 Air extraction mode
The air which is drawn in is cleaned by the grease filters
and conveyed to the exterior by a pipe system.
The air must not be discharged into a flue
that is used for exhausting fumes from
appliances burning gas or other fuels (not
applicable to appliances that only dis-
charge the air back into the room).
If the exhaust air is to be conveyed into
a non-functioning smoke or exhaust
gas flue, you must obtain the consent
of the heating engineer responsible.
If the exhaust air is conveyed through
the external wall, a telescopic duct
should be used.
4.2 Air recirculation
The air which is drawn in is cleaned by the grease filters
and an odour filter, and conveyed back into the room.
To bind odours in air recirculation mode,
you must install an odour filter. The differ-
ent options for operating the appliance in
air circulation mode can be found in our
catalogue. Alternatively, ask your dealer.
The required accessories are available
from specialist retailers, from our after-
sales service or from the online shop.
"Accessories", Page11
Familiarising yourself with your appliance5 Familiarising yourself with your appliance
5.1 Controls
You can use the control panel to configure all functions of your appliance and to obtain information about the operat-
ing status.
Saturation indicator
Cleaning the grease filter
Switches on fan setting1.
Switches fan setting 2 on.
Switching on intensive mode
Switch the lighting on or off.
5
en Before using for the first time
Before using for the first time6 Before using for the first time
Configure the settings for initial start-up. Clean the appli-
ance and accessories.
Basic operation7 Basic operation
7.1 Switching on the appliance
Press .
The appliance starts at fan setting 1.
7.2 Switching off the appliance
Press the button for the selected fan level again.
7.3 Setting a fan setting
Press , or to adjust the fan setting.
7.4 Switching on intensive mode
If particularly strong odours or vapours develop, you
can use intensive mode.
Press .
After approx. 9minutes, the appliance switches to fan
setting2.
7.5 Switching off intensive mode
Press .
Intensive mode is ended early.
7.6 Activating the timer function
With the timer function, the desired fan setting runs for
15minutes.
Press and hold or for 3seconds.
The symbol for the selected fan setting flashes.
The selected fan setting runs for 15minutes.
Note: The appliance switches off automatically after ap-
prox. 15minutes.
7.7 Switching on the lighting
The lighting can be switched on and off independently
of the ventilation system.
Press .
7.8 Setting the brightness
Press and hold until the required brightness is
reached.
Note: After you switch off the appliance or the lighting,
this setting is retained until the brightness is set again.
7.9 Switching off the lighting
Press .
7.10 Saturation indicator
The saturation indicator informs you about when the
grease filter needs to be cleaned.
If the grease filter needs to be cleaned, lights up.
After cleaning the grease filter, you should reset the sat-
uration indicator.
Resetting the saturation indicator
Requirement: The appliance is switched on.
Press and hold for approx. 3seconds.
The saturation indicator is reset.
goes out.
7.11 Gesture sensor
You can use the gesture sensor to set the fan setting,
control the lighting and switch off the appliance. The
sensors are positioned on the glass.
Even if the gesture sensor is activated, you can continue
to use the touch fields.
Switching on the gesture sensor
When the appliance is switched on for the first time, the
gesture sensor is deactivated.
Press and hold and at the same time for approx.
3seconds.
All symbol lights light up once.
The gesture sensor is activated.
Notes
In the event of a power cut, the gesture sensor is de-
activated.
If the gesture sensor is activated, the standby energy
consumption is increased slightly.
Switching off the gesture sensor
Press and hold and at the same time for approx.
3seconds.
All symbol lights light up once.
The gesture sensor is switched off.

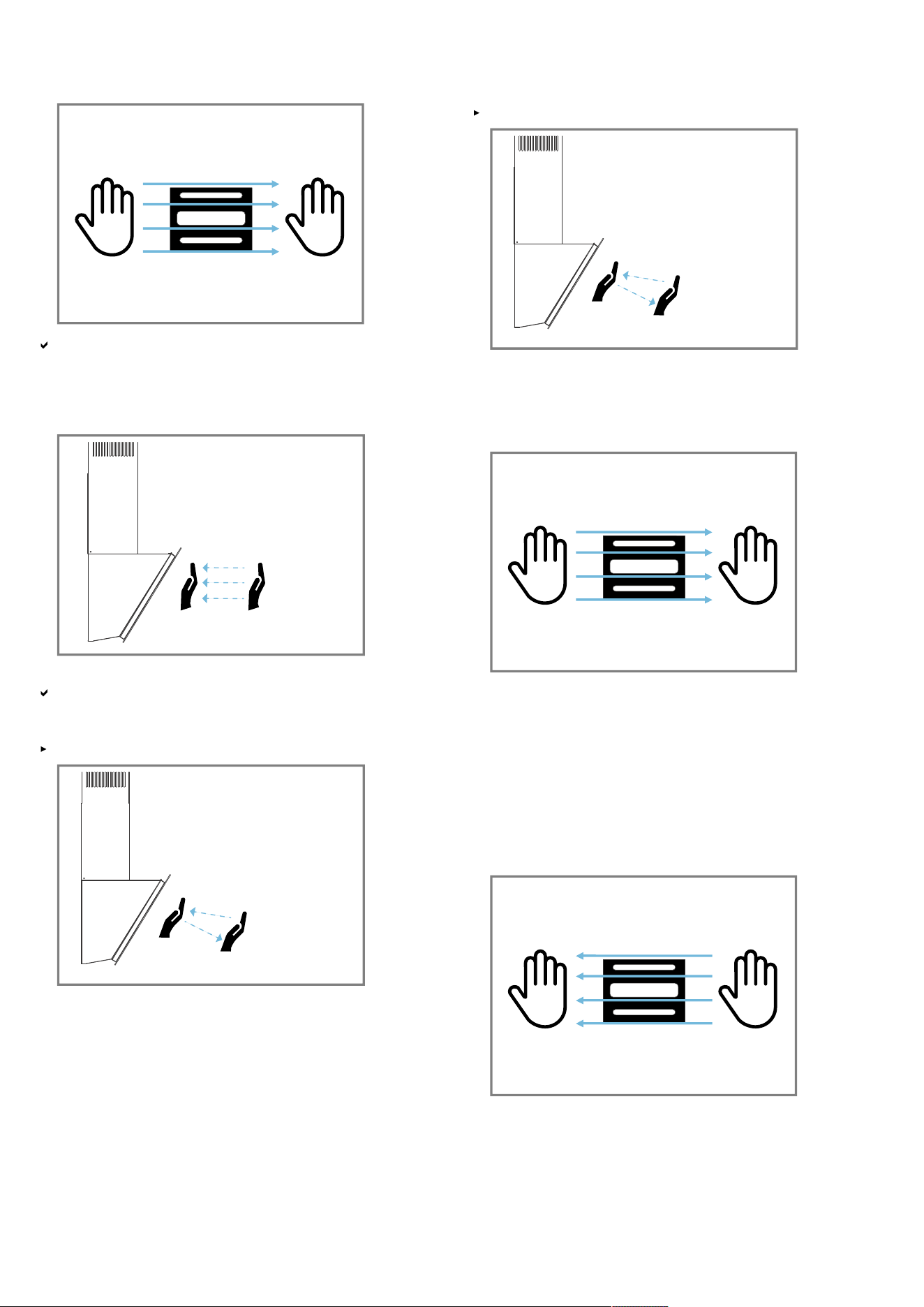

Switching on the appliance
1.
Position your hand at a distance of approx. 20cm in
front of the sensor.
6
Basic operation en
2.
Move your hand from left to right.
The appliance starts at fan setting1.
Switching off the appliance
1.
Move the palm of your hand in the direction of the
sensor.
2.
Wait for 3seconds.
The appliance switches off.
Switching on the lighting
Quickly move the palm of your hand to the sensor.
Switching off the lighting
Quickly move the palm of your hand to the sensor.
Increasing the fan setting
1.
Position your hand at a distance of approx. 20cm in
front of the sensor.
2.
Move your hand from left to right.
With each hand movement from left to right, the fan
setting increases by one level.
Note: Once the highest fan setting is reached and you
move your hand from left to right again, the appliance
switches off.
Reducing the fan setting
1.
Position your hand at a distance of approx. 20cm in
front of the sensor.
2.
Move your hand from right to left.
With each hand movement from right to left, the fan
setting decreases by one level.
Note: Once the lowest fan setting is reached and you
move your hand from right to left again, the appliance
switches off.
7
en Cleaning and servicing
Cleaning and servicing8 Cleaning and servicing
To keep your appliance working efficiently for a long
time, it is important to clean and maintain it carefully.
8.1 Cleaning products
You can obtain suitable cleaning products from after-
sales service or the online shop.
ATTENTION
Unsuitable cleaning products may damage the surfaces
of the appliance.
Do not use harsh or abrasive detergents.
Do not use cleaning products with a high alcohol con-
tent.
Do not use hard scouring pads or cleaning sponges.
Only use glass cleaners, glass scrapers or stainless
steel care products if recommended in the cleaning
instructions for the relevant part.
Wash sponge cloths thoroughly before use.
8.2 Cleaning the appliance
Clean the appliance as specified. This will ensure that
the different parts and surfaces of the appliance are not
damaged by incorrect cleaning or unsuitable cleaning
products.
WARNING‒Risk of explosion!
Highly caustic alkaline or highly acidic cleaning agents
in conjunction with aluminium parts in the interior of the
appliance may cause explosions.
Never use highly caustic alkaline or highly acidic
cleaning agents. In particular, do not use commercial
or industrial cleaning agents in conjunction with alu-
minium parts, e.g. grease filter on extractor hoods.
WARNING‒Risk of electric shock!
An ingress of moisture can cause an electric shock.
Before cleaning, pull out the mains plug or switch off
the fuse in the fuse box.
Do not use steam- or high-pressure cleaners to clean
the appliance.
WARNING‒Risk of burns!
The appliance becomes hot during operation.
Allow the appliance to cool down before cleaning.
WARNING‒Risk of injury!
Components inside the appliance may have sharp
edges.
Carefully clean the appliance interior.
1.
Observe the information regarding the cleaning
agents.
2.
Clean as follows, depending on the surface:
Clean stainless steel surfaces in the direction of the
finish using a sponge cloth and hot soapy water.
Clean painted surfaces using a damp sponge cloth
and hot soapy water.
Clean aluminium using a soft cloth and glass
cleaner.
Clean plastic using a soft cloth and glass cleaner.
Clean glass using a soft cloth and glass cleaner.
3.
Dry with a soft cloth.
4.
Apply a thin layer of the stainless steel cleaning
product to stainless steel surfaces using a soft cloth.
You can obtain stainless steel cleaning products from
the after-sales service or the online shop.
8.3 Cleaning controls
WARNING‒Risk of electric shock!
Penetrating moisture may cause an electric shock.
Do not use wet sponge cloths.
1.
Observe the information regarding the cleaning
agents.
2.
Clean using a damp sponge cloth and hot soapy wa-
ter.
3.
Dry with a soft cloth.
8.4 Removing the grease filter
1.
ATTENTION‒Falling grease filters may damage the
hob below.
Grip below the grease filter with one hand.
Open the locks on the grease filters.
2.
Remove the grease filters from the holders.
To prevent grease from dripping, hold the grease fil-
ter horizontally.
8.5 Cleaning grease filters manually
The grease filters filter the grease from the cooking va-
pour. Regularly cleaned grease filters guarantee a high
level of grease removal. We recommend cleaning the
grease filters every two months.
WARNING‒Risk of fire!
Fatty deposits in the grease filters may catch fire.
Clean the grease filters regularly.
Requirement: The grease filters have been removed.
"Removing the grease filter", Page8
1.
Observe the information regarding the cleaning
agents.
2.
Soak the grease filter in hot soapy water.
Use special grease solvent for stubborn dirt. You can
obtain grease solvents from customer service or the
online shop.
3.
Use a brush to clean the grease filters.
4.
Rinse the grease filters thoroughly.
5.
Allow the grease filters to drain.
8
Cleaning and servicing en
8.6 Cleaning grease filters in the dishwasher
The grease filters filter the grease from the cooking va-
pour. Regularly cleaned grease filters guarantee a high
level of grease removal. We recommend cleaning the
grease filters every two months.
WARNING‒Risk of fire!
Fatty deposits in the grease filters may catch fire.
Clean the grease filters regularly.
ATTENTION
The grease filters may become damaged if they are
squeezed in the dishwasher.
Do not squeeze the grease filters.
Note: When cleaning the grease filter in the dishwasher,
light discolouration may occur. This discolouration has
no effect on the performance of the metal grease filters.
Requirement: The grease filters have been removed.
"Removing the grease filter", Page8
1.
Observe the information regarding the cleaning
agents.
2.
Place the grease filters loosely into the dishwasher.
Do not clean heavily soiled grease filters with utensils.
Use special grease solvent for stubborn dirt. You can
obtain grease solvents from customer service or the
online shop.
3.
Start the dishwasher.
Select a temperature of no more than 70°C.
4.
Allow the grease filters to drain.
8.7 Fitting grease filters
ATTENTION
Falling grease filters may damage the hob below.
Grip below the grease filter with one hand.
1.
Fit the grease filters.
2.
Fold the grease filters upwards and engage the locks.
3.
Make sure that the locks engage.

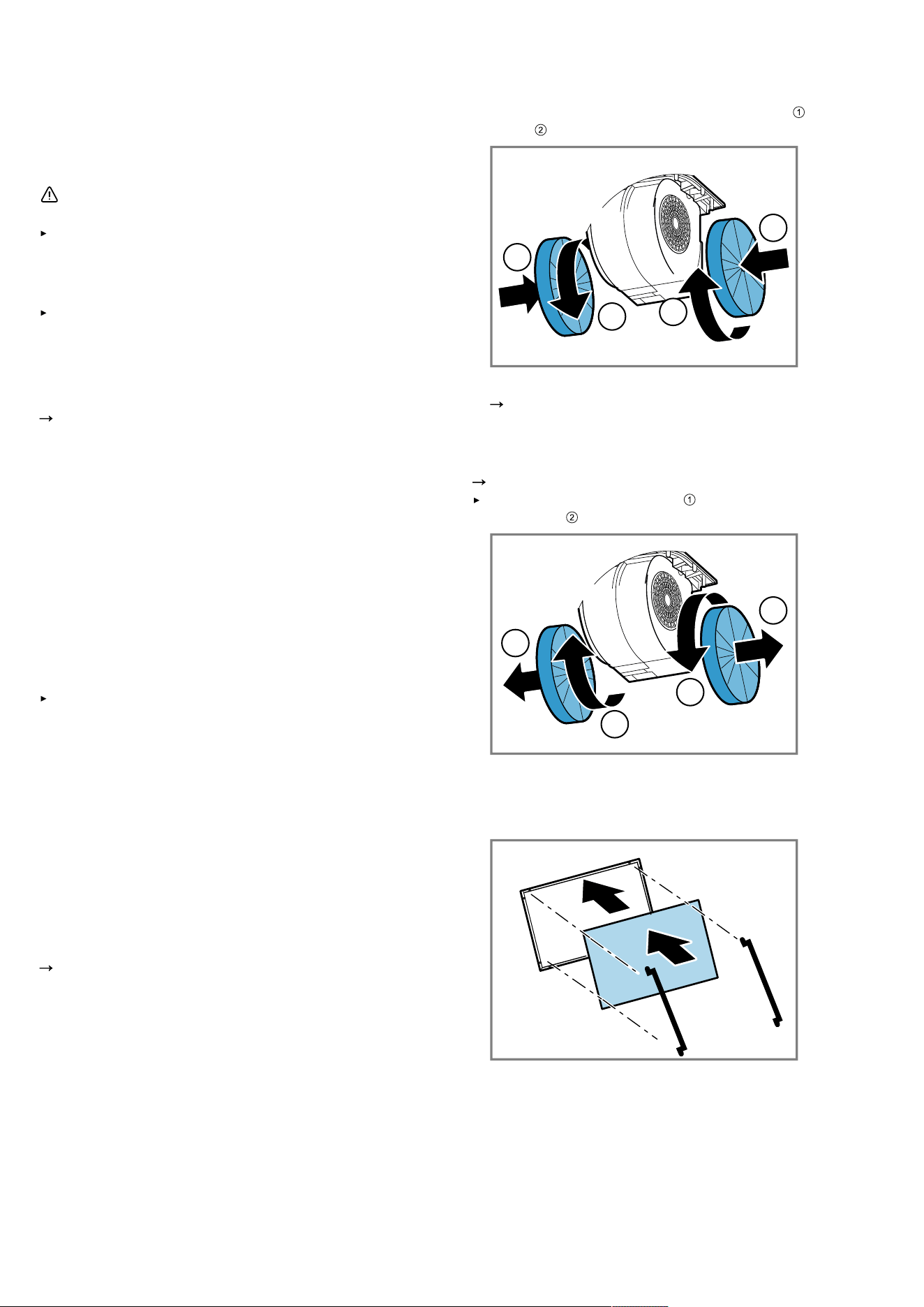

8.8 Odour filter for recirculating air mode
Odour filters bind odorous substances in air recircula-
tion mode. Regularly replaced odour filters guarantee a
high level of odour removal.
With normal use (approx.onehour a day), the odour fil-
ter must be replaced every 6 months. The odour filter
cannot be cleaned or regenerated.
You can obtain odour filters from the after-sales service
or the online shop. Only use original odour filters.
"Accessories", Page11
Fitting odour filters
1.
Push the new odour filters onto the holder and
rotate .
1
2
2
1
2.
Install the grease filters.
"Fitting grease filters", Page9
Removing odour filter
Requirement: The grease filters have been removed.
"Removing the grease filter", Page8
Rotate the old odour filters and remove them from
the holder .
1
1
2
2
Fitting odour filters
1.
Remove the grease filter.
2.
Place the odour filter onto the rear of the grease filter.
3.
Use both bars to secure the odour filter.
Removing the odour filter
1.
Remove the grease filter.
9
en Troubleshooting
2.
Remove the bars and the odour filter.
Troubleshooting9 Troubleshooting
You can rectify minor faults on your appliance yourself. Read the troubleshooting information before contacting after-
sales service. This will avoid unnecessary costs.
WARNING‒Risk of injury!
Improper repairs are dangerous.
Repairs to the appliance should only be carried out by trained specialist staff.
If the appliance is defective, call Customer Service.
"Customer Service", Page11
WARNING‒Risk of electric shock!
Improper repairs are dangerous.
Repairs to the appliance should only be carried out by trained specialist staff.
Only use genuine spare parts when repairing the appliance.
If the power cord of this appliance is damaged, it must be replaced by trained specialist staff.
9.1 Malfunctions
Fault Cause and troubleshooting
The appliance is not working. The mains plug of the power cord is not plugged in.
Connect the appliance to the power supply.
The circuit breaker in the fuse box has tripped.
Check the circuit breaker in the fuse box.
There has been a power cut.
Check whether the lighting in your room or other appliances are working.
The LED lighting does not work. The LED lamp is defective.
"Replacing the LED lights", Page10
9.2 Replacing the LED lights
WARNING‒Risk of electric shock!
When changing the bulb, the bulb socket contacts are
live.
Before replacing the bulb, ensure that the appliance
is switched off in order to prevent a potential electric
shock.
Also unplug the appliance from the mains or switch
off the fuse in the fuse box.
WARNING‒Risk of injury!
The light emitted by LED lights is very dazzling, and can
damage the eyes (risk group 1).
Do not look directly into the switched-on LED lights
for longer than 100seconds.

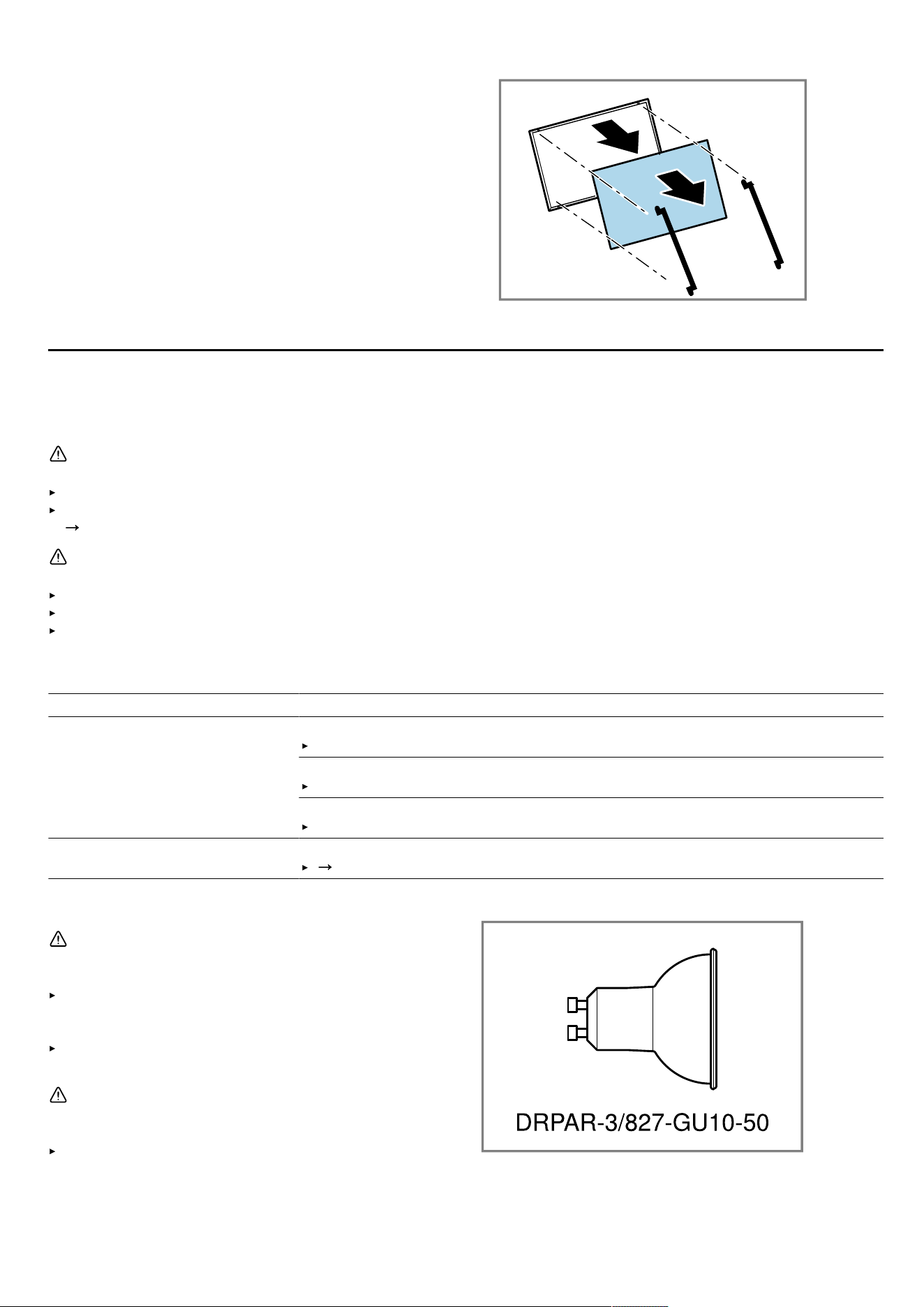

Note: Only use bulbs of the same type and wattage.
1.
Disconnect the appliance from the power supply.
2.
Remove the grease filters.
10
Disposal en
3.
Push the lamp out of the appliance from the rear.
4.
Turn the lamp a quarter turn anti-clockwise and re-
move it.
5.
Replace the lamp with one of the same type.
6.
Install the grease filters.
7.
Establish the power connection.
Disposal10 Disposal
10.1 Disposing of old appliance
Valuable raw materials can be reused by recycling.
1.
Unplug the appliance from the mains.
2.
Cut through the power cord.
3.
Dispose of the appliance in an environmentally
friendly manner.
Information about current disposal methods are avail-
able from your specialist dealer or local authority.
This appliance is labelled in accordance
with European Directive 2012/19/EU
concerning used electrical and elec-
tronic appliances (waste electrical and
electronic equipment - WEEE).
The guideline determines the framework
for the return and recycling of used ap-
pliances as applicable throughout the
EU.
Customer Service11 Customer Service
Detailed information about the warranty period and the
warranty conditions in your country is available via the
QR code on the enclosed document on service con-
tacts and warranty conditions, from our customer ser-
vice or on our website.
If you contact Customer Service, you will require the
product number (E-Nr.) and the production number (FD)
of your appliance.
You can find the contact details for our customer ser-
vice via the QR code on the enclosed document on ser-
vice contacts and warranty conditions or on our website.
11.1 Product number (E-Nr.) and production
number (FD)
You can find the product number (E-Nr.) and the pro-
duction number (FD) on the appliance's rating plate.
Depending on the model, the rating plate can be found:
Inside the appliance (remove grease filters for ac-
cess).
On top of the appliance.
Make a note of your appliance's details and the Cus-
tomer Service telephone number to find them again
quickly.
Accessories12 Accessories
You can buy accessories from the after-sales service,
from specialist retailers or online. Only use original ac-
cessories, as these have been specifically designed for
your appliance.
Accessories vary from one appliance to another. When
purchasing accessories, always quote the exact product
number (E no.) of your appliance.
Page11
You can find out which accessories are available for
your appliance in our catalogue, in the online shop or
from our after-sales service.
www.bosch-home.com
Accessories Order number
High performance odour
filter
DWZ6HK1H3
Odour filter DWZ6HK1H4
Grease filter DWZ6HK1E2
11
en Installation instructions
Installation instructions13 Installation instructions
Observe this information when installing the appliance.

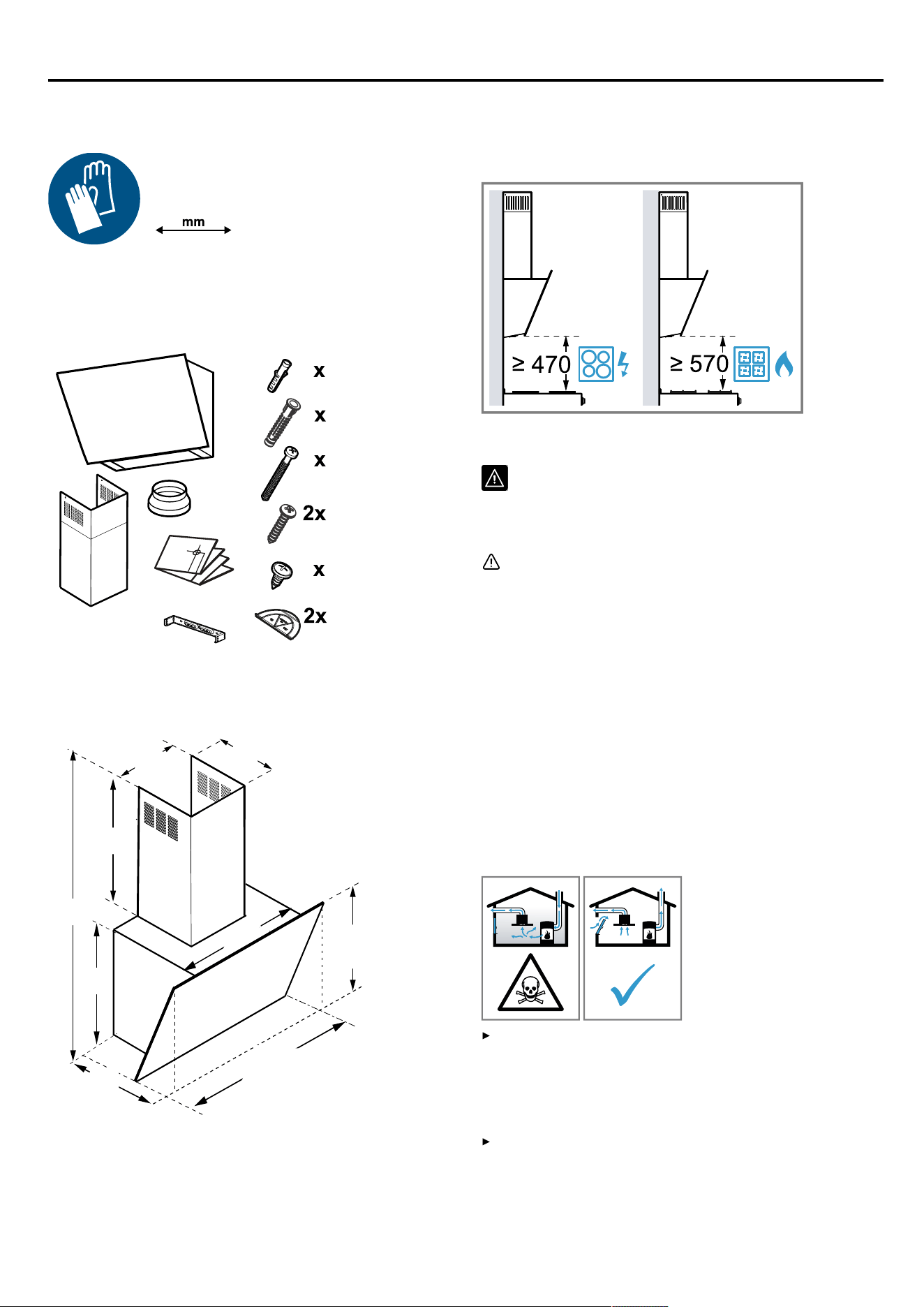

13.1 Scope of delivery
After unpacking all parts, check for any damage in
transit and completeness of the delivery.
ø6
2
ø8
4
4,8 x 60
3,9 x 22
3,5 x 9,5
4
4
1x
13.2 Appliance dimensions
You will find the dimensions of the appliance here
390/414
596/896
350
400
367/
411
166,5
213
525
750
13.3 Safety clearances
Comply with the safety clearances for the appliance.
For Australia and New Zealand the minimum safety
clearance above electrical cooktops must be 600 mm.
13.4 Secure installation
Follow these safety instructions when installing
the appliance.
WARNING‒Risk of poisoning!
Risk of poisoning from flue gases being drawn
back in. Room-air-dependent heat-producing
appliances (e.g. gas, oil, wood or coal-oper-
ated heaters, continuous flow heaters or water
heaters) obtain combustion air from the room
in which they are installed and discharge the
exhaust gases into the open through an ex-
haust gas system (e.g. a chimney). With the
extractor hood switched on, air is extracted
from the kitchen and the adjacent rooms.
Without an adequate supply of air, the air pres-
sure falls below atmospheric pressure. Toxic
gases from the flue or the extraction shaft are
sucked back into the living space.
Always ensure adequate fresh air in the
room if the appliance is being operated in
exhaust air mode at the same time as a
room-air-dependent heat-producing appli-
ance is being operated.
It is only possible to safely operate the appli-
ance if the pressure in the room in which the
heating appliance is installed does not drop
more than 4Pa(0.04mbar) below atmo-
spheric pressure. This can be achieved
12
Installation instructions en
whenever the air needed for combustion is
able to enter through openings that cannot
be sealed, for example in doors, windows,
incoming/exhaust air wall boxes or by other
technical means. An incoming/exhaust air
wall box alone does not ensure compliance
with the limit.
In any case, consult your responsible chim-
ney sweep. They are able to assess the
house's entire ventilation setup and will sug-
gest the suitable ventilation measures to
you.
Unrestricted operation is possible if the ap-
pliance is operated exclusively in circulating-
air mode.
Risk of poisoning from flue gases being drawn
back in.
If an extractor hood with an open-flued heat
production source is installed, the power
supply for the extractor hood must be
provided with a suitable safety switch.
Risk of poisoning from flue gases being drawn
back in.
Do not emit the exhaust air into a smoke or
exhaust gas flue that is in operation.
Do not emit the exhaust air into a shaft that
is used to ventilate installation rooms for
heat-producing appliances.
If the exhaust air is to be conveyed into a
smoke or exhaust gas flue, you must obtain
the consent of the heating engineer respons-
ible.
WARNING‒Risk of suffocation!
Children may put packaging material over their
heads or wrap themselves up in it and suffoc-
ate.
Keep packaging material away from chil-
dren.
Do not let children play with packaging ma-
terial.
WARNING‒Risk of fire!
Grease deposits in the grease filter may catch
fire.
The specified safety clearances must be
complied with in order to prevent a build-up
of heat.
Observe the specifications for your cooking
appliances. If the installation instructions for
the cooking appliances specify a different
clearance, the larger of the two must always
be provided for. If gas hobs and electric
hobs are operated together, the largest spe-
cified clearance applies.
The appliance must be installed with no
more than one side directly next to a high-
sided unit or a wall. The distance between
the appliance and wall or high-sided unit
must be at least 50mm.
The grease deposits in the grease filter may
catch fire.
Never work with naked flames close to the
appliance (e.g. flambéing).
Do not install the appliance near a heat-pro-
ducing appliance for solid fuel (e.g. wood or
coal) unless a closed, non-removable cover
is present. There must be no flying sparks.
WARNING‒Risk of injury!
Components inside the appliance may have
sharp edges.
Wear protective gloves.
The appliance may fall down if it has not been
properly fastened in place.
All fastening components must be fixed
firmly and securely in place.
Risk of injury from glass splinters.
Protect the filter cover against impact.
Do not drop the filter cover.
Wear protective goggles during installation.
The appliance is heavy.
To move the appliance, twopeople are re-
quired.
Use only suitable tools and equipment.
The appliance is heavy.
The appliance must not be fitted directly
onto plasterboard or similar lightweight ma-
terials.
To ensure correct installation, you must use
a material which is sufficiently stable and
suitable for both the structural conditions
and the weight of the appliance.
Changes to the electrical or mechanical as-
sembly are dangerous and may lead to mal-
functions.
Do not make any changes to the electrical
or mechanical assembly.
Risk of injury when opening and closing the
hinges.
Keep your hands away from the hinges.
WARNING‒Risk of electric shock!
Sharp-edged components inside the appliance
may damage the connecting cable.
Do not kink or trap the connecting cable.
If the appliance or the power cord is damaged,
this is dangerous.
Never operate a damaged appliance.
13
en Installation instructions
Never pull on the power cord to unplug the
appliance. Always unplug the appliance at
the mains.
If the appliance or the power cord is dam-
aged, immediately unplug the power cord or
switch off the fuse in the fuse box.
Call customer services.
Page11
Incorrect repairs are dangerous.
Repairs to the appliance should only be car-
ried out by trained specialist staff.
Only use genuine spare parts when repairing
the appliance.
If the power cord of this appliance is dam-
aged, it must be replaced by trained special-
ist staff.
Incorrect installation is dangerous.
Connect and operate the appliance only in
accordance with the specifications on the
rating plate.
Connect the appliance to a power supply
with alternating current only via a properly in-
stalled socket with earthing.
The protective conductor system of the do-
mestic electrical installation must be properly
installed.
Never equip the appliance with an external
switching device, e.g. a timer or remote con-
trol.
When the appliance is installed, the mains
plug of the power cord must be freely ac-
cessible. If free access is not possible, an
all-pole isolating switch must be installed in
the permanent electrical installation accord-
ing to the conditions of Overvoltage Cat-
egory III and according to the installation
regulations.
When installing the appliance, check that the
power cable is not trapped or damaged.
13.5 Instructions for the electrical
connection
In order to safely connect the appliance to the electrical
system, follow these instructions.
WARNING‒Risk of electric shock!
It must always be possible to disconnect the appliance
from the electricity supply. The appliance must only be
connected to a protective contact socket that has been
correctly installed.
The mains plug for the mains power cable must be
easily accessible after the appliance is installed.
If this is not possible, an all-pole isolating switch must
be integrated into the permanent electrical installation
according to the conditions of overvoltage category III
and according to the installation regulations.
The permanent electrical installation must only be
wired by a professional electrician. We recommend
installing a residual-current circuit breaker (RCCB) in
the appliance's power supply circuit.
Sharp-edged components inside the appliance may
damage the connecting cable.
Do not kink or trap the connecting cable.
The connection data can be found on the rating plate.
Page11
The connecting cable is approx.1.10m long.
This appliance complies with the EC interference sup-
pression regulations.
The appliance corresponds to protection class 1. You
should therefore only use the appliance with a pro-
tective earth connection.
Do not connect the appliance to the power supply
during installation.
Ensure that the protection against contact is guaran-
teed during installation.
13.6 Information on the installation situation
Install this appliance on the kitchen wall.
To install additional special accessory parts, observe
the enclosed installation instructions.
The width of the extractor hood must correspond at
least with the width of the hob.
To optimally detect the cooking vapours, install the
appliance in the middle of the hob.
13.7 Instructions for the exhaust air pipe
The appliance manufacturer does not provide any war-
ranty for faults attributable to the pipeline.
Use a short, straight exhaust air pipe with as large a
pipe diameter as possible.
Long, rough exhaust air pipes, many pipe bends or
small pipe diameters reduce the suction power and
increase the fan noise.
Use an exhaust air pipe that is made of non-combust-
ible material.
To prevent condensate from returning, fit the exhaust
pipe with a 1° gradient from the appliance.
Flat ducts
Use flat ducts with an inner cross-section that corres-
ponds to the diameter of the round pipes:
Diameter of 150mm corresponds to ap-
prox.177cm².
Diameter of 120mm corresponds to ap-
prox.113cm².
Use sealing strips for different pipe diameters.
Do not use any flat ducts with sharp bends.
Round pipes
Use round pipes with an inner diameter of 150mm (re-
commended) or at least 120mm.
13.8 Instructions for the air extraction mode
For air extraction mode, a one-way flap should be in-
stalled.
Notes
If a one-way flap is not included with the appliance,
one can be ordered from a specialist retailer.
14
Installation instructions en
If the exhaust air is conveyed through the external
wall, a telescopic duct should be used.
13.9 Information about circulating-air mode
The appliance must only be operated when it is securely
installed and the pipework is connected.
13.10 General information
Follow these general instructions during the installation.
For the installation, observe the currently valid build-
ing regulations and the regulations of the local electri-
city and gas suppliers.
When discharging the exhaust air, the official and
legal regulations, such as the regional building code.,
must be observed.
In order to freely access the appliance for servicing,
select an easy-to-reach installation site.
The surfaces of the appliance are sensitive. Avoid
damaging them during installation.
13.11 Installation
Checking the wall
1.
Check whether the wall is vertical and has sufficient
load-bearing capacity.
The maximum weight of the appliance is 13kg.
The wall is sufficiently robust.
Drill the hole depth in accordance with the length of
the screws.
The wall plugs must have a secure grip.
The enclosed screws and wall plugs are suitable for
securing the appliance to the following walls: Solid
brickwork, plasterboard, porous concrete, poroton
bricks.
Note: When drilling holes, always check the wall's stabil-
ity before the unit is attached to the wall. If the wall is
not sufficient stability, the appliance cannot be mounted.
Preparing the wall
1.
Ensure that there are no electrical wires, gas pipes or
water pipes in the area where holes are to be drilled.
2.
Cover the hob to prevent damage.
3.
Mark a vertical centre line on the wall from the ceiling
to the bottom edge of the appliance.
4.
Use the drilling template to measure and mark the
positions of the fastening screws.
The bottom edge of the appliance is identical to the
bottom edge of the drilling template.
5.
Drill the holes.
6.
Insert the wall plugs flush with the wall.
7.
Screw in the screws for the appliance bracket loosely;
do not tighten them fully.
4,8
60
8
4
8.
Place the angle bracket for the flue duct section on
the centre line so that it is flush with the ceiling.
Measure and mark the drill holes for the fastening
screws.
9.
Drill the holes.
10.
Insert the wall plugs flush with the wall.
11.
Screw on the angle bracket for the flue duct section.
6
3,9
22
15
en Installation instructions
Preparing the appliance
When starting up in air extraction, install the backflow
flap, if required.
Note: The backflow flap is a separate accessory part
that is not included in the scope of delivery for all mod-
els.

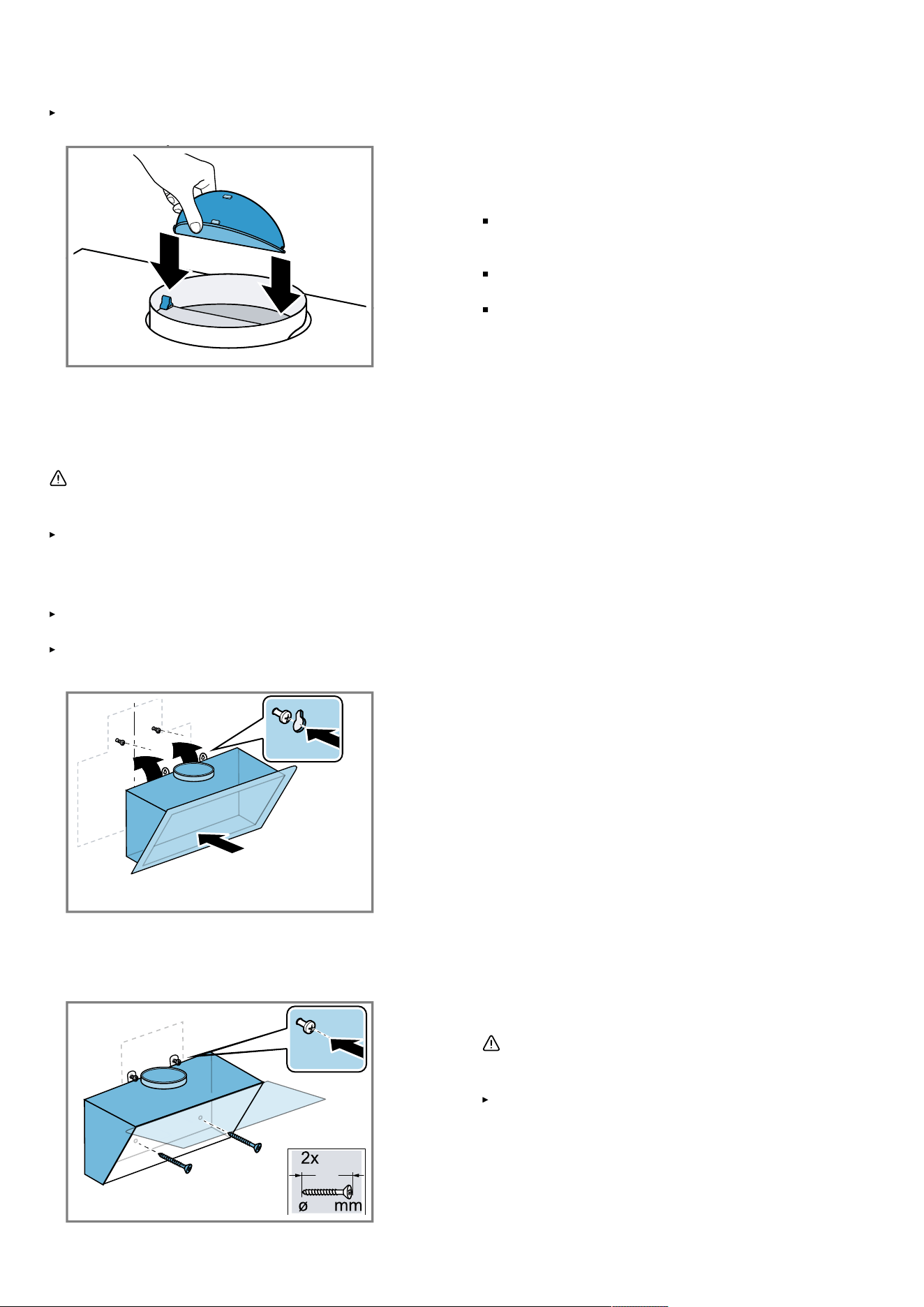

Installing the appliance
WARNING‒Risk of injury!
Components inside the appliance may have sharp
edges.
Wear protective gloves.
ATTENTION
If the glass flap is opened too far and the hinges over-
stretch, the appliance may be damaged.
Do not push the glass flap upwards beyond the end
stop.
Do not overstretch the hinges.
1.
Hook on the appliance.
2.
Open the glass flap.
3.
Align the appliance horizontally using screws and
screw it in tightly.
4.
Attach and screw in the two additional safety screws.
4,8
60
5.
Insert the grease filter.
To avoid causing damage, do not bend the grease fil-
ters.
6.
Close the glass flap.
Piping
Circulating-air mode
If you are operating the appliance in circulating-air
mode, please observe the information about the cir-
culating air special accessory.
We recommend piping with an exhaust air pipe dia-
meter of 150mm.
If the diameter of the air extraction ducting is less
than 150 mm, you need a separately available reduc-
tion fitting.
Note: If you are using an aluminium pipe, smooth the
connection area beforehand.
Establishing the exhaust air connection (exhaust pipe,
150mm diameter)
1.
Secure the exhaust pipe to the air pipe connector.
2.
Establish the connection to the exhaust air opening.
3.
Seal the joints.
Establishing the exhaust air connection (exhaust pipe,
120mm diameter)
1.
Secure the reducing connector to the air-pipe con-
nector.
2.
Secure the exhaust pipe to the air pipe connector.
3.
Establish the connection to the exhaust air opening.
4.
Seal the joints.
Establishing the exhaust air connection
(exhaust pipe, 150mm diameter)
1.
Secure the exhaust pipe to the air pipe connector.
2.
Establish the connection to the exhaust air opening.
3.
Seal the joints.
Establishing the exhaust air connection
(exhaust pipe, 120mm diameter)
1.
Secure the reducing connector to the air-pipe con-
nector.
2.
Secure the exhaust pipe to the air pipe connector.
3.
Establish the connection to the exhaust air opening.
4.
Seal the joints.
Connecting to the power supply
1.
Insert the mains plug into the protective contact
socket.
2.
If a fixed connection is required, follow the instruc-
tions in the section .
Fitting the flue duct
WARNING‒Risk of injury!
Components inside the appliance may have sharp
edges.
Wear protective gloves.
Note: In air recirculation, the circulating-air guide must
be installed before the flue duct section is installed. You
can find information about installing the circulating-air
guide in the installation instructions for the accessory.
16
Installation instructions en

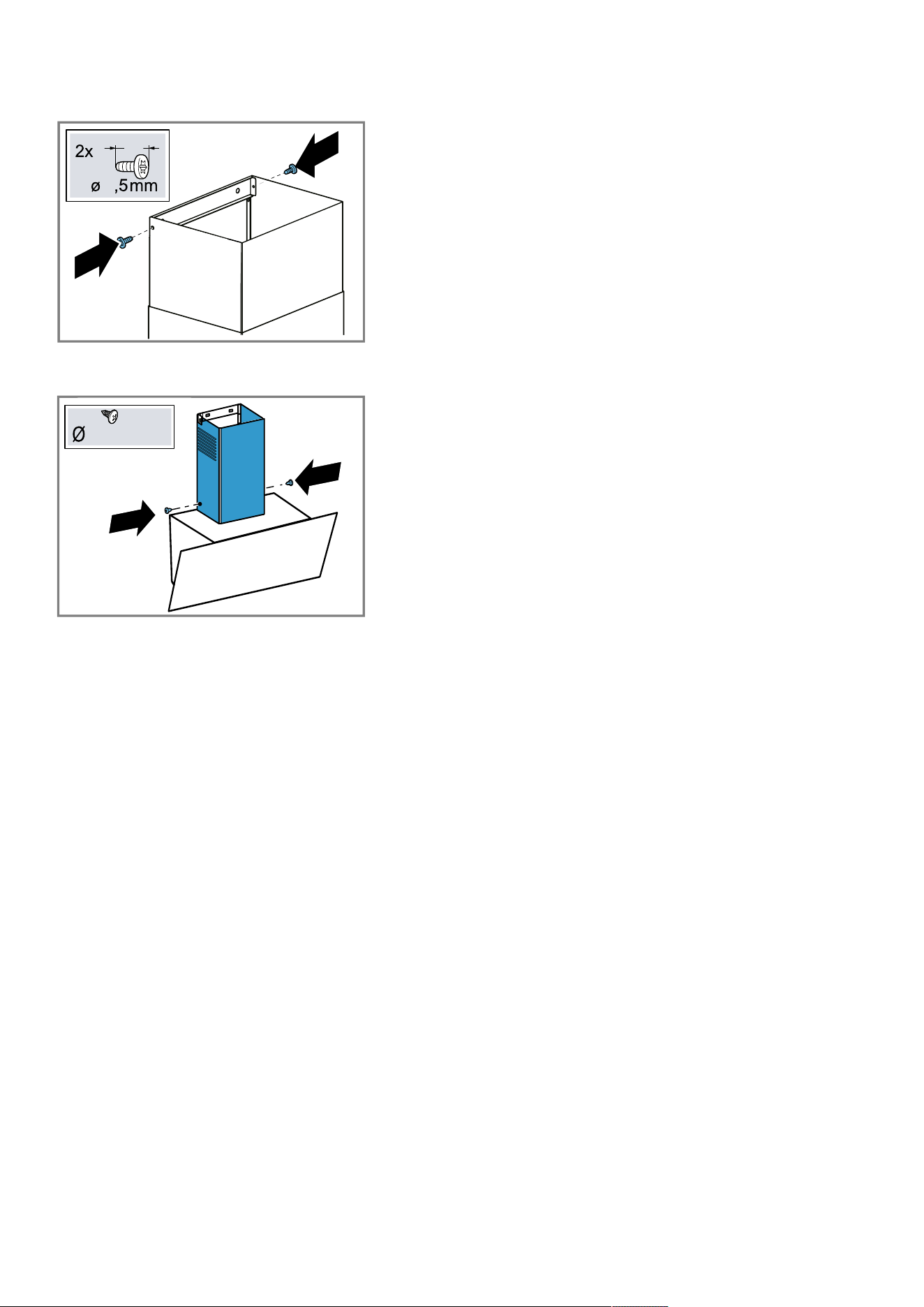

1.
Screw the flue duct section to the side of the angle
bracket.
3
9,5
2.
Screw the flue duct sections to the bottom of the ap-
pliance.
2x
3,5 x 9,5
Removing the appliance
1.
Remove the flue duct.
2.
Disconnect the appliance from the power supply.
3.
Loosen the exhaust pipe.
4.
Remove the filter.
To avoid causing damage, do not bend the grease fil-
ters.
5.
Loosen the screws for the appliance bracket slightly
but do not undo them fully.
6.
Remove the appliance.
7.
Loosen the angle bracket for the flue duct.
17
Thank you for buying a
Bosch Home Appliance!
Register your new device on MyBosch now and profit directly from:
• Expert tips & tricks for your appliance
• Warranty extension options
• Discounts for accessories & spare-parts
• Digital manual and all appliance data at hand
• Easy access to Bosch Home Appliances Service
Free and easy registration – also on mobile phones:
www.bosch-home.com/welcome
Looking for help?
You'll find it here.
Expert advice for your Bosch home appliances, help with problems
or a repair from Bosch experts.
Find out everything about the many ways Bosch can support you:
www.bosch-home.com/service
Contact data of all countries are listed in the attached service directory.
BSH Hausgeräte GmbH
Carl-Wery-Straße 34
81739 München, GERMANY
www.bosch-home.com
A Bosch Company
Valid within Great Britain:
Imported to Great Britain by
BSH Home Appliances Ltd.
Grand Union House
Old Wolverton Road
Wolverton, Milton Keynes
MK12 5PT
United Kingdom
*9001935876*
9001935876 (050611)
en
