Tri-Band Wi-Fi 7 Range Extender
User Guide
Contents
About This Guide 1
Chapter 1 Get to Know About Your Extender 4
1. 1. Product Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1. 2. Appearance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1. 2. 1. LED Explanation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1. 2. 2. Button Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Chapter 2 Set Up Internet Connection 8
2. 1. Power On the Extender . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2. 2. Set Up the Extender . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2. 2. 1. Method 1: Via the TP-Link Tether App. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2. 2. 2. Method 2: Via a Web Browser. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2. 2. 3. Method 3: Via the WPS Button. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Chapter 3 EasyMesh with Seamless Roaming 18
3. 1. What‘s an EasyMesh Network. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
3. 2. How to Set Up an EasyMesh Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Chapter 4 TP-Link Cloud Service 21
4. 1. Register a TP-Link ID. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
4. 2. Change Your TP-Link ID Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
4. 3. Manage the User TP-Link IDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
4. 3. 1. Add TP-Link ID to Manage the Extender . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
4. 3. 2. Remove TP-Link ID(s) from Managing the Extender . . . . . . . . . . . . . . . . . . . 24
4. 4. Manage the Extender via the TP-Link Tether App . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Chapter 5 Customize Your Network 26
5. 1. Check Internet Status. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
5. 2. Configure Wireless Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
5. 3. Change LAN Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
5. 4. Specify DHCP Server Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
5. 5. Adjust Wi-Fi Coverage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
5. 6. Set Access Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Chapter 6 Use Your Extender as an Access Point 38
6. 1. Set Up the Extender as an Access Point. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
6. 2. Connect Wireless Devices to the Extender . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Method 1: Connect to the extender manually. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Method 2: Connect to the extender via WPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
6. 3. LED Explanation for the Access Point Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Chapter 7 Manage Your Extender 44
7. 1. Set System Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
7. 2. Control LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
7. 3. Set Power Schedule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
7. 4. Upgrade the Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
7. 5. Backup and Restore Configuration Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
7. 6. Change Login Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
7. 7. Check System Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
FAQ 53
1
About This Guide
This guide is a complement to Quick Installation Guide. The Quick Installation Guide
provides instructions for quick internet setup, while this guide contains details of each
function and demonstrates how to configure them.
Note: Features available in this range extender may vary by model and software
version. Range extender availability may also vary by region or ISP. All images, steps,
and descriptions in this guide are only examples and may not reflect your actual range
extender experience.
Conventions
In this guide the following conventions are used:
Convention Description
Underline
Underlined words or phrases are hyperlinks. You can click to redirect to a website
or a specific section.
Teal
Contents to be emphasized and texts on the web page are in teal, including the
menus, items, buttons and so on.
>
The menu structures to show the path to load the corresponding page. For example,
Settings > System Tools > Firmware Upgrade means the Firmware Upgrade page is
under the System Tools menu that is located in the Settings tab.
Note:
Ignoring this type of note might result in a malfunction or damage to the device.
Tip:
Indicates important information that helps you make better use of your device.
More Info
The latest software, management app and utility are available from Download Center at
https://www.tp-link.com/support.
The Quick Installation Guide can be found where you find this guide or inside the
package of the extender.
Operating temperature, storage temperature, and other specifications can be found on
the product page at https://www.tp-link.com.
TP-Link Community is provided for you to discuss our products and share knowledge at
https://community.tp-link.com/.
Our Technical Support contact information can be found at the Contact Technical
Support page at https://www.tp-link.com/support.
Disclaimer
†
Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11
specifications. Higher capacity is based on laboratory test data, which analyzed the
connections of different devices on the 6 GHz, 5 GHz, and 2.4 GHz bands simultaneously.
These devices simulated a typical home scenario by running simultaneous applications
in the same room that included 4K video, 1080p video, 720p video, file downloading, web
browsing, IP cameras, and other IoT devices. Actual wireless data throughput, wireless
2
coverage, and connected devices are not guaranteed and will vary as a result of internet
service provider factors, network conditions, client limitations, and environmental
factors, including building materials, obstacles, volume and density of traffic, and client
location. The 160 MHz bandwidth might not be available on the 5 GHz band, and the 320
MHz bandwidth might not be available on the 6 GHz band in some regions/countries
due to regulatory limits on the spectrum, hence the theoretical speeds may vary.
‡
The product may not be compatible with routers or gateways with firmware that has
been altered, is based on open source programs, or is non-standard or outdated.
§
Uninterrupted Streaming is designed for devices that support the 802.11k/v standard.
△
Use of Wi-Fi 7 (802.11be), Wi-Fi 6 (802.11ax), and features including Multi-Link Operation
(MLO), 320 MHz Bandwidth, 4K-QAM, Multi-RU, OFDMA, and MU-MIMO requires clients
to also support the corresponding features. The 320 MHz bandwidth is only available
on the 6 GHz band. Simultaneously, the 320 MHz bandwidth on the 6 GHz band and 160
MHz bandwidth on the 5 GHz band may be unavailable in some regions/countries due
to regulatory restrictions. Double channel width and speed refer to 320 MHz compared
to 160 MHz for Wi-Fi 6 range extenders.
*TP-Link EasyMesh-compatible products can network with other devices that use
EasyMesh. Failed connections may be due to firmware conflicts of different vendors.
The EasyMesh-compatible feature is still being developed on some models and will
be supported in subsequent software updates. This product is compatible with
standardized EasyMesh technology but has not obtained the Wi-Fi EasyMeshTM
certification.
**Unified management is available for TP-Link EasyMesh-compatible devices. This
feature is not guaranteed for devices from other vendors.
***Wi-Fi generations represent the wireless standard IEEE 802.11 a/b/g/n/ac/ax/be. All
devices need to support 802.11 Wi-Fi protocols.
◇
Use of WPA3 requires clients to also support the corresponding feature.
☆
4× Lower Latency refers to the latency improvement of Wi-Fi 7 range extenders
compared to Wi-Fi 6/6E range extenders, based on laboratory test data. The test
conditions had the same 5 GHz or 6 GHz single-frequency wireless interference and
tested the maximum latencies of Wi-Fi 7 clients (with MLO turned on) connecting to the
5 GHz and 6 GHz bands of the range extender (with MLO turned on) simultaneously and
to the 5 GHz or 6 GHz bands of a Wi-Fi 6/6E range extender (without the MLO function).
Actual network speed may be limited by the rate of the product’s Ethernet WAN or LAN
port, the rate supported by the network cable, internet service provider factors, and
other environmental conditions.
This range extender may not support all the mandatory features as ratified in the IEEE
802.11be specification.
3
Further software upgrades for feature availability may be required.
Pictures are for reference only. If there are any inconsistencies between the product
image and the actual product, the actual product shall prevail.
5
Chapter 1
Get to Know About Your Extender
1 1 Product Overview
Eliminate Wi-Fi Dead Zones with Unrivaled Wi-Fi 7
WiFi 7 offers accelerated throughput, lower latency, stronger anti-jamming, and higher
efficiency.
· Simultaneous Tri-Band: Separate Wi-Fi bands enable more devices to connect to
your network without a drop in performance
· Reliable Connection: External antennas for optimal Wi-Fi coverage and reliable
wireless connections
· Ultra-Low Latency: Take advantage of ultra-low latency to enjoy smoother online
experience
Easy Installation & Quick Position
The extender works with any standard wireless router. Instantly connect the extender
to a router by pressing the router’s WPS button (if available) followed by the extender’s
WPS button. Alternatively, follow the Quick Setup instructions on the extender’s web
management page.
Once the extender is connected to a router, you can relocate it to your preferred location
with no further configuration required. The intelligent signal light can help to find the
best location.
Control at Your Fingertips
Set up and manage your WiFi, including TP-Link routers and range extenders, from your
Android or iOS phone with the TP-Link Tether app.
6
Chapter 1
Get to Know About Your Extender
1 2 Appearance
1 2 1 LED Explanation
You can check the extender’s working status by following the LED Explanation table.
Name Status Indication (For Range Extender Mode)
(Power)
On/Off The extender is on or off.
Blinking The system is starting up or firmware is being upgraded.
7
Chapter 1
Get to Know About Your Extender
Name Status Indication (For Range Extender Mode)
(Signal)
Solid blue
The extender is connected to your router’s wireless
network and is in a suitable location.
Solid red
The extender is receiving a weak signal. Try relocating it
closer to your host router.
Blinking WPS connection is in progress.
Off No wireless connection is established.
2.4G On/Off
The extender is connected or not connected to the
2.4GHz wireless network of your host router.
5G On/Off
The extender is connected or not connected to the 5GHz
wireless network of your host router.
6G On/Off
The extender is connected or not connected to the 6GHz
wireless network of your host router.
1 2 2 Button Description
Button Description
(WPS)
Press the WPS button on your host router, and immediately press
this button on the extender for 1 second. The LED of the extender
should change from blinking to solid on, indicating successful WPS
connection.
Reset Use a pin to press the button for 1 second to reset the extender.
9
Chapter 2
Set Up Internet Connection
2 1 Power On the Extender
Plug the extender into an electrical outlet next to your router, and then wait until the
Power LED turns solid on.
Note: For safety, only plug the extender in upright direction as shown below.
Solid On
2 2 Set Up the Extender
There are three ways to set up the extender: via the TP-Link Tether app, via a web
browser, or via the WPS button.
2 2 1 Method 1: Via the TP-Link Tether App
1. Launch the Apple App Store or Google Play Store and search TP-Link Tether or simply
scan the QR code to download and install the app.
OR
2. Launch the Tether app and log in with your TP-Link ID.
Note: If you don’t have a TP-Link ID, create one first.
3. Tap the + icon on the upper-right corner and select Add a Range Extender.
Add Device
Create a new Wi-Fi network.
Add a Router
Extend your existing wireless network
with a range extender.
Add a Range Extender
>
>
10
Chapter 2
Set Up Internet Connection
4. Follow app instructions to set up your extender.
If the extender connects to a EasyMesh router, it will copy the router’s wireless settings
for seamless roaming. For more information about EasyMesh, refer to EasyMesh with
Seamless Roaming.
5. Follow app instructions to relocate your extender.
Tip:
For more intuitive location assistance, access extender settings via Tether and go to Tools > Location Assistant. You
can also manage your extender via Tether, such as controlling LEDs, sharing passwords of your networks and blocking
devices.
6. Enjoy! Connect your devices to the extender wirelessly or via an Ethernet cable, then
enjoy the internet.
Laptop
Smartphone
Tablet
Smart TV
Game Console
Desktop
Connect to
2.5Gbps
Ethernet Port
Router
2 2 2 Method 2: Via a Web Browser
1. Connect your computer to the extender wirelessly as follows:
• For Windows Users
1 ) Unplug the Ethernet cable from your computer (if any).
2 ) Click the Wi-Fi icon on the taskbar and connect to the extender’s wireless
network: TP-Link_Extender.
C
onnections are available
Wireless Network
C
onnection
TP-Link_Extender
Connect automatically
Connect
√
√
• For Mac OS X Users
1 ) Unplug the Ethernet cable from your computer (if any).
2 ) Click the Wi-Fi icon in the top right corner of the screen, and connect to the
extender’s network: TP-Link_Extender.
11
Chapter 2
Set Up Internet Connection
Wi-Fi: On
Tu rn Wi-Fi O
Join Other Network...
Create Network...
Open Network Preferences...
TP-Link_Extender
2. Follow the instructions of the Quick Setup Wizard to connect the extender to your
host router.
1 ) Launch a web browser, enter http://www.tplinkrepeater.net or
http://192.168.0.254 in the address bar, and then create a password to log in.
Note:
If the login window does not appear, please refer to FAQ.
2 ) Select your host router’s 5GHz SSID (network name), enter its password (NOT
the password you just created for management), and click Next.
12
Chapter 2
Set Up Internet Connection
Note:
If your host router does not support 5GHz wireless network, please click Skip to continue.
3 ) Select your host router’s 6GHz SSID (network name), enter its password (NOT
the password you just created for management), and click Next.
4 ) Select your host router’s 2.4GHz SSID (network name), enter its password (NOT
the password you just created for management), and click Next.
13
Chapter 2
Set Up Internet Connection
5 ) Confirm your host network password.
6 ) Either keep the default SSIDs (network names) or customize them for the
extended networks, and then click Next.
Tip:
14
Chapter 2
Set Up Internet Connection
If you connect the extender to a TP-Link EasyMesh router, the extender will automatically join the router’s EasyMesh
network and copy the router’s wireless settings. For more information, refer to EasyMesh with Seamless Roaming.
7 ) Follow web instructions to relocate your extender for optimal Wi-Fi coverage
and performance, and then click Done.

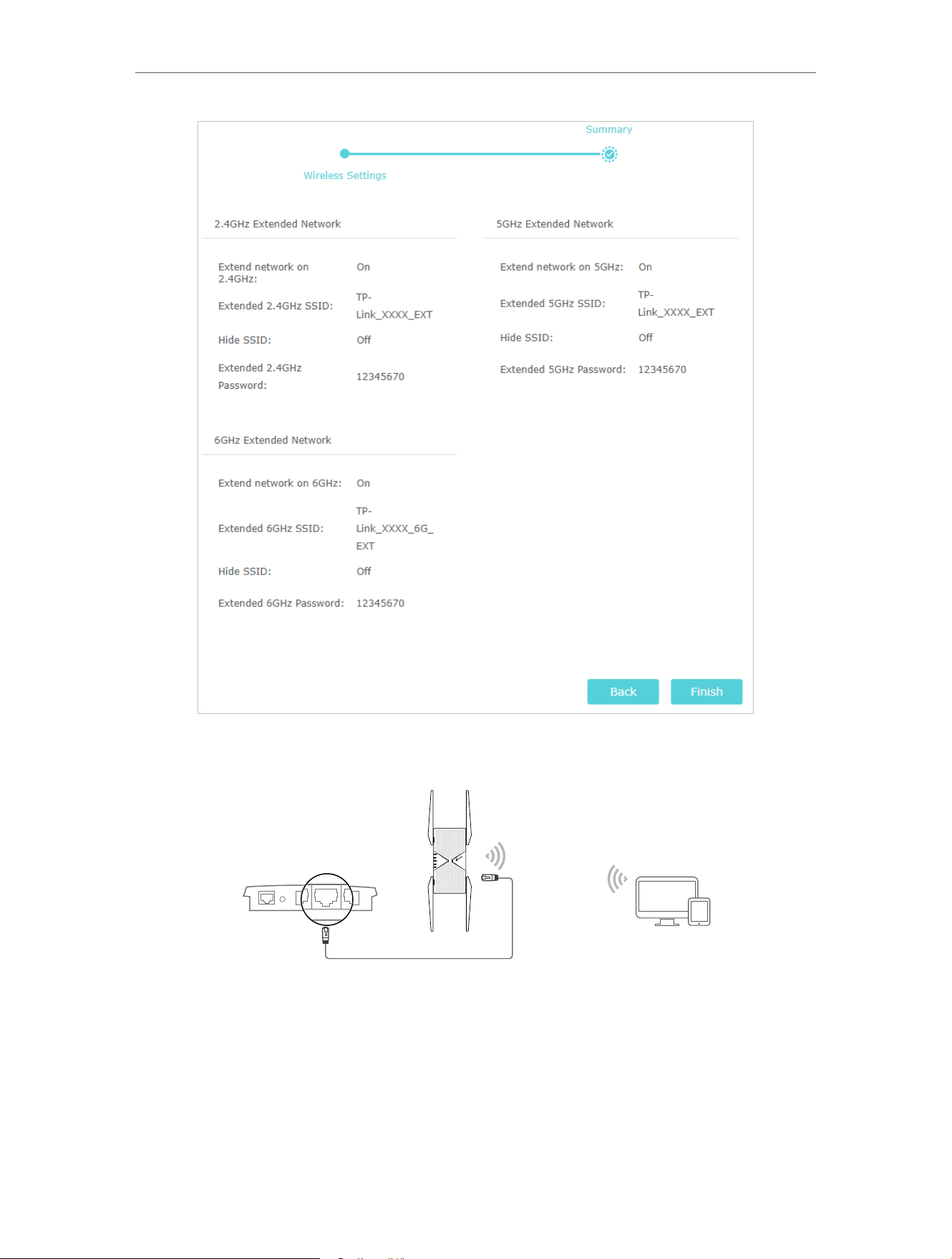

8 ) Note down your extended network information and finish the setup.
15
Chapter 2
Set Up Internet Connection
9 ) Enjoy! Connect your devices to the extender wirelessly or via an Ethernet cable,
then enjoy the internet.
Laptop
Smartphone
Tablet
Smart TV
Game Console
Desktop
Connect to
2.5Gbps
Ethernet Port
Router
2 2 3 Method 3: Via the WPS Button
Use this way if your router has a WPS button. The button might look like one of these:
.
1. Activate the WPS function on your router by pressing the WPS button.
Note:
If you don’t know how to do it, refer to your router’s user manual, or you can use other methods to set it up.
16
Chapter 2
Set Up Internet Connection
2. Within 2 minutes, press the WPS button on the extender for 1 second, and the LED
starts blinking. Wait for the LED, 2.4GHz, 5GHz LEDs to turn solid blue, indicating
a successful connection.
Note:
If the LED does not turn solid on, try again or refer to Method 1: Via the TP-Link Tether App or Method 2: Via a Web
Browser.
3. If the extender connects to a dual band router, repeat steps 1 and 2 above to connect
to the other band. Wait until the Signal LED turns solid on, and the setup is done.
Extended Network Names:
Router’s network name with
_EXT
at the end
or
Same as your EasyMesh router
Passwords:
Same as your router
Solid On
Note:
If you want to customize the extended network name, refer to Configure Wireless Network.
If you cannot find the network names with _EXT in your Wi-Fi network list, this means
that the extender has been connected to a EasyMesh router and automatically copied
its wireless settings. For more information, refer to EasyMesh with Seamless Roaming.
4. Relocate your extender for optimal Wi-Fi coverage and performance.
1 ) Plug in the extender about halfway between your router and the Wi-Fi dead zone.
The location you choose must be within the range of your router.
2 ) Wait for about 2 minutes until the Signal LED turns solid blue. If it doesn’t,
relocate the extender closer to the router to achieve better signal quality.
Router Devices
Halfway
Suitable location
Too far from router
No connection
Tip:
To minimize signal interference, please choose a location which is far away from Bluetooth devices and other
household electronic devices, such as cordless phones, microwave ovens and baby monitors.
5. Enjoy! Connect your devices to the extender wirelessly or via an Ethernet cable, then
enjoy the internet.
17
Chapter 2
Set Up Internet Connection
Laptop
Smartphone
Tablet
Smart TV
Game Console
Desktop
Connect to
2.5Gbps
Ethernet Port
Router
19
Chapter 3
EasyMesh with Seamless Roaming
3 1 What‘s an EasyMesh Network
TP-Link EasyMesh router and TP-Link EasyMesh extenders work together to form one
unified Wi-Fi network. Walk through your home and stay connected with the fastest
possible speeds thanks to EasyMesh’s seamless coverage.
Note:
• Routers and range extenders must be compatible with EasyMesh or OneMesh™. Firmware upgrades may be
required.
• TP-Link EasyMesh-compatible products can network with other devices that use EasyMesh. Failed connections
may be due to firmware conflicts of different vendors.
• The EasyMesh-Compatible function is still being developed on some models and will be supported in subsequent
software updates.
2 4 GHz
5 GHz
6 GHz
Internet
Range Extender
Router
Flexible Scalability
Flexibly scale your home networking with different vendors,* different topologies,
different Protocols and different product categories.
Seamless Roaming
Connects mobile devices to your routers or extenders that provide the best coverage.
Devices compatible with EasyMesh also share a single Wi-Fi name so you stay
connected in every room.
One-Click Settings
Press the WPS button on the main router and the satellite device within 2 minutes of
each other, then the EasyMesh network will set up.
For more information, visit https://www.tp-link.com/easymesh/.
20
Chapter 3
EasyMesh with Seamless Roaming
3 2 How to Set Up an EasyMesh Network
1. Make sure your router supports EasyMesh or OneMesh
TM
.
Note: To check full list of EasyMesh devices, visit https://www.tp-link.com/EasyMesh/compatibility. Firmware
update may be required for some firmware versions.
2. Connect the extender to your router by referring to the provided Quick Installation
Guide or Set Up Internet Connection. The extender will automatically join your router’s
mesh network.
Note: Alternatively, you can add your range extender to an EasyMesh network via a wired connection. First, restore
your range extender to its default settings. Then, use an Ethernet cable to connect it to your router’s LAN port. Wait
for your range extender’s Signal LED to turn solid blue, which indicates a successful connection.
3 How to Manage an EasyMesh Network
• To leave or join a EasyMesh network:
1. Visit http://www.tplinkrepeater.net, and log in with the password you set for the
extender.
2. Go to Settings > EasyMesh.
3. Toggle off or on EasyMesh according to your needs.
Note: This function is available only when the extender is connected to a EasyMesh router.
• To change wireless settings:
Simply change wireless settings on your EasyMesh router, the extender will automatically
copy the settings.
• To manage devices in the EasyMesh network:
1. Connect your computer or smartphone to the extender‘s or router’s network.
2. Log in to your router’s web management page (http://tplinkwifi.net).
3. Go to the EasyMesh page to view and manage all mesh devices and their clients.
Chapter 4
TP-Link Cloud Service
TP-Link Cloud service provides a better way to manage your cloud devices. Log in to
your cloud device with a TP-Link ID, and you can easily monitor and manage your home
network when you are out and about via the Tether app on your smartphone or tablet.
To ensure that your cloud device stays new and gets better over time, the TP-Link
Cloud will notify you when an important firmware upgrade is avaliable. Surely you can
also manage multiple TP-Link Cloud devices with a single TP-Link ID.
This chapter introduces how to register a new TP-Link ID, bind or unbind TP-Link IDs
to manage your cloud device, and the Tether app with which you can manage your
home network no matter where you may find yourself.
It contains the following sections:
• Register a TP-Link ID
• Change Your TP-Link ID Information
• Manage the User TP-Link IDs
• Manage the Extender via the TP-Link Tether App
22
Chapter 4
TP-Link Cloud Service
4 1 Register a TP-Link ID
When you log in after initial setup, the web page will ask whether you need TP-Link
Cloud service. You can also access the TP-Link Cloud settings as follows:
1. Visit http://www.tplinkrepeater.net, and log in with the password you set for the
extender.
2. Go to Settings > TP-Link Cloud.
3. Click Register Now and follow the instructions to register a TP-Link ID.
4. After activating your TP-Link ID, come back to the TP-Link Cloud page to log in. The
TP-Link ID used to log in to the extender for the first time will be automatically bound
as an Admin.
Notes:
• To learn more about the Admin and User TP-Link ID, refer to Manage the User TP-Link IDs.
• Once you have registered a TP-Link ID on the web management page, you can only register another TP-Link ID via the
Tether APP. Please refer to Manage the Extender via the TP-Link Tether App to install the app and register a new one.
• If you want to unbind the admin TP-Link ID from your extender, please go to Settings > TP-Link Cloud, an click Unbind
in the Device Information section.
4 2 Change Your TP-Link ID Information
Follow the steps below to change your email address and password of your TP-Link ID
as needed.
1. Visit http://www.tplinkrepeater.net, and log in with your TP-Link ID.
2. Go to Settings > TP-Link Cloud, and focus on the Account Information section.
• To change your email address:
1. Click behind the Email.
2. Enter the password of your TP-Link ID, then a new email address. And click Save.
23
Chapter 4
TP-Link Cloud Service
• To change your password:
1. Click behind the Password.
2. Enter the current password, then a new password twice. And click Save.
4 3 Manage the User TP-Link IDs
The TP-Link ID used to log in to the extender for the first time will be automatically
bound as the Admin account. An admin account can add or remove other TP-Link IDs to
or from the same extender as Users. All accounts can monitor and manage the extender
locally or remotely, but user accounts cannot:
• Reset the extender to its factory default settings either on the web management page
or in the Tether app.
24
Chapter 4
TP-Link Cloud Service
• Add/remove other TP-Link IDs to/from the extender.
4 3 1 Add TP-Link ID to Manage the Extender
1. Visit http://www.tplinkrepeater.net, and log in with your TP-Link ID.
2. Go to Settings > TP-Link Cloud, and focus on the Bound Accounts section.
3. Click , enter another TP-Link ID as needed and click Save.
Note:
If you need another TP-Link ID, please register a new one via the Tether app. Please refer to Manage the Extender via the
TP-Link Tether App to install the app and register a new TP-Link ID.
4. The new TP-Link ID will be displayed in the Bound Accounts table as a User.
4 3 2 Remove TP-Link ID(s) from Managing the Extender
1. Visit http://www.tplinkrepeater.net, and log in with your TP-Link ID.
2. Go to Settings > TP-Link Cloud, and focus on the Bound Accounts section.
3. Tick the checkbox(es) of the TP-Link ID(s) you want to remove and click Unbind.
25
Chapter 4
TP-Link Cloud Service
4 4 Manage the Extender via the TP-Link Tether App
The Tether app runs on iOS and Android devices, such as smartphones and tablets.
1. Launch the Apple App Store or Google Play store and search “TP-Link Tether” or
simply scan the QR code to download and install the app.
OR
2. Launch the Tether app and log in with your TP-Link ID.
Note: If you don’t have a TP-Link ID, create one first.
3. Connect your device to the extender’s or host router’s wireless network.
4. Go back to the Tether app, select the model of your extender and log in with the
password your set for the extender.
5. Manage your extender as needed.
Notes: If you need to remotely access your extender from your smart devices, you need to:
• Log in with your TP-Link ID. If you don’t have one, refer to Register a TP-Link ID.
• Make sure your smartphone or tablet can access the internet with cellular data or a Wi-Fi network.
Chapter 5
Customize Your Network
This chapter guides you on how to configure network settings that are available
for this extender.
It contains the following sections:
• Check Internet Status
• Configure Wireless Network
• Change LAN Settings
• Specify DHCP Server Settings
• Adjust Wi-Fi Coverage
• Set Access Control
27
Chapter 5 Customize Your Network
5 1 Check Internet Status
You can view the internet status of your extender to check whether you have
successfully set up the extended network(s).
1. Visit http://www.tplinkrepeater.net, and log in with your TP-Link ID or the password
you set for the extender.
2. Go to Settings > Status to view the internet status of your extender.
• The extender runs normally.
• The extender fails to connect to the host networks. Please go to Settings >
Wireless > Connect to Network to check whether the host network passwords
are correct. If the problem still exists, relocate the extender closer to the router
to achieve better signal quality.
• The extender is connected to the host networks, but is not transmitting data.
Please check the internet connection of your router.
• The extender is connected to the router abnormally. Please go to Settings >
Network and try setting your extender to obtain an IP address automatically.
Click the icon of the Internet/Router/Range Extender/Clients to view corresponding
information.
28
Chapter 5 Customize Your Network
5 2 Configure Wireless Network
If you want to extend another host network after Quick Setup, you can refer to this
section. Moreover, you can change the wireless settings for your extended networks.
Tip:
If the extender is in your router’s EasyMesh network, it will automatically copy wireless settings from your router. No
wireless settings is needed for the extender.
Visit http://www.tplinkrepeater.net, and log in with your TP-Link ID or the password you
set for the extender.
Note:
Here we take the configuration of the 2.4GHz network as an example. If the 6GHz and 5GHz network is available on your
extender, please refer to the instructions to set them up.
• To extend another host network:
1. Go to Settings > Wireless > Connect to Network.
2. Enable Connect to 2.4GHz Network and click Wireless Scanner to find all available
networks.
29
Chapter 5 Customize Your Network
3. Select the 2.4GHz host network you want to extend from the list.
Note:
If the network you want to extend is on but not listed, please try the following steps.
· Move the extender closer to your router, and rescan for networks.
· You can manually enter the SSID (network name) and password of the network you want to extend, and click Save.
4. Once a host network is selected, the SSID and security type will be automatically
filled in. If the selected network is encrypted, enter the password in the Password
field.
5. Click Save.
• To enable or disable the extended network:
1. Go to Settings > Wireless > Extended Network.
2. Extended networks are enabled by default. If you want to disable the wireless function
of a certain band, just clear the Enable checkbox. In this case, all the wireless settings
of this band will be invalid.
30
Chapter 5 Customize Your Network
3. Click Save.
• To change the wireless network name (SSID):
1. Go to Settings > Wireless > Extended Network.
2. Create a new SSID in Extended 2.4GHz SSID and click Copy Host SSID. The value is
case-sensitive.
3. Click Save.
Note:
If you have changed the wireless settings via a wireless device, you will be disconnected after the settings are applied.
Please write down the new SSID for future use.
• To change the security of the extended network:
1. Go to Settings > Wireless > Extended Network.
2. Set the Security mode of your extended network. Here uses 2.4 GHz as an example:
31
Chapter 5 Customize Your Network
• You can simply select Same as your host network password.
•
• Or click Custom, specify the extended network’s security mode and password
(case-sensitive). If you select No Security, no password is required.
3. Click Save.
• To hide the SSID of the extended network:
1. Go to Settings > Wireless > Extended Network.
2. Select Hide SSID broadcast, and the corresponding SSID will not be displayed when
wireless devices scan for local wireless networks. You need to manually enter the
SSID to join the network.
3. Click Save.
• To configure wireless settings:
1. Go to Settings > Wireless > Wireless Settings.
2. Configure the functions according to your needs, and click Save.
32
Chapter 5 Customize Your Network
• TWT (Target Wake Time): allows 802.11ax devices and clients to negotiate
their periods to transmit and receive data packets. Clients only wake up at TWT
sessions and remain in sleep mode for the rest of the time, which significantly
extend their battery life. It is disabled by default.
• OFDMA/MU-MIMO: OFDMA enables multiple users to transmit data
simultaneously, and thus greatly improves speed and efficiency. Noted that only
when your clients also support OFDMA, can you fully enjoy the benefits.
MU-MIMO (Multi-User Multiple-Input Multiple-Output) enables the device to
simultaneously send data to multiple clients, significantly enhancing network
efficiency.
• To create an MLO network
1. Go to Settings > Wireless > Connect to Network.
2. Enable MLO Network and select at least 2 enabled bands to create an MLO network.
Note:
Only devices that support Wi-Fi 7 can connect to the MLO network. Some devices may not fully implement the MLO
feature. If you are experiencing connection issues, it is recommended to disable MLO Network.
33
Chapter 5 Customize Your Network
5 3 Change LAN Settings
The extender is preset with a default LAN IP 192.168.0.254, with which you can log in to
the web management page. The LAN IP address, together with the Subnet Mask, also
defines the subnet that the connected devices are on. After connected to the front-end
router, the range extender will automatically obtain an IP address from the router. If the
IP address conflicts with another device on your local network or your network requires
a specific IP subnet, you can change it by following the steps below:
1. Visit http://www.tplinkrepeater.net, and log in with your TP-Link ID or the password
you set for the extender.
2. Go to Settings > Network.
3. Select Use the following IP address.
4. Enter a new IP Address as needed and leave the Subnet Mask as the default settings .
5. Enter the gateway that is in the same subnet as the IP address. The gateway is usually
the LAN IP address of your router.
6. Enter the DNS IP address provided by your ISP.
7. Click Save.
5 4 Specify DHCP Server Settings
By default, the DHCP (Dynamic Host Configuration Protocol) Server is auto and the
extender acts as a DHCP server and dynamically assigns TCP/IP parameters to client
devices from the IP Address Pool when the router’s DHCP server is disabled. You can
change the settings of the DHCP Server if necessary.
1. Visit http://tplinkrepeater.net, and log in with your TP-Link ID or the password you set
for the extender.
34
Chapter 5 Customize Your Network
2. Go to Settings > Network > DHCP Server.
1. Select On to enable the DHCP Server of the extender.
2. Enter the starting and ending IP addresses in the IP Address Pool.
3. Enter other parameters if the ISP offers. The Default Gateway is automatically filled in
and is the same as the LAN IP address of the router.
4. Click SAVE.
5 5 Adjust Wi-Fi Coverage
You can set the extender’s Wi-Fi coverage depending on how large you want your Wi-Fi
area to be.
1. Visit http://www.tplinkrepeater.net and log in with your TP-Link ID or the password
you set for the extender.
2. Go to Settings > Advanced Settings > Wi-Fi Coverage.
3. Select your desired Wi-Fi coverage level for the extender.
35
Chapter 5 Customize Your Network
4. Click Save.
5 6 Set Access Control
Access Control allows you to permit or block specific devices from accessing the
internet for a specific period.
Tip:
If the extender is in your router’s EasyMesh network, it will automatically copy access control settings from your router.
No access control settings is needed for the extender.
1. Visit http://www.tplinkrepeater.net and log in with your TP-Link ID or the password
you set for the extender.
2. Go to Settings > Advanced Settings > Access Control.
3. Enable Access Control.
• To block specific device(s):
1. Select Blacklist and click Save.
36
Chapter 5 Customize Your Network
2. Select the device to be blocked in the Online Devices table by ticking the
corresponding checkbox.
3. Click Block and the selected device(s) will be added to the Devices in Blacklist table.
4. Click in the Devices in Blacklist table to set the Effective Time for a certain entry
as needed.
5. Click Save.
• To permit specific device(s):
1. Select Whitelist and click Save.
37
Chapter 5 Customize Your Network
2. Click Add in the Devices in Whitelist table. Enter the Device Name and MAC Address.
And you can set the Effective Time for a certain entry as needed.
3. Click Save.
39
Chapter 6 Use Your Extender as an Access Point
The extender can work as an access point, transforming your existing wired network to
a wireless one.
6 1 Set Up the Extender as an Access Point
1. Visit http://www.tplinkrepeater.net, and log in with your TP-Link ID or the password
you set for the extender.
2. Click Mode in the top right corner of the page. Select Access Point, select and clone
your settings in the Repeater mode to the new mode. Click Save and the extender will
reboot and switch to Access Point mode.
3. Visit http://www.tplinkrepeater.net, and log in with your TP-Link ID or the password
you set for the extender.
4. Go to Quick Setup to configure your extender.

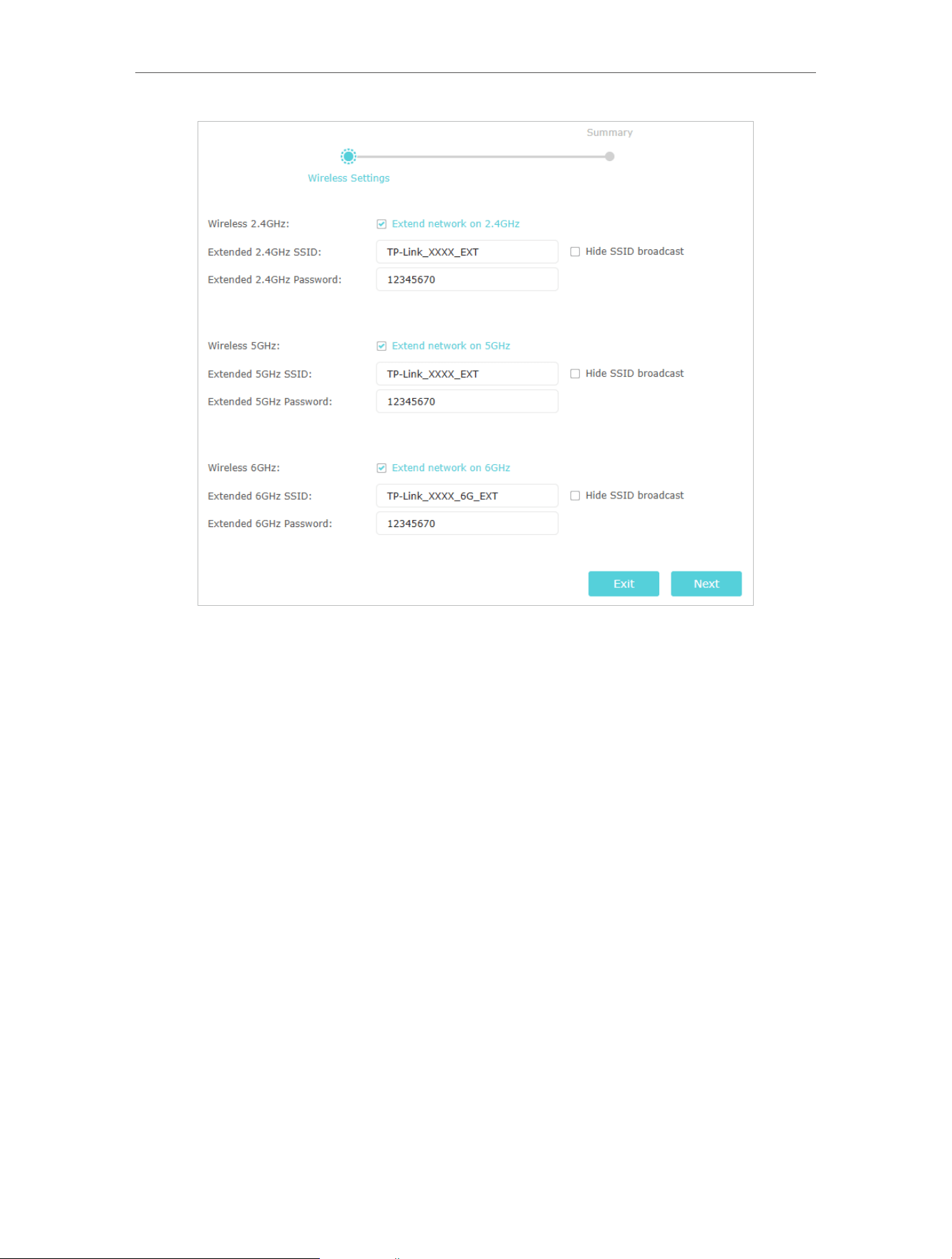

1 ) Configure your wireless settings and click Next.
40
Chapter 6 Use Your Extender as an Access Point
2 ) Confirm the information and click Finish.
41
Chapter 6 Use Your Extender as an Access Point
5. Connect the extender to your modem or wired router via an Ethernet cable. Now you
can enjoy the Wi-Fi.
Devices
Extender
(Access Point mode)
Wired Router
Ethernet4Ethernet3Ethernet1Ethernet2Internet
Ethernet4
Ethernet
Internet
6 2 Connect Wireless Devices to the Extender
Method 1: Connect to the extender manually
You can connect your wireless devices to the extender by using the extender’s wireless
network names and passwords.
42
Chapter 6 Use Your Extender as an Access Point
Method 2: Connect to the extender via WPS
Wi-Fi Protected Setup (WPS) provides an easier way to set up a secure Wi-Fi connection.
Wireless devices that support WPS, including Android phones, tablets and most USB
network cards, can be connected to your extender through this method (not supported
by iOS devices).
1. Visit http://www.tplinkrepeater.net, and log in with your TP-Link ID or the password
you set for the extender.
2. Go to Settings > Wireless > WPS.
3. Enable WPS.
4. Connect via WPS:
• AP’s PIN: Enable AP’s PIN and enter the PIN on your device. You can click Generate
to get a new PIN or click Default to restore the PIN to its factory one.
• Push Button (Recommended): Click Connect and push the WPS button on the
client device.
• PIN code: Enter the client’s PIN, and click Connect.
43
Chapter 6 Use Your Extender as an Access Point
6 3 LED Explanation for the Access Point Mode
When the extender works in the Access Point mode, you can check its working status
by following the LED Explanation table below.
Name Status Indication (For Access Point Mode)
(Power)
On/Off The extender is on or off.
Blinking The system is starting up or firmware is being upgraded.
(Signal)
On A WPS connection is established.
Blinking WPS connection is in progress. This may take up to 2 minutes.
Off
A WPS connection has been established for more than 5
minutes or WPS connection failed.
2.4G On/Off The 2.4 GHz wireless band is enabled or disabled.
5G On/Off The 5 GHz wireless band is enabled or disabled.
6G On/Off The 6 GHz wireless band is enabled or disabled.
45
Chapter 7 Manage Your Extender
7 1 Set System Time
The System Time of the extender will be used for time-based function such as the
Power Schedule function. If you have enabled the Daylight Saving Time feature, the
system time will be sychronized with the daylight saving time you configure.
1. Visit http://www.tplinkrepeater.net, and log in with your TP-Link ID or the password
you set for the extender.
2. Go to Settings > System Tools > Time Settings.
• To get system time:
1. Select your local Time Zone from the drop-down list.
2. Click Save.
• To set up Daylight Saving Time:
1. Select Enable Daylight Saving Time.
2. Select the Start and End date and time of the daylight saving time at your local time
zone.
3. Click Save.
7 2 Control LEDs
The LEDs of the extender indicate its activities and status. You can turn off LEDs when
you don’t need them.
46
Chapter 7 Manage Your Extender
1. Visit http://www.tplinkrepeater.net, and log in with your TP-Link ID or the password
you set for the extender.
2. Go to Settings > System Tools > LED Control.
• To turn off the LEDs:
Disable LED Status.
Note: The LED Status will turn back on after restarting the extender If you want to keep the LED off after restarting,
it is recommended to set Night Mode
• To specify a time period when LEDs are off:
1. Select Night Mode.
2. Specify the LED off time period.
Note: The effective time schedule for Night Mode is based on the system time of the extender Refer to Set System
Time to get the correct system time
3. Click Save.
7 3 Set Power Schedule
The Power Schdule feature allows you to specify a time period during which the
extender is off.
1. Visit http://www.tplinkrepeater.net, and log in with your TP-Link ID or the password
you set for the extender.
2. Go to Settings > Advanced Settings > Power Schedule.
• To specify a time period when the extender is off:
1. Click Add.
47
Chapter 7 Manage Your Extender
2. Specify the power off time period and repetitive days.
Note: The effective time schedule for Power Schedule is based on the system time of the extender Refer to Set
System Time to get the correct system time
3. Click Save.
7 4 Upgrade the Firmware
TP-Link is committed to improving product features, giving you a better network
experience. We will inform you through the web management page if there’s any update
firmware available for your extender. Also, the latest firmware will be released at the TP-
Link official website www.tp-link.com, and you can download it from the Support page
for free.
Notes:
• Make sure the latest firmware file is matched with the hardware version (as shown in the download section of the
Support page).
• Make sure that you have a stable connection between the extender and your computer.
• Backup your extender configuration.
• Do NOT power off the extender during the firmware upgrade.
• To auto-upgrade the firmware:
1. Visit http://www.tplinkrepeater.net, and log in with your TP-Link ID or the password
you set for the extender.
2. Go to Settings > System Tools > Firmware Upgrade.
3. Locate the Auto Upgrade section and turn on Auto Upgrade.
48
Chapter 7 Manage Your Extender
4. Specify the Update Time and save the settings.
The range extender will update firmware automatically at the specified time when new
version is available.
• To upgrade the firmware online:
1. Visit http://www.tplinkrepeater.net, and log in with your TP-Link ID or the password
you set for the extender.
2. When the latest firmware is available for your extender, the update icon will display
in the top-right corner of the page. Click the icon to go to the Firmware Upgrade page.
Alternatively, you can go to Settings > System Tools > Firmware Upgrade, and click
Check for upgrade to see whether a new firmware is released.
3. Focus on the Online Upgrade section, and click Upgrade.
4. Wait a few minutes for the upgrade and reboot to complete.
49
Chapter 7 Manage Your Extender
• To upgrade the firmware locally:
1. Download the latest firmware file for the extender from our website
www.tp-link.com.
2. Visit http://www.tplinkrepeater.net, and log in with your TP-Link ID or the password
you set for the extender.
3. Go to Settings > System Tools > Firmware Upgrade.
4. Click Browse to locate the downloaded new firmware file, and then click Upgrade.
5. Wait a few minutes for the firmware upgrade to complete and the extender to reboot.
7 5 Backup and Restore Configuration Settings
The configuration settings are stored as a configuration file in the extender. You can
backup the configuration file and restore the extender to the previous settings from the
backup file when needed. Moreover, if necessary, you can erase the current settings
and reset the extender to the default factory settings.
1. Visit http://www.tplinkrepeater.net, and log in with your TP-Link ID or the password
you set for the extender.
2. Go to Settings > System Tools > Backup & Restore.
• To backup configuration settings:
Click Backup to save a copy of the current settings to your local computer. A ‘.bin’ file of
the current settings will be stored on your computer.
• To restore configuration settings:
1. Click Browse to locate the backup configuration file stored on your computer, and
click Restore.
50
Chapter 7 Manage Your Extender
2. Wait a few minutes for the restore and reboot.
Note: During the restore process, do not power off or reset the extender.
• To reset the extender to factory default settings:
1. Click Factory Restore to restore all configuration settings to default values, or click
Restore if you want to keep you login and cloud account information.
2. Wait a few minutes for the reset and reboot.
Notes:
• During the reset process, do not power off the extender.
• We strongly recommend you backup the current configuration settings before resetting the extender.
7 6 Change Login Password
The account management feature allows you to change your login username and
password of the web management webpage.
1. Visit http://www.tplinkrepeater.net, and log in with your TP-Link ID or the password
you set for the extender.
2. Go to Settings > System Tools > Admin Account.
3. Enter the old password. Then enter the new password twice (case-sensitive) and
click Save.
51
Chapter 7 Manage Your Extender
4. Use the new password for future logins.
7 7 Check System Log
If the extender is not working properly, you can save the system log and send it to our
technical support team.
1. Visit http://www.tplinkrepeater.net, and log in with your TP-Link ID or the password
you set for the extender.
2. Go to Settings > System Tools > System Log.
• To save the system log locally:
1. Choose the type and level of the system log as needed.
2. Click Save Log to save the system logs to a local disk.
52
Chapter 7 Manage Your Extender
53
FAQ
Q1 How to reset the extender to its factory default settings?
• With the extender powered on, use a pin to press the Reset button for 1 second. The
extender will reboot.
• Log in to the extender’s web management page. Go to Settings > System Tools >
Backup & Restore and click Factory Restore.
Q2 What should I do if I forget my login password?
Refer to FAQ > Q1 to reset the extender, and then visit http://www.tplinkrepeater.net to
create a new login password.
Note: The extender must be reconfigured after a reset to access the internet. Please note down your login password
for future logins.
Q3 What should I do if I forget my wireless password?
The extender shares the same wireless passwords as those of your host networks.
Q4 What should I do if I can’t access the web management page?
This can happen for a variety of reasons. Please try the methods below to log in again.
• If your computer is wirelessly connected, make sure that you have connected to the
extender’s SSID.
• Make sure your computer is configured as Obtain an IP address automatically and
Obtain DNS server address automatically.
• Verify that http://www.tplinkrepeater.net is correctly entered in the web browser and
press Enter.
• Use the IP address to access the extender. The default IP is 192.168.0.254. If the
extender is connected to the router, you should go to your router’s DHCP client list to
obtain the extender’s current IP address.
• Reset the extender and try again.
Q5 I have enabled wireless MAC filter, wireless access control, or access
control list (ACL) on my router What should I do before configuring
the extender?
When a device connects through the extender to your router, the MAC address of the
device shown on the router is translated to another MAC address. If your router’s MAC
filter, wireless access control, or ACL is enabled, the devices connected to the extender
cannot get an IP address from the extender and cannot access the Internet.
To solve this problem, please follow the steps below:
54
1. Log in to your router and disable the MAC filter, wireless access control or ACL.
Note: For more information about how to disable your router’s MAC filter, wireless access control or ACL, please refer
to your router’s user guide.
2. Power on your extender, and run the Quick Setup to configure your extender.
3. Connect all of your devices to the extended network.
4. On your router, add all the Online Devices’ MAC addresses to your router’s MAC filter
table.
5. Enable the router’s MAC filter, wireless access control, or ACL to complete the
configuration.
Q6 What can I do if I forget the password of my cloud account bound to
the range extender?
A TP-Link account is bound to the TP-Link devices so that the customer can manage
their devices remotely. If you forget the password of your TP-Link Cloud account, please
follow the steps below to reset your password.
Method 1 Via the web management page
1. Connect your computer to the range extender either via Ethernet or wirelessly.
Launch a web browser, enter http://www.tplinkrepeater.net in the address bar.
2. On the web management page of the range extender, click Forgot password?.
3. Enter the email address you bound to your TP-Link cloud account, then click Next.
55
4. A request email will be sent to your mailbox. Follow the instructions to reset your
password.
5. Click Back to Login and log in with your newly set password.
Method 2 Via the Tether App
1. Launch the Tether app. Go to the Login page.
2. Tap Forgot Password.
56
3. Enter the email used for your TP-Link cloud account in the Email box, and tap Submit.
4. A reset request email will be sent to your mailbox. Follow the instructions to reset
your password.
57
Method 3 Via the TP-Link cloud website
1. Open a browser, type https://community.tp-link.com/en/forgetpw in the address bar,
and press Enter.
2. On the pop-up webpage, enter your registered email address, and click OK. A request
email will be sent to your mailbox. Follow the instructions to reset your password.
58
FCC compliance information statement
Product Name: BE9300/BE10000/BE11000 Tri-Band Wi-Fi 7 Range Extender
Model Number: RE655BE/RE653BE
Responsible Party:
TP-Link Systems Inc.
Address: 10 Mauchly, Irvine, CA 92618
Website: http://www.tp-link.com/us/
Tel: +1 626 333 0234
Fax: +1 909 527 6804
E-mail: [email protected]om
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/ TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may
cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
Note: The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modifications to this equipment. Such modifications could void the user’s
authority to operate the equipment.
59
FCC RF Radiation Exposure Statement:
This equipment complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment. This device and its antenna must not be co-located or
operating in conjunction with any other antenna or transmitter.
“To comply with FCC RF exposure compliance requirements, this grant is applicable to
only Mobile Configurations. The antennas used for this transmitter must be installed to
provide a separation distance of at least 20 cm from all persons and must not be co-
located or operating in conjunction with any other antenna or transmitter.”
• FCC regulations restrict the operation of this device to indoor use only.
• The operation of this device is prohibited on oil platforms, cars, trains, boats, and
aircraft, except that operation of this device is permitted in large aircraft while flying
above 10,000 feet in the 5.925-6.425 GHz band.
• Operation of transmitters in the 5.925-7.125 GHz band is prohibited for control of or
communications with unmanned aircraft systems.
We, TP-Link Systems Inc., has determined that the equipment shown as above has
been shown to comply with the applicable technical standards, FCC part 15. There
is no unauthorized change is made in the equipment and the equipment is properly
maintained and operated.
Issue Date: 2025-03-25
60
OPERATING FREQUENCY (the maximum transmitted power)
2400 MHz -2483.5 MHz (20dBm)
5150 MHz -5250 MHz (23dBm)
5250 MHz -5350 MHz (23dBm)
5470 MHz -5725 MHz (30dBm)
5945MHz -6425 MHz (23dBm)
EU Declaration of Conformity
TP-Link hereby declares that the device is in compliance with the essential
requirements and other relevant provisions of directives 2014/53/EU, 2009/125/EC,
2011/65/EU and (EU)2015/863.
The original EU Declaration of Conformity may be found at
https://www tp-link com/en/support/ce/
RF Exposure Information
This device meets the EU requirements (2014/53/EU Article 3.1a) on the limitation of
exposure of the general public to electromagnetic fields by way of health protection.
The device complies with RF specifications when the device used at 20 cm from your
body.
National Restrictions
Frequency band: 5150 - 5250 MHz:
Indoor use: Inside buildings only. Installations and use inside road vehicles and train
carriages are not permitted. Limited outdoor use: If used outdoors, equipment shall
not be attached to a fixed installation or to the external body of road vehicles, a fixed
infrastructure or a fixed outdoor antenna. Use by unmanned aircraft systems (UAS) is
limited to within the 5170 - 5250 MHz band.
Frequency band: 5250 - 5350 MHz:
Indoor use: Inside buildings only. Installations and use in road vehicles, trains and aircraft
are not permitted. Outdoor use is not permitted.
Frequency band: 5470 - 5725 MHz:
Installations and use in road vehicles, trains and aircraft and use for unmanned aircraft
systems (UAS) are not permitted.
Frequency band 5945 -6425MHz:
61
Restricted to indoor use, including in trains with metal-coated windows and aircraft.
Outdoor use, including in road vehicles, is not permitted
AT BE BG CH CY CZ DE DK
EE EL ES FI FR HR HU IE
IS IT LI LT LU LV MT NL
NO PL PT RO SE SI SK UK(NI)
UKCA Mark
UK Declaration of Conformity
TP-Link hereby declares that the device is in compliance with the essential
requirements and other relevant provisions of the Radio Equipment Regulations 2017.
The original UK Declaration of Conformity may be found at
https://www tp-link com/support/ukca
National Restrictions
Attention: This device may only be used indoors in Great Britain.
UK
Canadian Compliance Statement
This device contains licence-exempt transmitter(s)/receiver(s) that comply with
Innovation, Science and Economic Development Canada’s licence-exempt RSS(s).
Operation is subject to the following two conditions:
1. This device may not cause interference.
2. This device must accept any interference, including interference that may cause
undesired operation of the device.
L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme
aux CNR d’Innovation, Sciences et Développement économique Canada applicables
aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions
suivantes :
1. L’appareil ne doit pas produire de brouillage;
2. L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d’en compromettre le fonctionnement.
62
Caution:
1. The device for operation in the band 5150–5250 MHz is only for indoor use to reduce
the potential for harmful interference to co-channel mobile satellite systems;
DFS (Dynamic Frequency Selection) products that operate in the bands 5250- 5350
MHz, 5470-5600MHz, and 5650-5725MHz.
Avertissement:
1. Le dispositif fonctionnant dans la bande 5150-5250 MHz est réservé uniquement
pour une utilisation à l’intérieur afin de réduire les risques de brouillage préjudiciable
aux systèmes de satellites mobiles utilisant les mêmes canaux;
Les produits utilisant la technique d’atténuation DFS (sélection dynamique des
fréquences) sur les bandes 5250- 5350 MHz, 5470-5600MHz et 5650-5725MHz.
Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance
20cm between the radiator & your body.
Devices shall not be used for control of or communications with unmanned aircraft
systems.
Les appareils ne doivent pas être utilisés pour le contrôle ou la communication avec
des systèmes d’aéronefs sans pilote.
Devices shall not be used for control of or communications with unmanned aircraft
systems.
Operation shall be limited to indoor use only.
Operation on oil platforms, automobiles, trains, maritime vessels and aircraft shall be
prohibited except for on large aircraft flying above 3,048 m (10,000 ft).
Déclaration d’exposition aux radiations:
Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies
pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec
un minimum de 20 cm de distance entre la source de rayonnement et votre corps.
Les appareils ne doivent pas être utilisés pour le contrôle ou la communication avec
des systèmes d’aéronefs sans pilote.
Le fonctionnement doit être limité à une utilisation en intérieur uniquement.
L’opération sur les plates-formes pétrolières, les automobiles, les trains, les navires
maritimes et les avions est interdite, sauf sur les gros avions volant au-dessus de 3 048
m (10 000 ft).
Industry Canada Statement
CAN ICES (B) / NMB (B)
63
Korea Warning Statements
당해 무선설비는 운용중 전파혼신 가능성이 있음.
NCC Notice & BSMI Notice
注意！
取得審驗證明之低功率射頻器材，非經核准，公司、商號或使用者均不得擅自變更頻
率、加大功率或變更原設計之特性及功能。
低功率射頻器材之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立
即停用，並改善至無干擾時方得繼續使用。
前述合法通信，指依電信管理法規定作業之無線電通信。
低功率射頻器材須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。
應避免影響附近雷達系統之操作。
高增益指向性天線只得應用於固定式點對點系統。
安全諮詢及注意事項
• 請使用原裝電源供應器或只能按照本產品注明的電源類型使用本產品。
• 清潔本產品之前請先切斷電源。請勿使用液體、噴霧清潔劑或濕布進行清潔。
• 注意防潮，請勿將水或其他液體潑灑到本產品上。
• 插槽與開口供通風使用，以確保本產品的操作可靠並防止過熱，請勿堵塞或覆蓋
開口。
• 請勿將本產品置放於靠近熱源的地方。除非有正常的通風，否則不可放在密閉位
置中。
• 不要私自拆開機殼或自行維修，如產品有故障請與原廠或代理商聯繫。
限用物質含有情況標示聲明書
設備名稱：
Equipment name:
BE9300/BE10000/BE11000 Tri-Band Wi-Fi 7
Range Extender
型號（型式）：
Type designation (Type):
RE655BE/RE653BE
64
單元
Ｕnit
限用物質及其化學符號
Restricted substances and its chemical symbols
鉛
Lead
(Pb)
汞
Mercury
(Hg)
鎘
Cadmium
(Cd)
六價鉻
Hexavalent
chromium
(Cr
+6
)
多溴聯苯
Polybrominated
biphenyls
(PBB)
多溴二苯醚
Polybrominated
diphenyl ethers
(PBDE)
PCB
○ ○ ○ ○ ○ ○
外殼
○ ○ ○ ○ ○ ○
電源供應板
− ○ ○ ○ ○ ○
其他及其
配件
− ○ ○ ○ ○ ○
備考1.〝超出0.1 wt %〞及〝超出0.01 wt %〞係指限用物質之百分比含量超出百分比含量基準值
Note 1：“Exceeding 0.1 wt %” and “exceeding 0.01 wt %” indicate that the percentage content of
the restricted substance exceeds the reference percentage value of presence condition.
備考2.〝○〞係指該項限用物質之百分比含量未超出百分比含量基準值。
Note 2：“○” indicates that the percentage content of the restricted substance does not exceed the
percentage of reference value of presence.
備考3.〝−〞係指該項限用物質為排除項目。
Note 3：The “−” indicates that the restricted substance corresponds to the exemption.
Продукт сертифіковано згідно с правилами системи УкрСЕПРО на відповідність
вимогам нормативних документів та вимогам, що передбачені чинними
законодавчими актами України.
Safety Information
• Keep the device away from water, fire, humidity or hot environments.
• Do not attempt to disassemble, repair, or modify the device. If you need service,
please contact us.
• Do not use the device where wireless devices are not allowed.
• Make sure the power socket has a good contact with the ground.
•
•
65
• Operating Temperature: 0℃ ~ 40℃ (32℉ ~ 104℉)
• This product uses radios and other components that emit electromagnetic fields.
Electromagnetic fields and magnets may interfere with pacemakers and other
implanted medical devices. Always keep the product and its power adapter more than
15 cm (6 inches) away from any pacemakers or other implanted medical devices. If
you suspect your product is interfering with your pacemaker or any other implanted
medical device, turn off your product and consult your physician for information
specific to your medical device.
Please read and follow the above safety information when operating the device. We
cannot guarantee that no accidents or damage will occur due to improper use of the
device. Please use this product with care and operate at your own risk.
Explanations of the symbols on the product label
Note: The product label can be found at the back of the product. Symbols may vary
from products.
Symbol Explanation
Class II equipment
Class II equipment with functional earthing
Alternating current
Direct current
Polarity of d.c. power connector
For indoor use only
Dangerous voltage
Caution, risk of electric shock
Energy efficiency Marking
Protective earth
Earth
Frame or chassis
Functional earthing
66
Symbol Explanation
Caution, hot surface
Caution
Operator’s manual
Stand-by
“ON”/”OFF” (push-push)
Fuse
Fuse is used in neutral N
RECYCLING
This product bears the selective sorting symbol for Waste electrical and electronic equipment
(WEEE). This means that this product must be handled pursuant to European directive 2012/19/
EU in order to be recycled or dismantled to minimize its impact on the environment.
User has the choice to give his product to a competent recycling organization or to the retailer
when he buys a new electrical or electronic equipment.
Caution, avoid listening at high volume levels for long periods
Disconnection, all power plugs
m
Switch of mini-gap construction
µ
Switch of micro-gap construction (for US version)
Switch of micro-gap / micro-disconnection construction (for other versions except US)
ε
Switch without contact gap (Semiconductor switching device)
