OUTDOOR CABINETS
Installation Instructions
AGLP / AGTRC / AGTC
IMPORTANT - READ ALL INSTRUCTIONS BEFORE YOU BEGIN
INSTALLER SHOULD LEAVE THESE INSTRUCTIONS WITH THE HOMEOWNER
Some parts have sharp edges. Care must be taken when handling the various components to avoid
personal injury. Wear gloves when handling.
TOOLS REQUIRED:
Work gloves
Safety glasses
Electric drill with assorted bits for mounting hardware, masonry anchors, etc. where needed
Phillips screwdriver
Flat-blade screwdriver
Level
Tape measure
Shims for installing frames in opening
Inspect the product to verify that there is no shipping damage. If any damage is detected, call the shipper
and initiate a damage claim. Hestan Commercial Corp. is not responsible for shipping damage. DO NOT
discard any packing material (box, pallet, straps) until the unit has been inspected.
Remove all exterior packaging materials, banding, tape, etc. Remove all protective film from the inside of
your cabinets. You may leave any exterior protective film on until after installation is complete.
CABINET INSTALLATION (AGLP, AGTRC)

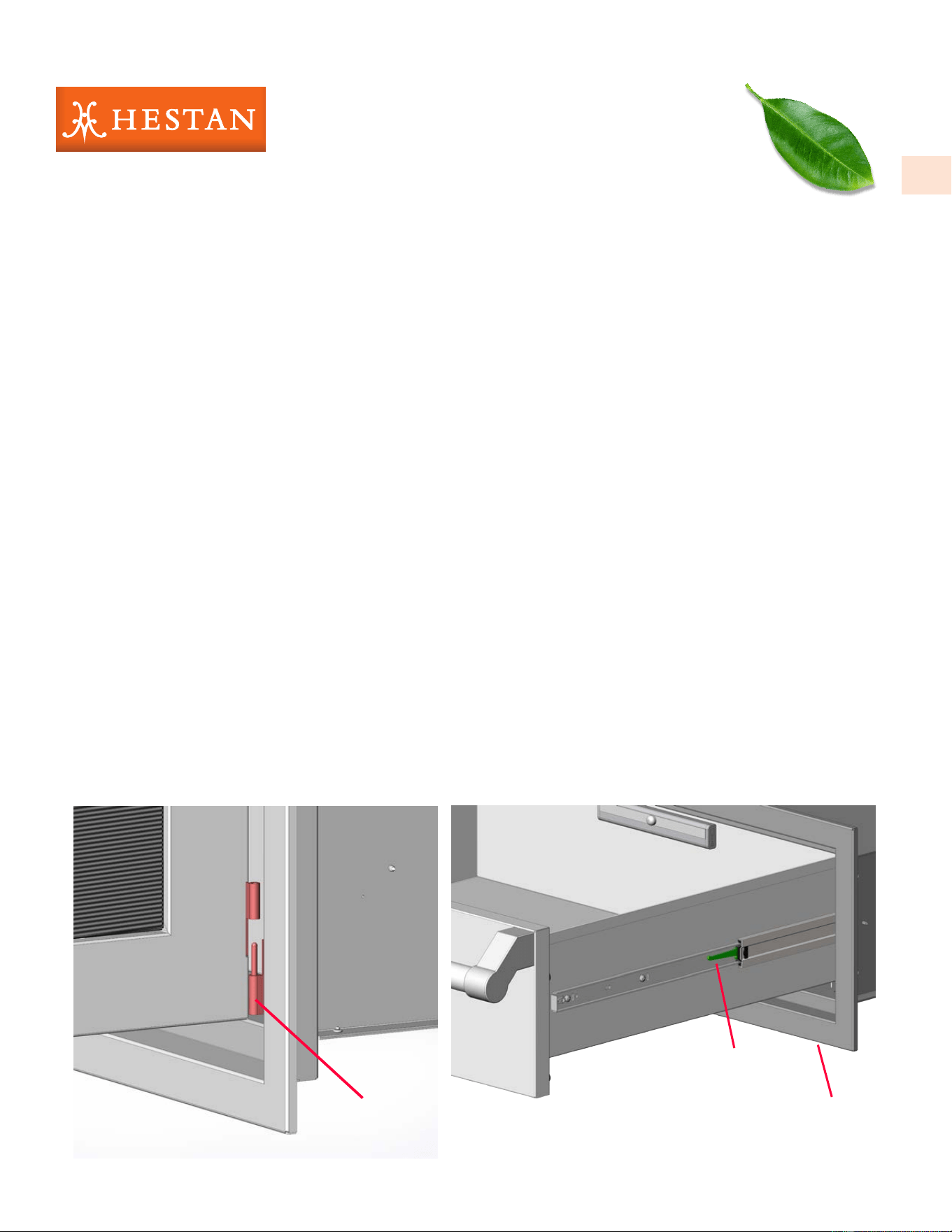

1. Your new Hestan cabinets come with doors and drawers pre-installed in their frames. It will be necessary
to detach them before installing the frame in your island structure. Remove the door (AGLP) by pulling
straight up until the door comes off the pins (shown here in red). To remove the drawer(s) from the box,
press the release lever (shown here in green) on each side of the drawer to disengage the slide (up on the
left, down on the right), then pull the drawer all the way out.
RELEASE
LEVER
DRAWER
BOX
DOOR
PINS
©2021 Hestan Commercial Corporation
2
EN
2. Consult the table at the end of this instruction manual to determine the appropriate cutout dimensions
for the Hestan Outdoor cabinet product you are installing. The cutouts should be square at all corners
for proper fitment of the cabinet. The installer will have to build up any internal structural elements or
supports in the island in order to secure the cabinet in place. Stainless steel hardware (not included) is
highly recommended.

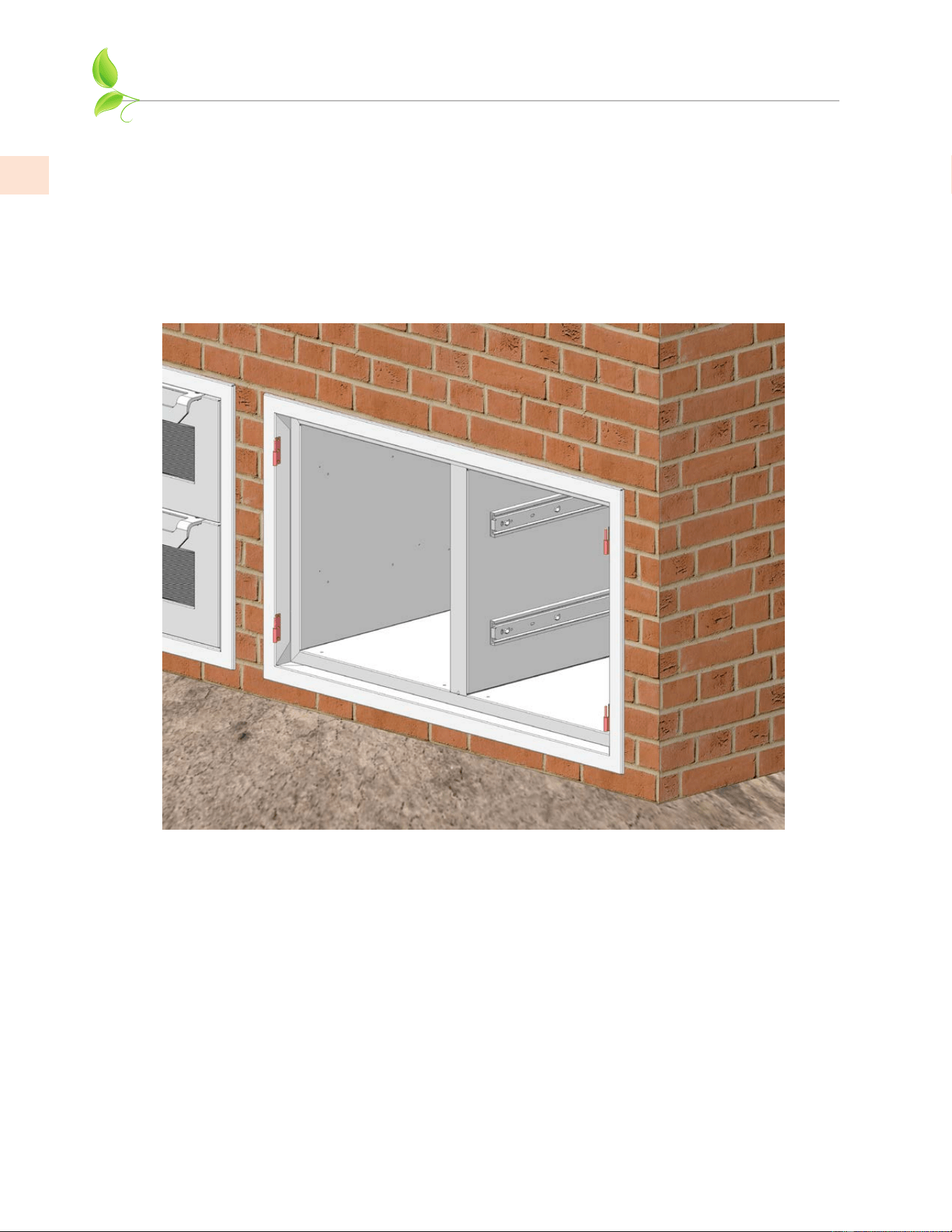

3. Slide the frame into the opening and check for proper alignment (AGLP shown). Secure the frame to
the structural members of your island using the various available mounting holes in the frame, and inside
the cabinet itself. Shim between the frame and opening as needed to avoid distorting the frame when
securing with screws.
CABINET INSTALLATION
(continued)
4. Reinstall the drawer(s) by aligning the slides on either side and push the drawer back into the opening.
You will hear the release levers click. Open and close the drawer a few times to check for proper
function and alignment. There are adjustment screws on either side of the drawer should vertical
adjustment be needed. Reinstall the door back onto the pins - there is no adjustment.
©2021 Hestan Commercial Corporation
3
EN

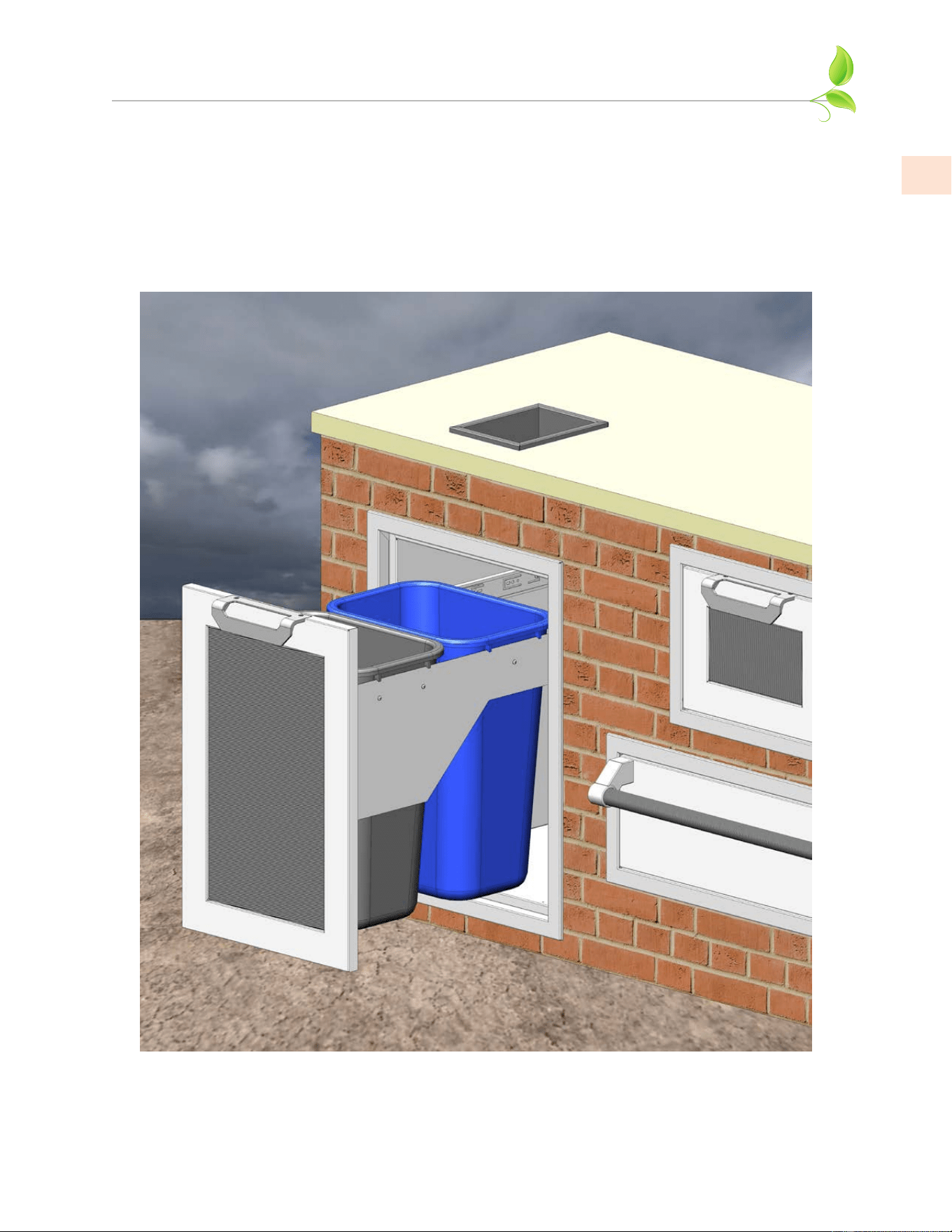

CABINET INSTALLATION (AGTC)
1. Consult the table at the end of this instruction manual for proper location and cutout dimensions
for the trash chute (AGTC), when used in conjunction with the Hestan Trash & Recycling Center
(AGTRC20).
2. As described in the previous section, slide the frame into the opening and check for proper
alignment. Secure the frame to the structural members of your island using the various available
mounting holes in the frame, and inside the cabinet itself. Shim between the frame and opening
as needed to avoid distorting the frame when securing with screws.
3. Reinstall the large drawer by aligning the slides on either side and push the drawer back into the
opening. You will hear the release levers click. Open and close the drawer a few times to check for
proper function and alignment. There are adjustment screws on either side of the drawer should vertical
adjustment be needed.
©2021 Hestan Commercial Corporation
4
EN

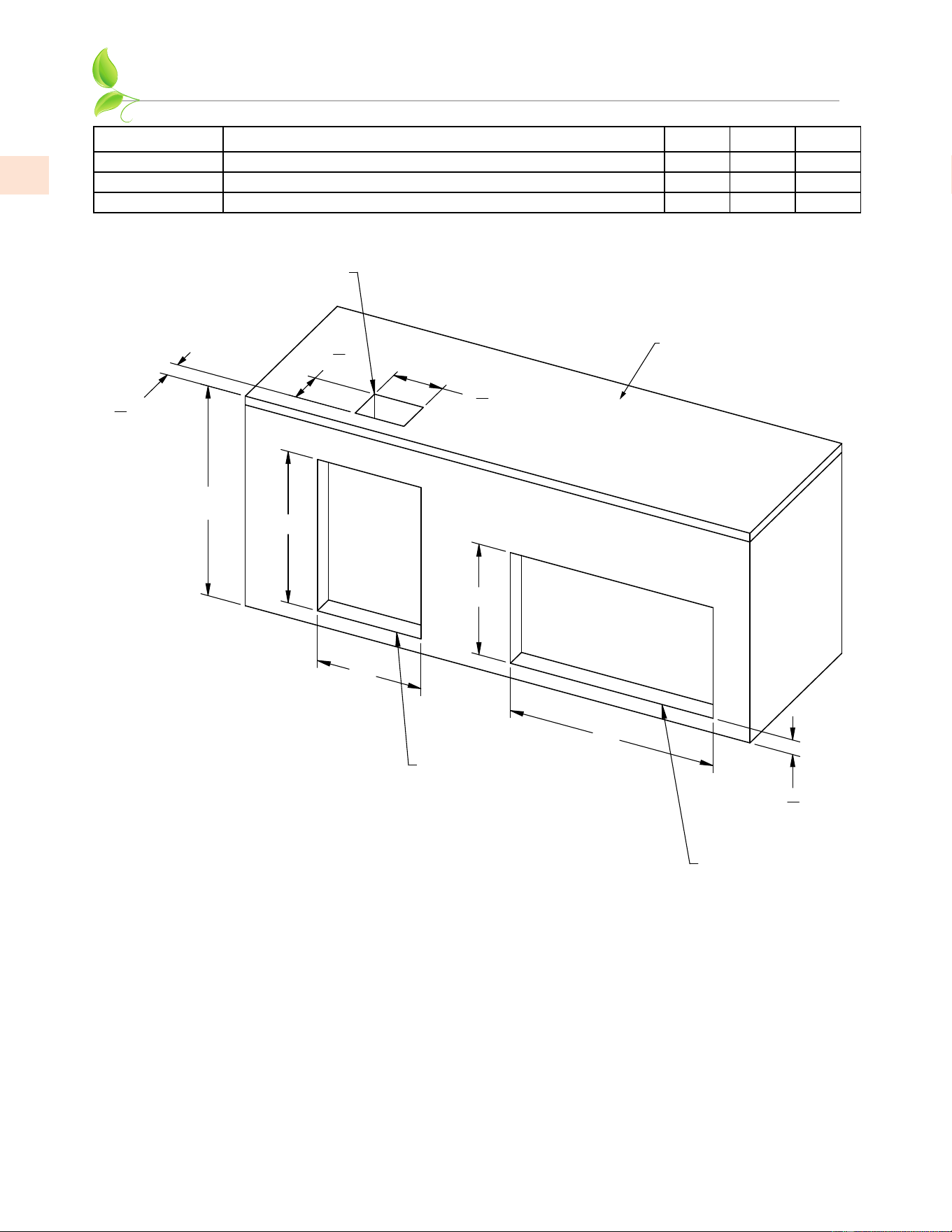

CUTOUT DIMENSIONS
Model Number Description W (in.) D (in.) H (in.)
AGLP36
Double Sealed Pantry Storage Doors, Marquise, 36"
34-1/8 23-1/2 19-1/4
AGTRC20
Trash and Recycle Center Storage Drawer, Marquise, 20"
17-5/8
24-1/2
26-1/4
AGTC
Countertop Trash Chute with Cutting Board and Cover
6-1/8 8-1/8 n/a
8
1
8
"
3
1
4
SEE NOTES
W
REF.
W
2
1
2
"
MIN.
TRASH CHUTE
(AGTC)
TRASH / RECYCLE
CENTER (AGTRC20)
SEALED PANTRY
(AGLP36)
FINISHED COUNTERTOP
H
36"
H
6
1
8
"
"
NOTES:
3-1/4” DIMENSION FOR TRASH CHUTE IS MEASURED
FROM FACE OF ISLAND STRUCTURE AND DOES NOT
INCLUDE ANY OVERHANG FROM A COUNTERTOP.
©2021 Hestan Commercial Corporation
5
EN

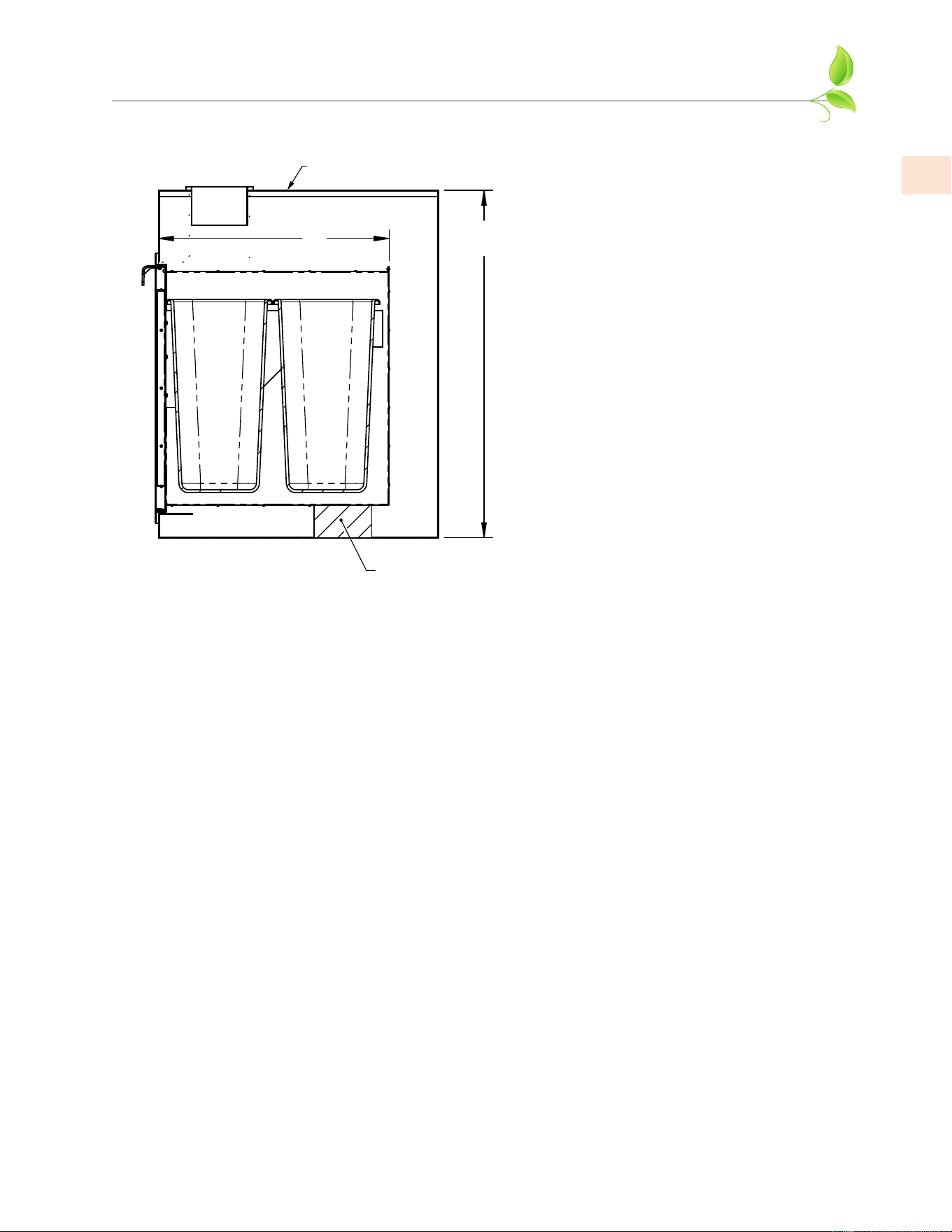

CUTOUT DIMENSIONS
(continued)
36"
REF.
D
TYPICAL SUPPORT
FINISHED COUNTERTOP
SIDE VIEW
STRUCTURE REQUIRED
UNDER SOME PRODUCTS
(AGTRC20 SHOWN)
©2021 Hestan Commercial Corporation
6
EN
SERVICE
All warranty and non-warranty repairs should be performed by qualified service personnel. To locate an authorized
service agent in your area, contact your Hestan dealer, local representative, or the manufacturer. Before you call, please
have the model number information ready. This information is shown on a sticker affixed to one of the inside vertical
surfaces of your product.
Hestan Commercial Products
3375 E. La Palma Avenue
Anaheim, CA 92806
(888) 905-7463
PARTS LIST
Please visit the Hestan website to access the parts list for your Hestan Outdoor product:
www.hestanoutdoor.com.www.hestanoutdoor.com.
