OUTDOOR CABINETS
Installation Instructions
AGAD / AGSD / AGSDR / AGSR / AGDR
IMPORTANT - READ ALL INSTRUCTIONS BEFORE YOU BEGIN
INSTALLER SHOULD LEAVE THESE INSTRUCTIONS WITH THE HOMEOWNER
Some parts have sharp edges. Care must be taken when handling the various components to avoid
personal injury. Wear gloves when handling.
TOOLS REQUIRED:
Work gloves
Safety glasses
Electric drill with assorted bits for mounting hardware, masonry anchors, etc. where needed
Phillips screwdriver
Flat-blade screwdriver
Level
Tape measure
Shims for installing frames in opening
Inspect the product to verify that there is no shipping damage. If any damage is detected, call the shipper
and initiate a damage claim. Hestan Commercial Corp. is not responsible for shipping damage. DO NOT
discard any packing material (box, pallet, straps) until the unit has been inspected.
Remove all exterior packaging materials, banding, tape, etc. Remove all protective film from the inside of
your cabinets. You may leave any exterior protective film on until after installation is complete.
ACCESS
DOOR
FRAME
DOOR
MOUNTING
BASE
STRUCTURE
(DOOR JAMB)

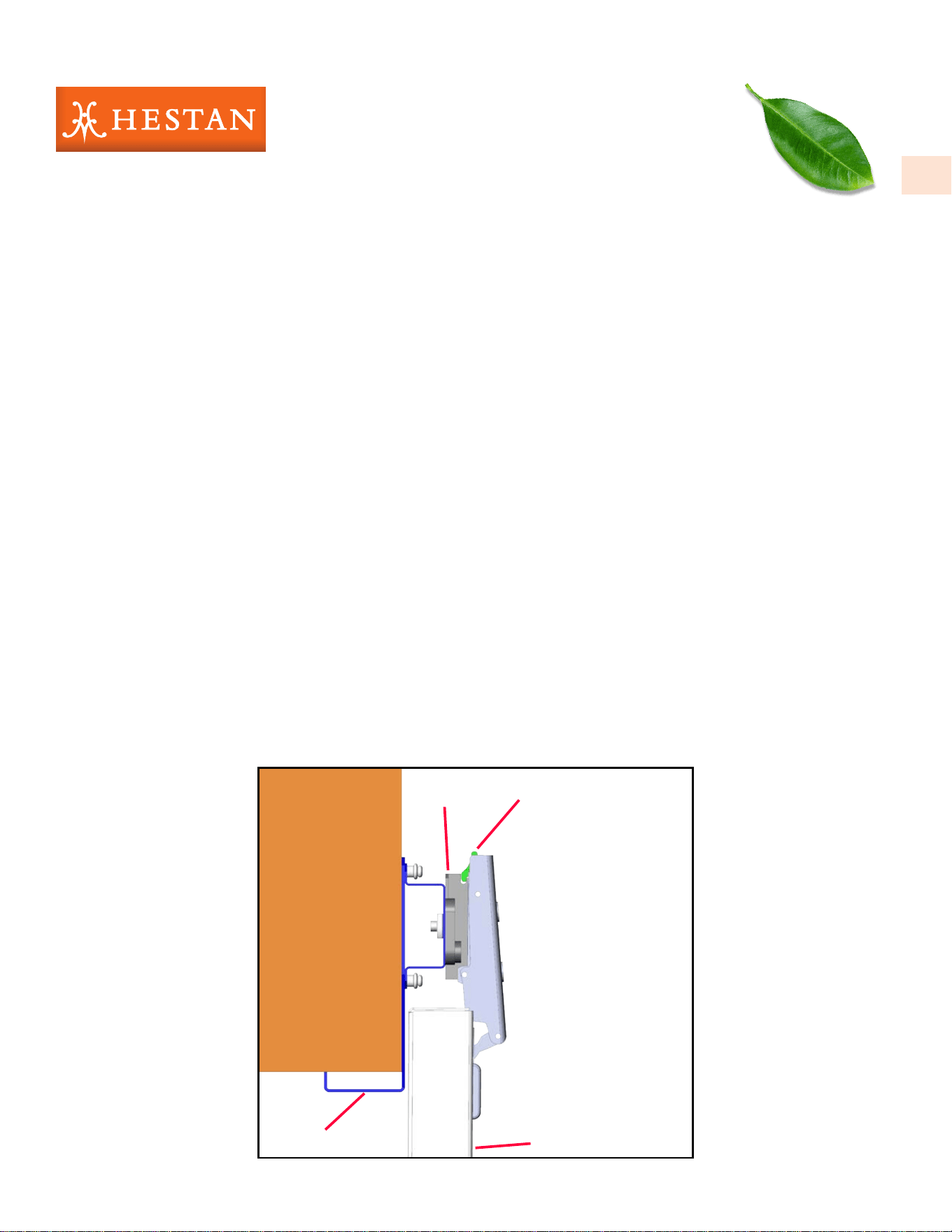

PINCH HERE
TO UN-CLIP
HINGE
CABINET DOOR INSTALLATION (AGAD, AGSD, AGDR, AGSDR)
1. Your new Hestan cabinets come with doors pre-installed in their frames. It will be necessary to detach
them before installing the frame in your island structure. As shown below, pinch the back of the hinge to
un-clip it from the mounting base. The door may now be removed.
©2021 Hestan Commercial Corporation
2
EN
2. Consult the table at the end of this instruction manual to determine the appropriate cutout dimensions
for the Hestan Outdoor cabinet product you are installing. The cutouts should be square at all corners
for proper fitment of the cabinet. The installer will have to build up any internal structural elements or
supports in the island in order to secure the cabinet in place. Stainless steel hardware (not included) is
highly recommended.

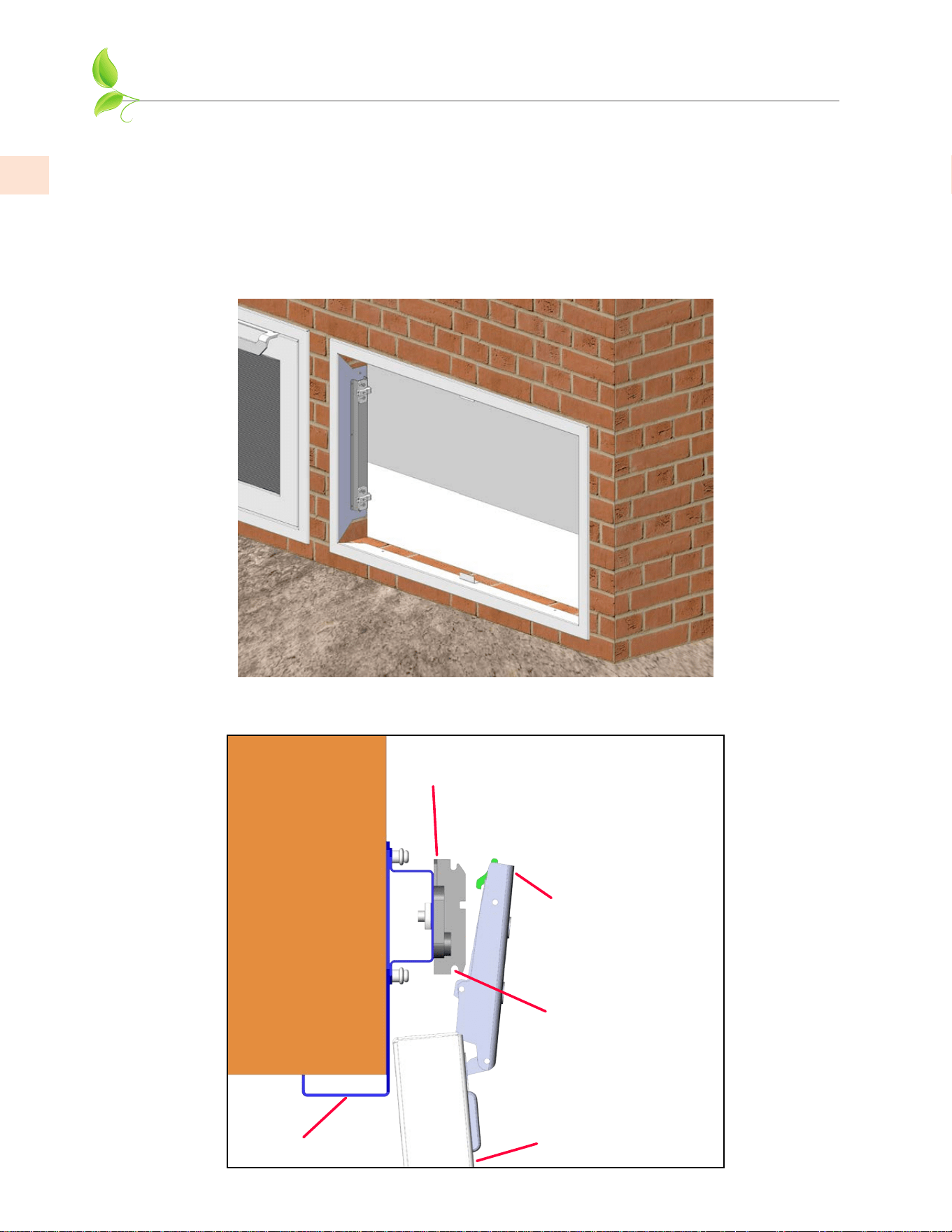

3. Slide the frame into the opening and check for proper alignment (AGAD36 shown). Secure the frame
to the structural members of your island using the various available mounting holes in the frame. Shim
between the frame and opening as needed to avoid distorting the frame when securing the screws.
4. To re-install the door, follow the instructions shown below.
ACCESS
DOOR
FRAME
ATTACH AT THIS
NOTCH FIRST
DOOR
STRUCTURE
(DOOR JAMB)
MOUNTING
BASE
PUSH HINGE
UNTIL REAR
CLIP ENGAGES
CABINET DOOR INSTALLATION
(continued)
©2021 Hestan Commercial Corporation
3
EN
CABINET DOOR INSTALLATION
(continued)

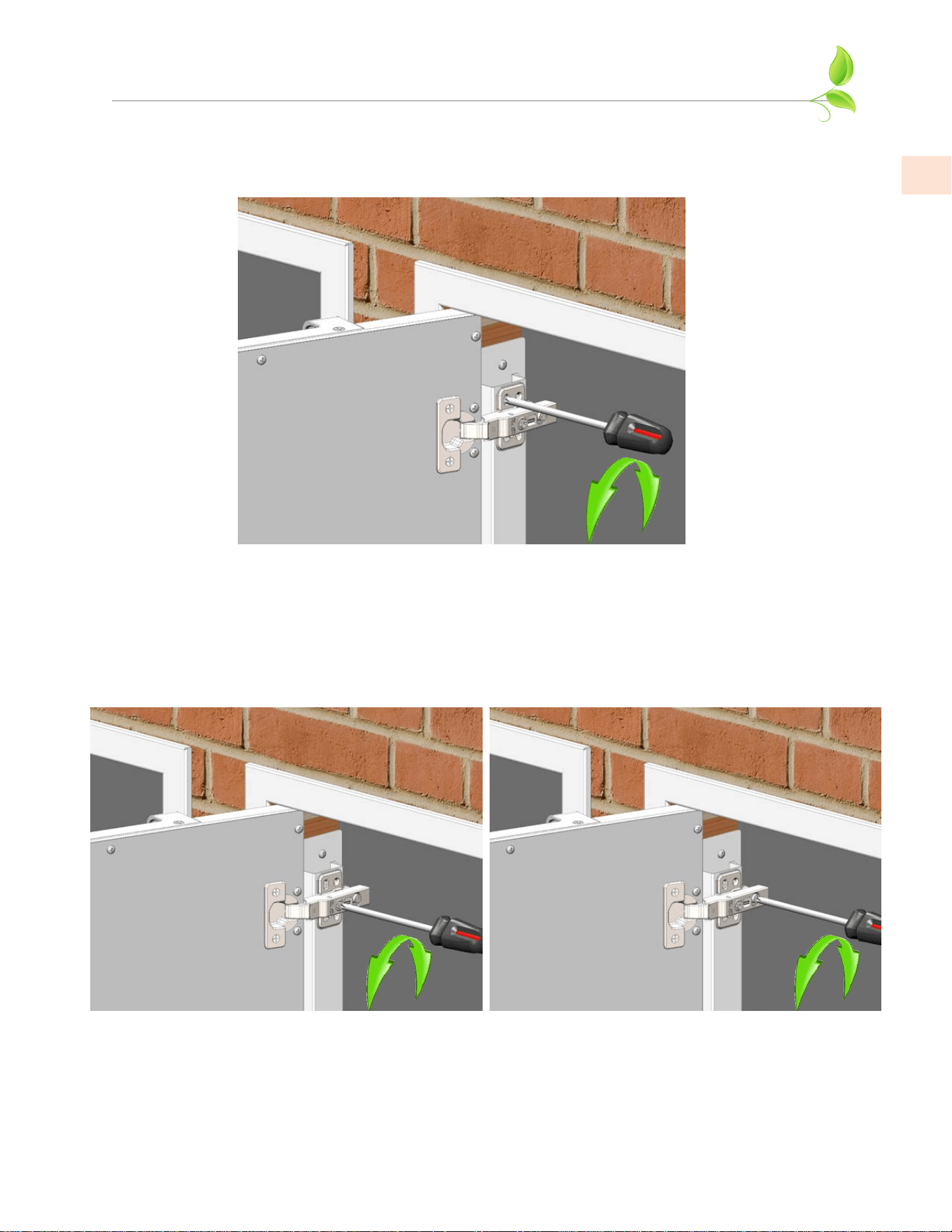

5. Hestan cabinet doors feature 3-way adjustable hinges. It is recommended to do the height
adjustment first. Loosen (but don’t remove) the top & bottom screw on each mounting base,
and adjust the door’s vertical position in the frame. Tighten the screws when done.
HEIGHT
ADJUSTMENT
6. The side and depth adjustment of the doors are shown below. Make small adjustments and close the
door between each attempt to see how the door looks relative to the frame opening and the adjacent
door.
SIDE-TO-SIDE
ADJUSTMENT
DEPTH
ADJUSTMENT
©2021 Hestan Commercial Corporation
4
EN

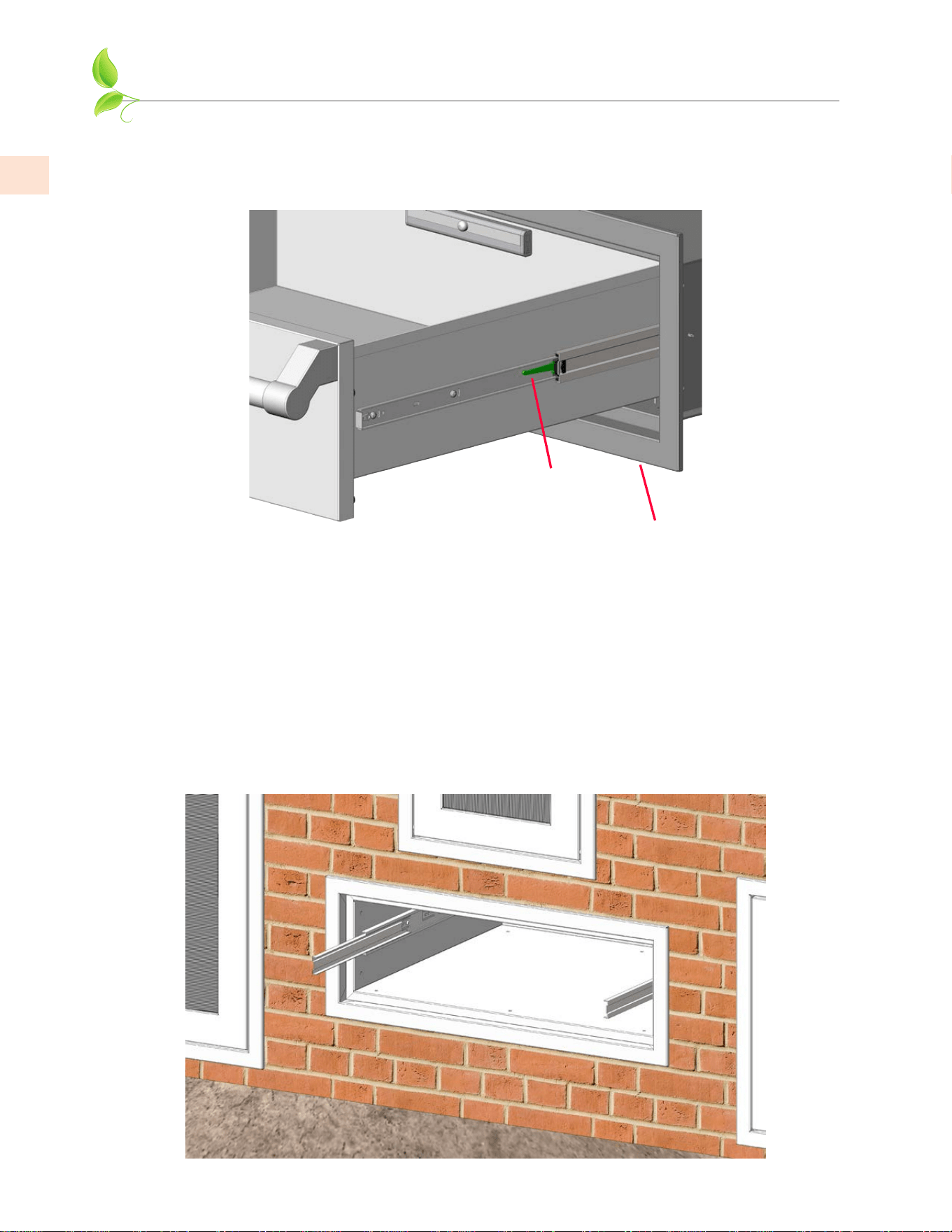

DRAWER INSTALLATION (AGSR)
1. Your new Hestan cabinet drawers come pre-installed in their drawer boxes. It will be necessary to
remove them before installing the box in your island structure. Press the release lever (shown in green)
on each side of the drawer to disengage the slide (up on the left, down on the right), then pull the drawer
all the way out.
2. Consult the table at the end of this instruction manual to determine the appropriate cutout dimensions
for the drawer unit you are installing. The cutouts should be square at all corners for proper fitment
of the cabinet. The installer will have to build up any internal structural elements or supports in the
island in order to secure the drawer box in place. Stainless steel hardware (not included) is highly
recommended.
3. Slide the drawer box into the opening and check for proper alignment. Secure the box to the structural
members of your island using the various available mounting holes inside the box. Shim the opening as
needed to avoid distorting the box when securing the screws. Reinstall the drawer by aligning the slides
on either side and push the drawer back into the opening. You will hear the release levers click. Open
and close the drawer a few times to check for proper function and alignment.
RELEASE
LEVER
DRAWER
BOX
©2021 Hestan Commercial Corporation
5
EN

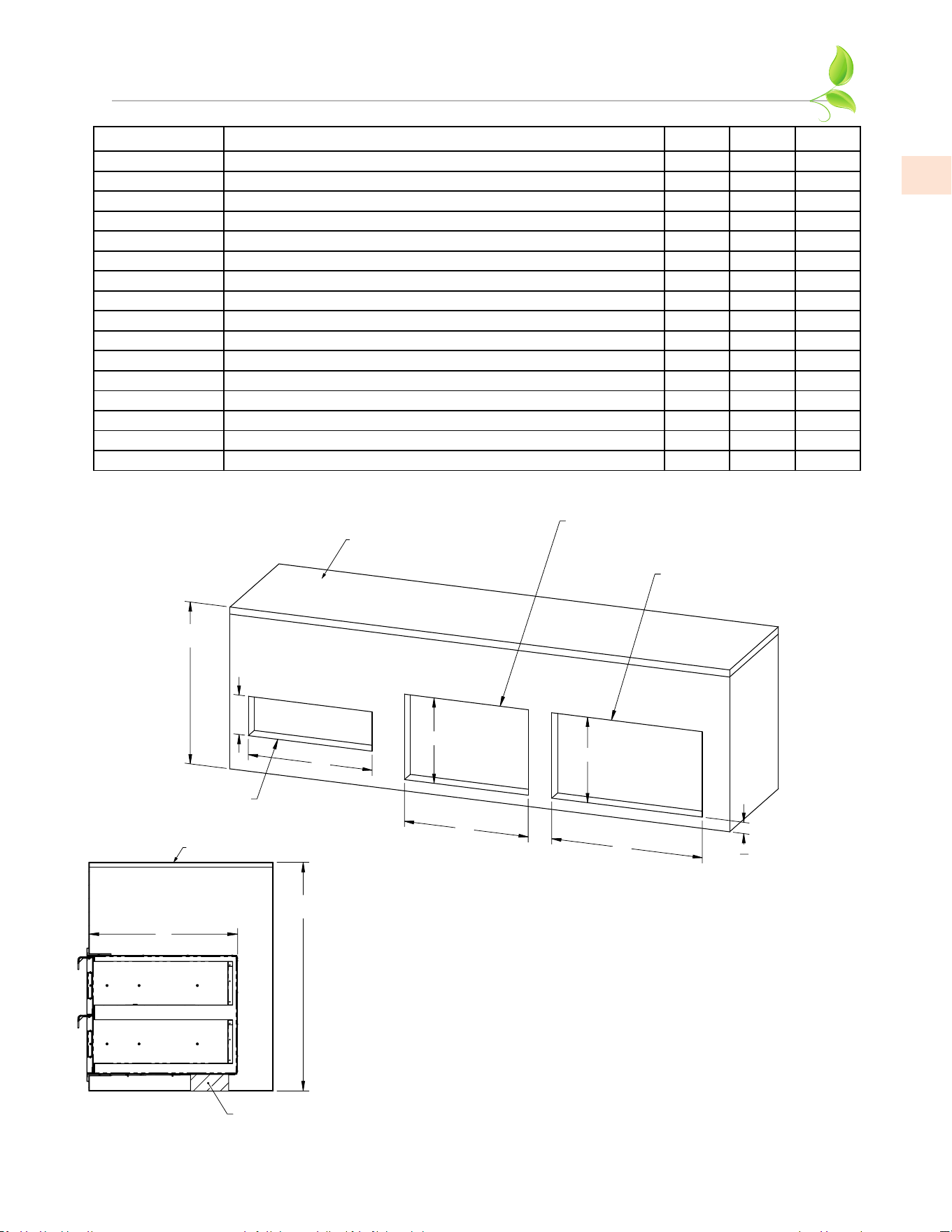

CUTOUT DIMENSIONS
Model Number Description W (in.) D (in.) H (in.)
AGADL18
Single Access Door, Hinge Left, Marquise, 18"
15-7/8 n/a 19
AGADR18
Single Access Door, Hinge Right, Marquise, 18"
15-7/8 n/a 19
AGADL24
Single Access Door, Hinge Left, Marquise, 24"
21-7/8 n/a 19
AGADR24
Single Access Door, Hinge Right, Marquise, 24"
21-7/8 n/a 19
AGAD30
Double Access Doors, Marquise, 30"
27-7/8 n/a 19
AGAD36
Double Access Doors, Marquise, 36"
33-7/8 n/a 19
AGAD42
Double Access Doors, Marquise, 42"
39-7/8 n/a 19
AGSD30
Double Storage Doors, Marquise, 30"
28-1/8
23-3/8
19-1/4
AGSD36
Double Storage Doors, Marquise, 36"
34-1/8
23-3/8
19-1/4
AGSD42
Double Storage Doors, Marquise, 42"
40-1/8
23-3/8
19-1/4
AGSR30
Single Storage Drawer, Marquise, 30"
28-1/8 23-1/2 9-1/8
AGSR36
Single Storage Drawer, Marquise, 36"
34-1/8 23-1/2 9-1/8
AGDR16
Double Drawers, Marquise, 16"
13-15/16 23-1/2 19-1/4
AGSDR30
Double Drawer and Storage Door Combination, Marquise, 30"
28-1/8
23-3/8
19-1/4
AGSDR36
Double Drawer and Storage Door Combination, Marquise, 36"
34-1/8
23-3/8
19-1/4
AGSDR42
Double Drawer and Storage Door Combination, Marquise, 42"
40-1/8
23-3/8
19-1/4
36"
REF.
H
W
2
1
2
"
MIN.
H
W
H
W
SINGLE STORAGE
DRAWER (AGSR)
DOUBLE DRAWER (AGDR)
STORAGE DOOR COMBO (AGSDR)
ACCESS DOORS (AGAD)
DOUBLE STORAGE DOOR (AGSD)
36"
REF.
D
TYPICAL SUPPORT
STRUCTURE REQUIRED
UNDER SOME PRODUCTS
(AGSDR SHOWN)
SIDE VIEW
FINISHED COUNTERTOP
FINISHED COUNTERTOP
©2021 Hestan Commercial Corporation
6
EN
SERVICE
All warranty and non-warranty repairs should be performed by qualified service personnel. To locate an authorized
service agent in your area, contact your Hestan dealer, local representative, or the manufacturer. Before you call, please
have the model number information ready. This information is shown on a sticker affixed to one of the inside vertical
surfaces of your product.
Hestan Commercial Products
3375 E. La Palma Avenue
Anaheim, CA 92806
(888) 905-7463
PARTS LIST
Please visit the Hestan website to access the parts list for your Hestan Outdoor product:
www.hestanoutdoor.com.www.hestanoutdoor.com.
