Gas Continuous Flow Water Heater
Operation & Installation Manual
MODELS
Infinity B26 (REU-BM2626W)
Infinity B20 (REU-BM2024W)
Infinity B16 (REU-BM1620W)
Infinity B12 (REU-BM1220W)
Rinnai 2 HW_BM_CF OIM
Congratulations on the purchase of your Rinnai Gas Continuous Flow Water Heater. We trust you will have many
years of comfort and enjoyment from your appliance.
IMPORTANT
BEFORE USING THIS APPLIANCE
Before proceeding with the operation or installation read this manual thoroughly and gain a full
understanding of the appliance, to ensure safe and correct use.
All Rinnai gas products
sold in Australia are
A.G.A. certified.
This appliance must be installed in accordance with:
• Manufacturer’s Installation Instructions
• Current AS/NZS 3000 & AS/NZS 3500 & AS/NZS 5601
• Plumbing Code of Australia (PCA)
• Local Regulations and Municipal Building Codes
including local OH&S requirements
These products comply with the lead-free requirements of
the National Construction Code – Volume 3.
This appliance must be installed, maintained and removed
ONLY by an Authorised Person.
For continued safety of this appliance it must be installed
and maintained in accordance with the manufacturer’s
instructions.
Rinnai 3 HW_BM_CF OIM
OPERATION TABLE OF CONTENTS
Warnings & Important Information 4
Before Using This Appliance .............................................................................................................................................. 4
Regulatory Information ....................................................................................................................................................... 4
Notice to Victorian Consumers .......................................................................................................................................... 4
Warning About Hot Water ................................................................................................................................................... 4
Operational Safety Information ......................................................................................................................................... 5
)HDWXUHV%HQH¿WV ............................................................................................................................................................. 7
Water Temperature Control 8
Maximum Delivery Temperatures ....................................................................................................................................... 8
Operation Without Water Controllers ................................................................................................................................ 8
Rinnai Water Controllers ..................................................................................................................................................... 8
Location ............................................................................................................................................................................. 8
Water Resistance .............................................................................................................................................................. 8
Temperature Control ......................................................................................................................................................... 9
:DWHU&RQWUROOHU&RQ¿JXUDWLRQV ........................................................................................................................................ 9
Universal Water Controller (MC-601Q) Operation ......................................................................................................... 10
7XUQLQJ2Q ...................................................................................................................................................................... 10
$GMXVWLQJ7HPSHUDWXUH .................................................................................................................................................... 10
7UDQVIHUULQJ3ULRULW\ ......................................................................................................................................................... 10
:DWHU&RQWUROOHU&RPELQDWLRQV&RQ¿JXUDWLRQV............................................................................................................ 10
Smartstart Pre-Heat System ..............................................................................................................................................11
3UHKHDW)XQFWLRQ ..............................................................................................................................................................11
3UHKHDW2SHUDWLRQ ............................................................................................................................................................11
Water Controller Functions ...............................................................................................................................................11
Trouble Shooting 12
Error Codes ........................................................................................................................................................................ 12
1RSRZHUGLVSOD\:LUHOHVV:DWHU&RQWUROOHUZKHQ¿WWHG .............................................................................................. 12
7URXEOHVKRRWLQJ:LWKRXW:DWHU&RQWUROOHUV .................................................................................................................... 12
Service ................................................................................................................................................................................ 13
Installation Table of Contents 14
Contacts 32
Rinnai 4 HW_BM_CF OIM
WARNING
BEFORE USING THIS APPLIANCE
Before proceeding with the operation or installation read this manual thoroughly and gain a full
understanding of the appliance, to ensure safe and correct use.
Always comply with the following precautions to avoid dangerous situations and to ensure
optimum performance.
Failure to carefully read and follow all instructions in this manual can result in equipment
malfunction, property damage, personal injury and/or death.
DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in
personal injury or death.
WARNINGS: Indicates a potentially hazardous situation which, if not avoided, could result in
personal injury or death.
CAUTIONS: Indicates a potentially hazardous situation which, if not avoided, could result in
minor or moderate injury or damage to the appliance. It may also be used to alert against unsafe
practices.
WARNING
REGULATORY INFORMATION
<RXU5LQQDLJDVFRQWLQXRXVÀRZZDWHUKHDWHU KDVEHHQFHUWL¿HGE\WKH$XVWUDOLDQ*DV$VVRFLDWLRQ
7KH$*$&HUWL¿FDWLRQ1XPEHULVVKRZQRQWKHGDWDSODWH
This Appliance must be installed correctly by an appropriately licensed tradesperson. The
installation of gas, water, and electricity must conform to local regulations.
The installation of gas, water, and electricity must conform to local regulations, including local
OH&S requirements. The installation must also comply with the instructions supplied by Rinnai.
Please keep this instruction booklet in a safe place for future reference.
$OOGLPHQVLRQVUHIHUUHGWRLQWKHVHLQVWUXFWLRQVDUHLQPLOOLPHWUHVXQOHVVRWKHUZLVHVSHFL¿HG
Notice to Victorian Consumers
This appliance must be installed by a person licensed with the Victorian Building Authority. Only
a licensed person will have insurance protecting their workmanship. So make sure you use a
OLFHQVHGSHUVRQWRLQVWDOOWKLVDSSOLDQFHDQGDVNIRU\RXU&RPSOLDQFH&HUWL¿FDWH
For further information contact the Victorian Building Authority on 1300 815 127.
WARNING

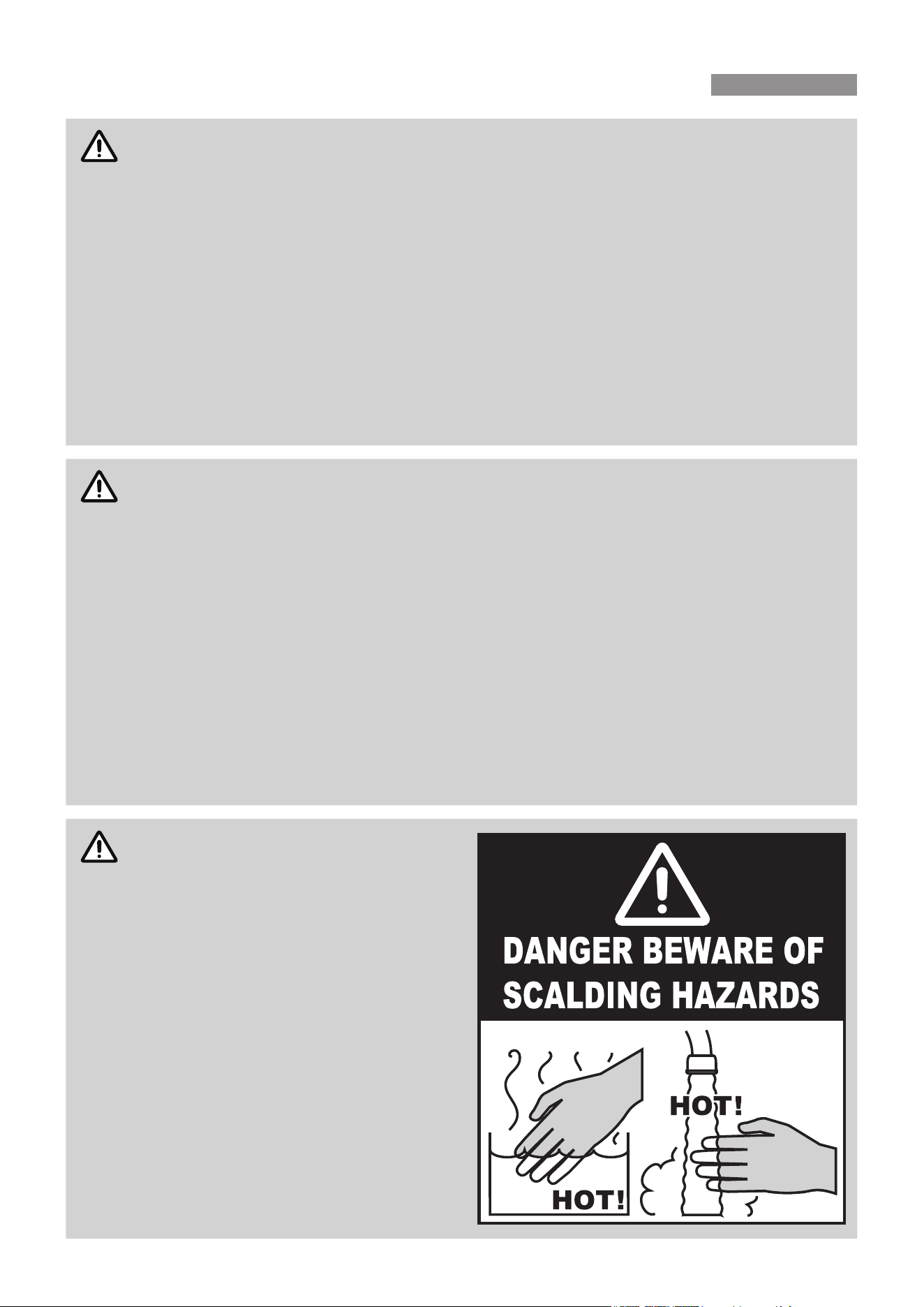

WARNING ABOUT HOT WATER
Hot water can cause scalding. Those most
at risk are children and disabled, elderly and
LQ¿UP SHUVRQV & ZDWHU FDQ VHYHUHO\
burn a child in half a second).
Rinnai have water heater models which
OLPLWWKHGHOLYHU\WHPSHUDWXUHWR&ZKLFK
VLJQL¿FDQWO\ UHGXFHV WKH VFDOG KD]DUG
Temperature limiting devices may also be
DEOHWREH¿WWHG&RQWDFW5LQQDLIRUIXUWKHU
information.
ALWAYS test the water temperature before
XVHVXFKDVZKHQ¿OOLQJDEDWKRUEDVLQRU
entering a shower, to ensure it is suitable
for the application and will not cause scald
injury.
ALWAYS supervise children whenever
they are in the bathroom or near other
sources of hot water. Ensure any hot water
WDSVDUHFORVHG¿UPO\DIWHUXVH
WARNINGS & IMPORTANT INFORMATION
Rinnai 5 HW_BM_CF OIM
Operational Safety Information
IMPORTANT
7KLV DSSOLDQFH LV QRW LQWHQGHG IRU XVH E\ SHUVRQV LQFOXGLQJ FKLOGUHQ ZLWK UHGXFHG SK\VLFDO
sensory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their
VDIHW\&KLOGUHQVKRXOGEHVXSHUYLVHGWRHQVXUHWKDWWKH\GRQRWSOD\ZLWKWKHDSSOLDQFH
S
O
L
V
E
N
T
°C
°C °C
To clean your water controller(s) use a soft damp cloth
with a mild detergent.
'2127 use solvents!

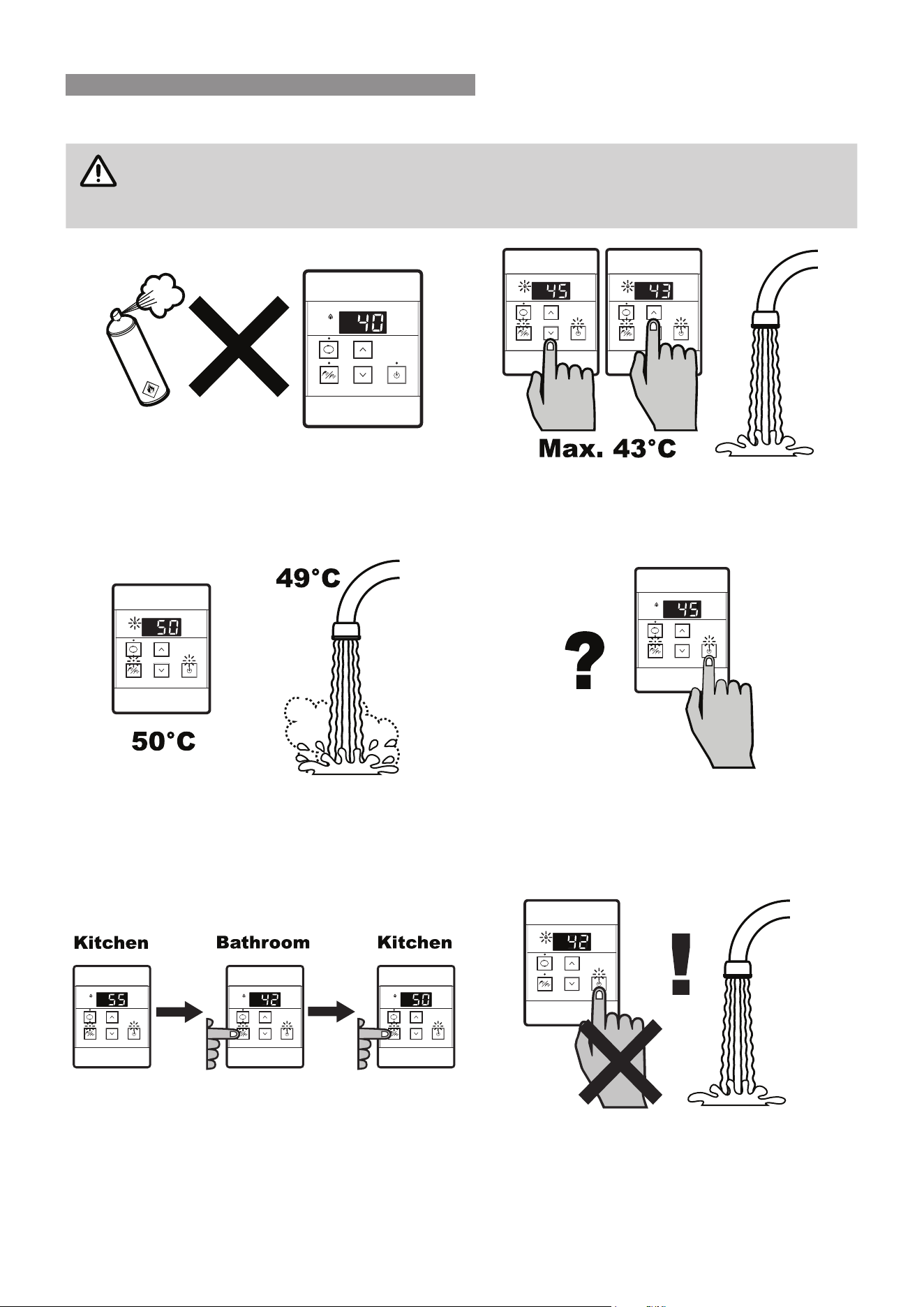

Whilst hot water outlets are open the set temperature
may be lowered. However they cannot then be raised
above 43°C. In addition transfer of 'priority' between
controllers is not possible. These are safety features.
°C
°C
Depending on the weather conditions and the length
of the pipe between the hot water unit and the
outlet in use, there may be a variation between the
temperatures displayed at the water controller(s) and
the temperature of the water at the outlet.
7KHUH LV QR QHHG WR WXUQ WKH ZDWHU FRQWUROOHUV Rႇ
after use. However, if you prefer to turn the water
FRQWUROOHUV Rႇ \RXU VHOHFWHG WHPSHUDWXUHV WR D
maximum of 50°C will be stored in the system memory
at all times whilst mains power remains connected.
°C °C°C
°C
As a safety precaution, if a Kitchen Water Controller's
temperature is set above 50°C, transferring and then
returning 'priority' to the Kitchen Water Controller will
result in a set temperature of 50°C being selected.
When 'priority' is returned to Water Controllers other
than the Kitchen the temperature will be 42°C.
'2 127 SXVK WKH 2Q2ႇ EXWWRQ RQ DQ\ :DWHU
Controller when the water heater ‘In Use’ indicator is
LOOXPLQDWHGDVWKLVZLOOWXUQRႇWKHZDWHUKHDWHUFDXVLQJ
the water to go cold. Someone maybe in the middle of
KDYLQJDVKRZHURU¿OOLQJDEDWK
WARNINGS & IMPORTANT INFORMATION
Rinnai 6 HW_BM_CF OIM
IMPORTANT
7KHUDQJHRI5LQQDLJDVFRQWLQXRXVÀRZZDWHUKHDWHUVUHIHUUHGWRLQWKLVPDQXDODUHLQFRPSDWLEOH
ZLWKVRODUZDWHUKHDWLQJV\VWHPV$GHGLFDWHGUDQJHRIVRODUFRPSDWLEOHFRQWLQXRXVÀRZZDWHU
heaters is available from Rinnai.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
VLPLODUO\TXDOL¿HGSHUVRQVLQRUGHUWRDYRLGDKD]DUG
Always check water temperature carefully before use.
Refer to the :$51,1*$%287+27:$7(5on
page 4 for important safety information.

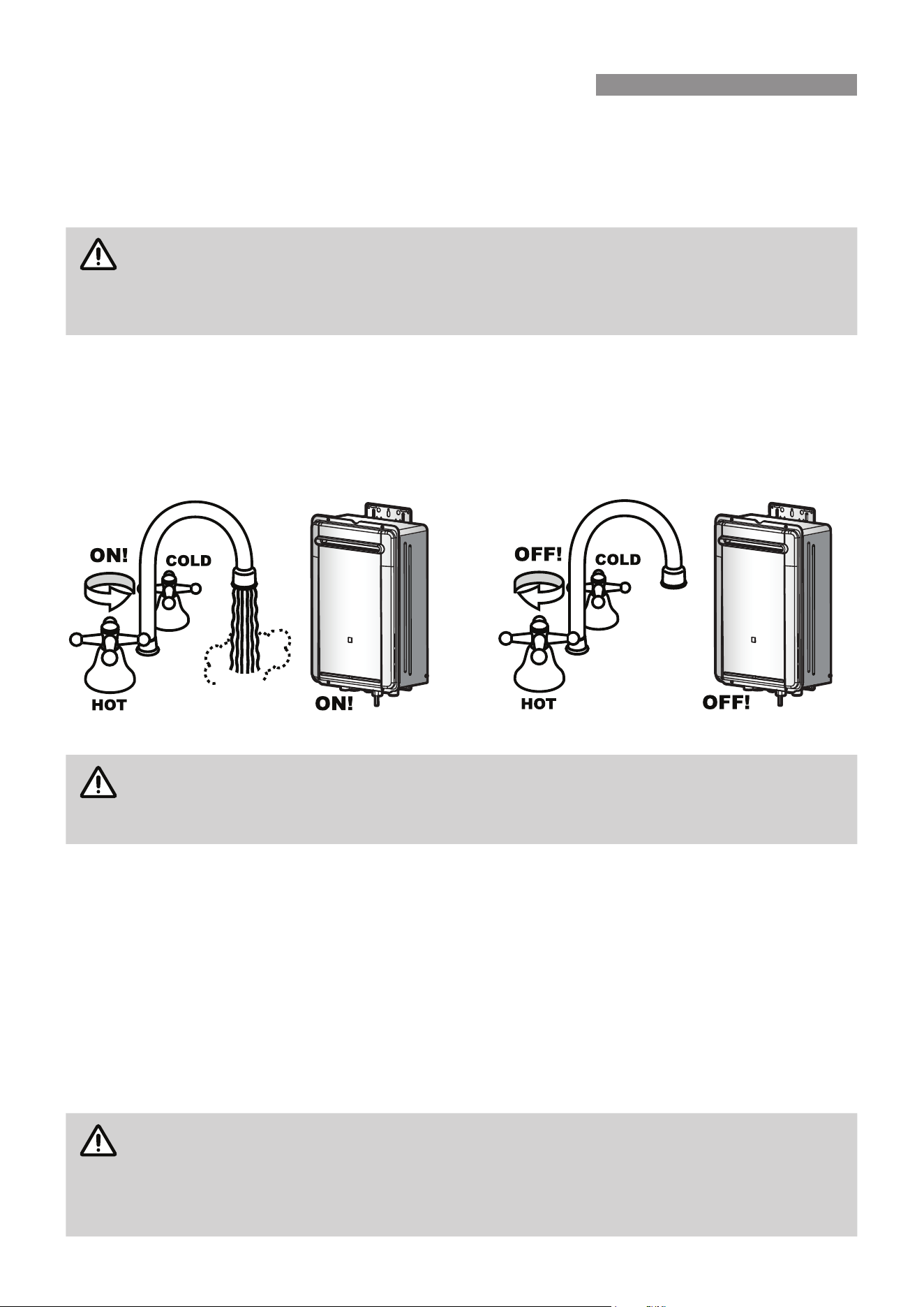

$WORZZDWHUÀRZVWKHKRWZDWHUXQLWPD\H[WLQJXLVK
without warning. Opening the tap further will restart
the heating appliance.

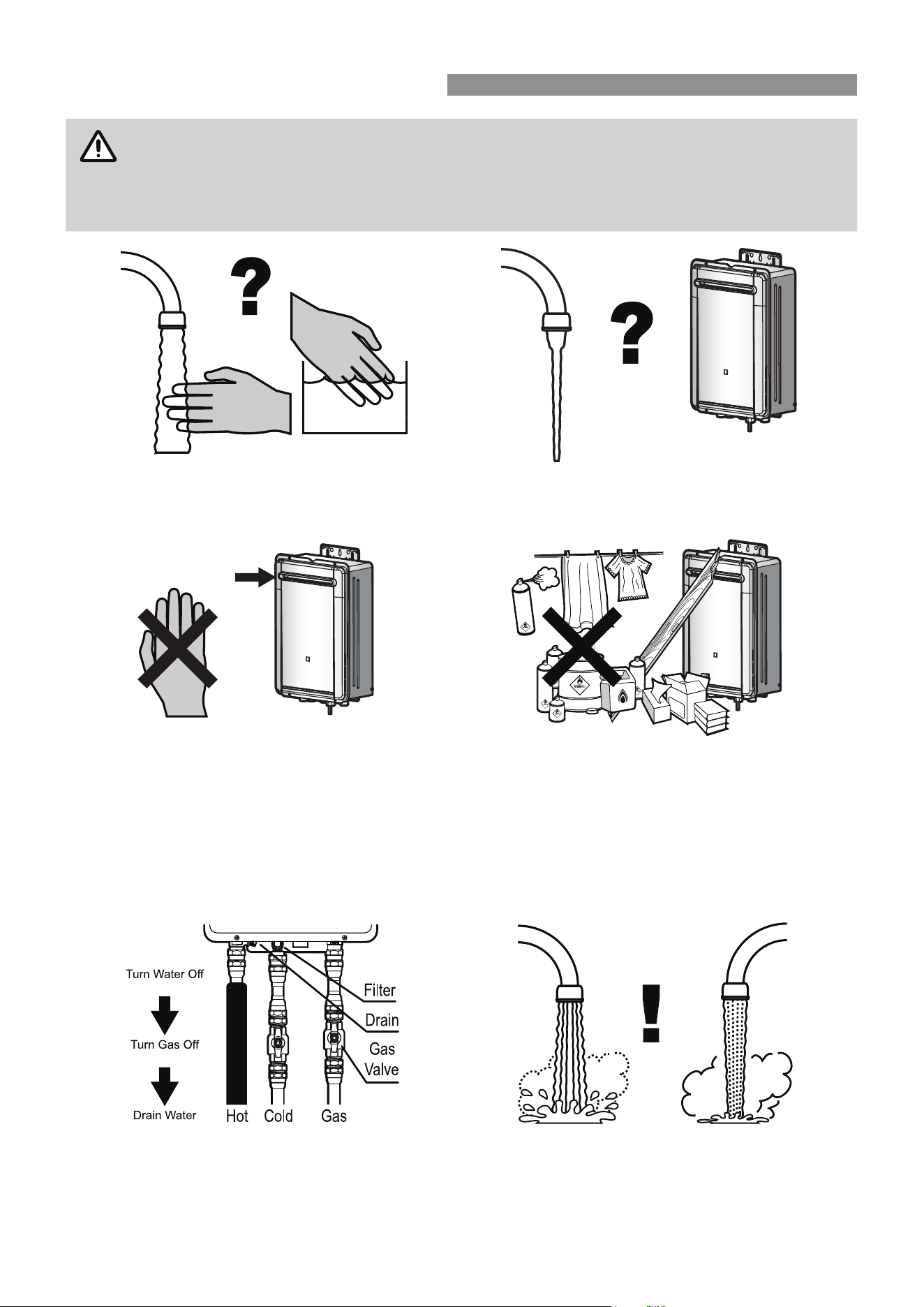

'2127WRXFKWKHXQLWFRYHURUWKHÀXHRXWOHW
'2127LQVHUWREMHFWVLQWRWKHÀXHRXWOHW
'2127VSUD\ZDWHUGLUHFWO\LQWRWKHÀXHRXWOHW
.HHSWUHHVVKUXEVHWFZHOOFOHDURIWKHÀXHRXWOHW
2QFROGHUGD\VVWHDPPD\GLVFKDUJHGIURPWKHÀXH
RXWOHW 7KLV FRQGLWLRQ LV QRUPDO IRU KLJK HႈFLHQF\
appliances and does not indicate a fault.
'2127Spray aerosols in the vicinity of this appliance
while it is in operation.
'2127XVHRUVWRUHÀDPPDEOHPDWHULDOVLQRUQHDU
this appliance.
'2127 place articles on or against this appliance.
'2127modify this appliance.
'2127store pool chemicals near this appliance.
,IIUHH]LQJFRQGLWLRQVDUHH[SHFWHGWXUQRႇZDWHUDQG
gas, and drain all water from the appliance. If power
and the automatic frost protection are connected,
freezing will be prevented. (Anti-frost protection is
¿WWHGDVVWDQGDUGHTXLSPHQWRQDOOKRWZDWHUXQLWV
The delivered water temperature is controlled
DXWRPDWLFDOO\ 7KH ÀRZ PD\ YDU\ GHSHQGLQJ RQ WKH
delivery temperature selected and the ambient water
temperature.
OFF!
HOT!
43°C 55°C
WARNINGS & IMPORTANT INFORMATION
Rinnai 7 HW_BM_CF OIM
FEATURES & BENEFITS
•
7KH5LQQDLJDVFRQWLQXRXVÀRZZDWHUKHDWHU1(9(55816287of hot water. While electricity, water and
gas supplies are connected, hot water is available whenever hot water taps are open.
•
Built into the main micro-processor is the facility to /,0,77+(0$;,0807(03(5$785( of the hot
water supplied. The water temperature may be limited to various values. This is particularly useful when the
KRWZDWHUXQLWLVLQVWDOOHGZKHUH\RXQJFKLOGUHQRUWKHLQ¿UPPD\EHXVLQJWKHKRWZDWHU
•
7KH5LQQDLJDVFRQWLQXRXVÀRZZDWHUKHDWHUVDUH)DQ$VVLVWHGSRZHUÀXHGDSSOLDQFHV7KLVPDNHVWKHP
&203$&7VDYLQJERWKÀRRUDQGZDOOVSDFH
•
The temperature of hot water is &2167$17/<021,725(' by a %8,/7,16(1625 maintaining an
accurate and constant temperature during use.
•
The burner lights automatically when the hot water tap is opened, and goes out when the tap is closed.
,*1,7,21,6(/(&7521,&VRWKHUHLVQRSLORWOLJKW:KHQWKHKRWZDWHUWDSLVRႇQRJDVLVXVHG
•
'Deluxe' or 'Universal' Water Controllers are available as an optional extra. Depending on the models chosen,
WKHVHRႇHUWKHIROORZLQJIHDWXUHV
-
%DWK¿OOIXQFWLRQ'HOX[H%DWKURRP&RQWURO2QO\
-
Voice Prompting (Deluxe Control Only).
-
Clock (Deluxe Control Only).
-
8SWRIRXUZDWHUFRQWUROOHUVFDQEH¿WWHG6HHSDJHIRUGHWDLOV
For further information regarding Wireless and Deluxe water controllers please contact Rinnai or visit
www.rinnai.com.au.
•
7KH6PDUWVWDUWV\VWHPZKHQ¿WWHGFDQSUHKHDWWKHZDWHULQWKHSLSHZRUNEHWZHHQWKHZDWHUKHDWHUDQG
the hot water outlets. This results in water savings and reduces waiting time for heated water at the outlets.
•
Operating 12,6(/(9(/,69(5</2:.
•
(55250(66$*(6$5(',63/$<(' on the Water Controllers and Status Monitor.
WARNINGS & IMPORTANT INFORMATION
Rinnai 8 HW_BM_CF OIM
MAXIMUM DELIVERY TEMPERATURES
5LQQDLJDVFRQWLQXRXVÀRZZDWHUKHDWHUVDUHIDFWRU\SUHVHWWRYDULRXVPD[LPXPGHOLYHU\WHPSHUDWXUHVGHSHQGLQJ
RQ PRGHO DQG WKHLU LQWHQGHG DSSOLFDWLRQ )RU WKH PDMRULW\ RI DSSOLFDWLRQV WKH IDFWRU\ SUHVHW WHPSHUDWXUH LV
DSSURSULDWH,QWKHXQOLNHO\HYHQWWKLVLVQRWWKHFDVHWKLVVHWWLQJFDQEHLQFUHDVHGRUGHFUHDVHGE\DQDXWKRULVHG
SHUVRQVXFKDVDOLFHQVHGSOXPEHU
NOTE
This does not apply to “50 degree compliant” models. To meet the regulatory requirements the
maximum delivery temperature is factory set and sealed.
)RUPRGHOVSHFL¿FLQIRUPDWLRQLQUHJDUGVWRWKHIDFWRU\SUHVHWWHPSHUDWXUHRI\RXUDSSOLDQFH
refer to "Table 2. Maximum Delivery Temperatures" on page 27. The appliance model number
can be found on the dataplate, which is located on the left hand side of appliance.
OPERATION WITHOUT WATER CONTROLLERS
5LQQDL JDV FRQWLQXRXV ÀRZ ZDWHU KHDWHUV GR QRW XVH D SLORW OLJKW :KHQ LQVWDOOHG DQG RSHUDWHG ZLWKRXW ZDWHU
FRQWUROOHUVWKHRSHQLQJRIDQ\KRWZDWHUWDSZLOODXWRPDWLFDOO\VWDUWWKHDSSOLDQFH2QFHZDWHULVÀRZLQJWKURXJKWKH
DSSOLDQFHWKHEXUQHUZLOOEHLJQLWHGE\HOHFWURQLFLJQLWLRQDQGZDWHUZLOOEHGHOLYHUHGDWWKHPD[LPXPWHPSHUDWXUH
WKDWWKHXQLWLVFDSDEOHRIGHOLYHULQJ$VZLWKFRQYHQWLRQDOZDWHUKHDWHUVFROGZDWHUZLOOQHHGWRDGGHGWRUHGXFHWKH
WHPSHUDWXUHWRWKHGHVLUHGOHYHO:KHQWKHKRWZDWHUWDSLVFORVHGDQGZDWHUFHDVHVWRÀRZWKURXJKWKHDSSOLDQFH
WKHEXUQHUÀDPHZLOOEHH[WLQJXLVKHG
RINNAI WATER CONTROLLERS
NOTE
Other manufacturers water controllers are NOT compatible with Rinnai water heaters. Rinnai
water controllers brought in from other countries are also NOT compatible with Rinnai appliances
sold in Australia.
Water controllers MUST NOT be used with any Solar Boost water heater.
:DWHU FRQWUROOHUV DUH DYDLODEOH DV DQ RSWLRQDO H[WUD :LUHOHVV 8QLYHUVDO DQG 'HOX[H ZDWHU FRQWUROOHUV FDQ EH
XVHGWRJHWKHUDQGZLOOIXQFWLRQDVGHVFULEHGLQWKH2SHUDWLRQ6HFWLRQVRIWKLVPDQXDO5HIHUWR:DWHU&RQWUROOHU
&RQ¿JXUDWLRQV RQ SDJH WR FRQ¿UP WKH PD[LPXP QXPEHU DQG FRPELQDWLRQ RI ZDWHU FRQWUROOHUV WKDW FDQ EH
¿WWHGWR\RXUZDWHUKHDWHUPRGHO
Location
:DWHUFRQWUROOHUVPXVWEHLQVWDOOHGLQVKDGHGDQGFOHDQORFDWLRQV7KH\VKRXOGEH¿WWHGRXWRIUHDFKRIFKLOGUHQ
VXJJHVWHGKHLJKWIURPÀRRUWREHDWOHDVWPP
Water Resistance
7KH0&4XQLYHUVDOZDWHUFRQWUROOHULVDZDWHUUHVLVWDQWGHYLFHKRZHYHUH[FHVVLYHH[SRVXUHWRZDWHUVXFKDV
LPPHUVLRQPD\UHVXOWLQGDPDJHWRWKHZDWHUFRQWUROOHU'XUDELOLW\RIZDWHUFRQWUROOHUVLVLPSURYHGZKHQSRVLWLRQHG
RXWVLGHRIWKHVKRZHUUHFHVV
NOTE
Controllers MUST BE installed at least 400 mm above the highest part of a sink, basin or bath.
DO NOT immerse the water controller into water.
AVOID direct exposure to water or steam as these conditions may cause a malfunction.
ALWAYS AVOID exposure to water when the battery compartment is open.
When cleaning your water controller use ONLY a damp cloth and a mild detergent.
WATER TEMPERATURE CONTROL
5LQQDL +:B%0B&)2,0
Temperature Control
:DWHUFRQWUROOHUVDOORZSUHFLVHWHPSHUDWXUHFRQWUROE\WKHXVHU:KHQXVHGFRUUHFWO\WKHKRWZDWHUXQLWZLOOGHOLYHU
WKHVHOHFWHGWHPSHUDWXUHHYHQZKHQWKHZDWHUÀRZLVYDULHGRUPRUHWKDQRQHWDSLVLQXVH
2QO\RQH0&PRGHOZDWHUFRQWUROOHUFDQEHGHVLJQDWHGDVDµ0DVWHU¶ZDWHUFRQWUROOHUDQGWKLVLVQRUPDOO\XVHG
LQWKH NLWFKHQ$OOWKH UHPDLQLQJ ZDWHU FRQWUROOHUV DUH GHVLJQDWHG DV µ6XE¶ZDWHU FRQWUROOHUV DQG DUH IRU XVH LQ
EDWKURRPVWRLOHWVDQGODXQGULHV7KHPD[LPXPWHPSHUDWXUHOLPLWIRUDOOµ6XE¶ZDWHUFRQWUROOHUVLVUHVWULFWHGWR&
WRPLQLPLVHWKHULVNRIEXUQVLQWKHVHDUHDV
$Q\ZDWHUFRQWUROOHUWKDWFXUUHQWO\KDVSULRULW\LVFDSDEOHRIVHWWLQJWKHZDWHUWHPSHUDWXUHWREHGHOLYHUHGKRZHYHU
WKHZDWHUKHDWHUFDQRQO\DVVLJQSULRULW\ WR RQH FRQWUROOHUDWDWLPHDQGGHOLYHU WKH RQH VHWWHPSHUDWXUH7KH
DYDLODEOHWHPSHUDWXUHV&DUHDVIROORZV
:DWHU&RQWUROOHU
7HPSHUDWXUHV
&
0DVWHU0&
6XE0&RU%&
NOTE
While hot water outlets are open ONLY the control used to set to delivery may be used to further
adjust it. Transfer of 'priority' between controllers is NOT possible until all hot water taps have
been closed. These are safety features.
)RUK\JLHQHLQVDQLWDU\DUHDVVXFKDVEDWKURRPVWKHVXJJHVWHGWHPSHUDWXUHVKRXOGEH&a&
7KH DERYH LV D VXJJHVWLRQ RQO\ DV \RX PD\ ¿QG KLJKHU RU ORZHU WHPSHUDWXUHV PRUH FRPIRUWDEOH KRZHYHU
PDLQWDLQLQJORZHUWHPSHUDWXUHVDOVRKHOSVWRVDYHHQHUJ\7RREWDLQZDWHUWHPSHUDWXUHVORZHUWKDQ&VLPSO\
RSHQWKHFROGZDWHUWDSDQGDGGFROGZDWHUXQWLOWKHGHVLUHGORZHUWHPSHUDWXUHLVUHDFKHG
NOTE
7KH WHPSHUDWXUH RI RXWJRLQJ KRW ZDWHU LV FRQVWDQWO\ PRQLWRUHG E\ D EXLOWLQ VHQVRU ,I WKH
temperature of the outgoing hot water is calculated to be 3°C or higher than the selected
WHPSHUDWXUHVKRZQRQWKHGLJLWDOPRQLWRURUWKHSUHVHWOLPLWZKHQZDWHUFRQWUROOHUVDUHQRW¿WWHG
then the burner will automatically go out. The ‘in use’ indicator
will also go out. The burner will
ignite again once the outgoing hot water temperature falls to that shown on the digital monitor (or
WKHSUHVHWOLPLWRIWKHDSSOLDQFH
* 7HPSHUDWXUHPD\ QRW EHDYDLODEOH RQ DOO LQVWDOODWLRQV 6RPH5LQQDL JDV FRQWLQXRXVÀRZ
water heaters can be programmed to deliver higher temperatures from the master water
controller, or may be programmed to restrict the maximum available delivery temperature.
Contact Rinnai for more details.
* 7HPSHUDWXUH OLPLWLQJ GHYLFHV ZKHUH ¿WWHG PD\ IXUWKHU FRQWURO ZKDW PD[LPXP GHOLYHU\
temperature is available to outlets.
8QLYHUVDO DQG :LUHOHVV DQG ZDWHU FRQWUROOHUV DOORZ WHPSHUDWXUH VHOHFWLRQ RQO\ 'HOX[H ZDWHU FRQWUROOHUV DOORZ
WHPSHUDWXUHVHOHFWLRQKDYHDFORFNIXQFWLRQDQGWKH'HOX[H%DWKURRPZDWHUFRQWUROOHUKDVDVKRZHUVDYHUEDWK
¿OOIXQFWLRQDOVRDYDLODEOH7R¿QGRXWPRUHDERXWWKHIXOOUDQJHRI5LQQDLZDWHUFRQWUROOHUPRGHOVLQFOXGLQJ:LUHOHVV
DQG'HOX[HZDWHUFRQWUROOHUVFRQWDFW5LQQDLRUYLVLWwww.rinnai.com.au
:DWHU&RQWUROOHU&RQÀJXUDWLRQV
9DULRXVFRPELQDWLRQVRI8QLYHUVDO'HOX[HDQG:LUHOHVVZDWHUFRQWUROOHUVFDQEH¿WWHGZLWKWKHIROORZLQJOLPLWDWLRQV
•
)RUDOOPRGHOVDPD[LPXPRIFOURZDWHUFRQWUROOHUVFDQEH¿WWHG
•
2QO\ONEPDVWHUFRQWUROOHUFDQEHLQVWDOOHG7KLVFDQEHDGHOX[HNLWFKHQ0&9RUDQ\RWKHU0&PRGHO
ZDWHUFRQWUROOHUZKHQSURJUDPPHGWREHD0DVWHUFRQWUROOHU
IMPORTANT
:KHQDGHOX[HNLWFKHQ0&9ZDWHUFRQWUROOHULV¿WWHGLWZLOODOZD\VIXQFWLRQDVD0DVWHU
controller, this is the default setting and can NOT be changed.
•
$XSWRDPD[LPXPRIONE%&9ZDWHUFRQWUROOHUVFDQEHLQVWDOOHG
•
7KHFOURTHZDWHUFRQWUROOHULQDQ\LQVWDOODWLRQMUST BED0&4RUD0&5&6
7R¿QGRXWPRUHDERXWWKHIXOOUDQJHRI5LQQDLZDWHUFRQWUROOHUPRGHOVFRQWDFW5LQQDLRUYLVLWwww.rinnai.com.au
WATER TEMPERATURE CONTROL
Rinnai 10 HW_BM_CF OIM
UNIVERSAL WATER CONTROLLER (MC-601Q) OPERATION
Turning On
,IWKHZDWHUFRQWUROOHULVVZLWFKHGRႇ1RGLJLWVGLVSOD\HGLQWKHGLJLWDOPRQLWRUZLQGRZ
SUHVVWKH2Q2ႇEXWWRQRQFH7KH21LQGLFDWRUZLOOLOOXPLQDWHLQGLFDWLQJWKDWWKHKRW
ZDWHUXQLWZLOOEHUHDG\WRVXSSO\KRWZDWHURQFHDKRWZDWHUWDSLVRSHQHG
Adjusting Temperature
6HOHFWWKHGHVLUHGWHPSHUDWXUHXVLQJWKH+RWZDWHUWHPS
or EXWWRQVXQWLOWKH
UHTXLUHGWHPSHUDWXUHLVGLVSOD\HGRQWKHGLJLWDOPRQLWRU
7RRSHUDWHWKHKRWZDWHUXQLWRSHQDQ\KRWZDWHUWDS7KLVZLOODXWRPDWLFDOO\OLJKWWKH
EXUQHU SURYLGLQJ KRW ZDWHU 7KH ZDWHU KHDWHU µ,Q 8VH¶ LQGLFDWRU ZLOO LOOXPLQDWH RQ WKH
ZDWHUFRQWUROOHUV
2QFHWKHKRWZDWHULVUXQQLQJLIWKHVHWWHPSHUDWXUHLVHLWKHUWRRKRWRUFROGSUHVVWKH
+RWZDWHUWHPS or EXWWRQVXQWLOWKHGHVLUHGWHPSHUDWXUHLVUHDFKHG
NOTE
While hot water outlets are open, the set temperature may be lowered to a minimum of 37°C. For
safety, it cannot then be raised above 43°C until all hot water taps are closed.
,IWKHZDWHUKHDWHULVWXUQHGµ2ႇ¶ZKLOVWKRWZDWHUWDSVDUHRSHQLWFDQQRWEHWXUQHGEDFNµ2Q¶XQWLO
all hot water taps have been closed.
Temperatures higher than 50ºC MUST NOT be able to be selected on controllers installed in
EDWKURRPVHQVXLWHVRUWRLOHWV7KLVLVWRKHOSUHGXFHWKHULVNRIEXUQVIURPKRWZDWHU,IWKLVLVQRW
the case, the controllers have been incorrectly installed. CONTACT YOUR INSTALLER.

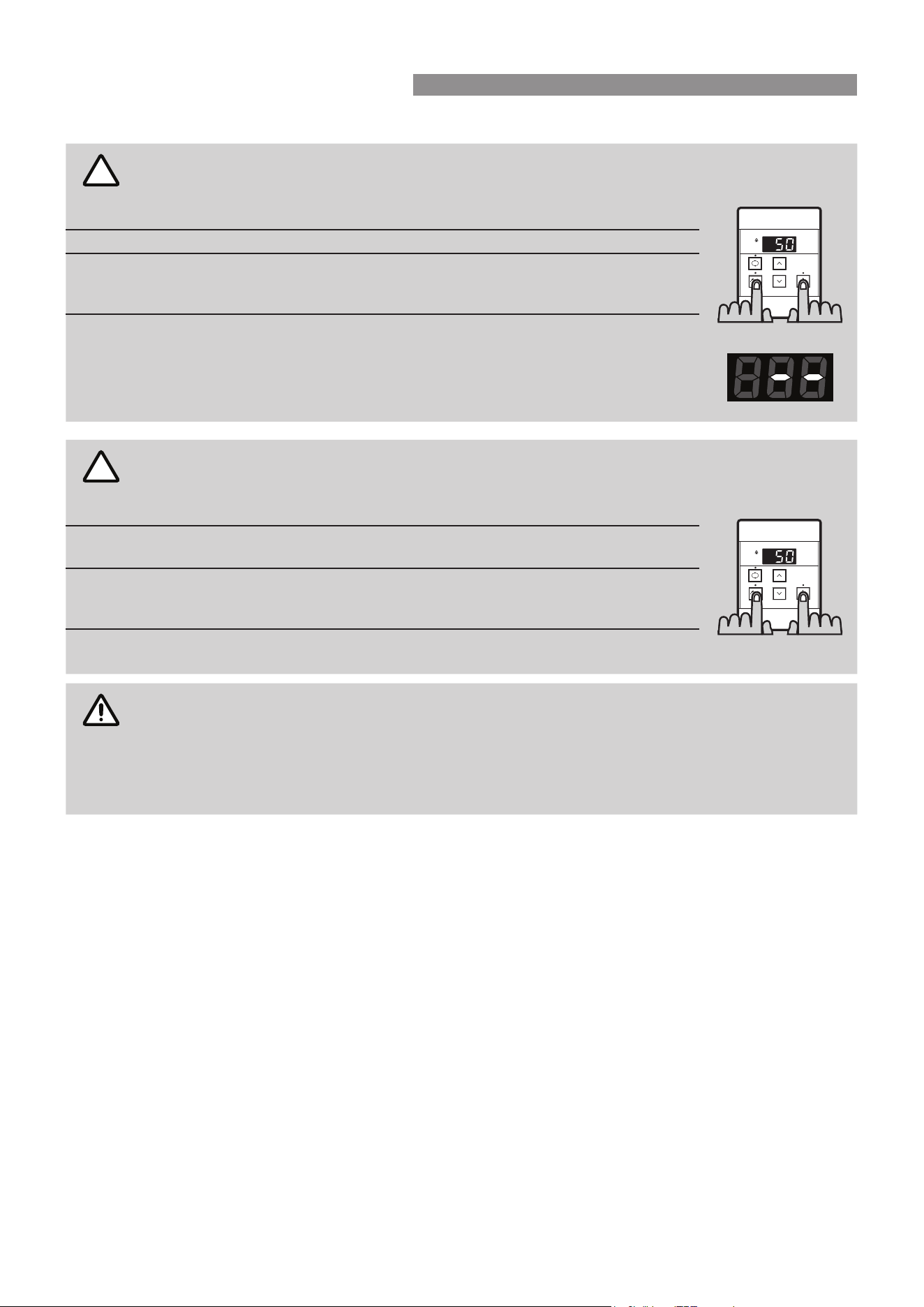

The 'beep' sound can be muted by pressing the and buttons simultaneously for more than
3 seconds. To cancel sound muting, simply repeat the process.
CAUTION
$OZD\VFKHFNRXWOHWZDWHUWHPSHUDWXUHEHIRUHXVH7KHSDUHQWFDUHUMUST FKHFNWKHWHPSHUDWXUH
before placing dependants in contact with hot water, see "Warning About Hot Water" on page 4.
Transferring Priority
7RFRQWUROWKHZDWHUGHOLYHU\WHPSHUDWXUHVZKHQXVLQJWZRRUPRUHZDWHUFRQWUROOHUVLWLV
QHFHVVDU\WRKDYHSULRULW\WUDQVIHUUHGWRWKHZDWHUFRQWUROOHU\RXZLVKWRXVH7UDQVIHUULQJ
RISULRULW\ZLOONOTEHSRVVLEOHLIWKHµ,Q8VH¶LQGLFDWRULVFXUUHQWO\LOOXPLQDWHGDVWKLV
LQGLFDWHVKRWZDWHULVÀRZLQJDQGWKDWDQRWKHUZDWHUFRQWUROOHUDOUHDG\KDVSULRULW\
$QLOOXPLQDWHG3ULRULW\LQGLFDWRUFRQ¿UPVWKDWWKHGHVLUHGZDWHUFRQWUROOHULVLQFRQWURO
RIWKHZDWHUGHOLYHU\WHPSHUDWXUH,IWKH3ULRULW\LQGLFDWRULVQRWLOOXPLQDWHGSUHVVWKH
3ULRULW\7UDQVIHU EXWWRQ RQFH7KH 3ULRULW\ LQGLFDWRU ZLOO LOOXPLQDWH LQGLFDWLQJ WKDW KRW
ZDWHUWHPSHUDWXUHFRQWUROKDVEHHQWUDQVIHUUHGDQGWKDWWKHKRWZDWHUXQLWZLOOEHUHDG\
WRVXSSO\KRWZDWHURQFHDKRWZDWHUWDSLVRSHQHG
:DWHU&RQWUROOHU&RPELQDWLRQV&RQÀJXUDWLRQV
:LUHOHVV8QLYHUVDODQG'HOX[HZDWHUFRQWUROOHUVFDQEHFRPELQHG5HIHUWR:DWHU&RQWUROOHU&RQ¿JXUDWLRQVRQ
SDJHWRFRQ¿UPWKHPD[LPXPQXPEHUDQGFRPELQDWLRQRIFRQWUROOHUVWKDWFDQEH¿WWHG

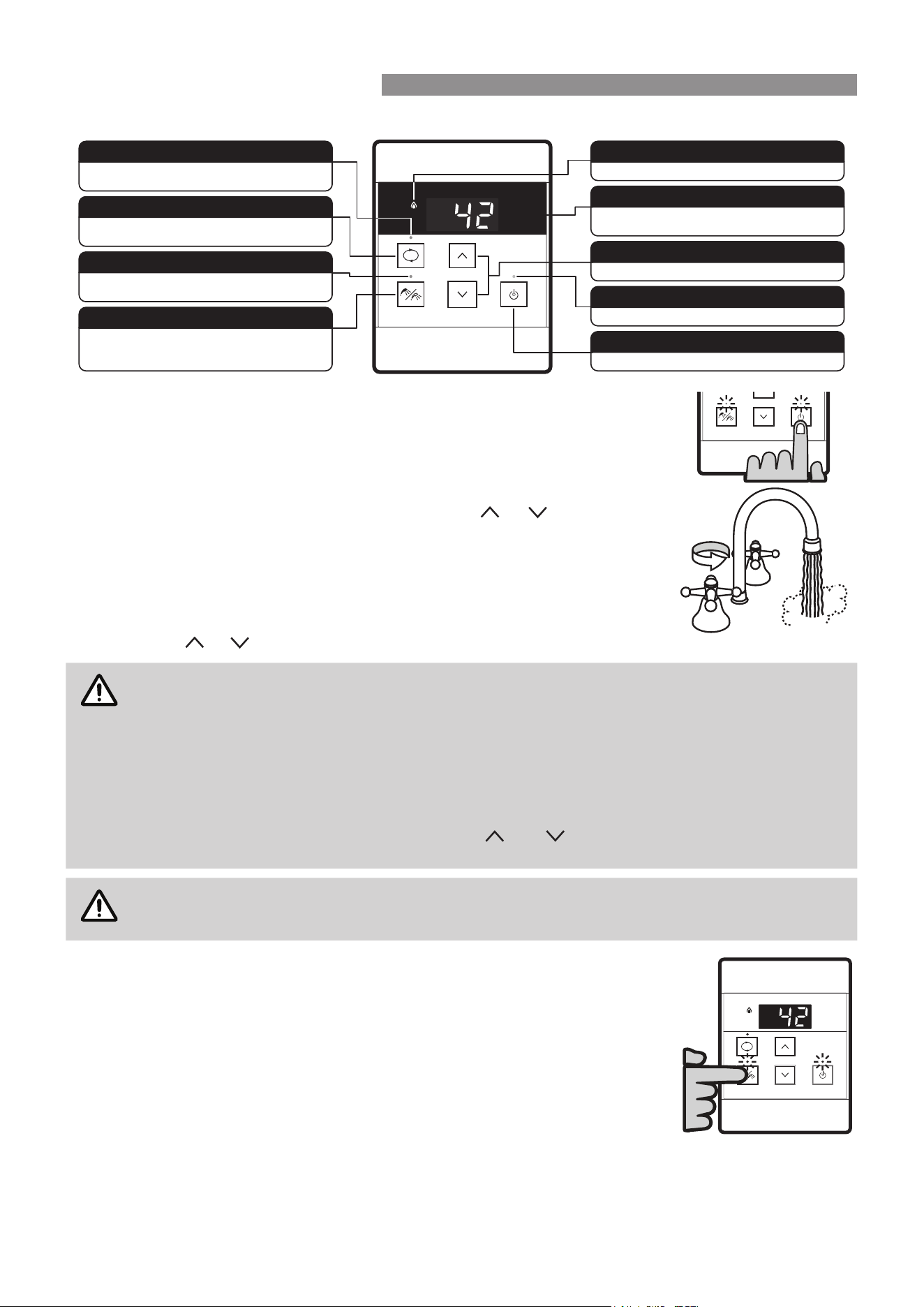

°C
MC-601Q-A
WARNING
• Check the priority light is ‘lit’ before turning on tap.
• Please read the ‘Operation / Installation Manual’
carefully to ensure safe and correct operation.
Indicates the temperature selected.
Error messages flash in event of a fault.
DIGITAL MONITOR
Used to select water temperature.
TEMPERATURE CONTROL BUTTONS
Indicates that the hot water heater is on.
WATER HEATER ON INDICATOR
Used to switch the water heater on and off.
ON/OFF BUTTON
Indicates that the Smartstart preheater (when fitted) is
activated.
PREHEAT INDICATOR
Used to start and stop the Smartstart preheat unit (when
fitted). Refer to Smartstart Operation on page 11.
PREHEAT BUTTON
Indicates if this water controller is in control of water
delivery temperature.
CONTROLLER PRIORITY INDICATOR
Used to transfer control priority between water
controllers. The water controller with priority has
command of the hot water delivery temperature.
PRIORITY TRANSFER BUTTON
Indicates that a water heater is delivering hot water.
WATER HEATER 'In Use' INDICATOR
HOTHOT
COLDCOLD
ON!ON!
°C
WATER TEMPERATURE CONTROL
Rinnai 11 HW_BM_CF OIM
SMARTSTART PRE-HEAT SYSTEM
The “Preheat” function works in conjunction with various Rinnai water heater models when the separately installed
and optional Rinnai “Smartstart®” module is installed.
°C

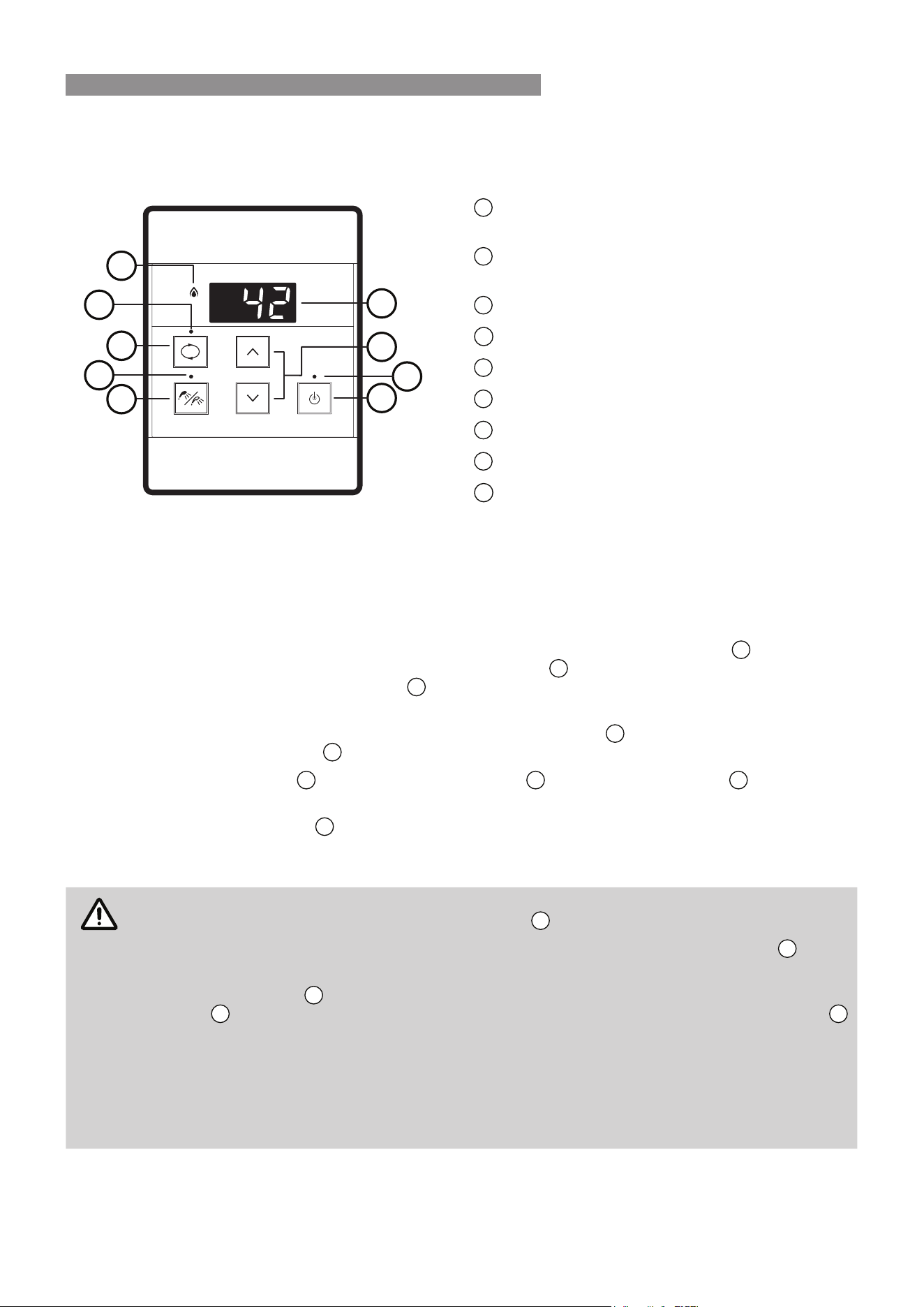

7
8
1
2
3
6
4
9
5
1
Preheat Button
Used to start and stop Smartstart preheater
2
Preheat Indicator
Indicates that Smartstart preheater is activated*
3
Digital Monitor
4
2Q2ႇ%XWWRQ
5
Controller Priority Indicator
6
Temperature Control Buttons
7
Water Heater "In Use" Indicator
8
Priority Transfer Button
9
Water Heater On Indicator
Preheat Function
When the "Preheat" function is activated and used in accordance with these instructions, water in the pipework
connected between the water heater and the hot water outlets in your house is warmed before any outlets are
opened. This results in water savings and added convenience.
Preheat Operation
1. Ensure that the hot water unit is on (temperature digits are displayed in the digital monitor
3
). If more than
RQHZDWHUFRQWUROOHULV¿WWHGSUHVVWKH3ULRULW\7UDQVIHUEXWWRQ
8
to pass on priority to your desired water
controller. The "Controller Priority" indicator
5
ZLOOLOOXPLQDWHWRFRQ¿UPWKDWSULRULW\KDVEHHQDVVLJQHGWRWKLV
water controller and that the hot water unit is ready to deliver hot water.
2. Select the desired temperature using the "Temperature Control" buttons
6
until the required temperature is
displayed in the digital monitor
3
.
3. Press the "Preheat" button
1
once. The "Preheat" indicator
2
and the "In Use" indicator
7
will illuminate,
signifying that the preheat system has been activated.
4. Wait for the "In Use" indicator
7
WRJRRXWWKLVPD\WDNHWRPLQXWHV:KHQWKLVKDSSHQVLWVLJQL¿HVWKDW
the water in the pipework has now been pre-warmed and is ready for delivery, and that a hot water tap can
now be opened.
NOTE
7KHZDLWLQJWLPHPD\EHORQJHURUVKRUWHUGHSHQGLQJRQ\RXUSDUWLFXODULQVWDOODWLRQFRQ¿JXUDWLRQ
For best results always wait for the "In Use" indicator
7
WRJRRXWEHIRUHRSHQLQJDKRWZDWHUWDS
The preheat function is cancelled 5 minutes after activation and the "Preheat" indicator
2
will go
RXW7KLVLVWRFRQVHUYHHQHUJ\7RUHDFWLYDWHVLPSO\UHSHDWVWHSVDERYH
If the "Preheat" button
1
LVSUHVVHGDQGWKH6PDUWVWDUWSUHKHDWXQLWLVQRWLQVWDOOHGWKH3UHKHDW
indicator
2
ZLOOVWLOOOLJKWKRZHYHUWKHUHZLOOEHQRSUHKHDWIXQFWLRQ7KH3UHKHDWLQGLFDWRU
2
ZLOOJRRXWDIWHUDVKRUWWLPHDQGZLOOQRWDႇHFWWKHRWKHUIXQFWLRQVRIWKHZDWHUFRQWUROOHURUZDWHU
KHDWHU
:KHQ GHOX[H %DWKURRP ZDWHU FRQWUROOHUV DUH ¿WWHG DIWHU XVLQJ WKH 6KRZHU 6DYHU %DWK )LOO
IXQFWLRQZDLWVHFRQGVEHIRUHDFWLYDWLQJWKH3UHKHDWIXQFWLRQ$WWHPSWLQJWRXVHWKH3UHKHDW
IXQFWLRQHDUOLHUZLOOUHVXOWLQYRLFHSURPSWVEHLQJUHSHDWHGXQWLOWKHV\VWHPLVUHVHW7KHV\VWHP
FDQEHUHVHWE\SUHVVLQJWKH2Q2ႇEXWWRQWZLFH
Water Controller Functions
Water controller functions such as temperature control and transfer of priority between multiple controllers are not
DႇHFWHGE\WKHRSHUDWLRQRIWKHSUHKHDW6XFKIXQFWLRQVDUHGHVFULEHGLQWKHDSSOLFDEOHVHFWLRQVRIWKLVPDQXDO
WATER TEMPERATURE CONTROL
Rinnai 12 HW_BM_CF OIM
ERROR CODES
<RXU5LQQDLJDVFRQWLQXRXVÀRZZDWHUKHDWHUVKDVDVHOIGLDJQRVWLFFDSDELOLW\,IDIDXOWRFFXUVDQ(UURU&RGHZLOO
ÀDVKRQWKHGLJLWDOPRQLWRURI\RXUZDWHUFRQWUROOHUVRURQWKHVWDWXVPRQLWRURQWKHIURQWFRYHURIWKHZDWHUKHDWHU
7KLVDVVLVWVZLWKGLDJQRVLQJWKHIDXOWDQGPD\HQDEOH\RXWRRYHUFRPHDSUREOHPZLWKRXWDVHUYLFHFDOO3OHDVH
TXRWHWKHFRGHGLVSOD\HGZKHQHQTXLULQJDERXWVHUYLFH
Code Description Remedy
- 1RWLFHDEOHUHGXFWLRQLQZDWHUÀRZ ,QOHWZDWHU¿OWHUQHHGVWREHFOHDQHG6HUYLFHFDOO
03
3RZHULQWHUUXSWLRQGXULQJ%DWK¿OO
:DWHUZLOOQRWÀRZRQSRZHUUHLQVWDWHPHQW
7XUQRIIDOOKRWZDWHUWDSV3UHVV2Q2IIWZLFH
10
$LULQWDNHRUÀXHEORFNHG 6HUYLFH&DOO
11
1RLJQLWLRQ1RJDVVXSSO\ &KHFNJDVLVWXUQHGRQDWZDWHUKHDWHUDQGJDVPHWHURUF\OLQGHU
12
)ODPH)DLOXUH/RZJDVÀRZ
&KHFNJDVLVWXUQHGRQDWZDWHUKHDWHUDQGJDVPHWHURUF\OLQGHU
&KHFNWKHUHDUHQRREVWUXFWLRQVWRWKHÀXHRXWOHW
14
5HPDLQLQJ)ODPH6DIHW\'HYLFH 6HUYLFH&DOO
16
2YHU7HPSHUDWXUH:DUQLQJ 6HUYLFH&DOO
19
(OHFWULFDO(DUWK&KHFN)DXOW 6HUYLFH&DOO
21
,QFRUUHFW'LSVZLWFK6HWWLQJ'HWHFWHG ,QVWDOOHUWRFKHFN'LSVZLWFK6HWWLQJV6HUYLFH&DOO
32
2XWJRLQJ:DWHU7HPSHUDWXUH6HQVRU)DXOW 6HUYLFH&DOO
41
$PELHQW7HPSHUDWXUH6HQVRU)DXOW 6HUYLFH&DOO
52
*DV0RGXODWLQJ9DOYH)DXOW 6HUYLFH&DOO
61
&RPEXVWLRQ)DQ)DXOW 6HUYLFH&DOO
65
:DWHU)ORZ&RQWURO)DXOW
'RHVQRWVWRSÀRZSURSHUO\
6HUYLFH&DOO
70
0LFURSURFHVVRU)DXOW 6HUYLFH&DOO
71
0LFURSURFHVVRU)DXOW 6HUYLFH&DOO
72
0LFURSURFHVVRU)DXOW 6HUYLFH&DOO
:LUHOHVVZDWHUFRQWUROOHUZKHQ¿WWHGLV2XWRI5DQJH
GXHWRWKHGLVWDQFHIURPWUDQVFHLYHURUDQREVWUXFWLRQ
0RYHZLUHOHVVZDWHUFRQWUROOHURUWUDQVFHLYHURUUHPRYHWKH
REVWUXFWLRQ
NOTE
6RPHIDXOWFRGHVDUHPRGHOVSHFL¿FDQGVRQRWDOOFRGHVZLOOGLVSOD\RQDOOPRGHOV
,QWKHPDMRULW\RIFDVHV\RXPD\EHDEOHWRFOHDUWKH(UURU&RGHVLPSO\E\WXUQLQJWKHKRWZDWHU
WDS2))WKHQ21DJDLQ,IWKLVGRHVQRWFOHDUWKH(UURU&RGHWU\SXVKLQJWKH2Q2ႇEXWWRQ2))
WKHQ21DJDLQRUWXUQLQJWKHSRZHUIRUXQLW2))ZDLWLQJVHFRQGVDQGWKHQ21DJDLQ,IWKH
(UURU&RGHVWLOOUHPDLQVFRQWDFW5LQQDLIRUDGYLFH
1RSRZHUGLVSOD\:LUHOHVV:DWHU&RQWUROOHUZKHQÀWWHG
:KHQSRZHUWRWKHZDWHUKHDWHULVGLVFRQQHFWHGWKH/&'RIDOOZLUHOHVVZDWHUFRQWUROOHUVZLOO
GLVSOD\DVVKRZQWRWKHULJKW
&KHFNWKDWWKHSRZHULVDYDLODEOHDQGWKDWWKHZDWHUKHDWHULVSOXJJHGLQZLWKWKHSRZHUSRLQW
WXUQHGµRQ¶
Troubleshooting Without Water Controllers
,I \RX KDYH QR ZDWHU FRQWUROOHUV DQG H[SHULHQFH WKH IROORZLQJ V\PSWRPV FDUU\ RXW WKHVH VXJJHVWLRQV ,I WKH
V\PSWRPFRQWLQXHVFRQWDFW5LQQDLIRUDGYLFH
TROUBLE SHOOTING
Rinnai 13 HW_BM_CF OIM
'HVFULSWLRQ 5HPHG\
7KHXQLWGRHVQRWDWWHPSWWRVWDUWDWDOO
&KHFNWKHSRZHULVRQDWWKHXQLW
&KHFNWKHLVRODWLRQYDOYHVDWWKHXQLWDUHRSHQ
7KHXQLWVWDUWVWKHQVKXWVGRZQLPPHGLDWHO\
&KHFNWKHSRZHULVVWLOORQ
&KHFNWKHJDVLVRODWLRQYDOYHVDWWKHXQLWDQGWKHJDV
PHWHUDUHIXOO\RSHQ
2SHQ\RXUKRWZDWHUWDSIXOO\
7KHXQLWVWDUWVWKHQWKHZDWHUJRHVFROG
&KHFNWKHSRZHULVVWLOORQ
2SHQ\RXUKRWZDWHUWDSIXUWKHU
NOTE
)DXOWV FDXVHG E\ LQVXႈFLHQW JDV VXSSO\ LQVXႈFLHQW ZDWHU VXSSO\ JDV TXDOLW\ ZDWHU TXDOLW\
LQVWDOODWLRQHUURUVRURSHUDWLRQHUURUVDUHNOTFRYHUHGE\WKH5LQQDLZDUUDQW\5HIHUWRVHSDUDWH
ZDUUDQW\ERRNOHWIRUGHWDLOV
SERVICE
:LUHGDQGZLUHOHVVZDWHUFRQWUROOHUVWUDQVFHLYHUVDQGZDWHUKHDWHUVGRQRWFRQWDLQXVHUVHUYLFHDEOHSDUWVDQG
PXVWRQO\EHVHUYLFHGDQGUHSDLUHGE\DQDXWKRULVHGSHUVRQ
5LQQDLKDVD6HUYLFHDQG6SDUH3DUWVQHWZRUNZLWKSHUVRQQHOZKRDUHIXOO\WUDLQHGDQGHTXLSSHGWRJLYHWKHEHVW
VHUYLFHRQ\RXU5LQQDLDSSOLDQFH,I\RXUDSSOLDQFHUHTXLUHVVHUYLFHSOHDVHFDOORXU1DWLRQDO+HOS/LQHRUWKH+RW
:DWHU6HUYLFH/LQHFRQWDFWQXPEHUVIRUZKLFKDUHRQWKHEDFNFRYHURIWKLVPDQXDO
NOTE
:KHQPDNLQJDVHUYLFHHQTXLU\KDYLQJERWKWKHPRGHODQGVHULDOQXPEHUVDYDLODEOHZLOOKHOSRXU
VWDႇTXLFNO\LGHQWLI\\RXUDSSOLDQFHDQGEHWWHUDWWHQGWR\RXUQHHGV
7KLV LQIRUPDWLRQ VKRXOG KDYH EHHQ FRSLHG WR WKH ,QVWDOODWLRQ 5HFRUG RQ SDJH E\ \RXU
LQVWDOOHU +RZHYHULI WKLV LV QRW WKH FDVH WKH LQIRUPDWLRQ FDQ DOVR EH IRXQG RQ WKH GDWD SODWH
ORFDWHGRQWKHOHIWKDQGVLGHRIWKHDSSOLDQFH
5LQQDLUHFRPPHQGVWKDWWKLVDSSOLDQFHEHVHUYLFHGHYHU\\HDUV
TROUBLE SHOOTING
Rinnai 14 HW_BM_CF OIM
Operation Table of Contents 3
General Installation Information 16
Regulations ........................................................................................................................................................................ 16
Applicable Models ............................................................................................................................................................. 16
Appliance Location ............................................................................................................................................................ 16
Outdoor Models ............................................................................................................................................................... 16
Mounting Of Appliance .................................................................................................................................................... 16
Service Connection Points ............................................................................................................................................. 17
Pipe Sizing ...................................................................................................................................................................... 17
Water Supply ................................................................................................................................................................... 17
Hot Water Delivery Temperature ...................................................................................................................................... 18
,QVWDOODWLRQ&RQ¿JXUDWLRQV ............................................................................................................................................... 18
Flueing 19
Appliance Flue Terminal ................................................................................................................................................... 19
Horizontal Obstructions ................................................................................................................................................... 20
Sideways Flue Diverter - All models ................................................................................................................................20
Multiple Appliance Installations ....................................................................................................................................... 20
Water Controller Installation 21
General Information ........................................................................................................................................................... 21
Master / Sub Water Controllers & Associated Temperatures .......................................................................................... 21
Water Controllers Limitations .......................................................................................................................................... 21
Location ........................................................................................................................................................................... 22
Communication Cables ................................................................................................................................................... 22
Joining Communication Cables ....................................................................................................................................... 22
Connecting Communication Cable(s) With 'Ezi connect' ............................................................................................... 23
Universal Water Controller (MC-601Q) Installation ........................................................................................................ 23
Additional Programming & Activation Requirements ....................................................................................................... 24
Commissioning 25
Testing ................................................................................................................................................................................ 25
Delivery Temperature ........................................................................................................................................................ 25
50°C Compliant Models .................................................................................................................................................. 25
For All Other Models ...................................................................................................................................................... 25
Gas Pressure Setting ....................................................................................................................................................... 26
Wiring Diagram .................................................................................................................................................................. 26
Commissioning Check List ............................................................................................................................................... 26
Installation Record ............................................................................................................................................................ 26
INSTALLATION TABLE OF CONTENTS
Rinnai 15 HW_BM_CF OIM
6SHFL¿FDWLRQV
Table 1. Supply, Flow rates, Weights & Service Connections .......................................................................................
Table 2. Maximum Delivery Temperatures ......................................................................................................................
Table 3. Appliance Dimensions - BM Series & Universal Water Controller ................................................................. 28
Table 4. Other Accessories ............................................................................................................................................... 30
Contacts 32
INSTALLATION TABLE OF CONTENTS
Rinnai 16 HW_BM_CF OIM
WARNING
INSTALLATION, SERVICE AND REMOVAL MUST BE BY AN APPROPRIATELY LICENSED
TRADESPERSON ONLY.
It is the installer’s responsibility to ensure all current AS/NZS 5601 requirements are met.
Remove transit protection. Check for damage, if any is found DO NOT install and contact supplier.
REGULATIONS
This appliance must be installed in accordance with:
•
Current AS/NZS 3000, AS/NZS 3500 and AS/NZS 5601
•
Rinnai Installation Instructions
•
Plumbing Code of Australia (PCA)
•
Local regulations and municipal building codes including local OH&S requirements
APPLICABLE MODELS
7KHVH,QVWDOODWLRQ,QVWUXFWLRQVDSSO\RQO\WRWKH5LQQDLJDVFRQWLQXRXVÀRZZDWHUKHDWHUPRGHOVWKDWDUHOLVWHGRQ
the cover page of this manual.
APPLIANCE LOCATION
This appliance MUST BESODFHGDVFORVHDVSUDFWLFDEOHWRWKHPRVWIUHTXHQWO\XVHGKRWZDWHURXWOHWRURXWOHWVWR
PLQLPLVHWKHGHOD\WLPHIRUKRWZDWHUGHOLYHU\)RULQVWDOODWLRQVZKHUHWKHGLVWDQFHEHWZHHQWKHZDWHUKHDWHUDQG
WKHRXWOHWVLVFRQVLGHUDEOHDÀRZDQGUHWXUQV\VWHPRUWKH5LQQDL6PDUWVWDUWV\VWHPFDQEHXVHGZKLFKPLQLPLVH
WKHZDLWLQJWLPHIRUKRWZDWHUGHOLYHU\
$OWHUQDWLYHO\ PXOWLSOH DSSOLDQFHV FDQ EH VWUDWHJLFDOO\ SODFHG WR VHUYH RXWOHWV ZLWK PLQLPDO GHOD\ WLPH &RQWDFW
Rinnai for further information.
$Q$&9$PSHDUWKHGSRZHUSRLQWMUST BE provided adjacent to the appliance. For outdoor installations
WKLVSRZHUSRLQWMUST BE ZHDWKHUSURRI,WMUST BEFOHDURIWKHJDVDQGZDWHUFRQQHFWLRQVWRWKHDSSOLDQFH
DQGDOVRWKHÀXHH[KDXVWDQGZDWHUSUHVVXUHUHOLHIYDOYH7KHSRZHUFRUGRIWKHDSSOLDQFHLV0HWUHVORQJ
This appliance MUST BEPRXQWHGRQDYHUWLFDOVWUXFWXUHZLWKWKHZDWHUDQGJDVFRQQHFWLRQVRQWKHXQGHUVLGH
SRLQWLQJGRZQZDUGV)RUDSSOLDQFHVLQVWDOOHGRQHOHYDWHGVWUXFWXUHVRUXQGHUÀRRUVVSHFL¿FUHTXLUHPHQWVDSSO\
Refer to AS/NZS 5601 Section 6 for details.
All appliances MUST BELQVWDOOHGWRHQVXUHDFFHVVFDQEHJDLQHGZLWKRXWKD]DUGRUXQGXHGLႈFXOW\IRULQVSHFWLRQ
UHSDLUUHQHZDORURSHUDWLRQDOSXUSRVHV6XႈFLHQWFOHDUDQFHVVKDOODOORZDFFHVVWRDQGUHPRYDORIDOOVHUYLFHDEOH
FRPSRQHQWV$SSOLDQFHVVKRXOGQRWEHPRXQWHGKLJKHUWKDQPHWUHVDERYHWKHJURXQGRUÀRRUOHYHOXQOHVV
WKHFXVWRPHUFDQDUUDQJHSHUPDQHQWDQGVDIHDFFHVVRUFDQSURYLGHDQRWKHUPHDQVRIDFFHVVIRUH[DPSOHE\
means of scissor or boom lifts or other approved safe access equipment that is acceptable to local authorities.
This appliance MUST NOT EHXVHGDVDGRPHVWLFVSDRUVZLPPLQJSRROKHDWHU
This appliance is suitable for installation locations up to 1000 metres above sea level and are NOT suitable for
alpine areas.
Outdoor Models
This appliance is designed for ‘Outdoor’ Installation only. As such, it MUST BE located in an above ground open
DLUVLWXDWLRQZLWKQDWXUDOYHQWLODWLRQZLWKRXWVWDJQDQWDUHDVZKHUHJDVOHDNDJHDQGSURGXFWVRIFRPEXVWLRQDUH
UDSLGO\GLVSHUVHGE\ZLQGDQGQDWXUDOFRQYHFWLRQ
/RFDWLRQRIWKHDSSOLDQFHÀXHWHUPLQDOMUST BELQDFFRUGDQFHZLWK6HFWLRQDQG)LJXUHRI$61=6$Q
H[WUDFWLQSDUWKDVEHHQUHSURGXFHGLQWKH$SSOLDQFH)OXH7HUPLQDOVHFWLRQRIWKHVHLQVWUXFWLRQVRQSDJH
Mounting Of Appliance
7KHZDOORUVWUXFWXUHRQZKLFKWKHXQLWVDUHWREHPRXQWHGMUST BEFDSDEOHRIVXSSRUWLQJWKHVHZHLJKWVDQG
WKH DVVRFLDWHG SLSHZRUN 5HIHU WR 7DEOH 6XSSO\ )ORZ UDWHV :HLJKWV 6HUYLFH &RQQHFWLRQV RQ SDJH
IRUVSHFL¿FPRGHOZHLJKWV
(QVXUHWKDWVXLWDEOH¿[LQJVFUHZVRUEROWVDUHXVHGWRVHFXUHWKHXQLWVWRWKHZDOOLQDFFRUGDQFHZLWK$61=6
section 6. Wooden plugs shall NOT be used.
7KHWRSEUDFNHWKDVDNH\KROHVORWVRWKDWWKHDSSOLDQFHFDQEHSRVLWLRQHGE\KDQJLQJLWRQRQHVFUHZRQFHLQ
SRVLWLRQWKHDSSOLDQFHFDQWKHQEHIXOO\VHFXUHGZLWKWKHDSSOLFDWLRQRIIXUWKHUDSSURSULDWH¿WWLQJV
GENERAL INSTALLATION INFORMATION
5LQQDL HW_BM_CF OIM
7KHDSSOLDQFHFDQEHPRXQWHGGLUHFWO\DJDLQVWWKHZDOORUVWUXFWXUH7KHUHLVQRQHHGWRXVHQRQFRPEXVWLEOH
VKHHWLQJRUOHDYHDQDLUJDSEHWZHHQWKHDSSOLDQFHEDFNSDQHODQGWKHZDOORUVWUXFWXUHWRPHHWWKHWHPSHUDWXUH
KD]DUGUHTXLUHPHQWVRI$61=6
Service Connection Points
5HIHUWR7DEOH6XSSO\)ORZUDWHV:HLJKWV6HUYLFH&RQQHFWLRQVRQSDJHIRUPRGHOVSHFL¿FFRQQHFWLRQ
¿WWLQJGLPHQVLRQGHWDLOV
$Q$SSURYHGIXOOÀRZLVRODWLRQYDOYHDQGGLVFRQQHFWLRQXQLRQMUST BE¿WWHGWRWKHFROGZDWHUDQGJDVLQOHWV
$QRQUHWXUQYDOYHLVQRWUHTXLUHGRQWKHZDWHULQOHWXQOHVVUHTXLUHGE\ORFDOUHJXODWLRQV,VRODWLRQ9DOYHVMUST
NOT EH¿WWHGGLUHFWO\WRWKHDSSOLDQFH
,IPD\EHQHFHVVDU\WR¿WDWHPSHUDWXUHOLPLWLQJGHYLFHIRUGHOLYHU\WRDUHDVXVHGSULPDULO\IRUWKHSXUSRVHVRI
SHUVRQDOK\JLHQH5HIHUWR+RW:DWHU'HOLYHU\7HPSHUDWXUHRQSDJH
3XUJHJDVDQGFROGZDWHUVXSSO\OLQHVWRUHPRYHDLUDQGVZDUIEHIRUH¿QDOFRQQHFWLRQRIWKHDSSOLDQFH6ZDUILQ
HLWKHUWKHJDVRUZDWHUVXSSOLHVPD\FDXVHGDPDJH
Pipe Sizing
,IWKHJDVSLSHVL]LQJLVLQVXႈFLHQWWKHFXVWRPHUZLOOQRWJHWWKHIXOOSHUIRUPDQFHEHQH¿W*DVSLSHVL]LQJMUST
FRQVLGHUWKHJDVLQSXWWRWKLVDSSOLDQFHDVZHOODVDOOWKHRWKHUJDVDSSOLDQFHVLQWKHSUHPLVHV7KHJDVPHWHUDQG
regulator MUST BEVSHFL¿HGIRUWKLVJDVUDWH
$QDSSURYHGVL]LQJFKDUWVXFKDVWKHRQHLQ$61=6VKRXOGEHXVHG5HIHUWR7DEOH6XSSO\)ORZUDWHV
:HLJKWV6HUYLFH&RQQHFWLRQVRQSDJHIRUPRGHOVSHFL¿FJDVFRQVXPSWLRQGHWDLOV
:DWHUSLSHVL]LQJDQGOD\RXWVKRXOGEHSHUIRUPHGLQDFFRUGDQFHZLWK$61=6$OOKRWZDWHUSLSHZRUNVKRXOG
EHLQVXODWHGWRRSWLPLVHSHUIRUPDQFHDQGHQHUJ\HႈFLHQF\
Water Supply
7KHDSSOLDQFHLVLQWHQGHGWREHSHUPDQHQWO\FRQQHFWHGWRWKHZDWHUPDLQV
5HIHUWR7DEOH6XSSO\)ORZUDWHV:HLJKWV6HUYLFH&RQQHFWLRQVRQSDJHIRUPRGHOVSHFL¿FRSHUDWLRQDO
ZDWHUSUHVVXUHOLPLWDWLRQV$SSURYHGSUHVVXUHOLPLWLQJYDOYHVPD\EHUHTXLUHGLIWKHµ0D[LPXP¶UDWHGZDWHUVXSSO\
SUHVVXUHVLQ7DEOHDUHH[FHHGHG7RDFKLHYHWKHUDWHGÀRZWKHµ0LQLPXP¶ZDWHUVXSSO\SUHVVXUHVLQ7DEOH
PXVWEHVXSSOLHG7KHZDWHUKHDWHUVZLOORSHUDWHDWORZHUSUHVVXUHVEXWZLOOQRWDFKLHYHWKHUDWHGÀRZ&RQWDFW
5LQQDLIRUµJUDYLW\IHG¶RUµORZSUHVVXUH¶LQVWDOODWLRQV
:DWHUFKHPLVWU\DQGLPSXULW\OLPLWVDUHGHWDLOHGXQGHUµ:DUUDQW\&RQGLWLRQV¶0RVWPHWURSROLWDQZDWHUVXSSOLHVIDOO
ZLWKLQWKHUHTXLUHPHQWV,I\RXDUHXQVXUHDERXW\RXUORFDOZDWHUTXDOLW\FRQWDFW\RXUZDWHUDXWKRULW\,IVOXGJHRU
IRUHLJQPDWWHULVSUHVHQWLQWKHZDWHUVXSSO\DVXLWDEOH¿OWHURUVWUDLQHULVUHTXLUHGLQWKHZDWHUVXSSO\WRWKHZDWHU
KHDWHUWRSUHYHQWXQZDUUDQWHGGDPDJHDQGORVVRISHUIRUPDQFH
GENERAL INSTALLATION INFORMATION
5LQQDL HW_BM_CF OIM
HOT WATER DELIVERY TEMPERATURE
WARNING
This appliance may deliver water at high temperature. Refer to the Plumbing Code of Australia
(PCA), local requirements and installation instructions to determine if additional delivery
temperature control is required.
Local regulations and or the requirements of AS/NZS 3500 MUST be addressed regarding the temperature
OLPLWDWLRQVRIKRWZDWHUVXSSOLHGWRDUHDVXVHGSULPDULO\IRUSHUVRQDOK\JLHQH7KHWHPSHUDWXUHRIZDWHUWRWKHVH
areas may be limited to 50°C or less. To ensure these regulations and or requirements are met the system MUST
EHLQVWDOOHGLQDFFRUGDQFHZLWKWKH,QVWDOODWLRQ&RQ¿JXUDWLRQVEHORZ
,QVWDOODWLRQ&RQÀJXUDWLRQV
WARNING
This appliance MUSTRQO\EHLQVWDOOHGLQDFFRUGDQFHZLWKWKHDFFHSWDEOHSOXPELQJFRQ¿JXUDWLRQV
VSHFL¿HGLQWKHVHLQVWUXFWLRQV)DLOXUHWRGRVRPD\UHVXOWLQFRQGLWLRQVZKHUHGHOLYHU\WHPSHUDWXUH
control is inadequate.
,IWKHDSSOLDQFHLVPDUNHGWRVWDWHWKDWLWGHOLYHUVZDWHUQRWH[FHHGLQJ&ORFDOUHJXODWLRQVPD\SHUPLWLQVWDOODWLRQ
ZLWKRXWD7HPSHUDWXUH/LPLWLQJ'HYLFH,QVWDOODWLRQVZLWKRXWD7HPSHUDWXUH/LPLWLQJ'HYLFHDUHVKRZQLQ'LDJUDP
EHORZ,I\RXDUHXQVXUHDERXW\RXUORFDOUHJXODWLRQVFRQWDFW\RXUUHJXODWLQJDXWKRULW\RU5LQQDL,IWKHDSSOLDQFH
is NOT PDUNHGWRVWDWHWKDWLWGHOLYHUVZDWHUQRWH[FHHGLQJ&RU\RXUORFDOUHJXODWLRQVUHTXLUHLQVWDOODWLRQZLWK
D7HPSHUDWXUH/LPLWLQJ'HYLFHWKHQLQVWDOOWKHDSSOLDQFHLQDFFRUGDQFHZLWK'LDJUDPEHORZ
IMPORTANT
If the appliance is to deliver water primarily for the purposes of personal hygiene in an early
childhood centre, primary or secondary school, nursing home or a similar facility for the care of
\RXQJDJHGVLFNRUGLVDEOHGSHUVRQVDVGH¿QHGLQ$61=D7HPSHUDWXUH/LPLWLQJ'HYLFH
7/'VXFKDVD7HPSHULQJ9DOYHPD\EHUHTXLUHGHYHQLIWKHDSSOLDQFHLVVHWWR&RUOHVV)RU
these types of applications contact Rinnai.
50º C
KITCHEN
Water controller
(optional)
Water controller
(optional)
Water controller
(optional)
Water controller
(optional)
LAUNDRY
BATHROOM
ENSUITE
+
2
7
&
2
/
'
*
$
6
Diagram 1 : 50°C Appliance
KITCHEN
Water controller
(optional)
Water controller
(optional)
LAUNDRY BATHROOM
Water controller
(optional)
Water controller
(optional)
ENSUITE
TLD
+
2
7
&
2
/
'
*
$
6
Diagram 2 : NOT a 50°C Appliance
NOTE
Minimum length of pipe from hot outlet
to nearest hot water tap 2 metres.
NOTE
TLD = Temperature Limiting Device.
8QLYHUVDO ZDWHU FRQWUROOHUV DUH DYDLODEOH DV DQ RSWLRQDO H[WUD DQG ZLOO IXQFWLRQ DV GHVFULEHG LQ WKH 2SHUDWLRQ
6HFWLRQRIWKLVPDQXDO5HIHUWR:DWHU&RQWUROOHUV/LPLWDWLRQVRQSDJHWRFRQ¿UPWKHPD[LPXPQXPEHUDQG
FRPELQDWLRQRIZDWHUFRQWUROOHUVWKDWFDQEH¿WWHG
)RU GHWDLOHG LQVWDOODWLRQ LQIRUPDWLRQ RI 8QLYHUVDO ZDWHU FRQWUROOHUV UHIHU WR WKH :DWHU &RQWUROOHU ,QVWDOODWLRQ
FKDSWHURIWKLVPDQXDOVWDUWLQJRQSDJH2SHUDWLRQDQG,QVWDOODWLRQLQIRUPDWLRQIRU'HOX[HDQG:LUHOHVVZDWHU
FRQWUROOHUVLVSURYLGHGZLWKWKHZDWHUFRQWUROOHUVRUYLVLWZZZULQQDLFRPDX
GENERAL INSTALLATION INFORMATION
5LQQDL HW_BM_CF OIM
APPLIANCE FLUE TERMINAL
Horizontal Terminal Clearances (Extract from AS/NZS 5601)
Min. Clearances
(mm)
For appliances up to 50 MJ/h input
200
For appliances over 50 MJ/h input
300
300* ecafrus rehto ro ynoclab a evoba ,dnuorg eht morFb
300* renroc lanretxe ro llaw nruter a tnor
Fc
d
From a gas meter (M) (see Note 5)
(see Clause 5.11.5.9 for vent terminal location of regulator)
(see Table 6.7 for New Zealand requirements)
1000
e
From an electricity meter or fuse box (P) † (see Note 5)
500
epip lios ro epip niard a morFf
g
Horizontally from any building structure* = or obstruction facing a terminal
500
h
From any other flue terminal , cowl, or combustion air intake *
300
Appliances up to 150 MJ/h input *
300
Appliances over 150 MJ/h input up to 200 MJ/h input *
300
Appliances over 200 MJ/h input up to 250 MJ/h input *
500
Appliances over 250 MJ/h input *
1500
All fan-assisted flue appliances, in the direction of discharge
1500
1000rewolb aps a gnidulcni ,telni r
ia lacinahcem a morFk
Space heaters up to 50 MJ/hr input
Other appliances up to 50 MJ/hr input
500
Appliances over 50 MJ/h input and up to 150 MJ/h input
1000
Appliances over 150 MJ/h input
1500
metI.feR
a
Below eaves, balconies and other projections:

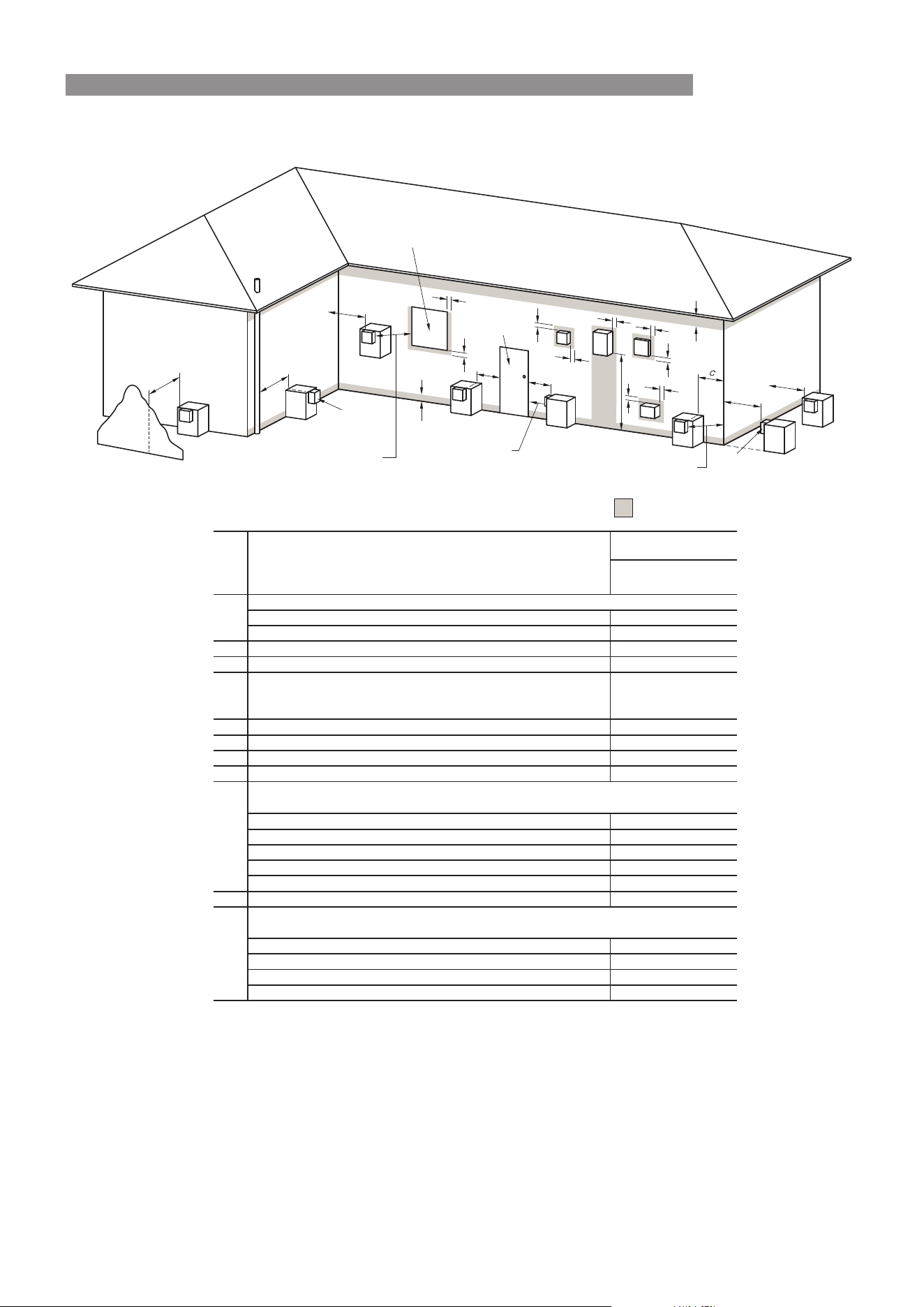

FIGURE 6.2 (in-part) LOCATION OF FLUE TERMINALS OF BALANCED FLUE,
ROOM-SEALED, FAN-ASSISTED OR OUTDOOR APPLIANCES
n
j
Horizontally from an openable window, door, non-mechanical air inlet, or any other opening into a
building with the exception of sub-floor ventilation:
Vertically below an openable window, non-mechanical air inlet, or any other opening into a
building with the exception of sub-floor ventilation:
Where dimensions c, j or k cannot be achieved an equivalent horizontal distance measured
diagonally from the nearest discharge point of the terminal to the opening may be deemed by
the Technical Regulator to comply.
See Clause 6.9.4 for restrictions on a flue terminal under a covered area.
See Figure J3 for clearances required from a flue terminal to an LP Gas cylinder. A
flue terminal is considered to be a source of ignition.
For minimum clearances not addressed above acceptance should be obtained from the
Technical Regulator.
Minimum clearances d and e also apply to any combustion air intake openings of appliances.
1
2
3
4
5
* Unless appliance is certified for closer installation.
† Prohibited area below electricity meter or fuse box extends to ground level.
NOTES:
75
Shading indicates prohibited
area for flue terminals
LEGEND:
I = Mechanical air inlet
S = Structure
M = Gas meter
T = Flue terminal
P = Electricity meter or fuse box
Z = Fan-assisted appliance only
Direction of
discharge
See Note 1
See Note 1
Opening into
a building
T
T
T
T
T
T
T
C
M
d
d
e
e
h
j
j
j
n
b
f
a
h
P
Z
S
k
k
g
g
g
I
T
Door
Fan
assisted
150
FLUEING
Rinnai 20 HW_BM_CF OIM

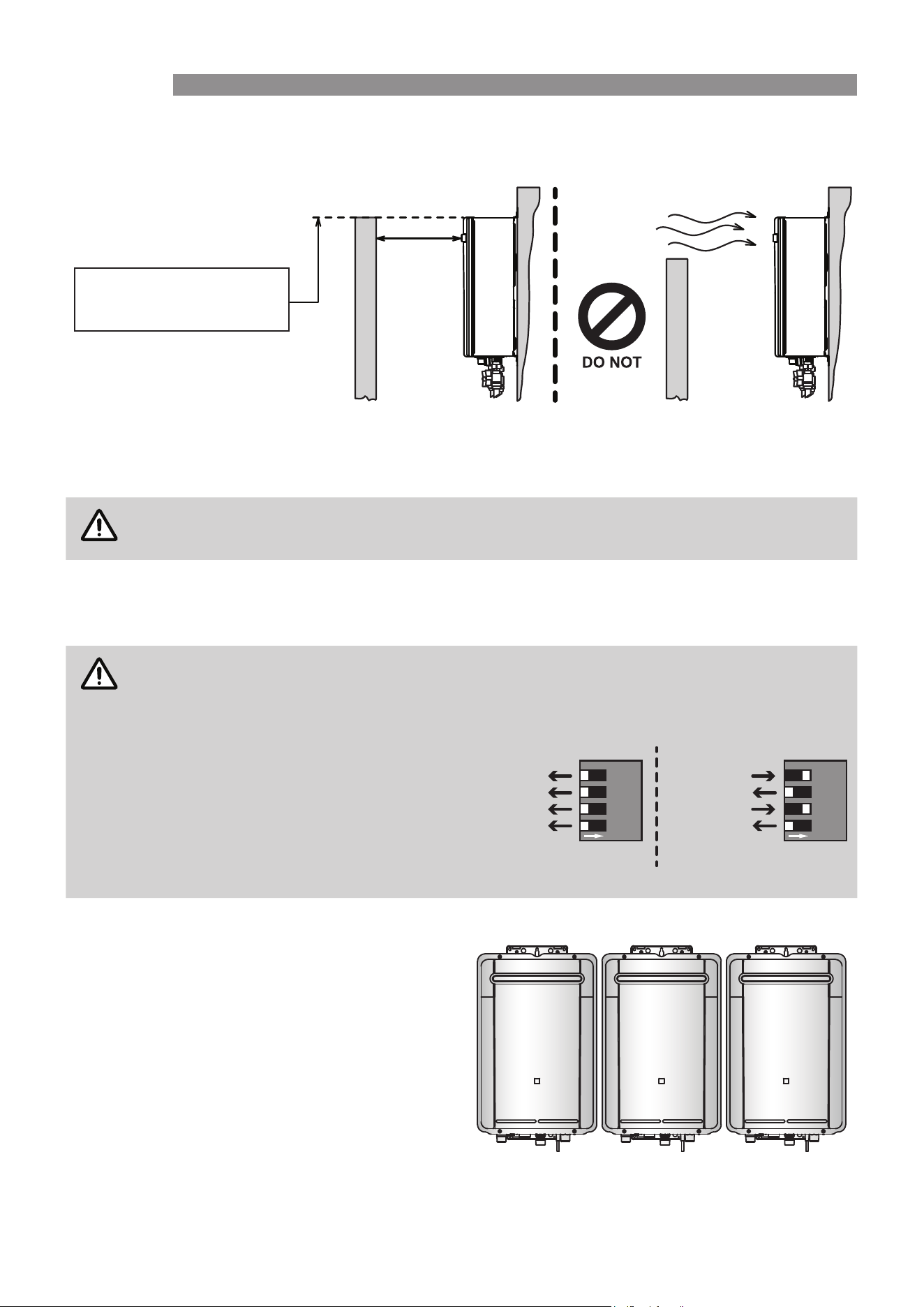

Horizontal Obstructions
$61=6µ*DV,QVWDOODWLRQV¶VWLSXODWHVDPLQLPXPKRUL]RQWDOFOHDUDQFHRIPPEHWZHHQDEXLOGLQJVWUXFWXUH
and obstruction facing the terminal.
)RUFRUUHFWRSHUDWLRQRI5LQQDLH[WHUQDOJDVFRQWLQXRXVÀRZZDWHUKHDWHUVVXFKDEXLOGLQJVWUXFWXUHMUST ‘obstruct’
WKHIXOOIURQWFRYHUKHLJKWRIWKHDSSOLDQFHIRUDSSOLDQFHGLPHQVLRQVUHIHUWR7DEOH$SSOLDQFH'LPHQVLRQV±
%06HULHV8QLYHUVDO:DWHU&RQWUROOHURQSDJHRUH[WHQGYHUWLFDOO\DERYHDQGEHORZWKHIURQWFRYHUDV
VKRZQEHORZ
IMPORTANT
There MUST be NO partial obstructions to the front cover of the appliance or any other parts
of the appliance casing. This will avoid the appliance failing to operate under windy conditions.
Sideways Flue Diverter - All models
:KHQD6LGHZD\V)OXH'LYHUWHULVWREH¿WWHGWKHLQVWDOOHUMUST also UHIHUWRWKHLQVWUXFWLRQVSURYLGHGZLWKWKH
6LGHZD\V)OXH'LYHUWHUDQGREVHUYHDOOWKHVSHFL¿FFOHDUDQFHVDQGZDUQLQJV
WARNING
CONTROL BOARD DIPSWITCH SETTING
The installer MUSTIROORZWKH6LGHZD\V)OXH'LYHUWHULQVWUXFWLRQVRIWKH&RPPLVVLRQLQJ&KHFN
/LVWSURYLGHGRQWKHIURQWFRYHURIWKHDSSOLDQFHDQGWKH&RPPLVVLRQLQJ,QVWUXFWLRQVORFDWHG
in the inside the appliance front cover.
When delivered ex-factory ALL the
switches of the control board dipswitch
are set to OFF (left position).
:KHQ D 6LGHZD\V )OXH 'LYHUWHU LV ¿WWHG
the installer MUST set switches SW1
and SW3 to ON (right position) ONLY.
Improper setting of the switches will cause the appliance to operate incorrectly.
Multiple Appliance Installations
,QUHIHUHQFHWR+RUL]RQWDO7HUPLQDO&OHDUDQFHV([WUDFW
IURP $61=6 GLPHQVLRQ µK¶ RQ SDJH GRHV
QRWDSSO\ZKHQPXOWLSOH5LQQDLH[WHUQDOZDWHUKHDWHUVRI
the same model are installed on the same vertical face
ZLWKÀXHWHUPLQDOVDWWKHVDPHKHLJKW
Under these conditions appliances can abut each other
DVVKRZQOHIW&RQVLGHUWKHWRWDOJDVFRQVXPSWLRQRIDOO
DSSOLDQFHVDSSOLHVZKHQGHWHUPLQLQJRWKHUFOHDUDQFHV
)RUDSSOLDQFHGLPHQVLRQVUHIHUWR7DEOH$SSOLDQFH
'LPHQVLRQV±%06HULHV8QLYHUVDO:DWHU&RQWUROOHU
RQSDJH
500mm
MINIMUM OBSTRUCTION
HEIGHT IS TO BE NO LESS
THAN TOP OF APPLIANCE
SW1 (OFF)
SW2 (OFF)
SW3 (OFF)
SW4 (OFF)
ON
1234
DipSW
SW1 (ON)
SW2 (OFF)
SW3 (ON)
SW4 (OFF)
ON
1234
DipSW
Factory Default Sideways Flue Diverter
FLUEING
Rinnai 21 HW_BM_CF OIM
GENERAL INFORMATION
IMPORTANT
Other manufacturers water controllers are NOT compatible with Rinnai water heaters. Water
controllers MUST NOT be used with any Solar Boost water heater. Rinnai water controllers
brought in from other countries are not compatible with Rinnai appliances sold in Australia.
Regardless of water controller installation, all Rinnai water heaters must only be installed by an
Authorised person.
Water controllers, transceivers and water heaters DO NOT contain user serviceable parts and
must ONLY be serviced and repaired by an authorised person.
Master / Sub Water Controllers & Associated Temperatures
Only one MC model water controller can be designated as the 'Master' water controller. This water controller is
QRUPDOO\XVHGLQWKHNLWFKHQDQGXVXDOO\KDVDPD[LPXPWHPSHUDWXUHRI&ZKLFKLVVXႈFLHQWIRUDOPRVWDOO
kitchen applications. Temperatures higher than 55°C are possible but usually unnecessary and will result in higher
gas use and increase the risk of burns.
Some additional conditions regarding Master Controller maximum temperatures apply when a wireless water
controller is used as the 'Master' water controller.
(i) Temperatures of 55°C or higher can only be selected on the controller designated as the 'Master' water
controller if the transceiver 'Max Temp' is also programmed to 55°C or higher.
(ii) The temperature of hot water delivered is always limited to the maximum temperature programmed into the
water heater itself. For example, if the transceiver maximum temperature is programmed to 55°C and the
water heater is limited to 50°C, the maximum temperature that the water heater will deliver is 50°C. In this
case 55°C will be displayed on the wireless Master Controller until a tap is opened after which the display will
revert to 50°C.
IMPORTANT
The water heater maximum temperature cannot be adjusted by the user. These adjustments can
ONLYEHFDUULHGRXWE\DTXDOL¿HGDQGOLFHQVHGWUDGHVSHUVRQ
The remaining water controllers are designated 'sub' controllers and are for use in bathrooms, toilets and laundries.
The temperature limit for all 'Sub' controllers is always 50°C to minimise the risk of burns in these areas.
$GKHVLYHODEHOVDUHLQFOXGHGIRULQGLYLGXDOLGHQWL¿FDWLRQRIZLUHOHVVZDWHUFRQWUROOHUVDVPDVWHU.LWFKHQRUVXE
(Bathroom) water controllers. These labels are usually placed on the top back of the wireless water controller body.
Water Controllers Limitations
9DULRXVFRPELQDWLRQVRI8QLYHUVDO'HOX[HDQG:LUHOHVVZDWHUFRQWUROOHUVFDQEH¿WWHGZLWKWKHIROORZLQJOLPLWDWLRQV
•
For all models a maximum of FOURZDWHUFRQWUROOHUVFDQEH¿WWHG
•
Only ONE master controller can be installed. This can be a deluxe kitchen (MC-145V), or any other MC
model water controller (when programmed to be a 'Master' controller).
IMPORTANT
:KHQDGHOX[HNLWFKHQ0&9ZDWHUFRQWUROOHULV¿WWHGLWZLOODOZD\VIXQFWLRQDVD0DVWHU
controller, this is the default setting and can NOT be changed.
•
A up to a maximum of ONE BC-145V water controllers can be installed.
•
The FOURTH water controller in any installation MUST BE a MC-601Q or a MC-503RC-S.
WATER CONTROLLER INSTALLATION
Rinnai 22 HW_BM_CF OIM
Location
NOTE
• DO NOT install water controllers near a heat source, such as a cook top, stove or oven. Heat,
steam, smoke and hot oil may cause damage.
• DO NOT install water controllers outdoors unless protection from water / dust ingress and
sunlight are provided.
• The water controller set as the MASTER water controller MUST NOT be installed in a
bathroom.
• DO NOT install water controllers in direct sunlight.
• DO NOT install water controllers against a metal wall unless the wall is earthed in accordance
with AN/NZS 3000.
• Water controllers MUST NOT be installed where chemicals such as benzene, alcohol,
turpentine, hydrogen sulphide, ammonia, chlorine or other similar chemicals are in use.
The Water controller is a water resistant device, however excessive exposure to water may result
in damage to the water controller. Durability is improved when positioned outside the shower
recess.
• AVOID direct exposure to water or steam as these conditions may cause a malfunction.
• :DWHUFRQWUROOHUVPXVWEHLQVWDOOHGLQVKDGHGDQGFOHDQORFDWLRQV7KH\VKRXOGEH¿WWHGRXW
RIUHDFKRIFKLOGUHQVXJJHVWHGKHLJKWIURPÀRRUWREHDWOHDVWPP:DWHUFRQWUROOHUV
MUST BE installed at least 400 mm above the highest part of a sink, basin or bath.
• When cleaning your water controller use ONLY a damp cloth and a mild detergent.
For water controller dimensions refer to "Table 3. Appliance Dimensions – BM Series & Universal
Water Controller" on page 28.
Communication Cables
Wired water controllers operate at an extra low voltage (12 Volts DC) which is supplied from the water heater,
a 10 metre long communications cable is supplied for connection to the water heater. ONLY Rinnai supplied
communication cables may be used.
Optional longer per metre communication cabling Part No. 92078609 is available from Rinnai.
NOTE
The per metre communication cable does not come supplied with spade connectors, spade
connectors are available from your local electrical component retailer.
Joining Communication Cables
7KHZDWHUKHDWHUHQGRIWKHFDEOHVDUH¿WWHGZLWKVSDGHWHUPLQDOV2QO\WZRSDLUVRIFDEOHVVSDGHFRQQHFWRUVLQ
total) may be terminated. When attaching three or four cables it is necessary to join the cable terminals as follows.
)RUHDFKSDLUFXWRႇWKHH[LVWLQJVSDGHFRQQHFWRUVDQGUHWHUPLQDWHHDFKSDLULQWRDQHZVSDGHFRQQHFWRU
A
so
that there are only two sets of spade connectors (4 spade connectors in total) to be terminated (spade connectors
are available from your local electrical component retailer).

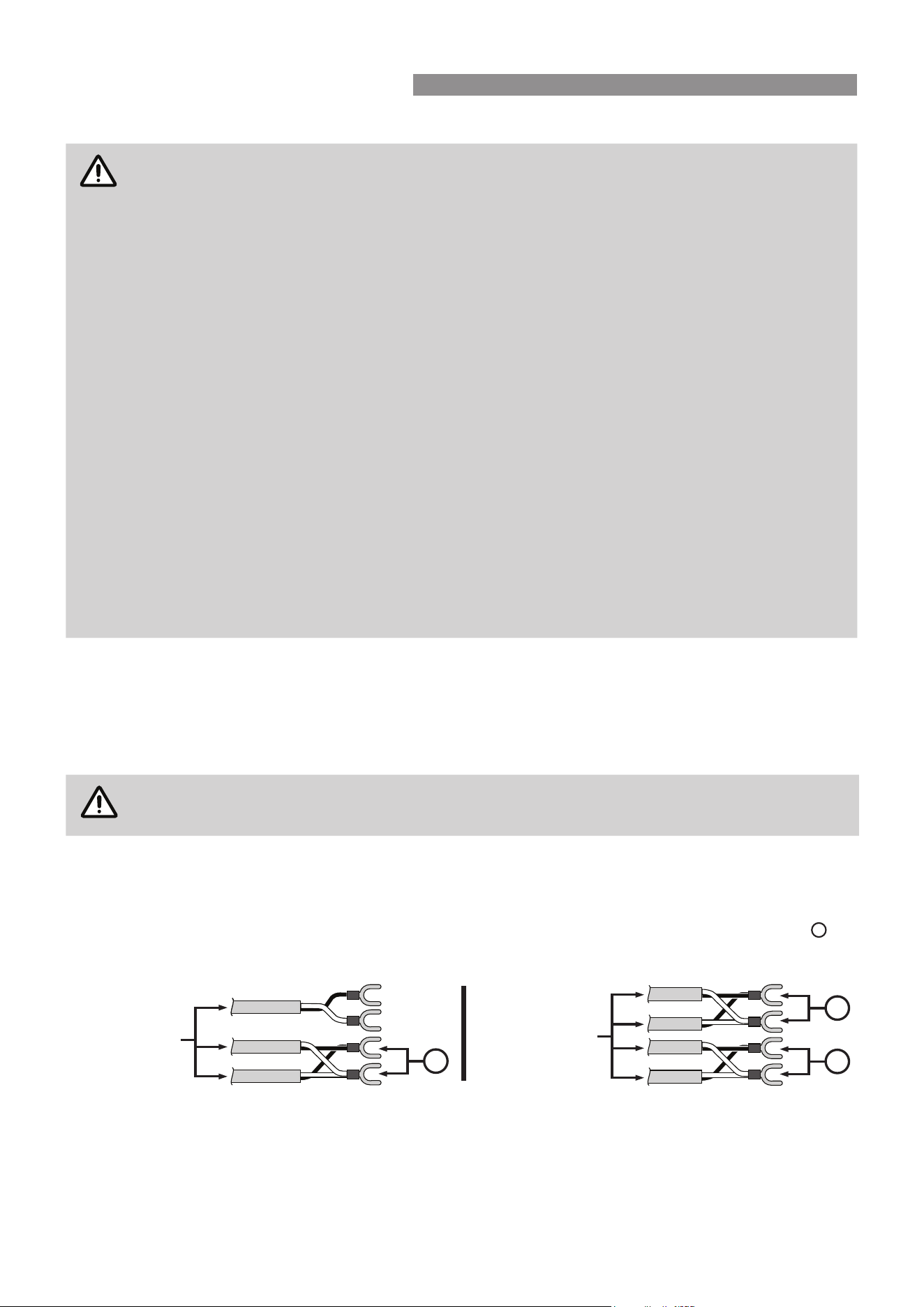

Follow steps 1 through 5 of "Connecting Communication Cable(s) With 'Ezi connect'" on page 23 to terminate
the joined cable pairs to the water heater.
When
Terminating
Three Cables
When
Terminating
Four Cables
A
A
A
WATER CONTROLLER INSTALLATION
Rinnai 23 HW_BM_CF OIM

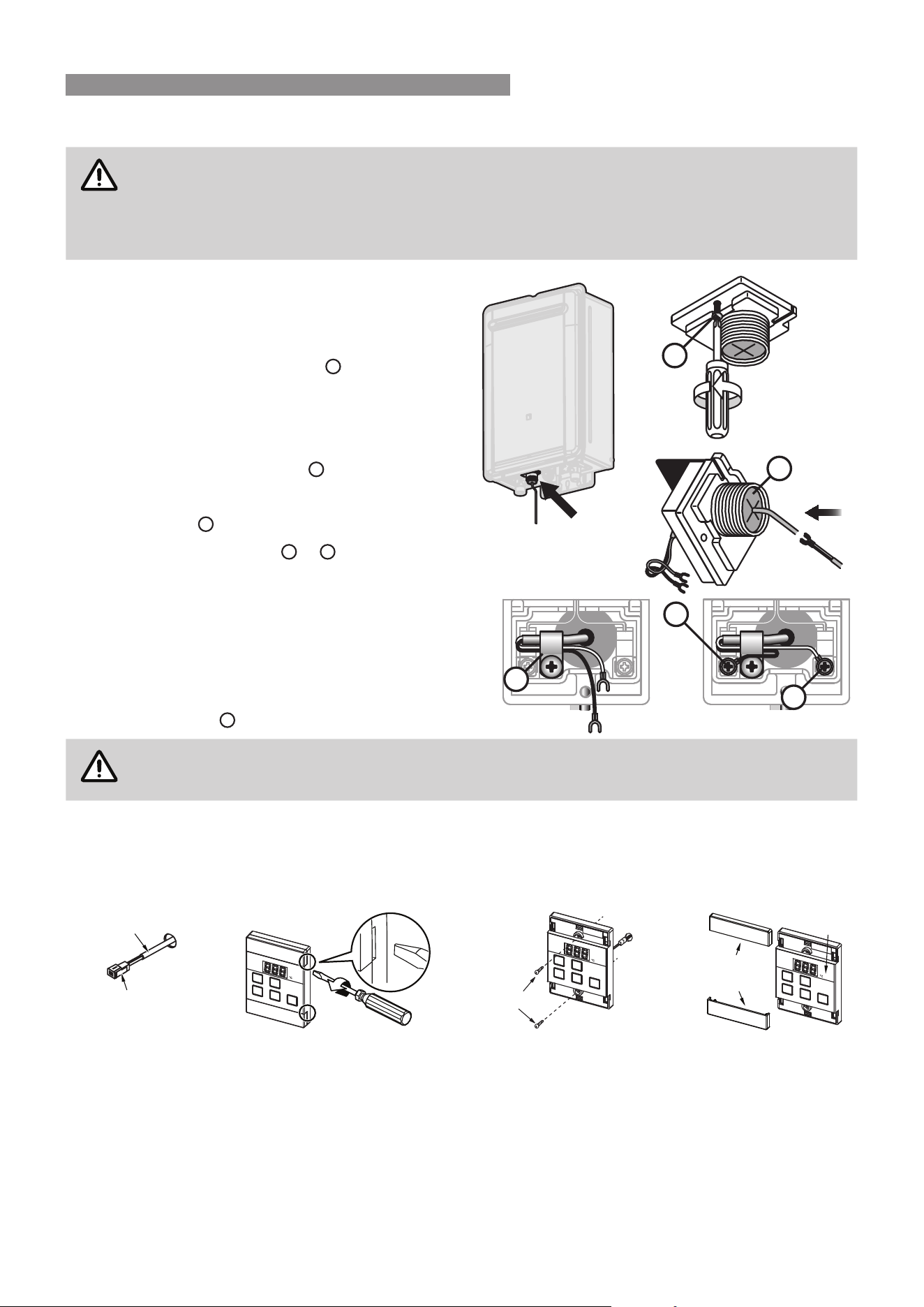

Connecting Communication Cable(s) With 'Ezi connect'
CAUTION
DO NOT DWWHPSW WR FRQQHFW FDEOHV WR WKH (]L FRQQHFW FDEOH FRQQHFWRU DW WKH ZDWHU KHDWHU
XQOHVV WKH HOHFWULF SRZHU WR WKH ZDWHU KHDWHU LV VZLWFKHG µRႇ¶ RWKHUZLVH GDPDJH WR HOHFWULFDO
components may occur.
,I \RXU ZDWHU KHDWHU LV QRW ¿WWHG ZLWK DQ (]L FRQQHFW FDEOH FRQQHFWRU LQVWDOODWLRQ PXVW EH
FRPSOHWHGE\DTXDOL¿HGDQGOLFHQVHGWUDGHVSHUVRQ
1. Isolate the electric power supply by switching
WKH SRZHU SRLQW Rႇ DQG UHPRYLQJ WKH SRZHU
plug of the water heater from the electric power
socket.
2. Remove the retaining screw
A
of the 'Ezi
connect' cable connector at the base of the
appliance.
3. Swing the 'Ezi connect' cable connector door
open and thread the cable through the weather
seal of the cable access hole
B
in the direction
VKRZQDOORZLQJVXႈFLHQWFDEOHOHQJWKVRWKDW
the sheath of the cable can be secured with
cable clamp
C
.
4. Loosen screw terminals
D
&
E
and connect
the cable spade connectors to these terminals
and re-tighten.
Polarity is not important, either wire colour can
be connected to either terminal.
5. Return the 'Ezi connect' cable connector to the
original position taking care NOT to damage
cable wires in the process and replace the
retaining screw
A
.
CAUTION
Check that the communication cable wiring is NOT damaged.
UNIVERSAL WATER CONTROLLER (MC-601Q) INSTALLATION
1. Determine the most suitable position, refer "Location" on page 22.
2. Mark and drill 3 holes (mounting and cable access) refer to page 28 for water controller dimensions.
3. When running cable through the access hole ensure the connector end of the cable is located nearest to the
water controller (Fig. 1).
4. Carefully remove the cover plates from the water controller, using a screw driver (Fig. 2).
5. Connect the cable to the water controller. Feed any excess cable lengths into the wall cavity to avoid the
pinching of cables between the wall and the water controller.
6. )L[WKHZDWHUFRQWUROOHUWRWKHZDOOXVLQJWKHDSSURSULDWH¿[LQJV)LJ
7. 5HPRYHSURWHFWLYH¿OPIURPWKHZDWHUFRQWUROOHUIDFHDQGUHSODFHWKHFRYHUSODWHV)LJ
A
C
E
D
B
Connector
Controller Cable
Screws
Film
Fig. 1 Fig. 2 Fig. 3 Fig. 4
Cover
Plates
WATER CONTROLLER INSTALLATION
E
D
C
Rinnai 24 HW_BM_CF OIM
Additional Programming & Activation Requirements
Q
UESTION
?
1
Are there four water controllers connected?
IF NO:
You have three (or fewer) water controllers, go to Question 2.
IF YES:
<RXZLOOQHHGWRDFWLYDWHWKHIRXUWKZDWHUFRQWUROOHUDVIROORZV
STEP 1:
)RU WKH ZDWHU FRQWUROOHU LQ WKH .,7&+(1 21/< SUHVV DQG KROG WKH µ3ULRULW\
7UDQVIHU¶DQGµ2Q2ႇ¶EXWWRQVVLPXOWDQHRXVO\VHH)LJXQWLODµEHHS¶LVKHDUG
(approximately 5 seconds).
STEP 2:
Check that the display on ALL FOUR water controllers is lit and displaying a
WHPSHUDWXUHZKHQµVZLWFKHGRQ¶,IDQ\21(RIWKHZDWHUFRQWUROOHUGLVSOD\V
two dashes (see Fig. 2) repeat STEP 1.
This completes the activation procedure for the fourth water controller, you
may ignore Question 2.
Q
UESTION
?
2
Is the water heater marked to state it delivers water not exceeding 50°C?
IF YES:
No further action required..
IF NO:
You will need to program the kitchen water controller to enable selection of
temperatures higher than 50°C.
STEP 1:
)RU WKH ZDWHU FRQWUROOHU LQ WKH .,7&+(1 21/< SUHVV DQG KROG WKH µ3ULRULW\
7UDQVIHU¶DQG µ2Q2ႇ¶EXWWRQV VLPXOWDQHRXVO\ )LJ XQWLO D µEHHS¶LV KHDUG
(approximately 5 seconds).
STEP 2:
:KHQWKHZDWHUFRQWUROOHU¿WWHGLQWKH.,7&+(1LVVZLWFKHG2QLWVKRXOGEH
possible to select temperatures higher than 50°C. If not, repeat STEP 1.
NOTE
If the water controller in the kitchen is replaced, repeat STEP 1 for the replacement water
controller.
If the water controller in the kitchen is swapped with another water controller (for example, the
ZDWHUFRQWUROOHU¿WWHGLQDEDWKURRPUHSHDWSTEP 1 for the water controller moved from the
kitchen to the bathroom. Then perform STEP 1 for the water controller moved from bathroom
to the kitchen.
°C
Fig. 1
Fi
g
. 2
Fig. 3
°C
WATER CONTROLLER INSTALLATION
Rinnai 25 HW_BM_CF OIM
TESTING
1. %HIRUH¿QDOFRQQHFWLRQRIWKHZDWHUKHDWHUSXUJHJDVKRWZDWHUDQGFROGZDWHUVXSSO\OLQHV'HEULVRUVZDUI
LQHLWKHUWKHJDVRUZDWHUVXSSOLHVPD\FDXVHGDPDJH
2. 7XUQRQJDVDQGFROGZDWHUVXSSOLHV
3. 7HVWIRUZDWHUOHDNVDQGJDVHVFDSHVQHDUWKHXQLW
4. ,VRODWHJDVVXSSO\5HPRYHWHVWSRLQWVFUHZORFDWHGRQWKHJDVLQOHWFRQQHFWLRQDQGDWWDFKSUHVVXUHJDXJH
IMPORTANT
&RQ¿UPWKH FRQWURO ERDUGGLSVZLWFK VHWWLQJV DUHVHW WR WKHFRUUHFW SRVLWLRQV DVUHTXLUHG LH
IDFWRU\GHIDXOWRUZLWKD6LGHZD\V)OXH'LYHUWHU¿WWHGVHH6LGHZD\V)OXH'LYHUWHU$OOPRGHOV
RQSDJHIRUGHWDLOV
5. 7XUQWKHSRZHURQDWWKHSRZHUSRLQWVRFNHWDQGWXUQRQJDV
6. ,IZDWHUFRQWUROOHUVDUH¿WWHGHQVXUHWKH\DUH21ZLWKWKHPD[LPXPGHOLYHU\WHPSHUDWXUHVHOHFWHGDQGRSHQ
ALLDYDLODEOHKRWZDWHURXWOHWV
,IZDWHUFRQWUROOHUVDUHQRW¿WWHGVLPSO\RSHQALL DYDLODEOHKRWZDWHURXWOHWV
CAUTION
(QVXUHEXLOGLQJRFFXSDQWVDO NOT KDYHDFFHVVWRKRWZDWHURXWOHWVGXULQJWKLVSURFHGXUH
7. 2SHUDWHALLRWKHUJDVDSSOLDQFHVDWWKHLUPD[LPXPJDVUDWHLQDFFRUGDQFHZLWKPDQXIDFWXUHUVLQVWUXFWLRQV
8. :LWKDOOJDVDSSOLDQFHVLQRSHUDWLRQDWPD[LPXPJDVUDWHWKHSUHVVXUHVKRXOGUHDGEHWZHHQN3D
RQ1DWXUDO*DV2Q/3*WKHSUHVVXUHVKRXOGEHN3D,IWKHSUHVVXUHLVORZHUWKHJDVVXSSO\LV
LQDGHTXDWHDQGWKHDSSOLDQFHZLOOQRWRSHUDWHWRVSHFL¿FDWLRQ,WLVWKH,QVWDOOHUVUHVSRQVLELOLW\WRFKHFNWKH
JDVPHWHUVHUYLFHUHJXODWRUDQGSLSHZRUNIRUFRUUHFWRSHUDWLRQVL]LQJDQGUHFWLI\DVUHTXLUHG
NOTE
7KHJDVUHJXODWRURQWKHDSSOLDQFHLVHOHFWURQLFDOO\FRQWUROOHGDQGIDFWRU\SUHVHW8QGHUQRUPDO
FLUFXPVWDQFHVLWDOES NOTQHHGDGMXVWPHQWGXULQJLQVWDOODWLRQ
9. &ORVHKRWZDWHUWDSVLQFOXGLQJWKHVKRZHU
,QVSHFWDQGFOHDQWKHVWUDLQHUORFDWHGRQWKHFROGZDWHULQOHWFRQQHFWLRQ7KLVSURFHGXUHPD\QHHGWREH
UHSHDWHGWRHQVXUHWKHVWUDLQHUUHPDLQVFOHDUHVSHFLDOO\RQQHZLQVWDOODWLRQV
11. ,IZDWHUFRQWUROOHUVDUH¿WWHGLWLVQHFHVVDU\WRWHVWWKHLURSHUDWLRQWKURXJKWKHFRPSOHWHUDQJHRIIXQFWLRQV
UHIHUWRWKH2SHUDWLRQVHFWLRQVRIWKLVPDQXDO
12. &RQ¿UP WKH KRW ZDWHU GHOLYHU\ WHPSHUDWXUHV XVLQJ D WKHUPRPHWHU ,I FRQWUROOHUV DUH ¿WWHG HQVXUH
WHPSHUDWXUHVH[FHHGLQJ&FDQQRWEHVHOHFWHGRQEDWKURRPRUHQVXLWHFRQWUROOHUV5HIHUWRWKHVHFWLRQ
µ'HOLYHU\7HPSHUDWXUH¶EHORZIRUPRUHGHWDLOV
13. $IWHUWHVWLQJLVFRPSOHWHGH[SODLQWRWKHKRXVHKROGHUWKHIXQFWLRQVDQGRSHUDWLRQRIWKHZDWHUKHDWHUDQG
ZDWHUFRQWUROOHUVLI¿WWHG(QVXUHWKH,QVWDOODWLRQ5HFRUG RQ SDJH LV¿OOHGLQDQGWKDWWKLVERRNOHW LV
KDQGHGWRWKHFXVWRPHU5HPLQGLQJWKHFXVWRPHUWRFRPSOHWHWKH:DUUDQW\&DUGDQGIRUZDUGWR5LQQDL
DELIVERY TEMPERATURE
50°C Compliant Models
& &RPSOLDQW DSSOLDQFHV DUH IDFWRU\ VHW WR GHOLYHU D PD[LPXP WHPSHUDWXUH QRW H[FHHGLQJ & )RU ¿QH
WXQLQJWKH\KDYHDQLQFUHPHQWDODGMXVWPHQWPHFKDQLVPWKDWDOORZVWKHLQVWDOOHUWRLQFUHDVHWKHDSSOLDQFHGHOLYHU\
WHPSHUDWXUHLQFUHPHQWDOO\IURPWKH)DFWRU\6HW¶YDOXHWRWHPSHUDWXUHVVOLJKWO\H[FHHGLQJ&7KLVLVLQWHQGHG
WRHQDEOHFRPSHQVDWLRQIRUWHPSHUDWXUHORVVHVLQWKHSLSHZRUNEHWZHHQWKHZDWHUKHDWHUDQGDQ\RXWOHWVDQG
DFKLHYHWKHUHTXLUHGWHPSHUDWXUHDWWKHRXWOHW,QVWUXFWLRQVIRULQFUHPHQWDOWHPSHUDWXUHDGMXVWPHQWDUHORFDWHGLQ
WKHLQVWUXFWLRQSRFNHWLQVLGHWKHDSSOLDQFHIURQWFRYHU
For All Other Models
5LQQDLJDVFRQWLQXRXVÀRZZDWHUKHDWHUVDUHIDFWRU\SUHVHWWRYDULRXVPD[LPXPGHOLYHU\WHPSHUDWXUHVGHSHQGLQJ
RQ PRGHO DQG WKHLU LQWHQGHG DSSOLFDWLRQ )RU WKH PDMRULW\ RI DSSOLFDWLRQV WKH IDFWRU\ SUHVHW WHPSHUDWXUH LV
DSSURSULDWH,QWKHXQOLNHO\HYHQWLWLVQRWWKLVVHWWLQJFDQEHLQFUHDVHGRUGHFUHDVHGE\WKHLQVWDOOHU,QVWUXFWLRQVIRU
FKDQJLQJWKHPD[LPXPGHOLYHU\WHPSHUDWXUHDUHORFDWHGLQWKHLQVWUXFWLRQSRFNHWLQVLGHWKHDSSOLDQFHIURQWFRYHU
COMMISSIONING
Rinnai 26 HW_BM_CF OIM
GAS PRESSURE SETTING
7KHUHJXODWRULVHOHFWURQLFDOO\FRQWUROOHGDQGIDFWRU\SUHVHW8QGHUQRUPDOFLUFXPVWDQFHVLWDOES NOTUHTXLUH
DGMXVWPHQWGXULQJLQVWDOODWLRQ0DNHDGMXVWPHQWVONLYLIWKHXQLWLVQRWRSHUDWLQJFRUUHFWO\DQGDOORWKHUSRVVLEOH
FDXVHV IRU LQFRUUHFW RSHUDWLRQ KDYH EHHQ HOLPLQDWHG ,QVWUXFWLRQV IRU JDV SUHVVXUH VHWWLQJ DUH ORFDWHG LQ WKH
LQVWUXFWLRQSRFNHWLQVLGHWKHDSSOLDQFHIURQWFRYHU
NOTE
)RUDOOLQMHFWRUVL]HDQGJDVSUHVVXUHYDOXHVUHIHUWRWKHDSSOLDQFHGDWDSODWHORFDWHGRQWKHOHIW
KDQGVLGHRIWKHZDWHUKHDWHU
WIRING DIAGRAM
7KHZLULQJGLDJUDPLVORFDWHGLQWKHLQVWUXFWLRQSRFNHWLQVLGHWKHDSSOLDQFHIURQWFRYHU
COMMISSIONING CHECK LIST
$ FRPPLVVLRQLQJ FKHFNOLVWLVSURYLGHGRQ WKH DSSOLDQFH IURQWFRYHUWR HQDEOH WKH LQVWDOOHUWRVWHSWKURXJKWKH
FRUUHFWFRPPLVVLRQLQJSURFHGXUHZKHQLQVWDOOLQJD5LQQDLJDVFRQWLQXRXVÀRZZDWHUKHDWHU
7KHFKHFNOLVWFDQDOVRDVVLVWWKHLQVWDOOHUWRLGHQWLI\SRWHQWLDOLQVWDOODWLRQHUURUVWKDWPD\SUHYHQWWKHDSSOLDQFH
IURPRSHUDWLQJFRUUHFWO\
INSTALLATION RECORD
7KH,QVWDOODWLRQ5HFRUGLVDUHIHUHQFHIRUWKHHQGXVHUKHOSOLQHVWDႇDQGVHUYLFHWHFKQLFLDQV(QVXULQJWKDWWKLV
LQIRUPDWLRQLVDYDLODEOHKHUHZLOOEHKHOSIXOLQWKHHYHQWWKDWDVHUYLFHHQTXLU\LVUHTXLUHG
Installer Details
,QVWDOODWLRQ&RPSDQ\1DPH
$GGUHVV
7HOHSKRQH0RELOH3KRQH
(PDLO
&HUWL¿FDWHRI&RPSOLDQFH&HUWL¿FDWLRQ1R
$XWKRULVHG3HUVRQV/LFHQFH1R
,QVWDOOHUV1DPH
,QVWDOOHUV6LJQDWXUH
,QVWDOODWLRQ'DWH
System Details
:DWHU+HDWHU0RGHO1XPEHU 5(8
:DWHU+HDWHU6HULDO1XPEHU
* This information will need to be copied from the data plate, located on the left hand side of appliance.
,QVWDOODWLRQ$GGUHVV
COMMISSIONING
Rinnai 27 HW_BM_CF OIM
TABLE 1. SUPPLY, FLOW RATES, WEIGHTS & SERVICE CONNECTIONS
Model
Gas Rate
Water Supply
Pressure
Max Flow at Temp Rise
(at minimum water supply pressure)
Weight
Fittings
Min Max Hot Cold Gas
MJ/hr kPa L/min / °C kg (DN = mm)
REU-BM1220W -
,Q¿QLW\%
92 120 1000 15 / 20 12 / 25 7.5 / 40 6 / 50 13 R ½ (15) R ½ (15) R ¾ (20)
REU-BM1620W -
,Q¿QLW\%
124 120 1000 20 / 20 16 / 25 10 / 40 8 / 50 13 R ½ (15) R ½ (15) R ¾ (20)
REU-BM2024W -
,Q¿QLW\%
156 160 1000 24 / 20 20 / 25 12.5 / 40 10 / 50 14 R ¾ (20) R ¾ (20) R ¾ (20)
REU-BM2626W -
,Q¿QLW\%
199 200 1000 26 / 20 26 / 25 16.3 / 40 13 / 50 15 R ¾ (20) R ¾ (20) R ¾ (20)
TABLE 2. MAXIMUM DELIVERY TEMPERATURES
(a) Factory "Pre-Set" Maximum delivery temperature (°C)
(b) Can the Factory "Pre-Set" Maximum delivery temperature be changed by an authorised person?
Non - 50°C
Compliant - Models
Delivery Temperature
REU-BM1220W REU-BM1620W REU-BM2024W REU-BM2626W
(a)60606060
(b) Yes Yes Yes Yes
50°C Compliant -
Models
Delivery Temperature
REU-BM1220W-50 REU-BM1620W-50 REU-BM2024W-50 REU-BM2626W-50
(a)50505050
(b)NoNoNoNo
SPECIFICATIONS
Rinnai 28 HW_BM_CF OIM
TABLE 3. APPLIANCE DIMENSIONS – BM SERIES & UNIVERSAL WATER CONTROLLER
All dimensions in mm
unless otherwise stated.
Model
,Q¿QLW\% ,Q¿QLW\% ,Q¿QLW\% ,Q¿QLW\% Universal
REU-BM1220W REU-BM1620W REU-BM2024W REU-BM2626W MC-601Q
A Width 351 351 351 351 90
B Depth 202 202 202 202 21
C Height Unit 531 531 531 531 120
D Height - including brackets 571 571 571 571 -
E Hot water outlet (from wall) 87 87 87 87 -
F Hot water outlet (from centre) 105 105 105 105 -
G Cold water inlet (from wall) 68 68 68 68 -
H Cold water inlet (from centre) 10 10 10 10 -
I Gas connection (from wall) 77 77 77 77 -
J Gas connection (from centre) 83 83 83 83 -
K
Gas connection length (from base) 40 40 40 40 -
Cold connection length (from base) 50 50 50 50 -
Hot connection length (from base) 39 39 41 41 -
L Vertical mounting hole centres - - - - 84
M
Cable access hole size - - - - Ø20
Position - - - - Centre
SPECIFICATIONS
Rinnai 29 HW_BM_CF OIM

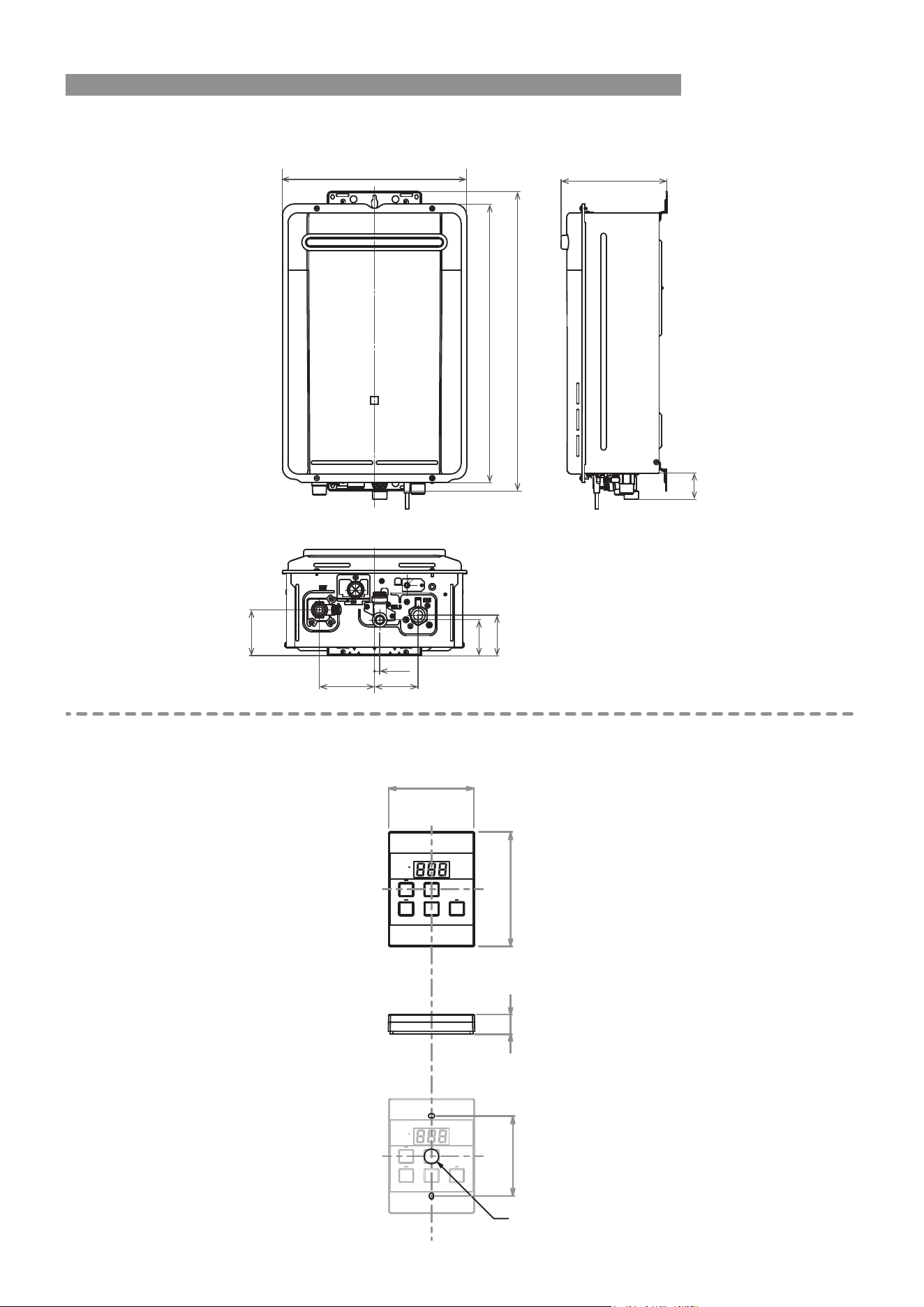

Infinity BM Series
BA
CD
E
FJ
H
G
I
K
Universal Water Controller - MC-601Q
A
B
C
Drawings are not to scale
M
L
SPECIFICATIONS
Rinnai 30 HW_BM_CF OIM
TABLE 4. OTHER ACCESSORIES
:KHUH WKH DFFHVVRU\ FRPSDWLELOLW\ LQIRUPDWLRQ LV QRW VSHFL¿HG SOHDVH FRQWDFW 5LQQDL IRU GHWDLOV DERXW RXU IXOO
DFFHVVRU\UDQJHDQGWKHLUPRGHOVXLWDELOLW\RUYLVLWwww.rinnai.com.au.
Pipe
Cover
3LSHFRYHUVDWWDFKHDVLO\WRD5LQQDLJDVFRQWLQXRXVÀRZZDWHUKHDWHUDQGDUH
designed to conceal pipes and valves.
3LSHFRYHUVPD\DOVREHMRLQHGWRRQHDQRWKHUWRFRQFHDOORQJHUSLSHZRUN
PC12W
Security Cage 3URWHFWVWKH5LQQDLJDVFRQWLQXRXVÀRZZDWHUKHDWHUIURPWKHIWDQGGDPDJH
CAGE01A
6HFXULW\%UDFNHW
3UHYHQWWKHIWRI\RXU5LQQDLJDVFRQWLQXRXVÀRZZDWHUKHDWHUE\VHFXULQJLWZLWK
WKHFXVWRPVHFXULW\EUDFNHW
SECBKT
6LGHZD\V)OXH
Diverter
'HVLJQHGWRUHGLUHFWÀXHSURGXFWVZKHQD5LQQDLJDVFRQWLQXRXVÀRZZDWHUKHDWHU
is installed on a balcony.
* SFD-01 = REU-BM2626 / SFD-02 = REU-BM1220, REU-BM1620 / SFD-03 =
REU-BM2024.
SFD-01/02/03 *
Smart Box
(plastic)
Recess Box
(metal)
5HFHVV ER[HV DUH DYDLODEOH LQ HLWKHU SODVWLF RU PHWDO DQG DUH GHVLJQHG WR SHUPLW D UHFHVVHG
LQVWDOODWLRQRID5LQQDLJDVFRQWLQXRXVÀRZZDWHUKHDWHULQWRDZDOOFDYLW\VDYLQJSUHFLRXVVSDFH
Recess boxes are also suitable for painting.
Water
Controllers
$QH[WHQGHGUDQJH RI 'HOX[H .LWFKHQ 'HOX[H%DWKURRPDQG :LUHOHVV ZDWHU FRQWUROOHUVDUH DOVR
available.
SPECIFICATIONS
Rinnai 31 HW_BM_CF OIM
NOTES
32 HW_CF_BM OIM Issue 1 - February 2025
Rinnai Australia Pty Ltd
ABN 74 005 138 769 | AU45204
82-88 Mills Road, Braeside, Victoria, 3195
P.O. Box 460, Braeside, Victoria 3195
Tel: (03) 9271 6625
National Help Line
Tel: 1300 555 545*
Monday to Friday, 8.00 am to 5.00 pm EST.
After Hours Hot Water Service Line
Tel: 1800 000 340*
*Cost of a local call may be higher from a mobile phone.
(National calls from public phones in Australia are free.)
For further information visit www.rinnai.com.au
or email [email protected]
Rinnai has a Service and Spare Parts network with
personnel who are fully trained and equipped to give
the best service on your Rinnai appliance. If your
appliance requires service, please call our National
Help Line. Rinnai recommends that commercial
appliances be serviced every 1 year and that
domestic appliances be serviced every 2 years.
With our policy of continuous improvement, we
reserve the right to change, or discontinue at any time,
specifications or designs without notice.
HW_CF_BM OIM Issue 1 – February 2025
32
U340-2330(00)
REU-BM(AU)
