INSTALLATION INSTRUCTIONS
for
PEDESTAL HAND SINKS
Sinks manufactured by ADVANCE TABCO
®
are designed and constructed for the use of
liquid containment. Suggested applications include Food Preparation, Manufacturing,
Cooking, Laboratory and Service and the like. ADVANCE TABCO
®
does not recommend
product use for activities employing harsh and active chemicals. Please consult factory
regarding unusual applications.
CHECK FOR CONCEALED DAMAGE
FILE CLAIM WITH DELIVERING FREIGHT CARRIER
© ADVANCE TABCO, SEPTEMBER 2018

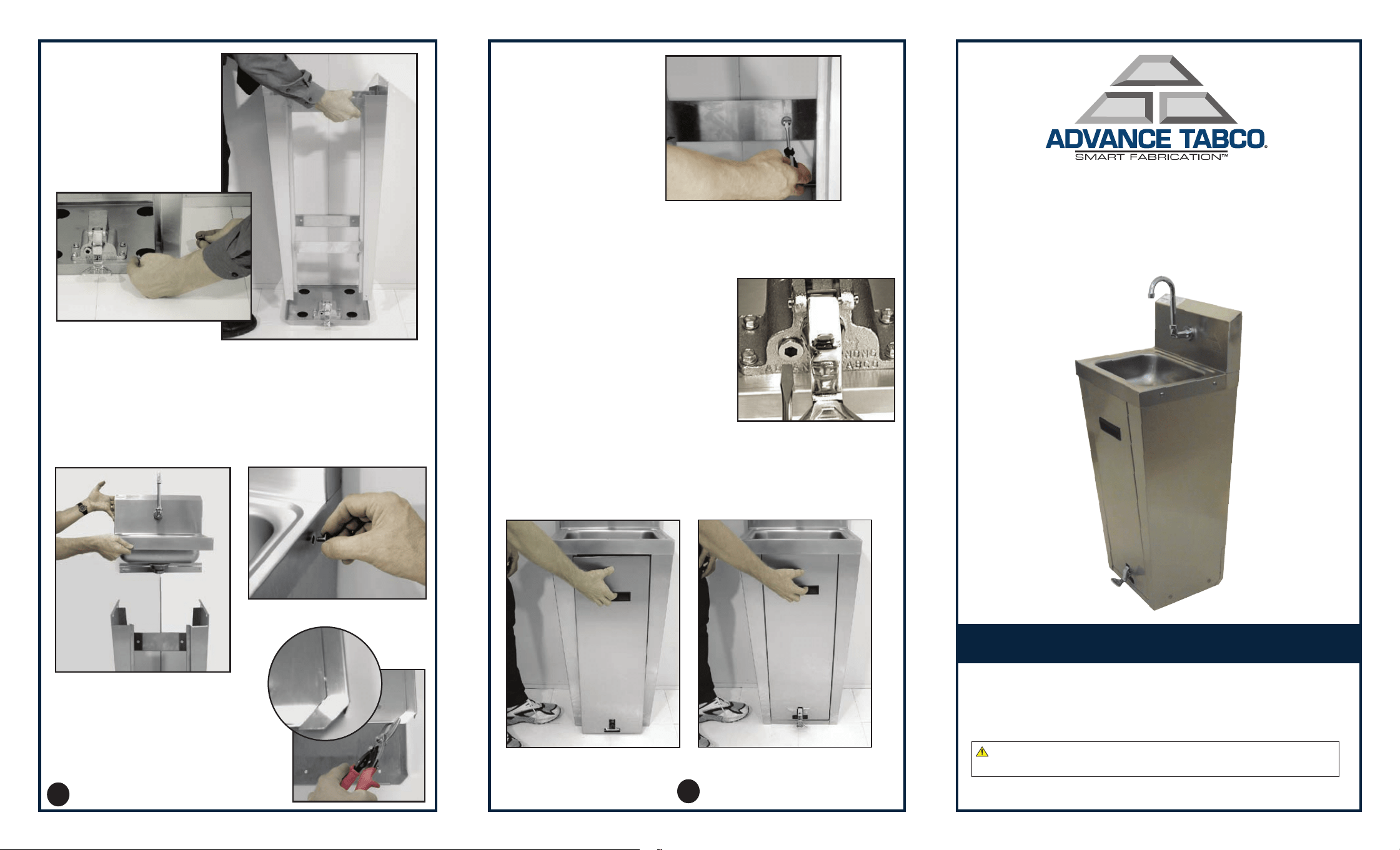

STEP 9
Position Hand sink Body onto Pedestal and secure with
(4) 1/4” x 1/2” Truss Head Screws and Nuts provided.
(See Figures 6 & 6A)
STEP 10
If required, Remove “Break-Away”
tabs at bottom of sides using
metal shears to accommodate
floor molding. (See Figures 7 & 7A)
STEP 8
Install faucet, drain and drain to sink body.
STEP 11
Secure rear brace to wall.
(See Figure 8)
STEP 12
Connect drain and supply line from Foot Valve to Faucet.
STEP 13
Remove aerator and flush water system.
STEP 15
Check all water and drain connections for leaks.
Figure 8
Figure 6
Figure 7
Figure 6A
STEP 14
Adjust cold water at front of Foot Valve.
(See Figure 9)
Figure 9
STEP 16
Install Front panel to Pedestal. (See Figures 10 & 10A)
Figure 10
Figure 10A
Figure 5
STEP 7
Position Pedestal onto
Base Shelf and secure
with (4) 1/4” x 20 1/2”
Truss Head Screws and
Nuts provided.
(See Figure 5 & 5A)
Figure 5A
Figure 7A
WARNING: Equipment that includes a faucet may expose you to chemicals, including lead, that are known to the State of California to cause cancer or birth defects or other reproductive harm. For more Info.,visit www.p65warnings.ca.gov.
WARNING: Equipment that includes a faucet may expose you to chemicals, including lead, that are known to the
State of California to cause cancer or birth defects or other reproductive harm. For more Info.,visit www.p65warnings.ca.gov.
WARNING: Faucets on this page may expose you to chemicals, including lead, that are known to the State of California to cause cancer or birth defects or other reproductive harm. For more Info.,visit www.p65warnings.ca.gov.
6
7
(1) Hand Sink with Pedestal
(1) Foot Valve
(1) Floor Template
(4) 1/4 - 20 x 3/4” Hex Head Bolts
(8) 1/4 - 20 x 1/2” Truss Head Screws
(8) 1/4 - 20 Hex Nuts
(1) K-121 Faucet
(1) K-6 Basket Drain
(1) Wall Clip
• Tape Measure
• Flat Head Screw Driver
• 7/16” Open End Wrench
• 3/8” Open End Wrench
• Adjustable Wrench
• Drill Motor & Bits
• 48” Level
• Adhesive Tape
• Safety Glasses
CONTENTS INCLUDE:
TOOLS REQUIRED:
INSTRUCTIONS:

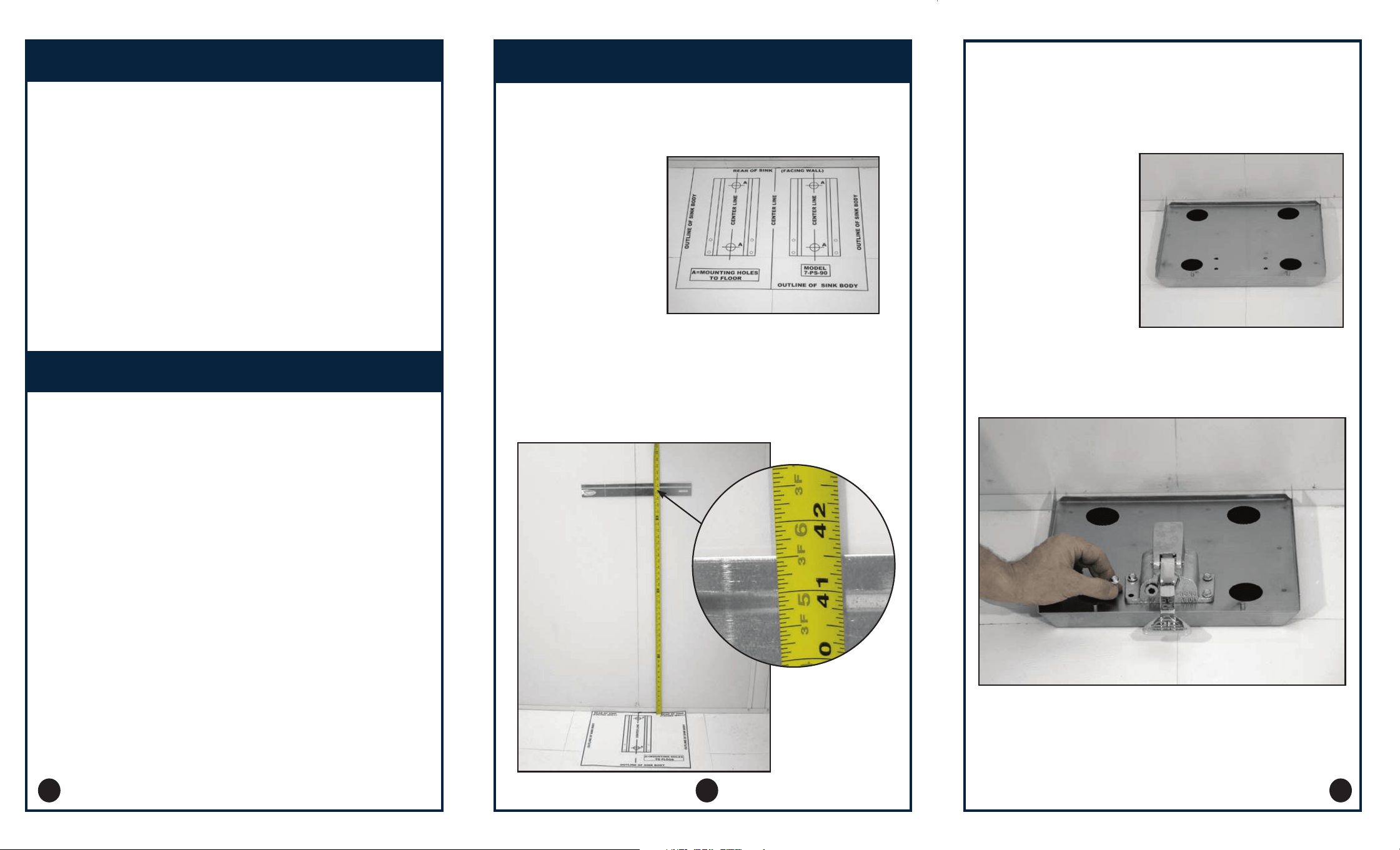

STEP 1
Position Floor Template at desired location. Tape in place and
drill holes as required for mounting hardware (Not Included).
(See Figure 1)
STEP 2
Mark a “plumb” line from the centerline of the Floor Template
extending approximately 48” A.F.F. (Above Finished Floor). (See
Figure 2). Center Wall Clip on plumb line at a point 41-1/2” A.F.F.
level and secure Wall Clip (Hardware not Included).
(See Figure 2A)
STEP 3
Disassemble Pedestal Base - unbolt sink body from Pedestal.
Remove Front Door Panel and disconnect Foot Valve &
Base Shelf.
STEP 4
Install Base Shelf to Floor.
(See Figure 3)
Figure 1
Figure 2
Figure 2A
Figure 3
STEP 5
Position and Secure Foot Valve to Base Shelf with (4)
1/4 -20 x 3/4” Hex Head Bolts provided.
(See Figure 4)
Figure 4
STEP 6
Pre plumb hot and cold water supply to foot valve in
accordance with local plumbing codes.
2 3 4
