Double Convection Oven
30” Double Convection Oven
USER MANUAL
Before using, please read the operating instructions carefully to
ensure proper application and achieve satisfactory results.
For any service related issues, please contact us:
718-576-6342
suppor[email protected]
Model: KM-WO30D-SS
Stay informed with the latest information for your
KoolMore Reserve Appliance.
Scan the QR code above to access the most recent user manual
on our website, which is constantly being updated and improved.
If you need any assistance or have questions, our customer support
team is here to help.
P- 718-576-6342 E- Suppor[email protected]
Please write down the model number and serial number below for future reference. Both numbers are located on the
rating label on the back of your unit or inside of the unit and are needed to obtain warranty service. You may also
want to staple your receipt to this manual as it is the proof of your purchase and may also be needed for service
under warranty.
Model Number:
Serial Number:
Date of Purchase:
To better serve you, please do the following before contacting customer service:
If you received a damaged product, immediately contact the retailer or dealer that sold you the product.
Read and follow this instruction manual carefully to help you install, use, and maintain your unit.
Refer to the Troubleshooting section of this manual as it will help you diagnose and solve many common issues.
3
Contents
Safety ............................................................................................ 4
Parts List ...................................................................................... 8
Control Panel & Button Functions ........................................ 9
Operation .................................................................................... 15
Maintanence ................................................................................ 36
Troubleshooting ........................................................................... 44
Warranty ....................................................................................... 47
4
Safety
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on
your appliance. Always read and obey all safety messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can
kill or hurt you and others.
All safety messages will follow the safety alert symbol
and either the word “DANGER,” “WARNING” or
“CAUTION.” These words mean:this manual and on
your appliance. Always read and obey all safety
messages.
You can be killed or seriously injured if you
don’t immediately follow instructions.
You can be killed or seriously injured if you
don’t follow instructions.
A potentially hazardous situation which, if
not avoided, could result in minor or
moderate injury.
All safety messages will tell you what the potential hazard is, tell you how
to reduce the chance of injury, and tell you what can happen if the
instructions are not followed.
State of California Proposition 65 Warnings:
WARNING: This product contains one or more chemicals known to the
State of California to cause cancer.
WARNING: This product contains one or more chemicals known to the
State of California to cause birth defects or other reproductive harm.
5
WARNINGS FOR ELECTRIC INSTALLATION
WARNING
Installation and service must be performed by a qualified installer or
service agency.
The models may be powered at 240V or 208V.
Always disconnect the power before servicing this unit.
This appliance must be properly grounded.
Failure to do so could result in death or serious injury.
IMPORTANT SAFETY INSTRUCTIONS
WARNING:
To reduce the risk of fire, electrical shock, injury to persons, or damage when using
the range, follow basic precautions, including the following:
• Proper Installation:
• This appliance must be properly installed and electrically grounded by a
qualified technician. Connect only to properly grounded outlet. See “Ground-
ing Instructions” found in the Installation Instructions.
• This appliance should be serviced only by a qualified service technician.
Contact the nearest authorized service center for examination, repair or ad-
justment.
• Do not repair or replace any part of the oven unless specifically recommend-
ed. Refer service to an authorized servicer.
• Do not operate this appliance if it is not working properly or if it has been
damaged, until an authorized servicer has examined it.
• Install or locate this appliance only in accordance with the Installation In-
structions.
• Use this oven only as intended by the manufacturer. If you have any ques-
tions, contact the manufacturer.
• Do not cover or block any openings on this appliance.
6
• Do not cover or block any openings on this appliance.
• Use this appliance only for its intended use as described in this manual. Do
not use corrosive chemicals, vapors, or nonfood products in this appliance.
This type of oven is specifically designed to heat or cook. It is not designed
for industrial or laboratory use. The use of corrosive chemicals in heating or
cleaning will damage the appliance.
• To reduce the risk of fire in the oven cavity:
• Do not store flammable materials in or near the oven.
• Do not use water on a grease fire. Smother fire or use a dry chemical or
foam-type extinguisher.
• It is highly recommended that a fire extinguisher be readily available and
highly visible next to any cooking appliance.
• Do not overcook food. Carefully attend oven if paper, plastic or other com-
bustible materials are placed inside the oven.
• Do not use the cavity for storage purposes. Do not leave paper products,
cooking utensils or food in the cavity when not being used.
• If materials inside the oven should ignite, keep oven door closed. Turn oven
o and disconnect the circuit at the circuit breaker box.
• Be sure the blower fan runs whenever the oven is in operation. If the fan does
not operate, do not use the oven. Call an authorized service center.
• Never use the oven to warm or heat a room.
• Personal Safety
• Do not allow children to use this appliance unless closely supervised by an
adult. Children and pets should not be left alone or unattended in the area
where the appliance is in use. Never allow children to sit or stand on any part
of the oven.
• Do not store items of interest to children above the oven. If children should
climb onto the appliance to reach these items, they could be seriously in-
jured.
• For personal safety, wear proper clothing. Loose fitting or garments with
hanging sleeves should never be worn while using this appliance.
• Tie long hair so that it doesn’t hang loose.
• Do not touch heating elements or interior surfaces of oven.
• The heating elements may be hot even though they are dark in color. Interior
surfaces of an oven become hot enough to cause burns.
• During and after use, do not touch or let clothing or other flammable mate-
rials contact the heating elements or the interior surfaces of the oven until
they have had suicient time to cool.
• The trim on the top and sides of the oven door may become hot enough to
cause burns. • Use care when opening the door. Open the door slightly to let
hot air or steam escape before removing or replacing food.
7
• Do not heat unopened food containers. Build-up of pressure may cause the
container to burst and cause injury.
• Always place oven racks in desired location while oven is cool. If a rack must
be moved while oven is hot, do not let potholder contact the hot heating ele-
ments.
• Use only dry potholders. Moist or damp potholders on hot surfaces may
result in burns from steam. Do not let potholder touch hot heating elements.
Do not use a towel or other bulky cloth.
• Safety for the Self-cleaning Oven:
• Before self-cleaning the oven, remove the broiler pan, oven racks (only when
not made of porcelain), other utensils and excess soft spillage.
• Confirm that the door locks and will not open once both selectors are in
CLEAN position and the door lock icon appears. If the door does not lock,
turn the cook mode selector to OFF and do not run Self-Clean. Call an au-
thorized servicer.
• Do not clean the door gasket. It is essential for a good seal. Care should be
taken not to rub, damage, move or remove the door gasket.
• Do not use commercial oven cleaners or oven liner protective coatings of any
kind in or around any part of the oven.
• Clean only oven parts listed in this manual.
• Other surfaces of the appliance may become hot enough to cause burns -
among these surfaces are for example: oven vent openings and surfaces
near these openings, oven doors, and windows of oven doors.
READ AND SAVE THESE INSTRUCTIONS
8

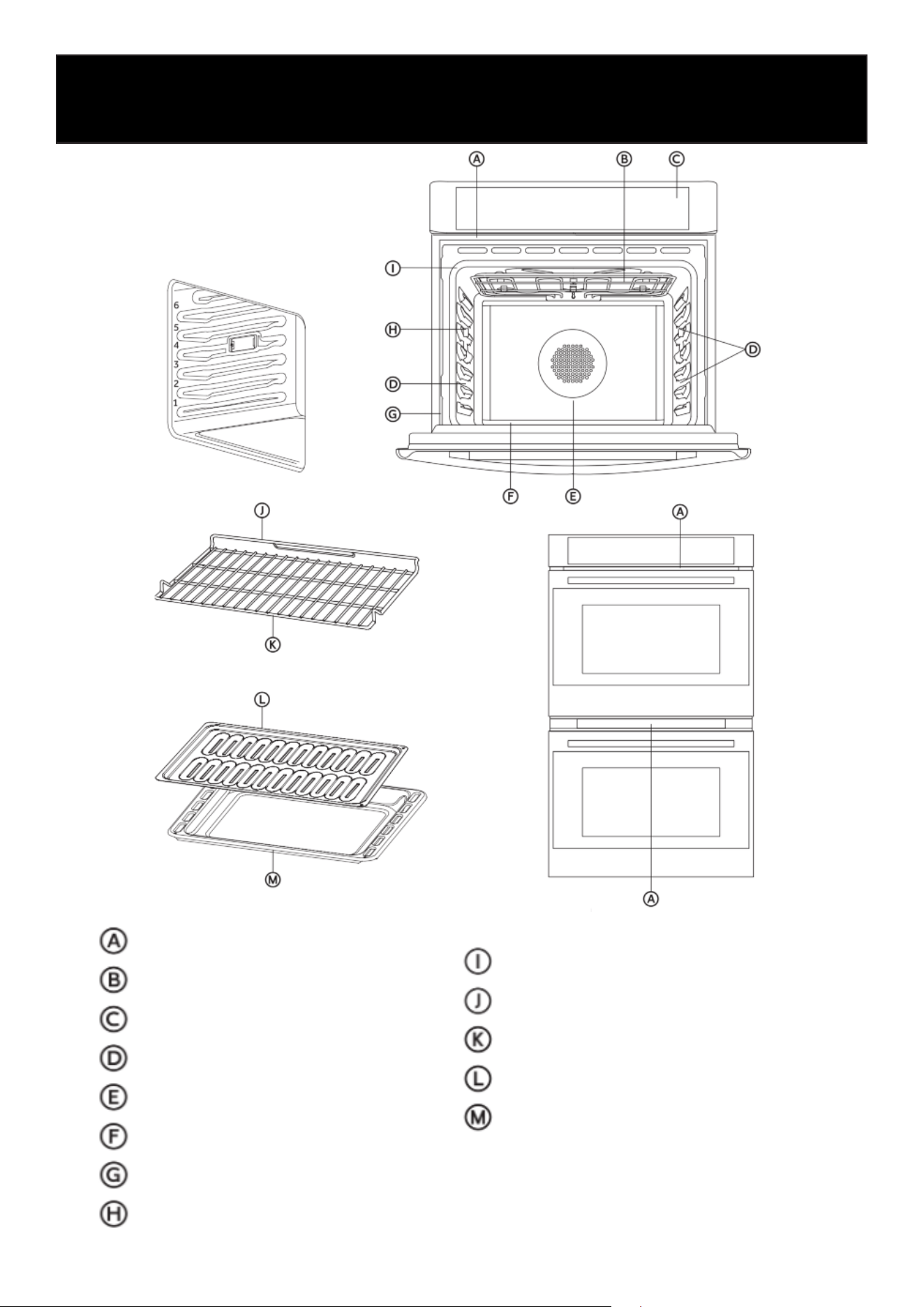

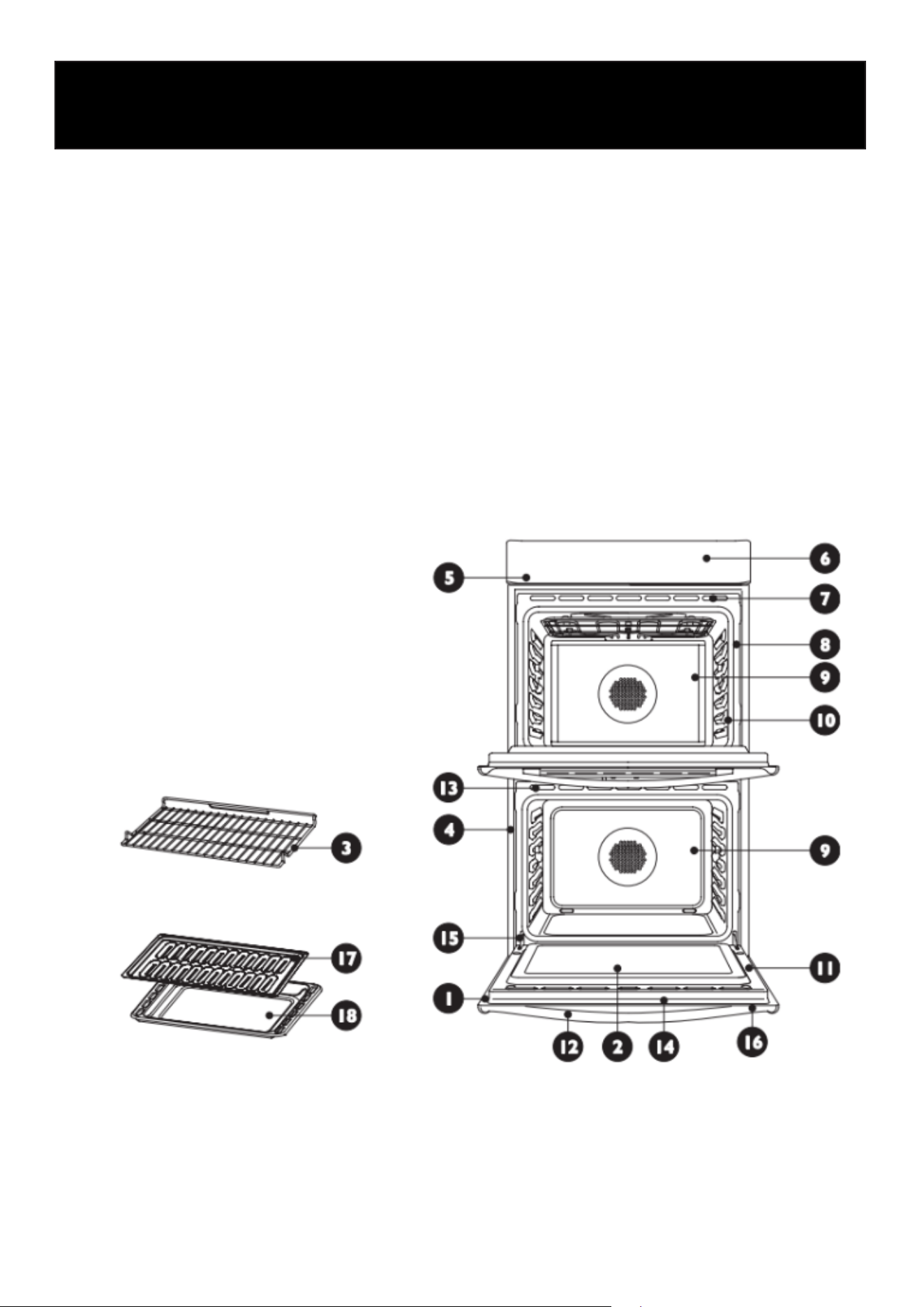

PARTS LIST
Cooling Vents
Broil Element
Control Panel
Halogen Light
Convection Fan and Element
Bottom Element (not visible)
Model and Serial # Plate
Door Gasket
Oven Rack Back
Oven Rack Front
Broiler Pan Rack
Broiler Pan
Temperature Probe
(Upper Oven Only)
9

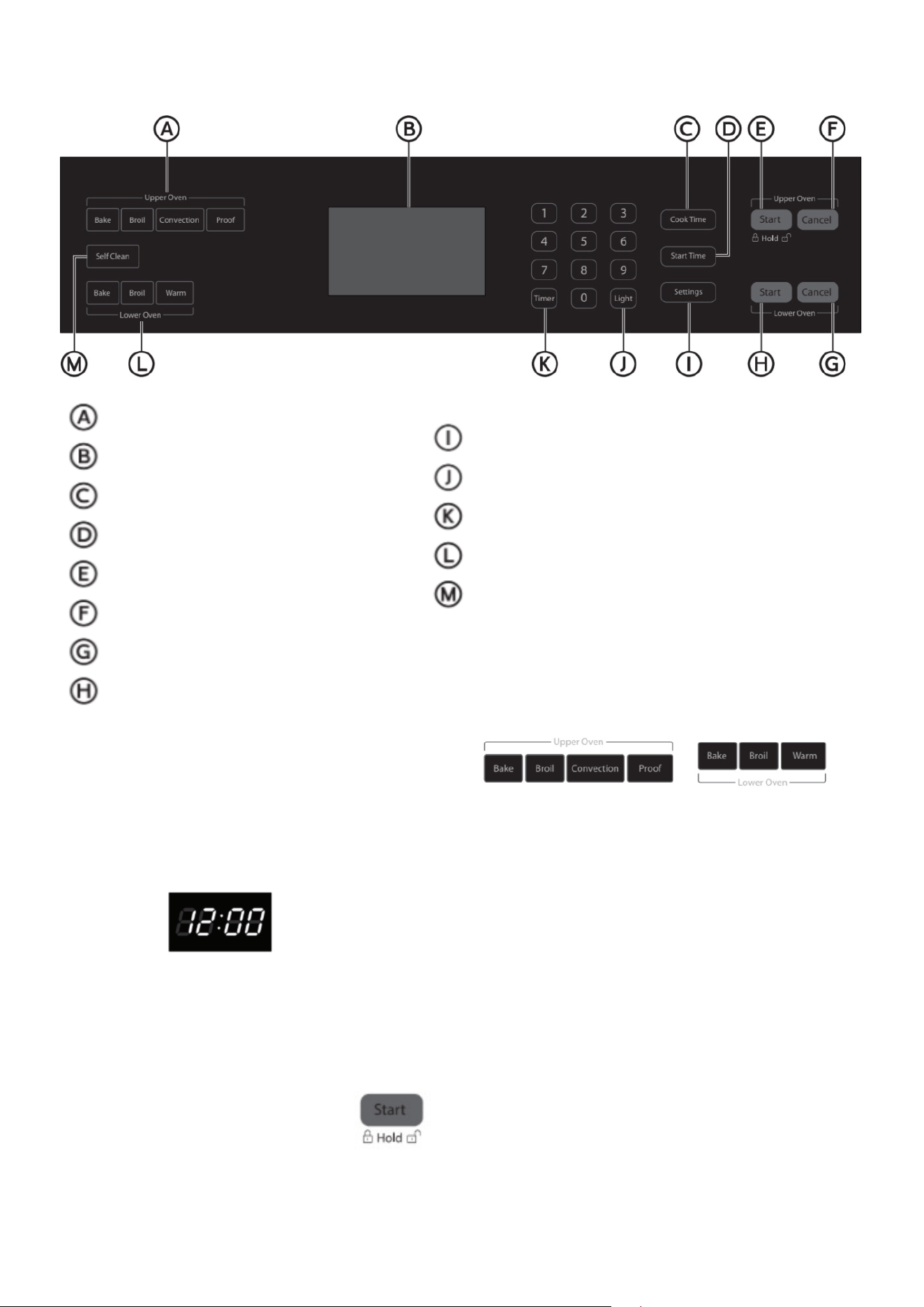

CONTROL PANEL
Upper Oven Controls
Display
Cook Time
Start Time
Upper Oven Start
Upper Oven Cancel
Lower Oven Cancel
Lower Oven Start
Settings
Light
Timer
Lower Oven Controls
Self-Clean
OVEN MODE CONTROLS
Depending on which oven you are using, select from Bake, Broil, Convection and
Warm/Proof oven modes.
DISPLAY
When power is first supplied to the oven or if a power failure occurs, “12:00” will ap-
pear on the display.
See “Clock,” later in this section, for instructions to set the time-of-day. When the
oven is not in use, the time-of-day appears in the display.
START/CONTROL LOCKOUT
START
The Start control begins any oven function. If Start is not pressed within 2 minutes
after pressing a keypad the function is canceled and the time-of- day is displayed.
10
CONTROL PANEL LOCKOUT
The control panel can be locked to avoid unintended use of the oven.
NOTES:
• The control cannot be locked if the oven is in use or if Cook Time is operating.
• The current time-of-day will remain in the display when the control is locked.
To Lock Control Panel:
• Press and hold START for 3 seconds or until “LOCKED” appears in the display.
“LOCKED” will remain lit in the display.
To Unlock Control Panel:
• Press and hold START for 3 seconds or until “LOCKED” scrolls in the display.
CANCEL
• Press the Cancel button to stop any function except Timer and Control Panel Lock.
CANCEL
The oven lights turn On automatically when the oven door is opened, and turns O
automatically when the oven door is closed.
• Press the Light button to turn On/O the oven lights when the oven door is
closed.
TIMER
The Timer can be set in hours or minutes up to 11 hours and 59 minutes.
To Set the Timer:
1. Press TIMER.
2. Use the number keypad to enter the length of time in hours and minutes.
3. Press TIMER to begin the countdown. If enabled, timer tone(s) will sound at the
end of countdown.
4. Press TIMER to cancel the Timer and return to the time-of-day.
NOTE: Do not press CANCEL because the oven will turn o.
COOK TIME
The Cook Time feature allows the oven to be set to turn on at a certain time of day,
cook for a set length of time, and then turn o automatically.
IMPORTANT: You must select an Oven Mode before you can set a Cook Time.
11
NOTES:
• Cook Time can be set in hours or minutes up to 11 hours and 59 minutes.
• To change the cook time during cooking, press CANCEL. Enter the new cook
time and press START.
• At the end of the set cook time, the oven will turn o automatically, the end of
cycle tone will sound, and “Cooking Complete” will appear in the text area.
To Set Cook Time:
1. Select cooking mode.
2. Select temperature.
3. Press COOK TIME. Enter the desired cook time by pressing the number keypad.
4. Press START. The oven will begin preheating.
NOTES:
• The Cook Time format is HR:MIN, switching to MIN:SEC during the last minute.
• The alert tone will sound until Cook Time is canceled.
START TIME
This feature allows you to set the oven to turn on at a later time.
IMPORTANT: The clock must be set to the correct time-of-day.
1. Select an Oven Mode.
2. Select temperature.
3. Set Cook Time.
4. Press START TIME.
5. Enter the desired Start Time by pressing the number keypad. “Press START” will
appear the display. If Cook Time was not set, the control will prompt you to “Set
Cook Time.”
WARNING:
Food Poisoning Hazard
Do not let food sit in oven more than one hour before or after cooking.
Doing so can result in food poisoning or sickness.
6. Place the food in the oven and close the oven door.
7. Press START. Start Time will begin counting down until it reaches the set time-
of-day.
NOTE: At the end of Cook Time, the oven will turn o automatically, an alert tone will
sound and “Cooking Complete” will appear in the display.
12
SETTINGS
• The Settings control allows you to access the menu for additional functions and
features.
• Press SETTINGS to show Menu Options 1 - 6. Then, press START to show Options
7 - 9.
CLOCK
The clock can be set to display time in a 12-hour or 24-hour format. The clock is
factory preset for the 12-hour format.
To Set the Clock:
NOTE: Before setting the clock, make sure both the Oven and Timer are turned O.
1. Press SETTINGS. The various Options will appear in the display.
2. Press 1 on the number keypad. “Clock” will appear in the display.
3. Press the number keypad to enter the time-of-day.
4. Press START to toggle between AM and PM.
5. Press SETTINGS to confirm; time-of-day is set.
To Change the Clock to 24-Hour Format:
1. Press SETTINGS. The various Options will appear in the display.
2. Press “5” on the number keypad. “12/24 HOUR” and “12” will appear in the
display.
3. Press “1” on the number keypad to change the 12/24 Hour setting to 24-hour.
4. Press SETTINGS to confirm. The 12/24-Hour setting has been changed.
TONES
Tones are audible signals, indicating the following:
Number of Tones Indicates
1 Valid Press Function has been entered Oven is Preheated
2 Invalid Touch Pad Press
4 End of Cycle End of Timer
13
To Turn On/O Sound:
The oven sound is factory preset for On but can be changed to O.
1. Press SETTINGS. The various Options will appear in the display.
2. Press “3” on the number keypad. “SOUND” and “ON” will appear in the display.
3. Press “1” on the number keypad. “ON/OFF” will appear in the display.
4. Press “1” on the number keypad to turn the sound O.
5. Press SETTINGS to confirm. The sound has now been turned o.
6. Press SETTINGS, and then follow the display prompts to return the sound
setting to On.
To Adjust Sound Volume:
The oven sound is factory preset for High but can be changed to Low.
1. Press SETTINGS. The various Options will appear in the display.
2. Press “4” on the number keypad. “SOUND VOLUME” and “HIGH” will appear in
the display.
3. Press “1” on the number keypad. HIGH/LOW” will appear in the display.
4. Press “1” on the number keypad to turn the sound Low.
5. Press SETTINGS to confirm. The sound volume has now been changed.
6. Press SETTINGS, and then follow the display prompts to return the sound
volume setting to High.
DEGREES FAHRENHEIT AND CELSIUS
The control panel is factory preset to display the temperature in degrees Fahrenheit,
but can be changed to display in degrees Celsius.
To Change the Display from Degrees Fahrenheit to Degrees Celsius:
1. Press SETTINGS. The various Options will appear in the display.
2. Press “2” on the number keypad. “TEMP UNIT” and “FAHRENHEIT” will appear in
the display.
3. Press “1” on the number keypad. “DEGREE F/C” will appear in the display.
4. Press “1” on the number keypad to change the temperature unit setting to degrees
Celsius.
5. Press SETTINGS to confirm. The temperature unit has been changed.
6. Press SETTINGS, and then follow the display prompts to return to Fahrenheit.
SABBATH MODE
Sabbath mode is designed for those whose religious observances require disabling
certain oven features.
NOTE: The oven is factory preset with Sabbath Mode O.
14
To Turn On/O Sabbath Mode:
1. Make sure the oven is turned O, and the meat probe is not plugged in.
NOTE: Sabbath mode cannot be set when the oven is On. The oven will not recog-
nize the meat probe while in Sabbath mode.
2. Press SETTINGS > Press START > Press 7, and then press 1 to (toggle between
ON / OFF).
3. Press SETTINGS again to enable Sabbath mode. The only cooking function that
works while the oven is set to Sabbath mode is Bake.
To Bake While the Oven is in Sabbath Mode:
1. Press and hold BAKE for 3 seconds.
2. Enter the desired oven temperature by pressing the numbered keypad.
3. After selecting Bake and a Temperature, you have the option to set a Cook Time
and Start Time before pressing START. See “Cook Time” and “Start Time.”
4. Press START. Pressing Start activates Sabbath mode.
Only the Cancel control is functional.
• Press CANCEL twice to exit Sabbath mode, and resume normal oven operation.
The display will return to the time-of-day.
NOTE: If there is a power failure while the oven is in Sabbath mode, the oven will
exit Sabbath mode and resume in normal mode when power is restored.
LANGUAGE
The Language is factory preset to English but it can be changed to French.
To Change the Language from English to French:
1. Press SETTINGS. The various Options will appear in the display.
2. Press “6” on the number keypad. “LANGUAGE, ENGLISH1, and FRENCH 2” will
appear in the display.
3. Press “2” on the number keypad to select French.
4. Press SETTINGS, and then follow the display prompts to return the Language
setting to English.
SELF-CLEAN
• Controls the Automatic Self-cleaning feature. See “Oven Care.”
15
OVEN OPERATION
BEFORE USING THE OVEN
1. Turn the Temperature Control to the highest setting.
2. Turn the Cooking Mode Selection control to a cooking mode.
3. Allow the oven to operate for 30 minutes with the door closed and no food in the
cavity.
4. Turn o the oven, and allow the oven to cool.
NOTE: Any odor that may be detected during this initial use is due to the
evaporation of substances used to protect the oven during storage.
GENERAL
IMPORTANT: Do not place anything, including dishes, foil and oven trays, on the
bottom of the oven when it is in operation to avoid damaging the enamel.
1. Place bake ware with food on one or both of the shelves provided with the oven.
2. Press the Oven Mode control for the desired oven function.
3. Use the number keypad to enter the oven temperature.
4. Press START.
PREHEATING THE OVEN
• Preheat the oven when using the Bake, Convection Bake and Convection Roast
modes.
• Selecting a higher temperature does not shorten the preheat time.
• Preheating is necessary for good results when baking cakes, cookies, pastry and
breads.
• Preheating will help to sear roasts and seal in meat juices.
• Place oven racks in their proper position before preheating.
• During preheating, the selected cooking temperature is always displayed.
• A beep will confirm that the oven is preheated and the “PREHEAT” writing will turn
o.
OPERATIONAL SUGGESTIONS
• Use the cooking charts, in this manual, as a guide.
• Do not set pans on the open oven door.
• Use the interior oven lights to view the food through the oven door window rather
than opening the door frequently.
16
TEMPERATURE PROBE
WARNING
Use an oven mitten remove temperature probe.
Do not touch broil element.
Failure to do so can result in burns.
The temperature probe monitors the internal food temperature, which is frequently
used as an indicator of doneness especially for meats and poultry, and turns o the
oven when the internal food temperature reaches the programmed temperature.
The temperature probe will work with all oven modes except for the Warm/Proof,
Sabbath and Self-Clean modes.
IMPORTANT: Always unplug and remove the temperature probe from the oven
when removing the food.
To Use the Temperature Probe:
1. Insert the probe into the food.
NOTE: For meats, the probe tip should be inserted into the center of the thickest part
of the meat. Make sure that the probe tip is not into the fat or touching bone.
2. Place the food into the oven. Keeping the temperature probe as far away from a
heat source as possible, plug the temperature probe into the oven outlet. Close the
oven door.
3. Select the oven mode.
4. Enter the oven temperature by pressing the numbers on the keypad.
5. Press START. The set oven temperature will appear on the display throughout
cooking.
6. Enter the desired internal food temperature by pressing the numbers on the
keypad, and then press START.
NOTES:
• The internal food temperature can be set between 110°F and 200°F (43°C
and 93°C).
• When the set probe temperature is reached, the oven will turn o.
17
7. Press CANCEL when finished. Unplug the temperature probe and remove food
from the oven.
NOTE: The probe icon will remain lit in the display until the probe is unplugged.
UTENSILS
• Glass baking dishes absorb heat. Reduce oven temperature 25°F (15°C) when
baking in glass.
• Use pans that produce the desired browning. The type of finish on the pan will help
determine the amount of browning that will occur.
- Shiny, smooth metal or light non-stick / anodized pans reflect heat, resulting in
lighter, more delicate browning. Cakes and cookies require this type of utensil.
- Dark, rough or dull pans will absorb heat resulting in a browner, crisper crust. Use
this type for pies.
• Do not cook with the empty broiler pan in the oven, as this could aect cooking
performance. Store the broil pan outside of the oven.
HIGH ALTITUDE BAKING
When cooking at high altitude, cooking times may be extended.
OVEN RACKS
IMPORTANT: To avoid permanent damage to the porcelain finish, place food or bake-
ware on an oven rack. Do not place food or bakeware directly onto the oven door or
oven bottom.

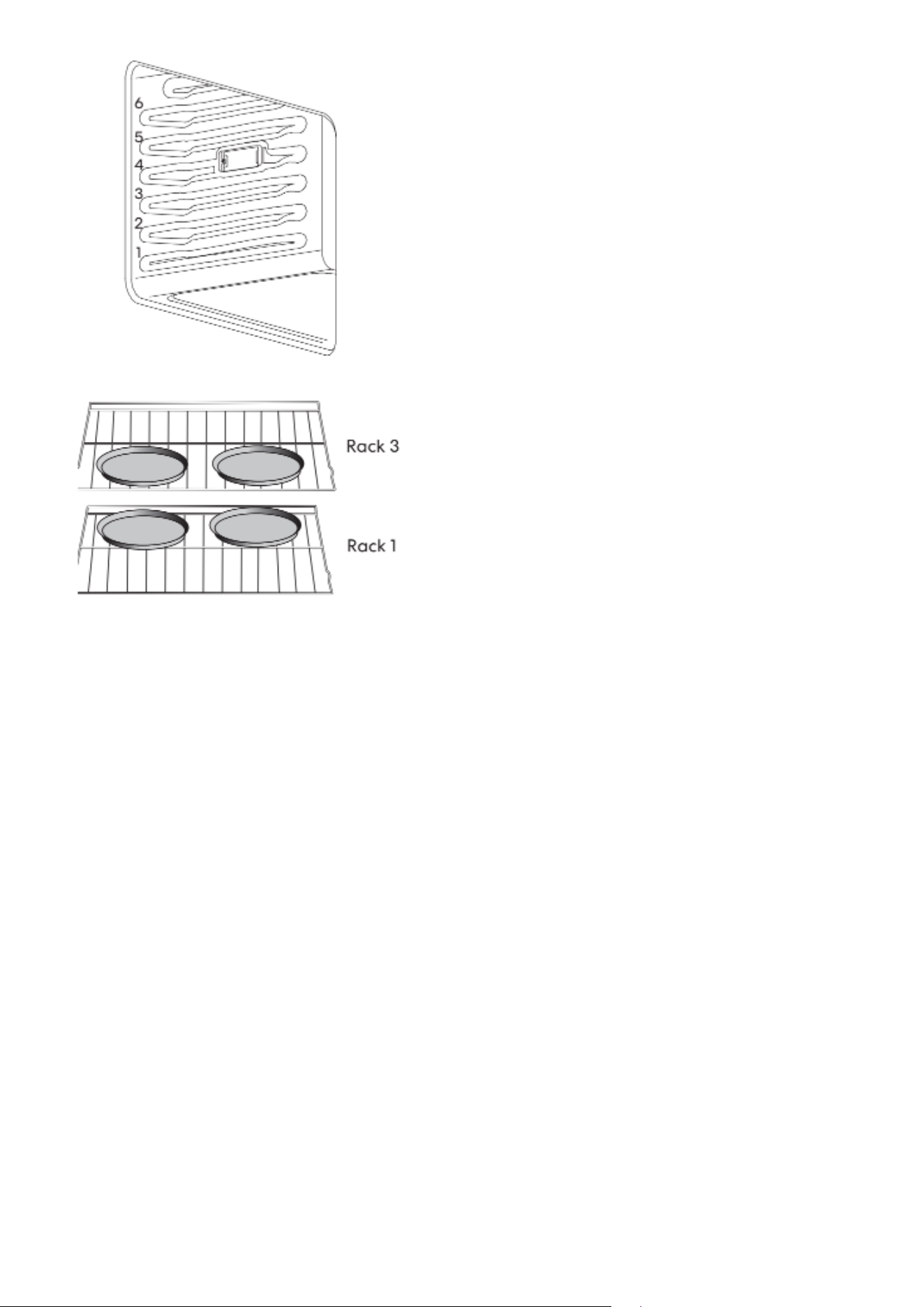

• The oven shelves can be placed in any of the five height positions with the oven.
• Position racks before turning on the oven.
• Make sure each shelf is inserted between two wire supports that are the closest
together.
• Make sure the oven racks are level.
• Oven shelves have a stop to keep them from being unintentionally withdrawn fully.
To Remove Oven Racks:
• Pull rack out to the stop position, raise the front edge, and then lift out.
To Replace Oven Racks:
• Place oven rack on the wire supports along the sides of the oven. Tilt the front edge
up slightly, and slide rack to the rear until it clears the stop position. Lower the front
and slide the rack into the oven.
OVEN DOOR
To avoid oven door glass breakage:
• Do not close the oven door if the racks are not fully inserted into the oven cavity or
if bakeware extends past the front edge of an oven rack.
• Do not set objects on the glass surface of the oven door.
18
• Do not hit glass surfaces with bakeware or other objects.
• Do not wipe down glass surfaces until the oven has completely cooled.
OVEN VENTS
Blocking or covering the oven vents will cause poor air circulation, aecting cooking,
cleaning and cooling results.
• Both the upper and lower oven vent(s) allow fresh air to enter the cooling
system.
• The lower oven vent also allows hot air to be expelled from the cooling system.
COMPONENT COOLING FAN
Activates during any cooking or self-cleaning mode to cool inner components and
outer door surfaces. This air is exhausted through the vent located above the oven
door. It continues to run until components have cooled suiciently. The cooling
fan operates at double speed (or RPM’s) in self-clean and whenever the internal
components temperature becomes high.
OVEN CONDENSATION AND TEMPERATURE
• It is normal for a certain amount of moisture to evaporate from the food during
any cooking process. The amount depends on the moisture content of the food.
• The moisture may condense on any surface cooler than the inside of the oven,
such as the control panel.
• Your new oven has an electronic temperature sensor to help maintain an
accurate temperature. Your previous oven may have had a mechanical
thermostat that drifted gradually over time to a higher temperature. It is normal
that you may need to adjust your favorite recipes when cooking in a new oven.
OVEN TEMPERATURE CONTROL
The oven provides accurate temperatures; however, it may cook faster or slower
than your previous oven, so the temperature calibration can be adjusted. It can be
adjusted in degrees Fahrenheit or Celsius.
A minus sign means the oven will be cooler by the displayed amount. The absence of
a minus sign means the oven will be warmer by the displayed amount.
19
Use the following chart as a guide:
ADJUSTMENT °F (ADJUSTMENT °C) COOKS FOOD
10°F (6°C) a little more
20°F (12°C) moderately more
30°F (17°C) much more
-10°F (-6°C) a little less
-20°F (-12°C) moderately less
-30°F (-17°C) much less
To Adjust Oven Temperature Calibration:
1. Press SETTINGS. The various Options will appear in the display.
2. Press number 9 on the keypad. “CALIBRATION” “PRESS 3 TO INCREASE/PRESS
6 TO DECREASE” will scroll across the display.
3. Press number 3 on the keypad to increase or number 6 to decrease the tempera-
ture in 5°F (3°C) increments. The adjustment can be set between 30°F (18°C) and
-30°F (-18°C).
4. Press SETTINGS to save the adjustment, and then exit the Temperature Calibration
menu.
OVEN MODES
The illustrations show the heating elements and fans used for each oven mode.
BAKE

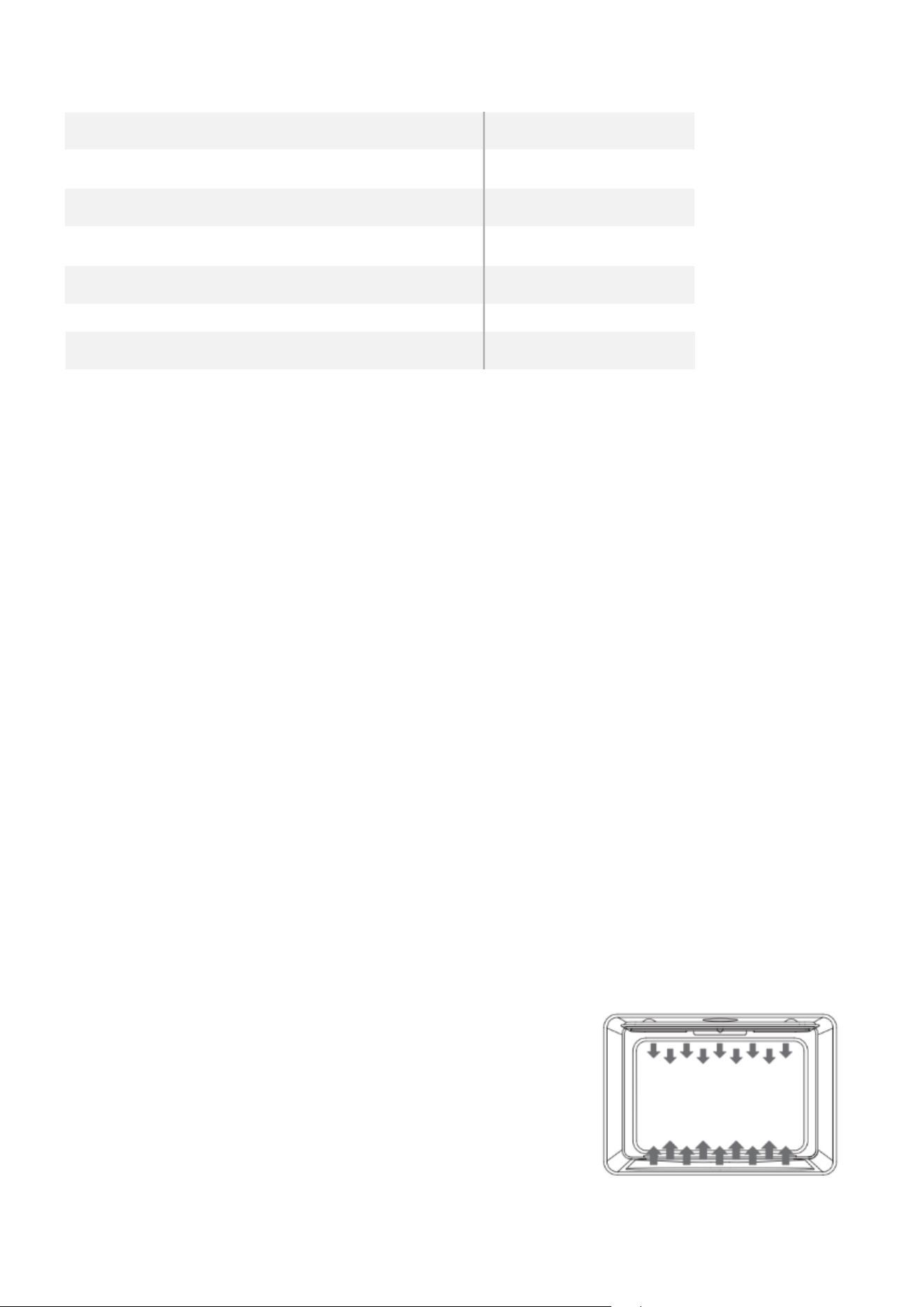

Baking is cooking with heated air. Both upper and lower elements in the oven are
used to heat the air but no fan is used to circulate the heat.
Follow the recipe or convenience food directions for baking temperature, time and
rack position. Baking time will vary with the temperature of ingredients and the size,
shape and finish of the bakeware.
1. Press BAKE to select the bake mode. “BAKE” will appear in
the display and 350°F (177°C) will be displayed. “Set temp
or Press START” will appear in the display.
2. Press START, if you wish to bake at 350°F (177°C).
OR
Enter the desired temperature by pressing the number
keypad, and then press START. The temperature can be
set from 170°F (77°C) to 500°F (260°C).
20
NOTES:
• The temperature can be changed at any time during cooking. Press CANCEL
to clear the settings. Select oven mode, then enter the desired temperature
by pressing the number keypad, and then press START.
• After selecting an Oven Mode and Temperature, you have the option to set
a Cook Time and Start Time before pressing START. See “Cook Time” and
“Start Time.”
3. Press CANCEL when finished baking, and remove food from the oven.
BROIL

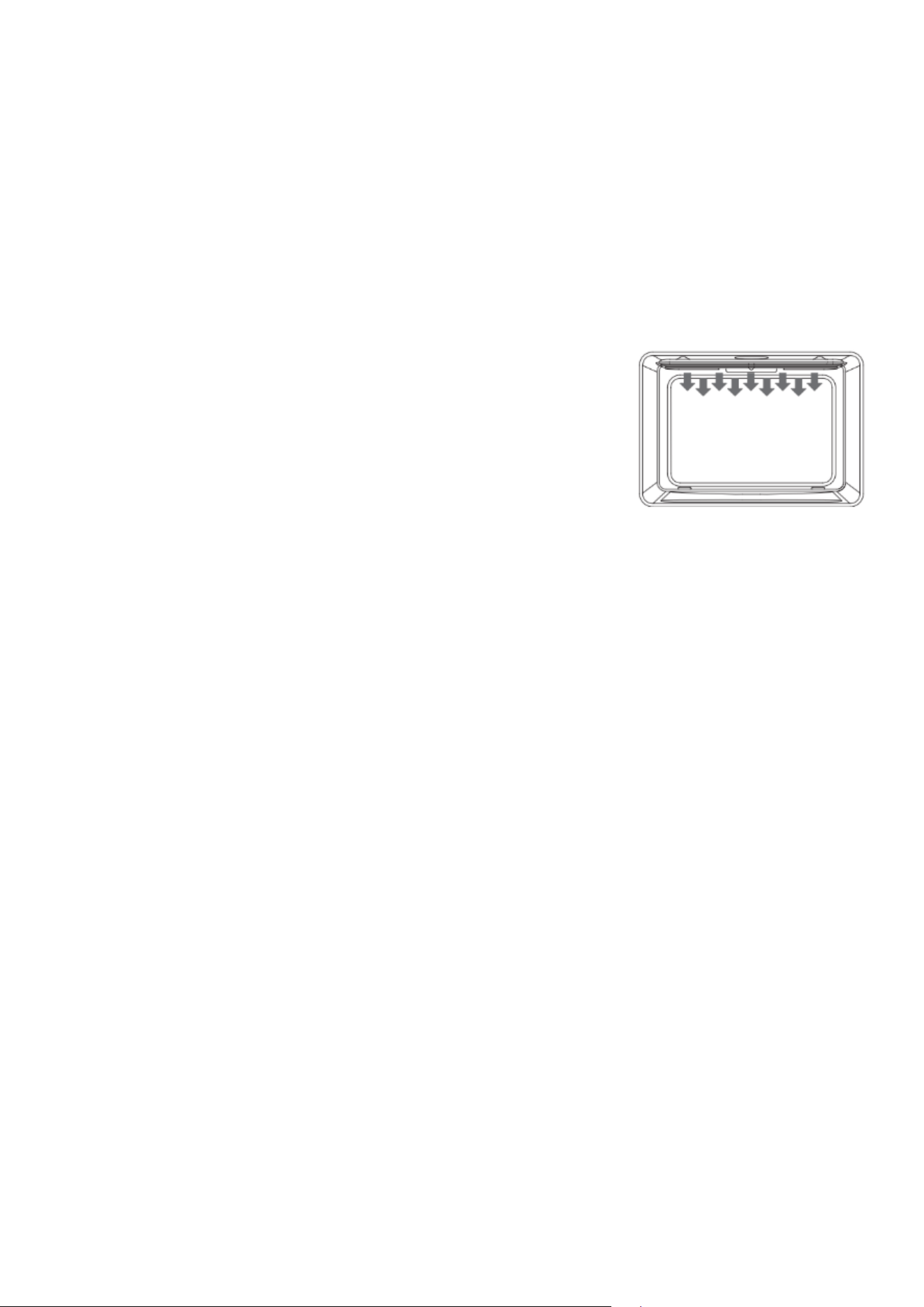

Broiling uses direct radiant heat to cook food. The lower
the temperature, the slower the cooking. Thicker cuts and
unevenly shaped pieces of meat, fish and poultry may cook
better at lower broiling temperatures.
• For best results, use a broiler pan and rack (not provided).
It is designed to drain juices and help avoid spatter and
smoke.
• For proper draining, do not cover the grid with foil. The bottom of the pan may
be lined with aluminum foil for easier cleaning.
• Trim excess fat to reduce spattering. Slit the remaining fat on the edges to avoid
curling.
• Select HI/550°F (288°C) broil for most broiling. Select LO/450°F (232°C) broil for
low-temperature broiling of longer cooking foods such as poultry to avoid over
browning.
• Pull out oven rack to stop position before turning or removing food. Use tongs to
turn food to avoid the loss of juices. Very thin cuts of fish, poultry or meat may
not need to be turned.
To Broil:
1. Place the food on the rack in the broiler pan and place pan in the oven. Close the
oven door.
NOTE: Preheating is not necessary.
2. Press BROIL for the desired oven. “BROIL” and “Set temp or Press START” will
appear in the display, and “550oF” (288oC) will be displayed.
3. Press START, if you wish to broil at 550°F (288°C).
OR
Enter the desired temperature by pressing the number keypad, and then press
START. The temperature can be set from 450°F (232°C) to 550°F (288°C).
4. “BROIL” will appear in the display after Start is pressed.
21
NOTES:
• The temperature can be changed at any time during cooking. Press CANCEL
to clear the settings. Select oven mode, then enter the desired temperature
by pressing the number keypad, and then press START.
• After selecting an Oven Mode and Temperature, you have the option to set
a Cook Time and Start Time before pressing START. See “Cook Time” and
“Start Time.”
5. Press CANCEL when finished broiling, and remove food from the oven.
WARM (LOWER OVEN)
The Warm mode keeps hot, cooked foods at serving temperature.
WARNING
Food Poisoning Hazard
Do not let food sit in oven more than one hour before or after cooking.
Doing so can result in food poisoning or sickness.
IMPORTANT:
Food must be at serving temperature before placing it in the warmed
oven. Food may be held up to 1 hour; however, breads and casseroles may become
too dry if left in the oven during the Warm function. For best results, cover food.
1. Press WARM keypad. “WARM” and “Set Temp or Press
START” and 170°F (78°C) will be displayed.
2. Use the number keypad to enter the desired temperature.
The temperature can be set from 140°F (60°C) to 210°F
(99°C).
3. Press START. “WARM” and the set temperature will appear in the display.
4. Place food in the oven and close the door.
5. Press CANCEL when finished, and remove food from the oven.
To Cancel Warm Feature:
• Press CANCEL. Remove food from oven.
22

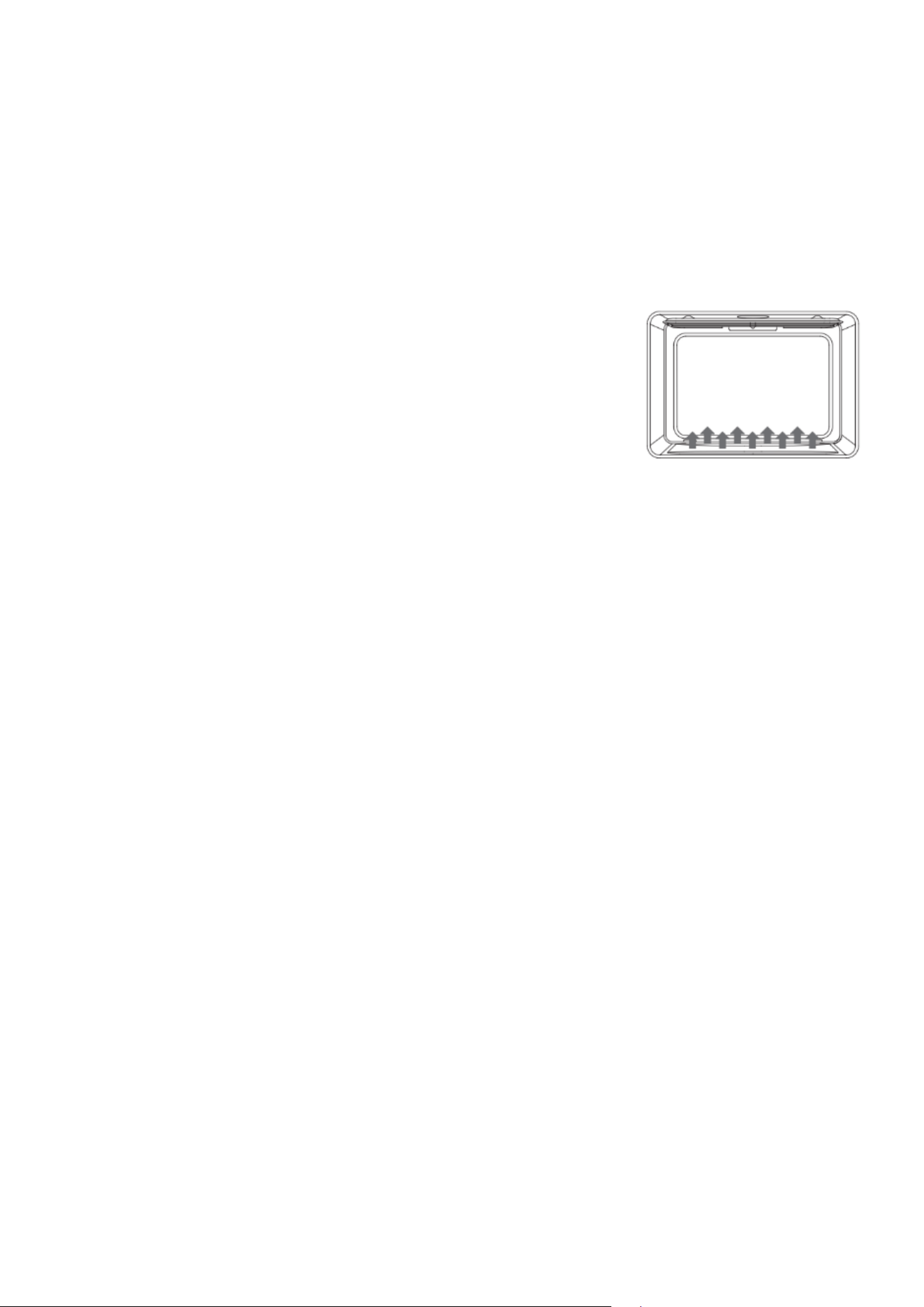

PROOF (UPPER OVEN)
The Proof mode prepares dough for baking by activating the yeast. Follow the recipe
directions as a guide.
WARNING
Food Poisoning Hazard
Do not let food sit in oven more than one hour before or after cooking.
Doing so can result in food poisoning or sickness.
1. Before proofing, place the dough in a lightly greased bowl
and cover loosely with wax paper, coated with shortening.
Place on second rack from the bottom and close the oven
door.
2. Press PROOF. “PROOF” and “Set Temp or Press START,”
and 100°F (38°C) will be displayed.
3. Use the number keypad to enter the desired temperature.The temperature can
be set from 80°F (27°C) to 120°F (49°C).
4. Press START.
5. Let the dough rise until nearly doubled in size, checking after 20-25 minutes.
Proofing time may vary depending on dough type and quantity.
6. Press CANCEL when finished proofing.
7. Before second proofing, shape the dough, place it in baking pan(s) and cover
loosely with plastic wrap, coated with cooking spray. Follow the same placement
and control steps above. Before baking, remove the plastic wrap.

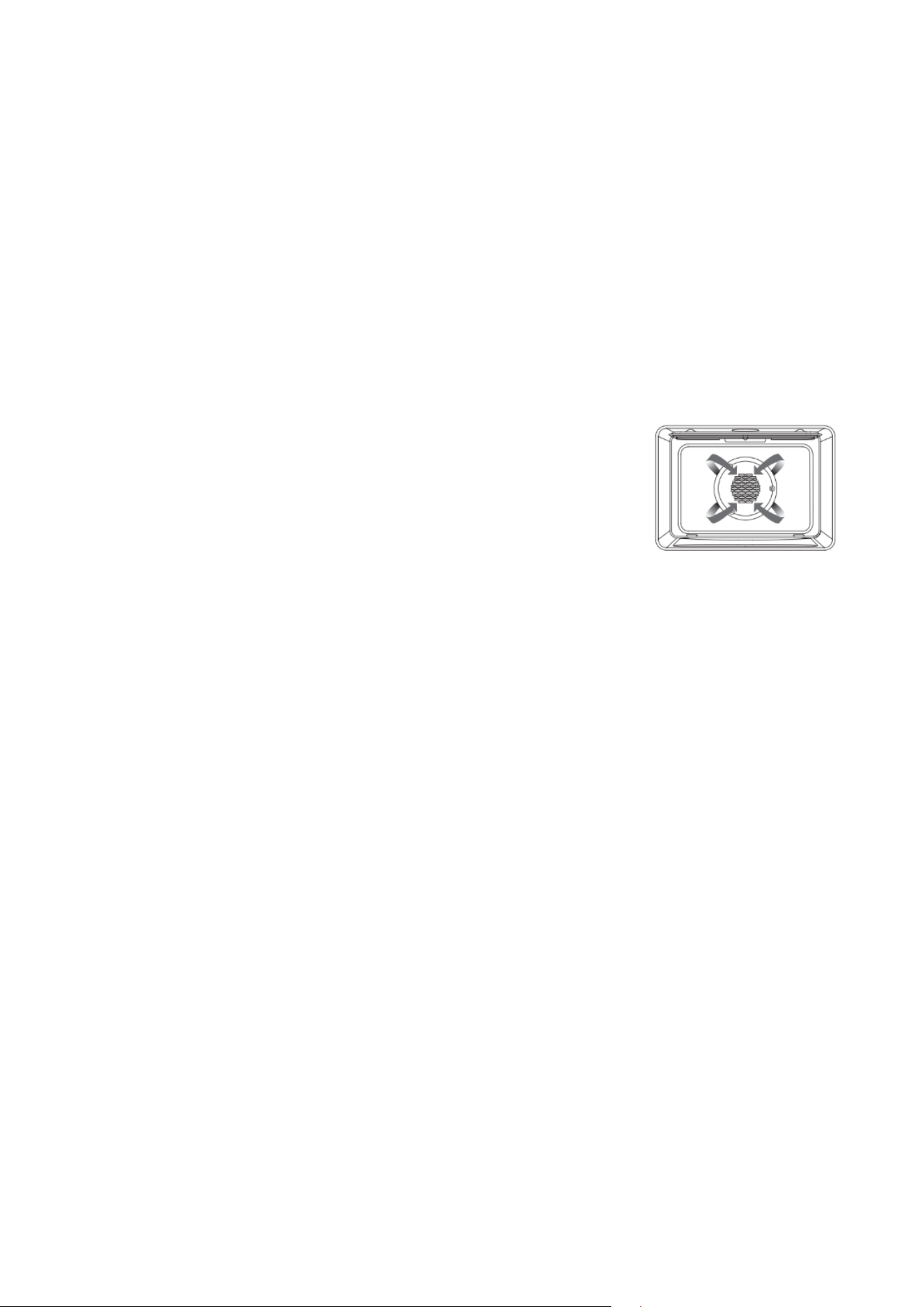

CONVECTION (UPPER OVEN ONLY)

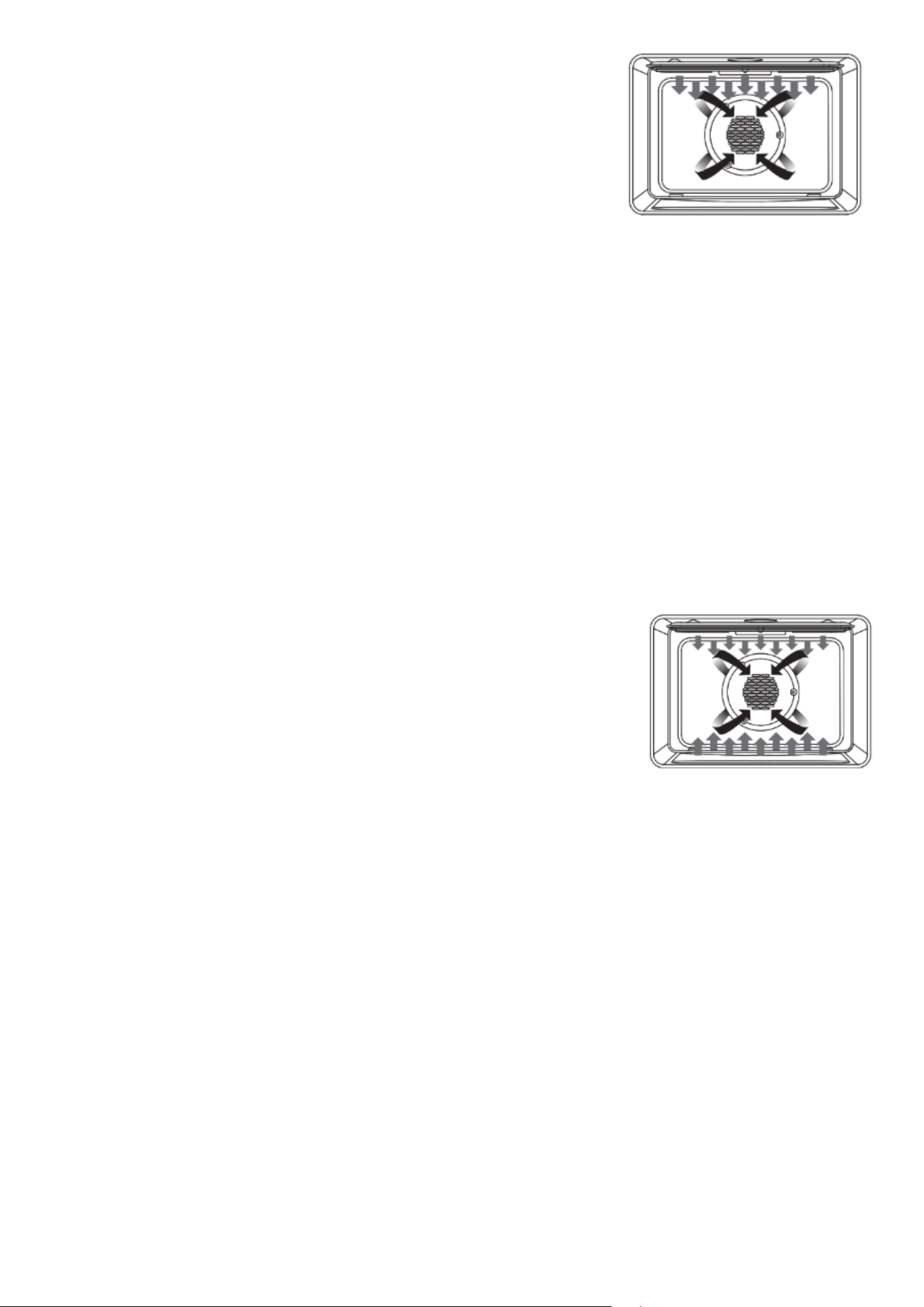

During convection cooking, the fan provides hot air circulation throughout the
oven. The movement of heated air around the food can help to speed up cooking by
penetrating the cooler outer surfaces.
In Convection mode, the ring element, bake and broil elements, and the fan operate
to heat the oven cavity. If the oven door is opened during convection cooking or
preheating, the fan turns o immediately and the element(s) will turn o after
30 seconds. Once the door is closed, the element(s) will turn back on.
CONVECTION FAN
The convection fan operates during any convection mode. When the oven is operat-
ing in convection mode, the fan will turn o automatically when the door is opened.
The convection fan always runs during the preheat time.
23
ADVANTAGES OF CONVECTION COOKING
• Saves time and energy.
• Even baking, browning and crisping are achieved.
• During roasting, juices and flavors are sealed in while the exterior is crisp.
• Yeast breads are lighter, more evenly textured, more golden and crustier.
• Air-leavened foods such as cream pus, soulés and meringues are higher and
lighter.
• Baking on multiple racks at the same time with even results is possible.
• Prepare whole meals at once with no flavor transfer.
• Dehydrates herbs, fruits and vegetables.
• Requires no specialized bakeware.
• Convection broiling allows for extraordinary grilling with thicker cuts of food.
CONVECTION BAKE
Use Convection bake for single or multiple rack baking. When
convection baking, reduce your recipe baking temperature by
25°F (15°C).
To Set Convection Bake:
1. Press CONVECTION once. “Convection” and “Press 1-3 To Choose” will appear
in the display.
2. Press 1. CONVECT BAKE on the menu screen. “Set Temp or Press START” and
325°F (162°C) will be displayed.
3. Press START If you wish to convection bake at 325°F (162°C).
OR
Enter the desired temperature by pressing the number keypad, and then press
START. The temperature can be set from 170°F (77°C) to 500°F(260°C).
NOTE: After selecting an Oven Mode and Temperature, you have the option to
set a Cook Time and Start Time before pressing START. See “Cook Time” and
“Start Time.”
4. The oven will begin preheating once Start is pressed. A tone will sound when the
oven is at the set temperature.
5. Place the food in the oven and close the oven door when preheat is completed.
6. Press CANCEL when finished, and remove food from the oven.
24
CONVECTION BROIL
When convection broiling, enter your normal broiling
temperature. The oven door must be closed when using
Convection Broil.
It is not necessary to preheat the oven for Convection Broil.
1. Place the food in the oven and close the oven door.
2. Press CONVECTION once. “Convection and “Press 1-3 To Choose” will be
displayed.
3. Press 2. CONVECT BROIL on the menu screen. “Set Temp or Press Start” and
450°F (232°C) will be displayed.
4. Press START, if you wish to broil at 450°F (232°C).
OR
Enter the desired temperature by pressing the number keypad, and then press
START. The temperature can be set from 170°F(77°C) to 550°F(288°C).
NOTE: After selecting an Oven Mode and Temperature, you have the option to
set a Cook Time and Start Time before pressing START. See “Cook Time” and
“Start Time.”
5. “Convect Broil” will be displayed, once Start is pressed.
6. Press CANCEL when finished, and remove food from the oven.
CONVECTION ROAST
When Convection roasting, enter your normal roasting
temperature. The roasting time should be 15-30% less than in
conventional cooking. It is not necessary to preheat the oven
for convection roast.
1. Place the food in the oven and close the oven door.
2. Press CONVECTION once. “Convection” and “Press 1-3 To Choose” will be
displayed.
3. Press 3. CONVECT ROAST on the menu screen. “Set Temp or Press Start”, and
325°F (163°C) will be displayed.
4. Press START, if you wish to convection roast at 325°F (163°C).
OR
Enter the desired temperature by pressing the number keypad, and then press
START. The temperature can be set from 170°F (77°C) to 500°F (260°C).
NOTE: After selecting an Oven Mode and Temperature, you have the option to
set a Cook Time and Start Time before pressing START. See “Cook Time” and
“Start Time.”
5. ”Convect Roast” will be displayed, once Start is pressed.
6. Press CANCEL when finished and remove food from the oven.
25
BAKE TIPS
• For best results, bake food on a single rack with at least 1” - 1 1/2” (2,5 - 3cm) space
between utensils and oven walls.
• Use one rack when selecting the bake mode.
• Check for doneness at the minimum time.
• Use metal bake ware (with or without a non stick finish), heatproof glass, glass-
ceramic, pottery or other utensils suitable for the oven.
• When using heatproof glass, reduce temperature by 25°F (15°C) from recommend-
ed temperature.
• Use baking sheets with or without sides or jelly roll pans.
• Dark metal pans or nonstick coatings will cook faster with more browning. Insulat-
ed bake ware will slightly lengthen the cooking time for most foods.
• Do not use aluminum foil or disposable aluminum trays to line any part of the
oven. Foil is an excellent heat insulator and heat will be trapped beneath it. This
will alter the cooking performance and can damage the finish of the oven.
• Avoid using the opened door as a shelf to place pans.
• See Troubleshooting for tips to Solving Baking and Roasting Problems.
26
Bake Chart
FOOD ITEM RACK POSITION TEMP. °F (°C) (PREHEATED OVEN) TIME (MIN)
Cake
Cupcakes
Bundt Cake
Angel Food
2
1
1
350 (175)
350 (175)
350 (175)
19-22
40-45
35-39
Pie
2 crust, fresh, 9”
2 crust, frozen fruit, 9”
2
2
375-400 (190-205)
375 (190)
45-50
68-78
Cookies
Sugar
Chocolate Chip
Brownies
2
2
2
350-375 (175-190)
350-375 (175-190)
350 (175)
8-10
8-13
29-36
Breads
Yeast bread loaf, 9x5
Yeast rolls
Biscuits
Muins
2
2
2
2
375 (190)
375-400 (190-205)
375-400 (190-205)
425 (220)
18-22
12-15
7-9
15-19
Pizza
Frozen
Fresh
2
2
400-450 (205-235)
475 (246)
23-26
15-18
CONVECTION BAKE TIPS
Reduce recipe baking temperatures by 25°F (15°C).
• For best results, foods should be cooked uncovered, in low-sided pans to take
advantage of the forced air circulation. Use shiny aluminum pans for best results
unless otherwise specified.
• Heatproof glass or ceramic can be used. Reduce temperature by another 25°F
(15°C) when using heatproof glass dishes for a total reduction of 50°F (30°C).
• Dark metal pans may be used. Note that food may brown faster when using dark
metal bake ware.
• The number of racks used is determined by the height of the food to be cooked.
• Baked items, for the most part, cook extremely well in convection. Don’t try to con-
vert recipes such as custards, quiches, pumpkin pie, or cheesecakes, which do not
benefit from the convection-heating process. Use the regular Bake mode for these
foods.
27
• Multiple rack cooking for oven meals is done
on rack positions 1, 2, 3, 4 and 5. All five
racks can be used for cookies, biscuits and
appetizers.
- 2 Rack baking: Use positions 1 and 3.
- 3 rack baking: Use positions 2, 3 and 4 or 1,
3 and 5.
- When baking four cake layers at the same
time, stagger pans so that one pan is not di-
rectly above another. For best results, place
cakes on front of upper rack and back of
lower rack (See graphic at right). Allow 1” -
1 1/2” (2.5 - 3cm) air space around pans.
• Converting your own recipe can be easy.
Choose a recipe that will work well in con-
vection.
• Reduce the temperature and cooking time
if necessary. It may take some trial and er-
ror to achieve a perfect result. Keep track of
your technique for the next time you want to
prepare the recipe using convection.
• See Troubleshooting for tips to Solving
Baking and Roasting Problems.
Foods recommended for convection bake mode:
Appetizers, Biscuits, Cakes, Casseroles, Coee Beans, Cookies (2 to 4 racks), Cream
Pus, Popovers, Yeast Breads, One-Dish Entrées, Oven Meals (rack positions 1, 2,
3), and Air Leavened Foods (Soulés, Meringue, Meringue- Topped Desserts, Angel
Food Cakes, Chion Cakes).
Convection Bake Chart
Reduce standard recipe temperature by 25 oF (15 °C) for Convection Bake.
Temperatures have been reduced in this chart.
28
FOOD ITEM RACK POSITION TEMP. °F (°C) (PREHEATED OVEN) TIME (MIN)
Cake
Cupcakes
Bundt Cake
Angel Food
2
1
1
325 (160)
325 (160)
325 (160)
20-22
43-50
43-47
Pie
2 crust, fresh, 9”
2 crust, frozen fruit, 9”
2
2
350-400 (175-205)
350 (175)
40-52
68-78
Cookies
Sugar
Chocolate Chip
Brownies
2
2
2
325-350 (160-175)
325-350 (160-175)
325 (160)
9-12
8-13
29-36
Breads
Yeast bread loaf, 9x5
Yeast rolls
Biscuits
Muins
2
2
2
2
350 (175)
350-375 (175-190)
375 (190)
400 (205)
18-22
12-15
8-10
17-21
Pizza
Frozen
Fresh
2
2
375-425 (190-220)
450 (232)
23-26
15-18
CONVECTION ROAST TIPS
• Do not preheat for Convection Roast.
• Roast in a low-sided, uncovered pan.
• When roasting whole chickens or turkey, tuck wings behind back and loosely tie
legs with kitchen string.
• Use the 2-piece broil pan for roasting uncovered.
WARNING
Use an oven mittto remove temperature probe.
Do not touch broil element.
Failure to do so can result in burns.
29
• Use the probe or a meat thermometer to determine the internal doneness on “END”
temperature (see cooking chart).
• Double-check the internal temperature of meat or poultry by inserting meat ther-
mometer into another position.
• Large birds may also need to be covered with foil (and pan roasted) during a por-
tion of the roasting time to prevent over-browning.
• The minimum safe temperature for stuing in poultry is 165oF (75oC).
• After removing the item from the oven, cover loosely with foil for 10 to 15 minutes
before carving if necessary to increase the final foodstu temperature by 5° to 10°F
(3° to 6° C).
COOKING WITH THE CONVECTION OVEN
MEATS
Beef
Rib Roast
Rib Eye Roast, (boneless)
Rump, Eye, Tip, Sirloin
(boneless)
Tenderloin Roast
4-6
4-6
3-6
2-3
WEIGHT
(lb)
OVEN
TEMP.
°F (°C)
RACK
POSITION
TIME
(min. per
lb)
INTERNAL
TEMP. °F (°C)
325 (160)
325 (160)
325 (160)
400 (205)
2
2
2
2
16-20
18-22
16-20
18-22
16-20
18-22
15-20
145 (63)medium rare
160 (71) medium
145 (63) medium rare
160 (71)medium
145 (63)medium rare
160 (71)medium
145 (63) medium rare
Pork
Loin Roast
(boneless or bone-in)
Shoulder
5-8
3-6
350 (175)
350 (175)
2
2
16-20
20-25
160 (71)medium
160 (71)medium
Poultry
Chicken whole
Turkey, not stued
Turkey, not stued
Turkey, not stued
Turkey Breast
Comish Hen
3-4
12-15
16-20
21-25
3-8
1-12
375 (190)
325 (160)
325 (160)
325 (160)
325 (160)
350 (175)
2
1
1
1
1
2
18-21
10-14
9-11
6-10
15-20
45-75 total
180 (82)
180 (82)
180 (82)
180 (82)
170 (77)
180 (82)
30
Lamb
Half Leg
Whole Leg
3-4
6-8
325 (160)
325 (160)
2
1
22-27
28-33
22-27
28-33
160 (71) medium
170 (77) well
160 (71) medium
170 (77) well
MEATS
WEIGHT
(lb)
RACK
POSITION
TIME
(min. per
lb)
INTERNAL
TEMP. °F (°C)
31
FOOD ITEM
Beef
Steak (1 1/2” or more)
Medium Rare
Medium
Well
Hamburgers (more than 1”)
Medium
Well
4
4
4
4
4
RACK
POSITION
BROIL
SETTING
INTERNAL
TEMP. °F (°C)
TIME SIDE-1
(MIN)
TIME SIDE-2
(MIN)
Low
Low
Low
High
High
145 (65)
160 (71)
170 (77)
160 (71)
170 (77)
9-12
11-13
18-20
8-11
11-13
8-10
10-12
16-17
5-7
8-10
Poultry
Chicken Quarters
Chicken Halves
Chicken Breasts
4
3
4
10-13
15-18
9-13
Low
Low
Low
180 (82)
180 (82)
170 (77)
16-18
25-27
13-15
Pork
Pork Chops (1 1/4” or more)
Sausage - Fresh
4
4
11-13
3-5
Low
Low
160 (71)
160 (71)
12-14
4-6
CONVECTION BROIL TIPS
• Place rack in the required position needed before turning on the oven.
• Use Convection Broil mode with the oven door closed.
• Do not preheat oven.
• Use the 2-piece broil pan.
• Turn meats once halfway through the cooking time (see convection broil chart).
CONVECTION BROIL CHART
DEHYDRATE TIPS
The circulating heated air at a lower temperature slowly removes the moisture for
food preservation.
• Oven temperature for dehydrating is between 120oF (50oC) to 160oF (70oC).
• Multiple racks can be used simultaneously.
32
• Some foods require as much as 14-15 hours of time to fully dehydrate.
• Consult a food preservation book for specific times and the handling of various
foods.
• Dehydrating is suitable for a variety of fruits, vegetables, herbs and meat strips.
• Drying screens can be purchased at specialty kitchen shops.
• By using paper towels, some food moisture can be absorbed before dehydrating
begins (such as with sliced tomatoes or sliced peaches).
DEHYDRATE CHART
FOOD
Fruit
Apples
Bananas
Cherries
Oranges
Peels and slices
Pineapple rings
Strawberries
Dipped in 1/4 cup lemon
juice and 2 cups water,
14 slices
Dipped in 1/4 cup lemon
juice and 2 cups water, 4
slices
Wash and towel dry. For
fresh cherries, remove
pits
1/4 slices of orange;
orange part of skin
thinly peeled from or-
anges
Towel dried
Wash and towel dry.
Sliced 1/2” thick,
skin (outside) down on
rack
PREPARATION
APPROXIMATE
DRYING TIME*
(hrs)
TEST FOR
DONENESS
11-15
11-15
10-15
Peels 2-4 Slices: 12-16
Canned: 9-13 Fresh: 8-12
12-17
Slightly pliable
Slightly pliable
Pliable, leathery, chewy
Orange peel: dry and
brittle Orange slices:
skins are dry and brittle,
fruit is slightly moist
Soft and pliable
Dry, brittle
Vegetable
Peppers
Mushrooms
Tomatoes
Wash and towel dry.
Remove membrane of
pepper,
coarsely chopped about
1” pieces
Wash and towel dry. Cut
of stem end. Cut into 1/8“
slices
Wash and towel dry. Cut
this slices, 1/8“ thick, dry
well
16-20
7-12
16-23
Leathery with no mois-
ture inside
Tough and leathery, dry
Dry, brick red color
33
FOOD
Herbs
Oregano, sage
parsley and
thyme, and fennel
Basil
Rinse and dry with
paper towel
Place basil leaves 3
to 4” from top. Spray
with water, shake o
moisture and pat dry
PREPARATION
APPROXIMATE
DRYING TIME*
(hrs)
TEST FOR
DONENESS
Dry at 120°F
(60°C) 3-5 hrs
Dry at 120°F
(60°C) 3-5 hrs
Crisp and brittle
Crisp and brittle
BROIL TIPS
• Place rack in the required position needed before turning on the oven.
• Use Broil mode with the oven door closed.
• Preheat oven for 5 minutes before use.
• Use the 2-piece broil pan.
• Turn meats once halfway through the cooking time (see convection broil chart).
BROIL CHART
FOOD ITEM
Beef
Steak (3/4”-1)
Medium rare
Medium
Well
Hamburgers (3/4”-1”)
Medium
Well
5
5
5
4
4
RACK
POSITION
BROIL
SETTING
INTERNAL
TEMP. °F (°C)
TIME SIDE-1
(MIN)
TIME SIDE-2
(MIN)
5
5
5
5
5
145 (65)
160 (71)
170 (77)
160 (71)
170 (77)
5-7
6-8
8-10
8-11
10-13
4-6
5-7
7-9
6-9
8-10
Poultry
Breast (bone-in)
Thigh (very well done)
4
4
8-10
13-15
4
3
170 (77)
180 (82)
10-12
28-30
34
FOOD ITEM
Pork
Pork Chops (1”)
Sausage - fresh
Ham Slice (1/2”)
5
5
5
RACK
POSITION
BROIL
SETTING
INTERNAL
TEMP. °F (°C)
TIME SIDE-1
(MIN)
TIME SIDE-2
(MIN)
5
5
5
160 (71)
160 (71)
160 (71)
7-9
5-7
4-6
5-7
3-5
3-5
Seafood
Fish Filets, 1” Buttered
4
Do not
turn
4
Cook until
opaque &
flakes
easily with
fork
10-14
Lamb
Chops (1”)
Medium Rare
Medium
Well
5
5
5
5
5
5
145 (63)
160 (71)
170 (77)
5-7
6-8
7-9
4-6
4-6
5-7
Bread
Garlic Bread, 1” slices
Garlic Bread, 1” slices
4
3
5
5
2-2,30
4-6
* Broiling and convection broiling times are approximate and may vary slightly.
Cooking times are indicative and also depend on the thickness and the starting tem-
perature of the meat before cooking .
35
FOOD SERVICE TEMPERATURE GUIDELINES FROM FSIS (USDA
FOOD SAFETY & INSPECTION SERVICE)
Use the following chart as a guide:
140°F
(60°C)
145°F
(63°C)
Ham, precooked ( to Reheat)
Fresh beef, Veal, Lamb (medium
rare)
Ground Meat & Meat mixtures
(Beef, Pork, Veal Lamb)
Fresh beef, Veal, Lamb (medium)
Fresh Pork (medium)
Fresh Ham (raw)
Egg Dishes
Ground Meat & Meat mixtures
(Turkey, Chicken)
160°F
(71°C)
165°F
(74°C)
Stuing (cooked alone or in
bird)
170°F
(77°C)
180°F
(82°C)
Leftovers & Casseroles
Fresh beef, Veal, Lamb (well
done)
Fresh Pork (well done)
Poultry breast
Chicken and Turkey (Whole)
Poultry (thighs and wings)
Duck and Goose
NOTE: Eggs (alone, not used in a recipe) – cook until yolk & white are firm.
Meat Thermometer
On models without a temperature probe, use a meat thermometer to determine
whether meat, poultry and fish are cooked to the desired degree of doneness. The
internal temperature, not appearance, should be used to determine doneness.
36
Maintanence
GENERAL CLEANING
IMPORTANT: Before cleaning, make sure all controls are o and the oven and cook-
top are cool. Always follow label instructions on cleaning products
USING THE CLEANING CHART
1. Locate the number of the part to be cleaned in the following illustration.
2. Find the part name in the chart.
• Use the cleaning method in the left column if the oven is black or white.
• Use the cleaning method in the right column if the oven is stainless steel.
3. Match the letter with the cleaning method on following chart.
37
Part
1 Door Frame E E 10 Mesh Gasket B B
2 Interior Door Windows F F 11 Interior Oven Door E E
3 Removable Oven Racks A or E A or E 12 Door Handle D D
4 Side Trim D D 13 Door Cooling Vent E E
5 Control Panel Trim C C 14 Door Front C & D G
6 Control Panel C C 15 Oven Trim D D
7 Oven Cooling Vents D D 16 End Caps D D
8 Oven Front Frame E E 17 Broil Pan Rack E E
9 Oven Cavitiy E E 18 Broil pan Bottom E E
BLACK
& WHITE
OVEN
STAINLESS
STEEL OVEN
CLEANING METHOD
CLEANING METHOD
BLACK
& WHITE
OVEN
STAINLESS
STEEL OVEN
Part
OVEN FINISHES / CLEANING METHODS
The entire oven can be safely cleaned with a soapy sponge, rinsed and dried. If
stubborn soil remains, follow the recommended cleaning methods below.
• Always use the mildest cleaner that will do the job.
• Rub metal finishes in the direction of the grain.
• Use clean, soft cloths, sponges or paper towels.
• Rinse thoroughly with a minimum of water so it does not drip into door slots.
• Dry to avoid water marks.
The cleaners listed below indicate types of products to use and are not being
endorsed. Use all products according to package directions.
38
A Chrome Plated
B Fiberglass Knit C Glass
C Glass
D Painted
E Porcelain
F Reflective Glass
G Stainless
H Probe (if present)
Wash with hot sudsy water. Rinse thoroughly and dry. Or, gently rub with Soft
Scrub, Bon-Ami, Comet, Ajax, Brillo or S.O.S pads as directed.
Easy O or Dow Oven Cleaners (cold oven formula) can be used, but may cause
darkening and discoloration.
Racks may be cleaned in the oven during the Self-Cleaning mode. However,
chromed racks will lose their shiny finish and permanently change to a metallic
gray.
DO NOT HAND CLEAN GASKET.
Spray Windex or Glass Plus onto a cloth first, then wipe to clean. Use Fantastik
or Formula 409 to remove grease spatters.
Clean with hot sudsy water or apply Fantastik or Formula 409 first to a clean
sponge or paper towel and wipe clean. Avoid using powdered cleansers and
steel wool pads.
Immediately wipe up acidic spills like fruit juice, milk and tomatoes with a dry
towel. Do not use a moistened sponge/towel on hot porcelain. When cool, clean
with hot sudsy water or apply Bon-Ami or Soft Scrub to a damp sponge. Rinse
and dry. For stubborn stains, gently use Brillo or S.O.S pads. It is normal for por-
celain to craze (fine lines) with age due to exposure from heat and food soil.
Clean with hot sudsy water and sponge or plastic scrubber. Rub stubborn stains
with vinegar, Windex, ammonia or Bon-Ami. DO NOT USE HARSH ABRASIVES.
Always wipe or rub with grain. Clean with a soapy sponge then rinse and dry.
Or, wipe with Fantastik or Formula 409 sprayed onto a paper towel. Protect and
polish with Stainless Steel Magic and a soft cloth. Remove water spots with a
cloth dampened with white vinegar. Use Zud, Cameo, Bar Keeper’s Friend or
RevereWare Stainless Steel Cleaner to remove heat discoloration.
Clean probe by hand with detergent and hot water. Then rinse and dry. Do not
soak or clean in dishwasher.
Part Cleaning Method
39
AUTOMATIC SELF-CLEANING
WARNING
Do not touch the oven during the Self-Cleaning cycle.
Keep children away from oven during Self-Cleaning cycle.
Failure to do so can result in burns.
This oven features a self-cleaning function that eliminates the need to manually
scrub the oven interior. During self-cleaning, the oven uses very high temperatures,
burning soil to a powdery ash.
IMPORTANT: The health of some birds is extremely sensitive to the fumes given o
during the Self-Cleaning cycle. Exposure to the fumes may result in death to certain
birds. Always move birds to another closed and well-ventilated room.
• Only one oven at a time can be set to Self-Clean.
• It is common to see smoke and/or an occasional flame-up during the Self-Clean
cycle, depending on the content and amount of soil remaining in the oven. If a
flame persists, turn o the oven and allow it to cool before opening the door to
wipe up the excessive food soil.
• The door latch is automatically activated after selecting the Self-Clean cycle.
“AUTO LOCK” will appear in the display. This ensures that the oven door cannot
be opened while the oven interior is at clean temperatures.
• The oven light does not operate during Clean mode.
• During Self-Clean, the kitchen should be well ventilated to help eliminate odors
associated with Self-Clean. Odors will lessen with use.
• The oven is preset for a 2.5 hour clean cycle; however, the time can be changed.
Suggested clean times are 2 hours for light soil and between 3.0 hours and
3.5 hours for average to heavy soil.
• Clean mode stops automatically at the end of the set cleaning time.
• When the oven heat drops to a safe temperature, the automatic door lock will
release and the door can be opened.
40
AUTOMATIC SELF-CLEANING
1. Remove all utensils and bakeware.
2. Remove non-porcelain oven racks. If chromed racks are left in the oven during
the self-clean cycle, they will permanently lose the shiny finish and change to a
dull dark finish. See Oven Cleaning Chart for proper care.
3. Wipe up any soft soil spills and grease with paper towels. Excess grease will
cause flames and smoke inside the oven during self-cleaning.
4. Be sure oven interior lights are turned o and the light bulbs and lens covers are
in place.

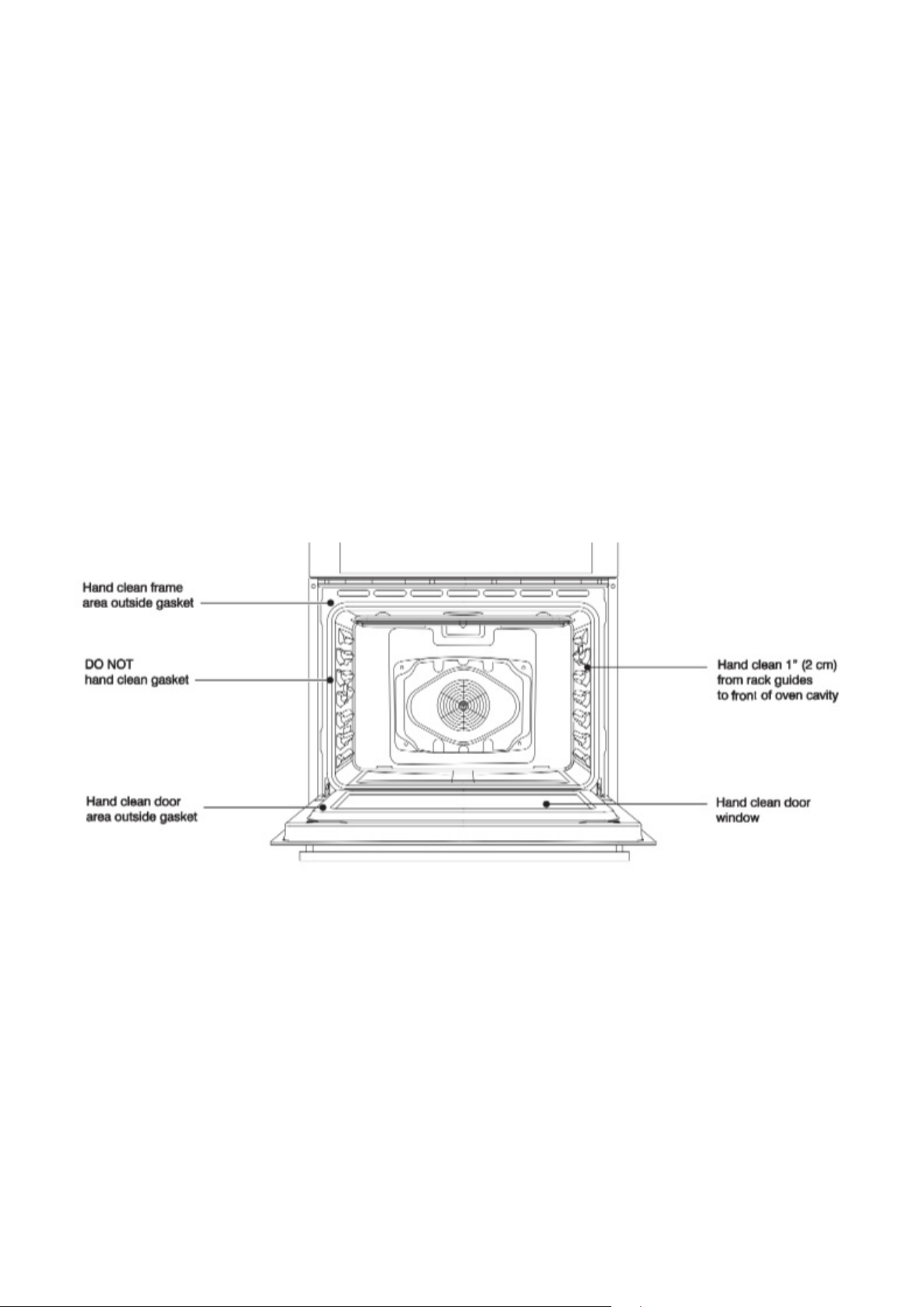

5. Some areas of the oven such as the oven door edge, oven door window, oven
front frame and up to 11/2” (2-3 cm) inside the frame do not get hot enough
during the cleaning cycle for soil to burn away and must be cleaned by hand
BEFORE the cycle begins. Clean using a soapy sponge or plastic scrubber and a
solution of detergent and hot water. Rinse and dry all areas thoroughly.
NOTE: Do not rub the oven door gasket.
SELF-CLEAN CYCLE
NOTE: Only one oven can use the Self-Clean cycle at a time, and a 24-hour wait is
recommended before starting the next Self-Clean cycle.
To Self-Clean:
1. Close the oven door.
2. Press SELF CLEAN. “Press 1 for Upper Oven” will appear in the upper oven text
area of the display and “Press 2 for Lower Oven” will appear in the lower oven text
area of the display.
3. Press “1” or “2” on the number keypad to select the desired oven. “REMOVE
RACKS” will scroll in the selected oven text area of the display.
4. “2:00 3:00 3:30” will appear in the display.
41
5. Use the number keypad to select the clean level.
6. If you want to delay the start of the self-cleaning cycle, press DELAY START, and
then set a time, by pressing the number keypad.
7. Press START.
After the door is locked, “SELF CLEAN” will scroll in the selected text area until
the clean cycle is finished.
When the Self-clean Cycle Ends:
“COMPLETE” appears in the display and the oven door unlocks.
8. Once the oven has completely cooled, remove ash with a damp cloth.
NOTE: To avoid breaking the glass, do not apply a cool, damp cloth to the inner
door glass before it has cooled completely.
OVEN DOOR REMOVAL
For normal oven use, there is no need to remove the oven door. However, should it
become necessary to remove the door, follow the instructions in this section.
IMPORTANT:
• Make sure oven is cool and that power to the oven has been turned o before
removing the door.
• The oven door is heavy and fragile, and the door front is glass. To avoid oven door
glass breakage, use both hands, and grasp only the sides of the oven door to
remove. Do not grasp the handle.
• Be sure both levers are securely in place before removing the door.
• Do not force door open or closed.
To Remove the Oven Door:
1. Open the door completely.

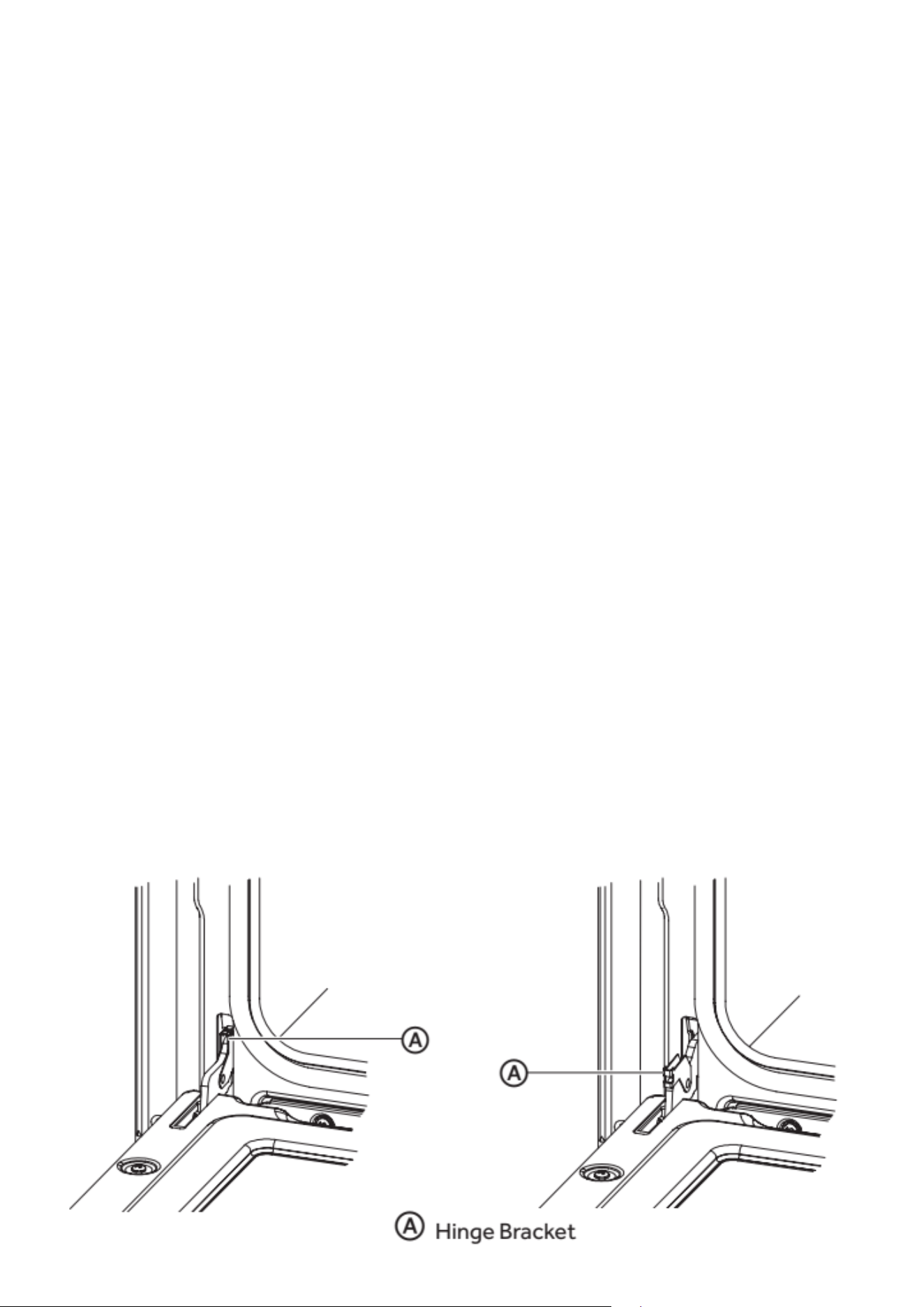

2. Flip up the hinge latch on each side.
42
3. Holding the door firmly, close the oven door completely.
4. Grasping both sides, lift up on the oven door while pushing it closed, and then
pull it away from the door frame.
5. Place the door in a protected location.
To Replace the Oven Door:

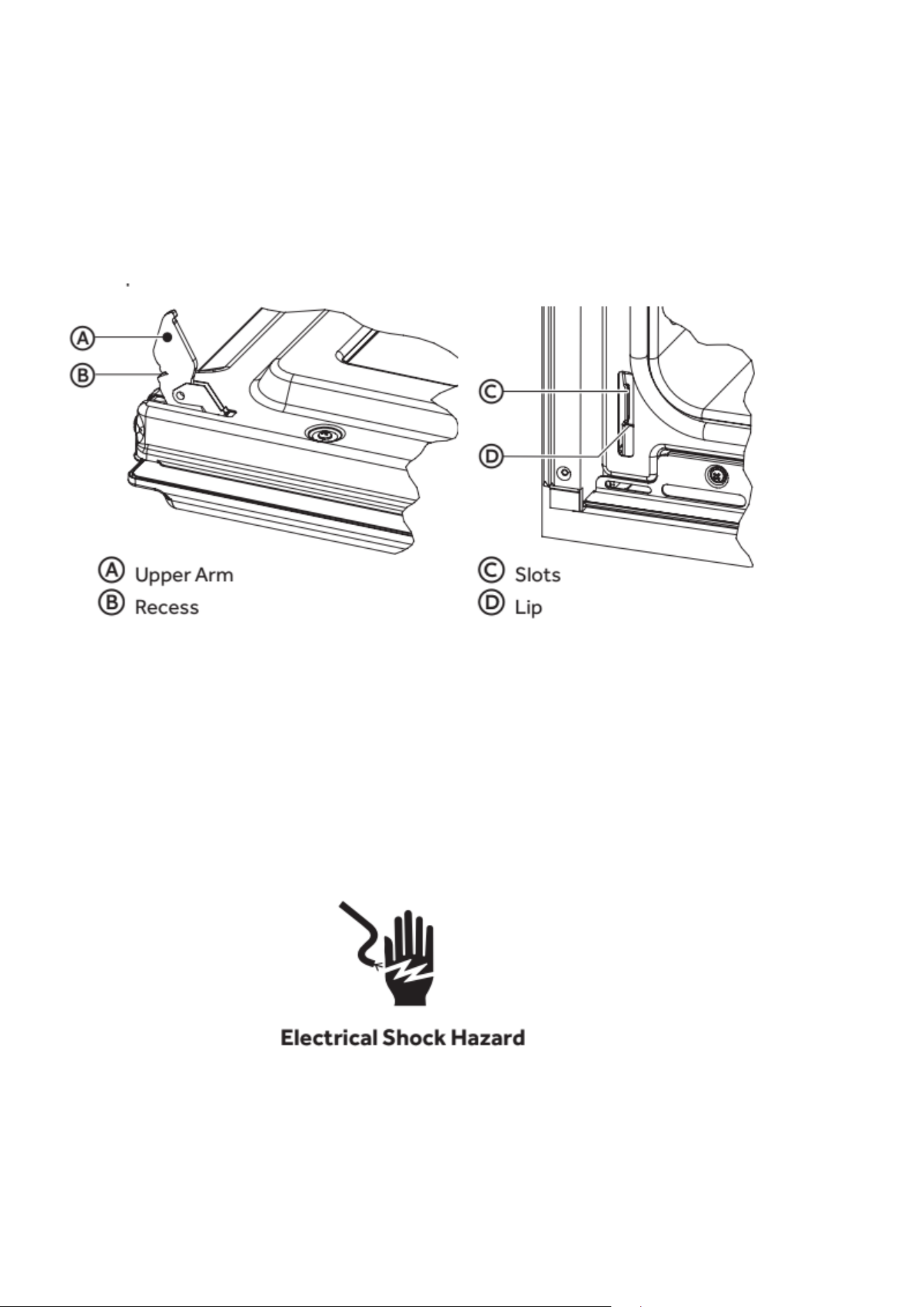

1. Insert the upper arms of both hinges into the slots. The recesses must hook on
the lips.
2. Open the oven door.
NOTE: You should hear a “click” sound when the door is correctly in place.
3. Move the hinge latch on each side back into the locked position.
4. Open and close the door to test that it operates freely. If it does not, repeat the
door removal and replacement process.
5. Close and open the door slowly to assure that it is correctly and securely in place.
REPLACING AN OVEN LIGHT
WARNING
Make sure the oven and lights are cool and power to the oven has been turned
o before replacing the light bulb(s).
The lenses must be in place when using the oven. The lenses serve to protect
the light bulb from breaking.
The lenses are made of glass. Handle carefully to avoid breakage.
Failure to do so could result in death, electric shock, cuts or burns.
43
The oven light is a standard 25 watt (G9) appliance bulb.
IMPORTANT: Before replacing the bulb, make sure the oven is cool and the controls
are turned o.
1. Disconnect power at the main power supply (fuse or circuit breaker box).

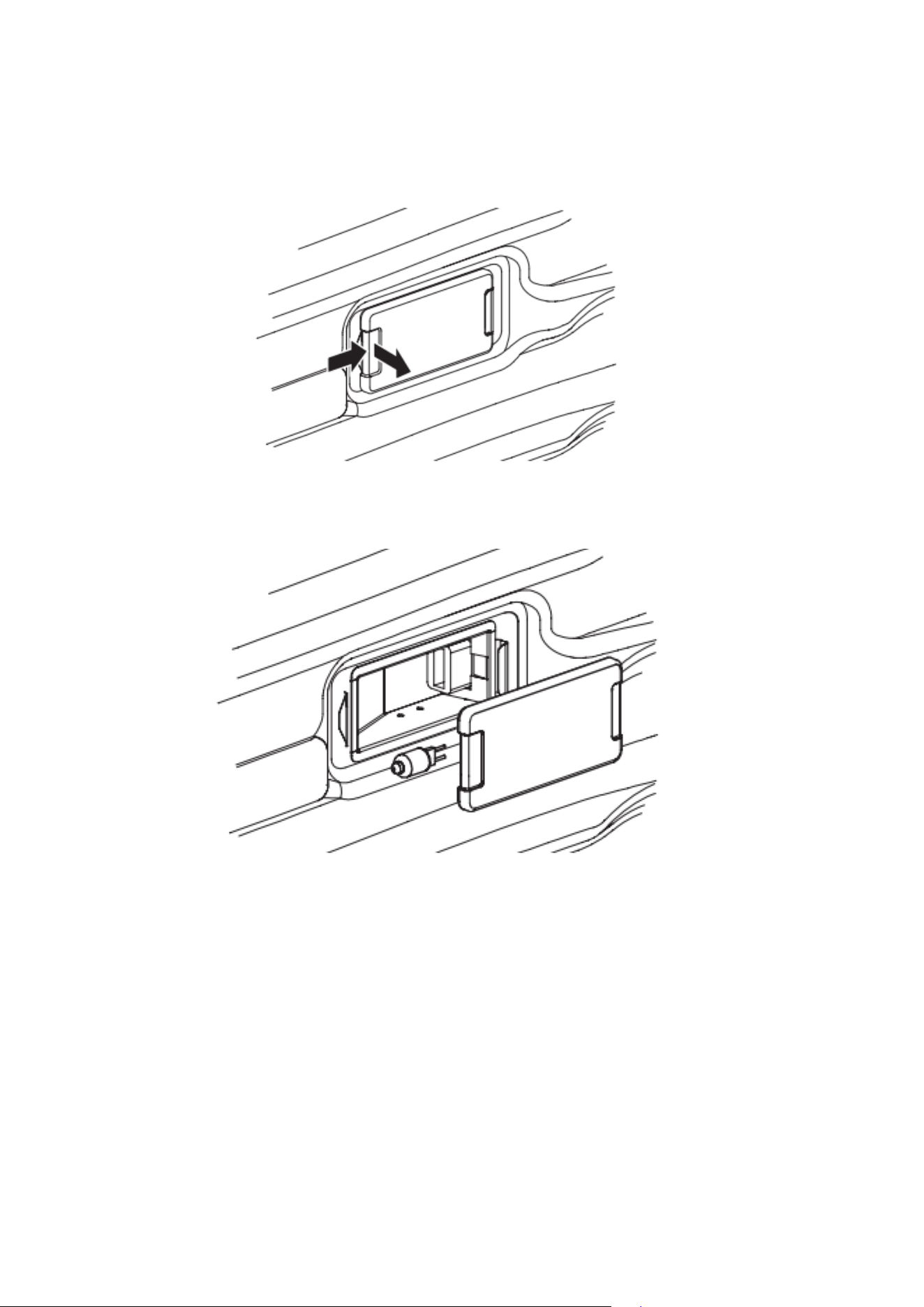

2. Remove the bulb cover by pulling it out of the opening.
3. Remove the burned out bulb from the socket.
NOTE: To avoid damage to or decreasing the life of the new bulb, do not touch the
bulb with bare fingers. Wear cotton gloves or use a tissue when replacing the light
bulb.
4. Replace the bulb, and then replace the bulb cover.
5. Reconnect power at the main power supply (fuse or breaker box).
44
Troubleshooting
Problem
Possible Cause
• Oven not preheated
• Aluminum foil on oven rack or oven bottom
• Baking utensil too large for recipe
• Pans touching each other or oven walls
• Oven not preheated
• Using glass, dull or darkened metal pans
• Incorrect rack position
• Pans touching each other or oven walls
Food browns unevenly
Food too brown on bottom
First try the solutions suggested here before calling Customer Service
BAKING AND ROASTING
With either Bake or Convection Bake and Convection Roast poor results can occur
for many reasons other than a malfunction of the oven. Check the chart below for
causes of the most common problems. Since the size, shape and material of baking
utensils directly aect the baking results, the best solution may be to replace old
baking utensils that have darkened and warped with age and use. Check the Baking
Charts for the correct rack position and baking time.
• Oven temperature too high
• Baking time too long
• Oven door opened frequently
• Pan size too large
Food is dry or has shrunk
excessively
• Oven temperature too low
• Oven not preheated
• Oven door opened frequently
• Tightly sealed with aluminum foil
• Pan size too small
Food is baking or roasting
too slowly
• Baking time not long enough
• Using shiny steel pans
• Incorrect rack position
• Oven temperature is too low
Piecrusts do not brown on
bottom or crust is soggy
• Oven temperature too low
• Incorrect baking time
• Cake tested too soon
• Oven door opened too often
• Pan size may be too large
Cakes pale, flat and may
not be done inside
• Oven temperature too high
• Baking time too long
• Pans touching each other or oven walls
• Incorrect rack position
• Pan size too small
Cakes high in middle with
crack on top
• Oven temperature too high
• Edges of crust too thin
Piecrust edges too brown
45
OPERATION
Problem
Possible Cause
Solution
• A problem with latch mecha-
nism occurred.
Turn o power at the main power supply (fuse
or breaker box), wait a few seconds and turn
it back on again. The oven should run a latch
auto–test. If condition persists, note the code
number and call
F03 or F04 Error appears
in the display window.
Other F- Error
appears in the
display window.
Turn o power at the main power supply (fuse
or breaker box), wait a few seconds and turn
it back on again. If condition persists, note the
code number and call an authorized service
center.
The oven
display does not
illuminate.
Turn o power at the main power supply (fuse
or breaker box). Turn breaker back on. If condi-
tion persists, call an authorized service center.
The fan turns o automatically when the elec-
tronic components have cooled suiciently.an
authorized service center.
Cooling fan
continues to
run after oven is
turned o.
• The oven components have
not cooled suiciently.
Oven door is
locked and will
not release, even
after cooling.
Turn the oven o at the circuit breaker and wait
a few seconds. Turn breaker back on. The oven
should reset itself and will be operable.
• Turn on power at the main power supply
(fuse or circuit breaker box). If condition
persists, call an authorized service center.
• Turn control knobs to select the ovenmode
and temperature.
Oven door is
locked and will
not release, even
after cooling.
• No power going to the oven.
• Oven Mode or Temperature
not selected.
• Refer to cook charts for recommended rack
position.
• Refer to cook charts for recommended rack
position.
Oven is not
cooking evenly
• Oven rack is not in correct
position.
• Convection Bake Mode
Replace or reinsert the light bulb if loose or
defective. Touching the bulb with fingers may
cause the bulb to burn out.
Oven light is
not working
properly.
• Oven light is not working
properly.
Check for obstruction in oven door. Check to
see if hinge is bent or door switch is broken.
Oven light stays
on.
• Oven door does not close
completely.
There may be a soil build-up around the lens
cover. Wipe lens cover area with a clean dry
towel prior to attempting toremove the lens
cover.
Cannot remove
lens cover on
light.
• Lens cover is dirty.
46
Problem
Possible Cause
Solution
• Always wipe out loose soils or heavy
spillover before running Self-Cleaning. See
Preparing the Oven to Self-Clean.
• If oven is badly soiled, set oven for a 4-hour
Self-Cleaning.
Oven will not
Self- Clean
properly.
• Oven was still warm when
Cleaning mode was selected.
• Oven is heavily soiled.
• Turn on power at the main power supply
(fuse or circuit breaker box). If condition
persists, call an authorized service center.
• See the Clock and Timer sections.
Clock and timer
are not working
properly.
• No power going to the oven.
• Clock or Timer not set
correctly.
When using bake mode, preheat the oven first.
Convection Bake and Convection Roast will
eliminate any moisture in oven (one of the ad-
vantages of convection).
Excessive
moisture
• Oven was not properly pre-
heated.
When oven racks are removed and replaced,
always tilt racks upward and do not force them
to avoid chipping the porcelain.
Porcelain chips
• Oven racks removed and
replaced incorrectly.
47
LIMITED WARRANTY
Koolmore Supply, Inc. extends a limited warranty to the original purchaser, guaranteeing that this Koolmore product is
free from manufacturing defects in material or workmanship for three years from the date of purchase.
Should you discover any such defect within the warranty period, Koolmore Supply, Inc., reserves the right to repair or
replace the product without charge, or to cover the cost of replacement parts and repair labor needed to correct de-
fects present at the time of purchase or resulting from regular usage, when the appliance has been installed, operated,
and maintained as per the instructions provided.
At its sole discretion, Koolmore Supply Inc. may decide to replace the product. In such an event, your replace- ment
appliance will carry the warranty for the remaining term of the original unit’s warranty period.
This warranty is valid exclusively to the original purchaser of the product and only applicable within the United States.
The warranty commences from the date of original consumer purchase. Proof of the original purchase date will be re-
quired to obtain service under this warranty.
Under this limited warranty, your sole and exclusive remedy will be product repair, as outlined above. All services must
be provided by a Koolmore-designated service company.
To claim warranty or request repair service:
Email [email protected]. Please include your name, address, phone number, warranty repair request, and a copy
of your proof of purchase receipt. Alternatively, visit koolmore.com and use the contact us page. A Koolmore customer
service representative will promptly arrange service for your appliance.
We thank you for choosing Koolmore.
WARRANTY EXCLUSIONS
This limited warranty will not cover:
1. Failure of the product to perform during power failures or interruptions,
or due to inadequate electrical service.
2. Damage incurred during transportation or handling.
3. Damage caused by accidents, vermin, lightning, winds, fire, floods, or acts of God.
4. Damage resulting from accidents, alterations, misuse, abuse, improper installation, repair, or mainte- nance. This
includes using any external device that alters or converts the voltage or frequency of electricity.
5. Unauthorized product modifications, repairs by unauthorized centers, or use of non-approved replacement parts.
6. Abnormal cleaning and maintenance not aligned with the user’s manual.
7. Use of incompatible accessories or components.
8. Any costs associated with repairs or replacements under these excluded circumstances shall be the responsibility of
the consumer.
WARRANTY
