Infrared Thermometer Instruction Manual
OPERATION MANUAL
DigitalIR Thermometer MU - TC034 -R.1.0.
2025-12
I. Overview
This infrared thermometer uses non-contact infrared sensing technology to perform safe, accurate, fast, and reliable
measurements of targets. This product is suitable for close-range, non-contact measurement of quartz glass products.
The application scenario is indoors at altitudes below 2000m.
II: Working Principle
Any object with a temperature above absolute zero radiates infrared energy, which travels outward at the speed of
light. The lens of an infrared thermometer collects and gathers the infrared energy onto the sensor, which generates a
low voltage output. This voltage is proportional to the temperature of the target object, and the voltage is processed
and displayed as a temperature value.
III. Main Technical Parameters and Functions
1. Temperature measurement range: 94℃--371℃ (201.2℉-700℉),
2. Accuracy: ± 3℃ or ± 3%℃
3. ℃/℉ conversion selection function
4. Display resolution: 1℃ or 1℉
5. Working environment: 0-40℃, relative humidity: 10%-90%RH
6. Storage temperature: -10℃ to 40℃
7. Detection time: ≤0.5 seconds
8. Sensing distance between the sensor probe and the measuring point: 2-30cm
9. Screen resolution: 60*32 0.32” OLED
10. Lithium-ion polymer battery: 3.7Vdc, 2600mAh, 9.62Wh
11. TYPE C charging voltage: DC 5V 2A MAX
12. Wireless charging: Supports Qi protocol
13. Wireless charging dock with Type-C port: Supports QC2.0/3.0 and PD2.0/3.0 protocols.
14. Battery standby time is approximately 16 hours.
15. Automatic shutdown function (5 minutes).

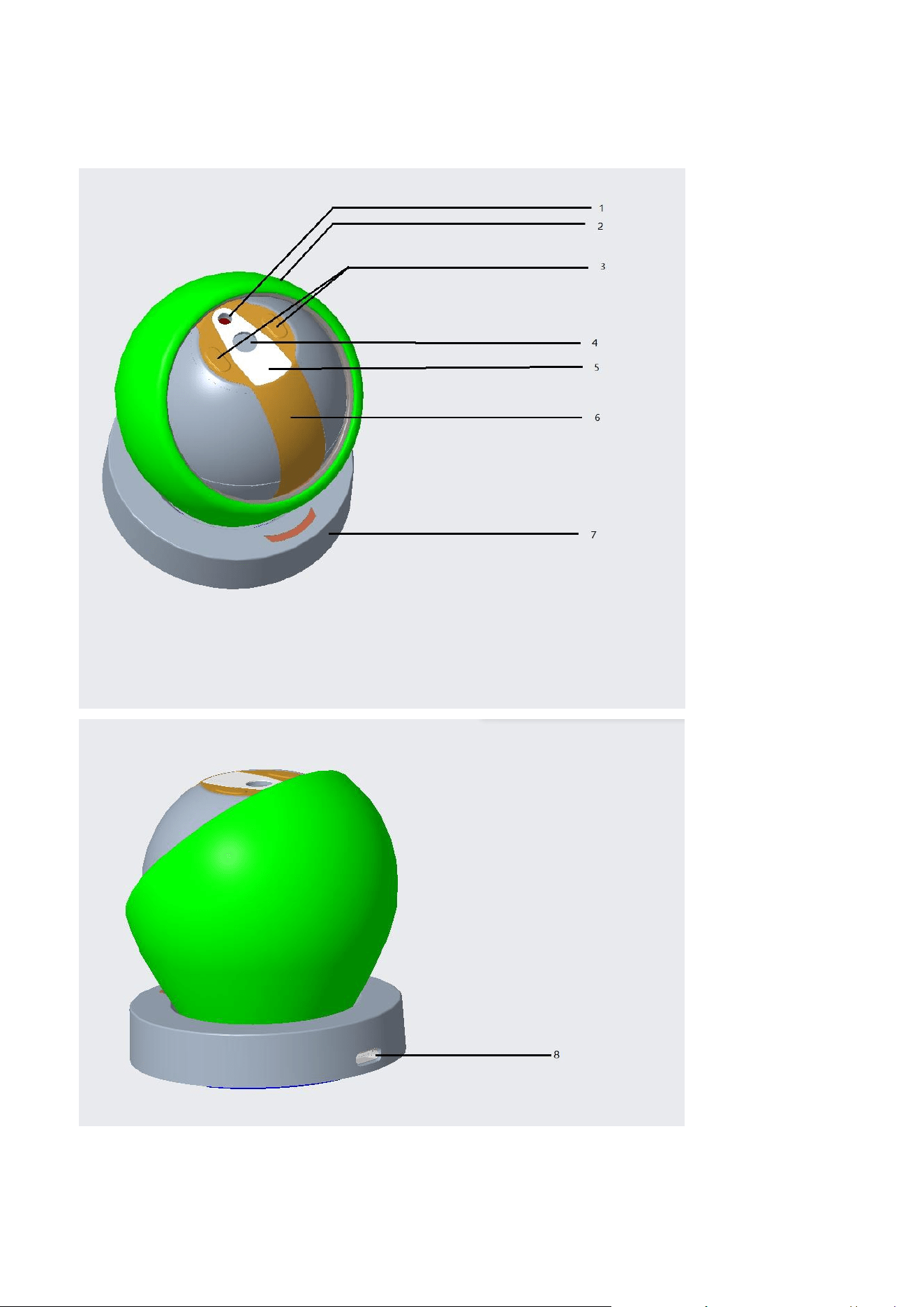

Four-function diagram
1. LED indicator lights
2. Silicone soft shell
3. Left and right function buttons
4. Left and right function buttons
5. Screen
6. Silicone soft band
7. Wireless charging dock
8. Wireless charging dock charging port

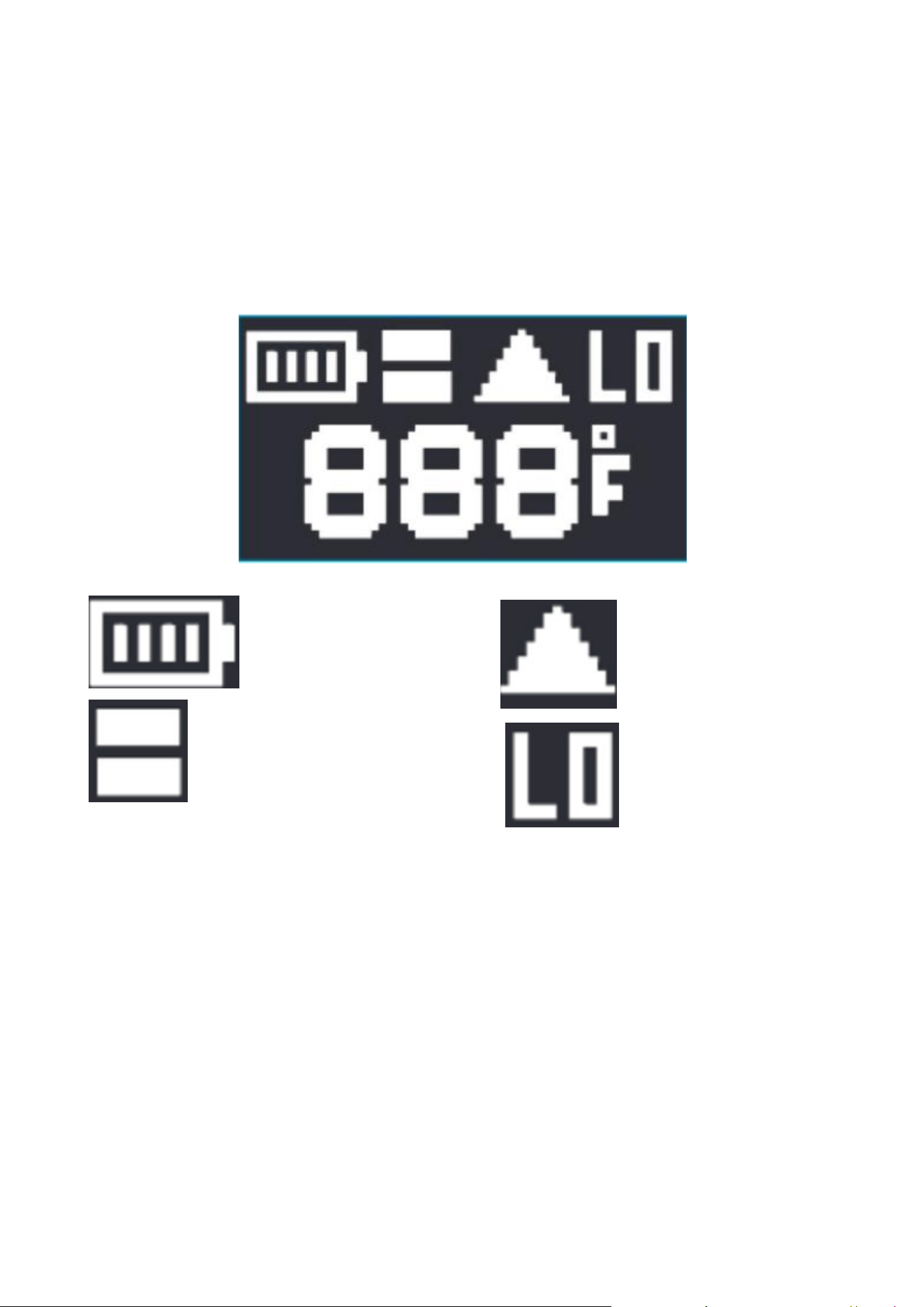

(Main Interface)
1. Battery icon.
2. The top square indicates the on/off
status of the internal RGB light, and the bottom square
indicates the on/off status of the audible alarm.
3. LED switch.
4. LO/MD/HI represent the preset
alarm temperature ranges, respectively.
5. Operating Instructions
Temperature test
1. Press the left measurement button to power on the instrument for self-test and preparation.
2. Align the instrument probe with the target according to the range indicated by the LED light. If the target is within the
measurement range, the screen will display the specific value. If the target is below the measurement range, it will
display "LOW"; if it is above the measurement range, it will display "HOT". When the measured temperature exceeds
the set value, an alarm will not sound immediately. The alarm will only sound when the temperature drops back to the
set point, accompanied by three flashes of blue light. The alarm will stop when the temperature is 20°F below the set
value and then exceeds it again.
3. After powering on, if the infrared measuring instrument is not operated for more than approximately 5 minutes, the
instrument will automatically shut down.
4. When the low voltage symbol appears on the screen (the last line turns red), the instrument should be charged
immediately. The input voltage is 5VDC and the current is 2000mA. The instrument will not operate while charging, and
there will be no backlight display of the large charging icon.
(The operating system manual is attached for reference.)
5. RGB lights:
The RGB LEDs display different colors depending on the tested temperature range. Refer to the product details.
Six: Cleaning
1. Use 91% or higher concentration isopropyl alcohol to clean the machine body. First apply it to a towel/cloth,
making sure not to use too much.
2. Gently wipe the sensor lens with a cotton swab soaked in isopropyl alcohol .
7. Precautions
1. Do not allow the sensor to come into contact with the surface of a hot object;
2. Ensure the sensor is facing the bottom or side of the Banger;
3. The thermometer cannot measure through a transparent glass surface; it will measure the surface temperature of
the glass.
4. Steam, dust, smoke, etc., can all affect the accuracy of the measurement.
5. Before using the thermometer, please inspect the casing. Never use a damaged instrument; check for any damage or
missing plastic parts.
6. Never use the thermometer near explosive gases, vapors, or dust.
7. If the instrument is not used in accordance with the methods specified in this manual, the protective functions
provided by the equipment may be ineffective.
8. Avoid exposure to electromagnetic fields generated by arc welding machines and induction heaters.
9. Avoid the effects of thermal shock (If a large change or sudden change in ambient temperature causes a large
measurement error, wait 20-30 minutes before using the thermometer again to allow it to stabilize).
10. Do not place the thermometer near or on hot objects.
