DFG-100-ES AND DFG-200-ES
CONVECTION OVEN
INSTALLATION - OPERATION - MAINTENANCE
BLODGETT OVEN COMPANY
www.blodgett.com
42 Allen Martin Drive, Essex Junction, Vermont 05452 USA Telephone: (802) 658-6600 Fax: (802)864-0183
PN 57932 Rev J (9/19)
© 2019 - G.S. Blodgett Corporation
Your Service Agency’s Address:
Model
Serial number
Oven installed by
Installation checked by
TABLE OF CONTENTS
INSTALLATION
Oven Description and Specications ....................................... 2
Delivery and Location .................................................... 3
Oven Assembly .......................................................... 4
NSF Bolts ........................................................... 4
Leg Attachment ...................................................... 5
Caster Assembly ..................................................... 5
Double Section Assembly ............................................. 6
Oven Leveling ....................................................... 6
Ventilation ............................................................... 7
Utility Connections - Standards and Codes ................................. 9
Gas Connection......................................................... 10
Gas Piping.......................................................... 10
Pressure Regulation and Testing ...................................... 11
Gas Hose Restraint ................................................. 12
Electrical Connection .................................................... 13
Initial Startup ........................................................... 14
OPERATION
Safety Information ....................................................... 15

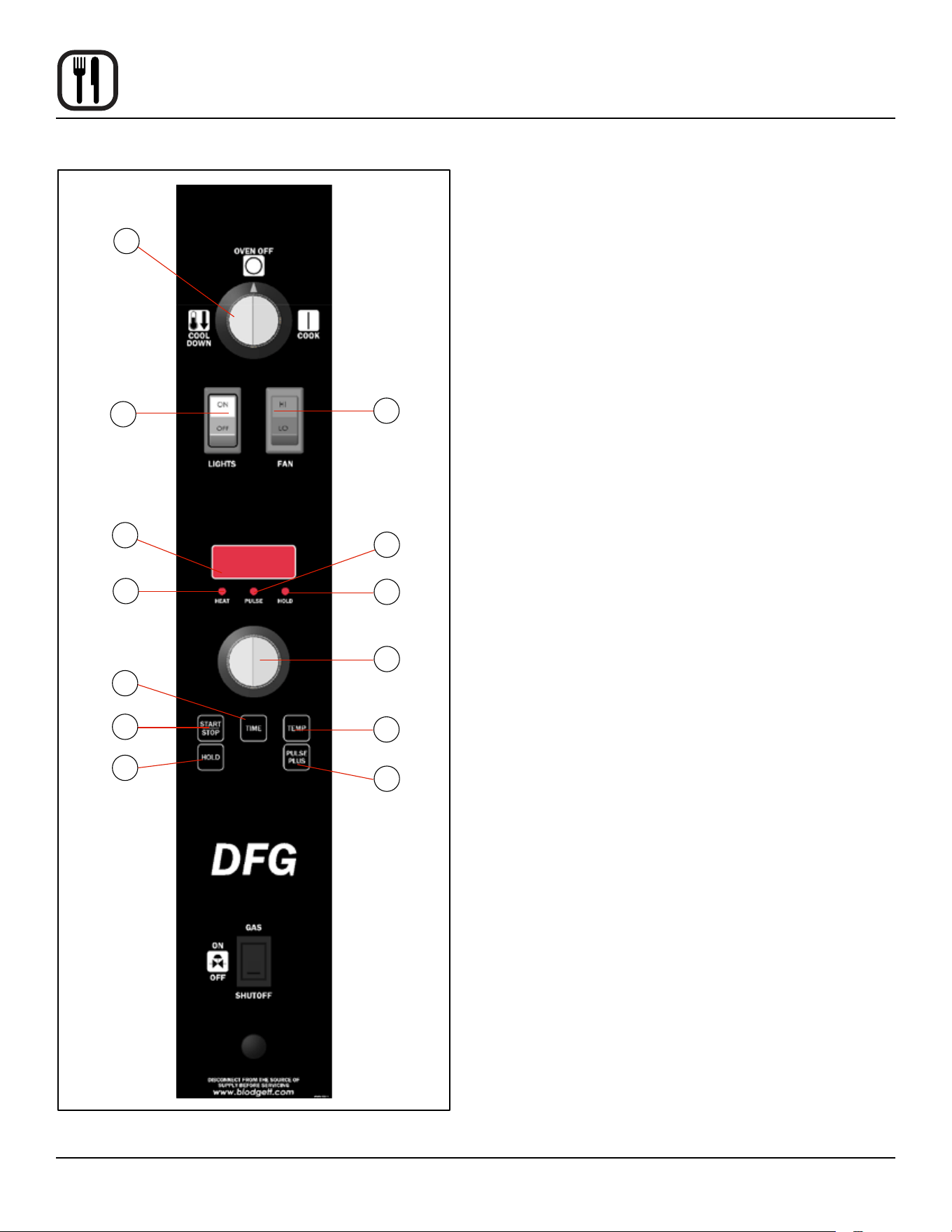

SSD - Solid State Digital Control.......................................... 16

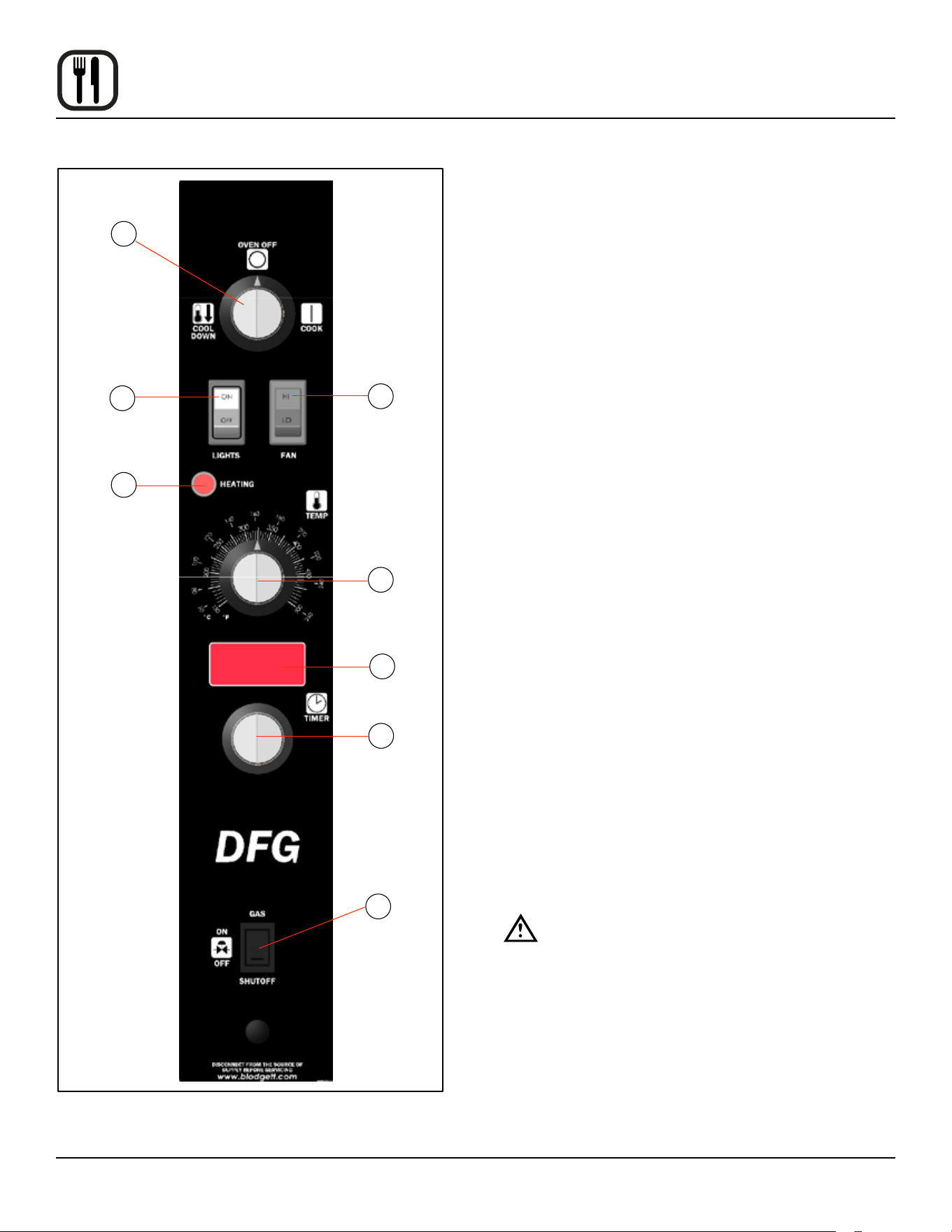

SSI-D Innite Control w/Digital Timer ...................................... 18

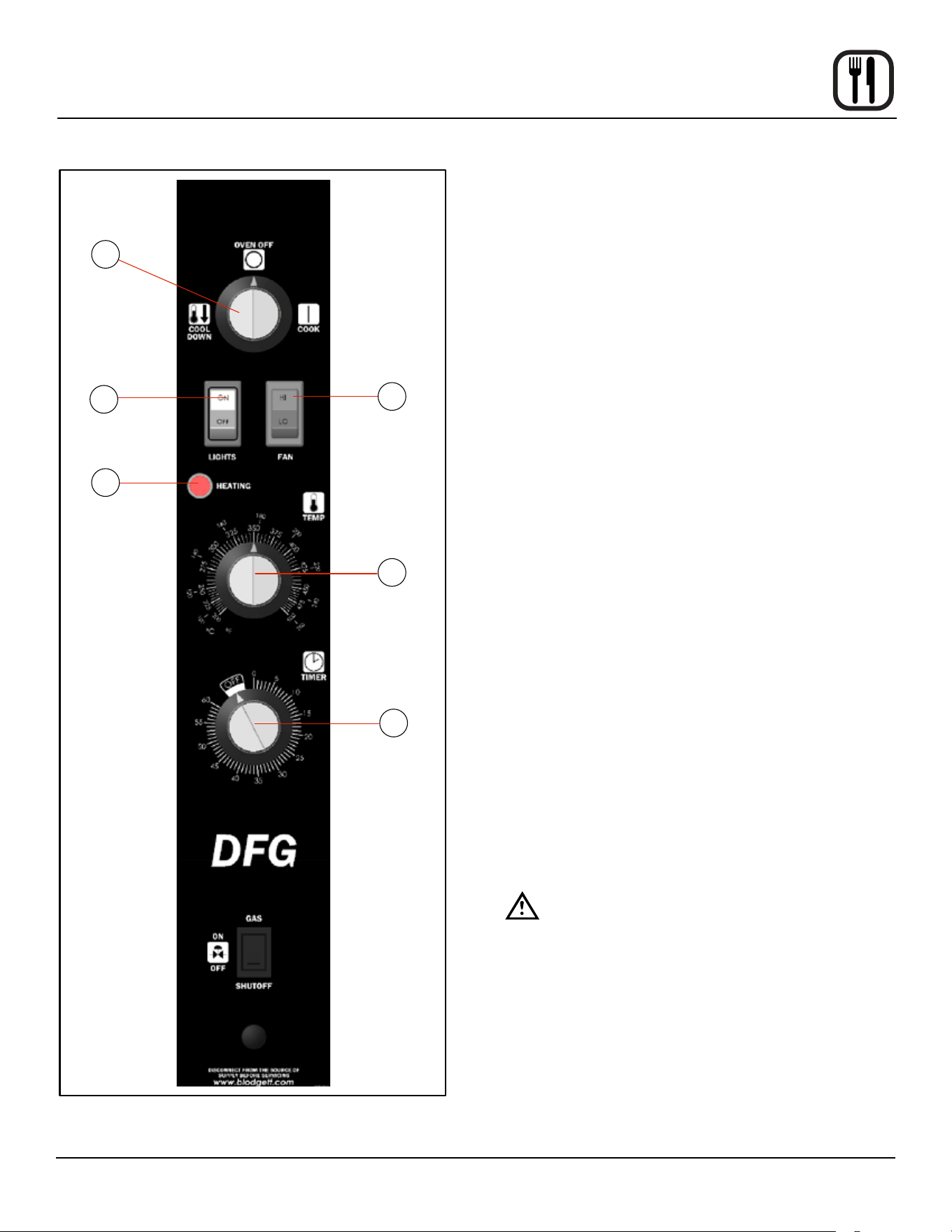

SSI-M Innite Control w/Manual Timer .................................... 19

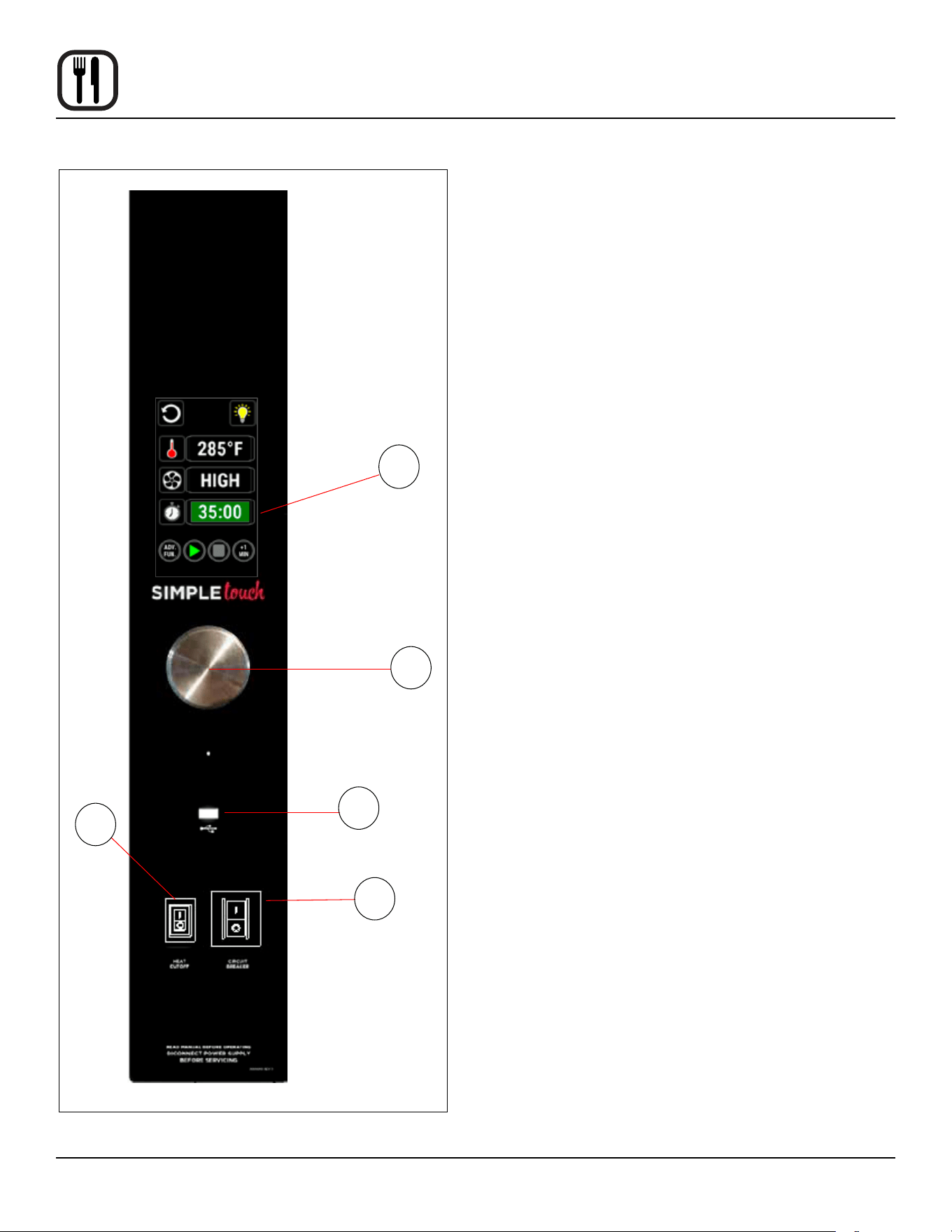

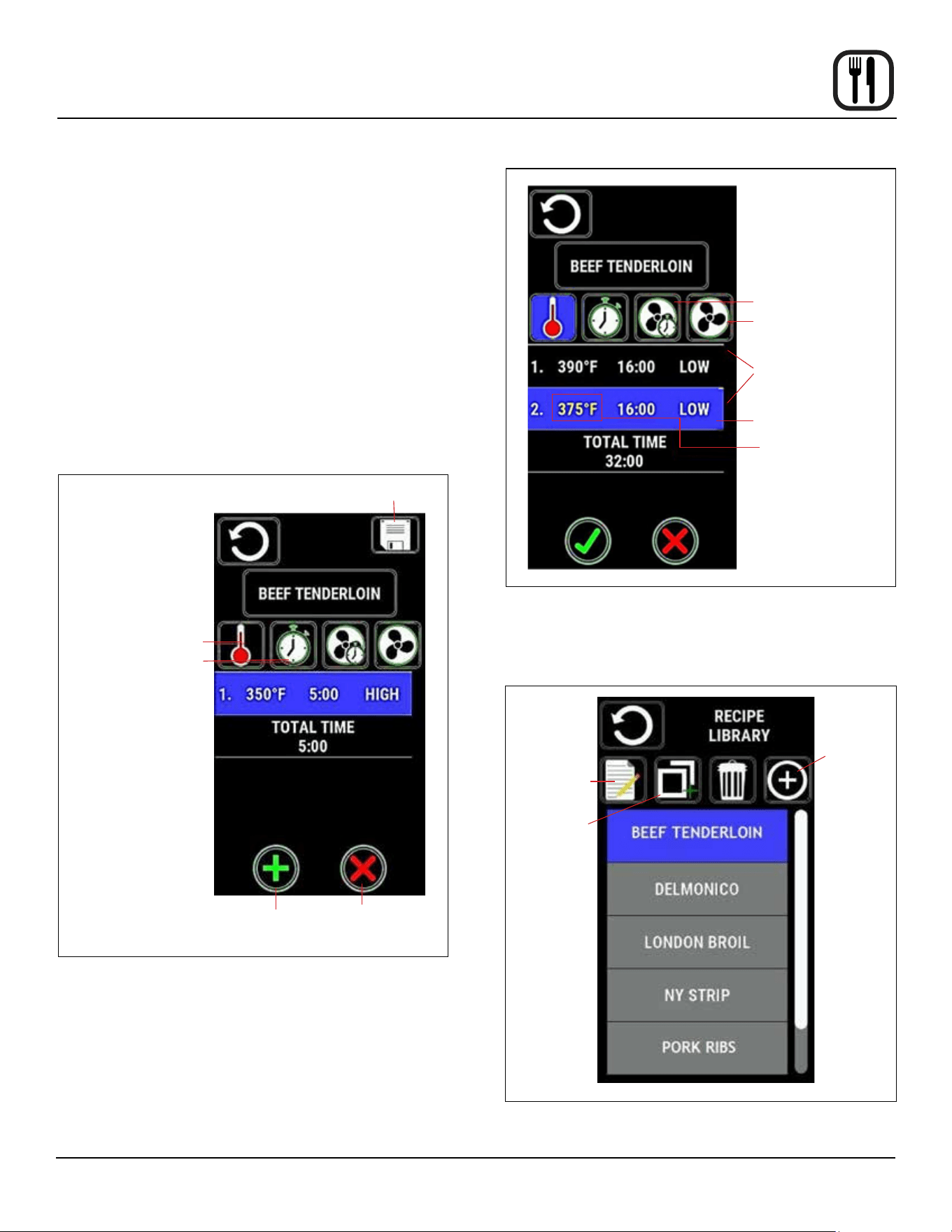

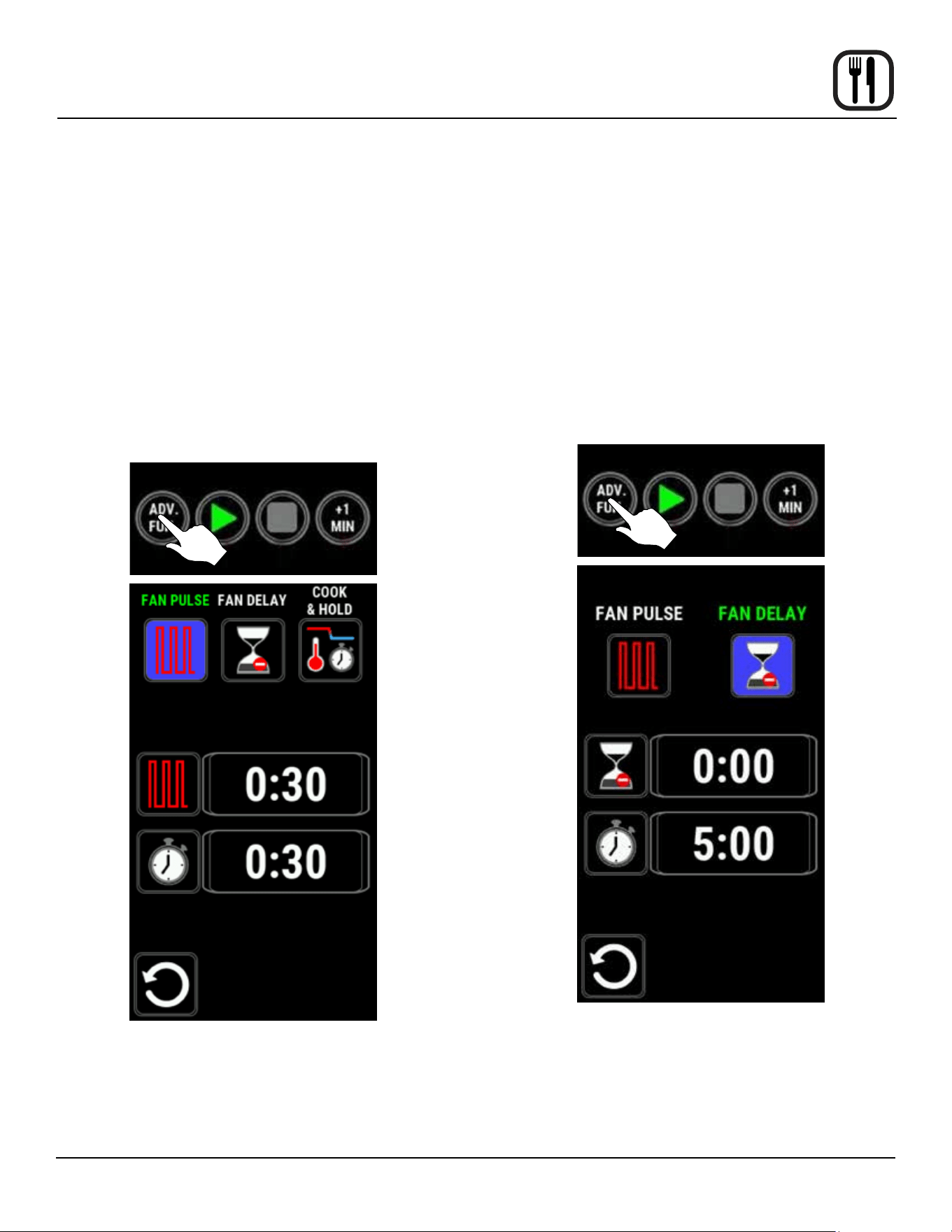

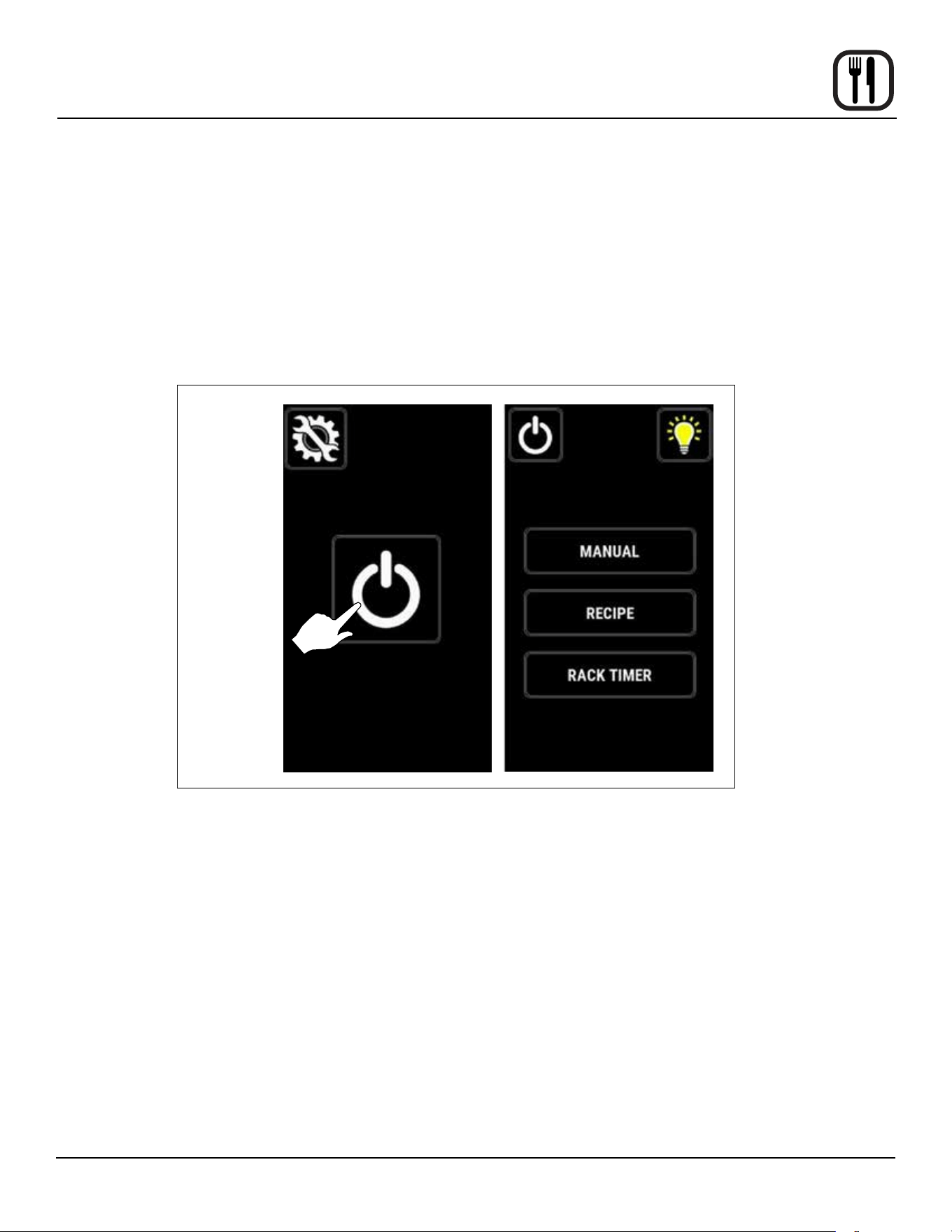

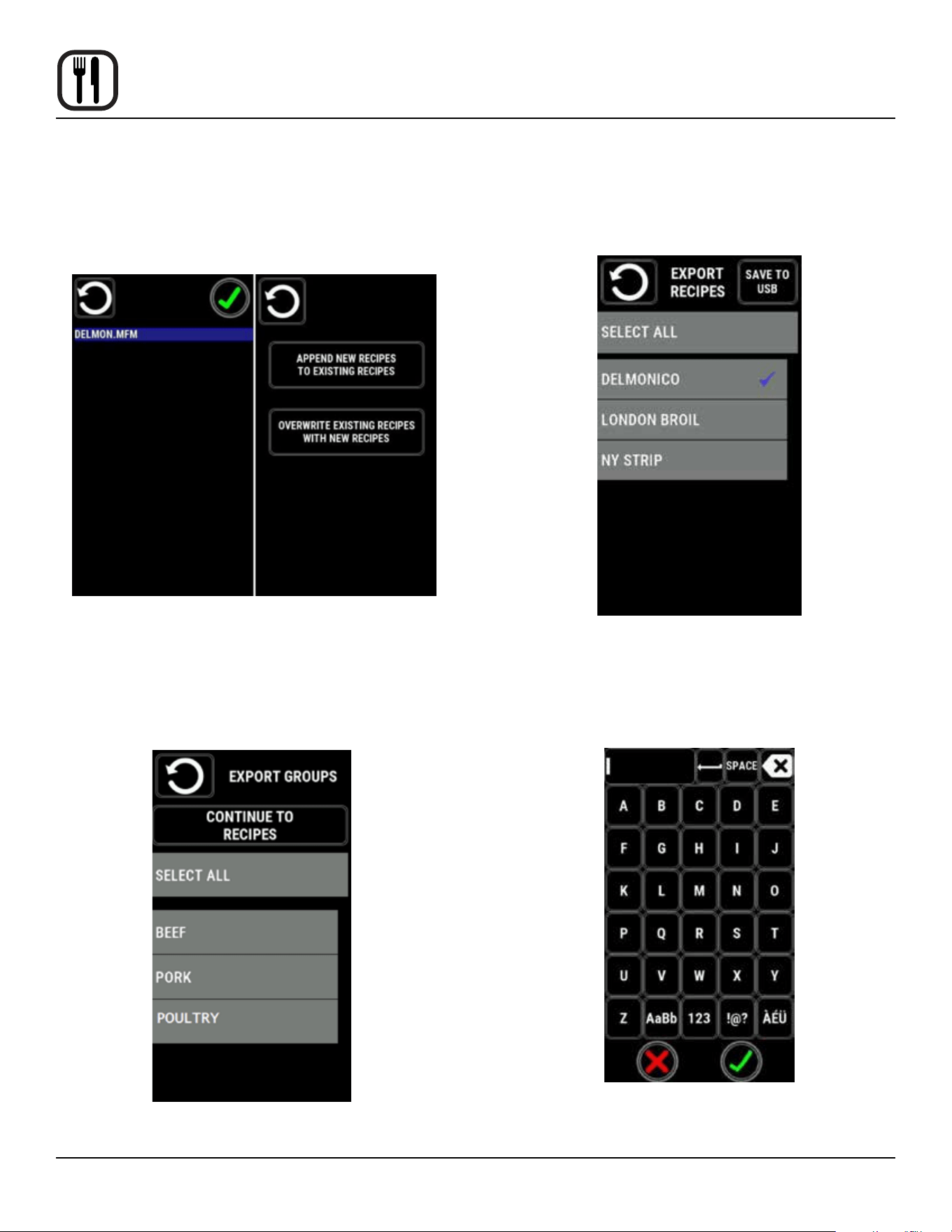

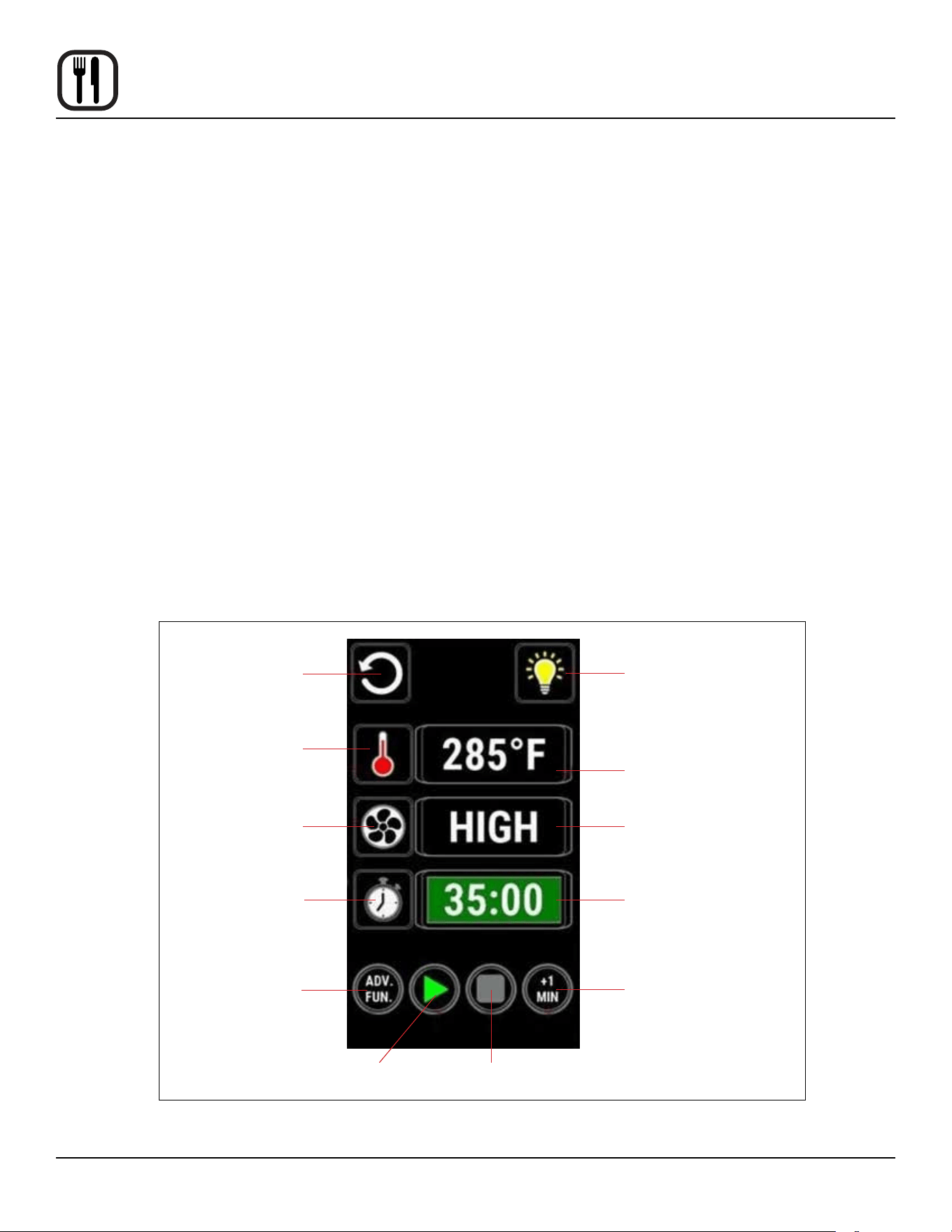

Simple Touch Control .................................................... 20

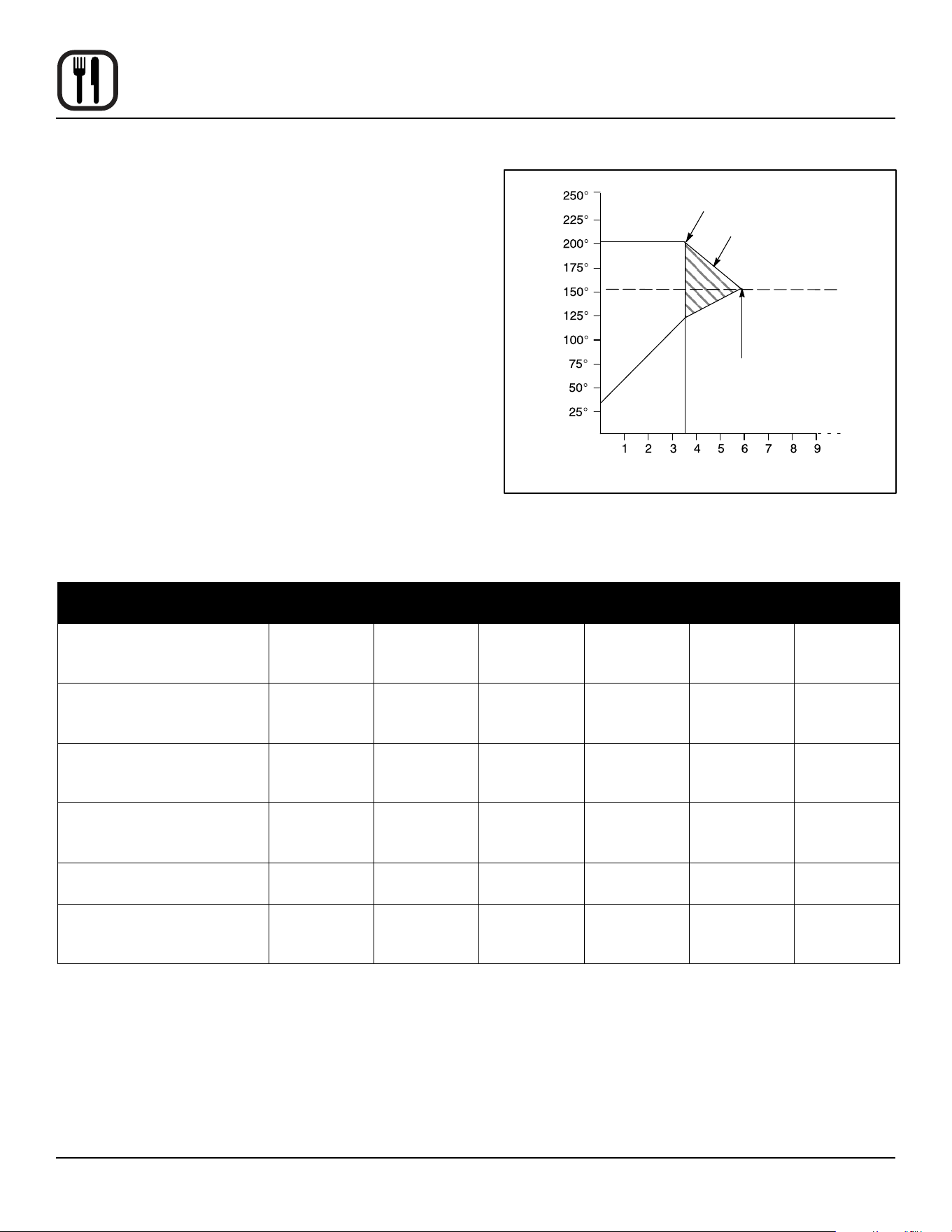

How Cook & Hold Works ................................................. 34
General Guidelines for Operating Personnel ............................... 35
Suggested Times and Temperatures ...................................... 36
MAINTENANCE
Cleaning and Preventative Maintenance .................................. 37
Troubleshooting Guide .................................................. 38
IMPORTANT
WARNING: Improper installa-
tion, adjustment, alternation,
service or maintenance can
cause property damage, in-
jury or death. Read the instl-
lation, operation and mainte-
nance instructions thoroughly
before installing or servicing
this equipment.
INSTRUCTIONS TO BE FOL-
LOWED IN THE EVENT THE
USER SMELLS GAS MUST BE
POSTED IN A PROMINENT LO-
CATION. This information may
be obtained by contacting your
local gas supplier.
FOR YOUR SAFETY
Do not store or use gasoline or
other ammable vapors or liq-
uids in the vicinity of this or any
other appliance.
The information contained in this
manual is important for the prop-
er installation, use, and mainte-
nance of this oven. Adherence
to these procedures and instruc-
tions will result in satisfactory
baking results and long, trou-
ble free service. Please read
this manual carefully and retain
it for future reference.
ERRORS: Descriptive, typo-
graphic or pictorial errors are
subject to correction. Speci-
cations are subject to change
without notice.
2
Installation
Oven Description and Specications
GAS RATINGS - DFG-100-ES AND DFG-200-ES
Natural Gas Propane
US Units SI Units US Units SI Units
U.S., Canada and General Export
Heating Value 1000 BTU/cu.ft. 37.3 MJ/m
3
2550 BTU/cu. ft. 95.0 MJ/m
3
Specic Gravity (air=1.0) 0.63 0.63 1.53 1.53
Oven Input
DFG-100-ES
DFG-200-ES
45,000 BTU/hr
50,000 BTU/hr
13.12 kW
14.7 kW
45,000 BTU/hr
50,000 BTU/hr
13.12 kW
14.7 kW
Main Burner Orice Size
DFG-100-ES (3 inshot burners)
DFG-200-ES (4 inshot burners)
49 MTD*/burner
50 MTD/burner
1.85 mm/burner
1.78 mm/burner
2 burners - 57 MTD*
1 burner - 56 MTD
60 MTD*
2 burners - 1.10 mm
1 burner - 1.15 mm
1.00 mm
NOTE: * - Multiple Twist Drill
Cooking in a convection oven diers from cooking in a
conventional deck or range oven since heated air is con-
stantly recirculated over the product by a fan in an en-
closed chamber. The moving air continually strips away
the layer of cool air surrounding the product, quickly al-
lowing the heat to penetrate. The result is a high qual-
ity product, cooked at a lower temperature in a shorter
amount of time.
Blodgett convection ovens represent the latest advance-
ment in energy eciency, reliability, and ease of opera-
tion. Heat normally lost, is recirculated within the cooking
chamber before being vented from the oven: resulting in
substantial reductions in energy consumption and en-
hanced oven performance.
3
Installation
Delivery and Location
DELIVERY AND INSPECTION
All Blodgett ovens are shipped in containers to prevent
damage. Upon delivery of your new oven:
• Inspect the shipping container for external damage.
Any evidence of damage should be noted on the
delivery receipt which must be signed by the driver.
• Uncrate the oven and check for internal damage.
Carriers will accept claims for concealed damage if
notied within fteen days of delivery and the ship-
ping container is retained for inspection.
The Blodgett Oven Company cannot assume responsibil-
ity for loss or damage suered in transit. The carrier as-
sumed full responsibility for delivery in good order when
the shipment was accepted. We are, however, prepared
to assist you if ling a claim is necessary.
OVEN LOCATION
The well planned and proper placement of your oven will
result in long term operator convenience and satisfactory
performance.
The following clearances must be maintained between
the oven and any combustible or non-combustible con-
struction.
DFG-100-ES and DFG-200-ES
• Oven body right side - 0” (0cm)
• Oven body left side - 0” (0cm)
• Oven body back - 0” (0cm)
• Single and stacked oven bottom - 0” (0cm)
The following clearances must be available for servicing.
• Oven body sides - 12” (30cm)
• Oven body back - 12” (30cm)
NOTE: On gas models, routine servicing can usually be
accomplished within the limited movement pro-
vided by the gas hose restraint. If the oven needs
to be moved further from the wall, the gas must
rst be turned o and disconnected from the oven
before removing the restraint. Reconnect the re-
straint after the oven has been returned to its nor-
mal position.
It is essential that an adequate air supply to the oven be
maintained to provide a sucient ow of combustion and
ventilation air.
• Place the oven in an area that is free of drafts.
• Keep the oven area free and clear of all combus-
tibles such as paper, cardboard, and ammable
liquids and solvents.
• NSF requires 6” of clearance on the bottom and
sides of the unit for cleaning. Do not place the oven
on a curb base or seal to a wall.
• The location must provide adequate clearance for
the air opening into the combustion chamber.
Before making any utility connections to this oven, check
the rating plate to be sure the oven specications are
compatible with the gas and electrical services supplied
for the oven.
1. Pull out control panel. The rating plate is attached to
the inside of the control compartment.
• Do not place strong sources of heat such as open
ame ranges, griddles, or charbroilers near the
oven. If such an instance exists, it is highly recom-
mended to purchase a heat shield, available from
Blodgett.
• Note that if temperatures are too high, a safety shut-
down may occur.
• Failure to comply may invalidate the oven warranty.
4
Installation
Oven Assembly

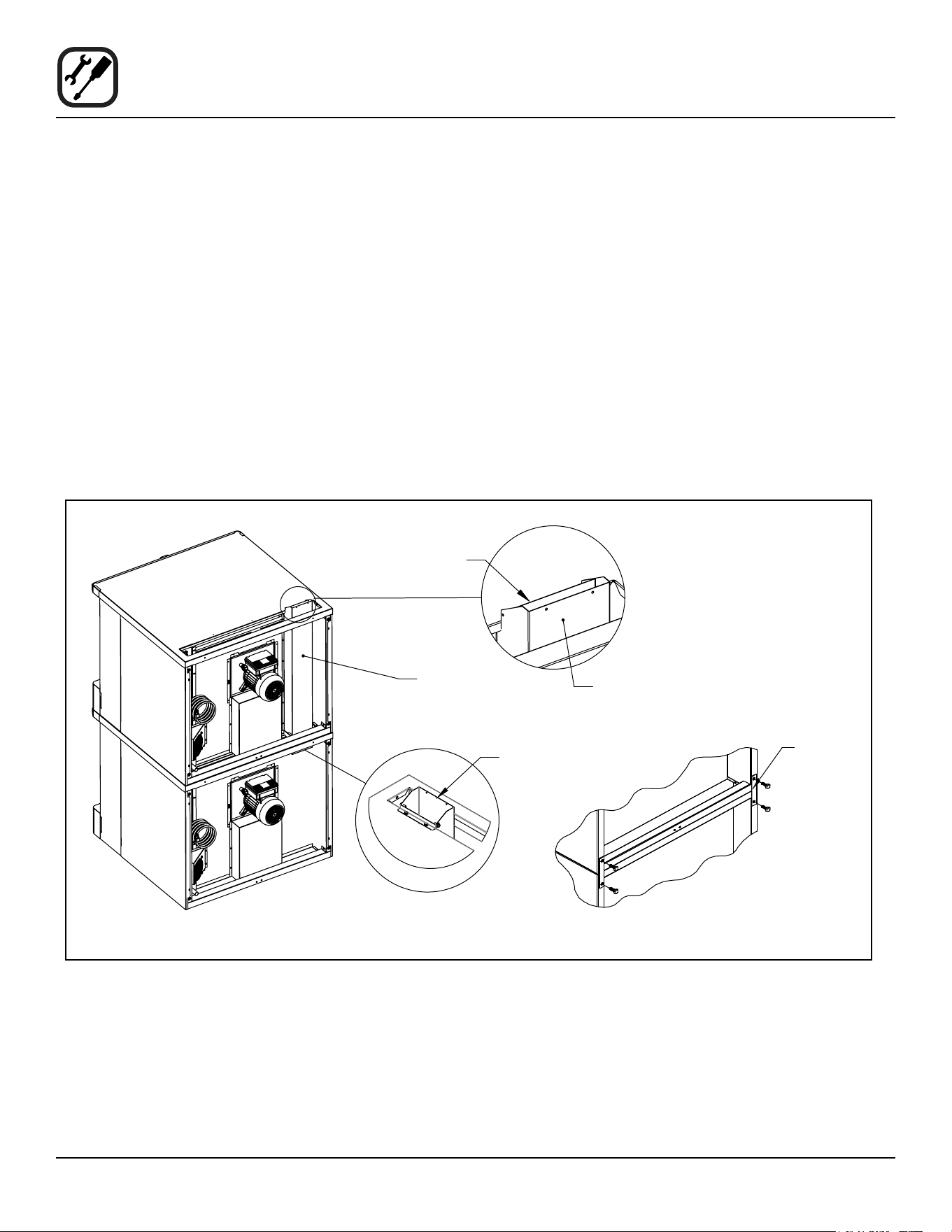

NSF BOLTS
These bolts are required by NSF to block any exposed
hole on the back of an oven. This includes:
• any unit, single or stacked, without a back panel.
• any holes in stacked units not used for mounting
stacking brackets.

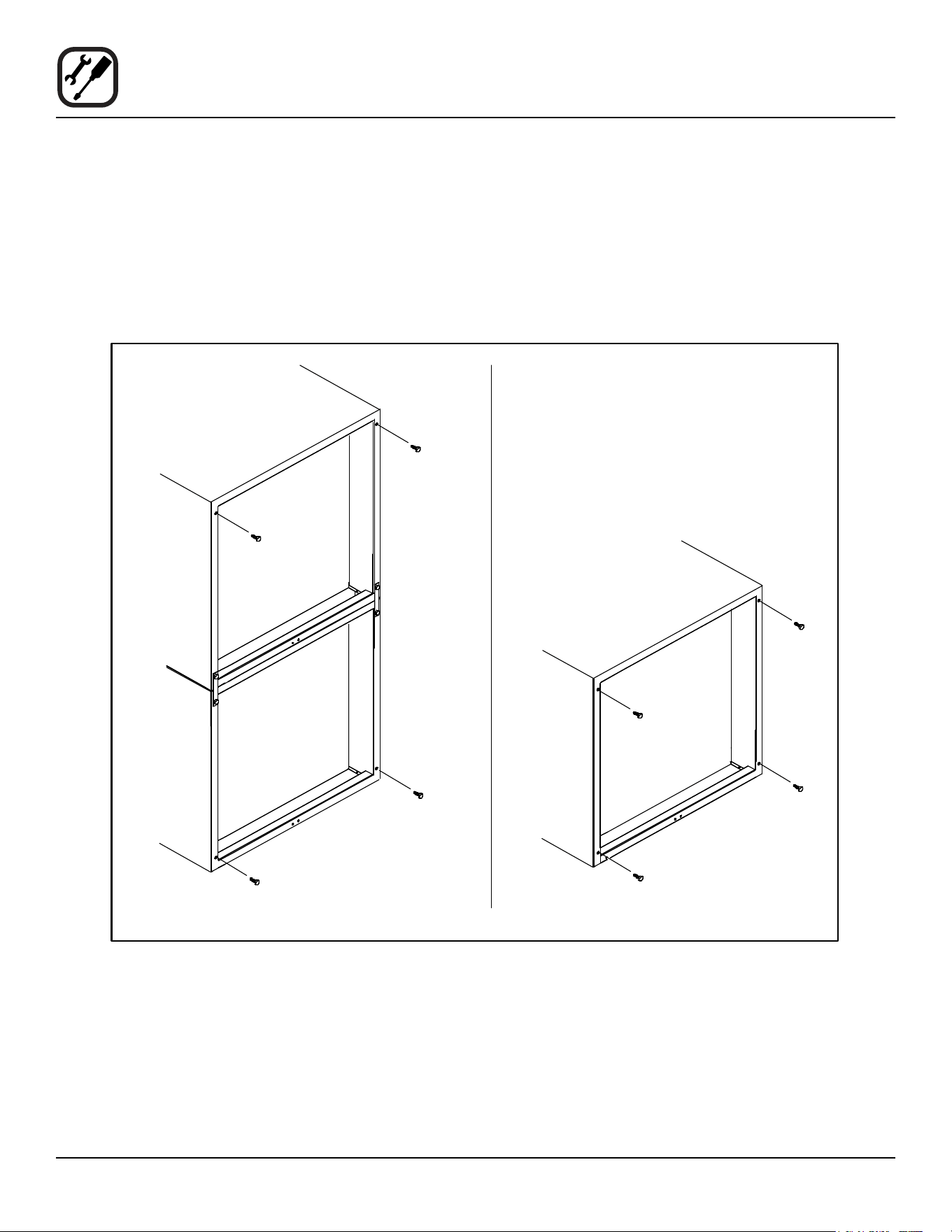

1. Locate the 5/16” bolts that were shipped with the
oven.
2. Install the bolts as shown.
Figure 1
Double Stacked Units Units without Back Panels
5
Installation
Oven Assembly

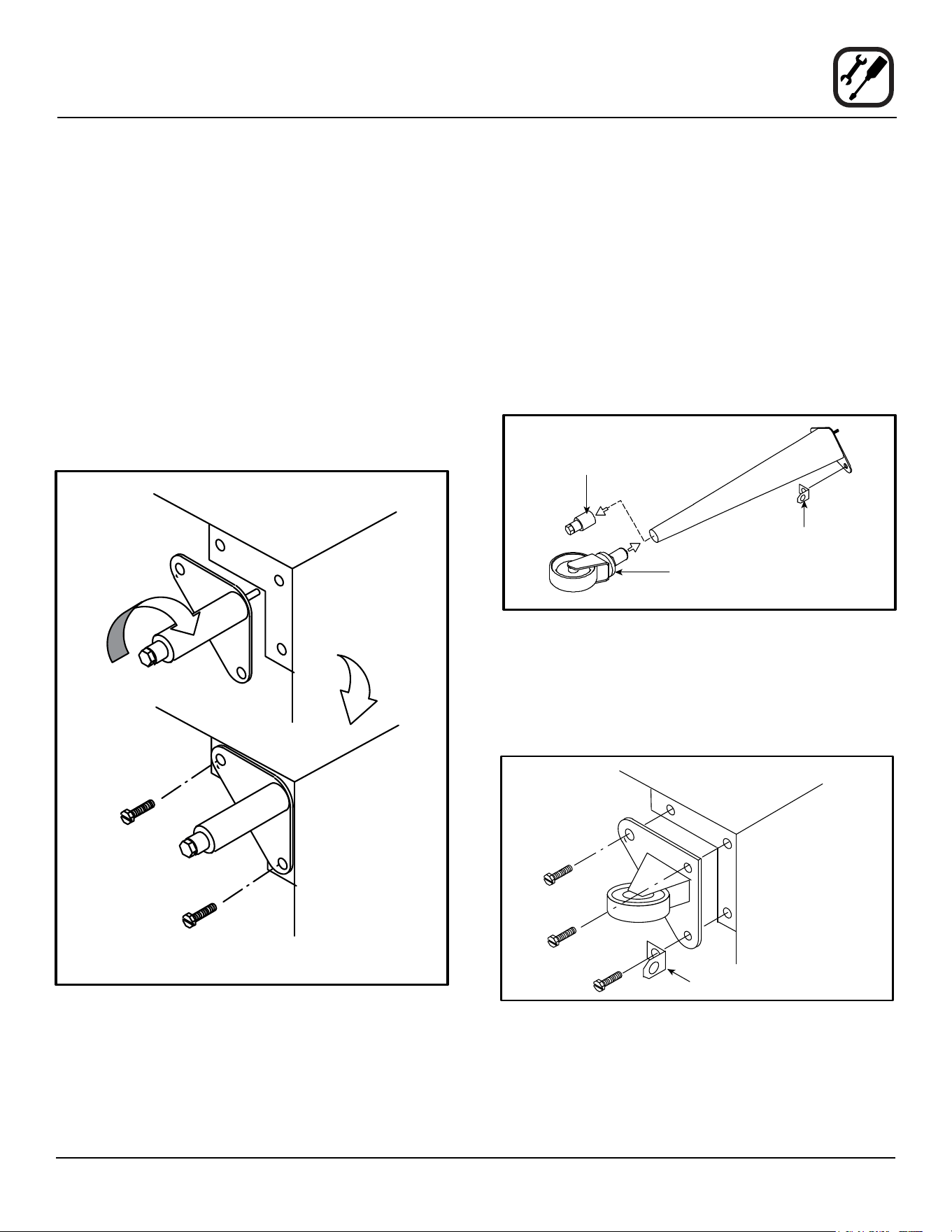

LEG ATTACHMENT
1. Push the oven onto a lift with the bottom of the oven
down.
2. Align the threaded stud in each leg with the nut locat-
ed inside each bottom corner of the oven frame. Turn
the legs clockwise and tighten to the nearest full turn.
3. Align the two leg plate holes in each leg with those
in the oven bottom. Secure each leg using two 1/2”
bolts.
NOTE: If using casters see CASTER ASSEMBLY
before proceeding.
4. Level the oven by screwing the adjustable leg feet in
or out as necessary.
6" (15 cm) Legs Shown
Figure 2
CASTER ASSEMBLY
NOTE: Install the locking casters on the front of the oven.
Install the non-locking casters on the back of the
oven.
NOTE: Use a gas hose restraint on all units with casters.
Casters for Single and Double Stacked Ovens:
1. Attach the legs as described.
2. Pry the adjustable feet out of the legs.
3. Insert one caster into each leg as shown. Tighten the
lock nuts to secure the casters.
Adjustable
Leg Foot
Gas Hose
Restraint Bracket
Caster Assembly
Figure 3

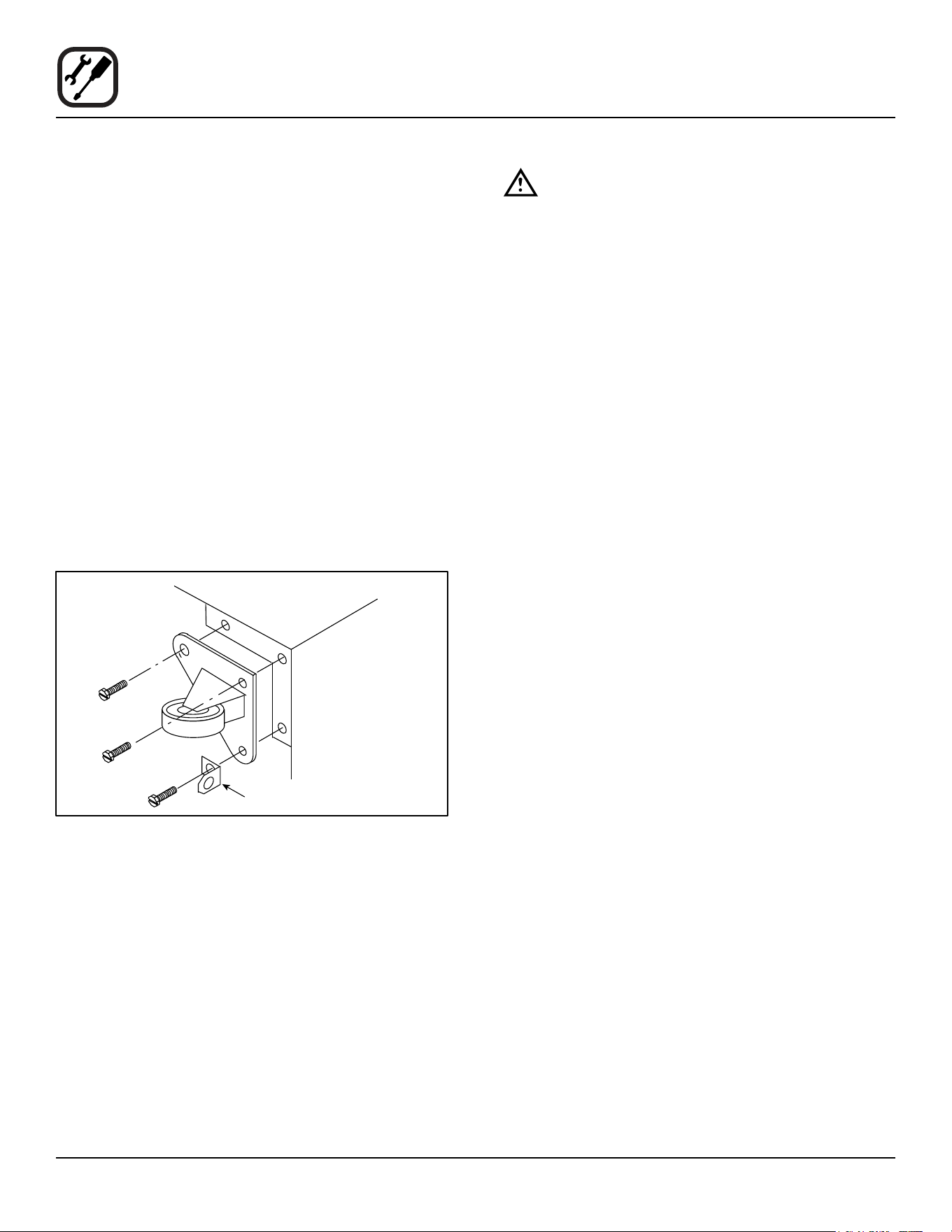

Low Prole Casters for Double Stacked Ovens:
1. Align the three holes in each caster assembly plate
with those in the oven bottom. Secure each caster
using three 1/2” bolts.
Gas Hose Restraint Bracket
Figure 4
6
Installation
Oven Assembly
DOUBLE SECTION ASSEMBLY
1. Secure the short legs to the bottom sections as de-
scribed.
2. Place the upper section in position on top of the lower
oven.
3. Attach the stacking brackets using the remaining
5/16” bolts shipped with the ovens.
4. Attach the draft diverter to the bottom oven. DO NOT
install the draft diverter guard on the bottom oven.
5. Install the ue riser on the top oven. The bottom of
the ue riser slides down over the draft diverter on the
bottom oven. Secure with 12 screws.
6. Install the ue riser guard as shown below.
OVEN LEVELING
After assembly, the oven should be leveled and moved to
the operating location.
1. The oven can be leveled by adjusting the feet or cast-
ers located on the bottom of each leg.
Flue Riser Guard
Flue Riser
Flue Riser
Draft Diverter
Stacking
Brackets
DFG-100-ES Shown
Figure 5
7
Installation
Ventilation
On gas models the installation of a proper ventilation sys-
tem cannot be over emphasized. This system removes
unwanted vapors and products of combustion from the
operating area.
This oven may be vented using either:
• A mechanically driven, canopy type, exhaust hood,
or
• A direct ue arrangement.
U.S. and Canadian installations
Refer to your local ventilation codes. In the absence of
local codes, refer to the National ventilation code titled,
“Standard for the Installation of Equipment for the Remov-
al of Smoke and Grease Laden Vapors from Commercial
Cooking Equipment”, NFPA-96-Latest Edition.
General export installations
Installation must conform with Local and National instal-
lation standards. Local installation codes and/or require-
ments may vary. If you have any questions regarding the
proper installation and/or operation of your Blodgett oven,
please contact your local distributor. If you do not have a
local distributor, please call the Blodgett Oven Company
at 0011-802-658-6600.
WARNING:
Failure to properly vent the oven can be haz-
ardous to the health of the operator and may
result in operational problems, unsatisfactory
baking and possible damage to the equip-
ment.
Damage sustained as a direct result of im-
proper ventilation will not be covered by the
manufacturer’s warranty.
CANOPY TYPE EXHAUST HOOD
A mechanically driven, canopy type exhaust hood is the
preferred method of ventilation.
The hood should be sized to completely cover the equip-
ment plus an overhang of at least 6” (15 cm) on all sides
not adjacent to a wall. The distance from the oor to the
lower edge of the hood should not exceed 7’ (2.1m).
The total makeup and exhaust air requirements for hood
capacity should be approximately 30 CFM (.85 m3) for
each oven section.

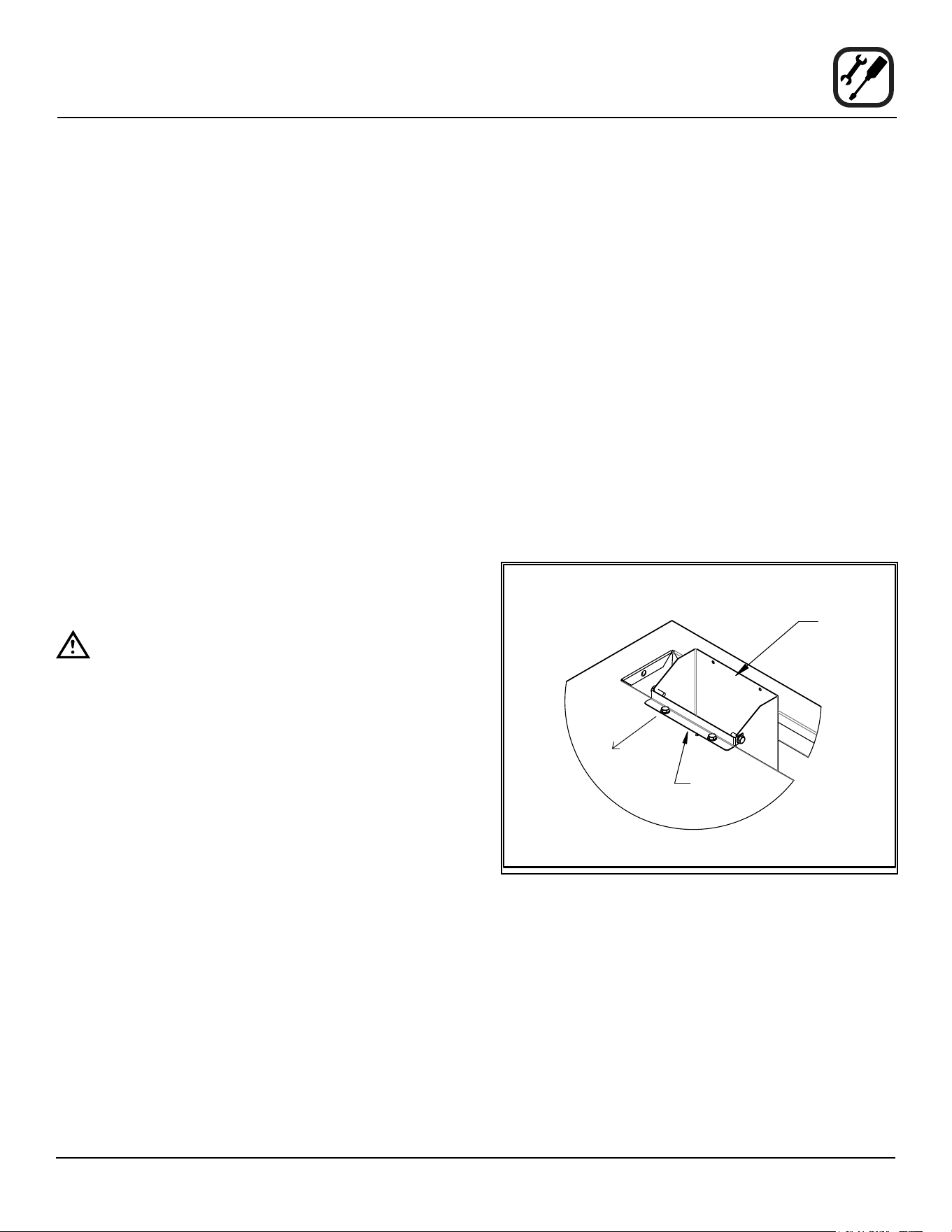

Installing the canopy hood draft diverter
Ovens ordered for hood venting are supplied with a draft
diverter. Install the draft diverter as follows:
1. Place the draft diverter on the oven back and slide it
up through the rectangular hole in the oven body top.
Secure to the oven body back with four screws.
2. Secure the draft diverter guard to the draft diverter
with four screws.
Draft
Diverter
Draft Diverter
Guard
Front of
Oven
Figure 6
8
Installation
Ventilation
DIRECT FLUE ARRANGEMENT
When the installation of a mechanically driven exhaust
hood is impractical the oven may be vented by a direct
ue arrangement.
WARNING!!
It is essential that the direct ue be installed
as follows. Incorrect installation will result in
unsatisfactory baking and oven damage.
The ue must be class B or better. The height of the ue
should rise 6-8 ft (2-2.5 m) above the roof of the build-
ing or any proximate structure. Never direct vent the oven
into a hood. The ue should be capped with a UL Listed
type vent cap to isolate the unit from external environ-
mental conditions.
The direct vent cannot replace air consumed and vented
by the oven. Provisions must be made to supply the room
with sucient make-up air. Total make-up air require-
ments for each oven section should be approximately 30
CFM (.85 m3) per section. To increase the supply air en-
tering the room, a ventilation expert should be consulted.
FLUE DIAMETER
Oven Single Double
DFG-100-ES 6” (15cm) 6” (15cm)
DFG-200-ES 6” (15cm) 6” (15cm)

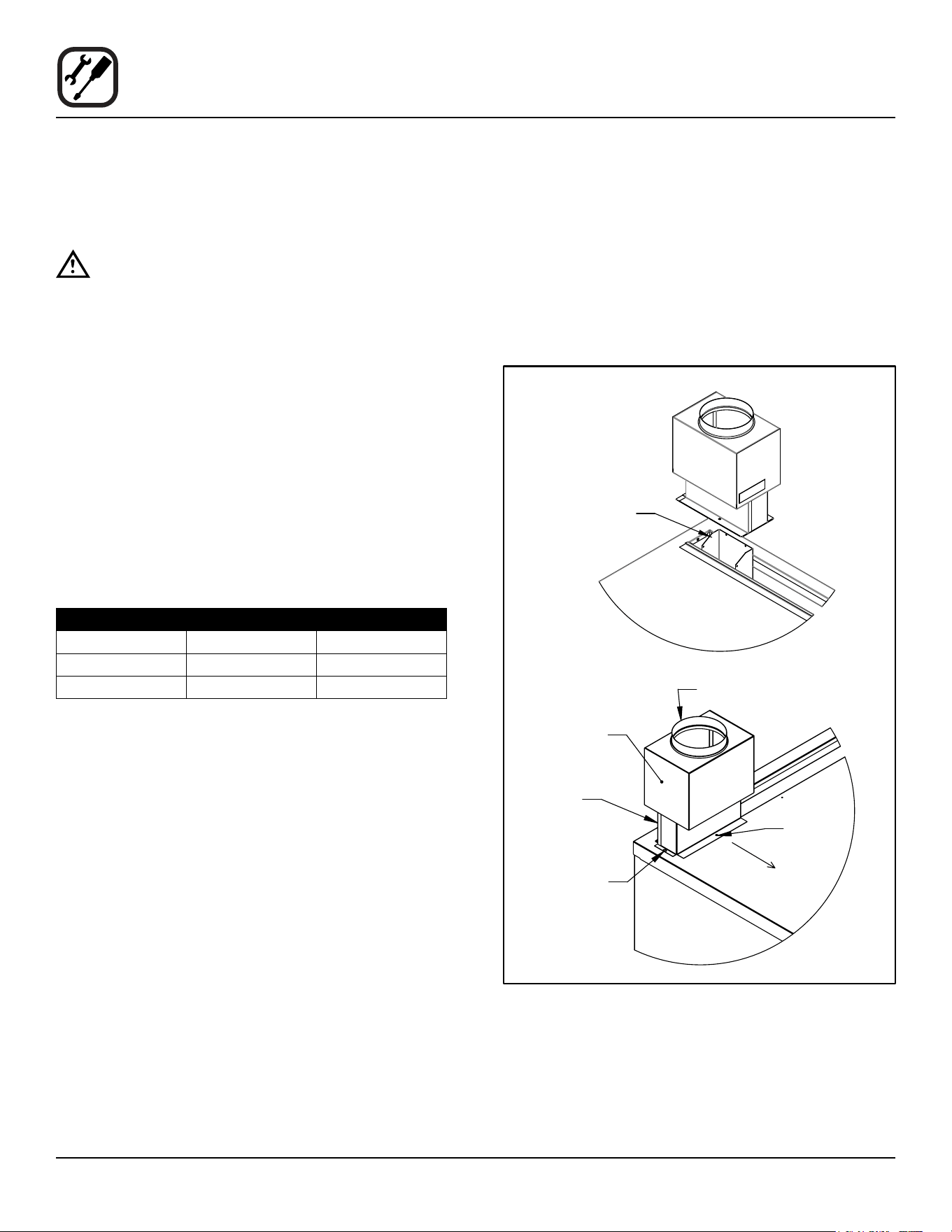

Installing the draft hood
Ovens ordered for direct venting are supplied with a draft
hood. Install the draft hood as follows:
1. Install draft diverter using the screws provided as
shown below.
2. Place the draft hood over the draft diverter.
3. Secure both ends with the sheet metal screws pro-
vided.
Flue
Drafthood
Front of
Oven
Two screws
in back
One screw
into frame
One screw
Draft diverter
Figure 7
9
Installation
Utility Connections - Standards and Codes
THE INSTALLATION INSTRUCTIONS CONTAINED
HEREIN ARE FOR THE USE OF QUALIFIED INSTAL-
LATION AND SERVICE PERSONNEL ONLY. INSTAL-
LATION OR SERVICE BY OTHER THAN QUALIFIED
PERSONNEL MAY RESULT IN DAMAGE TO THE OVEN
AND/OR INJURY TO THE OPERATOR.
Qualied installation personnel are individuals, a rm,
a corporation, or a company which either in person or
through a representative are engaged in, and responsible
for:
• the installation or replacement of gas piping and the
connection, installation, repair or servicing of equip-
ment.
• the installation of electrical wiring from the electric
meter, main control box or service outlet to the elec-
tric appliance.
Qualied installation personnel must be experienced in
such work, familiar with all precautions required, and have
complied with all requirements of state or local authorities
having jurisdiction.
U.S. and Canadian installations
The installation must conform with local codes, or in the
absence of local codes, with the National Fuel Gas Code,
ANSI Z223.1/NFPA 54, or the Natural Gas and Propane
Installation Code, CSA B149.1, as applicable.
Installation must conform with local codes, or in the ab-
sence of local codes, with the National Electrical Code,
ANSI/NFPA 70-Latest Edition and/or Canadian National
Electric Code C22.1 as applicable.
Appliance is to be installed with backow prevention in
accordance with applicable federal, province and local
codes.
General export installations
Installation must conform with Local and National instal-
lation standards. Local installation codes and/or require-
ments may vary. If you have any questions regarding the
proper installation and/or operation of your Blodgett oven,
please contact your local distributor. If you do not have a
local distributor, please call the Blodgett Oven Company
at 0011-802-658-6600.
10
Installation
Gas Connection
GAS PIPING
A properly sized gas supply system is essential for maxi-
mum oven performance. Piping should be sized to pro-
vide a supply of gas sucient to meet the maximum de-
mand of all appliances on the line without loss of pressure
at the equipment.
Example:
NOTE: BTU values in the following example are for natu-
ral gas.
You purchase a DFG-100-ES to add to your existing cook
line.
1. Add the BTU rating of your current appliances.
Pitco Fryer 120,000 BTU
6 Burner Range 60,000 BTU
Deck Oven 50,000 BTU
Total 230,000 BTU
2. Add the BTU rating of the new oven to the total.
Previous Total 230,000 BTU
DFG-100-ES 45,000 BTU
New Total 275,000 BTU
3. Measure the distance from the gas meter to the cook
line. This is the pipe length. Let’s say the pipe length
is 40’ (12.2 m) and the pipe size is 1” (2.54 cm).
4. Use the appropriate table to determine the total ca-
pacity of your current gas piping.
The total capacity for this example is 320,000 BTU. Since
the total required gas capacity, 275,000 BTU is less than
320,000 BTU, the current gas piping will not have to be
increased.
NOTE: The BTU capacities given in the tables are
for straight pipe lengths only. Any elbows or
other ttings will decrease pipe capacities.
Contact your local gas supplier if you have
any questions.
Maximum Capacity of Iron Pipe in Cubic Feet of
Natural Gas Per Hour
(Pressure drop of 0.5 Inch W.C.)
PIPE
LENGTH (FT)
NOMINAL SIZE, INCHES
3/4” 1” 1-1/4” 1-1/2” 2”
10 360 680 1400 2100 3950
20 250 465 950 1460 2750
30 200 375 770 1180 2200
40 170 320 660 990 1900
50 151 285 580 900 1680
60 138 260 530 810 1520
70 125 240 490 750 1400
80 118 220 460 690 1300
90 110 205 430 650 1220
100 103 195 400 620 1150
From the National Fuel Gas Code Part 10 Table 10-2
Maximum Capacity of Pipe in Thousands of
BTU/hr of Undiluted L.P. Gas at 11” W.C.
(Pressure drop of 0.5 Inch W.C.)
PIPE
LENGTH (FT)
OUTSIDE DIAMETER, INCHES
3/4” 1” 1-1/2”
10 608 1146 3525
20 418 788 2423
30 336 632 1946
40 287 541 1665
50 255 480 1476
60 231 435 1337
70 215 404 1241
80 198 372 1144
90 187 351 1079
100 175 330 1014
From the National Fuel Gas Code Part 10 Table 10-15
11
Installation
Gas Connection
PRESSURE REGULATION AND TESTING
DFG-100-ES ovens are rated at 45,000 BTU/Hr. (13.2
kW) (48 MJ) per section. DFG-200-ES ovens are rated at
50,000 BTU/Hr. (14.7 kW) (52 MJ) per section. Each oven
has been adjusted at the factory to operate with the type
of gas specied on the rating plate.
INLET PRESSURE
Natural Propane
Min Max Min Max
W.C. 7.0 10.5 11.0 13.0
kPa 1.742 2.61 2.74 3.23
MANIFOLD PRESSURE
Natural Propane
W.C. 3.5 10.0
kPa .87 2.49
• Inlet Pressure - the pressure of the gas before it
reaches the oven.
• Manifold Pressure - the pressure of the gas as it
enters the main burner(s).
• Min - the minimum pressure recommended to oper-
ate the oven.
• Max - the maximum pressure at which the manufac-
turer warrants the oven’s operation.
Each oven is supplied with a regulator to maintain the
proper gas pressure. The regulator is essential to the
proper operation of the oven and should not be removed.
It is preset to provide the oven with 3.5” W.C. (0.87 kPa)
for natural gas and 10.0” W.C. (2.50 kPa) for Propane at
the manifold.
DO NOT INSTALL AN ADDITIONAL REGULATOR
WHERE THE OVEN CONNECTS TO THE GAS SUPPLY
UNLESS THE INLET PRESSURE IS ABOVE MAXIMUM.
Prior to connecting the oven, gas lines should be thor-
oughly purged of all metal lings, shavings, pipe dope,
and other debris. After connection, the oven should be
checked for correct gas pressure.
The oven and its individual shuto valve must be discon-
nected from the gas supply piping system during any
pressure testing of that system at test pressures in ex-
cess of 1/2 psig (13.85” W.C., 3.45 kPa).
The oven must be isolated from the gas supply piping
system by closing its individual manual shuto valve dur-
ing any pressure testing of the gas piping system at test
pressures equal or less than 1/2 psig (13.85” W.C., 3.45
kPa).
Gas Connection 2.88” (73 mm)
Gas Connection
3” (76 mm) DFG-100-ES
3.375 (86 mm) DFG-200-ES
Figure 8
12
Installation
Gas Connection
GAS HOSE RESTRAINT
If the oven is mounted on casters, a commercial exible
connector with a minimum of 3/4” (1.9 cm) inside diam-
eter must be used along with a quick connect device.
The restraint, supplied with the oven, must be used to limit
the movement of the unit so that no strain is placed upon
the exible connector. With the restraint fully stretched the
connector should be easy to install and quick connect.
The restraint (ie: heavy gauge cable) should be 1,000 lb.
(453 kg) test load and should be attached without damag-
ing the building. DO NOT use the gas piping or electrical
conduit for the attachment of the permanent end of the
restraint! Use anchor bolts in concrete or cement block.
On wooden walls, drive hi test wood lag screws into the
studs of the wall.
1. Mount the supplied bracket to the leg bolt just below
the gas inlet.
2. Attach the clip on restraining cable to the mounting
bracket.
Gas Hose Restraint Bracket
Double stacked
unit shown.
Use the same
procedure for
single units.
Figure 9
WARNING!!
If the restraint is disconnected for any rea-
son it must be reconnected when the oven is
returned to its original position.
U.S. and Canadian installations
The connector must comply with the Standard for Con-
nectors for Movable Gas Appliances, ANSI Z21.69 or
Connectors For Moveable Gas Appliances CAN/CGA-
6.16 and a quick disconnect device that complies with the
Standard for Quick-Disconnect Devices for Use With Gas
Fuel, ANSI Z21.41 or Quick Disconnect For Use With Gas
Fuel CAN 1-6.9. Adequate means must be provided to
limit the movement of the appliance without depending
on the connection and the quick disconnect device or its
associated piping.
General export installations
The restraint and quick connect must conform with Lo-
cal and National installation standards. Local installation
codes and/or requirements may vary. If you have any
questions regarding the proper installation and/or opera-
tion of your Blodgett oven, please contact your local dis-
tributor. If you do not have a local distributor, please call
the Blodgett Oven Company at 0011-802-658-6600.
13
Installation
Electrical Connection
Wiring diagrams are located in the control compartment
and on the back of the oven.
This oven is supplied for connection to 115 volt grounded
circuits. The electric motor, indicator lights and related
switches are connected through the 6’ electric supply cord
found at the rear of the oven.
WARNING!!
This appliance is equipped with three prong
grounding type plug for your protection
against shock hazard and should be plugged
directly into a properly grounded three prong
receptacle. DO NOT cut or remove the ground-
ing prong from this plug.
The Blodgett Oven Company cannot assume responsi-
bility for loss or damage suered as a result of improper
installation.
ELECTRICAL SPECIFICATIONS - DFG-100-ES AND DFG-200-ES
Hz Volts Phase Amps Electrical Connection
(minimum size)
60 115 1 8 Cord set provided
14
Installation
Initial Startup
The following is a check-list to be completed by qualied
technician prior to turning on the appliance for the rst
time.
1. Open the manual shut-o valve at the rear of the
oven.
2. Remove the control panel and combustion covers.
3. Verify the combination valve’s manual shut-o is in
the on position.
4. Turn the selector switch to Cook, and the thermostat
to 500ºF (260ºC).
The oven main burner lights, and the Oven Heating Light
comes on. With the main burner on, check the following.
1. Verify there are no gas leaks, by checking all gas con-
nections with a soapy water solution.
2. Verify that the inlet pressure is correct. The inlet pres-
sure can be checked at the pressure tap located on
the combination valve’s inlet side.
3. Verify that the manifold pressure is correct. The mani-
fold pressure can be checked at the pressure tap lo-
cated on the combination valve’s outlet side.
4. If the above pressure readings are set to the recom-
mended pressure requirements, allow the oven to
burn-o for 2 hours. If the pressure readings are not
set correctly, turn o the oven and readjust accord-
ingly.
WARNING
The break in procedure burns o excess
oils present in the metals during fabrication.
Smoke may be produced. Proper ventilation is
required.
Adjustments associated with initial installation
Each oven, and its component parts, have been thorough-
ly tested and inspected prior to shipment. However, it is
often necessary to further test or adjust the oven as part
of a normal and proper installation. These adjustments
are the responsibility of the installer, or dealer. Since
these adjustments are not considered defects in mate-
rial or workmanship, they are not covered by the Original
Equipment Warranty. They include, but are not limited to:
• calibration of the thermostat
• adjustment of the doors
• burner adjustments
• leveling
• testing of gas pressure
• tightening of fasteners.
No installation should be considered complete without
proper inspection, and if necessary, adjustment by quali-
ed installation or service personnel.
15
Operation
Safety Information
The information contained in this section is provided for
the use of qualied operating personnel. Qualied operat-
ing personnel are those who have carefully read the in-
formation contained in this manual, are familiar with the
functions of the oven and/or have had previous experi-
ence with the operation of the equipment described. Ad-
herence to the procedures recommended herein will as-
sure the achievement of optimum performance and long,
trouble-free service.
Please take the time to read the following safety and op-
erating instructions. They are the key to the successful
operation of your Blodgett oven.
SAFETY TIPS
For your safety read before operating
What to do if you smell gas:
• DO NOT try to light any appliance.
• DO NOT touch any electrical switches.
• Use an exterior phone to call your gas supplier im-
mediately.
• If you cannot reach your gas supplier, call the re
department.
What to do in the event of a power failure:
• Turn all switches to o.
• DO NOT attempt to operate the oven until the power
is restored.
NOTE: In the event of a shut-down of any kind, allow a
ve (5) minute shut o period before attempting to
restart the oven.
General safety tips:
• DO NOT use tools to turn o the gas control. If the
gas cannot be turned o manually do not try to re-
pair it. Call a qualied service technician.
• If the oven needs to be moved for any reason, the
gas must be turned o and disconnected from the
unit before removing the restraint cable. Reconnect
the restraint after the oven has been returned to its
original location.
• DO NOT remove the control panel cover unless the
oven is unplugged.
16
Operation
SSD - Solid State Digital Control
CONTROL DESCRIPTION
1. SELECTOR SWITCH - turns power to the oven on
or o. Allows selection of Cook or Cool Down Modes
and fan speed (if applicable).
2. BLOWER SWITCH - controls blower speed, either hi
or lo.
3. LIGHTS SWITCH - controls interior lights.
4. DISPLAY - displays time or temperature and other in-
formation related to oven function.
5. HEAT LAMP - lights when heater is on.
6. PULSE LAMP - lights when Pulsed Fan Mode is
turned on.
7. HOLD LAMP - lights when Hold Mode is turned on.
8. DIAL - used to enter set points in display
9. START/STOP KEY - starts or stops the timer.
10. TIME KEY - used to show time in the display.
11. TEMP KEY - used to show set temperature in the dis-
play.
NOTE: Actual temperature is shown while the TEMP
key is held down.
12. HOLD KEY - turns Hold Mode on or o.
13. PULSE KEY - turns Pulse Mode on or o.
PROGRAMMING
To set the cook temperature:
1. Press TEMP (11) key.
2. Rotate dial (8) to enter temperature.
To set the cook time:
1. Press TIME (10) key.
2. Rotate the dial (8) to enter time.
NOTE: Time is entered in hours : minutes or minutes
: seconds.
To set the hold time:
1. Press HOLD key (12) to turn hold mode on.
NOTE: HOLD light is on.
2. Rotate dial (8) to enter the hold temperature.
3. Press START/STOP key (9)
1
3
4
5
10
9
12
2
6
7
8
11
13
Figure 10
17
Operation
SSD - Solid State Digital Control
TO SET THE PULSE TIME:
1. Press PULSE KEY (13) to turn pulse mode on.
NOTE: Pulse light is on.
2. Rotate DIAL (8) to enter the pulse time. Pulse time is
a portion of the pre-set cook time.
OPERATION
Cook Only:
1. Turn the SELECTOR switch (1) to the desired posi-
tion.
2. Enter the cook time and temperature.
3. Load product into the oven.
NOTE: The display reads LOAD when the oven is
near the set temperature.
4. Press the START/STOP key (9). The timer begins to
count down.
5. When the cook timer reaches 00:00 the buzzer
sounds and the display reads DONE.
6. Press the START/STOP key (9) to silence the buzzer.
7. Remove the product.
Cook with Hold:
NOTE: HOLD light is on when hold mode is on and o
when hold mode is o.
1. Turn the SELECTOR switch (1) to the desired posi-
tion.
2. Enter the cook time and temperature.
3. Press the HOLD key (12). Enter the hold temperature.
4. Load product into the oven.
NOTE: The display reads LOAD when the oven is
near the set temperature.
5. Push the START/STOP (9) key. Timer begins to count
down.
6. When the cook timer reaches 00:00 the buzzer sounds
and the display reads DONE. The buzzer turns o af-
ter a few seconds. The display reads HOLD until the
oven reaches the hold temperature. Then the timer
begins to count up.
7. Push the START/STOP key (9) to stop timer.
8. Remove the product.
9. Push HOLD (12) key to turn o hold mode.
Cook with Pulse:
NOTE: PULSE light is on when pulse mode is on and o
when pulse mode is o.
1. Turn the SELECTOR SWITCH (1) to the desired posi-
tion.
2. Enter cook time and cook temperature.
3. Press PULSE KEY (13). Enter the pulse time.
NOTE: Pulse time is a portion of the cook time and
does not increase the previously entered
cook time.
4. Load product into the oven.
NOTE: The display reads LOAD when the oven is
near the set temperature.
5. Push START/STOP KEY (9). The timer begins to
count down the cook time. The oven will be in pulse
mode for the set pulse time. Once the set time has ex-
pired, the unit will automatically switch to cook mode
and continue counting down.
6. When the cook timer reaches 00:00 the buzzer
sounds and the display reads DONE.
7. Push the START/STOP KEY (9) to turn the buzzer o.
8. Remove the product.
WARNING!!
A complete ve minute shutdown must be
observed before the oven is relighted.
18
Operation
SSI-D Innite Control w/Digital Timer
CONTROL DESCRIPTION
1. SELECTOR SWITCH - controls power to the oven for
cook or cool down.
2. BLOWER SWITCH - controls blower speed, either hi
or lo.
3. LIGHTS SWITCH - controls interior lights.
4. HEATING LIGHT - when lit indicates burner opera-
tion. When the light goes out the oven has reached
operating temperature.
5. SOLID STATE THERMOSTAT - allows an innite se-
lection of temperatures from 150-500°F (66-260°C).
6. DISPLAY - displays cook time
7. TIMER DIAL - used to enter desired cook time
8. HEAT CUTOFF - used to turn gas on or o.
OPERATION
1. Turn the SELECTOR Switch (1) to COOK. The blower
and control compartment cooling fan operate and are
controlled automatically by the action of the doors.
The display reads 00:00.
2. Set BLOWER Switch (2) to the desired speed.
3. Set the SOLID STATE THERMOSTAT (5) to the de-
sired temperature.
4. Preheat until the HEATINGLIGHT (4) goes out.
5. Load product into the oven. Rotate the dial (7) to the
desired time. The timer will begin to countdown after
approximately 1 second.
6. When the buzzer sounds, remove the product from
the oven. Turn the TIMER dial (7) to silence the buzz-
er.
7. Turn the SELECTOR Switch (1) to OVEN OFF.
WARNING!!
A complete ve minute shutdown must be
observed before the oven is relighted.
1
3
4
2
5
6
7
8
Figure 11
19
Operation
SSI-M Innite Control w/Manual Timer
CONTROL DESCRIPTION
1. SELECTOR SWITCH - controls power to the oven for
cook or cool down.
2. BLOWER SWITCH - controls blower speed, either hi
or lo.
3. LIGHTS SWITCH - controls interior lights.
4. HEATING LIGHT - when lit indicates burner opera-
tion. When the light goes out the oven has reached
operating temperature.
5. SOLID STATE THERMOSTAT - allows either 8 pre-
set temperatures to be selected in accordance with
customer requirements, or an innite selection of
temperatures from 200-500°F (95-260°C). (innite
control shown)
6. TIMER - activates an electric buzzer that sounds
when the cook time expires.
OPERATION
1. Turn the SELECTOR Switch (1) to COOK. The blower
and control compartment cooling fan operate and are
controlled automatically by the action of the doors.
2. Set BLOWER Switch (2) to the desired speed.
3. Set the SOLID STATE THERMOSTAT (5) to the de-
sired setting or temperature.
4. Preheat until the HEATING LIGHT (4) goes out.
5. Load product into the oven. Determine cook time and
set the TIMER (6).
6. When the buzzer sounds, remove the product from
the oven. Turn the TIMER knob (6) to OFF to silence
the buzzer.
7. Turn the SELECTOR Switch (1) to OVEN OFF.
WARNING!!
A complete ve minute shutdown must be
observed before the oven is relighted.
1
3
4
2
5
6
Figure 12
20
Operation
Simple Touch Control
COMPONENT DESCRIPTION
1. TOUCHSCREEN - Interactive display for oven func-
tioning and/or programming.
2. USB Port - Use to transfer recipes and data to/from
the control.
3. HEAT CUTOFF - Used to turn heat source o.
4. CIRCUIT BREAKER – Provides circuit protection for
the oven controls. DO NOT use as a power switch.
5. CONTROL KNOB - Used to change values for time,
temperature, humidity, etc.
Figure 13
1
5
2
4
3
21
Operation
MANUAL MODE COOKING
1. Press POWER to turn on the oven.
2. Press MANUAL to proceed to the manual cook
screen.
Power
Figure 14
Simple Touch Control
22
Operation
Simple Touch Control
MANUAL COOK SCREEN
Actual Temp – Press thermometer to display the actual
cavity temperature.
Temperature Bar - Press the TEMPERTURE BAR and
use the control dial to set the desired oven temperature.
For temperature ranges from minimum to 215°F, the
temperature may be set in 1° increments as the knob is
turned.
For temperature above 215°F, the temperature may be
set in 5° increments.
Press the check mark to save the selection. Press the X
to cancel editing without altering current set point value.
Cook Timer - Press the TIMER STATUS BAR and enter
the desired cook time using the control dial.
Times greater than 1 hour can be set in 5 minute incre-
ments. Times less than 1 hour can be set in 5 second
increments.
Press the check mark to save the selection. Press the X
to cancel editing without altering current set point value.
Add a Minute - Press +1 MIN to add 1 minute of time at
any point during the cook cycle.
Light Activation - Press the LIGHT icon turn the cavity
lights on. The icon will change when activated. The lights
will remain on until the icon is pressed again by the user
OR the timeout period is reached. The default timeout pe-
riod is 5 minutes.
Fan Speed Bar - Press the FAN SPEED BAR to cycle
through the available fan speeds.
Advanced Functions – Press the ADV. FUN icon to ac-
cess the Fan Pulse, Fan Delay and Cook and Hold func-
tions.
Figure 15
Back
Actual
Temperature
Fan
Timer
Advanced
Functions
Start Timer
Stop Timer
Add a Minute
Light
Temperature Bar
Fan Speed Bar
Timer Status Bar
23
Operation
Simple Touch Control

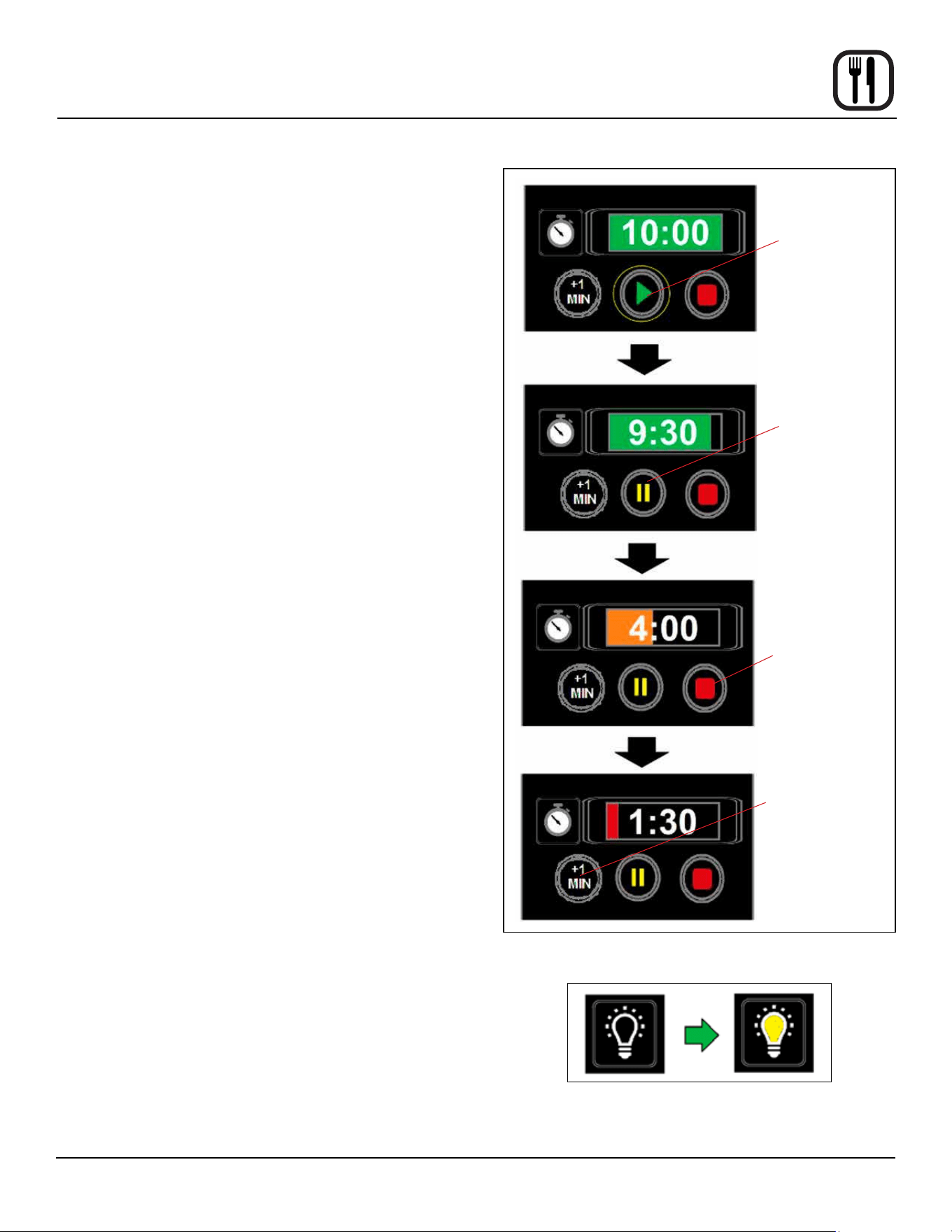

TO OPERATE TIMER
1. Press PLAY to initiate timer. The timer counts down,.
The play button changes to pause.
Press the PAUSE button to stop the timer at current
value. The pause button changes back to play. Press
play to resume timer.
Presst the STOP key to clear the timer.
The +1 MIN key may be selected at any time to add
an additional minute to the current timer.
Timer Status Bar
The color of the timer bar represents a percentage of
original set time.
• GREEN: 50-100% of the time remains
• ORANGE: 25-49% of the time remains
• RED: 0-24% is indicated by Red
2. When the timer reaches zero, an audible alarm is trig-
gered.
NOTE: The timer stops when the door is opened and
resumes when the door is closed.
LIGHT ACTIVATION
Press the LIGHT key to turn on the cavity lights. The icon
turns yellow when activated. The key/relay will remain ac-
tive until pressed again OR the 5 minute default timeout
period is reached.
Play
Pause
Stop
Add a minute
Figure 16
Figure 17
24

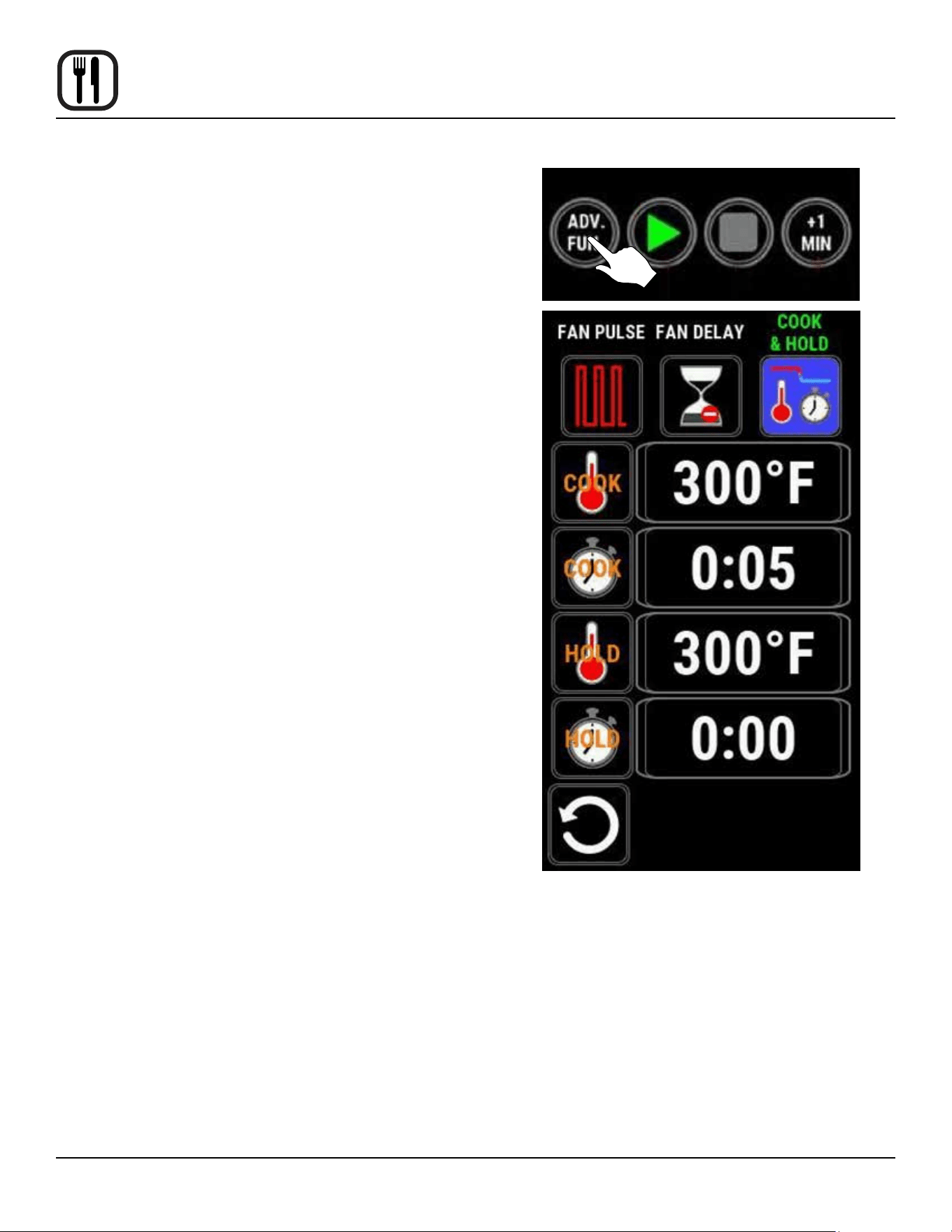

Operation
Simple Touch Control
ADVANCED FUNCTIONS
Cook & Hold
The intent of Cook & Hold is to keep the product at a food
safe temperature while not overcooking. Once the cook
cycle is complete, the oven autmatically switches to the
hold time and temperature.
1. From the MANUAL COOK SCREEN, press the ADV.
FUN icon.
2. Press the COOK & HOLD key. Four settings bars ap-
pear: cook temp, cook time, hold temp and hold time.
3. Use the keypad to enter desired cook and hold time
and temperature settings.
4. Press the BACK key to return to the manual cook
screen.
• The C & H icon will replace the timer icon.
• The timer bar will show the cumulative time of
the cook and hold. The cook time will be shad-
ed.
• If the current set point diers from the Cook &
Hold set point, it will change upon returning to
the manual operation screen.
• Press play to initiate Cook & Hold.
5. When the recipe is complete, the oven will maintain
the Hold Temp until a new set temperature has been
dened.
Figure 18
25
Operation
Simple Touch Control
Fan Pulse
1. From the MANUAL COOK SCREEN, press the ADV.
FUN icon.
2. Press the FAN PULSE key.
The unit will cycle the fan on and o at the estab-
lished fan speed over an established pulse duration.
The default setting for the fan pulse duration is 30
seconds on / 30 seconds o.
NOTE: When using fan pulse the oven will only be
able to heat when fan is operating at set
speed.
3. Standard operation resumes when the fan pulse du-
ration has elapsed.
Figure 19
Fan Delay
This feature delays the set fan speed to reduce pulling
liquid batters at the beginning of the bake cycle. The fan
resumes the set speed after the delay time has expired.
1. From the MANUAL COOK SCREEN, press the ADV.
FUN icon.
2. Press the FAN DELAY key.
NOTE: When using fan delay the oven will only be
able to heat when fan is operating at set
speed.
3. Standard operation resumes when the fan delay du-
ration has elapsed.
Figure 20
26
Operation
Simple Touch Control

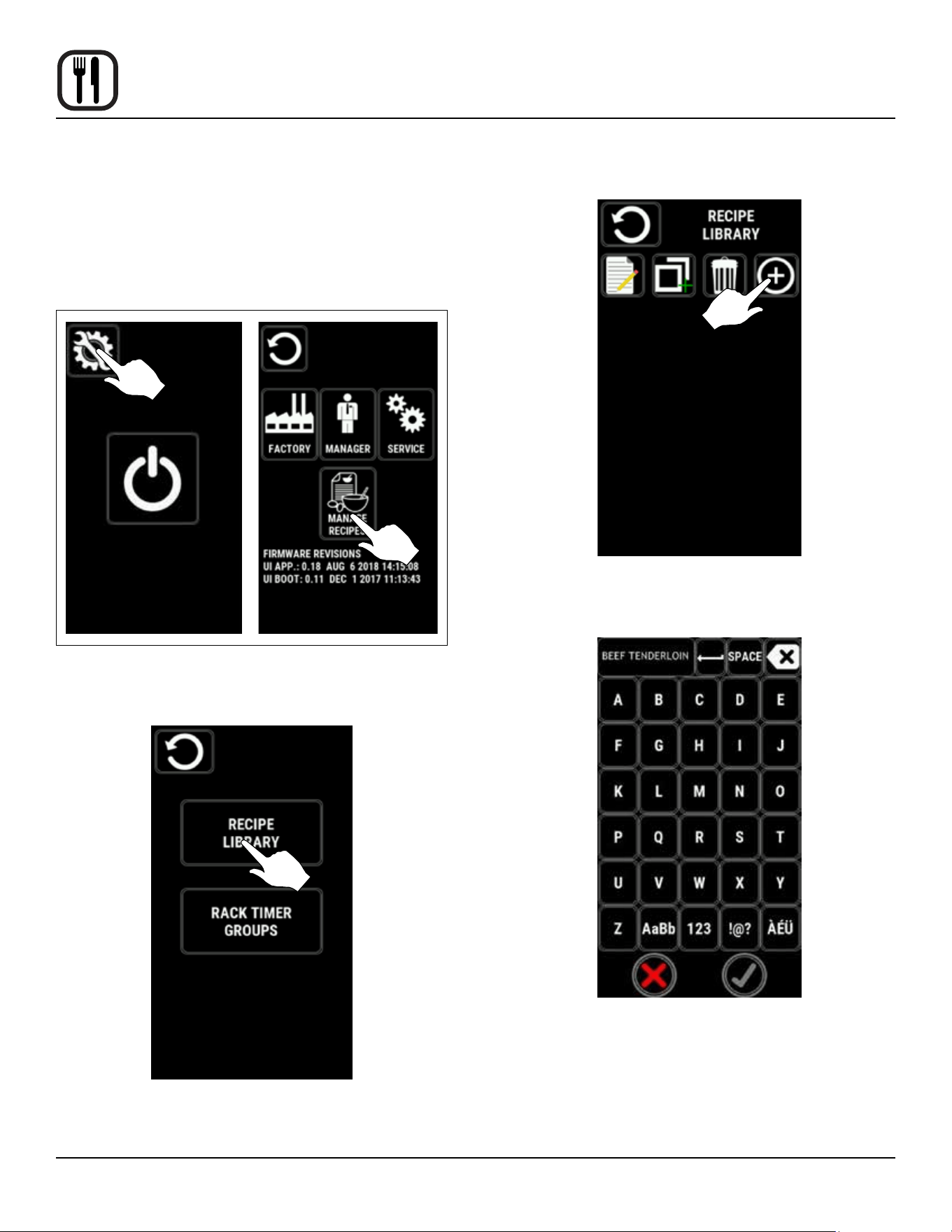

MENU MODE
Create a New Recipe
1. Press the service key icon, and then select the MAN-
AGE RECIPES icon.
NOTE: In the event of a lockout from MANAGE RE-
CIPIES use passcode 6368.
Figure 21
2. Select the Recipe Library icon.
Figure 22
3. Select the ADD icon to add a new recipe
Figure 23
4. Name the recipe then press the green check mark.
Figure 24
27
Operation
Simple Touch Control
5. To enter the settings for the rst cooking step, select
the icon of the variable you wish to edit.
The icon of the selected variable will highlight in blue
and the value in the currently selected stage will high-
light in yellow.
a. Use the knob to adjust the value.
b. Select the green check mark to conrm the se-
lection.
6. Press the + to add a step. Press the X to delete the
selected step. Use the knob to scroll through recipe
stages.
7. Select the disk icon to save the settings, and return
to library menu.
Set Stage
Temp
Set Stage
Time
Add
Step
Delete
Step
Save
Figure 25
Fan Pulse & Delay
Fan Speed
Recipe Stages
Current Stage
Selected Variable
Figure 26
8. To edit, copy or delete a recipe select the appropriate
the icon called out below.
Edit
Copy
Delete
Figure 27
28
Operation
Simple Touch Control

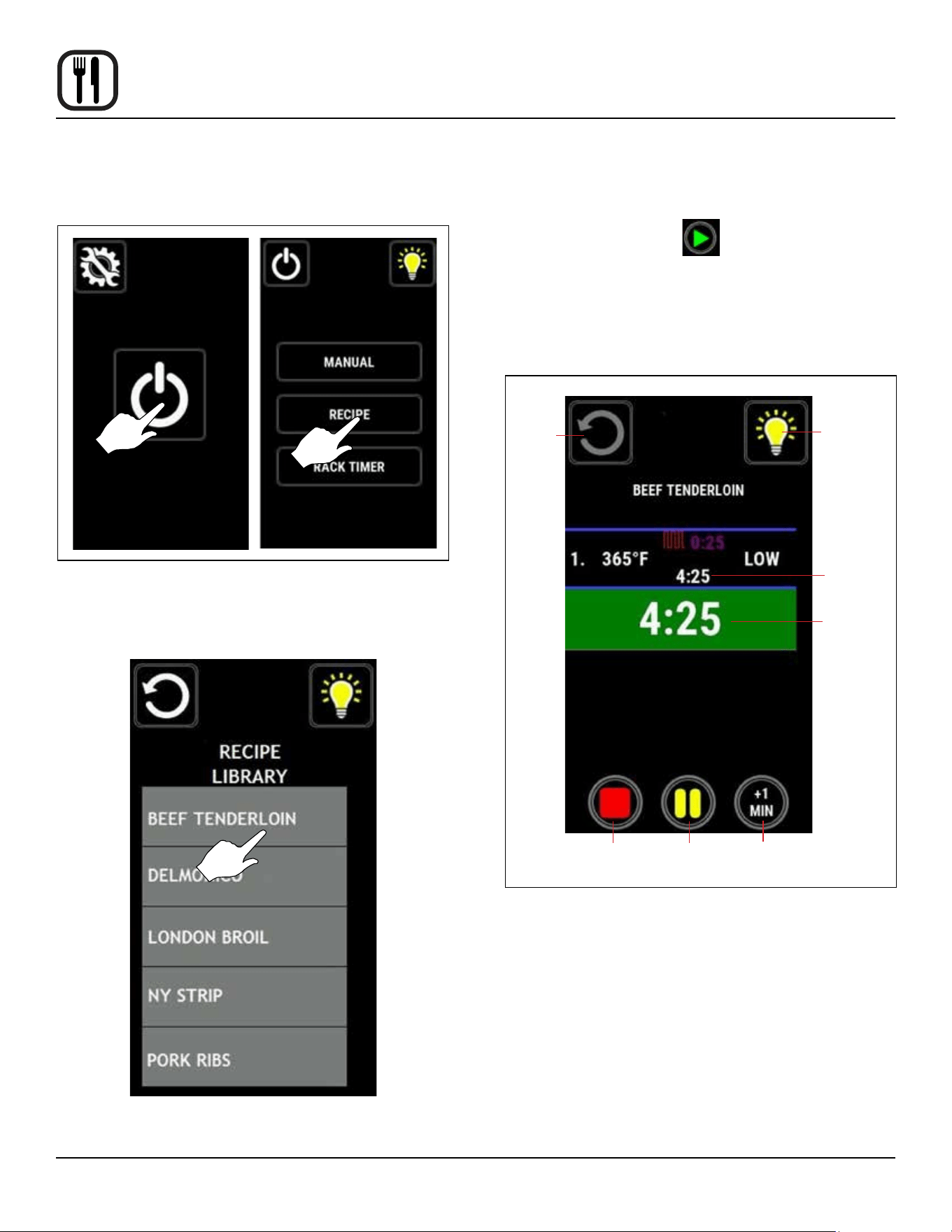

MENU MODE COOKING
1. Press the power key then select the RECIPE icon.
Figure 28
2. Use the knob to scroll through the listed recipes. Se-
lect the desired recipe.
Figure 29
3. The control enters the Menu Cooking screen. Press
the START ICON to begin the cook cycle.
NOTE: If lockout is enabled START will not be se-
lectable until the oven has reached the pro-
grammed set temperature.
NOTE: The settings between the blue lines indicate
the current stage.
Back
Lights
Stage time
remaining
Total time
remaining
Stop
Pause Add a
Minute
Figure 30
4. Add a Minute, pause and stop can be accessed at
any time.
5. When the cook time has expired, the display ashes
DONE and the alarm sounds. Press STOP to silence
the alarm. The control returns to the recipe cook
screen.
6. Press BACK to exit out of MENU mode.
29
Operation
Simple Touch Control

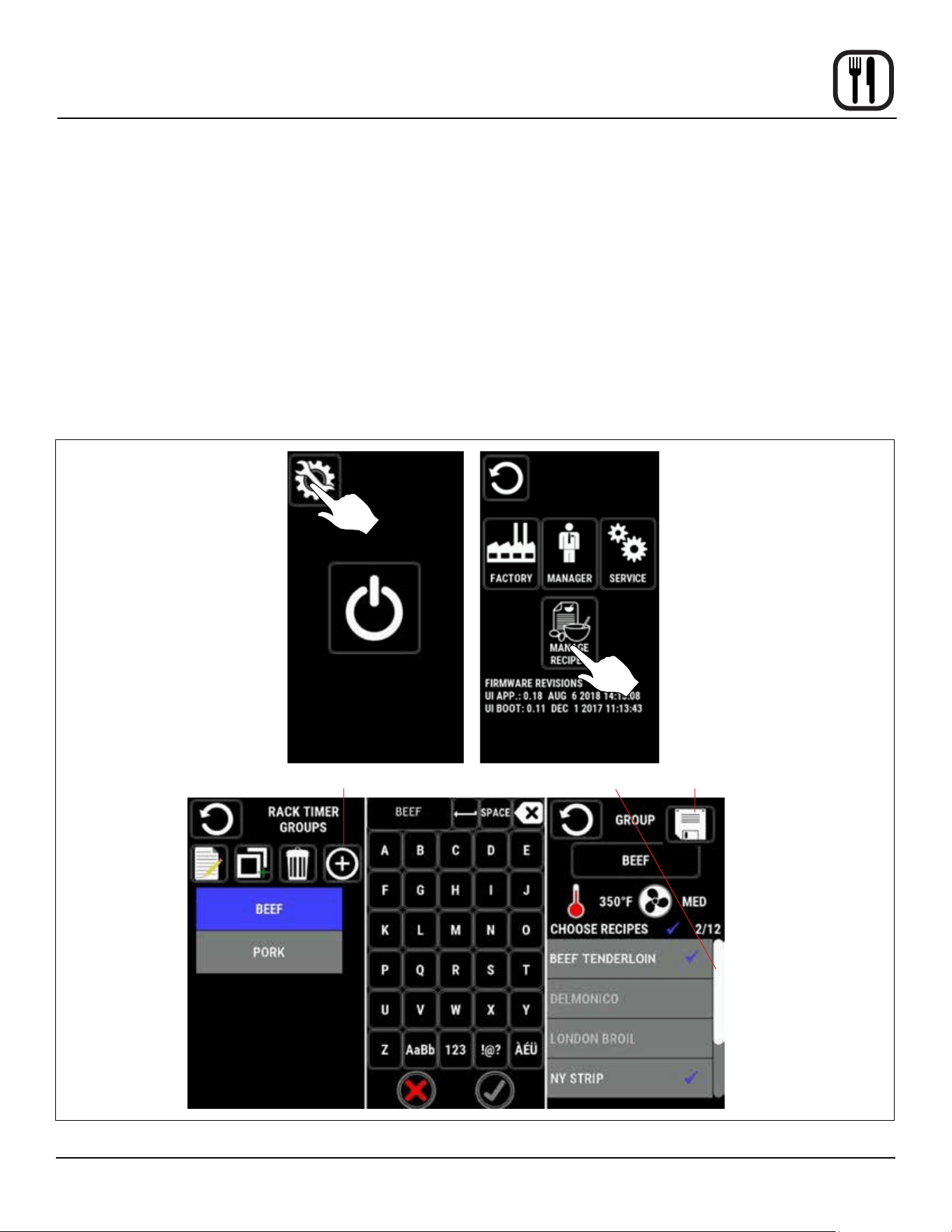

RACK TIMING
Creating a Rack Timing Group
1. Press the service key icon, and then select the MAN-
AGE RECIPES icon.
NOTE: In the event of a lockout from MANAGE RE-
CIPIES use passcode 6368.
2. Select RACK TIMER GROUPS. The RACK TIMER
GROUPS screen is displayed.
3. Select ADD.
4. Use the keypad to name the group. Select the green
check mark to save the name.
5. Select the recipes you would like to place in the group.
The rst selected recipe will dene the group param-
eters. Clicking a non-greyed recipe will associate it
with the group. Only recipes with parameters match-
ing the group may be selected. Recipes with pram-
eters that fall outside group settings or have multiple
stages will be greyed. Recipes associated to the
group will have a check mark. Up to 12 recipes can
be grouped.
6. Once you have nished selecting the recipes desired
for your group, press save.
Add
Scroll Bar
Save
30
Operation
Simple Touch Control

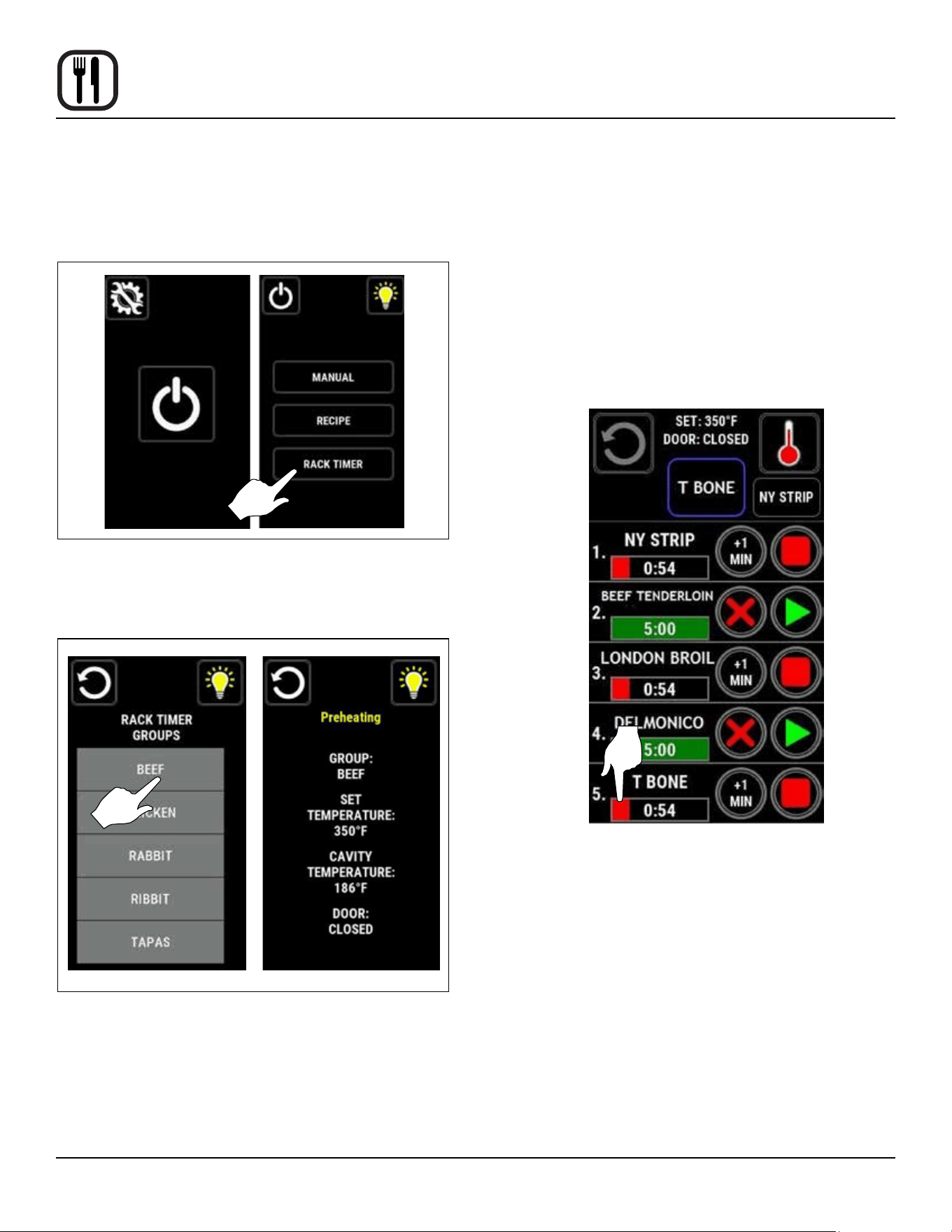

RACKTIMER COOKING
1. From the mode selection screen, select RACK TIM-
ING. The RACK TIMER GROUPS screen is dis-
played.
Figure 31
2. Select the desired recipe group. The preheat screen
appears.
Figure 32
3. When the oven has preheated to the group set temp,
the display changes to the RACK TIMING cook
screen.
4. Turn the knob to cycle through the group recipes (left
and right). The currently selected recipe is in high-
lighted in blue. The next available recipe in either di-
rection is previewed in smaller recipe boxes to either
side.
5. Select the area to the right of the rack number to as-
sign currently highlighted recipe to that rack.
Start and cancel keys are to the right of timer bar
when timer is inactive.
+1 min and stop keys are to the right of timer bar
when timer is active or done.
Figure 33
31
Operation
Simple Touch Control
TO STORE AND LOAD MENU DATA TO A USB
NOTE: The following procedure may be used to store
any type of data to a USB including HACCP, set-
tings and fault logs.
NOTE: Importing - you will be given the option to select
the desired recipe le on the USB drive. Once a
recipe set has been selected you will be given
the option to overwrite the existing recipe le with
those on the USB or append them to the current
recipe library.
Exporting – you will be prompted to name the
recipe library being exported.

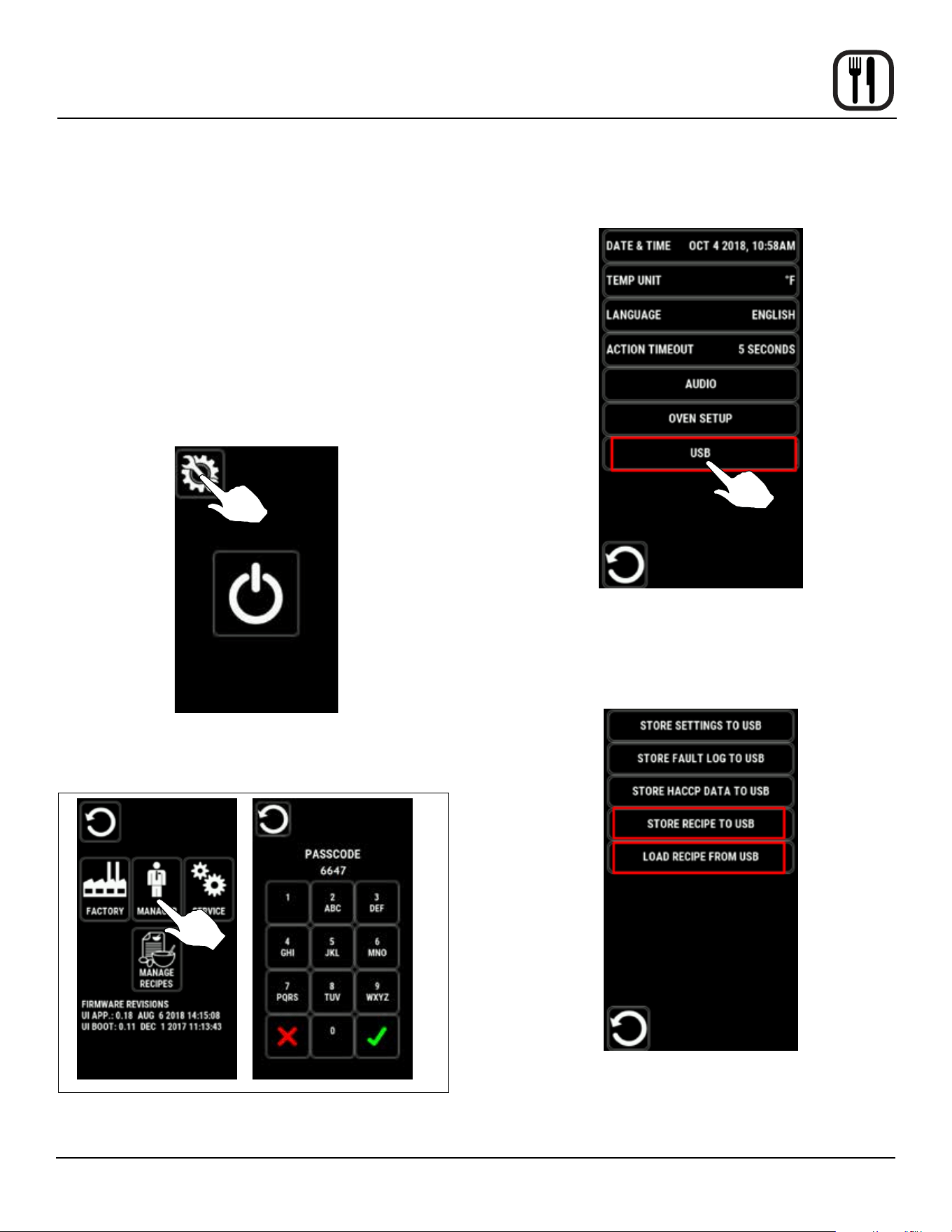

1. Press the SERVICE KEY.
Figure 34
2. Press the manager icon and enter passcode 6647.
Figure 35
3. Select USB from the menu.
NOTE: The USB drive must be in the port.
Figure 36
4. Select LOAD RECIPE FROM USB or STORE RECI-
PE TO USB, depending on the action you would like
to complete.
Figure 37
32
Operation
Simple Touch Control
5. To load a recipe from the USB, select LOAD RECIPE
FROM USB. Select the recipe le desired for down-
load. The recipe le will highlight in blue when select-
ed. When the selection is complete, press the green
checkmark icon.
Figure 38
6. To store recipe(s) to the USB, select STORE RECIPE
TO USB. If desired, select the RACK TIMER groups
you wish to export, when selected they will have a
blue check mark. Then select CONTINUE TO RECI-
PES.
Figure 39
7. Select the recipe(s) desired for download. When se-
lected, the recipe(s) will have a blue checkmark next
to it. When selection(s) are complete, press the SAVE
TO USB icon.
Figure 40
8. Create a name for the recipe le. When complete,
press the green checkmark icon.
Figure 41
33

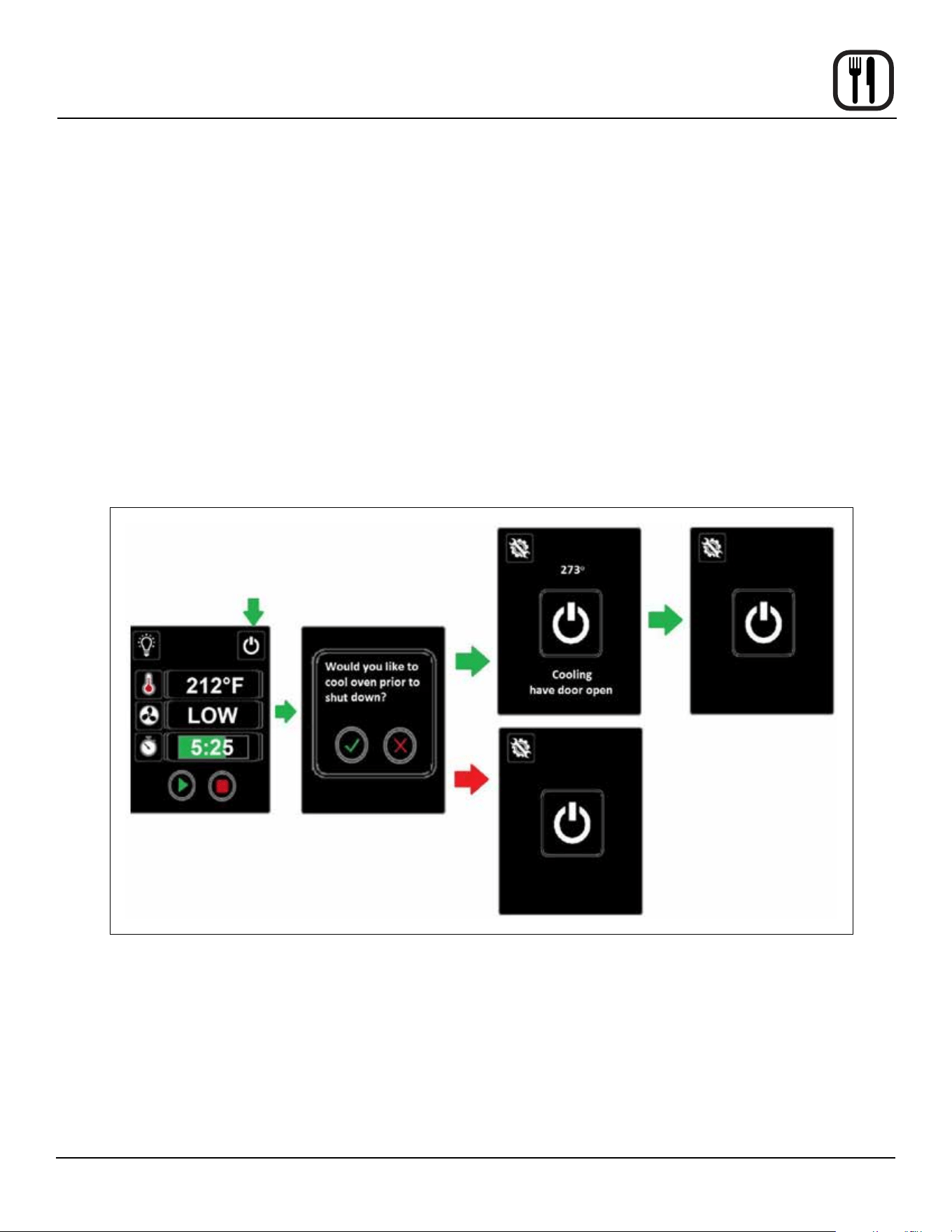

Operation
Simple Touch Control
COOL DOWN
1. Press the POWER KEY. The display will ask if you
would like to cool down prior to shut down.
If the green check mark is selected - the display
changes to a power screen with a prompt to have the
door open. The control also displays the current cav-
ity temperature.
The fan runs in high speed. When the cool down tem-
perature is reached an alarm sounds and the cavity
temperature an door message are removed. All func-
tions will cease as in standard shut down.
If the red X is selected - the display immediately
returns to the standard power screen and all func-
tions cease.
Figure 42
34
Operation
How Cook & Hold Works
With the optional COOK & HOLD feature, meat is roasted
at lower temperatures for longer periods of time. This pre-
serves avor and tenderness and prevents over drying.
There are three phases in cook and hold roasting.
• Primary Cooking - controlled by the COOK & HOLD
TIMER. The meat is cooked at a low temperature
until approximately 2/3 done.
• Cooking from Stored Heat - when the primary cook
time expires, the oven automatically switches to
HOLD. The product continues to cook from the heat
stored in the oven. Meat must remain in the hold
cycle for a minimum of 1-1/2 to 2 hours before being
served.
• Hold - holds the product for several hours before
serving without loss of moisture or tenderness.
All meat should be completely thawed by refrigeration. Us-
ing frozen meat increases the cook time causing shrink-
age.
Temperature (°F)
Time (hours)
Oven Temp
Oven switches from cook to hold
Stored heat
Product may be
held up to 16 hours
Product may be
removed and served.
Meat Temp
Figure 43
PRODUCT
COOK
TEMP.
HOLD TEMP. QUANTITY
COOK TIME
(HRS)
MIN. HOLD
TIME (HRS)
TOTAL TIME
(HRS)
Prime rib, bone cap o
14-18 lbs. (6.4-8.1 kg)
200°F
93°C
140°F
60°C
1
3
6
3
3-1/4
3-1/2
1
1-1/2
2
4
4-3/4
5-1/2
Prime rib, bone cap on
14-18 lbs. (6.4-8.1 kg)
200°F
93°C
140°F
60°C
1
3
6
3-1/2
4
4-1/2
1
1-1/2
2
4-1/2
5-1/2
6-1/2
Top or bottom rounds
20-22 lbs. (9.1-10.0 kg)
200°F
93°C
140°F
60°C
1
3
6
3-1/2
4
4-1/2
1
1-1/2
2
4-1/2
5-1/2
6-1/2
Pork roast or ham
10-12 lbs. (4.5-5.4 kg)
250°F
121°C
170°F
76°C
2
4
6
4
4-1/4
4-1/2
1
1-1/2
2
5
5-3/4
6-1/2
Turkey
20-22 lbs. (9.1-10.0 kg)
250°F
121°C
170°F
76°C
1
6
3-1/4
4
1
1-1/2
4-3/4
5-1/2
Leg of Lamb, bone in
8-10 lbs. (4.36-4.5 kg)
225°F
107°C
160°F
71°C
2
4
6
2-1/2
2-3/4
3
1
1-1/2
2
3-1/2
4-1/4
5
35
Operation
General Guidelines for Operating Personnel
COOK TIMES AND TEMPERATURES
Preheating the oven
Always preheat the oven before baking or roasting. We
recommend preheating 50°F (28°C) above the cook tem-
perature to oset the drop in temperature when the doors
are opened and cold product is loaded into the oven. Set
the thermostat to the cook temperature after the product
is loaded.
NOTE: For frozen product, preheat the oven 100°F
(56°C) above the cook temperature.
Cook Temperatures
Generally, cook temperatures should be 50°F (28°C) low-
er than deck or range oven recipes. If the edges of the
product are done but the center is raw, or if there is color
variation, reduce the thermostat setting another 15-25°F
(10-15°C). Continue to reduce the cook temperature on
successive loads until the desired results are achieved.
NOTE: Cooking at excessive temperatures will not re-
duce cook time, it will produce unsatisfactory bak-
ing and roasting results.
Cook Time
Check the product in about half the time recommended
for deck or range oven recipes. Record times and tem-
peratures which provide best results for future reference.
NOTE: Cook time will vary with the amount of product
loaded, the type of pan and the temperature.
OPERATING TIPS
Pans and Racks
Product or pan height determines how many racks are
used. The oven holds up to ten 18” x 26” (45.7 x 66.0 cm)
bun pans.
Load the oven from the bottom, centering the pans on the
rack. Never place a pan or aluminum foil on the bottom
of the oven. This obstructs the ow of air and results in
uneven baking and roasting.
Roasting
To reduce shrinkage when roasting, place meat directly on
the racks. Place a sheet pan one-half full of water in the
bottom rack position. The water evaporates, increasing
humidity in the oven chamber. The pan catches grease
from the meat, making oven cleaning easier.
Baking
Weigh the product to ensure equal distribution in each
pan. Varying amounts of product will cause uneven bak-
ing results.
Fans
The fan must be operating for the oven to heat. Use the
Pulse Plus feature to allow light or liquid product to set
in the pan and to avoid rippling towards the fan. If your
oven is not equipped with this feature use the following
procedure.
1. Preheat the oven 25°F (15°C) above the baking tem-
perature.
2. Load the oven with product. Close the doors.
3. Set the thermostat to the baking temperature.
4. Turn the oven o.
5. Allow the product to set for 5-7 minutes with the fan
o. The residual heat in the oven sets the product.
6. Turn the oven on for the remainder of the bake.
Lights
Turn the oven lights o when not viewing the product.
Leaving the lights on for extended periods of time short-
ens the bulb life considerably.
36
Operation
Suggested Times and Temperatures
PRODUCT TEMPERATURE TIME # SHELVES
Meats
Hamburger Patties (5 per lb)
Steamship Round (80 lb. quartered)
Standing Rib Choice (20 lbs, trimmed, rare)
Banquet Shell Steaks (10 oz. meat)
Swiss Steak after Braising
Baked Stued Pork Chop
Boned Veal Roast (15 lbs.)
Lamb Chops (small loin)
Bacon (on racks in 18” x 26” pans)
400°F (205°C)
275°F (135°C)
235°F (115°C)
450°F (235°C)
275°F (135°C)
375°F (190°C)
300°F (150°C)
400°F (205°C)
400°F (205°C)
8-10 mins.
2 hrs 45 mins.
2 hrs 45 mins.
7-8 mins.
1 hr.
25-30 mins.
3 hrs. 10 mins.
7-8 mins.
5-7 mins.
10
2
2
5
5
5
2
5
10
Poultry
Chicken Breast & Thigh
Chicken Back & Wing
Chicken (21/2 lbs. quartered)
Turkey Rolled (18 lb. rolls)
350°F (175°C)
350°F (175°C)
350°F (175°C)
310°F (155°C)
40 mins.
35 mins.
30 mins.
3 hrs 45 mins.
5
5
5
3
Fish and Seafood
Halibut Steaks, Cod Fish (frozen 5 oz)
Baked Stued Lobster (21/2 lb.)
Lobster Tails (frozen)
350°F (175°C)
400°F (205°C)
425°F (220°C)
20 mins.
10 mins.
9 mins.
5
3
5
Cheese
Macaroni & Cheese Casserole
Melted Cheese Sandwiches
350°F (175°C)
400°F (205°C)
30 mins.
8 mins.
5
10
Potatoes
Idaho Potatoes (120 ct.)
Oven Roasted Potatoes (sliced or diced)
400°F (205°C)
325°F (165°C)
50 mins.
10 mins.
5
5
Baked Goods
Frozen Berry Pies (22 oz)
Fresh Apple Pie (20 oz.)
Pumpkin Pies (32 oz.)
Fruit Crisp
Bread (24 - 1 lb. loaves)
Southern Corn Bread
Baking Soda Biscuits
Brown & Serve Rolls
Sheet Cakes (5 lb. mixed batter per pan)
Chocolate Cake
Brownies
325°F (150°C)
350°F (175°C)
300°F (150°C)
300°F (150°C)
325°F (155°C)
375°F (190°C)
400°F (205°C)
350°F (175°C)
325°F (160°C)
325°F (160°C)
325°F (150°C)
35 mins.
25-30 mins.
30-50 mins.
25 mins.
30 mins.
15-20 mins.
6 mins.
15 mins.
16-18 mins.
20 mins.
15 mins.
5 (30 pies)
5 (30 pies)
5 (20 pies)
5
3
5
5
5
5
5
5
NOTE: Actual times and temperatures may vary considerably from those shown above. They are aected by weight of
load, temperature of the product, recipe, type of pan and calibration of thermostat. Should your recipe vary, write
in your proven time and temperature for ready reference.
37

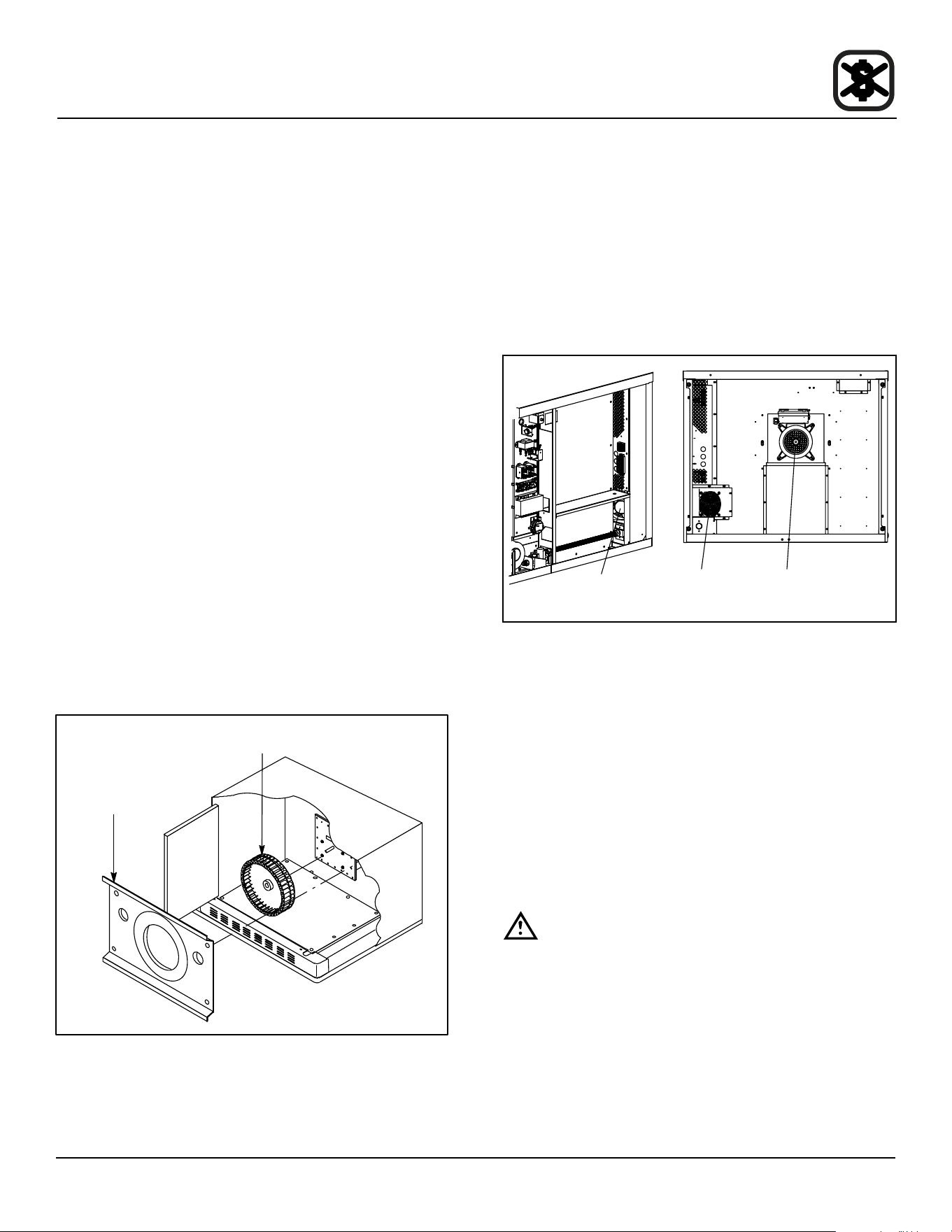

Maintenance
Cleaning and Preventative Maintenance
CLEANING THE OVEN
Painted and stainless steel ovens may be kept clean and
in good condition with a light oil.
1. Saturate a cloth, and wipe the oven when it is cold.
2. Dry the oven with a clean cloth.
On the stainless front or interiors, deposits of baked on
splatter may be removed with any non-toxic industrial
stainless steel cleaner. Heat tint and heavy discoloration
may be removed with any non-toxic commercial oven
cleaner.
1. Apply cleaners when the oven is cold. Always rub
with the grain of the metal.
The porcelain interior can be cleaned with any commer-
cial oven cleaner. Be sure caustic cleaning compounds
DO NOT come in contact with the blower wheel and the
aluminized steel panel directly behind it.
1. Remove the oven racks, the left and right side rack
supports, the blower wheel cover and blower wheel
from the oven.
2. Soak the parts in a solution of ammonia and water.
3. Reinstall after cleaning.
NOTE: If the oven is moved the restraint must be recon-
nected after the unit is returned to it’s regular po-
sition.
Blower
Wheel Cover
Blower Wheel
Figure 44
Weekly Cleaning
In addition to the daily cleaning it is necessary to clean
the air intakes, such as the blower motor, rear cooling fan
and fan guard on a weekly basis. Air intakes provide nec-
essary cooling air to the internal components. They are
generally located on the rear and sides of the equipment.
NOTE: If the oven is moved the restraint must be recon-
nected after the unit is returned to it’s regular po-
sition.
Cooling Fan
Cooling Fan
Guard
Blower
Motor
Figure 45
PREVENTATIVE MAINTENANCE
The best preventative maintenance measures are, the
proper installation of the equipment and a program for
routinely cleaning the ovens.
Annual Maintenance
This oven requires no lubrication, however, the venting
system should be checked annually for possible deterio-
ration resulting from moisture and corrosive ue products.
If maintenance or repairs are required, contact your local
Blodgett service company, a factory representative or the
Blodgett Oven company.
WARNING!!
Always disconnect the appliance from the
power supply before servicing or cleaning.
38
Maintenance
Troubleshooting Guide
POSSIBLE CAUSE(S) SUGGESTED REMEDY
SYMPTOM: Oven will not re.
• Gas turned o.
• Oven not plugged in.
• Power switch on the control panel is o.
• Control set below ambient temperature.
• Doors are open.
• Computerized controls - error code on display.
• Turn the gas valve to ON.
• Plug in electrical supply cord.
• Set the control panel to COOK or OVEN ON.
• Set to desired cook temperature.
• Close doors.
• *
SYMPTOM: Oven does not come to ready.
• The oven has not reached preheat temperature.
• Gas valve not turned on completely.
• The quick disconnect is not connected.
• Gas pressure to oven is too low.
• Fan delay feature may be activated, if applicable.
• Internal problem with main temperature control.
• Wait for oven to reach preheat temperature.
• Check the gas valve, turn on fully if necessary.
• Reconnect the quick connect. Check all gas connec-
tions.
• Call your local gas representative.
• Deactivate fan delay feature.
• *
SYMPTOM: Convection fan does not run.
• Oven is not plugged in.
• Oven is not set to the cook mode.
• Circuit breaker tripped.
• Fan delay feature may be activated, if applicable.
• Doors are open
• Plug in electrical supply cord.
• Set the control panel to COOK or OVEN ON.
• Reset the breaker.
• Deactivate fan delay feature.
• Close doors.
SYMPTOM: General baking problems.
• Computerized controls - incorrect product program-
ming.
• Thermostat out of calibration.
• Improper oven venting.
• Reprogram control per Operation section.
• *
• *
*Denotes remedy is a dicult operation and should be performed by qualied personnel only. It is recommended, how-
ever, that All repairs and/or adjustments be done by your local Blodgett service agency and not by the owner/operator.
Blodgett cannot assume responsibility for damage as a result of servicing done by unqualied personnel.
WARNING!!
Always disconnect the power supply before cleaning or servicing the oven.
