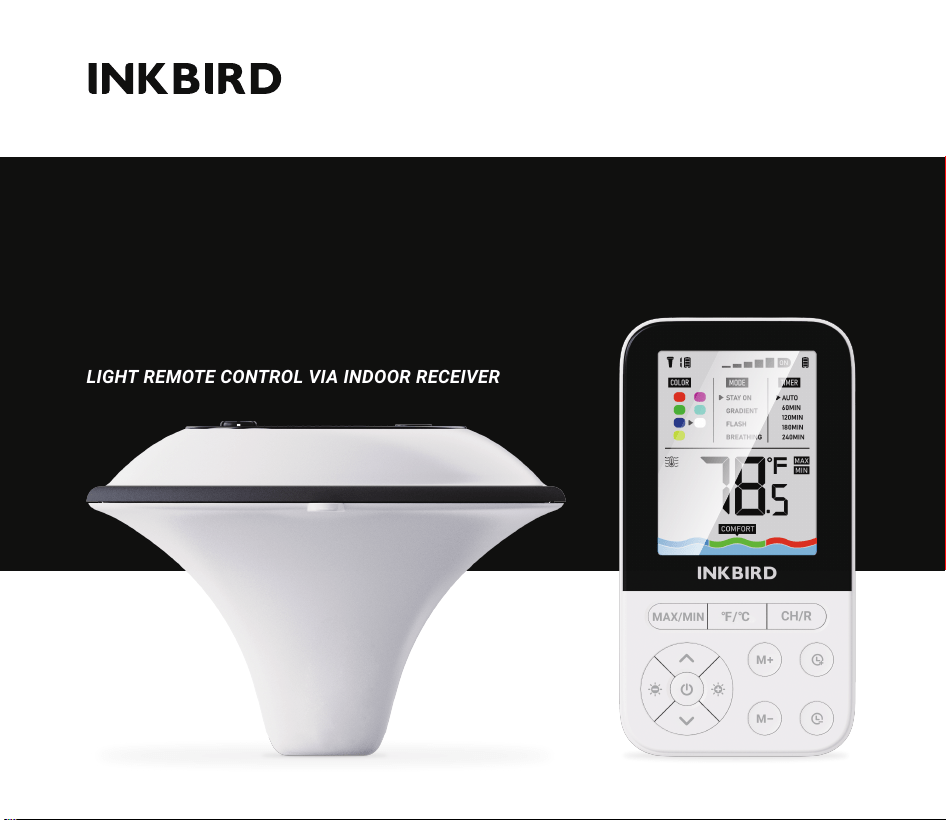

IBS-P05R
LIGHTREMOTECONTROLVIAINDOORRECEIVER
WIRELESS
POOL MONITOR
WITH AMBIENT LIGHT
Please keep this manual properly for reference. You can also scan the QR code to visit our official website for product
Wenn Sie eine Bedienungsanleitung in deutscher Sprache benötigen, scannen Sie bitte den QR-Code und besuchen Sie
unsere Website, um sie zu erhalten und ein Video über die Verwendung des Produkts zu sehen.
Se avete bisogno di un manuale di istruzioni in italiano, scansionate il codice QR e visitate il nostro sito web per
ottenerlo e vedere un video su come utilizzare il prodotto.
Si vous avez besoin d'un mode d'emploi en français, veuillez scanner le code QR pour visiter notre site officiel afin
d'obtenir et de visionner la vidéo d'utilisation du produit !
Als je een Nederlandstalige handleiding nodig hebt, scan dan de QR-code om naar onze officiële website te gaan en
bekijk de video over het gebruik van het product!
Si necesita el manual de instrucciones en español, escanee el código QR para ir a nuestro sitio web oficial y ver el vídeo
sobre cómo utilizar el producto.
Warm tips
To quickly jump to a specific chapter page, click on the
relevant text on the contents page.
You can also use the thumbnail or document outline in
the top left corner to quickly find a specific page.
01
01
Overview
The IBS-P05R is a portable pool equipment that integrates wireless pool temperature detection and mood
lighting. It is both environmentally friendly and economical as it absorbs sunlight and converts it into electricity
through the built-in solar panel. The thermometer provides real-time pool water temperature monitoring and
transmits the data to the indoor receiver, enabling remote access to water temperature information. The mood
light, which can be adjusted in brightness and color, enhances the ambiance for night swimming, offering
practical convenience and aesthetic appeal. The mood light is designed to support the automatic switch function,
which adjusts the light according to the external light intensity. This feature can be controlled remotely through
the indoor unit, allowing you to adjust the brightness and color mode. This enhances the overall enjoyment and
convenience of the swimming pool environment.
02
Preparation Before Using
Make sure the batteries of the indoor monitor are installed correctly and working properly.
Press the button on the pool thermometer to turn it on. After powering on, shortly press the button to
change the temperature unit to ℃ or ℉; press and hold the button for 5 seconds to turn off the thermometer.
We recommend that you place the pool thermometer in a location exposed to strong sunlight and use it
after the battery reaches 3 bars ( ). If you plan to use it in the sun for a long time, please ignore this step.
NOTE: When the battery of the pool thermometer is too low to support the mood light, the pool thermometer will
automatically turn off the mood light, and the temperature detection function will not be affected.
1
2
3
02
03
Product Introduction
A. Pool Thermometer
1
a
b
c
d
2
4
3
5
Anti-collision gasket: This protects the product and reduces noise when it crashes into the wall.
Solar Panel: Do not shield or cover the solar panel.
Power button: When the thermometer is off, press the button once to turn it on. When thermometer is on,
press the button once to change the temperature unit. Press and hold the button for 5 seconds to turn it off.
Screen:
Wireless icon: It flashes once when transferring data
Battery level icon: If you see 3 bars, the battery is full. When the
icon flashes, it means the battery is
low.
Temperature unit: Press the power button to switch between℃ and ℉.
Water temperature: It shows the real-time water temperature, with a display accuracy of 0.1℉ (0.1℃).
Mood lighting area
2
3
4
5
1
Anti-collision gasket
Temperature unit
Water temperature
Wireless icon
Battery level icon
Solar panel
Power button
Screen
Mood Lighting Area
a
b
c
d
Poolthermometer and its battery level: It shows the current channel and its battery level. When the channel is
switched to 0, all bound channels will be displayed in turn every 2 seconds. When the
icon flashes, it means that
the battery of the corresponding pool thermometer is too low.
NOTE: Whenyouswitchtochannel0,themoodlightcontrolwillactonallpoolthermometersatthesametime.
Whenyouswitchtoaspecificchannel(poolthermometer1to9),themoodlightcontrolwillactonthecorresponding
poolthermometer.Eachindoorthermometersupportsconnectingupto9poolthermometers.
Current color of mood lighting: You can set the color of the mood lighting to red, green, blue, yellow, pink, cyan,
or white.
Current mode of mood lighting: can be chose from 4 modes
STAY ON: (default) It stays lit in the currently selected color.
GRADIENT: 7 colors of light gradually show in turn at the breathing rate. If you choose this mode, the
light’s color setting will no longer work.
FLASH: It is different from the GRADIENT mode. One light turns off before the next light turns on, and 7
colors of light appear one by one. If you choose this mode, the light's color setting will no longer work.
BREATHING: The light flashes in the color that is currently selected and at the breathing rate.
03
2
3
1
B. Indoor Monitor
Poolthermometer and
its battery
1
Current color of
mood lighting
2
Current mode of
mood lighting
3
Water temperature and
MAX/MIN values
4
Water temperature
comfort level
5
7
Battery level of
indoor monitor
8
Current mood lighting
brightness
6
ON/OFF state of
mood lighting
9
Current timer mode
of mood lighting
04
Water temperature and MAX/MIN values: It shows the real-time water temperature of the current channel, with
a display accuracy of 0.1℉ (0.1℃). The max and min values in all the time is displayed in the MAX/MIN mode.
Water temperature comfort level: It shows the current water temperature is cold / comfort / hot, and the
comfort range is set to 78℉-86℉ (25.5℃ to 30℃) by default.
ON/OFF of mood light: It shows if the mood light for the current channel is on or off. Please note that when the
mood light is turned off, other control functions for the mood light will no longer work.
Current mood lighting brightness: It shows how bright the mood light is for the current channel. There are five
brightness levels to choose from.
Battery level of indoor monitor: It shows the current battery level of the indoor monitor. When the icon flashes,
it means the battery is too low.
Current timer mode of mood lighting: There are 5 timer modes to choose from.
AUTO: By default, the mood light turns on or off automatically according to the external light intensity
(under the current mood light on state). After the mood light is turned on automatically, it will turn off after
working for 300 minutes.
60MIN: The mood light stays on for 60 minutes and then turns off automatically.
120MIN: The mood light stays on for 120 minutes and then turns off automatically.
180MIN: The mood light stays on for 180 minutes and then turns off automatically.
240MIN: The mood light stays on for 240 minutes and then turns off automatically.
NOTE: Every time themoodlightsettingischanged, thetimerwillrestart.
4
5
6
7
8
9
Indoor Monitor Operation Buttons
Press once to display the max/min
water temperature;
Long press to reset the max/min record;
In the setting mode, press to decrease
(long pressing for quick adjustment).
Press once to change the temperature
unit;
Long press to enter the setting mode.
Press once to change the channel;
Long press to reset the channels;
In the setting mode, press to increase
(long pressing for quick adjustment).
05
After entering the setting mode:
1. The "COLD" icon flashes, press the MAX/MIN or CH/R button to adjust the parameter (when the water temperature is smaller than this
value, it is cold). Then, confirm and press the ℉/℃ button to proceed to step 2.
2. The "HOT" icon flashes, press the MAX/MIN or CH/R button to adjust the parameter (when the water temperature is greater than this value,
it is hot). Then, confirm and press the ℉/℃ button to complete the setting.
Press once to turn on or
off the mood light under
the current channel.
(When the mood light is
turned off, other control
functions for the mood
light will no longer work.)
Press once to change
the color of the mood
light under the current
channel.
Press once to change
the brightness of the
mood light under the
current channel.
Press once to change
the working mode of the
mood light under the
current channel.
Press once to change
the timer mode of the
mood light under the
current channel.
04
Product Specifications
Temperature display range: -40℃~70℃ (-40°F~158℉)
Temperature display accuracy: 0.1℃ (0.1℉)
Maximum number of pool monitor channels supported at the same time: 9
A. Indoor Monitor
Battery: 2*AAA 1.5V (included)
Transmission Distance: up to 300 meters (980ft) in open space (if there is interference, the transmission distance will
be limited.)
Firstly, make sure the batteries of the indoor monitor are installed correctly and working properly.
Secondly, make sure that the pool thermometer is turned on, and place the pool thermometer as close to the
indoor monitor as possible. Then press the Power button on the pool thermometer once.
Once the indoor monitor receives the data sent from the pool thermometer, the connection between them is
established automatically, and the indoor monitor completes adding a sub-device and displays the channel number
of the pool thermometer.
Note: If you fail to add sub-devices, restart the pool thermometer, and repeat steps 2~3 to add the device.
Alternatively, press the Power button on the pool thermometer.
06
05
Add Sub-Devices
Temperature measurement range: -40℃~70℃ (-40°F~158℉)
Temperature measurement accuracy: ±1℃ (±1.8°F)
Temperature display accuracy: 0.1℃ (0.1℉)
B. Pool Thermometer
Sampling period: 5s
Waterproof grade: IP68
Warranty: 1 year
2
3
1
2
3
1
The
icon flashes on the
screen of the pool thermometer.
No display on the screen of
the pool thermometer
07
06
Precautions for Use
a. Please do not disassemble the product if you are not a professional.
b. Be sure that the sensor is not covered with dust as dust may lead to inaccurate measurements.
c. Do not use alcohol to clean the sensor.
d. Do not dispose the product in a fire as it may explode. Please observe local regulations for proper disposal of
discarded electronic products.
e. Remove from pool when not in use or while cleaning the pool so unit is not damaged by skimmers or other
devices.
f. The thermometer can measure temperatures between -40℃ and 70℃ (-40℉ and 158℉). It is not suitable for
use in harsh environments below -40℃/ -40℉ and above 70℃/158℉.
Fault Phenomenon Possible Cause Possible Solution
The pool thermometer hasn't been
charged by solar power for a long
time, so it's out of power.
Place it in a location exposed to strong
sunlight for 5 to 7 hours. The stronger the
sunlight the better. Then, restart the pool
thermometer. The pool thermometer will
automatically switch on after recharging if it is
in operation when the power is cut.
Batteries are installed incorrectly. Reinstall the batteries.No display on the indoor monitor’s
screen.
The pool thermometer is too far
away.
Move as close as possible to the indoor
monitor.
Cannot control the mood light of
the pool thermometer.
07
Troubleshooting
“ ” appears on the indoor
monitor screen.
08
“ ” appears on the indoor
monitor screen.
Fault Phenomenon Possible Cause Possible Solution
The battery in the pool
thermometer is too low to turn on
the mood light or the battery has run
out of power.
The AUTO timer mode is
currently selected and the sunlight
intensity is too high, so the mood
light function is automatically
switched off.
Place it in a location exposed to strong
sunlight for 5 to 7 hours. The stronger the
sunlight the better. Then, restart the pool
thermometer.
Place the thermometer in a darker place
and the mood light function will automatically
switch on, or select another timer mode.
The temperature is higher than 70℃/
158℉.
Place the pool thermometer in a normal
temperature measurement environment.
The temperature is lower than -40℃/
40℉.
The mood light the pool
thermometer does not light up.
Temperature variation is less than
0.3°C.
When water temperature variation <0.3℃,
sync once every 15 minutes;
When water temperature variation is
between 0.3℃ and 0.5℃, sync once every 15
seconds;
When water temperature variation ≥0.5℃,
sync once every 5 seconds.
Temperature on the pool
thermometer is not synced with
the indoor monitor.
08
FCC Requirement
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the
09
following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with a minimum distance of 20cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
09
IC Warning
Thisdevicecontainslicence-exempttransmitter(s)/ receiver(s)thatcomplywithInnovation,Scienceand
EconomicDevelopmentCanada’slicence-exemptRSS(s).
Operationissubjecttothefollowingtwoconditions:
(1)Thisdevicemaynotcauseinterference.
(2)Thisdevicemustacceptanyinterference,includinginterferencethatmaycauseundesiredoperationofthe
device.
Thedevicemeetstheexemptionfromtheroutineevaluationlimitsinsection2.5ofRSS102andcompliance
withRSS-102 RFexposure,userscanobtainCanadianinformationonRFexposureand compliance.
Thistransmittermustnotbeco-locatedoroperatinginconjunctionwithanyotherantennaor transmitter.
Thisequipmentshouldbeinstalledandoperatedwithaminimumdistanceof20 centimetersbetweenthe
radiatorandyourbody.
L'émetteur/récepteurexemptdelicencecontenudansleprésentappareilestconformeauxCNRd'Innovation,Scienceset
DéveloppementéconomiqueCanadaapplicablesauxappareilsradioexemptsdelicence.
L'exploitationestautoriséeauxdeuxconditionssuivantes:
(1)L'appareilnedoitpasproduiredebrouillage;
(2)L'appareildoitacceptertoutbrouillageradioélectriquesubi,mêmesilebrouillageestsusceptibled'encompromettrele
fonctionnement.
Ledispositifrencontrel'exemptiondeslimitescourantesd'évaluationdanslasection2.5deRSS102etlaconformitéà
l'expositiondeRSS-102rf,utilisateurspeutobtenirl'informationcanadiennesurl'expositionetlaconformitéderf.
CetémetteurnedoitpasêtreCo-placéounefonctionnantenmêmetempsqu'aucuneautreantenneouémetteur.
Cetéquipementdevraitêtreinstalléetactionnéavecunedistanceminimumde20centimètresentreleradiateuretvotre
corps.
10
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the
10
Customer Service
This item carries a 1-year warranty against defects in either components or workmanship. During this period, products
that prove to be defective will, at the discretion of INKBIRD, be either repaired or replaced without charge. For any
problems in use, please feel free to contact us at suppor[email protected]. We will do our best to help you.
216-200029
V1.0
MADE IN CHINA
DESIGNED BY INKBIRD
Shenzhen Inkbird Technology Co., Ltd.
Consignor: Shenzhen Inkbird Technology Co., Ltd.
Office Address: Room 1803, Guowei Building, No.68 Guowei Road, Xianhu Community, Liantang, Luohu District, Shenzhen, China
Manufacturer: Shenzhen Inkbird Technology Co., Ltd.
Factory Address: 5th and 6th Floor, Building 138, No. 71, Yiqing Road, Xianhu Community, Liantang Street, Luohu District, Shenzhen,
Guangdong, China
