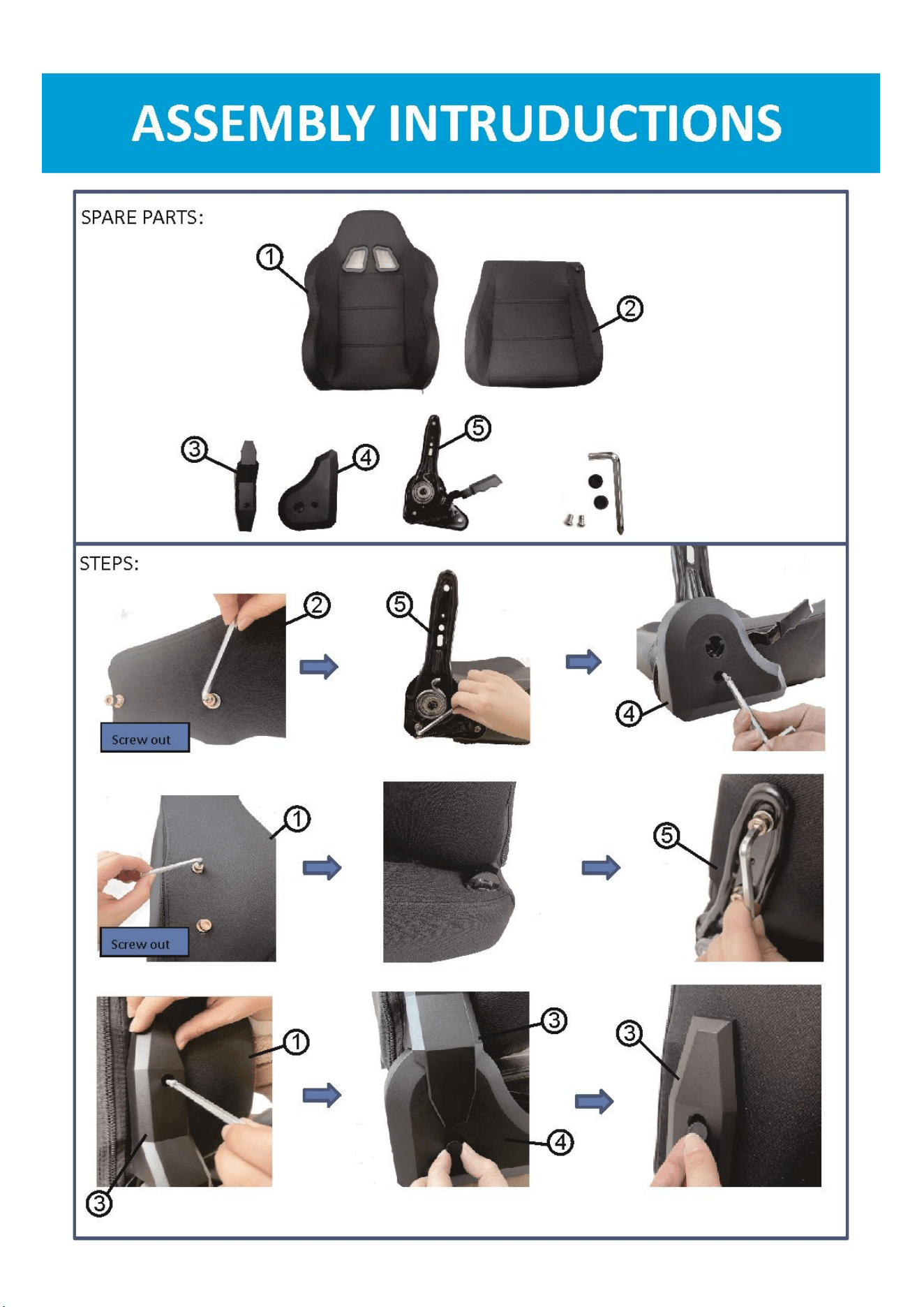

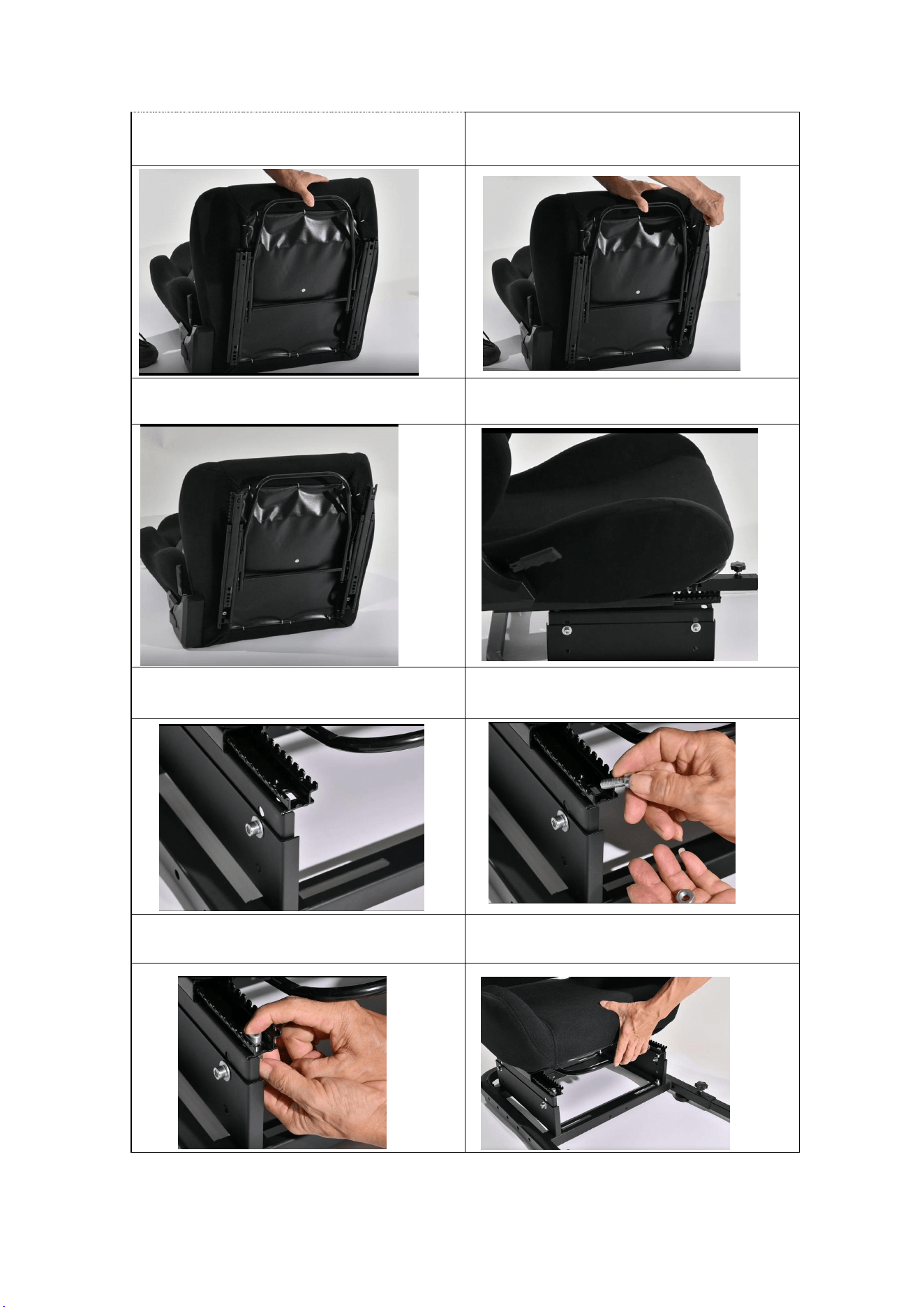

Step 1: Invert the chair and hold down the slide
rail handle with your fingers
Step 2: Remove the slide rail
Step 3: Draw the same distance on both sides
Step 4: Place the seat onto the seat bracket
Step 5: Align the mounting holes of the slide rail
with the mounting holes of the bracket
Step 6: Insert the bolt from top to bottom and
install the nut from bottom to top
Step 7: Tighten the nuts on both sides

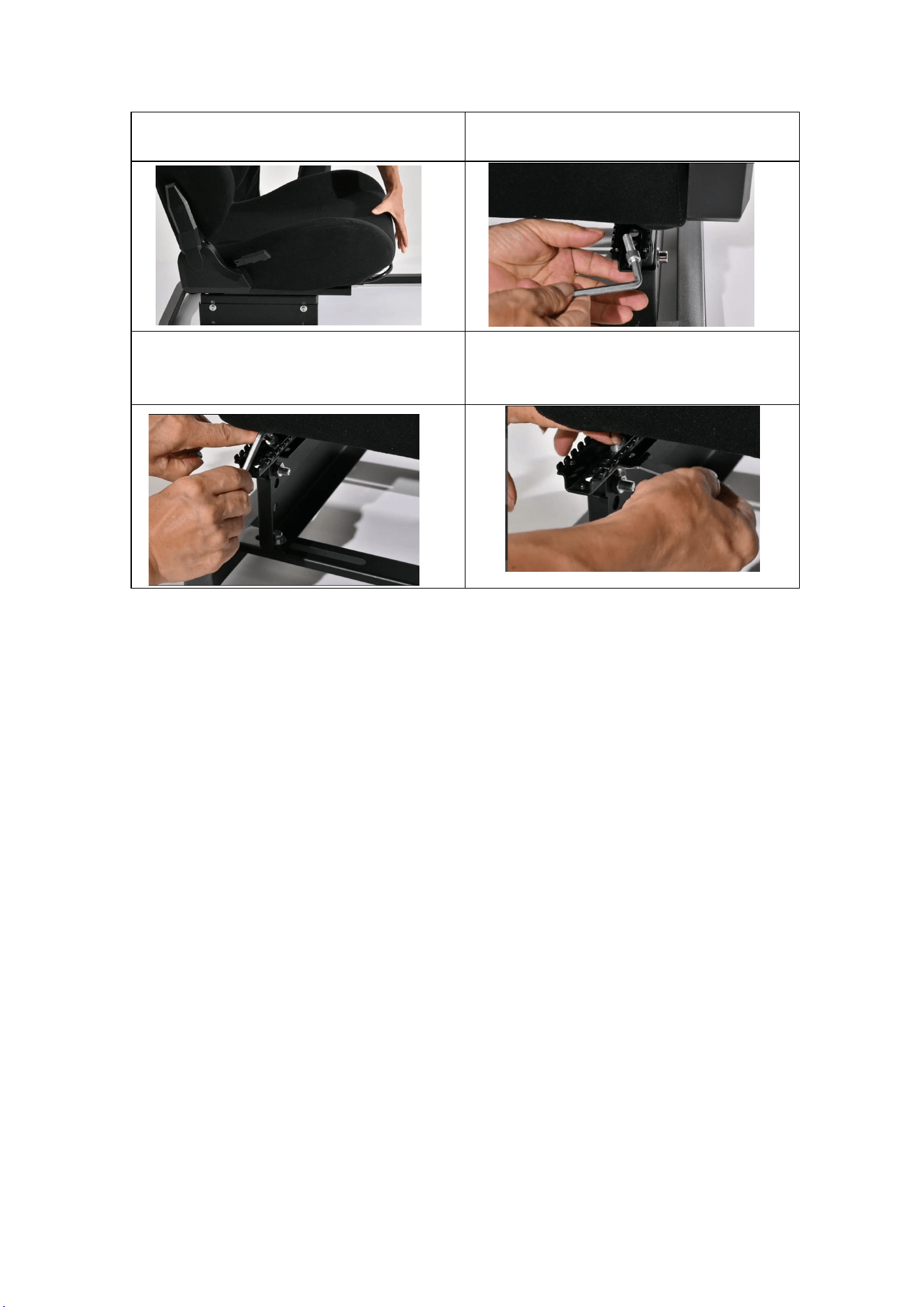

Step 8: Press and hold the handle to slide the
seat forward
Step 9: Slide the seat forward to expose the
installation hole
Step 10: Use an Allen wrench to assist in
inserting the bolt into the installation hole
Step 11: Use an Allen wrench on both sides to
assist in inserting the bolt into the installation
hole
Step 12: Use an open-end wrench to tighten the
nut

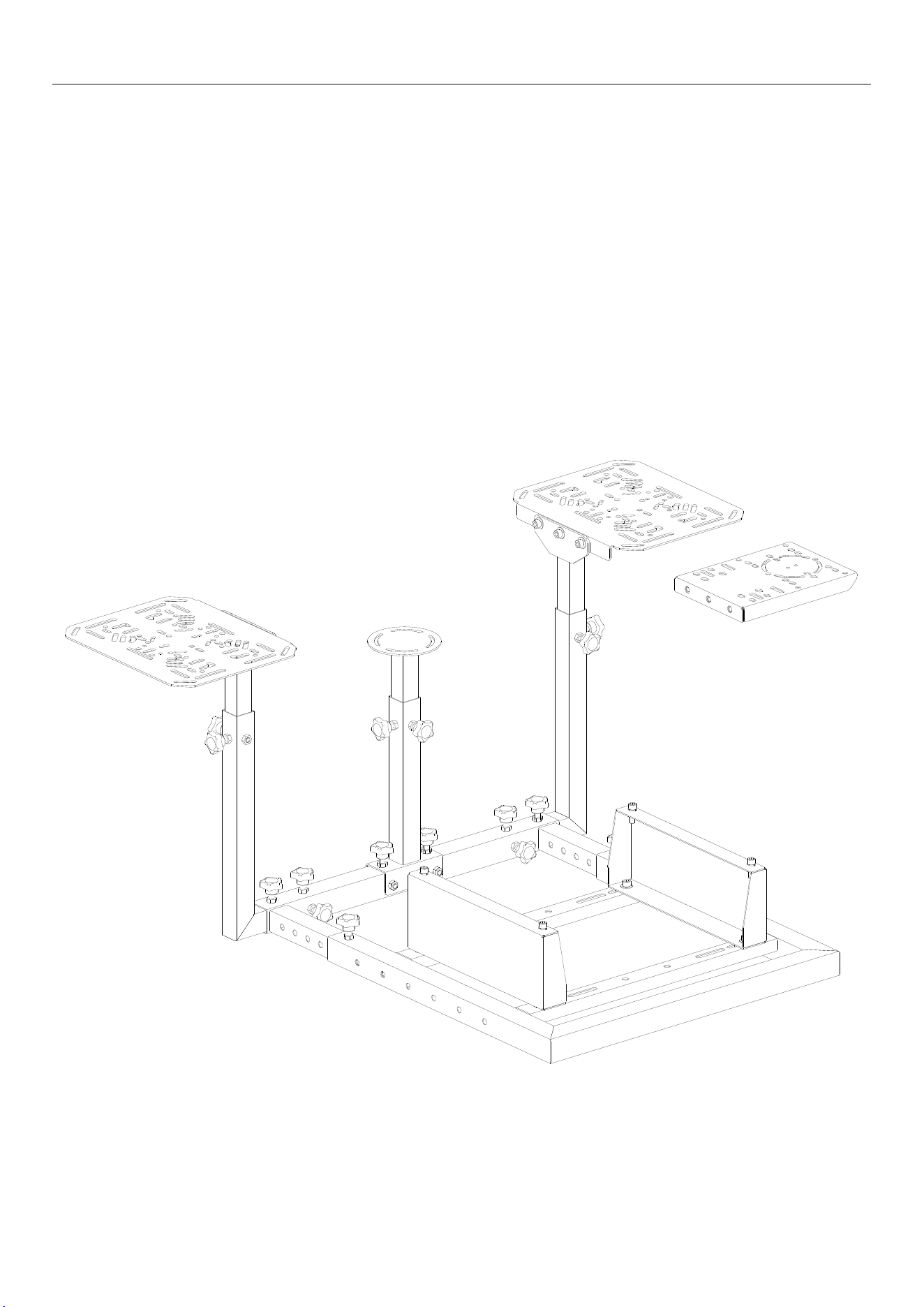

GS49 Racing Simulator Stand
1 / 5
GS49
Product Assembly Manual
GS49 Racing Simulator Stand
2 / 5

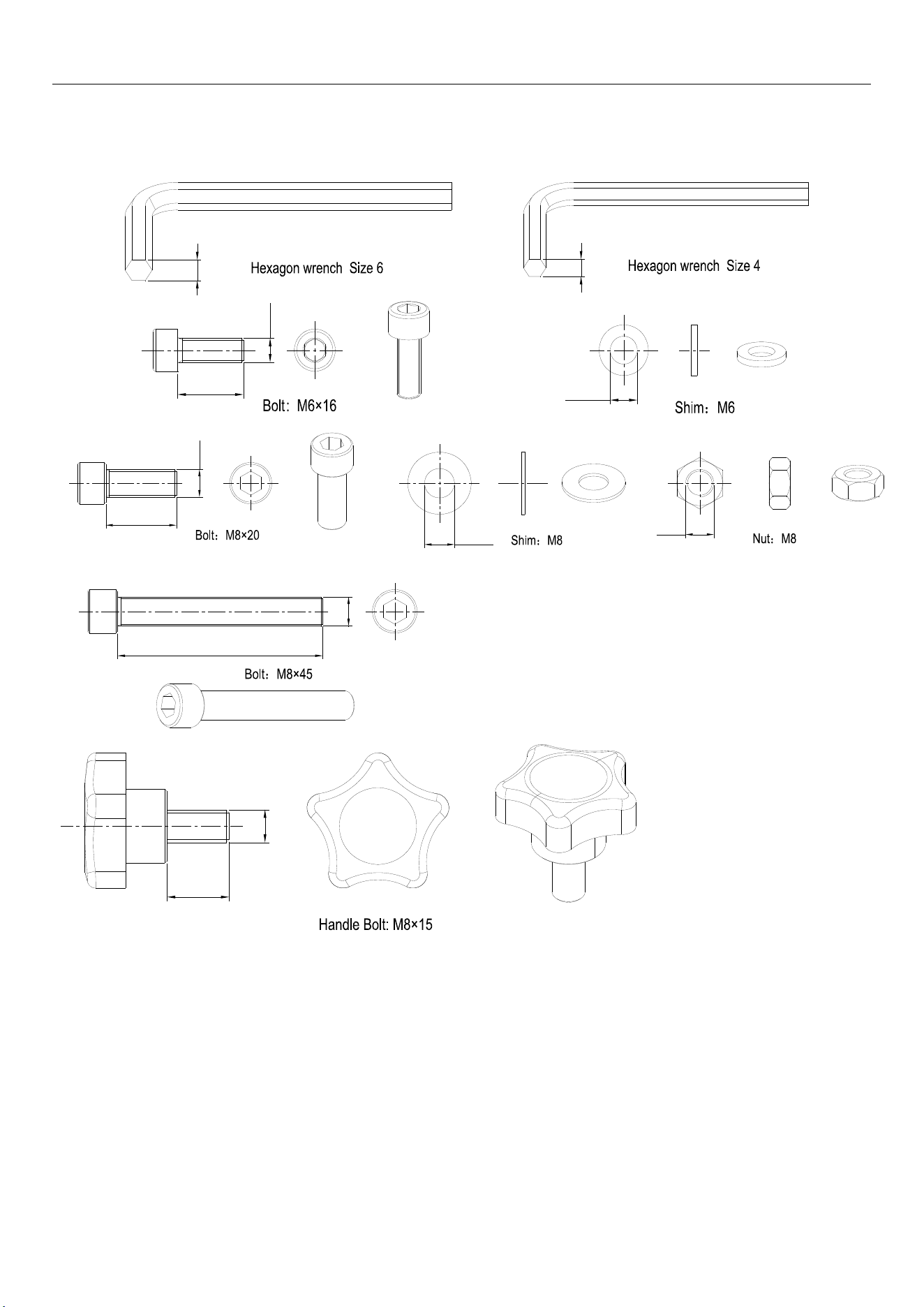

accessories explanation
6
4
16
M6
φ6.0
20
M8
φ8.0
M8
55
M8
M8
15

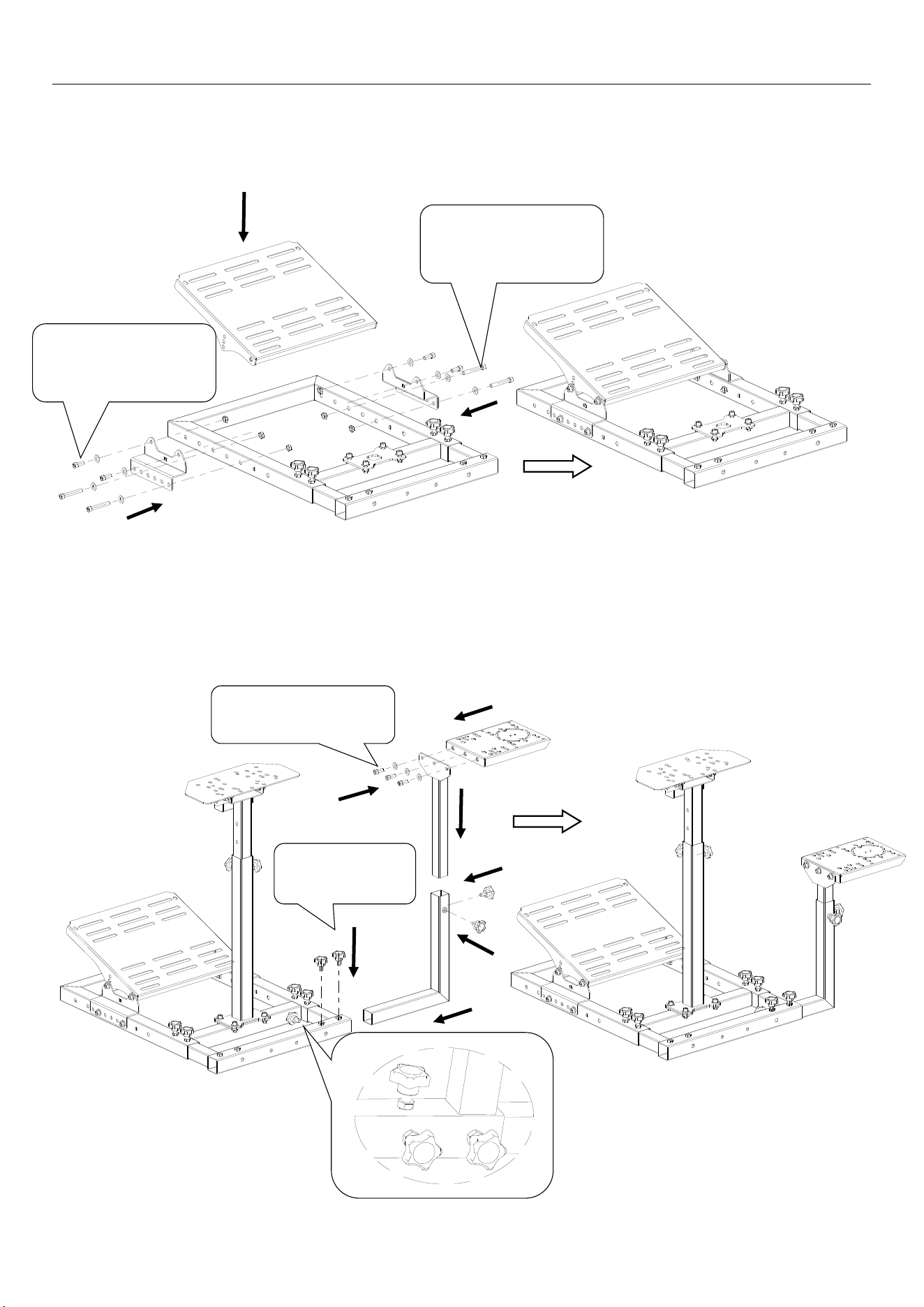

GS49 Racing Simulator Stand
3 / 5
Assembly Processes

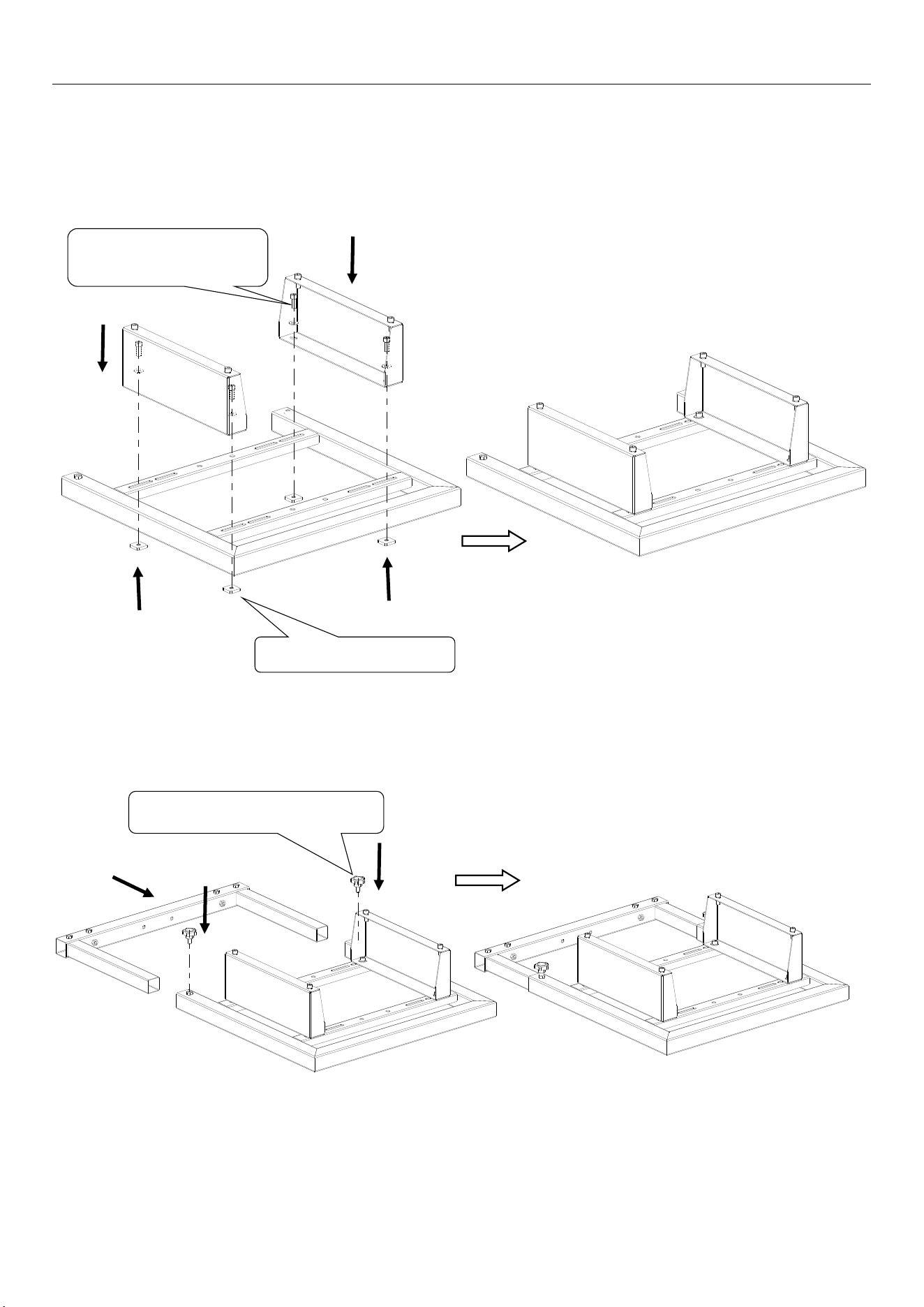

1. Assembling column support with 4 pieces of the bolt(M8×20 ) 、4 pieces of the
shim (M8) and 4 pieces of the square nut (M8)
2. Assemble the connection bracket with 2 pieces of the Handle Bolt (M8×15)
Bolt: M8×20 (4 PCS)
Shim: M8 (4 PCS)
Handle Bolt: M8×15 (8 PCS)
Square Nut: M8 (4 PCS)
GS49 Racing Simulator Stand
4 / 5

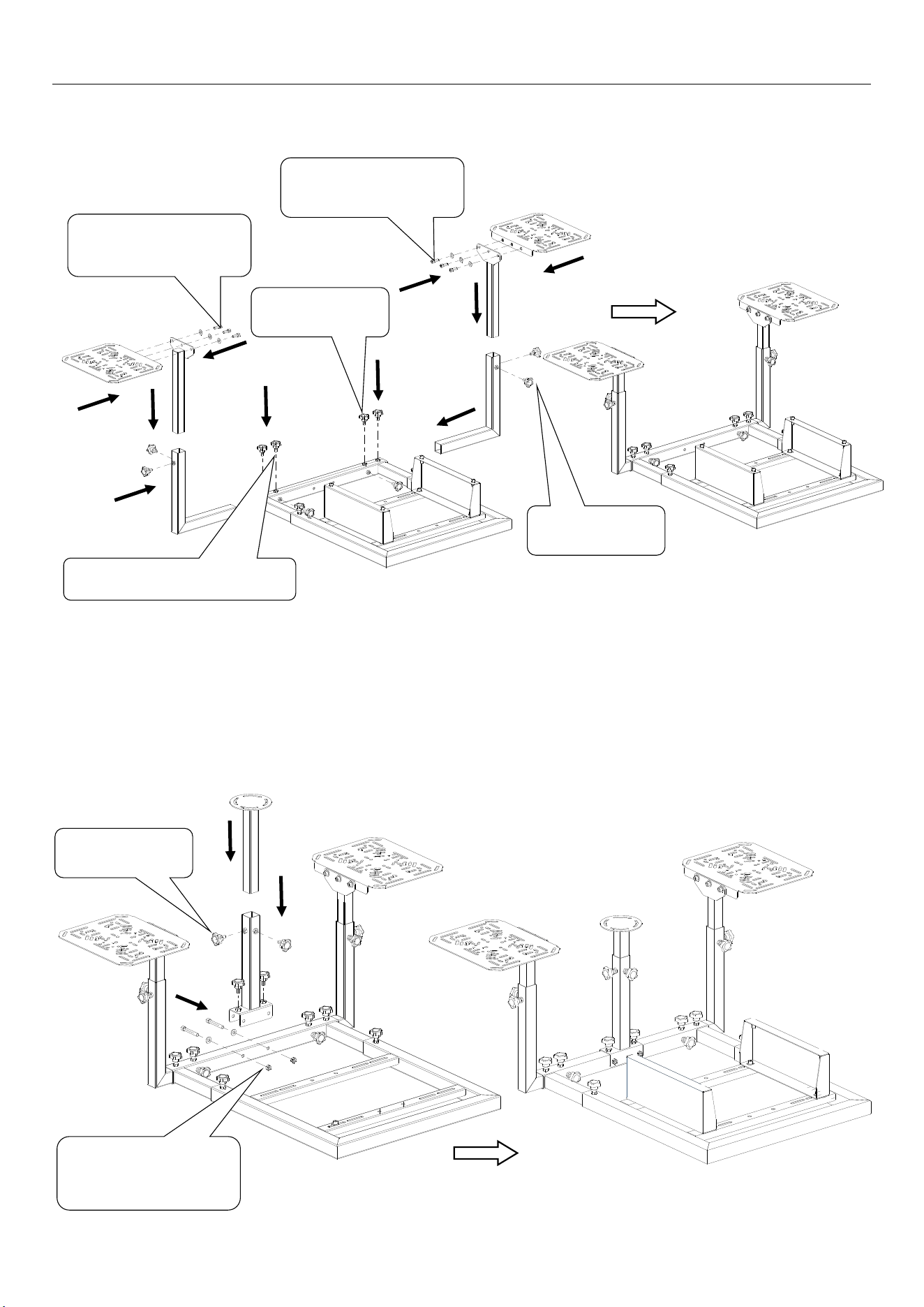

3. Assemble the gear mounting bracket with 3 pieces of the bolt(M8×20 ) 、3
pieces of the shim (M8) and 5 pieces of the Handle Bolt (M8×15) ,If you play
racing games
Bolt: M8×20 (3 PCS)
Shim: M8 (3 PCS)
Handle Bolt: M8×15 (3 PCS)
Handle Bolt:
M
8
×1
5
(
2 P
CS)
GS49 Racing Simulator Stand
5 / 5
4. Assemble the left and right fixing plates with 6 pieces of the bolt(M8×20 ) 、6
pieces of the shim (M8) and 10 pieces of the Handle Bolt (M8×15) , if you need to
play flight games
5. Assemble the flight rocker bracket with 2 pieces of the bolt(M8×55 ) 、2 pieces
of the shim (M8) 、2 pieces of the nut (M8) and 4 pieces of the Handle Bolt (M8×
15) , if you need to play flight games
Handle Bolt: M8×15 (3 PCS)
Bolt: M8×20 (3 PCS)
Shim: M8 (3 PCS)
Bolt: M8×20 (3 PCS)
Shim: M8 (3 PCS)
Handle Bolt:
M
8
×1
5
(
3
P
CS)
Handle Bolt:
M
8
×1
5
(
2 P
CS)
Bolt: M8×55 (2 PCS)
Shim: M8 (2 PCS)
Nut: M8
(
2 PCS
)
Handle Bolt:
M
8
×1
5
(
4 P
CS)

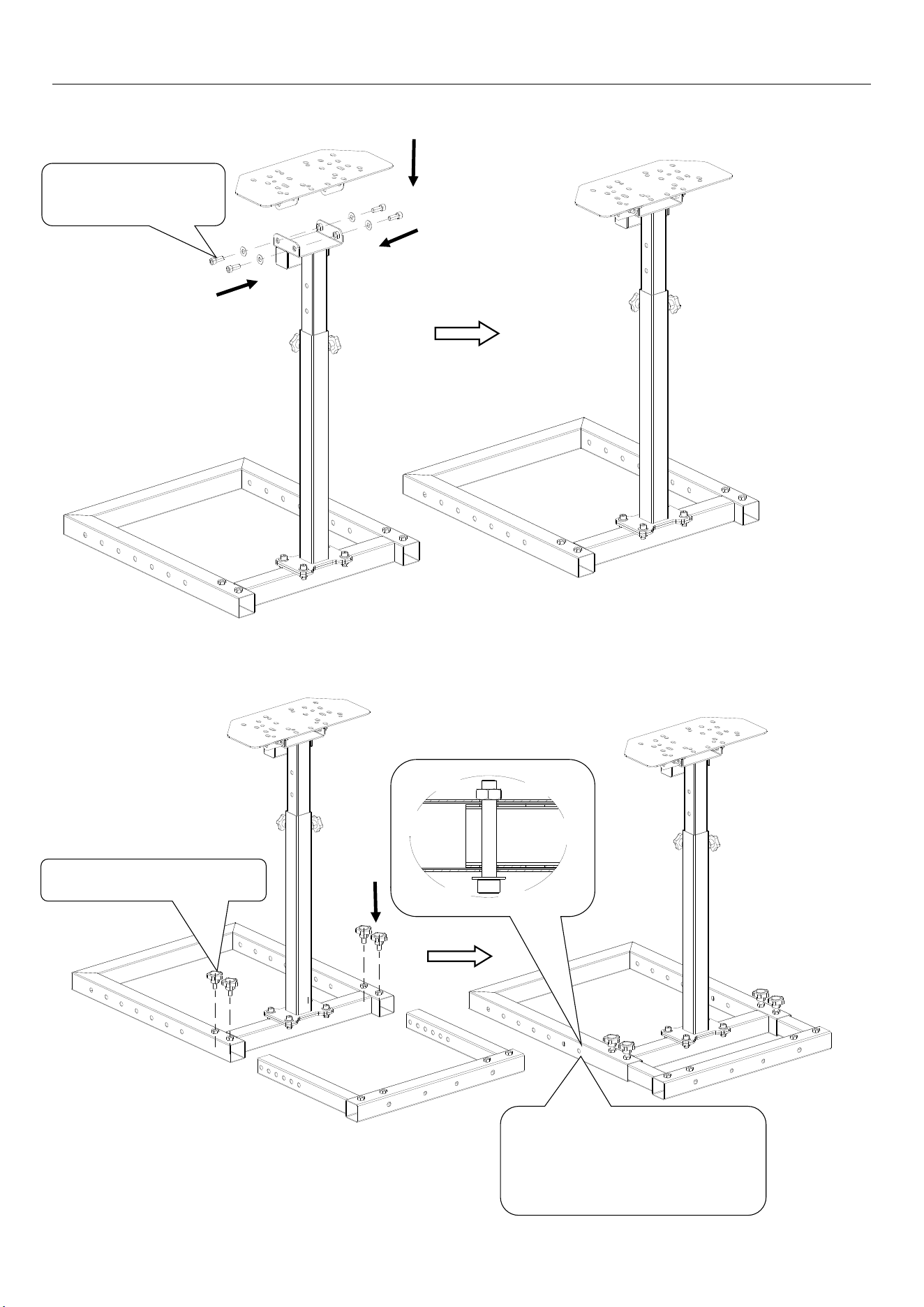

GS42 Racing Simulator Stand
1 / 5
GS42
Product Assembly Manual
GS42 Racing Simulator Stand
2 / 5
accessories explanation
6
4
16
M6
φ6.0
20
M8
φ8.0
M8
55
M8
M8
15

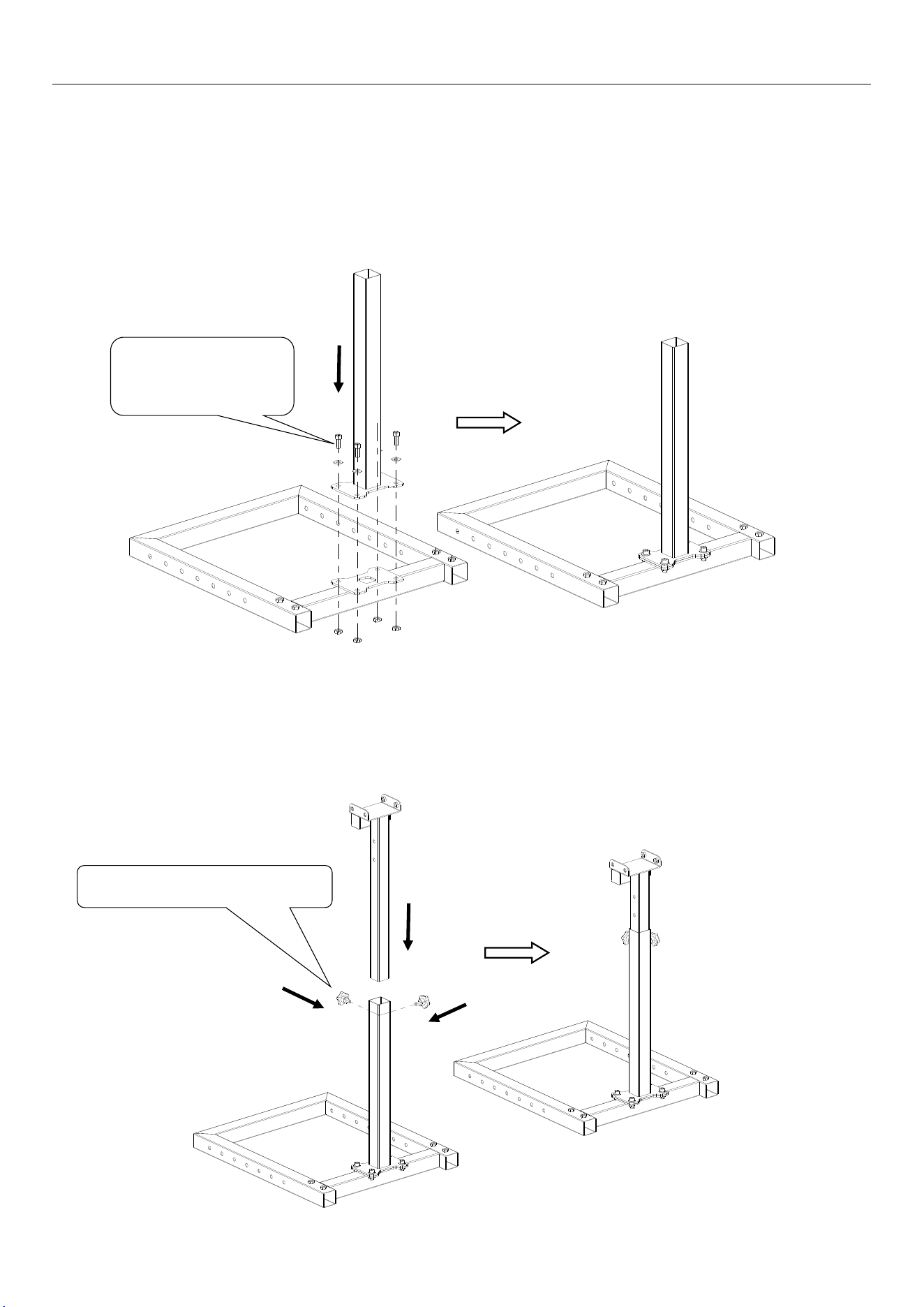

GS42 Racing Simulator Stand
3 / 5
Assembly Processes
1. Assembling column support with 4 pieces of the bolt(M8×20 ) 、4 pieces of the
shim (M8) and 4 pieces of the nut (M8)
2. Assemble the connection bracket with 2 pieces of the Handle Bolt (M8×15)
Bolt: M8×20 (4 PCS)
Shim: M8 (4 PCS)
Nut: M8 (4 PCS)
Handle Bolt: M8×15 (8 PCS)

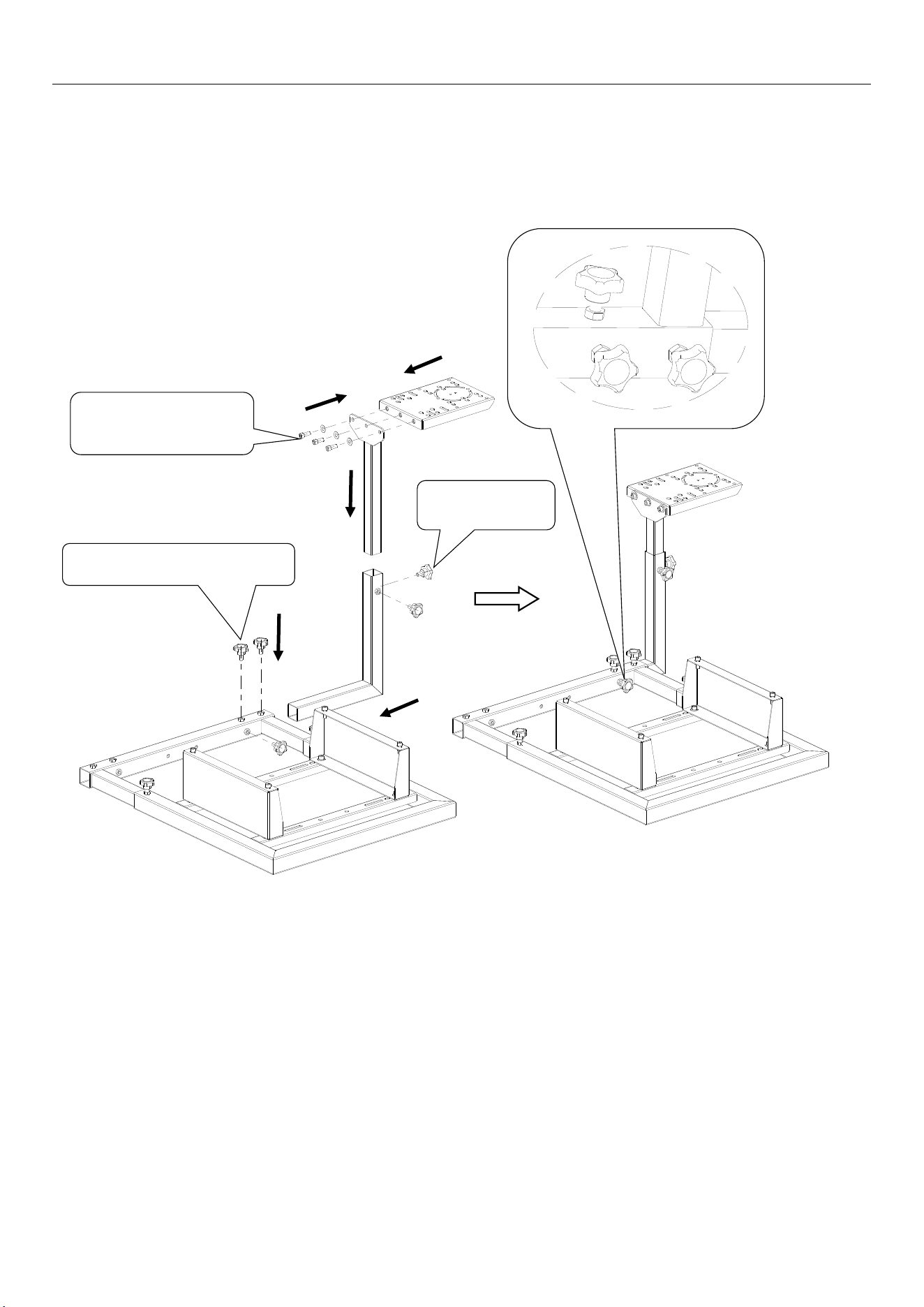

GS42 Racing Simulator Stand
4 / 5
3. Assemble steering wheel support with 4 pieces of bolt(M8×20 ) and 4 pieces of
the Shim (M8)
4. Assemble rear connection bracket with 4 pieces of the Handle Bolt (M8×15)
Bolt: M8×20 (4 PCS)
Shim: M8 (4 PCS)
Handle Bolt: M8×15 (4 PCS)
The hole is aligned with the
hole so that the bolt can pass
through the hole，If you want
to adjust the distance

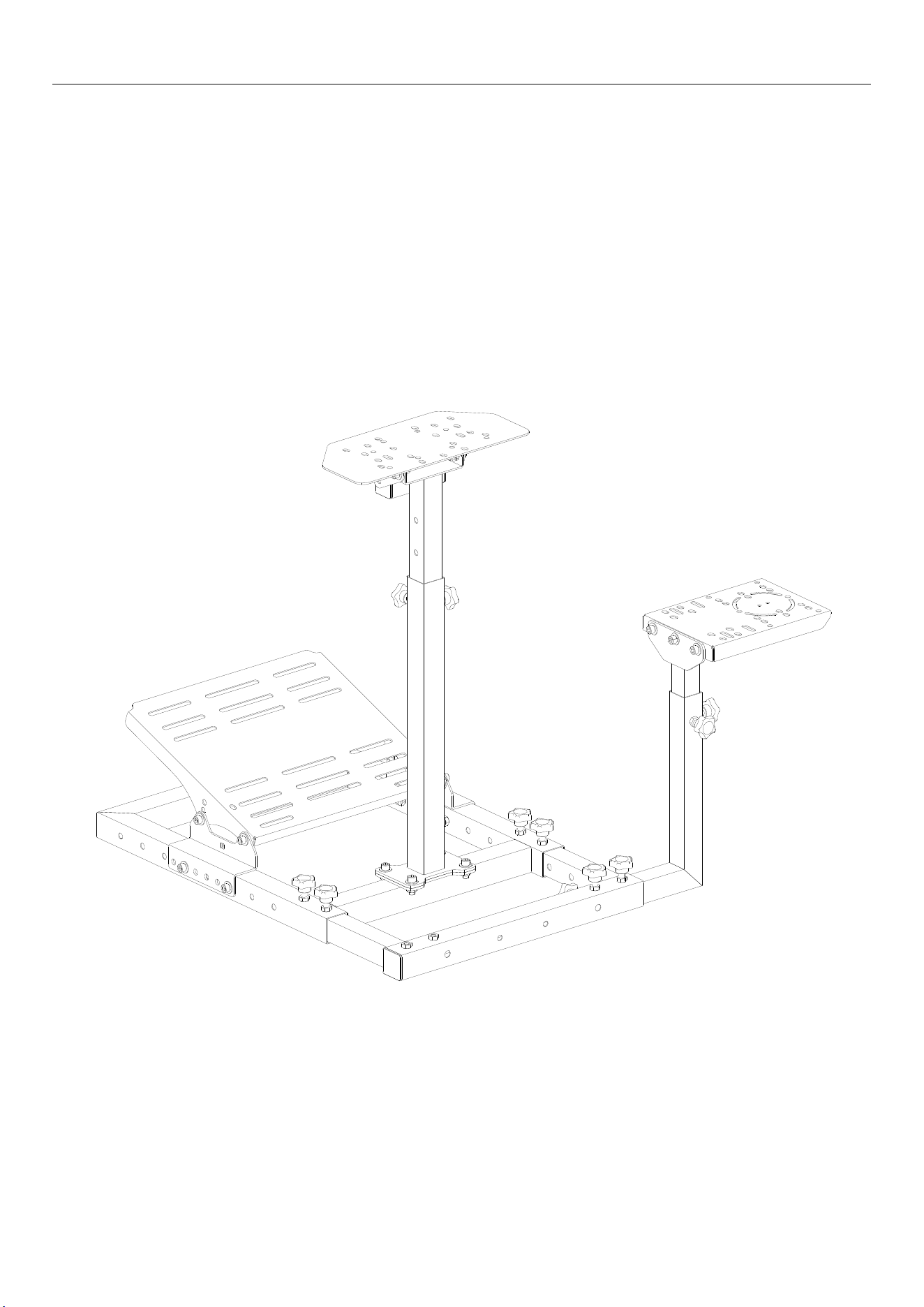

GS42 Racing Simulator Stand
5 / 5
5. Assemble pedal fixing bracket with 4 pieces of the bolt(M8×20 ) 、4 pieces of
the bolt(M8×55 ) 、8 pieces of the shim (M8) and 6 pieces of the Nut (M8)
6. Assemble the gear mounting bracket with 3 pieces of the bolt(M8×20 ) 、3
pieces of the shim (M8) and 5 pieces of the Handle Bolt (M8×15) ,If you play
racing games
Bolt: M8×20 (3 PCS)
Shim: M8 (3 PCS)
Bolt: M8×20 (4 PCS)
Shim: M8 (4 PCS)
Nut: M8 (2 PCS)
Bolt: M8×55 (4 PCS)
Shim: M8 (4 PCS)
Nut: M8 (4 PCS)
Handle Bolt:
M8×15 (5 PCS)
