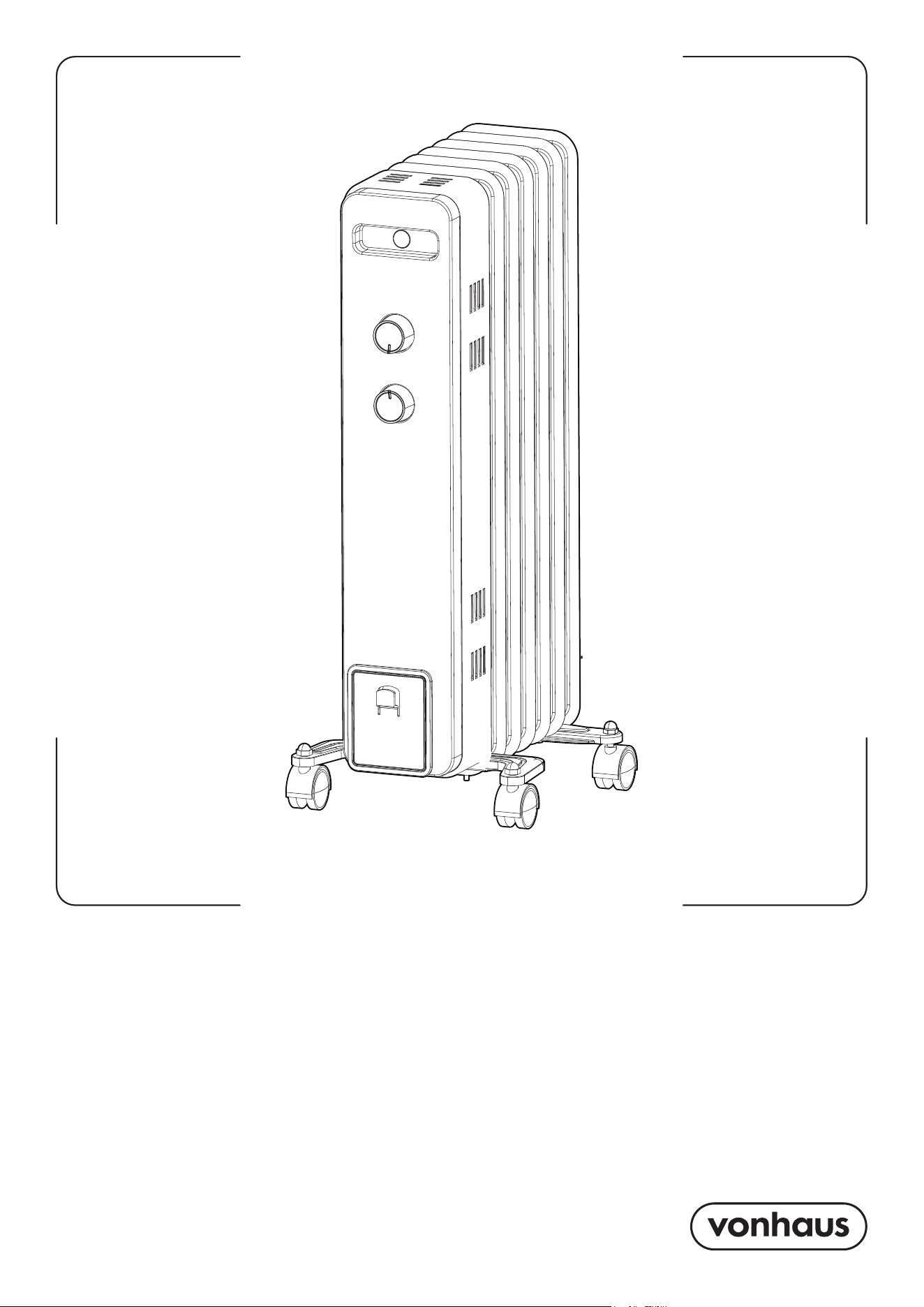

Product Instructions
Product No. 2000340 / 2500281.1 / 2500280.1
1500W 7 FIN OIL
FILLED RADIATOR
2 3
Need further help?
suppor[email protected]
See our full range at
www.vonhaus.com
Let’s get started!
Visit our product hub for
useful tips and tricks on
getting the most out of
your new product.
SCAN ME
Components
A. Handle
B. Indicator Light
C. Thermostat Dial
D. Power Selector Switches
E. Radiant Fins
F. Plug Storage
G. Castor Wheels
D
A
B
C
E
F
G
4 5
Place the body of the Radiator upside down
on a scratch-free surface, making sure that it is
stable and will not fall.
Locate the U-Shaped Bars and remove the
Wing Nuts.
Locate the Bars at the front and rear of the
Radiant Fins.
Attach the Wheel Mounting Bracket onto
the U-Shaped Bar and secure into place
using the previously removed Wing Nuts.
Remove the End Cap Screw from the Wheel,
thread the Wheel onto the Wheel Mounting
Bracket and secure into place with the End
Cap Screw. Ensure everyting is tightend and
secure before turning upright.
IMPORTANT: After assembly, stand the
Radiator upright for 1 hour before switching
on. This will allow the oil to settle into the
correct position.
This Radiator is fitted with an overheat
protection switch (thermal cut-out) which
will power off the appliance automatically in
case of overheating. Should this occur, unplug
the appliance and allow to cool fully for
approximately 30 minutes.
Follow the operation instructions to
restart the
appliance after removing the source of the
overheating (poor ventilation, item covering
the Radiator etc.). The Radiator should function
normally. Should the problem persist, please
contact Vonhaus.
eht etaluger ot dna egamad diova oT
temperature, this Radiator is fitted with a
thermostatic safety device. The safety
device will activate and cut out the power to
the Radiator once a certain temperature is
reached. The Radiator will start again once the
temperature has lowered.
The Radiator is also fitted with a tip switch
which will cut off the power to the Radiator
if it is knocked over. Should this happen,
disconnect at the mains and allow to cool
fully before attempting to move the Radiator.
Inspect the Radiator for damage. If — and
only if — the Radiator is
free from damage,
plug back into the mains. The Radiator should
function normally.
Assembly
CAUTION: Before using the Radiator, make
sure that it is on a flat and stable surface.
Damage may occur if it is placed on an incline
or decline.
NOTE: When the Heater is switched on you
will hear a crackling/popping sound, this is
completely normal and not a fault , it is the oil
settling.
Set all the controls to the off position and insert
the plug into a socket outlet, ensuring the plug
fits firmly.
Rotate the Temperature Dial clockwise to the
MAX position and switch the Radiator on.
PLEASE NOTE! Setting the Dial to MAX is
to burn off any manufacturing residue. This is
only recommended for ‘First time use’ and is
not required for every use.
Once your room reaches the desired
temperature, slowly rotate the Thermostat
Knob anticlockwise until the pilot light goes
out. It can now be left at this setting. As soon
as the room temperature has dropped below
the set temperature, the unit will
switch itself
on automatically until the set temperature has
been reached again. In this way, the room
temperature remains constant with the most
economical use of electricity.
If you want to change the room temperature
setting, rotate the Thermostat Knob clockwise
to raise the temperature, or anticlockwise to
lower it.
This Radiator is fitted with an overheat protection
system that shuts off the Radiator should parts
of the Radiator become excessively hot.
To completely shut the Radiator off, turn all the
controls to the off position and remove plug
from the socket outlet.
Operation
6 7
Important Safety Notice
This product is not suitable for use by children
or by individuals with physical, sensory, or
mental impairments that may limit their ability
to operate the equipment safely, unless they
have been given supervision or instruction
concerning the safe use of the product by a
person responsible for their safety.
Failure to follow all instructions and safety
warnings may result in electric shock, fire, or
serious injury.
General Safety
Do not allow this appliance to be used as a
toy. Children should be supervised at all times
to ensure they do not play with it.
If the appliance is not functioning properly,
has been dropped, damaged, left outdoors
or immersed in liquid, do not use it. Contact
contact our customer services department at
suppor[email protected]
Do not use the appliance if any parts appear
to be faulty, missing or damaged.
Ensure all parts are securely attached as
instructed in this manual before use.
This appliance is intended for indoor domestic
use only.
Do not use in bathrooms, shower rooms, or
areas with high humidity.
Cables and Plugs
Check to ensure your electricity supply matches
that shown on the rating plate. This product
should only be used as rated. Preferably, the
socket outlet should be protected by a Residual
Current Device RCD (UK/EU) Ground Fault
Indicator (US).
Do not use with a damaged cable or plug. If the
supply cable is damaged, it must be replaced
by a qualified engineer or authorised service
agent in order to avoid a hazard. The use of an
extension cable is not recommended.
Do not handle the plug or appliance with wet
hands.
Keep the cable away from heated surfaces.
Do not let the cable hang over the edge of the
table or countertop where it could be pulled
on inadvertently by children or pets.
Do not pull the cable around sharp edges or
corners.
Do not leave unattended when plugged in.
Unplug from outlet when not in use.
Turn off all controls before unplugging.
Do not unplug by pulling on the cable. To
unplug, grasp the plug, not the cable.
Always unplug before performing user
maintenance, connecting or disconnecting
attachments, or changing accessories.
Ensure the cable is stored safely to prevent
hazards.
Risk of Personal Injury
Always place the appliance on a firm, flat,
heat-resistant surface, away from the edge
of the worktop, with sufficient space around
all sides. Do not insert any objects into the
openings or cover the appliance.
Keep away from curtains, furniture, and
flammable materials
Do not place or dry clothing, towels, or any
materials on or near the appliance. Do not use
near combustible surfaces, outdoors, or near
other heat sources.
Do not use the heater to dry laundry. Ensure
all air vents are kept clear and unobstructed.
Never operate inside cupboards or enclosed
spaces.
Take care not to touch surfaces that may
become hot during use or remain hot for a
period after use. Never operate the appliance
InformationUsage
Use the Power Switches (1) (2) (3) to control the ambient heat in the room and the cost of keeping
the room at a constant heat.
• Switch (1) 600W
• Switch (2). 900W
• Switch (3) 1500W
8 9
when empty and do not overload or overfill it.
When using the appliance for the first time, it
may produce a ‘new’ smell or slight vapour
— this is normal and will dissipate after a few
uses. Do not lift or move the appliance whilst in
use. Do not operate continuously for extended
periods without supervision. Always switch
off and unplug before cleaning or changing
accessories. Use only as described in this
manual and with Vonhaus recommended
attachments.
Always switch off and unplug when not in use.
Do not use if air vents are blocked.
Maintenance
CAUTION: Switch off the Radiator and
disconnect the from the power socket. Wait
for the Radiator to cool completely before
cleaning.
Vacuum-clean the Vents (5) to remove dust
from these areas.
To remove dust on external surfaces, wipe the
Radiator with a damp (not wet) lint-free cloth
rinsed in hot soapy water only.
CAUTION: Do not use any harsh detergent or
abrasive cleaners.
WARNING! Do not spray with liquids or
submerge in any liquid or water.
WARNING! Do not
attempt to clean the
inside of the Radiator. Do not attempt to open
the casing at any time. There are no user-
serviceable parts.
Troubleshooting
Radiator will not power on
Ensure the Radiator is switched on and
connected to mains power. Activate the Power
Selector Switches and Thermostat Knob. Check
the fuse by replacement.
The radiator is not heating up
Check that the Radiator is plugged in and
switched on at the mains outlet. Make sure
that the Radiator has not gone into overheat
protection mode. The Vents may require need
cleaning.
The radiator becomes damaged
Do not use and contact customer services.

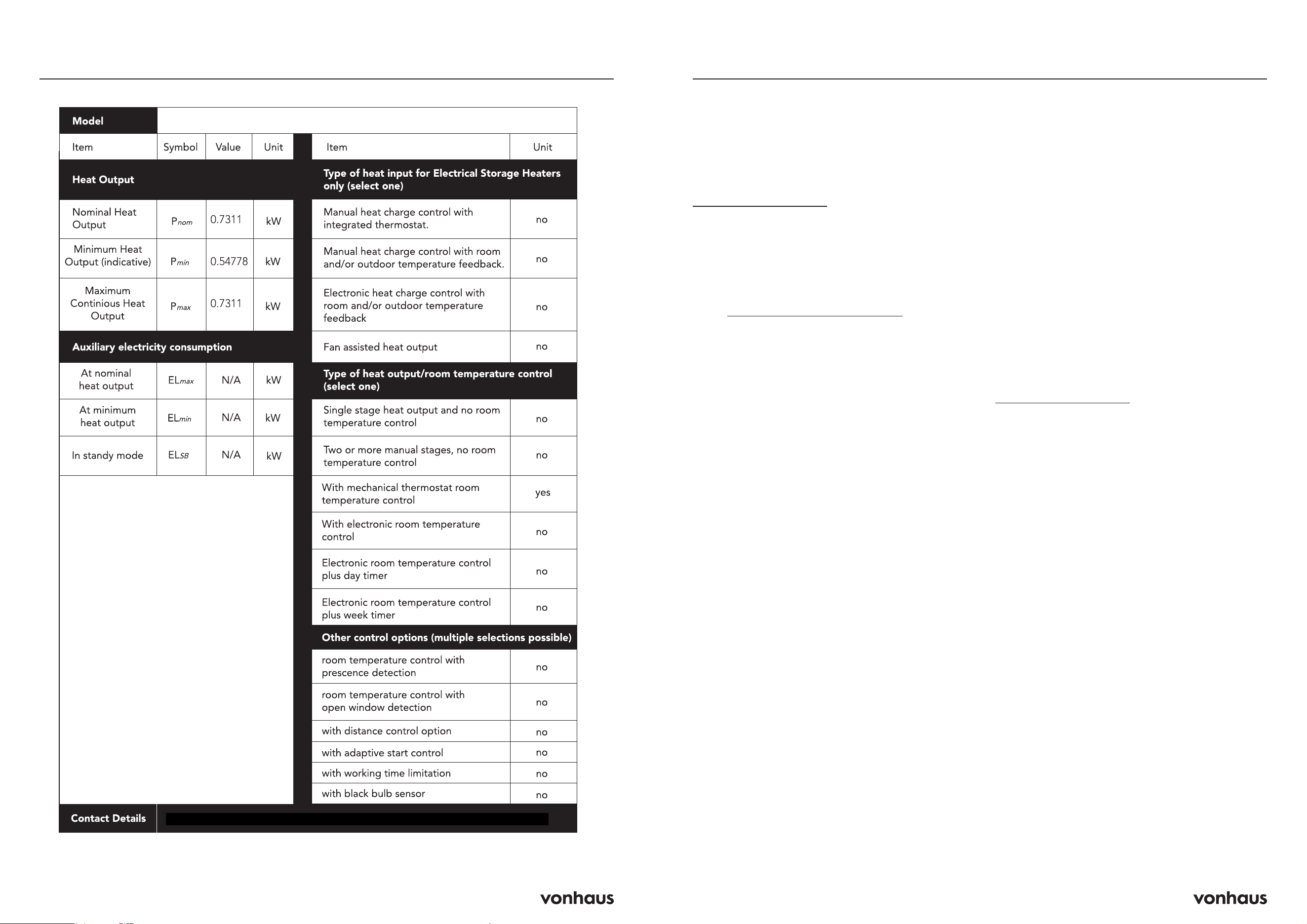

Technical Specifications
Rated Voltage: 220–240V
Rated Power: 1500W
Rated Frequency: 50Hz
Information
Do not immerse in water
Do not cover
WARNING: Hot surfaces
WARNING: Keep children and pets away
from the heater during use
WARNING: Risk of fire if instructions are not
followed
Suitable for well-insulated spaces or
This appliance has a thermal cut-out switch.
If the appliance overheats, it will shut down
automatically. Unplug and allow to cool for
15 minutes before restarting
Information
10 11
Information
2000340 / 2500281.1
DOMU Brands Ltd., Unit 30, Stakehill Industrial Estate, Middleton, Manchester, M24 2RW
Customer Service
If you are having difficulty using this product
and require support, please contact
suppor[email protected]
Warranty
To register your product and find out if you
qualify for a free extended warranty please
go to www.vonhaus.com/warranty
Please retain a proof of purchase receipt or
statement as proof of the purchase date.
The warranty only applies if the product is used
solely in the manner indicated in the warnings
page of this manual, and all other instructions
have been followed accurately.
Any abuse of the product or the manner in
which it is used will invalidate the warranty.
Returns
Returned goods will not be accepted unless
re-packaged in its original packaging and
accompanied by a relevant and completed
returns form. This does not affect your statutory
rights.
No rights are given under this warranty to a
person acquiring the appliance second-hand
or for commercial or communal use.
Copyright
All material in this instruction manual are
copyrighted by DOMU Brands.
Any unauthorised use may violate worldwide
copyright, trademark, and other laws.
Thank You
Thank you for purchasing your product/
appliance.
Should you require assistance with your
purchase, please contact us at
suppor[email protected]
Vonhaus is a registered trademark of DOMU
Brands Ltd.
Made in China for DOMU Brands Ltd.
Unit 30, Stakehill Industrial Estate
Middleton, Manchester, M24 2RW
EU Authorised Representative
Authorised Representative Service
77 Camden Street Lower
Dublin, D02 XE80
Ireland
Information
Product No. 2000340 / 2500281.1 / 2500280.1
Let’s get started!
Visit our product hub for
useful tips and tricks on
getting the most out of
your new product.
SCAN ME
