REVISED BULLETIN
SERVICE PARTS LIST
BULLETIN NO.
STARTING
SERIAL NO.
WIRING INSTRUCTION
DATE
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
CATALOG NO.
MILWAUKEE TOOL
www.milwaukeetool.com
13135 W. LISBON RD., BROOKFIELD, WI 53005

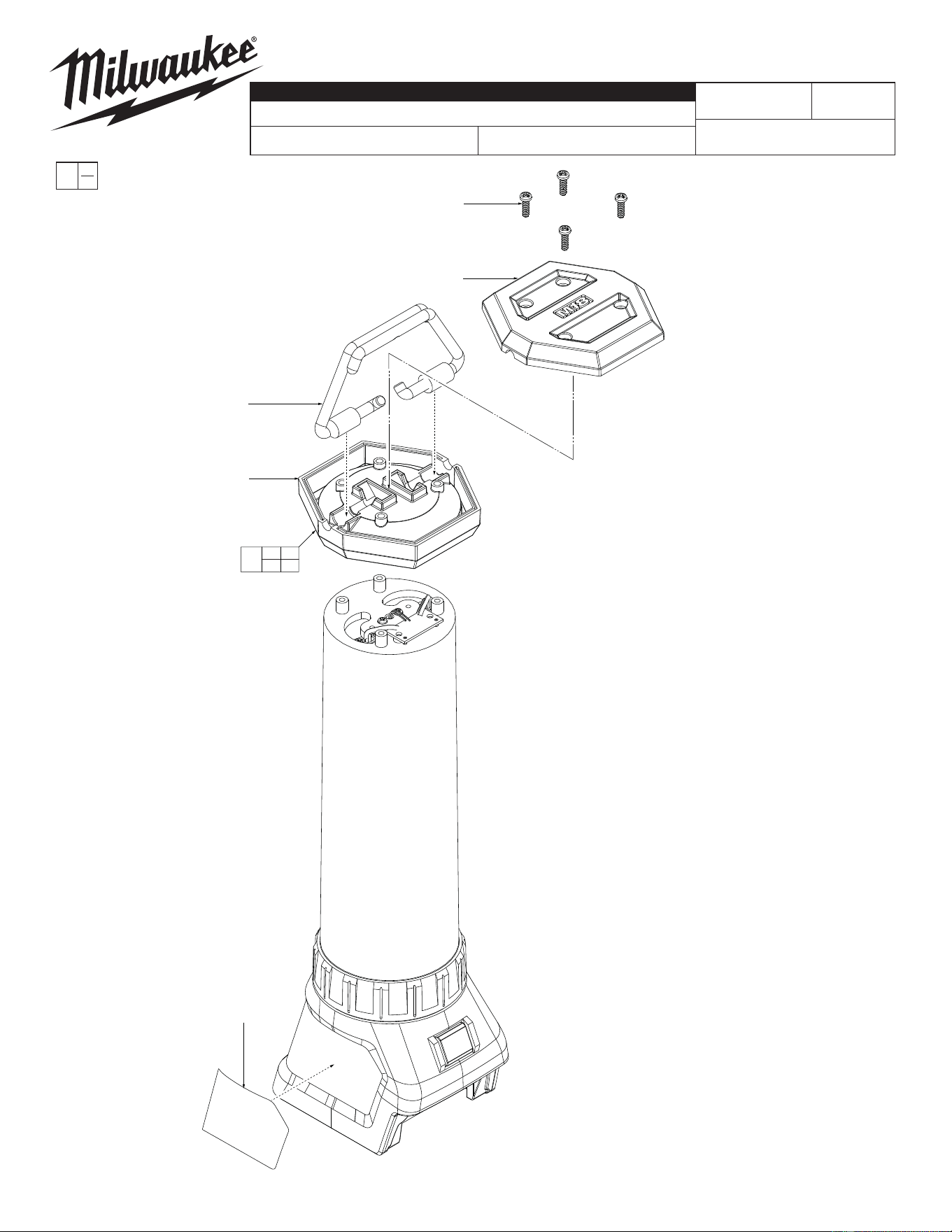

Drwg. 1
54-06-2370
CORDLESS M18™ 360º Lantern
2363-20
G25A
June 2014
0
00
EXAMPLE:
Component Parts (Small #) Are Included
When Ordering The Assembly (Large #).
FIG. NOTES
5 Care must be used when securing fasteners in tool. To prevent
stripping do not over tighten. It is not recommended to use power
tools, hand tighten only. Torque screws #4 to 5-7 in/lbs (6-8 kg/cm).
Torque screws #10 to 3-4 in/lbs (3.5-4.5 kg/cm).
6 A clean, dry surface is essential for proper performance for
any adhesive system. The area intended for application of
any adhesive label or nameplate must be prepared by
cleaning with isopropyl alcohol. The solvent is to be applied
with a clean, lint free applicator and the surface allowed to
dry before applying the label or nameplate.
5
3
4
2
6
1
2 3
4 5
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 14-36-2363 Cap / Hook Assembly (1)
2 --------------- Cap (1)
3 --------------- Cover (1)
4 --------------- Hook Assembly (2)
5 --------------- M4 x 12mm Pan Hd. T-10 Screw (4)
6 12-20-2367 Service Nameplate (1)
