upright/bottom
shelf assembly
middle shelf
Step 2 - Attach middle shelf to upright/bottom shelf
assembly, using a rubber mallet.
middle shelf
uprights
ASSEMBLY INSTRUCTIONS
Black Polymer
Utility Carts
CAUTION
INSPECT CONTENTS IMMEDIATELY AND FILE CLAIM WITH DELIVERING CARRIER FOR ANY DAMAGE.
SAVE YOUR BOX AND ALL PACKING MATERIALS.
YOU ARE RESPONSIBLE FOR DAMAGE TO YOUR UNIT IF RETURNED IMPROPERLY PACKED.
EG10090 Revised 10/23

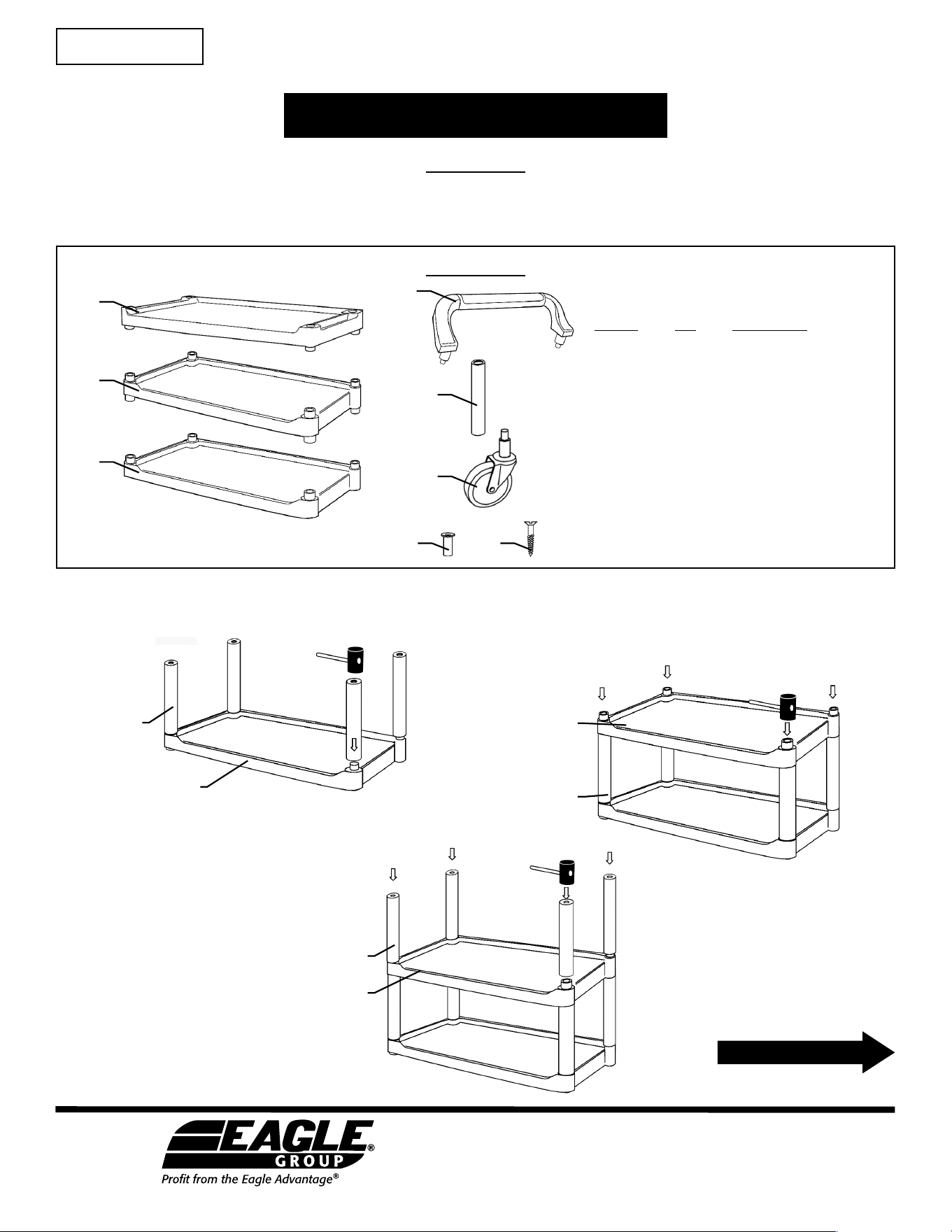

Parts List
Item # qty description
1 . . . . . . 1 . . . . . top shelf
2 . . . . . . 1 . . . . . middle shelf
3 . . . . . . 1 . . . . . bottom shelf
4 . . . . . . 2 . . . . . handles
5 . . . . . . 8 . . . . . aluminum uprights
6 . . . . . . 4 . . . . . 4˝-dia. swivel casters
7 . . . . . . 4 . . . . . bushings
8 . . . . . . 4 . . . . . screws
Step 1 - Attach four uprights to topside of
bottom shelf, using a rubber mallet.
Step 3 - Attach four
remaining uprights
to middle shelf,
using rubber
mallet.
1
2
3
4
5
6
7 8
bottom
shelf
upright
Eagle Foodservice Equipment, Eagle MHC, and SpecFAB
®
are divisions of Eagle Group. ©2023 by the Eagle Group
• 100 Industrial Boulevard, Clayton, Delaware 19938-8903 U.S.A.
• Phone: 302/653-3000 • 800/441-8440 • Fax: 302/653-2065
• www.eaglegrp.com • www.eaglegrpnews.com • www.eaglemhc.com
INSTRUCTION SHEET
#A223048
(continued on back page)
caster
top shelf
(underside view)
handle
screw
upright
handle/shelf
assembly
ASSEMBLY INSTRUCTIONS
Black Polymer
Utility Carts

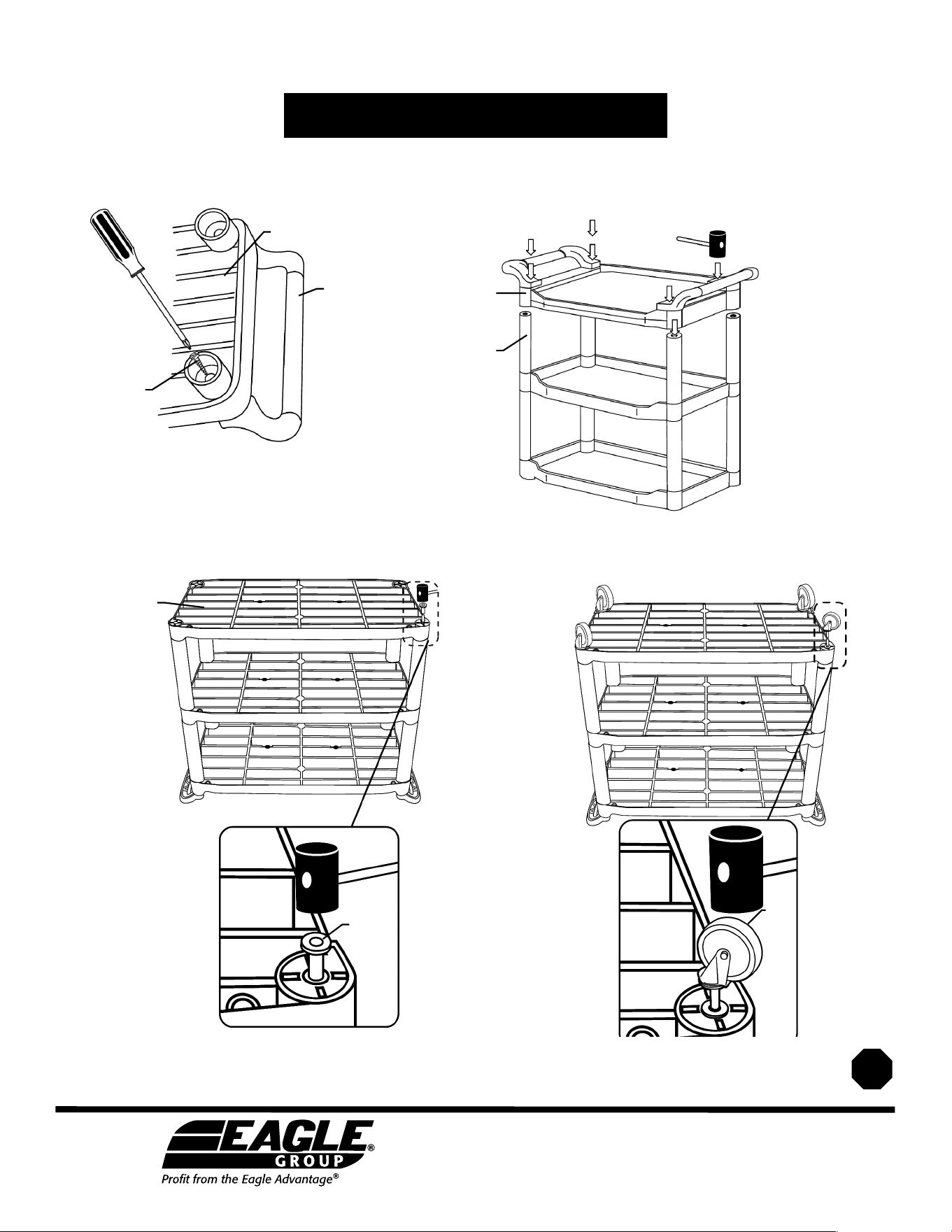

Step 4 - Attach handles to top shelf, using
four screws provided and screwdriver.
(underside view)
bushing
bottom
shelf
Step 6 - Attach bushings to underside of
bottom shelf, using rubber mallet.
Step 5 - Attach handle/shelf assembly to
uprights, using rubber mallet.
Step 7 - Attach casters, using rubber mallet.
Assembly is complete.
(underside view)
(End)
