High Power Tactile 50Watt Bass Shaker
Warm Tips:
1. The impedance of the BS-1 Bass Shaker is 6 ohms. When used in a
single unit configuration it must be hooked up to an amplifier that is
either stereo or bridged mono, the same way you would connect a
subwoofer.
2. Before installing and use, please consult the amplifier manual for the
impedance rating of your amplifier. Connecting 2 or 4 or 8 BS-1 bass
shakers can be used in situations where more bass energy is desired or in
larger applications. Connecting two in Series configuration will raise the
impedance to 12 ohms, connecting 2 in parallel will lower the impedance
to 3 ohms, and wiring 4 or 8 BS-1 in series-parallel will keep the overall
impedance to 6 or 3 ohms.
3. Before connecting the bass shaker amplifier, please consult the
amplifier manual to verify it has the power capability that produce the
wattage safely at various impedance. WARNING: Don't exceed 50 watts
RMS per bass shaker multiplied by the number of shakers (example: 50 x
4 = 200 Watts RMS)
Introduction of the panel
Features
BS-1 bass shaker makes movies alive: unlike other speakers just
providing a wonderful sound experience, Douk Audio BST-1 adds
depth and dimension to your audio, ensuring you don't just hear the
sound but feel it too, to provide an extremely immersive experience
just like you are the role in the movie.
Strong output power brings engaging experience: with 50 watts of
nom power at 6 ohms, BS-1 serves as an efficient exciter speaker
to deliver an immersive tactile bass experience. Unlike common
subwoofers, the BS-1 will not overload your listening area, and the
perceived loudness of the BS-1 improves listening at lower sound
volumes.
Advanced transducer speaker technology: the BS-1 turns your
home theater sofa or gaming chair into a bass-enhancing transducer
speaker, making you feel the vibrations from high impact
explosions in movies to the subtle feel of road surfaces in racing
simulators, totally perfect for movies, music and gaming.
Easy use and setup for your home/car system: the BS-1 can be
easily connected to a bass shaker amplifier allowing you to
upgrade your home theater or gaming setup with minimal hassle.
Recommend to install the BS-1 under your seating that is not fixed
to the floor to achieve the greatest effects.
How to use
1. HOME -Mounting the Bass Shaker to chairs or couches that are not
fixed to the floor will provide the greatest effects. The energy of the Bass
Shaker will impact the user's body rather than travel through the furniture
and disperse the energy into the floor. isolating the furniture from the
floor is highly recommended by using pads or rubber feet. Find a solid
mounting area for your Bass Shaker(s)underneath and/or on the rear of
the furniture's construction. Use four wood screws or stingers to mount
the Bass Shaker to the structure. Should no solid mount exist it is
recommended that one be constructed using hardwood or plywood. Try to
avoid fabric or padding coming into contact with the Bass Shaker. It is
important the Bass Shaker come in full contact with a solid flat surface.
The recommended wire gauge is 14-16 Gauge Speaker Wire.
2. AUTO - Mounting the Bass Shaker under the seats is highly
recommended rather than on the seat itself. Move (or remove) your seat
forward as far as possible, and identify the spot under the seat that
vibrates the most by knocking on the flooring using a rubber mallet or
soft hammer. Again, ensuring the Bass Shaker comes into full contact
with the floor surface is critical to the performance of the Bass Shaker.
Wring in advance of the installation is recommended. Ensure your wire is
without kinks or bends and that no bare wire is touching metal. Use four
steel screws or stingers to mount the Bass Shaker to the floor of your
vehicle. Recommended wire gauge is 14-16 Gauge Speaker Wire.
Note: Always check under-carpeted locations and recheck the mounting
area so as to not cut or drill into any existing electrical wiring, airbag
sensors, hydraulics, brakes, gas, or fuel lines.
Parameters
Model: BS-1
Frequency response: 20-200 Hz
Rated impedance AC: 6Ω ± 15% at 22°C
Rated impedance DC: 6Ω ± 10% at 22°C
Resonance Freq (F0): 30Hz at 22°C ± 20%
Nom input power: 50W
Max. input power: 100W
Vibration force peak: 30 lbs. per ft.

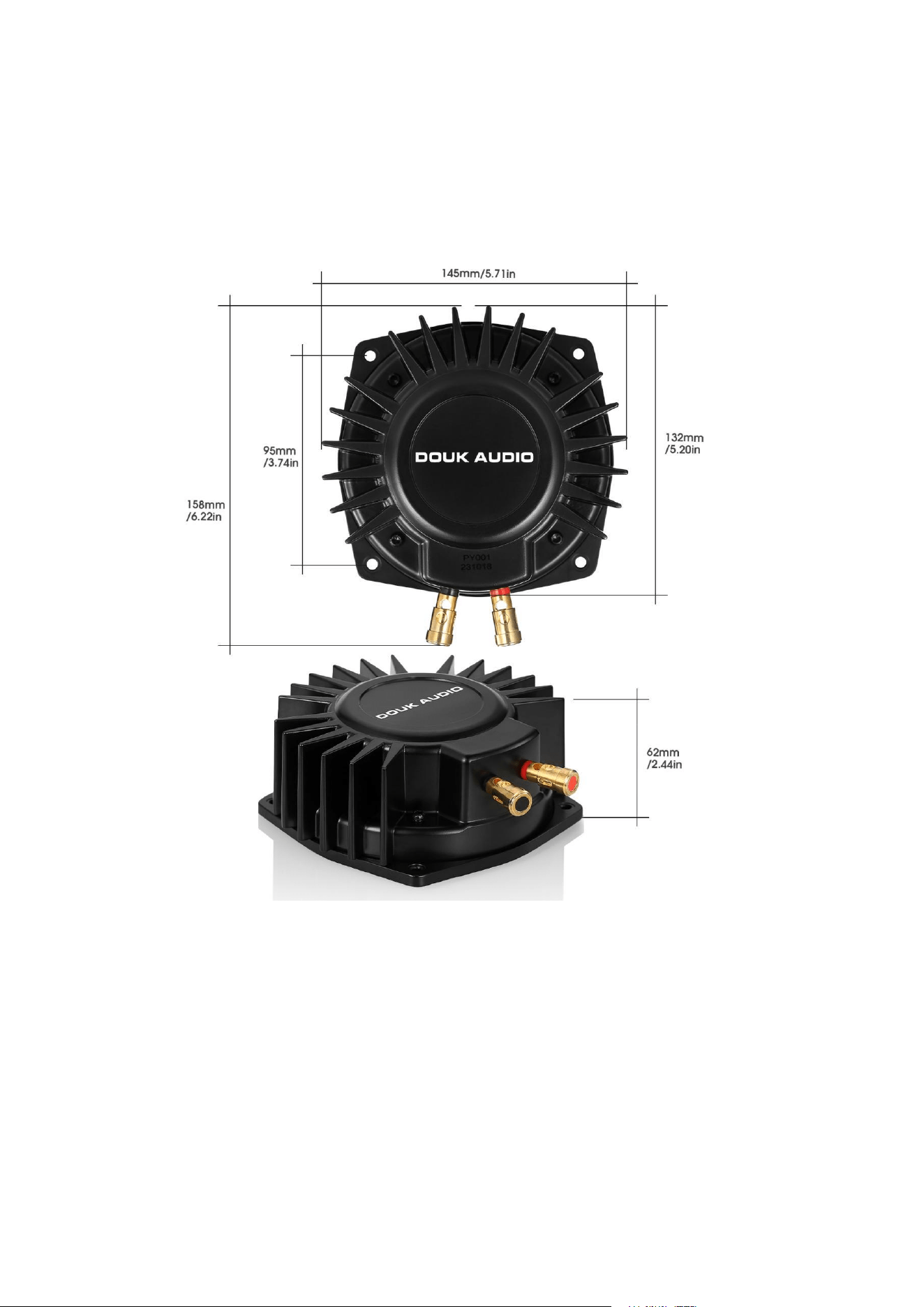

Dimensions (Max.): 158*145mm / 6.22*5.71in
Package dimensions(1Pair) (W*D*H): 370*190*90mm /
14.57*7.48*3.54in
Net weight (1PC): 1.48kg / 3.26lb
Package weight(1PC): 2.0kg / 4.41lb
Packing List
1×BS-1 Bass Shaker (Optional)
1 Pair×BS-1 Bass Shaker (Optional)
