Liebherr IXRFW 5153 PRIME BIOFRESH NOFROST data-next-head> User Manual

User Guide

Quality, Design and Innovation

home.liebherr.com/fridge-manuals

Contents

1 Safety information and warnings......................... 3

1.1 Intended use................................................................. 3

1.2 Climate classes............................................................ 3

1.3 User group..................................................................... 3

1.4 Installation and commissioning................................ 3

1.5 Safe handling of the appliance.................................. 4

1.6 Cleaning......................................................................... 4

1.7 Faults, damage and repairs........................................ 4

1.8 Disposal......................................................................... 4

1.9 Conformity..................................................................... 4

1.10 SVHC substances in accordance with the REACH

Regulation..................................................................... 4

1.11 EPREL database........................................................... 4

1.12 Open source licences.................................................. 4

1.13 Spare parts.................................................................... 4

1.14 Symbols on the appliance.......................................... 5

1.15 Warning levels.............................................................. 5

2 Appliance at a glance............................................ 5

2.1 Scope of delivery.......................................................... 5

2.2 Overview of appliances and equipment................... 5

2.3 SmartDevice.................................................................. 5

3 Functionality of the Touch&Swipe display......... 6

3.1 Navigation and symbol explanation......................... 6

3.2 Menus............................................................................. 6

3.3 Sleep mode................................................................... 7

4 Putting into operation........................................... 7

4.1 Switching on appliance (first use)............................ 7

5 Storage.................................................................. 7

5.1 Information regarding storage................................... 7

5.2 Fridge compartment.................................................... 8

5.3 BioFresh......................................................................... 8

5.4 ****-freezer compartment*........................................ 8

5.5 Storage times............................................................... 8

6 Saving energy........................................................ 9

7 Controls................................................................. 9

7.1 Controls and displays.................................................. 9

7.1.1 Status display..............................................................9

7.1.2 Display symbols........................................................ 10

7.2 Appliance functions..................................................... 10

7.2.1 Notes on the appliance functions..........................10

Switching the appliance off and on......................10

WiFi............................................................................ 10

Temperature.............................................................. 11

Temperature unit......................................................12

BioFresh B-Value .....................................................12

C-Value*.....................................................................12

D-Value.......................................................................12

SuperCool..................................................................12

PartyMode ................................................................ 13

HolidayMode............................................................. 13

SabbathMode............................................................14

EnergySaver .............................................................14

CleaningMode...........................................................15

Display brightness...................................................15

Door alarm.................................................................15

Input lock...................................................................16

Language...................................................................16

Device information...................................................17

Software.....................................................................17

Reminder....................................................................17

Demo mode............................................................... 17

Resetting to factory settings.................................18

7.3 Messages...................................................................... 19

7.3.1 Overview of warnings...............................................19

7.3.2 Ending warnings........................................................19

7.3.3 Overview of reminders............................................. 19

7.3.4 Ending reminders...................................................... 19

8 Features................................................................. 20

8.1 4-star freezer compartment*..................................... 20

8.2 Door rack....................................................................... 20

8.3 Shelves.......................................................................... 21

8.4 Dividing shelf................................................................ 22

8.5 VarioSafe *.................................................................... 22

8.6 Adjustable bottle shelf................................................ 24

8.7 Drawers.......................................................................... 25

8.8 Compartment lid for Fruit & Vegetable Safe........... 26

8.9 Butter dish.................................................................... 26

8.10 Egg rack......................................................................... 27

8.11 Bottle holder................................................................. 27

8.12 FlexSystem.................................................................... 27

8.13 Ice cube tray with cover*............................................ 28

9 Maintenance.......................................................... 28

9.1 FreshAir carbon filter................................................... 28

9.2 Dismantling the door rack.......................................... 28

9.3 Assembling the door rack........................................... 29

9.4 Disassembling / assembling pull-out systems...... 29

9.5 Removing / inserting the variable bottle rack........ 29

9.6 Compartment lid for Fruit & Vegetable Safe........... 30

9.7 Defrosting the appliance............................................ 30

9.8 Defrosting the freezer compartment manually*.... 30

9.9 Cleaning the appliance............................................... 31

10 Customer help....................................................... 31

10.1 Technical specifications............................................. 31

10.2 Operating noises.......................................................... 32

10.3 Technical fault.............................................................. 32

10.4 Customer Service......................................................... 33

10.5 Model plate................................................................... 33

11 Shutting down....................................................... 33

12 Disposal................................................................. 34

12.1 Preparing the appliance for disposal........................ 34

12.2 Disposing of the appliance in an environmentally

friendly manner............................................................ 34

2 * Depending on model and options

The manufacturer is continually working on the further

development of all types and models. Please be aware that

we reserve the right to make changes to the shape, equip‐

ment and technology.

Symbol Explanation

Read instructions

Please read the information in these instruc‐

tions carefully to understand all of the benefits

of your new appliance.

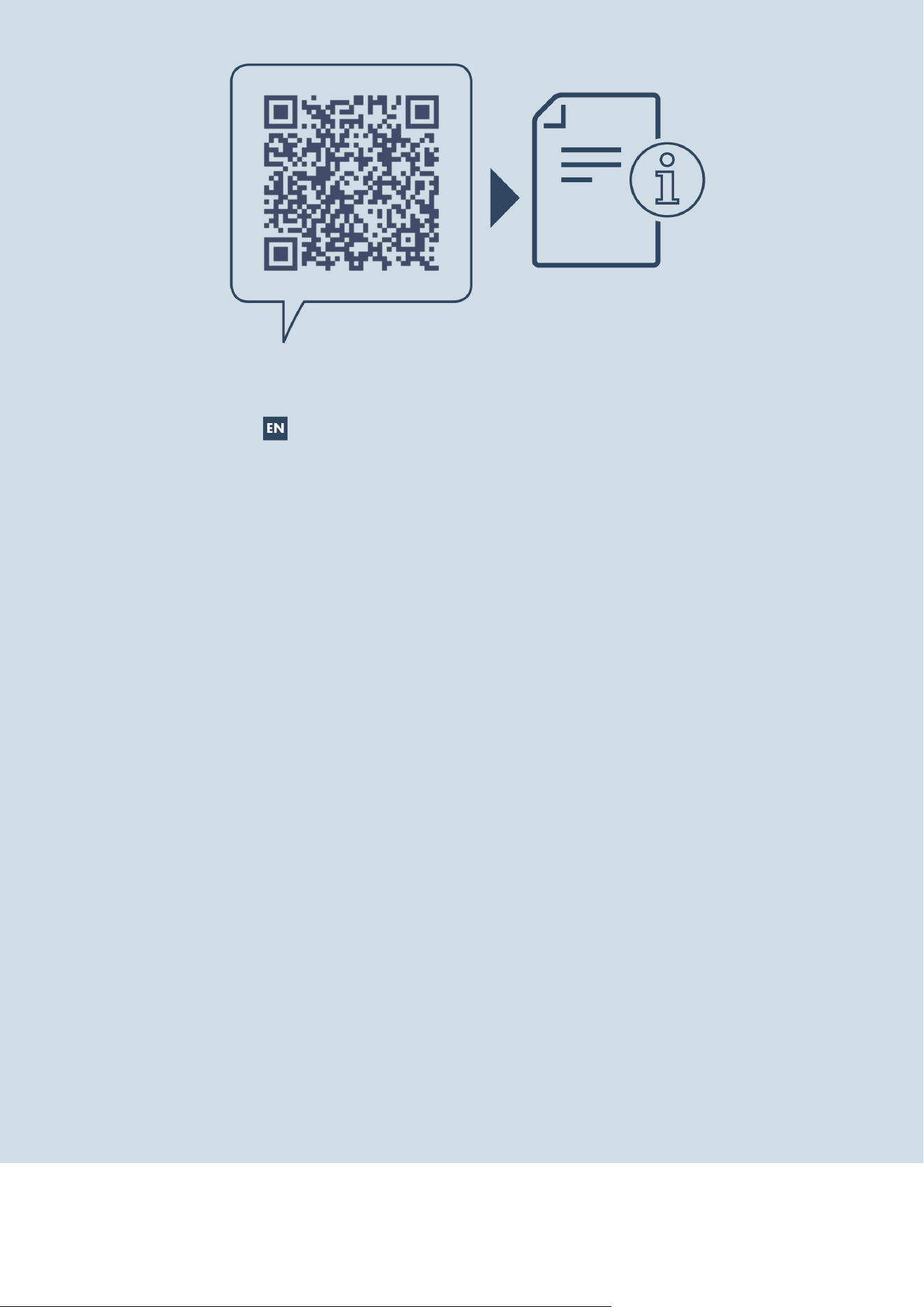

Additional information on the Internet

The digital manual with additional informa‐

tion and in other languages can be found

via the QR code on the front of the

manual or by entering the service number at

home.liebherr.com/fridge-manuals.

The service number can be found on the serial

tag:

Fig.Example illustration

Check appliance

Check all parts for transport damage. If you

have any complaints, please contact your

agent or customer service.

Differences

These instructions apply to a range of models,

so differences are possible. Sections that

apply to certain models only are marked with

an asterisk (*).

Instructions and results

Instructions are marked with a .

Results are marked with a .

Videos

Videos about the appliances are available on

the YouTube channels of Liebherr-Hausgeräte.

Open source licences:

The appliance contains software components that use

open source licences. Information on the open source

licences used can be found here: home.liebherr.com/

open-source-licences

1 Safety information and warnings

Keep this user information in a safe place so that you can

refer to it at any time.

If you pass on the appliance, pass this user information on

to subsequent owners.

To use the appliance properly and safely, read this user

information carefully before installation and use. Always

follow the instructions, safety instructions and warnings

contained therein. They are important so that you can install

and operate the appliance safely and properly.

1.1 Intended use

This appliance is intended for household use and similar

applications such as:

in staff kitchen areas in shops, offices and other work

areas

in agricultural environments and by guests in hotels,

motels and other accommodation

in bed and breakfasts

in catering and similar wholesale operations

Further uses:

This appliance is not suitable for freezing food.*

All other types of application are impermissible.

1.2 Climate classes

Depending on its climate class, the appliance is designed

for operation within certain ambient temperature limits. The

climate class for your appliance is printed on the type plate.

Note

► In order to guarantee fault-free operation comply with

the specified ambient temperatures.

Climate class for ambient temperatures from

SN 10°C to 32°C

N 16°C to 32°C

ST 16°C to 38°C

T 16°C to 43°C

SN-ST 10°C to 38°C

SN-T 10°C to 43°C

1.3 User group

This appliance can be used by children aged from 8 years

and above and persons with reduced physical, sensory

or mental capabilities or lack of experience and knowl‐

edge if they have been given supervision or instruction

concerning use of the appliance in a safe way and under‐

stand the hazards involved.

Children must not play with the appliance.

Children must not carry out cleaning and user mainte‐

nance without supervision.

Children aged from 3 to 8 years are allowed to load and

unload refrigerating appliances.

1.4 Installation and commissioning

Only install and connect the appliance in accordance

with the instructions in the user information.

Install the appliance according to the instructions in the

user information to prevent the appliance from tipping

over.

Do not close the ventilation openings in the appliance

housing or in the installation housing.

Do not damage the mains cable. The appliance must not

be operated with a defective mains cable.

Do not place portable multiple sockets or power supply

units at the rear of the appliance.

It must be easy to access the socket so that the appli‐

ance can be quickly disconnected from the power supply

in case of an emergency. It must not be behind the appli‐

ance.

Safety information and warnings

* Depending on model and options 3

Appliances with anti-tip protection:

Secure the appliance with an anti-tip device in accord‐

ance with the instructions in the user information to

prevent the appliance from tipping over.

1.5 Safe handling of the appliance

Do not store any explosive substances, such as aerosol

containers with flammable propellant gas, in the appli‐

ance. These types of aerosol can be identified by the

list of contents printed on it, or by a flame symbol. Any

leaking gas may ignite due to electrical parts.

Keep burning candles, lamps and other objects with

naked flames away from the appliance, so that these do

not set fire to the appliance.

Alcoholic beverages and other containers bearing alcohol

must be sealed tight for storage. Any leaking alcohol may

ignite due to electrical parts.

Avoid prolonged skin contact with cold surfaces or with

cold/frozen food. Use gloves for protection, for example.

The refrigerant contained (information on the type plate)

is environmentally friendly but flammable. Leaking refrig‐

erant may ignite.

•

Do not damage the refrigeration circuit.

•

Do not use any ignition sources inside the appliance.

•

Do not use electrical appliances inside the appliance

(e.g. steam cleaners, heaters).

•

If the refrigerant leaks: remove any naked flames or

ignition sources from the vicinity of the leakage point.

Properly air the room. Inform customer service.

Only open the door for a short time. This prevents the

temperature inside the appliance from rising.

Do not reach between the door and the appliance when

opening and closing. Fingers may become trapped.

The temperature in the warmest part of the appliance

may be higher than the set temperature.

1.6 Cleaning

Regularly clean surfaces that come into contact with

food.

Clean the defrost water drain regularly.

Do not use an electric heater or steam cleaner, naked

flames or defrost spray to speed up the defrosting

process.

Do not remove the ice with sharp objects.

1.7 Faults, damage and repairs

If the mains connection cable of the appliance is

damaged, replace the mains connection cable.

Repairs and interventions on the appliance may only be

carried out by the customer service or by other qualified

personnel trained for this purpose.

In the event of malfunctions and appliance faults, pull

out the mains plug or switch off the fuse. Always hold

the plug when pulling out the mains plug. Never tug on

the cable.

1.8 Disposal

The appliance contains valuable materials and is marked

with the appropriate symbol. (see 1.14 Symbols on the

appliance)

•

Do not dispose of the appliance in the household

waste.

•

Dispose of the appliance free of charge at your

local recycling centre using the Class 1 collection

containers.

•

When purchasing a new appliance, return the old

appliance to the retailer free of charge.

•

Provide information about return options.

Your appliance may contain personal data.

•

Delete personal data before disposal.

The appliance contains refrigerant (information on the

type plate) and oil. The refrigerant inside the appliance

is environmentally friendly, but flammable. The oil it

contains is also flammable. Escaping refrigerant and oil

can ignite in high concentrations and in contact with an

external heat source.

•

Do not damage the refrigeration circuit.

•

Only dispose of the appliance in accordance with the

instructions in the user information.

1.9 Conformity

The coolant circuit has been tested for leak-tightness. When

installed, the appliance complies with the relevant safety

regulations and directives.

For the EU

market:

The appliance complies with Directive

2014/53/EU.

For GB market: The appliance complies with the Radio

Equipment Regulations 2017 SI 2017 No.

1206.

The full text of the EU Declaration of Conformity is available

at the following web address: www.liebherr.com

The BioFresh compartment fulfils the requirements of a

chiller compartment in accordance with DIN EN 62552:2020.

1.10 SVHC substances in accordance

with the REACH Regulation

You can use the following link to check whether your appli‐

ance contains SVHC substances in accordance with the

REACH Regulation:

home.liebherr.com/en/en/liebherr-experience/sustaina‐

bility/environment/scip/scip.html

1.11 EPREL database

From 1 March 2021, the information on energy labelling and

eco-design requirements will be available in the European

product database (EPREL). The product database can be

accessed via the following link https://eprel.ec.europa.eu/.

Here, you are asked to enter the model identifier. You will

find the model identifier on the type plate.

1.12 Open source licences

The appliance contains software components that use open

source licences. Information on the open source licences

used can be found here:

home.liebherr.com/open-source-licences

1.13 Spare parts

The spare parts availability for functional parts and stock‐

able parts of the equipment is 15 years.

Safety information and warnings

4 * Depending on model and options

1.14 Symbols on the appliance

This symbol may be found on the

compressor. It pertains to the oil in the

compressor and indicates the following

danger: Can be fatal if swallowed or with

penetration of the respiratory tract. This

information is only significant for recycling.

No risk exists with normal use. Do not

remove this symbol.

Warning: Fire hazard due to flammable

substances. This symbol is located on the

compressor and can also be found in other

places on the appliance. This symbol warns

of flammable substances. Do not remove

this symbol.

This or a similar symbol may be on the rear

of the appliance. It indicates that there are

vacuum insulation panels (VIP) or perlite

panels in the door and/or housing. This

information is only significant for recycling.

Do not remove this symbol.

This symbol is located on the type plate.

It indicates that the appliance contains

valuable materials and that you must not

dispose of it with household waste.

(see1.8Disposal)

1.15 Warning levels

DANGER

Identifies an immediately

dangerous situation that will

result in death or serious bodily

injuries if it is not prevented.

WARNING

Identifies a dangerous situation

that could result in death or

serious bodily injury if it is not

prevented.

CAUTION

Identifies an immediately

dangerous situation that could

result in slight or moderate injuries

if it is not prevented.

ATTENTION Identifies a hazardous situation

that could result in property

damage if it is not prevented.

Note Identifies useful information and

tips.

2 Appliance at a glance

2.1 Scope of delivery

Check all parts for transport damage. Contact your

dealer or customer service in the event of complaints.

(see 10.4 Customer Service)

Your new appliance comes with the following parts:

Built-in appliance

Features (depending on the model)

Installation materials (depending on the model)

“Quick Start Guide”

“Installation Guide”*

Service Brochure

2.2 Overview of appliances and equip‐

ment

Fig. 1 Example illustration

Temperature range

(A)

Fridge compartment (B) BioFresh

Equipment

(1)

Controls (10) Fruit & Vegetable safe

(2) 4-star freezer compart‐

ment*

(11) Drain hole

(3) Fan with FreshAir acti‐

vated charcoal filter

(12) Meat & Dairy safe

(4) Dry rear panel (13) Type plate

(5) Divisible storage shelf (14) Door shelf

(6) Storage shelf (15) Bottle holder

(7) VarioSafe* (16) VarioBoxes*

(8) Variable bottle shelf (17) Soft-closing mechanism

(9) Lid for Fruit & Vege‐

table safe

(18) Adjusting feet

2.3 SmartDevice

SmartDevice is the networking solution for your refrigerator.

If your appliance SmartDevice-enabled or compatible, you

can quickly and easily connect your appliance to your

WiFi. With the SmartDevice app, you can operate your appli‐

ance from a mobile device. Additional functions and setting

options are available in the SmartDevice SmartDevice app.

SmartDevice-

enabled appliance:

Your appliance is capable of being a

SmartDevice. To be able to connect

your device to WiFi, you need to

download the SmartDevice app.

More information

about SmartDe‐

vice:

smartdevice.liebherr.com

Appliance at a glance

* Depending on model and options 5

Downloading the

SmartDevice app:

After installing and configuring

the SmartDevice app, you can

connect your appliance to your Wi-Fi

(see WiFi) using the SmartDevice app

and the appliance's Wi-Fi function.

Note

The SmartDevice function is not available in the following

countries: Russia, Belarus, Kazakhstan.

3 Functionality of the

Touch&Swipe display

You operate your appliance using the Touch & Swipe display.

You select appliance functions in the Touch & Swipe display

(hereafter referred to as display) by tapping them. If you

do not perform any action on the display for 10 seconds,

the display either jumps back to the higher-level menu or

directly to the status display.

3.1 Navigation and symbol explanation

In the illustrations, different symbols are used to navigate

the display. The following table describes these symbols.

Symbol

Description

Briefly touch the display:

Activates/deactivates function.

Confirms selection.

Opens submenu.

Touch the display for a specified time

(e.g. 3seconds):

Activates/deactivates function or

value.

Swipe left or right:

Navigate in the menu.

Briefly touch the Back symbol:

Jumps back one menu level.

Press and hold the Back symbol for

3seconds:

Jumps back to the status display.

Arrow with clock:

It takes more than 10 seconds for the

following message to appear in the

display.

Arrow with a time indication:

It takes the specified amount of time

until the following message appears in

the display.

Symbol Description

“Open Settings menu” symbol:

Navigates to the Settings menu and

opens the settings menu.

If necessary: Navigate to the desired

function in the Settings menu.

(see 3.2.1 Opening the Settings menu)

“Open Advanced menu” symbol:

Navigates to the Advanced menu and

opens the advanced menu.

If necessary: Navigate to the desired

function in the Advanced menu.

(see 3.2.2 Opening the expanded

menu)

No action for

10seconds

If you do not perform any action on

the display for 10 seconds, the display

either jumps back to the higher-level

menu or directly to the status display.

Close the door

and open it again.

If you close the door and immedi‐

ately open it again, the display jumps

directly back to the status display.

Note: Illustrations of the display are shown in the English

version.

3.2 Menus

The appliance functions are distributed over various menus:

Description

Main menu When you switch the appliance on, you

are automatically in the main menu.

From here you can navigate to the most

important appliance functions, to the

Settings menu and to the Advanced

menu.

Settings menu

The Settings menu contains additional

appliance functions for setting up your

appliance.

Advanced menu The advanced menu contains special

appliance functions for setting up your

appliance. Access to the Advanced menu

is protected by the numerical code 151.

3.2.1 Opening the Settings menu

Fig. 2 Example illustration

► Carry out action steps according to the illustration.

▷ Settings menu is open.

► If necessary: Navigate to the desired function.

Functionality of the Touch&Swipe display

6 * Depending on model and options

3.2.2 Opening the expanded menu

Fig.3

Fig. 4 Example illustration, access with numerical code 151

► Carry out action steps according to the illustration.

▷ The expanded menu is open.

► If necessary: Navigate to the desired function.

3.3 Sleep mode

If you do not touch the display for 1 minute, the display

switches to sleep mode. In sleep mode, the display bright‐

ness is dimmed.

3.3.1 Ending sleep mode

► Touch the display briefly with your finger.

▷ Sleep mode is ended.

4 Putting into operation

4.1 Switching on appliance (first use)

Make sure that the following requirements are fulfilled:

❑

The appliance is properly installed and connected

according to the installation instructions.

❑

All adhesive strips, adhesive and protective films and

transport locks are removed from inside and on the appli‐

ance.

❑

All marketing leaflets are removed from the drawers.

❑

You are familiar with the functionality of the

Touch & Swipe display. (see 3 Functionality of the

Touch&Swipe display)

Switch on the appliance using the Touch&Swipe display:

► If the display is in sleep mode: Briefly touch the display.

► Carry out action steps according to the illustration.

Fig. 5 Example illustration

▷ Status display appears.

▷ The appliance cools to the temperature set at the factory.

▷ The appliance starts in demo mode (status display with

DEMO appears): If the appliance starts in demo mode,

you can deactivate demo mode within the next 5 minutes.

(seeDemo mode)

More information:

Start the SmartDevice for the first time. (see 2.3 Smart‐

Device) and (seeWiFi)

Note

The manufacturer recommends:

► Stock with food: Wait for around 6 hours until the set

temperature is reached.

► Store frozen foods at -18°C or colder.*

► Observe the notes on storing food. (see 5.1 Information

regarding storage)

Note

Accessories can be purchased from the Liebherr-

Hausgeräte store at home.liebherr.com/shop/de/deu/

zubehor.html.

5 Storage

5.1 Information regarding storage

WARNING

Fire hazard from electrical appliances!

If you use electrical appliances in the food area of your

appliance, they can cause a fire.

► Do not use electrical appliances in the food area of the

appliance unless recommended by the manufacturer.

Note

The energy consumption increases and the cooling power

goes down if ventilation is not sufficient.

► Always keep air slots clear.

Observe the following specifications for storage:

Keep the air vents on the fan free.

In the freezer compartment: Package food properly.*

Package or cover foods that readily take on or give off

odours or taste in closed containers.

Package raw meat or fish in clean, closed containers.

This will prevent meat or fish from touching or dripping

onto other food.

Keep liquids in closed containers.

Putting into operation

* Depending on model and options 7

Leave space between goods to ensure good air circula‐

tion.

Store food according to the instructions on the pack‐

aging.

Always observe the best-before date indicated on the

packaging.

Note

Failure to follow these guidelines can lead to foodstuffs

spoiling.

5.2 Fridge compartment

The air circulation in the appliance creates different temper‐

ature zones. You will find the different temperature zones in

the appliance and equipment overview. (see 2.2 Overview of

appliances and equipment)

5.2.1 Arranging your food properly

► Upper area and door: Store butter, cheese, tinned food

and tubes.

► Coldest temperature zone: Store perishable foods such

as pre-cooked meals.

5.3 BioFresh

BioFresh will extend the storage time for some fresh foods

compared to traditional refrigeration.

Note

If the temperature drops below 0°C foods may freeze.

► Store cold-sensitive produce such as cucumbers, auber‐

gines, courgettes and tropical fruit in the fridge compart‐

ment.

5.3.1 Fruit & Vegetable safe

This safe creates a storage climate of close to 0 °C. The

compartment lid ensures constant levels of humidity. This

storage climate is suitable for storing unpackaged food with

high intrinsic moisture (for example, lettuce, vegetables,

fruit).

The humidity in the compartment depends on the moisture

content of the chilled goods placed in it, and also depends

on how often the compartment is opened. You can regulate

the humidity level.

Arranging your food properly

► Store unpackaged fruit and vegetables.

If the humidity is too high:

► Regulate the humidity.

5.3.2 Meat & Dairy safe

This safe creates a storage climate of close to 0 °C. This

storage climate is suitable for more sensitive foods (e.g.

dairy products, meat, fish, sausage).

Arranging your food properly

► Store dry or packaged food.

5.4 ****-freezer compartment*

Here, a dry, frosty storage climate is created at -18 °C. The

frosty storage climate is suitable for storing frozen food for

several months, for making ice cubes or freezing fresh food.

The air temperature in the freezer compartment, measured

with a thermometer or other measuring device, may fluc‐

tuate. Temperature fluctuations are greater in a half-full

or empty freezer and it is possible to attain temperatures

warmer than -18°C.

5.4.1 Freezing food

The maximum amount of fresh food that you can

freeze within 24 hours is specified on the type plate

(see 10.5 Model plate) under “Freezing capacity ... kg/24h”.

To ensure that food quickly freezes through, adhere to the

following quantities per package:

Fruit and vegetables up to 1 kg

Meat up to 2.5 kg

Arranging your food properly

CAUTION

Risk of injury due to broken glass!

Bottles and cans containing drinks may burst when being

frozen. This applies particularly to sparkling drinks.

► Do not freeze bottles and cans containing drinks!

►

For maximum freezing performance: Remove glass plate

before freezing.*

► Place packaged food in the freezer compartment.

Defrosting food

WARNING

Risk of food poisoning!

► Do not re-freeze thawed food.

► Use defrosted foodstuff as soon as possible.

You can defrost food in several ways:

In the fridge compartment

In the microwave

In the oven/fan-assisted oven

At room temperature

► Take out only as much food as necessary.

5.5 Storage times

Refer to the specified storage times as a guide.

In the case of foods with a minimum shelf life, the date

indicated on the packaging still applies.

5.5.1 Fridge section

Always follow the best-before date stated on the packaging.

5.5.2 BioFresh

Recommended storage periods in the Meat & Dairy-Safe

Butter at 1°C up to 90 days

Hard cheese at 1°C up to 110 days

Milk at 1°C up to 12 days

Sausage, cold meats at 1°C up to 8 days

Poultry at 1°C up to 6 days

Pork at 1°C up to 6 days

Beef at 1°C up to 6 days

Game at 1°C up to 6 days

Note

► Remember that high-protein foods perish quicker; shell‐

fish and crustaceans do not last as long as fish, and fish

does not last as long as meat.

Storage

8 * Depending on model and options

Recommended storage periods in the Fruit & Vegetable-

Safe

Vegetables, salads

Artichokes at 1°C up to 14 days

Celery at 1°C up to 28 days

Cauliflower at 1°C up to 21 days

Broccoli at 1°C up to 13 days

Chicory at 1°C up to 27 days

Lettuce at 1°C up to 19 days

Peas at 1°C up to 14 days

Kale at 1°C up to 14 days

Carrots at 1°C up to 80 days

Garlic at 1°C up to 160 days

Turnip at 1°C up to 14 days

Lettuce at 1°C up to 13 days

Herbs at 1°C up to 13 days

Leeks at 1°C up to 29 days

Mushrooms at 1°C up to 7 days

Radishes at 1°C up to 10 days

Brussels sprouts at 1°C up to 20 days

Asparagus at 1°C up to 18 days

Spinach at 1°C up to 13 days

Savoy at 1°C up to 20 days

Fruit

Apricots at 1°C up to 13 days

Apples at 1°C up to 80 days

Pears at 1°C up to 55 days

Blackberries at 1°C up to 3 days

Dates at 1°C up to 180 days

Strawberries at 1°C up to 7 days

Figs at 1°C up to 7 days

Blueberries at 1°C up to 9 days

Raspberries at 1°C up to 3 days

Currants at 1°C up to 7 days

Sweet cherries at 1°C up to 14 days

Kiwis at 1°C up to 80 days

Peaches at 1°C up to 13 days

Plums at 1°C up to 20 days

Cranberries at 1°C up to 60 days

Rhubarb at 1°C up to 13 days

Gooseberries at 1°C up to 13 days

Grapes at 1°C up to 29 days

5.5.3 Freezer compartment*

Recommended shelf-lives for various types of food

Ice cream at -18°C 2 to 6 months

Recommended shelf-lives for various types of food

Cold cuts, ham at -18°C 2 to 3 months

Bread, baked goods at -18°C 2 to 6 months

Game, pork at -18°C 6 to 9 months

Fatty fish at -18°C 2 to 6 months

Lean fish at -18°C 6 to 8 months

Cheese at -18°C 2 to 6 months

Poultry, beef at -18°C 6 to 12 months

Vegetables, fruit at -18°C 6 to 12 months

6 Saving energy

Pay attention to good ventilation. Do not cover ventilation

holes or grids.

Always keep the fan air slits clear.

Do not install the appliance in direct sunlight or near

radiators or similar sources of heat.

If the appliance is installed directly next to an oven,

the energy consumption may increase slightly. This is

dependent on the service life and usage intensity of the

oven.

Energy consumption depends on the installation condi‐

tions, e.g. the ambient temperature . A warmer ambient

temperature can increase the energy consumption.

Open the appliance for as short a time as possible.

The lower the temperature is set the higher the energy

consumption.

Sort your food: home.liebherr.com/food.

Keep all food properly packed and covered. This prevents

frost from forming.

Only take food out for as long as necessary so that it

doesn’t warm up too much.

Inserting warm food: allow to cool down to room temper‐

ature first.

Thaw frozen food in the refrigerator.*

If there is a thick layer of frost in the appliance: defrost

the appliance.*

For longer periods of absence, use HolidayMode

(seeHolidayMode) .

7 Controls

7.1 Controls and displays

7.1.1 Status display

Fig. 6 The status display shows the actual temperature.

(1)

Temperature display of

the fridge section

(2) Temperature display

BioFresh

The status display shows the actual temperature and is the

initial display. Navigation to the functions takes place from

there.

Saving energy

* Depending on model and options 9

7.1.2 Display symbols

Display symbols provide information on the current appli‐

ance status:

Symbol Appliance status

Standby

The appliance or temperature zone

is switched off.

Flashing number

Appliance is working. Temperature

flashes until the set temperature is

reached.

Flashing symbol

Appliance is working. Setting is

made.

7.2 Appliance functions

7.2.1 Notes on the appliance functions

The appliance functions are set at the factory so that your

appliance is fully functional.

Before you alter, activate or deactivate the device functions,

make sure that the following requirements are met:

❑

You have read and understood the descriptions of

how the display works. (see 3 Functionality of the

Touch&Swipe display)

❑

You have familiarised yourself with the operating and

display elements of your appliance.

Switching the appliance off and on

Use this function to switch the entire appliance off and on.

Switching off the appliance

When you switch the appliance off, then the previously

saved settings are saved.

Make sure that the following requirements are fulfilled:

❑

Handling instructions (see 11 Shutting down) are carried

out.

Fig.7

Fig.8

► Carry out action steps according to the illustration.

▷ Appliance is switched off.

▷ The standby symbol appears in the display.

▷

Display turns black.

Switching on the appliance

If the display is in sleep mode:

► Briefly touch the display.

Fig. 9 Example illustration

► Carry out action steps according to the illustration.

When the appliance starts in demo mode:

► Deactivating demo mode. (see Deactivating demo mode)

▷ The appliance is switched on.

▷ Previous settings are restored.

▷ The appliance cools to the target temperature set.

WiFi

Use this function to connect your appliance to WiFi. You can

then operate it via the SmartDevice app on a mobile device.

You can also use this function to disconnect or reset the

WiFi connection.

More information on the SmartDevice: (see 2.3 SmartDevice)

Note

The SmartDevice function is not available in the following

countries: Russia, Belarus, Kazakhstan.

Establishing the WiFi connection for the first time

Make sure that the following requirements are fulfilled:

❑

You have installed the SmartDevice app (see

apps.home.liebherr.com).

❑

Registration in the SmartDevice app is completed.

Fig. 10

Fig.11

► Carry out action steps according to the illustration.

▷ Connection is established.

Controls

10 * Depending on model and options

Disconnecting from the WiFi

Fig.12

Fig.13

► Carry out action steps according to the illustration.

▷ There is no connection.

Resetting the WiFi connection

Fig. 14

Fig. 15

► Carry out action steps according to the illustration.

▷ WiFi connection and other WiFi settings are reset to

factory settings.

Showing information about the WiFi connection

Fig. 16

Fig.17

► Carry out action steps according to the illustration.

Temperature

Use this function to set the temperature.

The temperature depends on the following factors:

Frequency of door opening

Duration of door opening

Room temperature of the installation site

Type, temperature and quantity of food

Temperature zone

Factory-set

temperature

Recommended

setting

Fridge section

5°C 4°C

BioFresh

0°C B-Value

(see BioFresh B-

Value )

Setting the temperature in the fridge section

Fig. 18 Example illustration

► Carry out action steps according to the illustration.

▷ Temperature is set.

Setting the temperature in BioFresh

Set the temperature using the BioFresh B-Value.

(see BioFresh B-Value )

Controls

* Depending on model and options 11

Temperature unit

Use this function to set the temperature unit. You can set

degrees Celsius or degrees Fahrenheit as the temperature

unit.

Setting the temperature unit

Fig. 19

Fig. 21 Example illustration: Switch from degrees Celsius to

degrees Fahrenheit.

► Carry out action steps according to the illustration.

▷ The temperature unit is set.

BioFresh B-Value

Use this function to set the BioFresh B-Value. With the

BioFresh B-Value, you can set BioFresh slightly warmer or

colder if necessary due to higher or lower ambient temper‐

atures. The BioFresh B-Value is pre-set to value B5 as deliv‐

ered. If you change the B-Value, refer to the following table:

Value

Description

B1 Lowest temperature

B1-B4 The temperature can drop below 0 °C which means

foods can easily freeze.

B5 Pre-set temperature

B9 Highest temperature

Setting the BioFresh B-Value

Fig.22

Fig. 24 Example illustration: Switch from B5 to B6.

► Carry out action steps according to the illustration.

▷ The BioFresh B-Value is set.

▷ Status display shows target temperature.

C-Value*

Use this function to set the C-Value. You can use the C-

Value to make the **** freezer compartment slightly warmer

or colder. The C-Value is pre-set to value C5 as delivered.

Value Description

C1 to C4 **** freezer compartment gets colder.

C5 Pre-set value

C6 to C9 **** freezer compartment gets warmer.

Setting the C-Value

Fig.25

Fig. 27 Example illustration: Switch from C5 to C6.

► Carry out action steps according to the illustration.

▷ The C-Value is set.

D-Value

The D-Value is pre-set for your appliance and is not

permitted to be changed.

SuperCool

You can use this function to activate or deactivate Super‐

Cool. If SuperCool is activated, then the appliance increases

the cooling capacity. It allows you to achieve lower cooling

temperatures. You can activate SuperCool when you would

like to cool a large quantity of food quickly.

If SuperCool is activated, then lower temperatures are

reached in the **** freezer compartment. You can activate

SuperCool when you would like to freeze food in the ****

freezer compartment.*

If the function is active, the appliance operates at higher

power. As a result, the appliance's operating noise may be

temporarily louder and energy consumption will increase.

Activating SuperCool

Time for activation of the function:

When you would like to store fresh food in the fridge

section: Activate the function when inserting food.

When you would like to store fresh food in the ****

freezer compartment: Activate function 3 hours before

inserting the food.*

Controls

12 * Depending on model and options

Fig.28

Fig.29

► Carry out action steps according to the illustration.

-or-

► Activate with the SmartDevice app.

▷ SuperCool is activated.

▷ The temperature display turns blue.

Deactivating SuperCool

SuperCool is deactivated automatically after 18 hours.

However, you can also deactivate SuperCool manually at

any time:

Fig.30

Fig.31

► Carry out action steps according to the illustration.

-or-

► Deactivate with the SmartDevice app.

▷ SuperCool is deactivated.

▷ The appliance continues to run in normal mode.

▷ The appliance cools to the temperature set previously.

PartyMode

You can use this function to activate or deactivate Party‐

Mode. PartyMode activates various functions that are useful

for a party.

PartyMode activates the following functions:

SuperCool (seeSuperCool)

You can adjust all listed functions individually and flexibly.

When you deactivate PartyMode, all changes are discarded.

If the function is active, the device operates at higher

power. As a result, the device's operating noise may be

temporarily louder and energy consumption will increase.

Activating PartyMode

Fig.32

Fig.33

► Carry out action steps according to the illustration.

▷ PartyMode and the associated functions are activated.

▷ The temperature display turns blue.

▷ The current temperature flashes until the target tempera‐

ture is reached.

Deactivating PartyMode

The PartyMode is automatically deactivated after

24 seconds. However, you can also deactivate PartyMode

manually at any time:

Fig.34

Fig.35

► Carry out action steps according to the illustration.

▷ PartyMode is deactivated.

▷ The appliance cools to the temperature set previously:

The current temperature flashes until the target tempera‐

ture is reached.

HolidayMode

You can use this function to activate or deactivate Holiday‐

Mode. If you activate HolidayMode, the fridge section is set

to 15 °C. This saves you energy during longer periods of

absence and prevents bad odours and growth of mould.

Appliance status when HolidayMode is active

Fridge section cools to 15°C.

BioFresh cools to 15°C.

The set temperature is maintained in the **** freezer

compartment.*

PartyMode is deactivated.

SuperCool is deactivated.

Activating HolidayMode

► Empty the fridge section completely.

► Empty BioFresh completely.

Fig.36

Controls

* Depending on model and options 13

Fig.37

► Carry out action steps according to the illustration.

▷ HolidayMode is activated.

▷ Temperature display turns blue and shows HolidayMode

symbol.

Deactivating HolidayMode

Fig.38

Fig. 39

► Carry out action steps according to the illustration.

▷ HolidayMode is deactivated.

▷ The appliance cools to the temperature set previously.

SabbathMode

You can use this function to activate or deactivate

SabbathMode. If you activate this function, some electronic

functions are switched off. As a result, your device meets

the religious requirements for Jewish holidays such as

Sabbath and complies with STAR-K Kosher certification.

Device status when SabbathMode is active

The status display shows SabbathMode permanently.

All functions on the display are locked except for the

Deactivate SabbathMode function.

Active functions remain active.

The display remains bright when you close the door.

The interior lighting is deactivated.

Reminders are not implemented. The set time interval

stops.

Reminders and warnings are not displayed.

There is no door alarm.

There is no temperature alarm.

The defrosting cycle operates only for the specified time,

without considering the appliance consumption.

After a power failure, the appliance returns to

SabbathMode.

Device status

Note

This appliance has certification from the “Institute for

Science and Halacha”. (www.machonhalacha.co.il)

You can find a list of STAR-K-certified appliances at

www.star-k.org/appliances.

Activating SabbathMode

WARNING

Danger of food poisoning from spoiled food!

If you have SabbathMode activated and a power failure

occurs, no message appears in the status display about the

power failure. Once the power is restored, the appliance

continues to operate in SabbathMode. The power failure

may mean that food spoils and the consumption of this food

could lead to food poisoning.

After a power failure:

► Do not consume food that was frozen and has thawed

out.

Fig.40

Fig. 41

► Carry out action steps according to the illustration.

▷ SabbathMode is activated.

▷ The status display shows SabbathMode permanently.

Deactivating SabbathMode

The SabbathMode is automatically deactivated after

80 hours. However, you can also deactivate SabbathMode

manually at any time:

Fig. 42

► Carry out action steps according to the illustration.

▷ SabbathMode is deactivated.

EnergySaver

You can use this function to activate or deactivate Energy

saving mode. If energy saving mode is activated, the energy

consumption decreases and the temperature in the device

increases. The food remains fresh, but the shelf life is short‐

ened.

Temperature zone

Recommended

setting (see Setting

the temperature in

the fridge section)

Temperature

with active

EnergySaver

Fridge

section

4°C 7°C

Temperatures

Controls

14 * Depending on model and options

Activating EnergySaver

Fig.43

Fig.44

► Carry out action steps according to the illustration.

▷ Energy saving mode is activated.

Deactivating EnergySaver

Fig.45

Fig.46

► Carry out action steps according to the illustration.

▷ Energy saving mode is deactivated.

CleaningMode

You can use this function to activate or deactivate Cleaning‐

Mode. CleaningMode enables the appliance to be cleaned

conveniently.

This setting applies to the fridge section.

Application:

Clean the fridge section. (see 9.9Cleaning the appliance)

Device status when CleaningMode is active

The status display shows CleaningMode permanently.

The fridge section is switched off.

Interior lighting is activated.

The reminders and warnings are not displayed. No signal

tone sounds.

Device status

Activating CleaningMode

Fig. 47

Fig.48

► Carry out action steps according to the illustration.

▷ CleaningMode is activated.

▷ The status display shows CleaningMode permanently.

Deactivating CleaningMode

CleaningMode is deactivated automatically after

60 minutes. However, you can also deactivate Cleaning‐

Mode manually at any time:

Fig. 49

► Carry out action steps according to the illustration.

▷ CleaningMode is deactivated.

▷ The appliance cools to the temperature set previously.

Display brightness

Use this function to set the display brightness in stages.

You can select the following brightness levels:

40%

60%

80%

100 % (pre-setting)

Setting the brightness

Fig.50

Fig. 51 Example illustration: Switch from 80 % to 60%.

► Carry out action steps according to the illustration.

▷ The brightness is set.

Door alarm

Use this function to activate or deactivate the door alarm.

The door alarm sounds if the door is open for too long. The

door alarm is activated on delivery. You can set how long

the door may be open before the door alarm sounds.

The following values can be set:

1 minute

2 minutes

Controls

* Depending on model and options 15

3 minutes

Off

Setting the door alarm

Fig.52

Fig. 53 Example illustration: Change door alarm from

1 minute to 3 minutes.

► Carry out action steps according to the illustration.

▷ The door alarm is set.

Deactivating the door alarm

Fig.55

Fig.56

► Carry out action steps according to the illustration.

▷ The door alarm is deactivated.

Input lock

You can use this function to activate or deactivate the input

lock. The input lock prevents the appliance being operated

accidentally, e.g. by children.

Application:

Avoid unintentional modification of functions.

Avoid unintentional switching off of the device.

Avoid unintentional temperature setting.

Activating the input lock

If you activate the input lock, you can continue to navigate

in the menus but you cannot select or change other func‐

tions.

Fig.57

Fig.58

► Carry out action steps according to the illustration.

▷ Input lock is activated.

Deactivating the input lock

Fig. 59

Fig.60

► Carry out action steps according to the illustration.

▷ Input lock is deactivated.

Language

Use this function to set the display language.

You can select the following languages:

Deutsch

English

Français

Español

Italiano

Nederlands

Čeština

Polski

Português

Bulgarian

Русский

温度单位

Setting the language

Fig.61

Fig. 62 Example illustration depending on the language

and temperature

► Carry out action steps according to the illustration.

▷ The language is set.

Controls

16 * Depending on model and options

▷ The display returns to the status display.

Device information

Use this function to indicate the model name, index, serial

number and service number of your device. You will need

the device information when you contact customer service.

(see 10.4 Customer Service)

This function also opens the Advanced menu. (see 3 Func‐

tionality of the Touch&Swipe display)

Indicating the device information

Fig.63

Fig.64

► Carry out action steps according to the illustration.

▷ Display indicates device information.

Software

Use this function to indicate the software version of your

device.

Indicating the software version

Fig.65

Fig.66

► Carry out action steps according to the illustration.

▷ Display indicates software version.

Reminder

Use this function to activate or deactivate the reminders.

The function is activated on delivery.

If the function is activated, the following reminders will

appear:

Replace the FreshAir activated carbon filter (see Replace

the FreshAir activated carbon filter)

Activating the reminder

Fig. 67

Fig.68

► Carry out action steps according to the illustration.

▷ Reminder is activated.

Deactivating the reminder

Fig. 69

Fig.70

► Carry out action steps according to the illustration.

▷ Reminder is deactivated.

Demo mode

Demo mode is a special feature for dealers who want to

demonstrate appliance features. If you activate demo mode,

all refrigeration functions are deactivated.

If you switch on your appliance and “Demo” appears in the

status display, then demo mode is already activated.

If you activate and then deactivate demo mode, the appli‐

ance will be reset to factory defaults. (see Resetting to

factory settings)

Activating demo mode

Fig.71

Controls

* Depending on model and options 17

Fig.72

► Carry out action steps according to the illustration.

▷ Demo mode is activated.

▷ Appliance is switched off.

► Switch on the appliance. (see 4.1 Switching on appliance

(first use))

▷ “DEMO” appears in the status display.

Deactivating demo mode

Fig.73

Fig. 74

► Carry out action steps according to the illustration.

▷ Demo mode is deactivated.

▷ Appliance is switched off.

► Switch on the appliance. (see 4.1 Switching on appliance

(first use))

▷ Appliance is reset to factory settings.

Resetting to factory settings

Use this function to reset all settings to factory defaults.

All settings you have made so far are reset to their original

settings.

Performing a reset

Fig.75

Fig. 76

► Carry out action steps according to the illustration.

▷ Device is reset.

▷ Device is switched off.

► Restart the device. (see 4.1 Switching on appliance (first

use))

Controls

18 * Depending on model and options

7.3 Messages

There are two categories of messages:

Category Importance

Warning Warnings appear in the event of a door alarm or

malfunction.

Simple warnings can be cancelled by yourself.

In the event of serious malfunctions, you must

contact customer service. (see 10.4 Customer

Service)

Reminder Reminders remind you of general processes.

You can carry out these operations to end the

message.

7.3.1 Overview of warnings

Behaviour of the appliance in the event of warnings:

Warning appears in red on the display.

The alarm tone sounds at an ever-increasing volume.

The interior lighting pulsates for some warnings.

Message

Cause Exit the

message

Door alarm

The message appears if

the door is open for too

long.

Carry out

action steps.

(see Door

alarm)

Error

The message appears if

there is an appliance error.

A component of the appli‐

ance has a fault.

Carry out

action steps.

(see Error)

WLAN error

The message appears if

the appliance could not be

connected to the WLAN.

(see Establishing the WiFi

connection for the first

time) The message only

appears during the initial

setup.

Carry out

action steps.

(see WLAN

error)

7.3.2 Ending warnings

Door alarm

Fig. 77 Example illustration

► Carry out action steps according to the illustration.

-or-

► Close the door.

▷ The display returns to the status indicator.

You can set how long the door may be open before the door

alarm sounds. (see Setting the door alarm)

Error

Fig. 78 Example illustration

► Briefly touch the display.

▷ Error code is displayed.

► Note the error code.

► Briefly touch the display.

▷ The display returns to the status indicator.

► Contact Customer Service. (see 10.4 Customer Service)

WLAN error

► Check WLAN connection.

► Reconnect the appliance to the WLAN. (seeWiFi)

7.3.3 Overview of reminders

Behaviour of the appliance during reminders:

Reminder appears yellow on the display.

Alarm tone sounds.

The interior lighting pulsates for some reminders.

The following reminders can be deactivated (see Deacti‐

vating the reminder) :

Replace the FreshAir activated carbon filter

Message

Cause Exit the message

Replace the Fres‐

hAir activated

carbon filter

The message

appears when

the FreshAir acti‐

vated carbon

filter needs to be

replaced.

Carry out action

steps.

(see Replace the

FreshAir acti‐

vated carbon

filter)

7.3.4 Ending reminders

Replace the FreshAir activated carbon filter

Liebherr recommends: Replace the FreshAir activated

carbon filter every 6 months.

Note

FreshAir activated charcoal filters can be purchased

from the Liebherr-Hausgeräte store at home.liebherr.com/

shop/de/deu/zubehor.html.

Fig. 79 Example illustration

► Briefly touch the display.

▷ Display shows reminder information.

Controls

* Depending on model and options 19

► Briefly touch the display.

► Replace the activated carbon filter. (see 9.1 FreshAir

carbon filter)

▷ Activated carbon filter ensures optimum air quality in the

cooling unit.

▷ Reminder appears again after 6 months.

If you no longer wish to receive this reminder, you can deac‐

tivate it. (see Deactivating the reminder)

8 Features

8.1 4-star freezer compartment*

8.1.1 Opening/closing the freezer compartment

Fig.80

Opening the freezer compartment:

► Reach into the handle area from below.

► Push the handle plate while pulling the door towards you.

Closing the freezer compartment:

► Close the door while pushing from the front.

▷ Door is engaged.

8.2 Door rack

Door racks are suitable for storing drinks and food. You can

move door racks for your own individual use and take them

apart for cleaning. However, Liebherr recommends using the

door racks in the position in the door as delivered from the

factory.

Fig. 81 Example illustration, Door rack

(1)

Shelf

Fig. 82 Example illustration, Door racks with VarioBoxes*

(1)

Shelf (3) VarioBoxes

(2) Holding part for Vario‐

Boxes

(4) Side part

Fig. 83 Example illustration, Door rack with bottle holder

(1)

Shelf (2) Bottle holder

The following table shows examples of what can be stored

in each door rack. Do not exceed the maximum loading

weight of the door.

Door rack

Food

Door rack (see Fig.81) Butter, cheese, tinned food,

tubes

Door rack with bottle holder

(see Fig.83)

Bottles

The sliding bottle holder

secures the bottles in the

door rack.

Door rack with VarioBoxes

(see Fig.82) *

small food items*

8.2.1 Removing VarioBoxes*

Either one or both VarioBoxes can be used. If you want to

store particularly tall bottles in the door rack under the

door rack with VarioBoxes, you can remove one or both Vari‐

oBoxes.

Fig.84

► Pull out VarioBox to the end stop.

► Lift VarioBoxes out forwards.

► Take VarioBox out forwards.

Features

20 * Depending on model and options

8.2.2 Removing the door rack

Ensure that the following requirements are met:

❑

VarioBoxes have been removed. (see8.2.1 Removing Vari‐

oBoxes*) *

Fig. 85 Example illustration

► Push the door rack upwards.

► Pull the door rack forward.

8.2.3 Inserting the door rack

Note

Condensation in the 4-star freezer compartment due to

incorrect position of the door rack with VarioBoxes!*

If your appliance is equipped with a 4-star freezer compart‐

ment, the door rack with VarioBoxes can disrupt the air

distribution in the fridge compartment and condensation

may form on the 4-star freezer compartment.

For optimum air distribution in the fridge compartment,

Liebherr recommends:

► Use door racks with VarioBoxes at a height below the

4-star freezer compartment.

Ensure that the following requirements are met:

❑

VarioBoxes have been removed. (see8.2.1 Removing Vari‐

oBoxes*) *

Fig. 86 Example illustration

► Slide in the door rack.

► Press the door rack down.

8.2.4 Inserting VarioBoxes*

Fig. 87

► Place VarioBoxes at an angle on the rib of the door rack.

► Lower VarioBoxes.

► Push in the VarioBoxes.

8.2.5 Converting VarioBoxes*

Ensure that the following requirements are met:

❑

VarioBoxs have been removed. (see8.2.1 Removing Vario‐

Boxes*)

❑

Door rack has been removed. (see 8.2.2 Removing the

door rack)

Fig.88

► Take off the holding part Fig. 88 (1) in position Fig. 88 (A)

backwards.

► Insert the holding part Fig.88(1) in position Fig.88(B).

► Insert the door rack. (see 8.2.3 Inserting the door rack)

Fig.89

► Insert the VarioBoxes in reverse order. (see Fig.89)

8.3 Shelves

8.3.1 Adjusting/removing the shelves

The shelves are prevented from being pulled out acciden‐

tally by pull out stops.

Fig.90

► Lift the shelf and pull forward.

▷ Line up the side runner.

► Adjust the height of the shelf: Lift or lower it to the

desired height and slide it in.

-or-

Features

* Depending on model and options 21

Fig. 91

► Remove the shelf completely: Pull it out to the front.

► Easier removal: Set the shelf at an angle.

► Insert the shelf again: Slide it in all the way.

▷ The pull-out stoppers point downwards.

▷ The pull-out stoppers are behind the front support.

8.4 Dividing shelf

8.4.1 Using the dividing shelf

The shelves are prevented from being pulled out acciden‐

tally by pull out stops.

Fig.92

► Push the dividing shelf underneath as shown.

Fig. 93

Adjusting the height:

► Pull the glass panels out Fig. 93 (1) from the front, one at

a time.

► Release the support rails and click in at the height you

want.

► Slide in the glass panels one at a time.

▷ Flat pull-out stoppers at the front, right behind the

support rails.

▷ High pull-out stoppers at the back.

Using both shelves:

► Hold the glass panel with one hand and pull it to the

front.

▷ The glass panel Fig. 93(1) and trim strip are at the front.

▷ The stops Fig. 93(3) point down.

Appliances with freezer compartment:*

► Do not place the support rails and dividing shelf in front

of the fan.*

8.5 VarioSafe *

The VarioSafe offers space in the refrigerator compartment

for small groceries, packages, tubes and jars, for example.

Fig. 94

(1)

VarioSafe drawer (3) Recesses on the left and

right side panel

(2) Side panels with ribs

for VarioSafe drawer

8.5.1 Inserting the VarioSafe

Fig.95

► Insert the VarioSafe into the fridge section at an angle

Fig. 95 (1) until the recesses in the side Fig. 95 (2) of the

VarioSafe are at the level of the support rib in the fridge

section.

Fig.96

► Set VarioSafe straight. Fig.96(1)

► Lift VarioSafe at the front. Fig.96(2)

Features

22 * Depending on model and options

Fig.97

► Lift VarioSafe up toward the front.

► Push VarioSafe in to the rear.

► Lower VarioSafe.

▷ VarioSafe audibly engages.

▷ VarioSafe is inserted.

8.5.2 Repositioning the VarioSafe

You can move the VarioSafe as a whole in the refrigerator

compartment.

Fig.98

► Lift VarioSafe at the front.

Fig.99

► Pull VarioSafe forwards until the recesses in the side of

the VarioSafe are at the level of the support rib in the

refrigerator compartment. Fig.99(1)

► Move VarioSafe up or down in the refrigerator compart‐

ment until the desired height is reached. Fig.99(2)

Fig. 100

► Lift VarioSafe at the front.

► Push VarioSafe in to the rear.

▷ VarioSafe audibly engages.

▷ VarioSafe is offset in height.

8.5.3 Moving the VarioSafe drawer

You can use the VarioSafe drawer at two different heights.

If you would like to store taller foodstuffs in the VarioSafe

drawer, slide the VarioSafe drawer in on the bottom rib. If

you would like to store smaller foodstuffs in the VarioSafe

drawer, slide the VarioSafe drawer in on the top rib.

Fig. 101

► Pull out the VarioSafe drawer as far as it will go.

► Lift the VarioSafe drawer up at the front.

► Remove the VarioSafe drawer to the front.

Fig. 102

► Lift the VarioSafe drawer up at the front.

► Place the VarioSafe drawer behind the stoppers on

desired rib Fig. 102(1) or Fig. 102(2).

▷ VarioSafe drawer is offset in height.

8.5.4 Removing the VarioSafe

You can remove the VarioSafe as a whole.

Features

* Depending on model and options 23

Fig. 103

► Lift VarioSafe at the front.

Fig. 104

► Pull VarioSafe forwards Fig. 104 (1) until the recesses in

the side of the VarioSafe are at the level of the support

rib in the fridge section. Fig. 104(2)

Fig. 105

► Set VarioSafe in refrigerator compartment at an angle.

Fig. 105(1)

► Take VarioSafe out to the front. Fig. 105(2)

▷ VarioSafe is removed.

8.5.5 Disassembling the VarioSafe

You can disassemble the VarioSafe into its individual parts if

you want to clean the VarioSafe or if you need to install or

remove parts.

Fig. 106

► Remove VarioSafe as a whole. (see 8.5.4 Removing the

VarioSafe )

► Disassemble VarioSafe according to the illustration.

8.6 Adjustable bottle shelf

Either the glass shelf or the variable bottle rack can be used

in the bottom section of the refrigerator. The glass shelf is

inserted at delivery.

Fig. 107 Example illustration

(1)

Variable bottle rack

8.6.1 Using the variable bottle rack

Fig. 108

► Lift the glass shelf Fig. 108(1) at the front and remove.

► Store the glass shelf Fig. 108 (1) in a safe place outside

the appliance.

Features

24 * Depending on model and options

Fig. 109

► Place bottles in the back row with their bases against the

back wall. (see Fig. 109)

Note

When the bottles protrude over the variable bottle rack at

the front:

► Set the lower door rack one position higher.

8.6.2 Using the glass shelf

Ensure that the following requirements are met:

❑

Bottles have been removed.

❑

Variable bottle rack has been cleaned.

(see 9.5 Removing / inserting the variable bottle rack)

(see 9.9.3 Clean the components)

Fig. 110

► Place the glass shelf Fig. 110 (1) at an angle, sloping it

downwards and backwards.

► Lower the glass shelf Fig. 110(1) at the front.

8.7 Drawers

You can remove the drawers for cleaning.

The way to remove/insert the drawers varies depending

on the pull-out system. Your appliance can contain various

pull-out systems.

Note

The energy consumption increases and the cooling power

goes down if ventilation is not sufficient.

► Always keep the inside vents at the rear wall clear.

8.7.1 Drawer on telescopic rails

The drawer runs on extendible rails (telescopic rails). There

are fully extendible telescopic rails and telescopic rails with

partial pull-out. Drawers which are fully extendible can be

pulled out fully from the appliance. Drawers with partial

pull-out cannot be removed fully from the appliance. The

system in your appliance depends on the type of appliance.

Fully extendible*

If you have fully extendible rails, there is a clamp located at

the back on the left and right of the rail.

Removing drawer

Fig.111

► Pull out drawer as far as it will go.

► Lift left clamp and simultaneously pull drawer forwards

on the left. Fig.111(1)

► Lift right clamp and simultaneously pull drawer forwards

on the right. Fig.111(2)

► Remove drawer to the front. Fig.111(3)

► Slide rails in.

Inserting drawer

Fig.112

► Slide rails in.

► Place drawer on rails.

► Slide in drawer to the back.

▷ Drawer latches in audibly at the back.

Partial pull-out fridge compartment*

Removing drawer

Fig.113

► Pull out drawer half-way. Fig.113(1)

► Push the drawer down at the front. Fig.113(2)

► Push the left rail in by about 2cm. Fig.113(3)

► Push the right rail in by about 2cm. Fig.113(4)

► Remove drawer to the front. Fig.113(5)

Fig. 114

If the rails are not yet fully inserted after removing the

drawer:

► Push rails in completely.

Features

* Depending on model and options 25

Inserting drawer

Fig. 115

► Slide rails in.

► Place drawer on rails.

► Slide in drawer to the back.

8.8 Compartment lid for Fruit & Vege‐

table Safe

The compartment lid ensures constant levels of humidity.

The compartment lid is directly on the drawer and can be

covered by shelves or additional drawers.

Fig. 116 Example illustration, compartment lid for

Fruit & Vegetable Safe

(1)

Fruit & Vegetable Safe

(2) Compartment lid for

Fruit & Vegetable Safe

(3) Variable bottle rack

8.8.1 Reducing the air humidity in the drawer

Fig.117

► Pull out the drawer Fig.117(1).

► Grasp the recessed grip Fig. 117 (2) on the compartment

lid and pull the compartment lid forwards at the same

time.

▷ When the drawer is closed, there is a small gap between

the compartment lid and the drawer.

8.8.2 Increasing the air humidity in the drawer

Fig. 118

► Pull out the drawer Fig. 118(1).

► Grasp the recessed grip Fig. 118 (2) on the compartment

lid and push the compartment lid backwards at the same

time.

▷ When the drawer is closed, the compartment lid seals

with the drawer.

8.8.3 Using Fruit & Vegetable Safe as

Meat & Dairy Safe

You can use the Fruit & Vegetable Safe as Meat & Dairy

Safe. To do this, you must reduce the humidity in the drawer.

(see8.8.1 Reducing the air humidity in the drawer)

8.9 Butter dish

8.9.1 Opening/closing the butter dish

Fig. 119

8.9.2 Dismantling the butter dish

You can take the butter dish apart for cleaning.

Features

26 * Depending on model and options

Fig.120

► Disassembling the butter dish.

8.10 Egg rack

You can pull out and turn the egg rack. You can use both

sides of the egg rack so you can label specifics like the

purchase date.

8.10.1 Using the egg rack

Fig.121

► Top layer: for storing hen eggs.

► Bottom layer: for storing quail eggs.

8.11 Bottle holder

8.11.1 Using the bottle holder

Fig.122

► Push the bottle holder onto the bottles.

▷ The bottles are prevented from falling over.

8.12 FlexSystem

8.12.1 Using the FlexSystem

The FlexSystem helps you store and organise your food in

a clear and flexible way. It lets you clearly divide your food

into fruit, vegetables or by use-by dates, for example.

Fig.123

► Move the inner shell.

8.12.2 Removing the FlexSystem

Fig. 124

► Lift the FlexSystem from the back.

► Pull up and out.

8.12.3 Inserting the FlexSystem

Fig.125

► Insert the FlexSystem front-first.

► Lower the rear part.

8.12.4 Disassembling the FlexSystem

You can take the FlexSystem apart for cleaning.

Fig. 126

► Disassembling the FlexSystem

Features

* Depending on model and options 27

8.13 Ice cube tray with cover*

8.13.1 Using the ice cube tray

Fig.127

When the water is frozen:

► Hold ice cube tray under hot water for a short time.

► Remove the lid.

► Gently turn the ends of the ice cube tray in opposite

directions.

► Release the ice cubes.

8.13.2 Dismantling the ice cube tray

You can take the ice cube tray apart for cleaning.

Fig.128

► Disassembling the ice cube tray.

9 Maintenance

9.1 FreshAir carbon filter

The FreshAir carbon filter is in the compartment above the

fan.

It guarantees the best air quality.

❑

Replace the carbon filter every 6 months.

When the reminder is set, a message on the display

prompts you to change it.

❑

The carbon filter can be disposed of with the regular

household waste.

Note

FreshAir activated charcoal filters can be purchased

from the Liebherr-Hausgeräte store at home.liebherr.com/

shop/de/deu/zubehor.html.

9.1.1 Removing the FreshAir carbon filter

Fig.129

► Pull out the compartment Fig.129(1).

► Remove the carbon filter Fig.129(2).

9.1.2 Inserting the FreshAir carbon filter

Fig.130

► Insert the carbon filter as shown in the diagram

Fig.130(1).

▷ The carbon filter clicks into place.

If the carbon filter is pointing downwards:

► Push the compartment in Fig.130(2).

▷ The carbon filter is now ready for use.

9.2 Dismantling the door rack

It is possible to dismantle some of the door racks if you

want to clean them or install or remove spare parts.

9.2.1 Dismantling the door rack

Ensure that the following requirements are met:

❑

Door rack has been removed. (see 8.2.2 Removing the

door rack)

Fig. 131 Door rack with shelf

► Remove the shelf Fig.131(1).

Maintenance

28 * Depending on model and options

9.2.2 Dismantling the door rack with Vario‐

Boxes*

Ensure that the following requirements are met:

❑

Door rack has been removed. (see 8.2.2 Removing the

door rack)

Fig.132

► Remove the VarioBoxes. (see8.2.1 Removing VarioBoxes*)

► Pull off the holding part Fig.132(1).

► Pull off the side parts Fig.132(2).

► Remove the shelf Fig.132(3).

9.2.3 Dismantling the door rack with bottle

holder

Fig. 133 Door rack with bottle holder and shelf

► Slide the bottle holder Fig.133(1) to the side as far as the

recess.

► Remove the bottle holder Fig.133(1).

► Remove the shelf Fig.133(2).

9.3 Assembling the door rack

9.3.1 Assembling the door rack

Fig. 134 Door rack with shelf

► Push the shelf Fig.134(1) into the side recesses.

9.3.2 Assembling the door rack with Vario‐

Boxes*

Fig.135

► Push the shelf Fig.135(1) into the side recesses.

► Insert the side parts Fig.135(2).

► Insert the holding part Fig.135(3).

► Insert the VarioBoxes. (see8.2.4 Inserting VarioBoxes*)

9.3.3 Assembling the door rack with bottle

holder

Fig. 136 Door rack with shelf

► Push the shelf Fig.136(1) into the side recesses.

► Insert the bottle holder Fig.136(2) in the recess.

► Push the bottle holder Fig. 136 (2) to the desired position

to the side.

9.4 Disassembling / assembling pull-

out systems

9.4.1 Notes on disassembly

You can disassemble some of the pull-out systems for

cleaning. Your appliance can contain a variety of pull-out

systems.

The following pull-out systems can be disassembled or

cannot be disassembled:

Pull-out system

can be disassembled/

cannot be disassembled

Fully extendible* cannot be disassembled*

Fridge section partial pull-out* cannot be disassembled*

9.5 Removing / inserting the variable

bottle rack

The variable bottle rack can be removed for cleaning.

Maintenance

* Depending on model and options 29

9.5.1 Removing the variable bottle rack

Ensure that the following requirements are met:

❑

Bottles have been removed.

❑

Glass shelf has been removed. (see 8.6.1 Using the vari‐

able bottle rack)

Fig.137

► Lift the variable bottle rack at the front and pull it out.

▷ The compartment lid is visible.

Note

Liebherr recommends:

Do not place any items on the compartment lid below.

9.5.2 Inserting the variable bottle rack

Fig.138

► Push the variable bottle rack in to the end stop and press

it down.

▷ The connectors at the back of the variable bottle rack are

connected via automated processes.

▷ LED lights up.

► Insert the glass shelf. (see8.6.2Using the glass shelf)

-or-

► Use the variable bottle rack for bottles.

9.6 Compartment lid for Fruit & Vege‐

table Safe

You can remove the compartment lid for cleaning.

9.6.1 Removing the compartment lid

Ensure that the following requirements are met:

❑

The glass shelf directly above the variable bottle rack has

been removed.

❑

The variable bottle rack has been removed.

❑

The drawer directly below the compartment lid has been

removed. (see 8.7 Drawers)

Fig. 139

► Push the compartment lid backwards.

► Lift the compartment lid forwards.

► Remove the compartment lid forwards and upwards at an

angle.

9.6.2 Inserting the compartment lid

Fig. 140

If the THIS SIDE UP lettering is at the top:

► Insert the rear retaining parts into the relevant rear open‐

ings.

► Push the compartment lid backwards.

► Lower the compartment lid forwards and engage the

front retaining parts into the openings.

► Move the compartment lid into the required position.

9.7 Defrosting the appliance

WARNING

Improper defrosting of the appliance!

Injuries and damage.

► Do not use mechanical equipment or other methods to

speed up the defrosting process other than those recom‐

mended by the manufacturer.

► Do not use electrical heating or steam-cleaning appli‐

ances, naked flames or defroster sprays to defrost.

► Do not use sharp objects to remove ice.

Defrosting is performed automatically. The water from the

thawing process drains through the outlet and evaporates.

► Clean the drain opening at regular intervals.

(see 9.9Cleaning the appliance)

9.8 Defrosting the freezer compartment

manually*

A layer of frost or ice forms after prolonged use.

The following factors promote the formation of frost or ice:

- The appliance is opened frequently.

- Hot food is put in.

Maintenance

30 * Depending on model and options

► Switch the appliance off.

► Pull the mains plug out of the socket or switch the fuse

off.

► Wrap the frozen food in newspaper or blankets and store

in a cool place.

► Place a pan of hot water (not boiling) on the middle shelf.

▷ This speeds up the defrosting process.

► Leave the compartment and appliance door open during

defrosting.

► Remove loosened pieces of ice.

► Soak up the melted ice water with a sponge or cloth

several times as necessary.

► Clean the appliance. (see 9.9Cleaning the appliance)

9.9 Cleaning the appliance

9.9.1 Ready

WARNING

Danger of electric shock!

► Remove the refrigerator connector or interrupt the power

supply.

WARNING

Risk of fire

► Do not damage the refrigeration circuit.

► Empty the appliance.

► Remove mains connector.

-or-

► Activate CleaningMode. (seeCleaningMode)

9.9.2 Cleaning the interior

NOTICE

Improper cleaning!

Damage to the appliance.

► Only use soft cleaning cloths and ph-neutral all-purpose

cleaners.

► Do not uses abrasive sponges or steel wool which may

cause scratches.

► Do not use any sharp or abrasive cleaning agents, nor

any that contain sand, chloride or acid.

► Plastic surfaces: clean by hand with a soft clean cloth,

lukewarm water and a little detergent.

► Metal surfaces: clean by hand with a soft clean cloth,

lukewarm water and a little detergent.

► Drain hole: remove deposits using a thin item (for

example a cotton bud).

9.9.3 Clean the components

NOTICE

Improper cleaning!

Damage to the appliance.

► Only use soft cleaning cloths and ph-neutral all-purpose

cleaners.

► Do not uses abrasive sponges or steel wool which may

cause scratches.

► Do not use any sharp or abrasive cleaning agents, nor

any that contain sand, chloride or acid.

Clean with a soft, clean cloth, lukewarm water and some

detergent:

- Shelf

- Dividing shelf

- VarioSafe*

- Compartment lid for Fruit & Vegetable Safe

- Drawer

- Adjustable bottle shelf

- FlexSystem

Clean with a damp cloth:

- Retractable rails

Please note: The grease in the tracks is used for lubrica‐

tion and must not be removed!

Wash in the dishwasher up to 60°C:

- Door rack

- VarioBox*

- Bottle rack

- Holder of the dividing shelf

- Egg rack

- Butter dish

- Ice cube tray*

► To disassemble components: see the relevant section.

► Clean the components.

9.9.4 After cleaning

► Wipe the appliance and the components dry.

► Connect and switch on the appliance.

The temperature is cold enough:

► Place the food inside.

► Repeat cleaning regularly.

10 Customer help

10.1 Technical specifications

Temperature range

Cooling 3°C to 9°C

BioFresh 0°C to 3°C

Maximum ice cube quantity / 24 hours

Freezer compart‐

ment*

see type plate under “Freezing

capacity …/ 24 h” *

Lighting

Class

Light source

This product contains one or more energy

efficiency class G light sources.

LED

The appliance may contain light sources with different

energy efficiency classes. The lowest energy efficiency class

is indicated.

For appliances with a WiFi connection:

Frequency specification

Frequency band 2.4GHz

Maximum radiated

power

< 100 mW

Purpose of the

wireless equipment

Integration in the local WiFi network

for data communication

Customer help

* Depending on model and options 31

10.2 Operating noises

The appliance makes different noises when it is on.

At higher temperatures the appliance uses less energy

but works for longer. It is quieter.

At lower temperatures the food is cooled faster. It is

louder.

Examples:

•

Functions on (see 7.2Appliance functions)

•

Fan running

•

Food recently added

•

High ambient temperature

•

Door open for a while

Noise

Possible cause Type of noise

Bubbling and

splashing

Coolant flowing

into the cooling

circuit.

Normal operating

noise

Hissing Coolant sprays

into the cooling

circuit.

Normal operating

noise

Humming The appliance

is cooling. The

volume depends

on the cooling

output.

Normal operating

noise

Suction noises Soft-closing door

is being opened

and closed.

Normal operating

noise

Humming and

rustling

The fan is running. Normal operating

noise

Noise Possible cause Type of noise

Clicking Components are

switched on and

off.

Normal switching

noise

Rattling or

humming

Valves or flaps are

working.

Normal switching

noise

Noise Possible

cause

Type of noise Lifting

Vibration Improper

installation

Defective

noise

Check the

installation.

Level the

appliance.

Rattling Components,

items inside

the appliance

Defective

noise

Secure

components.

Leave

enough

space

between the

items.

10.3 Technical fault

Your appliance is designed and built to ensure it works reli‐

ably and has a long service life. In the unlikely event that

a fault occurs during operation, please check whether it is

due to an operating error. If so, you will be charged for the

callout and repair costs even if it falls within the warranty

period.

You can fix the following faults yourself.

10.3.1 Appliance function

Defect

Cause Remedy

The appliance is

not working.

→ The appliance is not switched on. ► Switch the appliance on.

→ The power plug is not properly

plugged into the socket.

► Check the power plug.

→ There is something wrong with the

power outlet fuse.

► Check the fuse.

→ Power cut ► Keep the appliance closed.

► Safeguarding food: Place cold packs on top of food or

use another freezer if the power cut lasts longer.*

► Do not refreeze defrosted food.*

→ The IEC socket is not plugged into

the appliance correctly.

► Check the IEC socket.

Temperature is not

cold enough.

→ The appliance door is not closed

properly.

► Close the appliance door.

→ Not enough ventilation. ► Keep ventilation grille clear, and clean it.

→ The ambient temperature is too

high.

► Problem solution:

→ The appliance was opened too

many times or for too long.

► Wait to see if the required temperature corrects itself.

If not, contact Customer Service. (see 10.4 Customer

Service)

→ The temperature is set incorrectly. ► Turn down the temperature and check after 24 hours.

→ The appliance is too close to a heat

source (oven, radiator, etc).

► Move the appliance or the heat source.

Customer help

32 * Depending on model and options

Defect Cause Remedy

→ The appliance was not correctly

installed in the recess.

► Check if the appliance was installed correctly and that

the door closes properly.

The door seal is

defective or needs

to be replaced for

another reason.

→ The door seal can be replaced. It

can be replaced without the need

for special tools.

► Contact Customer Service. (see 10.4 Customer Service)

The appliance

builds up too much

ice or condensa‐

tion.

→ The door seal may have slipped out

of its groove.

► Check that the door seal is well fitted in the groove.

10.3.2 Features

Defect Cause Remedy

The internal light

does not come on.

→ The appliance is not switched on. ► Switch the appliance on.

→ The door was open for longer than

15 minutes.

► Interior lighting switches off automatically after

about 15 minutes when the door is open.

→ The LED interior light is faulty or

the lid is damaged.

► Contact Customer Service. (see 10.4 Customer Service)

The freezer

compartment

cannot be closed.*

→ The lock is on when the door is

open.

► Use the handle again.

10.4 Customer Service

First check whether you can rectify the fault yourself

(see 10 Customer help) . If you cannot rectify the problem,

contact Customer Service.

You can find the address in the enclosed brochure “Liebherr-

Service” or at home.liebherr.com/service.

WARNING

Unprofessional repair!

Injuries.

► Have any repairs and action - not expressly specified -

on the appliance and mains cable carried out by service

personnel only. (see9 Maintenance)

► A damaged mains cable may only be replaced by the

manufacturer, the manufacturer’s Customer Service or a

similarly qualified person.

► In the case of appliances with an IEC connector, the

change may be made by the customer.

10.4.1 Contacting Customer Service

Make sure that the following appliance information is avail‐

able:

❑

Appliance name (model and index)

❑

Service no. (Service)

❑

Serial no. (S no.)

► Call up the appliance information via the display.

(see Device information)

-or-

► Refer to the type plate for appliance information.

(see 10.5 Model plate)

► Note down the appliance information.

► Notify customer service: Report errors and the appliance

information.

▷ This will help us to provide you with a faster, more accu‐

rate service.

► Follow further instructions from Customer Service.

10.5 Model plate

The model plate is behind the drawers on the inside of the

appliance.

Fig. 141

(1)

Appliance description (3) Serial no.

(2) Service no.

► Note the data on the model plate.

11 Shutting down

► Empty the appliance.

► Switch off appliance. (see Switching the appliance off

and on)

► Pull the mains plug out of the socket.

► Remove the IEC socket if required: Pull the IEC socket out

of the appliance plug and move it to the left and right at

the same time.

► Clean appliance. (see 9.9Cleaning the appliance)

► Leave the door open, so that no unpleasant odours arise.

Shutting down

* Depending on model and options 33

12 Disposal

Ensure that the following requirements are met:

❑

Meaning of the symbols on the appliance: are familiar.

(see 1.14Symbols on the appliance)

❑

Notes on disposal are familiar. (see1.8Disposal)

12.1 Preparing the appliance for

disposal

► Shutting your appliance down. (see11Shutting down)

12.2 Disposing of the appliance in an

environmentally friendly manner

WARNING

Leaking coolant and oil!

Fire. The coolant contained in the appliance is eco-friendly,

but also flammable. The oil contained in the appliance

is flammable. Escaping coolant and oil can ignite if the

concentration is high enough and in contact with an

external heat source.

► Do not damage the pipelines of the coolant circuit and

the compressor.

► Observe the notes on transporting the appliance.

► Remove the appliance without damaging it.

► Dispose of appliance according to specifications.

Disposal

34 * Depending on model and options

Disposal

* Depending on model and options 35

home.liebherr.com/fridge-manuals

integrated fridge with BioFresh

Issue date: 20260107

Part number index: 7088424-01

Liebherr-Hausgeräte GmbH

Memminger Straße 77-79

88416Ochsenhausen

Deutschland

User Guide

Quality, Design and Innovation

home.liebherr.com/fridge-manuals

Contents

1 General safety instructions.................................. 3

2 Appliance at a glance............................................ 4

2.1 Scope of delivery.......................................................... 4

2.2 Overview of appliances and equipment................... 4

2.3 SmartDevice.................................................................. 4

2.4 Appliance range of use............................................... 5

2.5 Conformity..................................................................... 5

2.6 SVHC substances according to REACH regulation. 5

2.7 EPREL database........................................................... 5

2.8 Spare parts.................................................................... 5

3 Functionality of the Touch&Swipe display......... 5

3.1 Navigation and symbol explanation......................... 5

3.2 Menus............................................................................. 6

3.3 Sleep mode................................................................... 6

4 Putting into operation........................................... 7

4.1 Switching on appliance (first use)............................ 7

5 Storage.................................................................. 7

5.1 Information regarding storage................................... 7

5.2 Freezer compartment.................................................. 7

5.3 Storage times............................................................... 8

6 Saving energy........................................................ 8

7 Controls................................................................. 8

7.1 Controls and displays.................................................. 8

7.1.1 Status display............................................................. 8

7.1.2 Display symbols.......................................................... 9

7.2 Appliance functions..................................................... 9

7.2.1 Notes on the appliance functions............................9

Switching the appliance off and on........................9

WiFi.............................................................................. 9

Temperature..............................................................10

Temperature unit......................................................10

SuperFrost................................................................. 11

Start defrosting cycle.............................................. 11

PartyMode ................................................................ 12

SabbathMode............................................................12

EnergySaver .............................................................13

Display brightness................................................... 13

Door alarm.................................................................13

Input lock...................................................................14

Language...................................................................14

Device information...................................................14

Software....................................................................15

Demo mode............................................................... 15

Resetting to factory settings.................................15

7.3 Messages...................................................................... 16

7.3.1 Overview of warnings...............................................16

7.3.2 Ending warnings........................................................16

7.3.3 Overview of reminders..............................................17

8 Features................................................................. 17

8.1 Drawers.......................................................................... 17

8.2 Glass shelves................................................................ 18

8.3 VarioSpace.................................................................... 19

8.4 Freezer pack.................................................................. 19

8.5 Ice cube tray with cover.............................................. 19

9 Maintenance.......................................................... 19

9.1 Disassembling / assembling pull-out systems...... 19

9.2 Defrosting the appliance............................................ 20

9.3 Cleaning the appliance............................................... 20

10 Customer help....................................................... 21

10.1 Technical specifications............................................. 21

10.2 Operating noises.......................................................... 21

10.3 Technical fault.............................................................. 21

10.4 Customer Service......................................................... 22

10.5 Model plate................................................................... 23

11 Shutting down....................................................... 23

12 Disposal................................................................. 23

12.1 Preparing appliance for disposal.............................. 23

12.2 Disposing of the appliance in an environmentally

friendly manner............................................................ 23

The manufacturer is continually working on the further

development of all types and models. Please be aware that

we reserve the right to make changes to the shape, equip‐

ment and technology.

Symbol

Explanation

Read instructions

Please read the information in these instruc‐

tions carefully to understand all of the benefits

of your new appliance.

Additional information on the Internet

The digital manual with additional informa‐

tion and in other languages can be found

via the QR code on the front of the

manual or by entering the service number at

home.liebherr.com/fridge-manuals.

The service number can be found on the serial

tag:

Fig.Example illustration

Check appliance

Check all parts for transport damage. If you

have any complaints, please contact your

agent or customer service.

Differences

These instructions apply to a range of models,

so differences are possible. Sections that

apply to certain models only are marked with

an asterisk (*).

2 * Depending on model and options

Symbol Explanation

Instructions and results

Instructions are marked with a .

Results are marked with a .

Videos

Videos about the appliances are available on

the YouTube channels of Liebherr-Hausgeräte.

Open source licences:

The appliance contains software components that use

open source licences. Information on the open source

licences used can be found here: home.liebherr.com/

open-source-licences

These operating instructions apply to:

IFN..i

35.. / 39..

SIFN..i 39.. / 41.. / 45.. /51..

Note

If your appliance has an N in its appliance designation, it is

a NoFrost appliance.

1 General safety instructions

Please keep these operating instructions in a safe place so

you can refer back to them at any time.

If you pass the appliance on, please hand these operating

instructions to the next user.

Read these operating instructions carefully before use to

ensure safe and correct use of the appliance. Follow the

instructions, safety instructions and warning messages

included at all times. They are important for ensuring you

can operate and install the appliance safely and without any

problems.

Danger for the user:

This device can be used by children and people with

impaired physical, sensory or mental abilities or with a

lack of experience and knowledge provided that they are

supervised or have received instruction in the safe use of

this device, and about the resulting hazards.

Children must not play with this appliance. Cleaning and

user maintenance work must not be carried out by chil‐

dren without adult supervision. Children aged between

3 and 8 are allowed to load and unload the appliance.

Children below the age of 3 must be kept away from the

appliance unless they are under continuous adult super‐

vision.

The socket must be easily accessible so that the appli‐

ance can be disconnected quickly from the electricity in

an emergency. It must not be located in the area behind

the appliance.

When disconnecting the appliance from the supply,

always take hold of the plug. Do not pull the cable.

In the event of a fault pull out the mains plug or deacti‐

vate the fuse.

Do not damage the mains power cable. Do not operate

the appliance with a defective mains power cable.

Only customer service or other specially trained staff

may repair or perform other operations on the appliance.

Only install, connect and dispose of the appliance

according to the instructions.

Only use the appliance when is installed.

Fire hazard:

The coolant used (information on the model plate) is

ecofriendly but also flammable. Any leaking coolant may

ignite.

•

Do not damage the refrigerant circuit pipes.

•

Do not handle ignition sources inside the appliance.

•

Do not use electrical appliances inside the appliance

(e.g. steam cleaners, heaters, ice cream makers, etc.).

•

If the refrigerant leaks: remove any naked flames or

ignition sources from the vicinity of the leakage point.

Properly air the room. Inform customer services.

Do not store explosives or sprays using combustible

propellants such as butane, propane, pentane, etc. in the

appliance. To identify these spray cans, look for the list of

contents printed on the can, or a flame symbol. Gases

possibly escaping may ignite due to electrical compo‐

nents.

Keep burning candles, lamps and other items with naked

flames away from the appliance so that they do not set

the appliance on fire.

Please be sure to store alcoholic drinks or other pack‐

aging containing alcohol in tightly closed containers.

Any alcohol that leaks out may be ignited by electrical

components.

Danger of tipping and falling:

Do not misuse the plinth, drawers, doors etc. as a step or

for support. This applies particularly to children.

Danger of food poisoning:

Do not consume food which has been stored too long.

Danger of frostbite, numbness and pain:

Avoid prolonged skin contact with cold surfaces or refri‐

gerated/frozen goods or take protective measures, e.g

wear gloves.

Danger of injury and damage:

Hot steam can lead to injury. Do not use electrical

heating or steam cleaning equipment, open flames or

defrosting sprays to defrost.

Do not use sharp implements to remove the ice.

Risk of crushing:

Do not hold the hinge when opening and closing the door.

Fingers may get caught.

Symbols on the appliance:

This symbol may be located on the

compressor. It relates to the oil in the

compressor and makes reference to the

risk that: Swallowing or inhaling can be

fatal. This advice is only relevant to recy‐

cling. There is no danger in normal opera‐

tion.

This symbol is located on the compressor

and indicates the danger of flammable

materials. Do not remove the sticker.

This or a similar sticker may be located

on the rear of the appliance. This sticker

indicates that there are vacuum insulation

panels (VIP) or perlite panels in the door

and/or housing. This advice is only relevant

to recycling. Do not remove the sticker.

Please note the warning messages and other specific

advice in the other chapters:

DANGER

indicates an immediately

hazardous situation which will

lead to death or serious injuries if

it is not avoided.

General safety instructions

* Depending on model and options 3

WARNING indicates a hazardous situation

which may lead to death or serious

injuries if it is not avoided.

CAUTION indicates a hazardous situation

which may lead to minor or

moderate injuries if it is not

avoided.

NOTICE indicates a hazardous situation

which may lead to damage to

property if it is not avoided.

Note indicates useful instructions and

tips.

2 Appliance at a glance

2.1 Scope of delivery

Check all parts for transport damage. Contact your

dealer or customer service in the event of complaints.

(see 10.4 Customer Service)

Your new appliance comes with the following parts:

Built-in appliance

Features (depending on the model)

Installation materials (depending on the model)

“Quick Start Guide”

“Installation Guide”

Service Brochure

2.2 Overview of appliances and equip‐

ment

Fig. 1 Example illustration

(1)

Controls (6) VarioSpace

(2) LED interior light (7) Type plate

(3) NoFrost (8) Adjusting feet

(4) Freezer tray, cold

storage accumulators

(9) Soft-closing mechanism

(5) Drawers

Note

► Shelves, drawers and baskets are arranged for optimum

energy efficiency when the appliance is delivered.

Changing how the shelves, for example, are inserted in

the fridge compartment does not have any impact on

energy consumption.

2.3 SmartDevice

SmartDevice is the networking solution for your freezer.

If your appliance SmartDevice-enabled or compatible, you

can quickly and easily connect your appliance to your

WiFi. With the SmartDevice app, you can operate your appli‐

Appliance at a glance

4 * Depending on model and options

ance from a mobile device. Additional functions and setting

options are available in the SmartDevice SmartDevice app.

SmartDevice-

enabled appliance:

Your appliance is capable of being a

SmartDevice. To be able to connect

your device to WiFi, you need to

download the SmartDevice app.

More information

about SmartDe‐

vice:

smartdevice.liebherr.com

Downloading the

SmartDevice app:

After installing and configuring

the SmartDevice app, you can

connect your appliance to your Wi-Fi

(see WiFi) using the SmartDevice app

and the appliance's Wi-Fi function.

Note

The SmartDevice function is not available in the following

countries: Russia, Belarus, Kazakhstan.

2.4 Appliance range of use

Intended use

The appliance is only suitable for cooling food products in

a domestic or household-like environment. This includes, for

example, use:

in staff kitchens, bed and breakfast establishments,

by guests in country houses, hotels, motels and other

accommodation,

for catering and similar services in the wholesale trade.

All other types of use are not permitted.

Foreseeable misuse

The following applications are expressly forbidden:

Storing and refrigerating medicines, blood plasma, labo‐

ratory preparations or similar substances and products

based on the Medical Device Directive 2007/47/EC

Use in areas at risk of explosions

Misusing the appliance may lead to damage to the goods

stored or they may spoil.

Climate classifications

Depending on the climate classification the appliance is

designed to operate in restricted ambient temperatures. The

climate classification applying to your appliance is printed

on the rating plate.

Note

► Keep to the specified ambient temperatures in order to

guarantee that the appliance works properly.

Climate clas‐

sification

for ambient temperatures of

SN 10°C to 32°C

N 16°C to 32°C

ST 16°C to 38°C

Climate clas‐

sification

for ambient temperatures of

T 16°C to 43°C

SN-ST 10°C to 38°C

SN-T 10°C to 43°C

2.5 Conformity

The refrigerant circuit has been tested for leaks. When

installed, the appliance complies with the applicable safety

regulations and with the corresponding directives.

For the EU

market:

The appliance complies with directive

2014/53/EU.

For the GB

market:

The appliance complies with Radio

Equipment Regulations 2017 SI 2017 No.

1206.

The full text of the EU Declaration of Conformity is available

on the following website: www.Liebherr.com

2.6 SVHC substances according to

REACH regulation

You can check whether your appliance contains SVHC

substances according to REACH regulation at the following

link: home.liebherr.com/de/deu/de/liebherr-erleben/nach‐

haltigkeit/umwelt/scip/scip.html

2.7 EPREL database

Details about energy labelling and ecodesign requirements

will be available on the European product database (EPREL)

from 1st March 2021. You can access the product database

at the following link: https://eprel.ec.europa.eu/ You will be

asked to enter the model ID. You can find the model ID on

the nameplate.

2.8 Spare parts

The spare parts availability for functional parts and stock‐

able parts of the equipment is 15 years.

3 Functionality of the

Touch&Swipe display

You operate your appliance using the Touch & Swipe display.

You select appliance functions in the Touch & Swipe display

(hereafter referred to as display) by tapping them. If you

do not perform any action on the display for 10 seconds,

the display either jumps back to the higher-level menu or

directly to the status display.

3.1 Navigation and symbol explanation

In the illustrations, different symbols are used to navigate

the display. The following table describes these symbols.

Symbol

Description

Briefly touch the display:

Activates/deactivates function.

Confirms selection.

Opens submenu.

Functionality of the Touch&Swipe display

* Depending on model and options 5

Symbol Description

Touch the display for a specified time

(e.g. 3seconds):

Activates/deactivates function or

value.

Swipe left or right:

Navigate in the menu.

Briefly touch the Back symbol:

Jumps back one menu level.

Press and hold the Back symbol for

3seconds:

Jumps back to the status display.

Arrow with clock:

It takes more than 10 seconds for the

following message to appear in the

display.

Arrow with a time indication:

It takes the specified amount of time

until the following message appears in

the display.

“Open Settings menu” symbol:

Navigates to the Settings menu and

opens the settings menu.

If necessary: Navigate to the desired

function in the Settings menu.

(see 3.2.1 Opening the Settings menu)

“Open Advanced menu” symbol:

Navigates to the Advanced menu and

opens the advanced menu.

If necessary: Navigate to the desired

function in the Advanced menu.

(see 3.2.2 Opening the expanded

menu)

No action for

10seconds

If you do not perform any action on

the display for 10 seconds, the display

either jumps back to the higher-level

menu or directly to the status display.

Open door and

close it again.

If you open the door and immedi‐

ately close it again, the display jumps

directly back to the status display.

Note: Illustrations of the display are shown in the English

version.

3.2 Menus

The appliance functions are distributed over various menus:

Description

Main menu When you switch the appliance on, you

are automatically in the main menu.

From here you can navigate to the most

important appliance functions, to the

Settings menu and to the Advanced

menu.

Menu Description

Settings menu

The Settings menu contains additional

appliance functions for setting up your

appliance.

Advanced menu The advanced menu contains special

appliance functions for setting up your

appliance. Access to the Advanced menu

is protected by the numerical code 151.

3.2.1 Opening the Settings menu

Fig. 2 Example illustration

► Carry out action steps according to the illustration.

▷ Settings menu is open.

► If necessary: Navigate to the desired function.

3.2.2 Opening the expanded menu

Fig.3

Fig. 4 Example illustration, access with numerical code 151

► Carry out action steps according to the illustration.

▷ The expanded menu is open.

► If necessary: Navigate to the desired function.

3.3 Sleep mode

If you do not touch the display for 1 minute, the display

switches to sleep mode. In sleep mode, the display bright‐

ness is dimmed.

3.3.1 Ending sleep mode

► Touch the display briefly with your finger.

▷ Sleep mode is ended.

Functionality of the Touch&Swipe display

6 * Depending on model and options

4 Putting into operation

4.1 Switching on appliance (first use)

Make sure that the following requirements are fulfilled:

❑

The appliance is properly installed and connected

according to the installation instructions.

❑

All adhesive strips, adhesive and protective films and

transport locks are removed from inside and on the appli‐

ance.

❑

All marketing leaflets are removed from the drawers.

❑

You are familiar with the functionality of the

Touch & Swipe display. (see 3 Functionality of the

Touch&Swipe display)

Switch on the appliance using the Touch&Swipe display:

► If the display is in sleep mode: Briefly touch the display.

► Carry out action steps according to the illustration.

Fig. 5 Example illustration

▷ Status display appears.

▷ The appliance cools to the temperature set at the factory.

▷ The appliance starts in demo mode (status display with

DEMO appears): If the appliance starts in demo mode,

you can deactivate demo mode within the next 5 minutes.

(seeDemo mode)

More information:

Start the SmartDevice for the first time. (see 2.3 Smart‐

Device) and (seeWiFi)

Note

The manufacturer recommends:

► Store frozen foods at -18°C or colder.

► Observe the notes on storing food. (see 5.1 Information

regarding storage)

Note

Accessories can be purchased from the Liebherr-

Hausgeräte store at home.liebherr.com/shop/de/deu/

zubehor.html.

5 Storage

5.1 Information regarding storage

WARNING

Fire hazard from electrical appliances!

If you use electrical appliances in the food area of your

appliance, they can cause a fire.

► Do not use electrical appliances in the food area of the

appliance unless recommended by the manufacturer.

Note

The energy consumption increases and the cooling power

goes down if ventilation is not sufficient.

► Always keep air slots clear.

Observe the following specifications for storage:

Package food properly.

Package raw meat or fish in clean, closed containers.

This will prevent meat or fish from touching or dripping

onto other food.

Leave space between goods to ensure good air circula‐

tion.

Store food according to the instructions on the pack‐

aging.

Always observe the best-before date indicated on the

packaging.

Note

Failure to follow these guidelines can lead to foodstuffs

spoiling.

5.2 Freezer compartment

Here, a dry, frosty storage climate is created at -18 °C. The

frosty storage climate is suitable for storing frozen food for

several months, for making ice cubes or freezing fresh food.

5.2.1 Freezing food

Freezing quantity

The maximum amount of fresh food that you can

freeze within 24 hours is specified on the type plate

(see 10.5 Model plate) under “Freezing capacity ... kg/24h”.

To ensure that food quickly freezes through, adhere to the

following quantities per package:

Fruit and vegetables up to 1 kg

Meat up to 2.5 kg

Freezing food using SuperFrost

Depending on the quantity to be frozen, you can activate

SuperFrost before freezing in order to achieve lower freezing

temperatures. (see SuperFrost)

► Activate SuperFrost if the amount of food you have to

freeze is more than approx. 2 kg.

The time at which you activate SuperFrost depends on the

amount of food you have to freeze:

Freezing quan‐

tity

Time at which you should activate

SuperFrost

Small amount of

food to freeze

Activate SuperFrost about 6 hours

before freezing.

As soon as the appliance automatically

deactivates SuperFrost, you can rear‐

range the food.

Putting into operation

* Depending on model and options 7

Freezing quan‐

tity

Time at which you should activate

SuperFrost

Maximum

amount of food

to freeze

Activate SuperFrost about 24 hours

before freezing.

As soon as the appliance automatically

deactivates SuperFrost, you can rear‐

range the food.

Arranging your food properly

CAUTION

Risk of injury from broken glass!

Bottles and cans with beverages can burst during freezing.

This applies in particular to carbonated beverages.

► Only freeze bottles and cans with beverages if you have

activated the BottleTimer function in the SmartDevice

app.

Appliance height <1220mm

Freezing quantity Arranging your food properly

Small amount of

food to freeze

Distribute packaged groceries

throughout all drawers.

If possible, place groceries at the

back of the drawer near the rear wall.

Maximum amount

of food to freeze

Distribute packaged groceries

throughout all drawers.

If possible, place groceries at the

back of the drawer near the rear wall.

Appliance height ≥1220mm

Freezing quantity Arranging your food properly

Small amount of

food to freeze

Distribute packaged groceries

throughout all drawers, but do not

place any groceries in the top

drawer.

Maximum amount

of food to freeze

Distribute packaged groceries

throughout all drawers.

If possible, place groceries at the

back of the drawer near the rear

wall.

5.2.2 Defrosting food

WARNING

Risk of food poisoning!

► Do not re-freeze thawed food.

► Use defrosted foodstuff as soon as possible.

You can defrost food in several ways:

In a fridge

In the microwave

In the oven/fan-assisted oven

At room temperature

► Take out only as much food as necessary.

5.2.3 Freezer tray

You can freeze berries, herbs, vegetables and other small

frozen food in the freezer tray without it all freezing

together. The frozen food is less likely to get squashed and

subsequent portioning is easier.

In addition, you can store the cold storage accumulators in

the freezer tray to save space.

►

Distribute food on the freezer tray without packaging and

well spaced out.

5.3 Storage times

Refer to the specified storage times as a guide.

In the case of foods with a minimum shelf life, the date

indicated on the packaging still applies.

Recommended storage period for various types of food

Ice cream at -18°C 2 to 6 months

Sausages, ham at -18°C 2 to 3 months

Bread, baked goods at -18°C 2 to 6 months

Game, pork at -18°C 6 to 9 months

Fatty fish at -18°C 2 to 6 months

Lean fish at -18°C 6 to 8 months

Cheese at -18°C 2 to 6 months

Poultry, beef at -18°C 6 to 12 months

Vegetables, fruit at -18°C 6 to 12 months

6 Saving energy

Pay attention to good ventilation. Do not cover ventilation

holes or grids.

Always keep the fan air slits clear.

Do not install the appliance in direct sunlight or near

radiators or similar sources of heat.

If the appliance is installed directly next to an oven,

the energy consumption may increase slightly. This is

dependent on the service life and usage intensity of the

oven.

Energy consumption depends on the installation condi‐

tions, e.g. the ambient temperature (see 2.4 Appliance

range of use) . A warmer ambient temperature can

increase the energy consumption.

Open the appliance for as short a time as possible.

The lower the temperature is set the higher the energy

consumption.

Keep all food properly packed and covered. This prevents

frost from forming.

Inserting warm food: allow to cool down to room temper‐

ature first.

7 Controls

7.1 Controls and displays

7.1.1 Status display

Fig. 6 The status display shows the actual temperature.

(1)

Temperature display

The status display shows the actual temperature and is the

initial display. Navigation to the functions takes place from

there.

Saving energy

8 * Depending on model and options

7.1.2 Display symbols

Display symbols provide information on the current appli‐

ance status:

Symbol Appliance status

Standby

The appliance or temperature zone

is switched off.

Flashing number

Appliance is working. Temperature

flashes until the set temperature is

reached.

Flashing symbol

Appliance is working. Setting is

made.

7.2 Appliance functions

7.2.1 Notes on the appliance functions

The appliance functions are set at the factory so that your

appliance is fully functional.

Before you alter, activate or deactivate the device functions,

make sure that the following requirements are met:

❑

You have read and understood the descriptions of

how the display works. (see 3 Functionality of the

Touch&Swipe display)

❑

You have familiarised yourself with the operating and

display elements of your appliance.

Switching the appliance off and on

Use this function to switch the entire appliance off and on.

Switching off the appliance

When you switch the appliance off, then the previously

saved settings are saved.

Make sure that the following requirements are fulfilled:

❑

Handling instructions (see 11 Shutting down) are carried

out.

Fig.7

Fig.8

► Carry out action steps according to the illustration.

▷ Appliance is switched off.

▷ The standby symbol appears in the display.

▷

Display turns black.

Switching on the appliance

If the display is in sleep mode:

► Briefly touch the display.

Fig. 9 Example illustration

► Carry out action steps according to the illustration.

When the appliance starts in demo mode:

► Deactivating demo mode. (see Deactivating demo mode)

▷ The appliance is switched on.

▷ Previous settings are restored.

▷ The appliance cools to the target temperature set.

WiFi

Use this function to connect your appliance to WiFi. You can

then operate it via the SmartDevice app on a mobile device.

You can also use this function to disconnect or reset the

WiFi connection.

More information on the SmartDevice: (see 2.3 SmartDevice)

Note

The SmartDevice function is not available in the following

countries: Russia, Belarus, Kazakhstan.

Establishing the WiFi connection for the first time

Make sure that the following requirements are fulfilled:

❑

You have installed the SmartDevice app (see

apps.home.liebherr.com).

❑

Registration in the SmartDevice app is completed.

Fig. 10

Fig.11

► Carry out action steps according to the illustration.

▷ Connection is established.

Controls

* Depending on model and options 9

Disconnecting from the WiFi

Fig.12

Fig.13

► Carry out action steps according to the illustration.

▷ There is no connection.

Resetting the WiFi connection

Fig. 14

Fig. 15

► Carry out action steps according to the illustration.

▷ WiFi connection and other WiFi settings are reset to

factory settings.

Showing information about the WiFi connection

Fig. 16

Fig.17

► Carry out action steps according to the illustration.

Temperature

Use this function to set the temperature.

The temperature depends on the following factors:

Frequency of door opening

Duration of door opening

Room temperature of the installation site

Type, temperature and quantity of food

Freezer compartment

Factory-set

temperature

Recommended

setting

-18°C -18°C

Setting the temperature

Fig. 18 Example illustration

► Carry out action steps according to the illustration.

▷ Temperature is set.

Temperature unit

Use this function to set the temperature unit. You can set

degrees Celsius or degrees Fahrenheit as the temperature

unit.

Setting the temperature unit

Controls

10 * Depending on model and options

Fig. 19

Fig. 21 Example illustration: Switch from degrees Celsius to

degrees Fahrenheit.

► Carry out action steps according to the illustration.

▷ The temperature unit is set.

SuperFrost

You can use this function to activate or deactivate

SuperFrost. If SuperFrost is activated, then the appliance

increases the freezing capacity. It allows you to achieve

lower freezing temperatures.

Application:

Quickly freeze fresh food through to the core.

This ensures that the nutrition, appearance and taste of

frozen food is maintained.

Increase the cold reserve in stored frozen food before

defrosting the appliance.

If the function is active, the appliance operates at higher

power. As a result, the appliance's operating noise may be

temporarily louder and energy consumption will increase.

Activating SuperFrost

Make sure that the following requirements are fulfilled:

❑

Freezing quantity and time for activation of SuperFrost

are taken into account. (see Freezing food using

SuperFrost)

Fig.22

Fig.23

► Carry out action steps according to the illustration.

-or-

► Activate with the SmartDevice app.

▷ SuperFrost is activated.

▷ The temperature display turns blue.

Deactivating SuperFrost

SuperFrost is automatically deactivated after 56 to 72 hours

depending on the quantity of the food inserted. However,

you can also deactivate SuperFrost manually at any time:

Fig. 24

Fig.25

► Carry out action steps according to the illustration.

-or-

► Deactivate with the SmartDevice app.

▷ SuperFrost is deactivated.

▷ The appliance continues to run in normal mode.

▷ The appliance cools to the temperature set previously.

Start defrosting cycle

Use this function to start the automatic defrosting cycle

manually if it does not start automatically in the event of a

fault.

Starting defrosting cycle

Fig. 26

Fig.27

► Carry out action steps according to the illustration.

▷ Defrosting cycle has started: Icon flashes until defrosting

cycle is automatically completed.

▷ When defrosting cycle is finished: The device continues

to run in normal mode.

Cancelling defrosting cycle

The defrosting cycle will be stopped automatically. However,

you can also cancel the defrosting cycle at any time during

the defrosting process:

Fig.28

► Carry out action steps according to the illustration.

▷ Defrosting cycle is cancelled.

▷ The device continues to run in normal mode.

Controls

* Depending on model and options 11

PartyMode

You can use this function to activate or deactivate Party‐

Mode. PartyMode activates various functions that are useful

for a party.

PartyMode activates the following functions:

SuperFrost (see SuperFrost)

You can adjust all listed functions individually and flexibly.

When you deactivate PartyMode, all changes are discarded.

If the function is active, the device operates at higher

power. As a result, the device's operating noise may be

temporarily louder and energy consumption will increase.

Activating PartyMode

Fig.29

Fig.30

► Carry out action steps according to the illustration.

▷ PartyMode and the associated functions are activated.

▷ The temperature display turns blue.

▷ The current temperature flashes until the target tempera‐

ture is reached.

Deactivating PartyMode

The PartyMode is automatically deactivated after

24 seconds. However, you can also deactivate PartyMode

manually at any time:

Fig.31

Fig.32

► Carry out action steps according to the illustration.

▷ PartyMode is deactivated.

▷ The appliance cools to the temperature set previously:

The current temperature flashes until the target tempera‐

ture is reached.

SabbathMode

You can use this function to activate or deactivate

SabbathMode. If you activate this function, some electronic

functions are switched off. As a result, your device meets

the religious requirements for Jewish holidays such as

Sabbath and complies with STAR-K Kosher certification.

Device status when SabbathMode is active

The status display shows SabbathMode permanently.

All functions on the display are locked except for the

Deactivate SabbathMode function.

Active functions remain active.

The display remains bright when you close the door.

The interior lighting is deactivated.

Reminders are not implemented. The set time interval

stops.

Reminders and warnings are not displayed.

There is no door alarm.

There is no temperature alarm.

The defrosting cycle operates only for the specified time,

without considering the appliance consumption.

After a power failure, the appliance returns to

SabbathMode.

Device status

Note

This appliance has certification from the “Institute for

Science and Halacha”. (www.machonhalacha.co.il)

You can find a list of STAR-K-certified appliances at

www.star-k.org/appliances.

Activating SabbathMode

WARNING

Danger of food poisoning from spoiled food!

If you have SabbathMode activated and a power failure

occurs, no message appears in the status display about the

power failure. Once the power is restored, the appliance

continues to operate in SabbathMode. The power failure

may mean that food spoils and the consumption of this food

could lead to food poisoning.

After a power failure:

► Do not consume food that was frozen and has thawed

out.

Fig.33

Fig.34

► Carry out action steps according to the illustration.

▷ SabbathMode is activated.

▷ The status display shows SabbathMode permanently.

Deactivating SabbathMode

The SabbathMode is automatically deactivated after

80 hours. However, you can also deactivate SabbathMode

manually at any time:

Controls

12 * Depending on model and options

Fig.35

► Carry out action steps according to the illustration.

▷ SabbathMode is deactivated.

EnergySaver

You can use this function to activate or deactivate Energy

saving mode. If energy saving mode is activated, the energy

consumption decreases and the temperature in the device

increases. The food remains fresh, but the shelf life is short‐

ened.

Temperature

zone

Recommended

setting (see Setting

the temperature)

Temperature

with active Ener‐

gySaver

-18°C -16°C

Temperatures

Activating EnergySaver

Fig.36

Fig.37

► Carry out action steps according to the illustration.

▷ Energy saving mode is activated.

Deactivating EnergySaver

Fig.38

Fig. 39

► Carry out action steps according to the illustration.

▷ Energy saving mode is deactivated.

Display brightness

Use this function to set the display brightness in stages.

You can select the following brightness levels:

40%

60%

80%

100 % (pre-setting)

Setting the brightness

Fig.40

Fig. 41 Example illustration: Switch from 80 % to 60%.

► Carry out action steps according to the illustration.

▷ The brightness is set.

Door alarm

Use this function to activate or deactivate the door alarm.

The door alarm sounds if the door is open for too long. The

door alarm is activated on delivery. You can set how long

the door may be open before the door alarm sounds.

The following values can be set:

1 minute

2 minutes

3 minutes

Off

Setting the door alarm

Fig. 42

Fig. 43 Example illustration: Change door alarm from

1 minute to 3 minutes.

► Carry out action steps according to the illustration.

▷ The door alarm is set.

Deactivating the door alarm

Fig.45

Controls

* Depending on model and options 13

Fig.46

► Carry out action steps according to the illustration.

▷ The door alarm is deactivated.

Input lock

You can use this function to activate or deactivate the input

lock. The input lock prevents the appliance being operated

accidentally, e.g. by children.

Application:

Avoid unintentional modification of functions.

Avoid unintentional switching off of the device.

Avoid unintentional temperature setting.

Activating the input lock

If you activate the input lock, you can continue to navigate

in the menus but you cannot select or change other func‐

tions.

Fig. 47

Fig.48

► Carry out action steps according to the illustration.

▷ Input lock is activated.

Deactivating the input lock

Fig. 49

Fig.50

► Carry out action steps according to the illustration.

▷ Input lock is deactivated.

Language

Use this function to set the display language.

You can select the following languages:

Deutsch

English

Français

Español

Italiano

Nederlands

Čeština

Polski

Português

Bulgarian

Русский

温度单位

Setting the language

Fig.51

Fig. 52 Example illustration depending on the language

and temperature

► Carry out action steps according to the illustration.

▷ The language is set.

▷ The display returns to the status display.

Device information

Use this function to indicate the model name, index, serial

number and service number of your device. You will need

the device information when you contact customer service.

(see 10.4 Customer Service)

This function also opens the Advanced menu. (see 3 Func‐

tionality of the Touch&Swipe display)

Indicating the device information

Fig.53

Fig.54

► Carry out action steps according to the illustration.

▷ Display indicates device information.

Controls

14 * Depending on model and options

Software

Use this function to indicate the software version of your

device.

Indicating the software version

Fig.55

Fig.56

► Carry out action steps according to the illustration.

▷ Display indicates software version.

Demo mode

Demo mode is a special feature for dealers who want to

demonstrate appliance features. If you activate demo mode,

all refrigeration functions are deactivated.

If you switch on your appliance and “Demo” appears in the

status display, then demo mode is already activated.

If you activate and then deactivate demo mode, the appli‐

ance will be reset to factory defaults. (see Resetting to

factory settings)

Activating demo mode

Fig.57

Fig.58

►

Carry out action steps according to the illustration.

▷ Demo mode is activated.

▷ Appliance is switched off.

► Switch on the appliance. (see 4.1 Switching on appliance

(first use))

▷ “DEMO” appears in the status display.

Deactivating demo mode

Fig. 59

Fig.60

► Carry out action steps according to the illustration.

▷ Demo mode is deactivated.

▷ Appliance is switched off.

► Switch on the appliance. (see 4.1 Switching on appliance

(first use))

▷ Appliance is reset to factory settings.

Resetting to factory settings

Use this function to reset all settings to factory defaults.

All settings you have made so far are reset to their original

settings.

Performing a reset

Fig.61

Controls

* Depending on model and options 15

Fig. 62

► Carry out action steps according to the illustration.

▷ Device is reset.

▷ Device is switched off.

► Restart the device. (see 4.1 Switching on appliance (first

use))

7.3 Messages

There are two categories of messages:

Category

Importance

Warning Warnings appear in the event of a door alarm or

malfunction.

Simple warnings can be cancelled by yourself.

In the event of serious malfunctions, you must

contact customer service. (see 10.4 Customer

Service)

Reminder Reminders remind you of general processes.

You can carry out these operations to end the

message.

7.3.1 Overview of warnings

Behaviour of the appliance in the event of warnings:

Warning appears in red on the display.

The alarm tone sounds at an ever-increasing volume.

The interior lighting pulsates for some warnings.

Message

Cause Exit the

message

Door alarm

The message appears if

the door is open for too

long.

Carry out

action steps

(see Door

alarm) .

Power outage

alarm

The message appears

if the freezing tempera‐

ture has risen due to a

power failure.

Temperature

alarm

The message appears

if the freezing temper‐

ature does not corre‐

spond to the set

temperature.

Carry out

action steps

(see Temper‐

ature

alarm) .

Error

The message appears

if there is an appliance

error. A component of

the appliance has a

fault.

Carry out

action steps

(see Error) .

Message Cause Exit the

message

WLAN error

The message appears

if the appliance could

not be connected to

the WLAN. (see Estab‐

lishing the WiFi

connection for the first

time) The message

only appears during the

initial setup.

Carry out

action steps

(see WLAN

error) .

7.3.2 Ending warnings

Door alarm

Fig. 63 Example illustration

► Carry out action steps according to the illustration.

-or-

► Close the door.

▷ The display returns to the status indicator.

You can set how long the door may be open before the door

alarm sounds. (see Setting the door alarm)

Power outage alarm

When the power failure has ended, the appliance will auto‐

matically cool down to the previously set target tempera‐

ture without you having to confirm the message. However,

for the message to disappear from the display, you must

confirm it.

Fig. 64 Example illustration

► Briefly touch the display.

▷ Display shows information about the warning.

► Briefly touch the display.

▷ Warmest freezing temperature is displayed.

▷ If the freezing temperature was below -9 °C: Food can

still be consumed.

If the freezing temperature has risen above -9°C:

► Check the food.

► Briefly touch the display.

▷ The display returns to the status indicator: Current

temperature and target temperature are displayed.

Temperature alarm

Temperature differences can be caused by:

You have put in warm, fresh food.

Too much warm air has got in while you were sorting out

the freezer or removing items.

There has been a longer power failure.

The appliance is faulty.

► Eliminate causes.

Controls

16 * Depending on model and options

▷ The appliance cools to the target temperature set previ‐

ously.

Fig. 65 Example illustration

► Briefly touch the display.

▷ Display shows information about the warning.

► Briefly touch the display.

▷ Warmest freezing temperature is displayed.

▷ If the freezing temperature was below -9 °C: Food can

still be consumed.

If the freezing temperature has risen above -9°C:

► Check the food.

► Briefly touch the display.

▷ The display returns to the status indicator: Current

temperature and target temperature are displayed.

Error

Fig. 66 Example illustration

► Briefly touch the display.

▷ Error code is displayed.

► Note the error code.

► Briefly touch the display.

▷ The display returns to the status indicator.

► Contact Customer Service. (see 10.4 Customer Service)

WLAN error

► Check WLAN connection.

► Reconnect the appliance to the WLAN. (seeWiFi)

7.3.3 Overview of reminders

Behaviour of the appliance during reminders:

Reminder appears yellow on the display.

Alarm tone sounds.

The interior lighting pulsates for some reminders.

The following reminders can be deactivated :

8 Features

8.1 Drawers

You can remove the drawers for cleaning.

You can remove the drawers to use VarioSpace.

The way to remove/insert the drawers varies depending

on the pull-out system. Your appliance can contain various

pull-out systems.

Note

The energy consumption increases and the cooling power

goes down if ventilation is not sufficient.

► Leave the bottom drawer in the appliance!

► Always leave the fan air vents clear on the back wall!

8.1.1 Drawer on appliance base or glass shelf

The drawer runs directly on the appliance base or on a glass

shelf. There are no rails.

When you remove the drawers, you can use the glass

shelves below them as storage shelves.

Removing drawer

Fig. 67

► Remove drawer as shown in the illustration.

Inserting drawer

Fig.68

► Insert drawer as shown in the illustration.

8.1.2 Top tilting drawer*

When you pull out the top drawer, it tilts forward. This gives

you a better view into the drawer. The function depends on

the height of the appliance.

When you remove the tilting drawers, you can use the glass

shelf below them as a storage shelf.

Removing drawer

Fig. 69

► Pull out drawer as far as it will go.

► Lift drawer up at the front and at the same time push up

at the back from below.

► Remove drawer to the front.

Inserting drawer

Fig.70

► Position drawer as shown.

Features

* Depending on model and options 17

▷ The drawer rests on the glass panel.

► Lift drawer slightly from below at the back and slide over

the lip.

► Slide in drawer to the back.

8.1.3 Drawer on moulded rib

The drawer runs directly on the moulded rib. There are no

rails.

Removing drawer

Fig.71

► Pull out drawer as far as it will go.

► Lift up drawer at the front. Fig.71(1)

► Remove drawer to the front. Fig.71(2)

Inserting drawer

Fig.72

► Place drawer at an angle behind the stoppers on the

moulded rib. (see Fig.72)

► Lower drawer.

► Slide in drawer to the back.

8.2 Glass shelves

You can remove the glass shelves under the drawers for

cleaning.

You can remove the glass shelves under the drawers to use

VarioSpace.

8.2.1 Removing / inserting the glass shelf

under the tilting drawer*

The glass shelf is located under the top tilting drawer.

Make sure that the following requirements are fulfilled:

❑

Drawer has been removed. (see8.1.2 Top tilting drawer*)

Removing glass shelf

Fig. 73 Tilting drawer glass shelf

►

Push glass shelf upwards from below on both sides. (see

Fig.73)

► Take out the glass shelf to the front.

Inserting glass shelf

Fig. 74 Tilting drawer glass shelf

► Position glass shelf at an angle behind the stoppers. (see

Fig. 74)

► Lower glass shelf.

► Slide in glass shelf to the back.

▷ Glass shelf clicks into place.

8.2.2 Removing / inserting the glass shelf

Depending on the equipment, the glass shelf may be

located under the drawer.*

Make sure that the following requirements are fulfilled:

❑

Glass shelf under the drawer: The drawer has been

removed. (see8.1 Drawers)

Removing glass shelf

Fig. 75 Example illustration, glass shelf

► Lift the glass shelf forwards.

► Remove the glass shelf forwards.

Inserting glass shelf

Fig. 76 Example illustration, glass shelf

► Place the glass shelf at an angle behind the stoppers.

► Lower glass shelf.

► Slide in glass shelf to the back.

Features

18 * Depending on model and options

8.3 VarioSpace

Fig.77

You can remove drawers and glass panels from your appli‐

ance. This provides more room for large food items such as

poultry, joints of meat, large game, and tall baked products.

You can then freeze these items whole for later preparation.

► Note the weight limits on the drawers and glass panels

(see 10.1 Technical specifications) .

8.4 Freezer pack

Freezer packs prevent the temperature rising too quickly

should there be a power cut.

The freezer packs are in the drawer.

You can store the freezer packs in the freezer tray.

8.4.1 Using the freezer pack

Fig.78

When the freezer packs are fully frozen:

► Place on the frozen goods in the top, front part of the

freezer.

8.5 Ice cube tray with cover

8.5.1 Using the ice cube tray

Fig.79

When the water is frozen:

► Hold ice cube tray under hot water for a short time.

► Remove the lid.

►

Gently turn the ends of the ice cube tray in opposite

directions.

► Release the ice cubes.

8.5.2 Dismantling the ice cube tray

You can take the ice cube tray apart for cleaning.

Fig.80

► Disassembling the ice cube tray.

9 Maintenance

9.1 Disassembling / assembling pull-

out systems

9.1.1 Notes on disassembly

You can disassemble some of the pull-out systems for

cleaning. Your appliance can contain a variety of pull-out

systems.

The following pull-out systems can be disassembled or

cannot be disassembled:

Pull-out system

can be disassembled/

cannot be disassembled

Drawer on appliance

base or glass shelf

cannot be disassembled

Top tiltable drawer* can be disassembled (see 9.1.2 Top

tilting drawer*) *

Drawer guided on

container rib

can be disassembled

(see 9.1.3 Drawer on moulded rib)

9.1.2 Top tilting drawer*

Disassembling pull-out system

Make sure the following prerequisites are met:

❑

Drawer has been removed. (see8.1.2 Top tilting drawer*)

❑

Glass shelf has been removed. (see8.2 Glass shelves)

Fig.81Glass shelf with side parts

► Pull off side part from glass shelf sideways.

Installing pull-out system

Fig.82Glass shelf with side parts

► Place on side part at the back.

Maintenance

* Depending on model and options 19

► Press side part onto glass shelf at the front.

9.1.3 Drawer on moulded rib

Disassembling pull-out system

Make sure the following prerequisites are met:

❑

Drawer has been removed. (see 8.1.3 Drawer on moulded

rib)

Fig. 83 Attachment on the right moulded rib

► Grab attachment at the back from below.

► Pull off attachment at the back sideways. Fig.83(1)

► Pull off attachment at the front sideways. Fig.83(2)

Installing pull-out system

Fig. 84 Comparing attachments

There are two different attachments in the appliance. The

attachment above the lowest drawer Fig. 84 (2) has a three-

cornered edge. All other attachments Fig. 84 (1) have a

straight edge.

► Fit attachment Fig. 84 (2) with the three-cornered edge

above the lowest drawer.

► Fit attachment Fig. 84 (1) with straight edge in all other

positions.

Fig. 85 Attachment on the right moulded rib

► Position attachment on moulded rib at the front.

Fig.85(1)

► Press on attachment at the back. Fig.85(2)

9.2 Defrosting the appliance

9.2.1 Defrosting with NoFrost

Defrosting is performed automatically with the NoFrost

system. The moisture is deposited on the evaporator, is peri‐

odically defrosted and evaporates.

The appliance does not have to be defrosted.

9.3 Cleaning the appliance

9.3.1 Ready

WARNING

Danger of electric shock!

► Remove the refrigerator connector or interrupt the power

supply.

WARNING

Risk of fire

► Do not damage the refrigeration circuit.

► Empty the appliance.

► Remove mains connector.

9.3.2 Cleaning the interior

NOTICE

Improper cleaning!

Damage to the appliance.

► Only use soft cleaning cloths and ph-neutral all-purpose

cleaners.

► Do not uses abrasive sponges or steel wool which may

cause scratches.

► Do not use any sharp or abrasive cleaning agents, nor

any that contain sand, chloride or acid.

► Plastic surfaces: clean by hand with a soft clean cloth,

lukewarm water and a little detergent.

► Metal surfaces: clean by hand with a soft clean cloth,

lukewarm water and a little detergent.

9.3.3 Clean the components

NOTICE

Improper cleaning!

Damage to the appliance.

► Only use soft cleaning cloths and ph-neutral all-purpose

cleaners.

► Do not uses abrasive sponges or steel wool which may

cause scratches.

► Do not use any sharp or abrasive cleaning agents, nor

any that contain sand, chloride or acid.

Clean with a soft, clean cloth, lukewarm water and some

detergent:

- Drawer

- Freezer tray

Wash in the dishwasher up to 60°C:

- Ice cube tray

► To disassemble components: see the relevant section.

► Clean the components.

9.3.4 After cleaning

► Wipe the appliance and the components dry.

► Connect and switch on the appliance.

► Activate SuperFrost (see 7.2Appliance functions) .

Maintenance

20 * Depending on model and options

The temperature is cold enough:

► Place the food inside.

► Repeat cleaning regularly.

10 Customer help

10.1 Technical specifications

Temperature range

Freeze -28°C to -15°C

Maximum ice cube quantity / 24 hours

Freezer compart‐

ment

see type plate under “Freezing

capacity …/ 24 h”

Maximum component capacity

Features Appliance

width

550 mm

(see instal‐

lation

instruc‐

tions,

appliance

dimen‐

sions)

Appliance

width

600 mm

(see

installa‐

tion

instruc‐

tions,

appliance

dimen‐

sions)

Appliance

width

700 mm

(see instal‐

lation

instruc‐

tions, appli‐

ance

dimen‐

sions)

Drawer on glass

shelf

(see 8.1.1 Drawer

on appliance base

or glass shelf)

12 kg 15 kg --

Drawer on

container rib

(see 8.1.3 Drawer

on moulded rib)

14 kg 19 kg 19 kg

Bottom drawer -- 11 kg 19 kg

Top tiltable drawer*

(see 8.1.2 Top

tilting drawer*) *

--* 19 kg* 19 kg*

Lighting

Class

Light source

This product contains one or more energy

efficiency class G light sources.

LED

The appliance may contain light sources with different

energy efficiency classes. The lowest energy efficiency class

is indicated.

For appliances with a WiFi connection:

Frequency specification

Frequency band 2.4GHz

Maximum radiated

power

< 100 mW

Purpose of the

wireless equipment

Integration in the local WiFi network

for data communication

10.2 Operating noises

The appliance makes different noises when it is on.

At higher temperatures the appliance uses less energy

but works for longer. It is quieter.

At lower temperatures the food is cooled faster. It is

louder.

Examples:

•

Functions on (see 7.2Appliance functions)

•

Fan running

•

Food recently added

•

High ambient temperature

•

Door open for a while

Noise

Possible cause Type of noise

Bubbling and

splashing

Coolant flowing

into the cooling

circuit.

Normal operating

noise

Hissing Coolant sprays

into the cooling

circuit.

Normal operating

noise

Humming The appliance

is cooling. The

volume depends

on the cooling

output.

Normal operating

noise

Suction noises Soft-closing door

is being opened

and closed.

Normal operating

noise

Humming and

rustling

The fan is running. Normal operating

noise

Clicking Components are

switched on and

off.

Normal switching

noise

Rattling or

humming

Valves or flaps are

working.

Normal switching

noise

Noise Possible

cause

Type of noise Lifting

Vibration Improper

installation

Defective

noise

Check the

installation.

Level the

appliance.

Rattling Components,

items inside

the appliance

Defective

noise

Secure

components.

Leave

enough

space

between the

items.

10.3 Technical fault

Your appliance is designed and built to ensure it works reli‐

ably and has a long service life. In the unlikely event that

a fault occurs during operation, please check whether it is

due to an operating error. If so, you will be charged for the

callout and repair costs even if it falls within the warranty

period.

You can fix the following faults yourself.

Customer help

* Depending on model and options 21

10.3.1 Appliance function

Defect Cause Remedy

The appliance is

not working.

→ The appliance is not switched on. ► Switch the appliance on.

→ The power plug is not properly

plugged into the socket.

► Check the power plug.

→ There is something wrong with the

power outlet fuse.

► Check the fuse.

→ Power cut ► Keep the appliance closed.

► Safeguarding food: Place cold packs on top of food or

use another freezer if the power cut lasts longer.

► Do not re-freeze defrosted food,

→ The IEC socket is not plugged into

the appliance correctly.

► Check the IEC socket.

Temperature is not

cold enough.

→ The appliance door is not closed

properly.

► Close the appliance door.

→ Not enough ventilation. ► Keep ventilation grille clear, and clean it.

→ The ambient temperature is too

high.

► Problem solution: (see2.4 Appliance range of use)

→ The appliance was opened too

many times or for too long.

► Wait to see if the required temperature corrects itself.

If not, contact Customer Service. (see 10.4 Customer

Service)

→ Too much fresh food was placed

inside without SuperFrost.

► Solution: (see SuperFrost)

→ The temperature is set incorrectly. ► Turn down the temperature and check after 24 hours.

→ The appliance is too close to a heat

source (oven, radiator, etc).

► Move the appliance or the heat source.

→ The appliance was not correctly

installed in the recess.

► Check if the appliance was installed correctly and that

the door closes properly.

The door seal is

defective or needs

to be replaced for

another reason.

→ The door seal can be replaced. It

can be replaced without the need

for special tools.

► Contact Customer Service. (see 10.4 Customer Service)

The appliance

builds up too much

ice or condensa‐

tion.

→ The door seal may have slipped out

of its groove.

► Check that the door seal is well fitted in the groove.

10.3.2 Features

Defect Cause Remedy

The internal light

does not come on.

→ The appliance is not switched on. ► Switch the appliance on.

→ The door was open for longer than

15 minutes.

► Interior lighting switches off automatically after

about 15 minutes when the door is open.

→ The LED interior light is faulty or

the lid is damaged.

► Contact Customer Service. (see 10.4 Customer Service)

10.4 Customer Service

First check whether you can rectify the fault yourself

(see 10 Customer help) . If you cannot rectify the problem,

contact Customer Service.

You can find the address in the enclosed brochure “Liebherr-

Service” or at home.liebherr.com/service.

Customer help

22 * Depending on model and options

WARNING

Unprofessional repair!

Injuries.

► Have any repairs and action - not expressly specified -

on the appliance and mains cable carried out by service

personnel only. (see9 Maintenance)

► A damaged mains cable may only be replaced by the

manufacturer, the manufacturer’s Customer Service or a

similarly qualified person.

► In the case of appliances with an IEC connector, the

change may be made by the customer.

10.4.1 Contacting Customer Service

Make sure that the following appliance information is avail‐

able:

❑

Appliance name (model and index)

❑

Service no. (Service)

❑

Serial no. (S no.)

► Call up the appliance information via the display.

(see Device information)

-or-

► Refer to the type plate for appliance information.

(see 10.5 Model plate)

► Note down the appliance information.

► Notify customer service: Report errors and the appliance

information.

▷ This will help us to provide you with a faster, more accu‐

rate service.

► Follow further instructions from Customer Service.

10.5 Model plate

The model plate is behind the drawers on the inside of the

appliance.

Fig.86

(1)

Appliance description (3) Serial no.

(2) Service no.

► Note the data on the model plate.

11 Shutting down

► Empty the appliance.

► Switch off appliance. (see Switching the appliance off

and on)

► Pull the mains plug out of the socket.

► Remove the IEC socket if required: Pull the IEC socket out

of the appliance plug and move it to the left and right at

the same time.

► Clean appliance. (see 9.3Cleaning the appliance)

► Leave the door open, so that no unpleasant odours arise.

12 Disposal

12.1 Preparing appliance for disposal

Liebherr uses batteries in some of its appli‐

ances. In the EU, for environmental reasons,

legislation obliges the end user to remove

these batteries before disposing of old appli‐

ances. If your appliance contains batteries, a

corresponding notice is attached.

Lamps If you can remove the lamps yourself without

destroying them, also remove these before

disposal.

► Take the appliance out of operation.

► If possible: remove lamps without destroying them.

12.2 Disposing of the appliance in an

environmentally friendly manner

The appliance still contains

valuable materials and must

be disposed of separately from

unsorted municipal waste.

Dispose of batteries separately

from the old appliance. To do

this, you can return the batteries

free of charge to retailers as

well as recycling centres and

collection centres for recyclable

materials.

Lamps Dispose of removed lamps

via the respective collection

systems.

For Germany: You can dispose of the appli‐

ance free of charge via the

class 1 collection containers

at the local recycling and

recyclable material collection

centres. When purchasing a new

fridge/freezer, if the sales area

> 400 m

, retailers will also take

back the old appliance free of

charge.

WARNING

Leaking coolant and oil!

Fire. The coolant contained in the appliance is eco-friendly,

but also flammable. The oil contained in the appliance

is flammable. Escaping coolant and oil can ignite if the

concentration is high enough and in contact with an

external heat source.

► Do not damage the pipelines of the coolant circuit and

the compressor.

► Observe the notes on transporting the appliance.

► Transport the appliance without damaging it.

► Dispose of batteries, lamps and the appliance according

to the above specifications.

Shutting down

* Depending on model and options 23

home.liebherr.com/fridge-manuals

Integrated freezer

Issue date: 20250915

Part number index:7088435-00

Liebherr-Hausgeräte GmbH

Memminger Straße 77-79

88416Ochsenhausen

Deutschland

7085 667-01

EWTgb/gw 1683 / 2383 / 3583

Operating instructions Page 12

Multi-temperature wine cabinet

Read the operating instructions before switching on for the rst time

V: 01_2025

Content

Priority of warnings .................................................................12

Safety instructions and warnings ...........................................12

Symbols on the appliance ...................................................... 13

EPREL database .................................................................... 13

Range of appliance use ..........................................................14

Description of the appliance ...................................................14

Disposal notes ........................................................................14

Climate rating .........................................................................15

Setting up ...............................................................................15

Electrical connection ..............................................................15

Door opening mechanism ......................................................15

Operating and control elements ............................................. 16

Switching the appliance on and o ........................................16

Setting the temperature ..........................................................16

Fan .........................................................................................16

Door open alarm ..................................................................... 16

Temperature alarm ................................................................. 17

Set-up mode ...........................................................................17

Interior light .............................................................................18

Labels ....................................................................................18

Air exchange with activated charcoal lter ............................. 18

Removing and inserting the wooden shelves.........................19

Storage diagram .....................................................................19

Storage diagram

Presentation shelf...................................................................20

Cleaning .................................................................................21

Malfunctions ........................................................................... 21

Shutting your appliance down ................................................ 21

Priority of warnings

DANGER

identies a situation involving direct

danger which, if not obviated, may result

in death or severe bodily injury.

WARNING

identies a dangerous situation which,

if not obviated, may result in death or

severe bodily injury.

CAUTION

identies a dangerous situation which,

if not obviated, may result in minor or

medium bodily injury.

NOTICE

identies a dangerous situation

which, if not obviated, may result in

damage to property.

Note

identies useful information and tips.

Safety instructions and warnings

- WARNING: do not seal ventilation openings on

the appliance housing or enclosure.

- WARNING: only use the mechanical devices or

other aids recommended by the manufacturer to

help speed up the defrosting process.

- WARNING: do not damage the refrigerant circuit.

- WARNING: do not use any electrical devices in the

refrigerator compartment which do not comply with

the design recommended by the manufacturer.

- WARNING: the mains cable must not be dam-

aged while installing the appliance.

- WARNING: multi-sockets or distributor strips

and other electronic devices (such as halogen

transformers) must not be positioned and oper-

ated at the rear of appliances.

- WARNING: danger of injury through electric

shock. There are live parts under the cover. Only

have the interior LED light replaced or repaired

by customer service staff or trained personnel.

- WARNING: risk of injury from the LED lamp. The

light intensity of the LED light complies with laser

class RG 2. If the cover is defective, do not look

directly at the light through optical lenses from

close distance. This may damage your eyes.

- WARNING: this appliance must be secured as

described in the operating instructions (Installa-

tion instructions) to rule out any potential risks

due to its instability.

- This appliance may be used by children aged 8

and over and by people with reduced physical,

sensory or mental abilities or a lack of experi-

ence and expertise if they are supervised or have

been instructed on the safe use of the appliance

and have understood the risks associated with

it. Children must not be allowed to play with the

appliance. Cleaning and user maintenance must

not be carried out by children without supervision.

Children aged 3 or over and 8 or younger may

load and unload the refrigerator/freezer.

- Do not store any explosive substances, such as

aerosol containers with flammable propellant

gas, inside the appliance.

- To prevent injury and damage to property, the

appliance should only be installed by two people.

- After unpacking it, check the appliance for signs

of damage. Contact the supplier if it is damaged.

Do not connect the appliance to the mains power

supply.

- Avoid prolonged skin contact with cold surfaces

(e.g. chilled/frozen products). If necessary, take

safety action (e.g. gloves).

- All repairs and work on the appliance may only

be carried out by customer service personnel

or other trained personnel. The same applies to

changing the mains power cable.

- Only carry out repair and other work on the ap-

pliance when the mains plug has visibly been

disconnected.

- Only install, connect and dispose of the appliance

as described in these operating instructions.

- In the event of a fault, pull out the plug or switch

o the fuse.

- When disconnecting the appliance from the

mains, pull on the plug. Do not pull on the cable.

- If you have a lockable appliance, do not keep the

key near the appliance or within reach of children.

- The appliance is designed for use in enclosed

areas. Do not operate the appliance outdoors or

in areas where it is exposed to splash water or

damp conditions.

- Do not use the interior LED light to light the room.

The interior LED light is only designed to illuminate

the interior of the appliance.

- Do not allow naked ames or ignition sources to

enter the appliance.

- Alcoholic drinks or other vessels containing al-

cohol should be sealed tightly for storage.

- When transporting or operating the appliance at

an altitude of more than 1500 m above sea level,

the glass pane in the door can break due to the

reduction in air pressure. Broken fragments are

sharp-edged and can cause serious injury.

Symbols on the appliance

The symbol can be located on the compressor. It

refers to the oil in the compressor and indicates

the following danger: swallowing or inhaling can

be fatal. This is only relevant for recycling. There

is no danger in normal operation.

Warning about inammable substances.

A sticker to this eect may be applied to the rear

of the appliance. It refers to the foampadded

panels in the door and/or the housing. This is

only relevant for recycling. Do not remove the

sticker.

EPREL database

As from 1 March 2021, information about energy labelling and

ecodesign requirements will be available in the European product

database (EPREL). You can access the product database using

the following link: https://eprel.ec.europa.eu/. You will be asked

to enter the model identier. You will nd the model identier on

the type plate.

Description of the appliance

Disposal notes

The appliance contains reusable materials and should

be disposed of properly - not simply with unsorted

household refuse. Appliances which are no longer

needed must be disposed of in a professional and

appropriate way, in accordance with the current local

regulations and laws.

When disposing of the appliance, ensure that the refrigerant circuit

is not damaged to prevent uncontrolled escape of the refrigerant

it contains (data on type plate) and oil.

• Disable the appliance.

• Pull out the mains plug.

• Cut through the connection cable.

WARNING

Danger of suocation due to packing material

and plastic lm!

Do not allow children to play with packaging

material.

Take the packaging material to an ocial collec-

tion point.

(1) Operating and control elements

(2) Pull-out shelves

(3) Interior light (LED light strip)

(4) Activated charcoal lter

(5) Adjustable-height feet

(6) Type p late

(7) Presentation shelf

EWTgb/gw 1683

EWTgb/gw 2383

EWTgb/gw 3583

Range of appliance use

The appliance is suitable solely for storing wine in

a domestic environment or similar. This includes,

for example, use

- in staff kitchenettes, bed and breakfast establish-

ments,

- by guests in cottages, hotels, motels and other

forms of accommodation,

- in catering and similar services in the wholesale

trade.

Use the appliance solely as is customary within a domestic en-

vironment. All other types of use are inadmissible.

The appliance is not suitable for storing and cooling medicines,

blood plasma, laboratory preparations or similar substances and

products covered by the 2007/47/EC Medical Devices Directive.

Any misuse of the appliance may result in damage to or spoilage

of stored goods.

Furthermore, the appliance is not suitable for operation in poten-

tially explosive atmospheres.

Setting up

• Avoid positioning the appliance in direct sunlight or near cookers,

radiators and similar sources of heat.

• Standard EN 378 specifies that the room in which you install

your appliance must have a volume of 1 m

per 8 g of R 600a

refrigerant used in the appliance, so as to avoid the formation of

inflammable gas/air mixtures in the room where the appliance is

located in the event of a leak in the refrigerant circuit. The quantity

of refrigerant used in your appliance is indicated on the type plate

on the inside of the appliance.

Electrical connection

Only operate the appliance with alternating current (AC).

The permissible voltage and frequency are indicated on the type

plate. The position of the type plate is shown in the section entitled

Description of the appliance.

The socket must be properly earthed and protected by a fuse.

The tripping current of the fuse must be between 10 A and 16 A.

The socket must not be situated behind the appli-

ance and must be easily accessible.

Do not connect the appliance using an exten-

sion cable or extension socket.

Do not use stand-alone inverters (conversion

of direct current to alternating/three-phase

current) or energy-saving plugs. Risk of dam-

age to the electronic control system!

Climate rating

The climate rating indicates the room

temperature at which the appliance may

be operated in order to achieve full refrig-

eration performance.

The climate rating is indicated on the

type plate.

The position of the type plate is shown in the section entitled

Description of the appliance.

Climate rating Room temperature

SN +10°C to +32°C

N +16°C to +32°C

ST +16°C to +38°C

T +16°C to +43°C

SN-ST +10°C to +38°C

SN-T +10°C to +43°C

Do not operate the appliance outside the

specied room temperature range.

Door opening mechanism

The appliance is equipped with a

door opening mechanism.

Opening the door

Push the door slightly inwards on

the top left-hand side and release

again.

The door is opened approx.

7 cm by the push rod.

The door can then be fully

opened.

Note

The door will close again

automatically after approx.

3 seconds if it has not been

fully opened.

Do not push the push rod in or hold on to it during

closing.

If the push rod is blocked during

closing, it will no longer be able to

reach its initial position.

In the initial position, the push rod is

ush with the front of the appliance.

Setting the push rod back in its initial position

Disconnect the appliance from the mains, wait for approx.

5 seconds and plug it back in again.

The push rod returns to its initial position.

Important notes

Do not operate the appliance near magnetic elds or

place magnetic objects near the appliance.

The door may otherwise open when you do not want

it to.

Do not block the door or hold on to it while it is

opening.

If the door is blocked or held open during opening, the internal

safety coupling will be activated.

Loud, repeated cracking noises will be heard.

Switching the appliance on and o

Switching the appliance on

Press the On/O button until the temperature display

lights up.

Switching the appliance o

Keep the On/O button pressed for approx. 3 seconds

so that the temperature display goes out.

Operating and control elements

The electronic control panel has the new "touch capacitance

technology". Any function can be activated by touching the

corresponding icon.

The exact contact point is

between the symbol and its label

(1)

Upper compartment temperature display

(2)

Lower compartment temperature display

(3)

Upper compartment temperature setting buttons

(4)

Lower compartment temperature setting buttons

(5)

On/O button (switching the appliance on and off)

(6)

Audible warning On/O button

(7)

Fan switch

(8)

Interior light On/O button

Symbols in the display

Alarm (symbol flashes if the temperature inside the appli-

ance is too high or too low)

Demo mode is activated

Setup mode is activated (activating the child lock and

adjusting the display brightness

The interior fan runs constantly

Child lock is activated

The interior light is switched on constantly

Door open alarm

If the door is left open for more than 60 seconds, the audible

warning signal will sound.

If the door must be opened for a lengthy period to place

items into the appliance, cancel the audible warning

signal by pressing the Alarm button.

The alarm switches back to standby when the door is shut.

Fan

The interior fan ensures a constant and even interior temperature

and a suitable climate for wine storage.

The humidity in the appliance can be increased even

further by activating the Ventilation button. This has

a particularly positive eect for long-term storage.

The increased level of humidity prevents the corks from drying out.

Setting the temperature

The temperature of both com-

partments can be set sepa-

rately.

(1)

Upper compartment

(2)

Lower compartment

Reducing the temperature

Press the Down button.

Increasing the temperature

Press the Up button.

- When pressing one of the buttons for the first time, the display

will start to flash.

- Pressing this button again enables you to change the temperature

setting.

- The electronic control system will switch over automatically about

5 seconds after the last time you pressed the button, and the

actual temperature will be displayed.

The temperature can be set at between +5°C and +20°C.

The following drinking temperatures are recommended for the

various types of wine.

Red wines: +14°C to +20°C

Rosé wines: +10°C to +12°C

White wines: +8°C to +12°C

Sparkling wines, Prosecco: +7°C to +9°C

Champagne: +5°C to +7°C

If you are storing wine for long periods of time, it should be stored

at a temperature of between +10°C and +12°C.

Set-up mode

In set-up mode, you can set the child lock and adjust the brightness

of the display. The child lock is designed to protect the appliance

from being switched o and the temperature setting from being

changed accidentally.

Activating the child lock

Press for 5 seconds. Display =

Display =

Temperature alarm

If the temperatures in the interior are out of the permitted range,

the audible warning signal will sound and the temperature display

will ash.

• Cancel the audible warning signal by pressing the Alarm button.

After a lengthy power failure, the temperature in the interior may

have risen to too high a level. After the power supply returns, the

fall in temperature can be watched on the display.

The temperature display will stop ashing as soon as the tem-

perature in the interior has reached the set value.

Temperature alarm after a fault in the appliance

If the appliance develops a fault, the temperature in the interior

may rise too high or fall too low. The audible warning signal will

sound and the temperature display will ash.

• Cancel the audible warning signal by pressing the Alarm button.

If the temperature displayed is too high (warm), rst check whether

the door is closed correctly.

If the temperature display continues to show a value that is too high

or too low after one hour, contact the customer service department.

If F1, F8, E1, E2, E7 or E8 appears in the display, the appliance

has suered a fault.

In this case, contact the customer service department.

Adjusting the display brightness

Press for 5 seconds. Display =

Display =

Use buttons Up and Down to select the desired setting.

h0 = display lighting off

h1 = minimum brightness

h5 = maximum brightness

Display =

The adjusted brightness will be activated after one minute.

Note

If a button is pressed, the display lights up for one minute at

maximum brightness.

When commissioning the appliance, the adjusted brightness will

only be active once the set interior temperature of the appliance

has been reached.

Deactivating the child lock

Press for 5 seconds. Display =

Display =

Air exchange with activated charcoal lter

The way in which wines continue

to mature depends on the ambient

conditions.

The quality of the air is therefore

decisive for preserving the wine.

We recommend that you replace

the illustrated lter once a year.

Filters can be obtained from your

dealer.

• Push the cover in and release

it again.

• Pull out the filter.

• Insert the filter

• Insert the cover, push it in

as far as it will go and then

release it again.

The cover is automatically

locked into place.

You will hear a click.

Changing the lter

Labels

The appliance is supplied with one label

for each wooden shelf.

Use these to label the type of wine

stored on each shelf.

Additional labels can be obtained from

your dealer.

Interior light

The interior of the appliance is lit by an LED light strip at the top

of each compartment.

The interior light will always switch on when the appliance door

is opened. The interior light will go out approx. 5 seconds after

the door is closed.

Press the Light button if you want the interior light to be

on even when the door is closed.

Note

This function applies to the lighting of both compartments.

Furthermore, the brightness of the lighting can be adjusted.

• Press the Light button.

• Press and hold the Light button

and at the same time press the

temperature setting buttons to in-

crease or decrease the brightness.

Note: The brightness will change in all compartments.

Lighting

Class

Light source

This product contains a light source that meets

energy eciency rating G

LED

The appliance may contain light sources with dierent

energy eciency classes. The lowest energy eciency class

is indicated.

Inserting the wooden shelf

Removing and inserting the wooden shelves

The wooden shelves can be removed for easier cleaning of the

inside of the appliance.

Removing the wooden shelf

Extend the pull-out rails as far as they will go. Place the front

recesses of the wooden shelf on the securing pins.

Slide the wooden shelf together with the pull-out rails into the

appliance as far as they will go.

Push the wooden shelf right to the back so that it clicks into place

at the front.

Push the wooden shelf downwards on the right and left at the

back and click into place.

Pull the wooden shelf upwards on the right and left at the back

(release) and then remove it towards you.

Storage diagram

for 0.75 l Bordeaux bottles to standard NF H 35-124

Number of bottles

Total 33 bottles

Number of bottles

Total 51 bottles

EWTgb/gw 1683

EWTgb/gw 2383

Storage diagram

Presentation shelf

Important

The maximum load per wooden shelf is 25 kg.

Number of bottles

Total 83 bottles

EWTgb/gw 3583

Cleaning

A failure to follow these instructions may result in the food being

spoilt.

WARNING

Before cleaning, always disconnect the appliance

from the mains. Pull out the plug or switch o the

fuse.

Surfaces which may come into contact with food

and accessible drain systems must be cleaned at

regular intervals.

If the door is left open for a lengthy period, the

temperature in the appliance's compartments may

rise dramatically.

• Clean the inside, equipment parts and outer walls with lukewarm

water and a little detergent. Do not use chemical solvents or any

cleaning agents containing sand or acid.

• Use a glass cleaner to clean the glass surfaces and a commercially

available stainless-steel cleaning agent for the stainless-steel

surfaces.

CAUTION

Risk of damage to the appliance components and

risk of injury due to hot steam.

Do not use steam cleaning equipment to clean

the appliance.

• Ensure that no cleaning water penetrates into the electrical

components or ventilation grille.

• Dry all parts well with a cloth.

• Do not damage or remove the type plate on the inside of the

appliance. It is very important for servicing purposes.

If the appliance is left empty for a lengthy period, it must be

switched o, defrosted, cleaned and dried and the door is to be

left open to prevent mould formation.

Malfunctions

• F0, F1, E1, E2, E7 or E8 appears in the display.

– The appliance has suffered a fault. Contact the customer service

department.

• The fans inside the appliance are running although the

fan function has been deactivated and the compressor

(refrigeration unit) is idle.

– This is a normal operating state depending on the set interior

temperature and ambient temperature at the place of installation.

You may be able to rectify the following faults by checking

the possible causes yourself.

• Appliance does not function:

– Is the appliance switched on?

– Is the plug correctly fitted in the mains socket?

– Is the fuse intact?

• When inserting the mains plug, the refrigeration unit does

not switch on, but a value is shown in the temperature

display.

– Demo mode is activated. Contact the customer service depart-

ment.

• Loud running noise:

– Is the appliance set up firmly on the floor?

– Does the appliance cause nearby items of furniture or objects to

vibrate? Please note that noises caused by the refrigerant circuit

cannot be avoided.

– Due to the various speed steps, speed-regulated compressors

can generate different running noises.

The sound is normal.

• The temperature is not low enough:

– Is the temperature setting correct (see "Setting the temperature")?

– Does the separately installed thermometer show the correct

reading?

– Is the ventilation system working properly?

– Is the appliance set up too close to a heat source?

• The compressor runs for a long time.

– The compressor switches to a low speed when little cold is needed.

Although the running time is increased as a result, energy is saved.

This is normal in energy-saving models.

• A low hum.

– The sound is produced by air flow noise of the fan.

The sound is normal.

• The internal light does not come on.

– The appliance is not switched on.

Switch the appliance on.

– The door was open for longer than 15 minutes.

The internal light switches itself off automatically after about 15

minutes if the door is open.

– The LED illumination is faulty or the cover is damaged.

If none of the above causes

apply and you cannot rectify

the fault yourself, contact the

nearest customer service de-

partment stating the type des-

ignation

(1)

, service number

(2)

and appliance number

(3)

as indicated on the type plate.

The position of the type plate is shown in the section entitled

Description of the appliance.

Shutting your appliance down

If your appliance is to be shut down for any length of time, switch

it o and disconnect the plug or switch o or unscrew the fuse.

Clean the appliance and leave the door open in order to prevent

unpleasant smells.

The appliance complies with the relevant safety regulations

and EU Directives 2014/35/EU, 2014/30/EU, 2009/125/EG and

2011/65/EU.

Liebherr Hausgeräte Lienz GmbH

Dr.-Hans-Liebherr-Strasse 1

A-9900 Lienz

Österreich

www.liebherr.com

*708566701*

Liebherr IXRFW 5153 PRIME BIOFRESH NOFROST data-next-head> Side-by-Side combination

Product's Documents

Operating instructions

Specifications

Liebherr IXRFW 5153 PRIME BIOFRESH NOFROST Questions and Answers

Related Products

Liebherr IXRWBS 5173 data-next-head> Side-by-Side combination

Liebherr XRFSD 5250 PRIME NOFROST data-next-head> Side-by-Side combination

Liebherr XRFSD 5230 PLUS NOFROST data-next-head> Side-by-Side combination

Liebherr IXRF 5100 PURE NOFROST data-next-head> Side-by-Side combination

Liebherr XRCBSH 5266 PRIME BIOFRESH NOFROST data-next-head> Side-by-Side combination

Liebherr XRFBSH 5265 PRIME BIOFRESH NOFROST data-next-head> Side-by-Side combination
