Model: KM-BIR5C-GD
Wine & Beverage Cooler
Thank you for purchasing our product!
Before returning to retailer, if you are having trouble with your unit, for assembly assistance,
missing or damaged parts.
Please contact customer service Phone: 718-576-6342
Email: [email protected]
We are here to help.
Thank you!
1
4
5
5
6
6
7
7
9
10
11
Limited Service Warranty
TABLE OF CONTENTS
BEFORE USE
Before connecting the appliance to the power supply, let the unit stand upright for 4 hours,
which will reduce the possibility of the cooling system malfunctioning due to improper
handling and moving during transportation or installation.
Clean your unit thoroughly before use.
(See “How to Clean”)
Use the parts diagram on page 4 to insure proper positioning of internal components.
ENERGY SAVING TIPS
K
eep the refrigerator doors closed as much as possible, particularly in warm/humid conditions.
Maintain adequate ventilation around the back and sides of the unit.
Allow warm wine bottle or drinks to cool to room temperature before placing in the refrigerator.
Do not obstruct the front hot air outlet frame.
IMPORTANT SAFETY INSTRUCTIONS
Before you use your refrigerator, basic safety precaution must be followed in order to
reduce the risk of fire, electrical shock, and/or injury to person or property. Before you use your
refrigerator, please read the owner’s manual carefully and observe the following safety tips.
Use this appliance only for its intended purpose as described in this owner’s manual.
WARNING: This appliance is intended to be used in household and similar applications such as
- staff kitchen areas in shops, offices and other working environments;
- farm houses and by clients in hotels, motels and other residential type environments;
- bed and breakfast type environments;
- catering and similar non-retail applications.
The appliance must be correctly installed and connected to the power supply in accordance with the
installation instructions before it is used. (See: “HOW TO INSTALL”).
The main power supply must be properly grounded.
This refrigerator must be positioned so that the plug is accessible. Never unplug you unit often by pulling on
the power cord. Always grasp the plug firmly and pull straight out from the outlet.
Do not use an extension cord as this can negatively affect the performance of the unit. If you must use an
extension cord, use 18AWG minimum size and rated no less than 1875 watts.
PRODUCT FEATURE
1. Transparent glass door, luxury out looking, elegant design, easy operating.
2. Envelope with attracting black color.
3. Low noise, high energy efficiency, updated quick cooling system.
4. Plastic enveloped or chrome-plated wire rack shelves, sanitation, convenience.
5. Touch-button control panel for operation.
2
3
When transporting the refrigerator, keep the unit in the upright position. Do not tilt the appliance beyond 45° or
place the unit in upside down position. Do not tip over.
Do not touch the cooled surfaces while the appliance operates, especially not with wet hands, because the
skin may stick to the cold surfaces.
It is recommended that the refrigerator is positioned away from any combustible sources such as gas, petrol,
alcohol, lacquer and banana oil, etc. The aforementioned objects should not be stored in the refrigerator under
any circumstances.
If the unit fails to cool properly, dispose of spoiled food as needed.
Unplug your unit before cleaning or before making any repairs. NOTE: If for any reason this product requires
service, we strongly recommend that a certified technician perform the service. Repairs made by non-qualified
personnel will void the warranty.
Do not defrost the appliance with other electric devices (hair dryer etc.) and never scrape the ice or frost layer
with sharp tools. Warning: Do not damage the refrigerant circuit.
The rating plate is inside the appliance or outside on the rear or side wall.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety. Children should be supervised to
ensure that they do not play with the appliance.
Do not run cord over carpeting or other heat insulators. Do not cover the cord. Keep cord away from traffic
areas, and do not submerge in water. If the supply cord is damaged, it must be replaced by the manufacturer
or its service agent or a similarly qualified person in order to avoid a hazard. Repair or replace immediately all
electric service cords that have become frayed or otherwise damaged. Do not use a cord that shows cracks or
abrasion damage along its length, the plug or the connector end.
WARNING:
Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
WARNING: Do not use mechanical device or other means to accelerate the defrosting process, other than
those recommended by the manufacturer.
WARNING: Do not damage the refrigerant circuit.
WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless
they are of the type recommended by the manufacturer.
WARNING: Do not operate your refrigerator in the presence of explosive fumes.
WARNING: Do not use the flame or catch the fire near the unit.
Please dispose of the appliance according to local regulations as the appliance contains
flammable gas and refrigerant.
Follow local regulations regarding disposal of the appliance due to flammable refrigerant and
gas. All refrigeration products contain refrigerants. which under the quidelines of federal law
must be removed before disposal. It is the consumer's responsibility to comply with federal and
local regulations when disposing of this product.
4
1
2
3
4
5
6
7
Safety instruction for refrigerant
DANGER: Risk of Fire or Explosion. FLAMMABLE REFRIGERANT Used. Do Not Use Mechanical
Device To Defrost Refrigerator. Do Not Puncture Refrigerant Tubing.
DANGER: Risk of Fire or Explosion. FLAMMABLE REFRIGERANT Used. To Be Repaired Only By
Trained Service Personnel. Do Not Puncture Refrigerant Tubing.
CAUTION: Risk Of Fire Or Explosion. FLAMMABLE REFRIGERANT Used. Consult Repair
Manual/Owner's Guide Before Attempting To Service This Product. All Safety Precautions Must be
Followed.
CAUTION: Risk of Fire or Explosion. Dispose Of Property In Accordance With Federal Or Local
Regulations. Flammable Refrigerant Used.
CAUTION: Risk Of Fire Or Explosion Due To Puncture Of Refrigerant Tubing; Follow Handling
Instructions Carefully. FLAMMABLE REFRIGERANT Used.

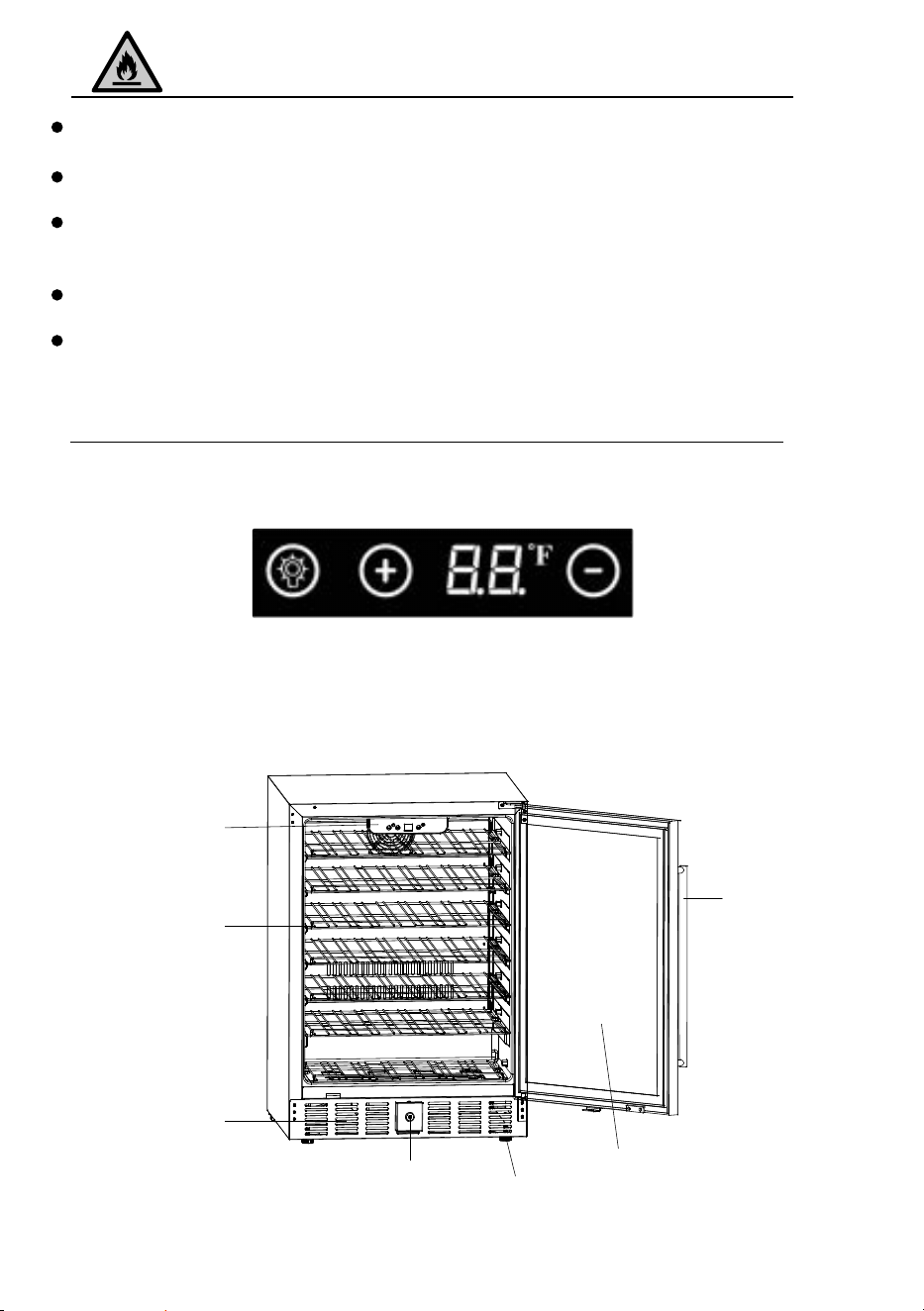

NAME OF PARTS
Following figure also is for the wine cooler with left-opening door.
Model No: KM-BIR5C-GD
1. Operation Panel:
2. Removable Wine bottle or Can Shelf
3. Hot Air outlet frame
4. Door Lock (Optional)
5. Height adjustable feet
6. Glass Door
7. Door Handle (Need to assembled by yourself)
KM-BIR5C-GD
87.5 lbs
5
Wine & Beverage Cooler
HOW TO OPERATE
Storing the Wine Bottle & Can
Wines should be laid on the shelves in sealed containers to avoid leakage
Do not overload.
Do not open the door unnecessarily or leave the door ajar.
Do not cover the shelf with any material such as aluminium foil as this will impede air circulation
within the cabinet.
Do not store explosive substances such as aerosol cans with a flammable propellant in
this appliance.

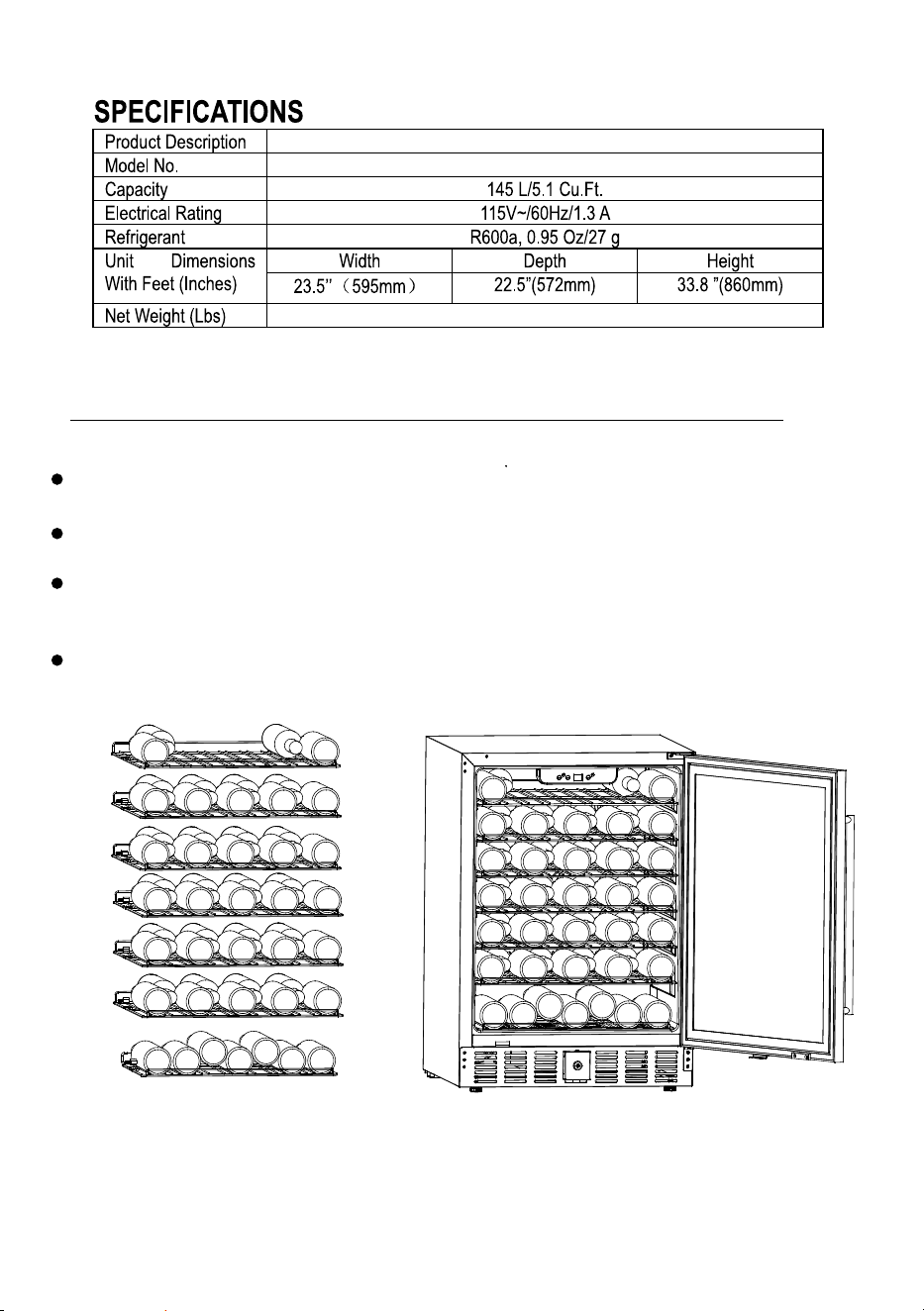

Please place the wine bottles reference to following figure: (For Maximum loading)
6

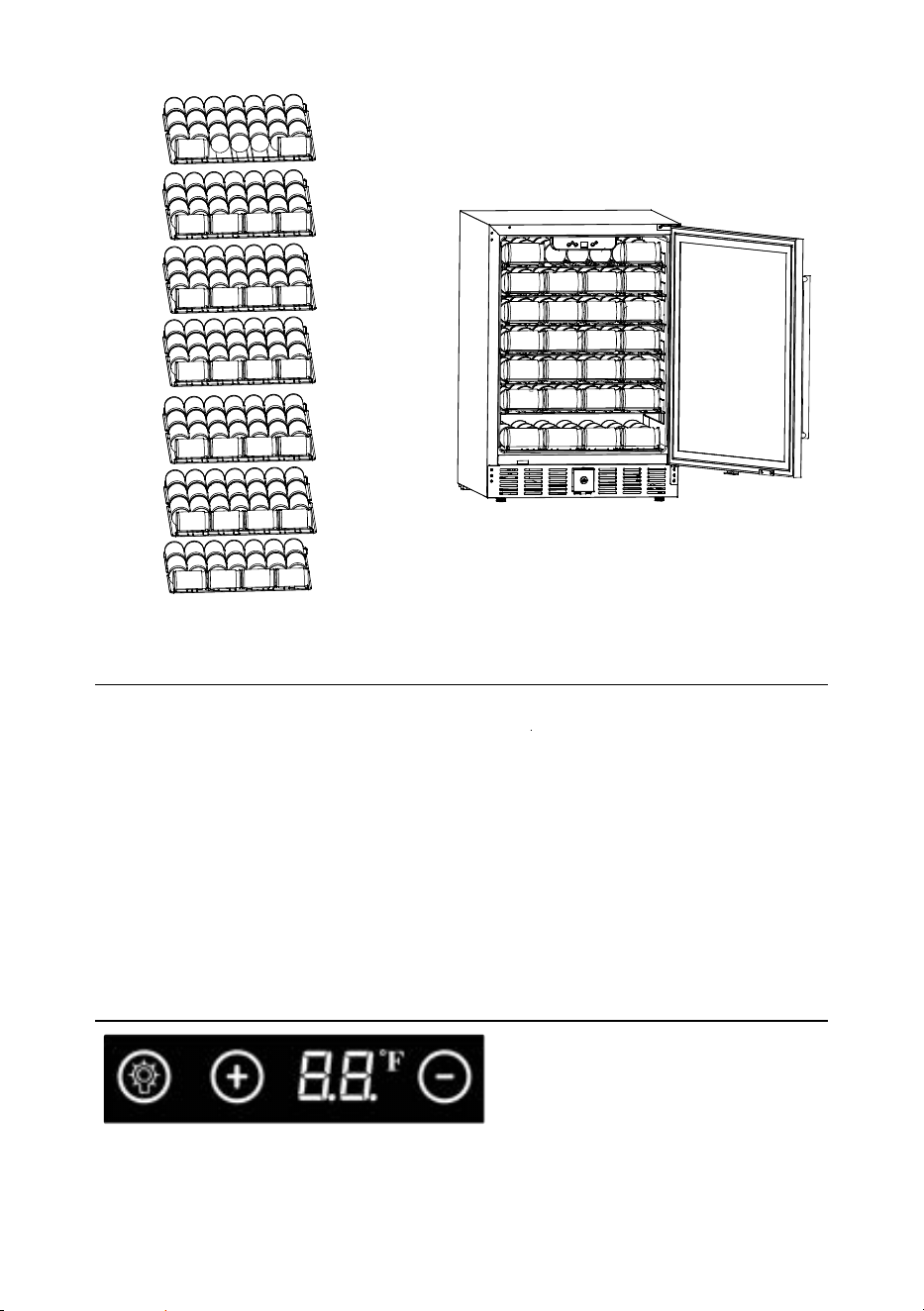

For canned beverage or drink, please see the following figure: (For maximum loading)
Starting and Running the unit
Important: If the unit is brought in from outside in the winter season, give it a few hours to warm up
to room temperature before plugging it in.
And also after transportation and moving of the unit, please wait for a least 4 hours then
to plug on the unit.
1. Remove the packaging material.
2. Clean the unit thoroughly. Wipe the outside with a soft dry cloth, the interior
with a clean moist cloth.
3. Connect the power cord to a standard wall outlet, you will hear a beep, which is normal. And
the display on the control panel will revert to actual internal temperature.
4. Do not put wines or beverages into the wine cooler within two hours after the power on.
Operation Button Panel
There are three buttons and temperature display window on the control panel, let you operate you unit
and reach your desired running way.
7
Operation Button Panel
Press two buttons " " & " " to adjust the set temperature to your desired value.
Each press will change the temperature 1 Fahrenheit degree.
Setting Range: 36-61 Fahrenheit. The default setting is 39 Fahrenheit.
Interior Light Control
The unit has built in with the LED light in the cooling compartment. When you open
the door, the LED light will activate on. Closing the door will shut off the LED light.
The internal LED light is controlled by the magnetic door Normally, when you open the
door, the LED light will be on.
Once the door is closed, the LED light will shut off instantly.
Additionally, the LED light is controlled by this button “ ” on the control panel.
If you press the “If you press the “ ” button for more than 3 seconds, it will cut supply power
g or closand opening or closing the door will not activate the LED light. If you press the “and openin
for more than 3 seconds again to cancel this lock, the LED light will reset to be on or off with
the door opening and closing.
For maximum energy efficiency, leave the light off when not viewing your collection.
Note: Wait 3-5 minutes before restarting if you unplug the refrigerator.
The unit may fail to operate properly if restarted too quickly.
HOW TO CLEAN
IMPORTANT: Do not clean your unit with flammable fluids.
The fumes can create a fire hazard or explosion.
WARNING: Before maintenance or clean to the unit, be sure to unplug the unit first.
Prohibit to pour down the water or let the whole unit submerge in the water, it will wet
the inside electrical parts.
Cleaners: Never use harsh, abrasive cleaners, heavy-duty cleaners, or solvents on any surface.
Exterior:
Wipe with damp, sudsy cloth, rinse and dry. For stubborn stains and for periodic waxing, use silicon wax.
Refrigeration Section:
Wash shelves and other removable parts in warm sudsy water, rinse and dry.
Wash interior with baking soda solution (3 tablespoons to I liter of water) or warm sudsy water, rinse and dry.
Magnetic Door Seals: Wash with warm sudsy water.
HOW TO INSTALL
This appliance can either stand alone or be built in. The front grille must be not obstructed.
Install the unit in a convenient location away from extreme heat and cold. This unit should be far away
from the heating source, such as stoves, heater, or radiators, and is prevented from direct sunlight.
Allow sufficient clearance between the unit and sidewall so the door will open without obstruction.
Place the unit on a level surface that will be strong enough to support the unit when it is fully loaded.
Not recommended for carpeting or other soft / uneven surfaces. To level your fridge, adjust the front
feet located at the bottom of the unit.

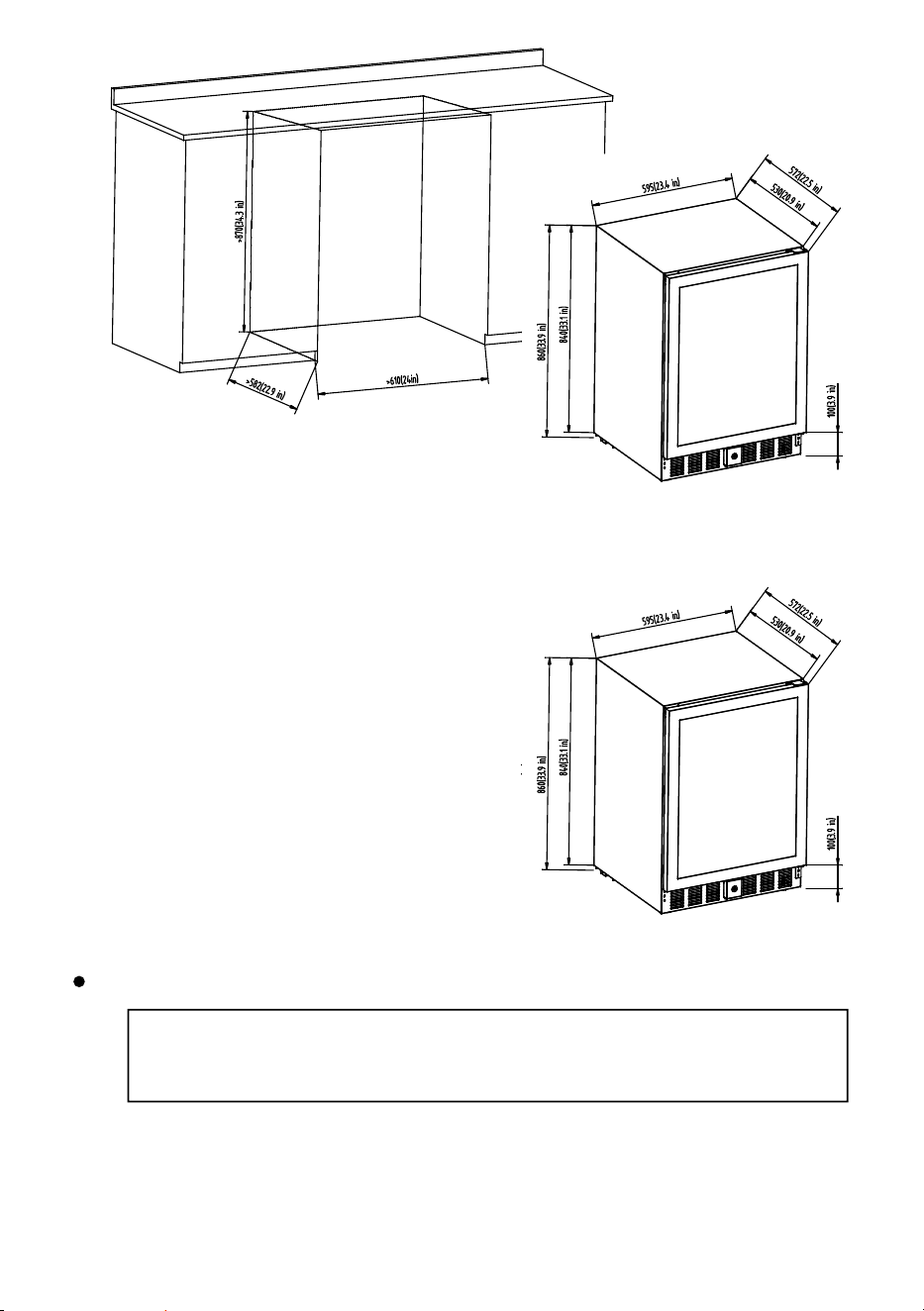

For under-counter built-in installation, please following the following diagram, and leave the
enough space for the unit.
8
For free standing installation, suggest to allow 2 inches of space between the unit's side,rear
and the wall. In addition, sufficient clearance (160°) should be maintained to allow the glass
door to open properly and completely.
The appliance must be correctly connected to the power supply, 115V/60Hz, certainly grounded.
The unit is not designed to be installed in an outside area such as a garage or a
porch. Ambient temperatures of below 50°F or above 90°F will hinder the
performance of the appliance.
9
CARE AND MAINTENANCE
The unit should be cleaned on a regular basis. (See: “HOW TO CLEAN”)
It is necessary to have an adequate ventilation space around the unit in order to
attain proper performance, dissipation of heat, maintain efficiency, and low power
consumption. Clearance of minimum 2 inches should be maintained at the rear and
sides of the unit. And especially do not obstruct the front hot air outlet frame.
(See: “HOW TO INSTALL”)
Do not modify the power cord under any circumstance to allow the unit to be plugged
into a non-grounded outlet. To avoid heat damage to the power cord, please ensure
that it does not come in proximity or in direct contact with the compressor of the unit.
Please avoid installing the unit in a location where the appliance will come in contact
with water or moisture to minimize rusting of metal parts.
The unit should not be installed near any heat source or in a location where it will
come in direct contact with the sunlight.
The components, if need to be replaced, should be replaced with like components,
and should be replaced by the manufacturer or its service agent or a similarly
qualified person in order to avoid a hazard and to minimize the risk of possible
ignition and also to decrease the cooling performance due to incorrect parts or
improper service.
10

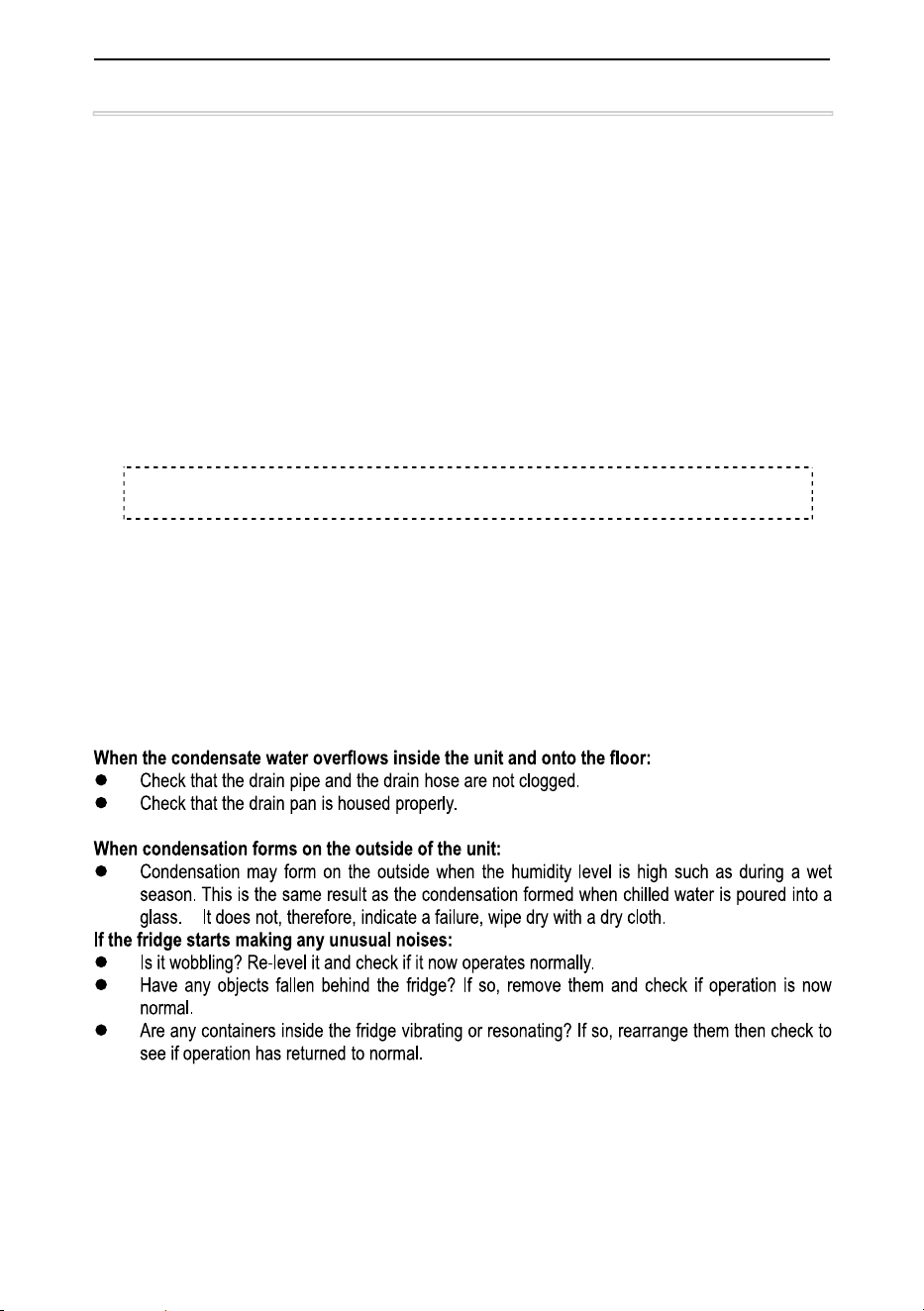

TROUBLESHOOTING GUIDE
WHAT TO DO …
When the fridge is not in use for a prolonged period:
Remove the plug from the outlet.
Remove all contents from the fridge.
Dry the interior and leave the door open for a few days.
When the refrigerator does not work:
Check if there is a power failure.
Check if the power plug is plugged into the power outlet.
Check that the fuse has not blown in main supply circuit.
When you wish to move the fridge:
Secure all movable parts and contents. (Package them separately if necessary.)
Transport the fridge only in an upright position. In any other position you may damage the
compressor.
Before calling service, please follow the checklist below.
This may save you an expensive service call.
If the refrigerator seems too warm inside:
z Check to see that the door is closing properly and the door seal is not damaged.
z Check that the interior circulation is not obstructed by having too many goods stored. (The
fridge is overloaded)
z Did you store anything hot, without first cooling it to room temperature?
z Is there sufficient clearance around all
sides and above the fridge?
z DLG \RXVHWWKHWHPSHUDWXUHWRRKLJK"
11
V1
If you are experiencing any issue with your unit, please contact us right away.
Phone: 718-576-6342
Email: [email protected]
Limited Service Warranty
Valid only in the Continental United States
1 Year Parts and Labor Warranty
Unless otherwise stated, Koolmore Supply Inc warrants to the original purchaser of new Koolmore ice machine
units, that such equipment will be free from defects in material and workmanship for a period of 1 year from the
date of delivery. Valid only in the Continental United States.
Coverage Limitations
The 1 year parts and labor warranty do not cover:
• Failure to install and/or use equipment within proper operating conditions specified by Koolmore.
This includes but is not limited to residential outdoor, or mobile applications.
• Any adjustments necessitated by improper operating conditions.
• Improper water pressure or temperature, or failure to use and maintain a water filter, and any adjustments
necessitated by these conditions. Failure to meet these conditions will void all future warranty coverage.
• Damage caused by improper electrical connection, power failure, or generators.
• Failure to properly maintain the unit including all preventive maintenance and cleaning.
• Equipment sold or used outside of the contiguous United States, equipment purchased second-hand,
equipment sold by an unauthorized reseller, and equipment expressly sold without warranty coverage.
• Equipment without a valid serial number and proof of purchase, or other way to verify warranty coverage.
• Equipment that has not been used appropriately or was subject to misuse, neglect, abuse, accident,
alteration, negligence, damage during transit, delivery or installation, fire, flood, or an act of God.
• Equipment that has been altered, modified, or repaired by anyone other than an authorized service agency
outside of preventative maintenance and cleaning.
• Parts deemed by Koolmore to be normal wear and tear parts, including hoses and select plastic or rubber
components.
For Warranty Inquiries or Service:
This warranty is only valid on equipment purchased from an authorized dealer.
• Locate the model number (located on the front of the unit, or inside the door jamb).
• Call 1-718-576-6342. You must have the model number when contacting service technicians.
Failure to contact Koolmore prior to obtaining equipment service may void your warranty.
