MODEL: LEK14PV
LEK21PV
LEK33PV
SINGLE-ZONE
WINE CABINET
TABLE OF CONTENTS
Additional information on products, accessories,
warranty, replacement parts and services can be
found at www.lecavist.com
www.lecavist.com
Correct Conditions of Use
The appliance is intended for use in the home and similar
environments only. It is not intended for commercial use.
The appliance is not suitable for outdoor use, non-stationary
installation.
Installation must comply with the valid standards,
regulations and laws. All safety and warning
information and the operating and installation
instructions must be complied with.
This wine cooler can be only used to store various types
of wines
Adherence to the directions for use in this manual is
extremely important for health and safety. Failure to strictly
adhere to the requirements in this manual may result in
personal injury, property damage and affect your ability to
make a claim under the LeCavist manufacturer’s warranty
provided with your product. Products must be used,
installed and operated in accordance with this manual.
You may not be able to claim on the LeCavist
manufacturer’s warranty in the event that your product
fault is due to failure to adhere this manual.
CONGRATULATI ONS
Congratulations and thank you for choosing
LeCavist for your wine storage solution.
This appliance complies with all relevant safety
requirements in Australia. Inappropriate use
can, however, lead to personal injury and
damage to property.
In order to operate the unit correctly and safely,
please read this instruction manual carefully
before installation and use. This user manual
which provides you with all required instructions
related to safety, installation, use and
maintenance of the appliance.
For future reference, please store this booklet in
a safe place and ensure that all users are familiar
with the contents. Pass them on to any future
owner of the appliance.
Record Model & Serial Number
Model:...........................................................................................
Serial Number ........................................................................
Register your product at www.lecavist.com
7.
1.
. General Information .............................. 03
1.1 Appliance information
2. General Safety Instructions .................... 03
2.1 General safety information
2.2 Safety instruction - Installation
2.3 Correction use & Operation .....................04
Troubleshooting guide
...............................
Environmental tips ....................................
09
3.
Installation instruction ..............................05
4 .Loading plan...................................................
Care and maintenance ...
........................... 0
7
7.1 In case of a power cut
7.2 Moving your wine cabinet
8.
In the event of a breakdown
......................
07
9.
Replacing the light
10
.
10.1 Disposal considerations
10.2 Disposing your old appliance
10.
3 Caution: Risk of fir
e
11.
Warranty and After sales .........................09
11.1 Warranty
11.2 After sales service
11.3 Replacement of spare parts
2.4 Disassembling and Dispo
sal
of the Appliance
2.5 Accessories and Spare parts
2.6 Use of Extension Cord
5.
08
03
03
04
05
0
5
Drip tray..................................................................
07
07
08
09
09
6.Wine Cabinet Features and Use................06
0
6
Cleaning & Maintenance
1. GENERAL INFORMATION
2. GENERAL SAFETY
A damaged appliance can be dangerous. If you find the
appliance is damaged or marked, you must report it within
7 days if you wish to claim for damage/marks under the
manufacturer’s warranty. This does not affect your statutory
rights. Do not use a damaged appliance.
The manufacturer's warranty will be invalidated if the
appliance is not repaired by a LeCavist approved service
technician.
Faulty components must only be replaced by genuine
LeCavist spare parts. The manufacturer can only guarantee
the safety of the appliance when LeCavist replacement
parts are used.
If the power cord is damaged, it must only be replaced by a
LeCavist
LeCavist
authorised service technician or suitably qualified
electrician in order to avoid a hazard.
ac nnot be held liable for non- compliance with
these instructions, resulting from incorrect or improper use
or operation.
1.1 Appliance Information
Unauthorised Modifications
Unauthorised modifications can cause the appliance to
pose risks. Do not conduct any modifications to the
appliance.
The device must be cleaned regularly. Dirt can lead to
damage or the build up of odours.
Always clean the appliance exactly as indicated in
the operating instructions.
Always ensure the appliance is switched off before
cleaning or replacing parts.
There is a risk of fire if cleaning is not carried out as
described in these operating instructions.
Make sure no water penetrates inside the device when
cleaning. Do not use a steam cleaning appliance to
clean this appliance. The steam could reach electrical
components and cause a short circuit.
In areas which may be subject to infestation by
cockroaches or other vermin, pay particular attention to
keeping the machine and its surroundings in a clean
condition at all times. Any damage which may be
caused by cockroaches or other vermin will not be
covered by the machine warranty.
2.1 General Safety Instructions
Children and People with Special Needs
2.2 Safety Instructions - Installation
The appliance is NOT suitable for use by children
without supervision.
Young children should be supervised near the appliance
to ensure they do not play with this appliance.
Children may be able to wrap themselves in packing
material or pull it over their heads with the risk of
suffocation. Keep children away from any packing
material.
Do not pull the mains connection cable but the mains
plug to disconnect your appliance from the mains
electricity supply.
Do not connect the appliance to the mains electricity
supply by a multi-socket unit or an extension lead.
3
The appliance complies with the stipulated safety
requirements in Australia. The user is responsible for
appliance cleaning and maintenance as well as its safe
use. Improper use can lead to personal injury and
damage to property.
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabi-
lities, or lack of experience and knowledge, unless they have
been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
Extension leads are a fire hazard and do not guarantee
the required safety of the appliance.
Tampering with electrical connections or components
and mechanical parts is highly dangerous to the user
and can cause operational faults. Only open the housing
as described in the instructions given in “Installation”
section of this booklet. Under no circumstances should
any other parts of the housing be opened.
Do not use mechanical devices or other means to
accelerate the defrosting process, other than those
recommended by the manufacturer.
In order to avoid any potential hazard, the installation
instructions must be followed.
Observe all regional regulations for the installation of
ventilation systems.
During installation, maintenance and repair work, the
appliance must be disconnected from the mains
electricity supply. It is only completely isolated from the
electricity supply when:
– the mains circuit breaker is switched off, or
– it is switched off at the wall socket and the plug is
withdrawn from the socket.
Do not damage the refrigerant circuit.
After the wine cabinet is installed in place, the plug
shall be easily accessible to facilitate the removal of
the cooler plug in case of any accident.
INSTRUCTIONS
www.lecavist.com
THIS APPLIANCE MUST BE PROPERLY EARTHED. It is
most important that this basic safety requirement is
present and tested regularly and, where there is any
doubt, the household wiring system should be inspected
by a qualified electrician.
LeCavist cannot be held liable for noncompliance with
these instructions, resulting from incorrect or improper
use or operation.
4
2.3 Correct use and Operation
For safety reasons, this appliance may only be used after
it has been installed.
Reliable and safe operation of this appliance can only be
assured if it has been connected to the main electricity
supply.
Before using the appliance, ensure that all packaging
materials are removed from the appliance and make
sure that the connection data on the data plate [voltage
(V) and frequency (Hz)] indicated on the appliance
corresponds to the voltage and frequency of the power
supply in your household. Consult a qualified electrician
if in doubt.
D
Prevent water ingress. Never sprinkle or flush the cooler
using water, place the cooler in an area exposed to
moisture water sprinkling, or fill the cooler
with water, so as to avoid impairment of the electric
insulation of the cooler. Furthermore, failing to follow
such requirements may lead to electric shock and fire,
or other accidents.
O NOT store or spray flammable materials in the
appliance or near this appliance while it is in operation
(e.g. aerosols).
WARNING
After the wine cabinet is put into operation, never touch its
inner surface, especially when your hand is wet; otherwise
the skin may stick onto the inner surface to get injured.
Regularly clean surfaces that can come in contact with
food and accessible drainage systems. If the refrigerating
appliance is left empty for long periods, switch off,
clean, dry, and leave the door open to prevent mould
developing within the appliance.
Opening the door for long periods can cause a significant
increase of the temperature in the compartments of the
appliance.
Cracks, fissures or fractures in the panels
can damage the underlying electronics. Switch off and
disconnect the appliance immediately.
The refrigerant isobutane (R600a) is contained within the
refrigerant circuit of the appliance, a natural gas with a
high level of environmental compatibility, which is
nevertheless flammable. During transportation and
installation of the appliance, ensure that none of the
components of the refrigerant circuit becomes damaged.
2.4 Disassembling and Disposal of the
Appliance
(see the “Environmental Tips” section for best practices on
disposing of this appliance).
The device must only be disassembled by trained
specialists who are familiar with and comply with the
standard national regulations and supplementary
regulations of the local utility companies.
2.5 Accessories and Spare
Work on electrical components must only be conducted by
trained electrical personnel.
parts
Incorrect components can lead to personal injury or
damage to the appliance. Only use original Lecavist
spare pa rts for re pairs.
Modifications, additions or alterations to the appliance
can lead to safety risks. If spare parts or accessories from
other manufacturers are used, the warranty will be
invalidated, and
Lecavist
cann ot acce pt liabilit y.
Please check www.lecavist.com f or m ore i nformation.
www.lecavist.com
2.6 Use of Extension Cord
•
Avoid the use of an extension cord because of potential
safety hazards under certain conditions. If it is necessary to
use an extension cord, use only a 3-wire extension cord
that has a 3-blade grounding plug and a 3-slot outlet that
will accept the plug. The marked rating of the extension
cord must be equal to or greater than the electrical rating
of the appliance.
5
3. INSTALLATION INSTRUCTIONS
When selecting a location for your appliance you
should make sure the floor is flat and firm, and the
room is well ventilated. An average ambient
temperature must be observed.

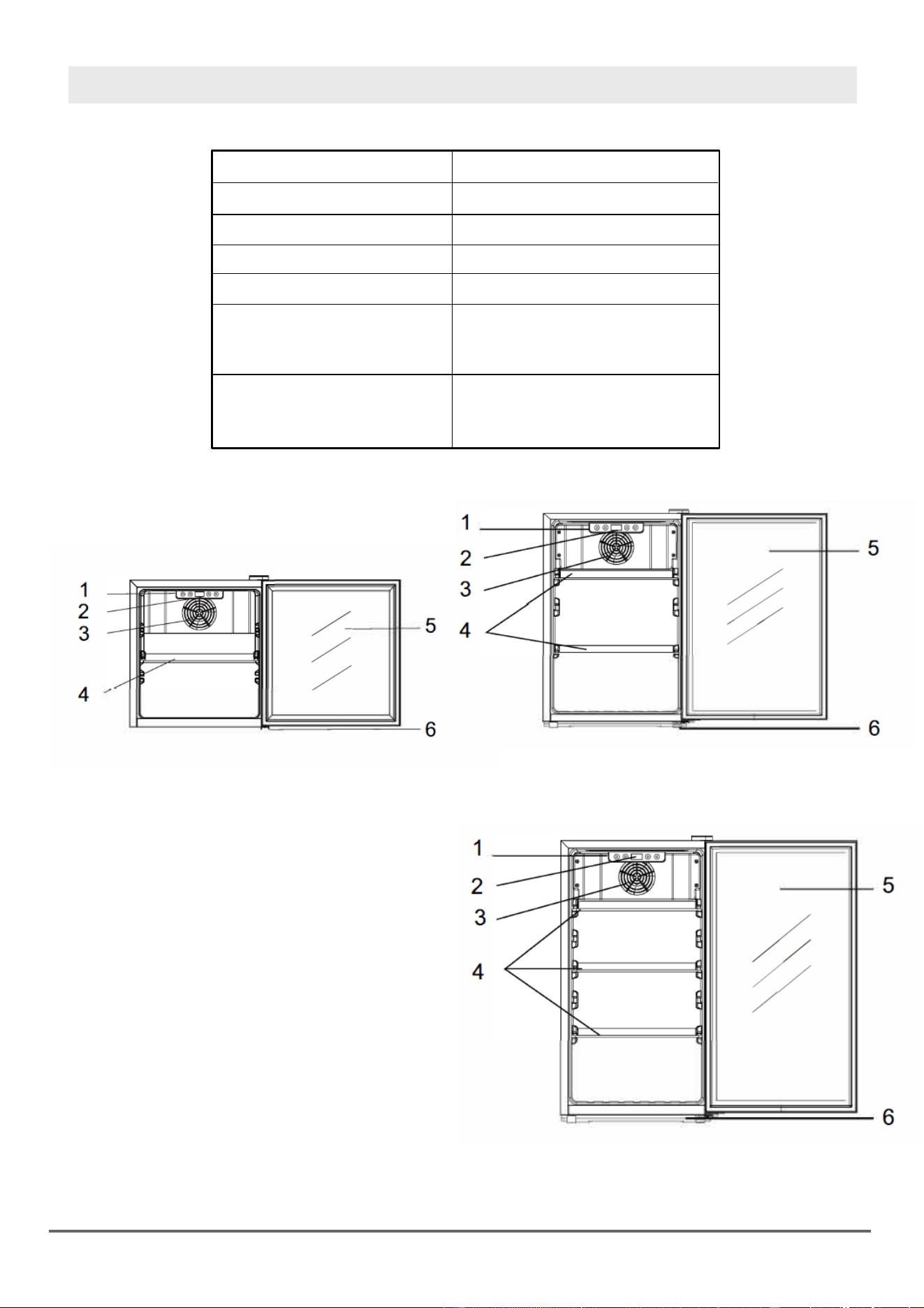

Product model
Voltage/ frequency
Refrigerant/ weight
Volume
Net weight
LEK14PV/LEK21PV/LEK33PV
220-240V~/50Hz
R600a,21g/21g/23g
50L/70L/90L
13kg/15kg/17kg
Product dimension
(WxDxH)
445×470×500mm
445×470×675mm
445×470×830mm
1
Interior Light
2
Electronic Control Panel
3
Fan cooling
4
5
Double Pane Glass Door
6
Adjustable Leveling Legs
www.lecavist.com
Wire Shelves wood trim
Packing dimension
(WxDxH)
505×530×575mm
505×530×750mm
505×530×910mm
LEK21PV
LEK33PV
LEK14PV
5
Reference
Brand
E
LEK14PV / LEK21PV / LEK33PV
Lecavist
Automatic
www.lecavist.com
Noise (dB)
43
B
l
a
ck
W
hi
te
Climate class
N/ST
This fridge is designed to be used in an
ambient temperature of between 16-38˚C
Temperature range 2-
18˚C
Defrost
MAX: 15 bottles
Comfort: 14 bottles
MAX: 27 bottles
LEK14PV
LEK33PV
LEK21PV
Comfort: 33 bottles

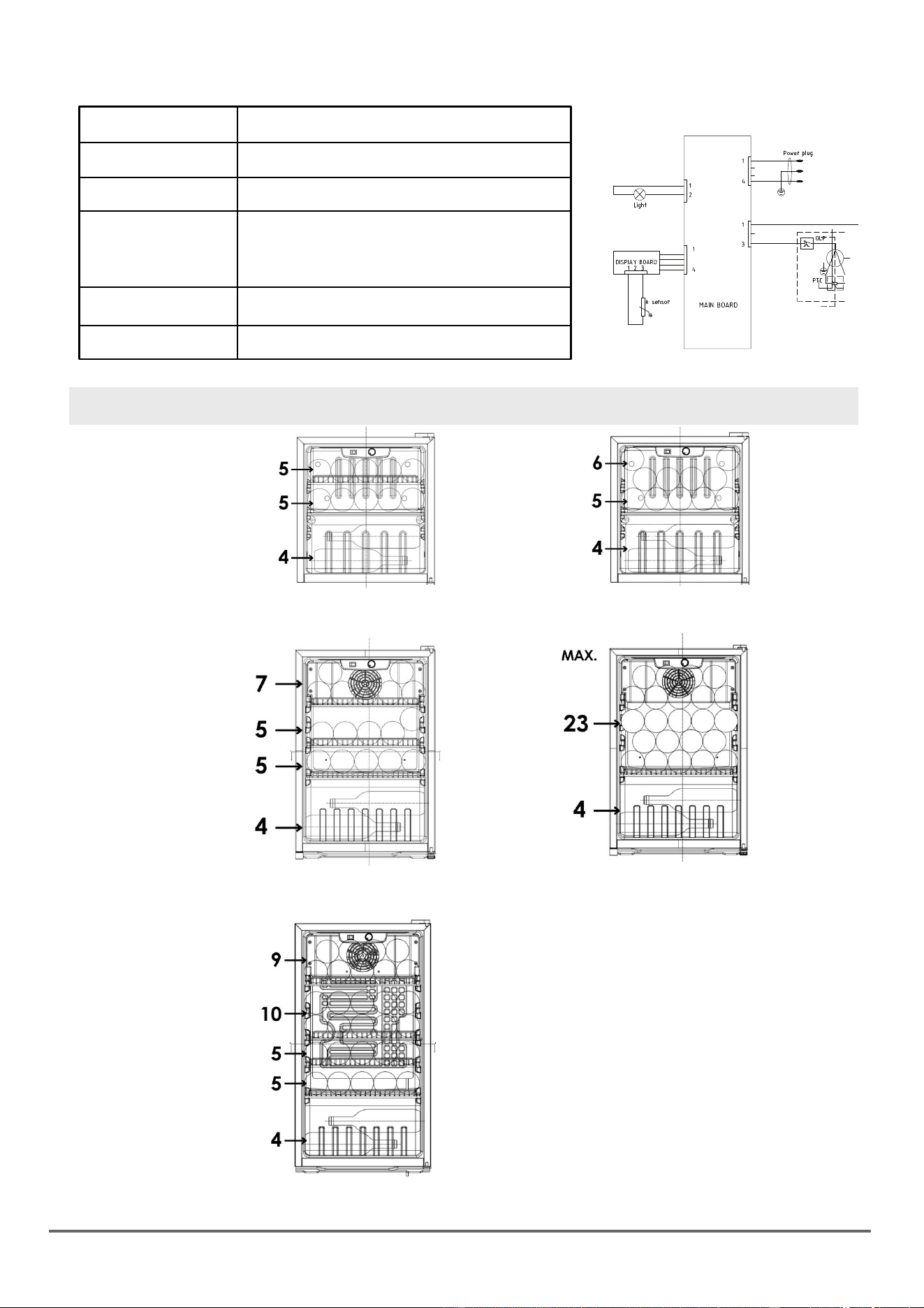

4. LOADING PLAN
Comfort: 21 bottles
This wine cabinet is designed for versatile
use. In addition to wine storage, it can be
converted into a beverage fridge to chill
cans, bottles, or non-alcoholic drinks.
Temperature Control
1. Recommended Settings
Wine Storage: 12-18°C
Beverage Cooling: 2-5°C
2. WARNING
Beverage mode (2-5°C) is temporary;
prolonged use may harm wine collections.
6

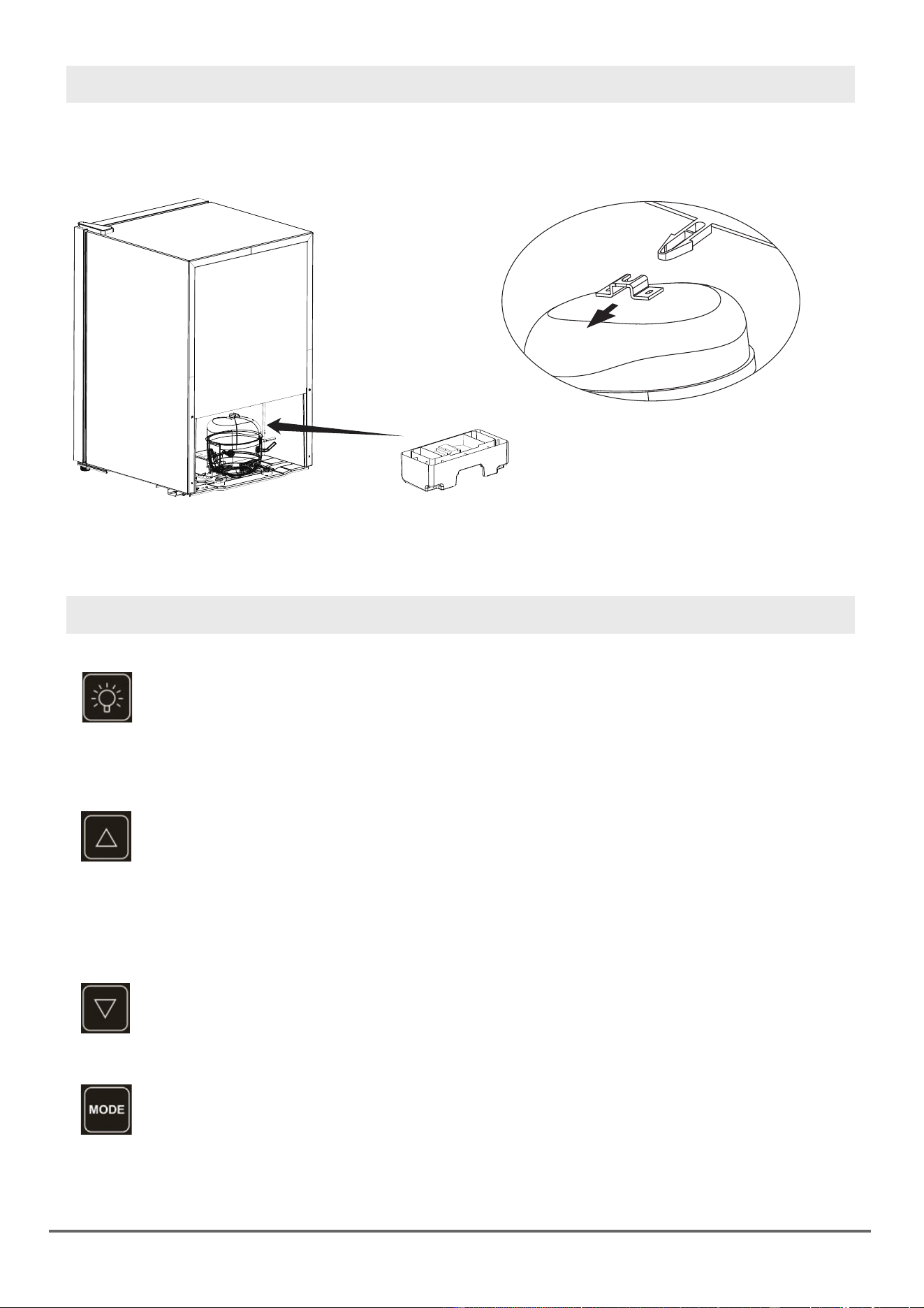

5. Drip Tray
www.lecavist.com
Please install the drain tray on the upper part of the compressor as shown in the
figure and correctly buckle it.
6. Wine Cabinet Features and Use
Light
This button allows you to turn on / off the inside light During normal use, the light
needs to be in the off state.
Increase temperature
Press the button once, the LED display will flash indicating the current
temperature. Press again to set the temperature. Press once to increase the
temperature by one degree. The flash stops after 5 seconds without action on
your part, and the new temperature requested is recorded. The LED display then
shows the actual temperature inside.
Decrease temperature
Press the button once, the LED display will flash indicating the current
temperature. Press again to set the temperature. Press once to decrease the
temperature by one degree. The flash stops after 5 seconds without action on
your part, and the newly set temperature is recorded. The LED display then shows
the actual inside temperature.
Mode Fahrenheit/Celsius
Press the button to switch the temperature display between Fahrenheit and Celsius.
7
www.lecavist.com
7.2 Moving your wine cabinet
Remove all items.
> Securely tape down all loose items (shelves) inside your appliance.
> Turn the adjustable leg up to the base to avoid damage.
> Tape the door shut.
>
7.1 In case of a power cut
> Occasionally there may be power interruptions due to thunderstorms or other causes. Remove the power cord from AC
outlet when a power outage occurs. When power has been restored, replug power cord to AC outlet.
The unit will revert to the factory setting of 46ºF after any power outage. Reset your temperature selection.
Be sure the appliance stays secure in the upright position during
transportation. Also protect outside of appliance with a blanket,
or similar item.
> Before cleaning your appliance (something that should
be done regularly), disconnect it by removing the plug or
by pulling the fuse on the circuit.
> Before using your appliance for the first time and
regularly after that, we recommend that you clean the
inside and outside (front, side and top) with warm mixed
with a gentle cleaning product. Rinse with clean water and
allow drying before reconnecting. Do not use solvents or
abrasives. When the appliance is switched on for the first
time, there may be a residual odor. In that case, runt the
appliance empty for a few hours at the coldest possible
temperature. The cold will kill any odors.
7. CARE AND MAINTENANCE
8. IN THE EVENT OF A BREAKDOWN
Desp
ite the care, we take during production, a breakdown can never be totally ruled out.
Before c
ontacting your retailer’s after-sales department, please check
that:
> The appliance is properly plugg
ed in.
> There is not a pow
er cut in progress
.
> The breakdown is not o
ne
of those described in the table at the end of this manual.
IMP
ORTANT: If the power c
ab
le supp
lied is da
m
aged, it must be replace
d by the manufacturer, a
service centre
app
roved by the brand or t
he retailer. In
all
events, it must be replaced by qua
lifie
d
personnel in order to avoid an
y risk of inj
ury.
WARNING:
Do not use electrical appliances inside the food/ice storage compartments unless they
are of the type recommended by the manufacturer.
WARNING: The maximum loading of the shelves (25kg) must not be exceeded.
8
9. TROUBLESHOOTING GUIDE
You can
solve many common Wine Cabinet problems easily, saving you the cost of a possible service
call. Try the suggestions bel
ow to see if you can solve the problem before calling the servicer.
Replacing the light
This appliance consists of light-emitting diodes (LEDs). This type of diode
cannot be changed by the consumer. The lifetime of these LEDs is normally
sufficient for no change to be made. If however, and despite all the care
taken during the manufacture of your wine cabinet, the LEDs were
defective,please contact your after-sales service for any intervention.
Condensation
on outside of
appliance.
Appliance not
in a stable position
.
Wipe appliance with a dry and soft
cloth.
The appliance
does not work
Power plug not connected to
electrical outlet
Set temperature with thermostat as
described in this manual.
Have supply cord replaced by the
manufacturer, its service agent or similarly
qualified persons.
Close the door and do not open it too
much frequently
Supply cord is damaged
PROBL
The appliance
doesn't cool
enough
The door is too often opened
or was left opened for a long
time
EM POSSIBLE CAUSE POSSIBLE SOLUTION
Thermostat is not set correctly
Move appliance well away from heat
sources.
Appliance is located near heat
sources.
Appliance is
very noisy
Stored beverages or other objects
prevent proper closing of door.
Remove the items that may impact the
door opening
www.lecavist.com
Check the plug connecting it other appliance, or
verify that the appliance is connected to the plug
Back of the appliance is placed too
close to the wall
Keep a minimum distance of 10cm to the wall or
other object
Bring appliance into a stable position by adjusting
its feet. Make sure that all feet are firmly on the
ground.
Normal phenomenon in hot and
humid environments.
9
11. WAR
10. ENVIRONMENTAL TIPS
RANTY & AFTER SALES SERVICE
Observe all safety and warning information during
operation (see the “General Safety Instructions” section).
Recycling the packaging reduces the use of raw materials
in the manufacturing process and also reduces the
amount of waste in landfill sites. Ensure that any plastic
wrappings, bags etc. are disposed of safely and kept out
of the reach of babies and young children. Danger of
10.1 Disposal
10.2 Disposing of your old appliance
Electrical devices marked with this label may not be
disposed of in domestic waste at the end of their service
life.
Electrical and electronic appliances often contain valuable
materials. They also contain specific materials, compounds
and components,
which were essential for their correct
function and safety. These could be hazardous
to human
health and to the environment if disposed of with your
domestic waste or if handled incorrectly. Please do not,
therefore, dispose of your old appliance with your
household waste.
Please dispose of those materials by contacting your local
authorities and ask for the correct method of disposal.
Please ensure that your old appliance poses no risk to
children while being stored prior to disposal.
By disposing of this product in accordance with the
regulations, you protect the environment and the health of
those around you from negative consequences.
considerations
The transport and protective packaging has been selected
from materials which are environmentally friendly for
disposal, and can normally be recycled.
suffocation.
Model:…………………………………………………………
Serial Number:.………………………………………………
Record model & serial number
Register your product www.lecavist.com
11.3 Replacement of spare parts
Incorrect components can lead to personal injury or
damage to the appliance. Use only genuine original
Lecavist spare parts.
Modifications, additions or alterations to the appliance
can lead to safety risks. If spare parts or accessories from
other manufacturers are used, the warranty will be
invalidated, and Lecavist cannot accept liability.
Please check www.lecavist.com for more information.
Observe all safety and warning information during
operation (see the “General Safety Instructions” section).
11.1
In the eve
nt of a fault which you cannot remedy yourself,
please contact LeCavist.
Warranty
The manufacturer’s warranty for this appliance is 2 years.
11.2 After sales service
The contact details for LeCavist are given at the beginning
and end of these instructions.
When contacting LeCavist, please quote the model and
serial number of your appliance. These can be found on
the data plate at the back of the Wine Cabinet.
www.lecavist.com
10.3 Caution : Risk of fire
Do not use the appliance near explosive or flammable
vapours.
Do not store any explosive or flammable substances,like
benzine, liquid gas or glue, in the appliance.
If gas flows out of the appliance, do not pull the power
plug from the outlet as this can cause sparks and fire.
Do not store explosive substances such as aerosol cans
with a flammable propellant in this appliance.
Warning: Risk of fire / flammable materials, take care to
avoid causing a fire by igniting flammable material.
Warning: Blowing insulation gas.
LIKE TO
KNOW MO
RE?
F
or further information on all LeCavist products,
or to obtain detailed dimension and installation
information, phone or email our Customer Care
team or visit our website:
Operating and installation instructions:
Osass Australia Pty Ltd.
ACN 644 539 668
ABN 28 644 539 668
www.lecavist.com
The distribution and duplication of this document, as well as the use and disclosure of its contents
are prohibited unless expressly authorised.
These operating and installation instructions have been drawn up with the greatest of care. But it
cannot be ruled out that subsequent technical modifications have not yet been incorporated or
the relevant content has not yet been adapted. Please accept our apologies in this eventuality. An
updated version can be requested from our team. Subject to printing errors and mistakes.
© LeCavist
All rights reserved.
