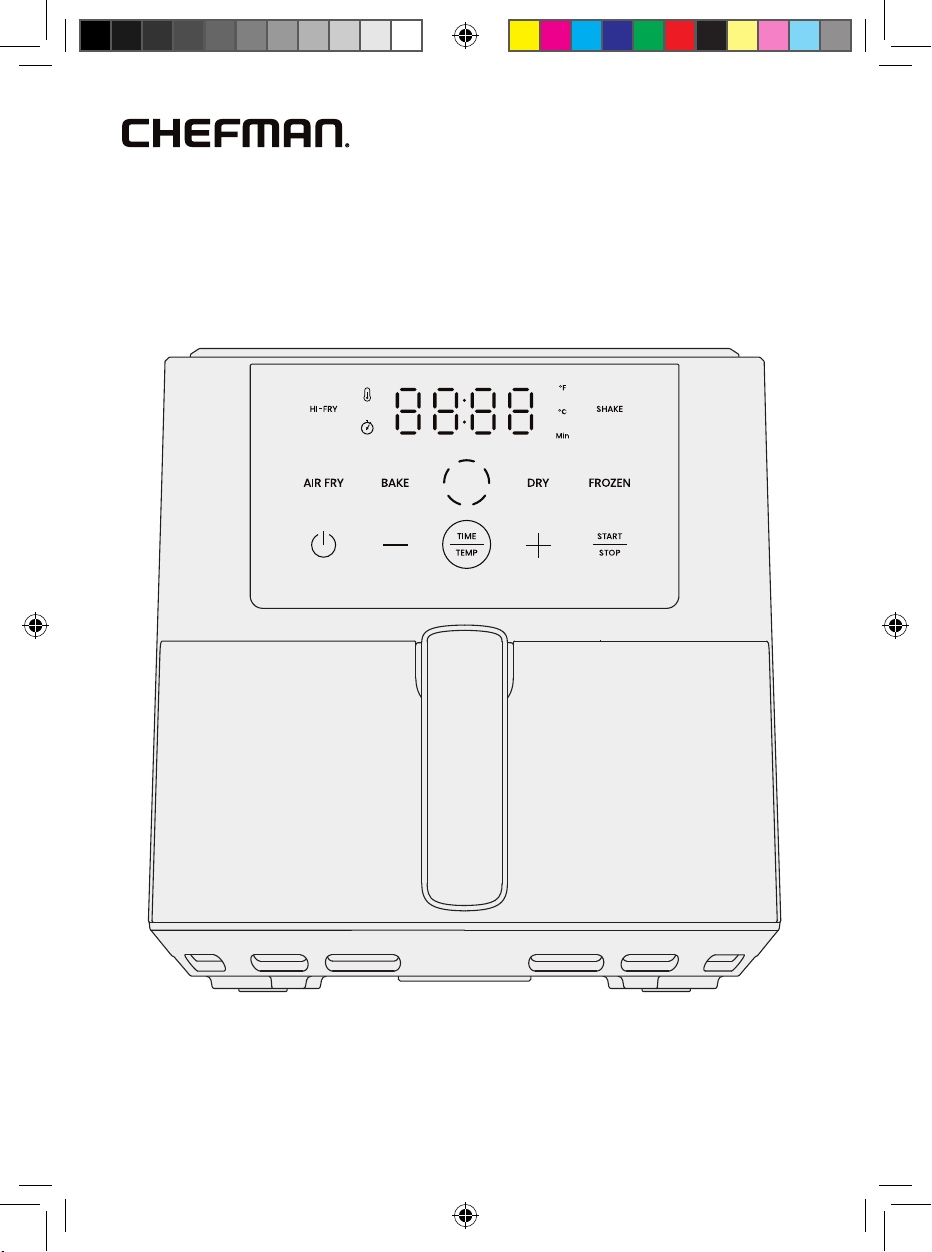

TurboFry® Touch
4-Quart Digital
Air Fryer
RJ38-4T-SERIES
COVER DRAWING
RJ38-4T-SERIES_UG_LIVE_120925.indd 1RJ38-4T-SERIES_UG_LIVE_120925.indd 1 12/9/25 3:21 PM12/9/25 3:21 PM
2
Get to Know Your Air Fryer
1. Control panel
2. Basket rack
3. Basket
4. Basket handle
1
2
3
4
FEATURES DRAWING
RJ38-4T-SERIES_UG_LIVE_120925.indd 2RJ38-4T-SERIES_UG_LIVE_120925.indd 2 12/9/25 3:21 PM12/9/25 3:21 PM
3
Control Panel
1. HI-FRY button
2. Temperature | Time display
3. Dash display
4. SHAKE indicator
5. Cook function buttons
6. START | STOP button
7. Plus sign button
8. TIME | TEMP button
(press and hold to switch between °F and °C)
9. Minus sign button
10. Power button
READ ALL INSTRUCTIONS BEFORE USE
For your safety and continued enjoyment of this product,
always read the instruction manual before using.
2
1 43
10 69 8 7
5
FEATURES CONTROL PANEL
RJ38-4T-SERIES_UG_LIVE_120925.indd 3RJ38-4T-SERIES_UG_LIVE_120925.indd 3 12/9/25 3:21 PM12/9/25 3:21 PM
4
SAFETY INSTRUCTIONS &
IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions should always be
followed, including the following:
1. Read all instructions.
2. Do NOT touch hot surfaces. Use handles or knobs.
3. To protect against electric shock, do not immerse cord, plugs, or unit
body in water or other liquids.
4. Close supervision is necessary when any appliance is used by or
near children.
5. Unplug from outlet when not in use and before cleaning. Allow to cool
before putting on or taking off parts, and before cleaning the appliance.
6. Do NOT operate any appliance with a damaged cord or plug or after the
appliance malfunctions, or has been damaged in any manner. Contact
Chefman® Customer Support for examination, repair, or adjustment.
7. The use of accessory attachments not recommended by Chefman®
may cause injuries.
8. Do NOT use outdoors.
9. Do NOT let cord hang over edge of table or counter, or touch hot surfaces.
10. Do NOT place on or near a hot gas or electric burner, or in a heated oven.
11. Extreme caution must be used when moving an appliance containing
hot oil or other hot liquids.
12. To disconnect, turn any control to off, then remove plug from wall outlet.
13. Do NOT use the appliance for anything other than its intended use.
14. Place the unit on a flat, sturdy, heat-resistant surface. Do NOT place the
unit near or on any type of heat source, such as a gas or electric burner,
stove, or oven, even if not on. Do NOT use near an open flame or
flammable materials.
15. The unit will emit some heat. Allow sufficient space around the unit when
in use, and do NOT place near other items or appliances.
16. Check that your home power supply corresponds with the intended
voltage of the air fryer.
RJ38-4T-SERIES_UG_LIVE_120925.indd 4RJ38-4T-SERIES_UG_LIVE_120925.indd 4 12/9/25 3:21 PM12/9/25 3:21 PM
5
SAVE THESE INSTRUCTIONS
FOR HOUSEHOLD USE ONLY
SAFETY INSTRUCTIONS &
IMPORTANT SAFEGUARDS
17. Never wrap the cord tightly around the appliance during use or storage;
this may cause the wire to fray and break.
18. This product is not a deep fryer. It is NOT meant to be filled with oil. Never
fill any parts of the air fryer with oil. If you choose to use oil, toss food with
oil in a separate bowl and then transfer food to the removable rack
or basket.
19. Do NOT leave uncooked ingredients in the air fryer for more than a
short period of time before cooking; raw meat, poultry, fish, fruits, and
vegetables can spoil.
20. Do NOT move the air fryer while it is full of food.
21. Do NOT move the unit during use. During initial use, you may notice some
smoke and/or a slight odor. This is normal and should quickly dissipate. It
should not happen after the appliance has been used a few more times.
22. Do NOT leave the air fryer unattended during use.
23. Some areas do get HOT during use, and the touch screen may get warm.
Do NOT touch the heating elements. Do NOT place hands or other body
parts near the air vents while the air fryer is in use; burns may result. Take
caution when handling the hot air fryer rack and all removable parts.
24. Use protective mitts and/or tongs to remove hot food from the air fryer.
RJ38-4T-SERIES_UG_LIVE_120925.indd 5RJ38-4T-SERIES_UG_LIVE_120925.indd 5 12/9/25 3:21 PM12/9/25 3:21 PM
6
California Proposition 65:
(Applicable for California Residents only)
WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov
Do not place the appliance on a
stovetop or any other heatable surface,
even if stovetop is not on.
Doing so is a fire hazard.
SAFETY INSTRUCTIONS &
IMPORTANT SAFEGUARDS
WARNING: This appliance has a polarized plug (one blade is wider than the
other). This plug is intended to fit into a polarized outlet only one way. If the plug
does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a
qualified electrician. Do not attempt to modify the plug in any way or force it
into the outlet. This could result in injury or electric shock.
Short Cord Instructions
A short power-supply cord is provided to reduce the hazards of entanglement
or tripping over a longer cord. Longer detachable power-supply cords or
extension cords are available and may be used if care is exercised in their
use. If a longer detachable power-supply extension cord is used:
1. The marked electrical rating of the extension cord should be at least
as great as the electrical rating of the appliance.
2. The longer cord should be arranged so that it will not drape over
the countertop or tabletop where it can be pulled on by children or
tripped over.
RJ38-4T-SERIES_UG_LIVE_120925.indd 6RJ38-4T-SERIES_UG_LIVE_120925.indd 6 12/9/25 3:21 PM12/9/25 3:21 PM
7
SAFETY INSTRUCTIONS &
IMPORTANT SAFEGUARDS
Power Cord Safety Tips
1. Never pull or yank on the cord or the appliance.
2. To insert the plug, grasp it firmly and guide it into the outlet.
3. To disconnect the appliance, grasp the plug and remove it from
the outlet.
4. Never use the product if the power cord shows signs of abrasion or
excessive wear. Contact Chefman® Customer Support for additional
guidance and support.
5. Never wrap the cord tightly around the appliance, as this could place
undue stress on the cord where it enters the appliance and cause it to
fray and break.
DO NOT OPERATE THE APPLIANCE IF THE POWER CORD SHOWS ANY DAMAGE
OR IF THE APPLIANCE WORKS INTERMITTENTLY OR STOPS WORKING ENTIRELY.
RJ38-4T-SERIES_UG_LIVE_120925.indd 7RJ38-4T-SERIES_UG_LIVE_120925.indd 7 12/9/25 3:21 PM12/9/25 3:21 PM
8
Before First Use
1. Remove all packaging materials, such as plastic bags and foam inserts.
Check to ensure that all parts and accessories are accounted for.
2. Read and remove any stickers on the unit except for the rating label,
which should remain on the unit.
3. Wipe down the interior and exterior with a damp cloth.
4. Wash the basket and rack with warm, soapy water. Dry thoroughly.
RJ38-4T-SERIES_UG_LIVE_120925.indd 8RJ38-4T-SERIES_UG_LIVE_120925.indd 8 12/9/25 3:21 PM12/9/25 3:21 PM
9
Quick Start:
How to Cook in the Air Fryer
The air fryer’s high-speed fan cooks your favorite foods quickly for perfect
results each time. The rack in the basket allows air to circulate around foods for
even cooking and crisping and lets excess fat drip down and away from foods
for healthier eating.
CAUTION: Never fi ll the basket with oil. Unlike deep fryers, air fryers require little
to no oil to produce a crisp texture. If you choose to use oil, toss foods with just
a little in a separate bowl before cooking in the air fryer.

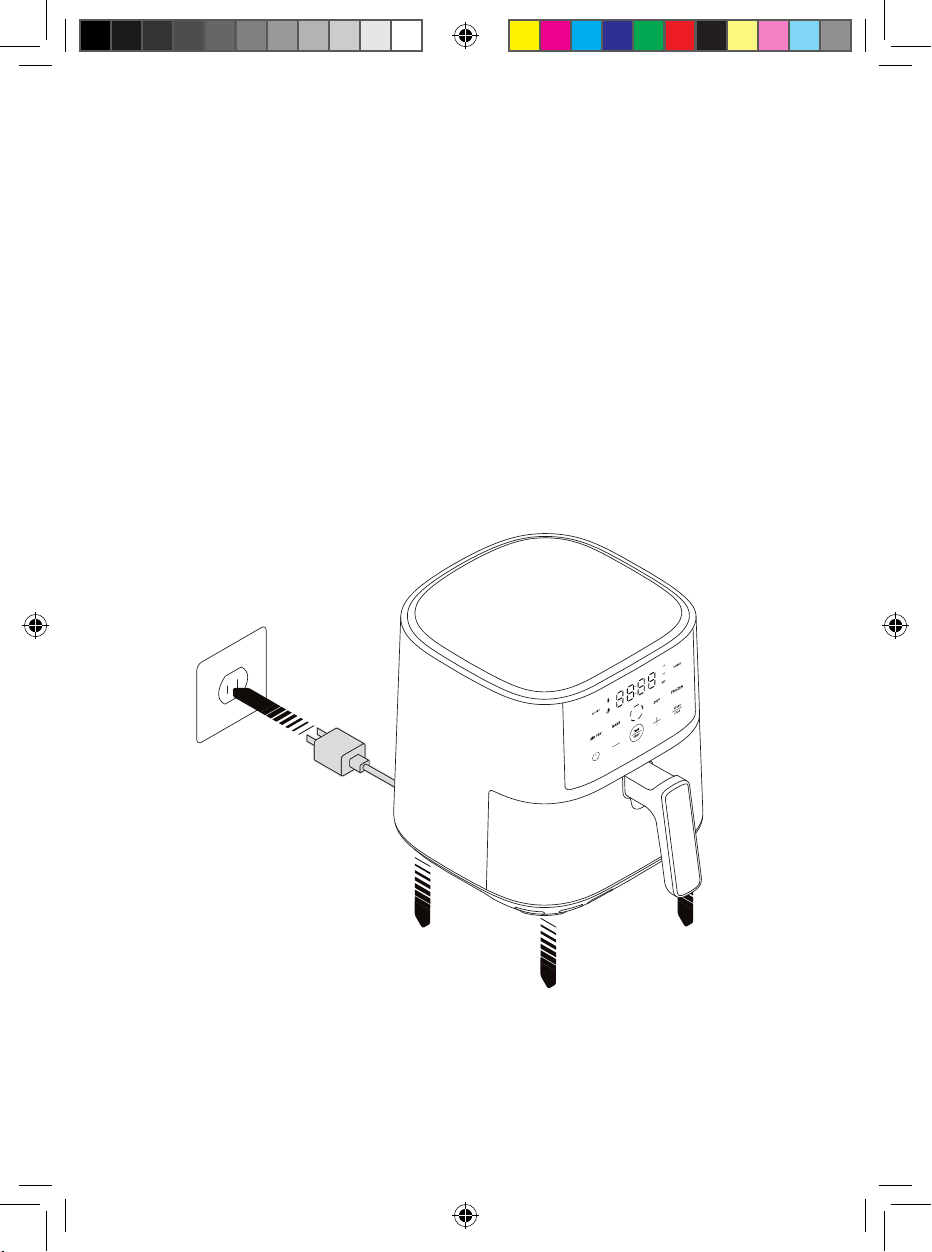

1. Place the air fryer on a hard, fl at surface with at least 6 inches of
clearance on top and in back for proper air fl ow, then plug in the air fryer
and press Power.
STEP 1
RJ38-4T-SERIES_UG_LIVE_120925.indd 9RJ38-4T-SERIES_UG_LIVE_120925.indd 9 12/9/25 3:21 PM12/9/25 3:21 PM
10
Quick Start: How to Cook in the Air Fryer

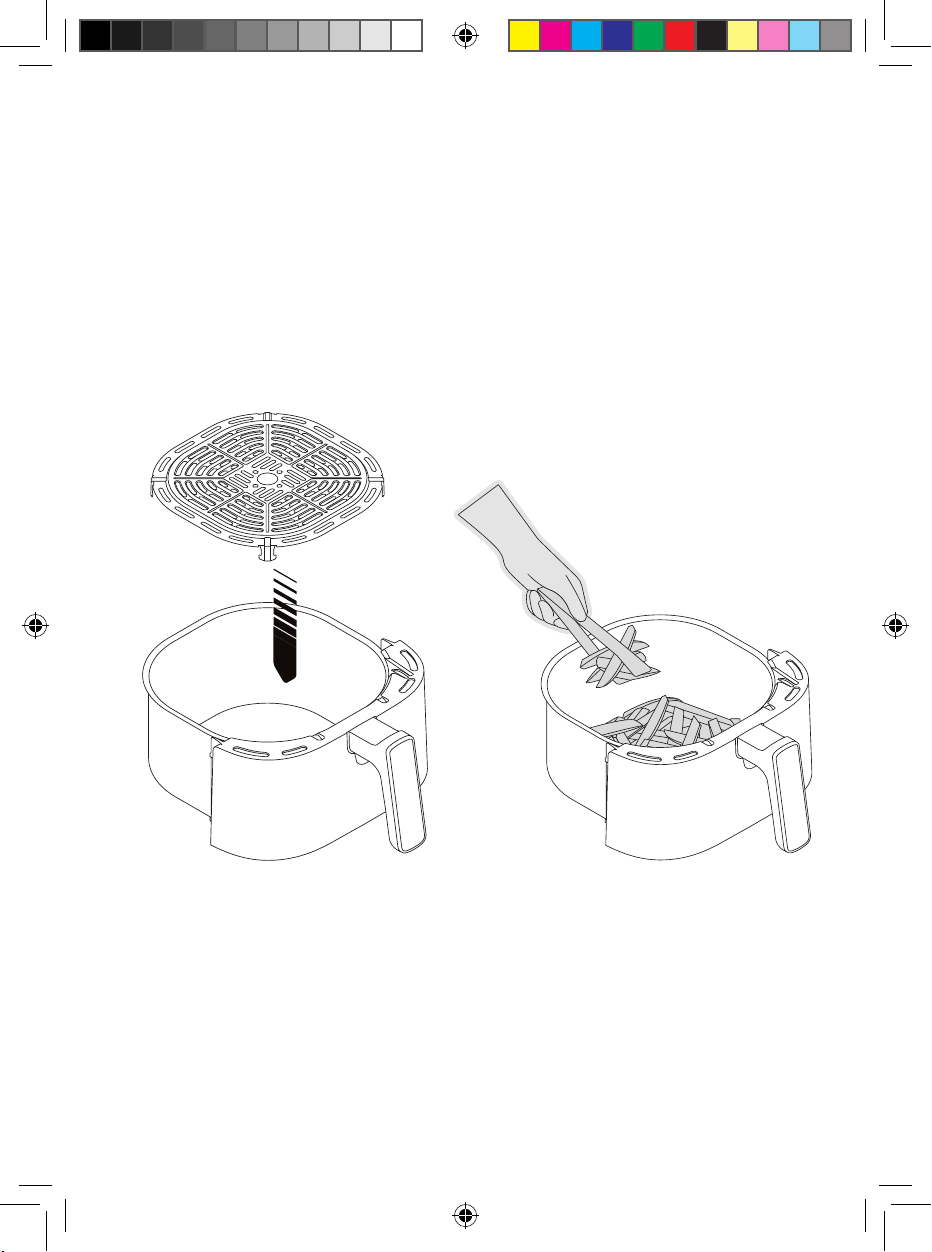

2. Lower the rack into the basket,
making sure the feet are pointing
down. There should be a small
amount of space between the
rack and the bottom of the
basket. Press down on the rack to
ensure it is secure and level.
CAUTION: Never use aerosol
cooking spray on the air fryer’s
nonstick parts, as it can cause
the coating to chip.
3. Place the food on the rack and
slide the basket into the air fryer.
(For the DRY function, place food
below the rack to keep it stable.)
To allow for good air circulation,
do not fi ll the basket past the
MAX line. NOTE: If using the BAKE
function, wait until the unit has
preheated before putting the
food in the basket.
RJ38-4T-SERIES_UG_LIVE_120925.indd 10RJ38-4T-SERIES_UG_LIVE_120925.indd 10 12/9/25 3:21 PM12/9/25 3:21 PM
11
Quick Start: How to Cook in the Air Fryer

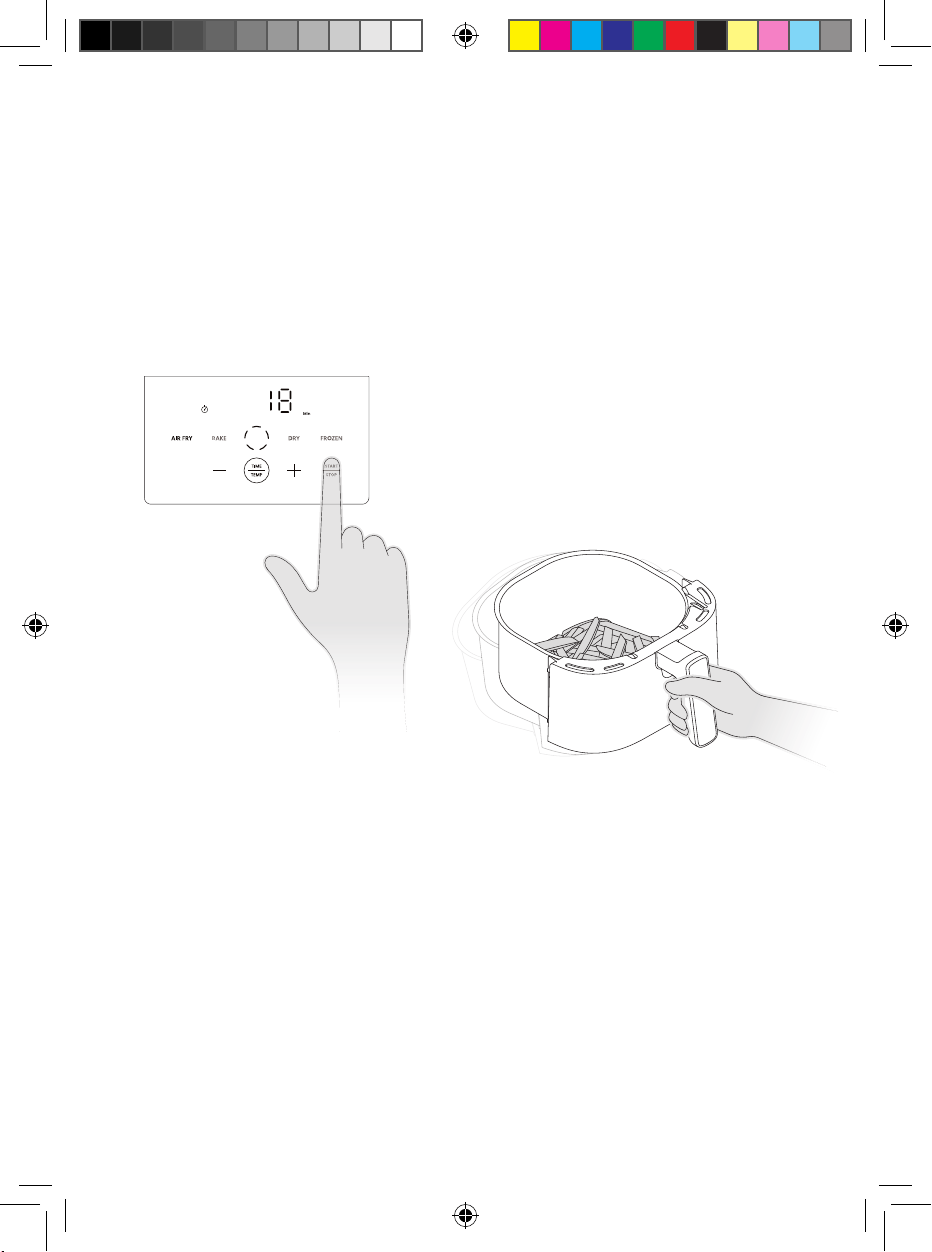

4. Select a function (see p. 12). Set
the temperature by pressing
the TIME | TEMP button until the
temperature displays, then press
the plus or minus sign. Then set
the time: press the TIME | TEMP
button until the time displays,
then press the plus or minus sign.
Press START | STOP to
begin cooking.
5. During cooking, the SHAKE
reminder light on the control
panel may turn on depending on
the selected function. Remove
the basket and shake (or fl ip)
food, then return the basket to
the unit to continue cooking.
If your food does not need to
be shaken, simply ignore the
warning and it will turn off after
about 60 seconds. NOTE: You
can remove the basket at any
time during cooking to check
on foods. When you return the
basket to the unit, cooking will
resume where it left off.
6. When the timer is done, the air fryer will beep and cooking will stop.
Remove the basket, check food for doneness, and serve.
Special Function: HI-FRY The HI-FRY button becomes available in the last
2 minutes of cook cycles 5 minutes or longer. You can press it to raise the
temperature to 450˚F for 2 minutes for a little extra browning and an extra-
crispy fi nish. (You can also press it right after the cook cycle ends). The HI-FRY
button is not available for the DRY (dehydrate) function.
STEP 4
RJ38-4T-SERIES_UG_LIVE_120925.indd 11RJ38-4T-SERIES_UG_LIVE_120925.indd 11 12/9/25 3:21 PM12/9/25 3:21 PM
12
Cook Functions at a Glance
The four cook functions make your air fryer much more versatile, allowing you to
bake cookies or muffins, cook steaks or chicken breasts directly from frozen, or
dehydrate your own fruits and vegetables. Here’s how the four functions differ:
Function Default Time
Temperature
Range
Use it For... Notes
AIR FRY 15 min 300-400°F Items you’d roast
in the oven: fresh
vegetables for a crisp
browned finish; fresh
meat and poultry;
chicken wings; frozen
prepared foods such
as french fries and
chicken tenders.
SHAKE alert halfway
through cook time.
BAKE 30 min 200-350°F Cupcakes, cookies,
rolls...anything you’d
bake in a toaster
oven.
No SHAKE alert. Unit
displays “PRE” for first 5
minutes of cook time as
unit preheats.
DRY
(Dehydrate)
6 hr 90-200°F Making homemade
beef jerky;
dehydrating fresh
fruits, vegetables,
and herbs.
No SHAKE alert, no HI
FRY available. For best
results, place food under
the rack to prevent fan
from blowing it out
of place.
FROZEN 30 min 300-400°F Cooking frozen raw
proteins, such as
chicken breasts,
burgers, or steaks,
without the need to
thaw.
SHAKE alert halfway
through cook time.
Starts at 200°F for first
5 minutes of the cook
cycle before increasing
to selected temperature.
RJ38-4T-SERIES_UG_LIVE_120925.indd 12RJ38-4T-SERIES_UG_LIVE_120925.indd 12 12/9/25 3:21 PM12/9/25 3:21 PM
13
Cooking Tips
Let the unit preheat when baking. While most functions don’t need to preheat,
The BAKE function includes a built-in 5-minute preheat; only after the unit
reaches the desired temperature will the timer begin counting down. For best
results, wait until the unit is fully heated before adding food. CAUTION: Be careful
when adding food after preheating, as the inside of the air fryer will be hot.
Use the FROZEN function to thaw and cook. The FROZEN function includes an
initial 5-minute cook at 200°F to jump-start the thawing of the food. It then
heats up further to the selected temperature. This 5-minute cycle is not a
preheat: food should be added before starting the unit, and it is part of the total
cook time.
For a crisp exterior, oil foods lightly. When air frying, some foods, especially if
fresh, benefit from being tossed with a little oil in a separate bowl first. However,
high-fat foods, like a well-marbled steak, or prepared foods usually require no
additional oil.
Avoid wet batters. Loose batters, such as tempura or beer batter, should not be
used in the air fryer, as the batter does not set quickly and will drip off the food.
Instead, stick to thick, pasty batters or breaded foods like chicken nuggets.
Stabilize food for dehydrating. When using the DRY (dehydrate) function, place
food under the rack instead of on top of it. This will prevent the fan from blowing
food out of place, particularly lightweight items like herbs.
Don’t overcrowd the basket. Too much food, especially if tightly packed, can
inhibit browning and crisping. A better bet is to fry food in batches.
Shake the basket during cooking for even air frying. A good shake is especially
beneficial for smaller foods like french fries, onion rings, and chicken wings. For
larger or more fragile foods, consider gently tossing or flipping for even results. A
flip is also recommended when cooking on the frozen function.
Check on foods early. Check foods on the earlier side of the cooking time to
avoid overcooking. You can always slide the basket back in to continue cooking.
Follow food-safety guidelines for doneness. Because air fryer temperatures and
food sizes can vary, do not rely exclusively on recipe timing when cooking food.
Check foods for doneness against current safety guidelines before serving.
RJ38-4T-SERIES_UG_LIVE_120925.indd 13RJ38-4T-SERIES_UG_LIVE_120925.indd 13 12/9/25 3:21 PM12/9/25 3:21 PM
14
Keep It Clean
With its nonstick coating and dishwasher-safe parts, the air fryer is super easy
to clean.
1. Unplug the air fryer and let it cool completely before cleaning.
2. To remove the cooled rack from the basket, pull the rack straight up and
out, using the center hole for easier handling. CAUTION: Do NOT lift the
rack out of the basket when hot.
3. Wash the basket and rack with warm, soapy water, then rinse and dry
well. The basket and rack are also top-rack dishwasher safe.
4. Wipe down the interior and exterior with a damp cloth. Do NOT put the unit
in the dishwasher or submerge in water or any other liquid. Do NOT use
abrasive cleansers, or you could damage the finishes.
5. Dry the unit and all accessories completely before storing.
RJ38-4T-SERIES_UG_LIVE_120925.indd 14RJ38-4T-SERIES_UG_LIVE_120925.indd 14 12/9/25 3:21 PM12/9/25 3:21 PM
1515
Having Trouble?
Problem Likely Cause Solution
Food isn’t golden
brown and crisp.
Food wasn’t tossed in oil. While you can air fry with no added oil,
coating foods very lightly with oil (usually just
½ teaspoon per batch) helps guarantee crisp
results. Preheating the air fryer also helps.
Food cooked
unevenly.
Food was overcrowded
in the basket; food was
not shaken or flipped
during cooking.
Fill the air fryer basket loosely with food to let
air circulate. Shake, toss, or flip foods at least
once during cooking for more even results.
Smoke is coming
from the unit.
There is too much fat in
the oven.
Avoid cooking very fatty foods, such as
sausages, in the air fryer, and be sure the
basket, rack, and interior of the unit are clean
before cooking. Otherwise, contact Chefman
Customer Support for assistance.
An error code
displayed on the
control panel.
If E3 displays, it means the
air fryer has shut off due to
overheat protection. If E1 or
E2 displays, it means there
is a malfunction that can’t
be fixed.
E3: Allow the air fryer to cool fully and it will
operate normally. E1 or E2: Please contact
Chefman Customer Support.
RJ38-4T-SERIES_UG_LIVE_120925.indd 15RJ38-4T-SERIES_UG_LIVE_120925.indd 15 12/9/25 3:21 PM12/9/25 3:21 PM
16
Terms & Conditions
Limited Warranty
RJ Brands, LLC d/b/a Chefman® offers a limited 1-year Warranty (the “Warranty”)
available on sales through authorized distributors and retailers only. Please
note that this Warranty becomes valid from the date of initial retail purchase
and that the Warranty is nontransferable and applies only to the
original purchaser.
This Warranty is void without proof of purchase within the United States and
Canada. Please be aware that this Warranty supersedes all other warranties
and constitutes the entire agreement between the consumer and Chefman®.
Any changes to the Terms and Conditions of this Warranty must be in writing,
signed by a representative of Chefman®. No other party has the right or ability
to alter or change the Terms and Conditions of this Warranty.
We may ask you to please submit, via email, photos and/or video of the issue
you are experiencing. This is to help us better assess the matter and possibly
offer a quick fix. Photos and/or video may also be required to determine
Warranty eligibility.
We encourage you to register your product. Registering can make the Warranty
process easier and can keep you informed of any updates or recalls on your
product. To register, follow the directions on the Chefman® Warranty Registration
page in the Chefman® User Guide. Please retain your proof of purchase even
after registering. In the event that you do not have proof of your purchase date,
we may declare your Warranty void or we may, at our sole discretion, apply the
date of manufacture as the purchase date for purposes of this Warranty.
RJ38-4T-SERIES_UG_LIVE_120925.indd 16RJ38-4T-SERIES_UG_LIVE_120925.indd 16 12/9/25 3:21 PM12/9/25 3:21 PM
17
Terms & Conditions
What the Warranty Covers
• Manufacturer Defects
Chefman® products are warranted against defects in material and
workmanship, under normal household use, for a period of 1 year from the
date of purchase when used in accordance with the directions listed in the
Chefman® User Guide. If your product does not work as it should, please
contact Customer Support at support@chefman.com so that we may
assist you.
This Warranty Does Not Cover
• Misuse
Damage that occurs from neglectful or improper use of products, including,
but not limited to, damage that occurs as a result of usage with incompatible
voltage, regardless of whether the product was used with a converter or
adapter. See Safety Instructions in the Chefman® User Guide for information
on proper use of product;
• Poor Maintenance
General lack of proper care. We encourage you to take care of your
Chefman® products so that you may continue to enjoy them. Please see
cleaning and maintenance directions in the Chefman® User Guide for
information on proper maintenance;
• Commercial Use
Damage that occurs from commercial use;
• Normal Wear and Tear
Damage or degradation expected to occur due to normal use over time;
• Altered Products
Damage that occurs from alterations or modifications by any entity other
than Chefman® such as the removal of the rating label affixed to the
product;
• Catastrophic Events
Damage that occurs from fire, floods, or natural disasters; or
• Loss of Interest
Claims of loss of interest or enjoyment.
RJ38-4T-SERIES_UG_LIVE_120925.indd 17RJ38-4T-SERIES_UG_LIVE_120925.indd 17 12/9/25 3:21 PM12/9/25 3:21 PM
18
Terms & Conditions
For product information, please visit us at Chefman.com.
EXCEPT WHERE SUCH LIABILITY IS REQUIRED BY LAW, THIS WARRANTY DOES NOT
COVER, AND CHEFMAN® SHALL NOT BE LIABLE FOR, INCIDENTAL, INDIRECT, SPECIAL,
OR CONSEQUENTIAL DAMAGES, INCLUDING WITHOUT LIMITATION, DAMAGE TO, OR
LOSS OF USE OF THE PRODUCT, OR LOST SALES OR PROFITS OR DELAY OR FAILURE TO
PERFORM THIS WARRANTY OBLIGATION. THE REMEDIES PROVIDED HEREIN ARE THE
EXCLUSIVE REMEDIES UNDER THIS WARRANTY, WHETHER BASED ON CONTRACT, TORT
OR OTHERWISE.
RJ38-4T-SERIES_UG_LIVE_120925.indd 18RJ38-4T-SERIES_UG_LIVE_120925.indd 18 12/9/25 3:21 PM12/9/25 3:21 PM
19
How do I register my product?
All you need to do is fill out a simple Chefman® registration form.
You can easily access the form in one of the two ways listed below:
• Visit Chefman.com/register.
• Scan the QR code to the right to access site.
Warranty Registration
What do I need to register my product?
• Contact Information
• Model Number (see example below)
• Proof of Purchase (online confirmation, receipt, gift receipt)
• Date Code (see example below)
• Access Code (see example below)
NOTE: Label depicted here is an example.
Please see label on your product for actual model/date code/access code.
Date Code:
0000
Access Code:
Xxxxxxxx
XXXXX
RJ38-4T-SERIES_UG_LIVE_120925.indd 19RJ38-4T-SERIES_UG_LIVE_120925.indd 19 12/9/25 3:21 PM12/9/25 3:21 PM
RJ384TSERIESUG120925
TurboFry® Touch
4-Quart Digital Air Fryer
Chefman® is a registered trademark of RJ Brands, LLC.
TurboFry® is a registered trademark of RJ Brands, LLC.
RJ38-4T-SERIES_UG_LIVE_120925.indd 20RJ38-4T-SERIES_UG_LIVE_120925.indd 20 12/9/25 3:21 PM12/9/25 3:21 PM
